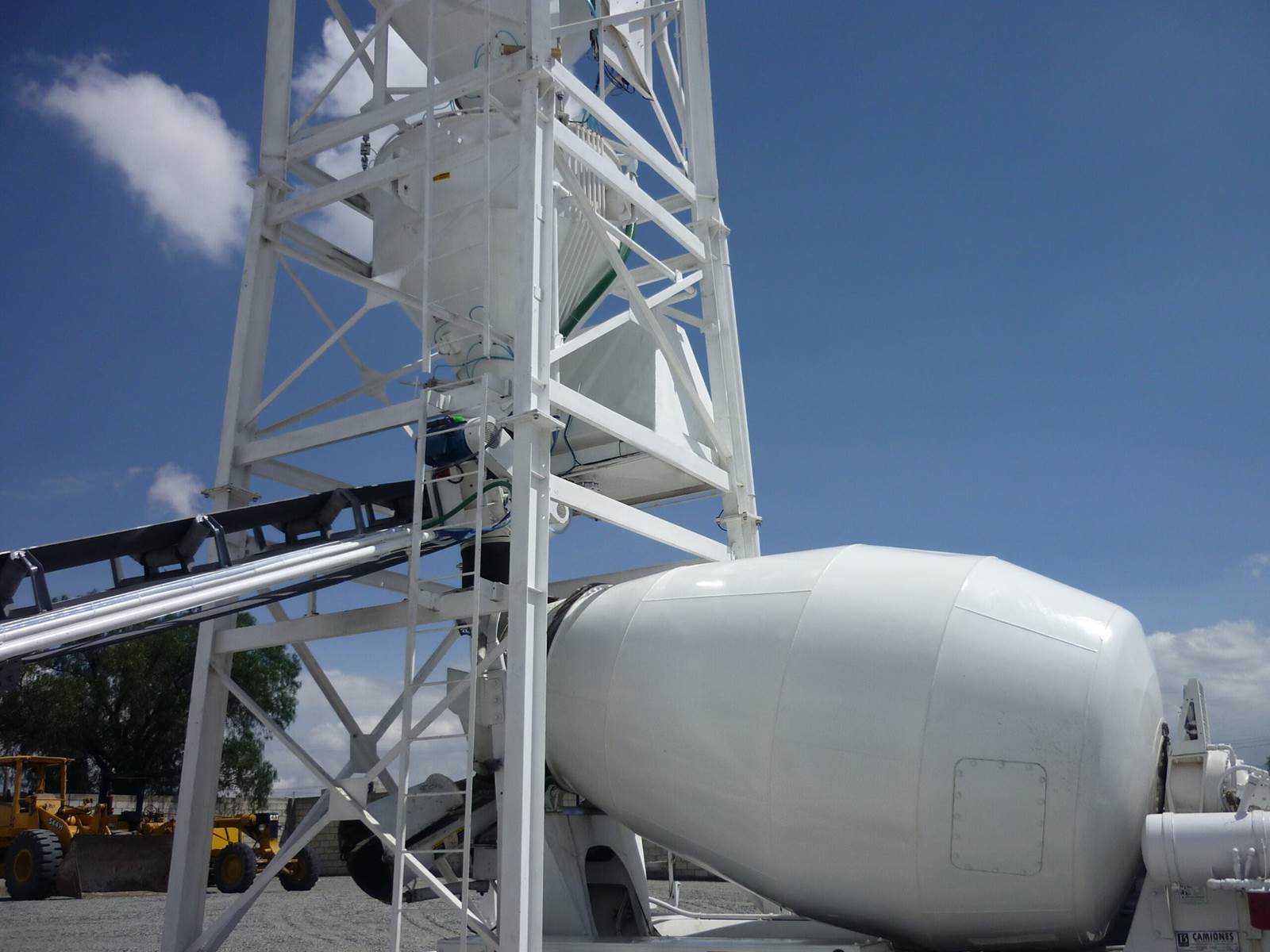

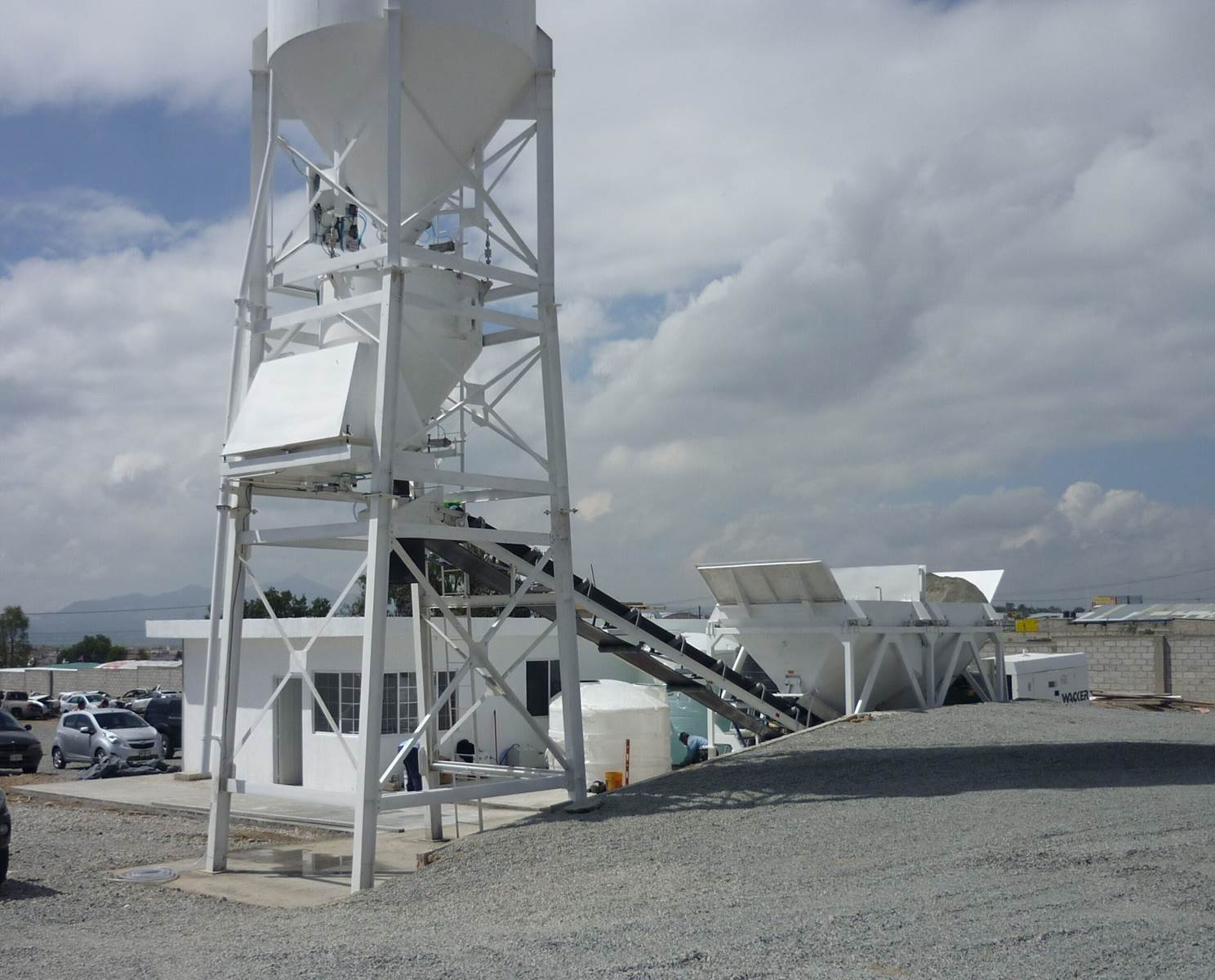

NEW 2025 CONQUEST MFG STATIONARY DRY CONCRETE BATCH PLANT
This model has a production capacity, considering concrete dispatch times of
70 yd3/hr (7 pots of 10 yd per hour),
100 TON (750 BBL - 4,200 CU FT) cylindrical cement silo
MANUAL CONTROLS INCLUDED
COMPUTER ALKON COMMANDbatch COMPUTER OPTIONAL (NOT INCLUDED)
MODEL: CQ4. STATIONARY DECUMULATIVE
AGGREGATE BATCHER
2 Aggregate scales for 36 TON 10yd3 per batch.
2 independent compartments, one of 14 Ton (11.7 yd3) and another of 22 Ton (18 yd3), each supported by 4
®ANYLOAD bar-type load cells of 10Klb. With double clamshell gates, 3/4" thick gear with bronze bushing and easy access structure for maintenance. ®SMC pneumatic valves and pistons, low noise vibrator for material removal in the sand section. All in 1/4" thick A-36 steel.
MIXER TRUCK LOADING BELT CONVEYOR
30 inch wide conveyor belt with 3 layers 3/16 top, 1/16 bottom 220 PIW. High abrasion resistant vulcanized rubber coated drum type drive pulley with ®JIV reducer direct to ®WEG motor shaft of 15 hp. Self-cleaning squirrel cage of 12"" diameter. ®RamsaCarrier high impact sealed loading and return rollers. And wide discharge chute. 22" diameter.
GRAVITY CEMENT STORAGE SILO (100 TON)
750 BBL - 4,200 CU FT (gross capacity) cylindrical cement silo. With inspection hatch, access ladder to the top and internal maintenance ladder. 4" filling line, 8 aerators in the silo cone, 10" diameter discharge gate and manual sliding gate for maintenance and emergency (guillotine). Flange for level sensor placement, base for dust collector, guards and handrails on top of silo and stairs. Work platform in cement dosing area. IPR beam structure. All in 3/16" thick A-36 steel.
FILTER
Dust filter system for silo air filtration with 6 cartridges with pulse jet cleaning system.
CEMENT BATCHER
116 CU FT - 10.5 yd3 cement scale for batching. Supported by 3 ®ANYLOAD type S cells of 5 Klb, 4 Ton capacity. Aeration system and pneumatic cone vibrator. 8"" pneumatic manifold and gate, with ®SMC valves and pistons. All in 1/8"" and 3/16"" thick A-36 steel.
WATER SYSTEM
520 GAL water scale. Supported with 3 ®ANYLOAD cells and 4" diameter pneumatic gate for free liquid fall. ®SMC valves and pistons.
3" diameter water pump. With a dosing capacity of 350 gpm. 5 hp strength.
1½" diameter water pump. For truck loading (cleaning) 1 hp power. The pumps are delivered coupled to a feed tank system and bottle coupling for a 3" diameter hose for quick coupling.
BATCH CONTROL SYSTEM
Manual control panel. With ®KLH electronic weight indicators for each scale, water totalizer if required. Indicator lights for opening of gates on scales.
Electrical switchboard. On-site with contactors and electromagnetic switches per motor and general disconnection system using high-range fuses. Siemens® control transformer, connectors that can be connected to the general switchboard with control cable and pneumatic system.
100 ft. of control cable. Fully numbered or color coded with quick connect assembly to control board.
RECIPROCATING AIR COMPRESSOR
175 psi with 480 L ®ITSA tank. 15hp ®WEG motor. Includes low oil level sensor.
Delivery Estimated time: 8 weeks
