Product Description

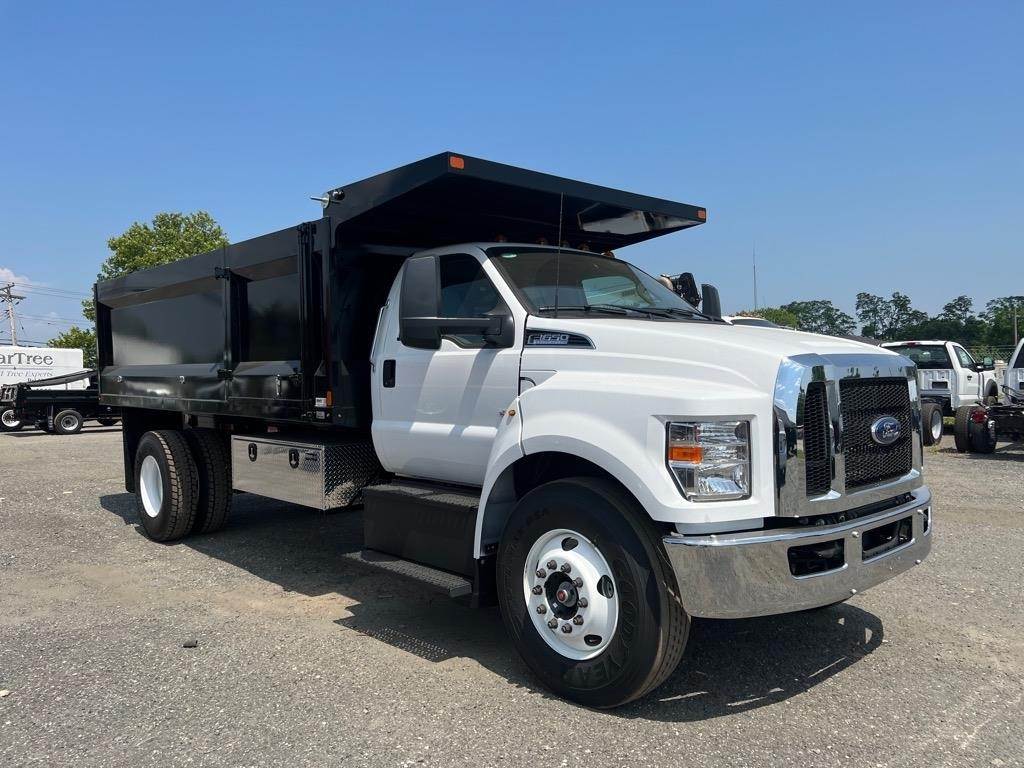

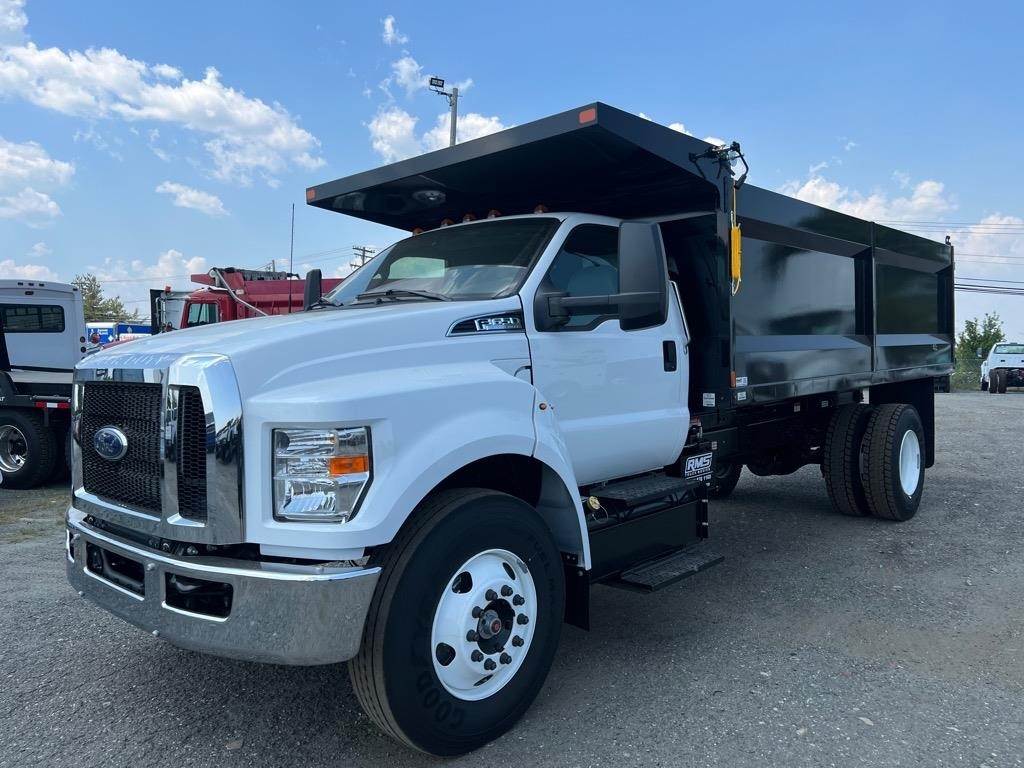

New 2024 Ford F-650 Regular Cab
Vehicle Specifications
Model Year: 2024
Model: Ford F-650 Regular Cab
VIN: 1FDNF6AN2RDF03404
Exterior Color: Oxford White Solid
Interior Color: Steel Gray with Vinyl Structure
Engine & Drivetrain
Engine: 7.3L 2V DEVCT NA PFI V8 Gasoline
Transmission: 6-Speed Automatic Transmission (6R140)
Drive Type: 2WHL L/H Rear Drive
Axle Ratio: 6.14 Final Drive Ratio
Emissions: 50 State Emission Requirements
Axles & Suspension
Front Axle: 8,500 lb capacity
Rear Axle: 19,000 lb capacity, single speed, open style
Front Suspension: Spring capacity 10,000 lbs, taper leaf, standard duty dual front shock absorbers, front stabilizer bar
Rear Suspension: Spring capacity 19,000 lbs, multi-leaf with auxiliary rear spring aid
Lubrication: Front wheel synthetic oil, rear axle/wheel synthetic oil
Chassis Specifications
Wheelbase: 260"
GVWR: 25,999 lbs
Configuration: Straight Truck
Frame: Steel 14.18 S/M-120K PSI with square cut frame ends
Brakes: Power 4-wheel disc brakes with hydraulic brake system protection
Parking Brake: Mechanical hand operated
Fuel System
Fuel Tank: Left side 50 gallon cylindrical steel tank
Fuel Type: Unleaded gasoline capability
Fuel Fill: Normal fuel fill
Wheels & Tires
Front Wheels: 22.5 x 8.25 steel wheel
Rear Wheels: 22.5 x 8.25 steel disc wheel (10 hole)
Front Tires: Goodyear Fuel Max RSA 11R22.5G
Rear Tires: Goodyear Fuel Max RTD 11.00R x 22.5-14 tubeless

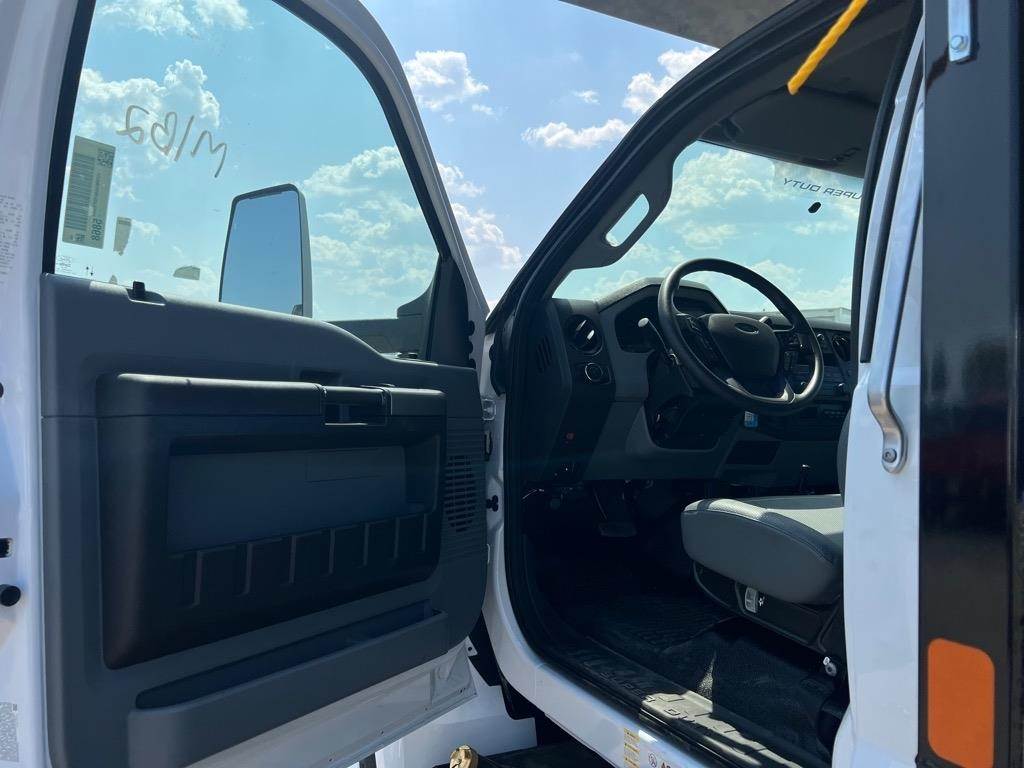

Cab & Interior Features
Cab Style: Regular Cab
Air Conditioning: Manual air conditioner

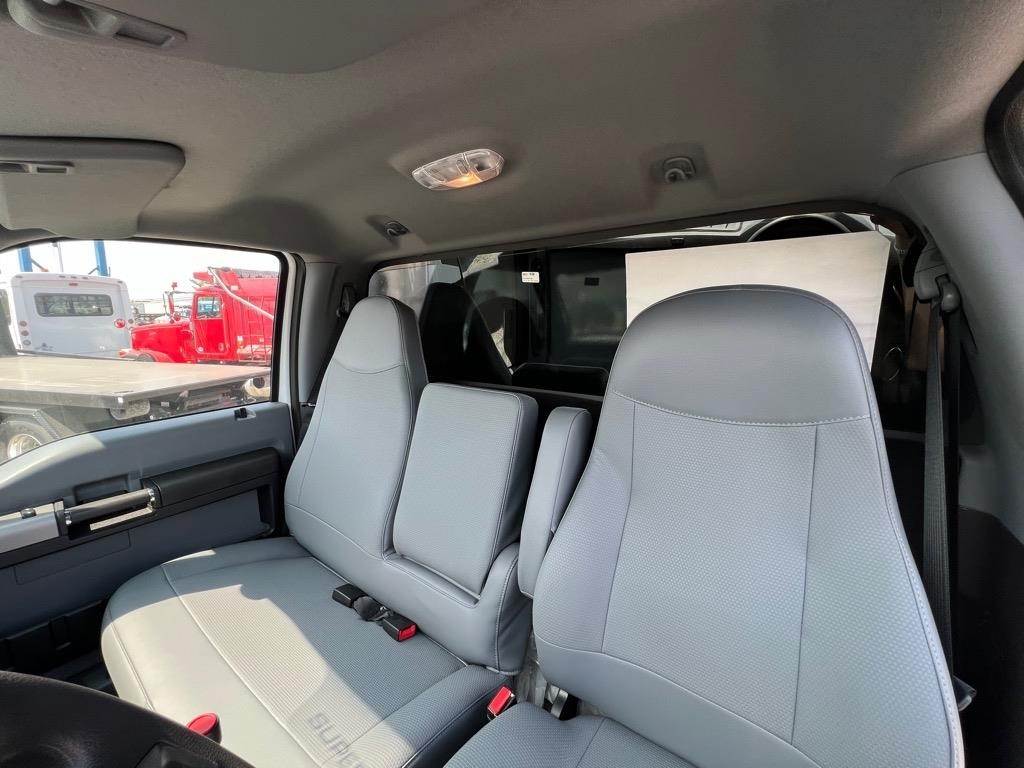

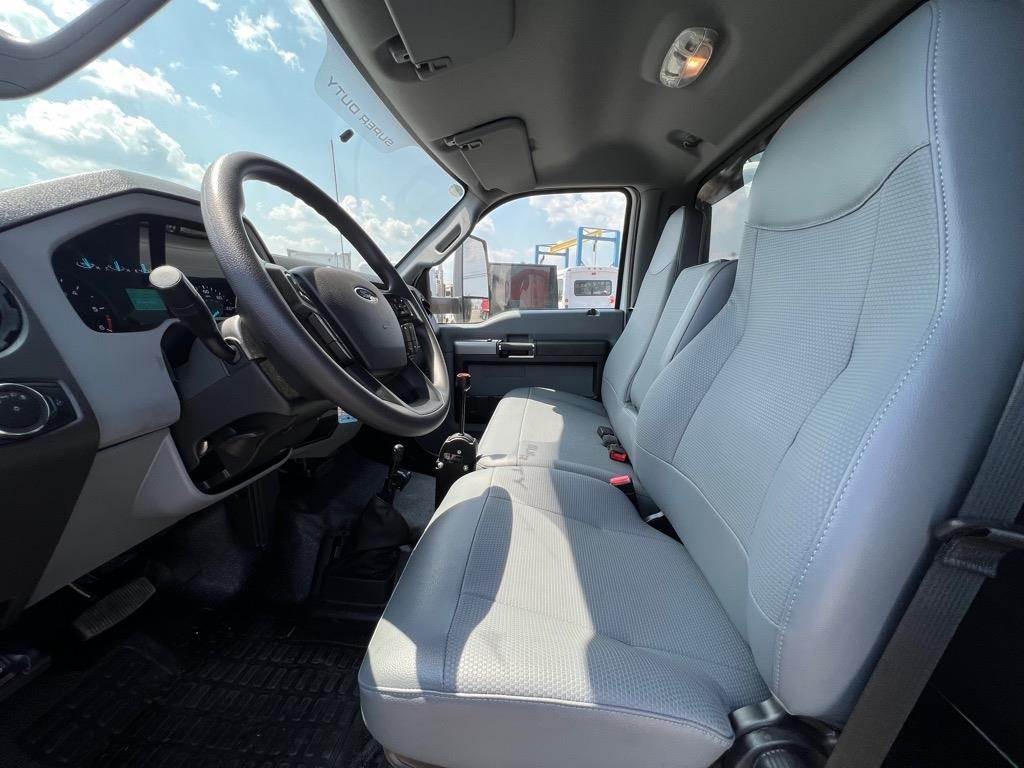

Seating: Standard individual high back driver seat, dual passenger high back seats
Floor Covering: Vinyl insert complete

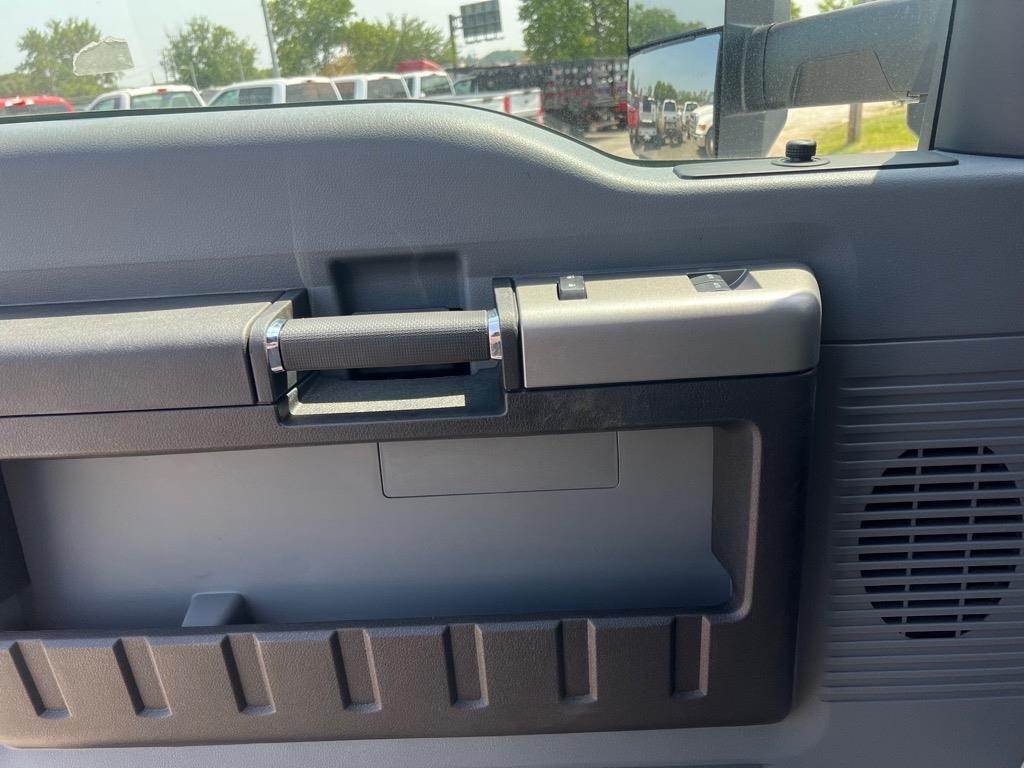

Door Trim: Level 2 door trim panels
Windows: Power front side windows, fixed rear window
Mirrors: DU 90.10 S/T 96W power adjustable black finish
Door Locks: Power door locks
Steering: Gear shift interlock key

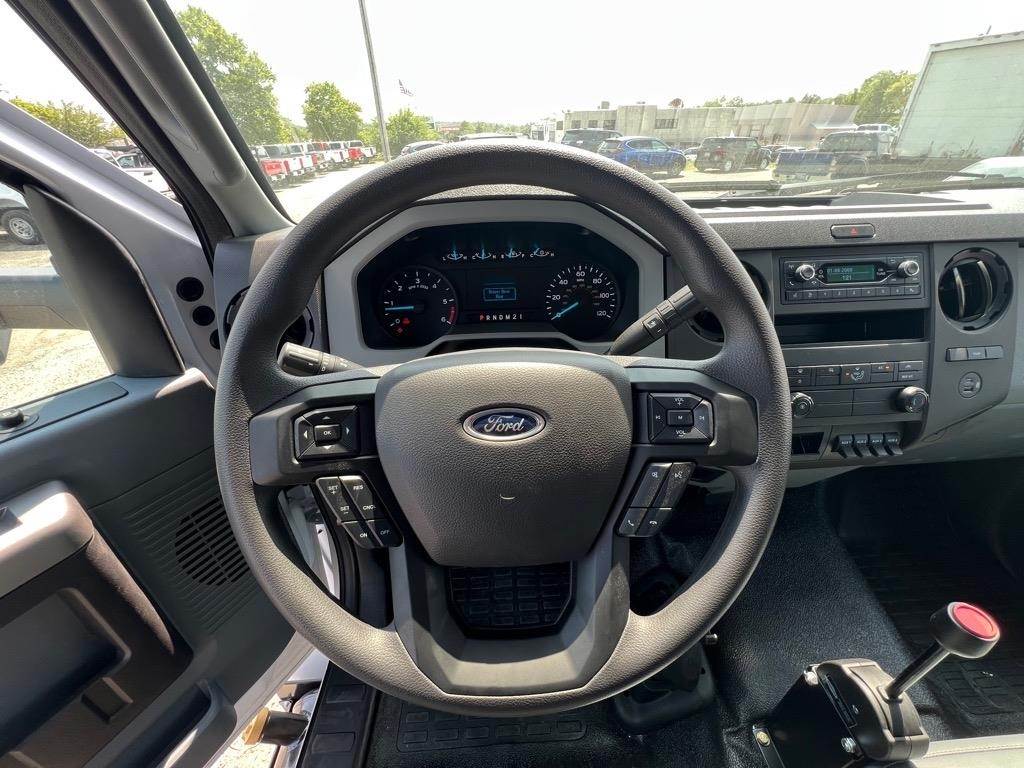

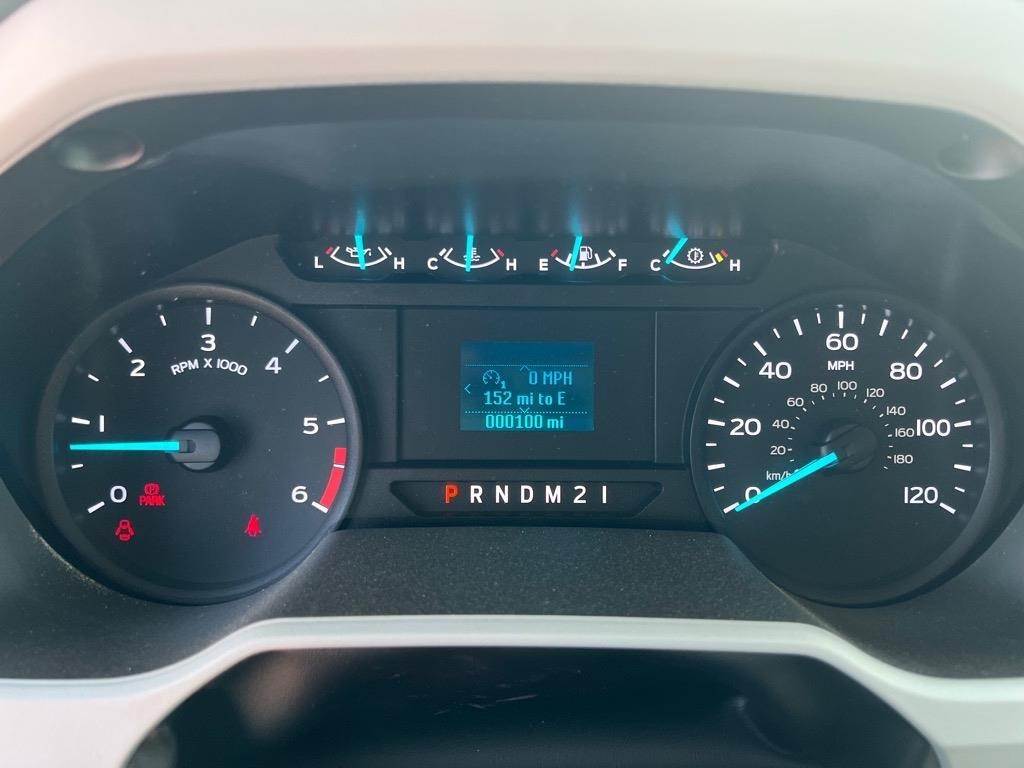

Instrumentation: Instrumentation Pack #2 with voltmeter, MPH/KPH speedometer, oil maintenance minder, PRNDM indicator with select shift
Exterior Features

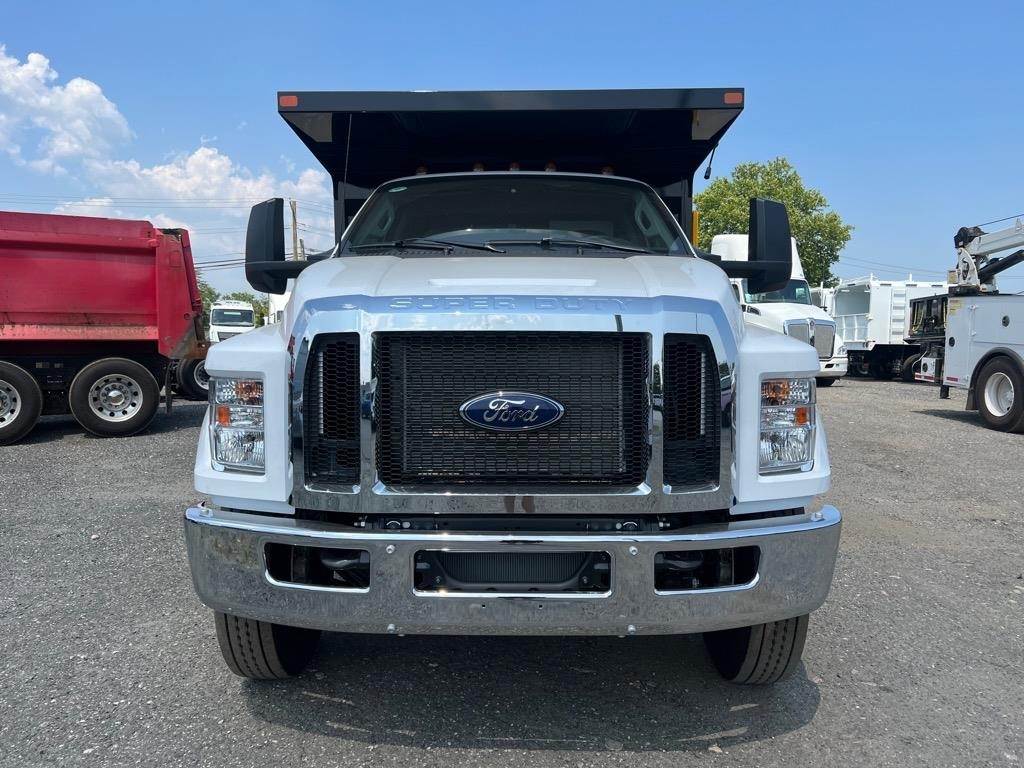

Grille: Chrome grille
Bumper: Steel chromed front bumper
Fender Badge: Standard fender badge
Towing: Front towing hooks
Exhaust: Single horizontal plain muffler/pipe - right hand
Lighting: Aero headlamps, automatic headlamp control off, daytime running lamps level 2, roof marker/clearance lights conventional, taillamps level 2
Trailer: 7-way combined circuits

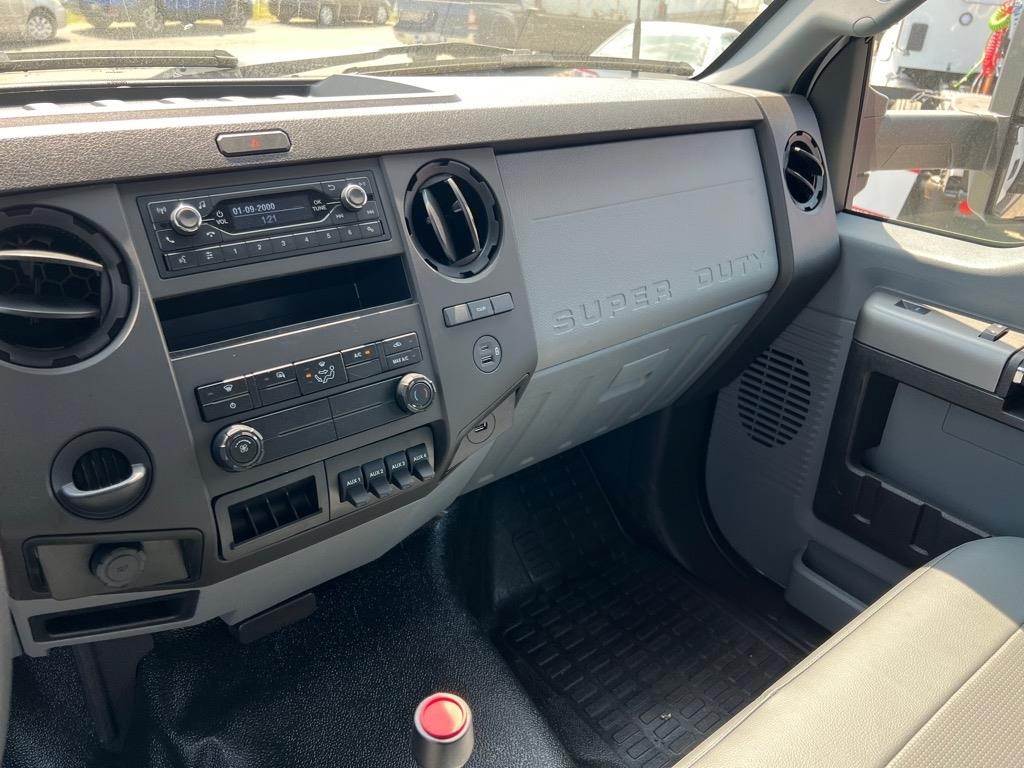

Audio & Electronics

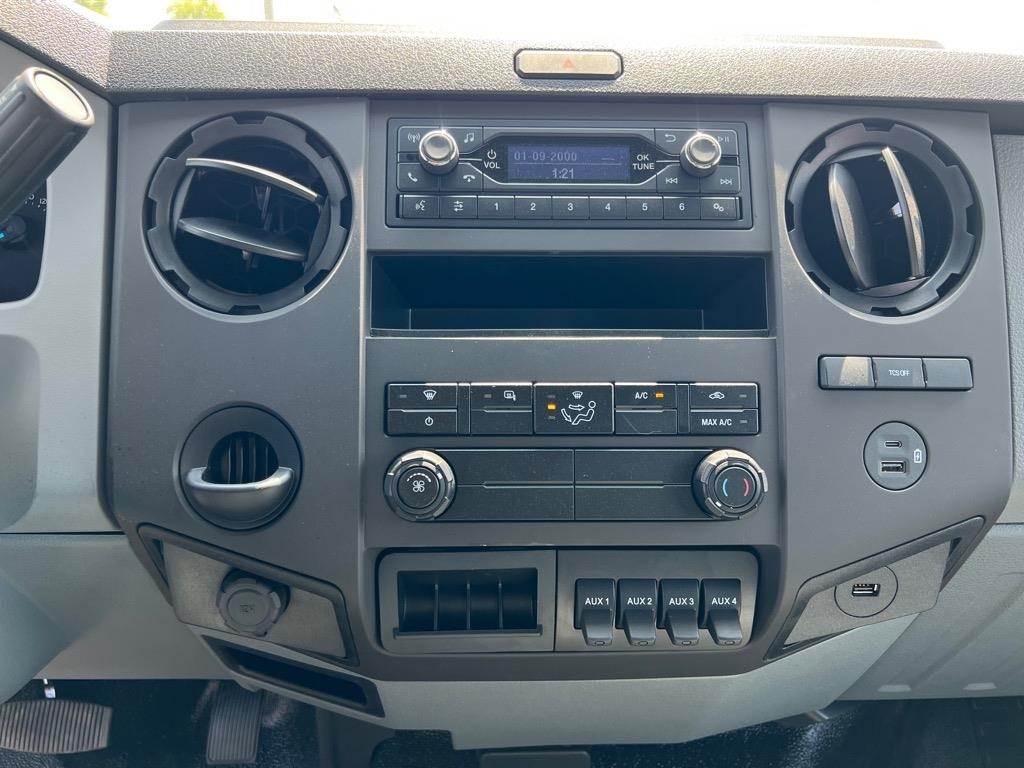

Radio: Electronic AM/FM/Stereo/Clock
Speakers: 4 radio speakers
Phone Interface: Phone interface system without hot spot
Wiring: Wiring prep pack #2
Switches: 4 spare accessory switches
Remote Start: Jump start stud - remote mounted
Additional Features
Speed Control: Cruise control
Reverse Alarm: Reverse gear alarm
Transmission: Power takeoff package, tow-haul default off
Battery: Heavy duty alternator with 900CCA battery, right hand frame mounted under cab
Stability Control: Electronic stability brake control, brake/engine intervention anti-spin traction brake
Hill Assist: Hill launch assist
Safety: Manual belts without air bags

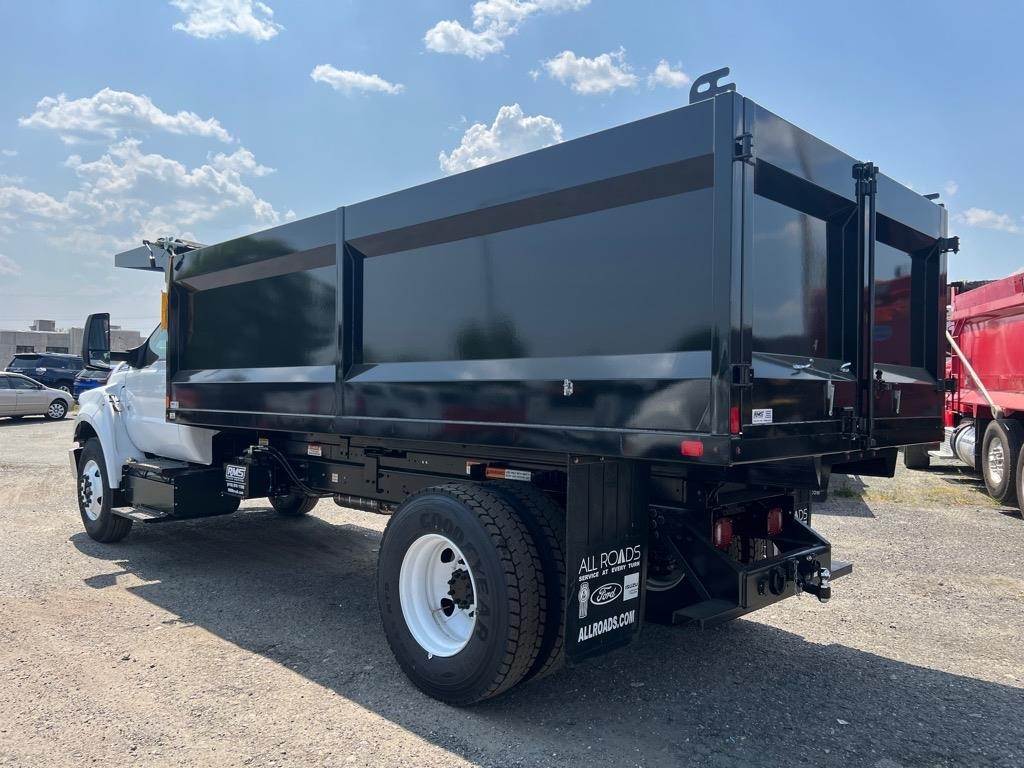

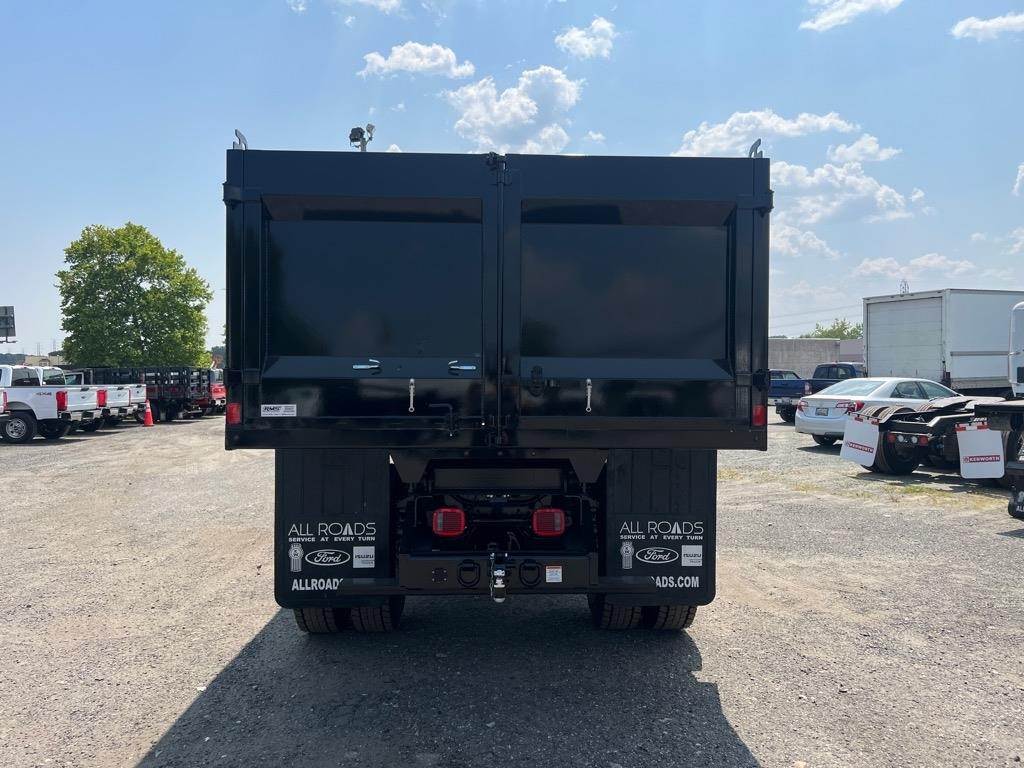

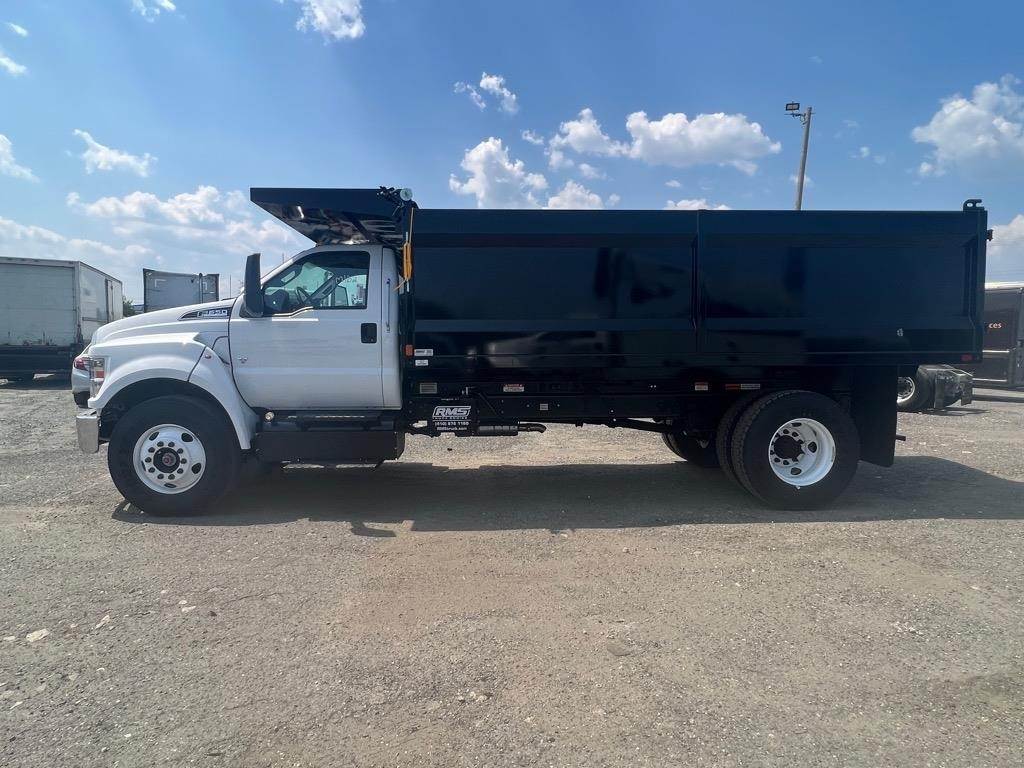

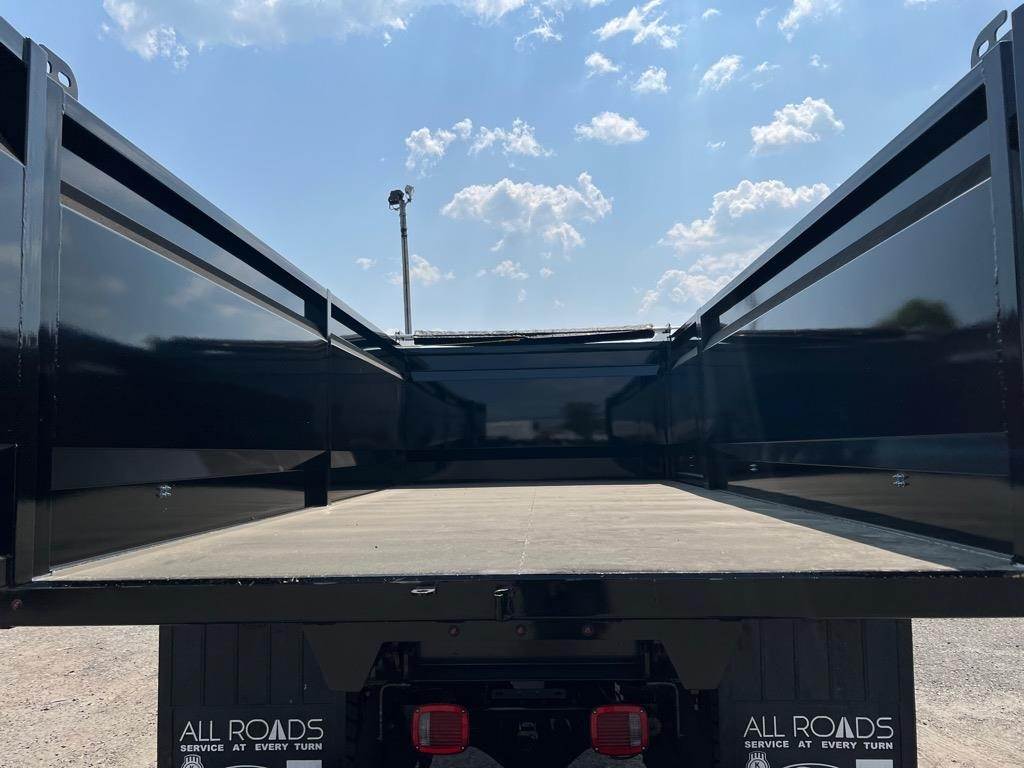

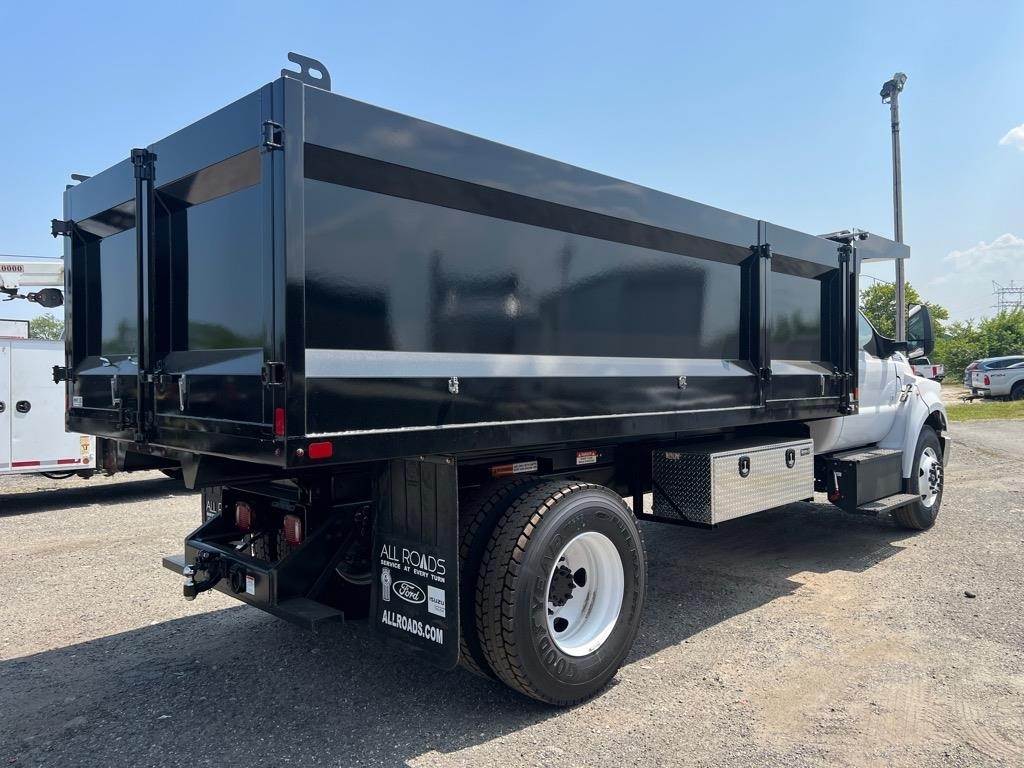

Landscape / Trash Dump Body: Heavy‑duty steel construction measuring 96 in wide by 16 ft 6 in long and engineered for landscape and refuse work. Features include 48 in high weld‑on side panels with barn‑door rear gates, a 50 in curb‑side access door, a 36 in cab shield, an LED marker‑light kit with integrated wiring harness and a high‑gloss black finish.

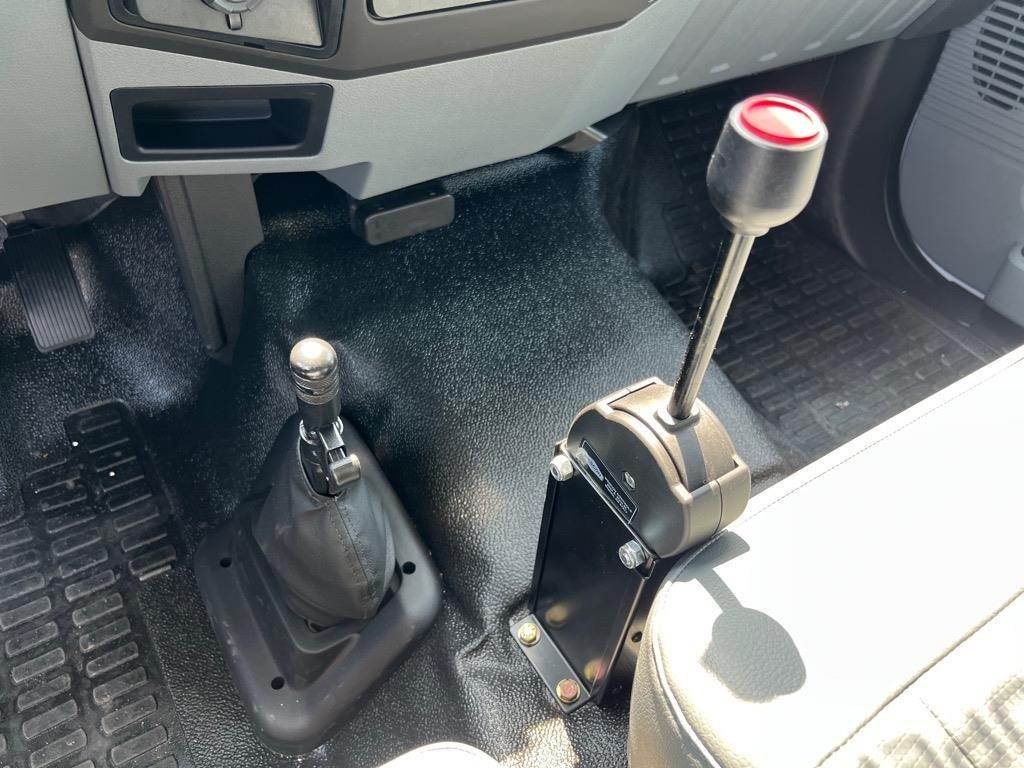

Power & Hoist System: A hot‑shift PTO package is configured for gas‑engine automatic transmissions (requires correct PTO code at chassis order). The Champion model CS6620T P22‑8C twin‑cylinder hoist, paired with a 21‑quart tank, pump and valve on a 5 in sub‑frame, delivers roughly 18.4 ton capacity with a 45‑degree dump angle and an 18 in overhang.

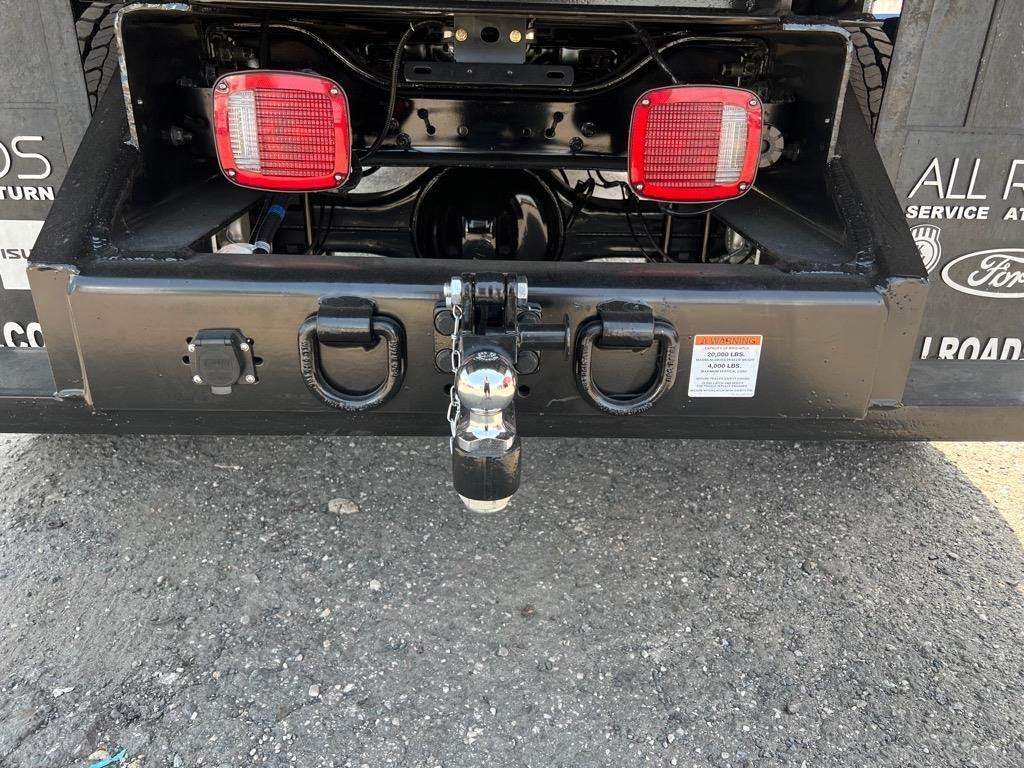

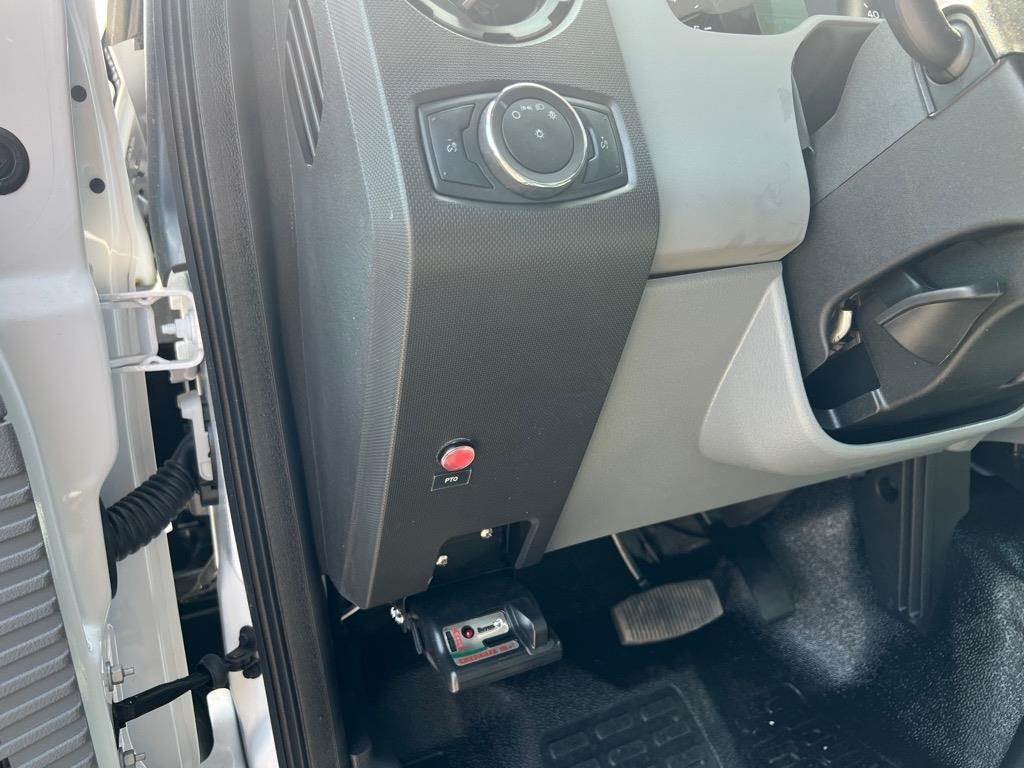

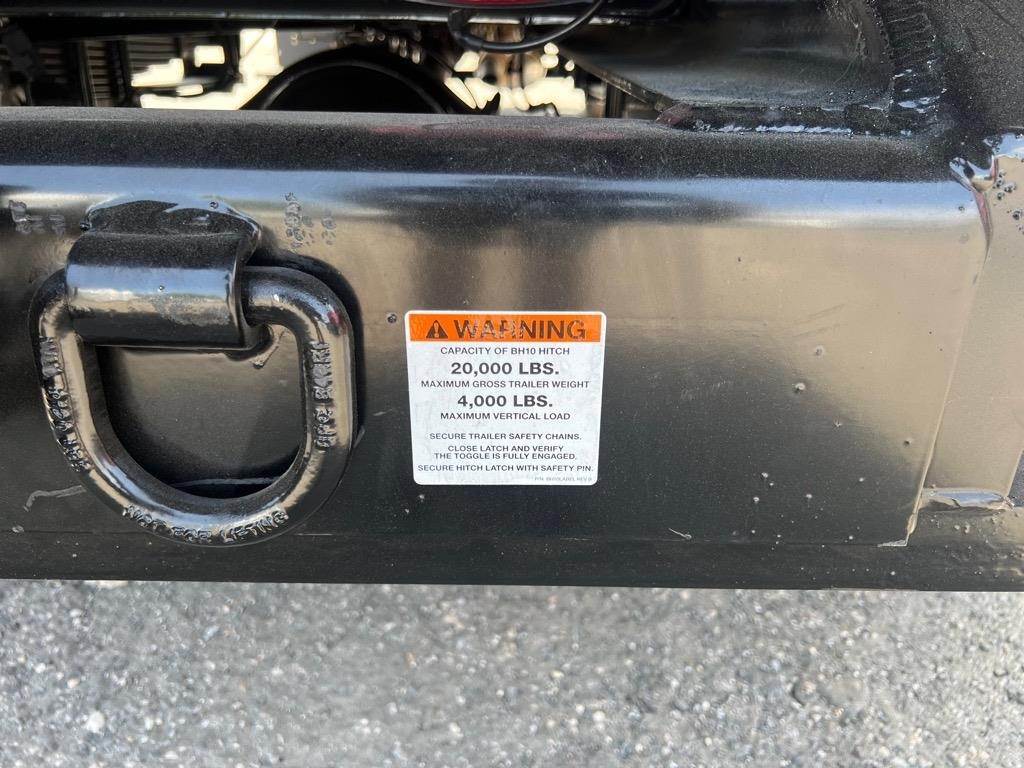

Trailer Tow & Safety Package: Includes a flatbed‑style dump hitch‑plate bumper with safety D‑rings, a 10‑ton combination hitch using a 2 5⁄16 in ball with trailer plug and a cab‑mounted electric trailer‑brake controller for integrated stopping power.

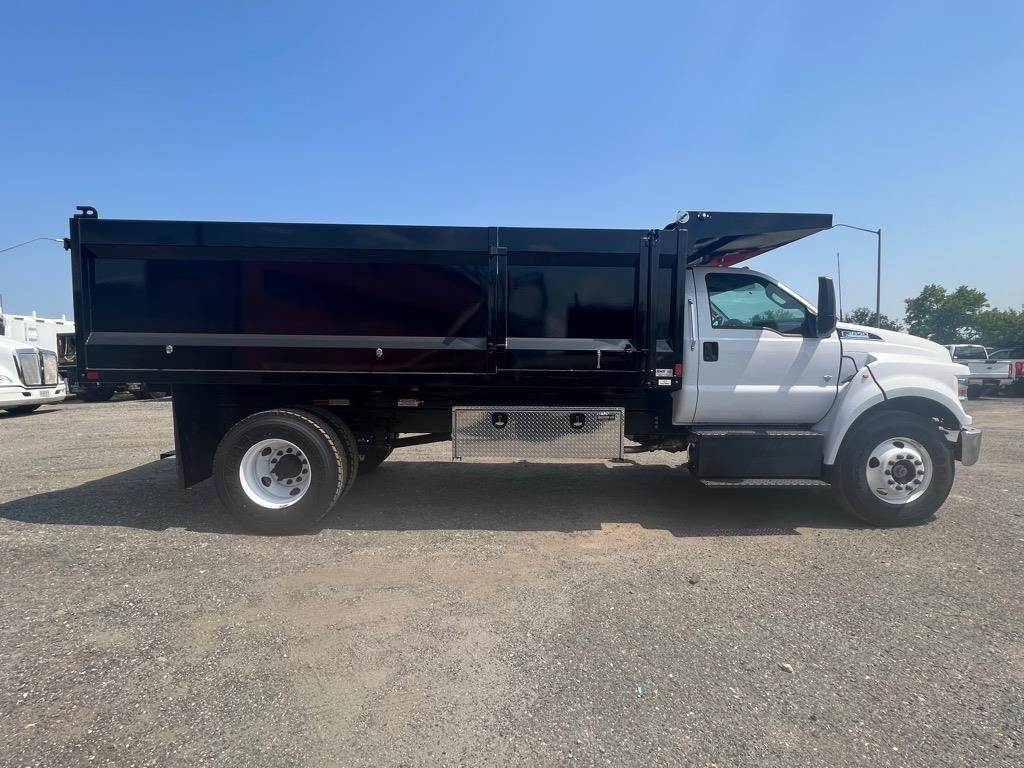

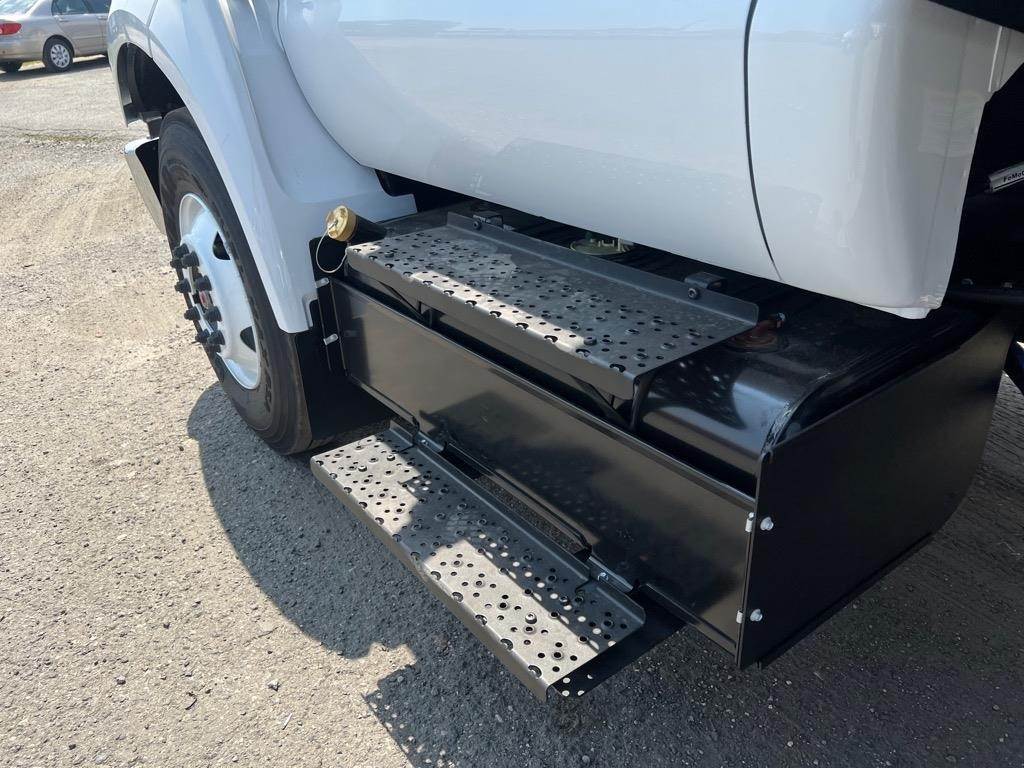

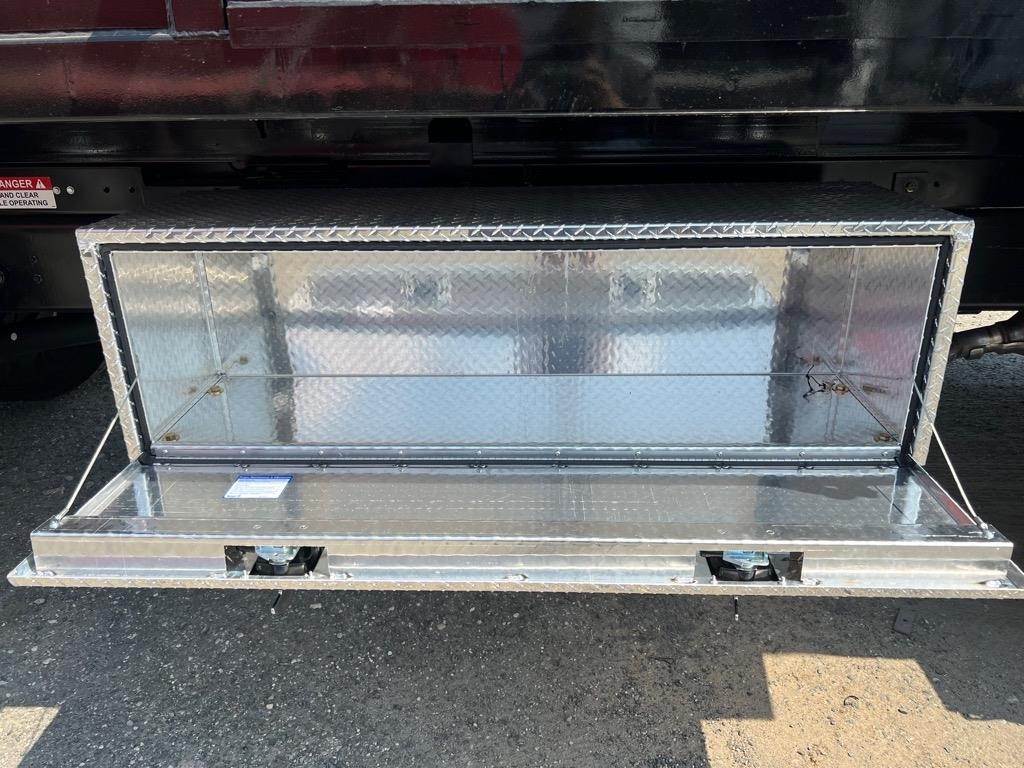

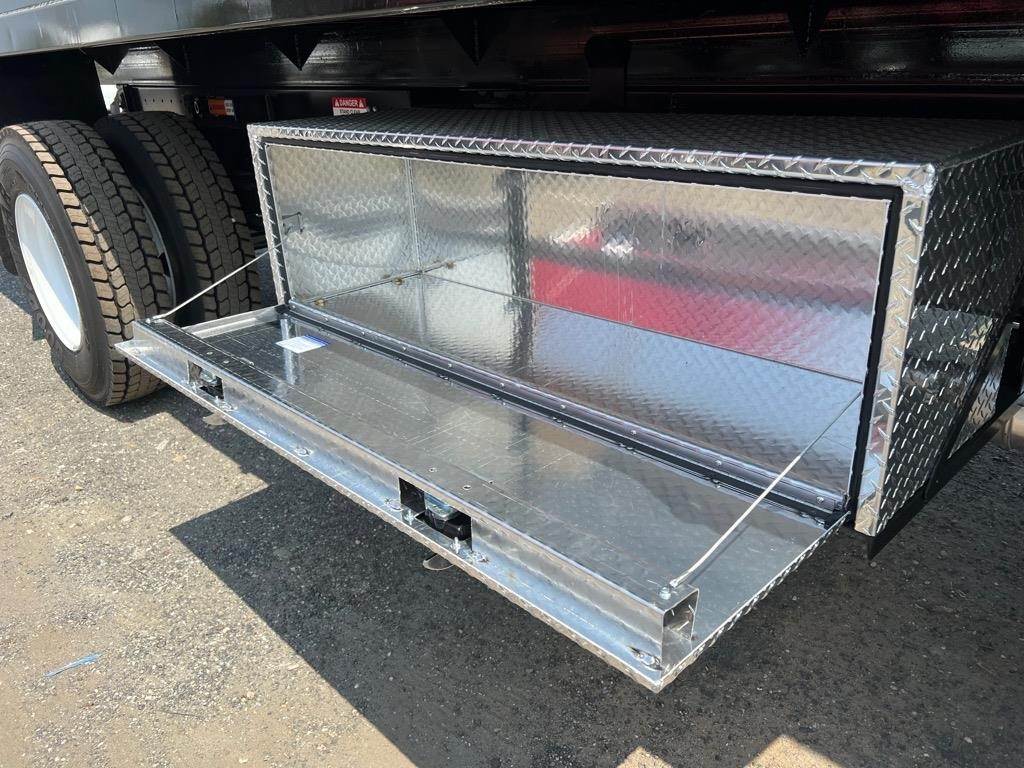

Convenience & Protection: A manual mesh‑tarp roller kit with anti‑sail bar secures loads, while a bright aluminum underbody toolbox measuring 18 in by 18 in by 60 in is factory‑installed on the passenger side.
