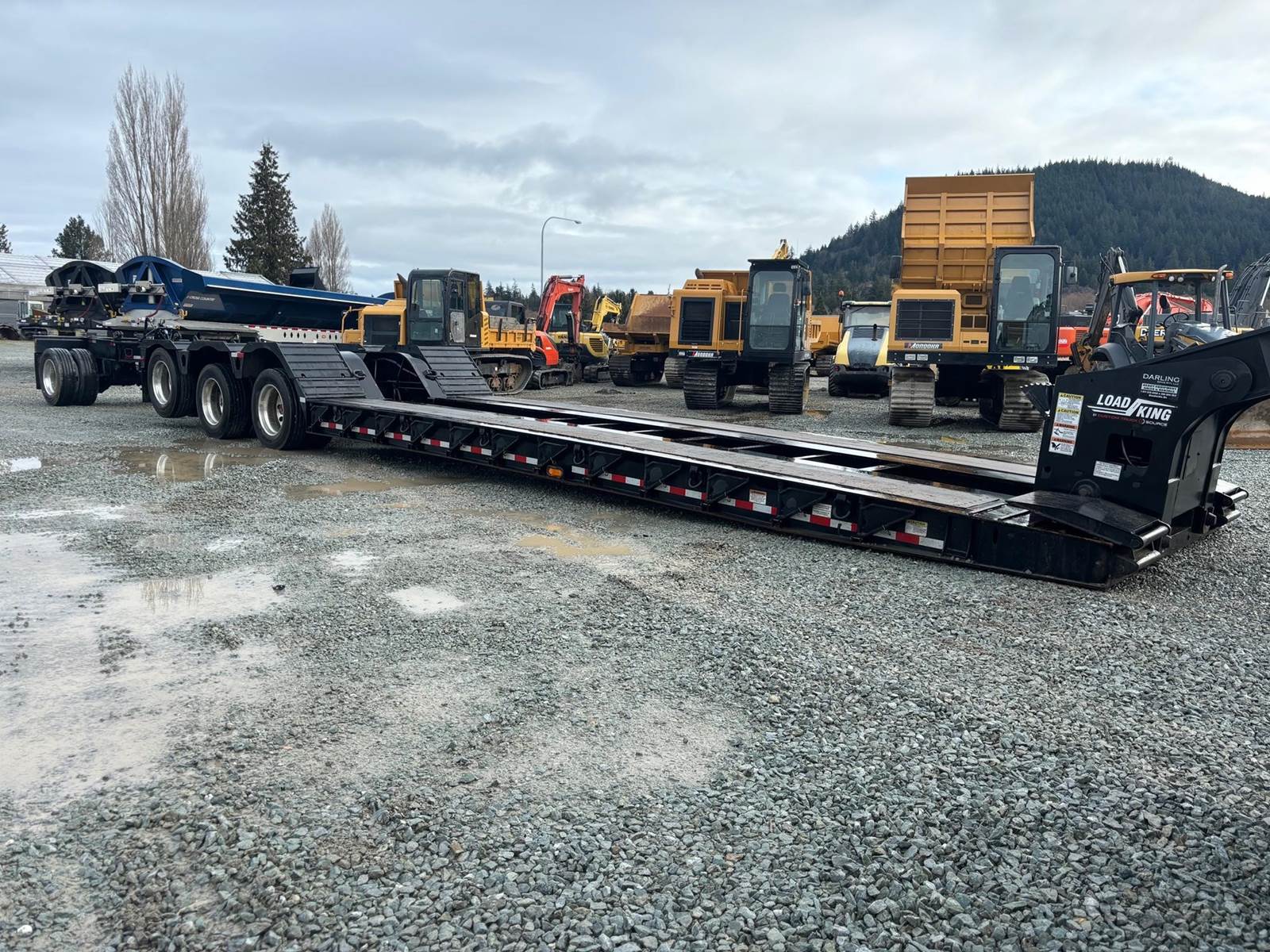

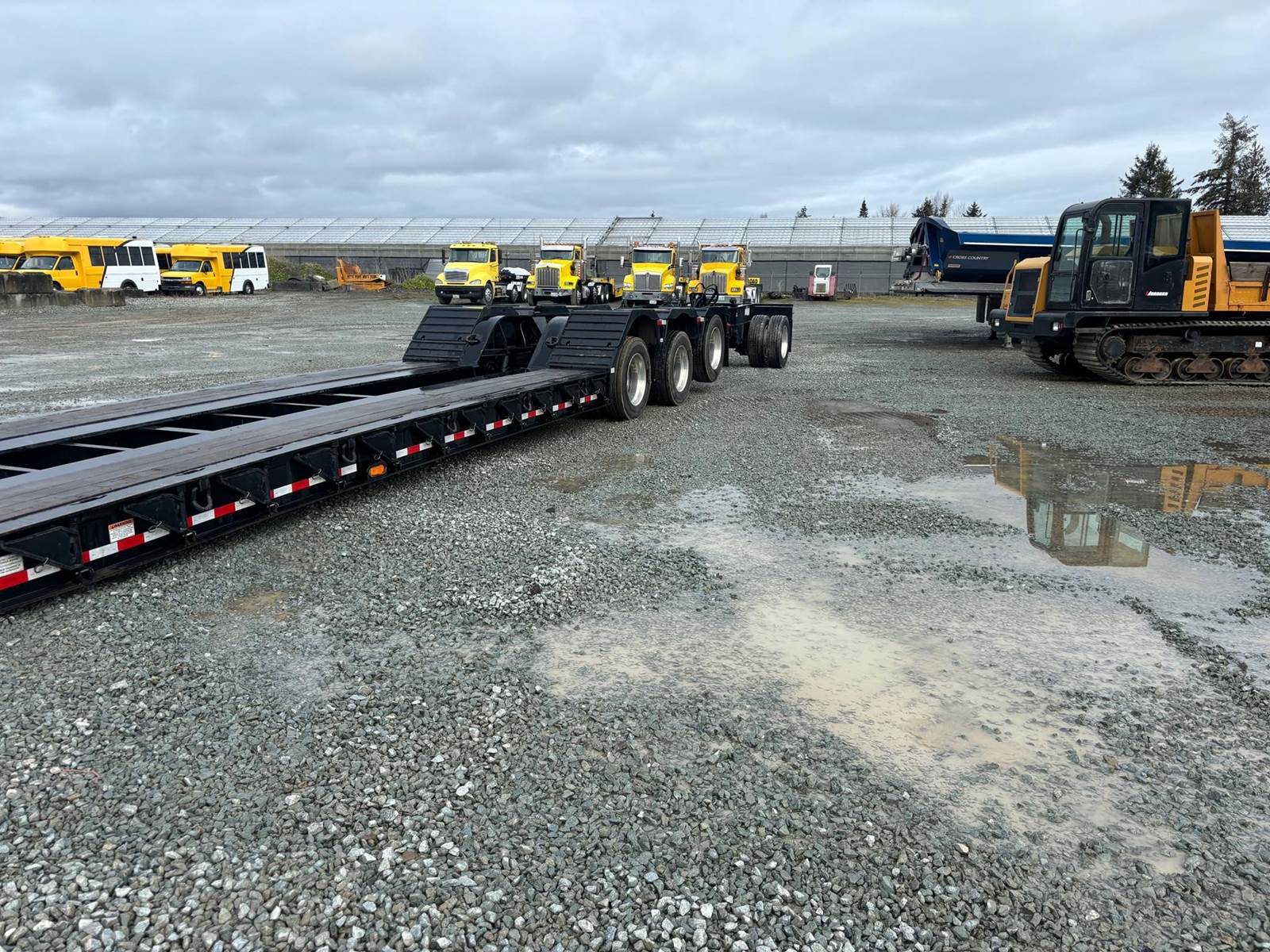

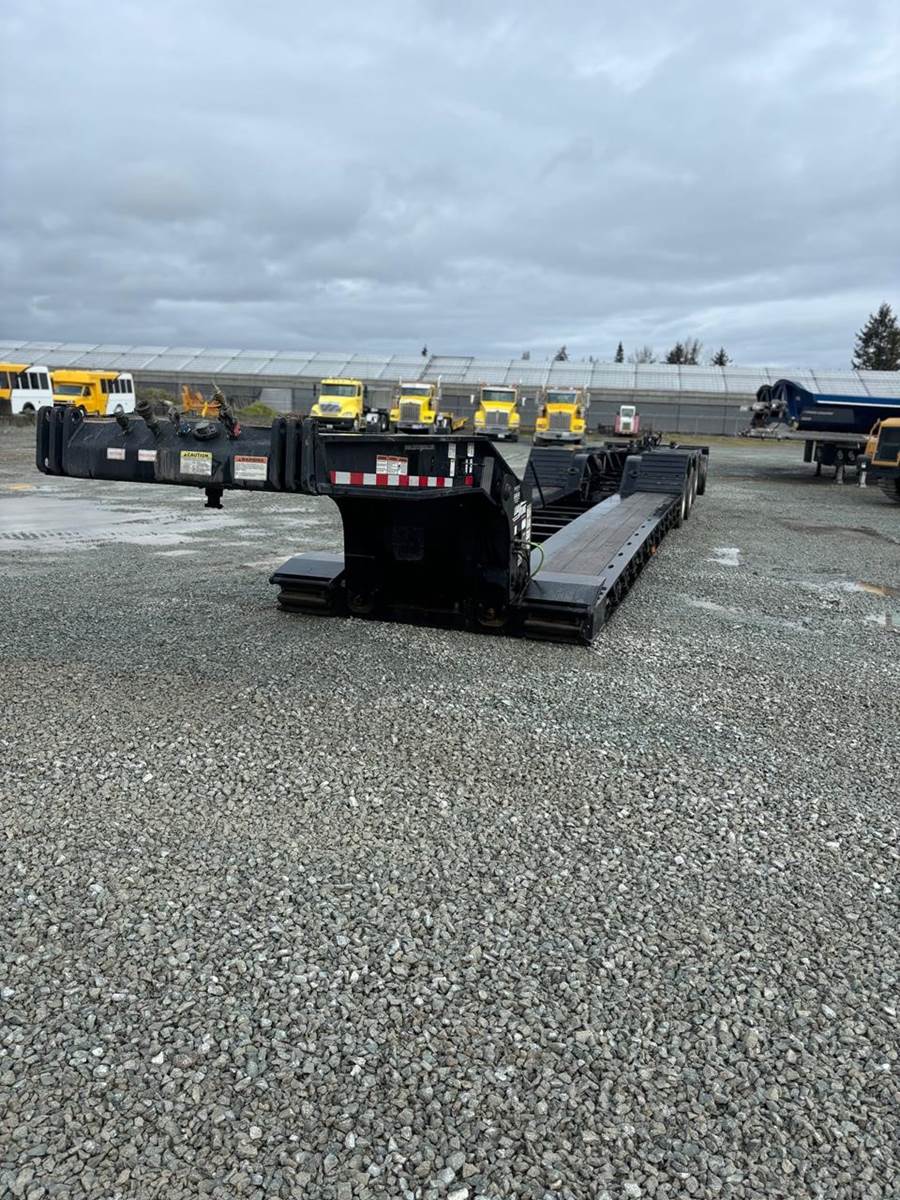

2024 Load King 60 TON LOWBOY LDH Lowboy Trailer

2024 Loadking 60 ton lowboy trailer, 8ft 6 in wide, 20" loaded deck height, wheel well covers, $119,500 for base trailer, $35,0000 additional for spreader bar and booster

General

120,000# capacity in 12 load concentration with stinger
100,000/80,000 psi yield steel mainbeams
Overall Length 52′-11″ not including attachments
Est. Weight 26,130 lbs. not including attachments
102″ wide (deck and axles)
Hendrickson Air-Ride

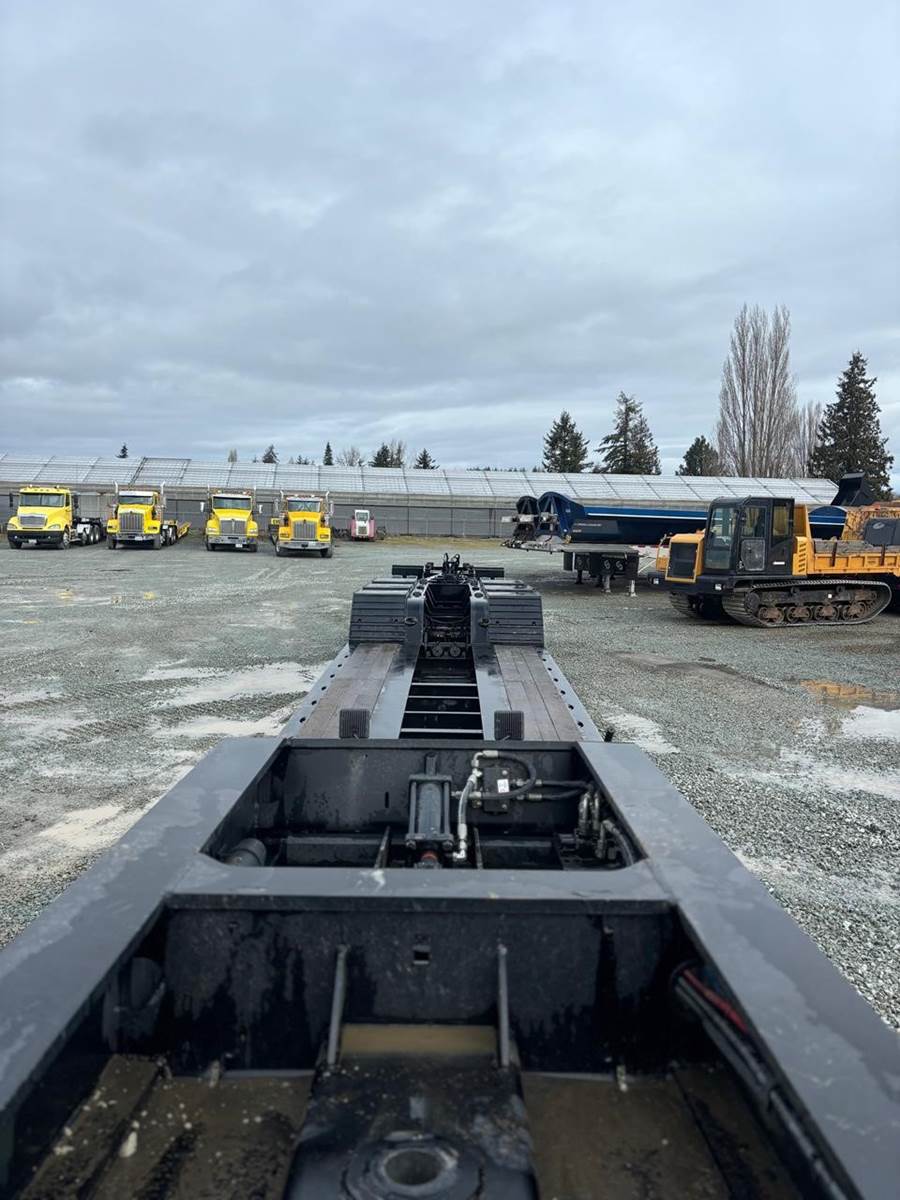

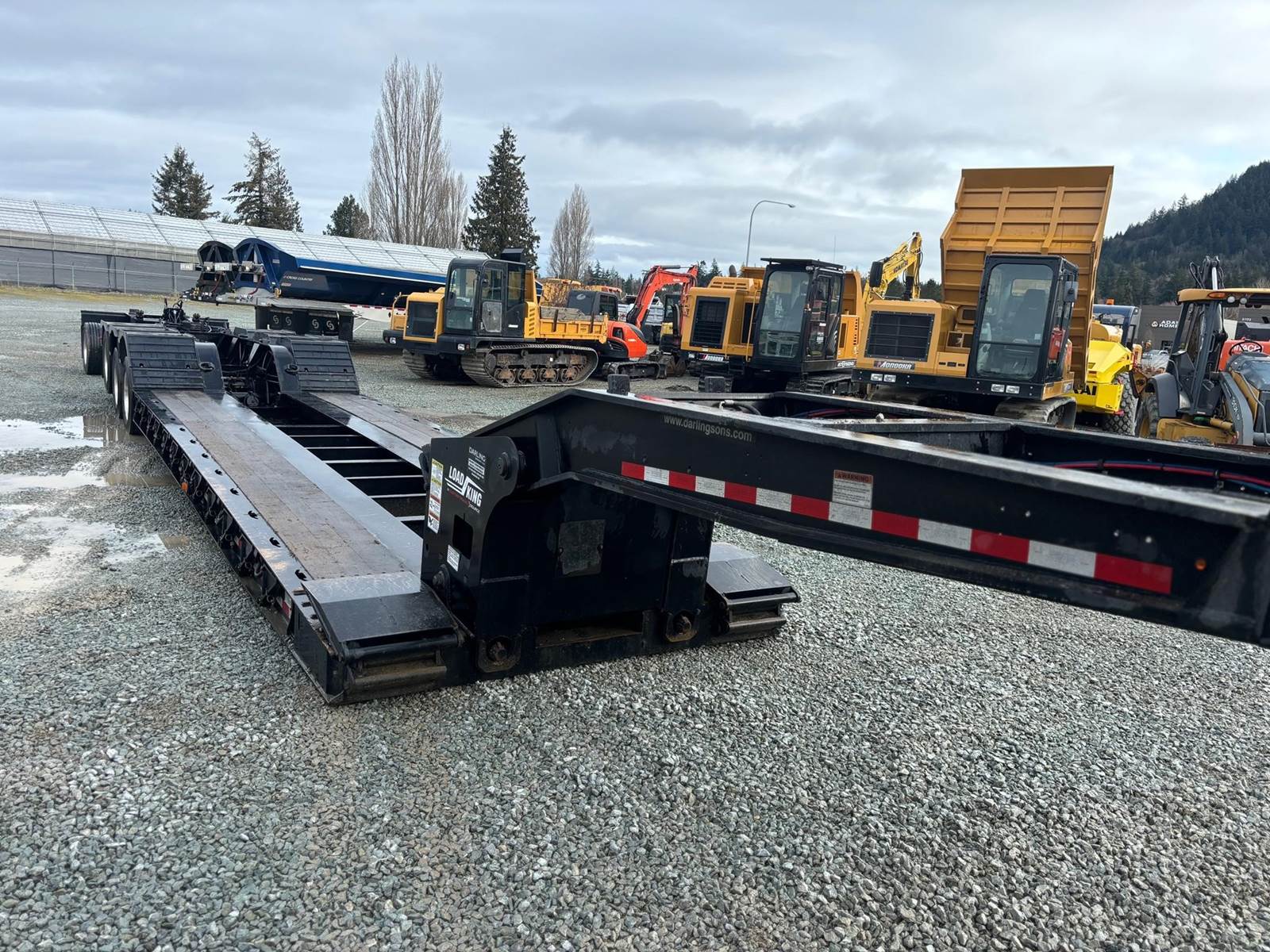

Gooseneck

Hydraulic non-ground bearing Scraper neck
Work lights on gooseneck
12′-9″ 110″ & 86″ swing w/conn for 36″ flip box, 146″ swing
51″ 5th wheel height – adjustable with 5 position ratchet
High clearance frame recess with hydraulic frame lift support arm
Air-activated, self-locking pin gooseneck. Positive safety lock

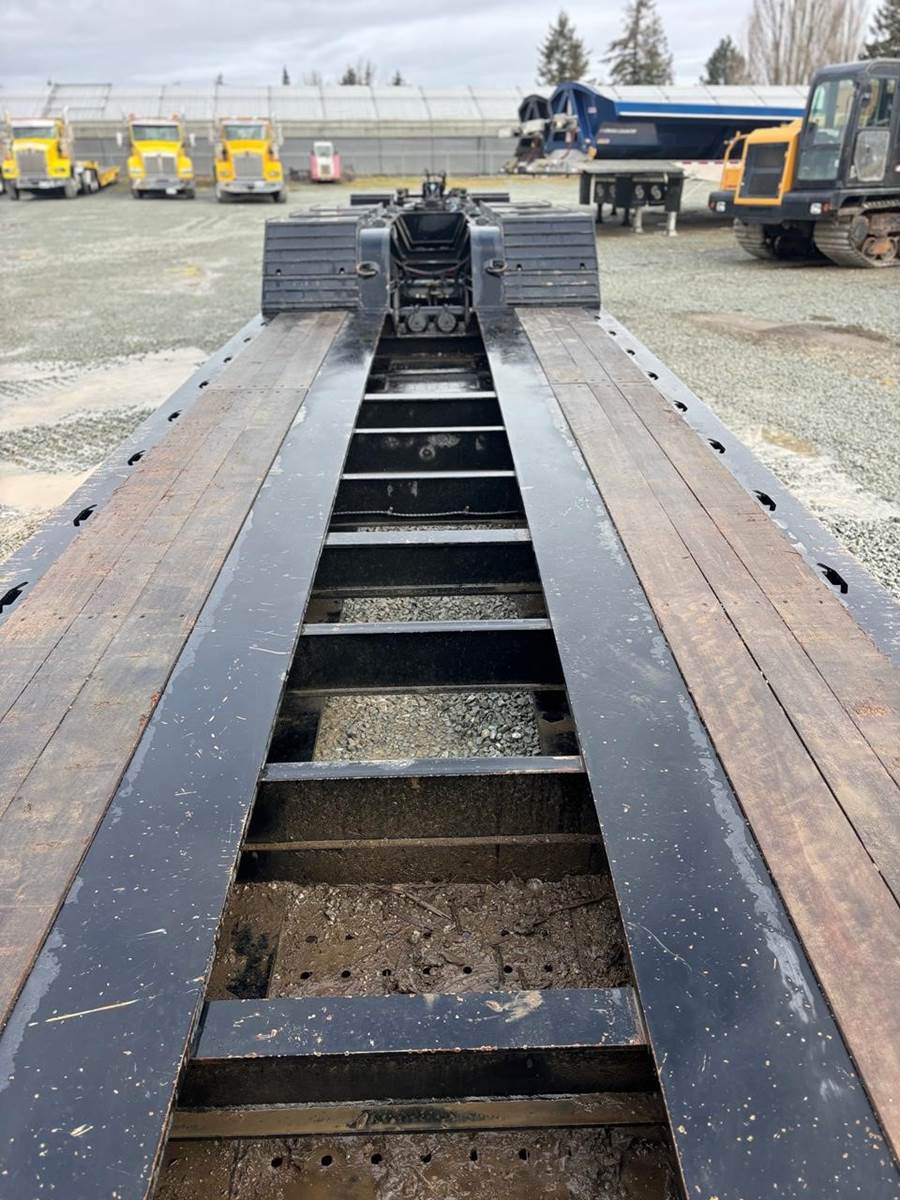

Deck

4 full depth 14″ cambered deck beams
26′ deck length – flat
13 Pair chain slots in outer flanges
Alternating 8″ & 4″ crossmembers on 12″ centers
20″ loaded deck height with 6″ loaded ground clearance
2″ nominal in track area bolted at all board ends
Open in center of deck
Outriggers 13 pair swing out – removable
Box Front Approach & Upper Flange Reinforcement
Bent D-Rings – 6 per side, mounted to Reinforcement
Recessed last 8′ of deck with pierced steel plate
Pierced Steel tool box – 60″ at front
30″ front flip ramps – bridge style spring assisted.
39 degree radius to subframe – ramp to subframe
Subframe

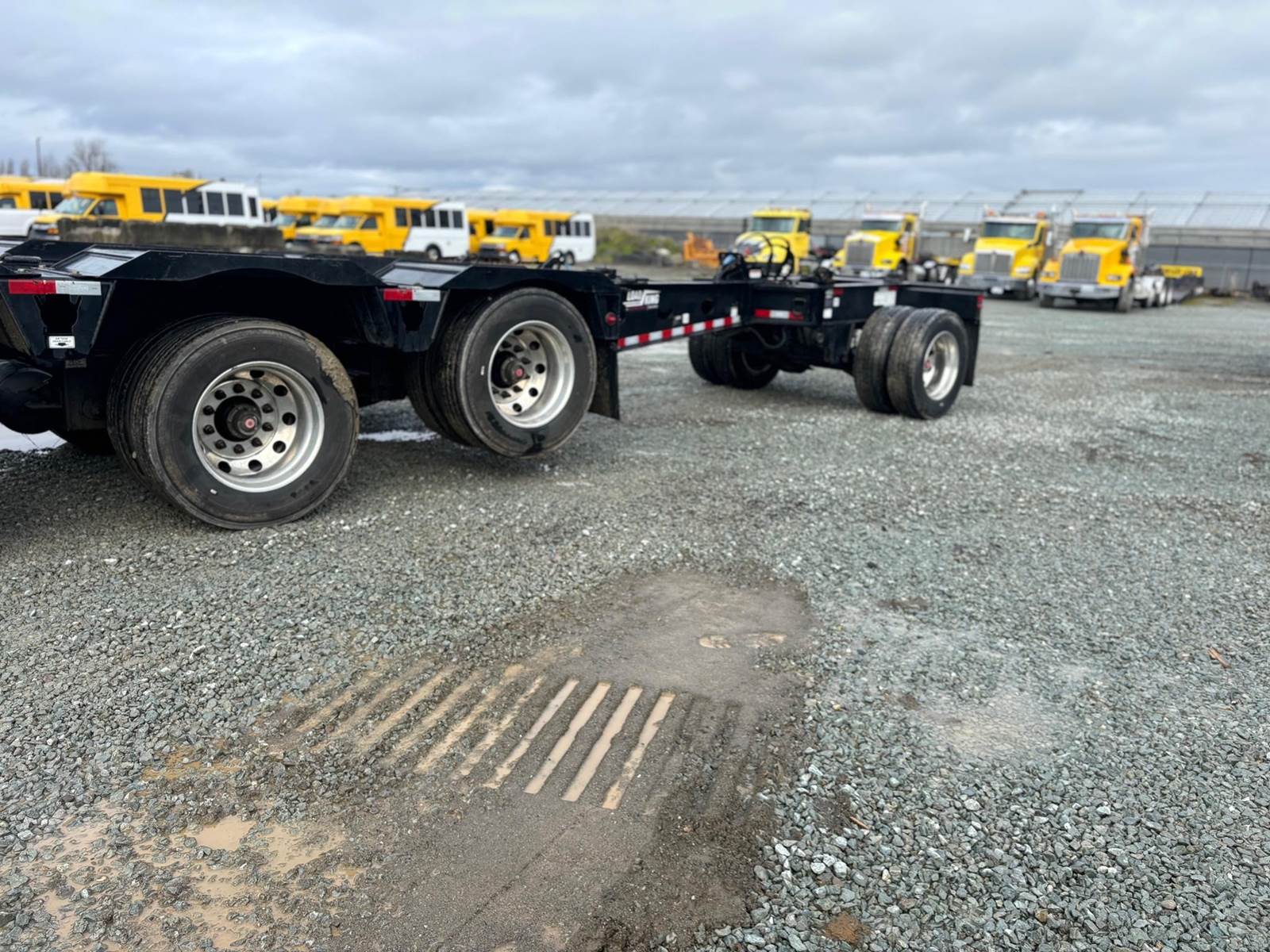

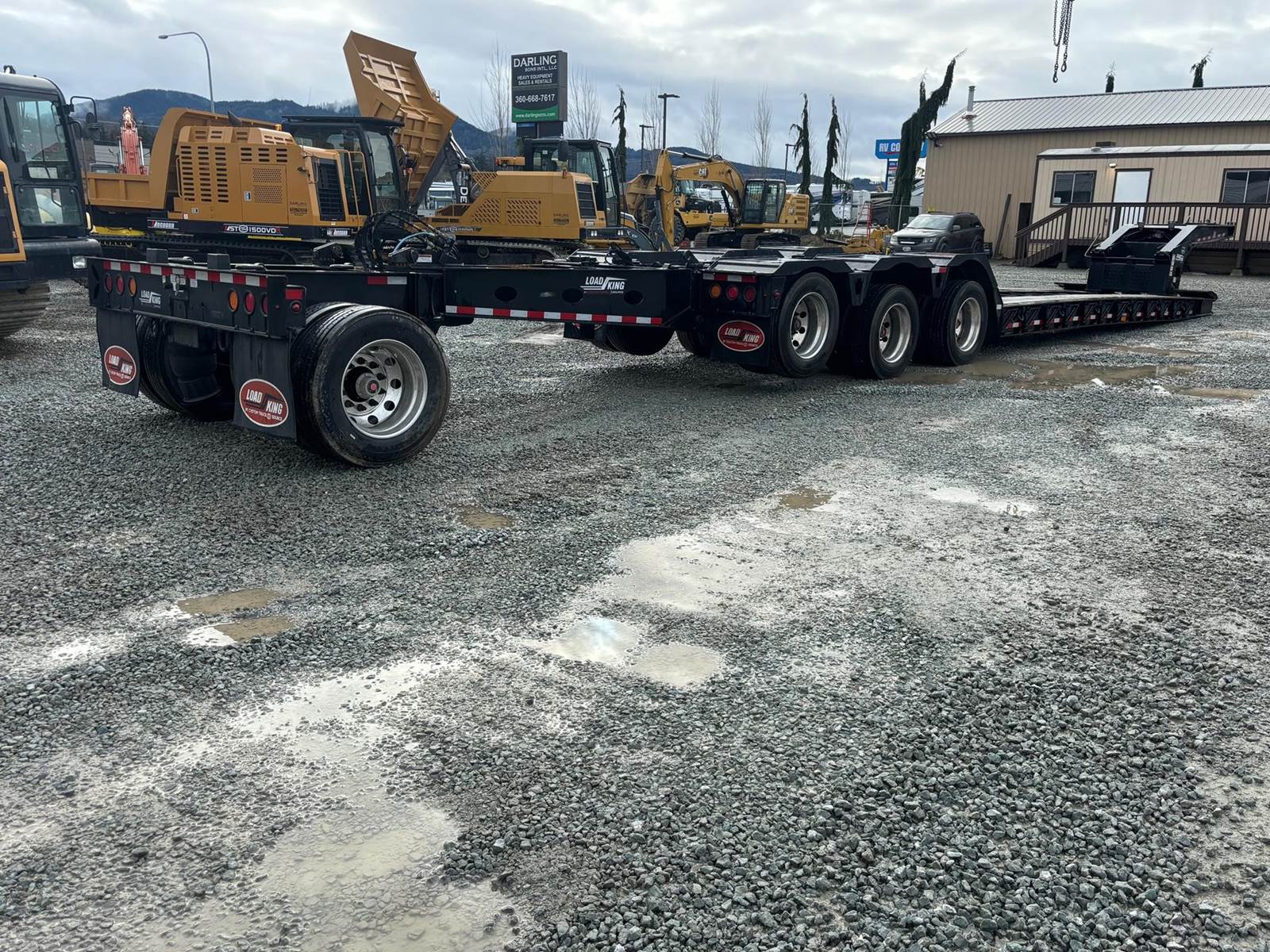

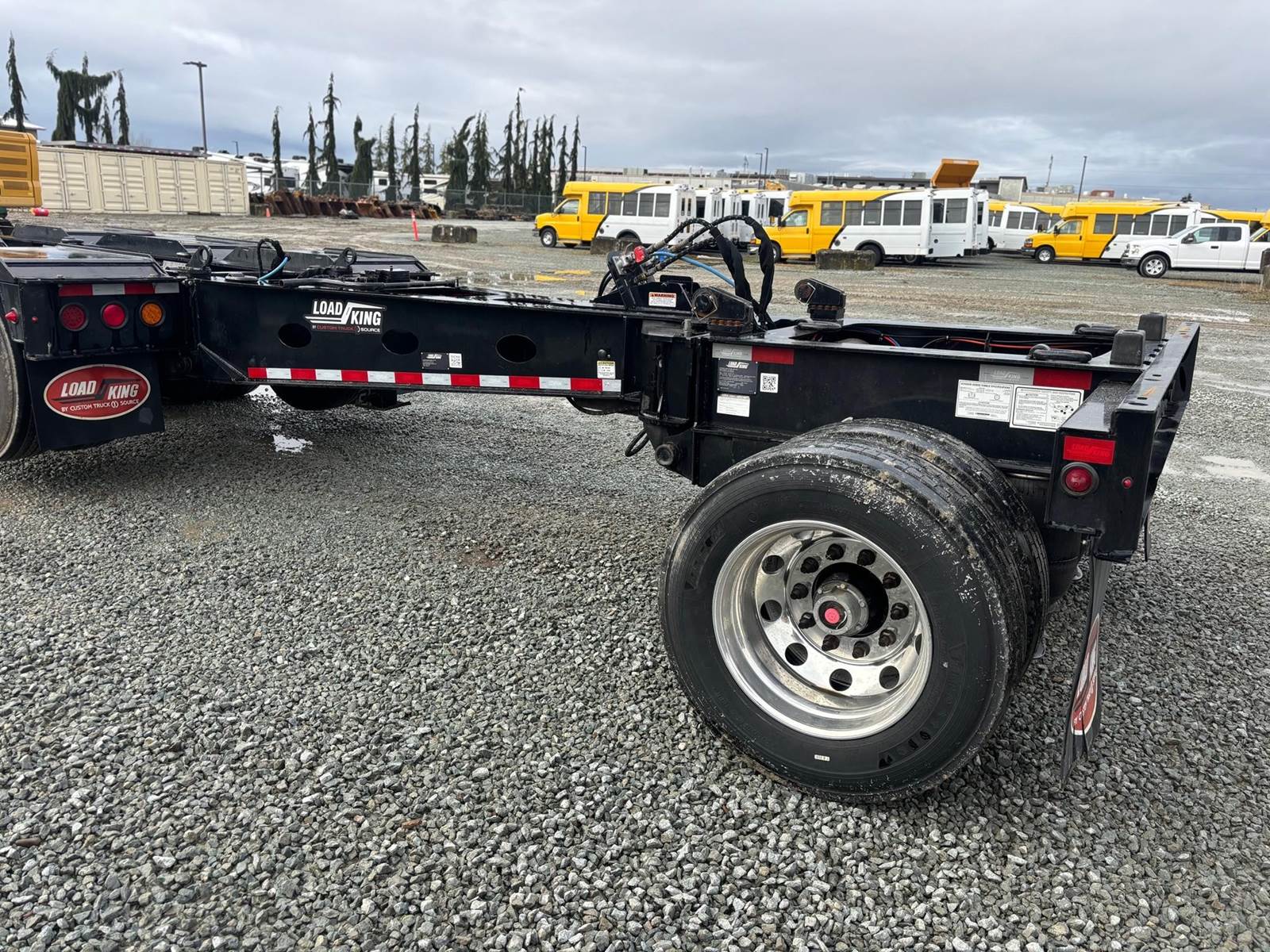

Frame reinforcing & connections for future stinger & 2 Flip axle (5 Axles total)
Air lift 3rd axle w/manual raise & lower valve. +3/-3 off leveling valve
Three 27,500 lb axles- 5″ x 3/4″ wall
Axle spacing: 60″
Twelve 275/70R22.5 H radials
Alum/stell wheels-outside polished
16.5″ x 7″ drum brakes, no ABS
Spring brakes on axle 2

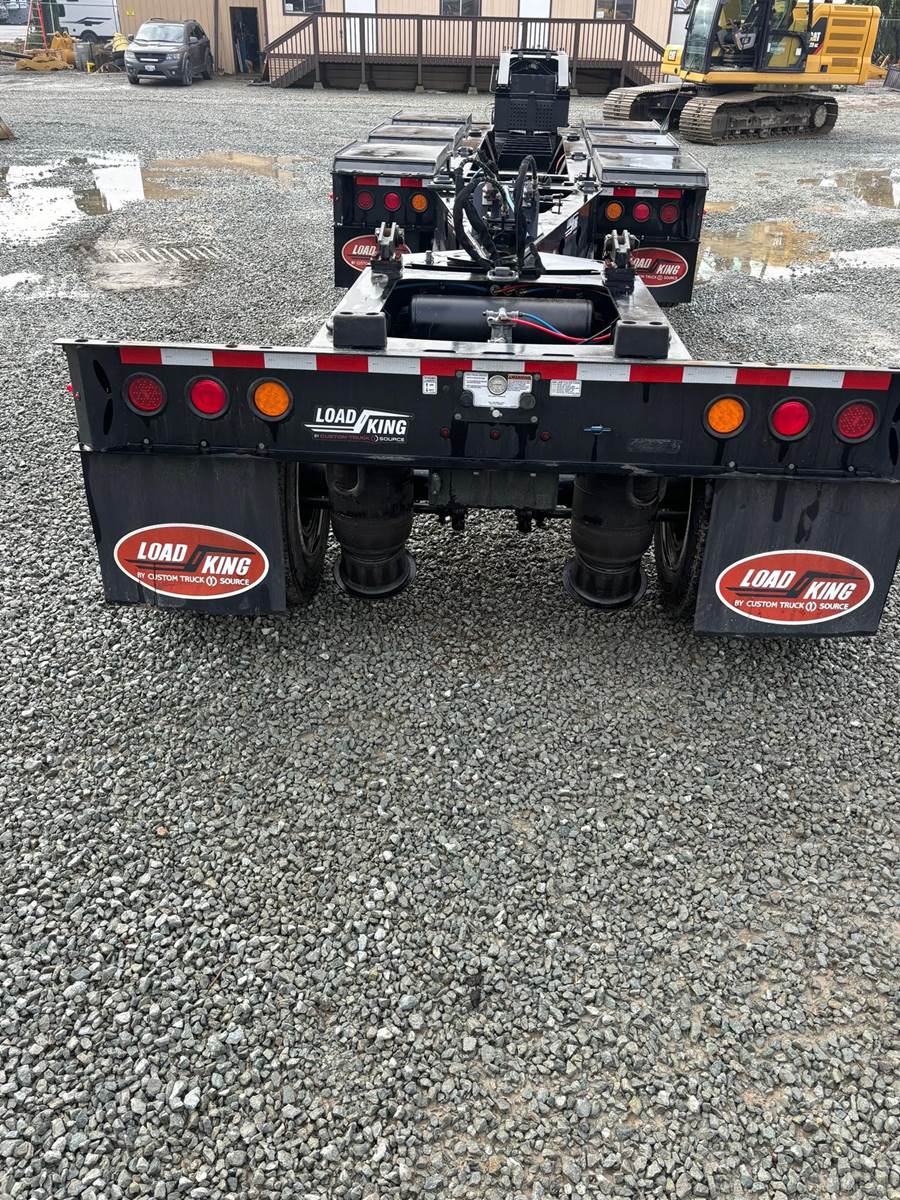

Three tail light package with strobes
Boom trough, open to tailgate
Covered wheel wells – (3) piece raised bolt on style (Fully loaded configuration)
Wide Load Sign pockets (no sign)
Lowered crossmembers in subframe
4 Pair Flat D-Rings mounted on Upper Flange
