Product Description
2024 Superior T80 CEMCO VSI Front Discharge Portable Plant
Serial Number: 2465209 / 2534290
• Superior T80 CEMCO vertical shaft impact crusher
• 35" four-shoe open table rotor
• 21-count anvil ring
• 100–275 TPH capacity
• Recommended maximum feed size of 4"
• 300–400 HP electric drive motor
• 42" x 22' front discharge conveyor
• Tandem-axle portable chassis
• Hydraulic run-on leveling legs
• Full walkway access around crusher
• NEMA 3R control panel with ABB VFD
• Electric plant
PLANT SPECIFICATIONS
Construction
-Main Frame: Constructed of wide-flange structural beams
-Crusher Hopper: Under-crusher gathering hopper constructed of 3/8-inch AR400
-Overflow Chute: Crusher overflow chute not included
-Walkway: Walkway access on all sides of the crusher, including bump-outs on the side of the T80. Walkway bump-outs are removed and stored on the chassis for transport.
-Observation Platform: Not included
-Walkway Access: Bolt-on removable vertical ladder on one side of plant
-Access Gates: Self-closing hinged gates at walkway access point
-Grease Package: Not included
-Toolbox: Not included
-Cord Holders: Not included
-Anvil Ring Storage Carrier: Mount for an anvil ring, rock shelf, SuperChipper enclosed rotor or shoe table. Carrier is positioned over the discharge conveyor.
-Paint: Standard Superior paint with Graphite Gray RAL 7024 chassis, Window Gray RAL 7040 and Graphite Gray crusher, plus Superior Orange handrails and guarding
-Guarding: Guards are provided for drive and tail pulleys. Guarding may not meet all local codes and the customer is responsible for having guarding inspected.
Chassis Specifications
-Axles: Tandem axle with eight 11R22.5 radial tires
-Suspension: Spring suspension
-Brakes: Complete air brake package
-Fifth Wheel: Included
-Lights: Brake and directional signals
-Mud Flaps: Installed behind transport wheels
-Cribbing Legs: Four fixed structural steel cribbing legs
-Landing Gear: Four hydraulic run-on leveling legs with 270cc power unit
-Tow Eye: Not included

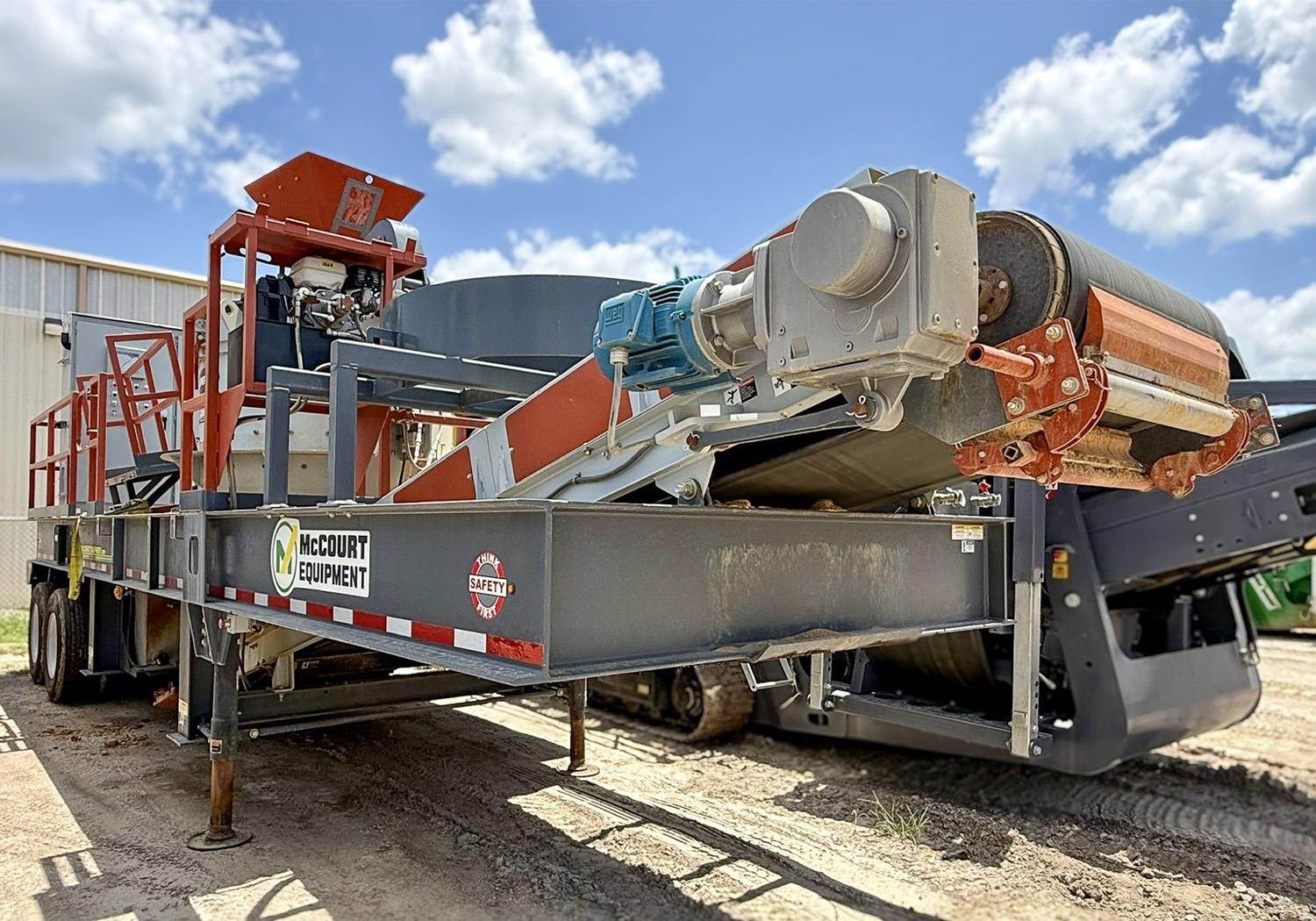

-Front Discharge Conveyor
-Size: 42 inches x 22 feet
-Conveyor Construction: Structural steel channel frame
-Drive: Class I head end
-Gear Reducer: Nord direct drive
-Motor: 7.5 HP Baldor TEFC, 1,800 RPM
-Belt Speed: 325 FPM
-Capacity: 275 STPH of 100 PCF material. Capacity and throughput are subject to change based on final application and configuration.
-Drive Pulley: 14-inch diameter, 3/8-inch herringbone-lagged, CEMA crown-faced drum
-Tail Pulley: 12-inch diameter Chevron wing pulley
-Bearings: Dodge
-Load Area Idlers: CEMA C, 5-inch diameter steel rolls on 16-inch spacing
-Trough Idlers: CEMA C, 5-inch diameter steel-roll troughing idlers
-Returns: CEMA C, 5-inch diameter steel rolls on 10-foot spacing
-Belting: 3-ply, 1/4-inch x 1/16-inch, 330 PIW
-Belt Splice: Factory-vulcanized belt splice
-Belt Scraper: Exterra dual primary and secondary scraper
-Selected VSI Specifications

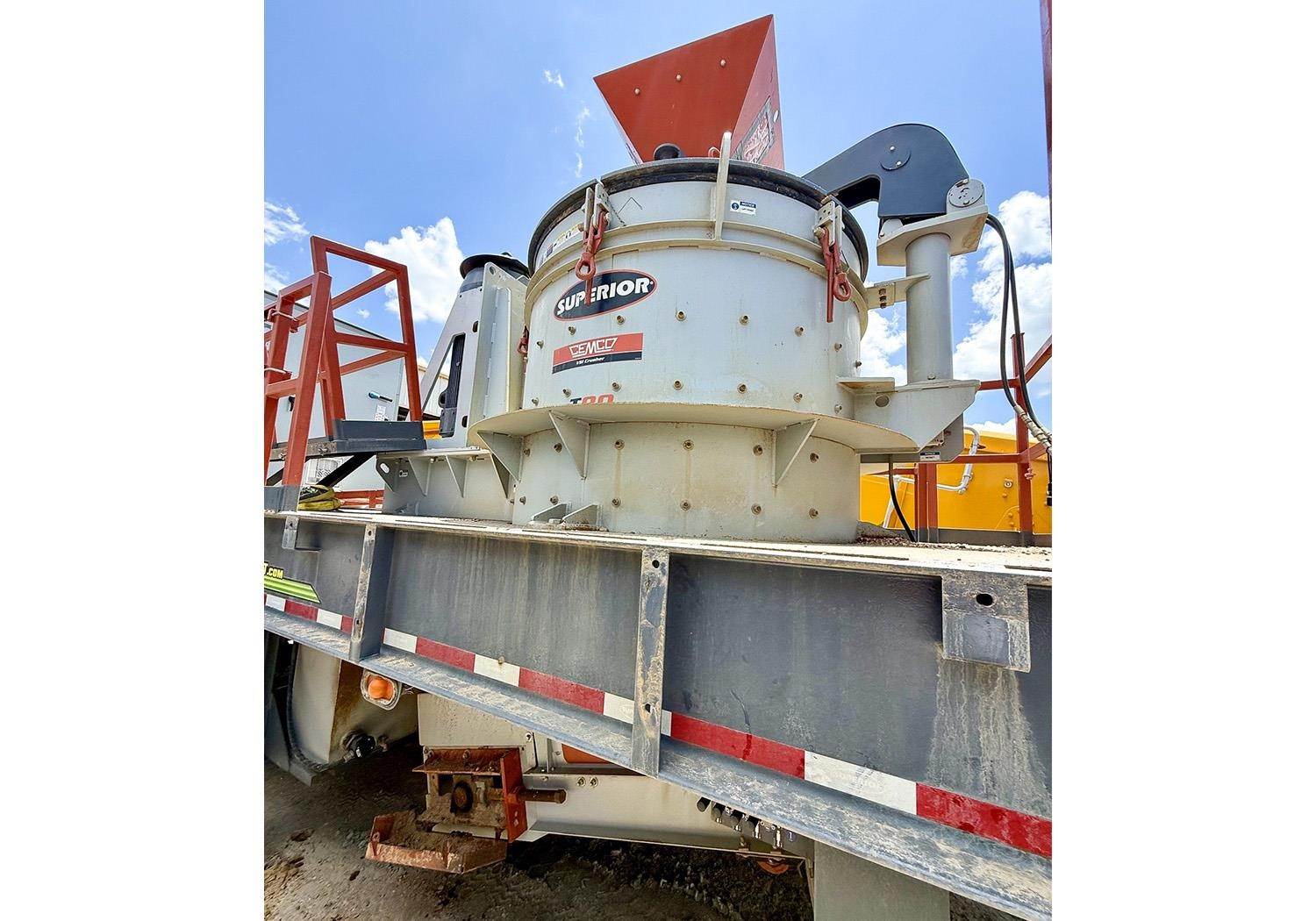

-Crusher Model: Superior T80 CEMCO VSI
-Rotor: 35-inch, four-shoe open table
-Crushing Chamber: 21-count anvil ring
-Motor Base: Adjustable motor base with enclosed drive
-Capacity: 100-275 STPH
-Operating Speed: 1,250-1,650 RPM
-Recommended Feed Size: Maximum longest one-way dimension of 4 inches or 100 mm. Final maximum feed size is subject to change based on the final application.
-Feed Hopper: Included
-Discharge Chute: Combines two discharge openings into one, as required for chassis mounting
-Drive Belt Package: Includes crusher sheave, motor sheave or sheaves, bushings and V-belts
-Vibration Control: 115V AC IMI, 3 IPS range, PLC compatible
-Lube Oil System: 1.0 HP lube oil system with reservoir and filter protection
-Lube Oil Cooler: 1/4 HP forced-air cooler rated for 6-25 GPM, required for chassis mounting
-Lube Oil Heater: 1,500W, 1.8A heater, required for chassis mounting
-Lid Lifting: Hydraulic lift cylinder for maintenance access to the crushing chamber with 360-degree swing
-Lift Pump: P-55 OTC manual lid-lift pump
-Camlocks: Quick-release, over-center lid camlocks
-Main Frame Liners: Replaceable chrome castings
-Sensors: Oil-flow, heating, cooling and vibration sensors
Drive
-Drive: Vertical belt-drive assembly, single drive
-Drive Package: Crusher sheave and belts included
-Belt Tension: Belt-tension checker included
-Electric Motor: Crusher-duty, 300-400 HP tri-rated drive motor
-Voltage: 460V, three-phase, 60 Hz
-Interlock Panel: NEMA 12 electrical lube-oil smart-relay panel with safety shutdowns for low oil level, low oil flow or excessive vibration
Electrical Specifications
-Voltage: 480V, three-phase, 60 Hz

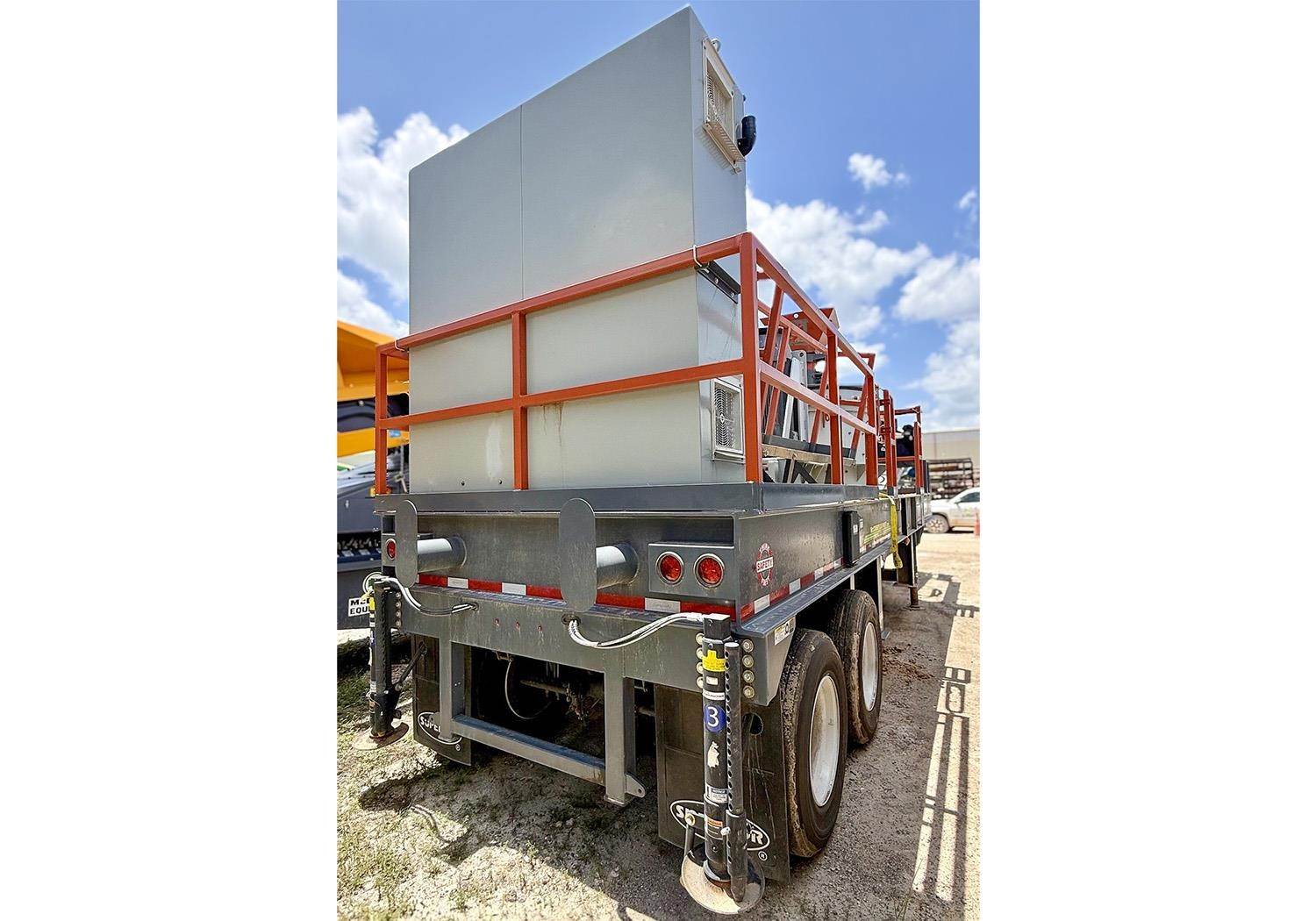

-Panel Enclosure: NEMA 3R control panel included
-Components: Includes ABB variable frequency drive for the main crusher motor, starters for all onboard motors, one additional starter for an off-plant conveyor and wiring to all onboard motors.
