2024 XL Specialized X-L SPECIALIZED TRAILERS INC Lowboy Trailer, Used, Arizona, 45 ton

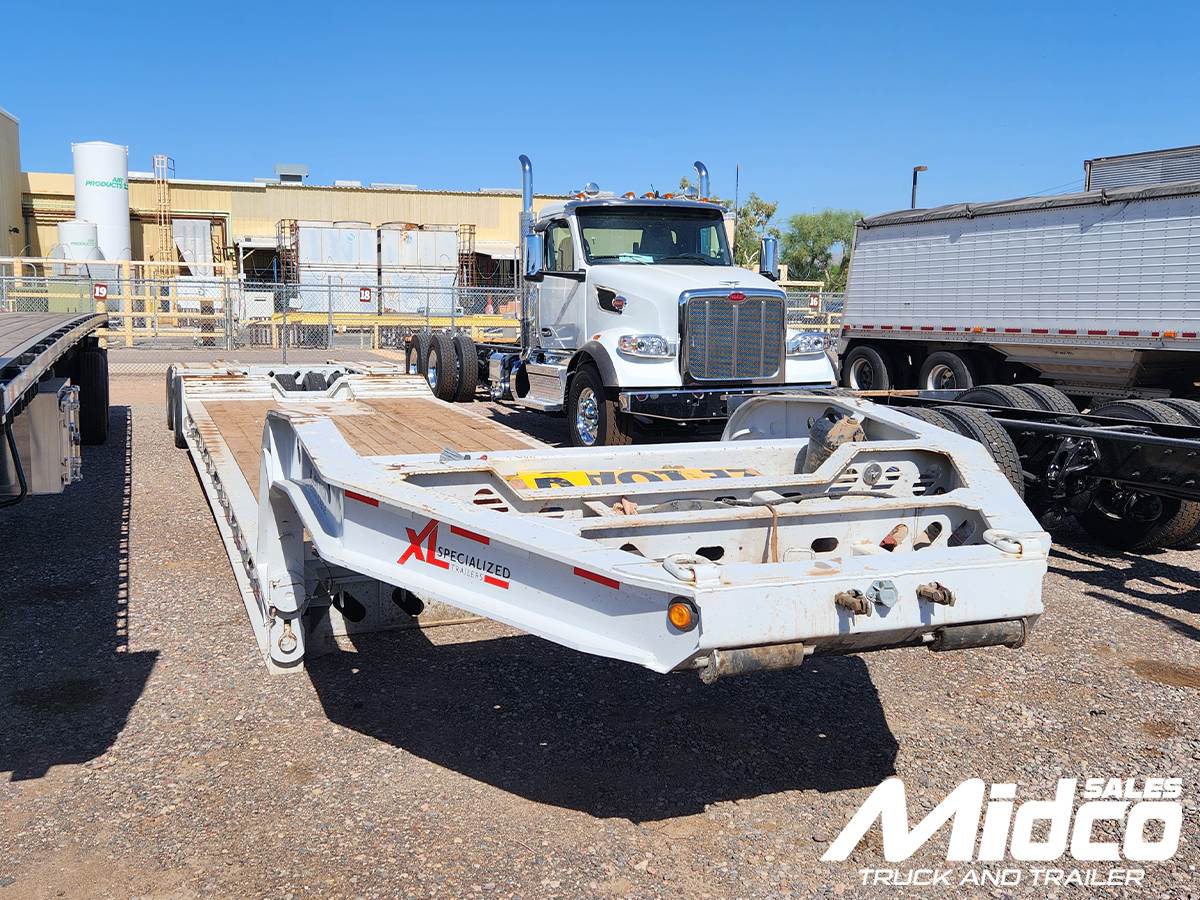

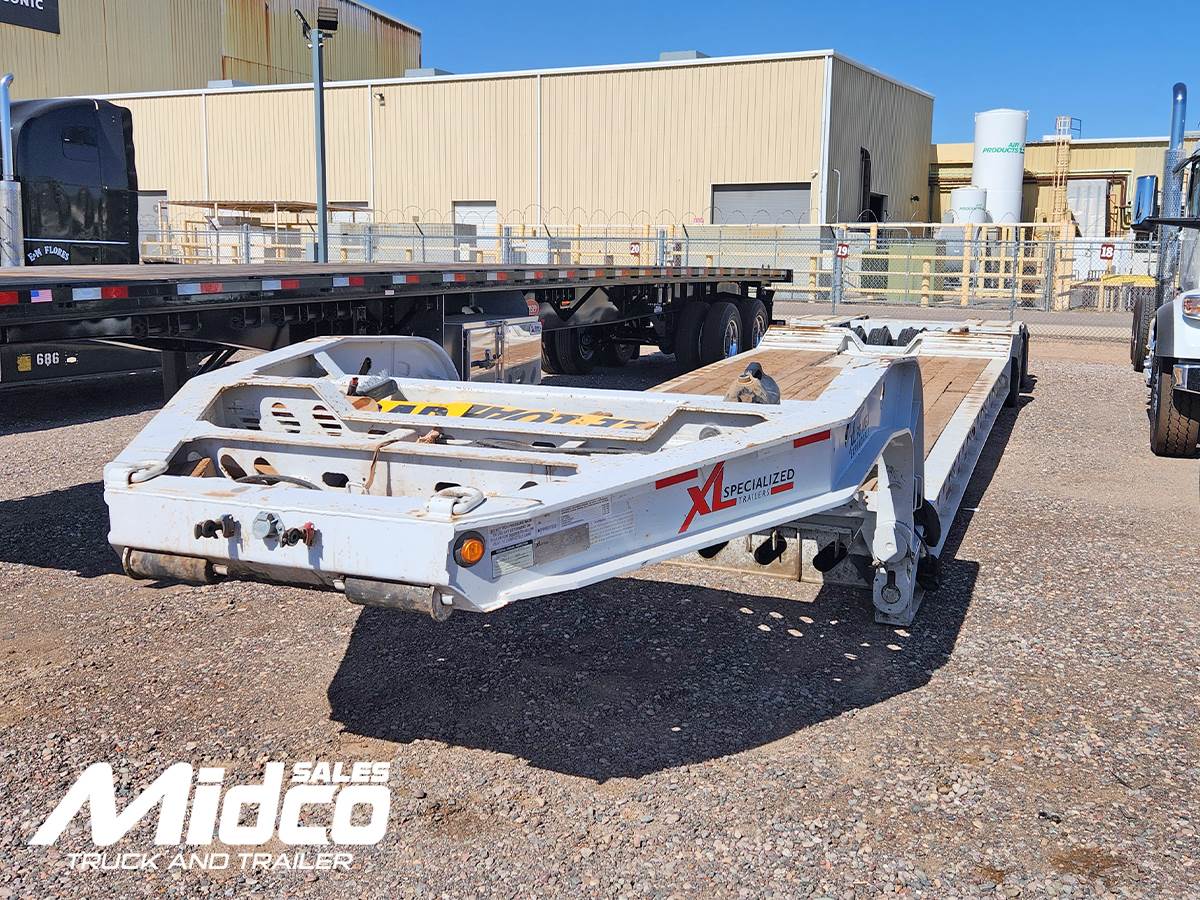

XL Specialized 16 tire expando lowboy trailer for sale.  Key Specs:  44' x 102", 45 ton capacity, expandable wheel area.  The XL Specialized XL 90 MGX has a rear deck that expands from 102" to 120" wide.  This trailer has a 44' length and 45 ton capacity.  The main deck has a 23" loaded deck height with 8" ground clearance.  This expando lowboy has a walking beam suspension system and polished aluminum wheels.

DIMENSIONS & CAPACITY
Length:  44'
Width:  102"
Capacity:  45 tons (90,000 lb distributed, 90,000 lb in 16')

GOOSENECK
Length:  10' 5"
Kingpin Setting:  16", 30"
Swing Clearance:  98", 84"

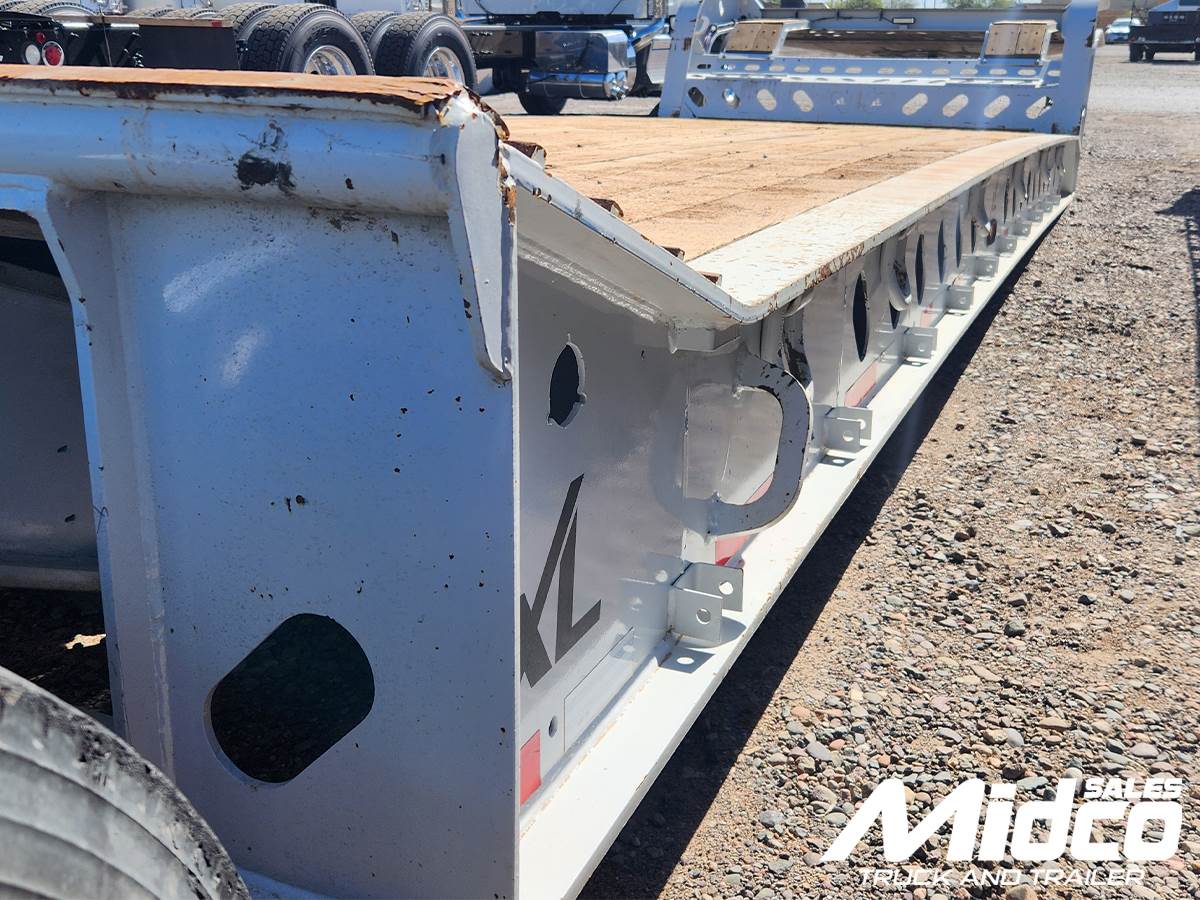

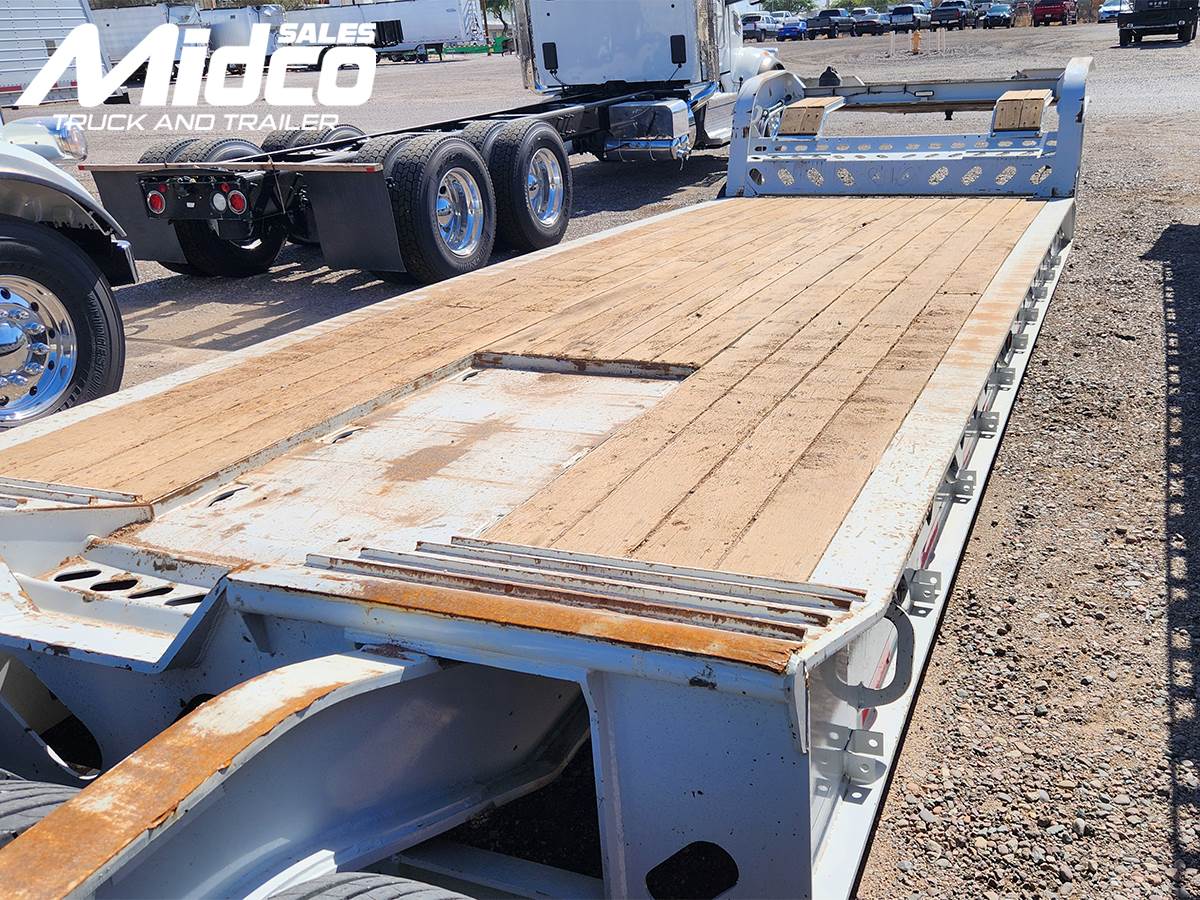

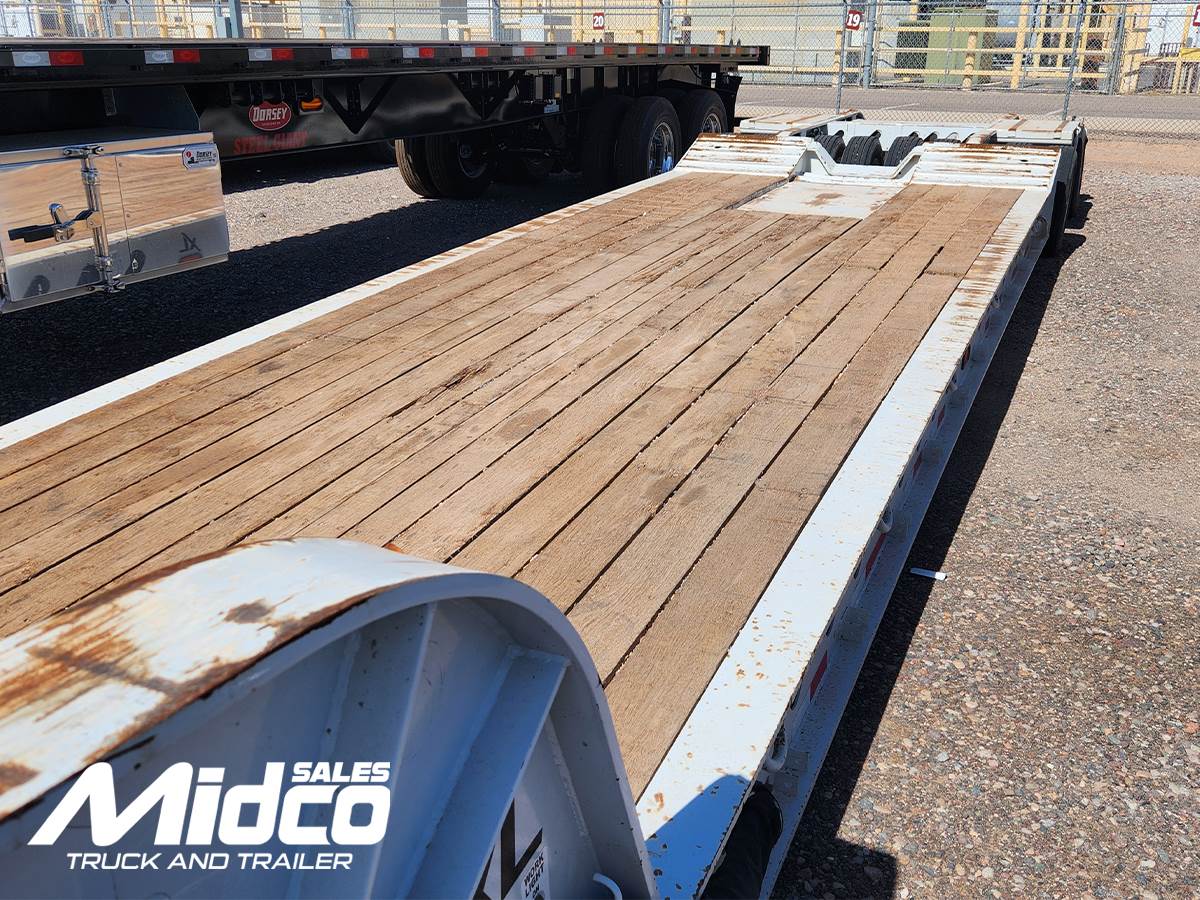

MAIN DECK
Length:  23' 1"
Loaded Deck Height: 23"
Ground Clearance:  8"

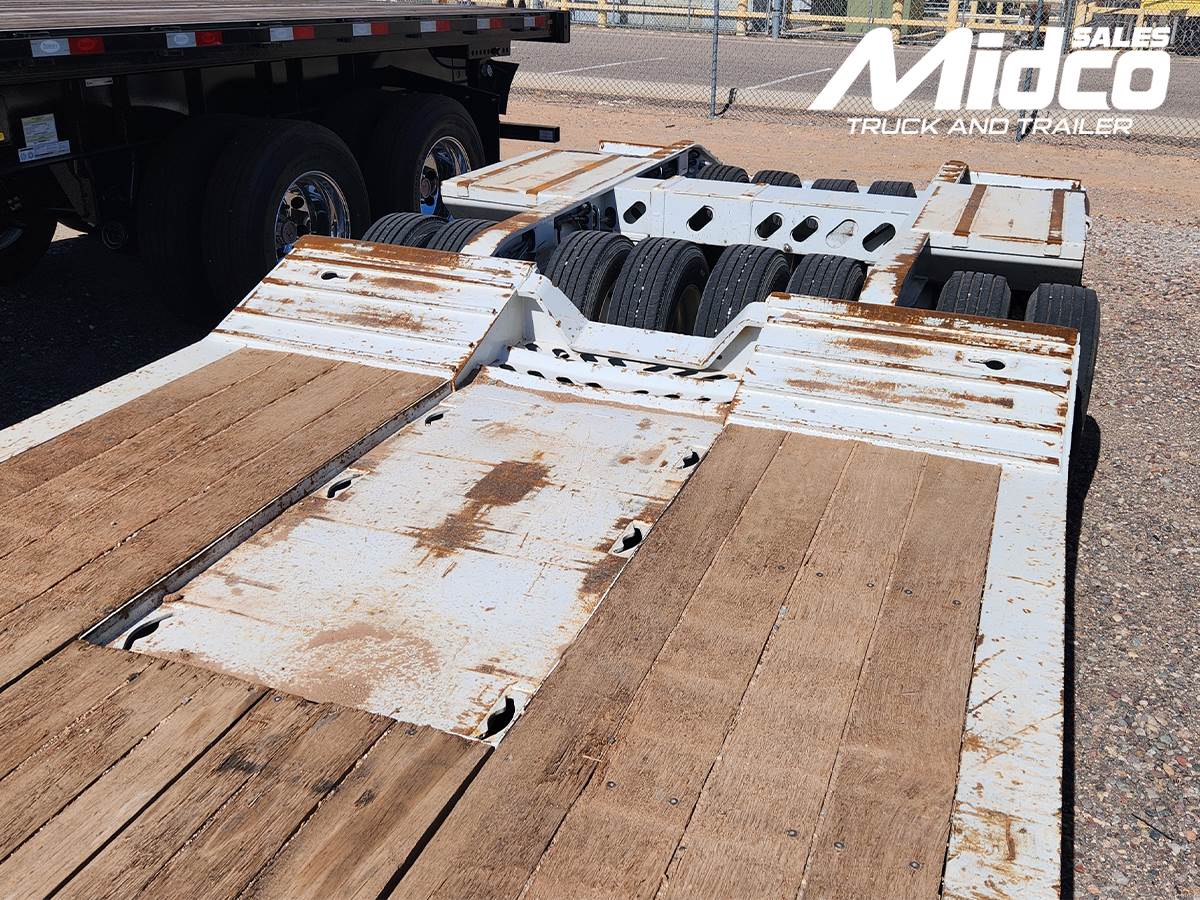

6' bucket well w/ chain slots
Decking:  2" apitong, raised, center covered
D-Rings:  (6) bent D-rings per side
Chain hooks
Ramps:  Tapers to 10.5"

REAR DECK
Length:  10' 6"
Loaded Deck Height:  32"
D-Rings:  (1) bent D-ring per side in wheel area, (1) flat D-ring on center bolster per side

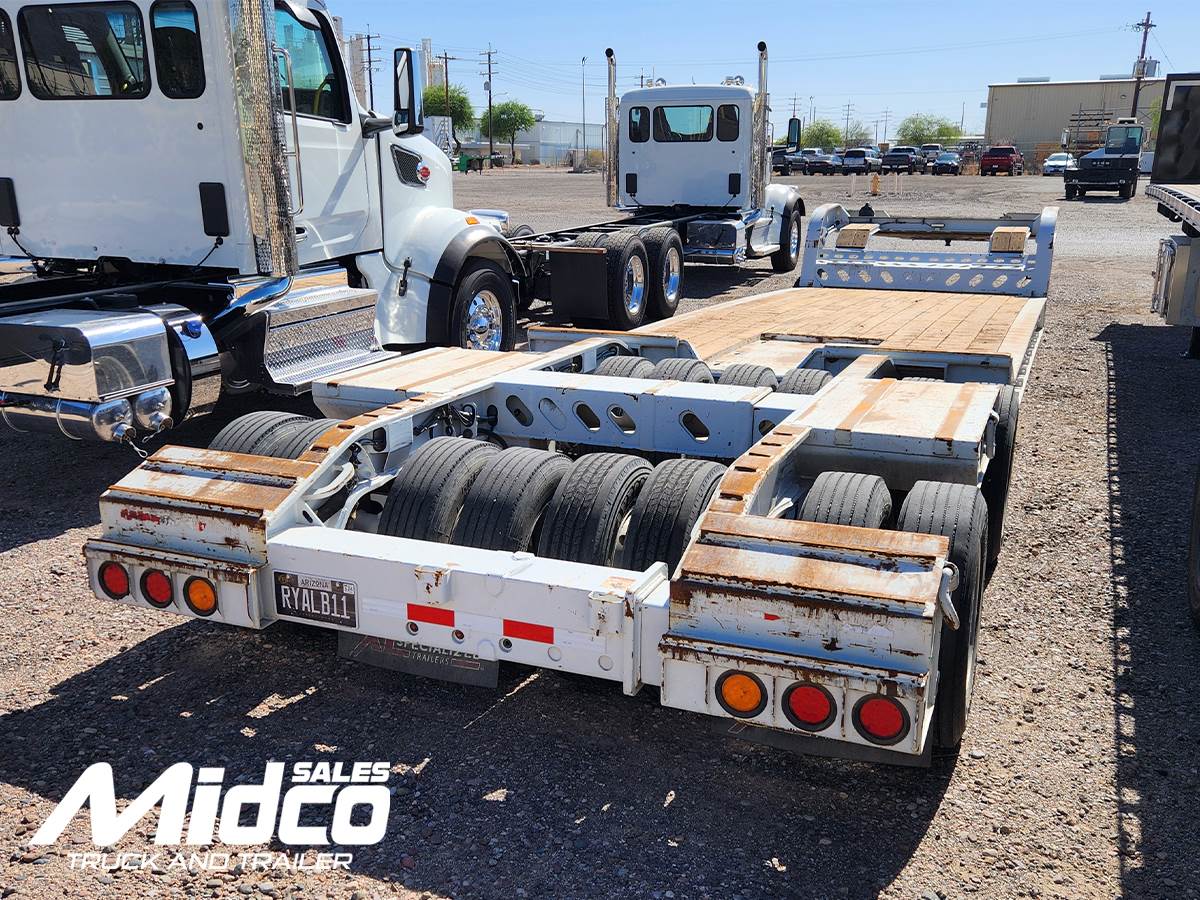

EXPANDABLE WHEEL AREA
Expandable wheel area to extend from 102" wide to 120" wide
(2) 6' air cylinders
Chain hooks

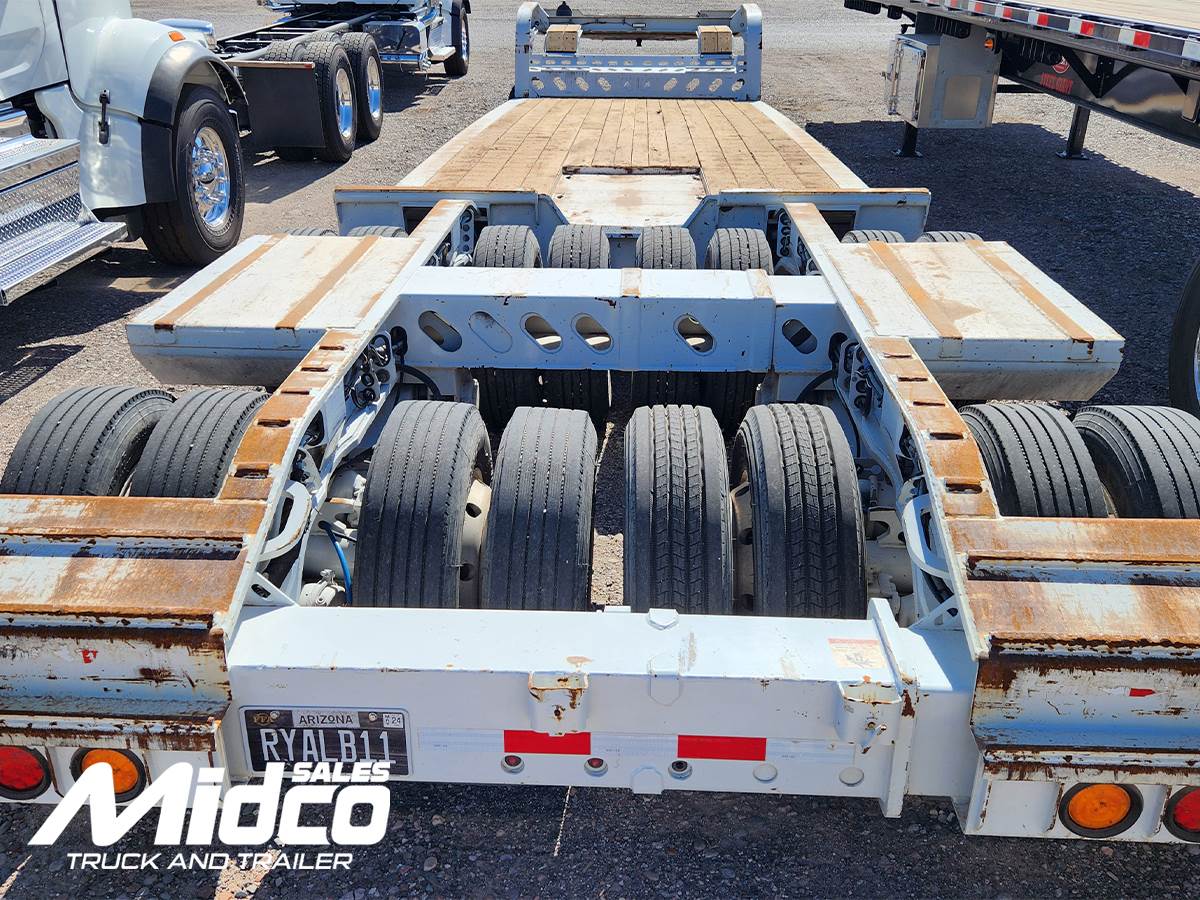

AXLES & SUSPENSION
Axles:  25,000 lbs nominal trunion axles
Axle Spacing:  69"
Suspension:  Walking Beam
ABS:  2S1M with air brakes on 4 axles

WHEELS & TIRES
Tires:  235/75R/17.5
Wheels:  6.75 x 17.5 8-hole pilot polished aluminum outer wheels, milled inside wheels
PSI tire inflation

LIGHTING & ELECTRICAL
12V sealed Grote system with 3 taillight package
4" amber strobe to be used as 3rd taillight
