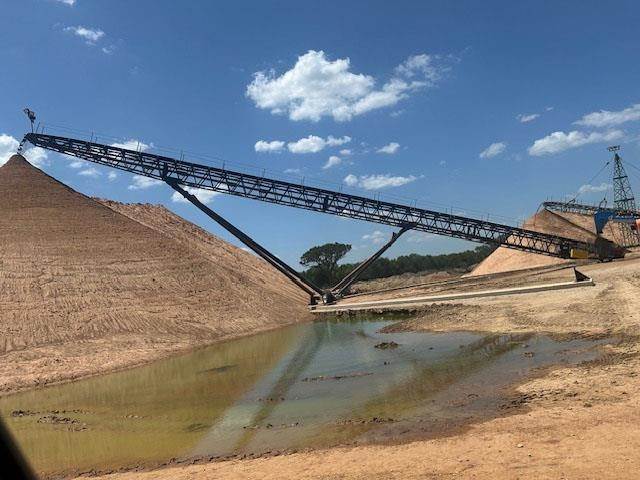

2025 Earthworm Conveyors 30 X 150 Conveyor

30” x 150’
 48” Deep Truss , 3x4x5/16 Cord Angle, 2x2x1/4 Lattice
 Low profile tail, (Approximately 42”)
 Heavy Duty Undercarriage, 10x10 Tubing Axle, 20” Tires Recapped
 Wrap type mid drive- 18” Snub – 3 15/16” Shaft & Roller Bearing
 Lagged head 20” Dia., 4 7/16” Shaft & Roller Bearing
 18” Winged Tail, 3 15/16” Shaft & Roller Bearings w/Screw Take-ups
 20” Plain Drum Discharge Pulley, 4 7/16 Shaft & Roller Bearings
 World Wide /WW #7-25 Drive, Motor Mount, Belt Guard
 50 hp, TEFC, 1800 RPM, 230/460 volt
 Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
 Pioneer, 5” Returns w/Brackets, 10’ Centers
 Belt, 3 Ply, 330 PIW, 3/16 x 1/16 cover
o Mechanical Hinge Splice
 48” Receiving Hopper w Skirt Rubber
 Pivot Plate, Tow Hook, weight box (weight not included)
 Tail Guard

Primed & Painted, Tool Steel Gray, Industrial Enamel
