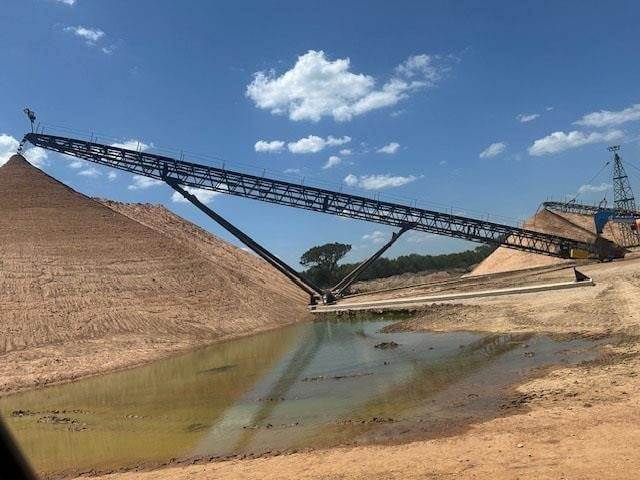

2025 Earthworm Conveyors 36 X 150 Conveyor

36” x 150’

•   48” Deep Truss, 3x4x5/16 Cord Angle, 2x2x1/4 Lattice
•   Low profile tail, (Approximately 42”)
•   Heavy Duty Undercarriage, 10x10 Tubing Axle, 20” Tires Recapped
•   Wrap type mid drive- 18” Snub – 3 15/16” Shaft & Roller Bearing
•   Lagged head 20” Dia., 4 7/16” Shaft & Roller Bearing
•   18” Winged Tail, 3 15/16” Shaft & Roller Bearings w/Screw Take-ups
•   20” Plain Drum Discharge Pulley, 4 7/16 Shaft & Roller Bearings
•   World Wide /WW #7-25 Drive, Motor Mount, Belt Guard
•   60 hp, TEFC, 1800 RPM, 230/460 volt
•   Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
•   Pioneer, 5” Returns w/Brackets, 10’ Centers
•   Belt, 3 Ply, 330 PIW, 3/16 x 1/16 cover
o   Mechanical Hinge Splice
•   48” Receiving Hopper w Skirt Rubber
•   Pivot Plate, Tow Hook, weight box (weight not included)
•   Tail Guard
•   Primed & Painted, Tool Steel Gray, Industrial Enamel
