2025 Earthworm Conveyors 30X500 Conveyor

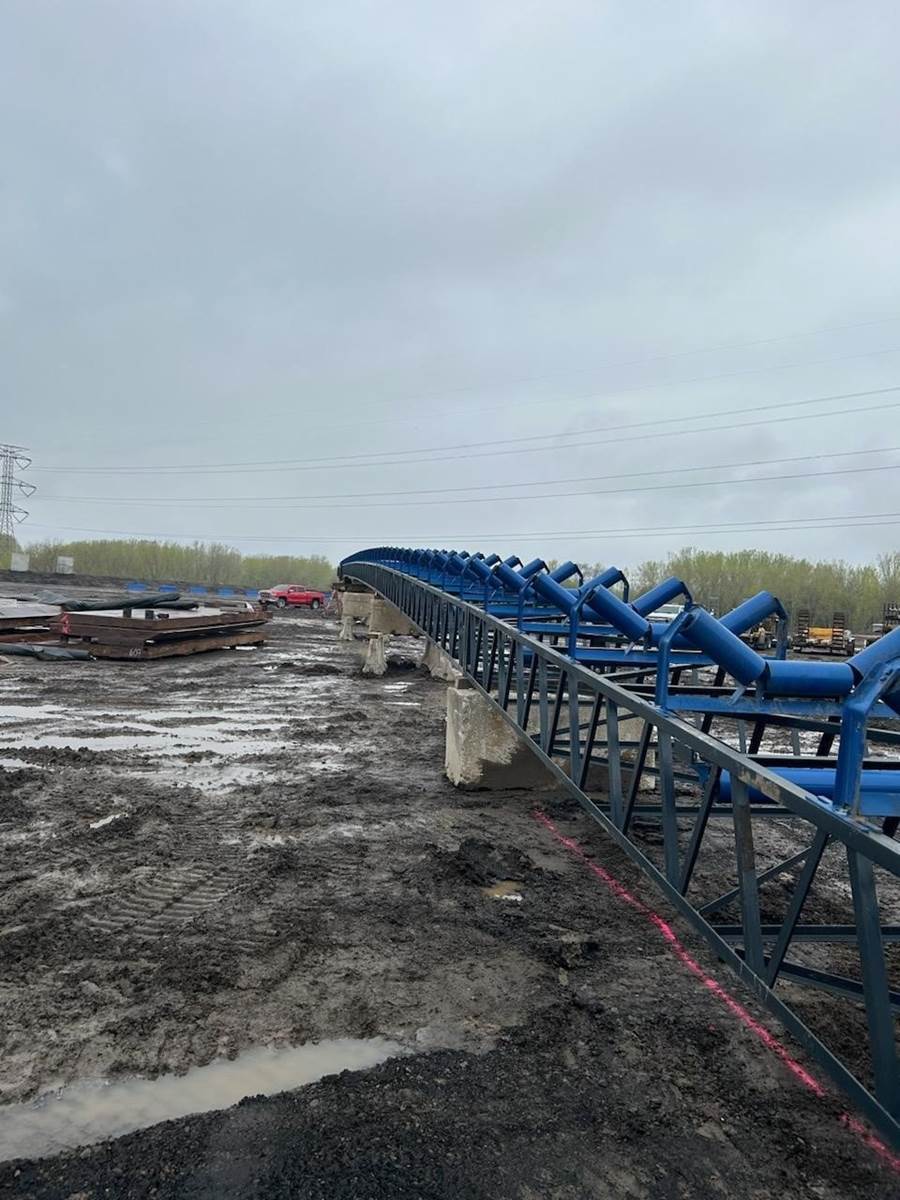

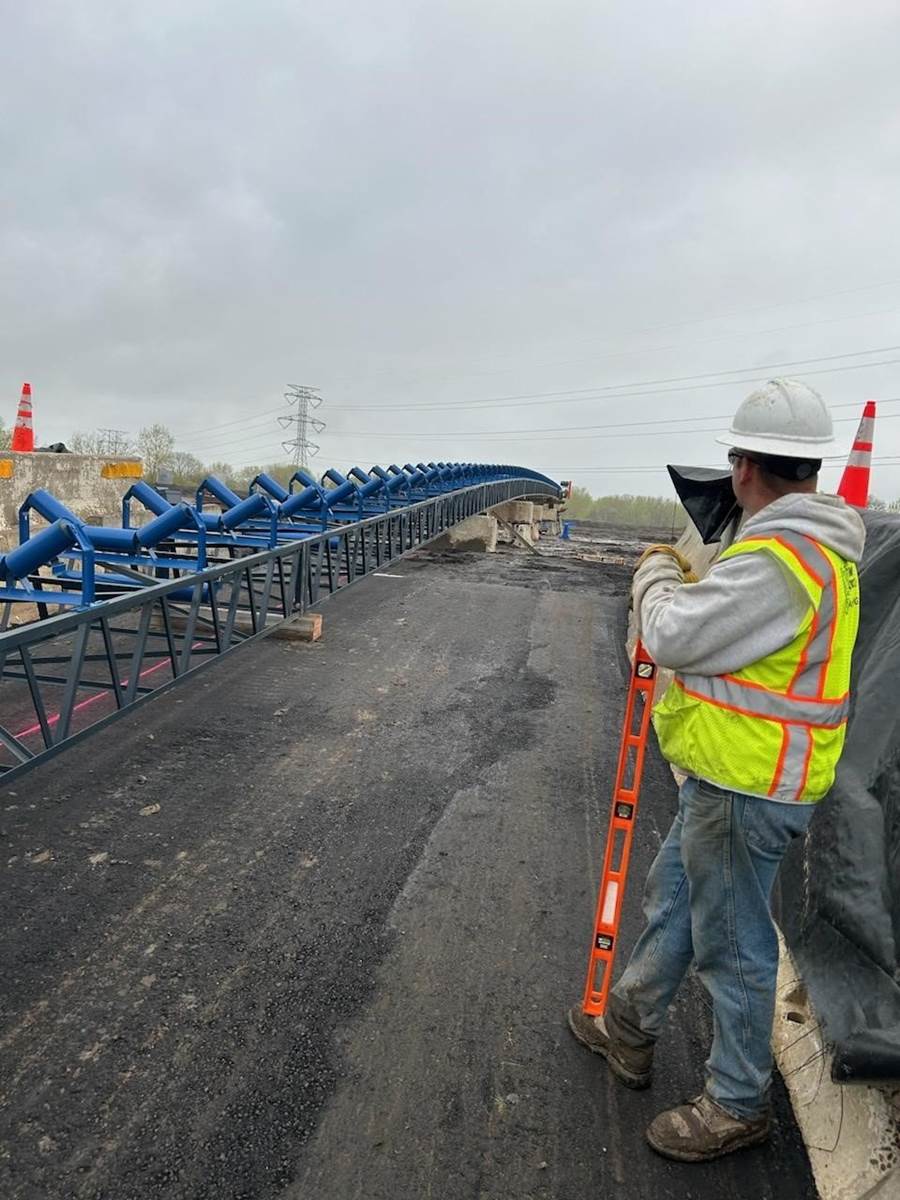

600 TPH NEW 30 x 500 TRUSS FRAME CONVEYOR


Structures
24” Deep Truss – HEAVY-20 ft Head/20 ft Gravity Take-up (40 ft Total)

3 x 4 x 5/16 Cord Angle

2 x 2 x ¼ Lattice
24” Deep Truss – BALANCE

2 x 2 x ¼ Cord

Head
1 ½ x 1 ½ x 3/16 Lattice
18” Lagged Head
3 7/16 Shaft
Roller Bearings

12” Plain Drum Snub Pulley – 1 15/16 Shaft & Roller Bearings
Tail
16” Winged Tail
2 15/16 Shaft
Roller Bearings
GRAVITY TAKE-UP – Scissor Type
16” Plain Drum Bend & Take-up Pulleys

2 15/16 Shafts & Roller Bearings
Weight Box - Weight by Customer – 2,800 lbs - OVERSIZED
Motor
30 HP
TEFC
1800 rpm
230/460V 60 Hz
World Wide Drive
#6-25
Motor Mount
Belt Guard
Pioneer Idlers – CEMA C – 20/35 Degree – 48” Centers
Pioneer Return rollers, CEMA C – 10 ft Centers
Belt – 2 Ply – 220 PIW – 3/16 x 1/16 Cover
190 Splice Kit with Tools & Template
4 ft Load Zone w/Skirtboard Rubber + 12” Extensions
Tail Guard
Primed and Painted Gray
