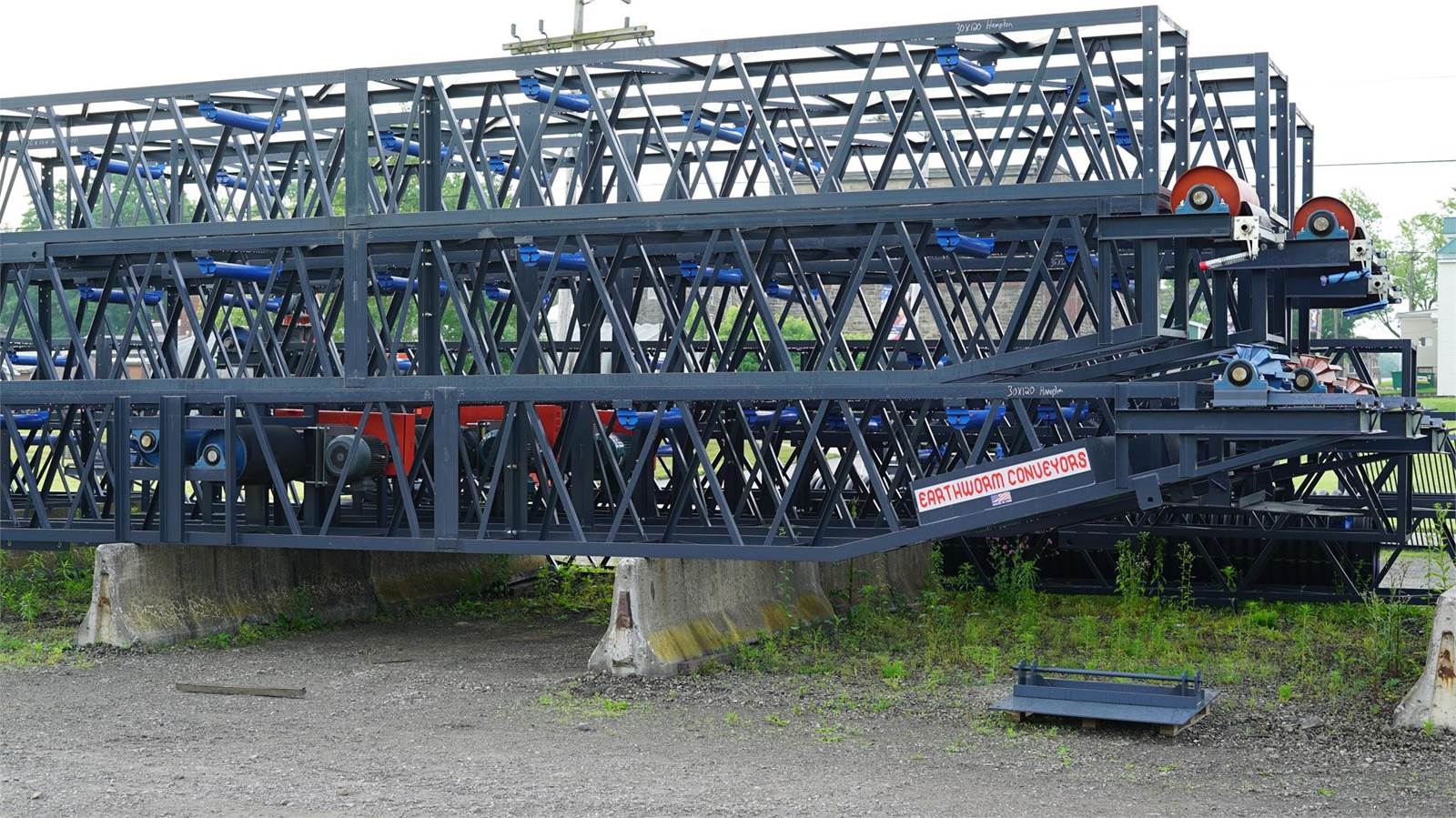

2025 Earthworm Conveyors 30X500 Conveyor

30 x 500 TRUSS FRAME CONVEYOR, 500 TPH
MADE IN THE USA, WITH PRIDE
•   Structures
o   24” Deep Truss – HEAVY-20 ft Head/20 ft Gravity Take-up (40 ft Total)
   3 x 4 x 5/16 Cord Angle
   2 x 2 x ¼ Lattice
o   24” Deep Truss – BALANCE
   2 x 2 x ¼ Cord
   1 ½ x 1 ½ x 3/16 Lattice
•   Head
o   18” Lagged Head
o   3 7/16 Shaft
o   Roller Bearings
   12” Plain Drum Snub Pulley – 1 15/16 Shaft & Roller Bearings
•   Tail
o   16” Winged Tail
o   2 15/16 Shaft
o   Roller Bearings
•   GRAVITY TAKE-UP – Scissor Type
o   16” Plain Drum Bend & Take-up Pulleys
   2 15/16 Shafts & Roller Bearings
o   Weight Box - Weight by Customer – 2,800 lbs - OVERSIZED
•   Motor
o   30 HP
o   TEFC
o   1800 rpm
o   230/460V 60 Hz
•   World Wide Drive
o   #6-25
o   Motor Mount
o   Belt Guard
•   Pioneer Idlers – CEMA C – 20/35 Degree – 48” Centers
•   Pioneer Return rollers, CEMA C – 10 ft Centers
•   Belt – 2 Ply – 220 PIW – 3/16 x 1/16 Cover
o   190 Splice Kit with Tools & Template
•   4 ft Load Zone w/Skirtboard Rubber + 12” Extensions
•   Tail Guard
•   Primed and Painted Gray

PRICE DELIVERED………………………………...…………………………….…….…….$ POA

•   30 hp Motor Starter……………………………...................................……………$ Inc.
•   Nelson Williams Belt Scraper…………………………………...........…………….$ Inc.
•   Back Stop…………………………………………………………………………......$ Inc.
•   3 Ply Belt………………………………………………………………………………$ Inc.

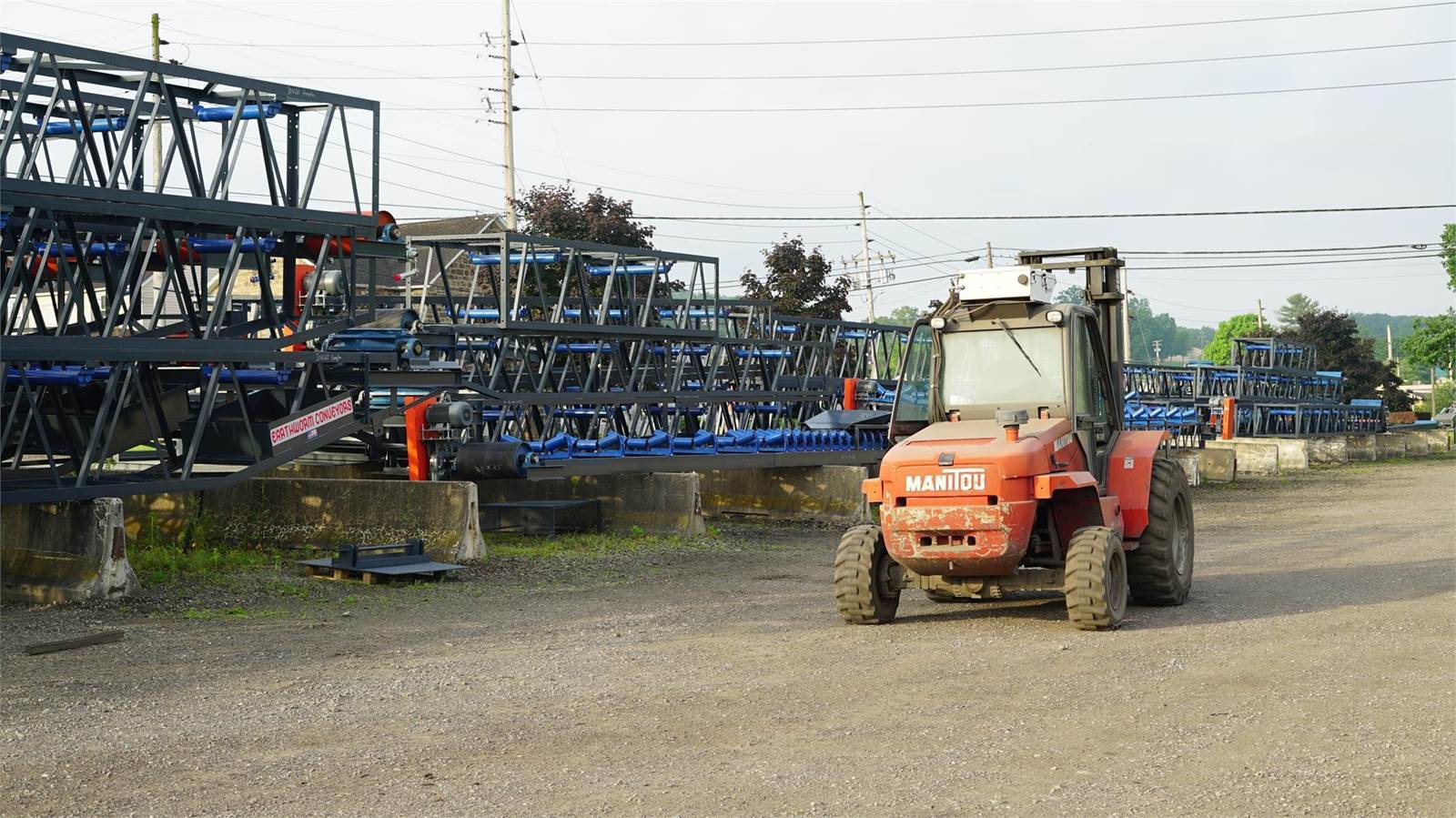

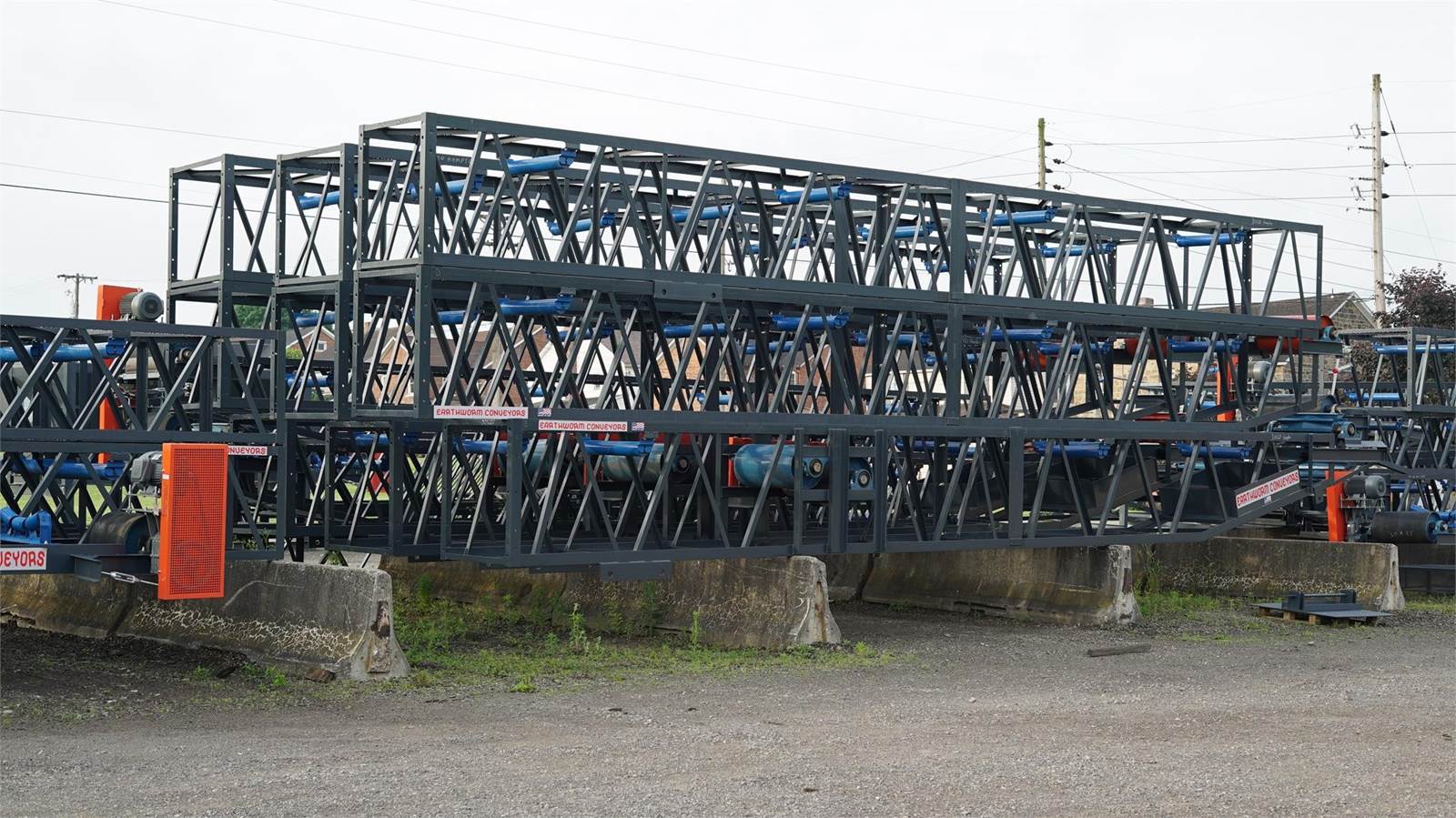

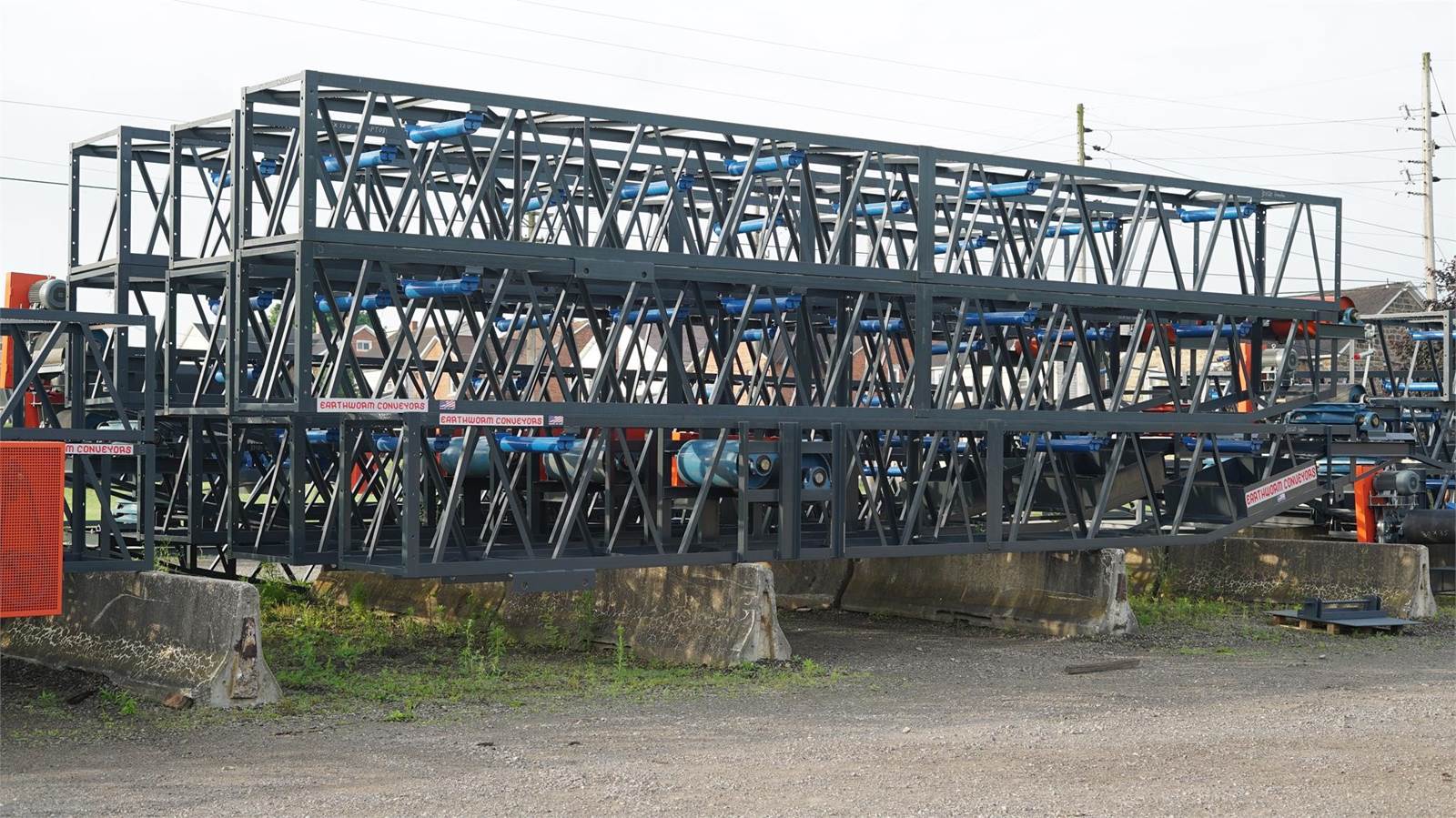

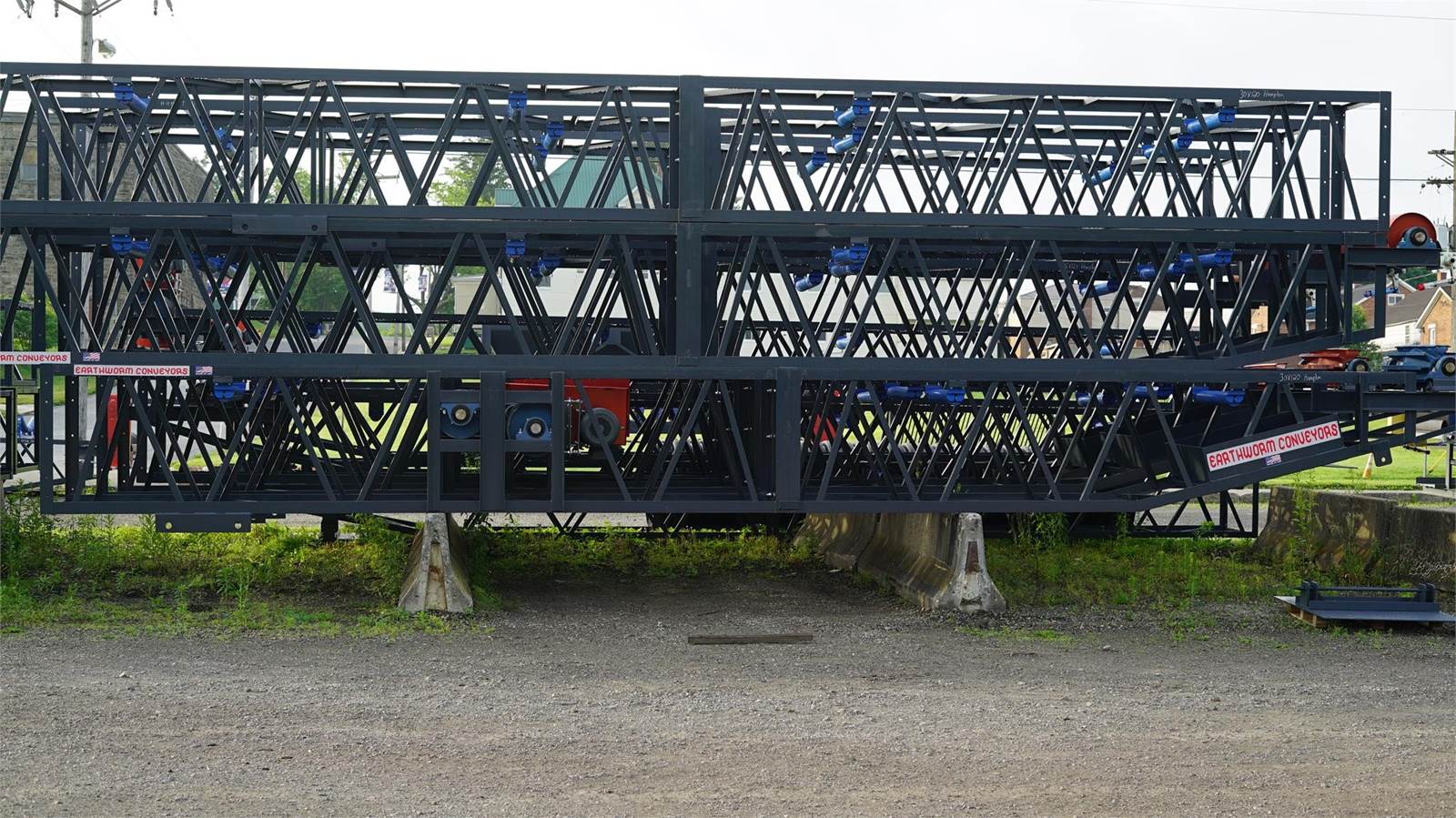

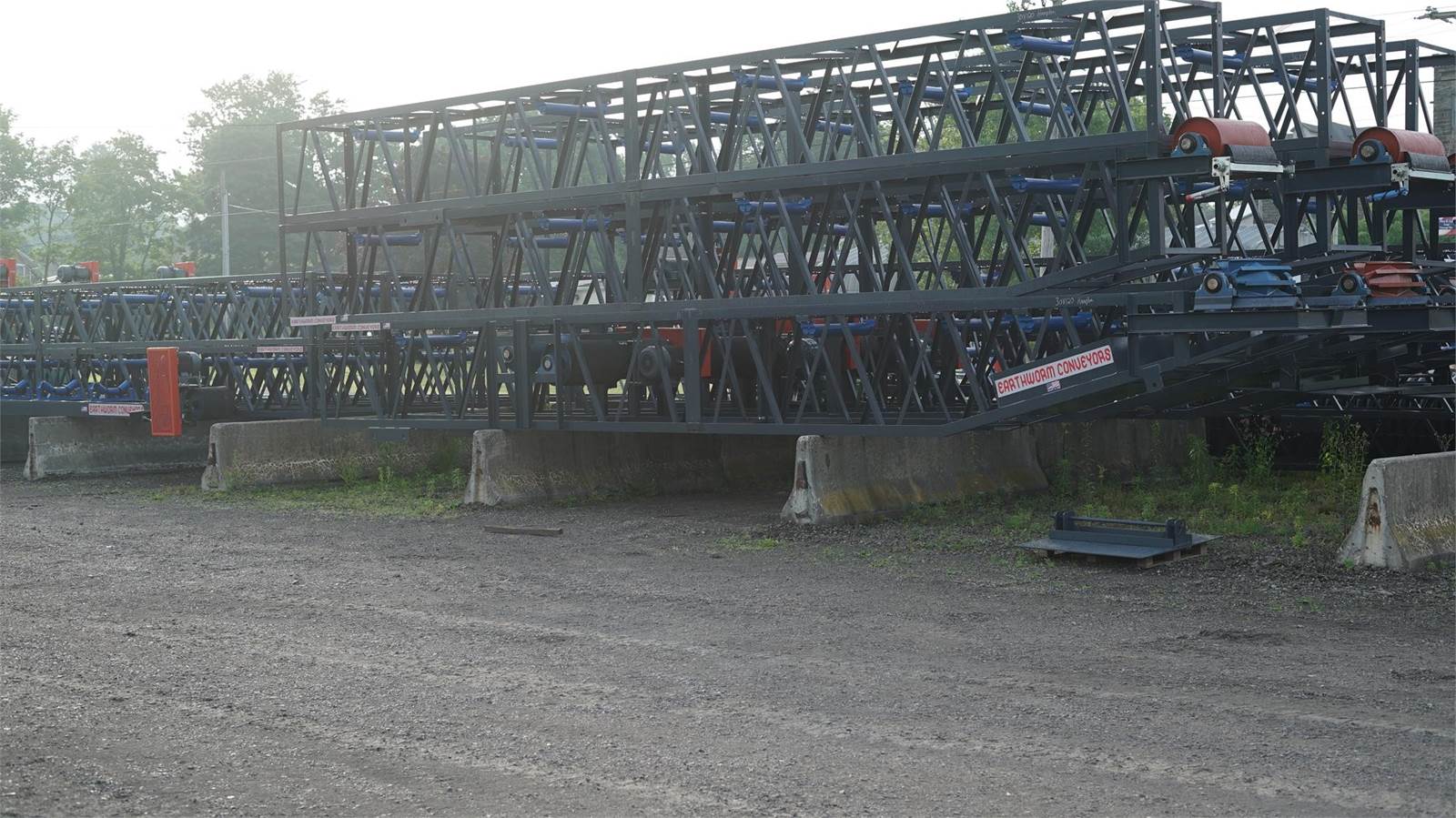

3# 30 X 500 Ft Available 1500 FT Brand New Ready To Ship Anywhere in USA

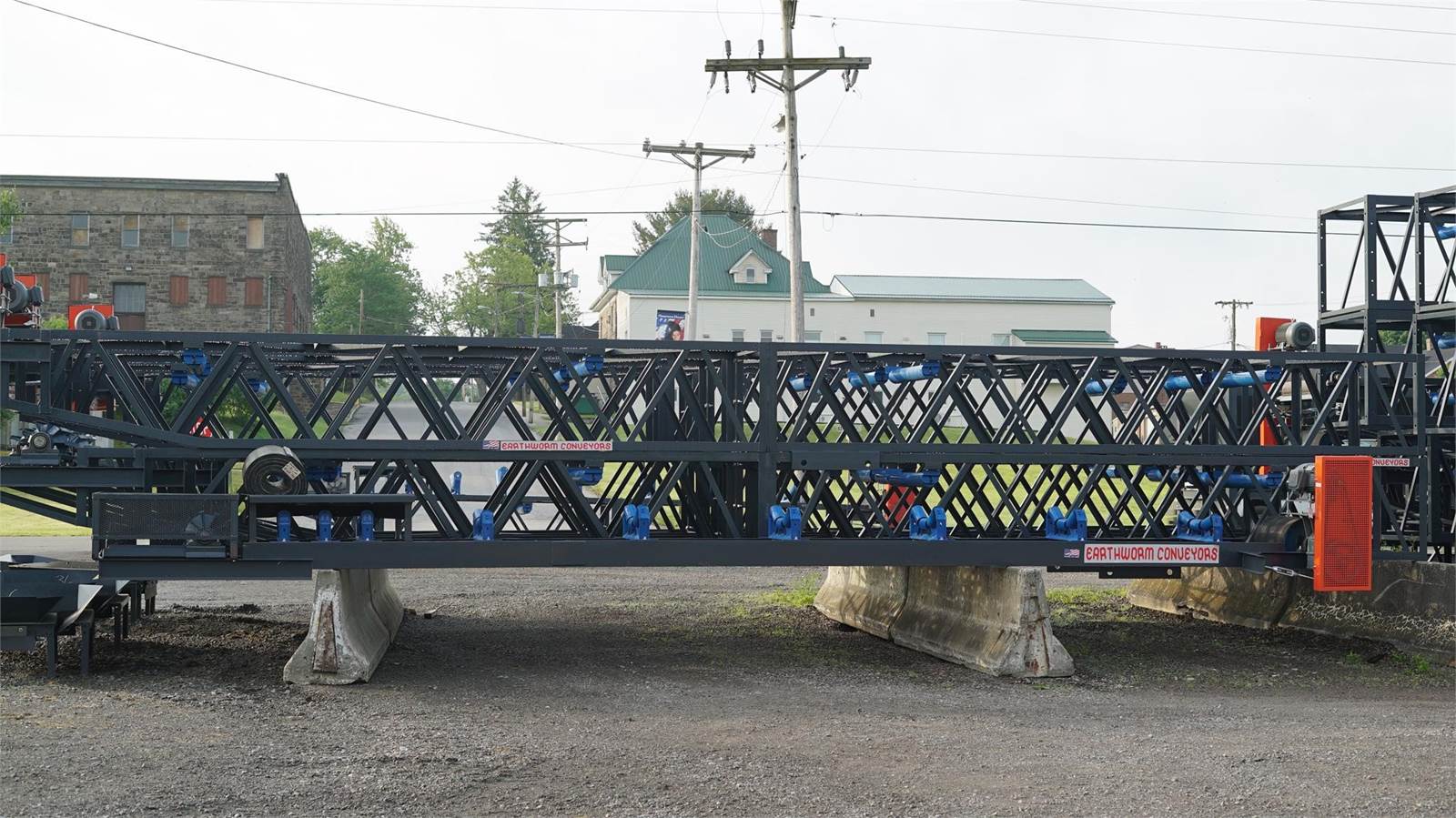

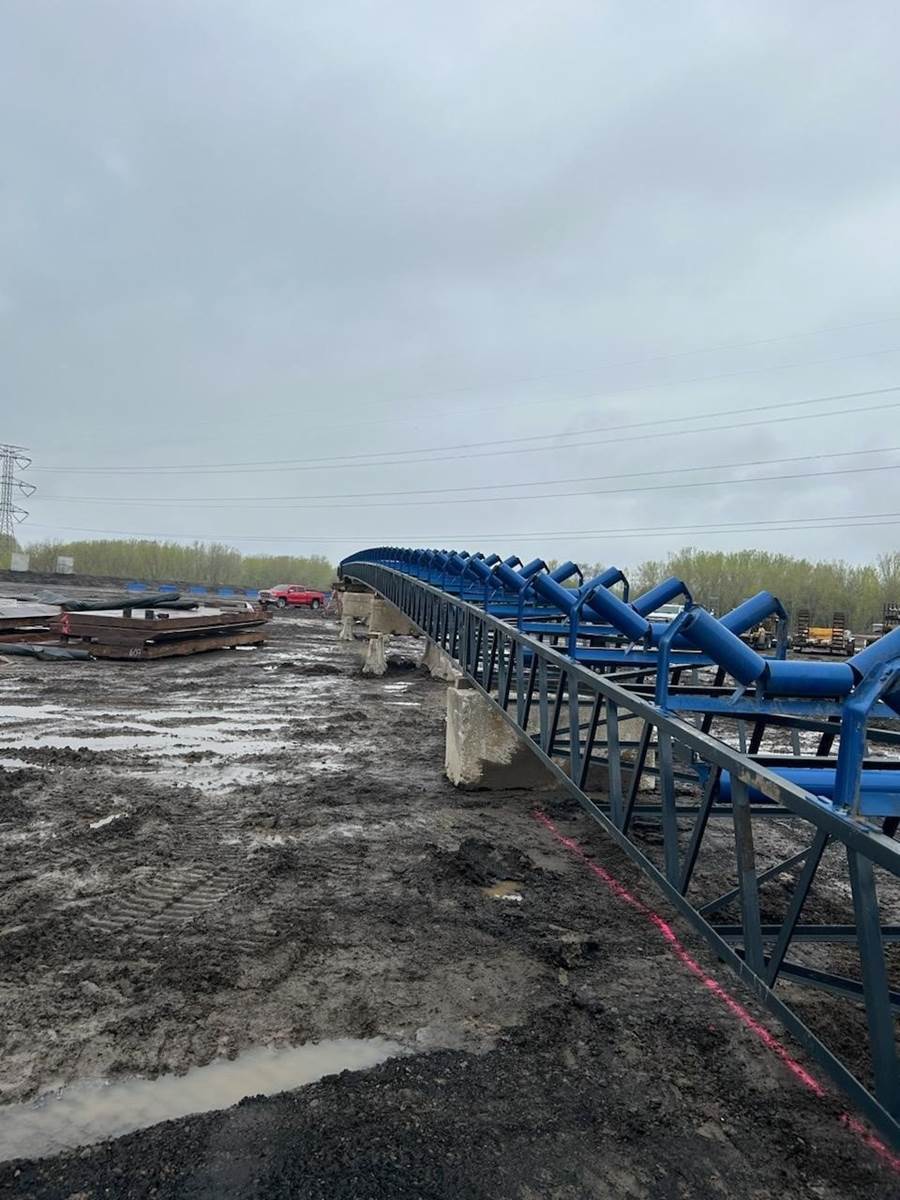

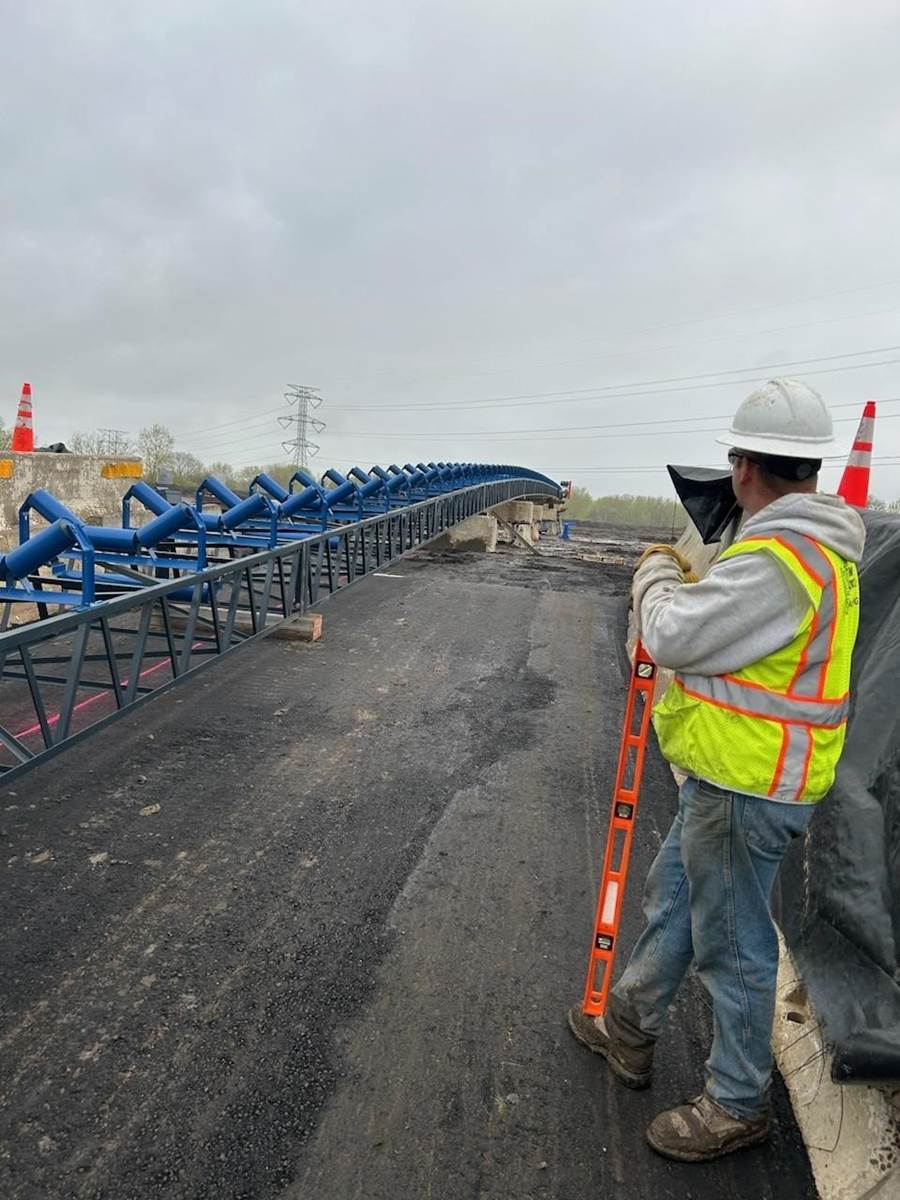

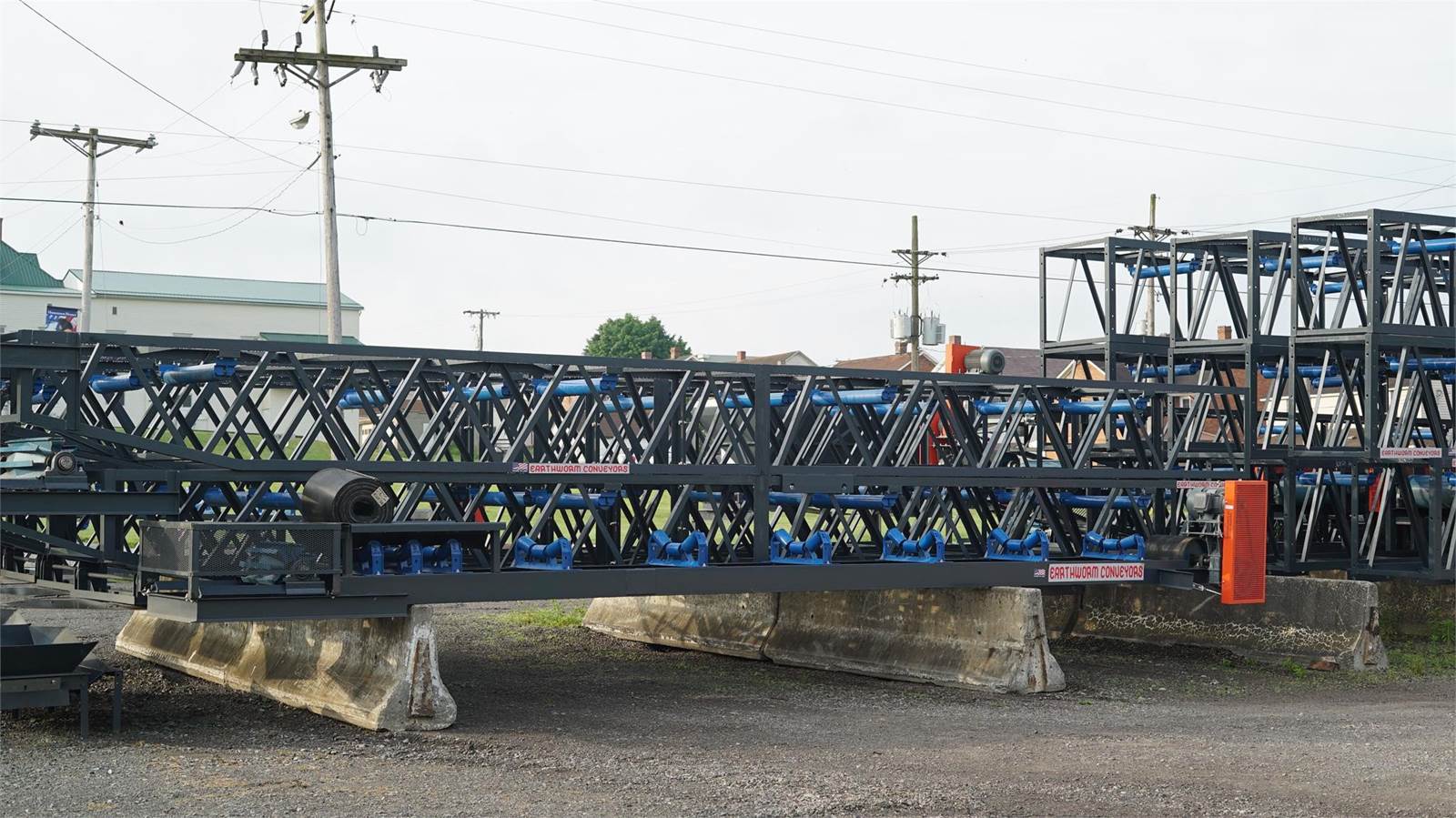

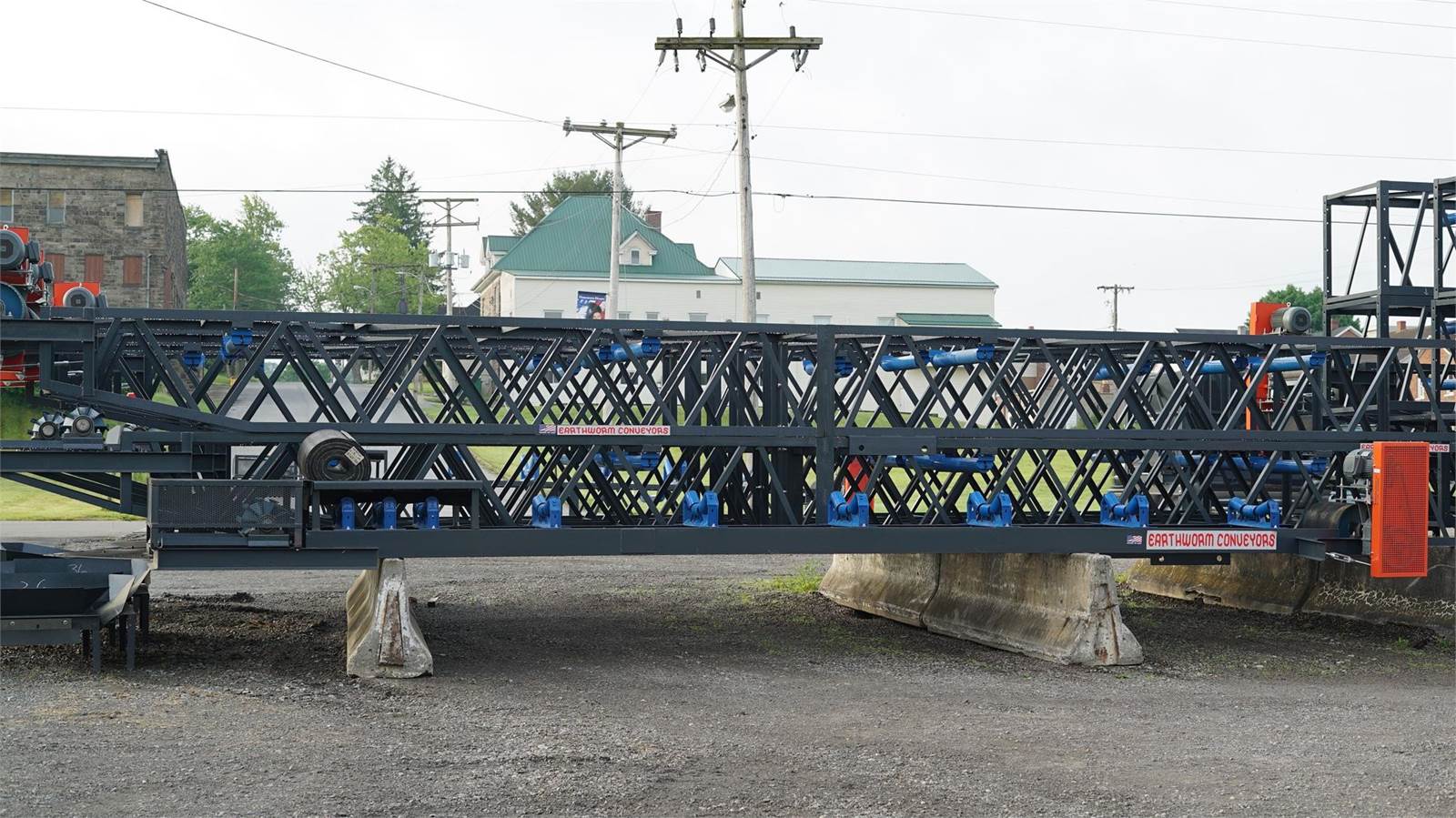

Set It Up On Jersey Barriers Every 40' Section. Job Done.


Notes/Exceptions:
•   No Legs/Support Structures
•   500 tph @ 100 pcf – 10 Ft Lift Overall.
•   Gravity Take-up Weight – 2,800 lbs – By Customer
We Can Finance, Ship Anywhere In The USA
