Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost! Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro or Westminster. Contact us for details!

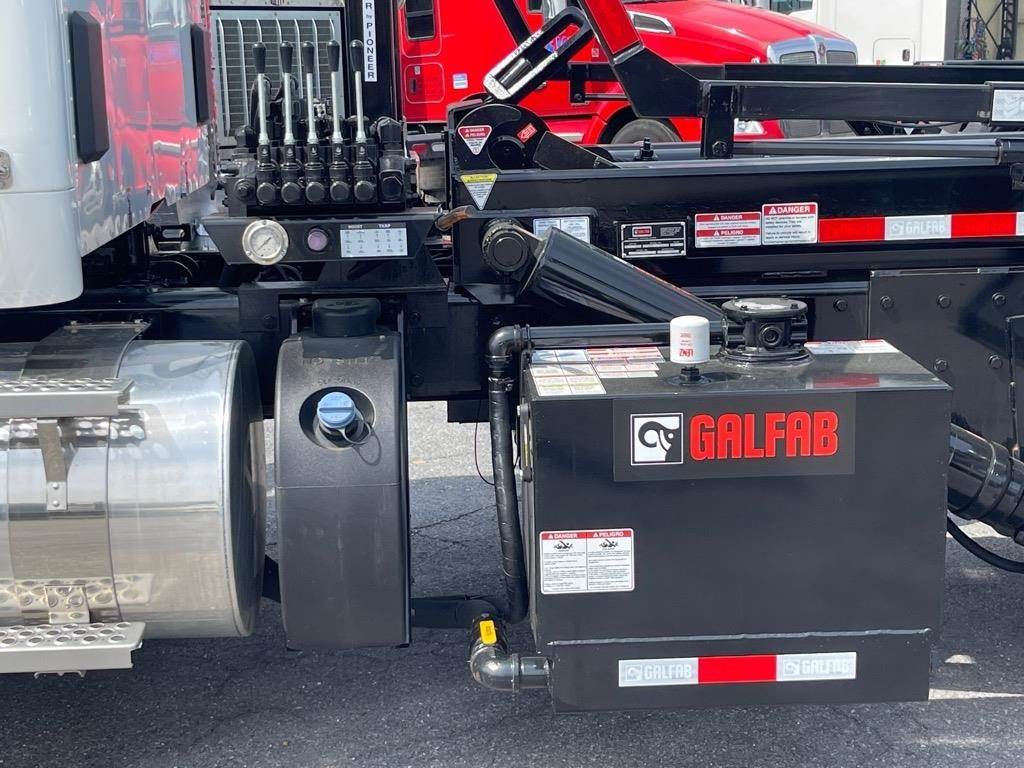

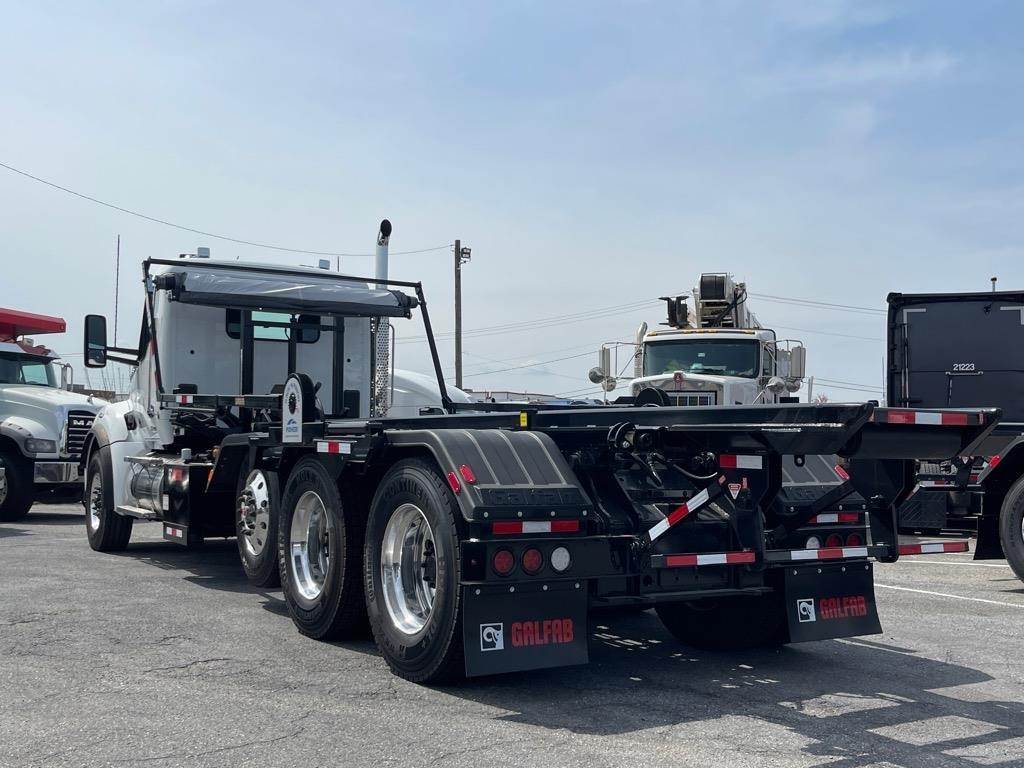

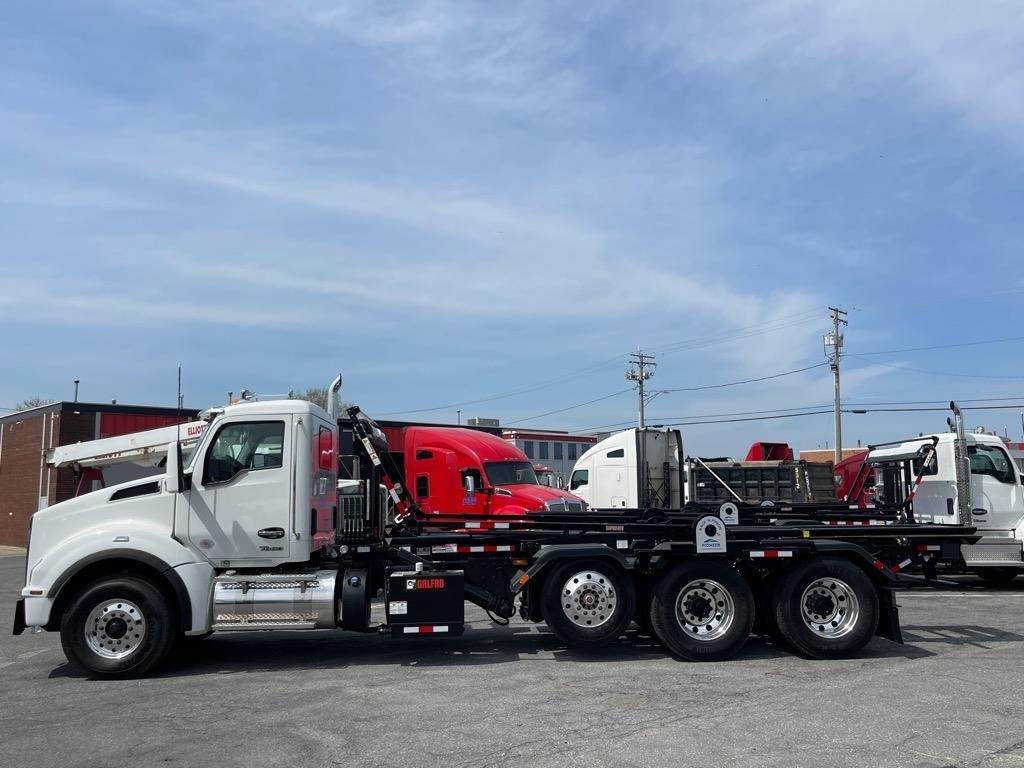

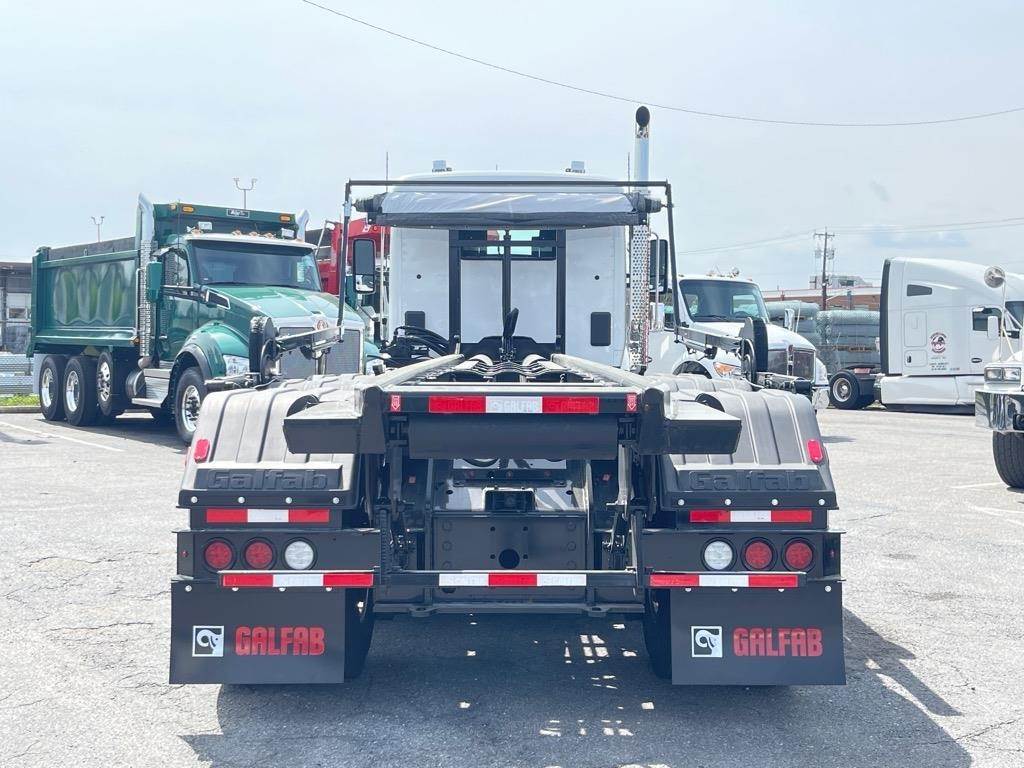

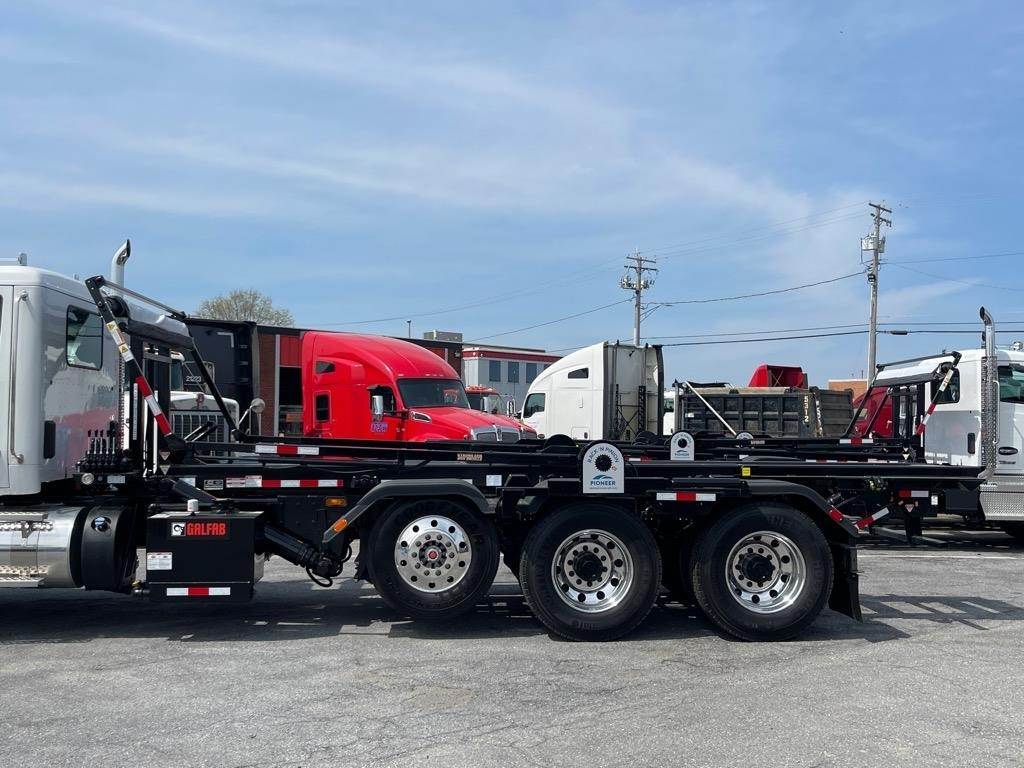

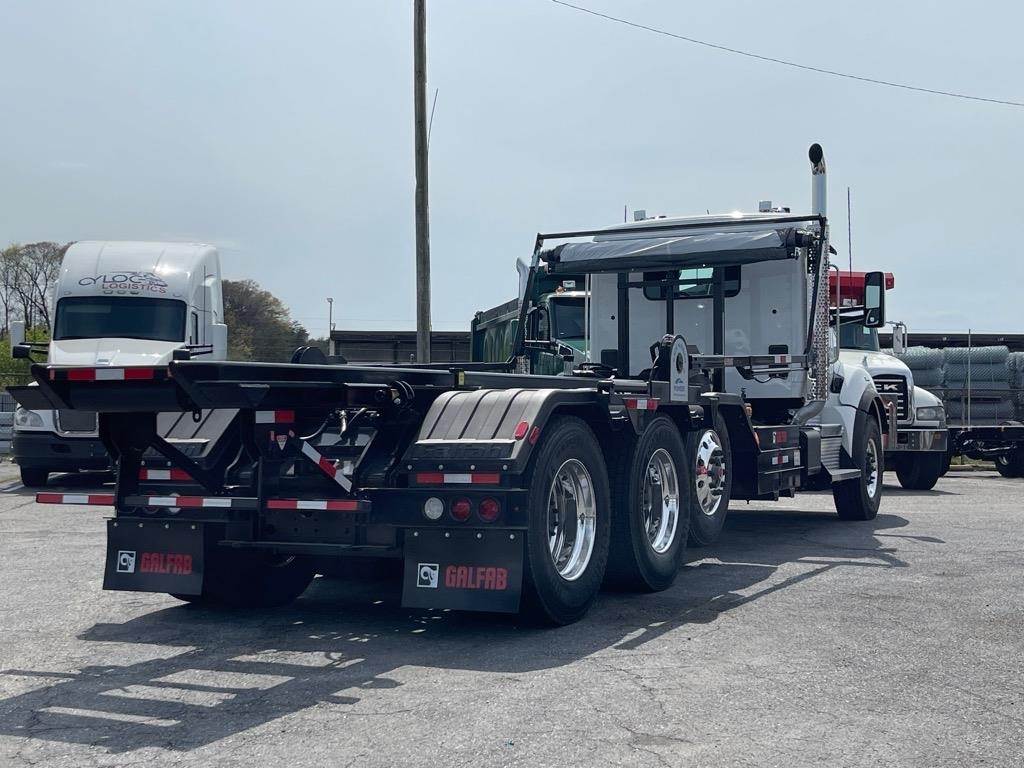

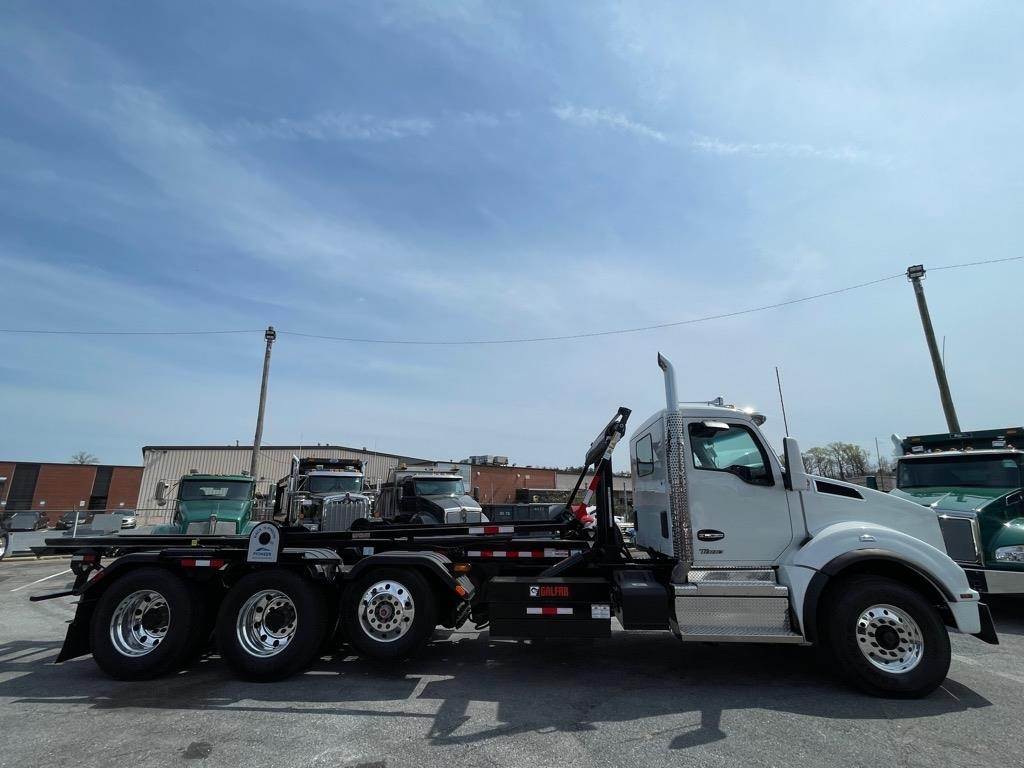

Equipped with Galfab 60k Outside Rail Roll-off Hoist, Pioneer tarp
Model Year: 2025

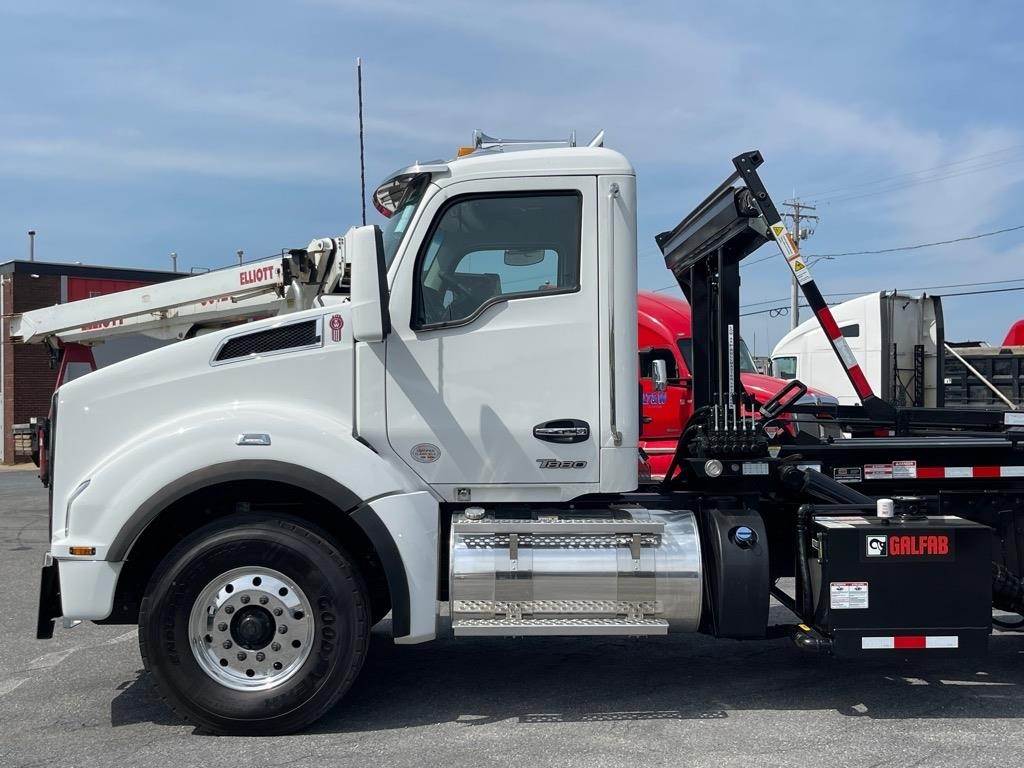

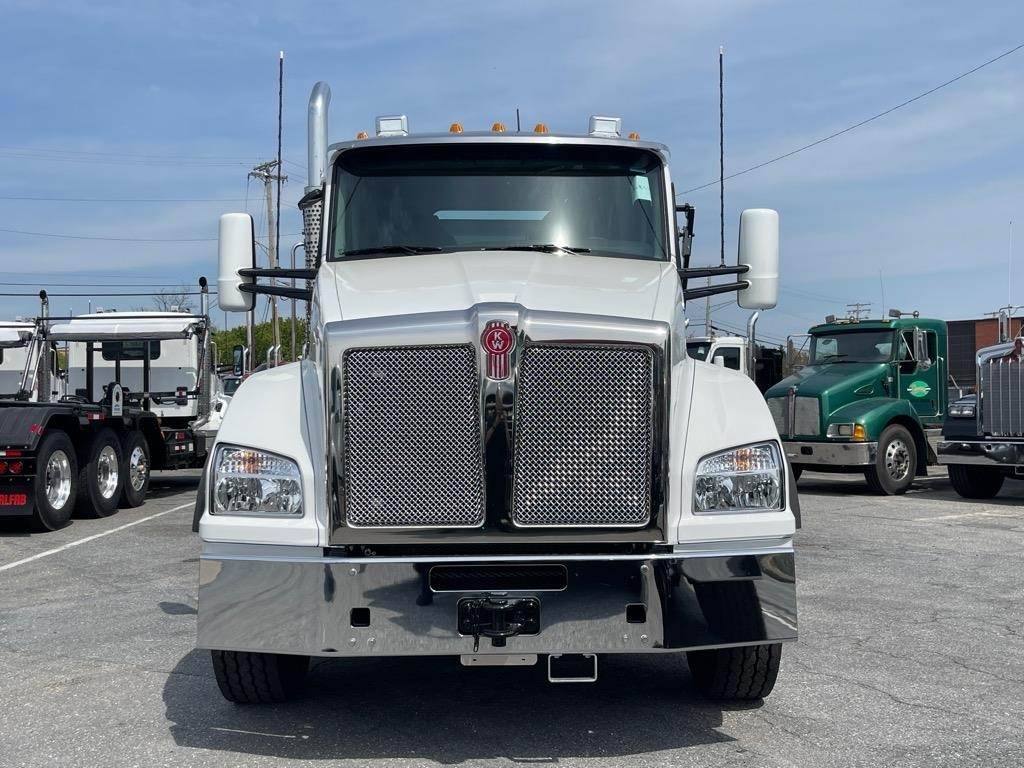

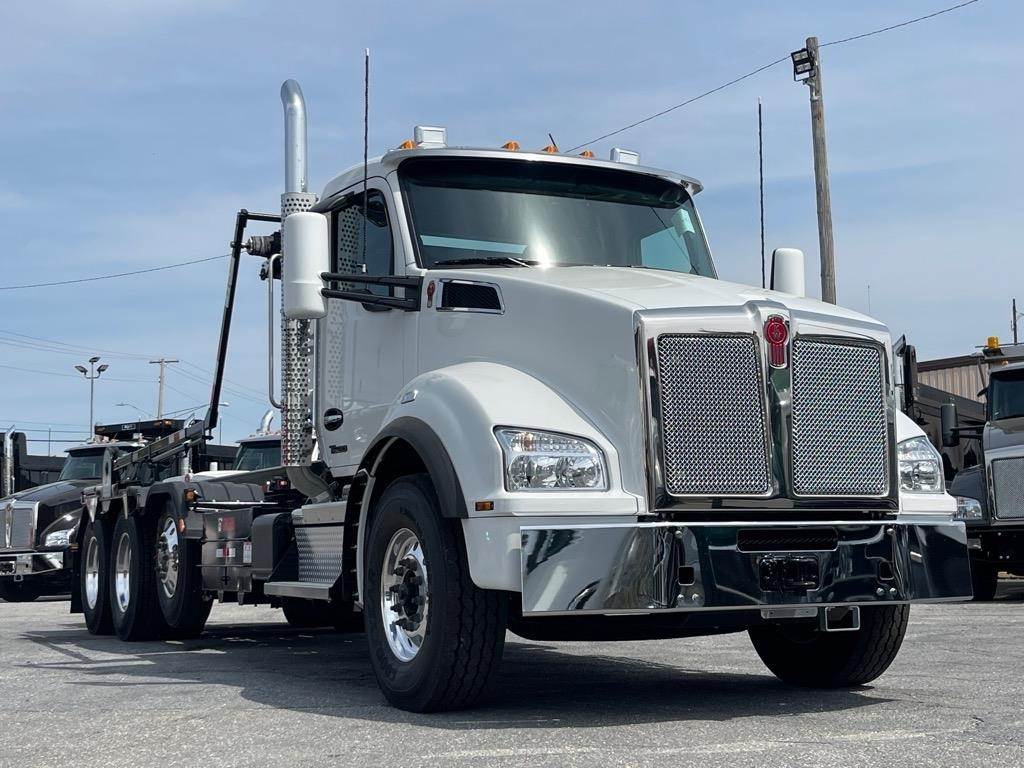

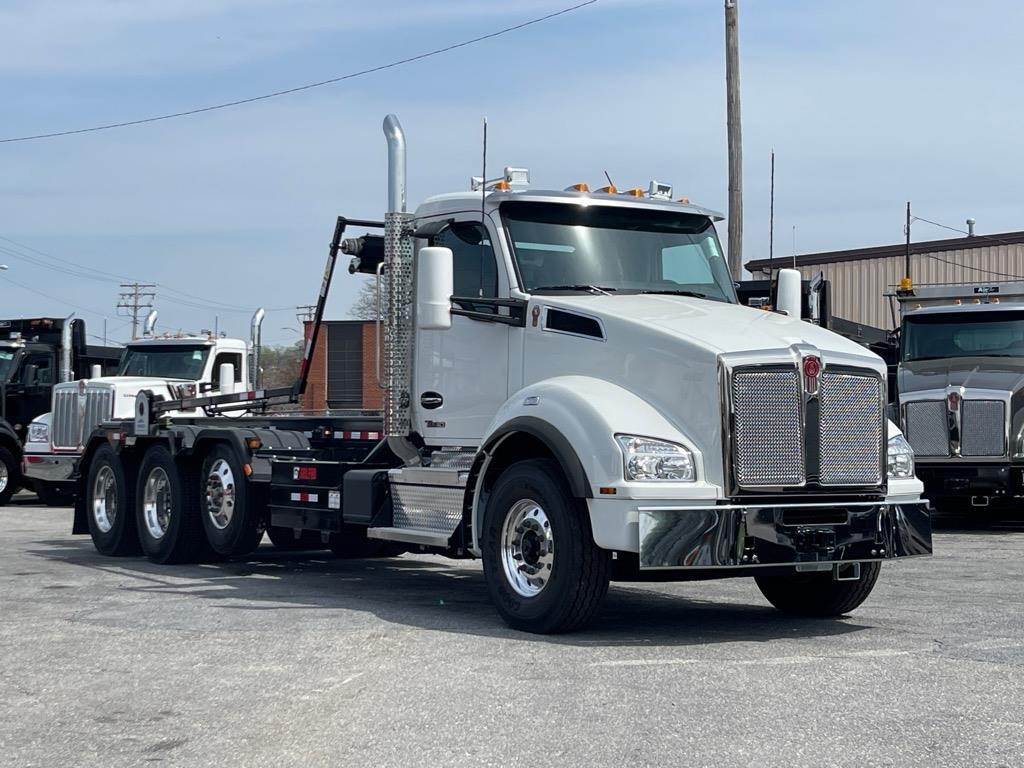

Model: Kenworth T880
Exterior Color: White (L0006EY)
Interior: Vantage Daycab
Interior Color: Slate Gray
Engine: Cummins X15 500V Productivity Series, 500 horsepower @ 1900 RPM, 1850 lb-ft torque @ 900 RPM, engine brake
Transmission: Allison 4500RDS, 6-speed automatic Generation 6 with PTO, without retarder
Front Axle: Dana Spicer D2000, 20,000 lbs, standard track
Rear Axle: Dana Spicer D46-172HP, 46,000 lbs, dual, heavy-duty with pump
Steerable Pusher Axle: Watson & Chalin SL13, 13,500 lbs
Front Suspension: Taperleaf, 20,000 lbs, with shocks
Rear Suspension: Hendrickson HaulMaxx EX (HMX) 460, 46,000 lbs dual, 54" air suspension, 8.5" saddle height, with shocks
Gross Vehicle Weight Rating (GVWR): 79,200 lbs
Wheelbase: 268 inches
Cab-to-Axle: 194 inches
Rear Axle Ratio: 4.30
Brakes: Front Bendix ES drum brakes 16.5x6, rear Bendix ES S-CAM drum brakes 16.5x7" dual extended service, pusher Bendix non-RSD 15x4"
Front Wheels: Accuride steel hub piloted 22.5x8.25, high polish
Rear Wheels: Accuride steel hub piloted 22.5x8.25, high polish (8 wheels total)
Pusher Wheels: Accuride steel hub piloted 22.5x8.25, high polish (4 wheels total)
Front Tires: Goodyear G289 WHA, 315/80R22.5, 20PR
Rear Tires: Goodyear Endurance LHD, 11R24.5, 14PR (8 tires total)
Pusher Tires: Goodyear Endurance LHS, 11R22.5, 14PR (4 tires total)
Fuel Tank: 100 US gallons, 24.5" aluminum, polished, underbody mounted
DEF Tank: 14 gallons, small round, polished cover
Power Windows
Power Door Locks
Tilt/Telescoping Steering Wheel

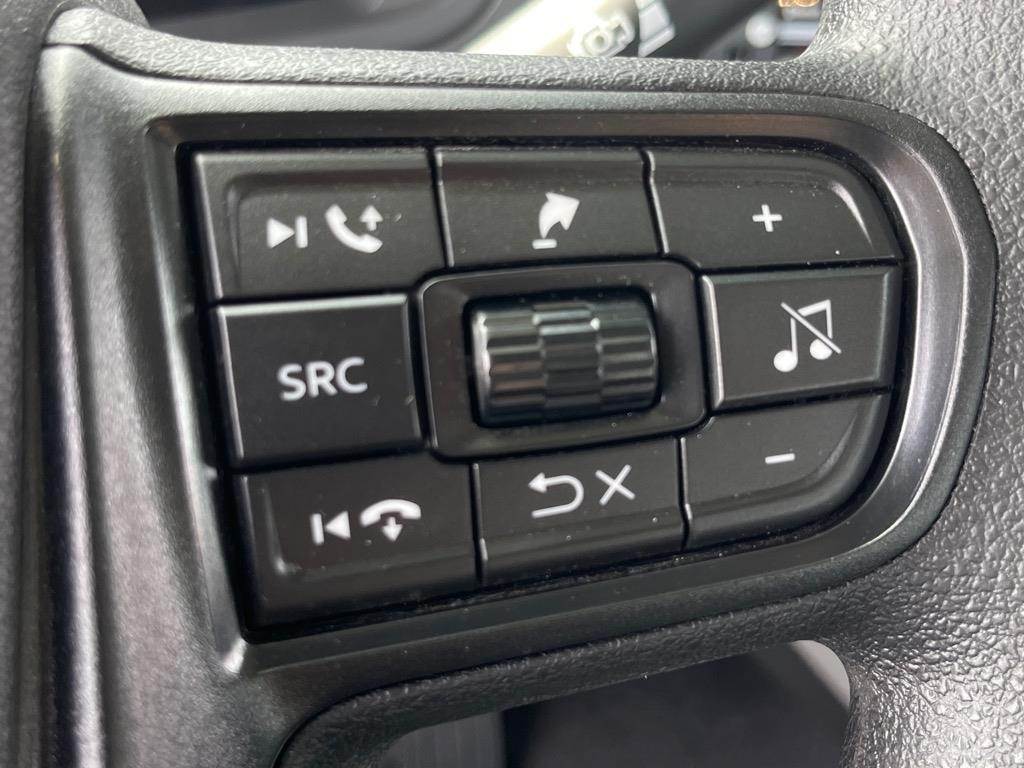

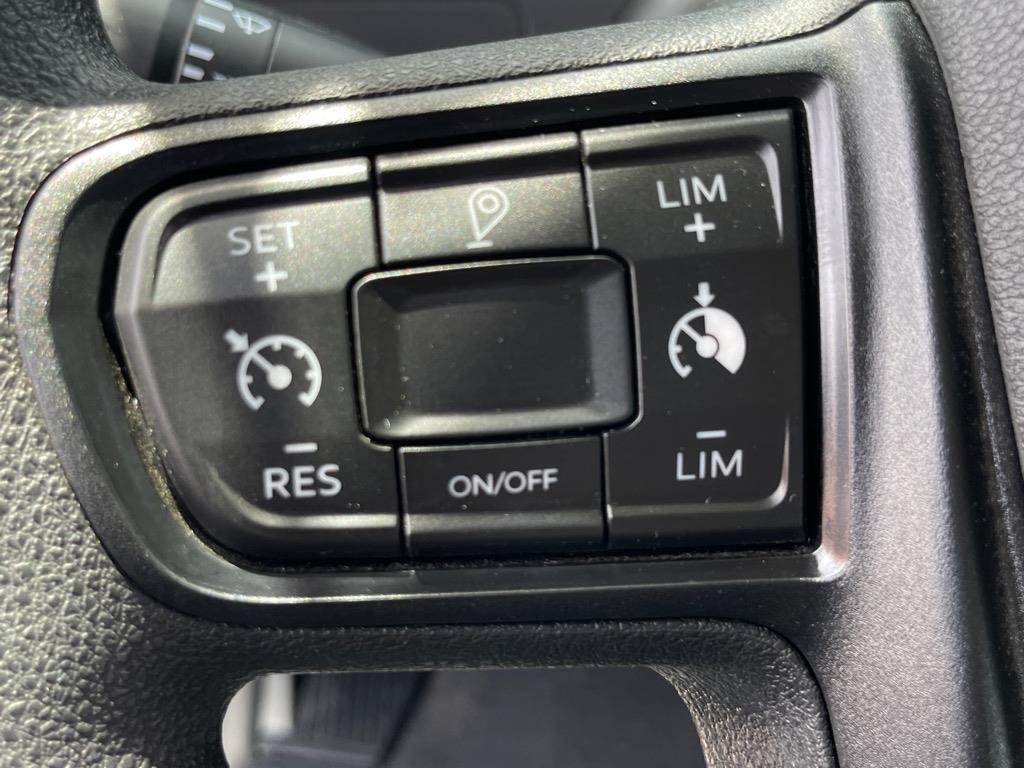

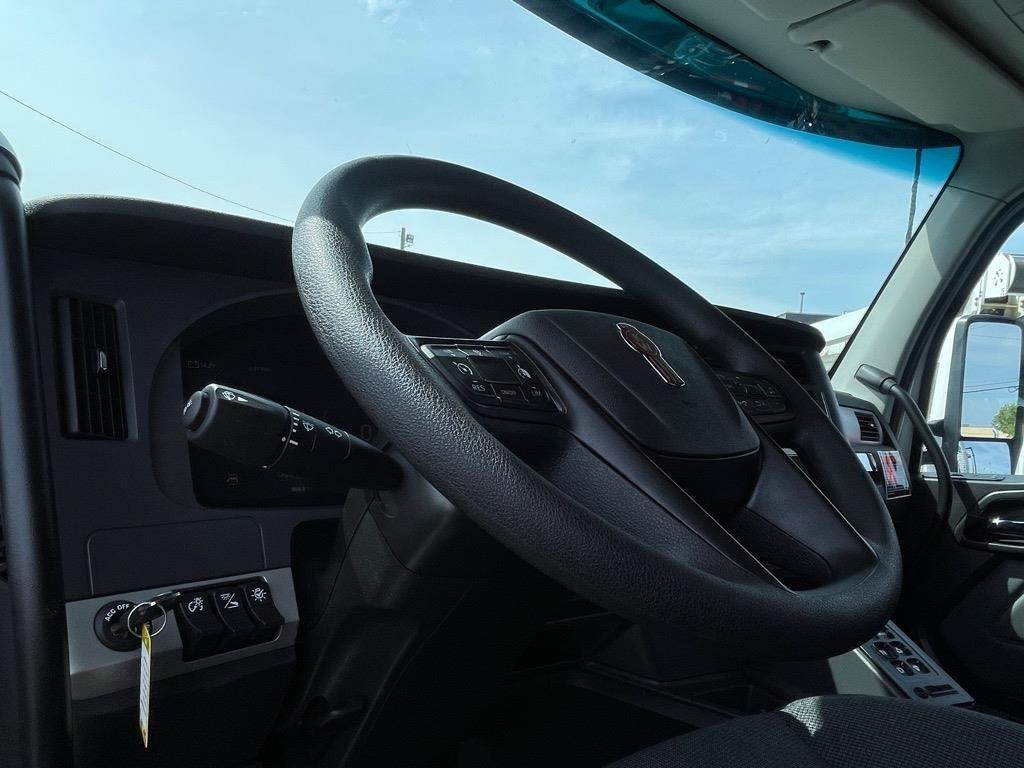

Kenworth Smart Wheel (18" non-leather with integrated radio and cruise controls)
Heated Power Mirrors (dual Kenworth Aero motor heated, 7"x13" shell cab color with black arms, 6"x7" convex mirror)
Air Conditioning with Auto Temperature Control

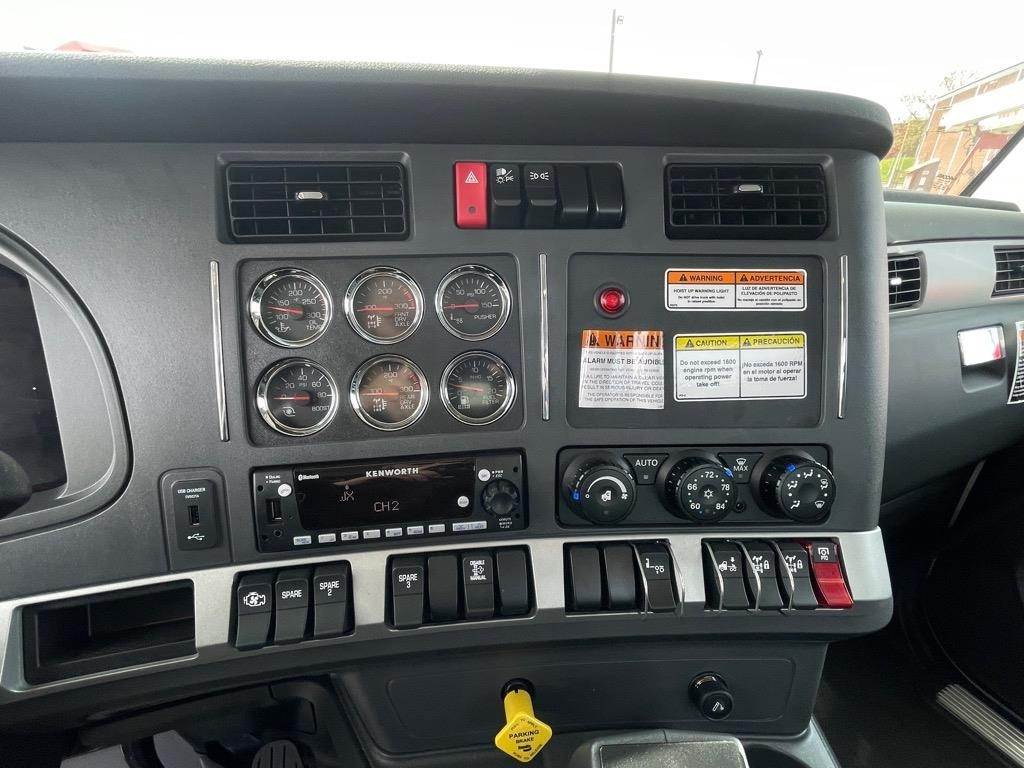

Kenworth Radio DEA710 (AM/FM/WB/USB, Bluetooth)
Mid-Level Audio System with high performance door and B-pillar speakers
CB Installation Kit (center mounted header with quick mount release, dual antenna)
USB Charging Port (dash panel)
TruckTech+ Remote Diagnostics (3-year subscription)
15" Digital Display Main Instrument Package
Virtual Gauges: Engine oil temperature, air filter restriction, manifold pressure boost, engine percent torque, fuel filter restriction, manifold pressure, dual drive axle oil temperature (2 gauges)
Engine Oil Temperature Gauge with integral warning light
Pusher/Tag Axle Gauge/Switch dash mounted
Axle Oil Temperature Gauge for dual drive axle (2 gauges) with integral warning light
Immersion Engine Block Heater (110-120V/1500W, plug located under door)
Fuel Cooler (Kenworth)
Column-Mounted Retarder Control (RH side)

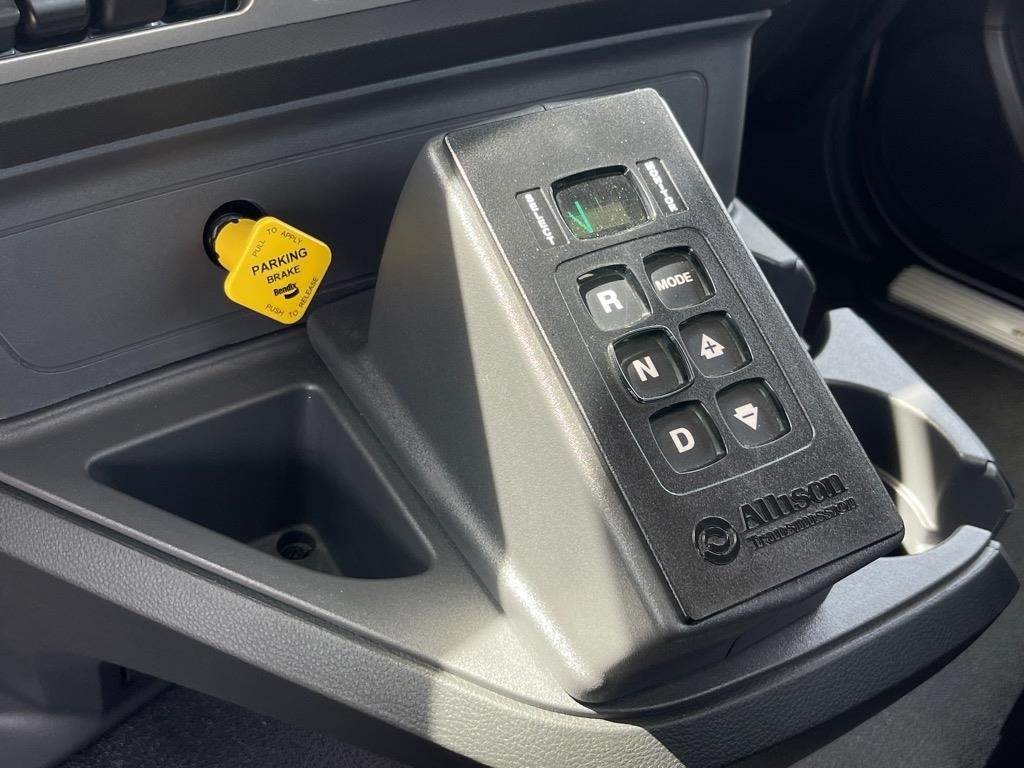

Push Button Control: Console mounted for Allison
Allison J1939 Park Brake Auto Neutral
Allison Neutral at Stop
Allison RDS Package 223
Torque Converter: TC541 for 4000 Series
Dash Switch: 1st Allison-Mounted PTO
Three Spare Switches Wired to Power
Remote PTO/Throttle (12-pin, 250K, behind cab/behind sleeper, J1939, remote control provision)
Muncie 10-Bolt PTO Compatible
Dual Interior Grabhandles (A-pillar dash wrap and B-pillar mounted)

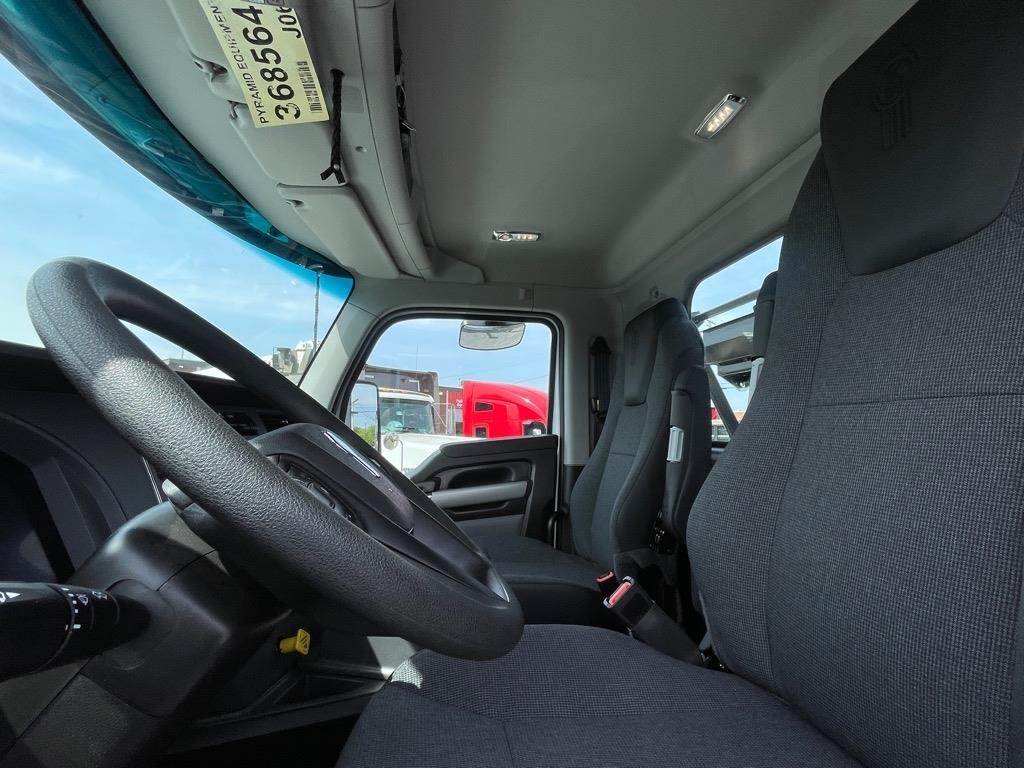

Driver Seat: Kenworth GT701 High Back Duracloth with Vinyl, air-ride suspension, black
Passenger Seat: Kenworth GT100 High Back Toolbox Seat, Duracloth with Vinyl, black
Rubber Floormats
Fire Extinguisher (5 lb dry chemical, Class ABC, mounted outboard of driver seat)
Warning Triangle Reflector Kit (3 triangles in plastic case)
Rear Cab Window (fixed 19"x36")
3.5"x11.5" Plastic Record Holder (mounted rear cab panel)
LH & RH Trip Ledge Rain Deflectors
Look-Down Passenger Door Mirror (black 11x6)
Exterior Stainless Steel Sunvisor
Fender Close-Out Below Headlamp Welded to Bumper
Wheel Well Fender Extension: 2.5"
Bumper: Unpainted
Polished Aluminum Fuel Tank
Polished DEF Tank Cover
Polished Fuel Tank Straps (1 tank)
Anti-Siphon Device for tank filler neck
Mechanical Anti-Roll Channel (1 tank)
DEF Tank Location: LH
5" Single Vertical Exhaust Tailpipe (36" length, 45 degree curved, RH stack on chassis)
Bright Engine Air Intake
Bug Screen (between hood and grille, semi-rigid, not removable)
LED Headlamps (SAE dual halogen complex reflector)
LED Marker Lights (5 rectangular)
LED Turn Signal Lights (flush mounted at top of fender wheel arc)
LED Stop/Turn/Tail Lights with 2 LED backup lights and LED license plate light
Marker Light Interrupter Switch
Polyswitches Replace Fuses (auto reset after removal of excess load)
Wiring Only for C/I Backup Alarm (junction box at end of frame)
Reflectors: 2 amber midframe mounted for full truck
Air Horn (dual rectangular 23" LH/RH roof, includes air horn covers)
Bendix AD-HF Heated Air Dryer with Puraguard and extended purge
Moisture Ejector Valve (pull cable drain)
Nylon Air Tubing (frame/cab)
ABS: Bendix 4S/4M (front wheels plus 2 groups rear wheels)
Rear Wheel Differential Lock: Dana D40-170/172 and D46-170/172, 2 wheel differential, rear rear
Driveline: 1 Dana SPL170XL inter-axle, 3 Dana SPL250XL with 2 center bearings
PACCAR 160 Amp Brushed Alternator
3 PACCAR Group 31 Heavy-Duty Batteries (2100-2190 CCA dual purpose)
Mitsubishi 105P55 12V Starter
Battery Disconnect Switch (2 mounted on battery box)
12V Low Voltage Disconnect for battery protection
Power Steering: Dual gears, TRW THP60, 16,000-22,000 lbs
Power Steering Cooler (radiator mounted)
Heavy-Duty Torque Rods (replace standard duty to 46,000 lbs, Hendrickson beam suspension only)
Delete Standard Heavy-Duty Air Springs for rear suspension
Threaded Bushings for taperleaf spring
Auto Slack Adjusters for drum brakes (front and rear)
Rear Spring Brakes: 3030 longstroke dual for drum brakes
Rear Dust Shields for drum brakes
Horton 2-Speed Fan Hub for X15 engines
1330 Square Inch Cooling Module
Fuel Filter: PACCAR standard service interval fuel/water separator
Fuel Heat Run Aid
12V Fuel Heat Start Aid
Pre-Cleaner mounted in the hood plenum
EPA Clean Idle Label - Cummins engines
EPA Emissions Warranty Engine
2024 Series Emissions Engine
PremierSpec
Engine Idle Shutdown Timer Disabled
Enable Engine Idle Shutdown Ambient Temperature Overrule
Effective Vehicle Speed Limit Setting: Not Applicable
Allison Push Button Control: Console mounted
Allison Fuel Sense: Delete
Pusher Axle Location: 49" from centerline forward rear/single
Front Wheels: Conmet PreSet Plus hub package
Rear Wheels: Conmet PreSet Plus hub package
Vented Front Hubcaps
Cast Front Brake Drums: 16.5x6" for 22,000 lbs
Cast Rear Tandem Brake Drums: 16.5x7" or 16.5x8.625"
Cast Pusher Brake Drums: 15x4" for 13,500 lbs axle
Aluminum Front Hubs (iron hub piloted mounting, 20,000 lbs maximum capacity, 11.25" bolt circle, 10 bolts)
Aluminum Rear Hubs (hub piloted dual, 11.25" bolt circle, 46,000 lbs)
Aluminum Pusher Hubs (hub piloted for 13,500 lbs axle)
Turn Signal: Non-self-cancelling
Omit Brake Light with Engine Brake

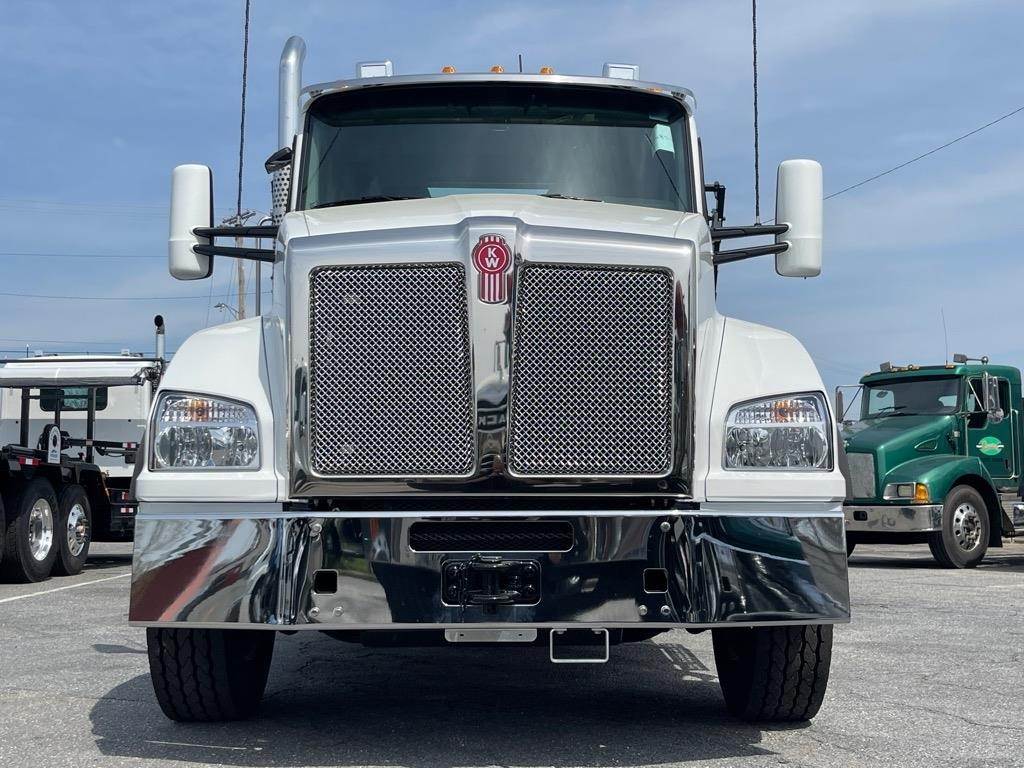

T880 Hood (set-back medium length, 122.6" bumper to back of cab with standard bumper)
T880 Stamped Aluminum Cab (panoramic curved windshield with LED marker lights and signals)
Daylite Doors (Kenworth with standard LH/RH electric door locks and LH/RH electric window controls)
1-Piece Bonded-In Windshield with curved glass
Kenworth Cab/Sleeper Air Suspension
Fine Particulate Filter for HVAC cabin air
Shutoff Valves to Isolate Primary Heater (remote mounted on frame cab)
Grabhandle: 1 long RH mounted stack on chassis/exhaust
Grabhandle: LH ergonomic exterior side of cab
Paint: Base Coat/Clear Coat
Front Mudflaps
Rear Mudflap Arms: Betts B25 standard duty straight
Rear Mudflap Shields: White plastic, Kenworth logo, antisail
Square End of Frame without crossmember
Zinc Phosphate Frame Rail Paint Process
Zinc Phosphate Frame Insert Paint Process
VMUX Architecture
