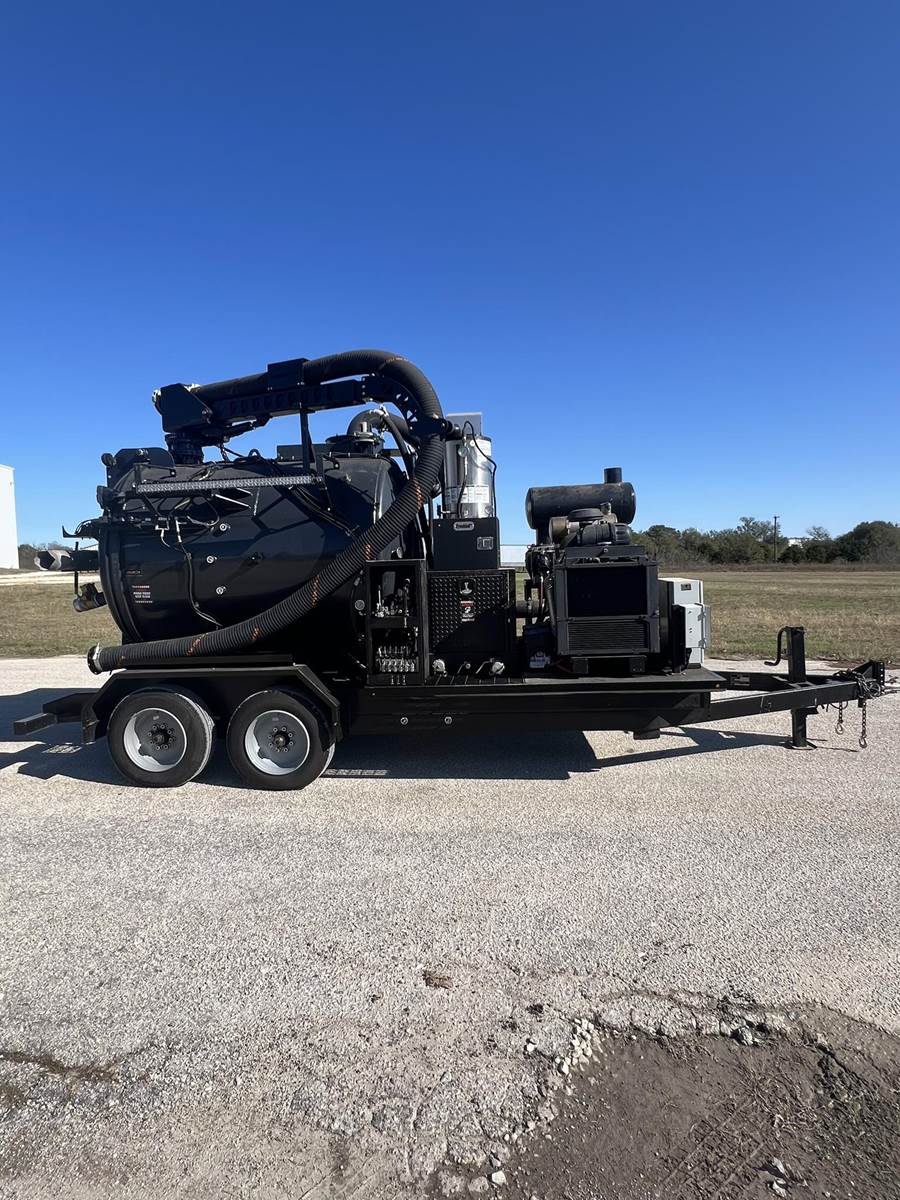

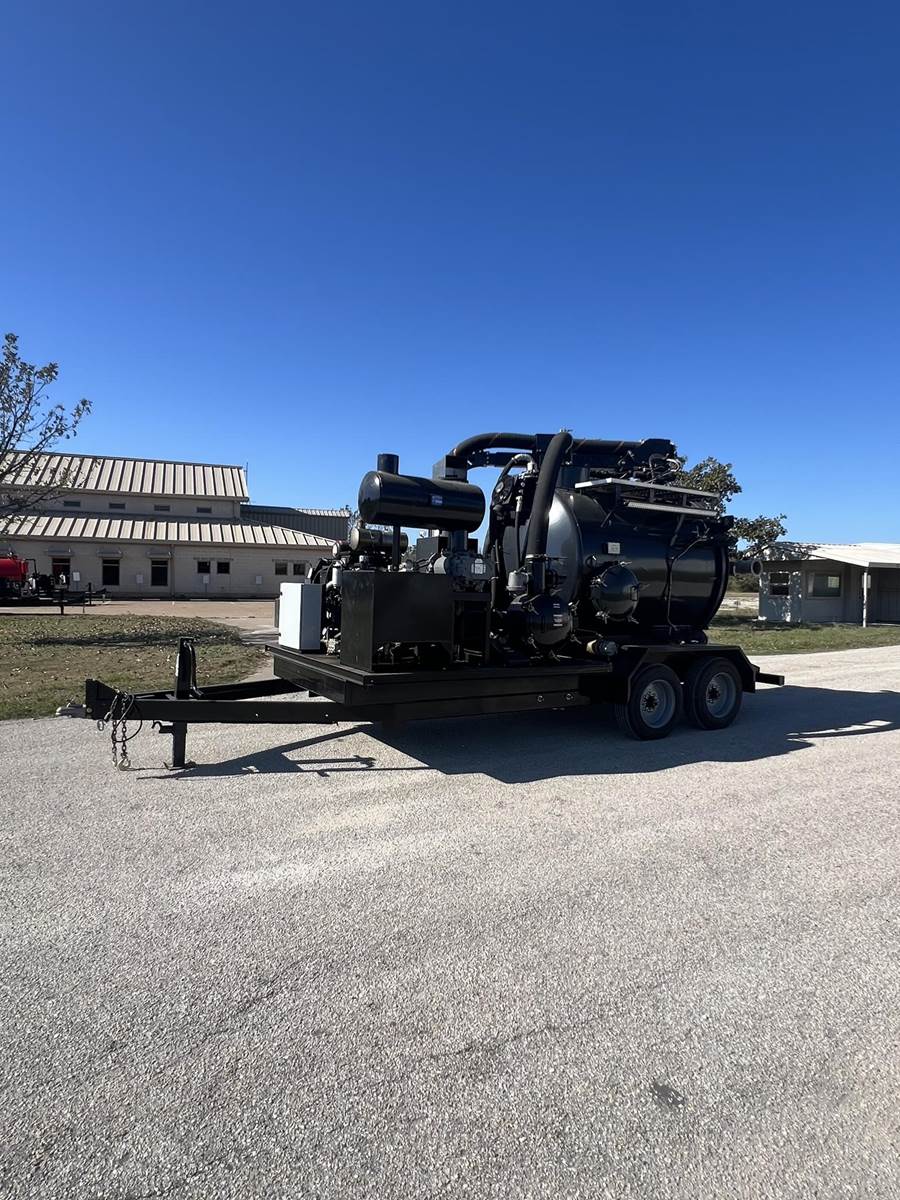

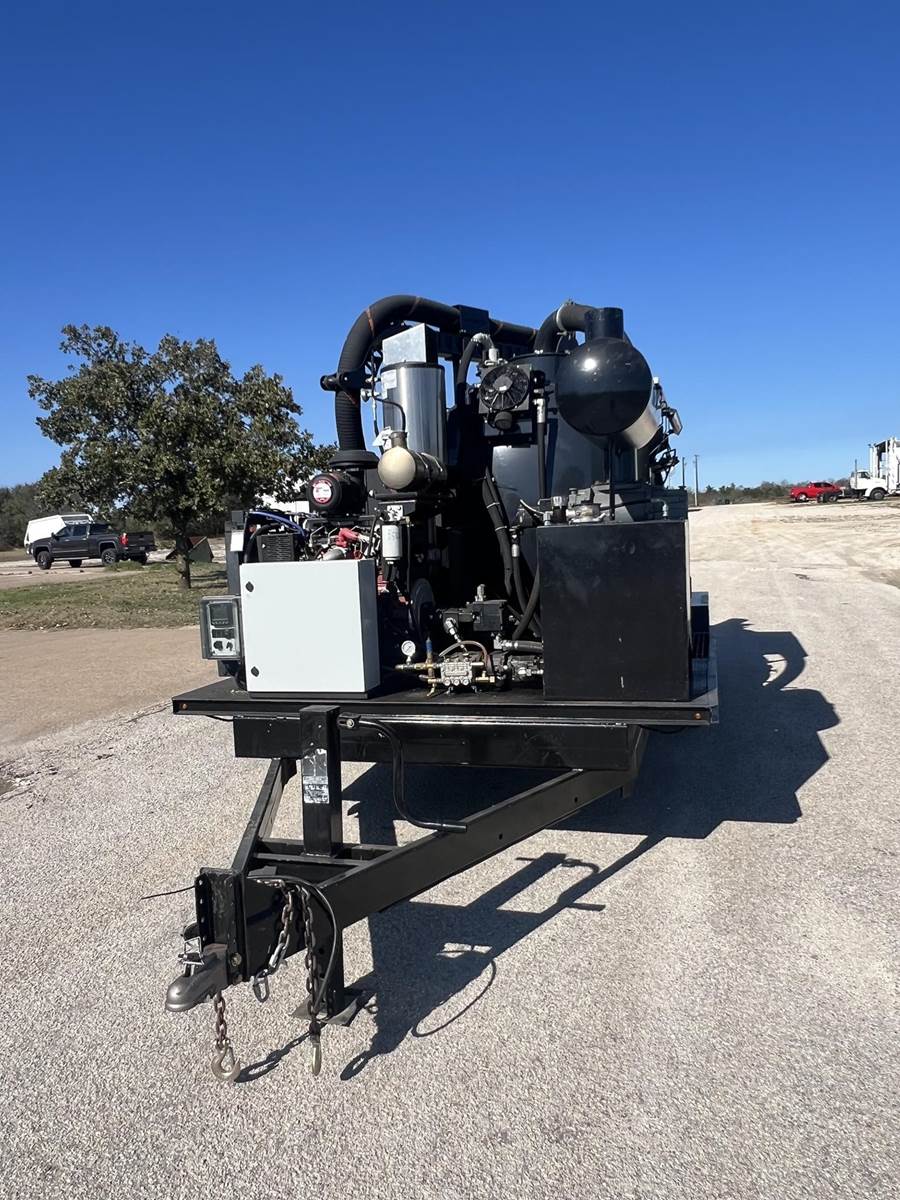

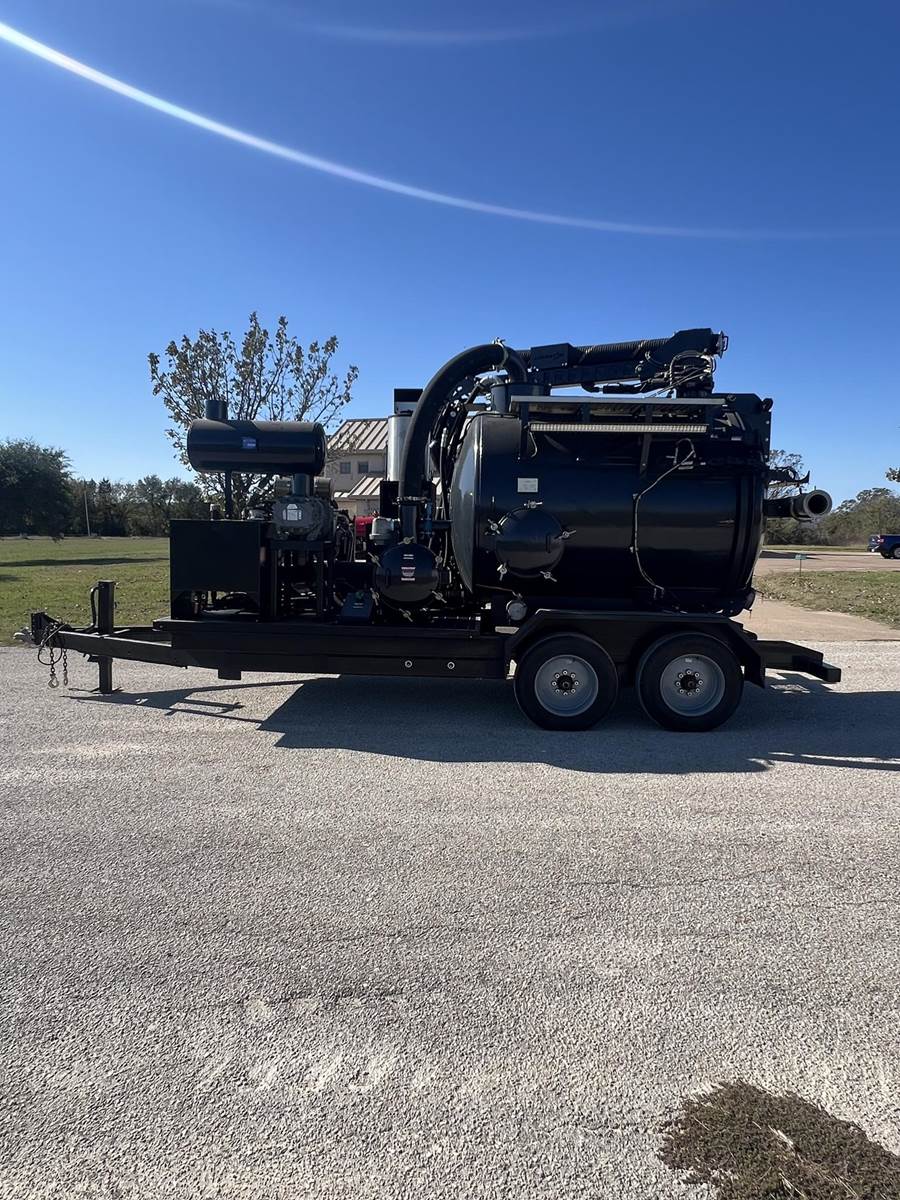

2025 LONESTAR TRAILER & BODY VACX PRO Vacuum Tank Trailer

This unit was a demo unit- only 36.3 hours!!

DRIVE:
Cummins T4F 74hp Diesel engine

TANK CAPACITY:
500 USG Fresh water / 800 USG Waste, Tank is designed with sloped interior floor, fresh water is under waste floor area of tank. 1/4” tank thickness

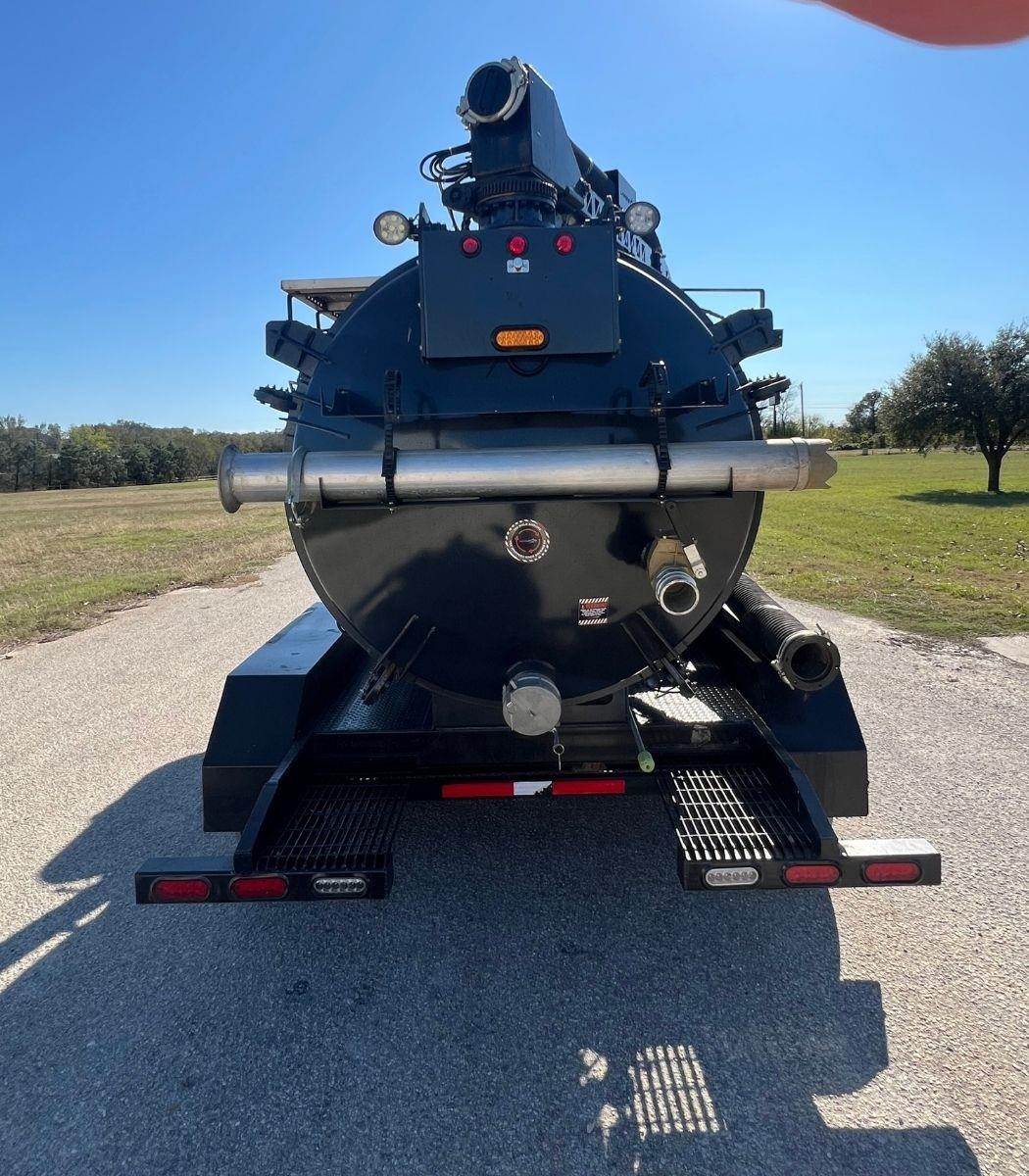

REAR DOOR:
Full Open rear door with (4) hydraulic locks

PRIMARY SHUT-OFF:
12” primary shut-off with 6” outlet and 8” ball and rubber seat
LIQUID LEVEL INDICATOR:
Stainless Pointer Needle Passengers side of tank

DISCHARGE VALVE:
One (1) 6" brass lever valve

SUCTION VALVE: One (1) 4" brass lever valve

BLOWER SPECIFICATIONS:
Roots Model 412 blower 1,200 cfm, 16” HG maximum vacuum Hydraulic Driven
ROOTS™ RAM™ Frame 412
Flow Range: to 1199 CFM
Max Δ Pressure: 15 psi
Max Δ Vacuum: 16″ Hg
Maximum RPM: 4000
Minimum RPM: 850
Max ΔT: 240°F

Pressure off load preset 10 PSI , Capable of 15 PSI Pressure off load with enough pressure to blow a lodged rock out of the dig tube

FUEL TANK:
74 USG Fuel tank under deck

HYDRAULICS:
Hydraulic reservoir tank 50 USG
Spool valve control for Boom with wireless remote
Spool valve for pressure washer
Spool valve for Blower control
PIPING/RELIEFS:
6” plumbing from internal cyclone to exterior element filter with dual preset relief valves

HOT WATER HEATER:
Hot water burner 300,000 BTU/HR Dynablast 12VDC diesel fired burner with high temperature shut-off and flow switch. Burner controls system to be enclosed with easy access door

WASH SYSTEM:
8.2 GPM at 4,000 psi wash pump and is variable.
Hydraulic driven. Electric hose reel with 50’ ft. ½” hose, 500 USG of fresh water in main tank front lower ½ 6” dig tube, 4” Dig tube, Pressure washer lance and Rip saw #5 tip 25’ of 3” suction hose with Dixon quick connect ends

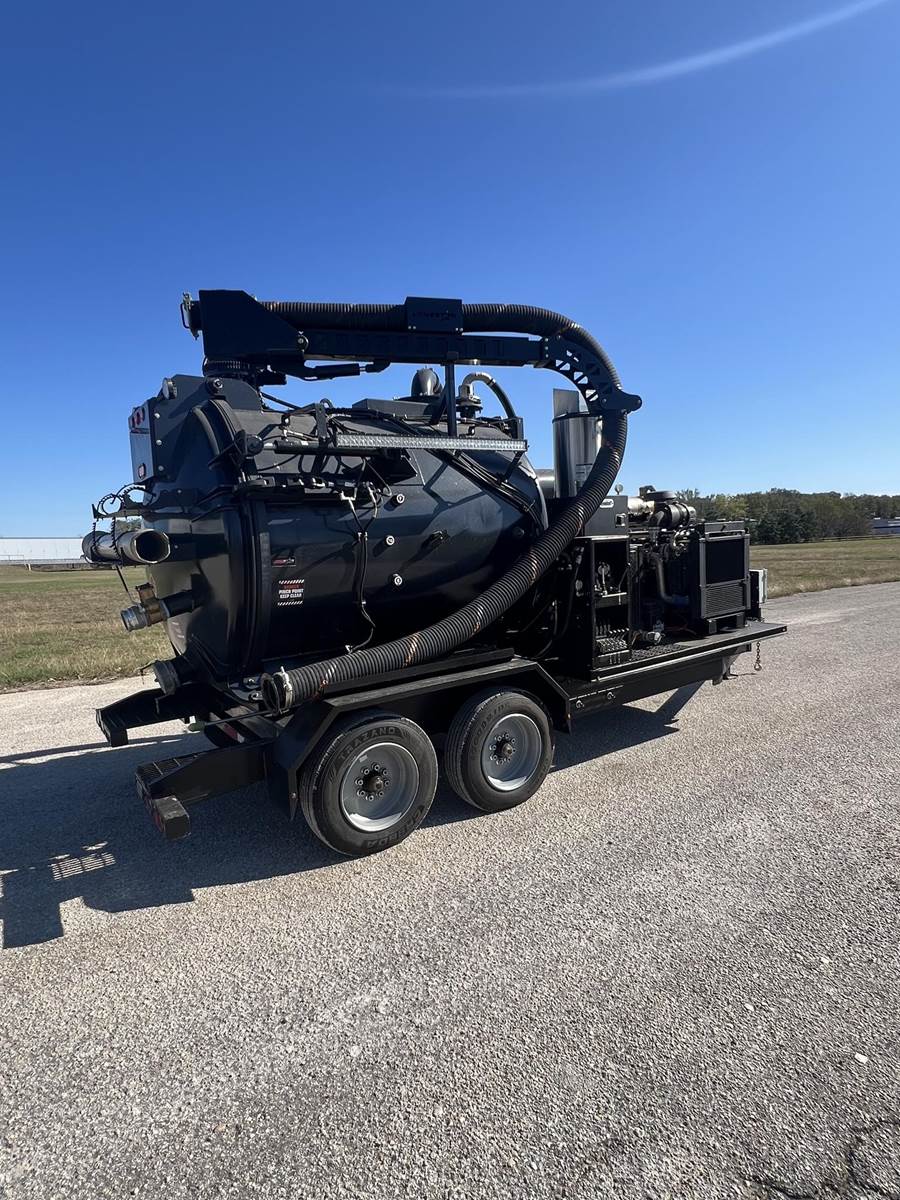

BOOM:
12’ – 16’ Hydraulic Boom with Remote 6” suction hose, Raises, turns and extends, joystick or remote wireless controls
