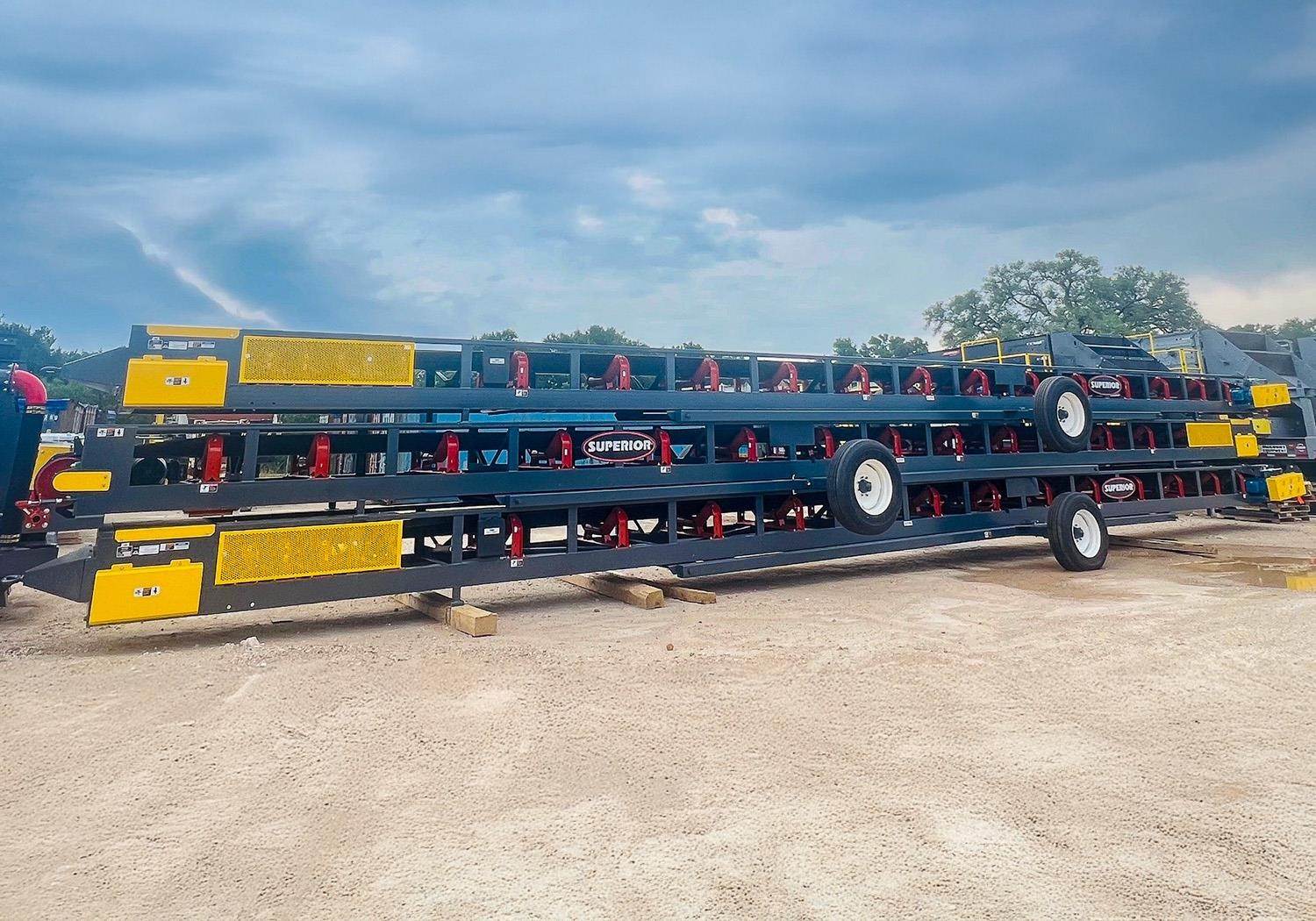

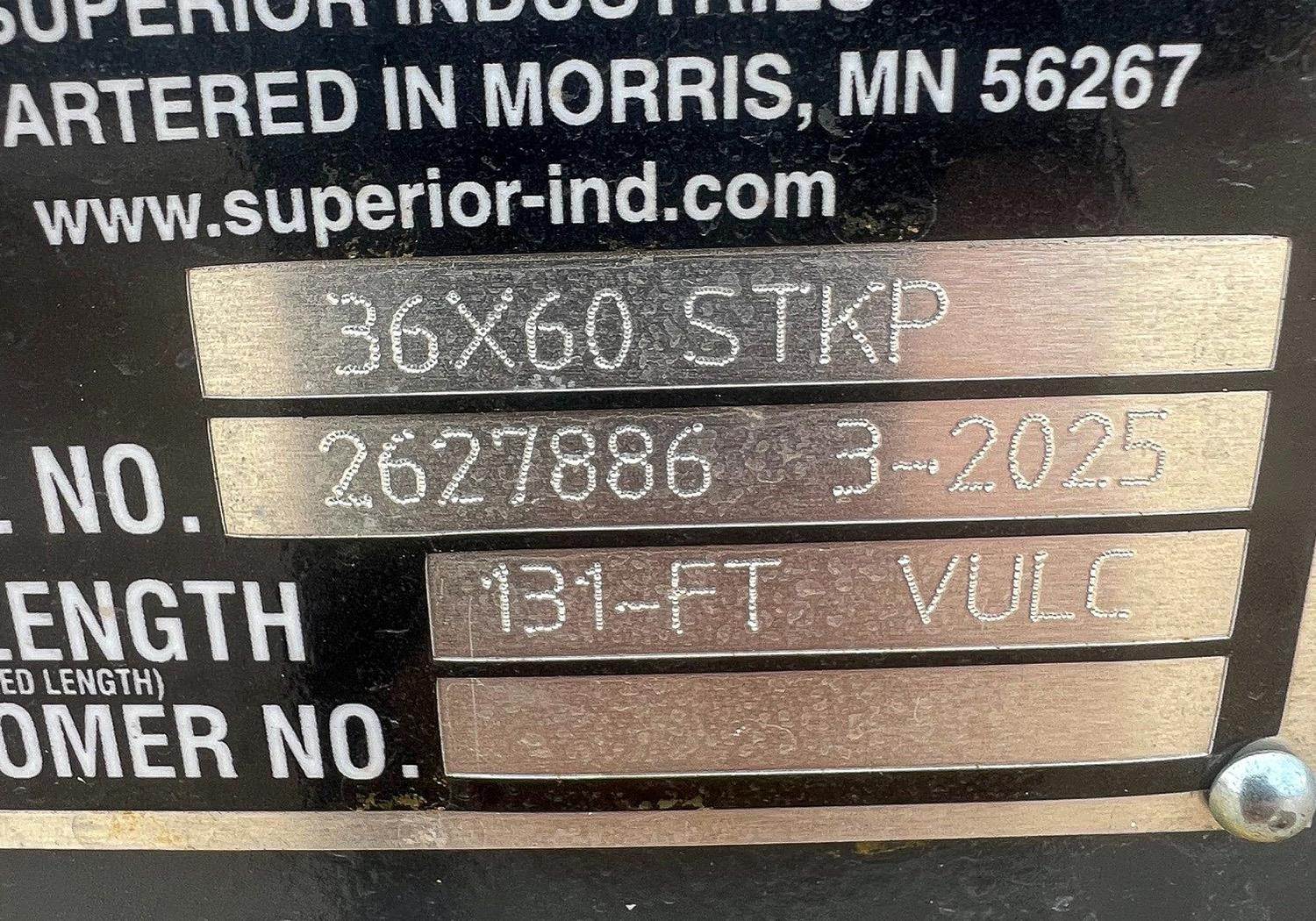

2025 Superior 36X60STKP Conveyor

2025 SUPERIOR 36” X 60’ STACKABLE PLUS CONVEYOR

CONVEYOR FRAME

- MAIN FRAME: 8” CHANNEL
- CHORD ANGLES: 4” CHANNEL
- BOTTOM CHORD ANGLES: 4” X 2” TUBING

DRIVE SPECIFICATIONS

- DRIVE: CLASS I HEAD END
- GEAR REDUCER: SHAFT MOUNT
- BACKSTOP: INSTALLED IN REDUCER*
- MOTOR: 20 HP TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 750 STPH OF 100 PCF MATERIAL, 25° SURCHARGE (90% FINES, 10% SPHERICAL LUMPS, 6” MINUS)
- BELT SPEED: 400 FPM
- DRIVE PULLEY: 14” DIAMETER, 3/8” HERRINGBONE LAGGED DRUM

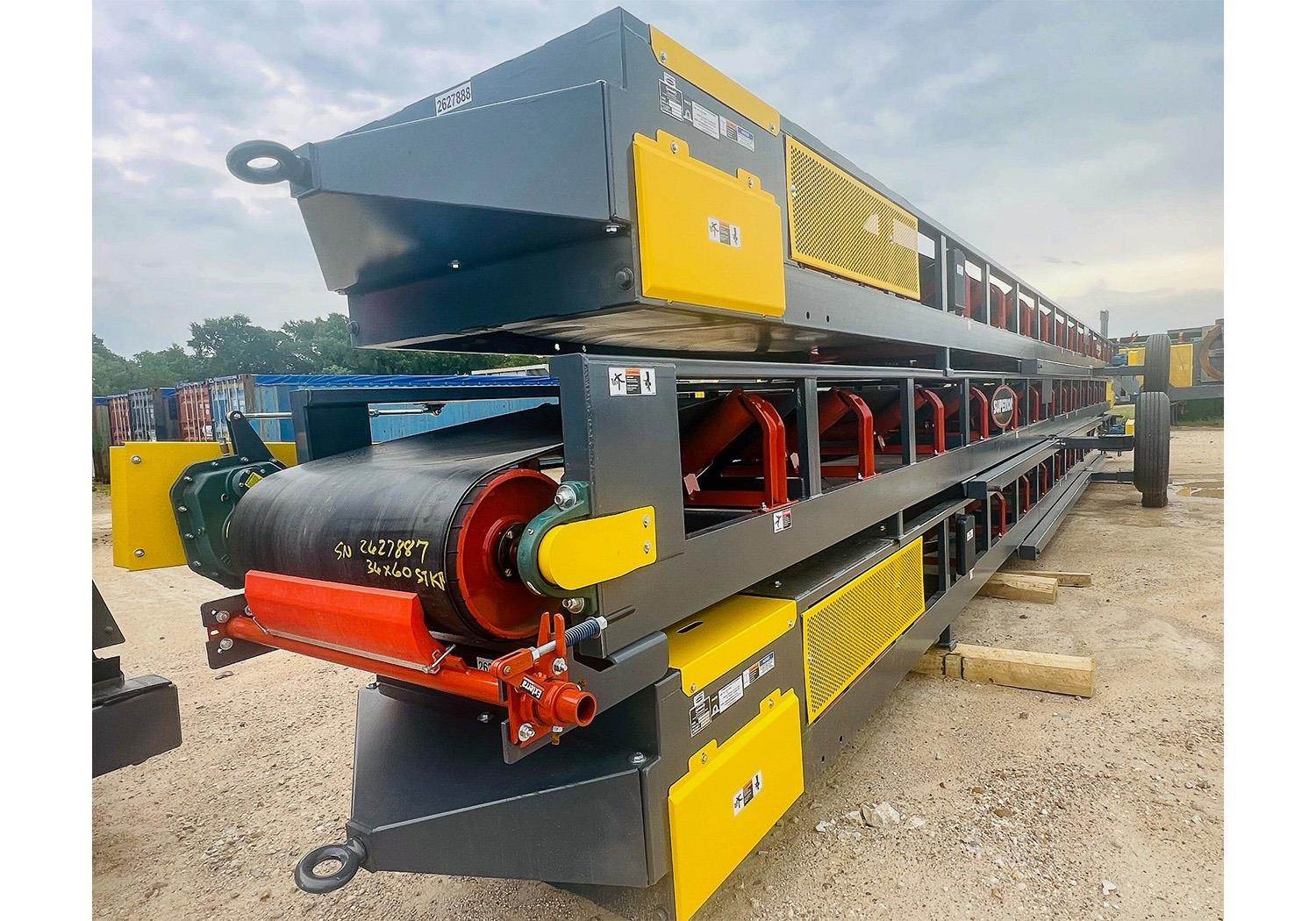

- TAIL PULLEY: 12” DIAMETER, CEMA CHEVRON® WING PULLEY
- SHAFTS: TURNED AND POLISHED
- BEARINGS: INCLUDED
- TAKE-UP: SCREW TYPE

PORTABILITY

- CONVEYOR SPLICE: ONE PIECE FRAME
- SUPPORT: NOT INCLUDED
- TAIL SUPPORT: NOT INCLUDED
- STACKABLE PLUS UPGRADE: INLCUDED*

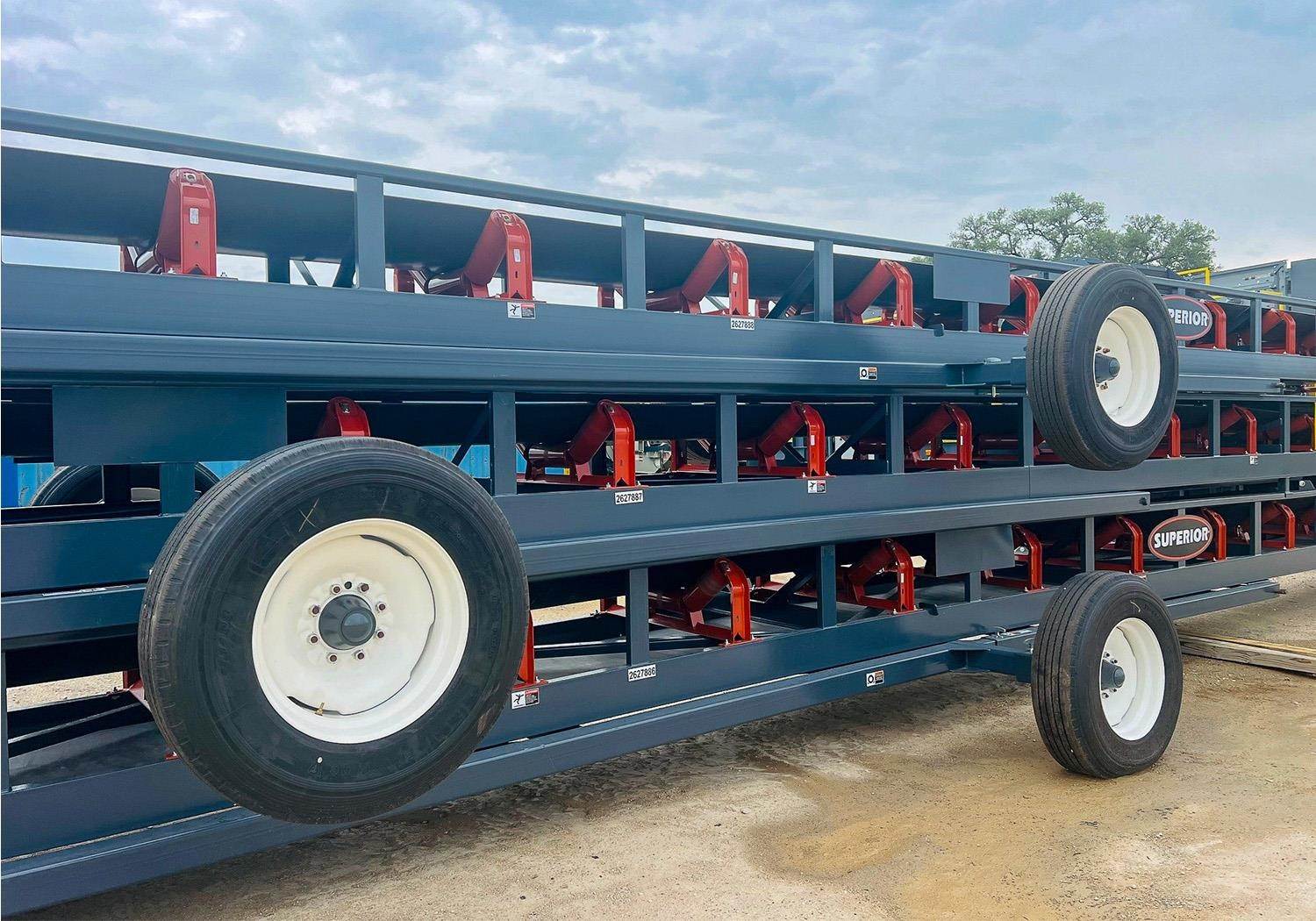

- UNDERCARRIAGE: MANUAL RAISE WITH PIN LOCK ADJUSTMENT, 102” AXLE, 11-22.5 TIRES AND SWIVELING WHEELS*
- MOUNTING TABS: BOLT ON UNDERCARRIAGE TABS*
- ANCHOR PIVOT: MAINTAINS TAIL END DURING RADIAL TRAVEL*
- BEND OPTION: NOT INCLUDED
- TOW EYE: PINTLE TYPE HITCH*
- AXLE JACKS: NOT INCLUDED

CONVEYOR COMPONENTS

- BELTING: 3 PLY 3/16 X 1/16 330PIW*
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICE*
- SCRAPERS: SUPERIOR EXTERRA® PRIMARY BELT SCRAPER*
- SUPERIOR IDLERS: CEMA C, 5” DIA. ROLLS, SEALED FOR LIFE BALL BEARINGS*
- IDLER SEAL: STANDARD STANDARD SPINGUARD® SEAL
- LOAD AREA: 20° TROUGH, STEEL ROLLS, 12-16” SPACING
- TROUGH: 35° TROUGH, STEEL ROLLS, ON 4' SPACING
- RETURNS: FLAT STEEL ROLLS ON 10' SPACING
- RADIAL HOPPER: SLOPED, 5’ LONG, BOLT ON DESIGN*
- HOPPER LINER: NOT INCLUDED
- GATHERING TROUGH: 5’ LONG WITH ADJUSTABALE RUBBER FLASHING

ADDITIONAL SPECIFICATIONS

- GUARDING: FOR DRIVE AND TAIL PULLEYS, V-BELT DRIVE AND RETURN IDLERS. GUARDS MAY NOT MEET ALL LOCAL CODES; CUSTOMER RESPONSIBLE TO HAVE GUARDING INSPECTED
- VOLTAGE: 480 V / 3 PH / 60 HZ - 1800RPM
- CONTROL PANEL PLATE: NOT INCLUDED
- CONTROL PANEL: CONTROL PANEL AND WIRING NOT INCLUDED
- PAINT: 1 COAT PRIMER, 1 COAT FINISH ENAMEL SUPERIOR GRAPHITE GREY (12-00636)
- GUARD PAINT: YELLOW
- IDLER PAINT: POWDER COATED SUPERIOR ORANGE
