2025 Superior 42x60 Conveyor

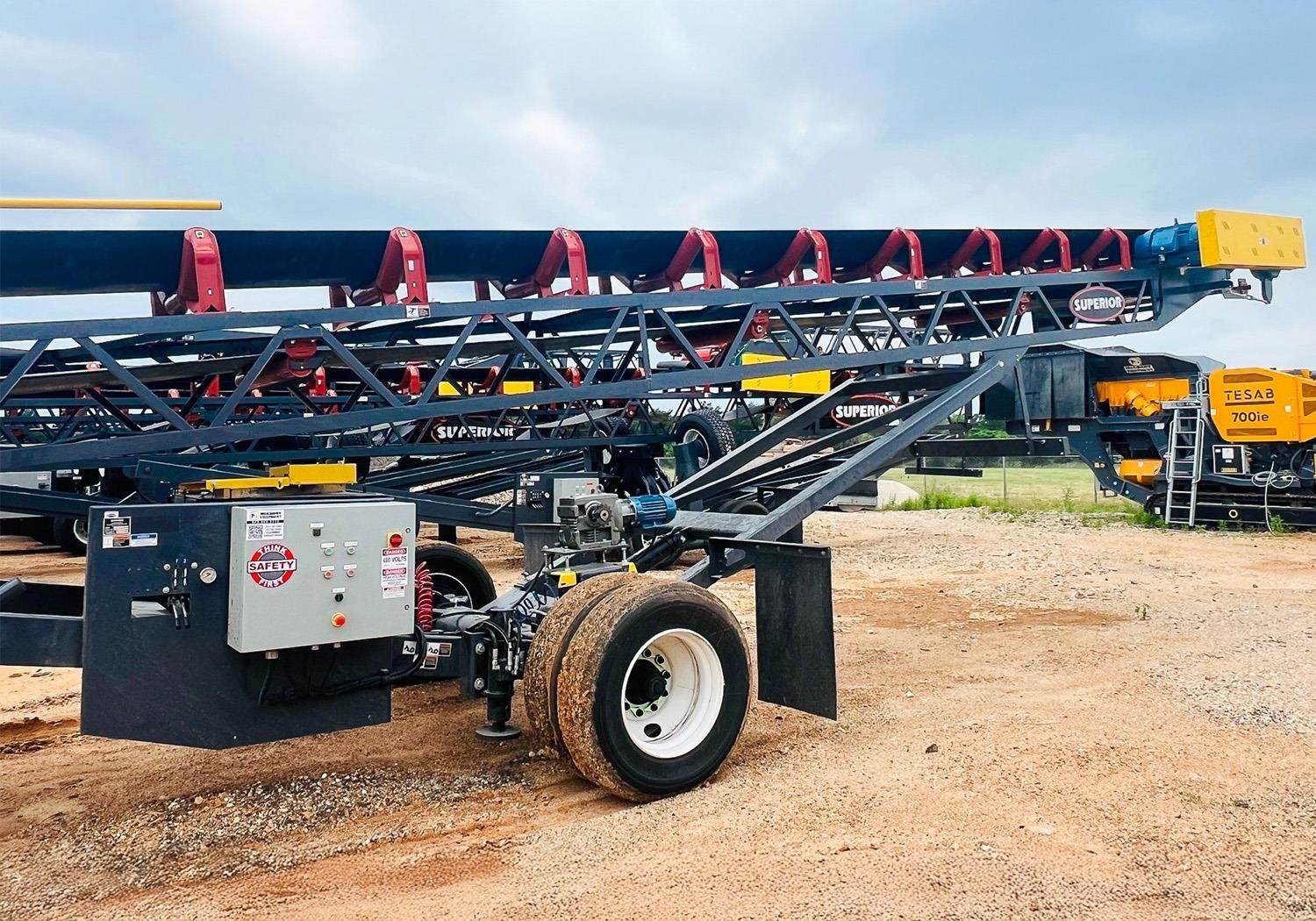

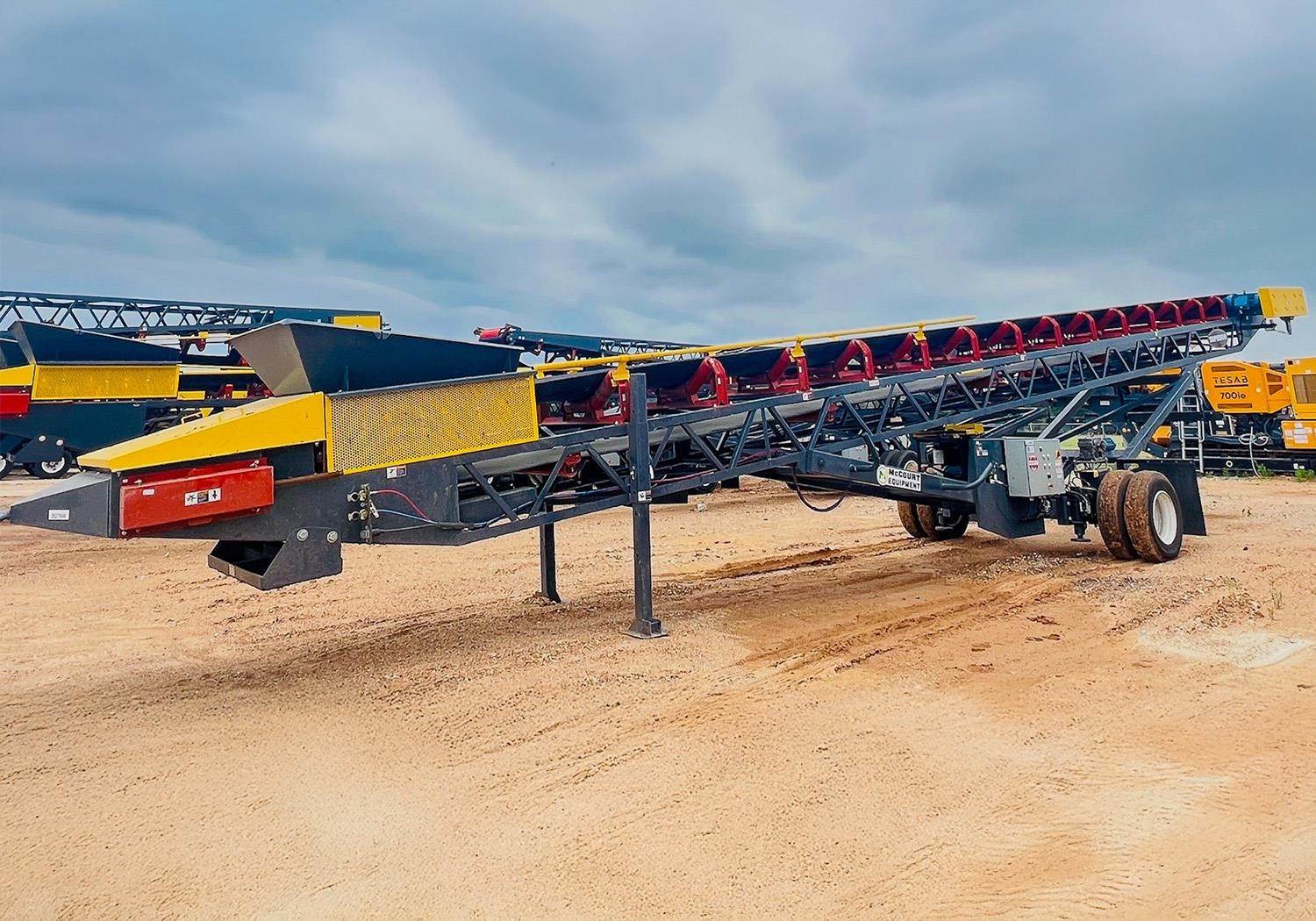

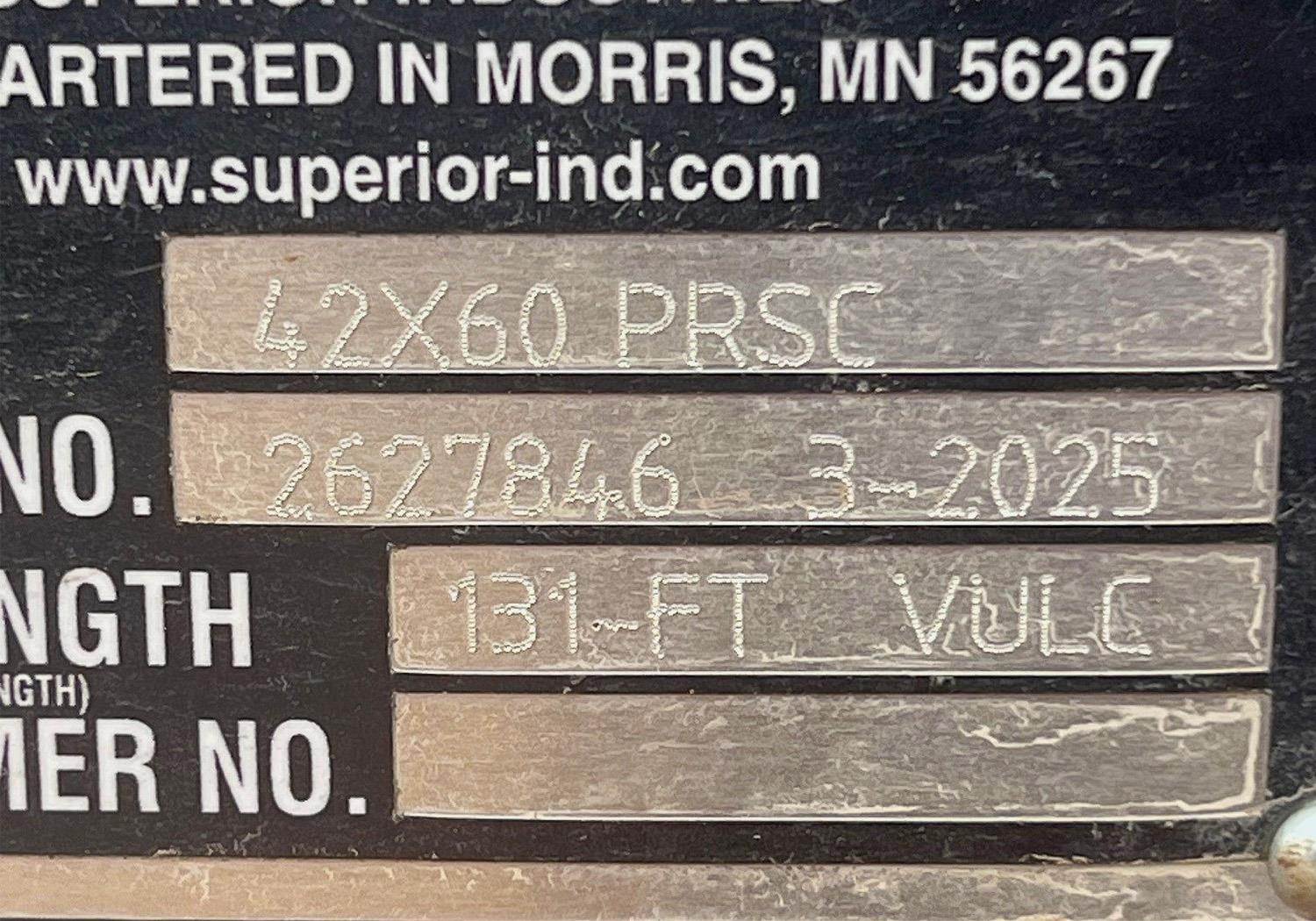

2025 SUPERIOR 42” X 60’ PORTABLE RADIAL STACKING CONVEYOR

CONVEYOR FRAME

- MAIN FRAME: 24”DEEP TRUSS
- CHORD ANGLES: 3” X 3” X ¼”
- LATTICE MEMBERS: 1-1/2” X 1-1/2” X 3/16”

DRIVE SPECIFICATIONS

- DRIVE: CLASS I HEAD END
- GEAR REDUCER: SHAFT MOUNT
- BACKSTOP: INSTALLED IN REDUCER
- MOTOR: 50 HP TEFC
- V-BELT DRIVE: WITH DRIVE GUARD
- CAPACITY: 1500 STPH OF 100 PCF MATERIAL, 25° SURCHARGE (90% FINES, 10% SPHERICAL LUMPS, 7” MINUS)
- BELT SPEED: 500 FPM
- DRIVE PULLEY: 18” DIAMETER, 3/8” HERRINGBONE LAGGED DRUM
- TAIL PULLEY: 14” DIAMETER, CEMA CHEVRON® WING
- SHAFTS: TURNED AND POLISHED
- BEARINGS: DODGE
- TAKE-UP: SCREW TYPE

PORTABILITY

- CONVEYOR SPLICE: ONE PIECE FRAME
- UNDERCARRIAGE: HYDRAULIC RAISE WITH 3 HP ELECTRIC PUMPING UNIT
- AXLE TYPE: TELESCOPING AXLE, ROAD PORTABLE
- TRANSPORT AXLE: DUAL (4) 11R-22.5 TIRES AND WHEELS
- RADIAL AXLE: MANUAL SWIVEL BOXES
- RADIAL TRAVEL: 1 AXLE, 2 HP ELECTRIC
- FIFTH WHEEL: FOR ROAD TRAVEL, BOLT ON DESIGN
- ANCHOR PIVOT: MAINTAINS TAIL END DURING RADIAL TRAVEL, FOR 5TH WHEEL
- BRAKES: COMPLETE AIR BRAKE PACKAGE
- LIGHTS: BRAKE AND DIRECTIONAL SIGNALS
- MUD FLAPS: INSTALLED BEHIND TRANSPORT WHEELS
- AXLE JACKS: HYDRAULICALLY RAISE AXLE TO EXTEND & SWIVEL WHEELS (DOES NOT INCLUDE HYD. UNIT)
- LANDING GEAR: MANUAL PIN ADJUSTMENT
- TOWING EYE: PINTLE HITCH TYPE

CONVEYOR COMPONENTS

- BELTING: 3-PLY 3/16 X 1/16 330PIW
- BELT SPLICE: FACTORY VULCANIZED BELT SPLICE
- SCRAPERS: SUPERIOR CLICK TENSIONING EXTERRA® PRIMARY BELT SCRAPER
- IDLERS: CEMA C, 5” DIA. SEALED FOR LIFE BALL BEARINGS
- IDLER SEAL: SUPERIOR STANDARD SPINGUARD® SEAL
- LOAD AREA: 20° TROUGH, 12-16” SPACING
- TROUGH: 35° TROUGH, STEEL ROLLS, ON 3.5’ SPACING
- RETURNS: FLAT STEEL ROLLS ON 10’ SPACING

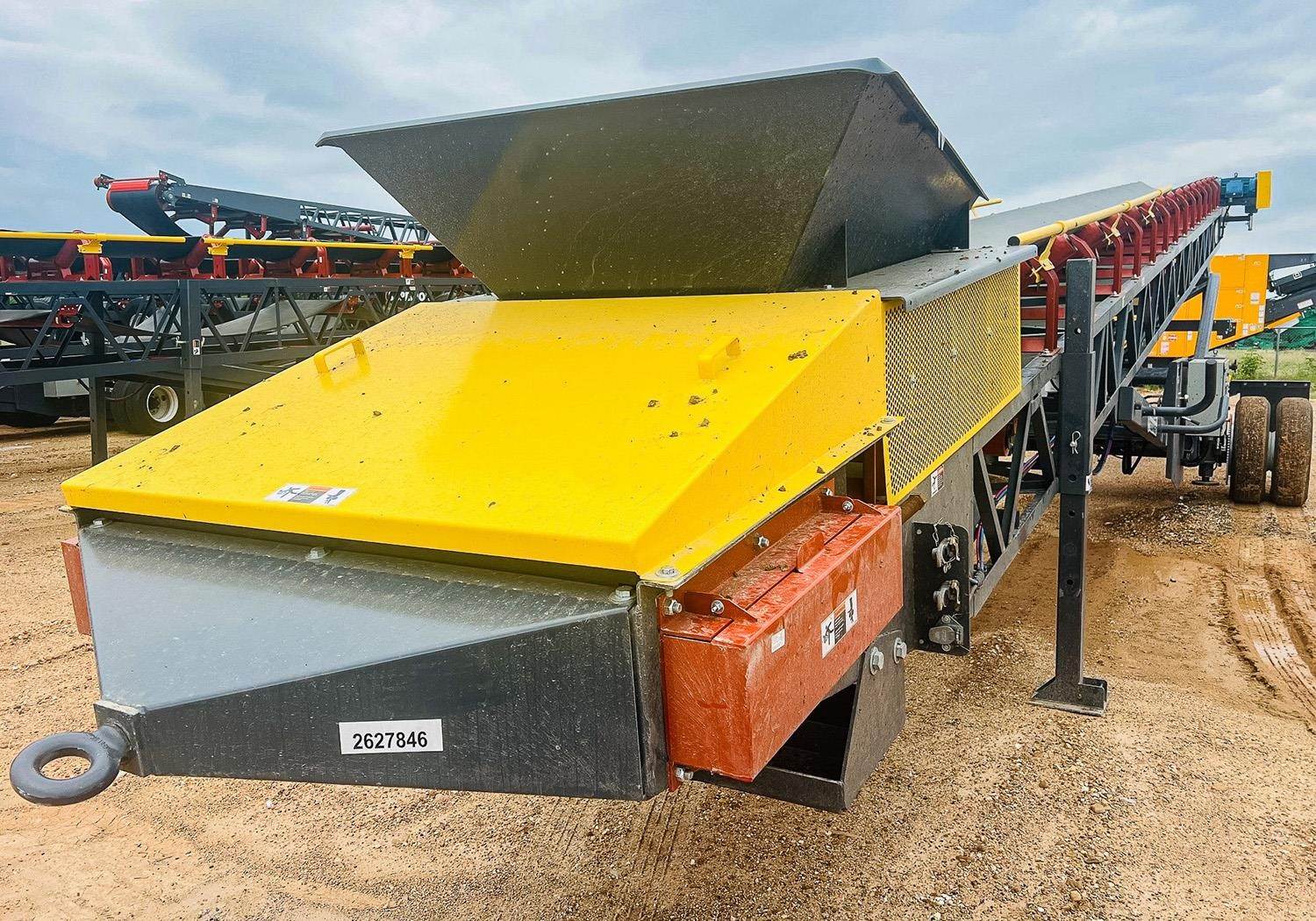

- RADIAL RECEIVING HOPPER: SLOPED, 5' LONG, BOLT ON DESIGN
- RADIAL HOPPER LINER: NOT INCLUDED
- GATHERING TROUGH: 5’ LONG WITH ADJUSTABLE RUBBER FLASHING

ADDITIONAL SPECIFICATIONS

- GUARDING: FOR DRIVE AND TAIL PULLEYS, V-BELT DRIVE AND RETURN IDLERS. GUARDS MAY NOT MEET ALL LOCAL CODES; CUSTOMER RESPONSIBLE TO HAVE GUARDING INSPECTED
- SAFETY HANDRAIL: BOLTED TO IDLER FRAMES, COVERS BELT UP TO 8' WHEN RAISED
- VOLTAGE: 480 V / 3 PH / 60 HZ - 1800RPM

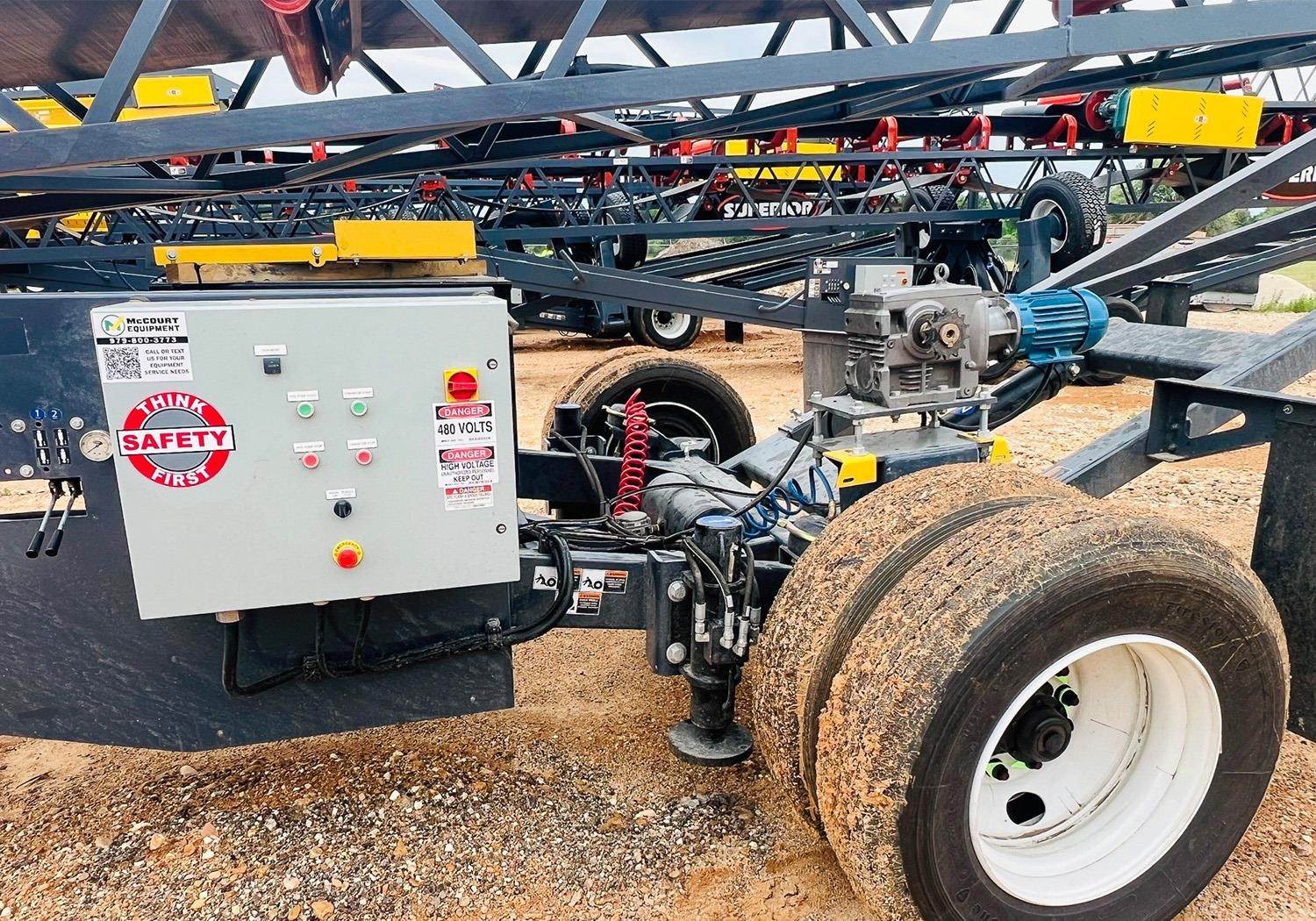

- CONTROL PANEL PLATE: BRACKET ONLY FOR PANEL AND HYDRAULIC LEVERS
- CONTROL PANEL: CONTROL PANEL AND WIRING INCLUDED FOR ON BOARD MOTORS
- CONTROL VOLTAGE: 24 DC
- PAINT: 1 COAT PRIMER, 1 COAT FINISH ENAMEL, SUPERIOR GRAPHITE GREY
- GUARD PAINT: YELLOW
