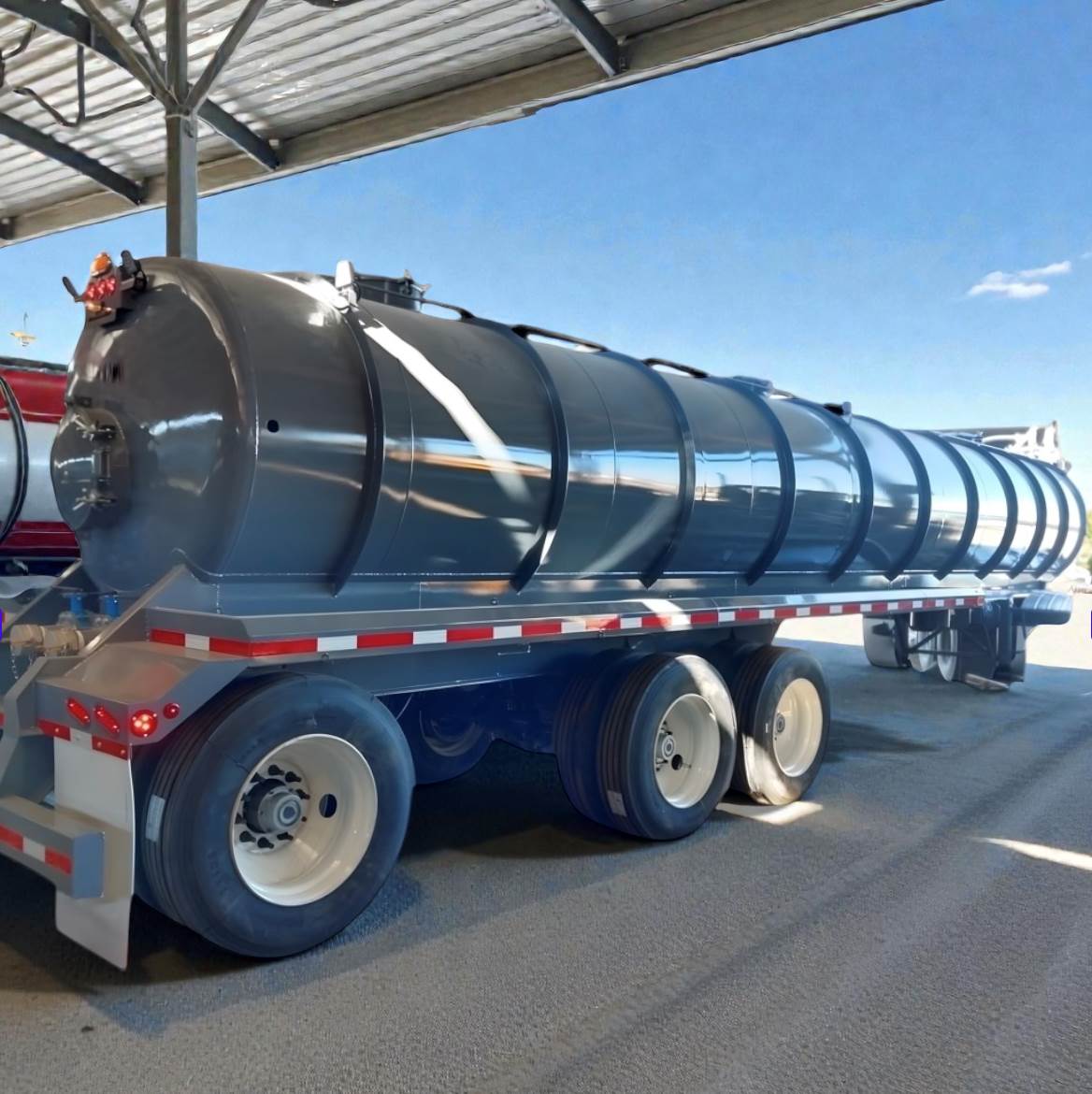

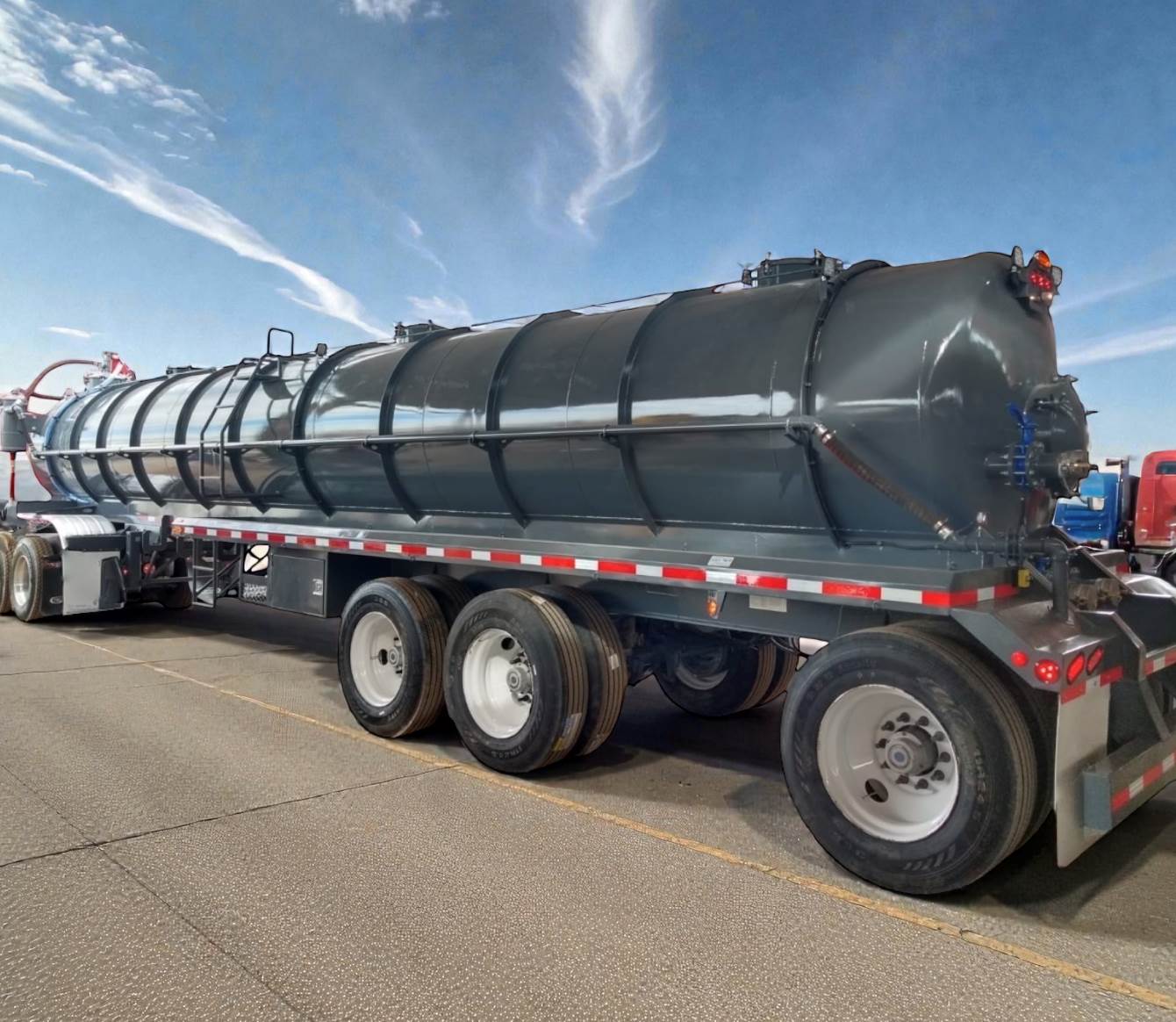

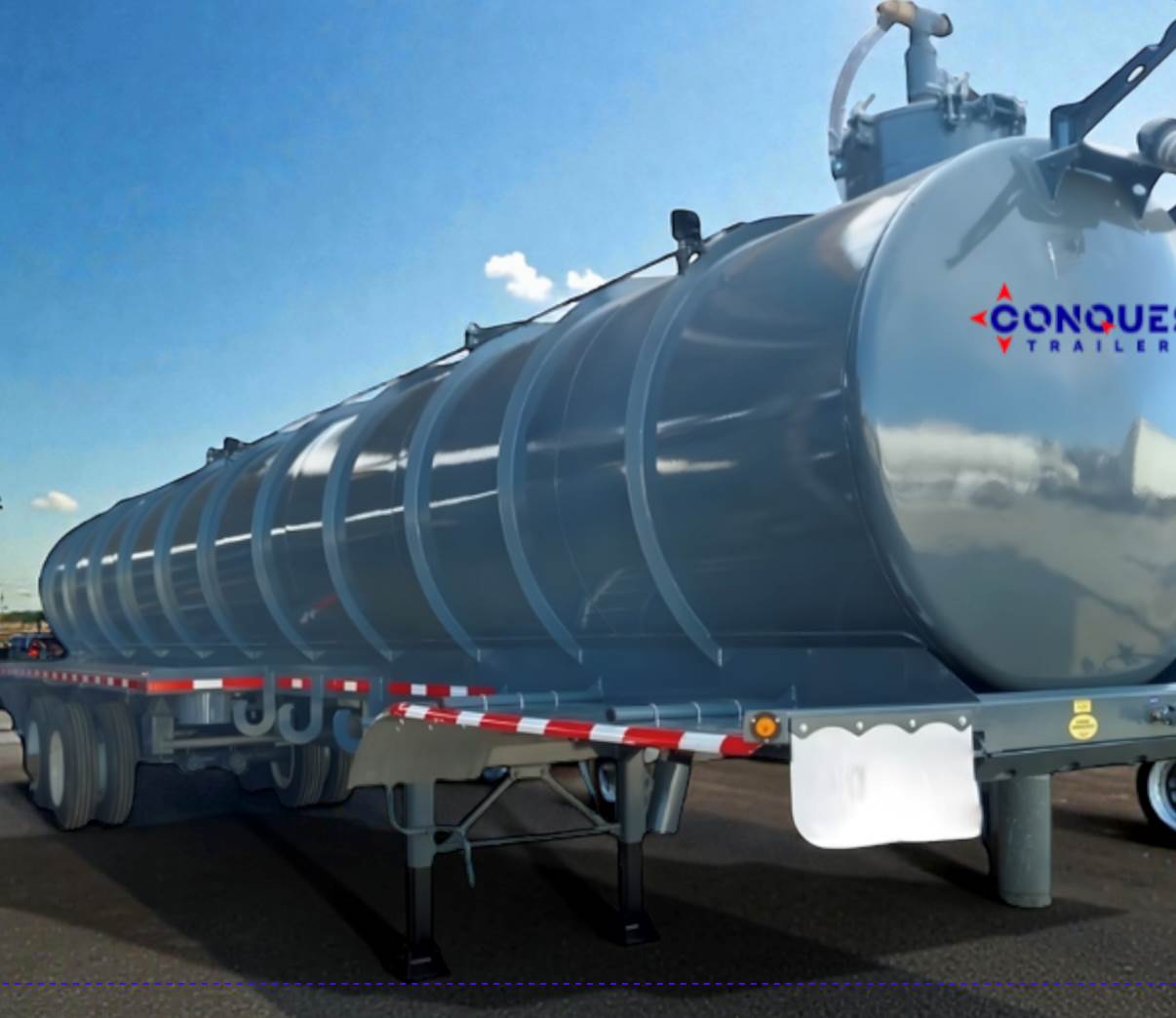

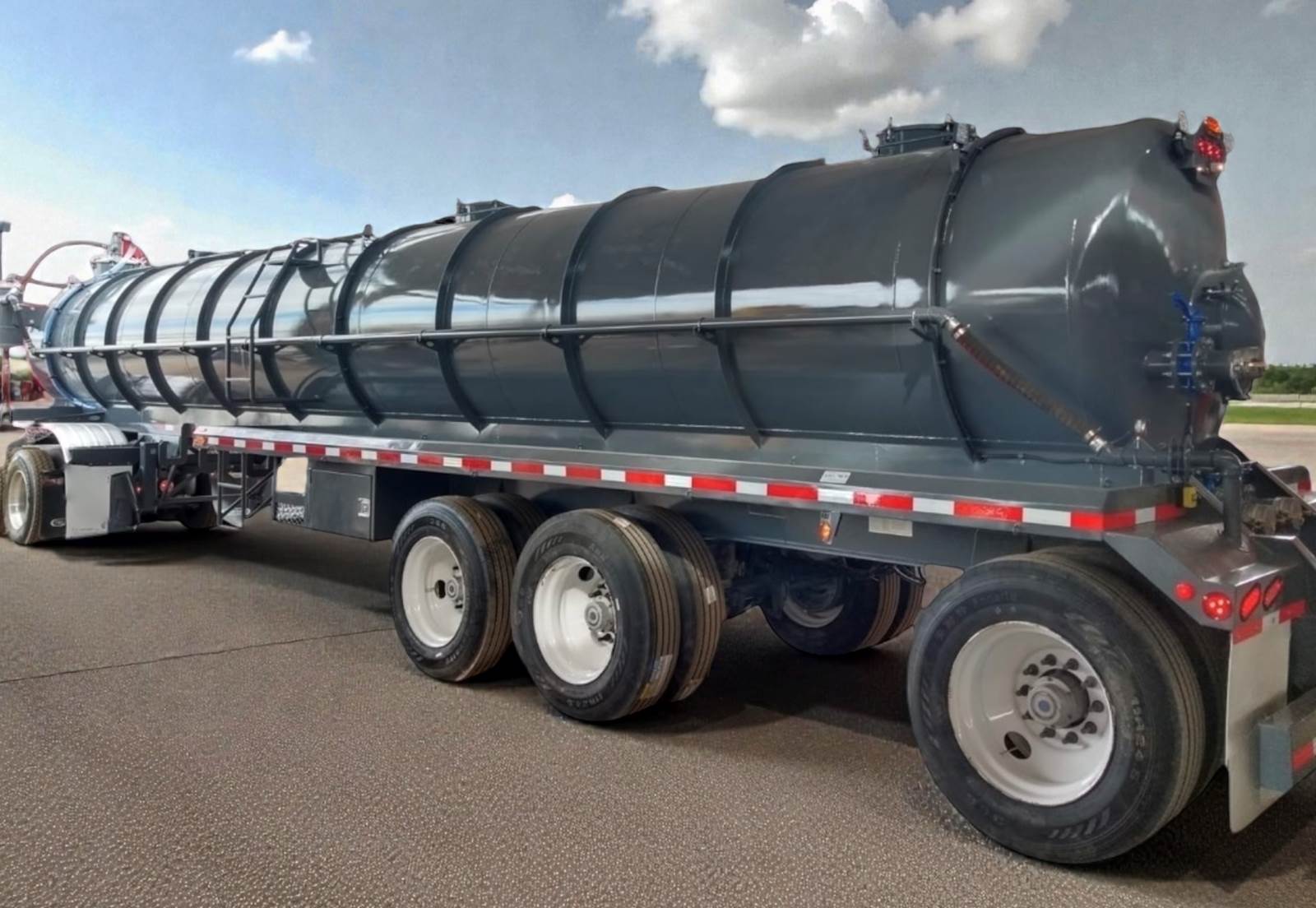

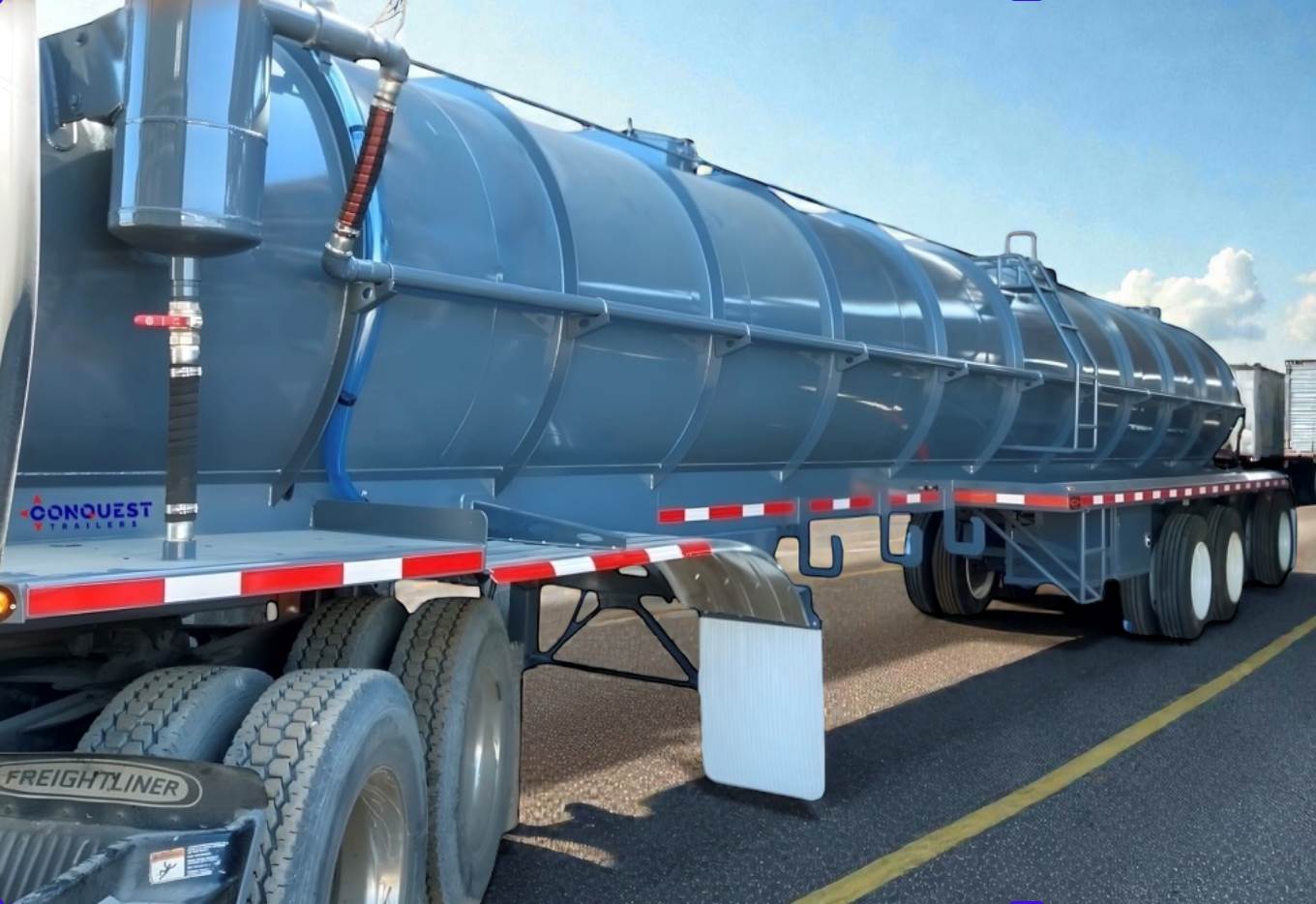

2026 CONQUEST 185BBL(7,770 GAL) STEEL VACUUM TANK TRAILER TRI AXLE,

2026 CONQUEST 185BBL (7,770 GAL) VACUUM STEEL TRI AXLE, TANK TRAILER
Tri Axle, Air Ride w Rear Lift Axle,
WE ARE PROUD TO INTRODUCE CONQUEST TRAILERS WITH OVER 30 YEARS OF ENGINEERING EXPERIENCE !!
Non-Coded.
Capacity: 185BBL (7.770 GAL)
Overall Length: 46 ft.
SPECIFICATIONS:
Commodity: Transportation of oilfield fluids such as
water, mud, oil field waste.
UPPER COUPLER: Adjustable 3/8 in plate with
Holland Kingpin 2".
DESIGN PRESSURE: 15 PSI, Tested At 23 PSI.
COMPARTMENTS: Single
COMPOSITION: Body Carbon Steel A-36 ¼” gauge.
Chassis: 1/4 plate chassis designed for high strength.
Frame: Full Length 3/16 in. A-36 Both sides.
BAFFLES: 2 (1/4”) steel plate.
FENDERS: Front and Rear Fenders
STIFFENERS: Eight (8) rolled of 3/8 in.
Level Gauge
WELDS: Inside and out, with mig welding.
AXLES: 2 (30,000 lbs.) each, 102 in. wide, 77.5 in.
track TP type with automatic slack adjuster.
SUSPENSION: air ride,
BRAKES: Air brakes with two boosters.
FMVSS-121, ABS 4S/2M Bendix anti-lock brake
system.
LANDING GEAR: 2 Speed Crank Heavy Duty
(JOST).
ACCESS LADDER: One (1) stairway in the rear with
thru-tread steps.

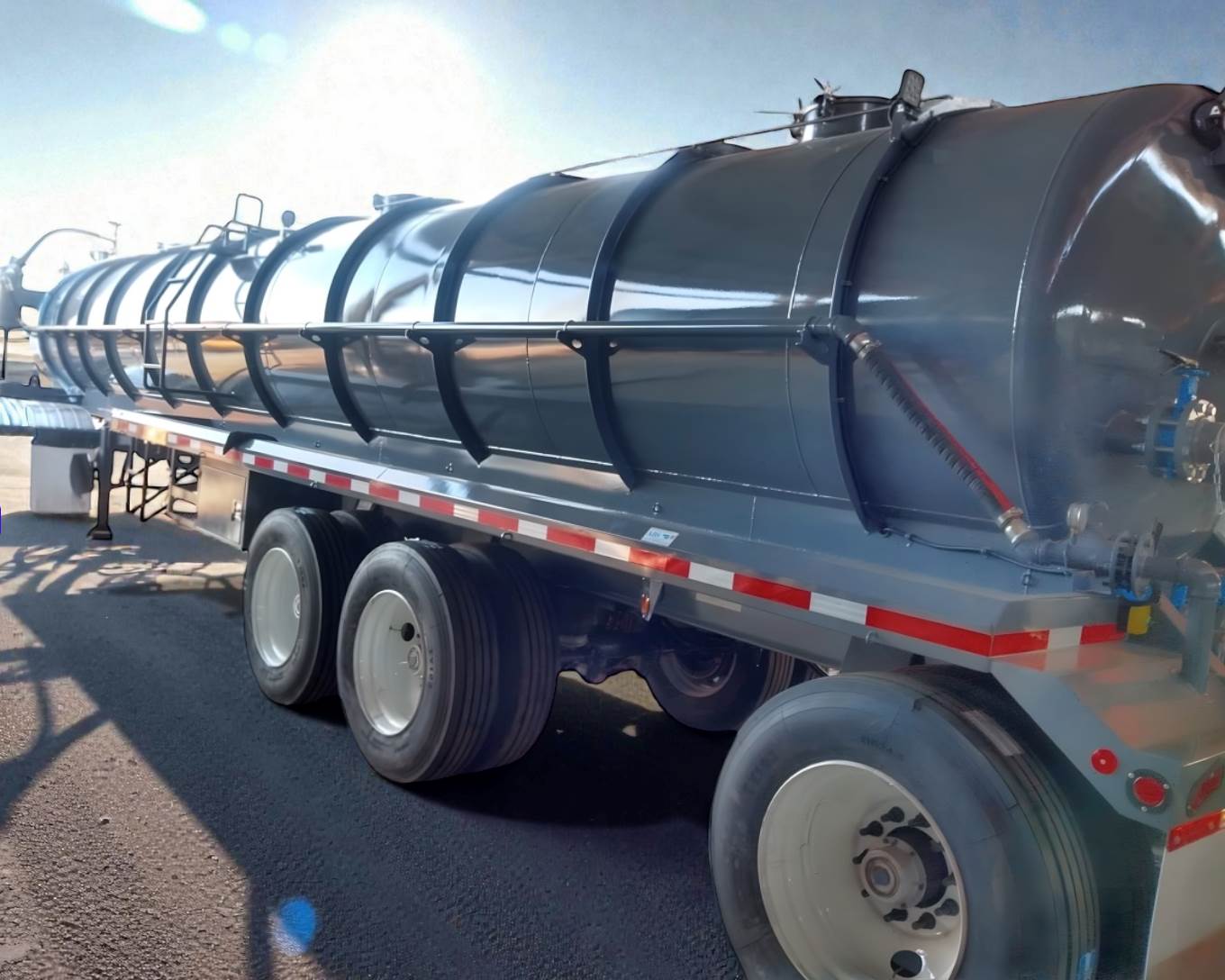

WALKWAY: Driver's aluminum side tank length
through-treaded walkway with toe-kicks and handrails.
TOOLBOX: (1) 18” X 22” X 30” located at driver’s
side and Basket for cones.
BUMPER: Heavy duty (tubing 4x3x.375), per DOT
requirements.

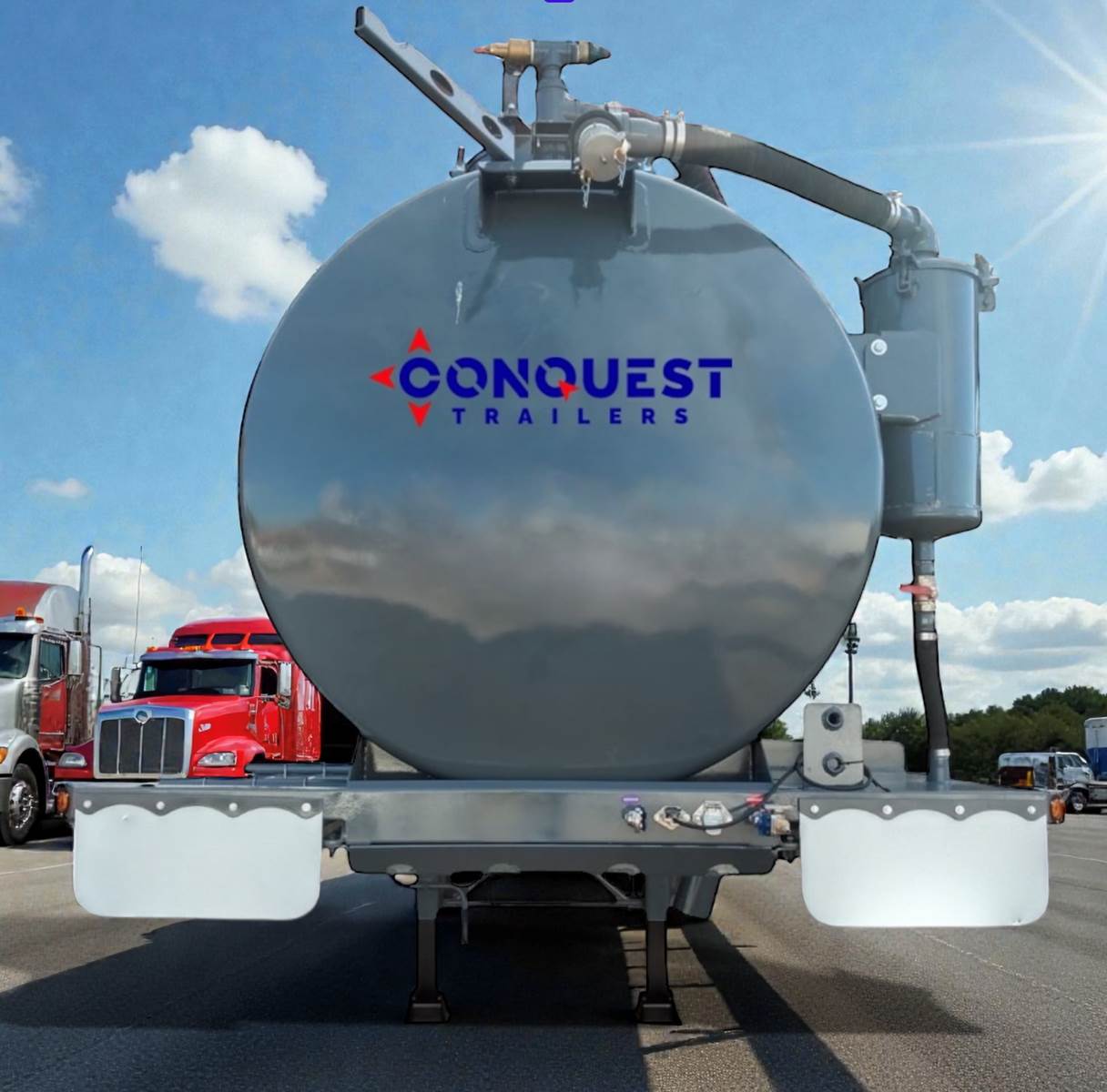

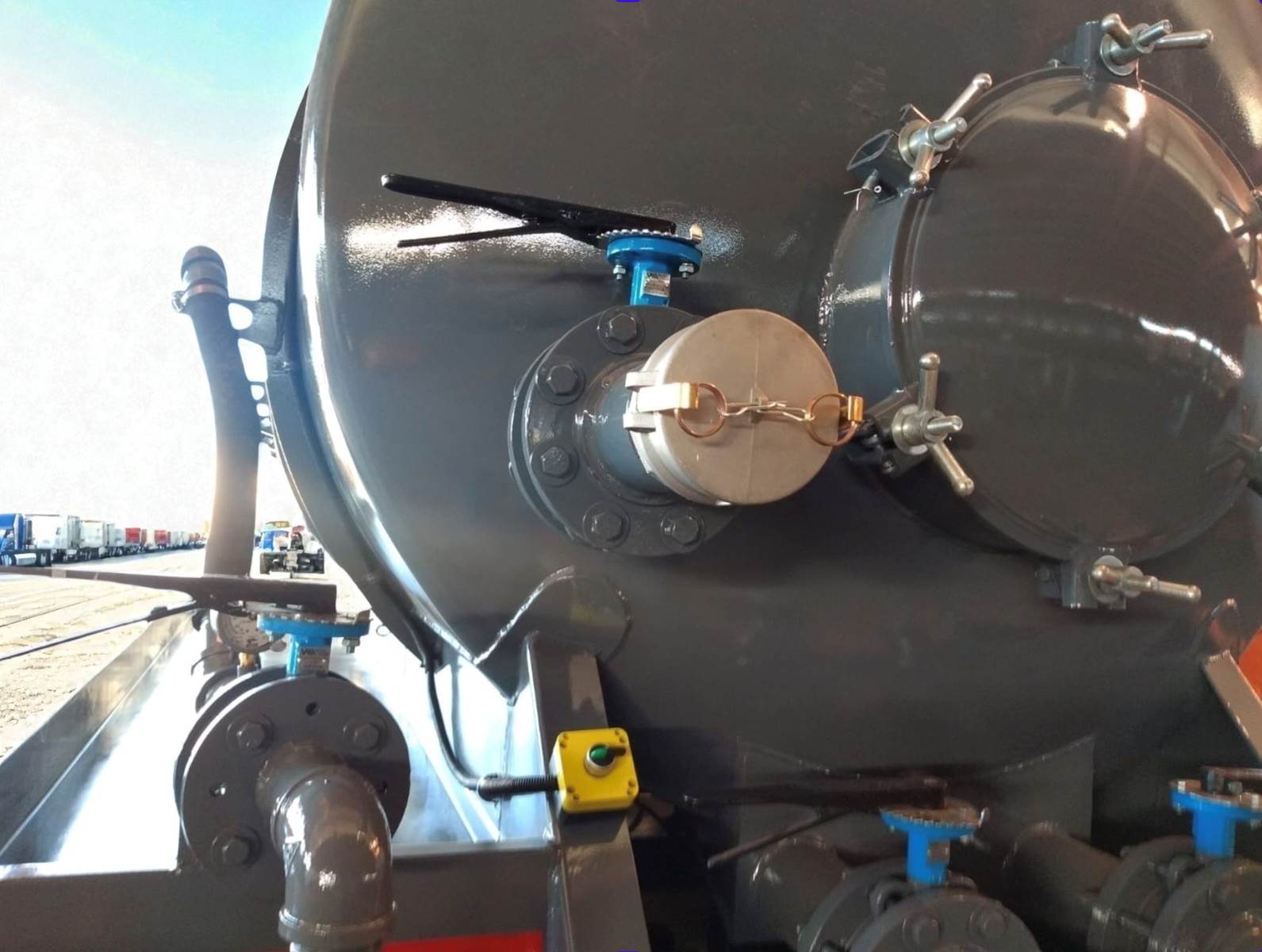

MANWAYS 20”: 4:  3 on top, 1 on rear head.

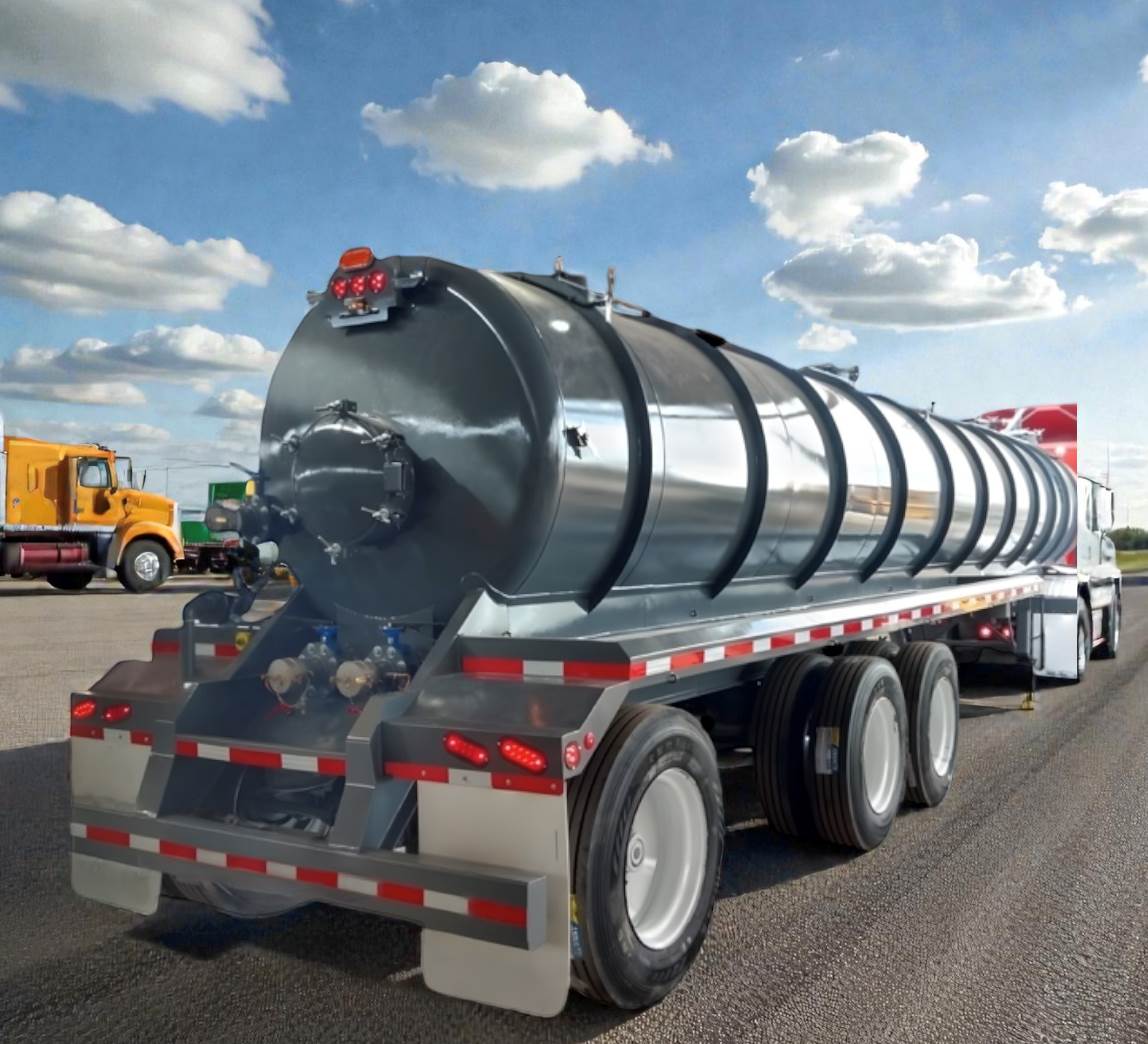

OUTLET: Two (2) 4 in. butterfly valves at rear.

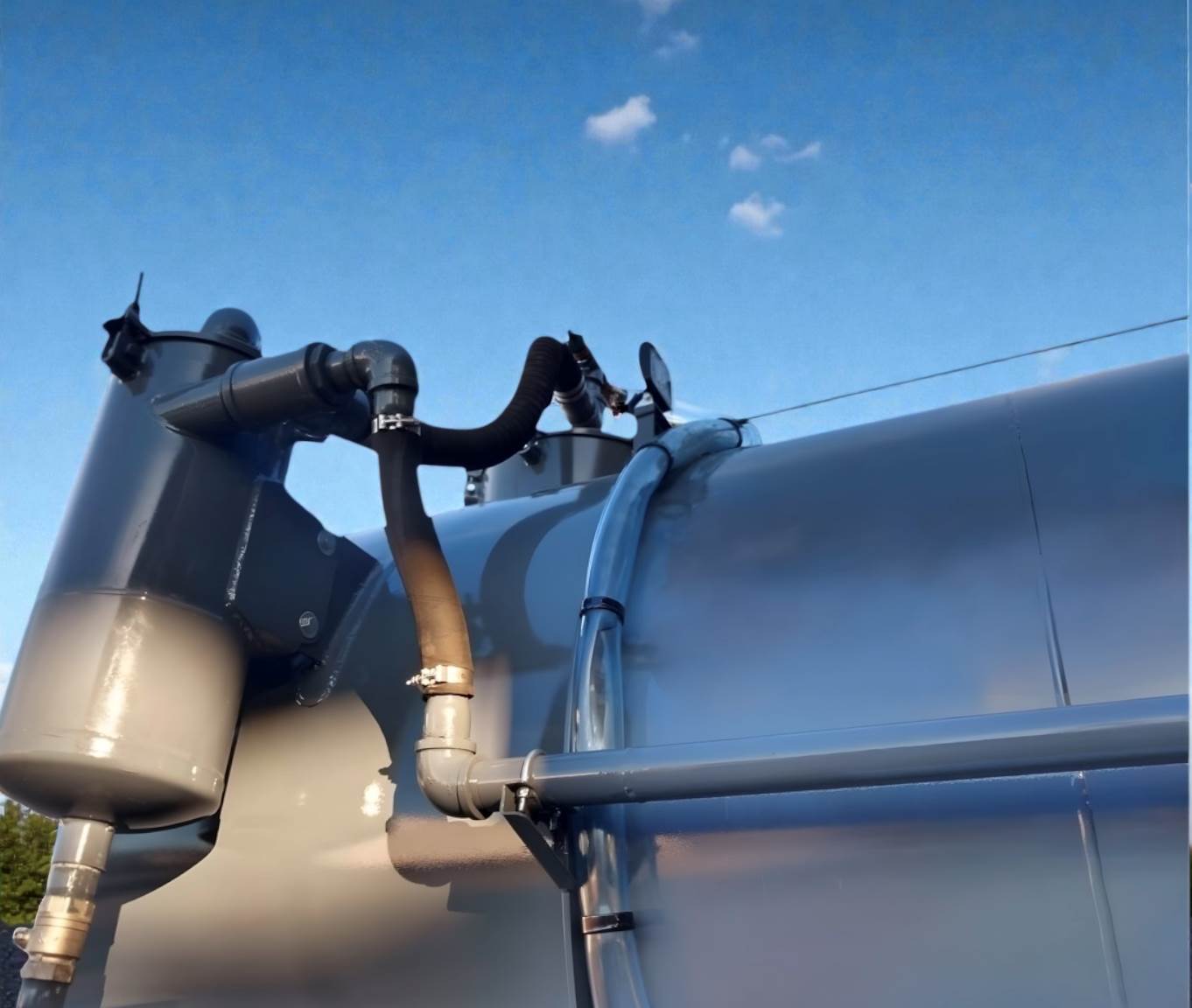

SHUT OFF: ball type primary in front manway, ball type
secondary 14 gal on driver’s side front with drain.
RELIEF VALVES: 1 1/2” vacuum and 1 ½” pressure.
V/P GAUGE: +30, -30 vacuum / pressure.
primer, previous sand blast.
COATING INSIDE: HEMPADUR 204 high build epoxy.
LIGHTS: Sealed harness and GROTE LED lights per
DOT. Two rear work lights.
WHEELS: ALL STEEL
TIRES: 11R 24.5 all-terrain TIRES
