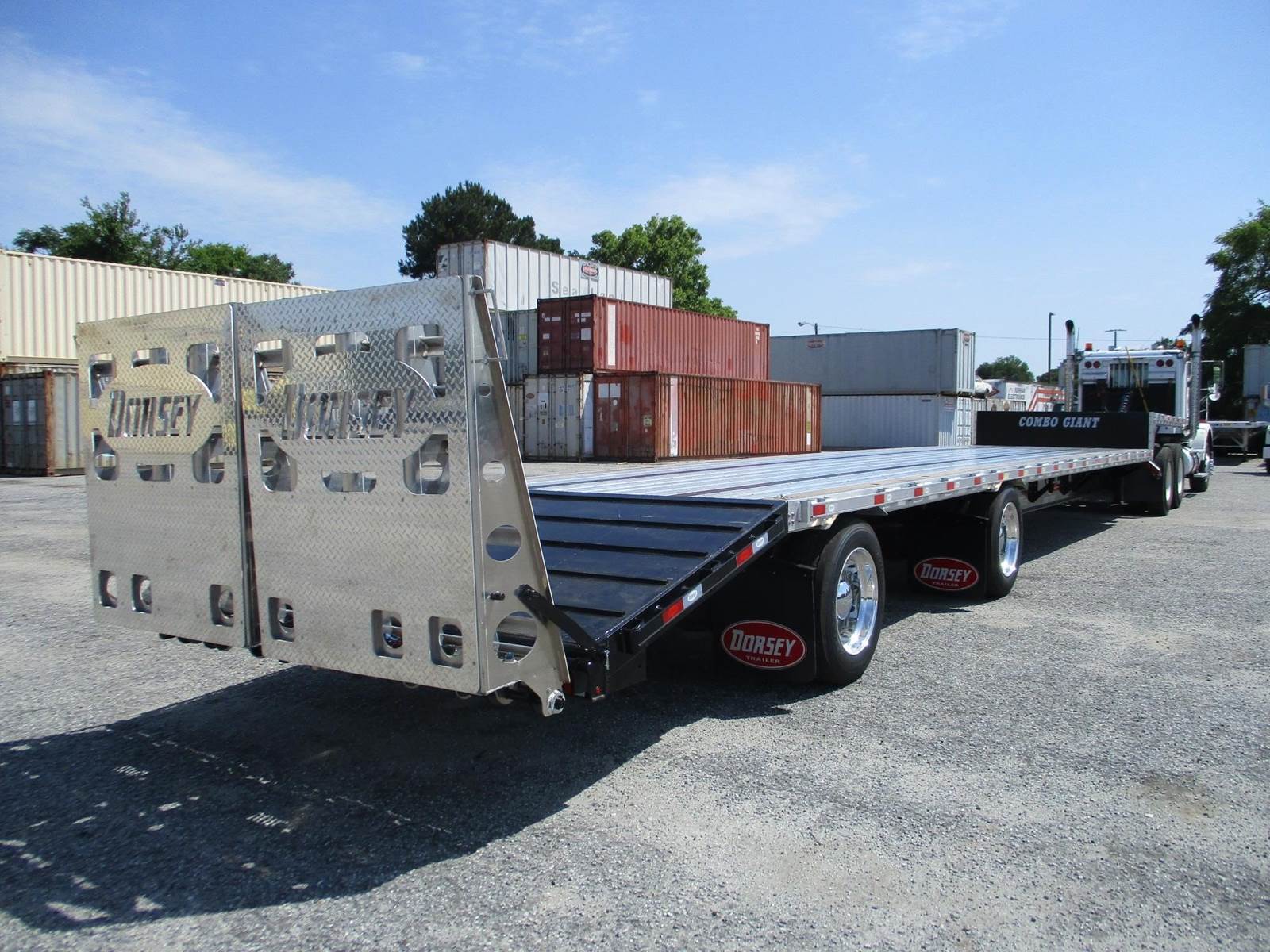

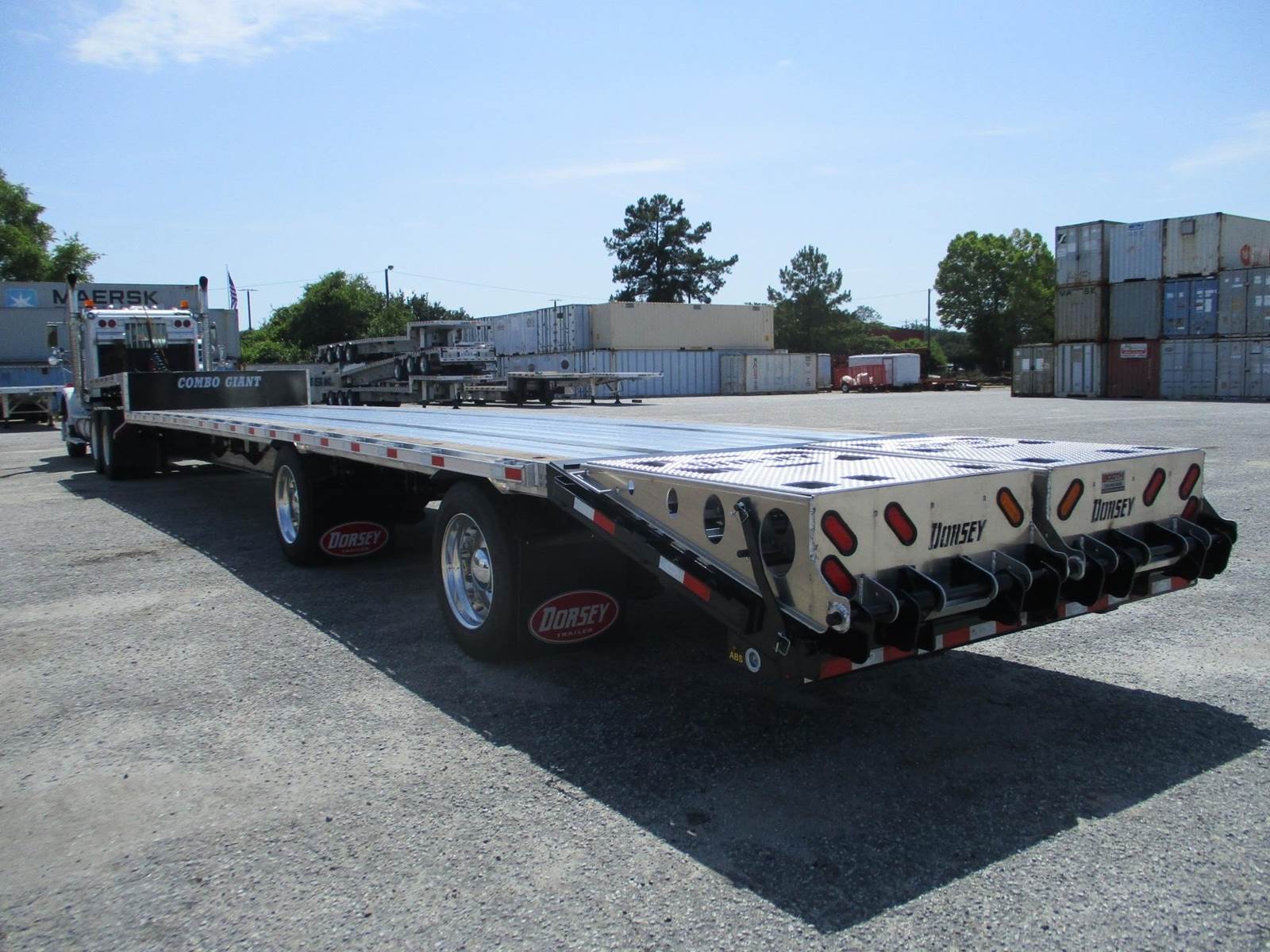

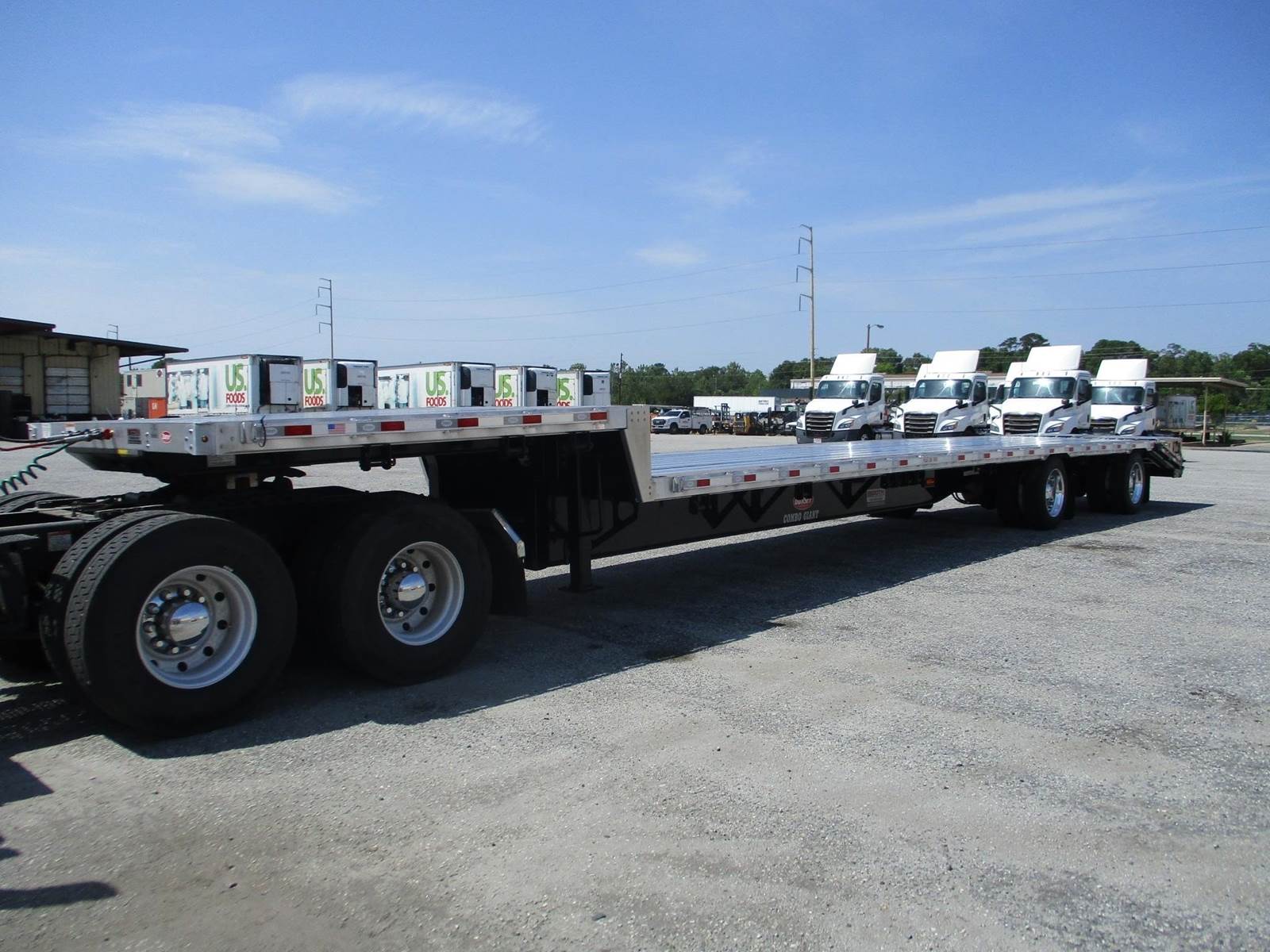

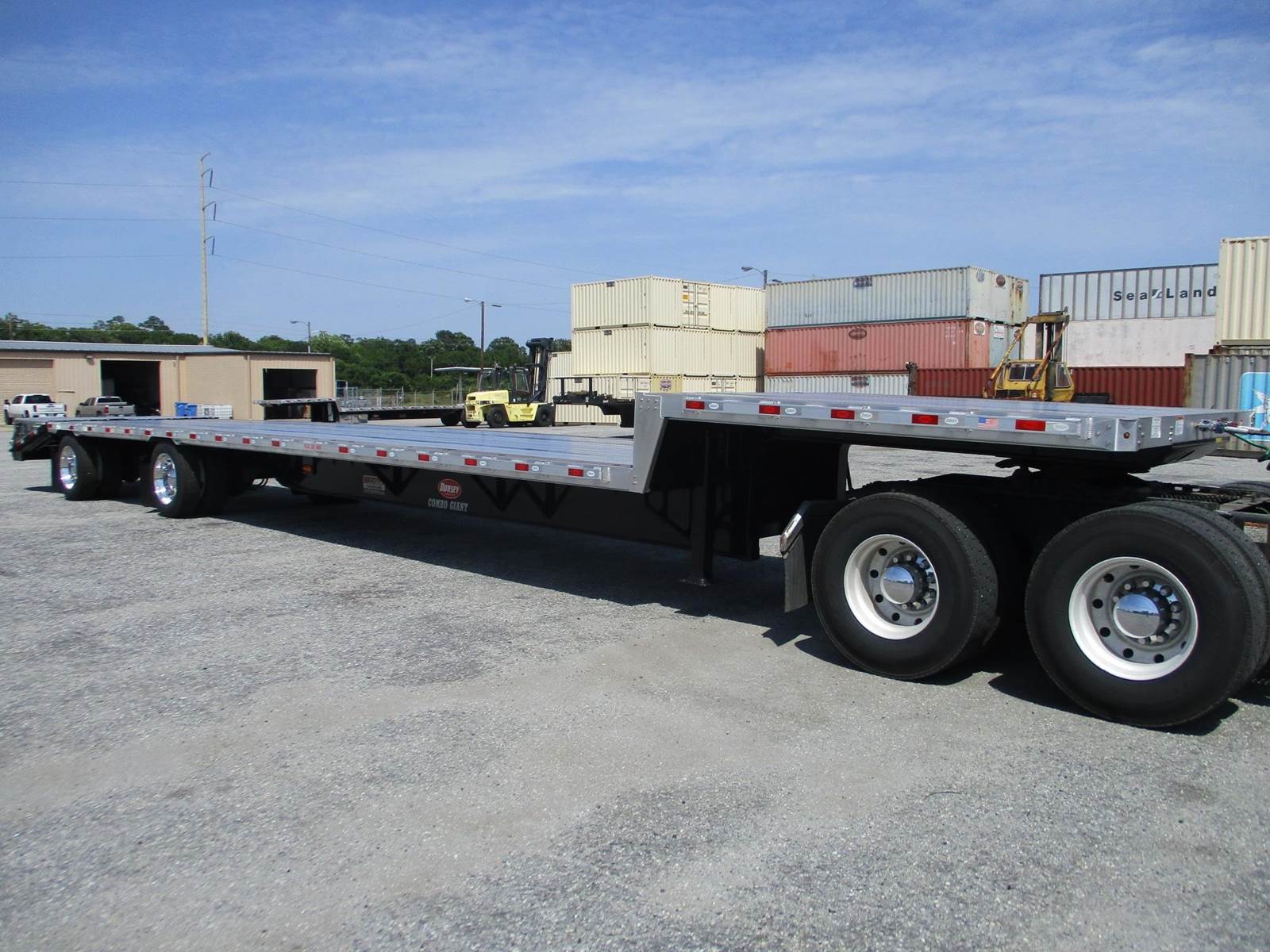

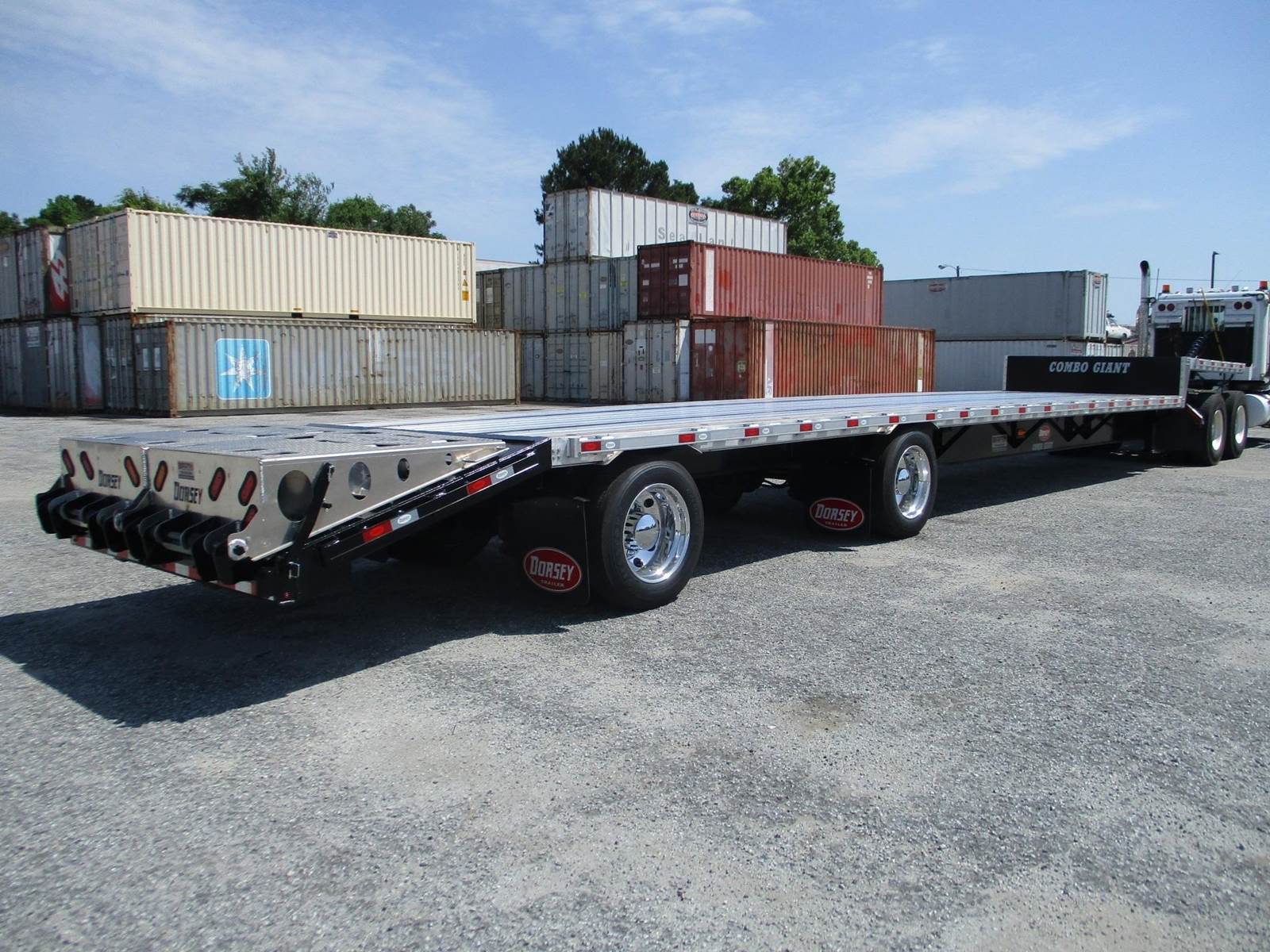

2026 Dorsey CG-BT Drop Deck Trailer

CAPACITY - Standard Beam Pkg - 80,000 GVWR (60,000 in 10' Span)
OVERALL LENGTH - 53' OAL
TOP DECK-LGTH/HGT - 10'6" Length = 59" Height
LOWER DECK-LGTH/HGT - 38' = Front 41", Center 42" Rear 40.5" Heights
OVERALL WIDTH - 8' 6"
KING PIN SETTING - 24" - Tapered Pickup Plate
UPPER COUPLER PLATE - 1/4"
UPPER COUPLER HEIGHT - 48"
FRONT SKIRT - Aluminum Front and Corners
REAR SKIRT - Aluminum
MAIN FRAME - 26" PreCamb Beam-130K Tru-Strength Flanges - Limited Lifetime Warranty
SIDE RAILS - 6"-Alum-Extruded W/Double L Track
TOP DECK FLOOR SILLS - 4" Steel I-Beam - 18" O.C.
LOWER DECK FLOOR SILLS - 4" Steel I-Beam 12" O.C. HD Pkg

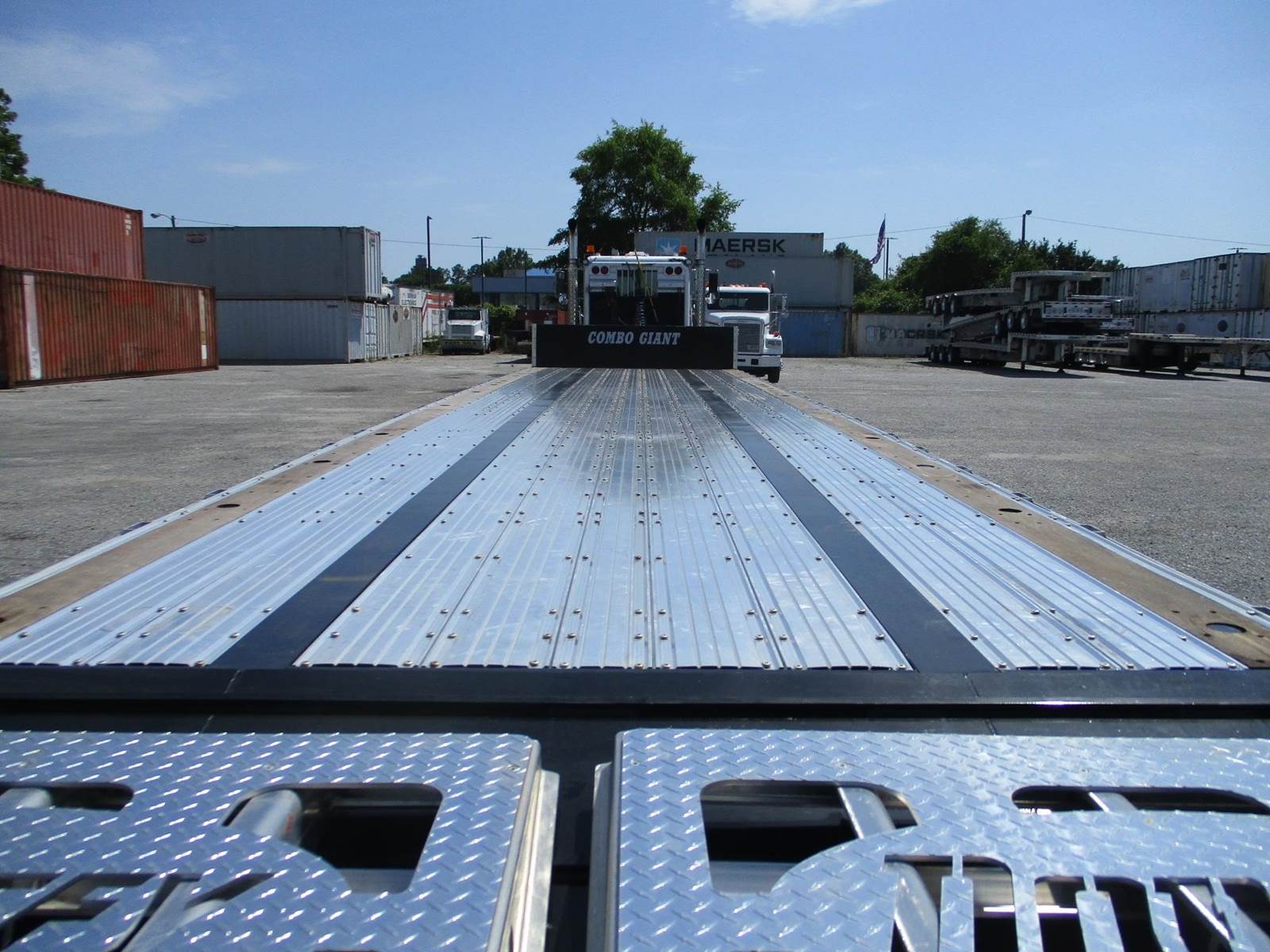

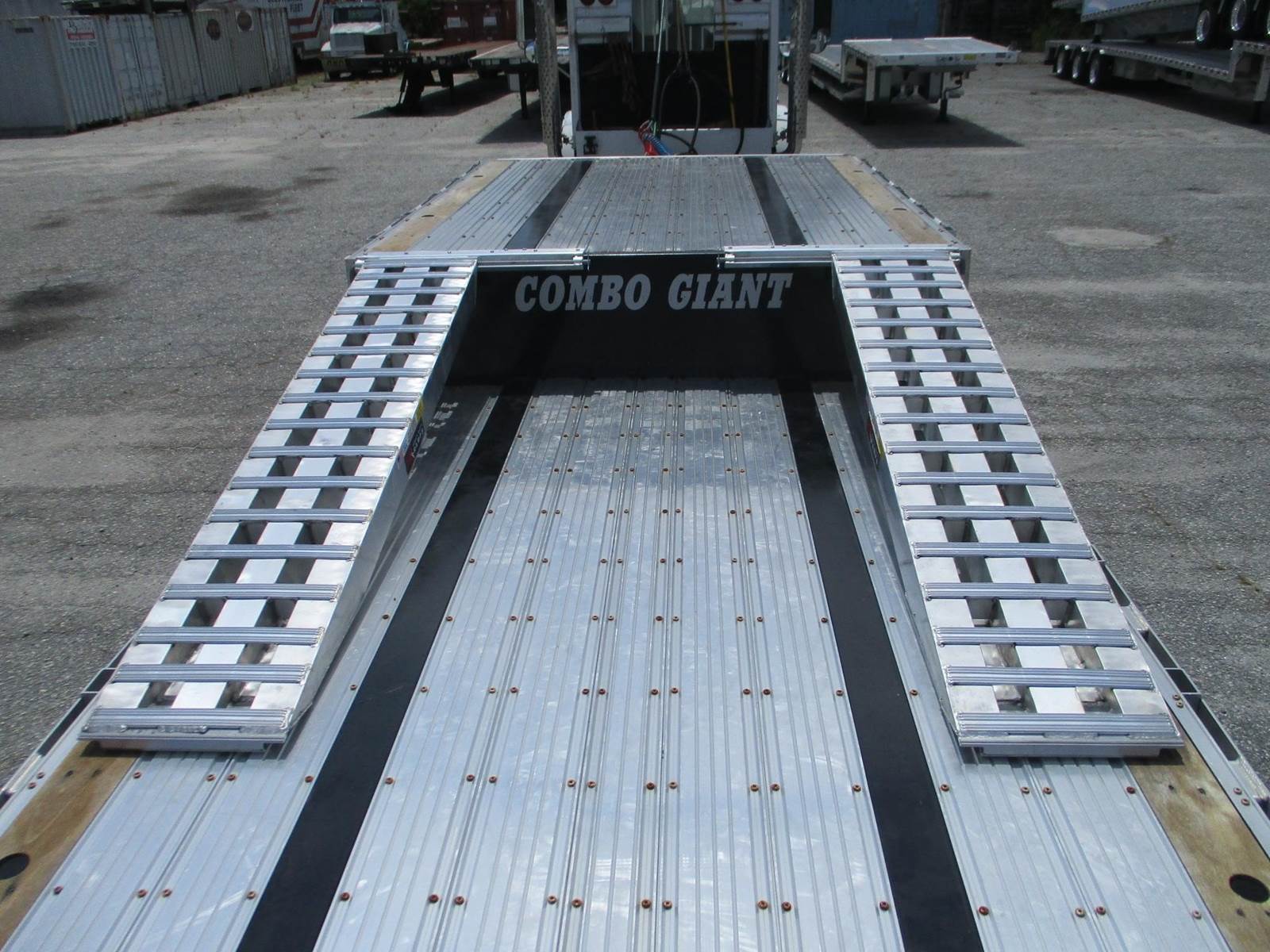

FLOOR DECKING - 1-1/8" HD Aluminum W/ 2 Nailer Boards
COIL HAUL PACKAGE - Single Coil Placement - 5 Extra Stud Sills-Ctr On Trailer

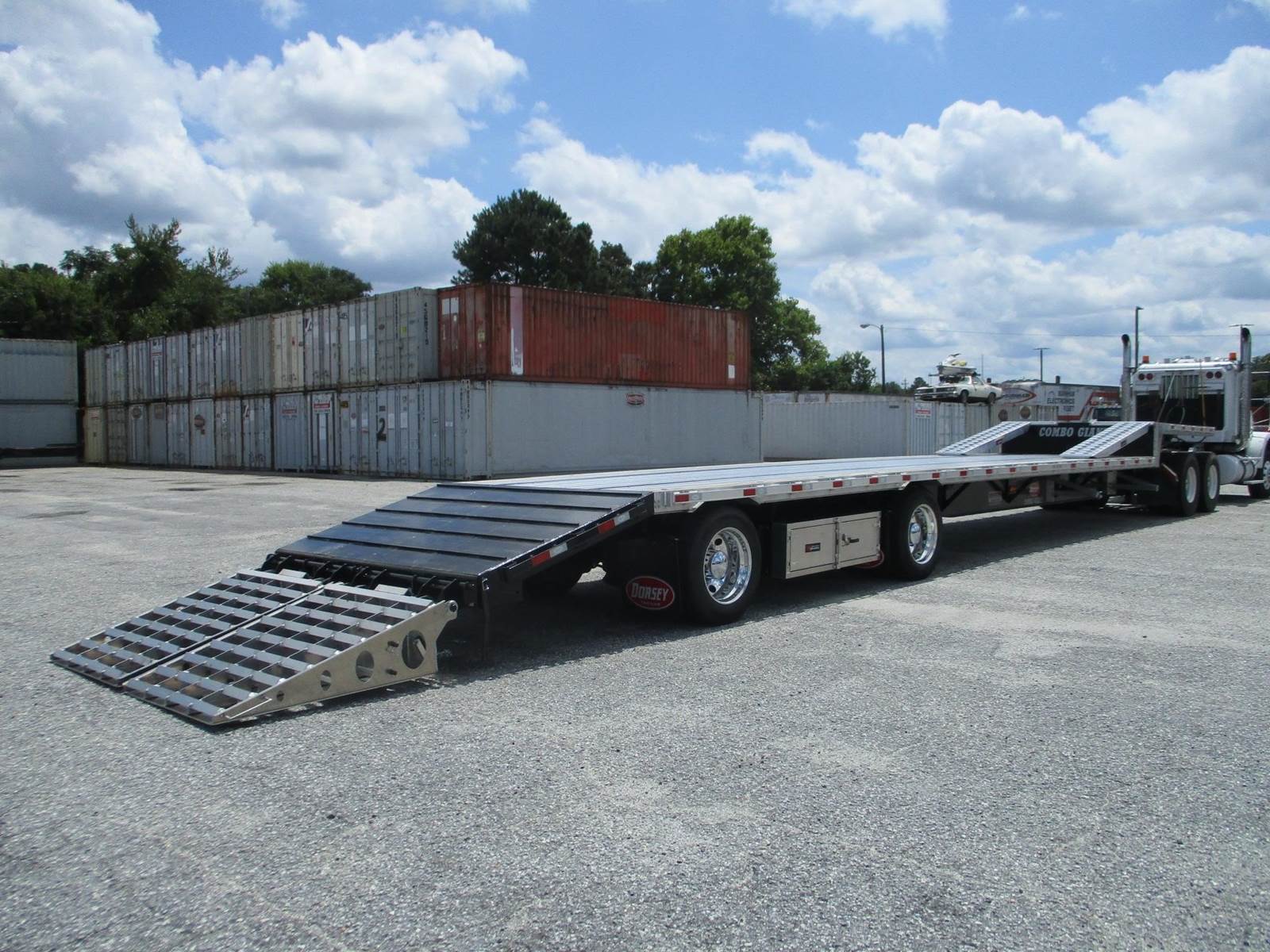

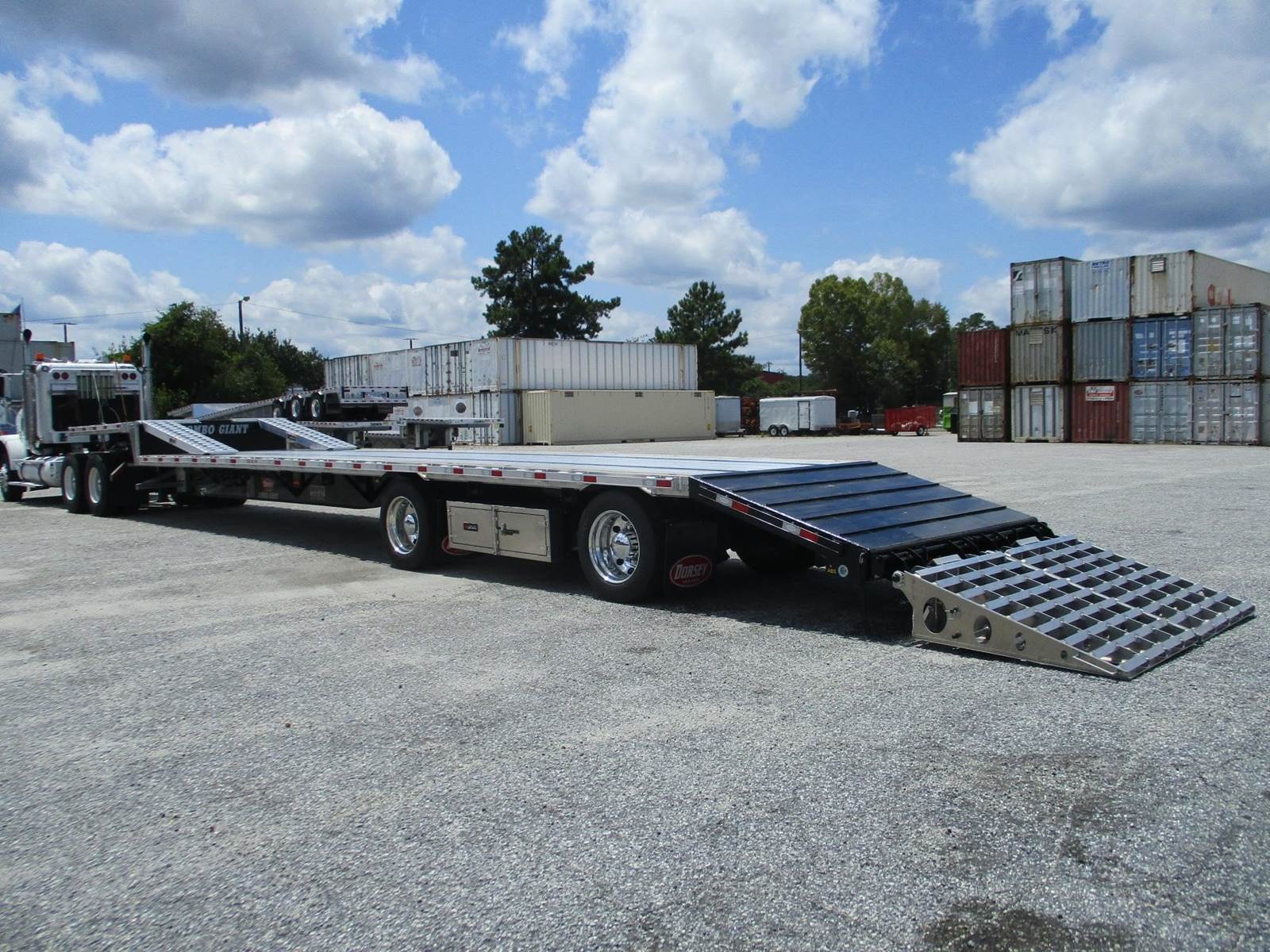

REAR BEAVERTAIL - 52"- 32* DEGREE TRANSITION - STEEL W/ TRACTION BARS

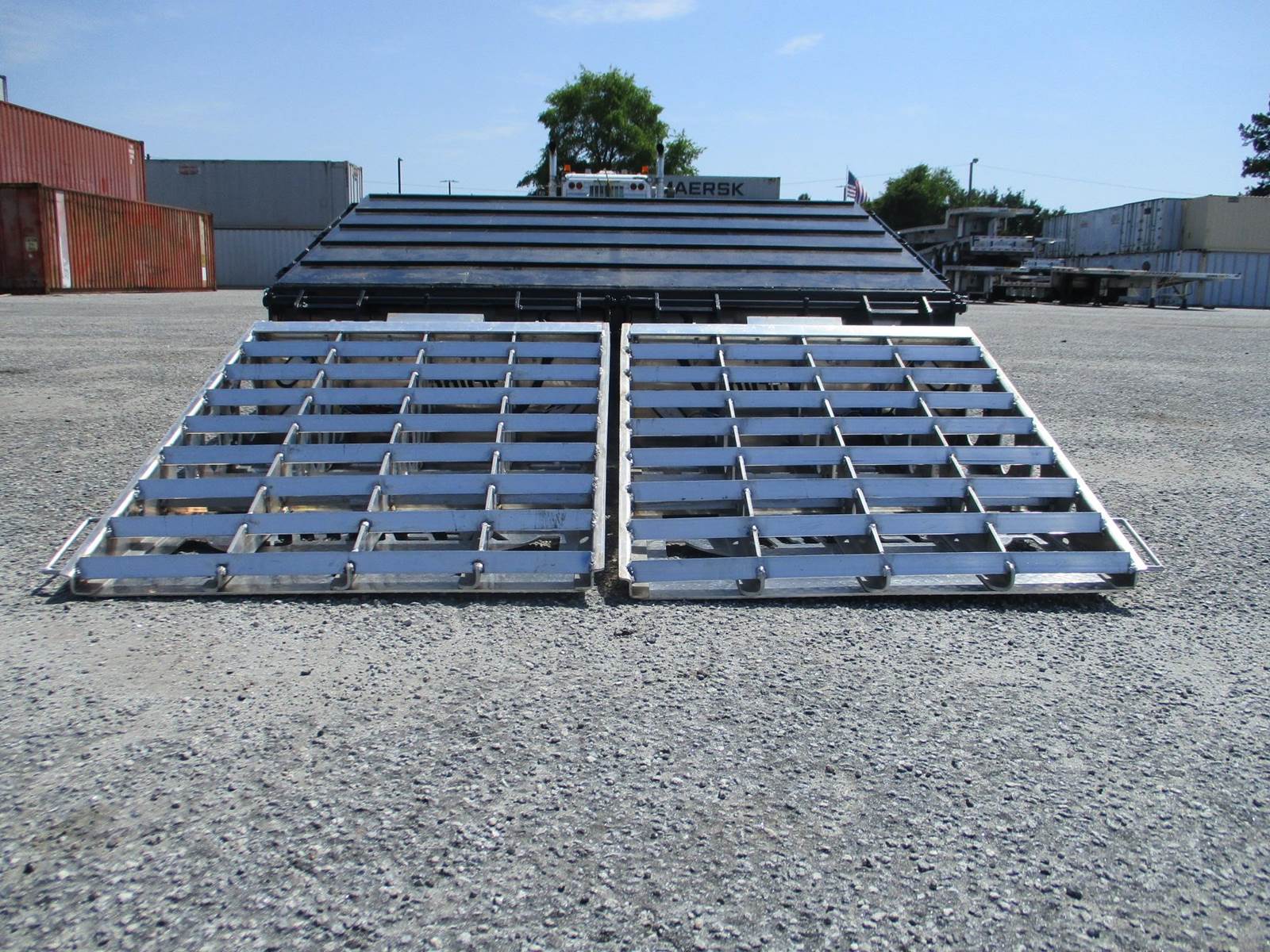

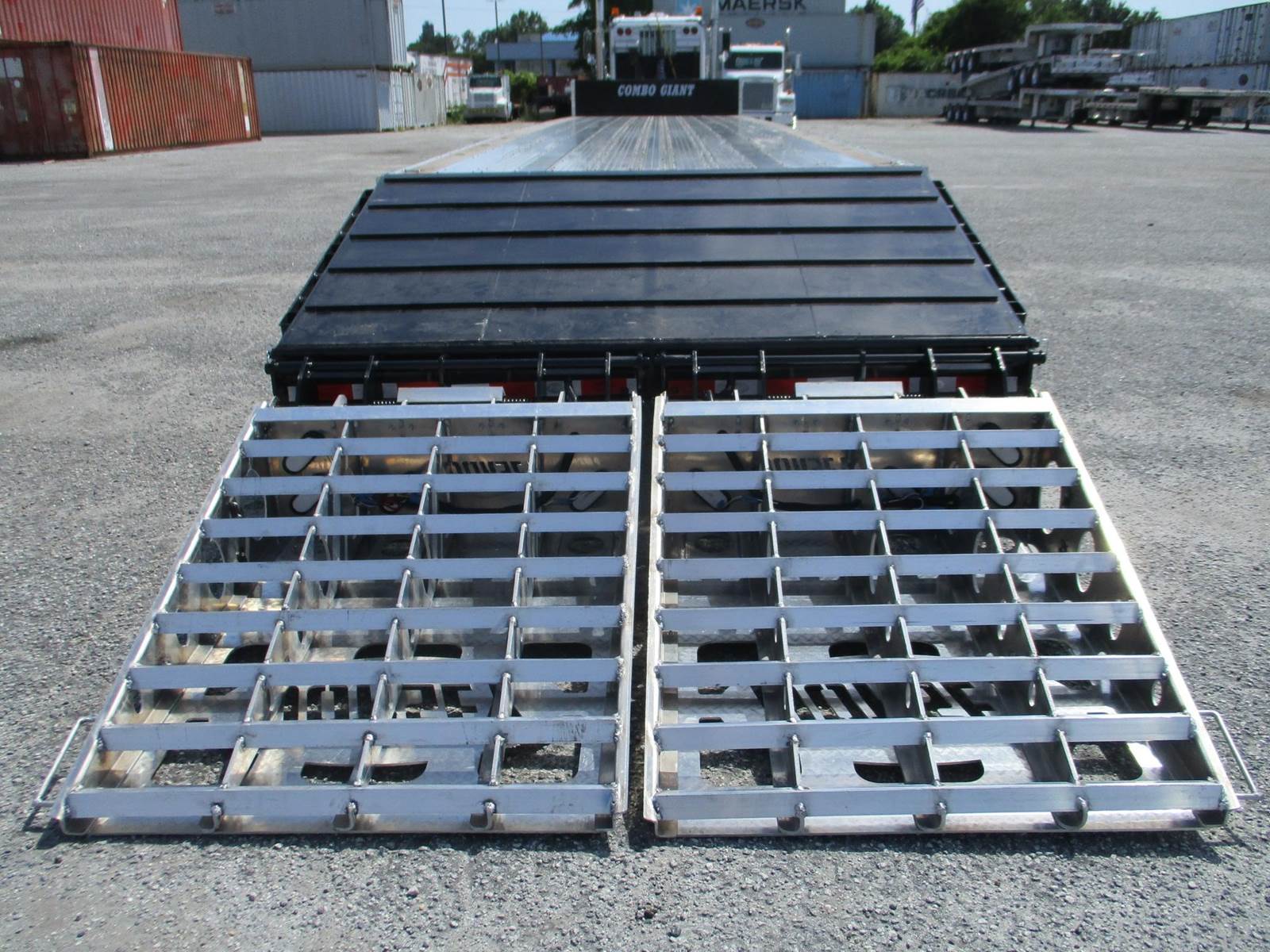

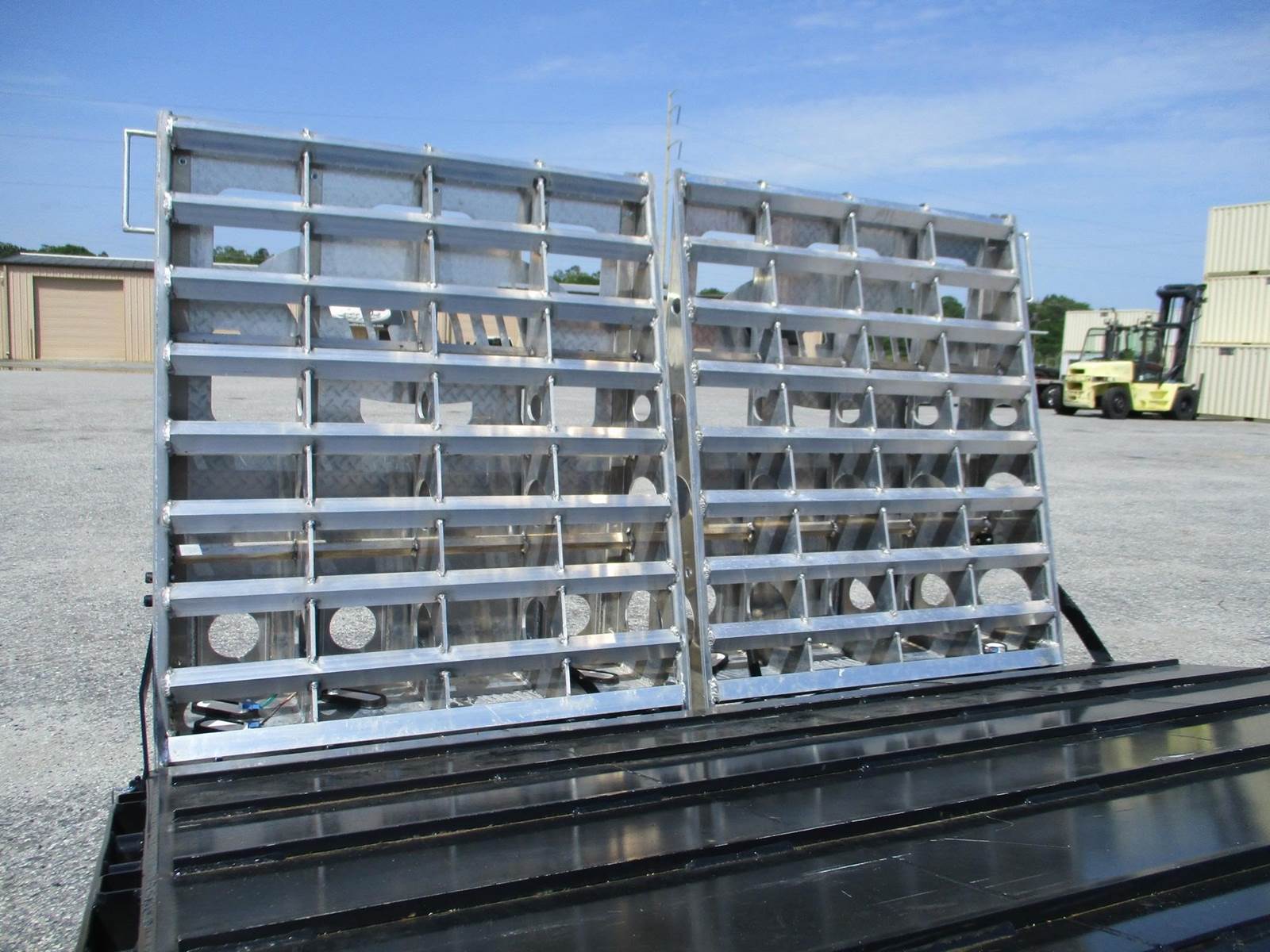

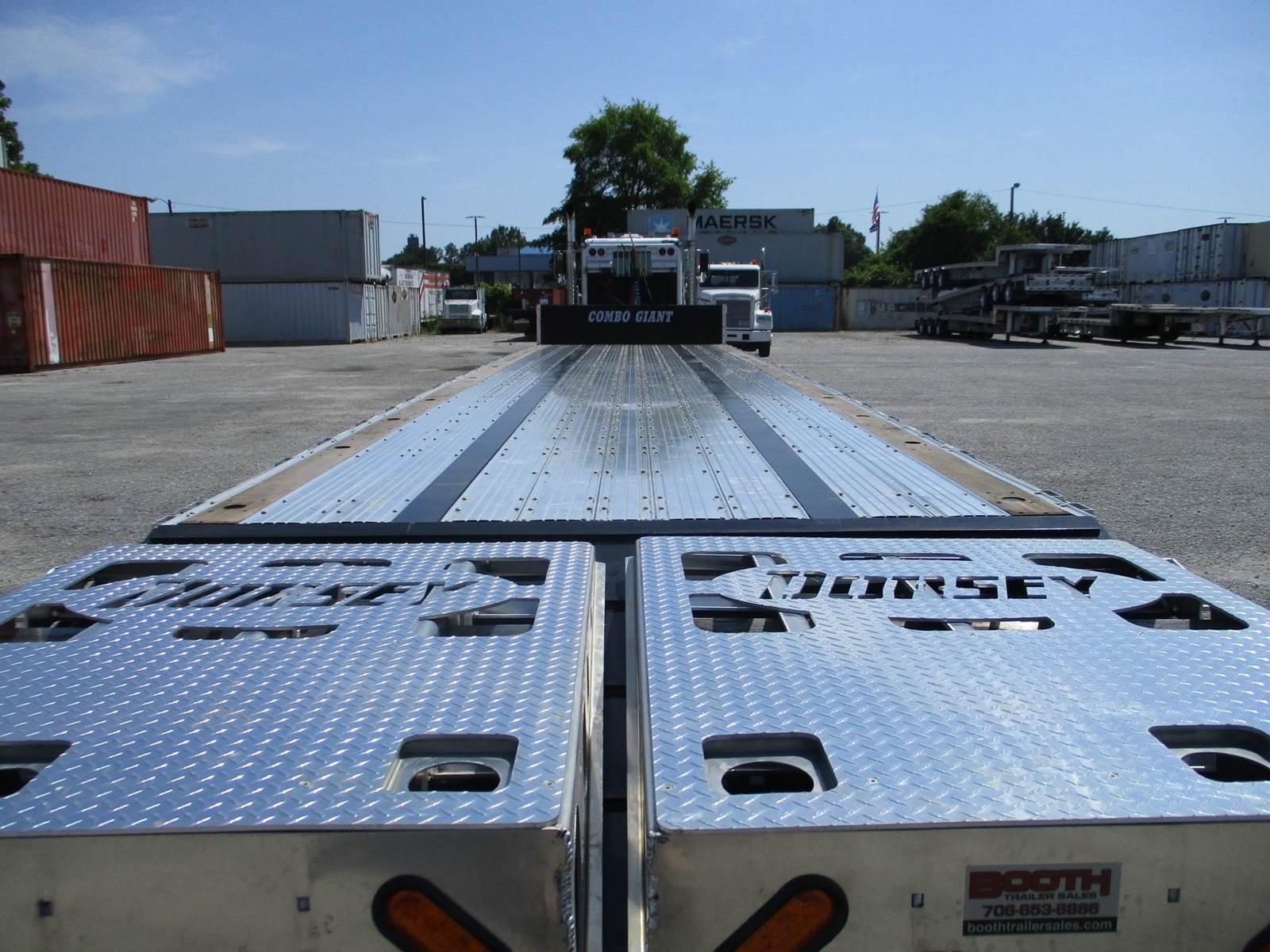

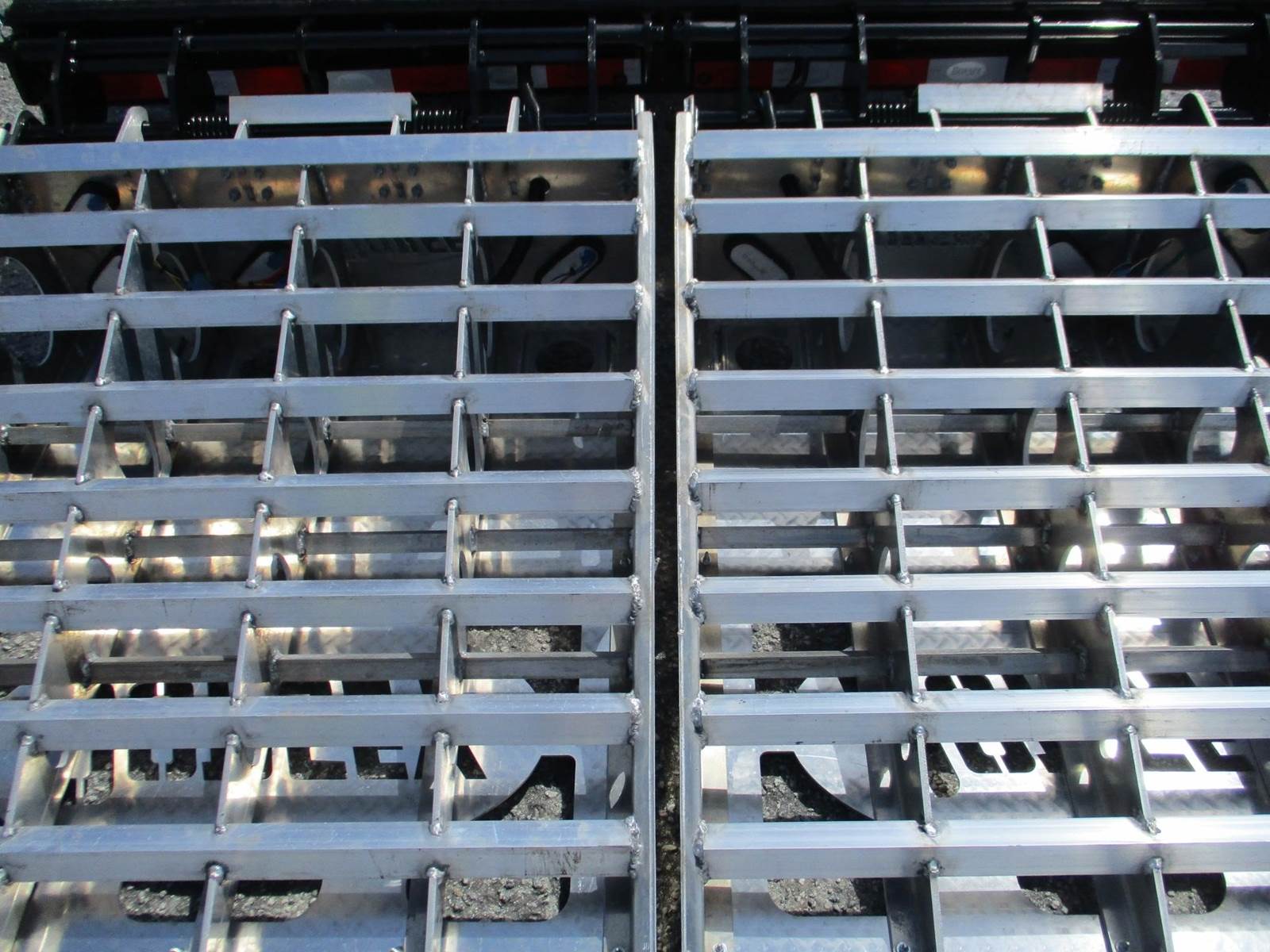

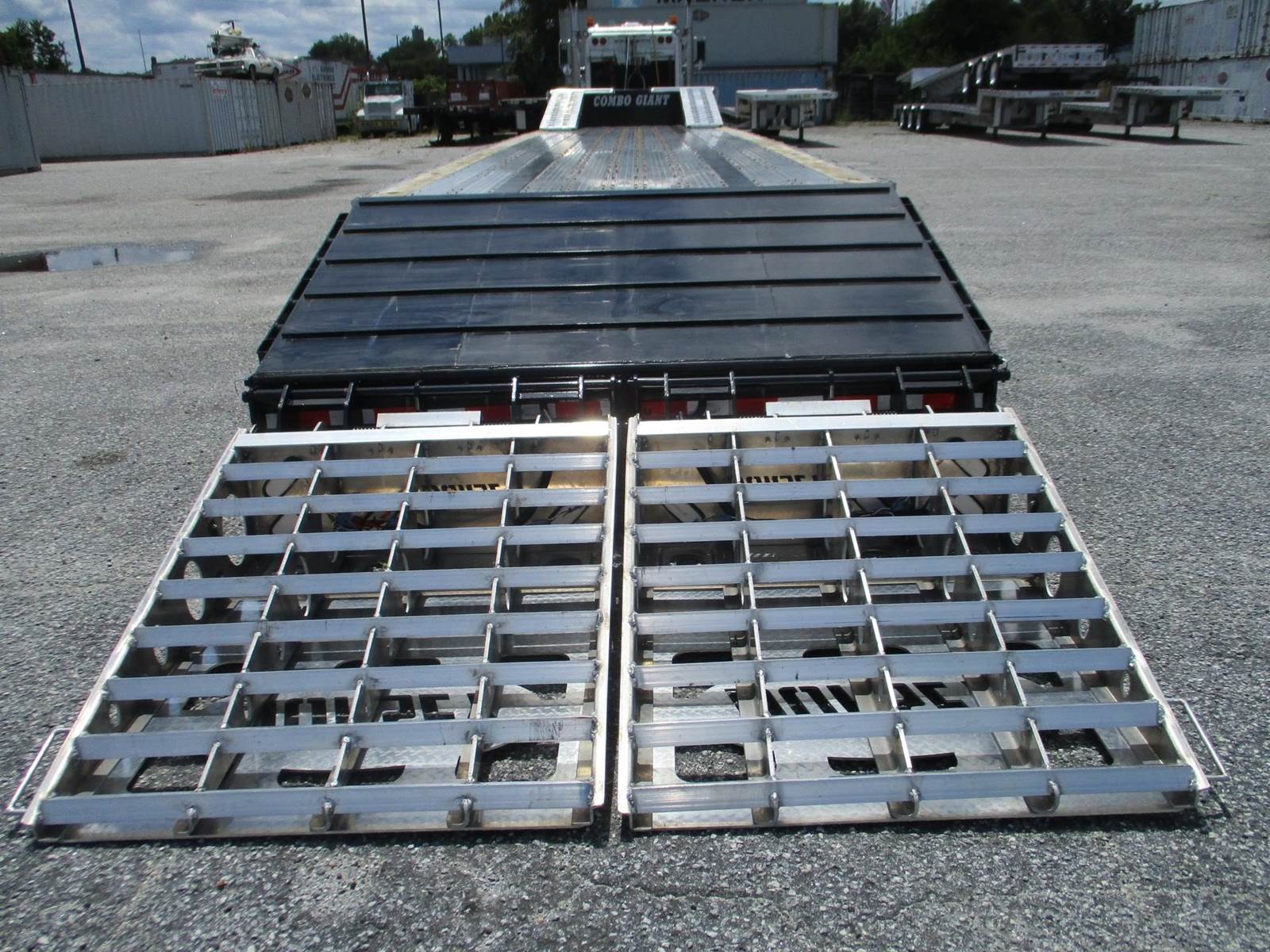

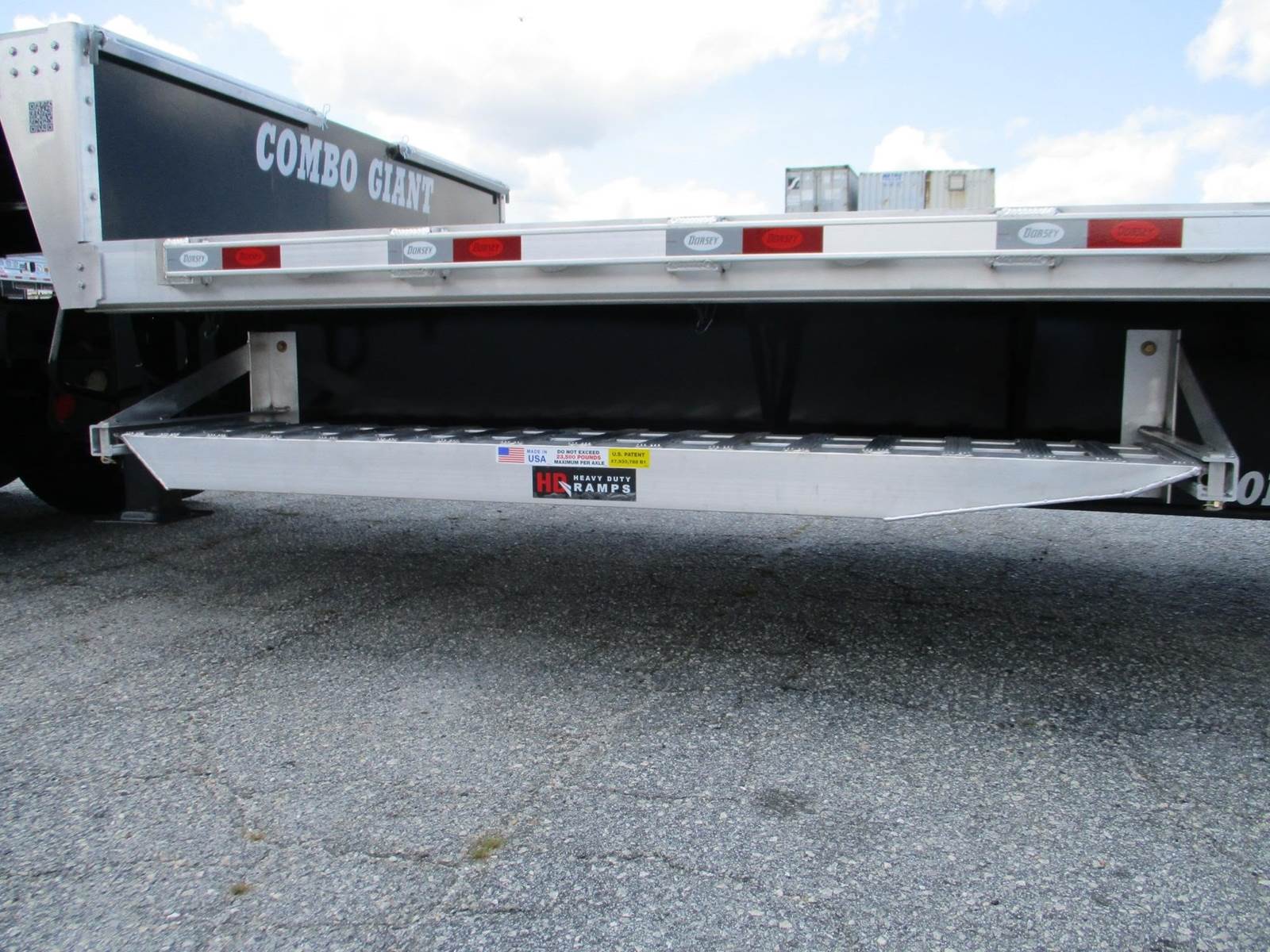

REAR LOADING RAMPS - ALUMINUM SELF CLEANING - FULL WIDTH SPRING ASSIST - GOLIATH RAMPS
WINCHES - 12 DOUBLE L
WINCH TRACK - Double L Aluminum - Extruded Siderail C/S & R/S - Both Sides
TIE BAR - D/S & C/S - Full Length Both Sides - 3/8" x 2"
LANDING GEAR - Two Speed - Jost A500
SUSPENSIONS - Air Ride - Hendrickson Intraax 23K - 2 Axles Fixed
SUSPENSION LOCATION - 10' 2" Fixed Air Ride Spread - 43' from king pin to center of rear axle
AXLES - (2) 23K Capacity - Type 30 Chambers - Auto Slacks - ABS - 22.5 Tires
AXLE SPACING - 10'2" Wide Spread

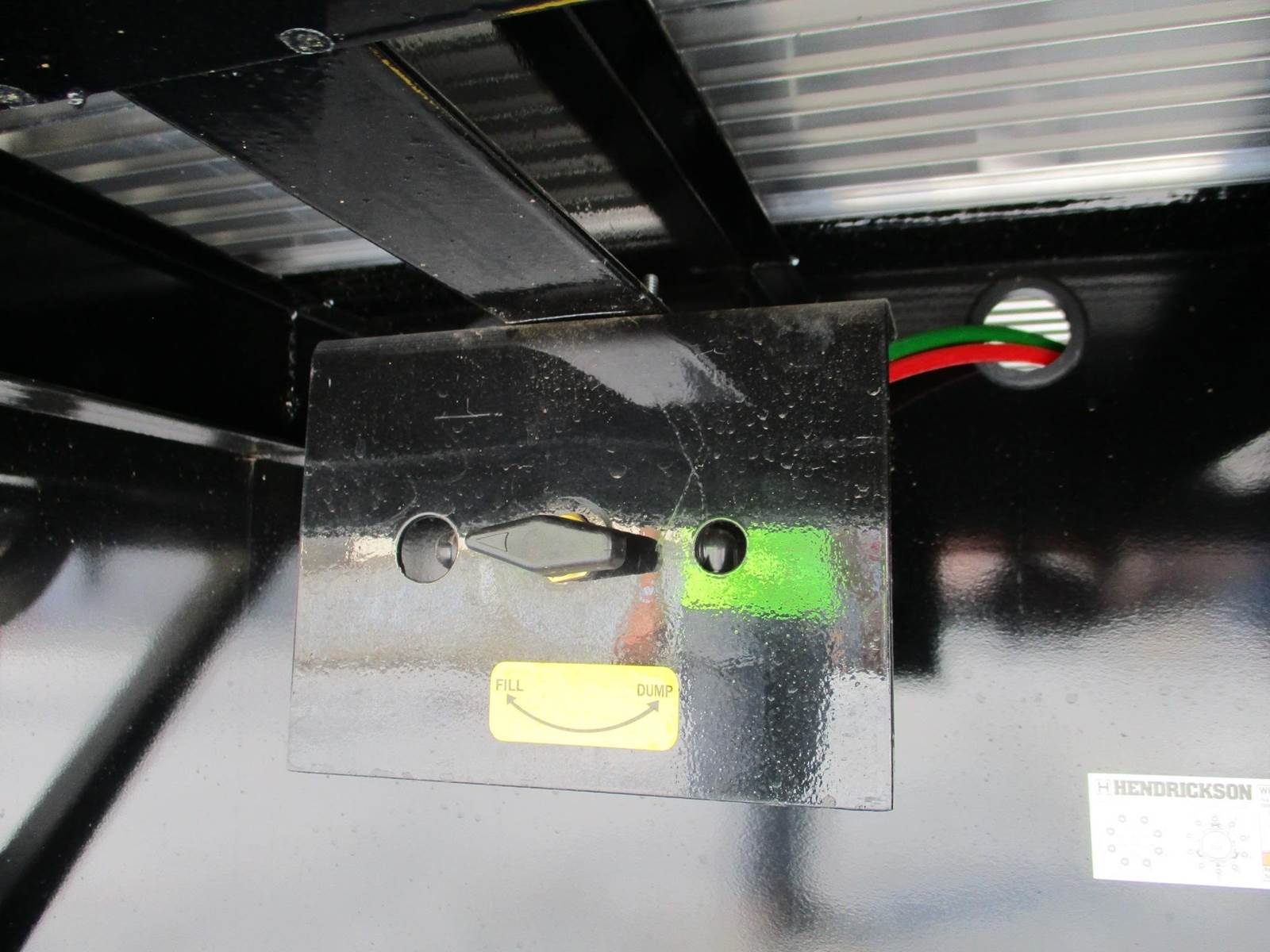

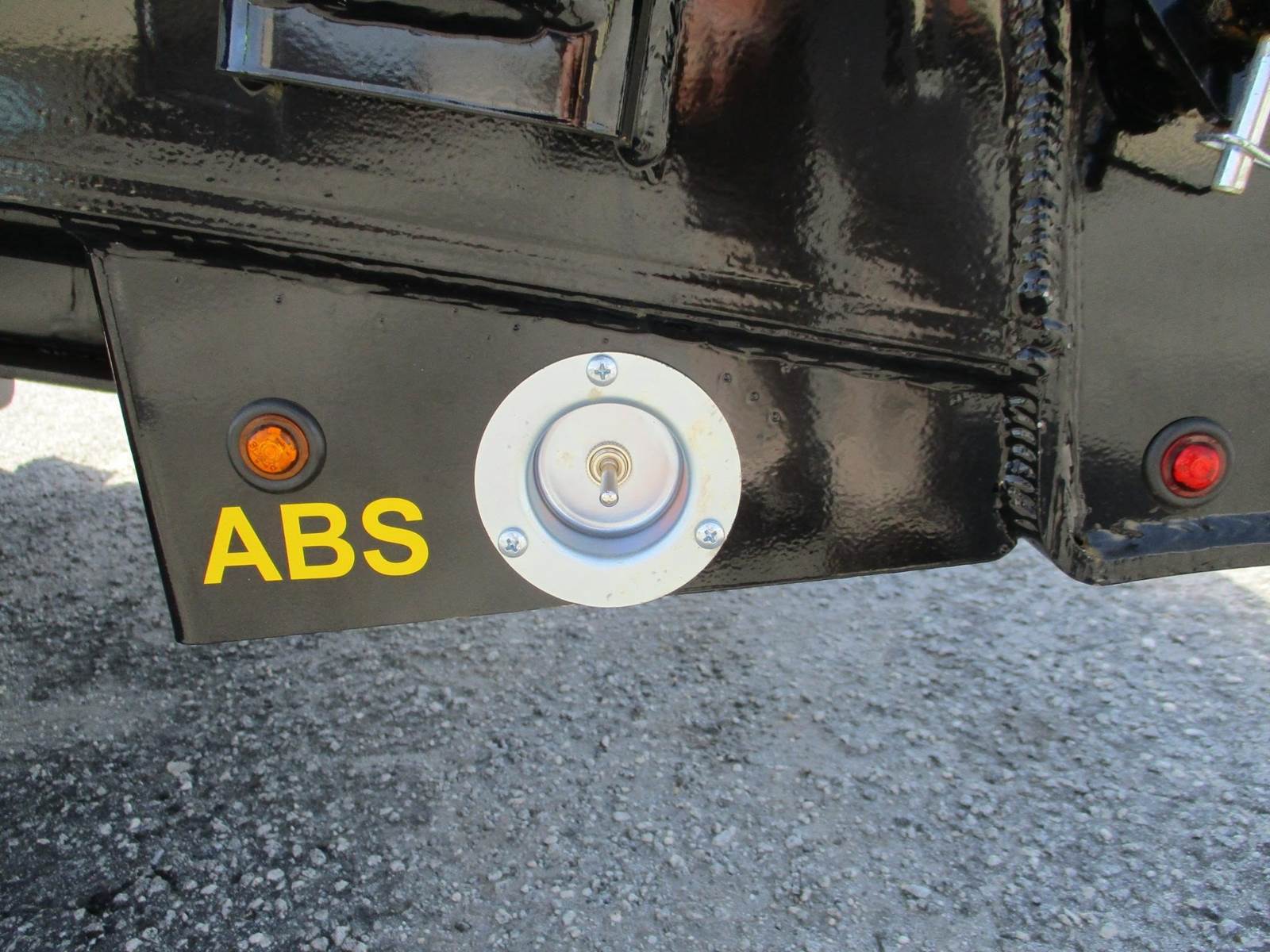

DUMP VALVE - Manual-Position In Front of 1st Axle D/S No Box-Dump All Axles
PARKING BRAKES - All Axles
ABS SYSTEM - Wabco ABS System 2S/1M
WHEELS - Disc-Hub Pilot-22.5(2-AX)-Polish ALUM 4 Outside Wheels(4-Steel Inside)
TIRES - 255/70R 22.5 - Firestone
ANTI-SAIL MUD FLAPS - Behind Rear Axle
STAKE POCKETS - 24" O.C. Sides & 5 Across Rear
SPOOL - Triangular Shaped
RUB BAND ALUM - 3/8" x 3" - Aluminum - Recessed for DOT Tape
DOCK BUMPERS - Rubber Inboard
CARGO TIE DOWN - 14 Pair of Recessed Chain Ties Evenly Spaced
TIRE CARRIERS - Tire Carrier Positioned In Front of Main Beams Between Landing Gear
LIGHTS - Grote Ultra Blue Sealed Wiring Harness- 2 Micros Per Side & Mid Turn-3/3/3 Rear
PAINT - Black - PPG Epoxy Primer and Acrylic Polyurethane - Shot Blasted
DECAL PACKAGE - Standard Dorsey Logo Kit
ZERO $$$ MONEY DOWN $999 month WAC

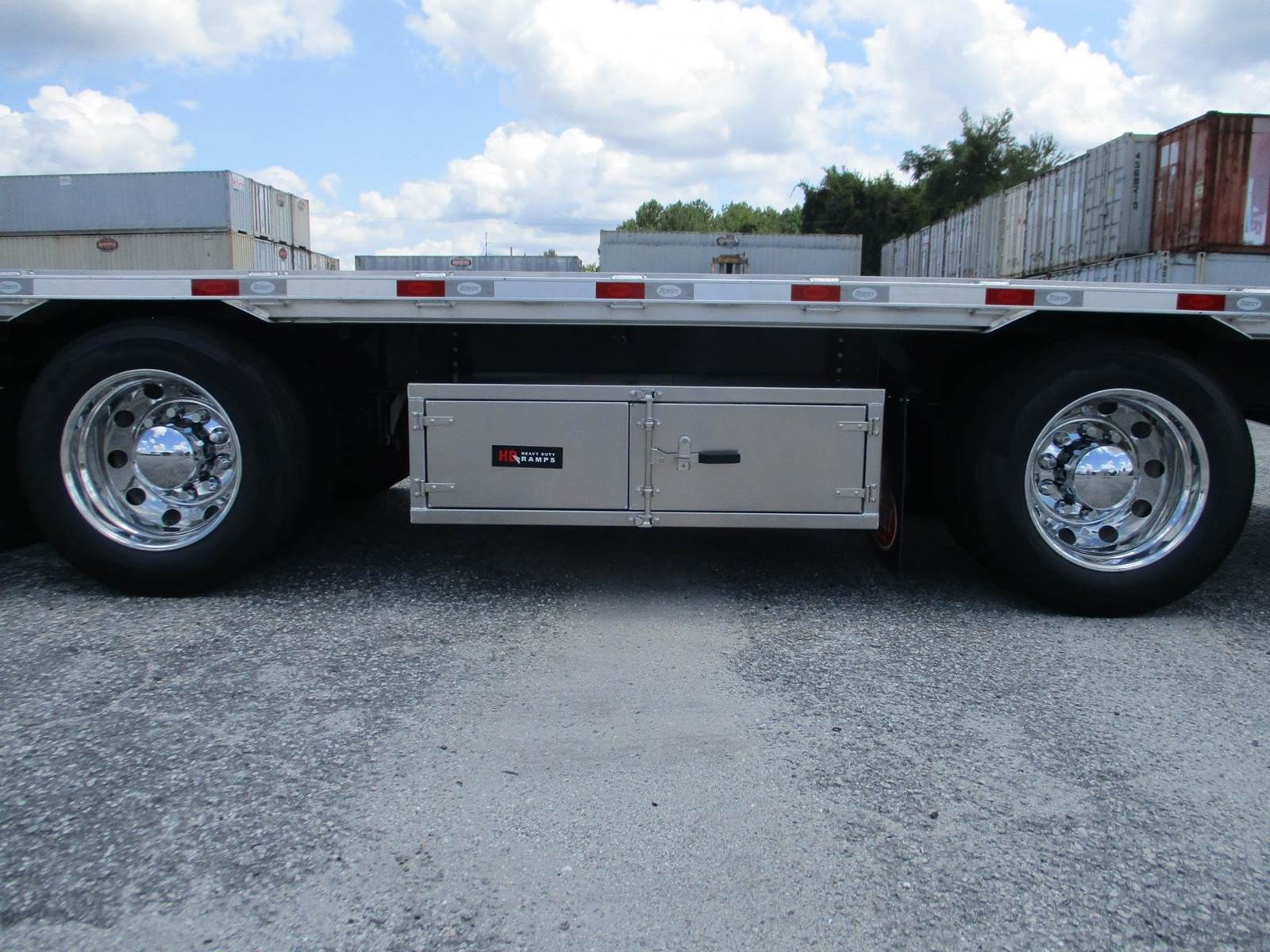

Tool Boxes & Upper Deck Ramps NOT Included in Listed Price.

Our location stocks and installs Sliding Tarp Systems, Toolboxes, Headboards, Ramp Kits, Forklift Kits, Chains, Binders, Straps.
