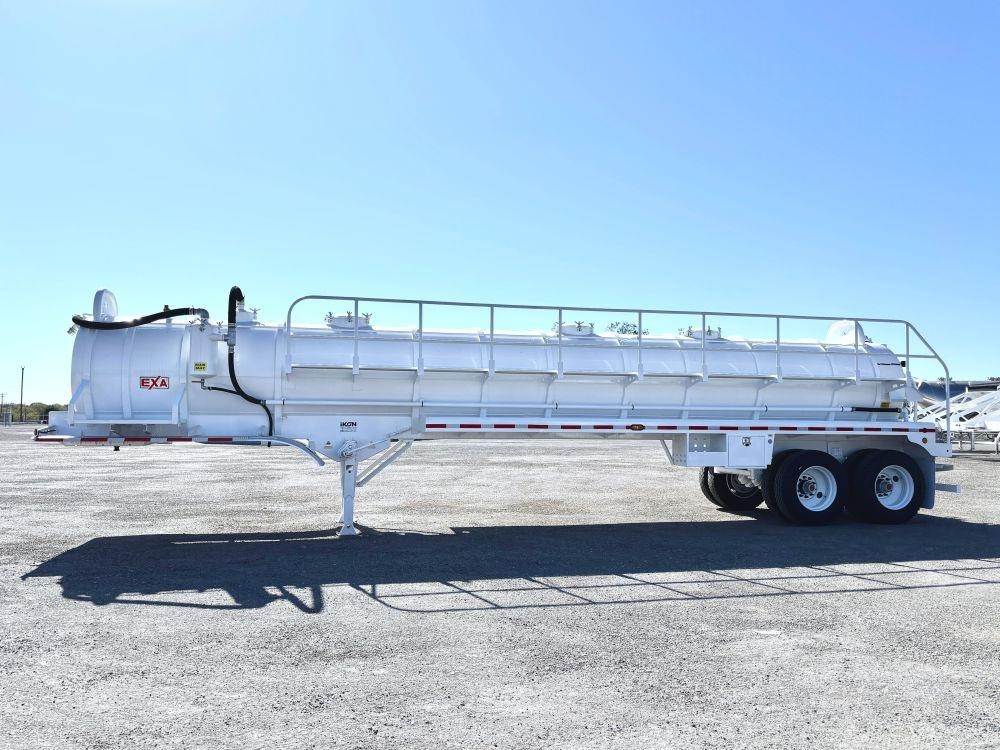

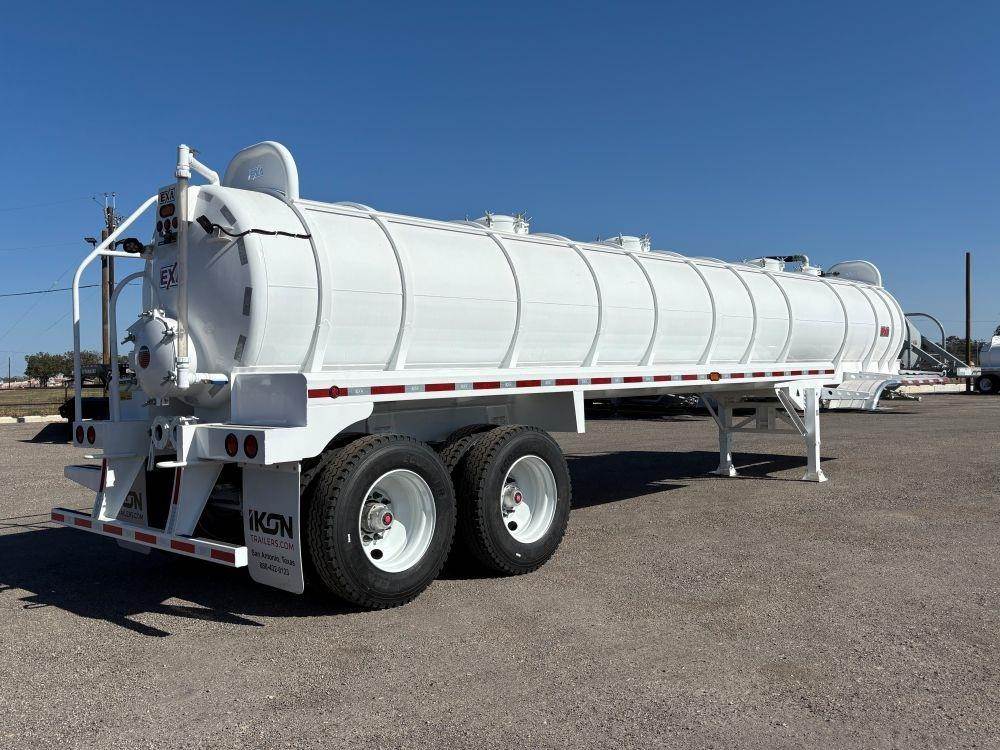

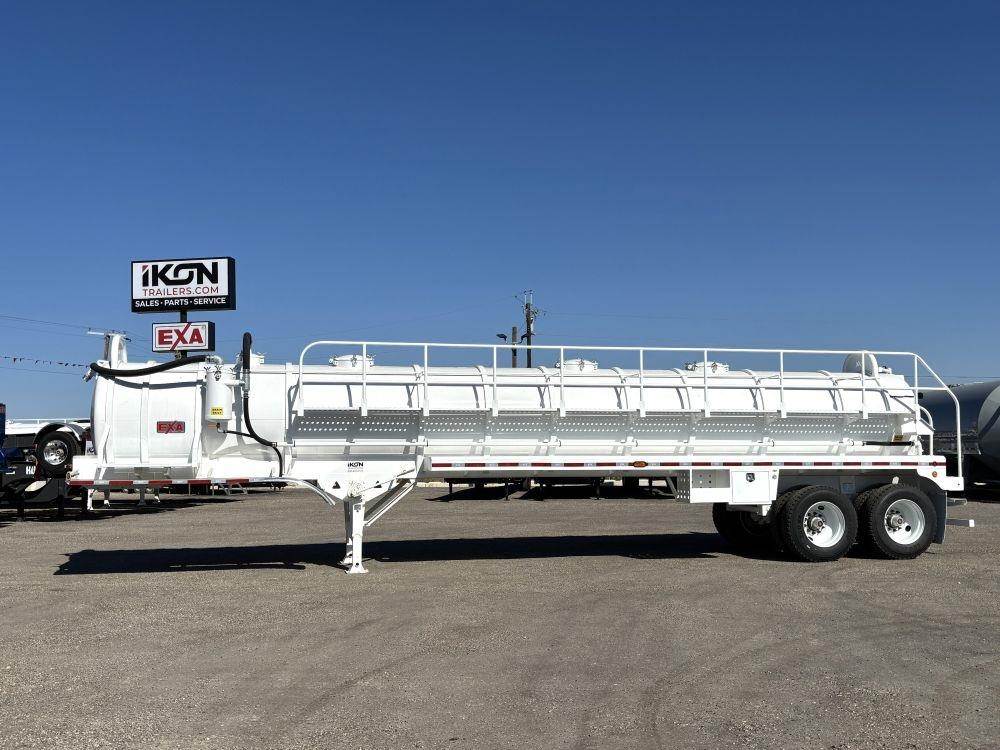

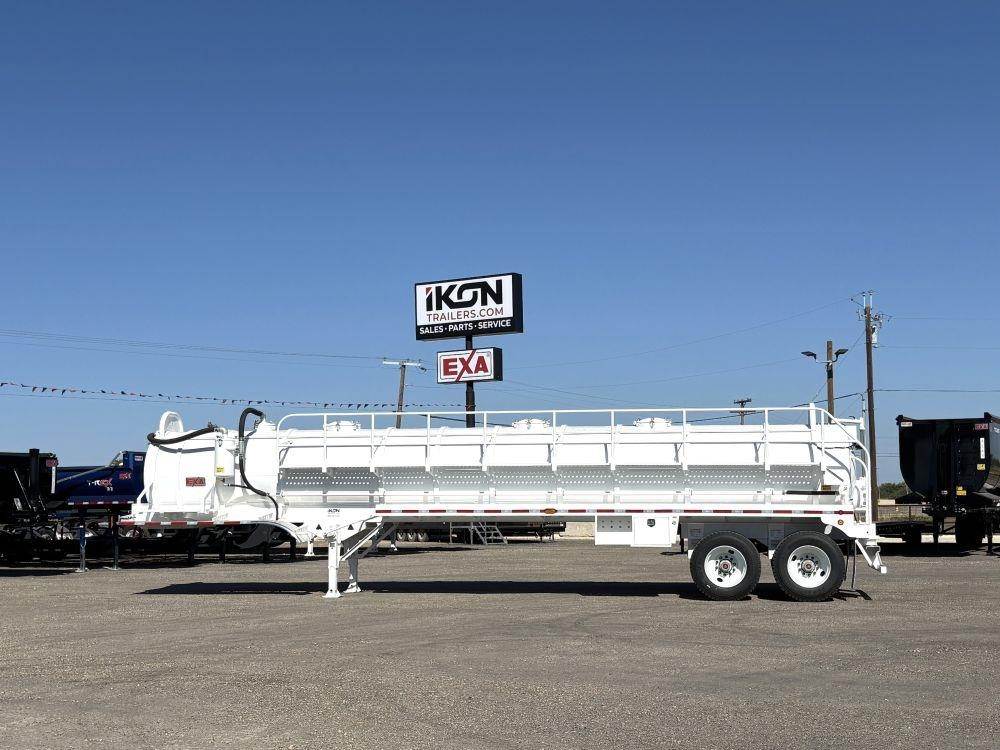

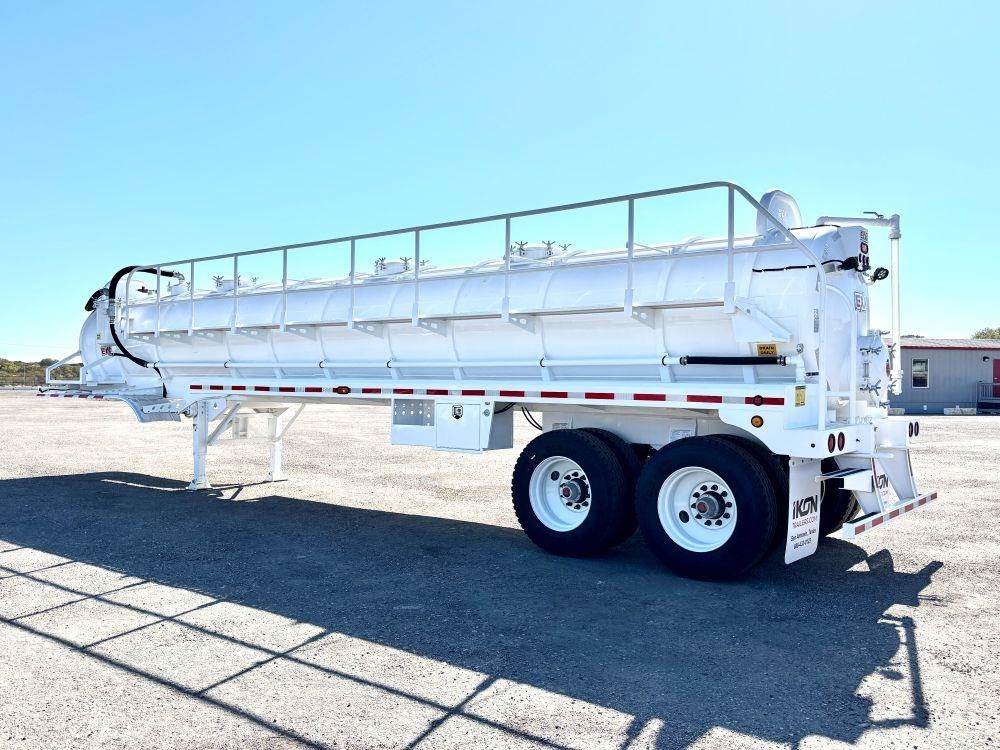

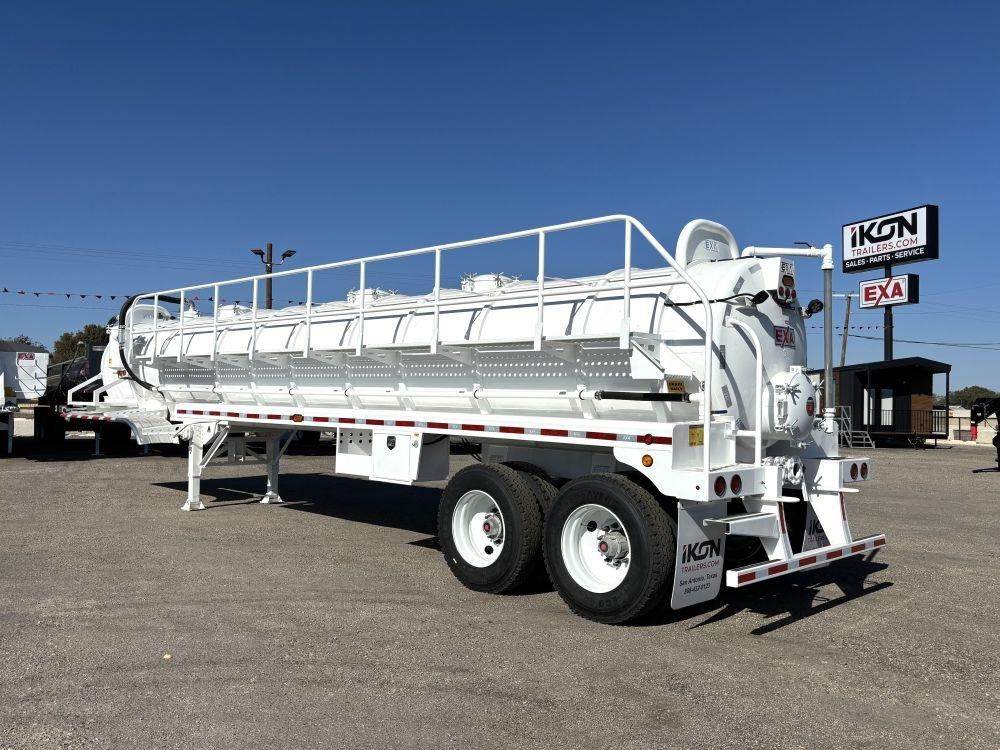

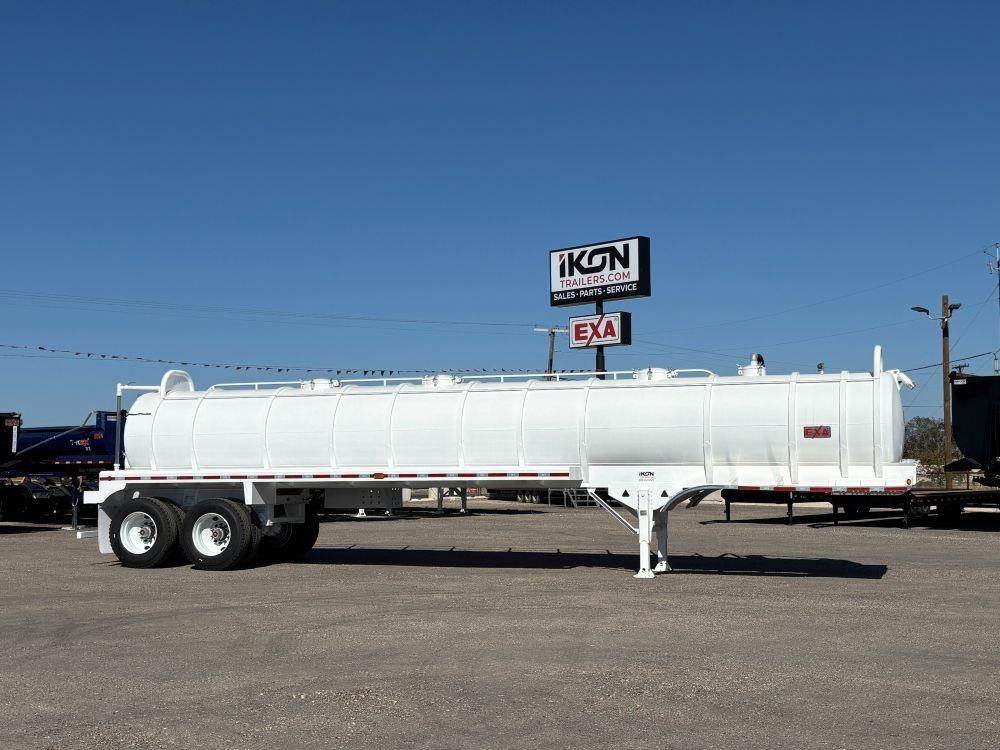

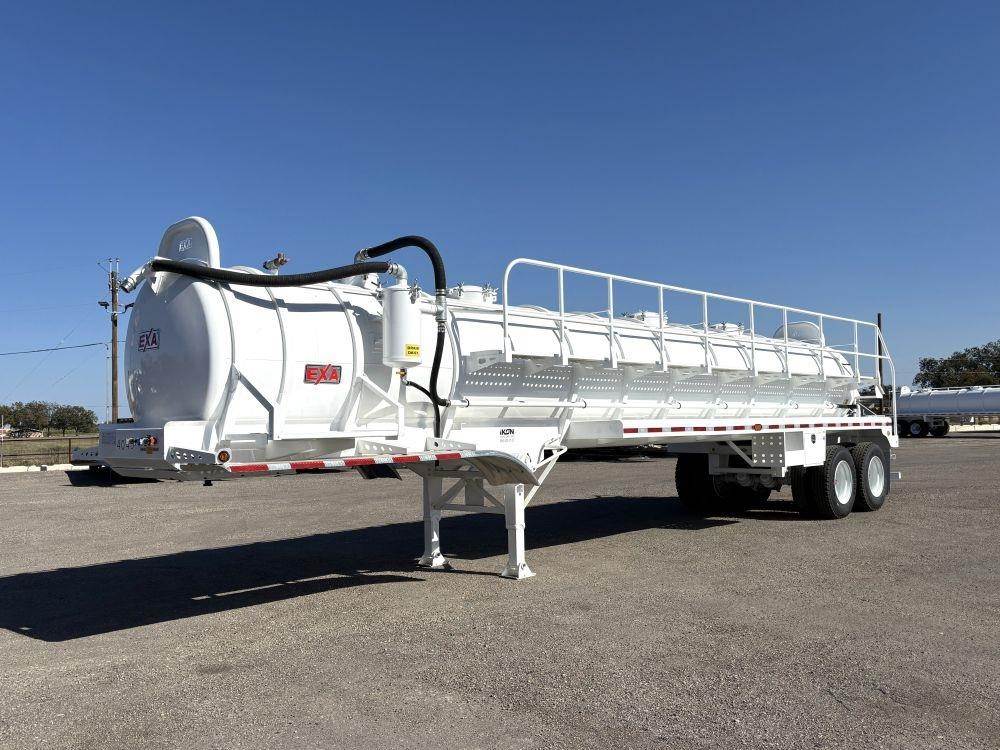

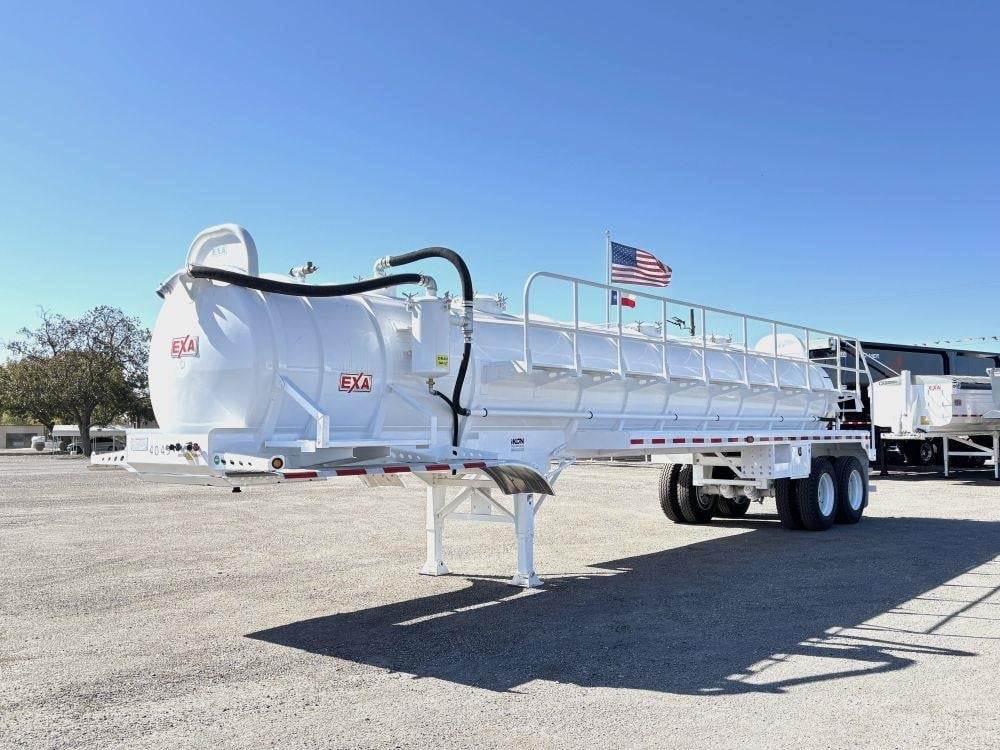

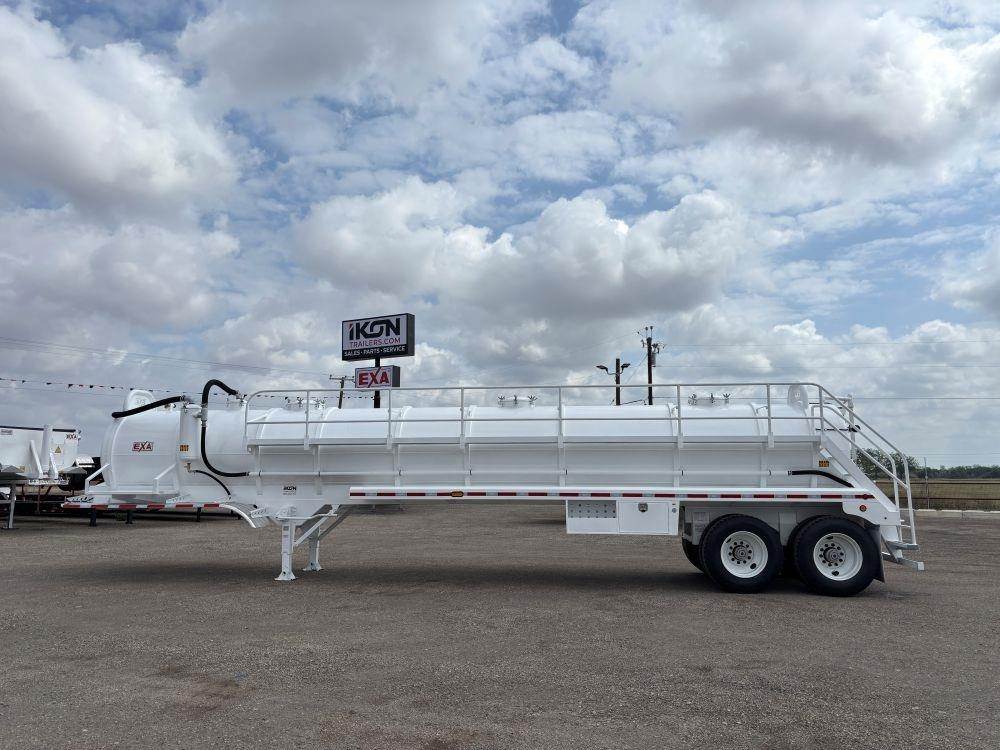

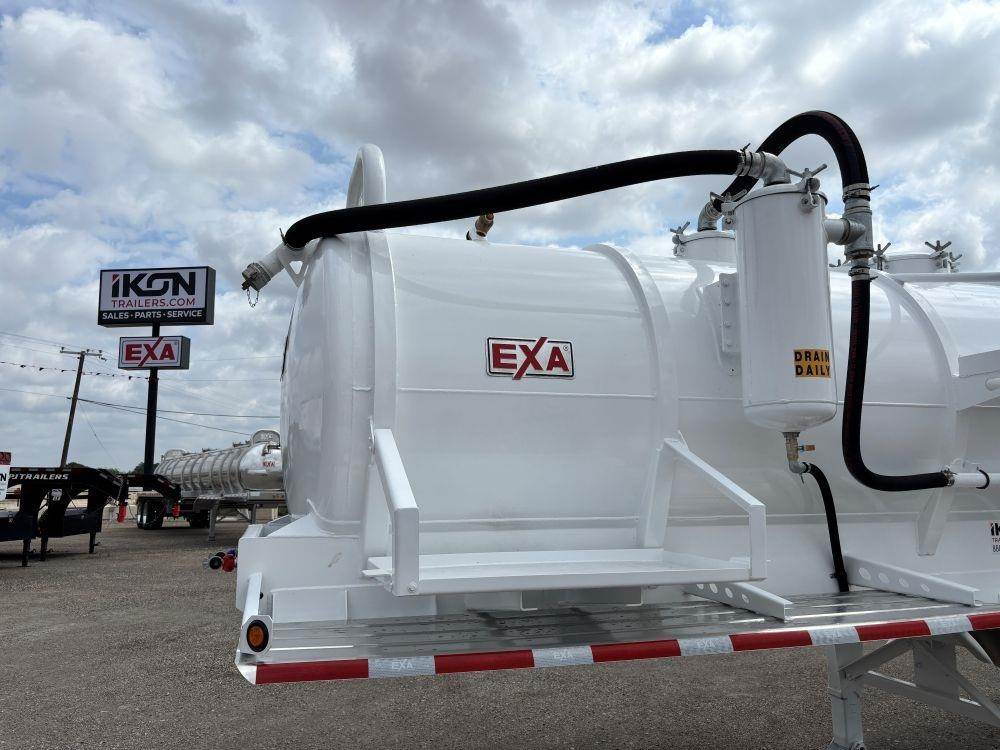

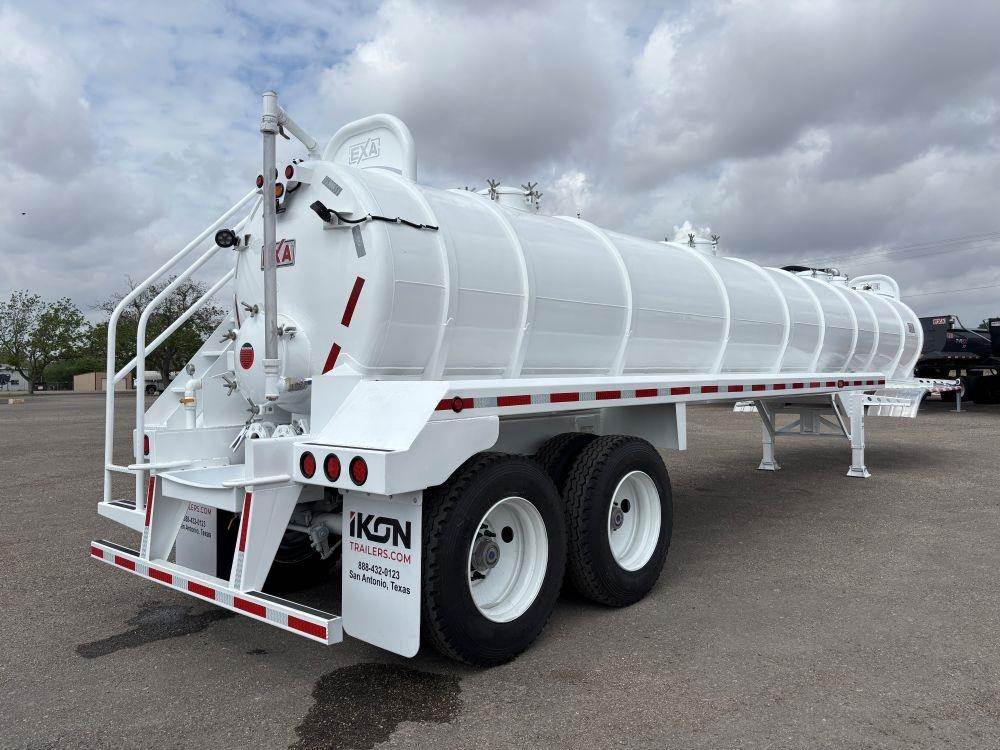

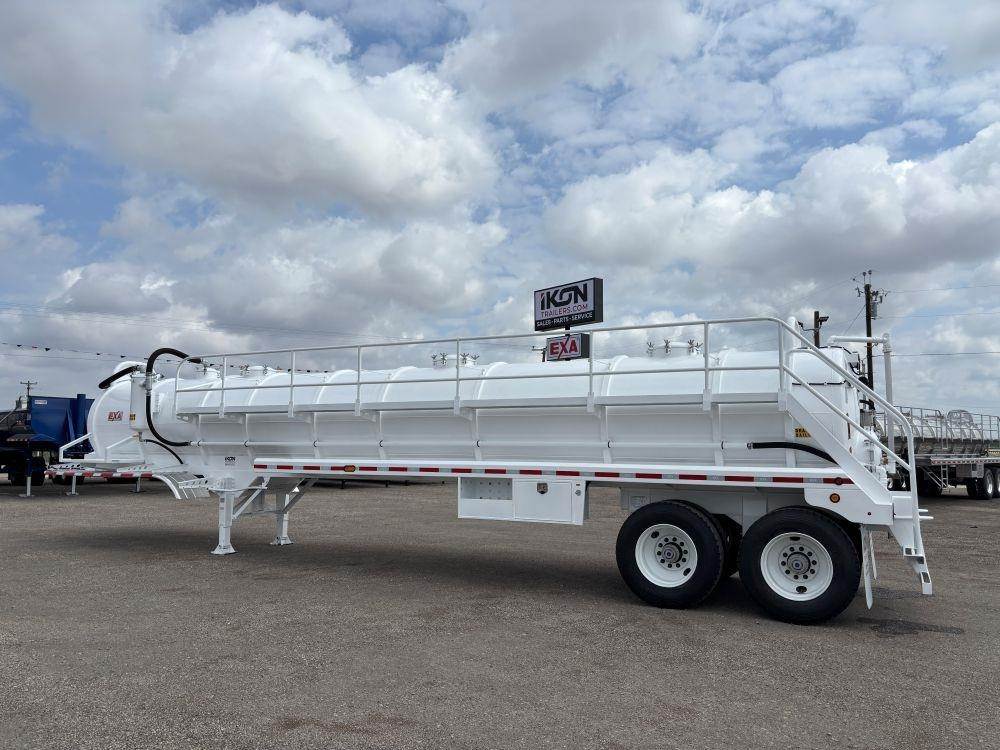

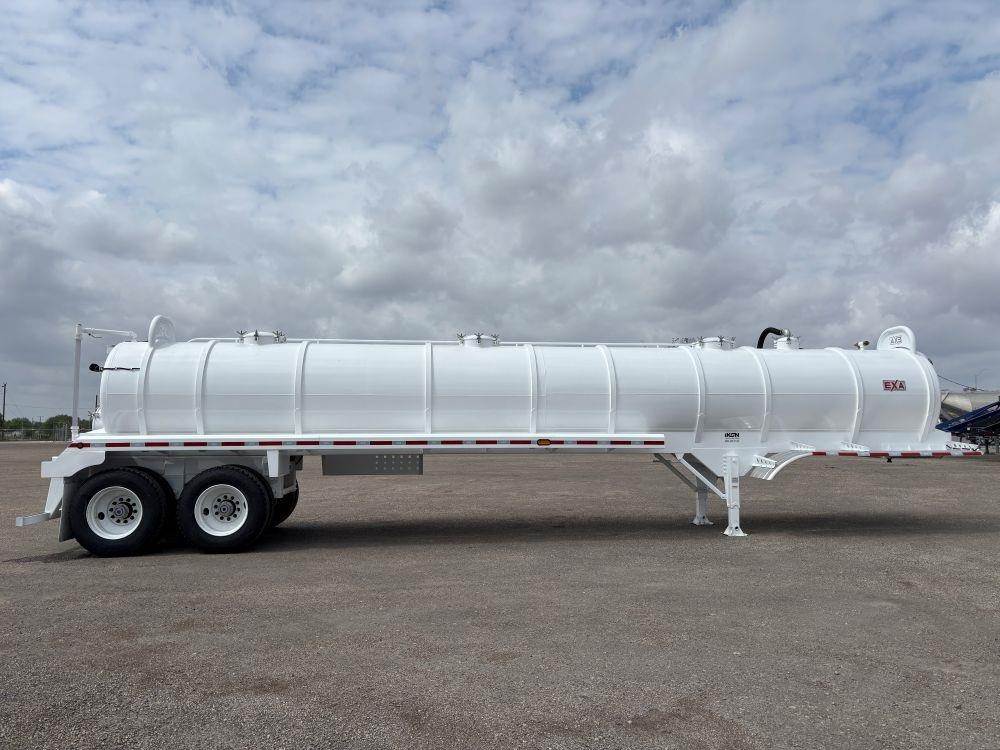

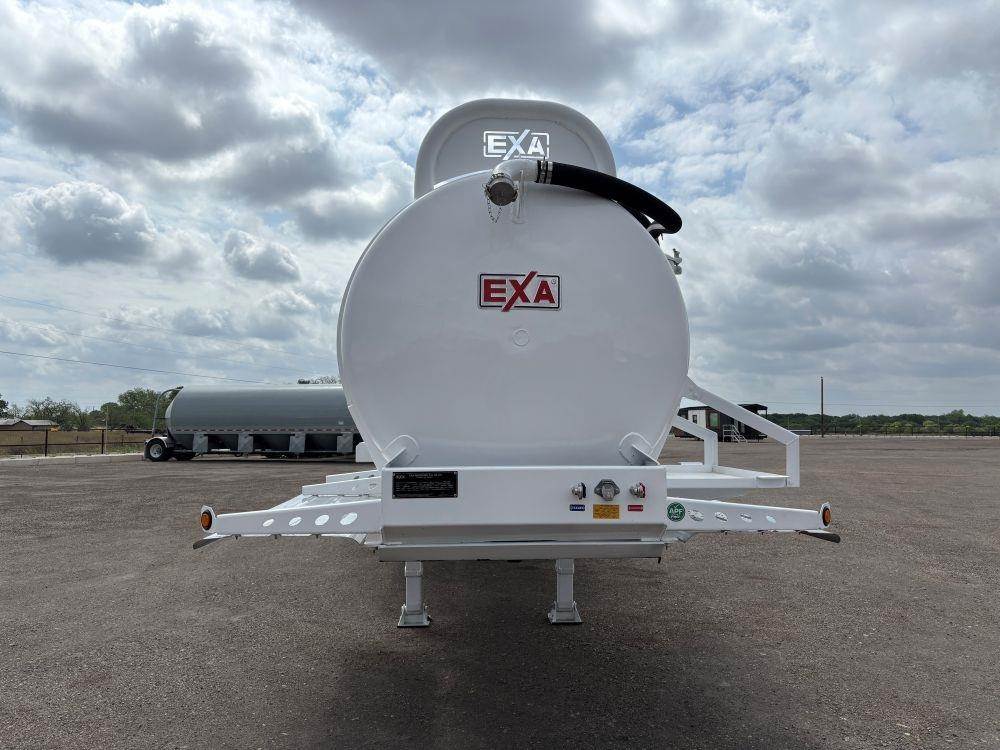

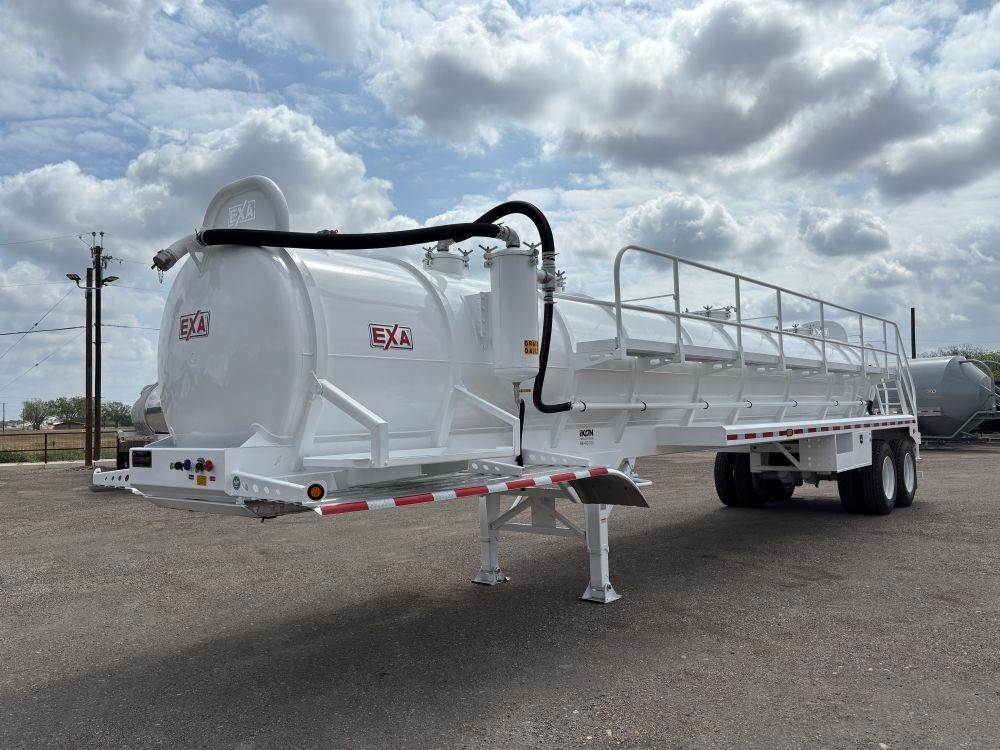

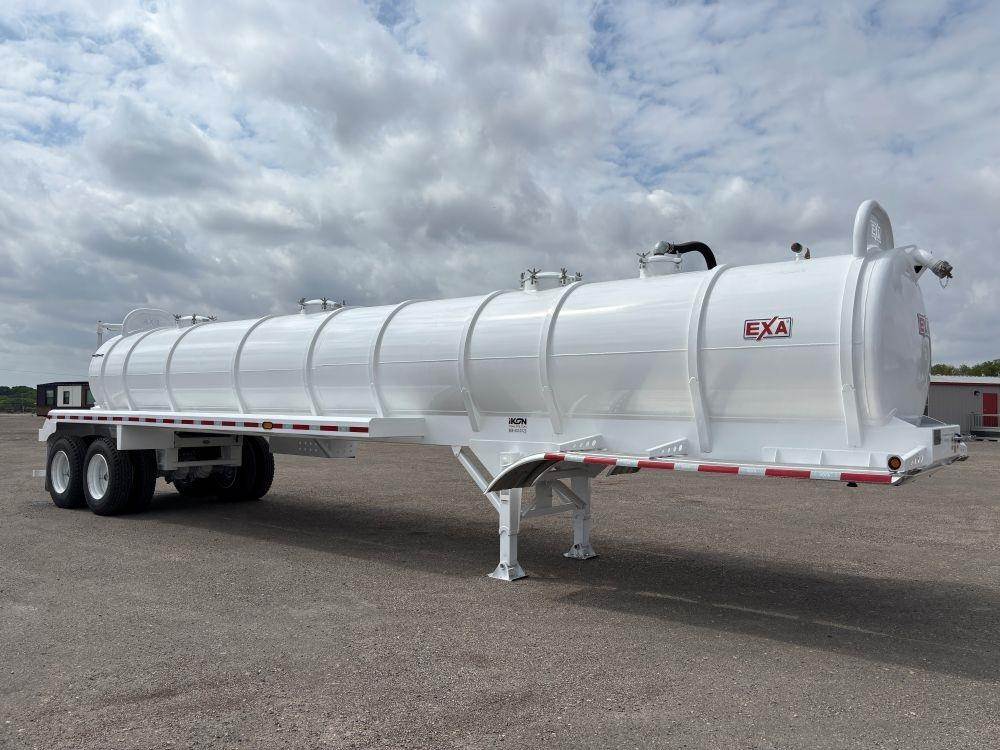

2026 EXA 130BBL ST VACUUM TANK Vacuum Tank Trailer

Payments as low as $950! W.A.C. - 2026 EXA 130BBL Non-Code Vacuum Tank Trailer – Built for Oilfield & Industrial Use!
Now Available – Heavy-Duty 130BBL Vacuum Tank Trailer!

Designed for Oilfield, Waste Management, and Industrial Fluid Transport!

✔️ Capacity: 5,460 gallons + 1% expansion – Built for high-volume transport
✔️ Material: A-36 Carbon Steel – Durable and corrosion-resistant

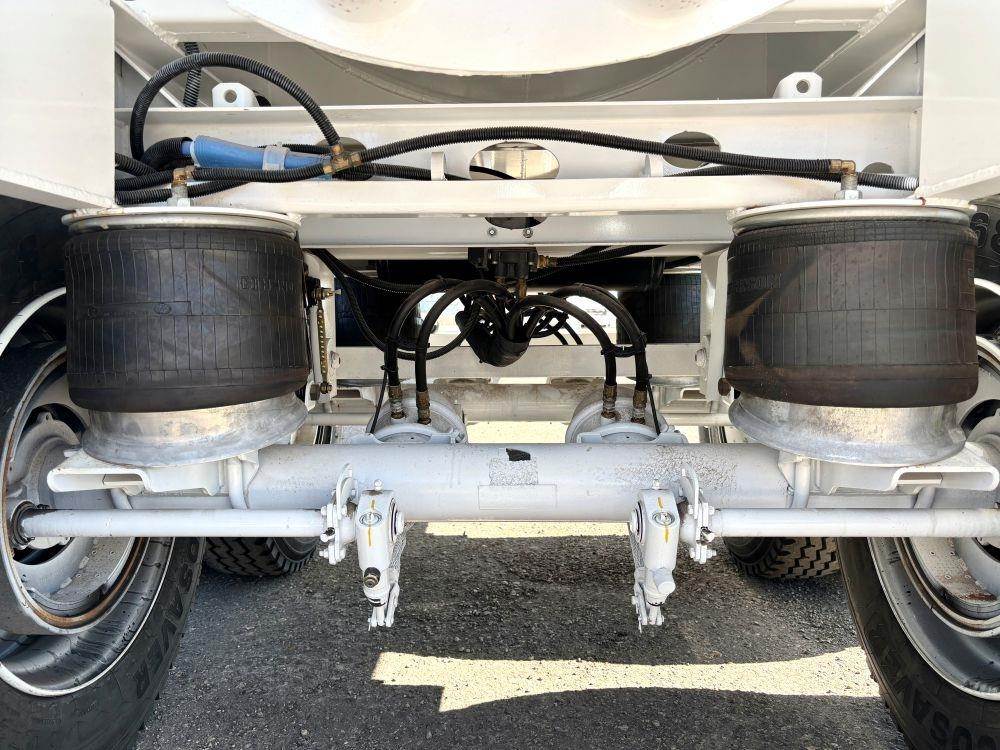

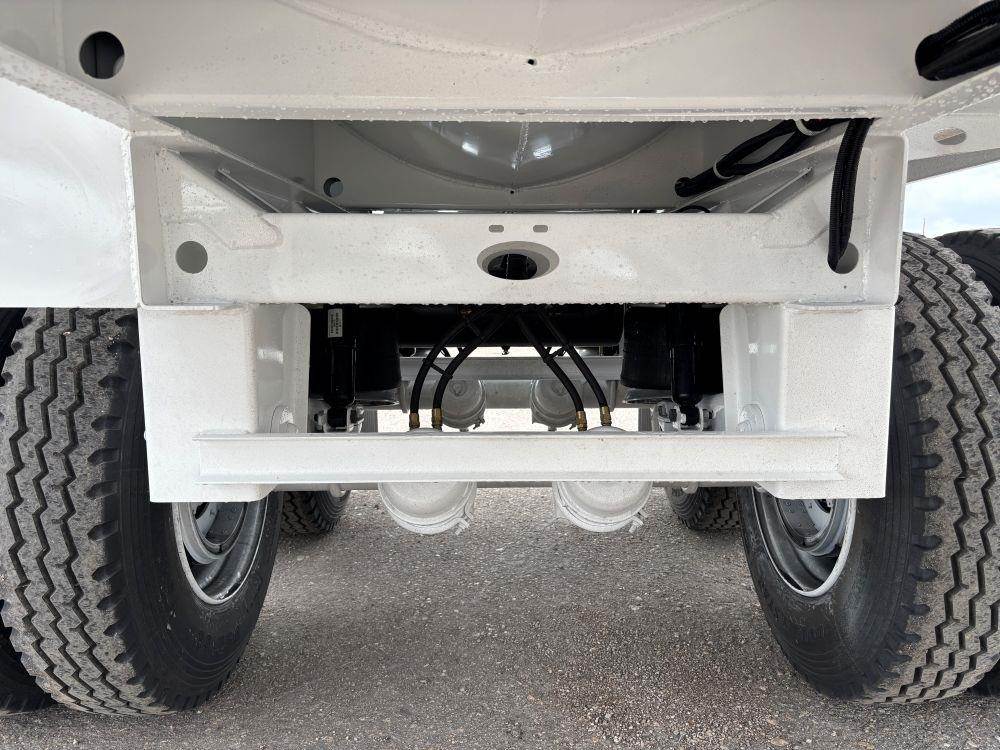

✔️ Suspension: Hendrickson HT300 Air Ride (Hutch Spring Suspension Optional)
✔️ Axles: Two (2) 30,000 lb axles with automatic slack adjusters

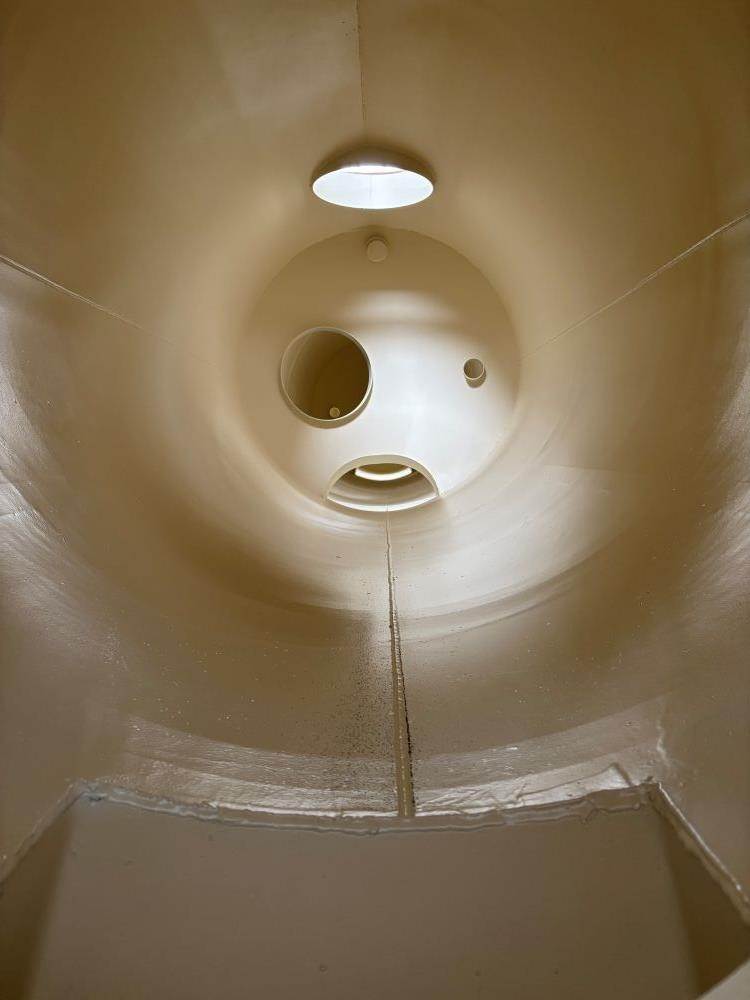

✔️ Baffles: Three (3) internal 1/4” baffles for load stability
✔️ Brakes: Air brakes FMVSS-121 with ABS 4S/2M Bendix anti-lock system

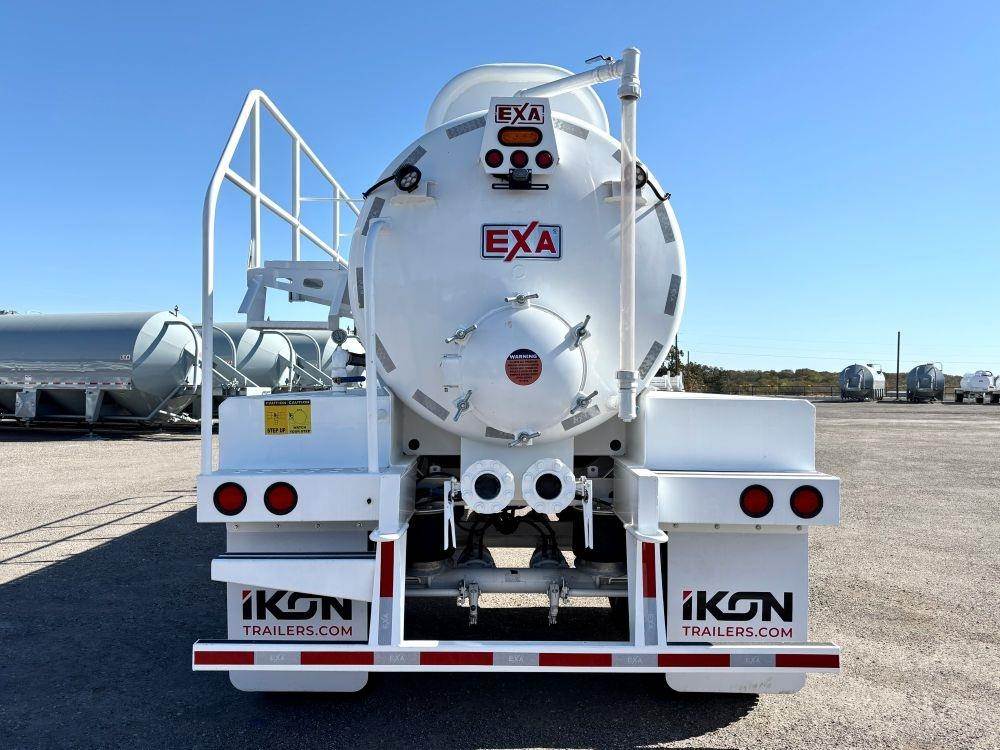

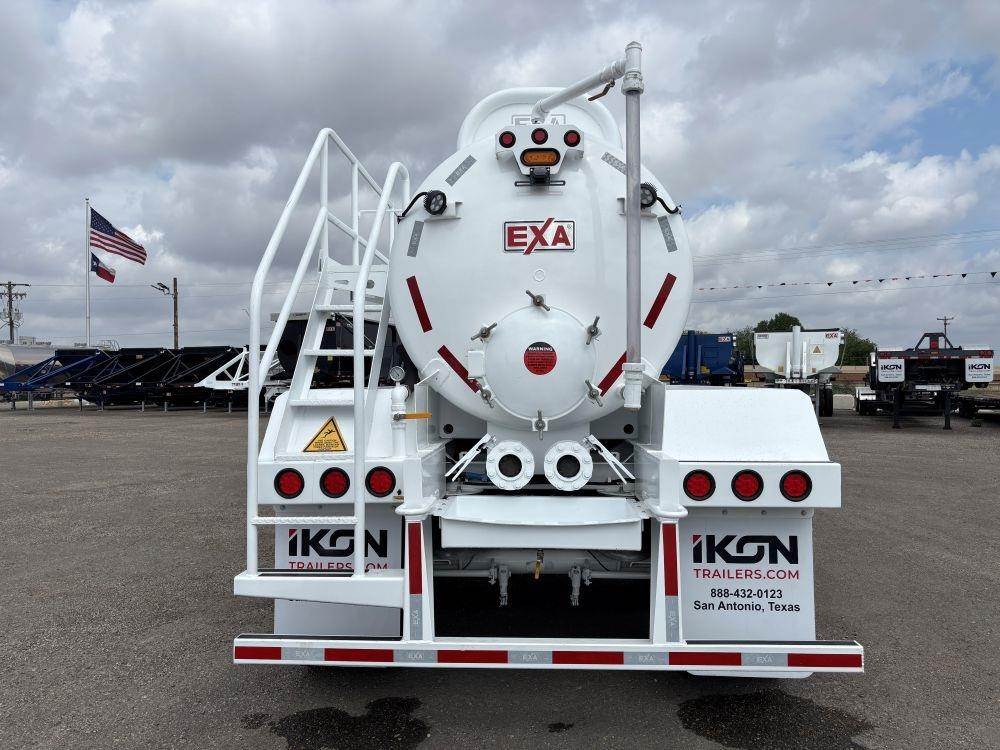

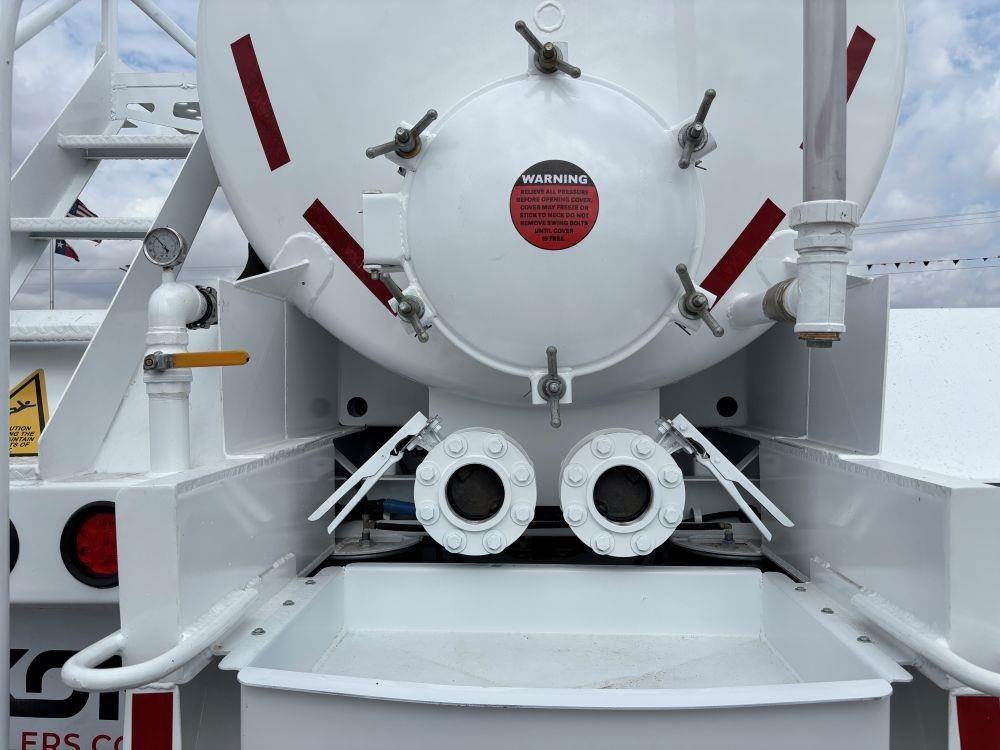

✔️ Outlet: Two (2) 4” rear butterfly valves for efficient unloading

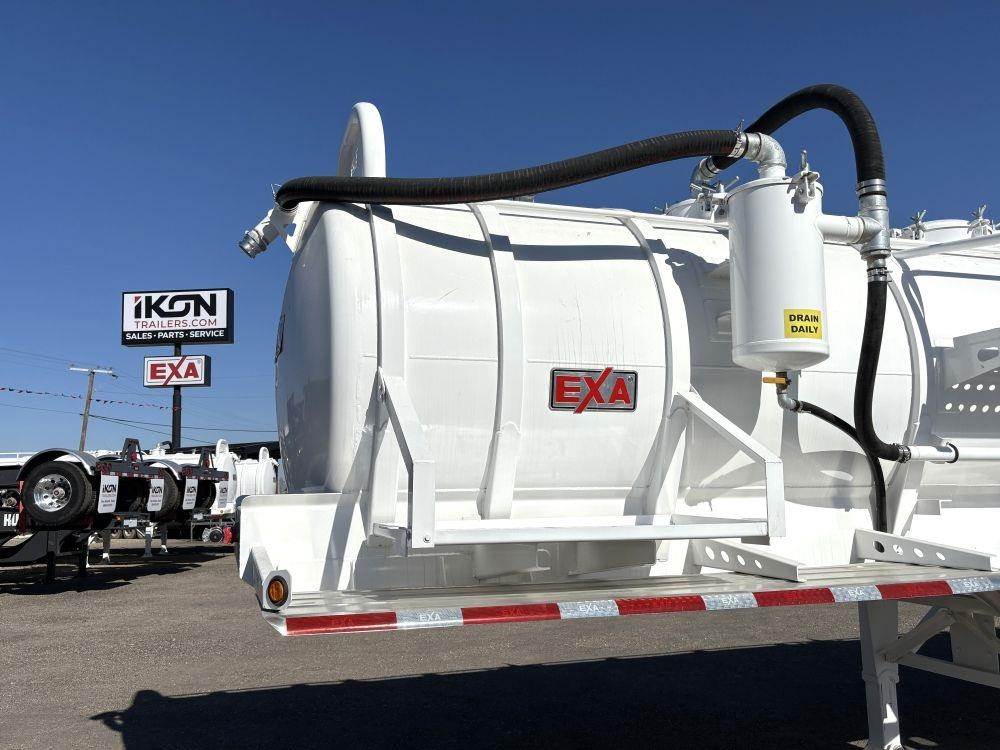

✔️ Venting & Reliefs: 1.5” vacuum relief (370 CFM), 2” pressure relief (set at 10 PSI)

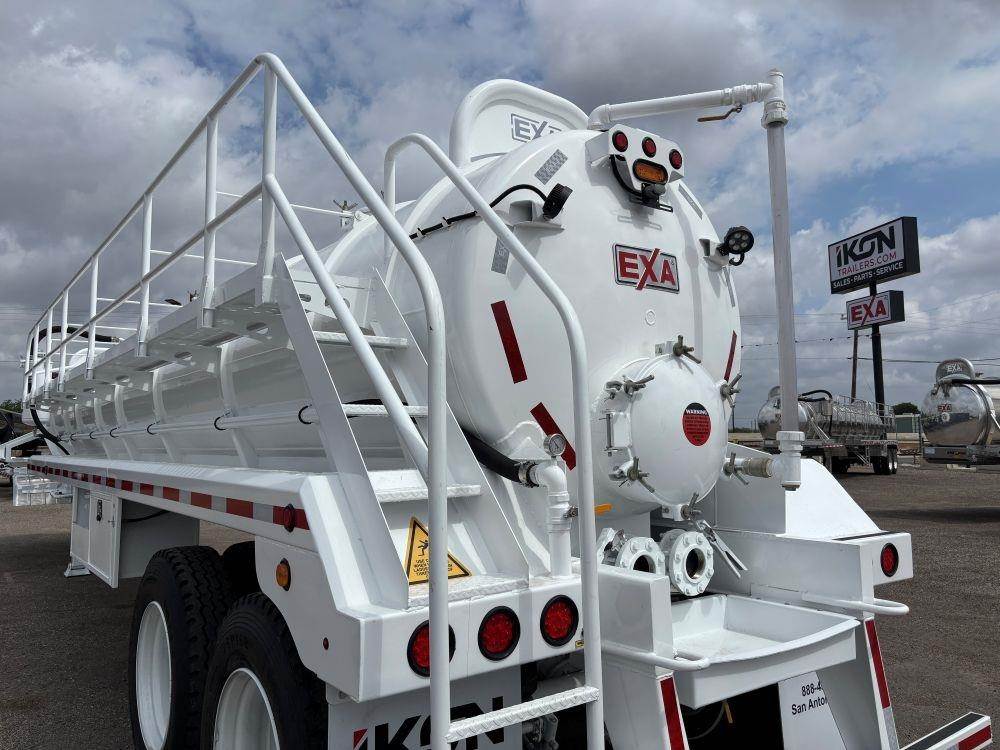

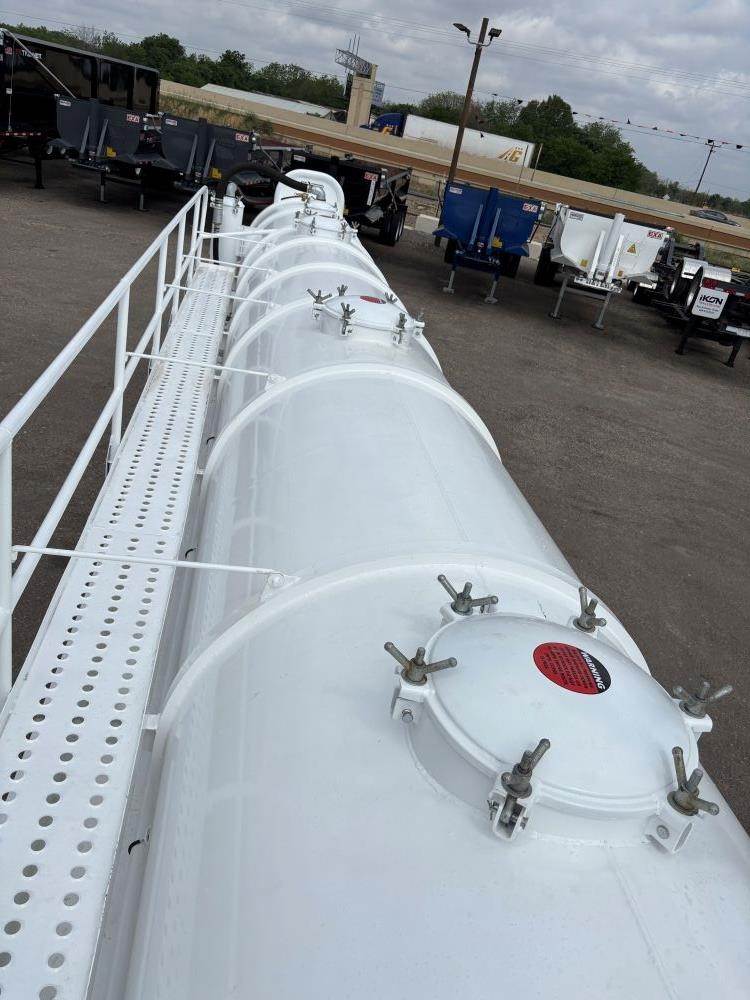

✔️ Manways: Five (5) total – Three (3) top, one (1) rear bulkhead, one (1) front shut-off

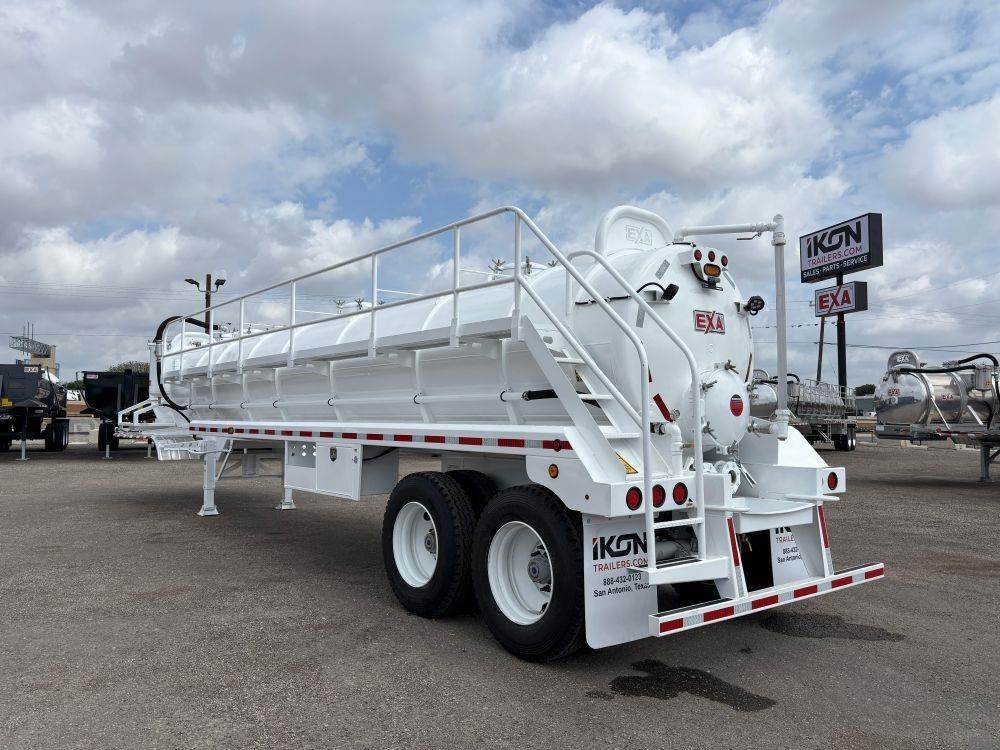

✔️ Walkway: Full-length driver’s side with handrails for safe access
✔️ Upper Coupler: Adjustable plate with Holland king pin

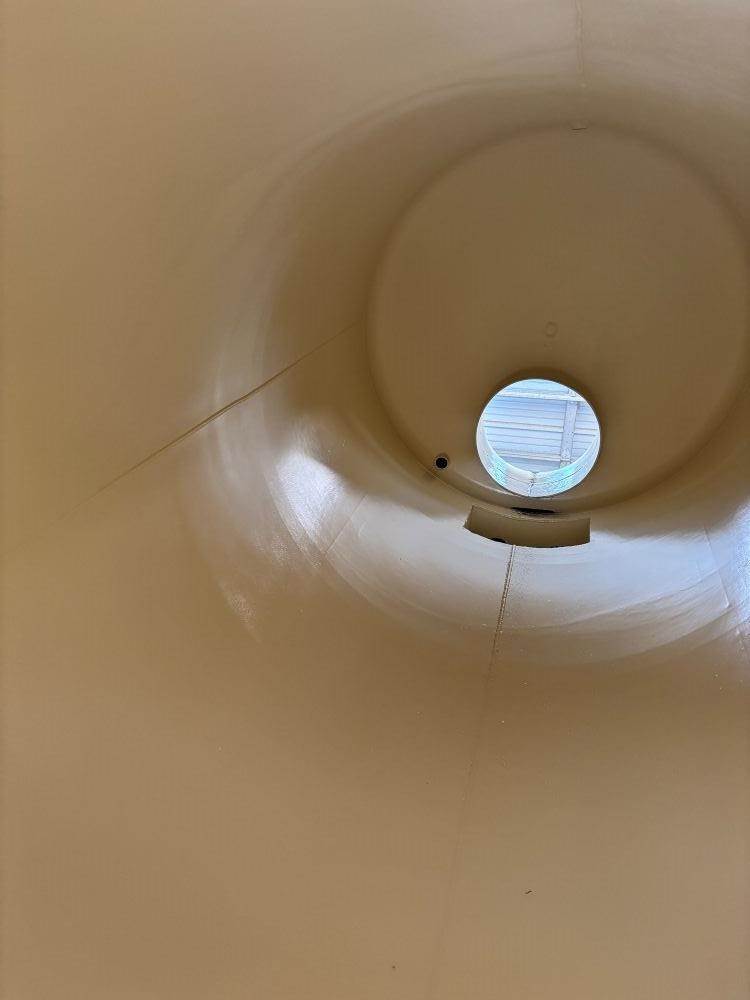

✔️ Coating: Hempel epoxy liner (internal) + two coats of polyurethane (external) for long-lasting protection

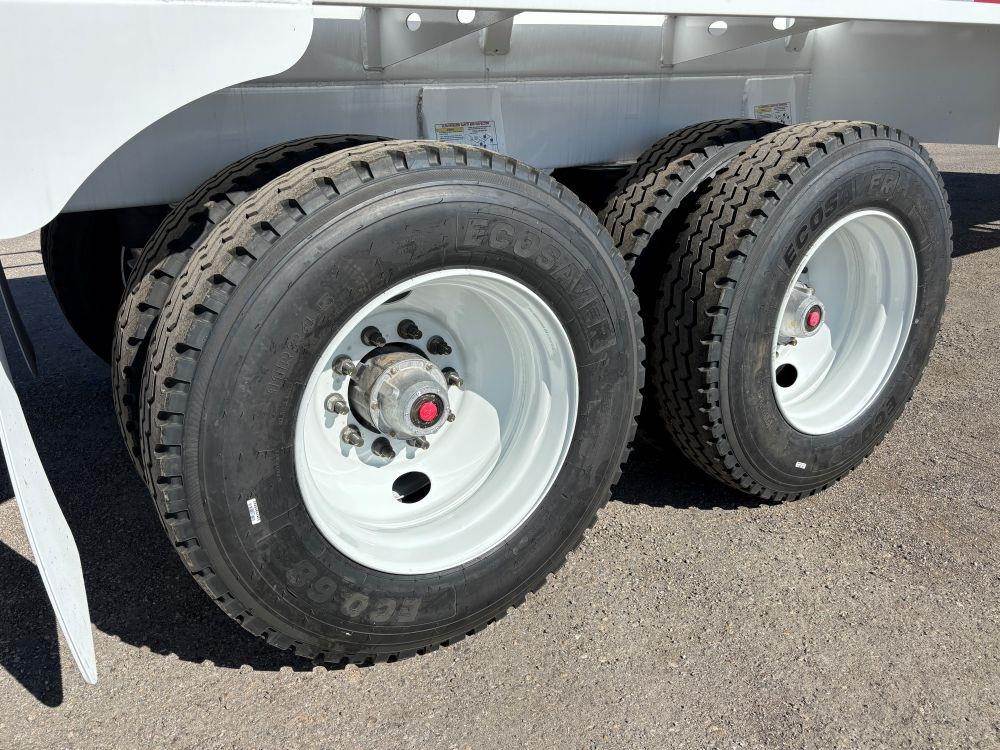

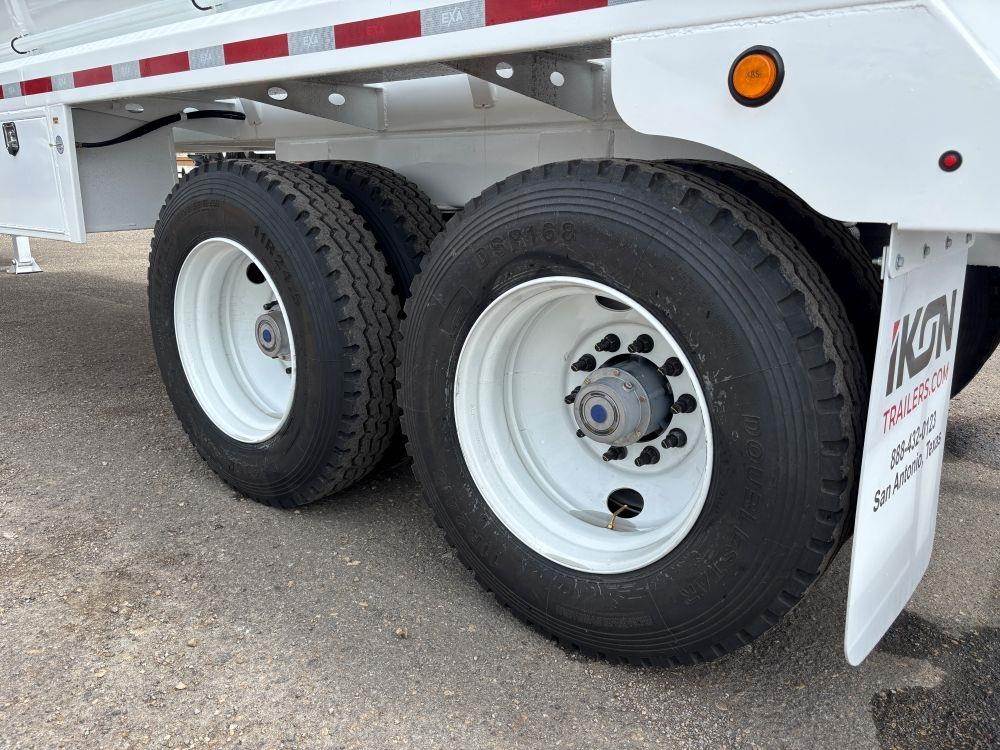

✔️ Wheels & Tires: Eight (8) 11R x 24.5 all-terrain tires on powder-coated steel wheels
✔️ Weight: 17,300 lbs

Built for Tough Jobs!
✅ Ideal for transporting oilfield fluids, water, mud, and waste
✅ DOT-compliant bumper, lights, and conspicuity tape

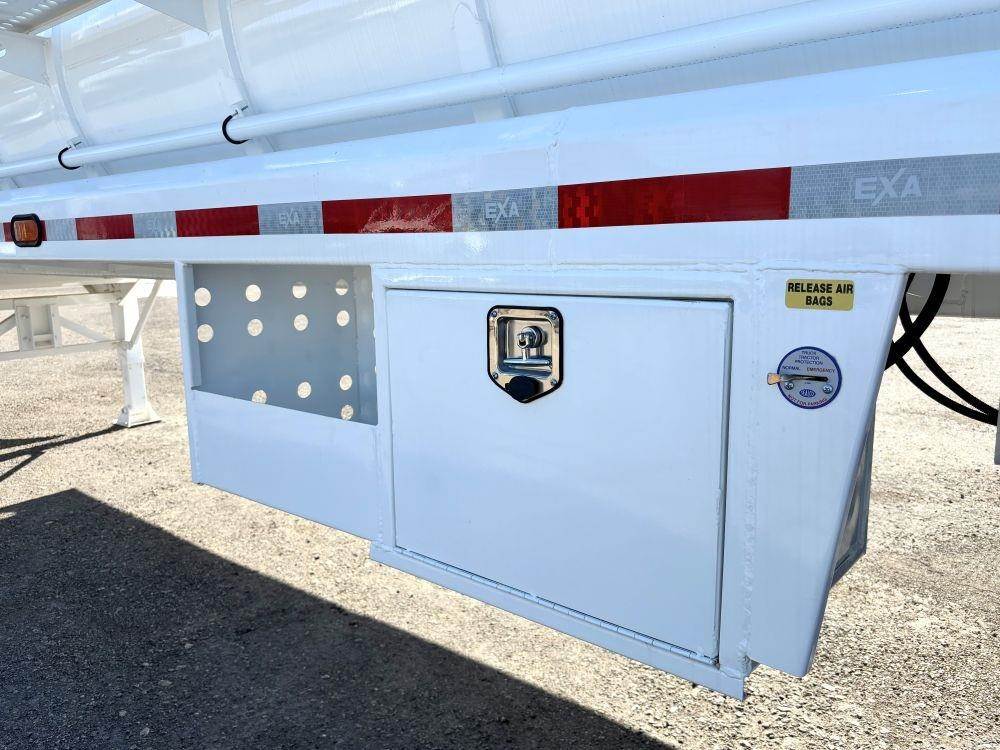

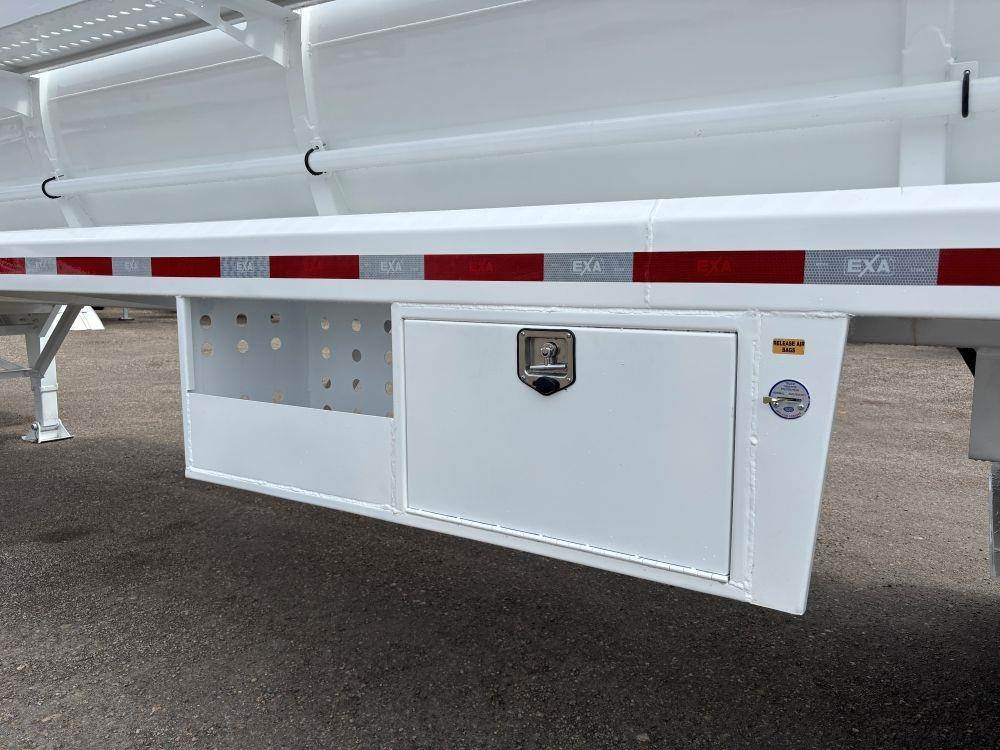

✅ Rear work lights & tool box for added convenience
✅ Optional upgrades: Spring suspension, additional toolboxes, chain carrier, level-sight indicators
