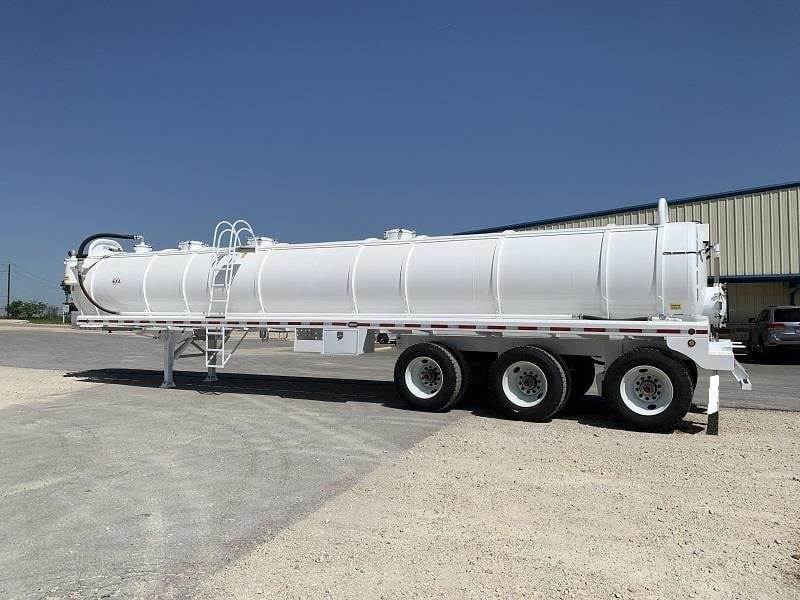

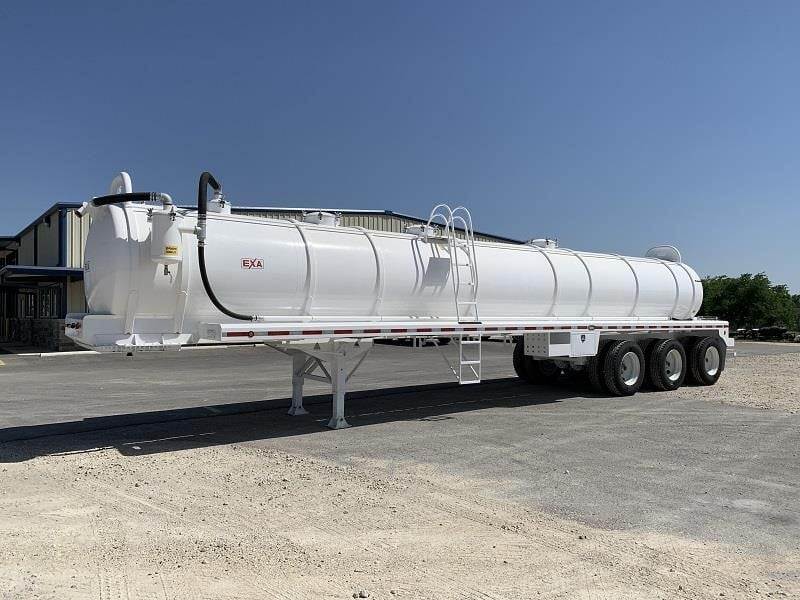

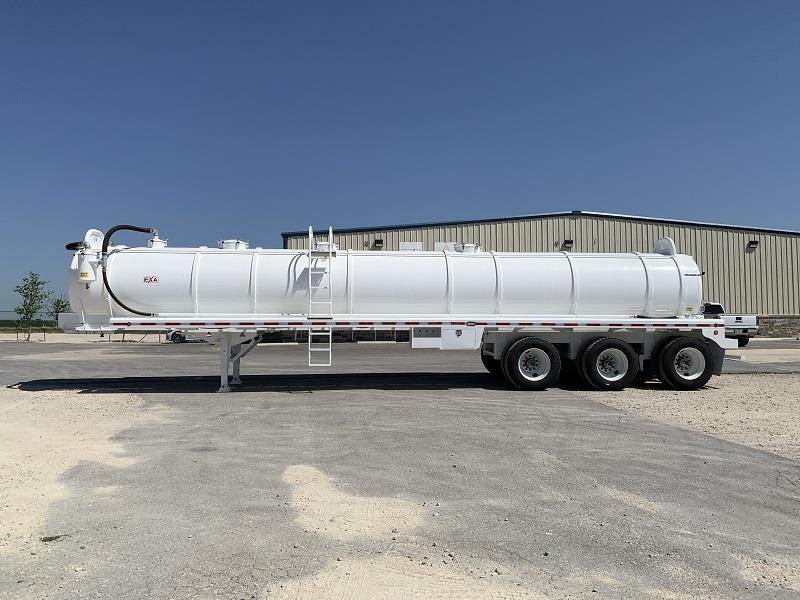

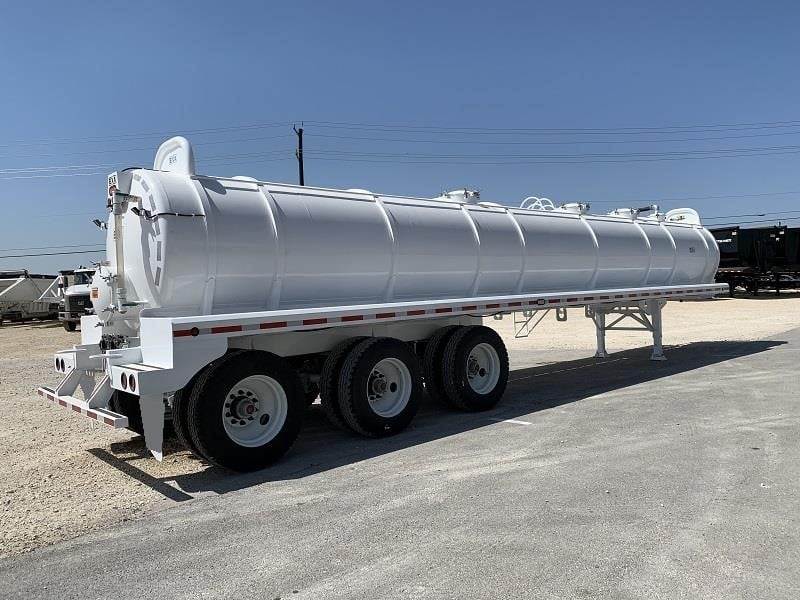

2026 EXA 165BBL ST VACUUM TANK Vacuum Tank Trailer

NEW EXA 165 BBL Steel Vacuum Trailer Non-Code

Capacity: 6,930 gal. + 1% Expansion
Commodity: Transportation of oilfield fluids such as water, mud, oil field waste.
Design Pressure: 25 PSI, tested at 23 PSI
Overall Length: 45.5 ft
Height: 10 ft. 7 in.
Weight: 21,300 lbs
Width: 102 in
Material: Carbon Steel

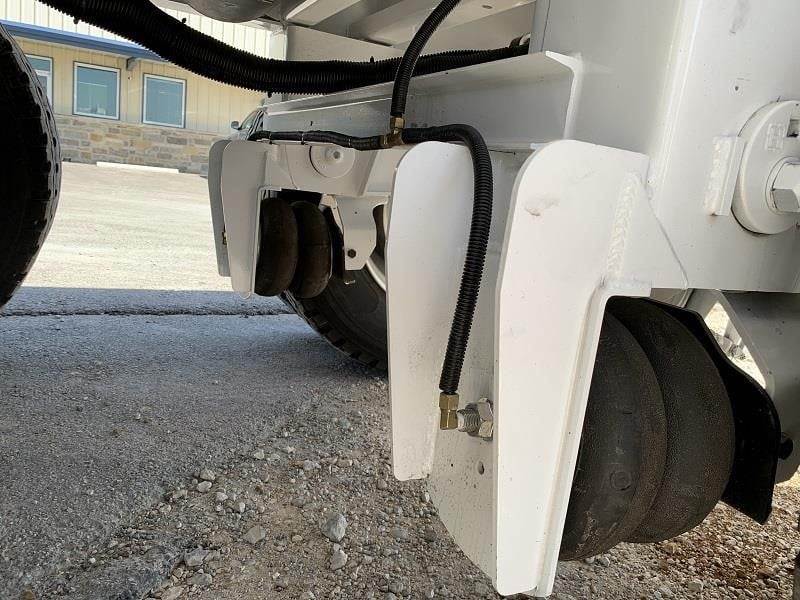

Suspension: Air Hendrickson HT300 90,000 lbs. capacity
Baffles: Three (3) domed steel 1/4 in. thk
Bulkheads: 1/4" thk steel Non-code ASME Shape
Compartments: Single
Overturn Protection: Two (2), at front and back of tank
Shell: 1/4" steel shell
Stiffeners: External 3/8" x 3" C-channel rolled steel rings
Welding: Inside and out, minimal tie-ins with MIG welding
Connections: 3 in. vacuum connector

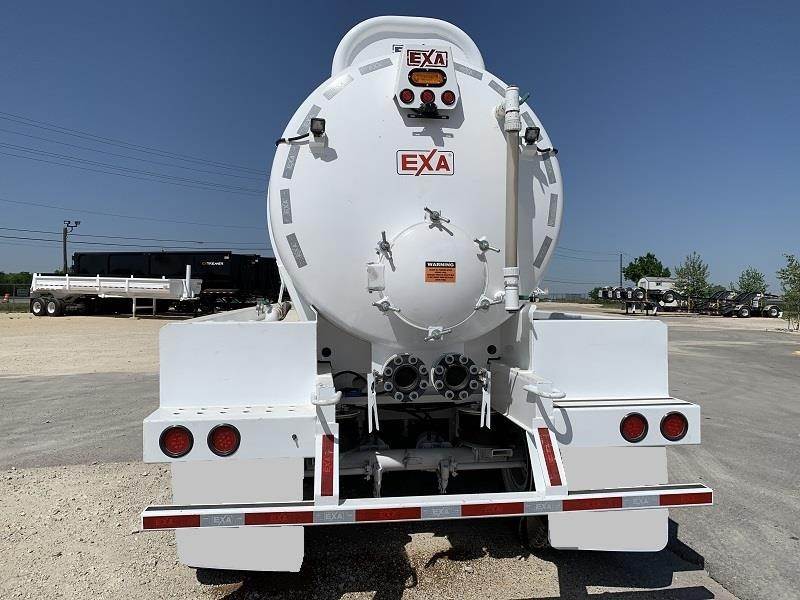

Outlet: Two (2) 4 in. butterfly valves at rear
Shut Off: Ball type primary in front manway and ball type secondary 12 Gal. on driver's side front with drain
Venting/Reliefs: 1-1/2 in. vacuum relief, 2 in. pressure relief, both located at the top front of barrel, 2 in. blow down line at rear

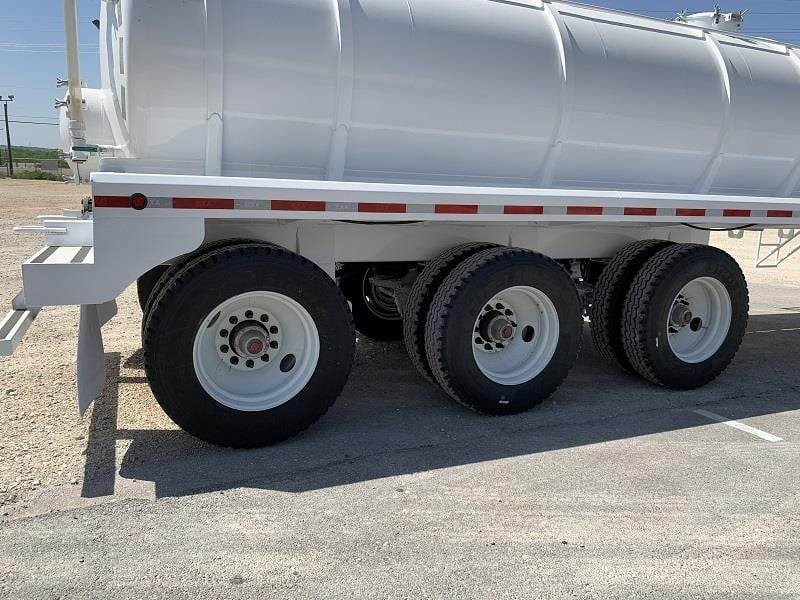

Axles: Three (3) 30,000 lbs. each, 120 in. wide, 77.5 in. track TP type with automatic slack adjuster.
Brakes: Air brakes with two boosters FMVSS-121, ABS 4S/2M Bendix anti-lock brake system
Bumper: 4 in. X 3 in. tube
Frame: 1/4" steel formed
Landing Gear: 2 speed Heavy Duty
Tires: Twelve (12) 11R X 24.5 all-terrain tires
Upper Coupler: Adjustable plate with Holland king pin
Wheels: Twelve (12) All-steel 24.5" 10 hole hub pilot
Access Ladder: One (1) safety side ladder on driver's side
Manways: Three (3) on top of the tank, one (1) on the rear bulkhead, 20 in. domed style with plates swing bolts and wing nuts, and one (1) 12" domed style on top front used as the primary shut off.
External Coating: Hempel two coats of polyurethane on an epoxy primer
Internal Liner: Hempel epoxy liner
Paint Prep: All steel surfaces sandblasted inside and out
Conspicuity tape: 3M Per DOT

Fenders: Two (2) full lenght formed hose tray (10 GA) with 1/4 in. supports on both sides
Lights: Sealed harness and Optronics GloLights LED per DOT. Two rear work lights with integrated switches.
Sight Glass: Sight glass liquid level indicator on the rear right side of the bulkhead
Mud Flaps: Two (2) IKON logo anti-sail
Tool Box: One (1) on driver's side (20 in. X 16 in. X 24 in.)
Vacuum Manometer: One (1) located in the rear
Optional Lift Axle: Rear axle with lift system.
Optional Walkwat: Full length walkway with rear and middle access, handrails and toe kicks
Optional Fluid level: Level-sight rear or front located
Optional Fluid level: Float level indicator on the rear bulkhead
Paint Color: Available in a variety of different colors on steel parts
Under tank optionals: Additional tool boxes, tire carrier, chain carrier, stainless steel frames
