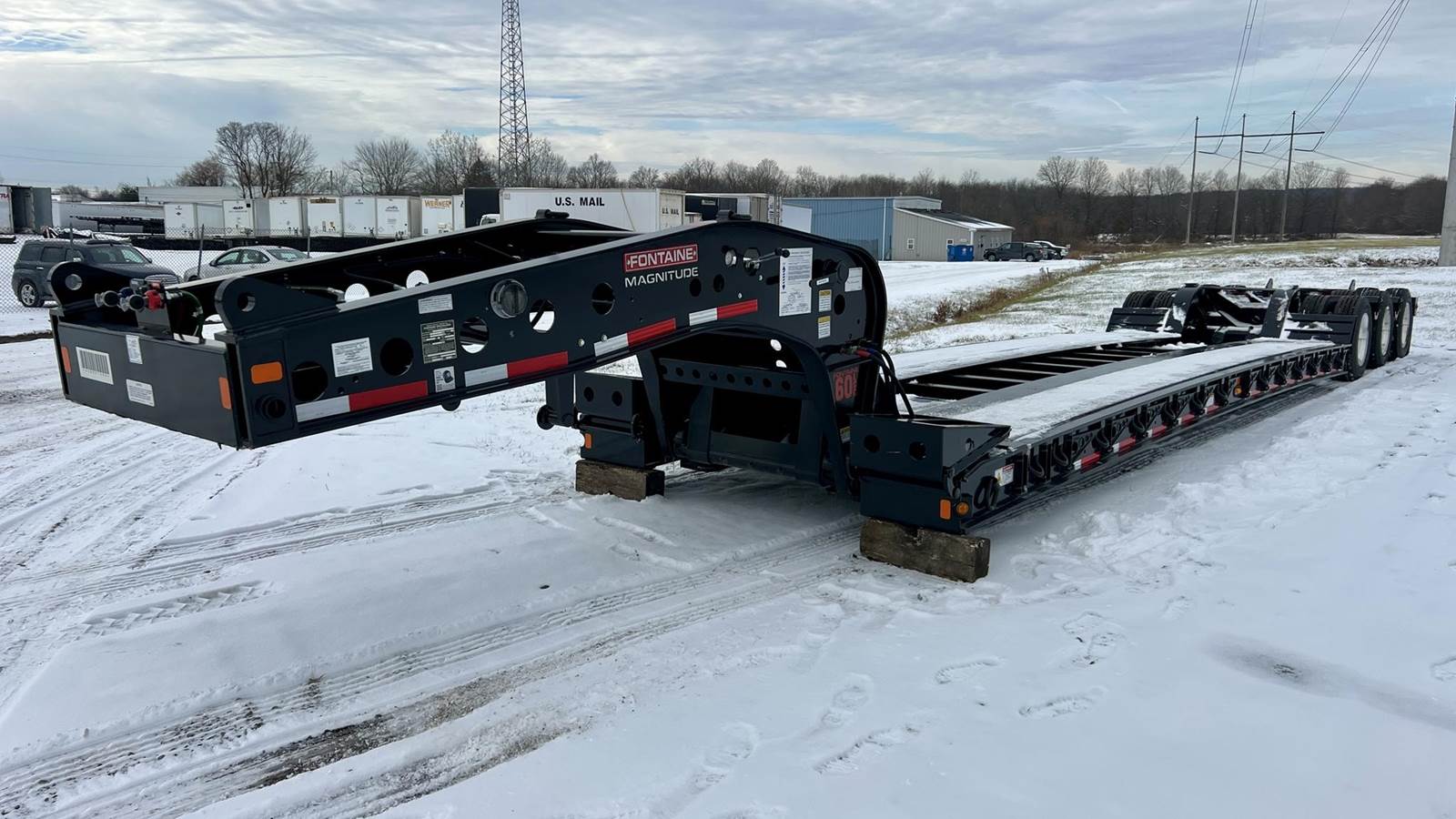

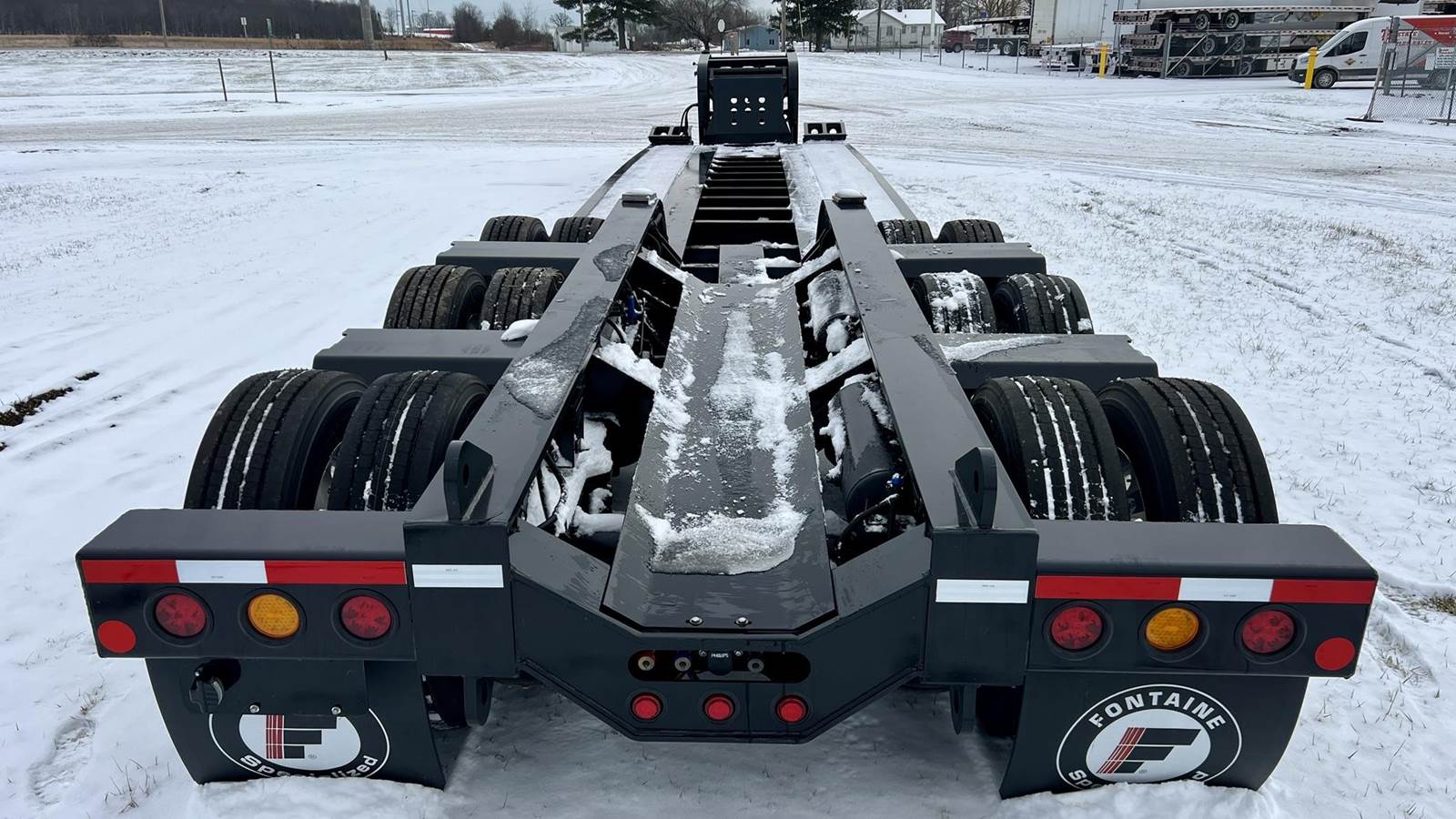

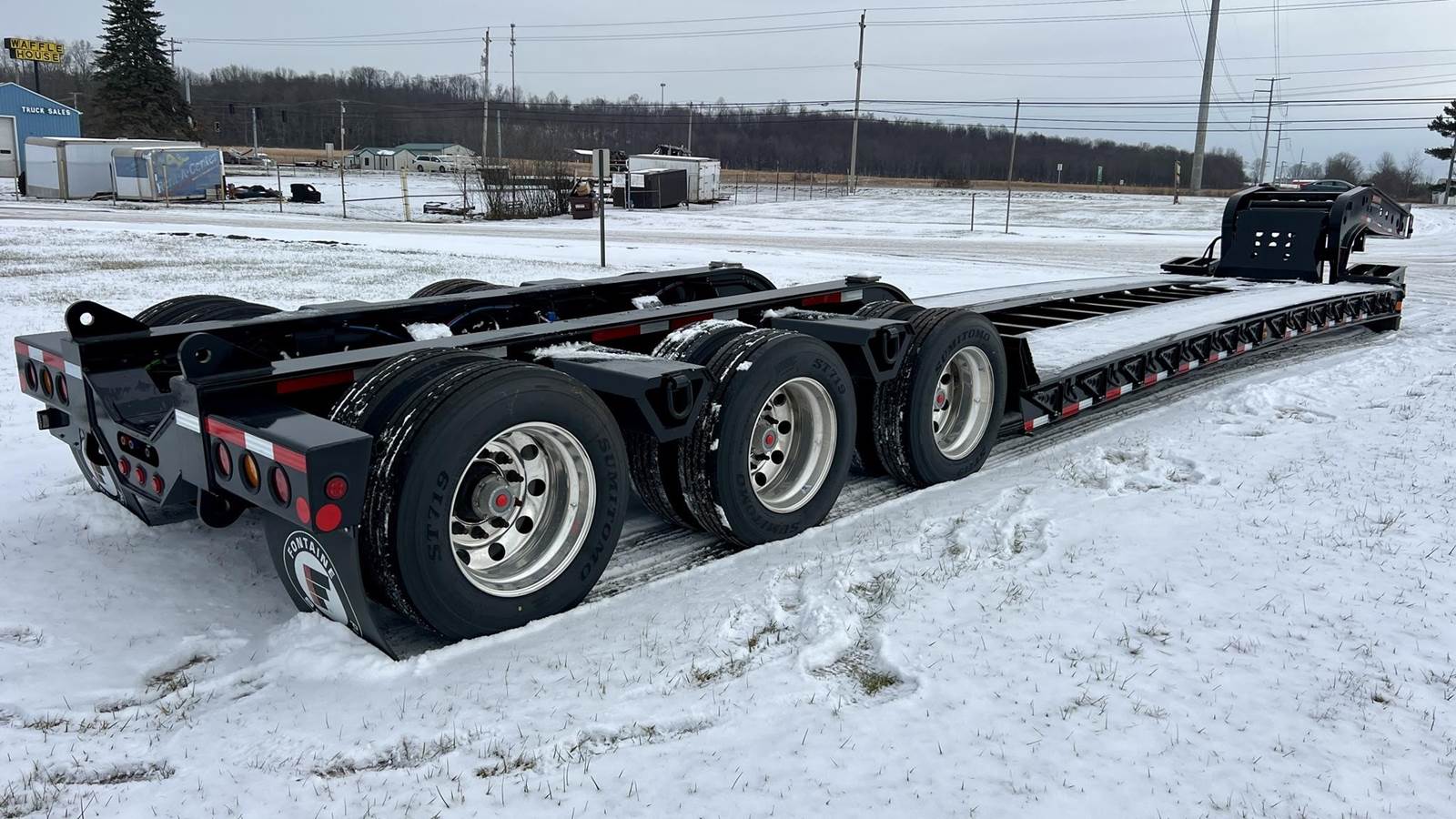

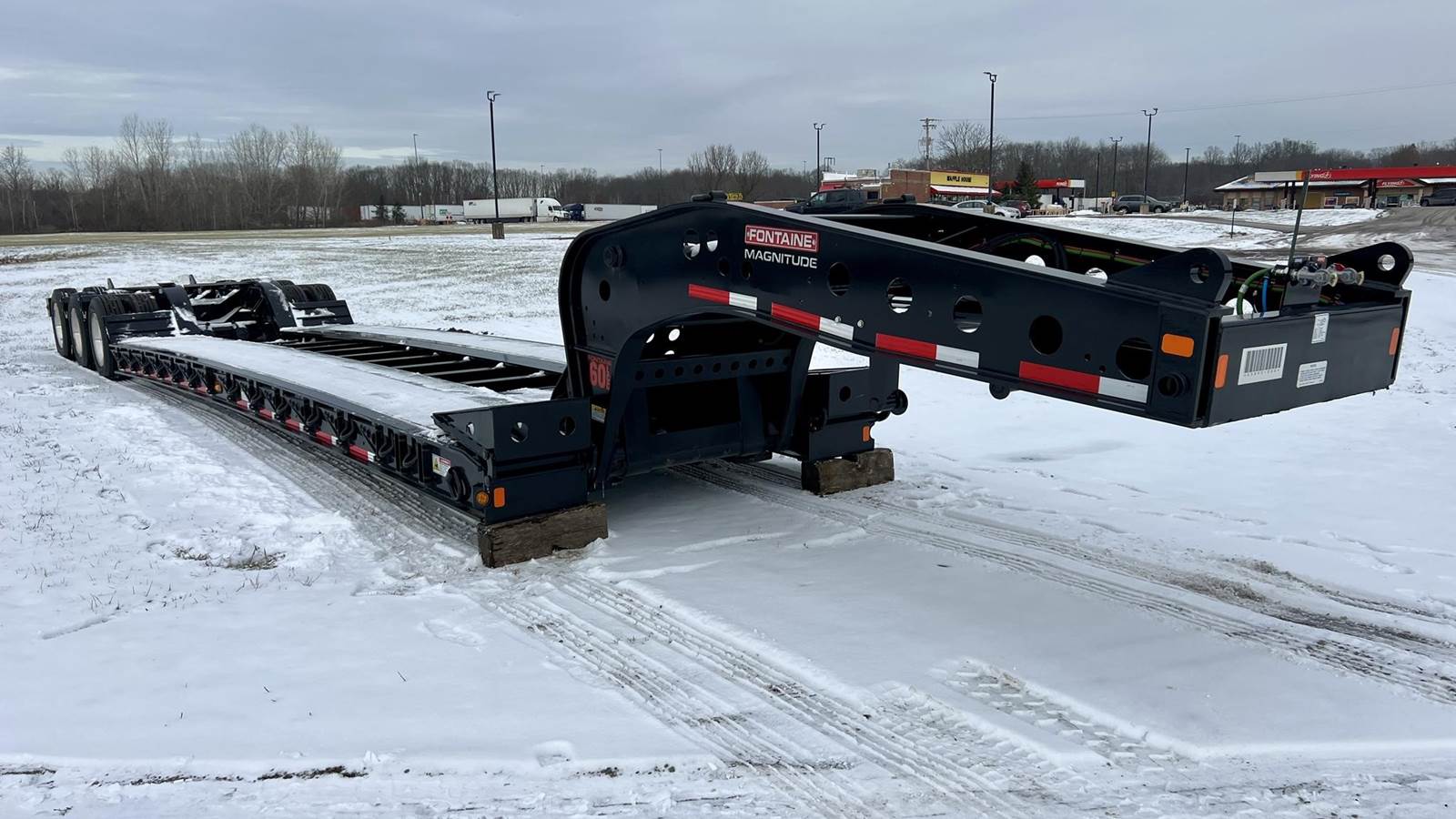

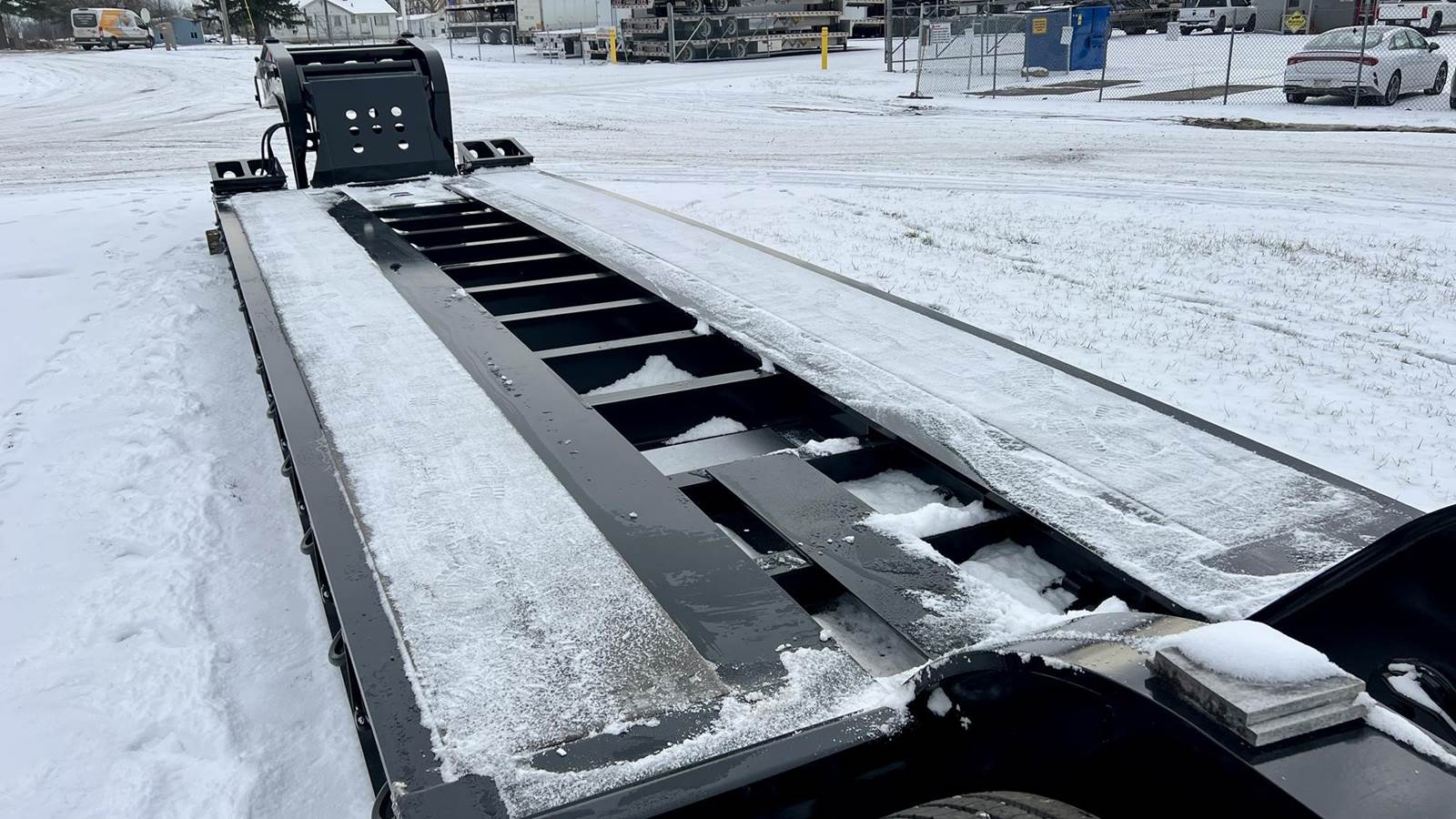

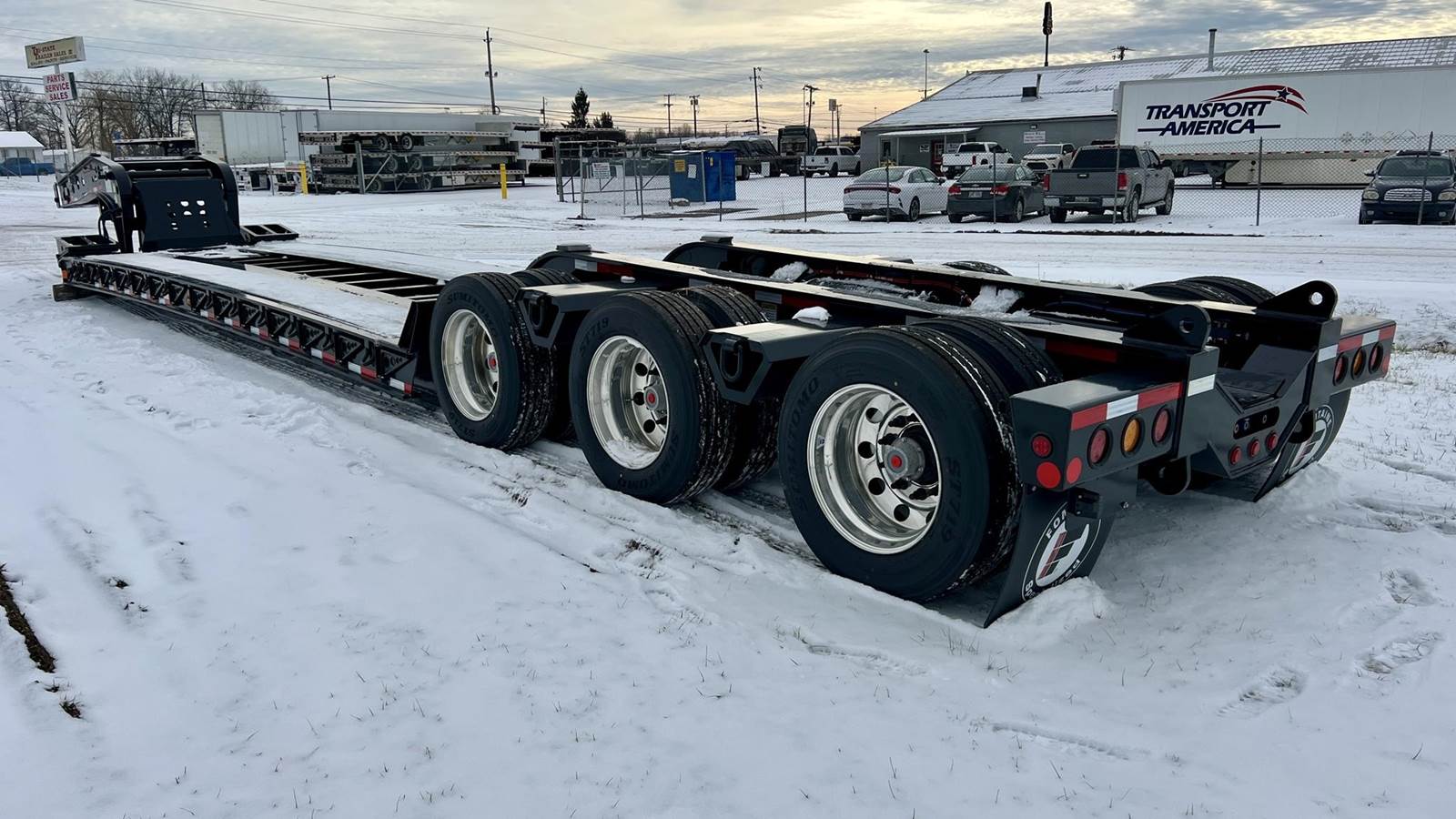

2026 Fontaine MAGNITUDE 60LCC Lowboy Trailer

Length 52'3"
Width 102"
Main Deck Length 26'
Main Deck Height 18"
Weight 24,051 lbs.
Unit Description Magnitude 60LCC
Flat Body
Compatibility Designed to Accept 35" Neck Extention & Flip Axle
Floor 2" Nominal Wood - Side Rails Only
Ramps Manual Front approach ramps
Outriggers 13 pair - Removable Swing Type / 2 pair removable
D-Rings 19 pair
Toolbox 2 Trays - fully Covered between main beams
Side Rail Lights (3) Marker LIghts per Side incl. Mid-Turn
Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Battery Powered Rear Amber Strobes
Flag Holders 1 Pair
Modular Connection Fixed
Gooseneck
Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel Dual Cam Pawl Arm w 7 Ride Height Positions, 50"
Pony Motors None
Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Setting 54.5"
Lift Axle Rear Axle Air Lift
Flip Axle Not Included
Manual Dumpvalve Yes
Raise & Lower Valve Mechanical Ride Height Control Valve
Tire Size 275/70R22.5
Wheels (6) Polished Alum (6) Steel Disc
Liquid Filled Gauge Yes
UnderFrame
King Pin Setting 16"
Cross Member Center 24" Centers
Paint Black
Weight Ratings 60 Ton in 13' Length w/ Closed 4-Axle
Compatibility with Spreader Bar and/or 35" Flip Box
7 Variable ride Height Positions
102" Swing Radius
Removable Kingpin at 102" Radius
Low Boom Well
Chain Lift Axle on Front Axle
SALE PRICE INCLUDES FET
