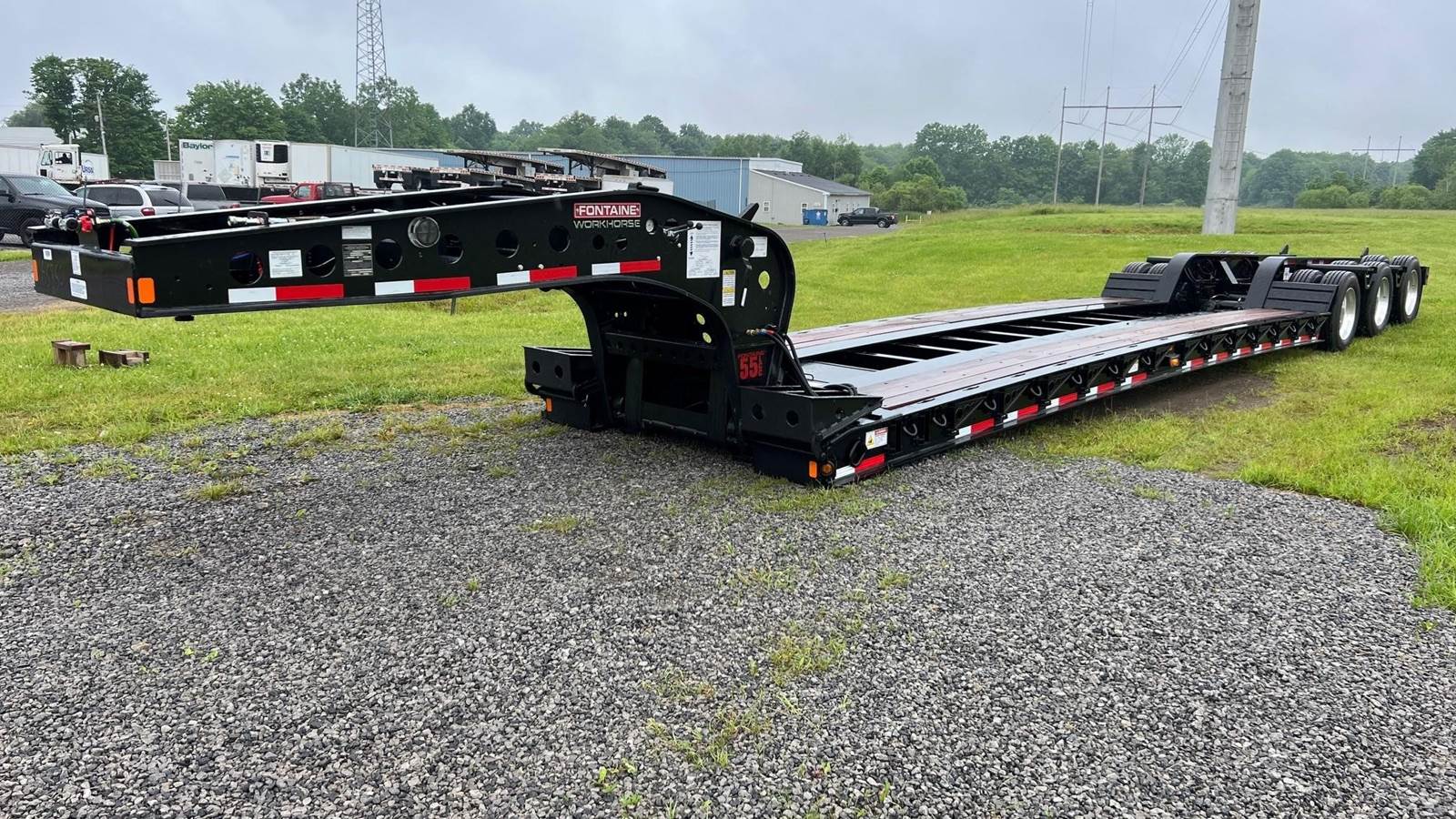

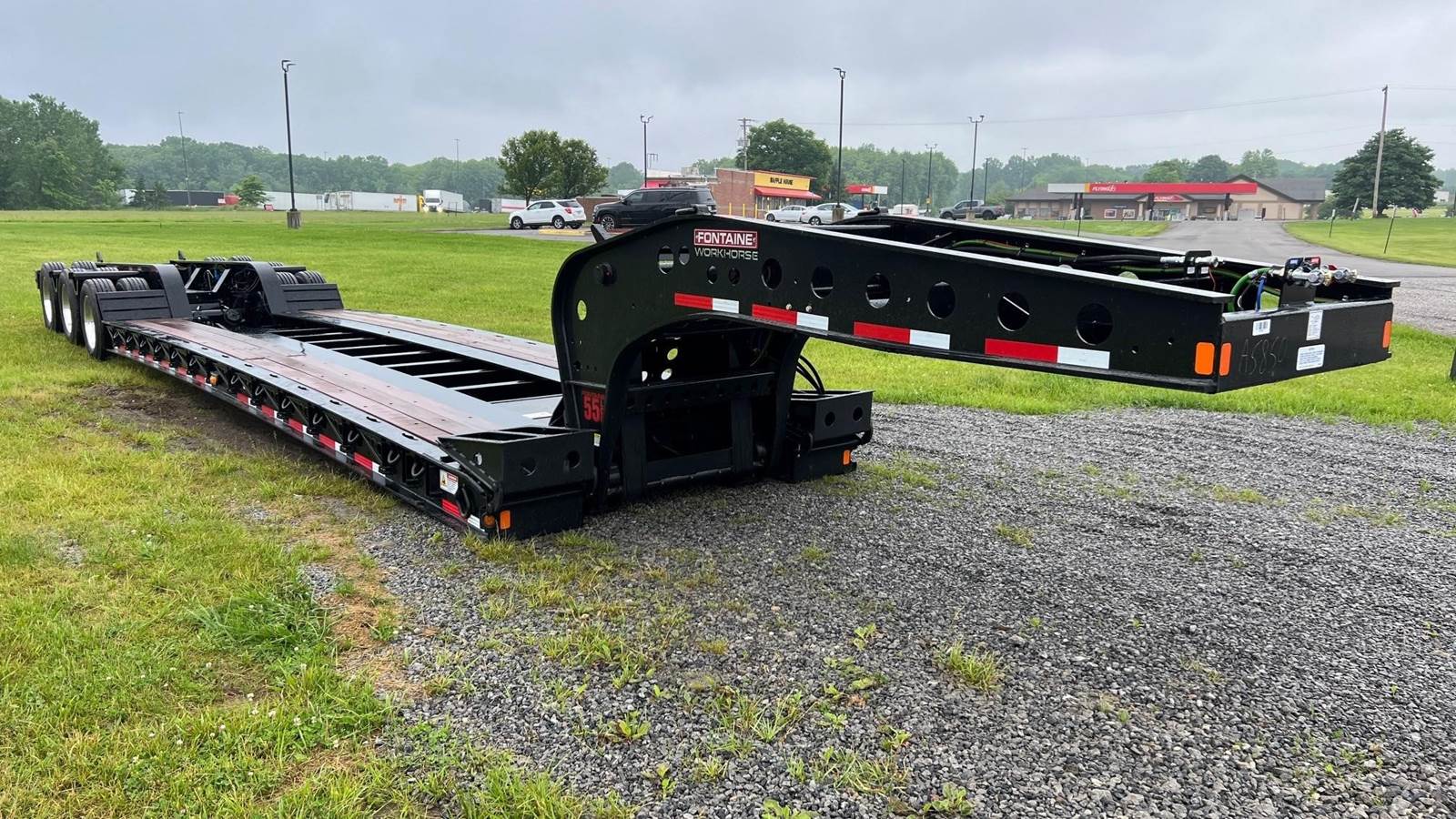

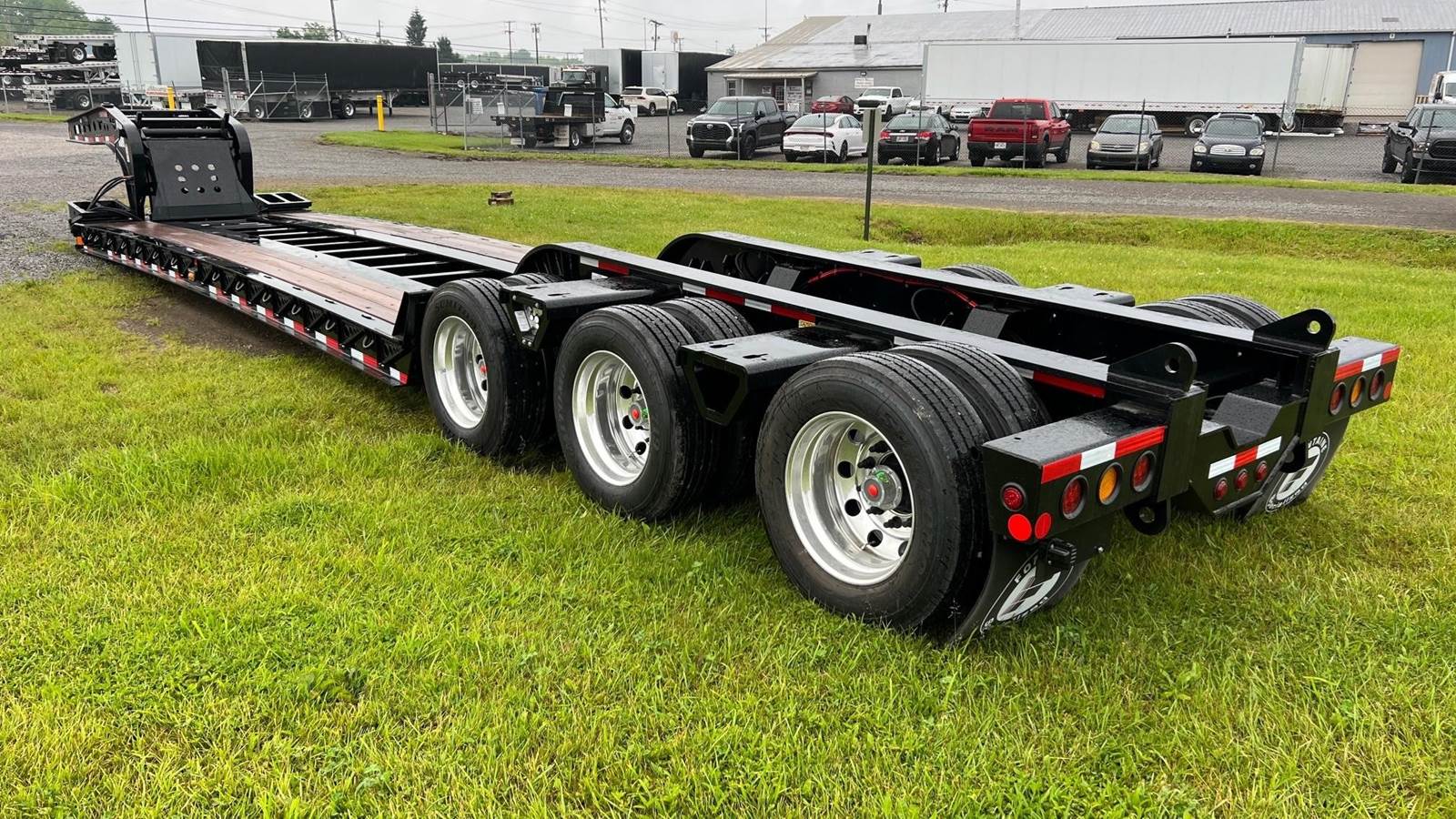

2026 Fontaine WORKHORSE 55LCC Lowboy Trailer

FET INCLUDED IN PRICE!

Length 53'
Width 102"
Main Deck Length 26'
Main Deck Height 18"
Weight 21,831 lbs.
Unit Description Workhorse 55LCC

Compatibility Flip Axle Connections at Rear

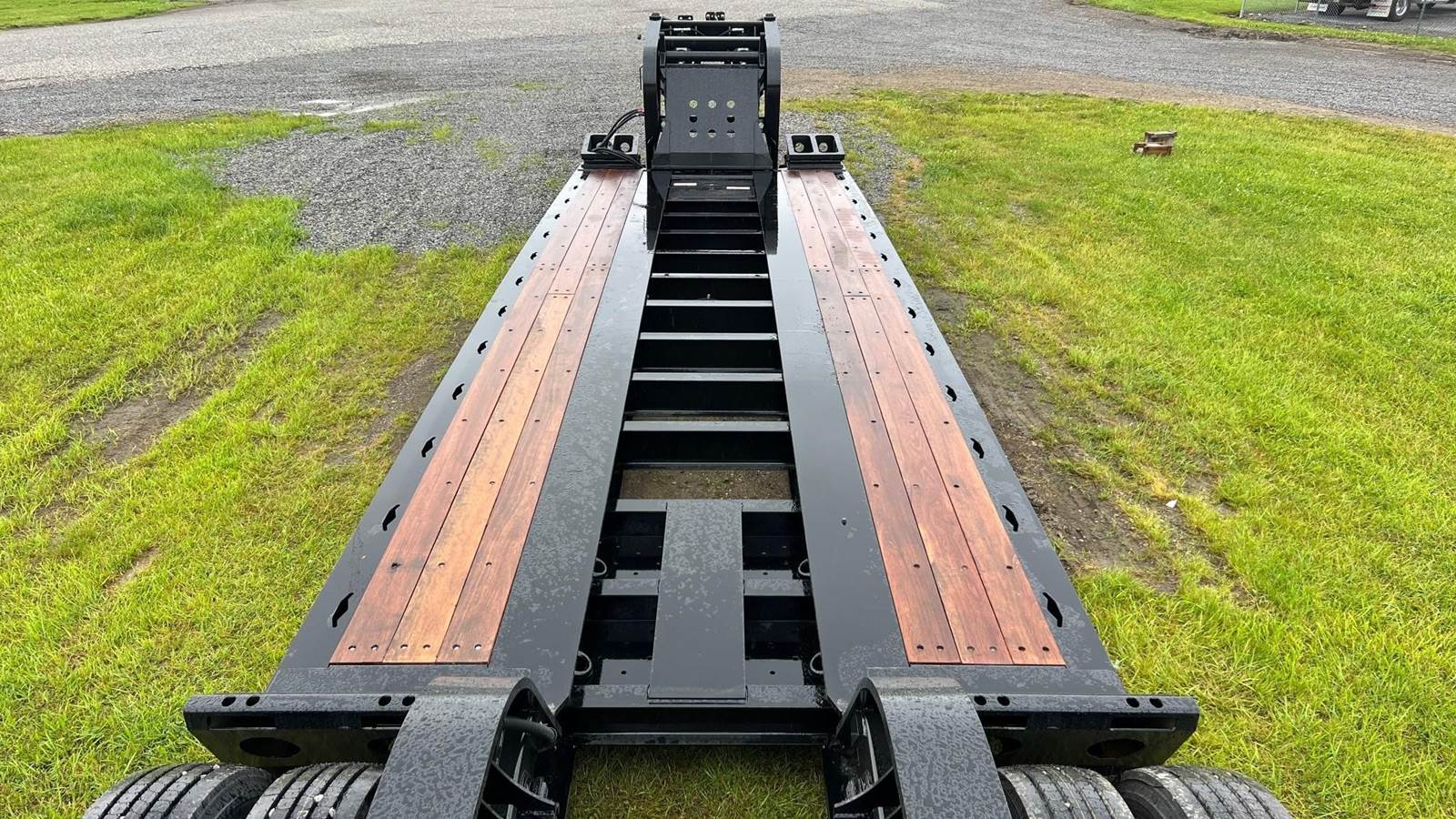

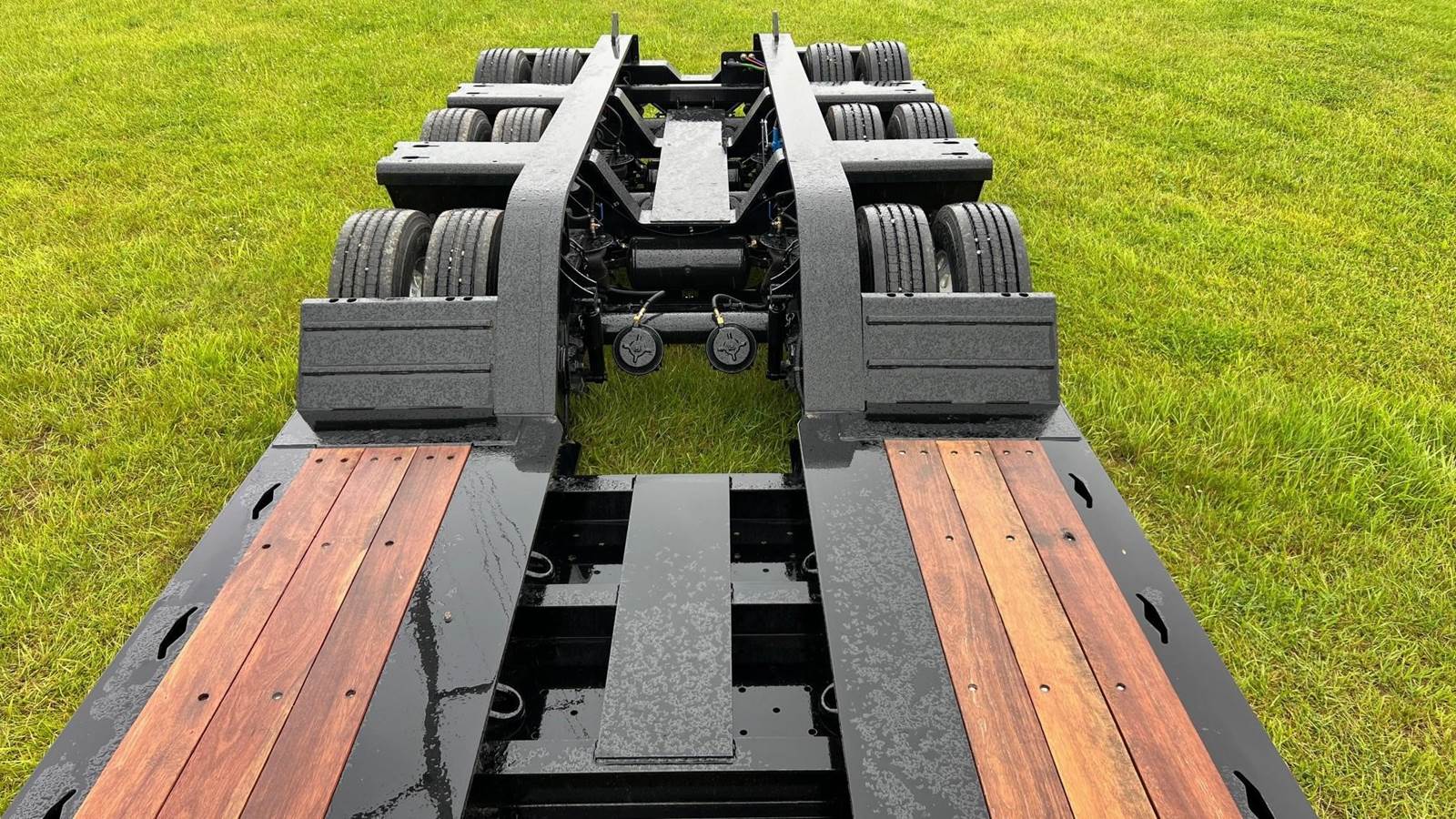

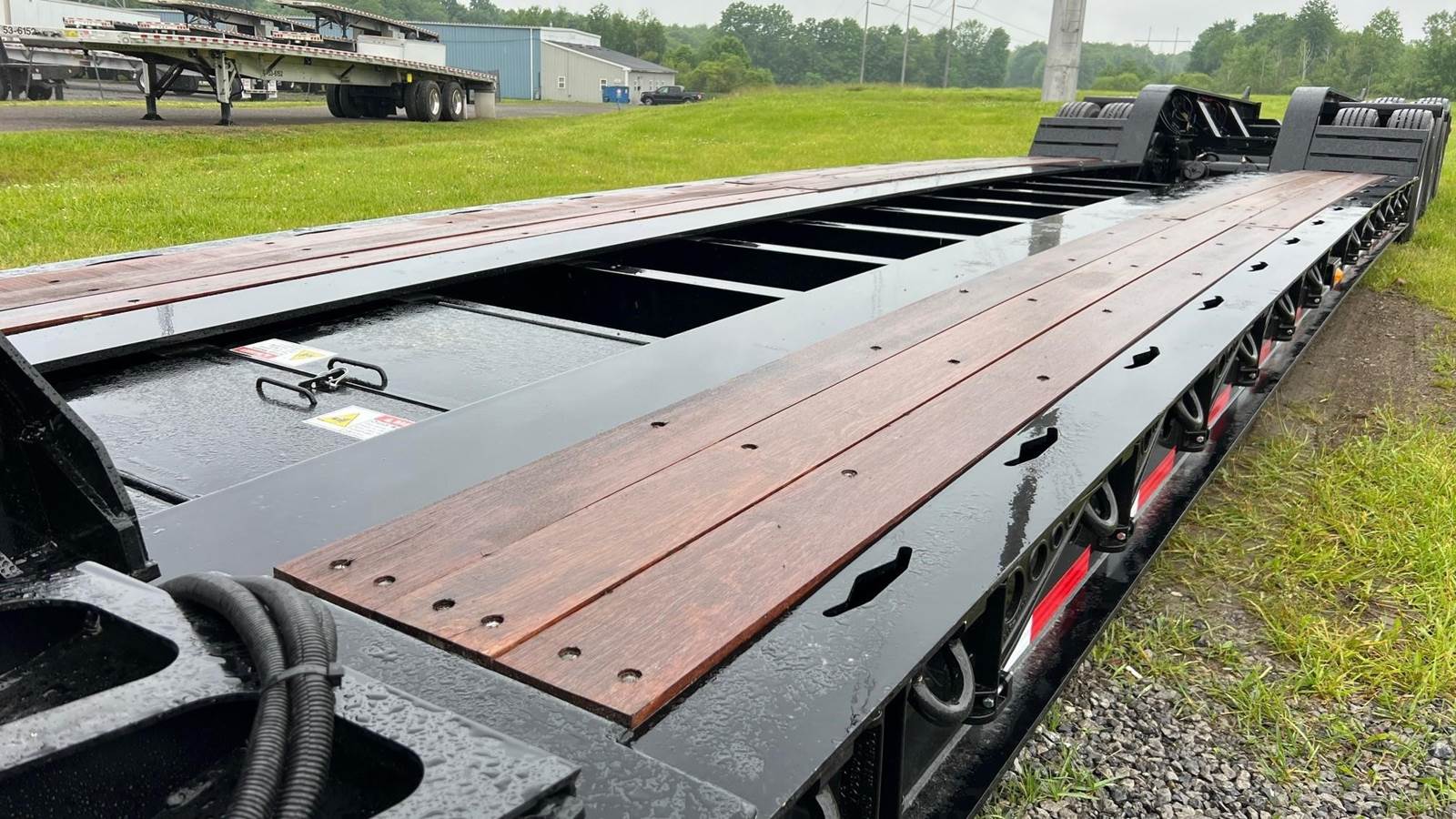

Floor 2" Nominal Wood - Side Rails Only
Ramps Manual Front approach ramps
Outriggers 12 pair - Removable Swing Type / 2 pair removable
D-Rings 19 pair
Toolbox 2 Trays - fully Covered between main beams
Side Rail Lights (3) Marker Lights per side incl. Mid-Turn

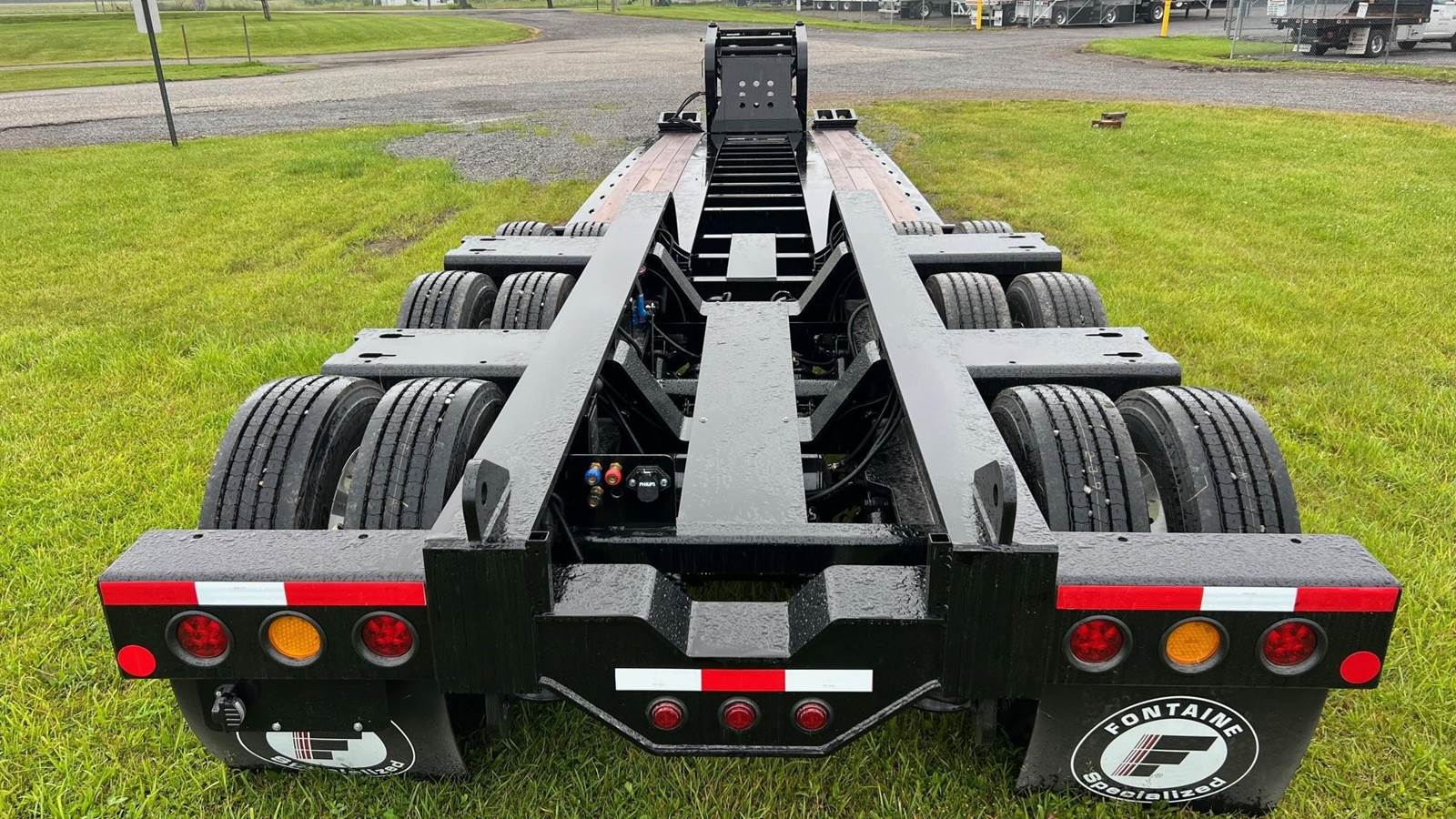

Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Battery Powered Rear Amber Strobes
Flag Holders (1) pair mounted in Rear Bumper
Modular Connection Fixed

Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel Dual Cam Pawl Arm w 7 Ride Height Positions, 50"
Pony Motors None

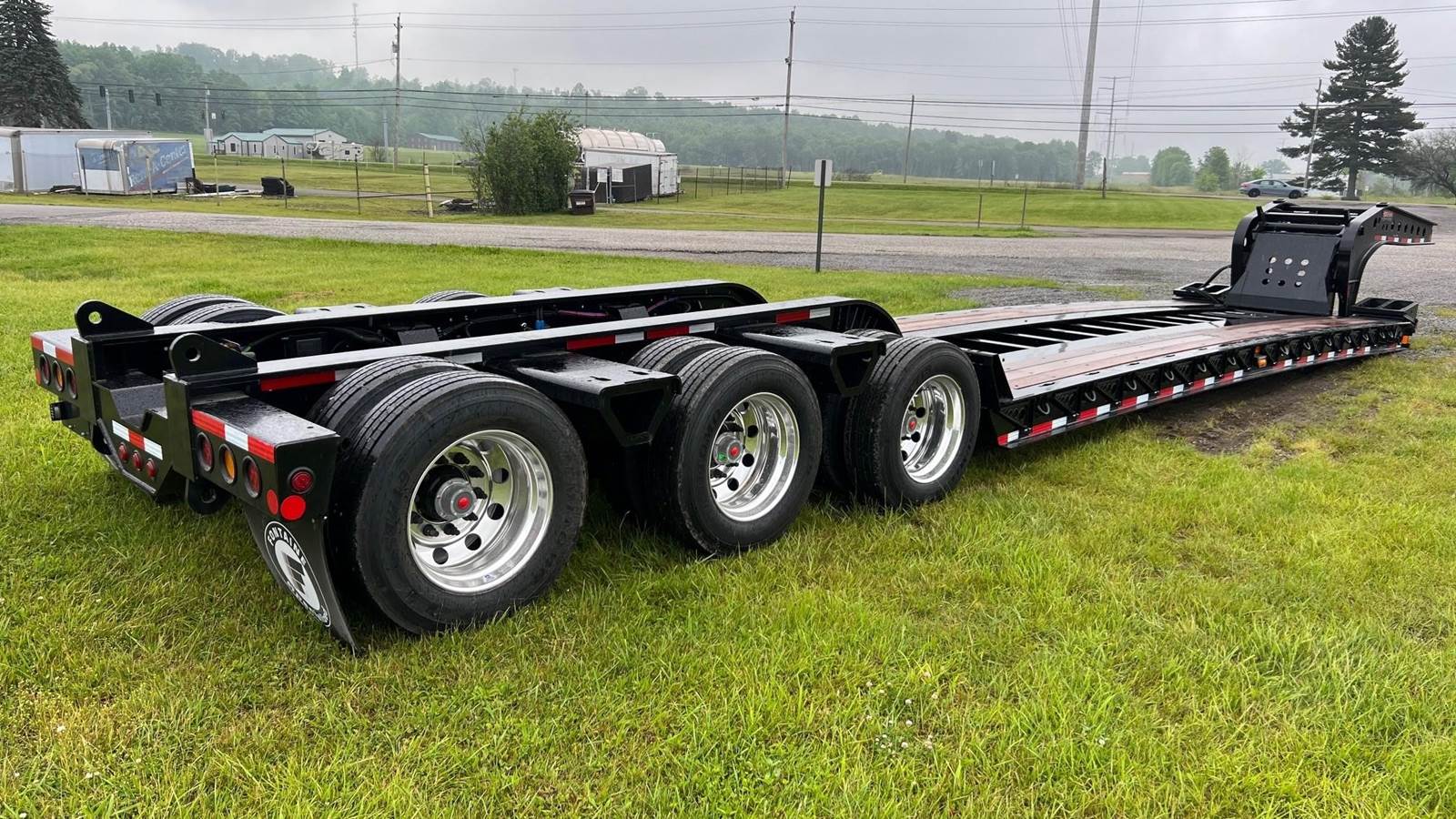

# of Axles 3

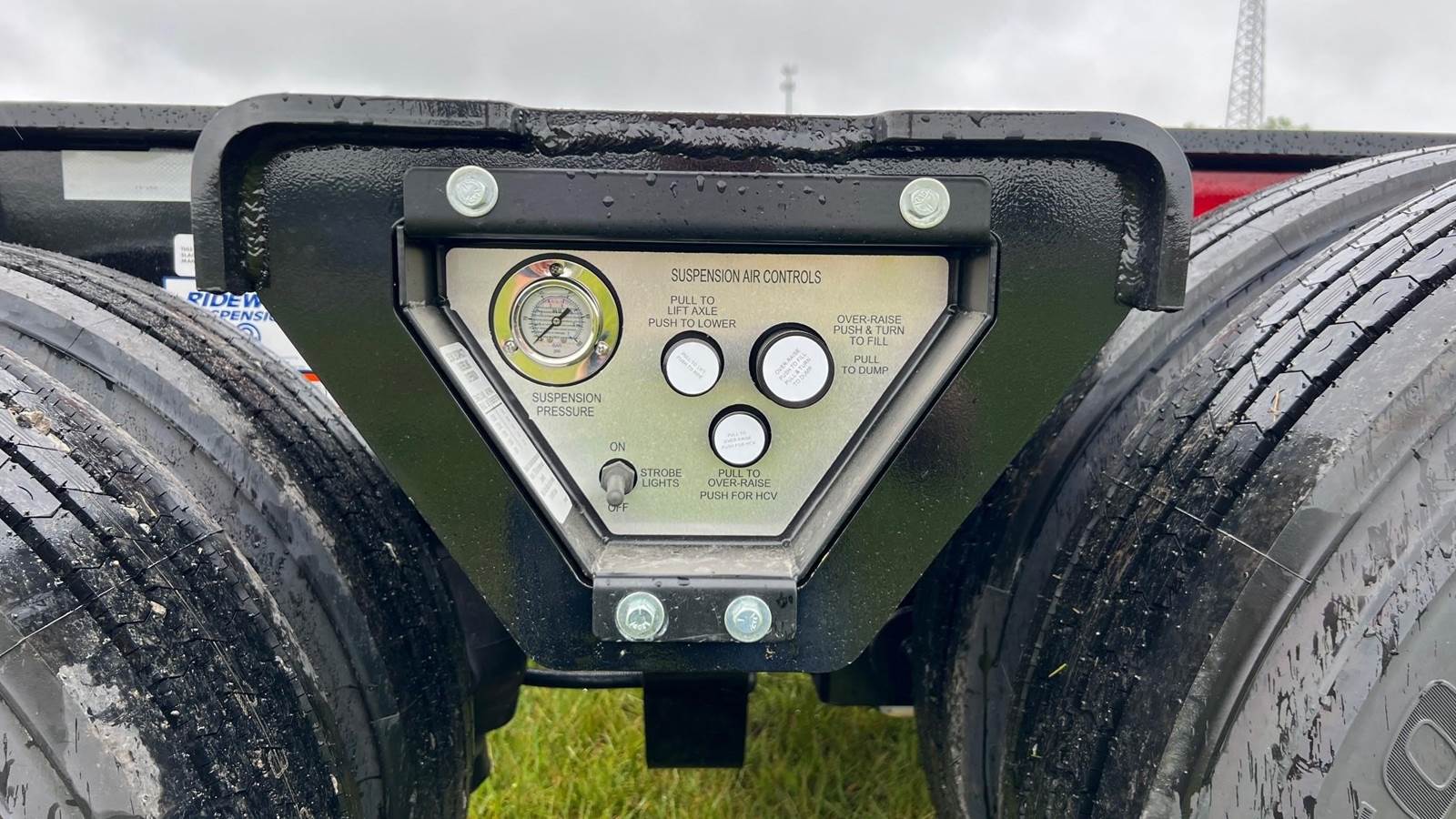

Suspension Type Air Ride
Suspension Brand Hendrickson
Suspension Setting 54.5"
Lift Axle Rear Axle Air Lift
Flip Axle Not Included
Manual Dumpvalve Yes
Raise & Lower Valve Mechanical Ride Height Control Valve
Tire Size 275/70R22.5
Wheels (6) Polished Alum (6) Steel Disc
Liquid Filled Gauge Yes

King Pin Setting 16" or 35"
Cross Member Center 24" Centers
Paint Black
Weight Ratings 55 Ton in 13' Length

108" Swing Radius
Removable Kingpin at 89" & 108" Radius
Chain Slots Located on Side Rails
Low Boom Well
Chain Lift Axle on Front Axle
Hammer Plate (16"x60"x1/2") installed over recessed crossmembers. Perforated plate under hammer plate forming two storage
areas. 2 lashing rings located in last two deck sections.
