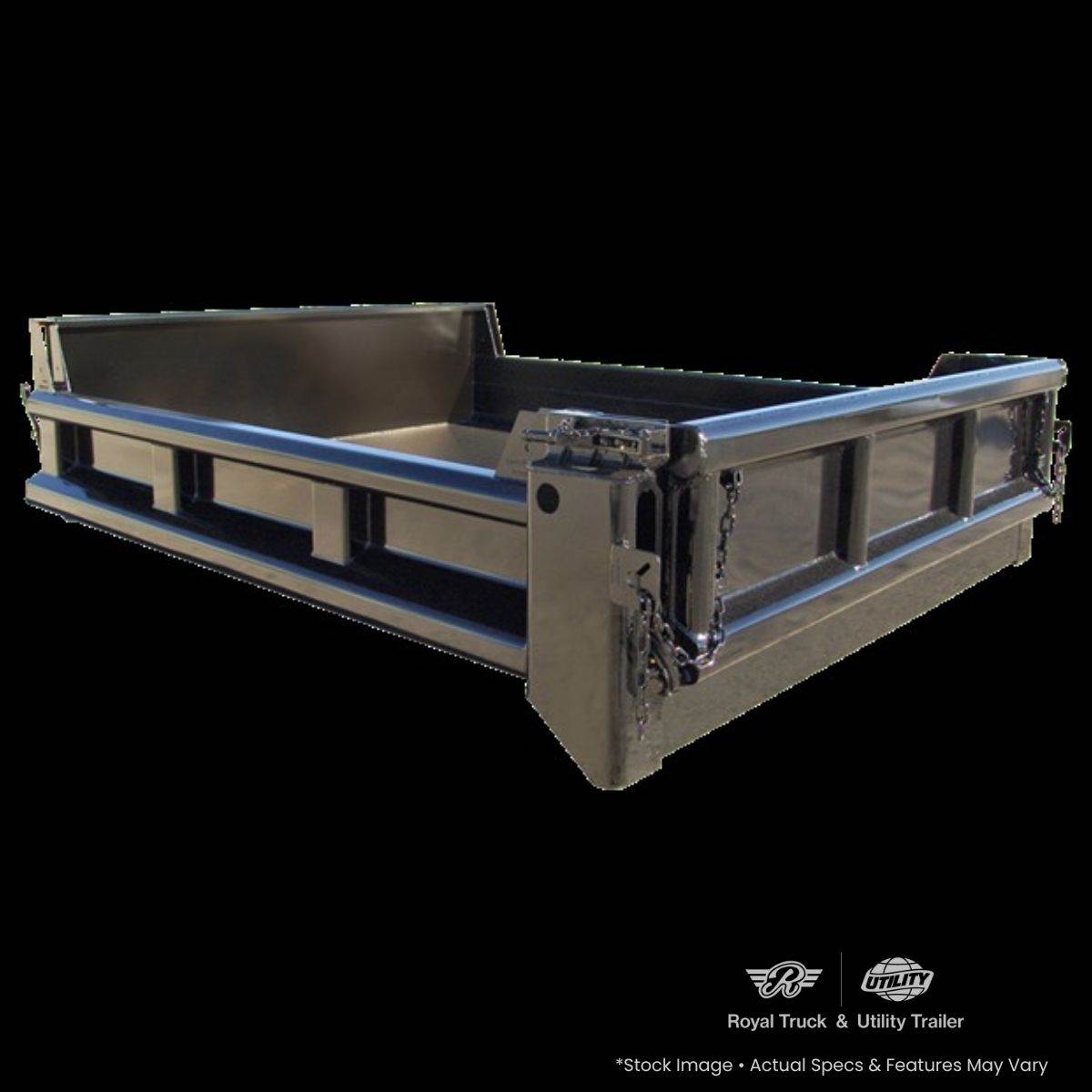

The Galion 100U body is designed for superior service on 9900 -19500 GVWR cab/chassis'. The 100U features all 10 gauge high tensile steel floors, tailgate, head sheets and sides. Front corner posts, two intermediate side braces, full depth rear corner posts and boxed "material shedding" top rails are also standard.

• General Dimensions: Available In Inside Lengths From 8' Through 11'-6", 84" Inside Width With 13" Sides And 19" Gate Or 18" Sides And 24" Gate
• Sides: 10 Gauge High Tensile Steel With Material Shedding Boxed Top Rails, Full Depth 10" Rear Corner Post, Front Side Brace, Two Intermediate Vertical Side Braces And 6" Front And Rear Board Extension Pockets
• Floor: 10 Gauge High Tensile Steel, With 2" Radius Floor To Side Radius
• Front Bulkhead: 10 Gauge High Tensile Steel Construction With Two Bend Top Flange
• Tailgate: Heavy Duty Cast Quick Release Top Hardware And Cast Overshot Lower Hardware With Manual Release Handle
• Tailgate Hardware: Heavy Duty All Stainless Cast "Tarp Friendly" Top Hardware And Cast Overshot Lower Hardware And Manual Release Handle
• Lights: Meets All Requirements Of Fmvss108 With Oval Stop/Tail/Turn Lights Recessed In Rear Post. All Lighting Is Recessed, Shock Mounted, Complete With Factory Wiring Harness
• Understructure: Stacked Design Utilizing 6" Structural Longitudinals Gusseted To 3" Structural Channel Crossmembers On 12" Centers, Lubricated Front And Rear Cross Shaft And Full Width Rear Bolster
• Safety Features: All Galion 100U Bodies Are Shipped With A "Body Up" Warning Light And OSHA Required Back Up Alarm
• Paint: Glossy Black Thermoset Powder Coating On Top Of Thermoset Zinc Powder Coat Primer

Optional Features Include:

• Aluminum Construction
• Coal Door In Gate
• Fold Down Sides
• Bolt On Spreader Apron
• 304 #4 Stainless Steel Construction
• 304-2B Stainless Steel Construction
• 201-LM2B Stainless Steel Construction
• 201 #4 Stainless Steel Construction
• Cab Protectors (With Or Without Window)
• Mailhot Hoist Option
