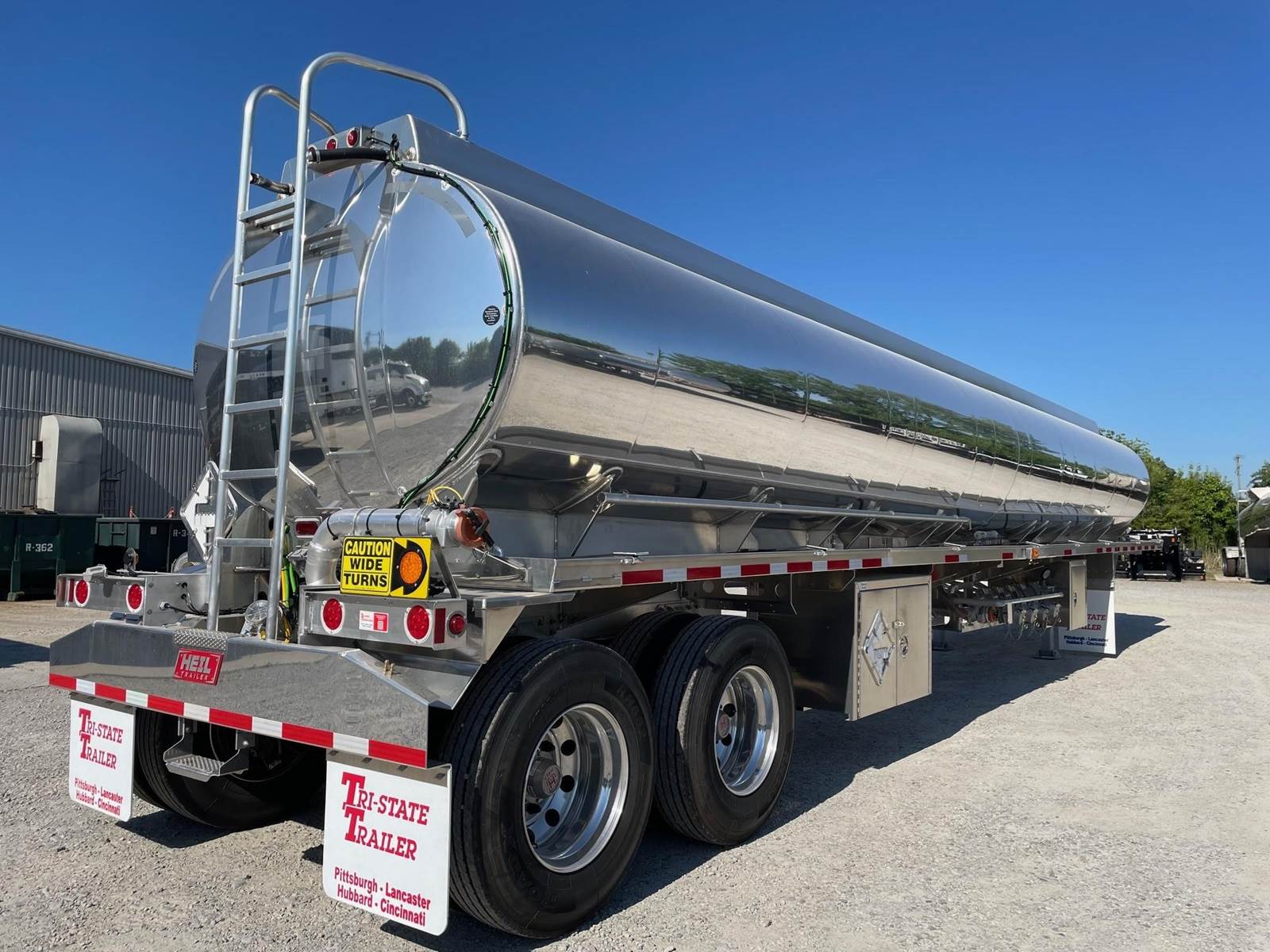

2026 Heil 406 AL Fuel Tanker Trailer

*Price Includes FET*
Double Taper Barrel, All-Double Heads
*Delivery Available*
Total Capacity 9500 Gal
Compartment Sizes 3500//2000//1200//2800
Shape/Style Double Taper
MC Code DOT 406
Bulkheads Double
Product Hauled Petroleum
Body Pipe
Piping Aluminum
Discharge Valves API with Site Bubble/4" Drop Adapters x4
Sight Glass Jikoh. Flanged Behind API Valves.
Commodity Indicators Eight (8) Sided. One per Compartment.
Vapor Recovery Two 4" Vapor Outlets
Overfill Protection Flo-Tech w/ Dixon/Bayco Top Optic Sensor per Comp.
Groundhog Flo Tech Bolt, #FT450
Emergency Valves Air

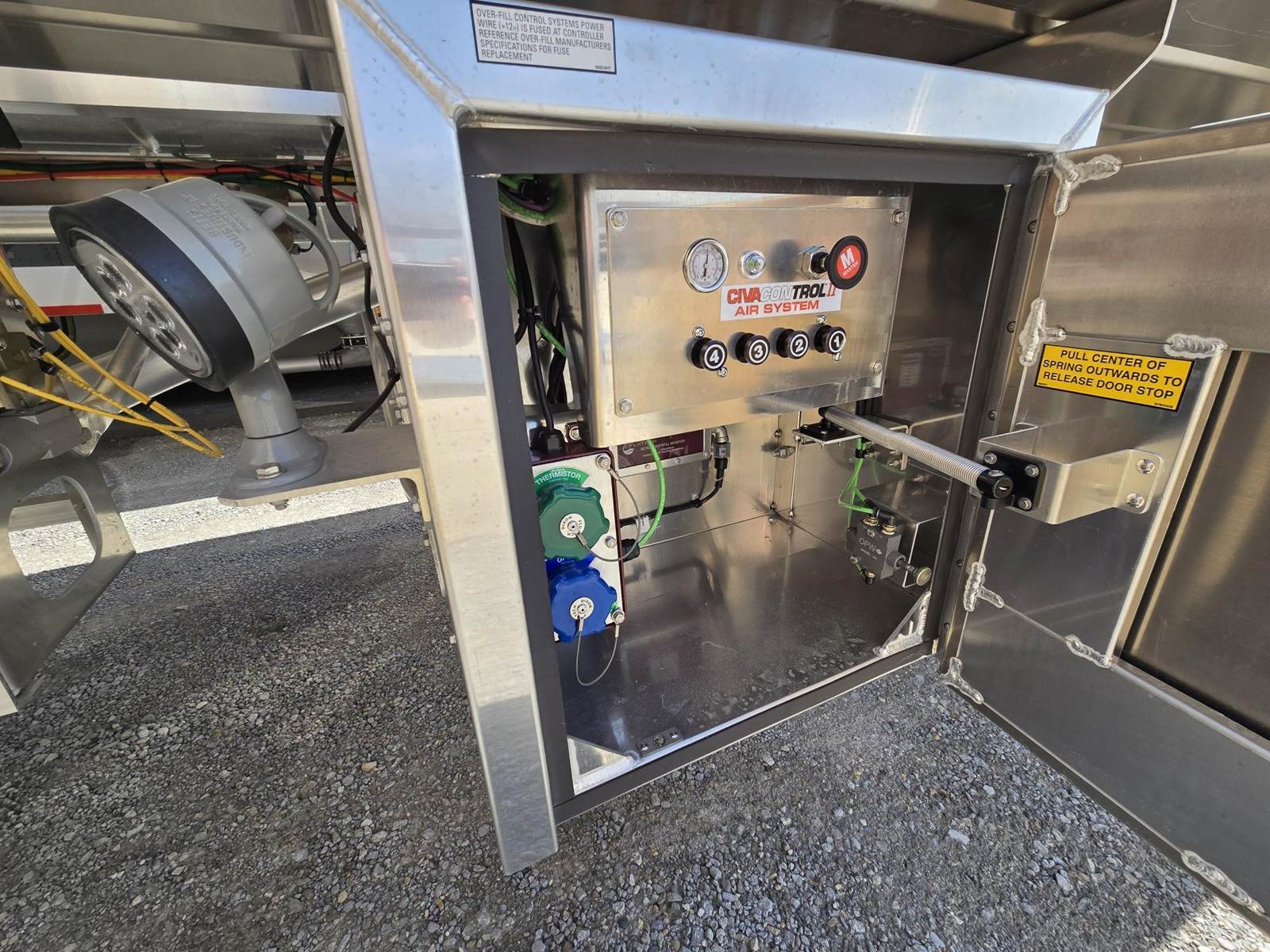

EV Operators Air Control Panel Inside EVO Box
Body-Accs.
Ladder Center Rear
Hose Tray 22" Wide Full Length Curbside
Stick Tube Yes. Located Curbside Rear
Fittings Cabinet 48" Double Door w/Horizontal Shelf. Safety Lasp
EVO Cabinet 27" Single Door Cabinet Curbside
Fenders Roadside Contoured-Curbside Tray Fender
Cone Holder Yes
Placards Flip Placards 4 Sides
Side Lights Dot plus Wide Turns
Rear Light Pkg (2) Stop/Tail, (3) Clearance
Spot Lights Four(4) Work Lights Load/Unload Area
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson
Suspension Setting Rear
Tire Brand OEM Standard
Tire Size 11R22.5
Wheels Aluminum
UnderFrame
King Pin Setting Adjustable
Landing Gear Two Speed
Suspension Frame Aluminum
Comments
Flo Tech trailer indentification module, FT470.
Four (4) Brass Static Ground Lugs
2" aluminum tee in vapor recovery line into hose tray center of load heads with
2" male cam locks facing front and rear of trailer with 3" dummy males at each
end of tray.
16" aluminum marker rod with 1 aluminum disc, located each manhole
Secondary ISO receptacle
Aluminum subframe, 44" wide w/ 77.5" Track Axles
Preco model #390 back-up alarm wired to Brown wire of ISO 7-Way
20# ABC Ansul with mounting bracket and cover
