2026 Heil PETRO TRAILER Fuel Tanker Trailer

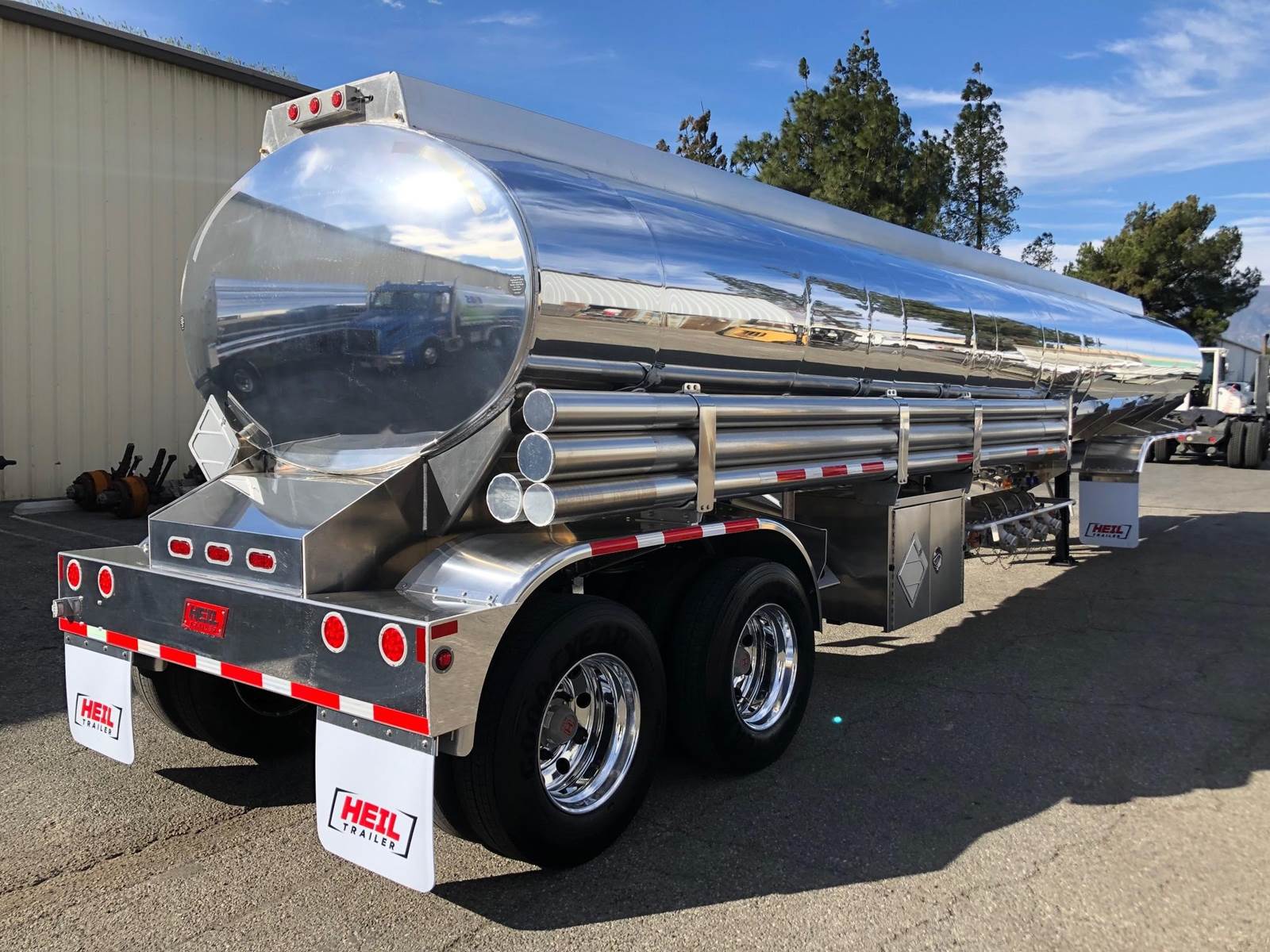

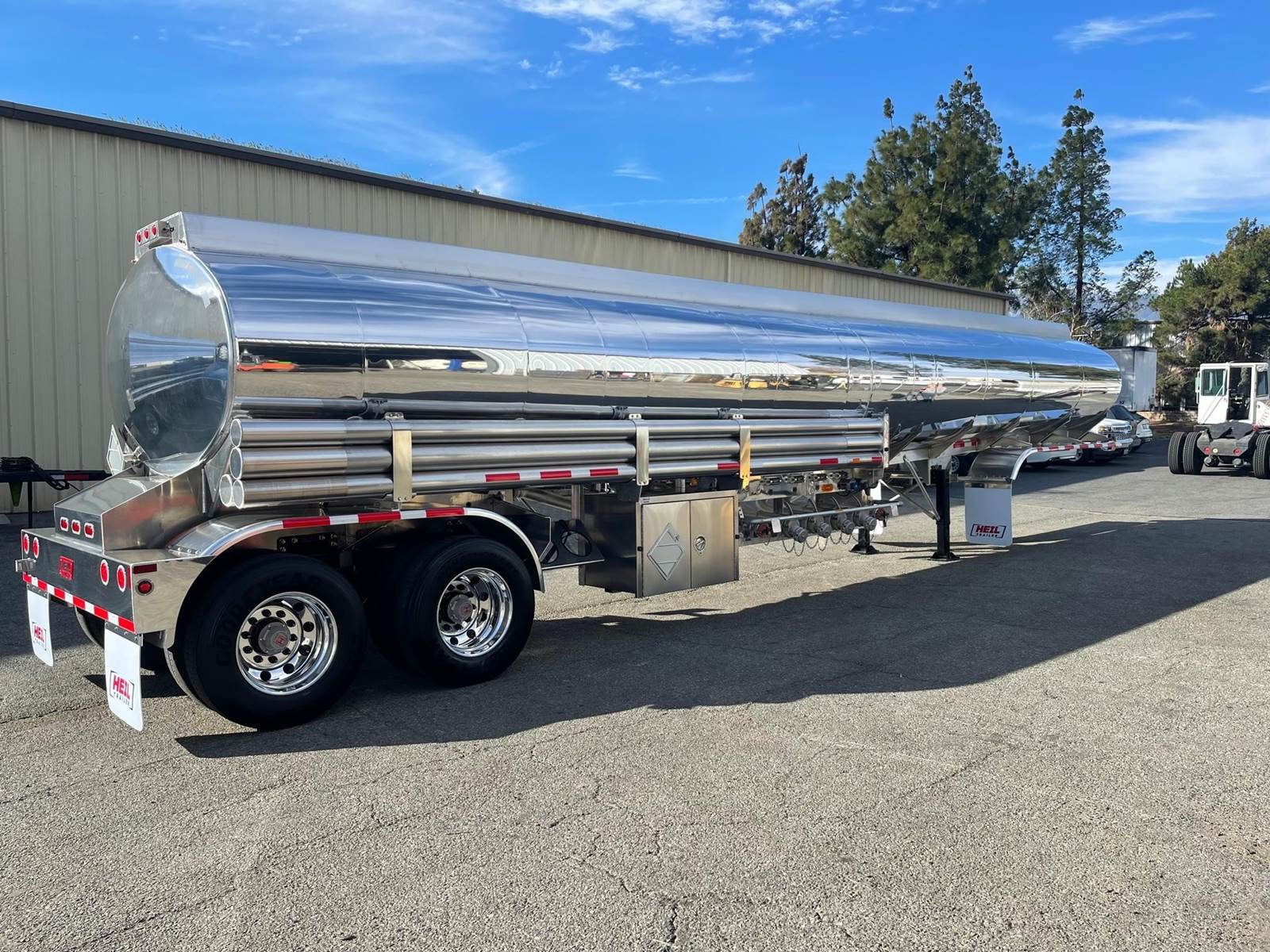

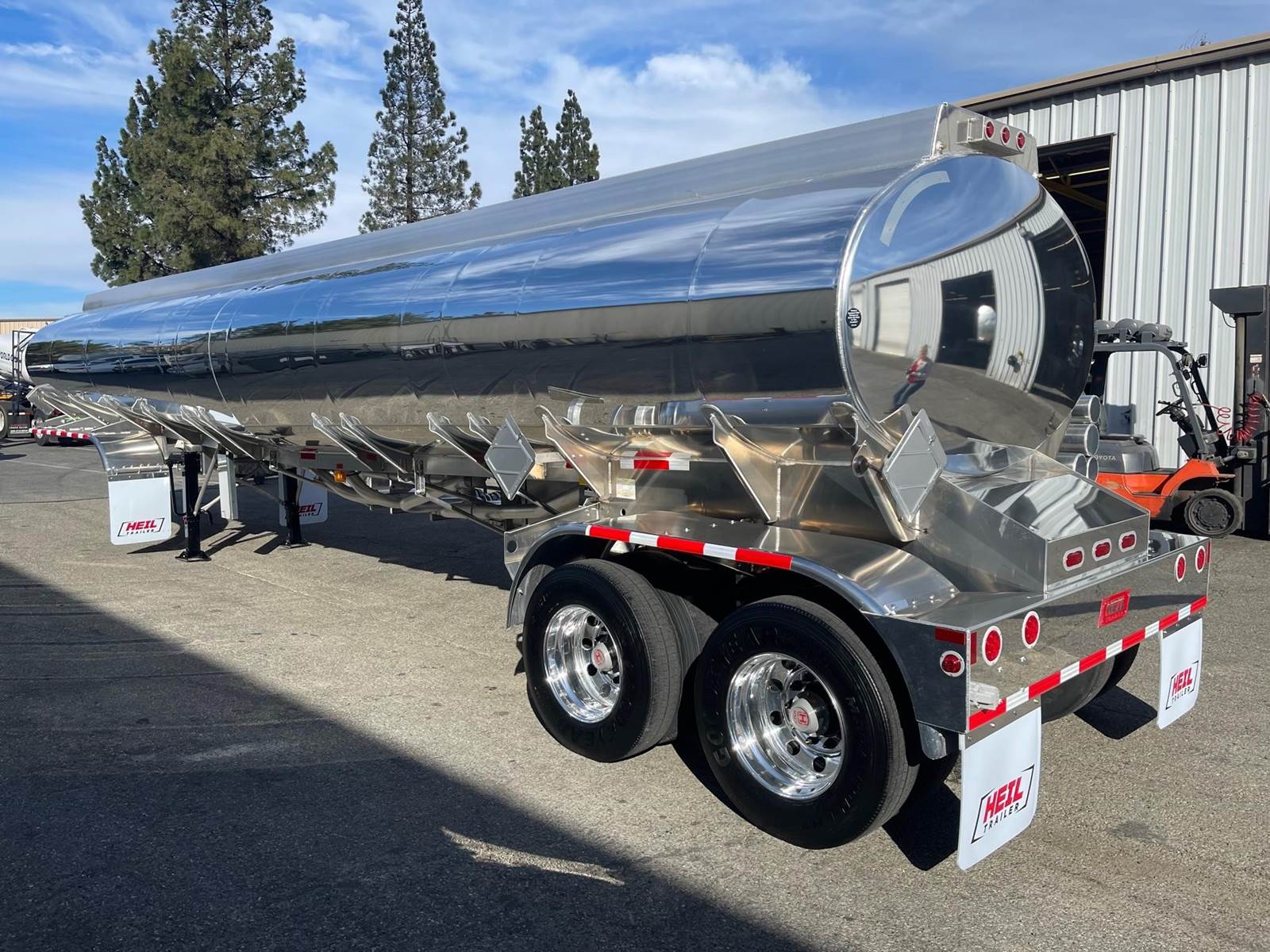

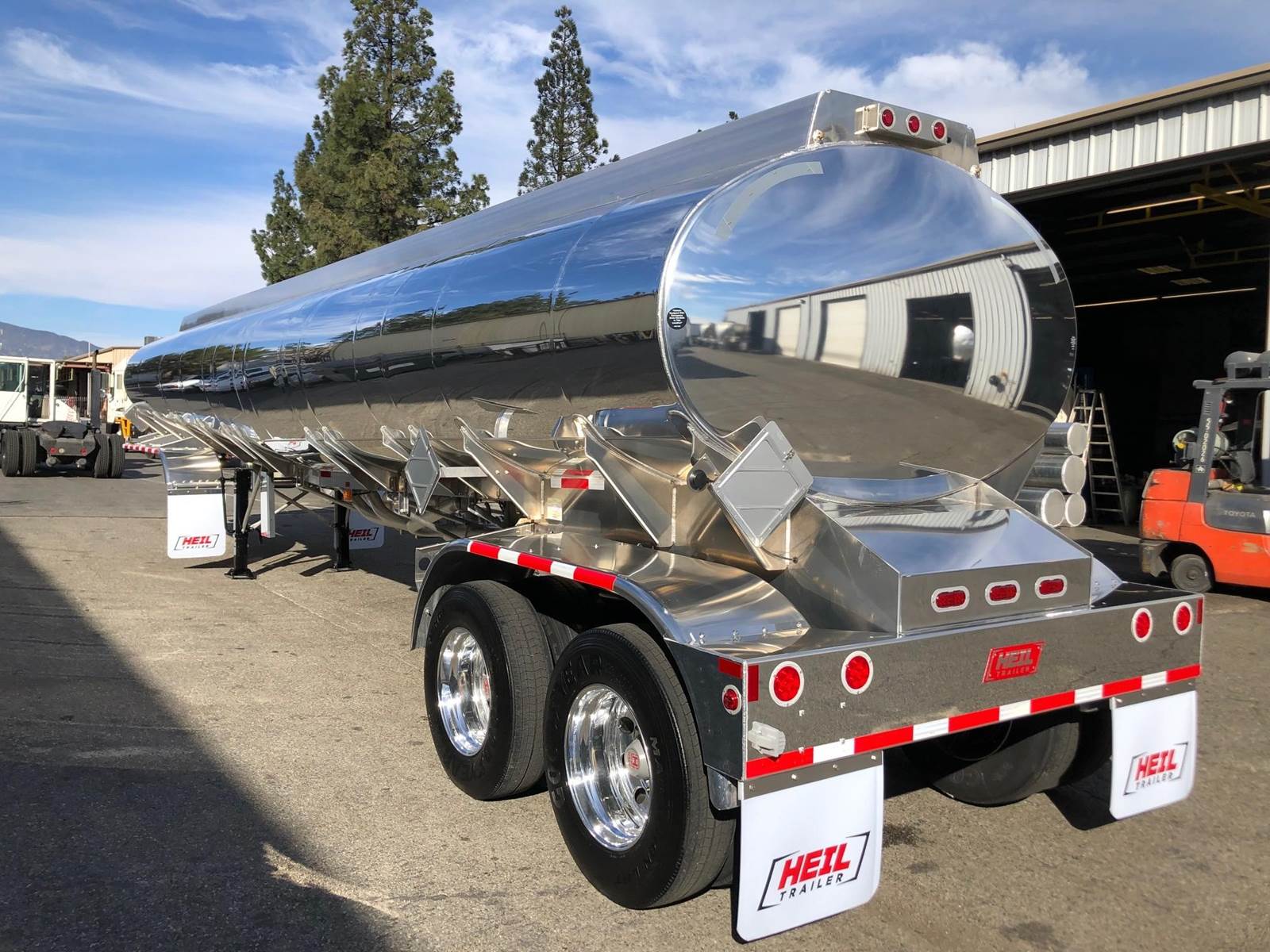

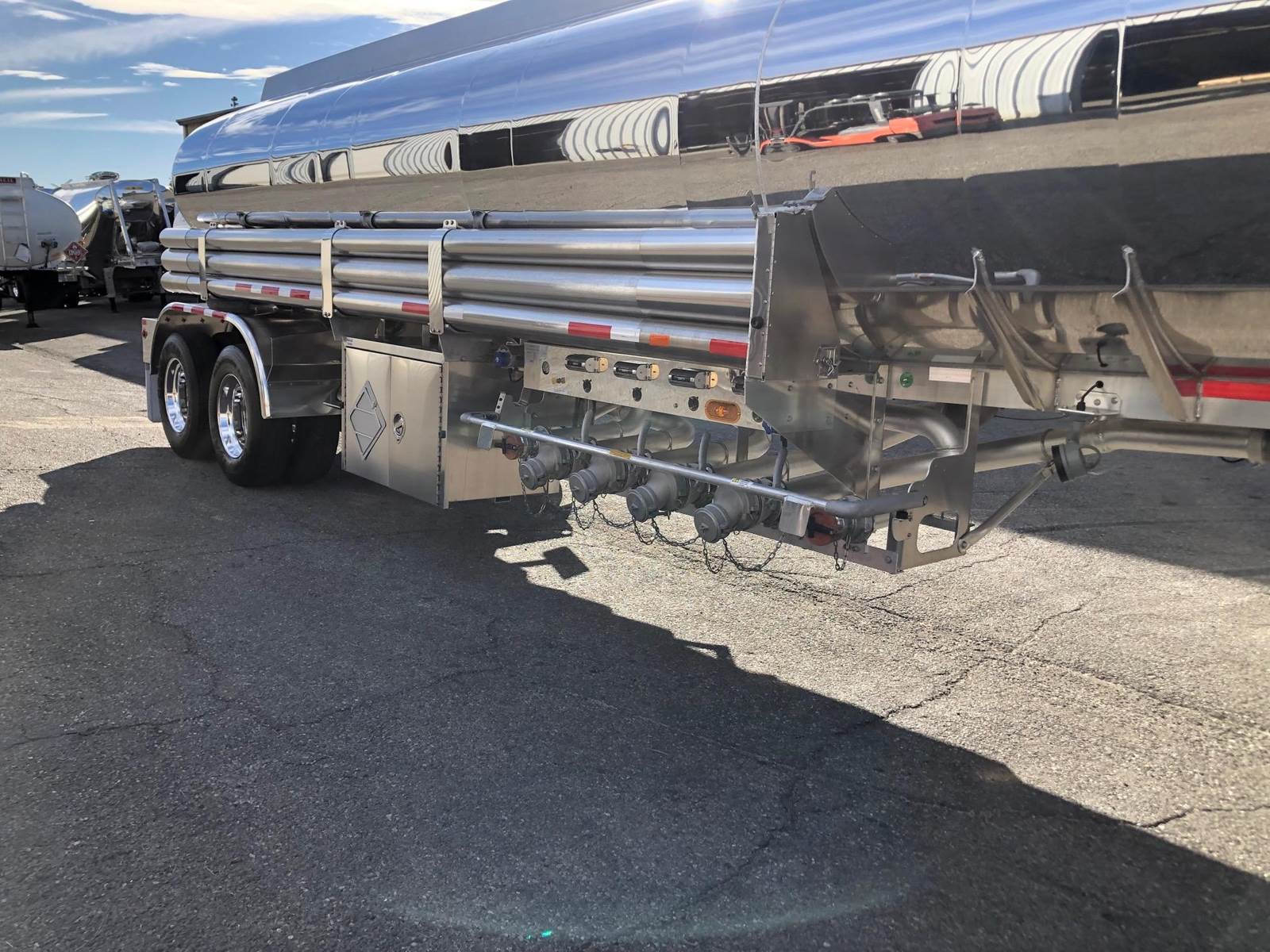

NEW 2026 HEIL 9500 GALLON DOT 406 ALUMINUM PETROLEUM TANK TRAILER

Heil Fleet Duty, elliptical, low-center-of-gravity aluminum petroleum trailer. Four compartments with capacities of (4100//2100//1100//2200) gallons

FEATURES & SPECIFICATIONS:

9,500-gallon capacity – 4 compartments

DOT 406 aluminum construction


Buffed/polished aluminum barrel with hand-polished front and rear heads

Hendrickson INTRAAX AANT23K tandem air-ride suspension

Hendrickson MAXX22T air disc brakes

4S/2M ABS with roll stability

Polished aluminum wheels

Michelin 295/75R22.5 X Line Energy T2 tires

Four 4" Betts air-operated internal emergency valves

Four Dixon/Bayco 4" API adapters

Four Jikoh sight glasses

Four 4" gravity drop adapters

Bayco sequential vapor recovery vents

4" aluminum vapor recovery system

Dixon Bayco FloTech 5-wire overfill protection with optic sensors

Additional overfill socket at bottom load panel

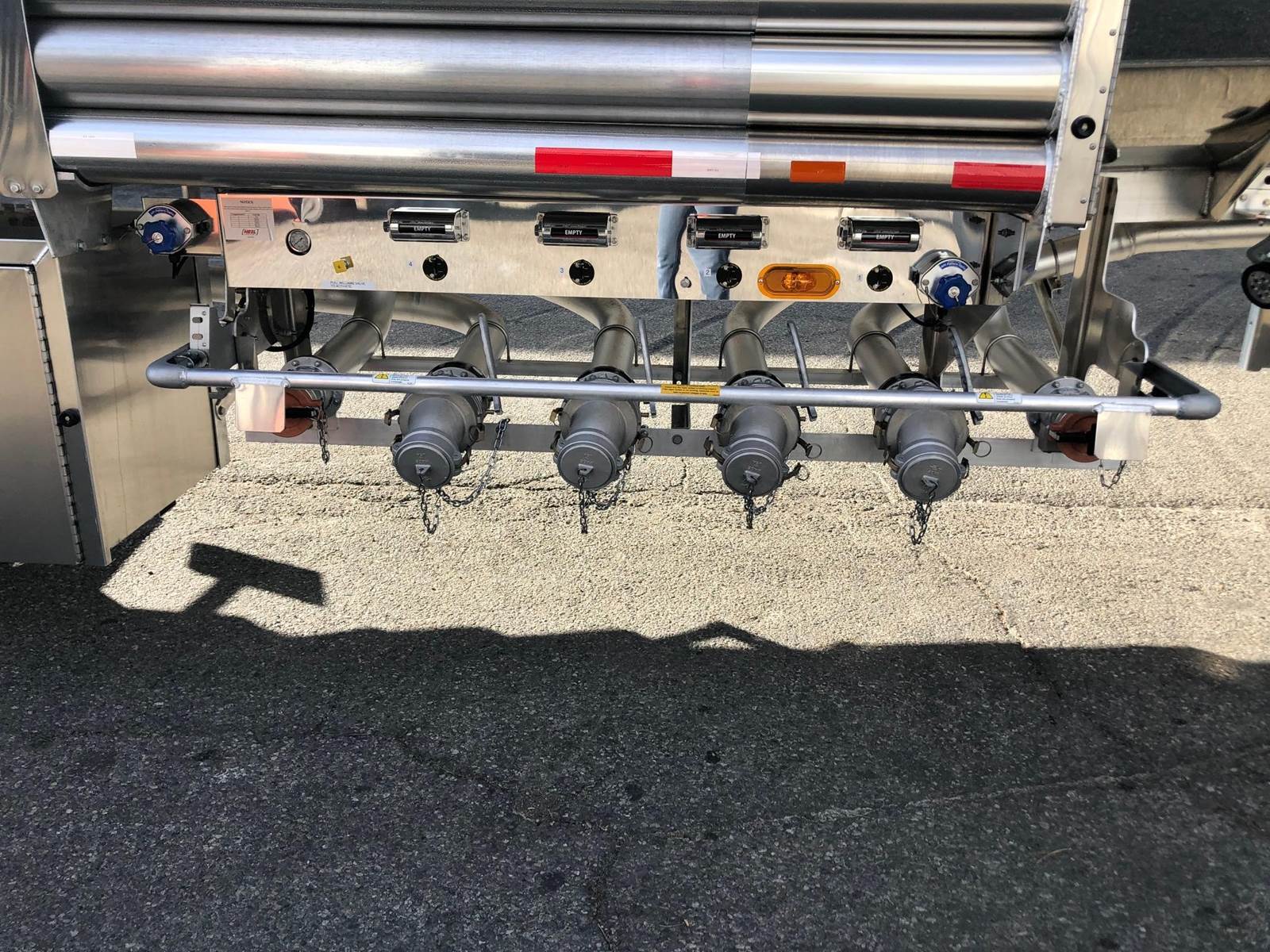

Bottom loading with centralized discharge outlets

Four 8-sided product indicators

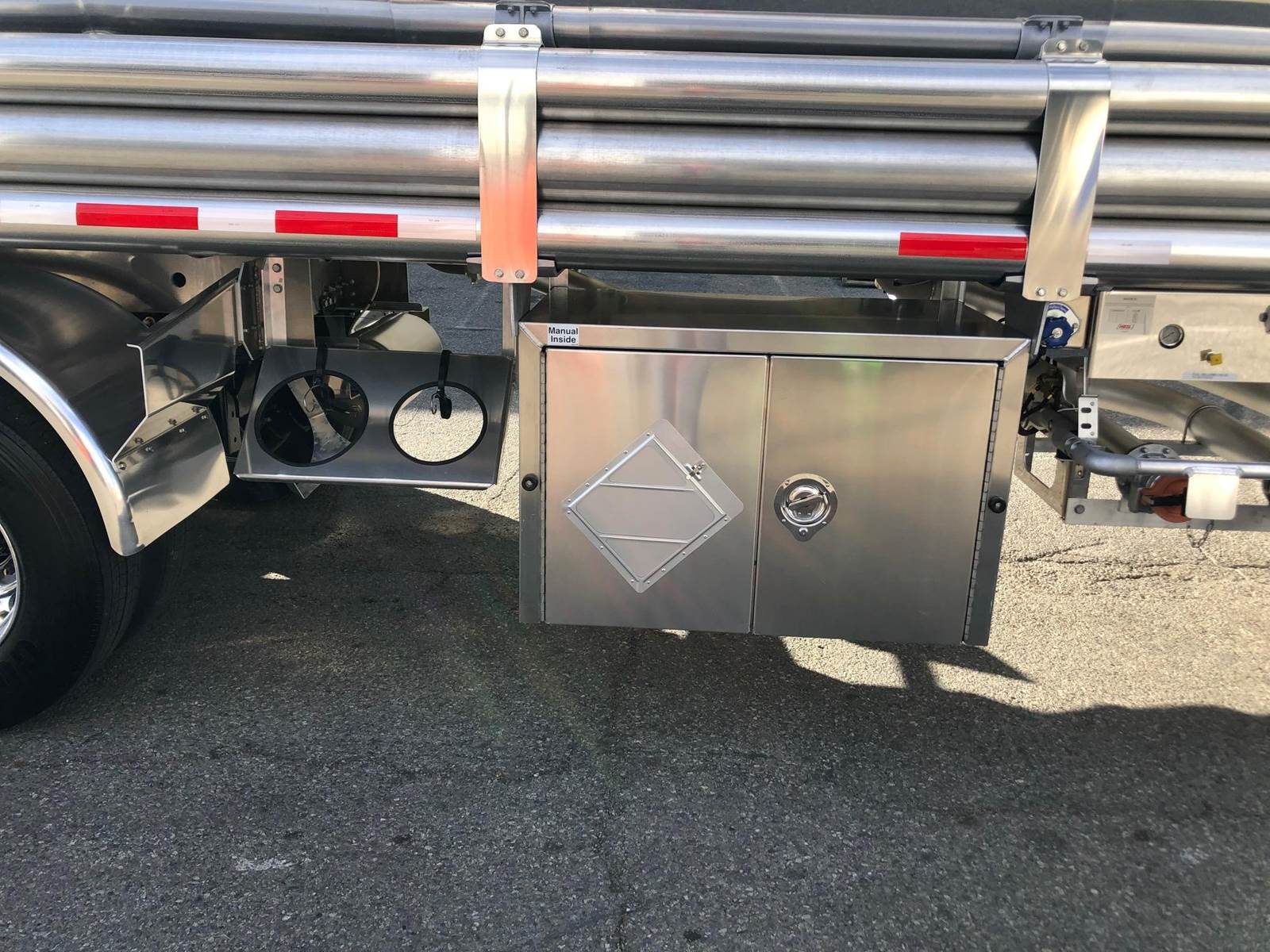

48" W x 30" H x 28" D aluminum cabinet with double doors, no center post, mounted curbside ahead of running gear

Interior aluminum fittings rack with four 4" adapters

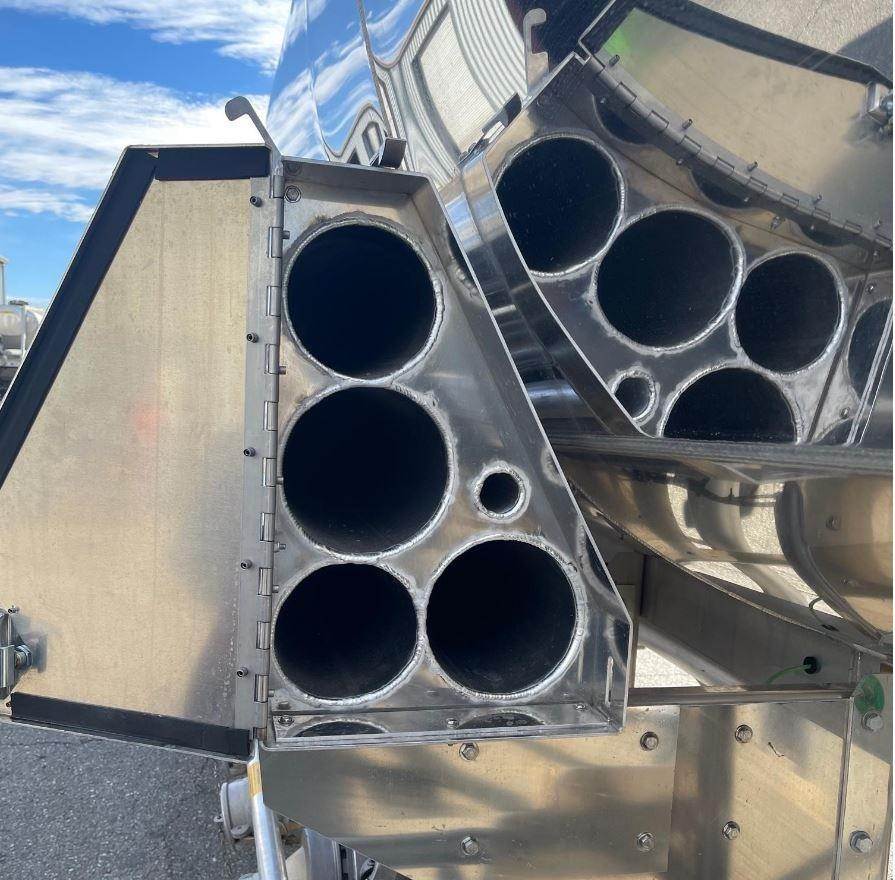

Two 7" x 21' aluminum hose tubes

Two 6" x 21' aluminum hose tubes

2" x 20' aluminum gauge stick tube

Aluminum cone and bucket holder

LED lighting with swivel work light

Polished aluminum rear bumper overlay and bottom load panel

CARB/EPA Method 27 vapor tested and certified

Heil Silver Warranty Package

CONTACT EZ TANK SALES
