Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!
Model Year: 2026

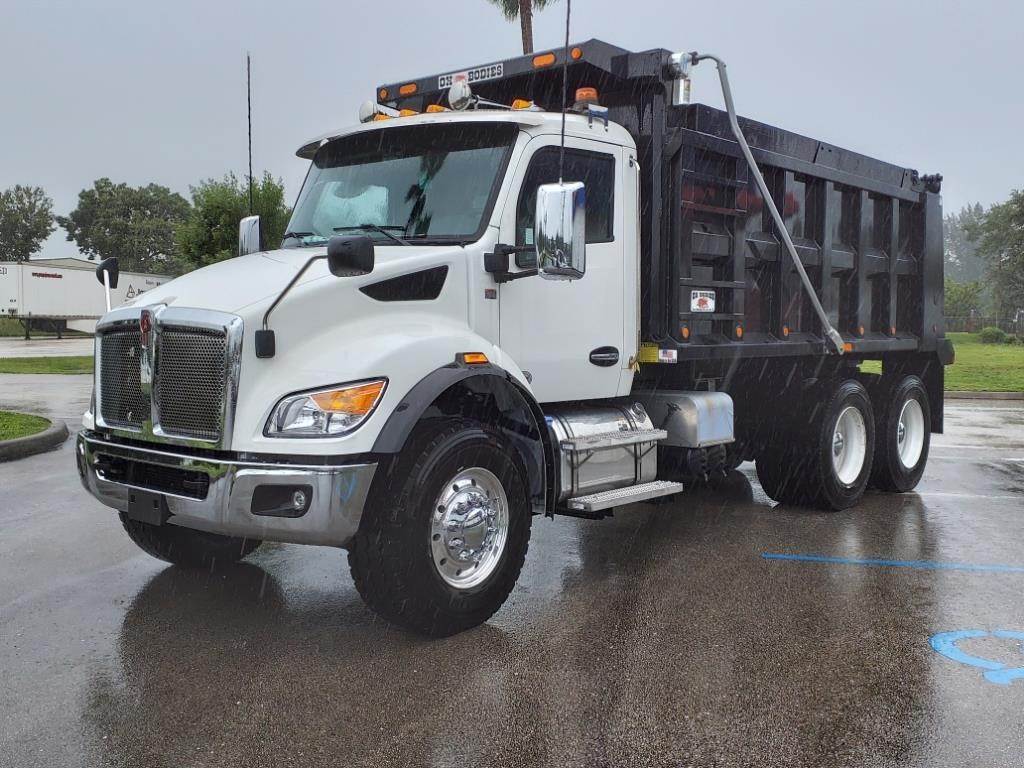

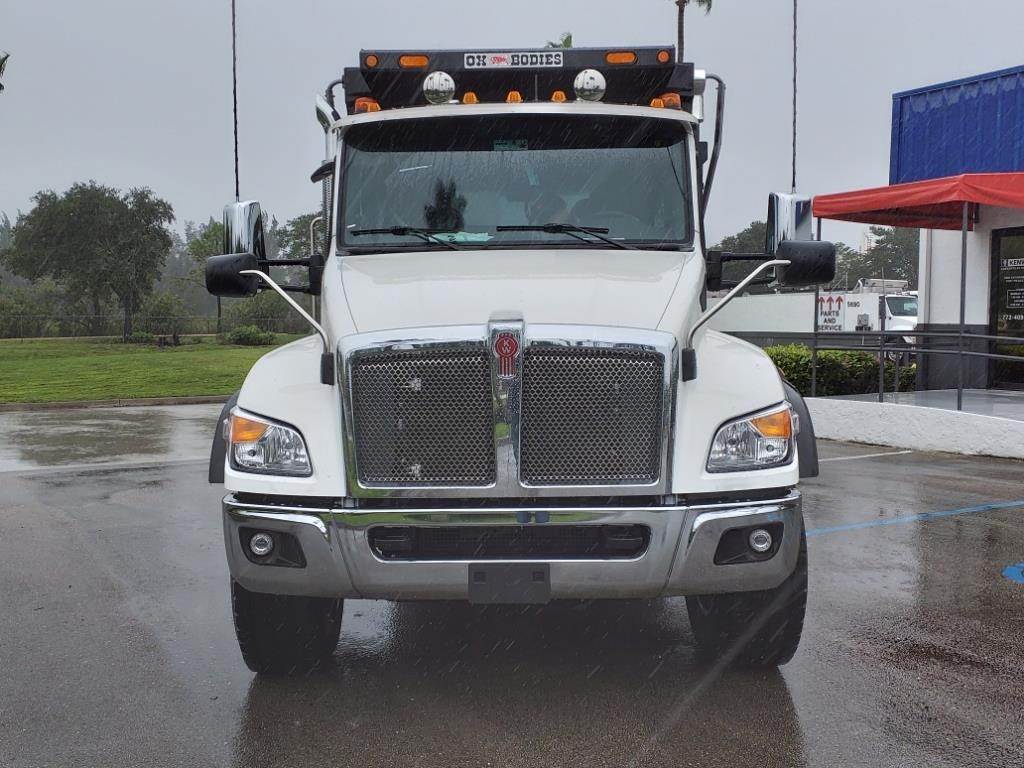

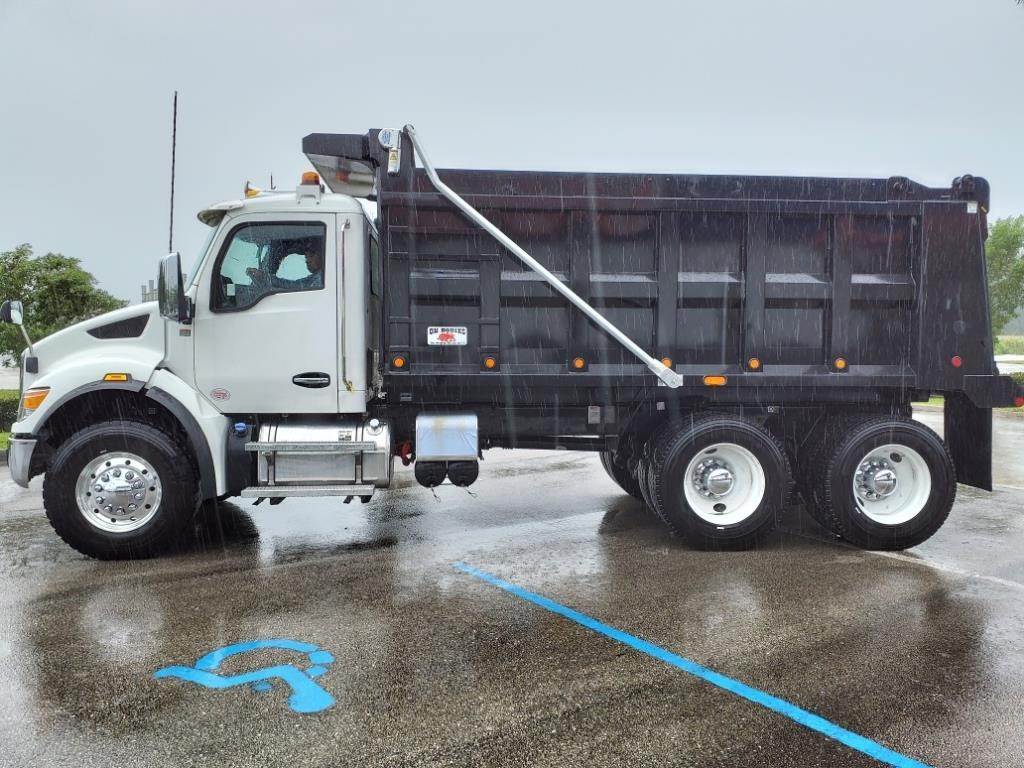

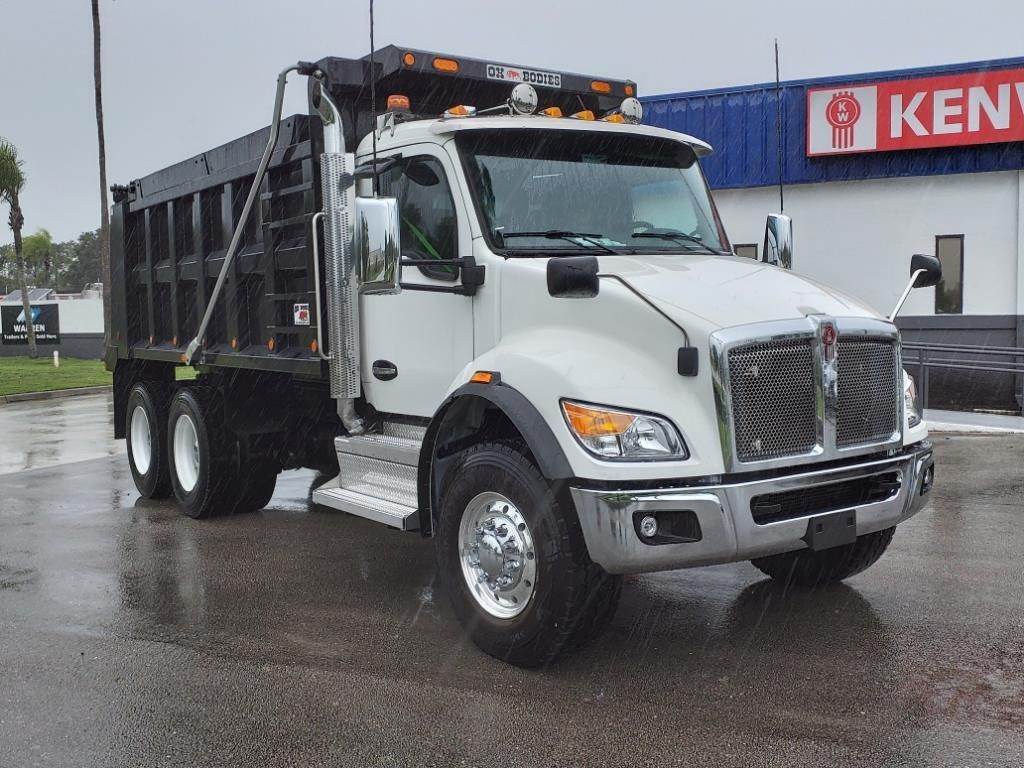

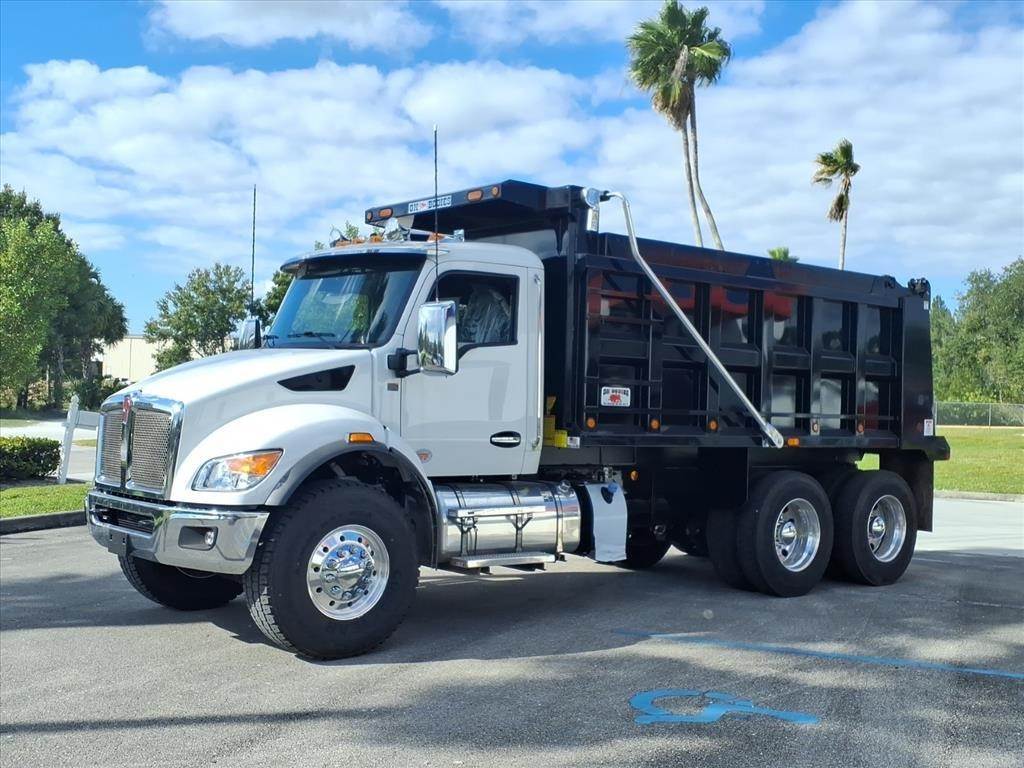

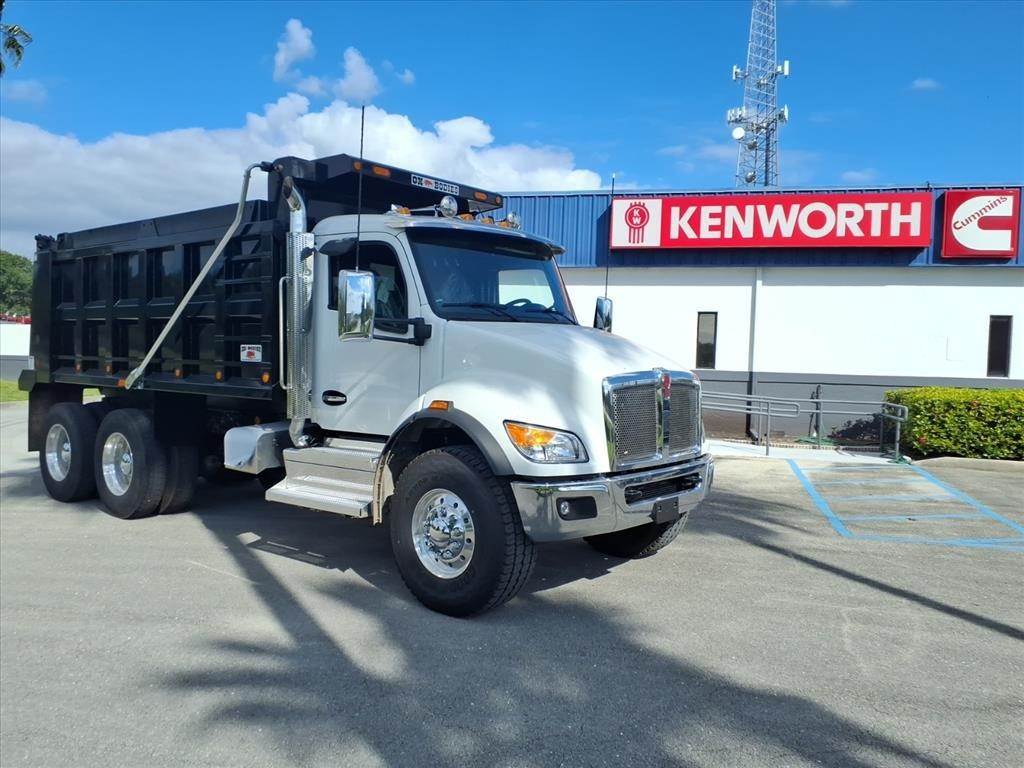

Model: T480
Exterior Color: White (L0006EY)

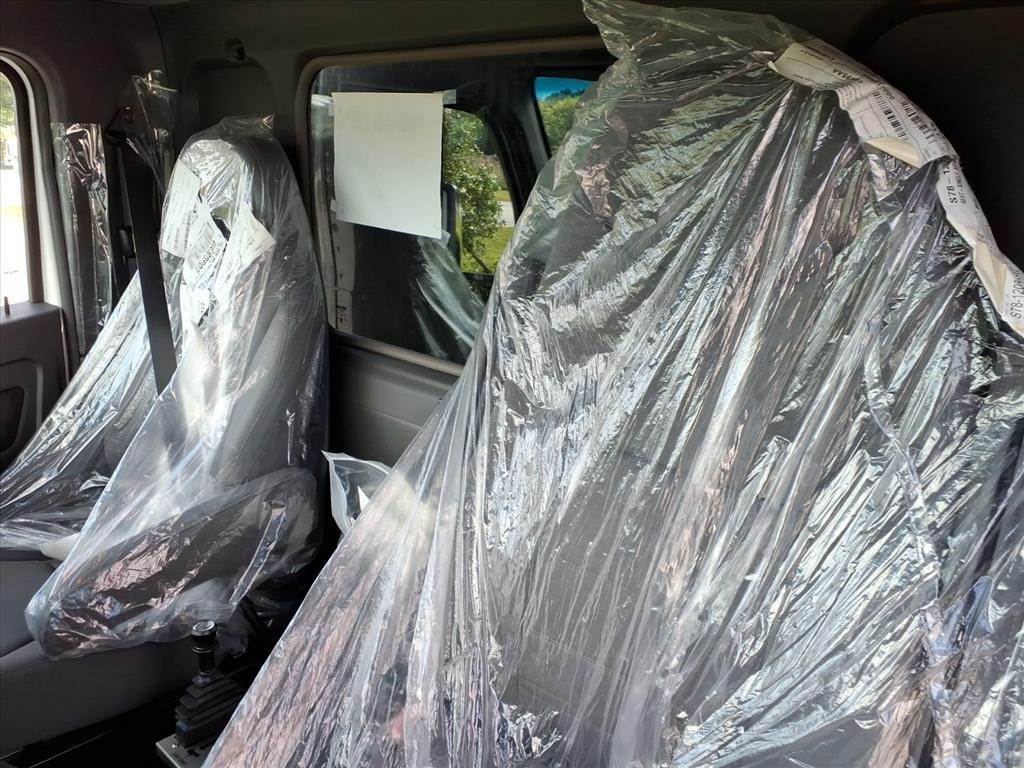

Interior Trim Level: 2.1M MD Gray Foam Backing
Interior Color: Gray
Engine: PACCAR PX-9 370, 370 HP @ 1600 RPM, 1250 lb-ft torque @ 1200 RPM, Turbo Exhaust Brake

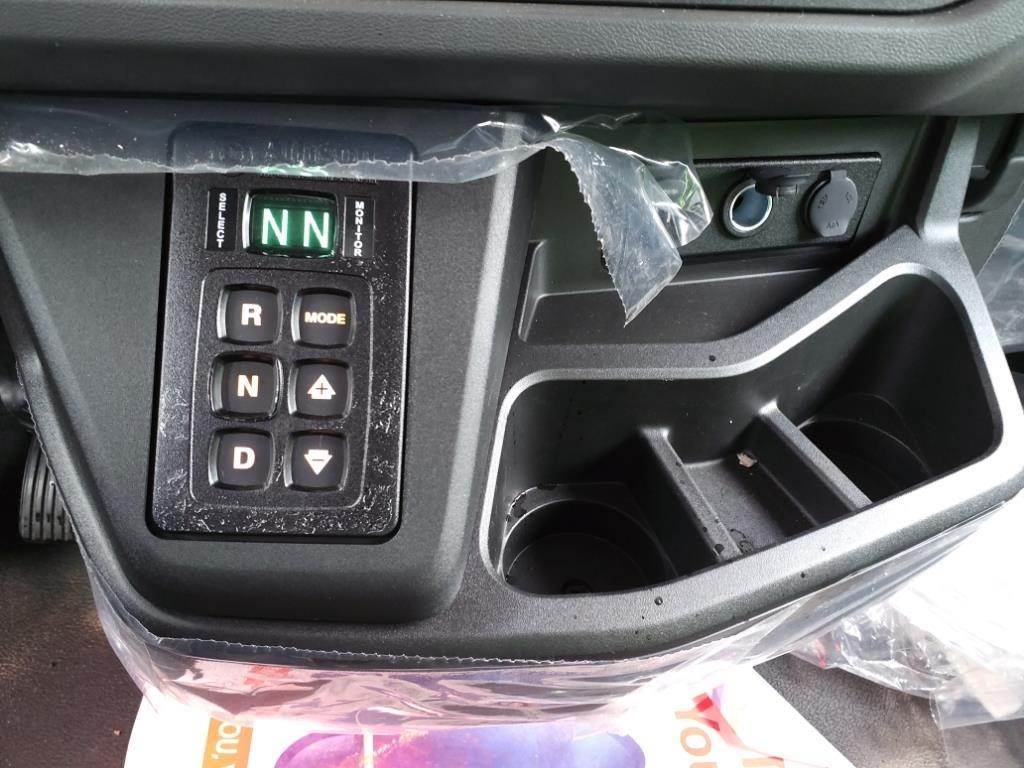

Transmission: Allison 3000RDS 6-speed Generation 6
Front Axle: Dana Spicer D2000 20K Standard Track
Rear Axle: Meritor RT46-160P 46K Dual
Suspension: Hendrickson HaulMaxx EX (HMX) 460 46K Dual 54"
GVWR: 66,000 lbs
Wheelbase: 208 inches
Cab-to-Axle: 138.5 inches
Rear Axle Ratio: 5.38
Brakes: Front and rear drum brakes - Bendix HP-ES 16.5X6 front, Bendix ES S-CAM 16.5X7 dual rear

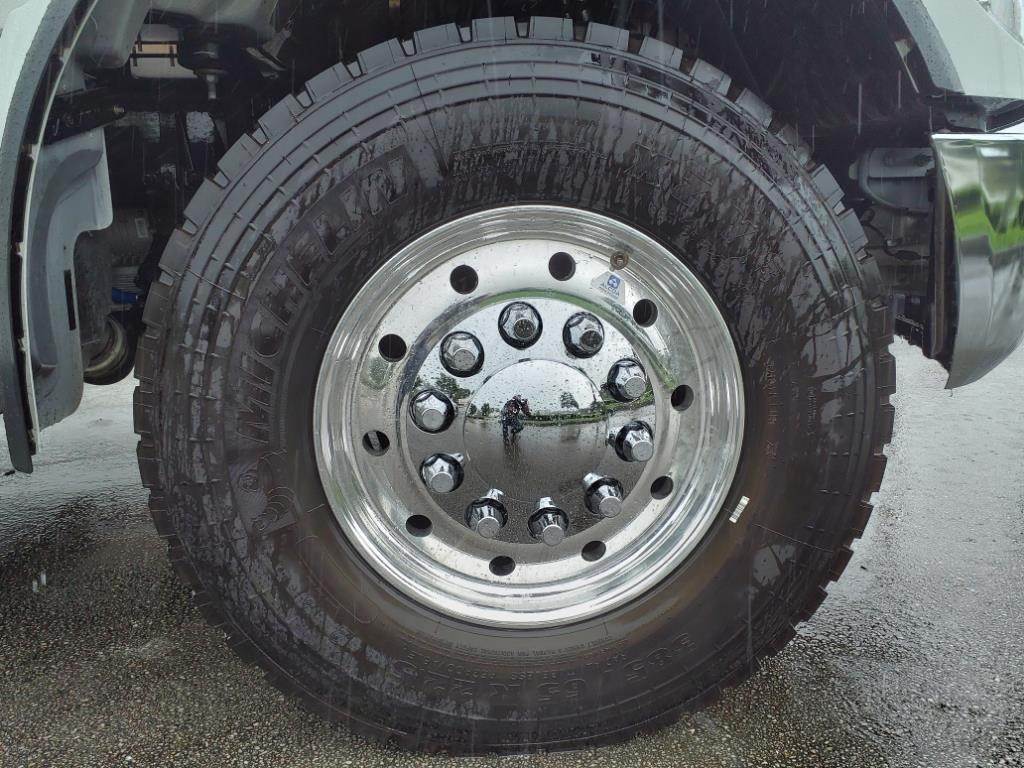

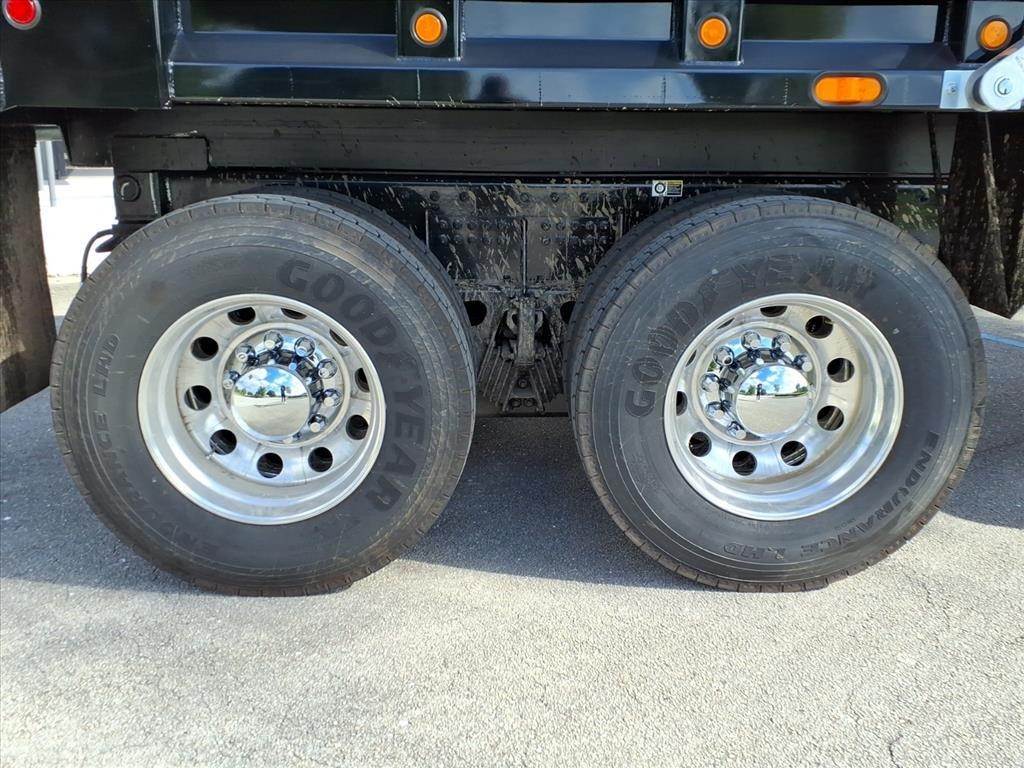

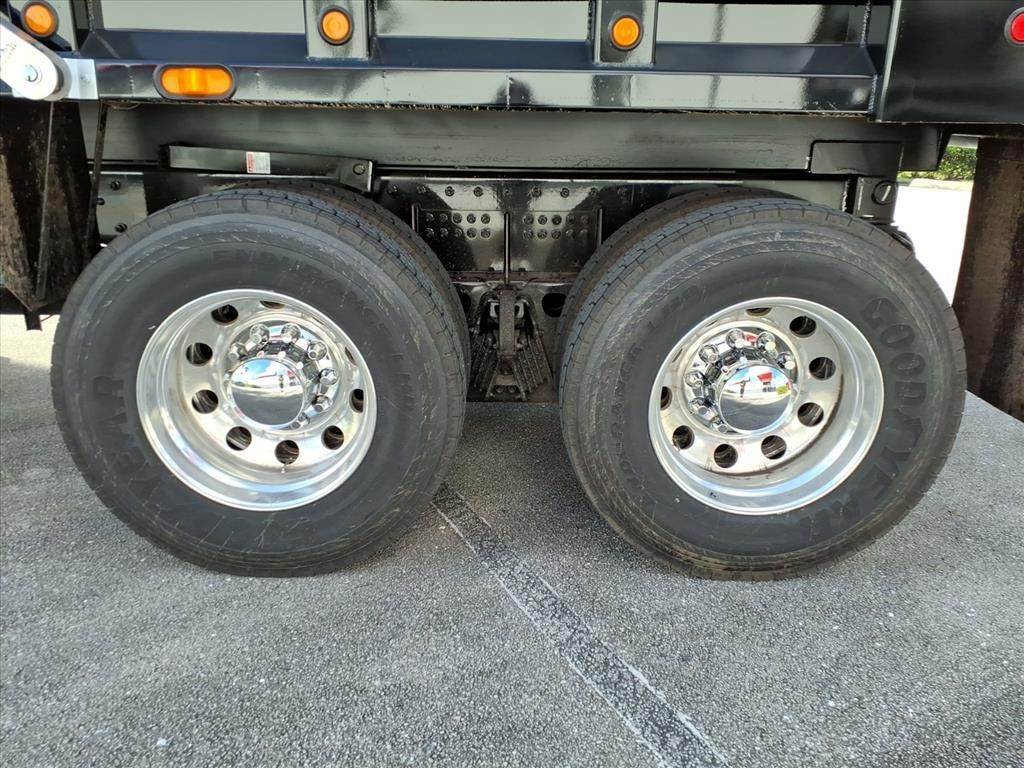

Wheels: Front: Accuride 29374 22.5X12.25 aluminum hub piloted standard polished, Rear: Accuride 42362 24.5X8.25 aluminum hub piloted standard polished

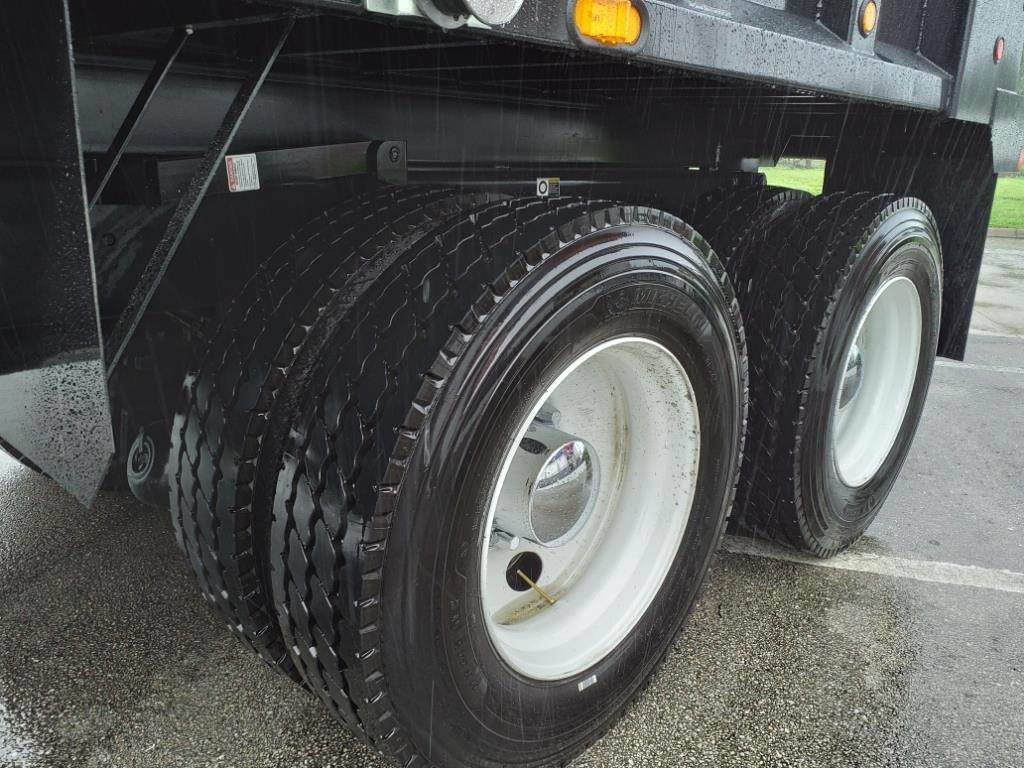

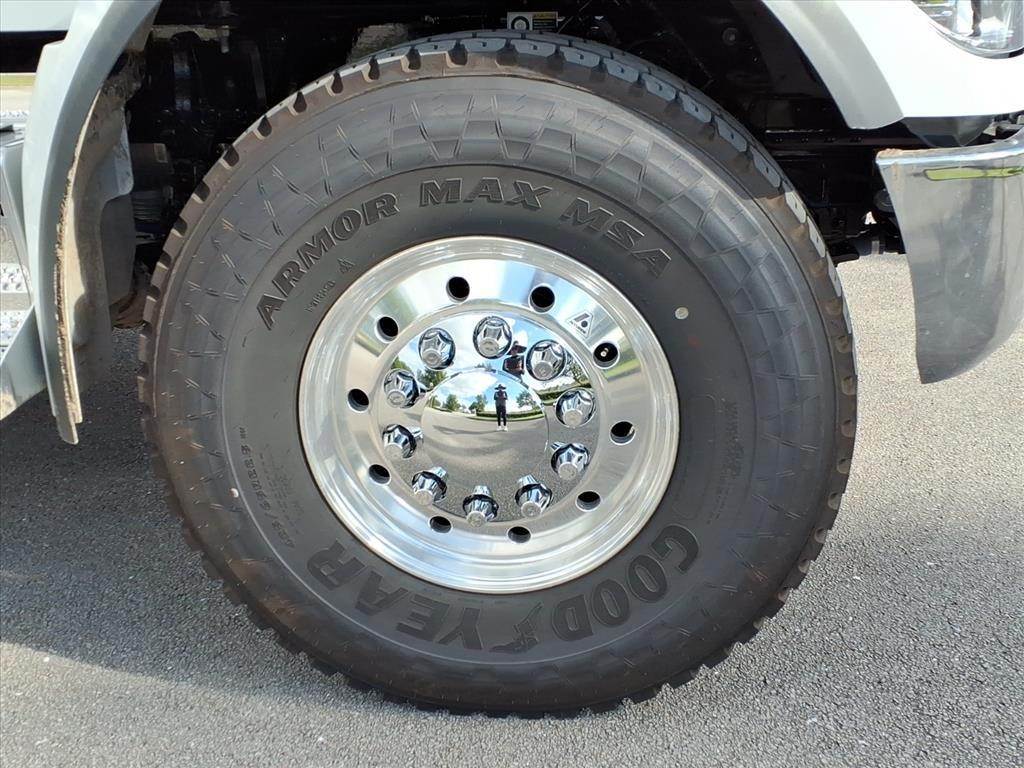

Tires: Front: Goodyear ArmorMax MSA 425/65R22.5 20PR, Rear: Goodyear Endurance LHD 11R24.5 14PR
Fuel Tanks: 80 US gallon D-shape rectangular aluminum
DEF Tank: 15 gallon large
Options & Features:

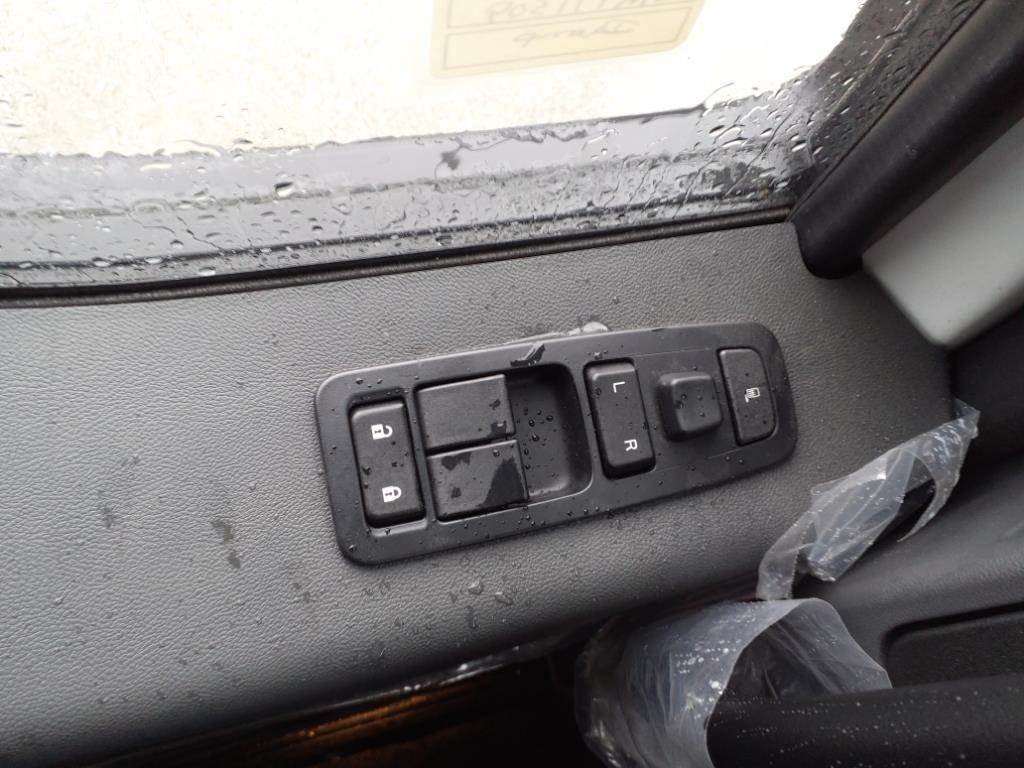

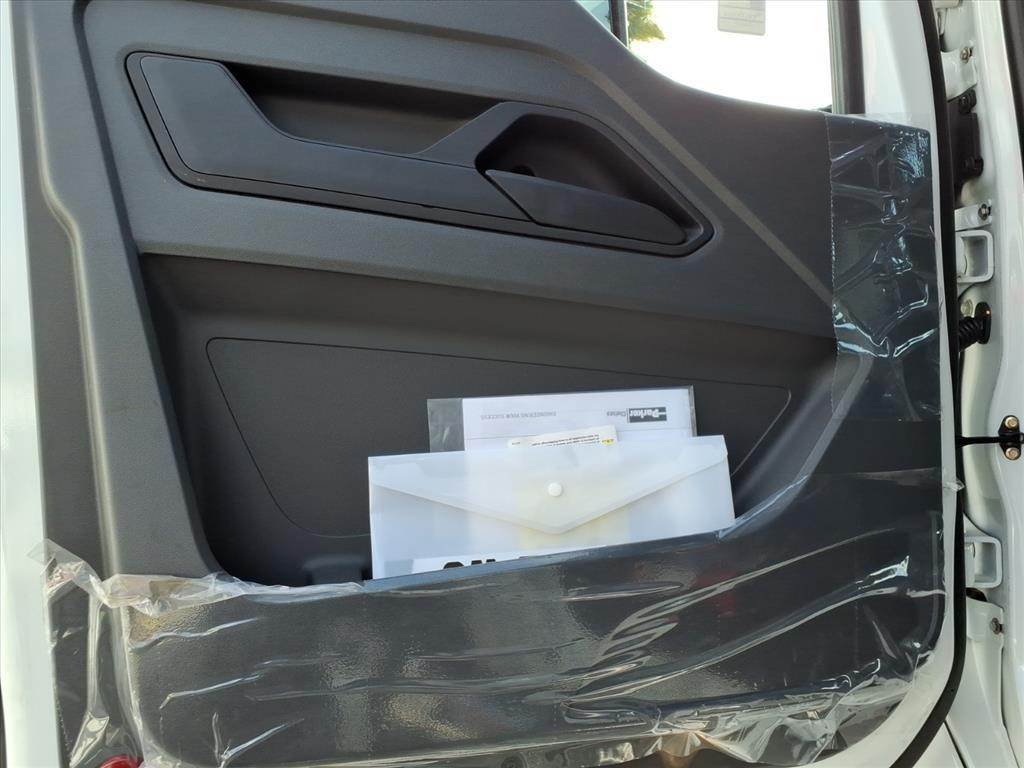

Power windows and power door locks

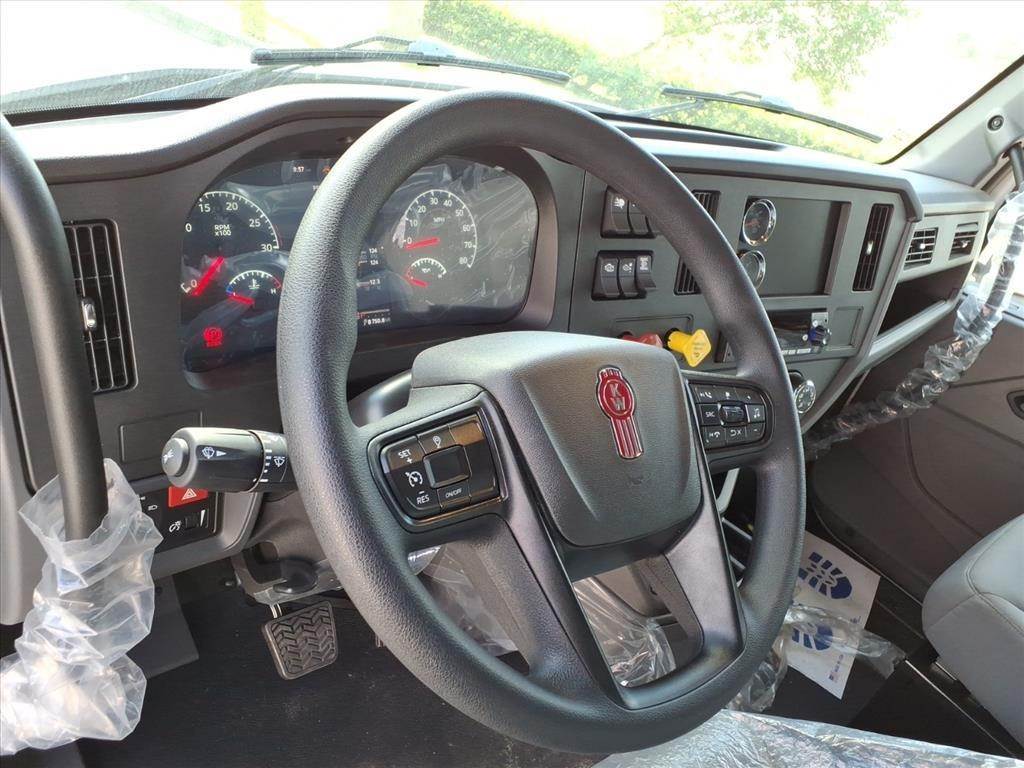

Tilt/telescoping steering wheel

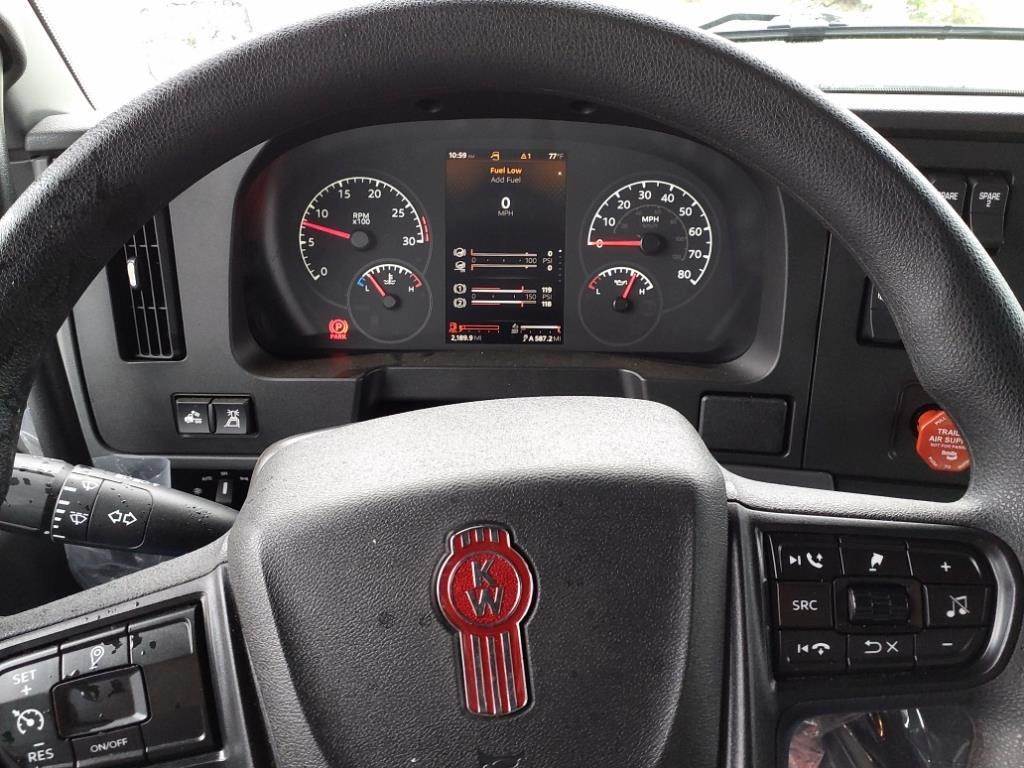

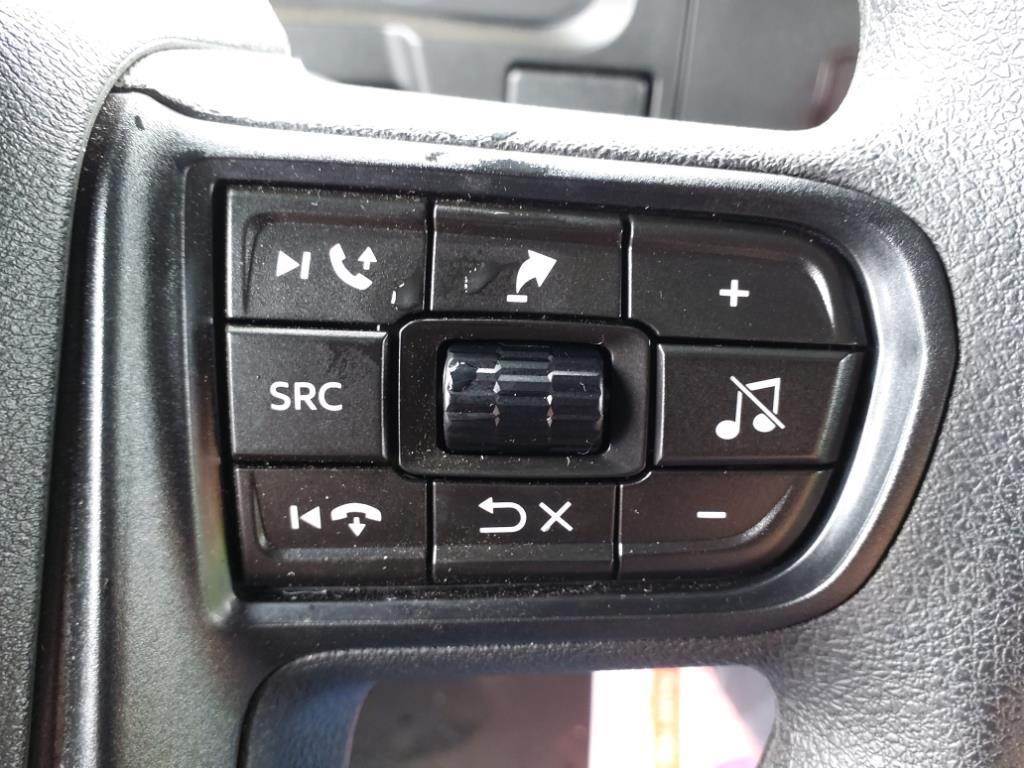

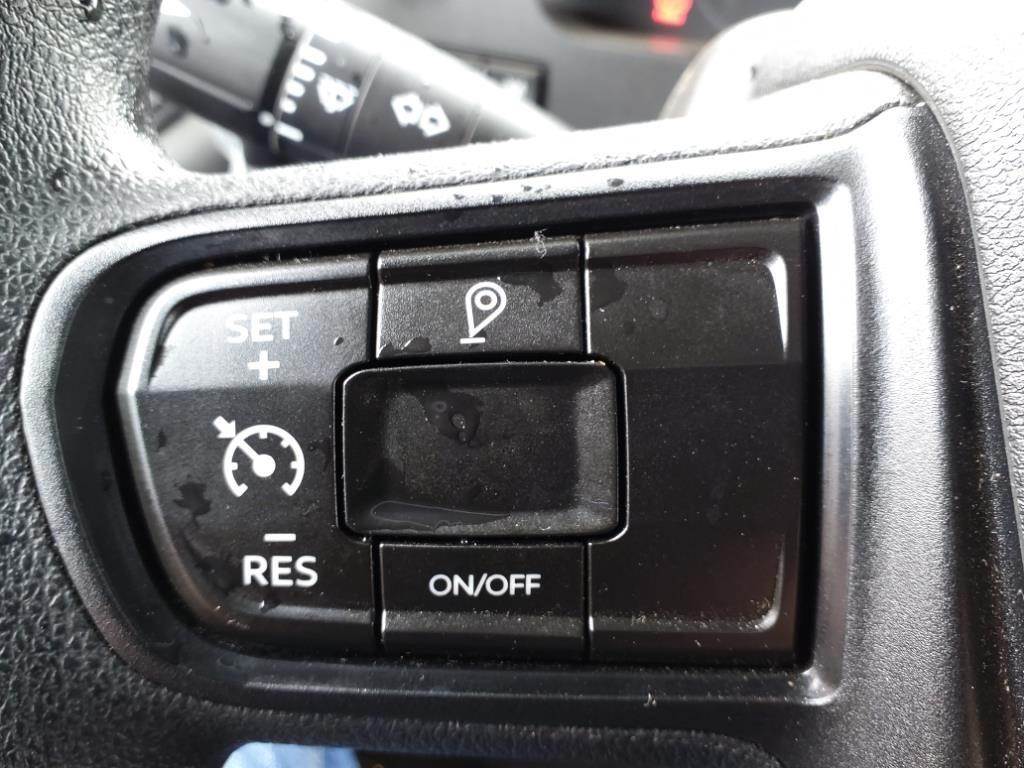

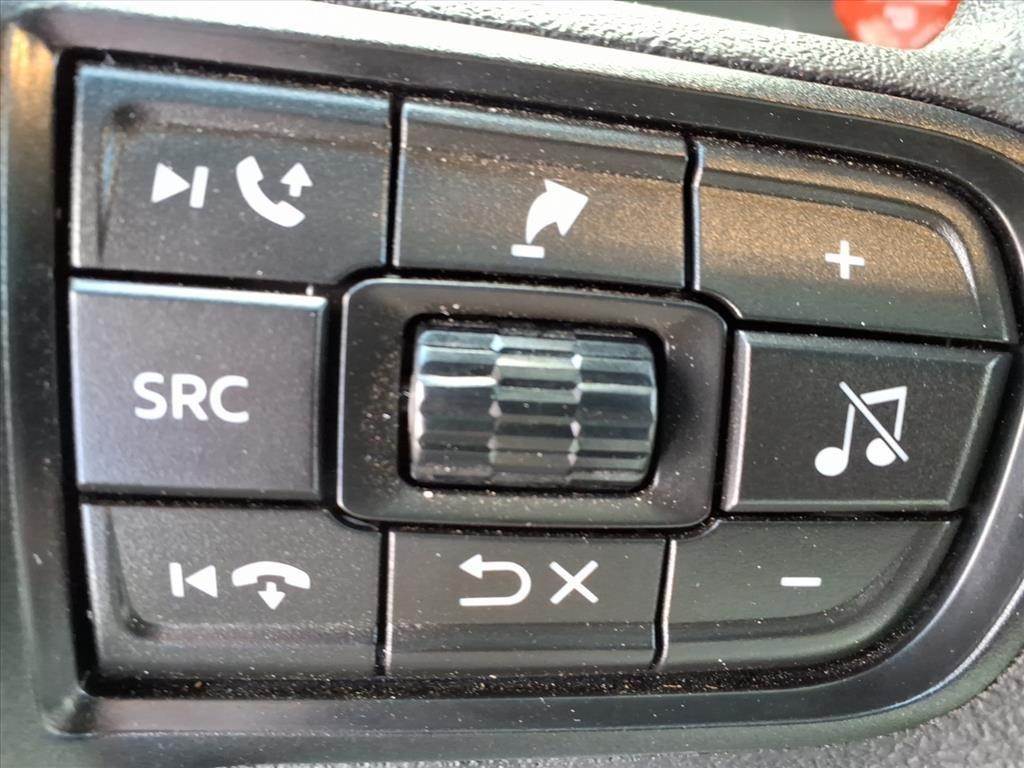

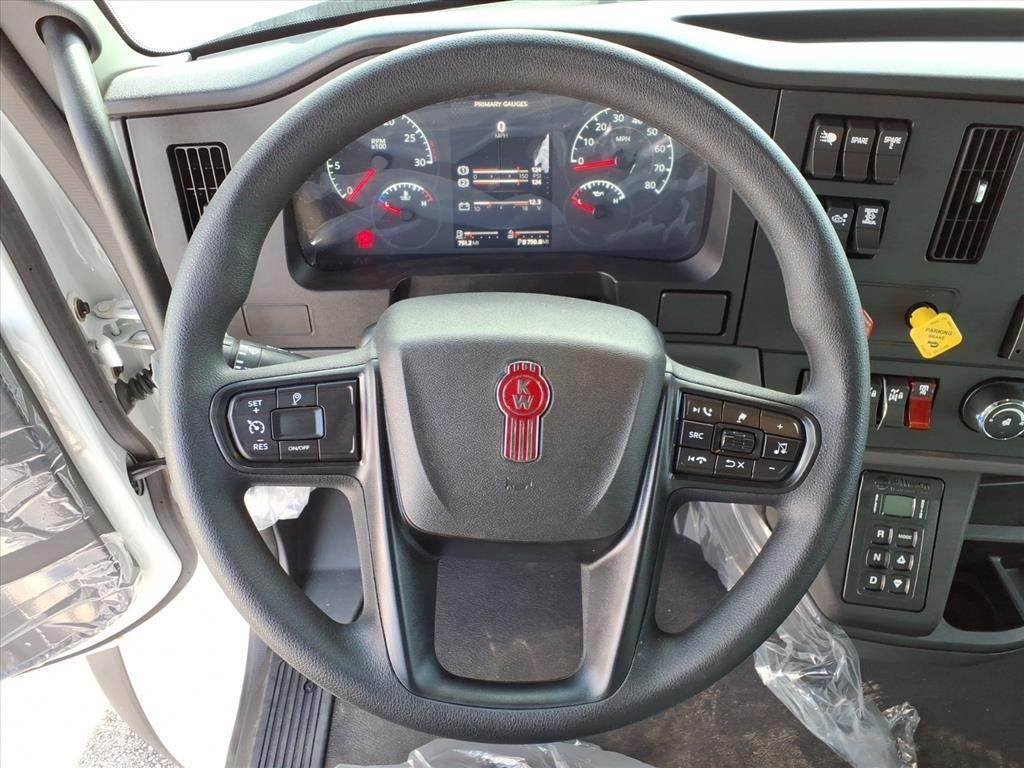

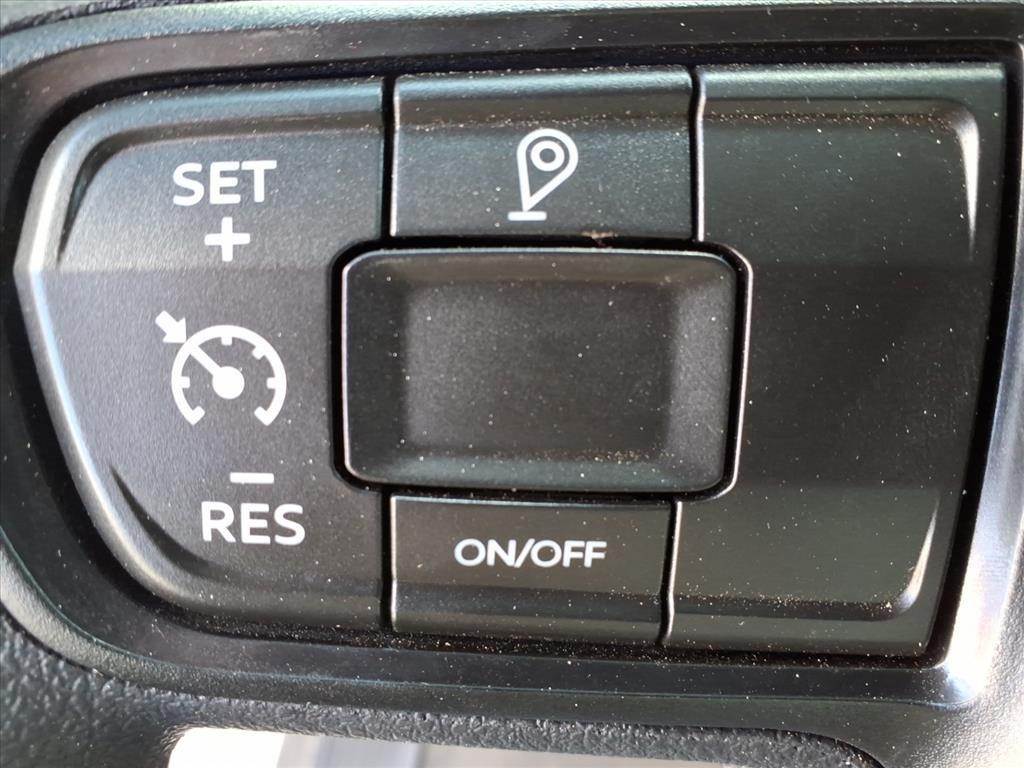

Kenworth Smart Wheel with integrated radio and cruise controls

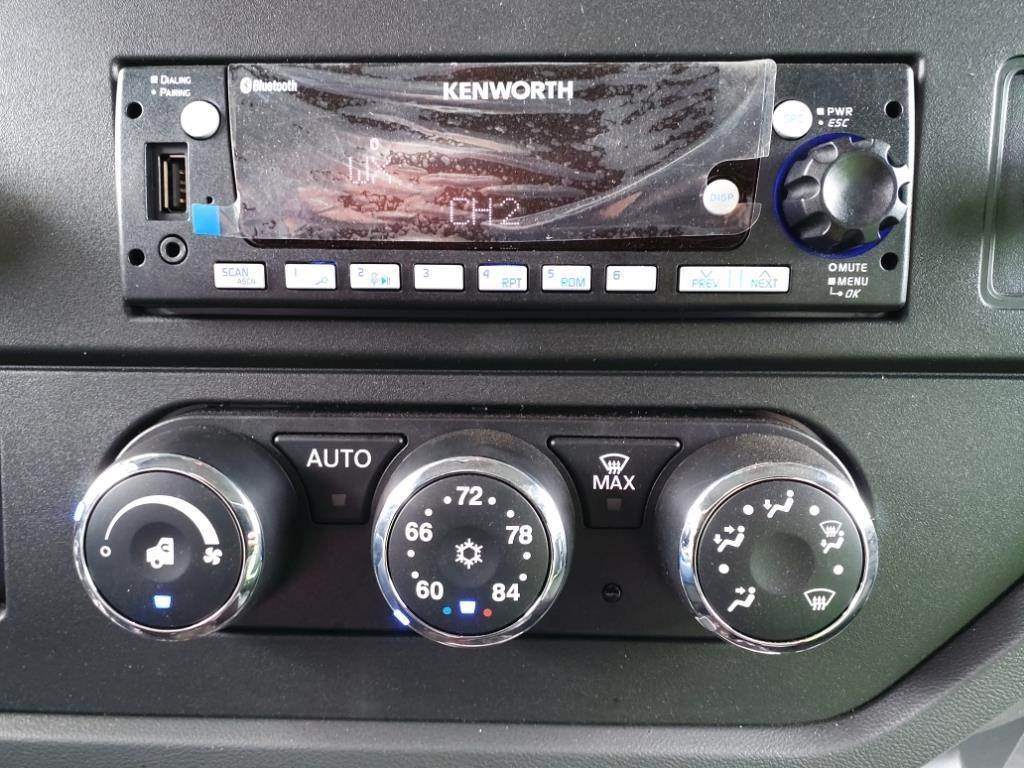

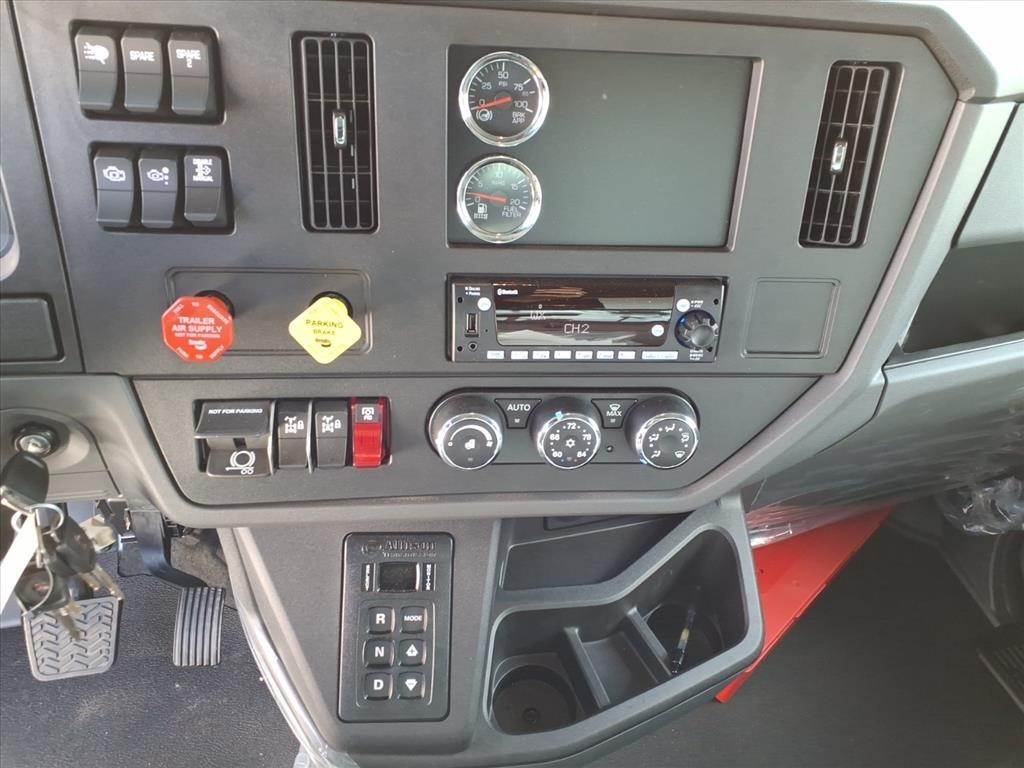

AM/FM/WB/USB radio with Bluetooth

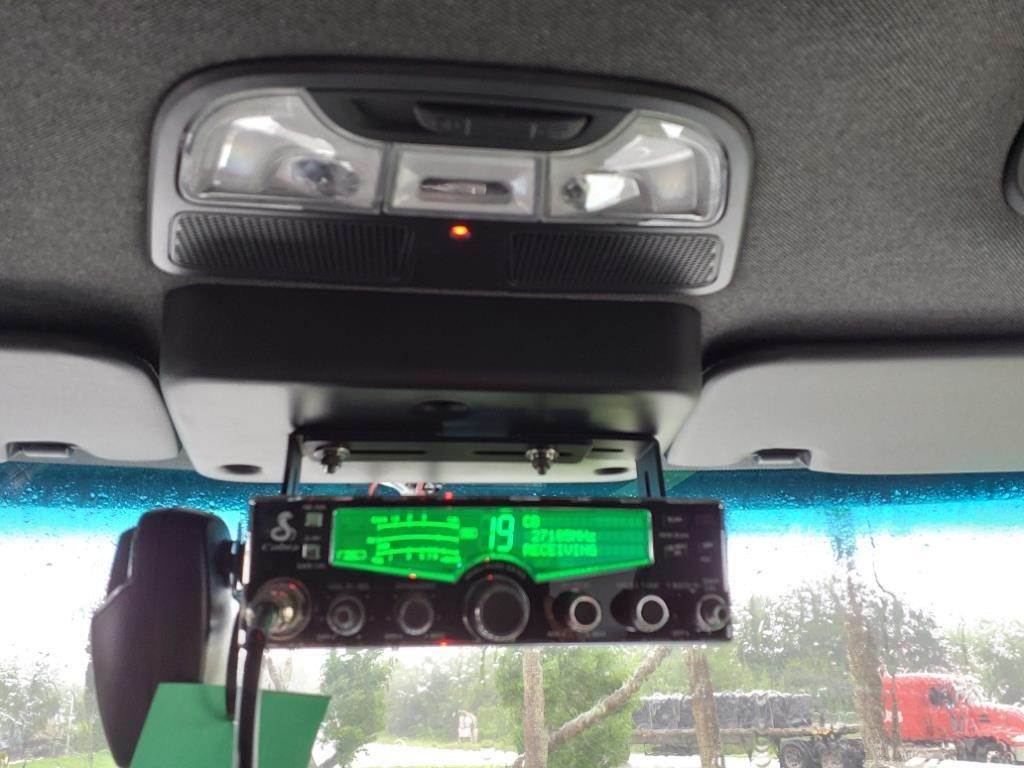

CB radio install kit with dual antenna
Air conditioning with auto temperature control
Heated and powered mirrors
Daytime running lights
Crosslock rear differential with cab control
Engine block heater (120V)
Battery disconnect switch
Jump start terminals

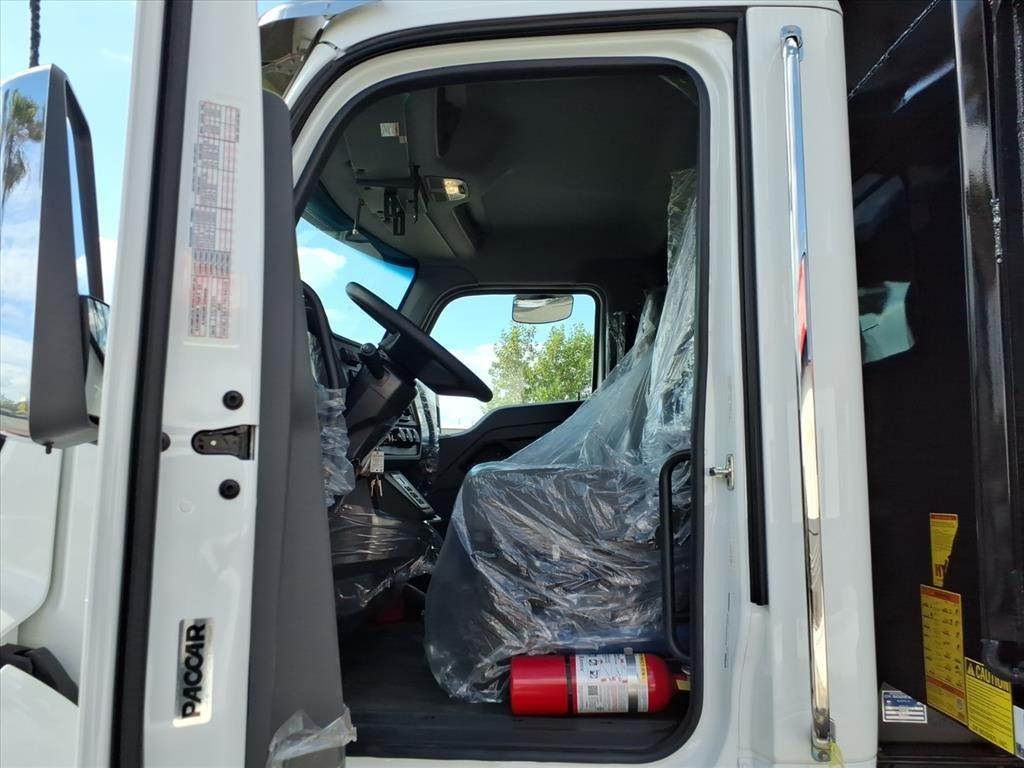

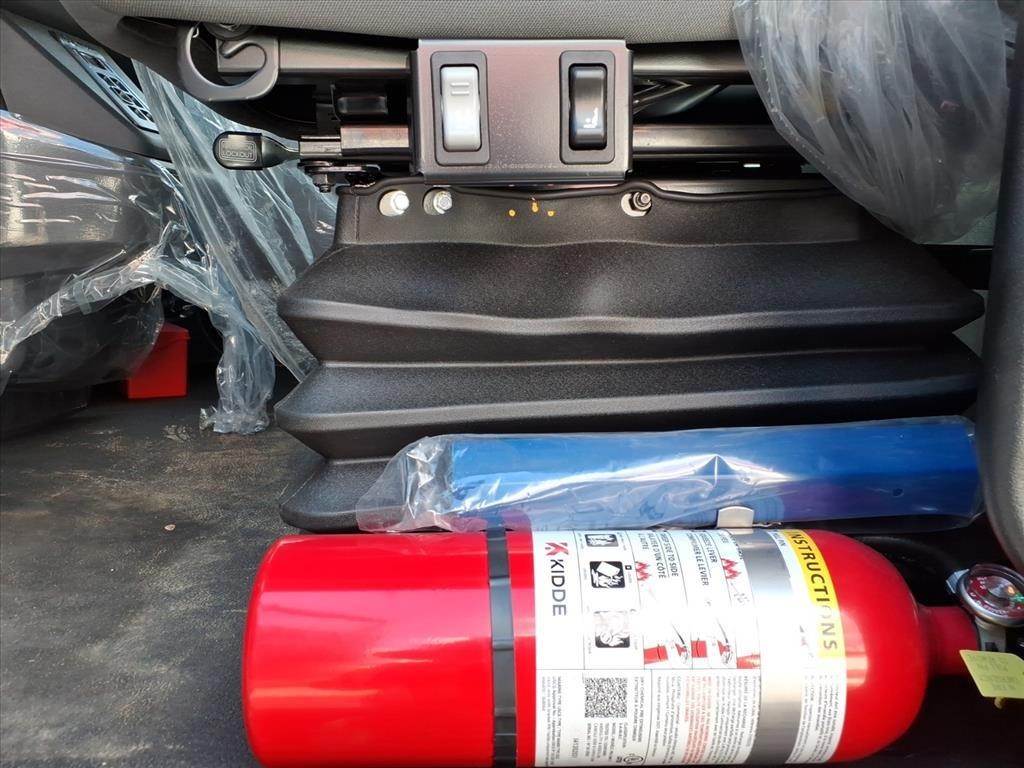

Fire extinguisher (5 lb dry chemical)
Warning triangle reflector kit
Exterior Chrome/Polished Items:

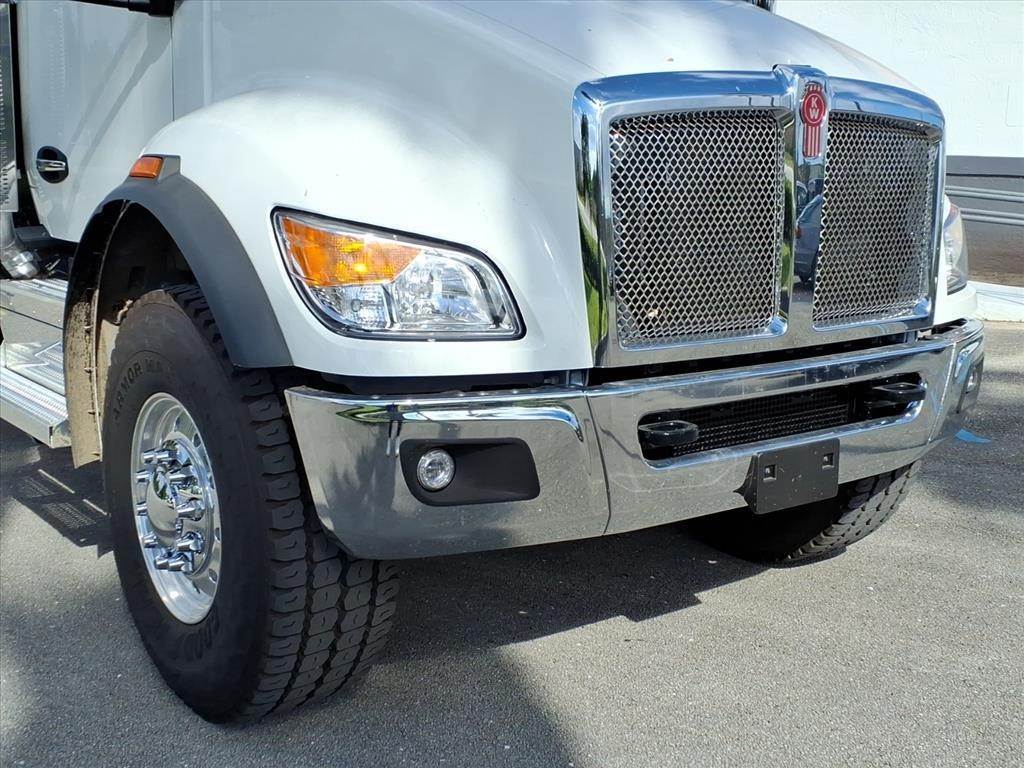

Chrome aerodynamic bumper
Polished fuel tank
Polished DEF tank cover
Polished fuel tank straps
Polished fuel tank steps
DPF/SCR box polished end plates and cover
Extra polished finish on front and rear wheels
Chrome hood crown
Chrome mirror shells
Exterior stainless steel sunvisor
Dual round chrome air horns

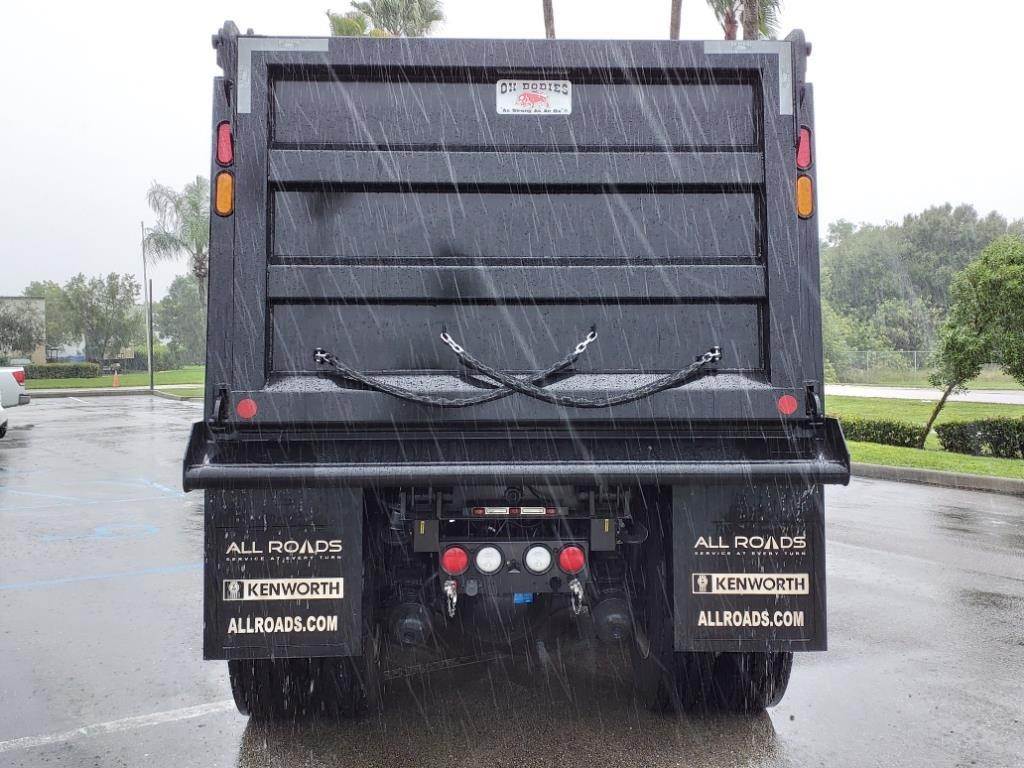

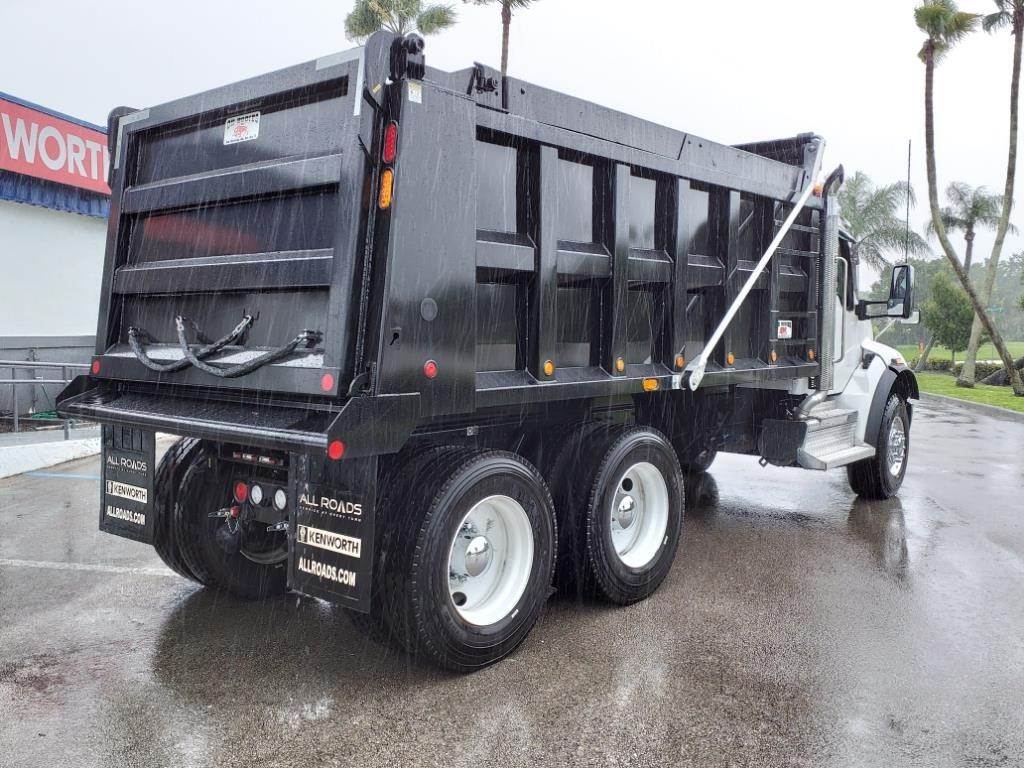

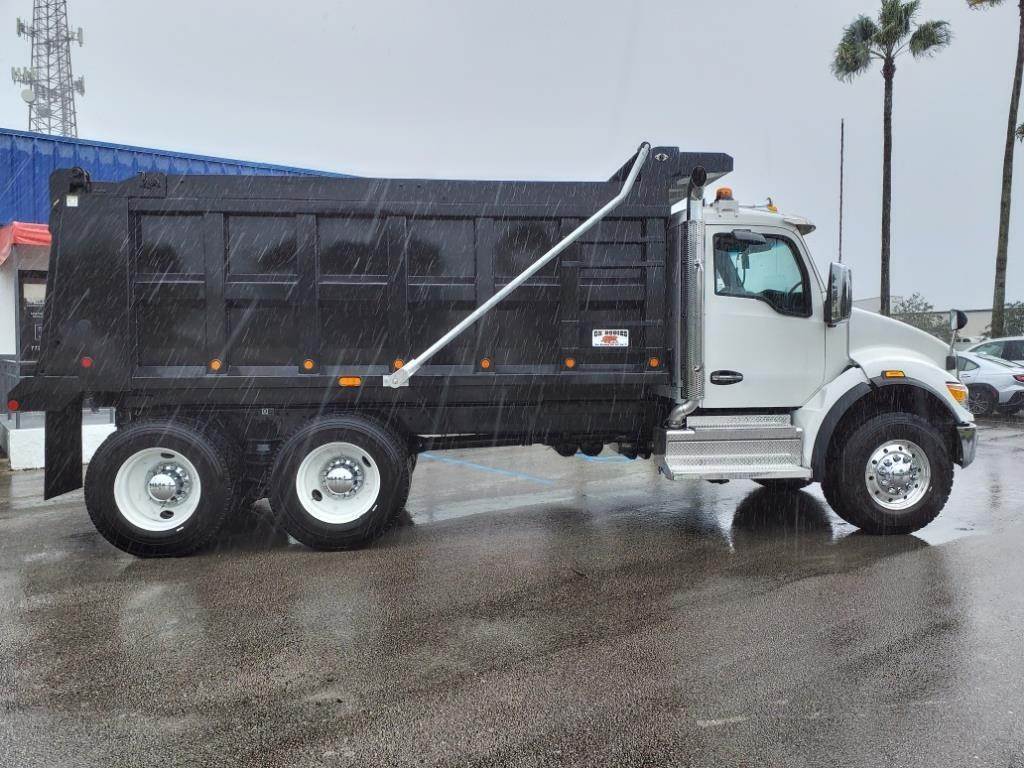

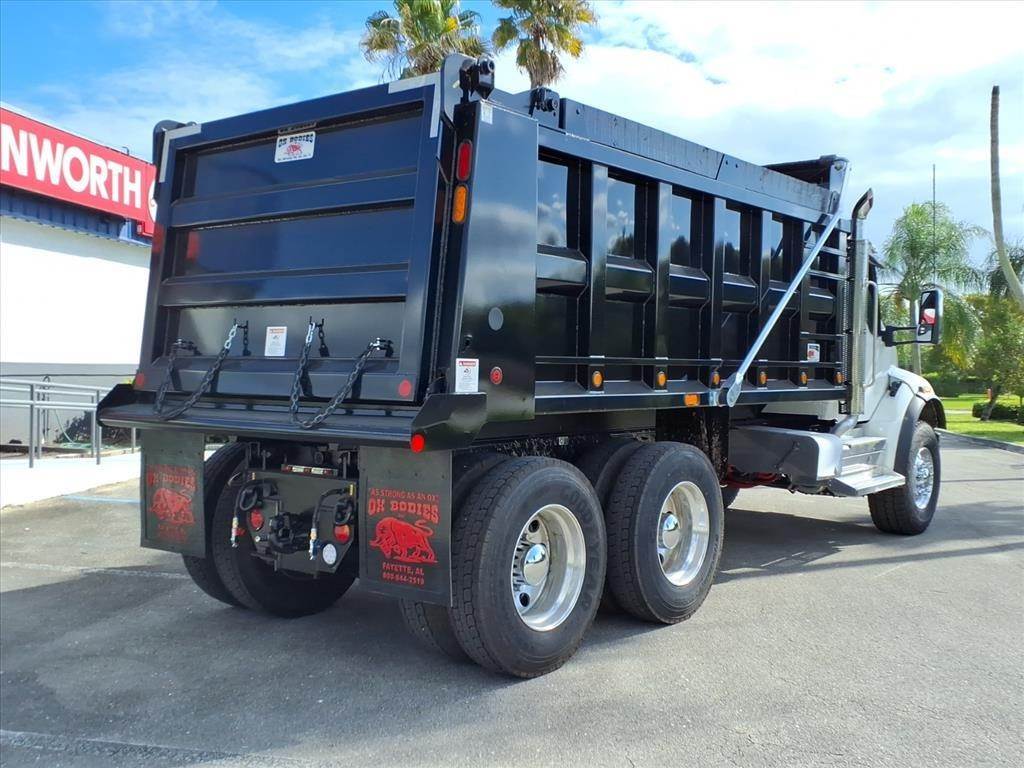

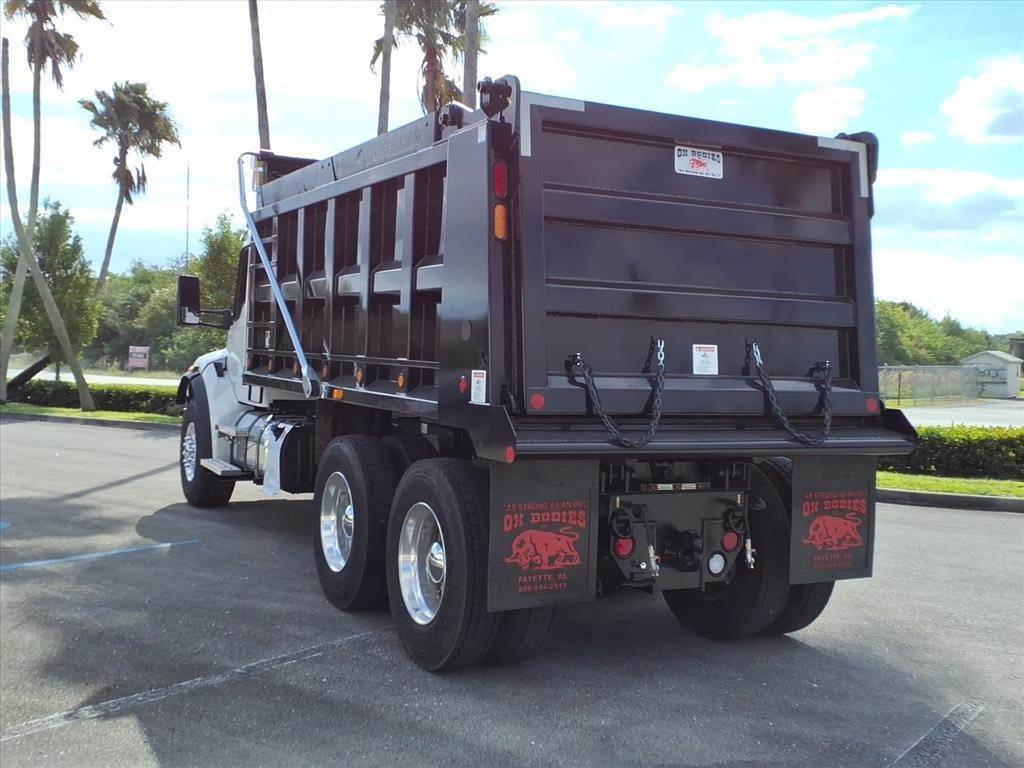

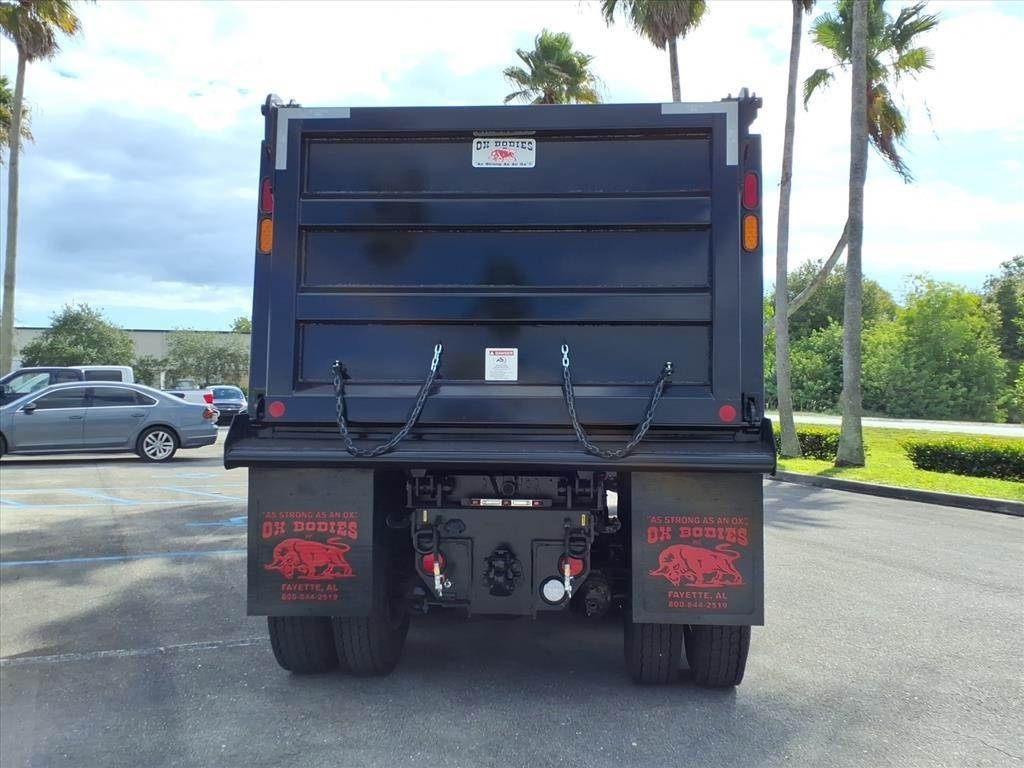

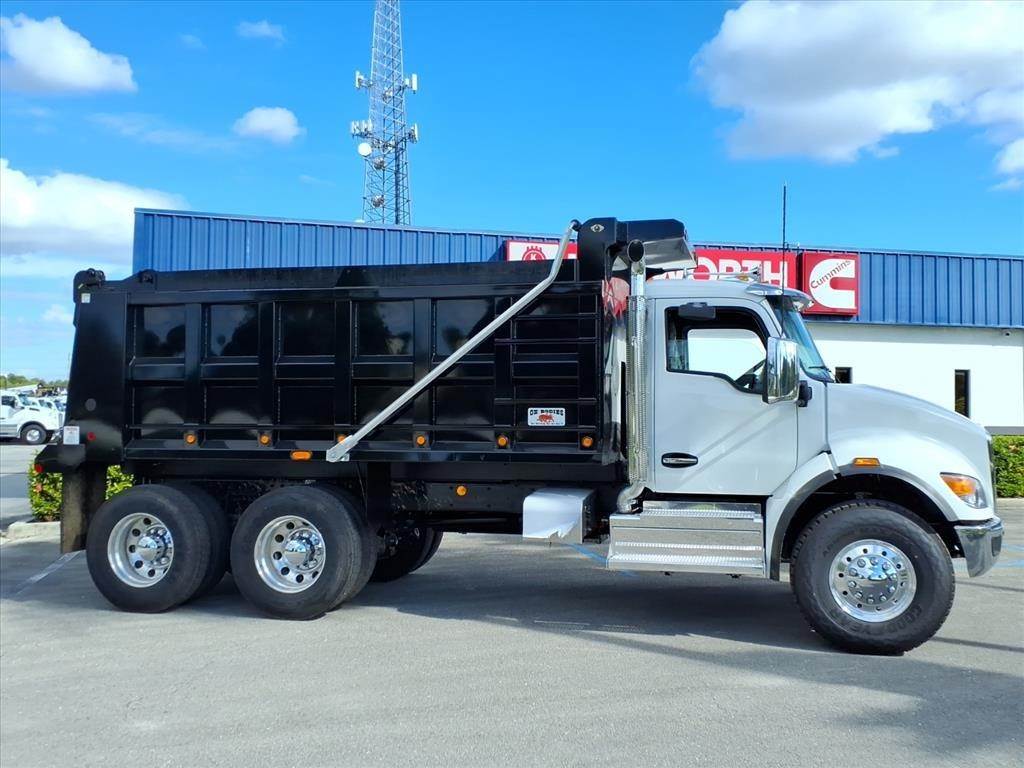

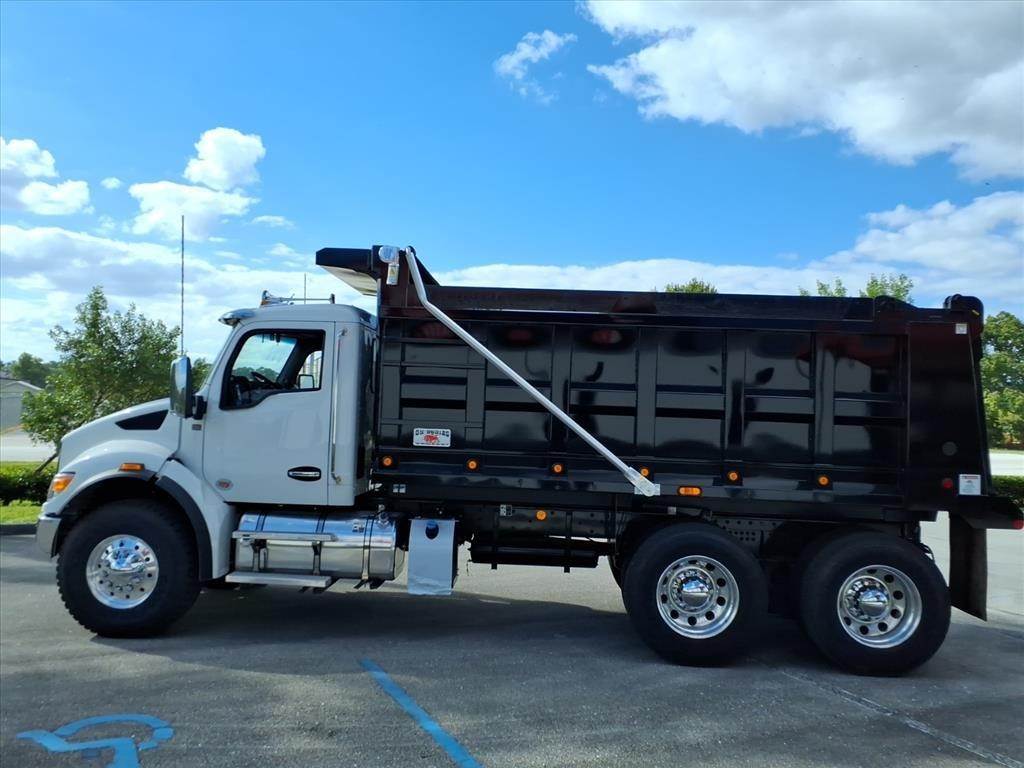

Model: OX Bodies Maverick 87 Series 16' Dump Body
Body Construction:
10-gauge A36 steel sides, 54" height
10-gauge A36 steel front, 56" height
3/16" A36 steel floor
7-gauge A36 steel tailgate, 60" height
Tube frame with channel crossmembers on 12" centers
4" x 4" x .120" wall top rail (standard)
Full horizontal side braces and line posts
6" slanted rear with air-operated high lift tailgate
Heavy duty 10" dump apron
Narrow centered cab shield, 24" projection x 72" width
Mountain style tarp system with electric operation
Hydraulic System:
74133 series telescopic hoist (standard)
Nestled pyramid flat bottom hydraulic reservoir
Allison 4500 series PTO system (6610)a
Auto Shift G102-D1-2.0 hydraulic pump with rotation
Electric shift PTO controls with air shift pump

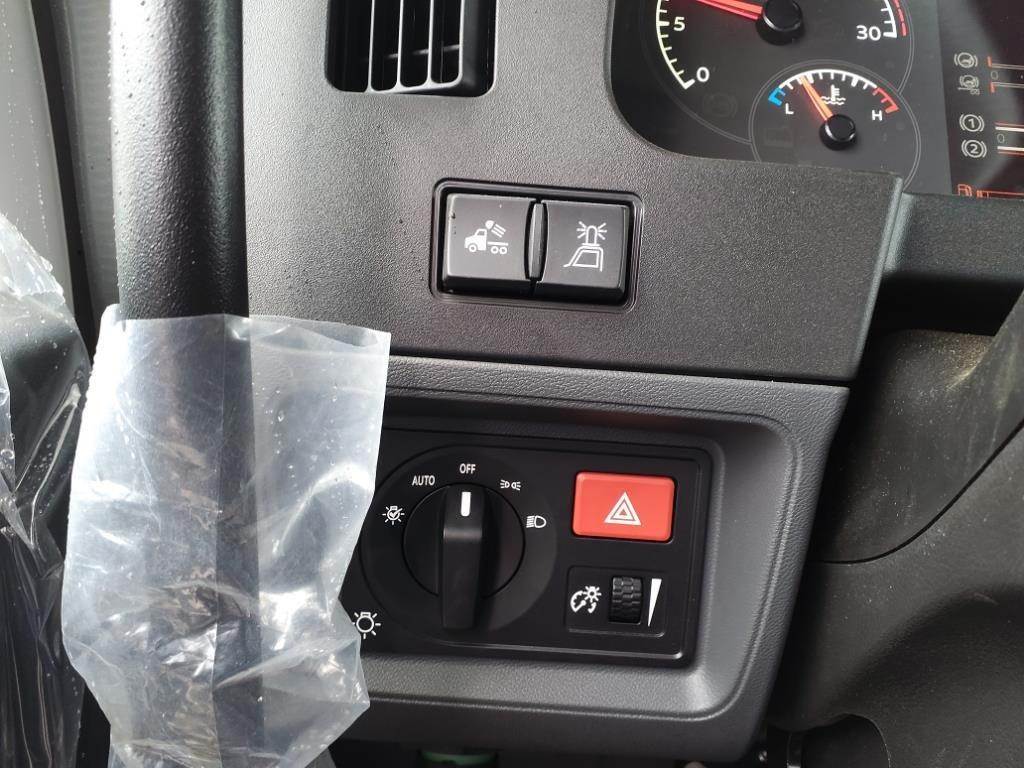

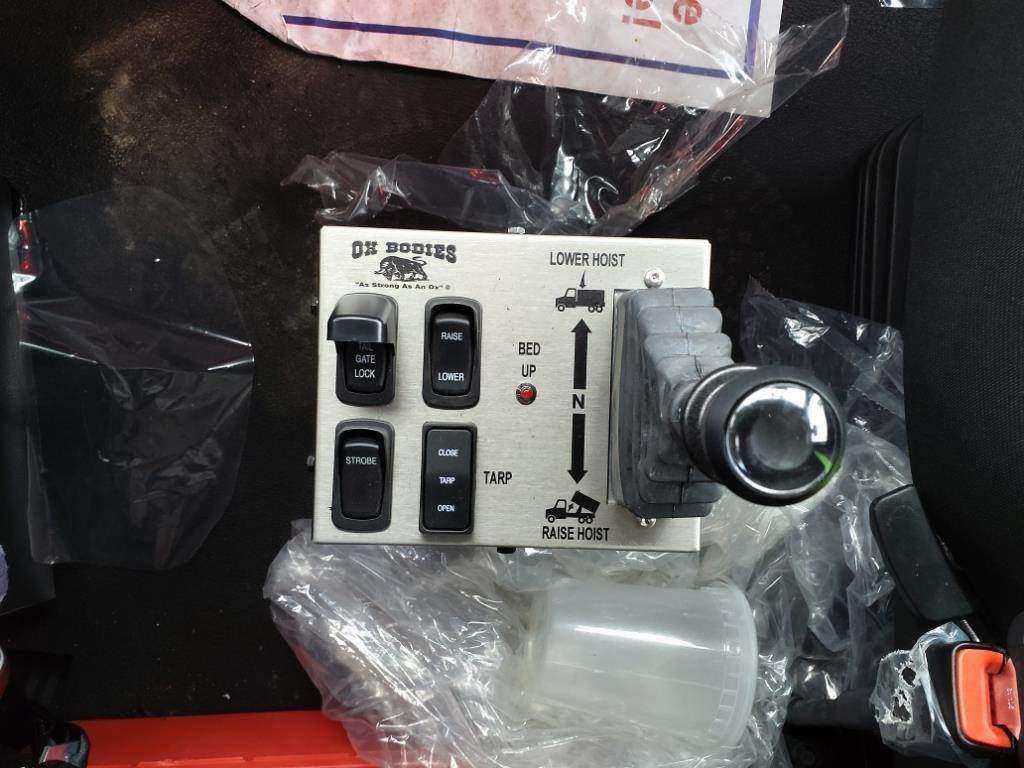

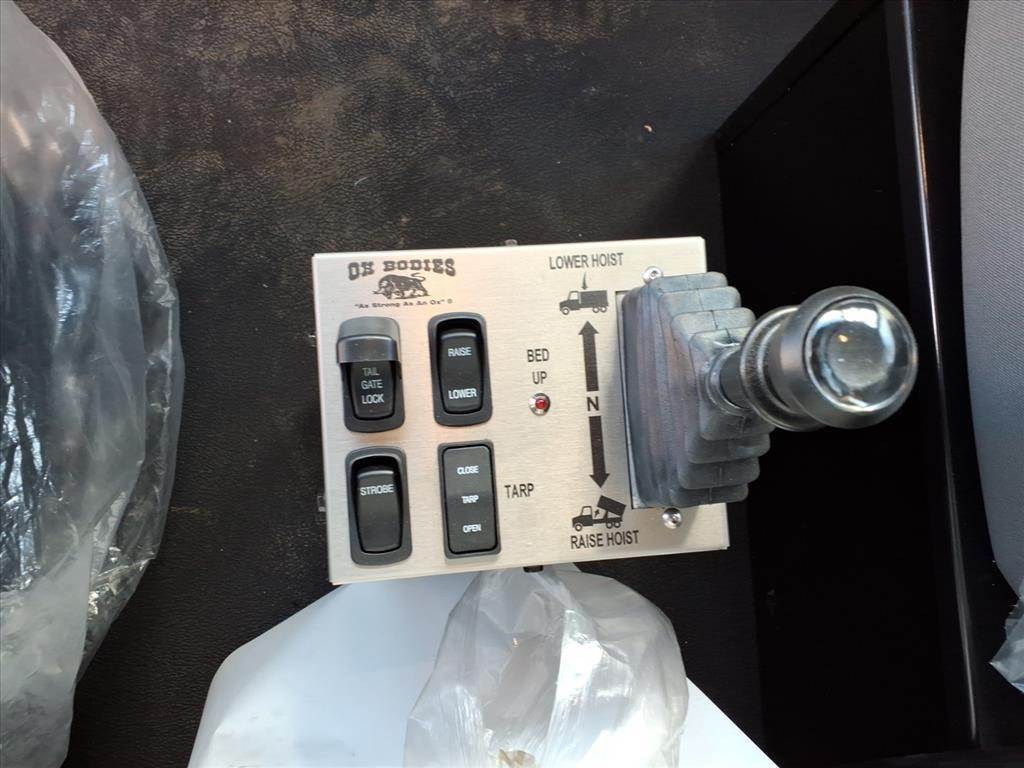

In-cab electric/air controls
Safety Features:
Single body prop
Air operated high lift tailgate system
Reversing alarm
LED lighting package including:
2 cab shield oval clearance lights
Mid-turn lights
Lower side lights
Rear oval and Metrotech lights
Safety strobe package
Additional Features:
8" hardwood side boards with 8" board holder height
36" Texas-style mud flaps
Steel gravel guards without flaps
5" exhaust turnout

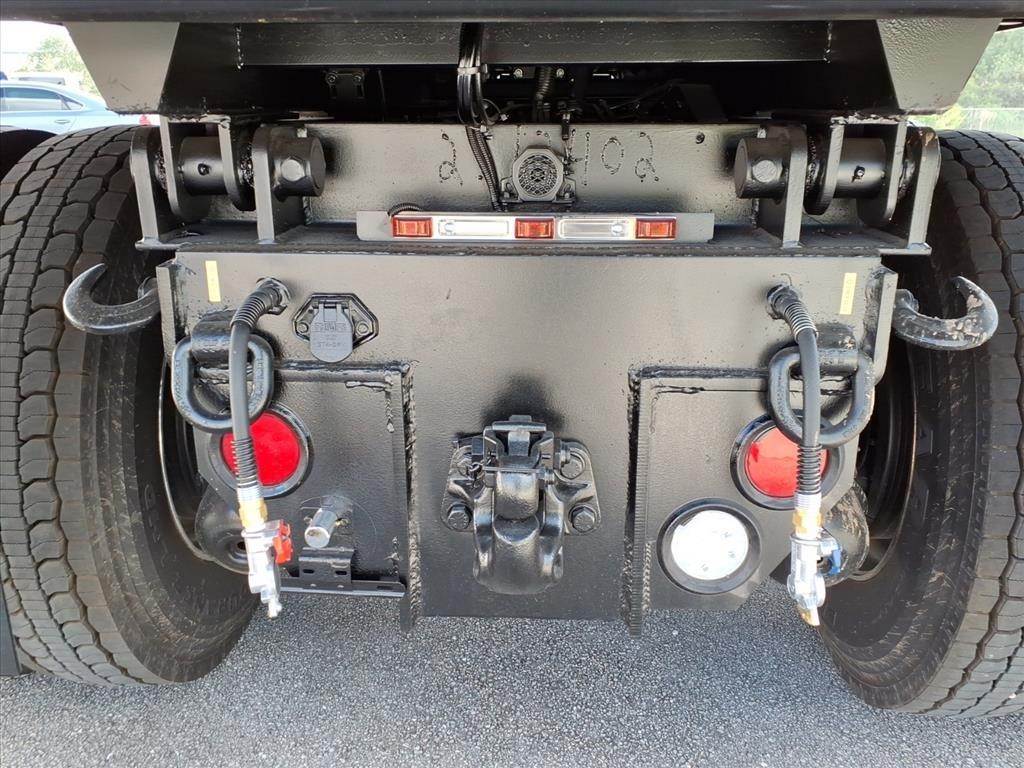

13,500 lb. rated rear tow hooks

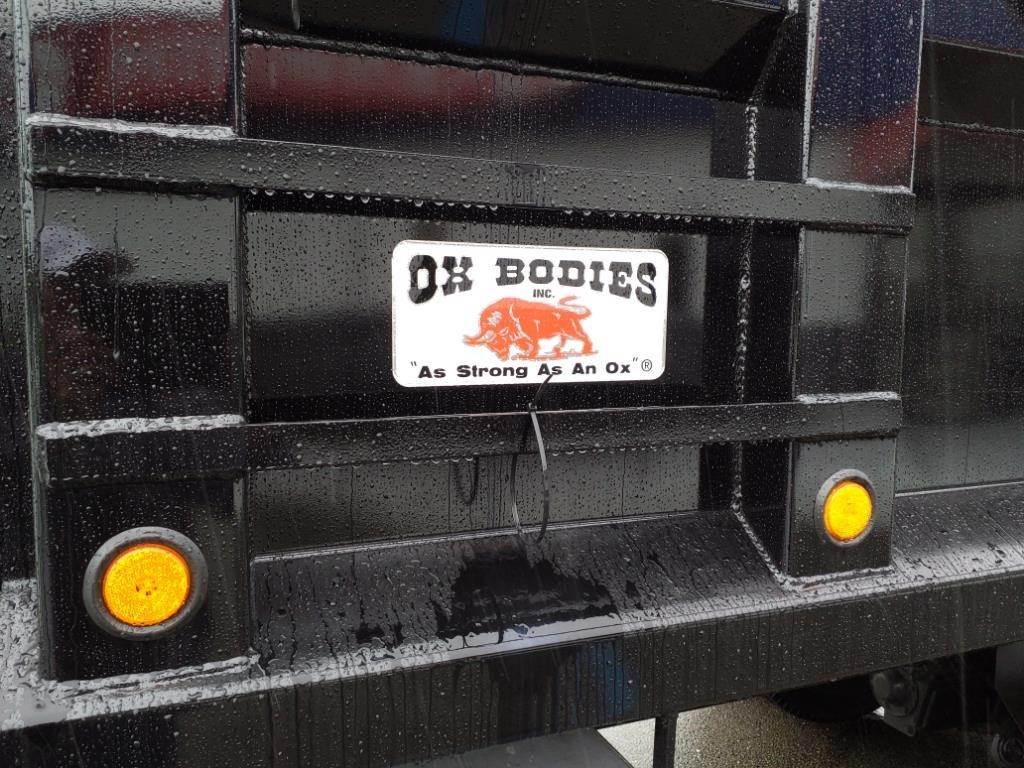

Standard OX logos and decals
Oval turn lights mounted behind tarp brackets on bottom rail
Installation Details:
Removable pin rear hinge design (no hitch plate)
Air-operated tailgate kit
All controls and wiring included
Full lighting package installed
