Product Description
Transfer this unit to your nearest South Florida location at no additional cost! Fort Lauderdale, Fort Pierce, Riviera Beach, or Naples. Contact us for details!
Model Year: 2026

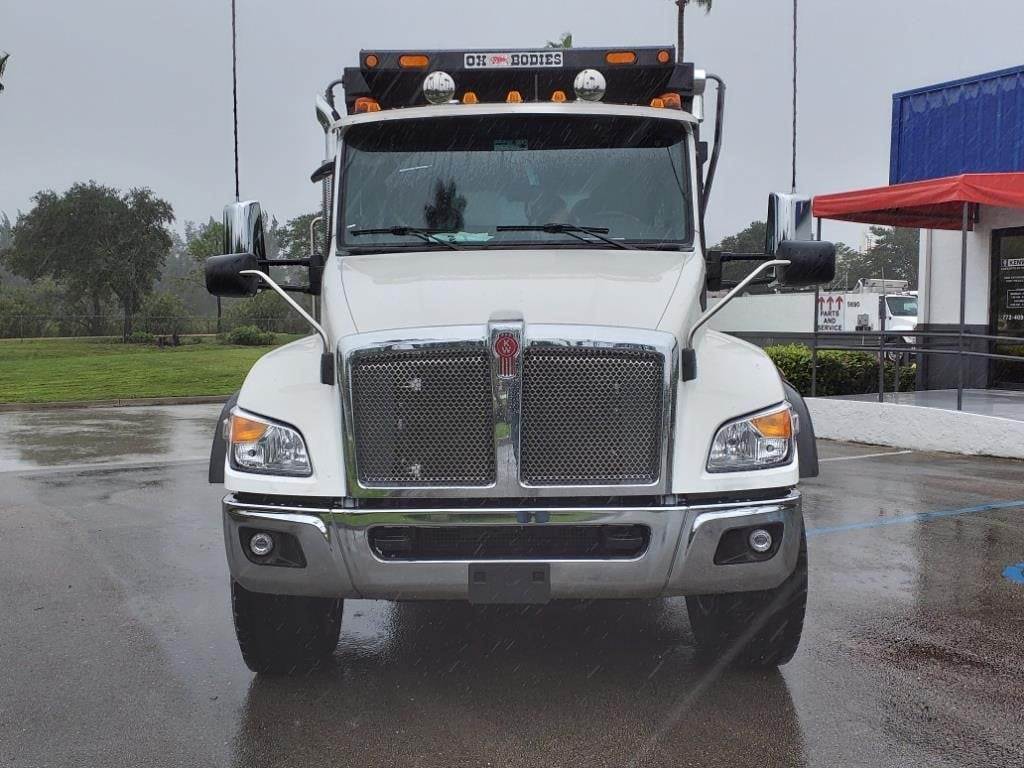

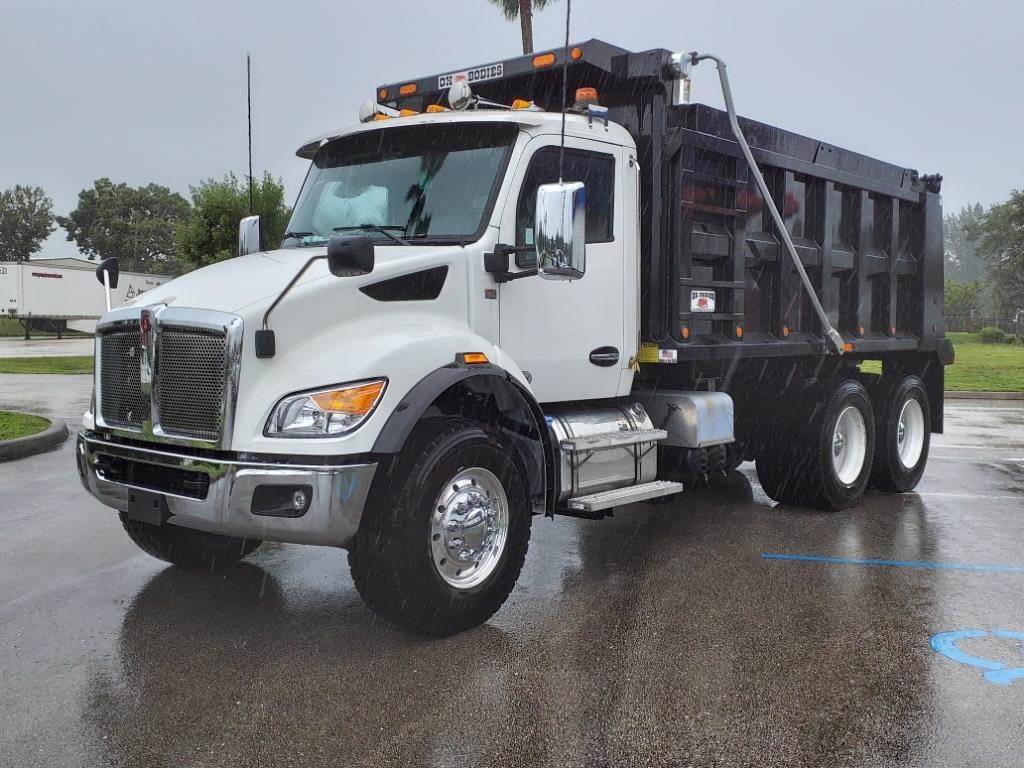

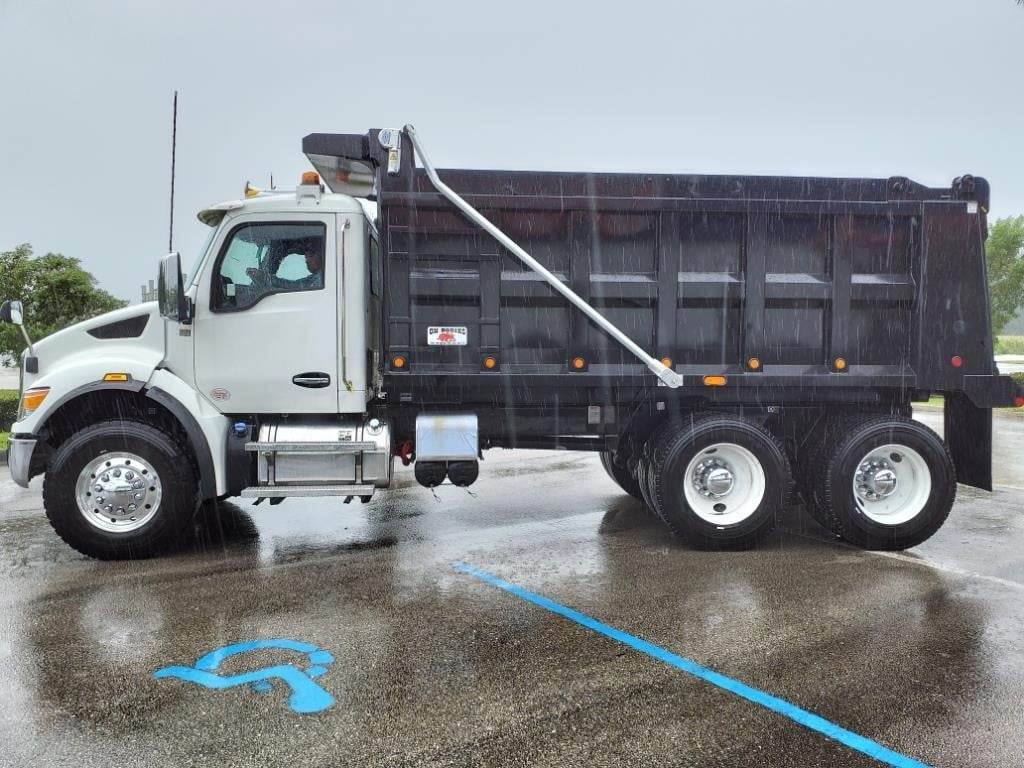

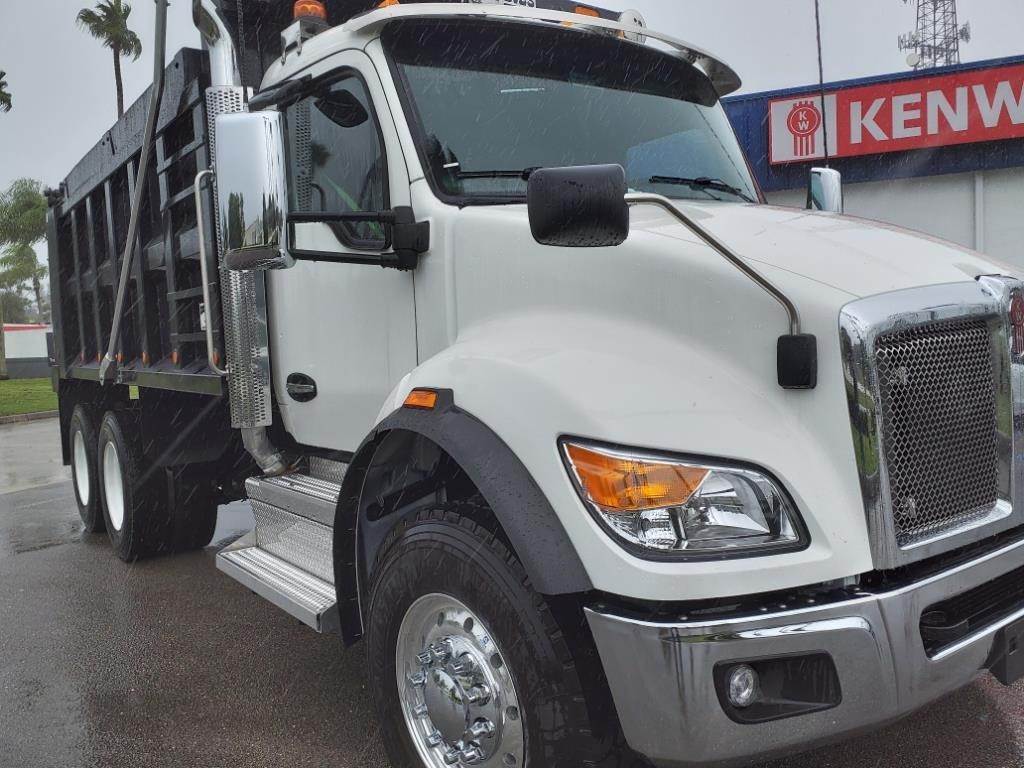

Model: T480
Exterior Color: White (L0006EY)
Interior Trim Level: 2.1M Medium Duty with Gray Foam Backing Cloth Headliner
Interior Color: Gray
Engine: PACCAR PX-9, 370 horsepower @ 1600 RPM, 1250 lb-ft torque @ 1200 RPM, Turbo Exhaust Brake

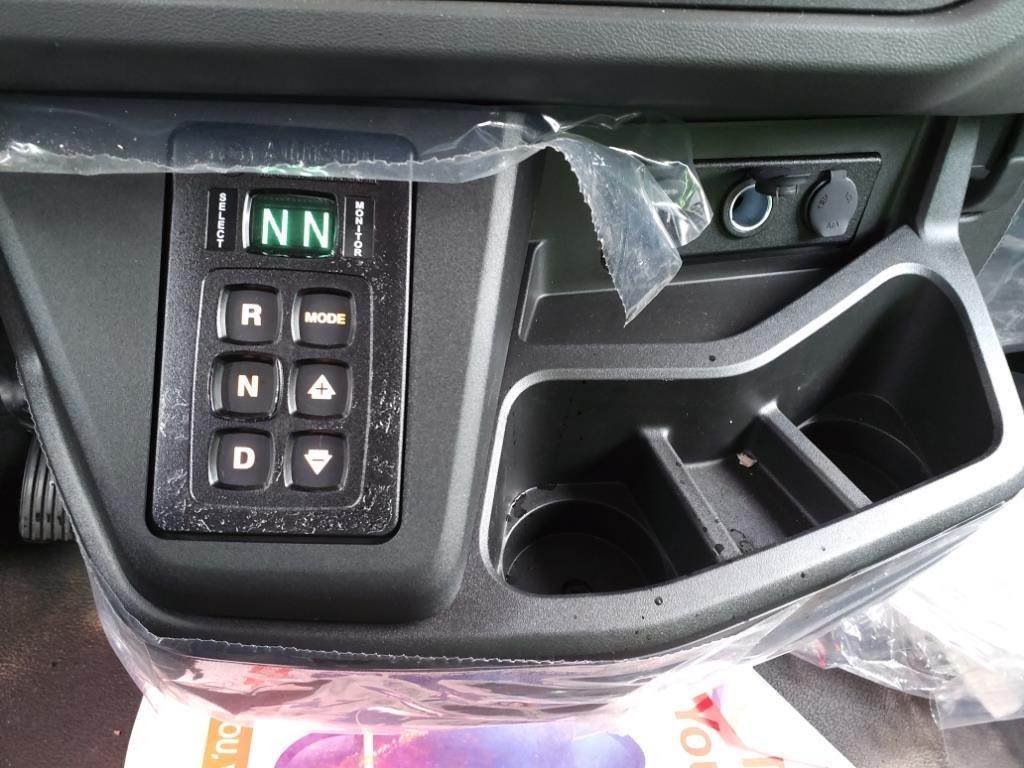

Transmission: Allison 3000RDS 6-speed automatic with PTO
Front Axle: Dana Spicer D2000, 20,000 lbs
Rear Axle: Meritor RT46-160P, 46,000 lbs dual
Front Suspension: Taperleaf 20,000 lbs with shocks
Rear Suspension: Henderson HaulmaaxEX (HMX) 460, 46,000 lbs dual, 54" spread with shocks
Gross Vehicle Weight Rating (GVWR): 66,000 lbs
Wheelbase: 208 inches
Cab-to-Axle: 138.5 inches
Rear Axle Ratio: 5.38
Brakes: Front and rear Bendix drum brakes

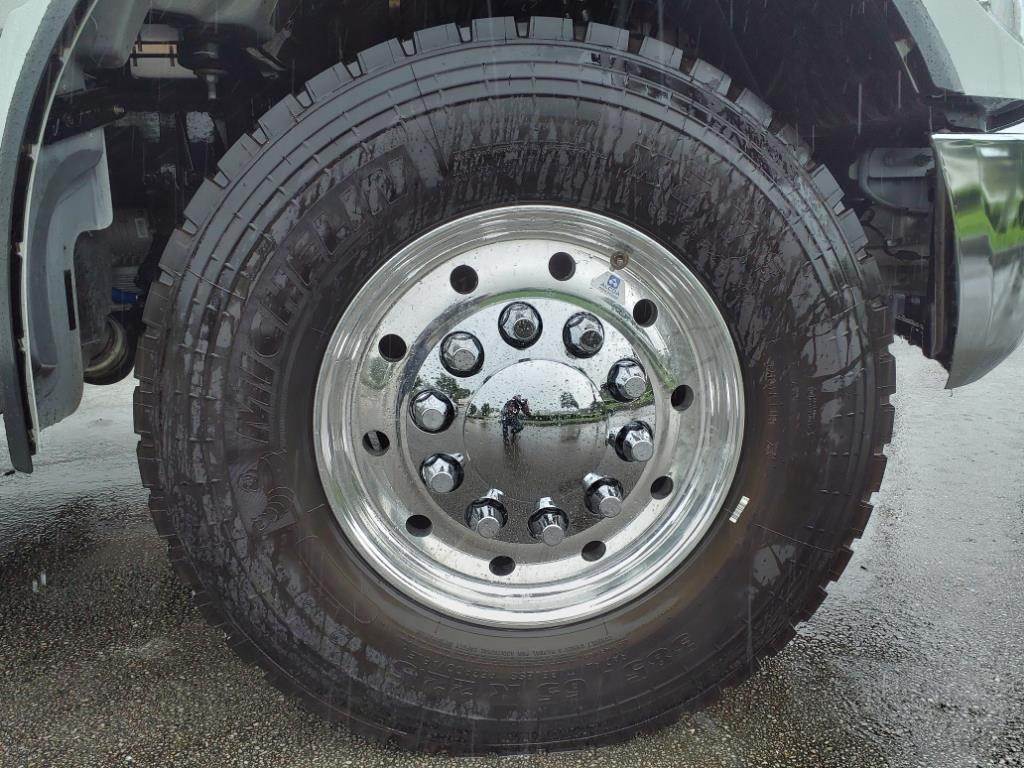

Front Wheels: Accuride 29374, 22.5x12.25, aluminum, polished both surfaces
Rear Wheels: Accuride 42362, 24.5x8.25, aluminum, polished both surfaces (quantity 8)
Front Tires: Goodyear ArmorMax MSA 425/65R22.5 20PR

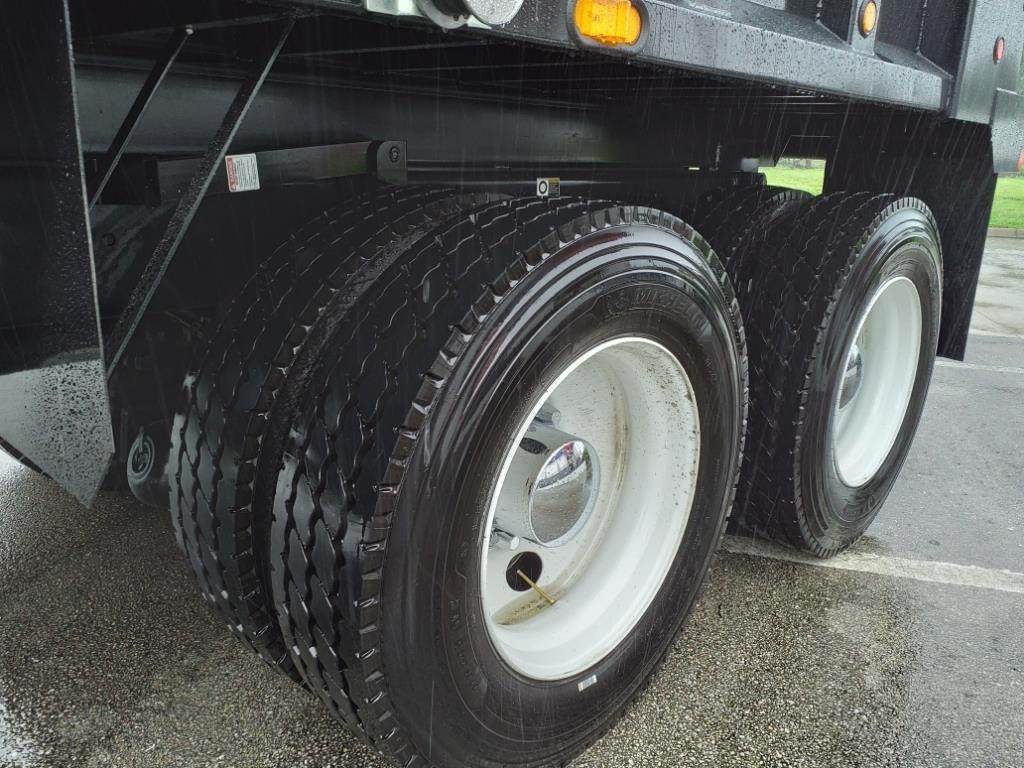

Rear Tires: Goodyear Endurance LHD 11R24.5 14PR (quantity 8)
Fuel Tank: 80 gallon aluminum D-shape, polished with polished straps and polished steps
DEF Tank: 15 gallon large capacity with polished cover

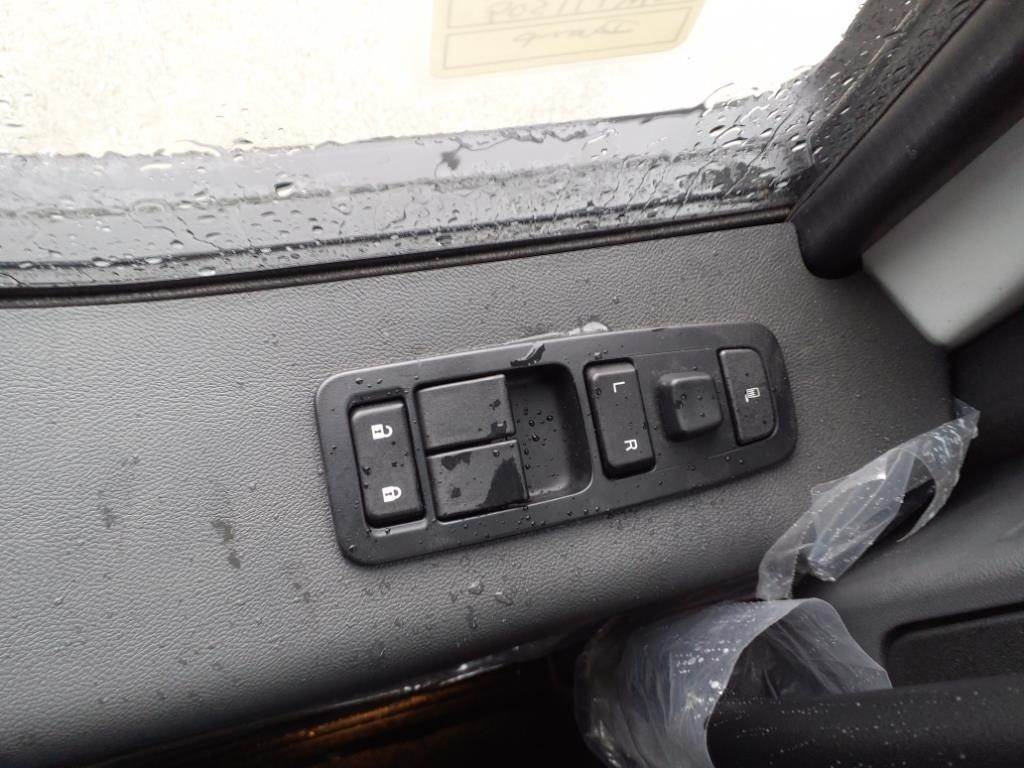

Power door locks
Power windows
Tilt and telescoping steering column

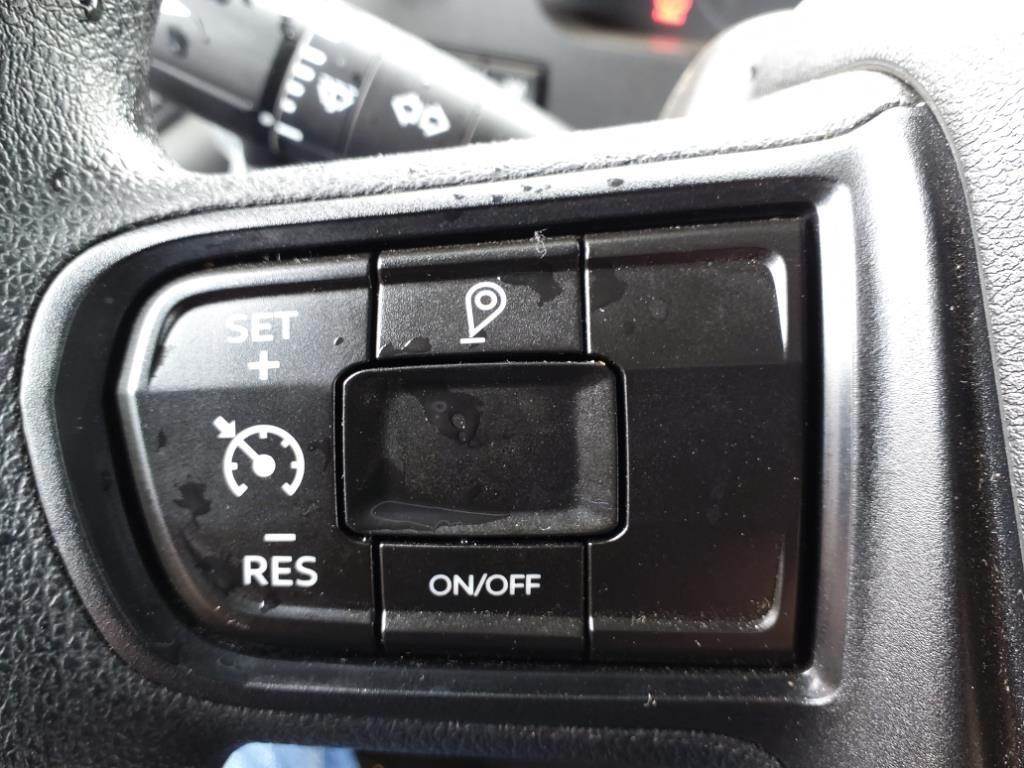

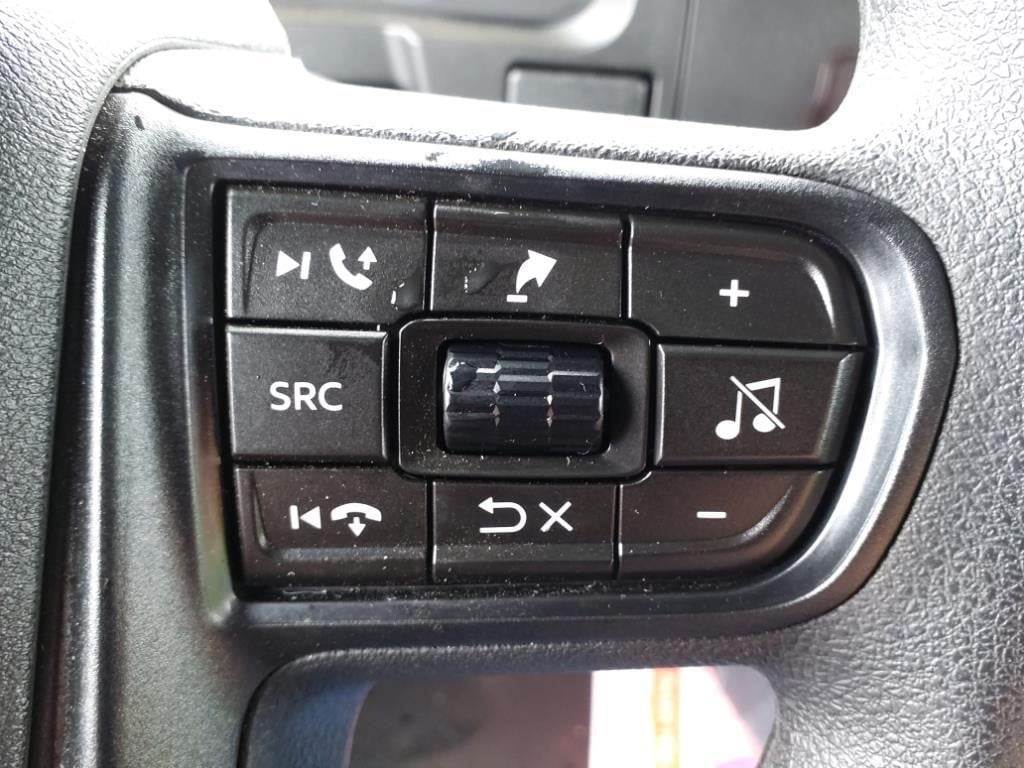

Kenworth Smart Wheel with integrated radio and cruise controls

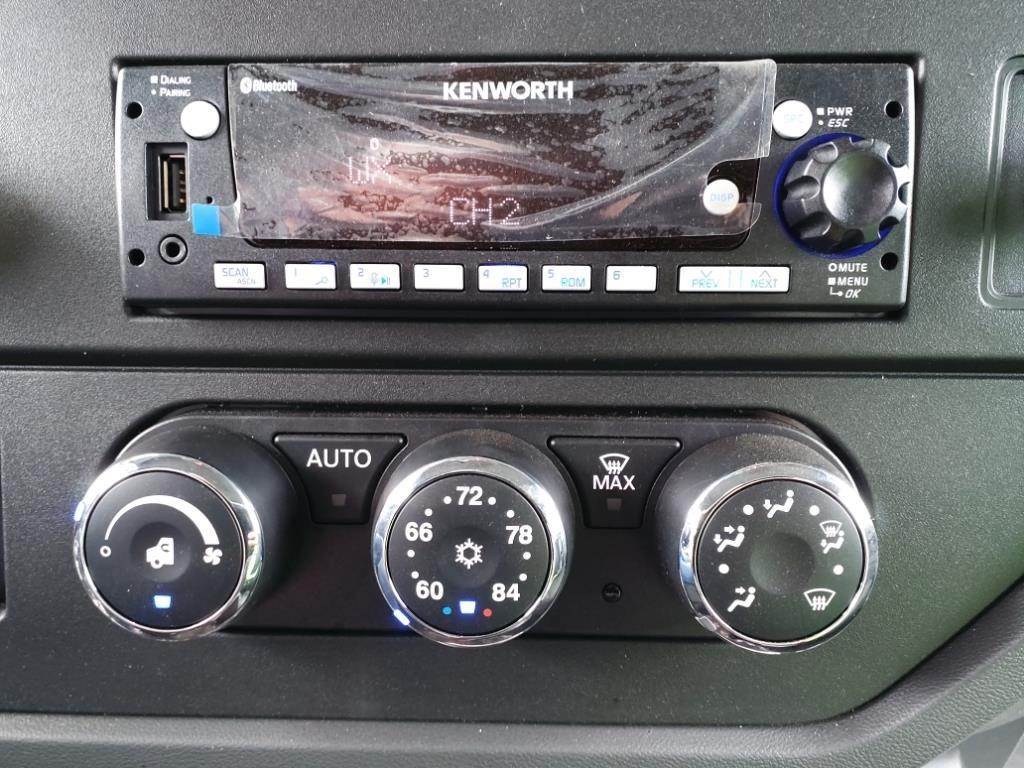

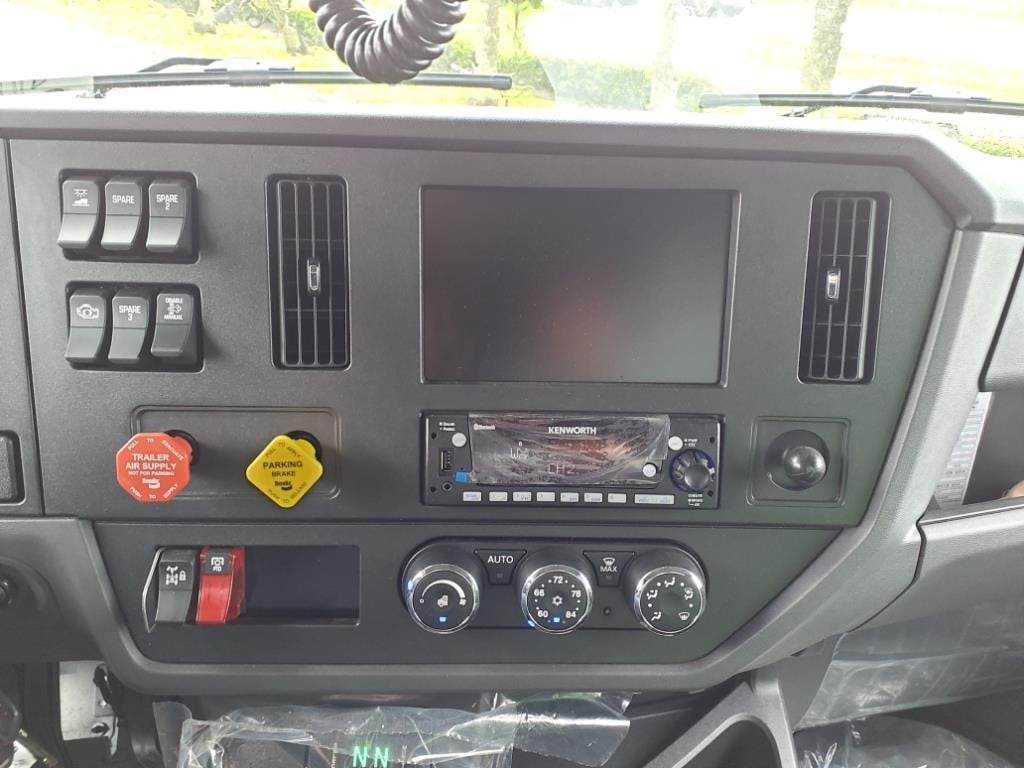

Kenworth Radio DEA710 AM/FM/Weather Band/USB with Bluetooth

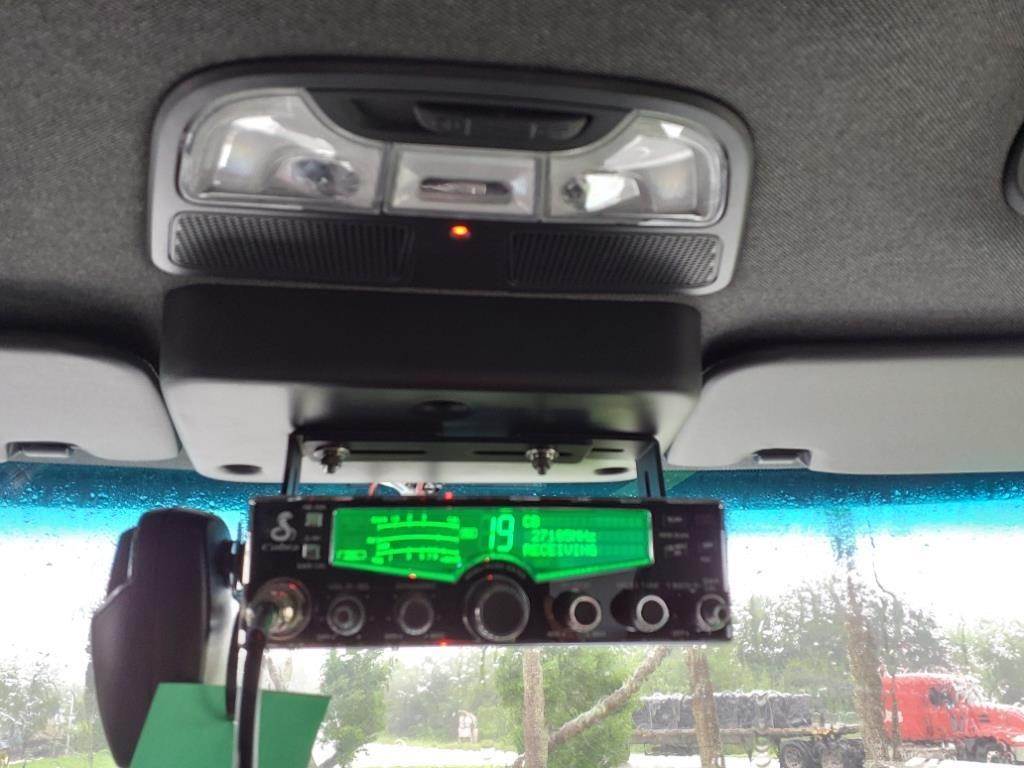

CB radio installation kit with dual antennas in mirrors
Heated power mirrors with integral convex mirrors in chrome shells

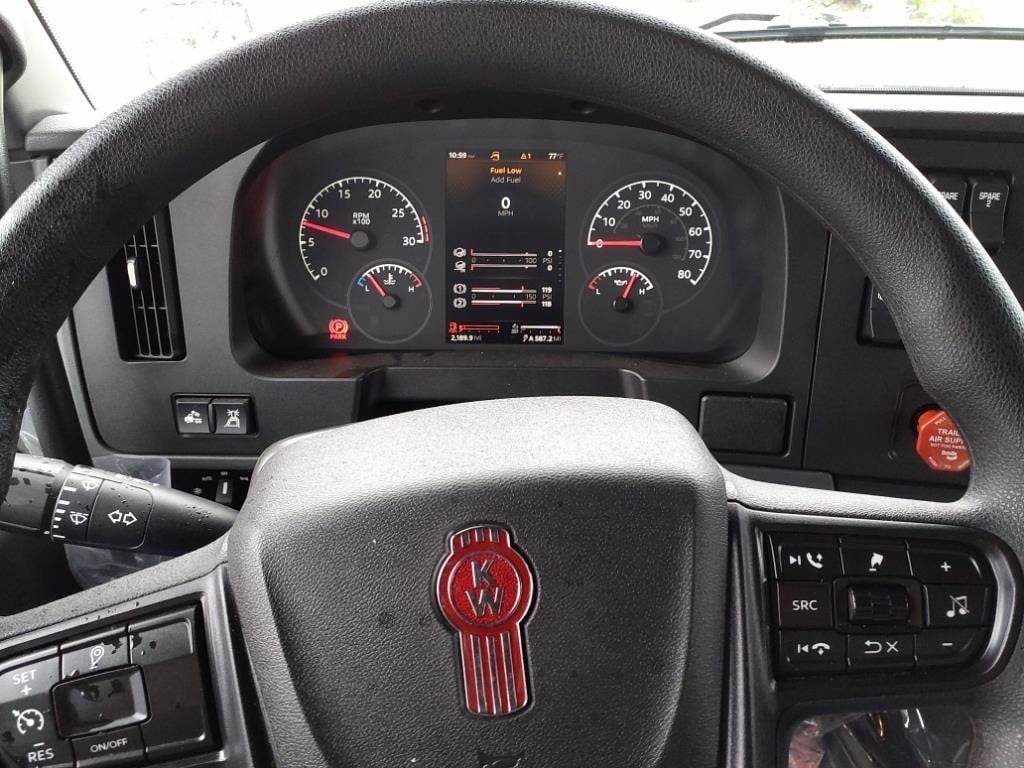

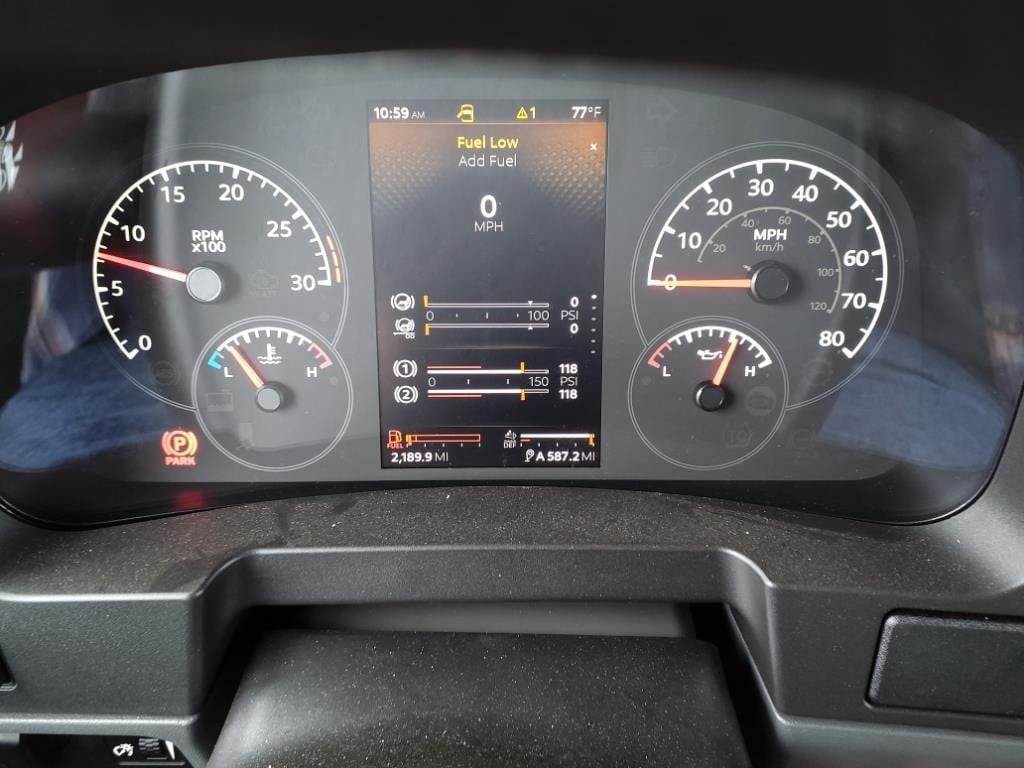

7-inch digital display main instrument package
Air conditioning with automatic temperature control

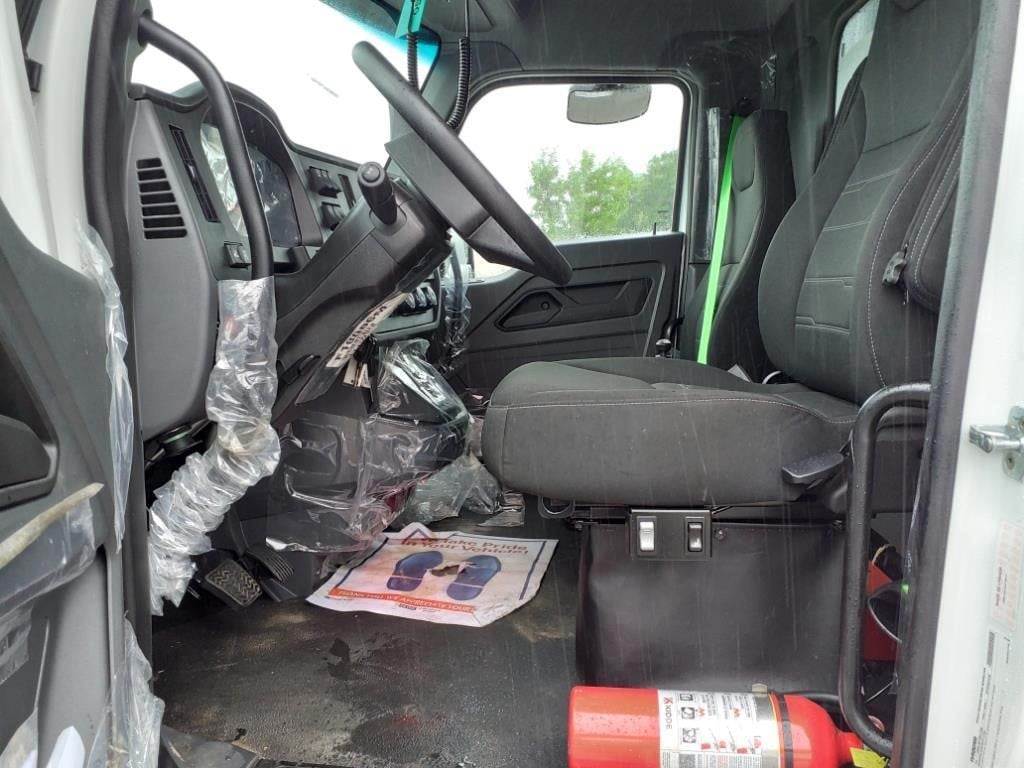

Driver seat: Kenworth air seat, high back, tough cloth, dual armrests with cover
Passenger seat: Kenworth toolbox seat, high back, tough cloth, dual armrests
Kenworth TruckTech+ with 5-year subscription (remote diagnostics)
Engine block heater
Chrome aerodynamic steel bumper
Medium Aero hood with chrome crown
Stainless steel exterior sunvisor
Polished DPF/SCR box end plates and cover
Dual round air horns
Raised profile stamped aluminum roof with additional headroom and interior overhead storage
Kenworth cab air suspension
Full steel frame inserts / Double frame
Crosslock rear differential with cab control
120V engine block heater
Global telematics unit
Anti-siphon device for fuel tank filler neck
Body builder harness coiled at end of frame
Fire extinguisher: 5 lb dry chemical, Class ABC
Warning triangle reflector kit
Bendix AD-HF heated air dryer with Puraguard
ABS: Bendix 4S/4M

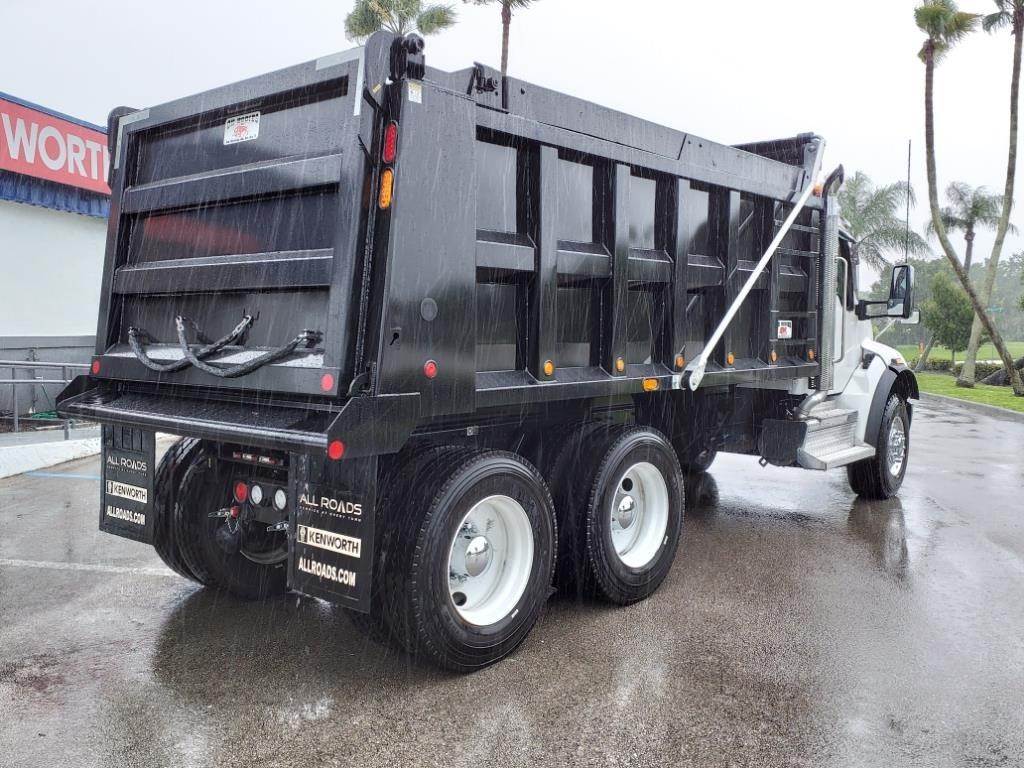

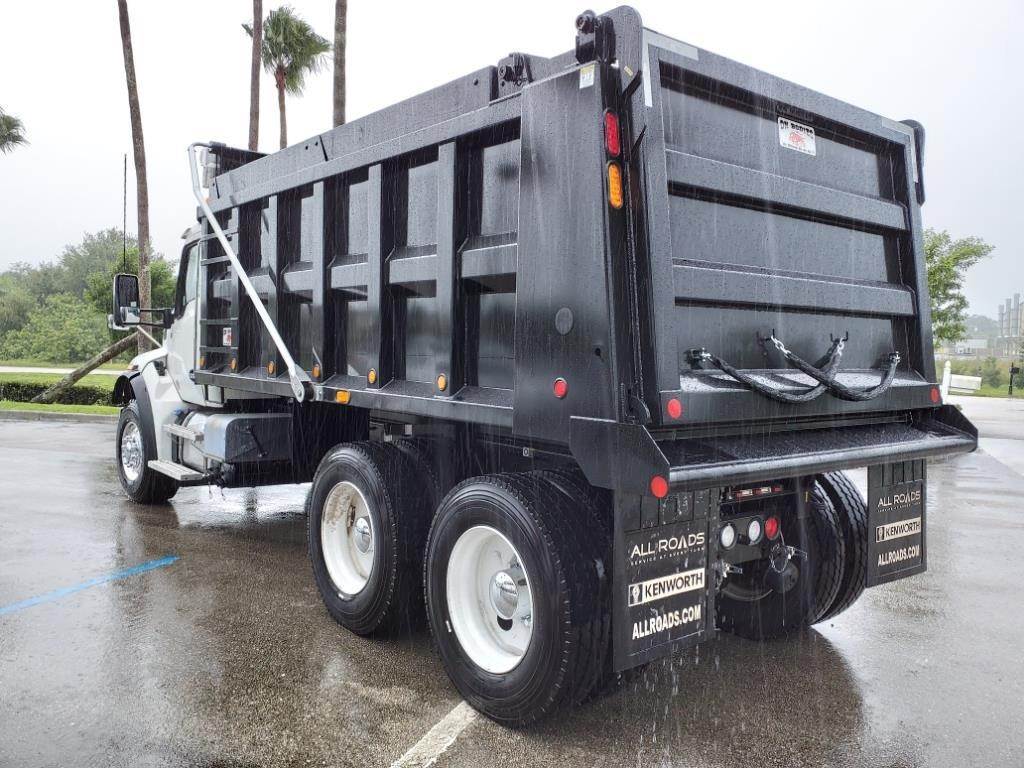

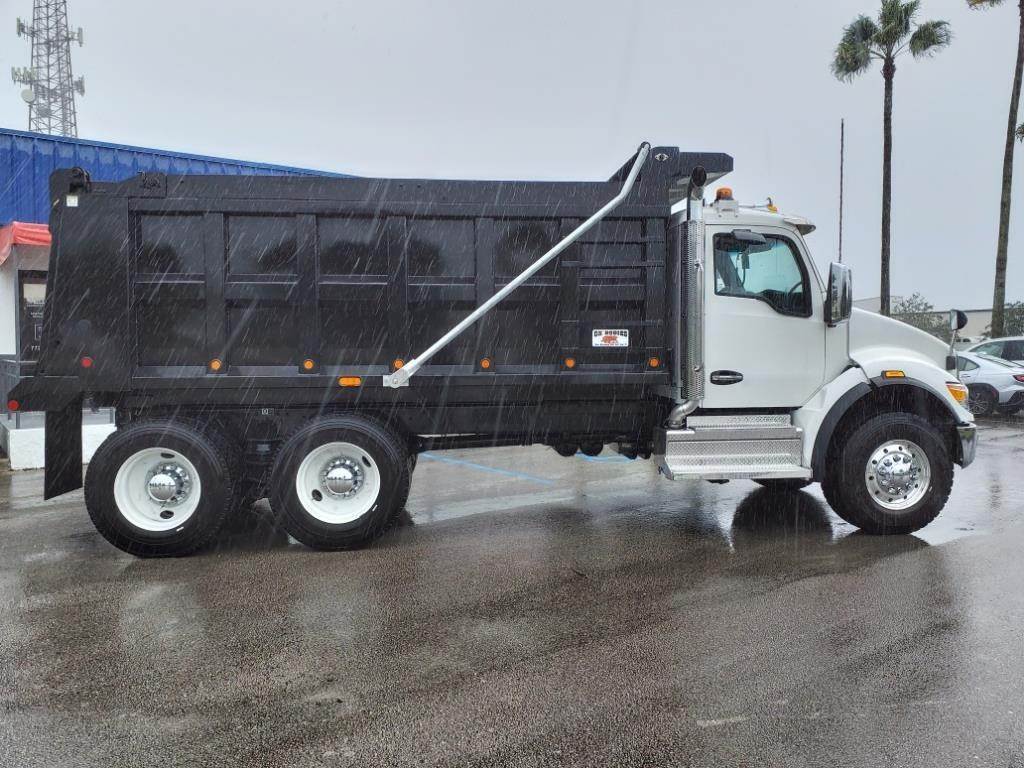

Model: OX Bodies Maverick 87 Series 16' Dump Body
Body Construction:
10-gauge A36 steel sides, 54" height
10-gauge A36 steel front, 56" height
3/16" A36 steel floor
7-gauge A36 steel tailgate, 60" height
Tube frame with channel crossmembers on 12" centers
4" x 4" x .120" wall top rail (standard)
Full horizontal side braces and line posts

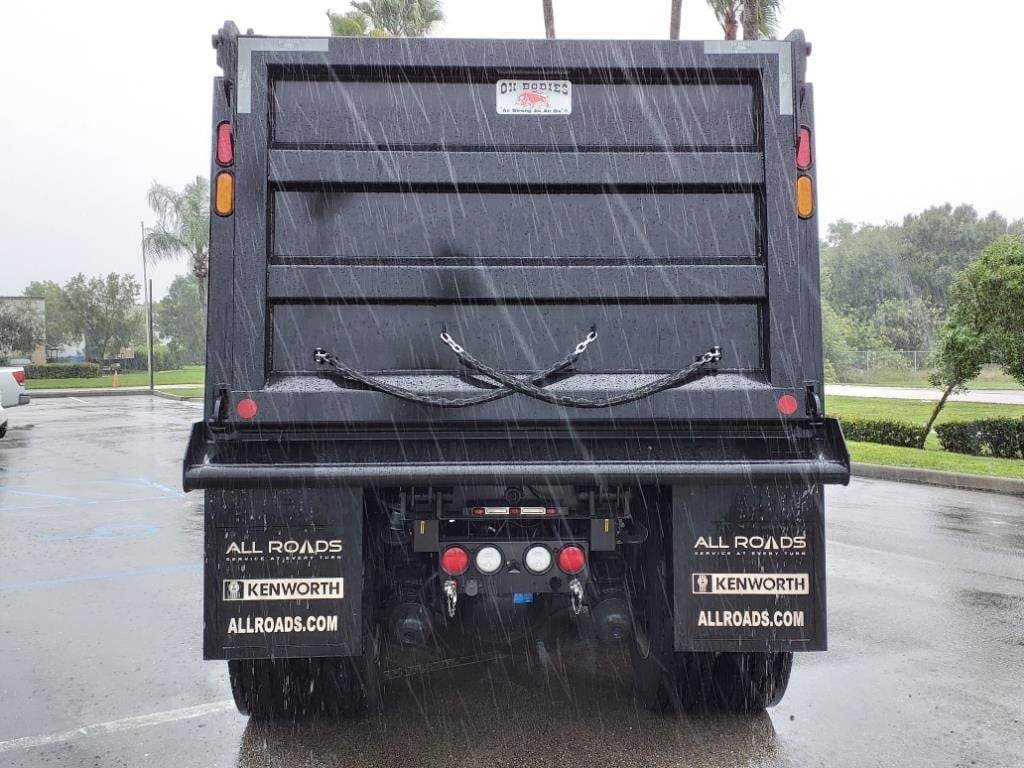

6" slanted rear with air-operated high lift tailgate
Heavy duty 10" dump apron
Narrow centered cab shield, 24" projection x 72" width
Mountain style tarp system with electric operation
Hydraulic System:
74133 series telescopic hoist (standard)
Nestled pyramid flat bottom hydraulic reservoir
Allison 4500 series PTO system (6610)a
Auto Shift G102-D1-2.0 hydraulic pump with rotation

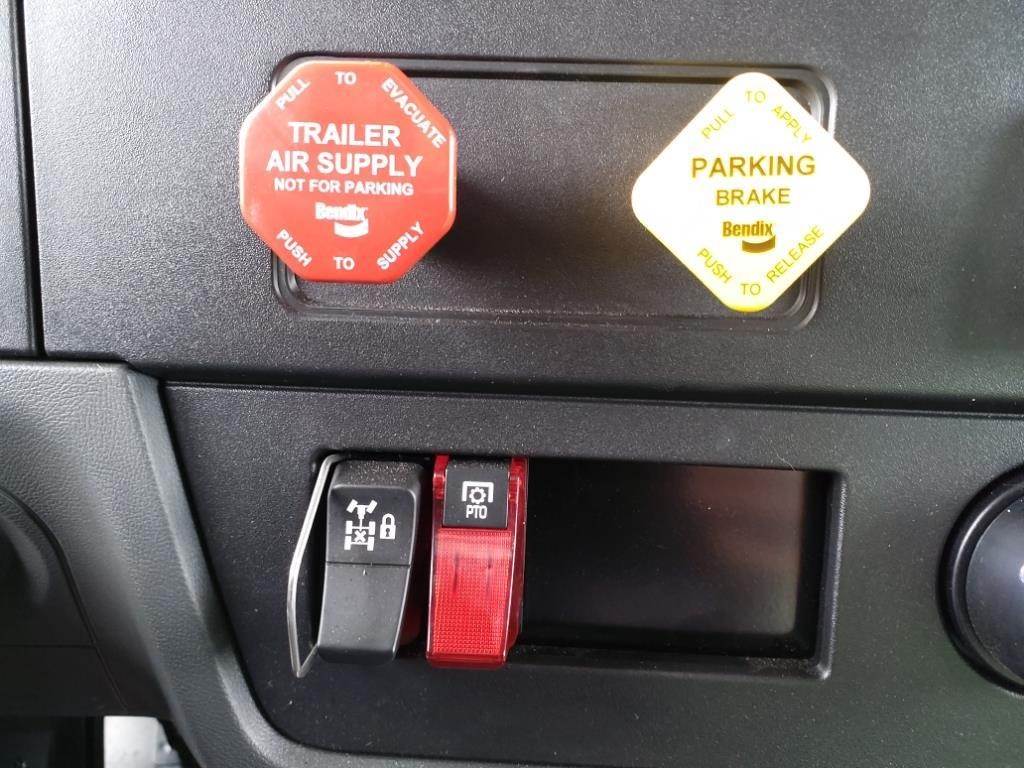

Electric shift PTO controls with air shift pump

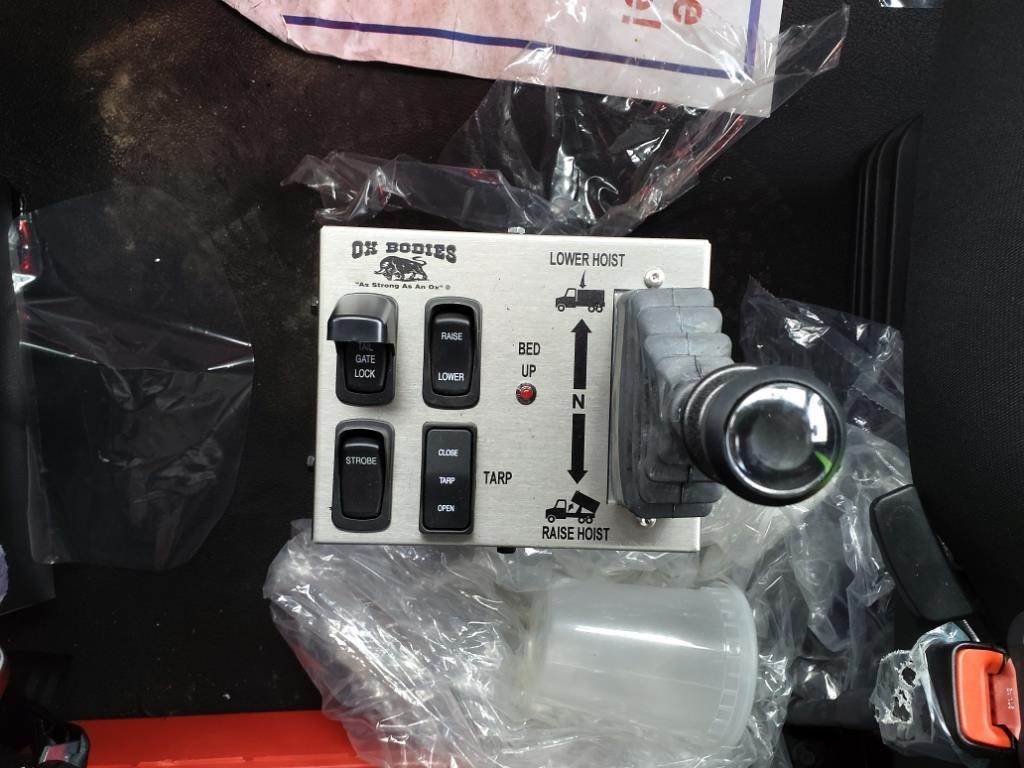

In-cab electric/air controls
Safety Features:
Single body prop
Air operated high lift tailgate system
Reversing alarm
LED lighting package including:
2 cab shield oval clearance lights
Mid-turn lights
Lower side lights
Rear oval and Metrotech lights
Safety strobe package
Additional Features:
8" hardwood side boards with 8" board holder height
36" Texas-style mud flaps
Steel gravel guards without flaps
5" exhaust turnout
13,500 lb. rated rear tow hooks

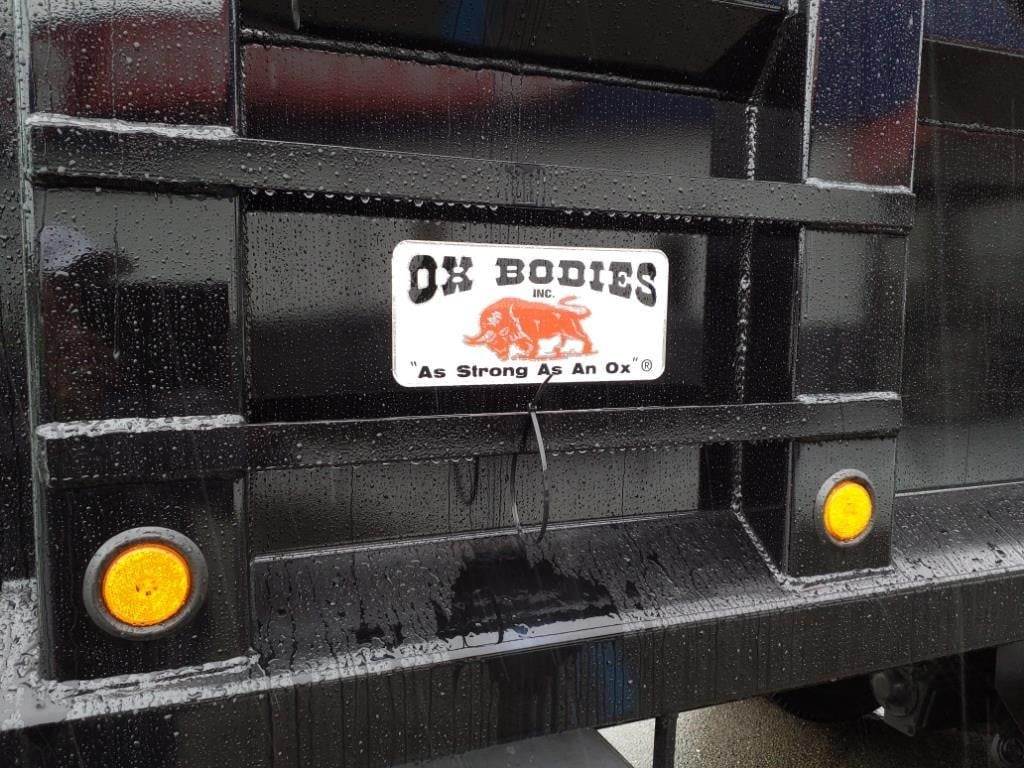

Standard OX logos and decals
Oval turn lights mounted behind tarp brackets on bottom rail
Installation Details:
Removable pin rear hinge design (no hitch plate)
Air-operated tailgate kit
All controls and wiring included
Full lighting package installed
