Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost – Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro, or Westminster. Contact us for details!
Model Year: 2026

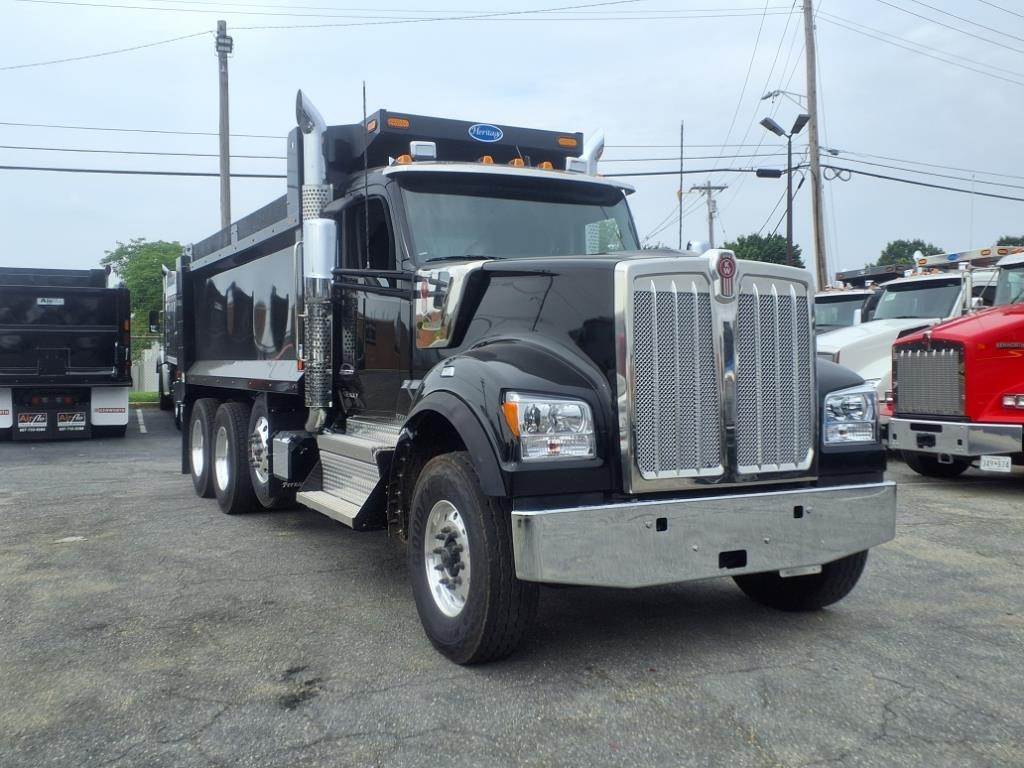

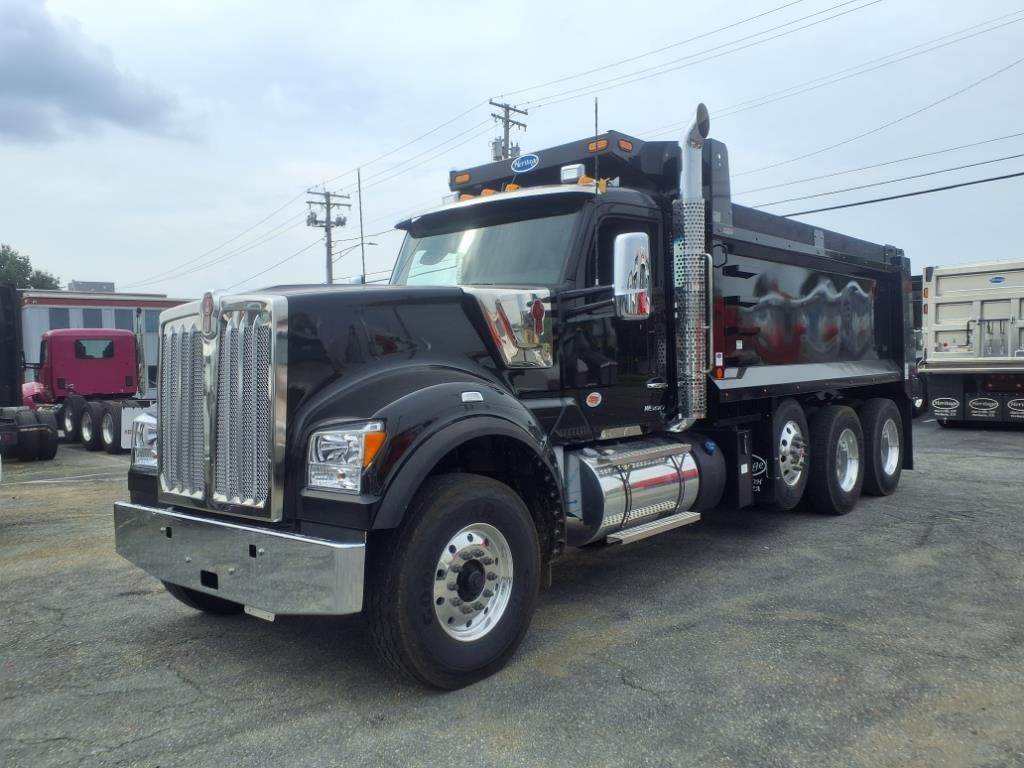

Model: W990
Engine: Cummins X15 500V, 500 HP, 1650 lb-ft Torque, Engine Brake

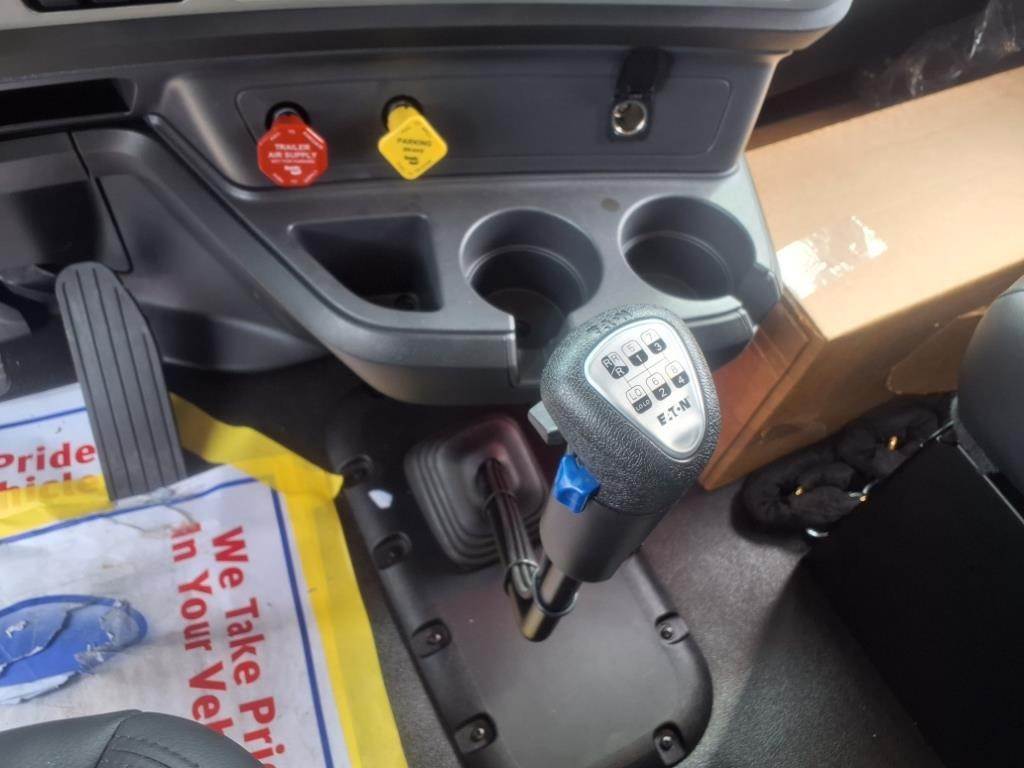

Transmission: Eaton Fuller RTO16908LL, 10-speed
Front Axle: Dana Spicer D2000, 20,000 lbs
Rear Axle: Dana Spicer D46-172HP, 46,000 lbs
Rear Suspension: Hendrickson Primaax EX 462, 46,000 lbs, Dual, 54″ Axle Spacing
Gross Vehicle Weight Rating (GVWR): 79,200 lbs
Wheelbase: 245 inches
Cab-to-Axle: 145 inches
Rear Axle Ratio: 3.91
Brakes: Front and rear air drum brakes; Bendix 4S/4M ABS; Spring Brakes

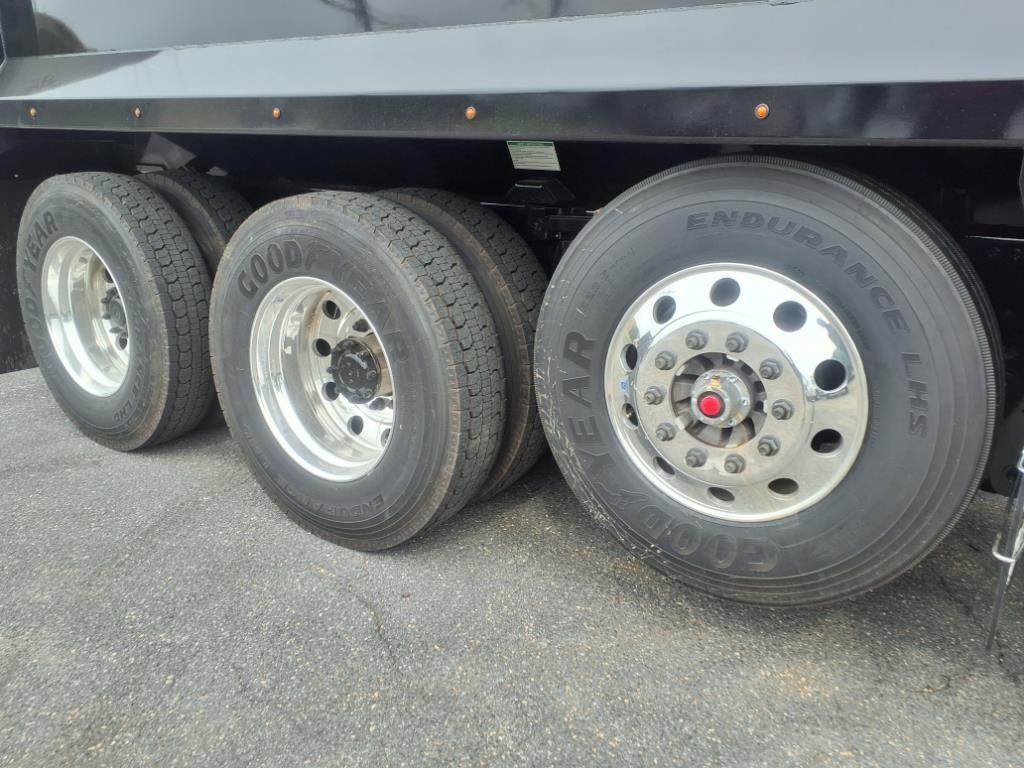

Wheels: Front: Alcoa 89U63 22.5×9 Ultra One High Polish; Pusher: Alcoa ULA18 22.5×8.25 AL Hub-Piloted; Rear: Alcoa 98U63 24.5×8.25 Ultra One High Polish
Tires: Front: GY G289 315/80R22.5 20PR; Pusher: GY Endurance LHS 11R22.5 16PR; Rear: GY Endurance LHD 11R24.5 14PR

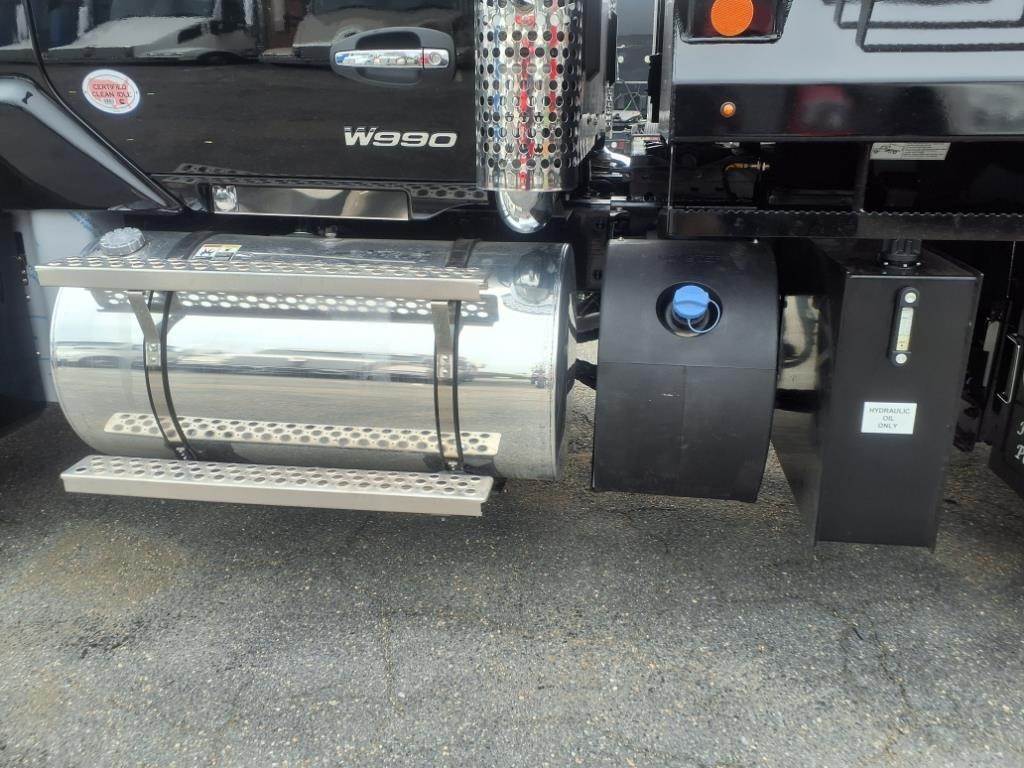

Fuel Tanks: 100 US gal aluminum
Exterior Color: Black
Interior: Slate Gray

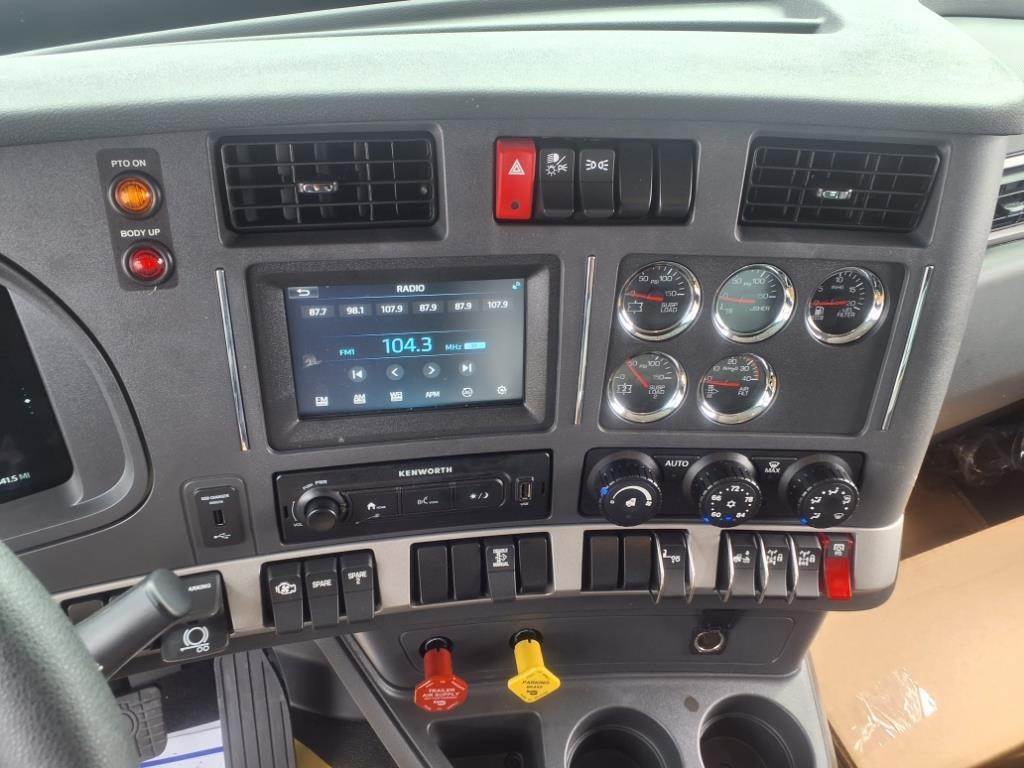

Radio: Kenworth Radio and Navigation: Compatible with Apple CarPlay

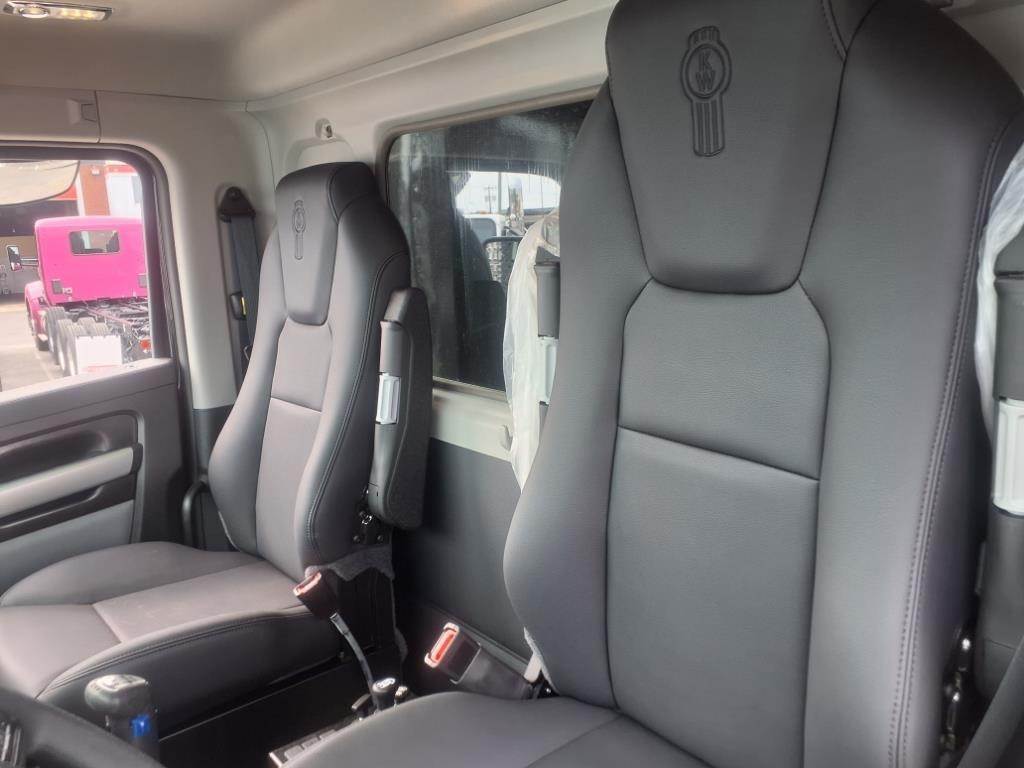

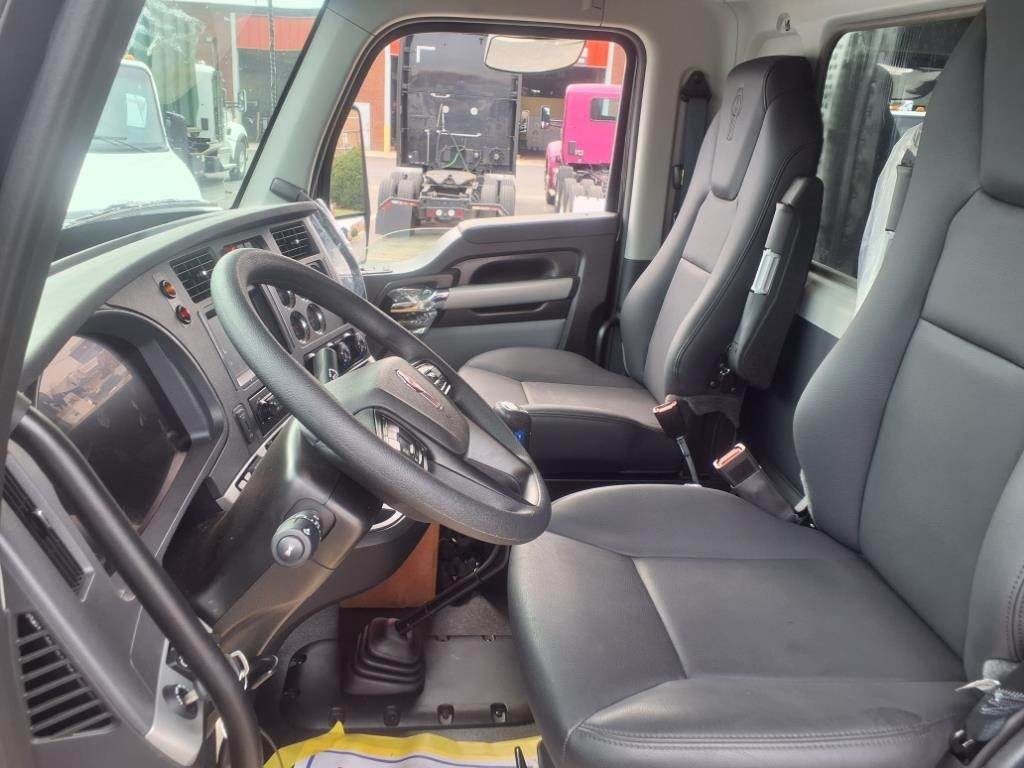

Seats: Driver: KW GT701 high-back vinyl with air-ride suspension; Passenger: KW GT100 high-back toolbox seat vinyl

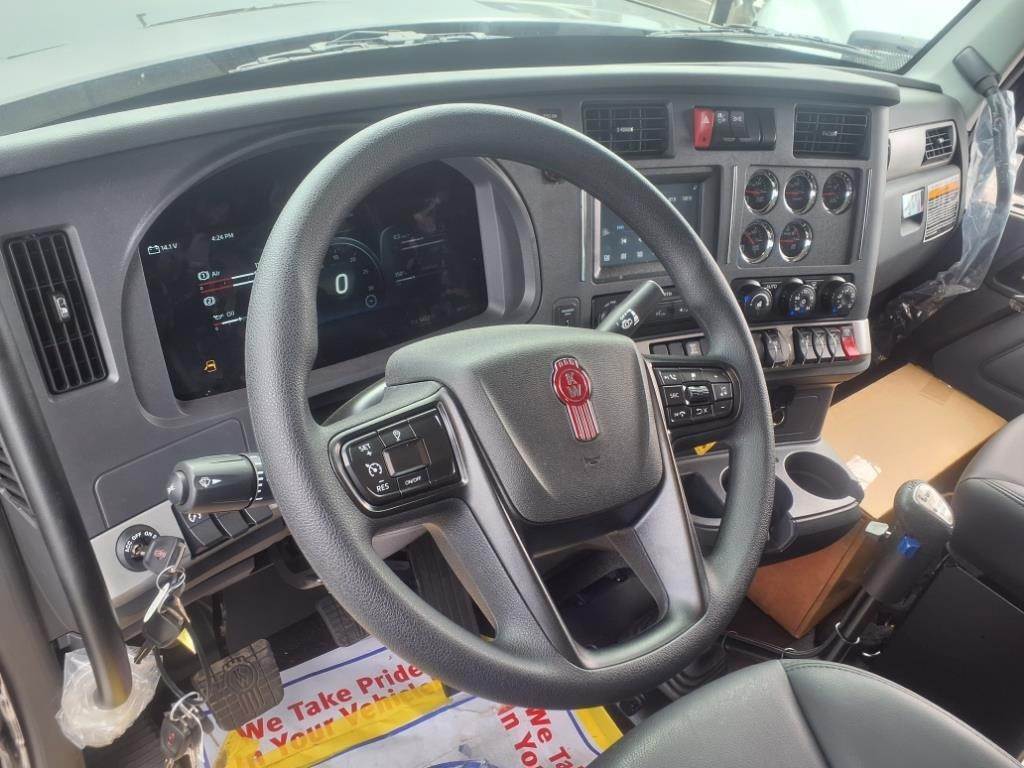

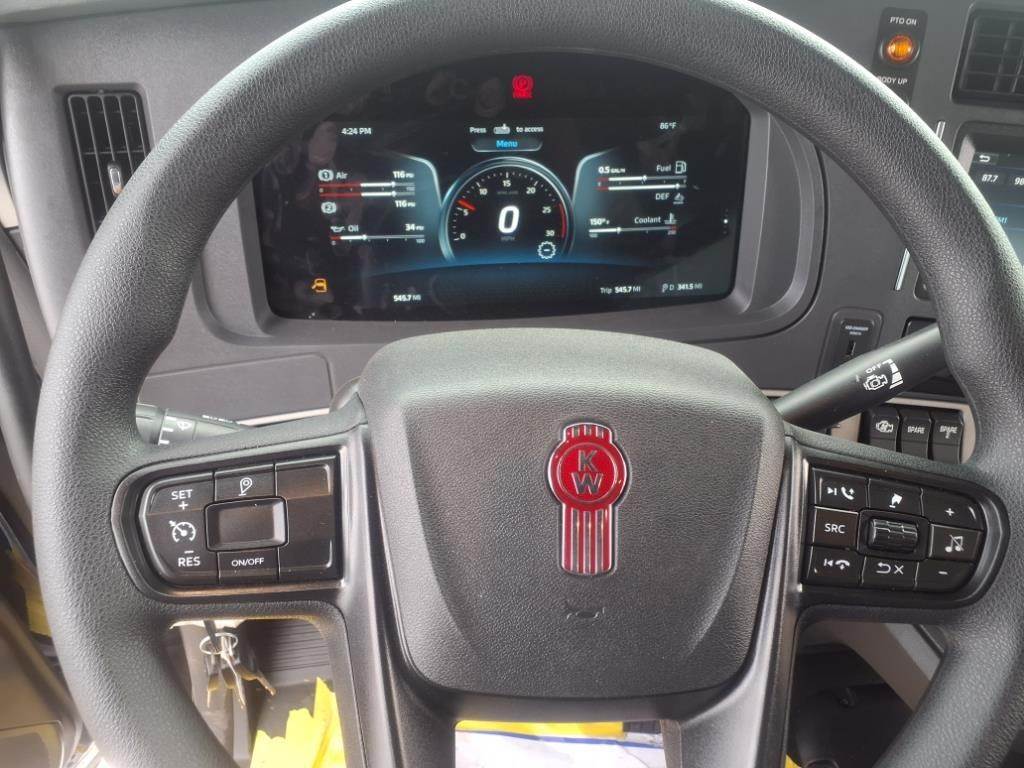

Additional Features: Kenworth Smart Wheel, column-mounted retarder control, push-button PTO control, DD Virtual Gauge package, 15″ main instrument display, Global Telematics Unit, Locking Rear Differential / Crosslock, heated motorized mirrors, dual electric door locks and windows, remote keyless entry

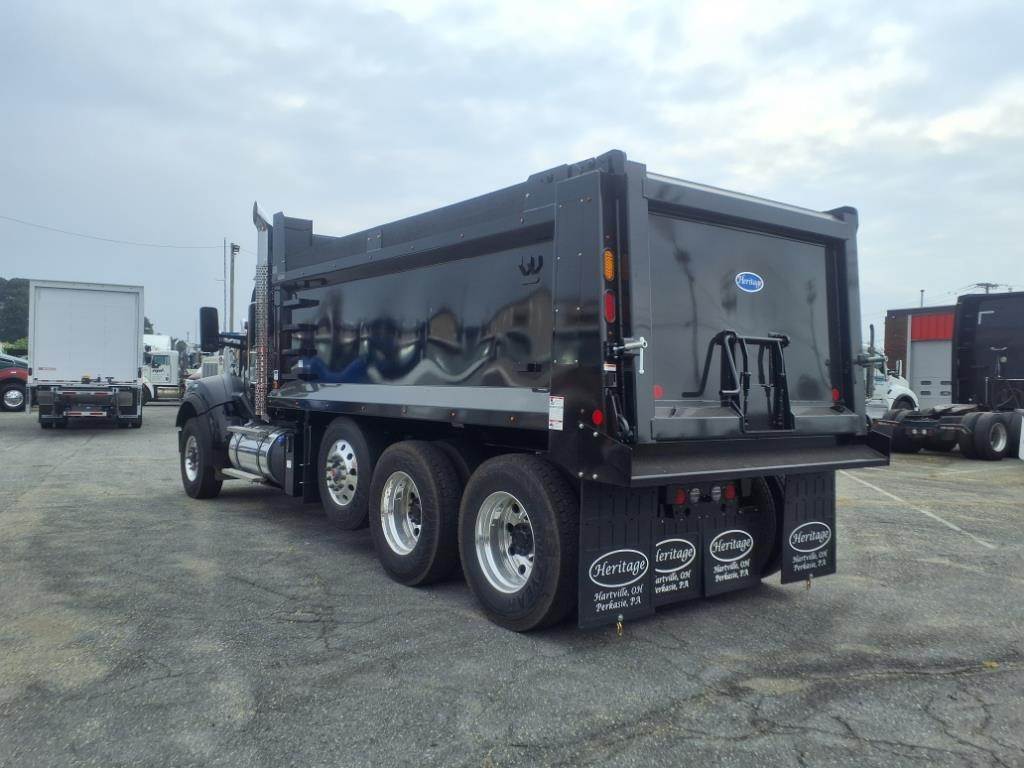

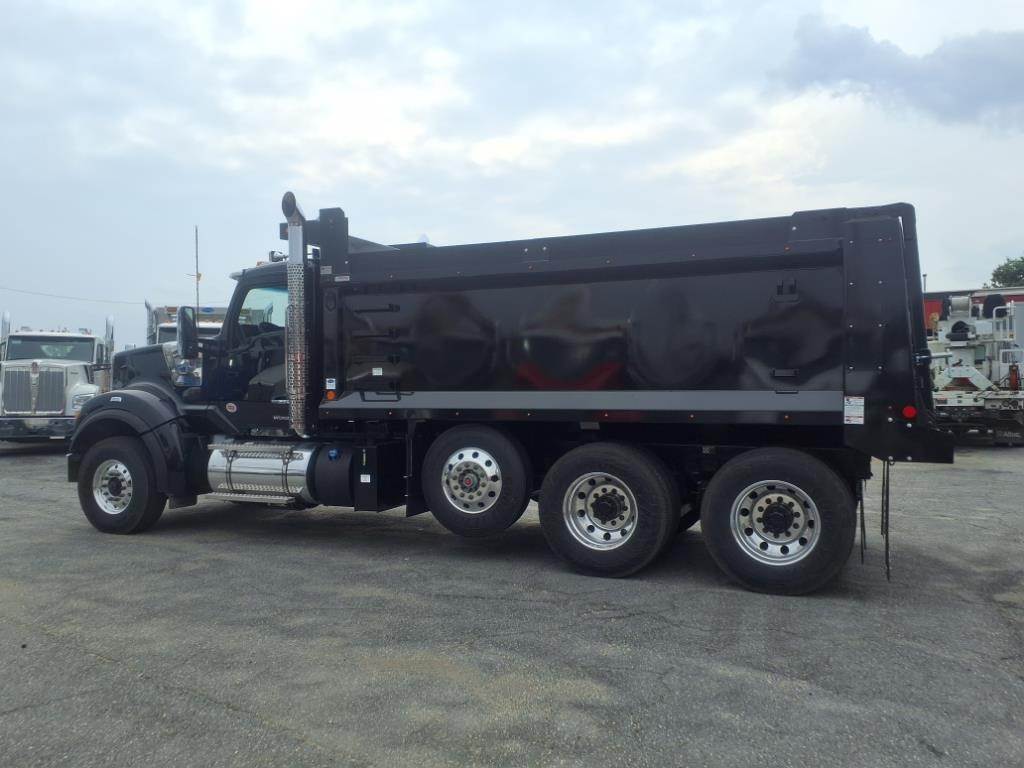

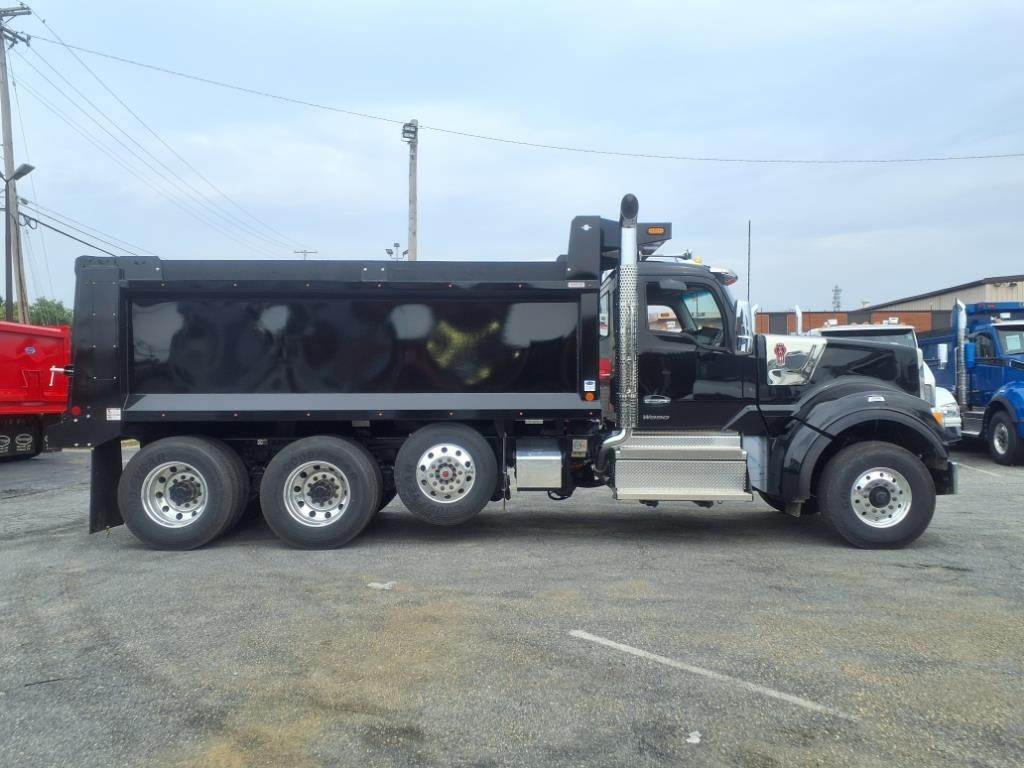

Model: Heritage Steel Smooth Side Dump Body
Length: 17 feet
Width: 99 inches (standard width)
Side Height: 54 inches
Side Material: 5/32" Hardox AR-450 steel
Floor Material: 3/16" Hardox AR-450 steel
Formed longsills: 3/16" steel
Front bulkhead: 5/32" Hardox AR-450 steel
Cab shield: 30" wide (narrowed on both sides), 10-gauge steel, 6" face

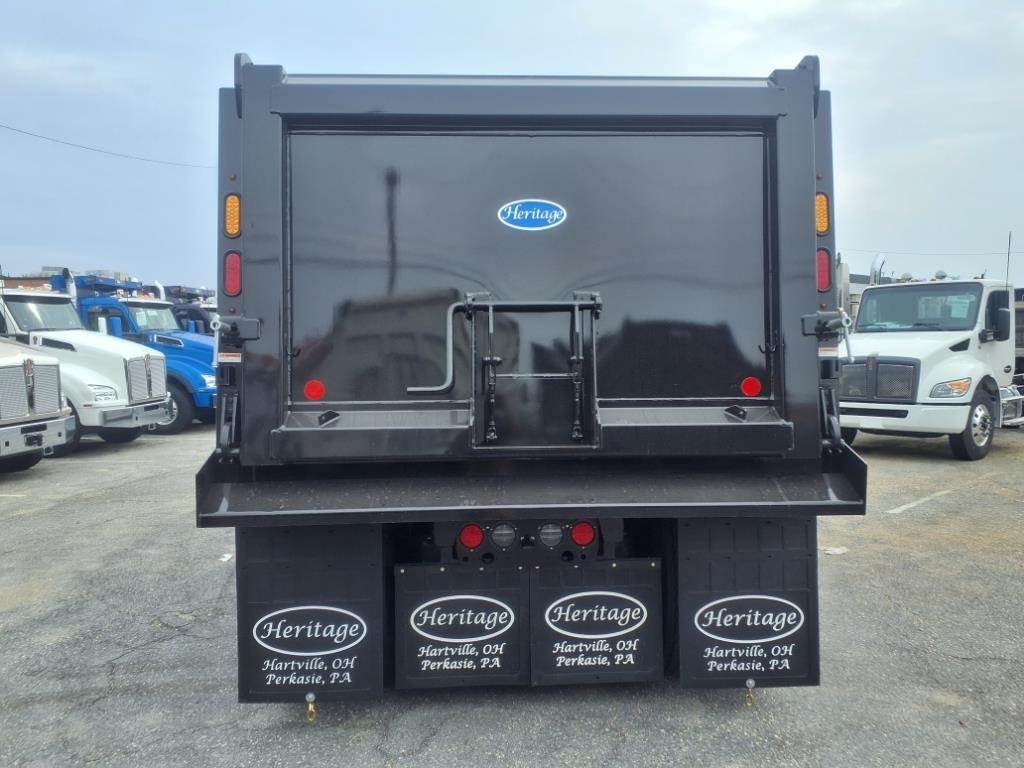

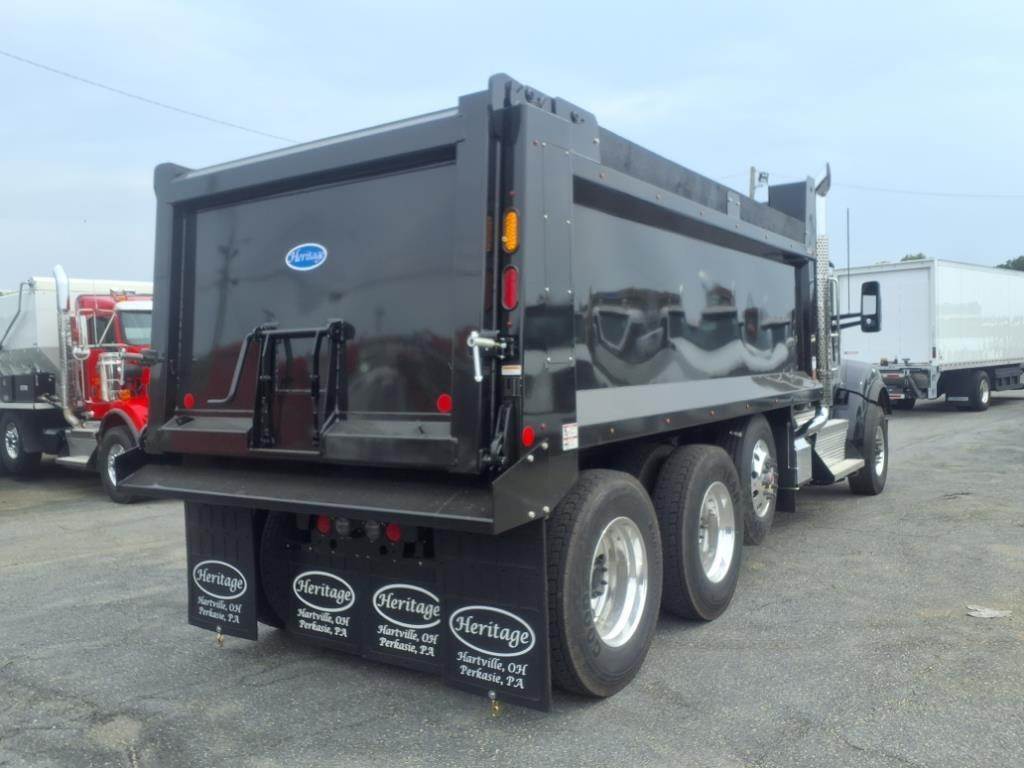

Tailgate: 60" height, 3/16" Hardox AR-450 steel, 6" slope
Single panel tailgate with horizontal bracing
Air-operated hi-lift tailgate with cylinders in rear posts
Center-mounted coal door
Salt locks installed on each side
Trunnion mount telescopic hoist
Hotshift PTO for Allison automatic transmission
Direct mount pump with shifter valve
LED light package
Two front strobes in cab shield
One strobe in each rear post
Front ladder on driver's side with one step below bottom rail
8" bolt-on rear apron
Full-width rear mud flaps
Heritage front mud flaps (30" length with anti-sail brackets)
Shovel holder mounted on rear driver's side
Steel hydraulic tank mounted on frame side
Body to be sandblasted, primed, and painted one standard color
