Product Description
Transfer this unit to your nearest Maryland/Delaware location at no additional cost – Baltimore, Bel Air, Dover, Landover, Mardela Springs, Upper Marlboro, or Westminster. Contact us for details!
Model Year: 2026

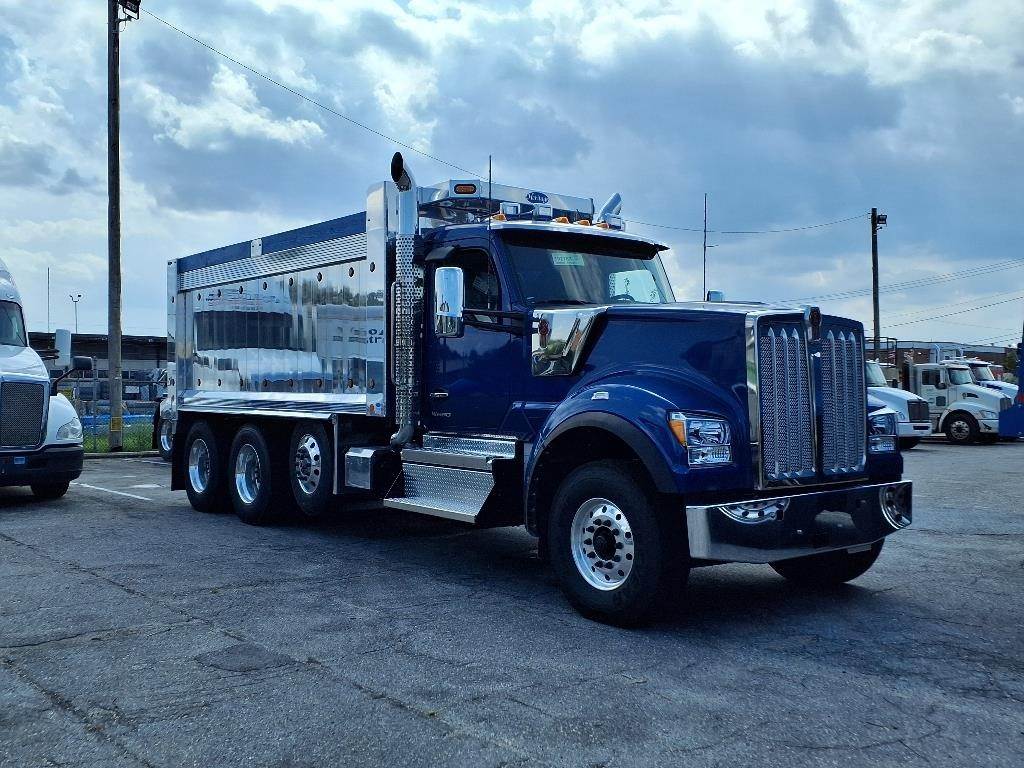

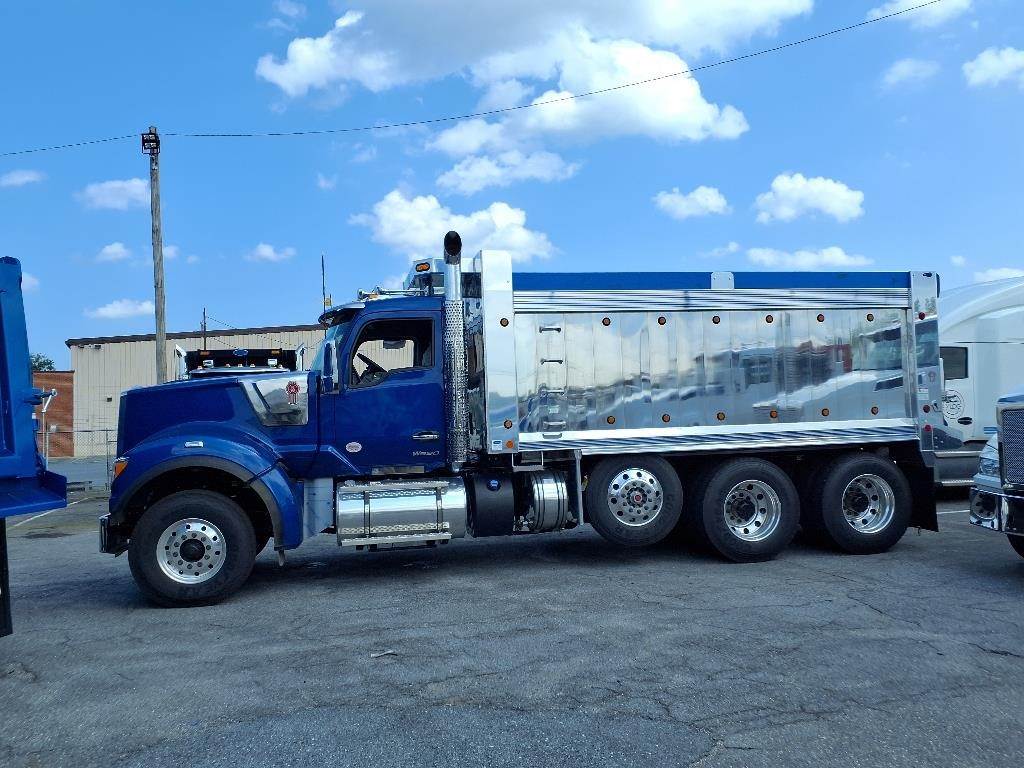

Model: W990
Engine: Cummins X15, 525 HP @ 1900 RPM, 1850 lb-ft Torque @ 1000 RPM, Performance Series, Engine Brake

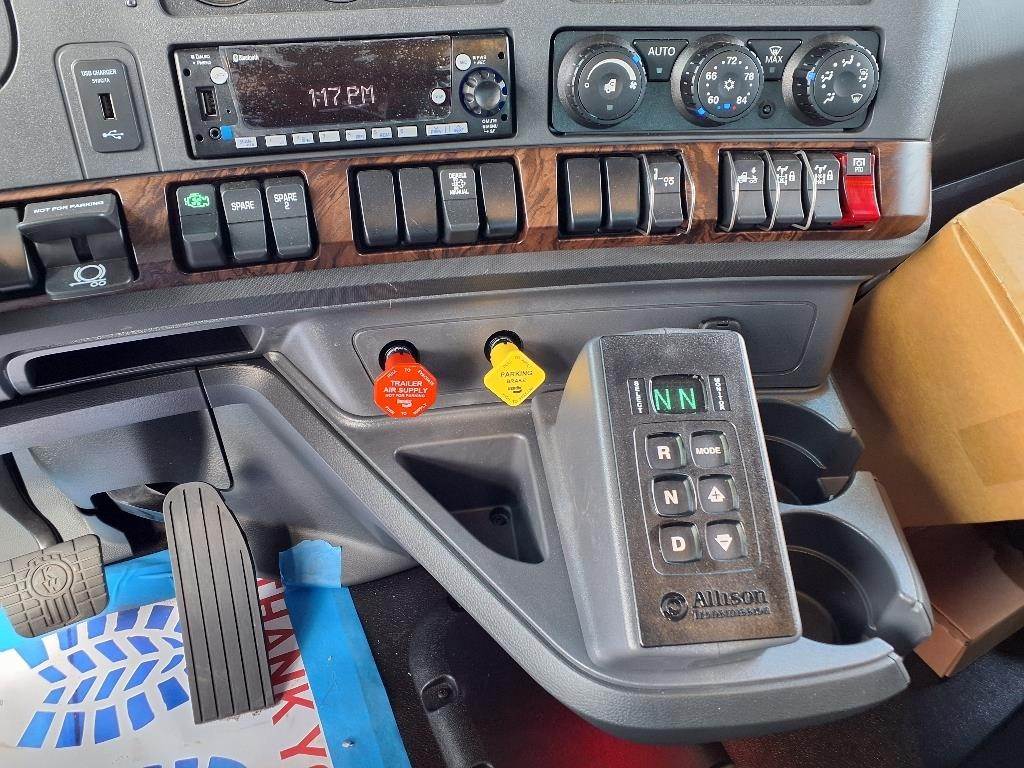

Transmission: Allison 4500RDS 6-speed Automatic with PTO
Front Axle: Dana Spicer D2000, 20,000 lbs.
Rear Axle: Dana Spicer D46-172HP, 46,000 lbs.
Steerable Pusher Axle: Watson & Chalin SL13, 13,500 lbs.
Front Suspension: Taperleaf 20,000 lbs. with Shocks
Rear Suspension: Henderson Primaax EX 462, 46,000 lbs., 54" Air Ride
Gross Vehicle Weight Rating (GVWR): 79,200 lbs.
Wheelbase: 245 inches
Cab-to-Axle: 145 inches
Rear Axle Ratio: 4.30
Locking Rear Differential / Crosslock: Wheel Diff Lock D46-172(H), (P)(WT) Forward Rear & Rear Rear
Brakes: Front: Bendix HP-ES 16.5x6" Drum, Rear: Bendix ES S-Cam 16.5x7" Drum, Steerable Pusher: Bendix Non-RSD 15x4" Drum
Wheels: Front: Alcoa 89U63 22.5x9 Ultra One High Polish Aluminum with Mirror Polish Outboard Surface, Rear: Alcoa 98U63 24.5x8.25 Ultra One High Polish Aluminum with Mirror Polish Outboard Surface, Steerable Pusher: Alcoa ULA18 22.5x8.25 High Polish Aluminum

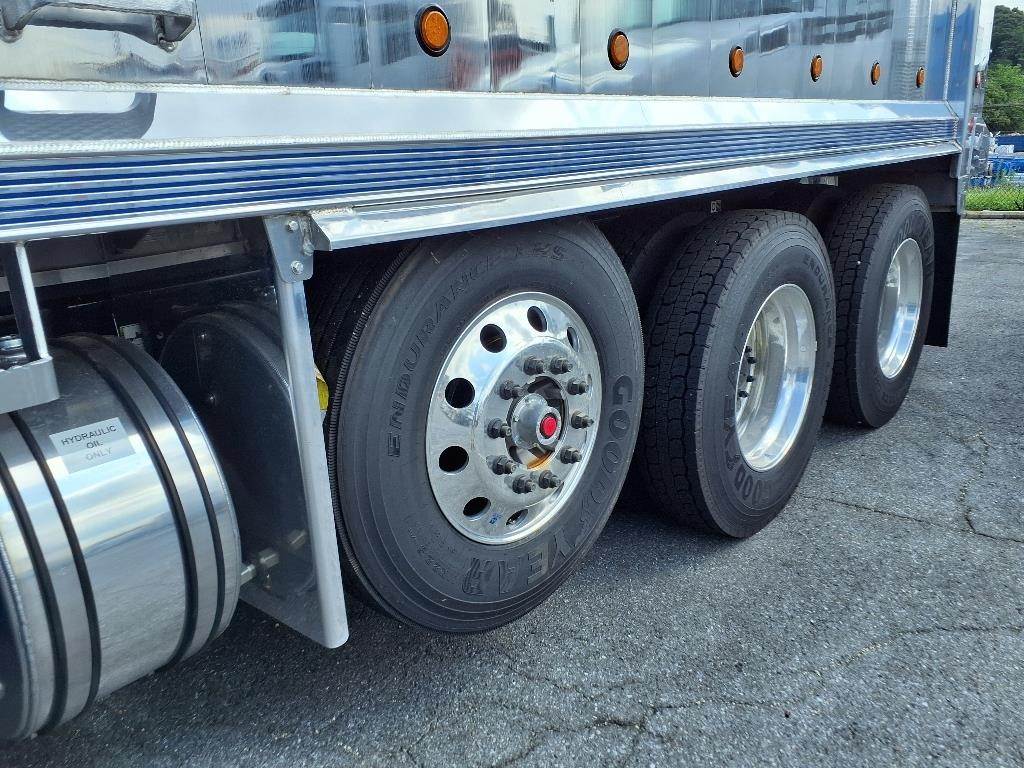

Tires: Front: Goodyear G289 WHA 315/80R22.5 20PR, Rear: Goodyear Endurance LHD 11R24.5 14PR, Steerable Pusher: Goodyear Endurance LHS 11R22.5 16PR
Fuel Tank: 100 US Gallon 24.5" Aluminum, Polished
DEF Tank: Medium Round, 23.8 Gallon
Exterior Color: Viper Blue

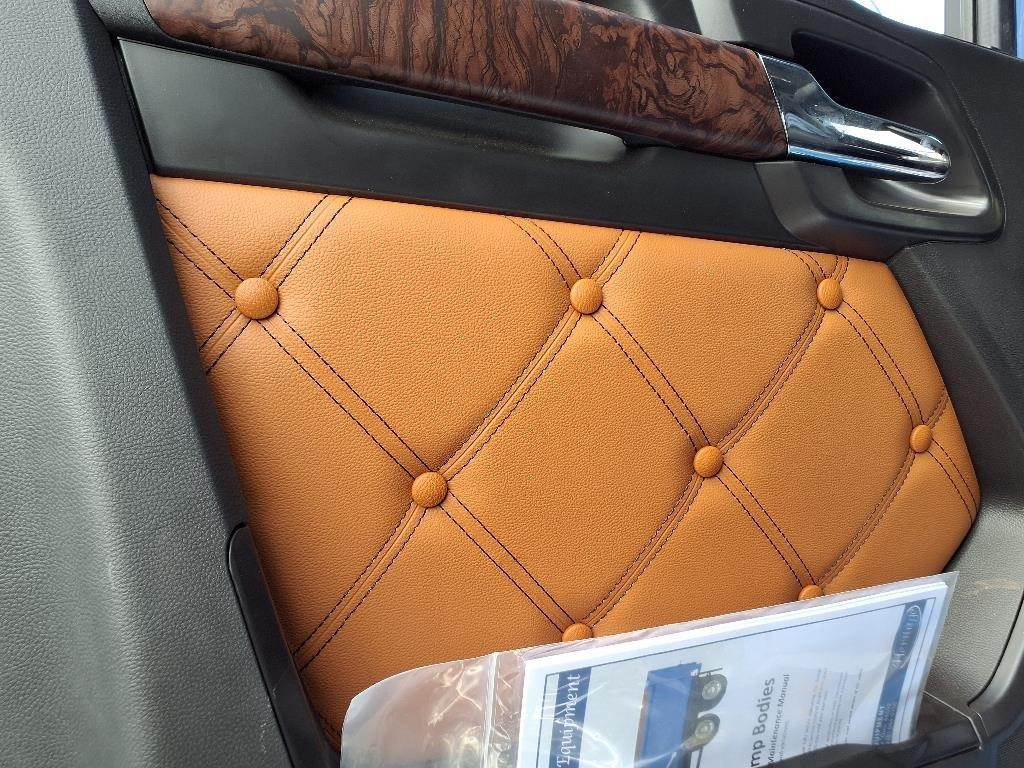

Interior: Diamond VIT Daycab, Slate Gray

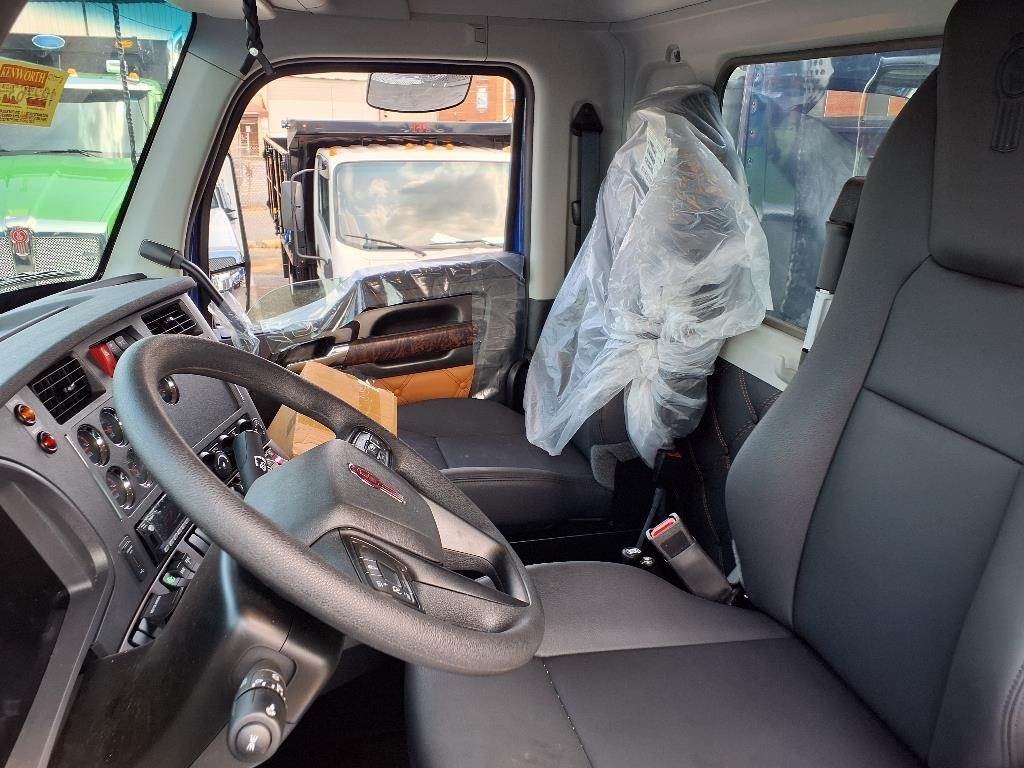

Driver Seat: Kenworth GT701 High Back Vinyl Air-Ride Suspension
Passenger Seat: Kenworth GT100 High Back Toolbox Seat Vinyl
Full Steel Inserts / Double Frame

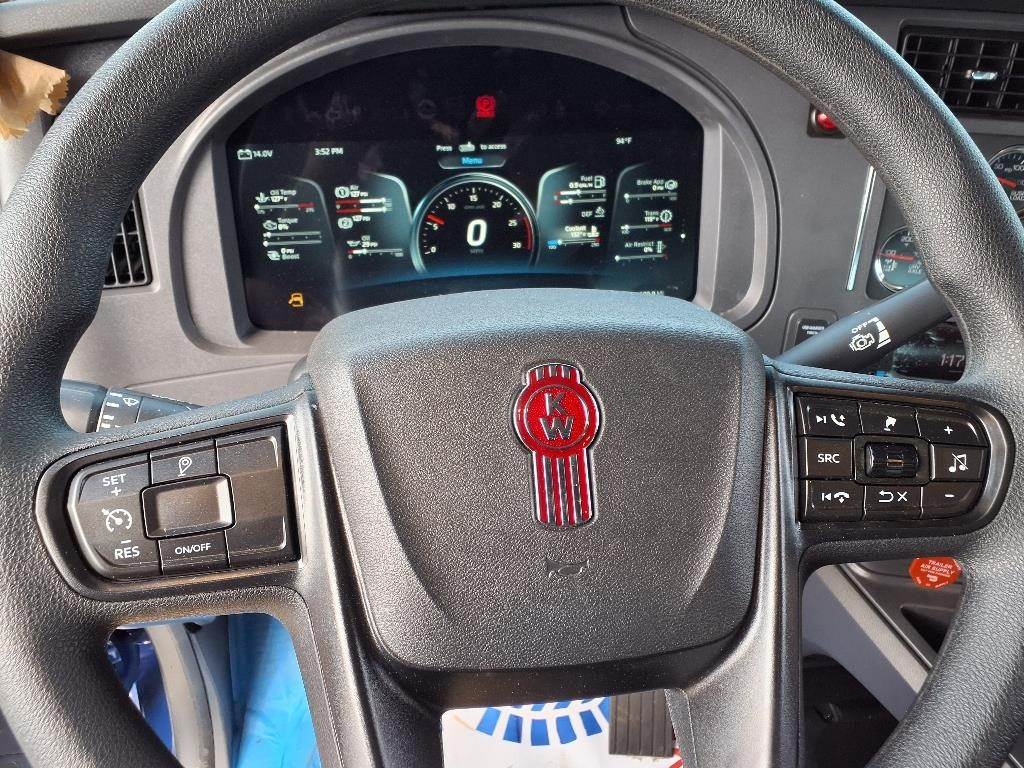

Air Conditioning with Auto Temperature Control, Kenworth Radio DEA710 AM/FM/WB/USB Bluetooth, CB Installation Kit Center Mounted Quick Release with Dual Antenna, Mid Level Audio System High Performance Door and B-Pillar Speakers, 18" Smart Wheel with Integrated Radio & Cruise Controls, Tilt/Telescoping Steering Column, Power Door Locks, Power Windows, Heated Power Mirrors, Turn Signal Non-Self-Cancelling, Air Horn Quad Rectangular 23"/26", Exterior Stainless Steel Sunvisor, Tapered Chrome Steel Channel Bumper, W990 Stainless Steel Engine Air Intake, Dual Lower Chrome Exhaust Elbow, 7" Dual Curved Chrome Tailpipes, Removable Front Tow Hooks, Polished Aluminum Battery Box Cover, Polished Aluminum Fuel Tank, Polished Tank Straps, Stainless Steel Permit Panel Driver Side, Engine Block Heater 110-120V/1500W, Battery Disconnect Switch, Fuel Cooler, USB Charging Port Dash Panel, Fire Extinguisher 5lb Dry Chemical, Warning Triangle Reflector Kit, Huck Bolts Throughout Frame, Mirror Polish Outboard Surface Wheels, Alcoa High Polish Aluminum Wheels

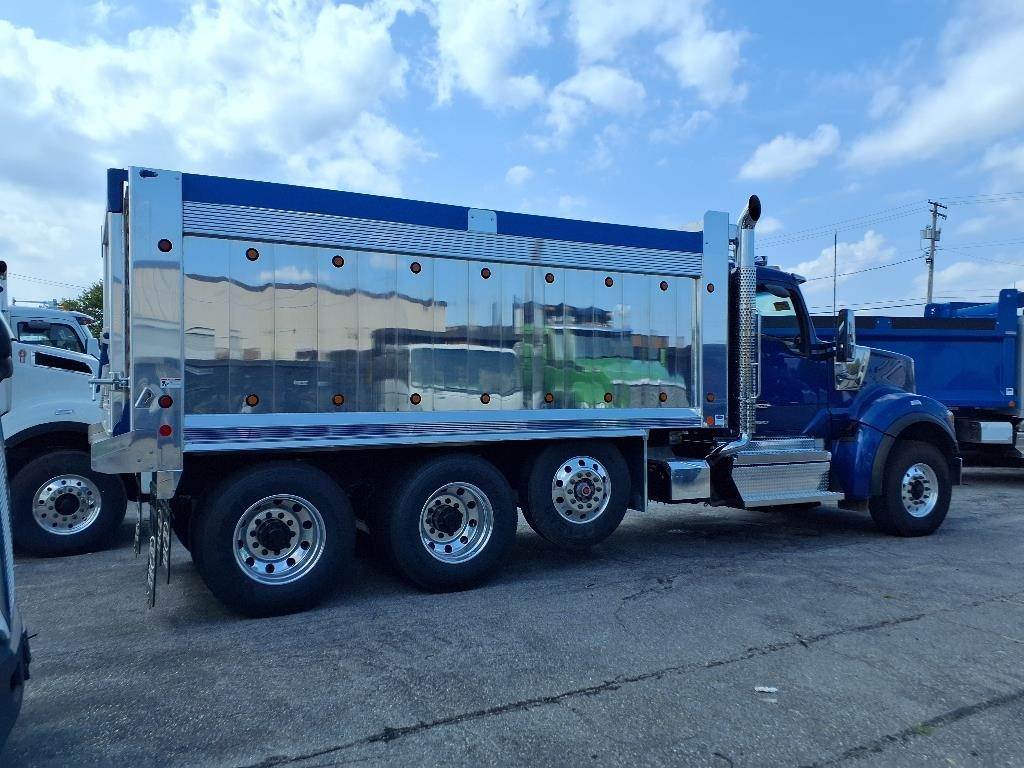

Heritage Aluminum Material Hauler - 17 ft Length, 96" Width
60" Side Height with 8" Boards (3/16" Enhanced Finish Material)
3/16" Enhanced Finish Side Posts with Dirt Shedders
9" Extruded Top Rail
1/4" Front and Rear Floor
6" I-beam Longsills with Rubber Cushion
3-1/2" Extruded Boxed Crossmembers on 12" Centers
1/4" Bulkhead with 24" Narrowed Cab Shield (3/16" Material)
68" High Tailgate (1/4" Material) with 3" Slope
Three Panel Tailgate with Horizontal Bracing, Air Controls
Center Coal Door and Salt Locks
Pin to Pin Mount Telescopic Front Hoist
Hotshift PTO for Allison Automatic Transmission

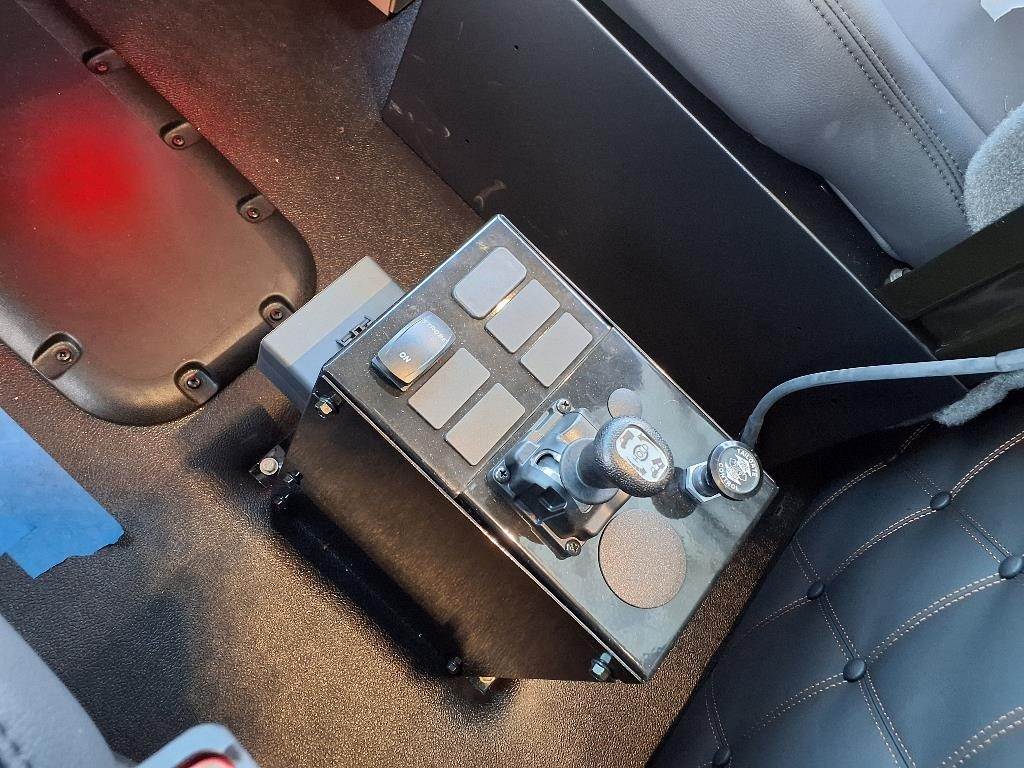

Direct Mount Pump with Feathering Valve Control

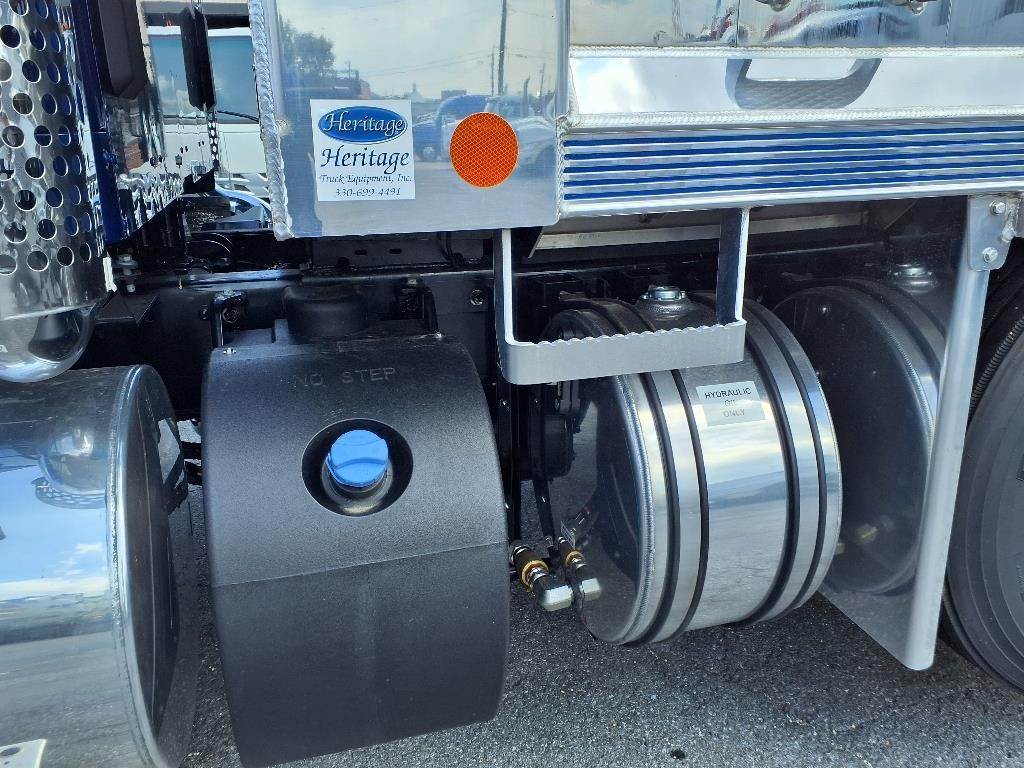

Aluminum Frame Side Mount Hydraulic Tank
LED Light Package with Strobes
Front Driver's Side Ladder with Step
8" Bolt-on Rear Apron
Heritage Mud Flaps with Anti-sail Brackets
Enhanced Finish Body with Cab-Matching Boards
