2026 Palfinger | Liftgate | ILM+

2026 Palfinger | Liftgate | ILM+

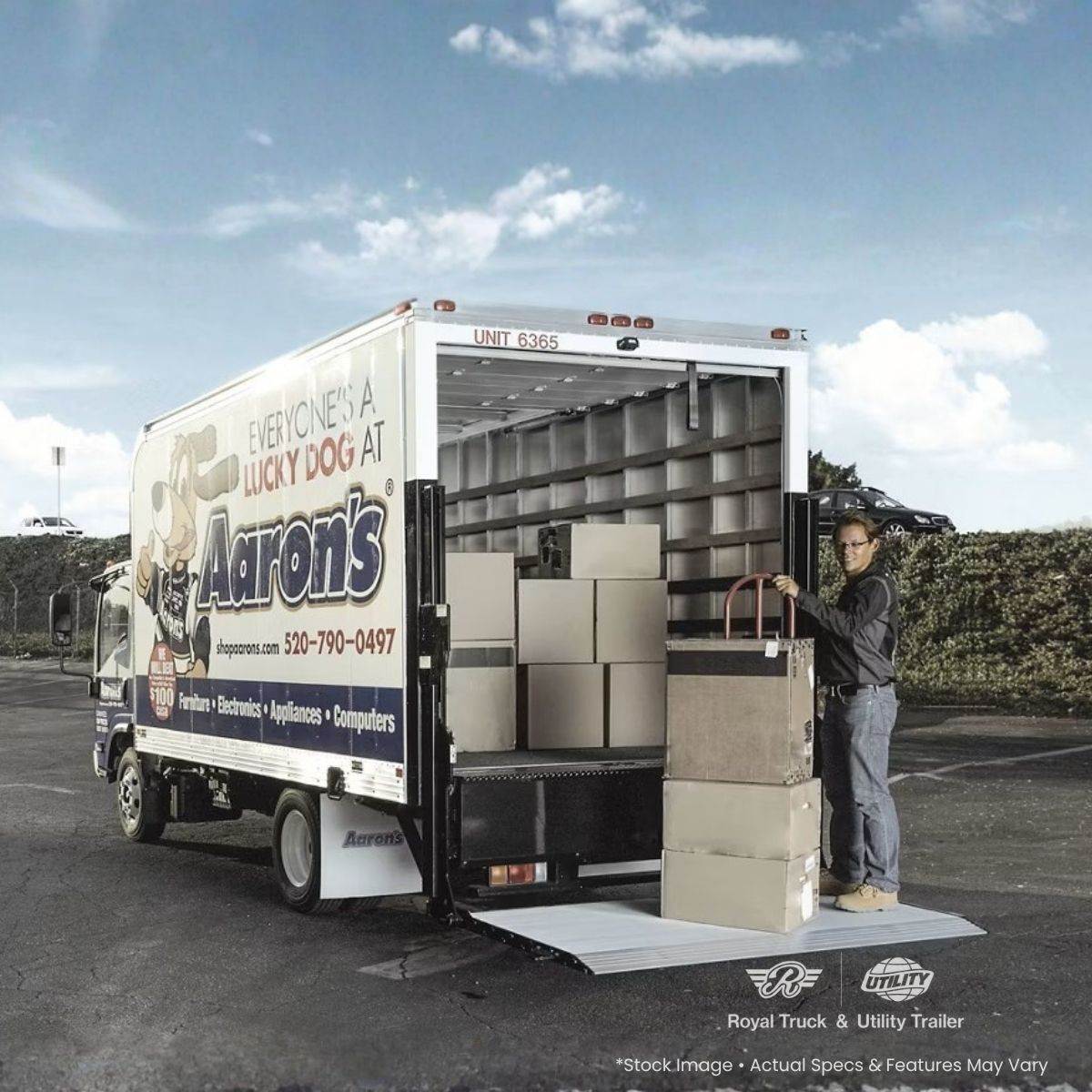

The ILM+ is a cutting edge, simple and robust product. The combination of an excellent design coupled with US manufacturing, service and support elevates the ILM+ to the next level of Medium Duty Rail Lifts. E-Coat on steel parts for years of trouble free service & great appearance. Its modular design allows fast upgrades, making maintenance and operation simple and efficient. Power up travel latches keeps roller chain, sprockets, cylinder, runners and platform tight & greatly reduces wear to liftgate while in transit. Modular design allows for many options to be easily added. 100% laser cut parts ensure perfect component alignment and a long product life.

Standard Features:

• Lifting Capacity: 1,600# | 2,000# | 2,500# | 3,000#
• Platform Width: 88"
• Platform Depth: 36" | 42" | 48" | 60" | 72"
• Bed Height Range: 30" to 54"
• Bushings And Zerks At Pivot Points
• Low Maintenance Slide Bearing And Sprockets
• 100% Laser Cut Parts For Perfect Alignment
• E-Coat On Steel Parts For Years Of Trouble Free Service & Appearance
• Reliable PALFINGER Cylinder Equipped With Hydraulic Lock Valve Directly At Cylinder Port
• Pre-Installed PowerPack Wired And Filled With Multi-temp Fluid
• 2“ Slimline Steel And Aluminum Platforms With Low Incline Ramp
• Power Up Travel Latch Reduces Wear To Liftgate While In Transit
• Automatic Safety Latch
• Built In Tamper Free Pressure Compensating Flow Control Valve For Consistent Lowering Speeds
• Fixed (2) Or (3) Button Side Controls
• Adjustable Platform Chain
• 150A Circuit Breaker
• Gas Spring Platform Close Assist
• Nylon / Silicone Slide Bearing On Runners

Available Options:

• 102“ Wide Application Lifts
• 12“ Fixed Ramp In Lieu Of 6“ Ramp
• Hydraulic Power Close
• 12“ Aluminum Retention Ramp
• Above Floor Models (To Max 56“)
• In-Cab Shut Off Switch
• Folding Platforms For Dock Delivery
• Auxilary Battery Kit
• Dual Controls
• Built-In Lights
• 12“ Cart Stop Ramp
• Aluminum Platform
• Custom Platforms
• Galvanizing

Call for more information and pricing!
