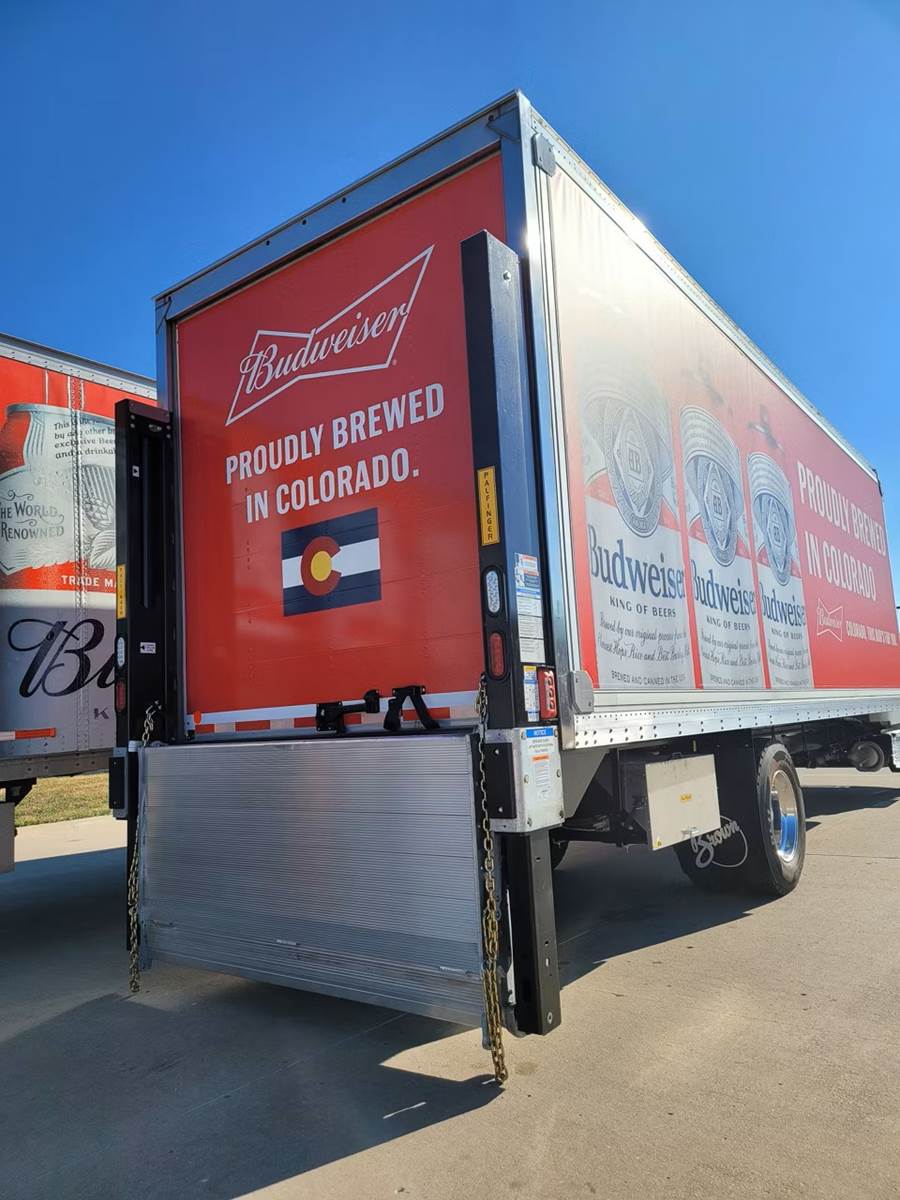

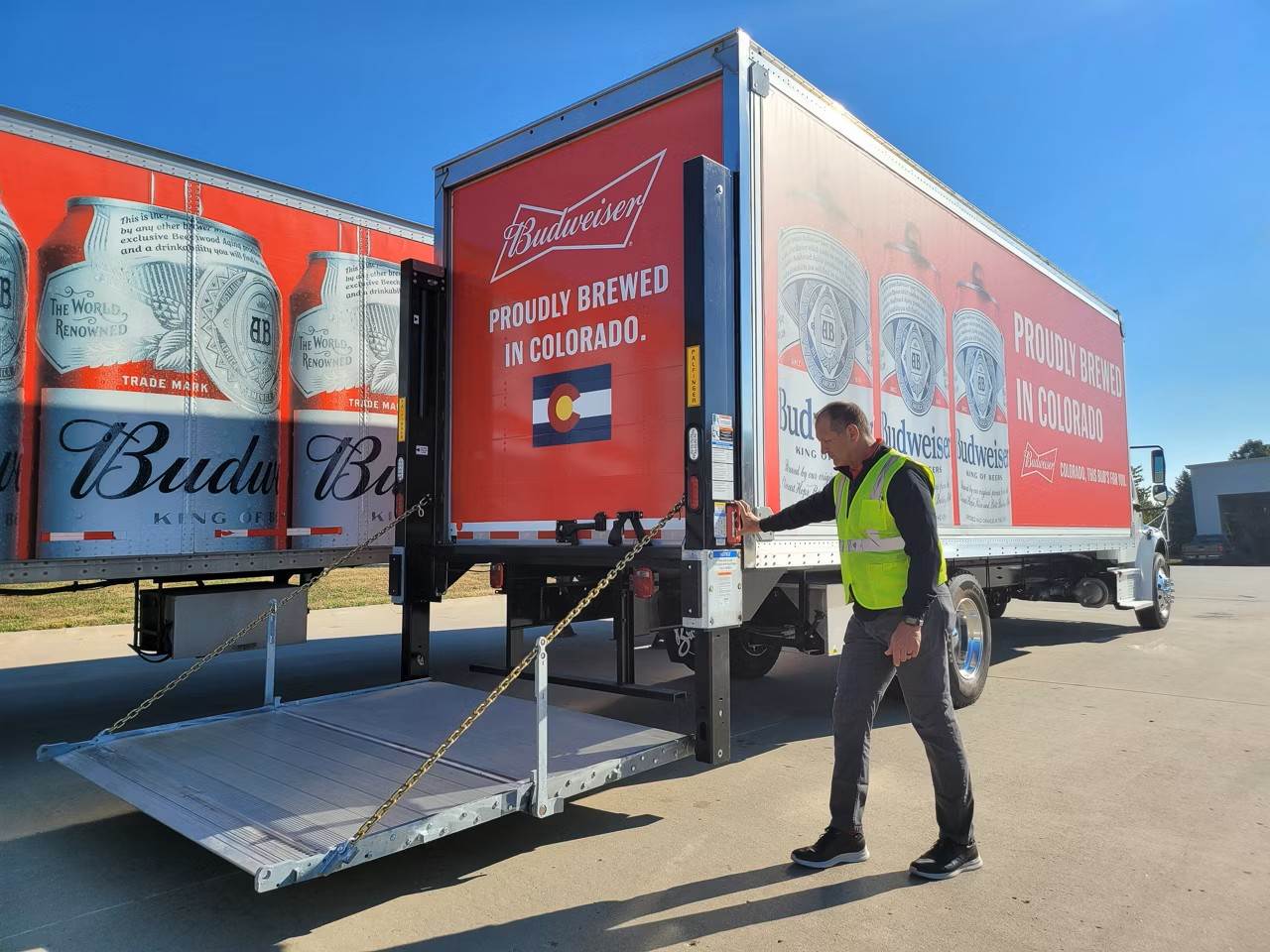

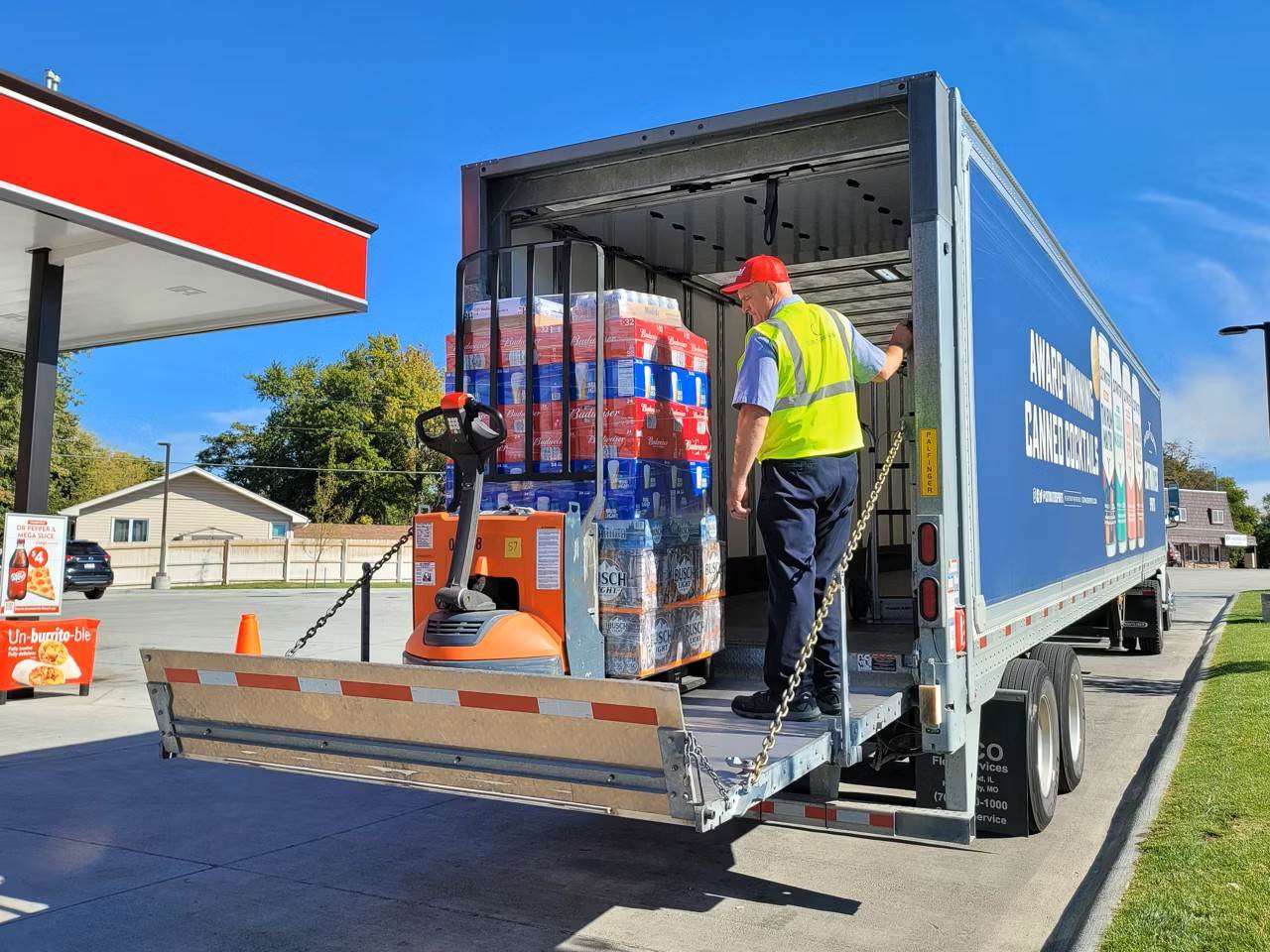

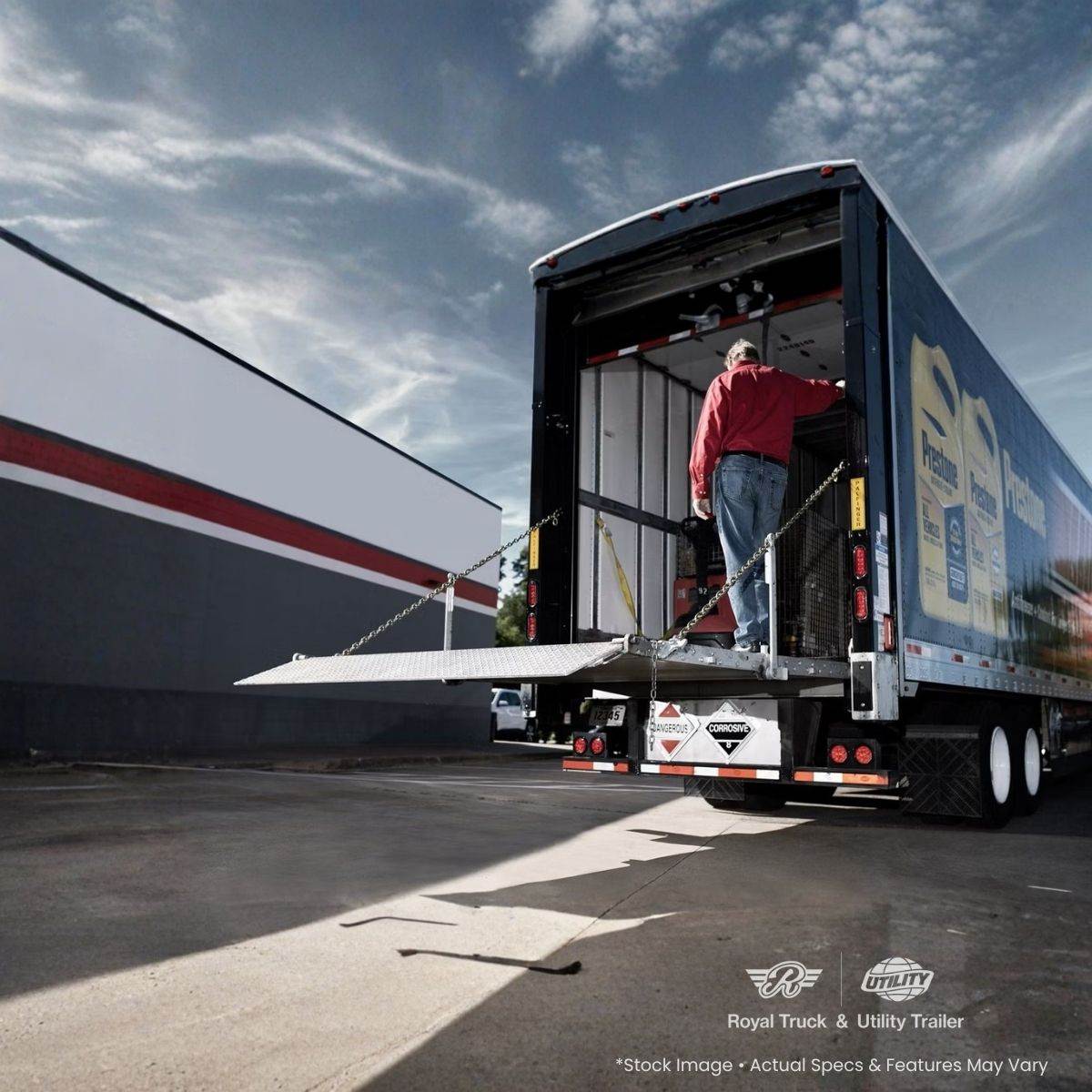

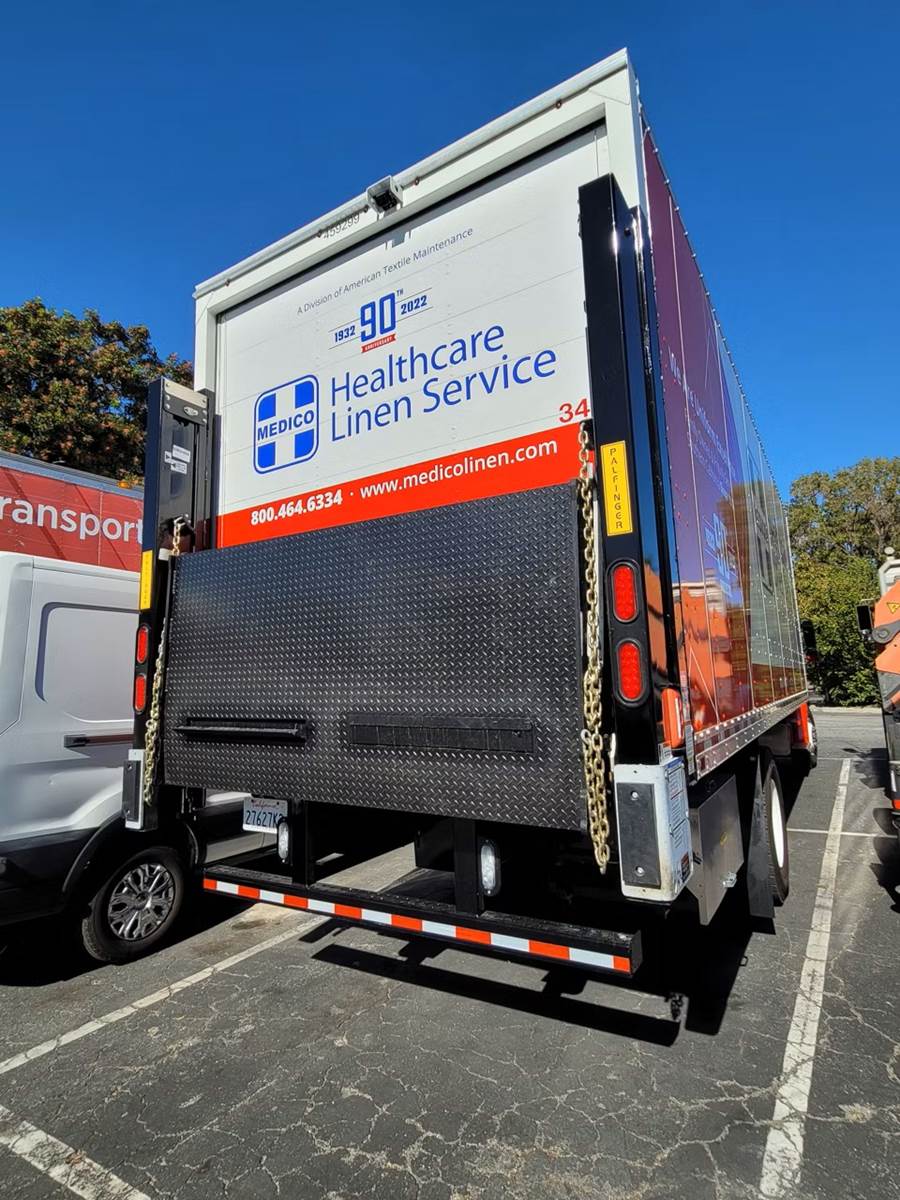

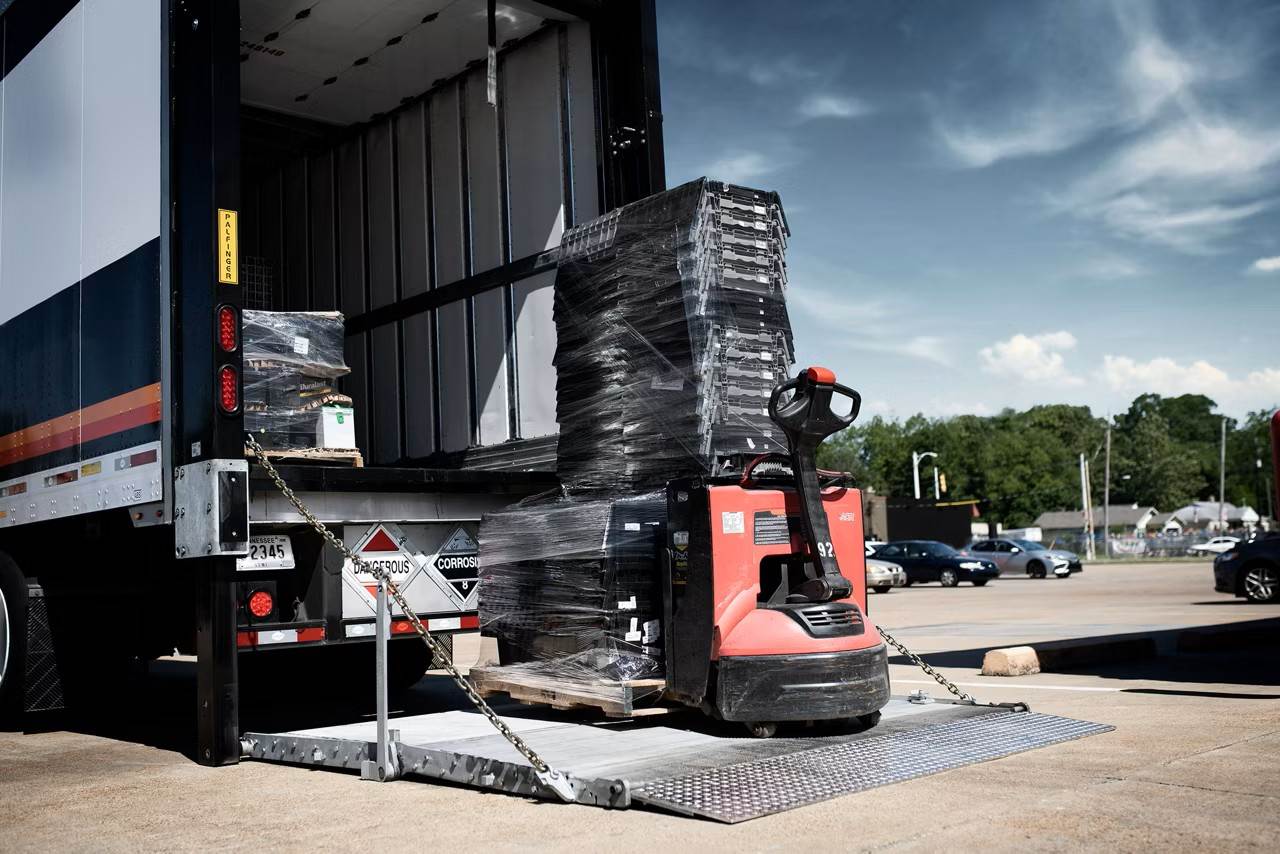

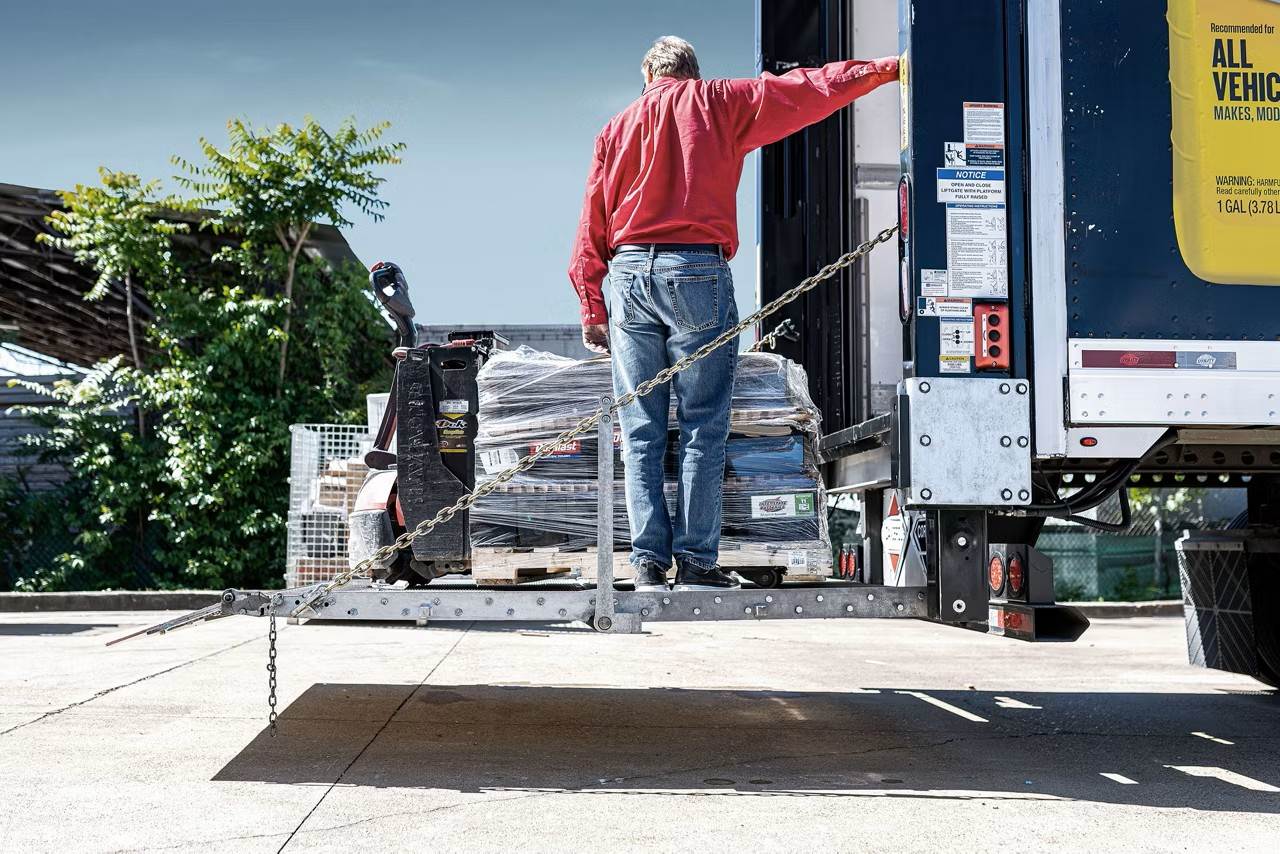

2026 Palfinger PTV Column Liftgate, New

2026 Palfinger | Liftgate | PTV

The New PTV Liftgate Is Built Interlift Tough To Handle Daily Operational Heavy-Duty Challenges
Introducing the all-new PTV - built tough for daily use and redesigned for ultimate performance. Enjoy faster installs, effortless operation, and minimal upkeep. With longer service life, lower costs, and PALFINGER’s unmatched support, keep your fleet moving and your business soaring. The redesigned gate is based on hard data: using customer and maintenance providers feedback applying enhanced technology, structure, safety, performance, installation and maintenance details to make a game changing column lift. Fleet managers and drivers have come to love this product due the ease of use and the reliability. The PTV Liftgate delivers more uptime with less maintenance, longer service life and lower cost of ownership—all helping you lift your business to new heights. Interlift is so confident in this product that we offer a longer standard warranty than others.

Standard Features:

• Lifting Capacity: 3,500# | 4,400# | 5,500# | 6,600#
• Platform Width: 80" | 86"
• Platform Depth: 42" | 48" | 60" | 72" | 84"
• Bed Height Range: 40" to 56"
• A Combined Power-pack And Battery Box With Hanger Frame & Room For Up To 3 Batteries
• Galvanized Finish
• Stainless Steel Hardened Pins With Grease Fittings & Bushings At All Pivot Points
• Column Mounted Trailer Style LED Tail Lights (Red+Red)
• Heavy Duty Air-Gap Column Wraps With UHMW Dock Bumpers
• Adjustable Platform Support Chain
• Platform Bottom Stops For Dock Loading
• 80“ Or 86“ Wide Platform For 96“ Or 102“ Wide Truck And Trailers
• Gravity Or Power Down On Demand (Driver Selected At Switch)
• Dual Pump Standard On PTV 55-66 / Optional On PTV 35-44
• Self-Diagnostic LED Display, Cycle, & Service Counter

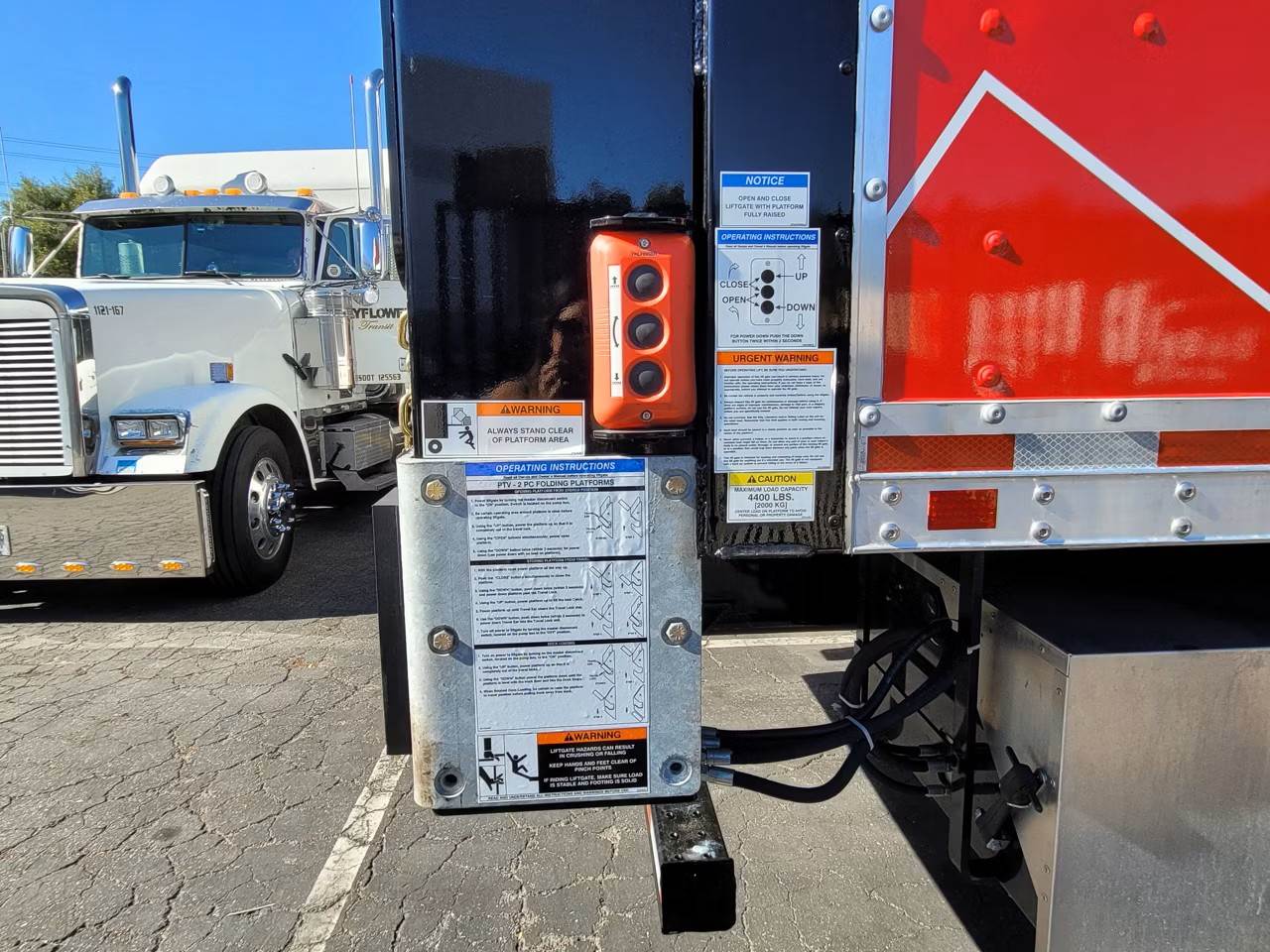

• Service & Emergency Back Up Hand Held Remote In Pump Box
• Built In Pressure Gauge, Volt Meter And Master Cut-off Switch
• PTV Standard 3 / 5 Year Warranty Has An Extended 5 Year Warranty On Closer Hoses, Runner Switch Harness And Slide Pads

Available Options:

• Cart Stops
• 16“ Aluminum Retention Ramp
• Wireless Remote
• Bolt-On Applications
• Integrated Warning Lights
• Dock Seal Header Kits
• Dock Seal Header LED Flood Light Kit
• Dual Nose Box
• Hose Kits: 3' | 9' | 18" | 27"
• Solar Chargers

Call for more information and pricing!
