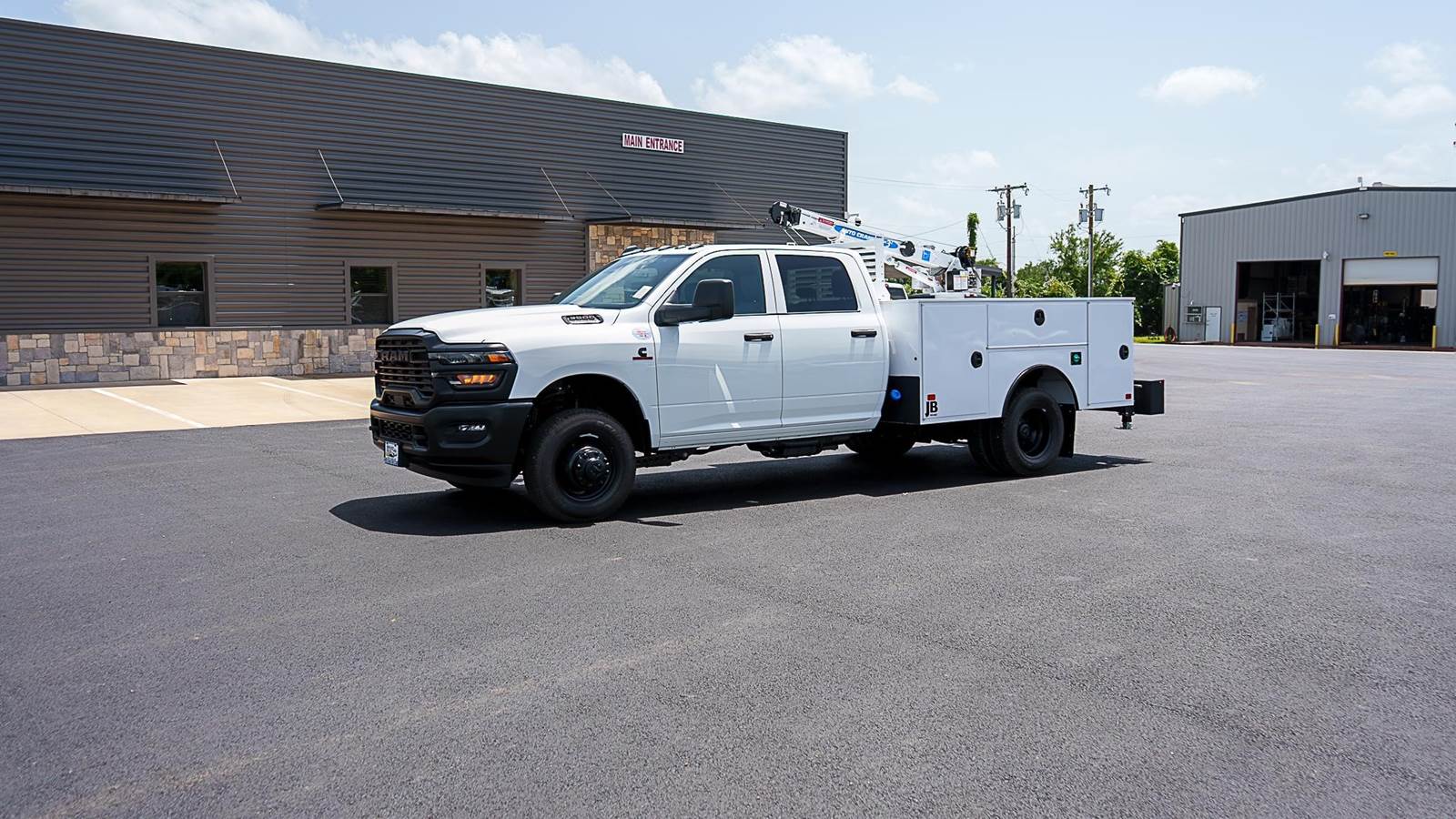

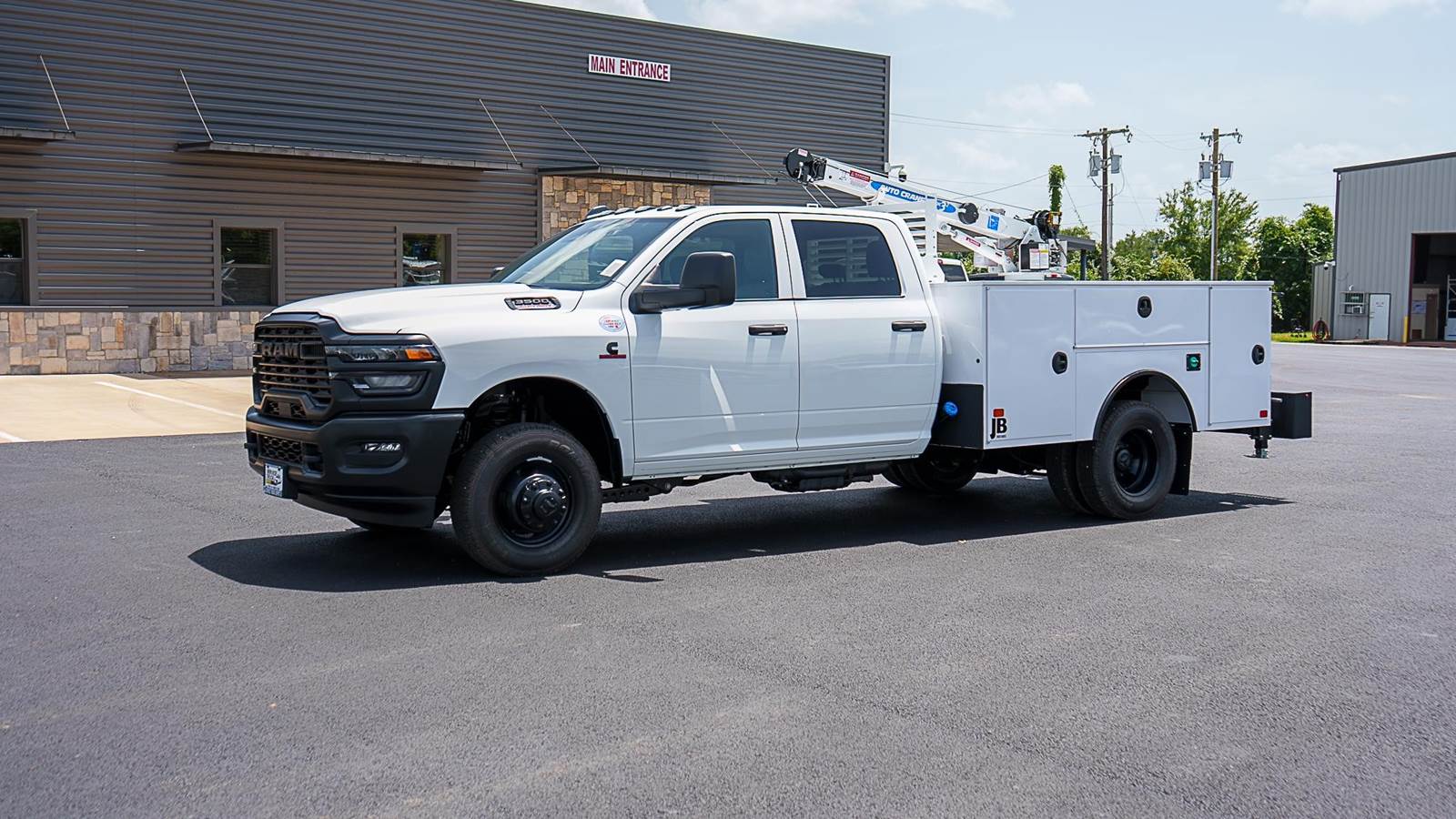

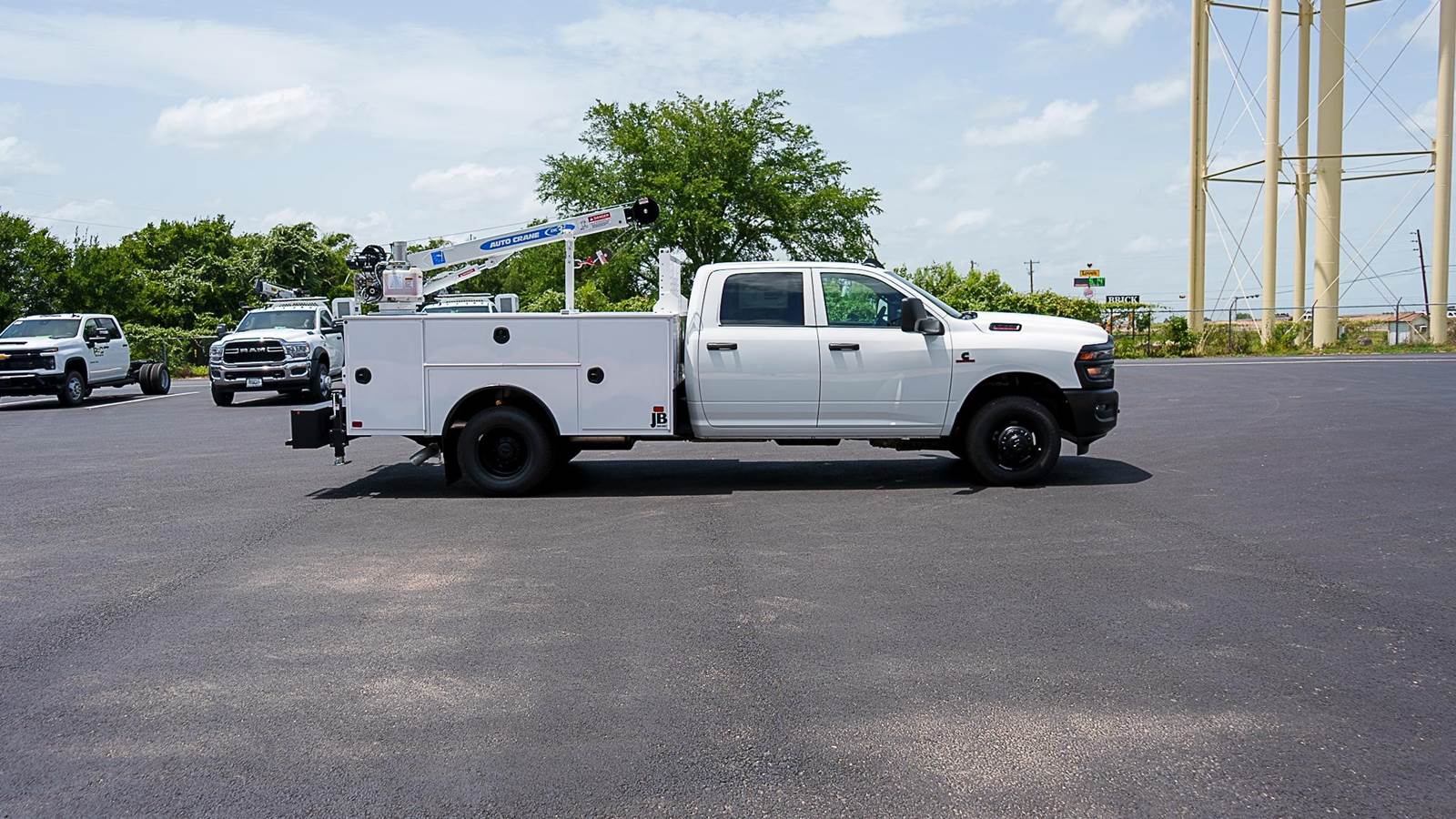

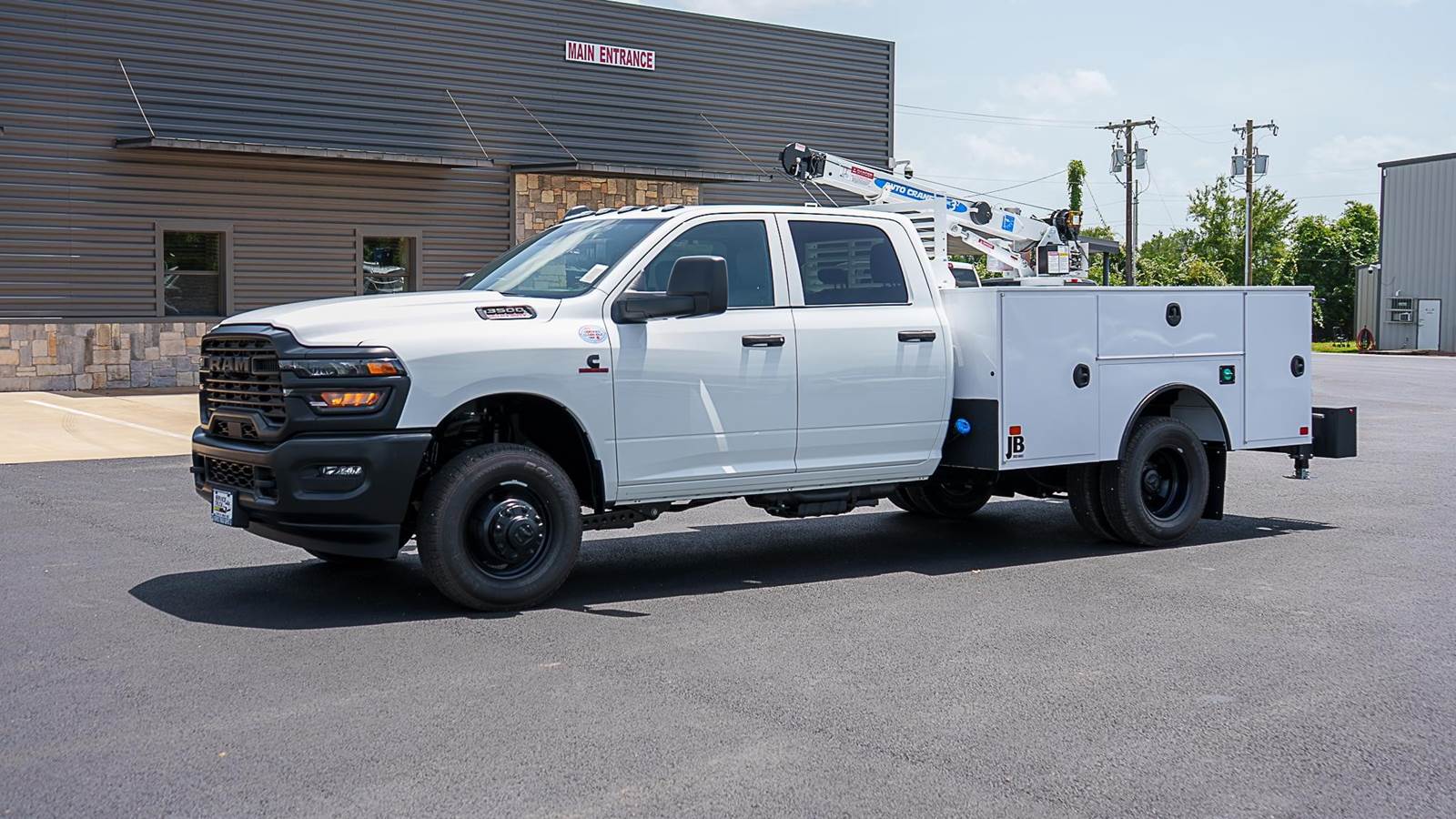

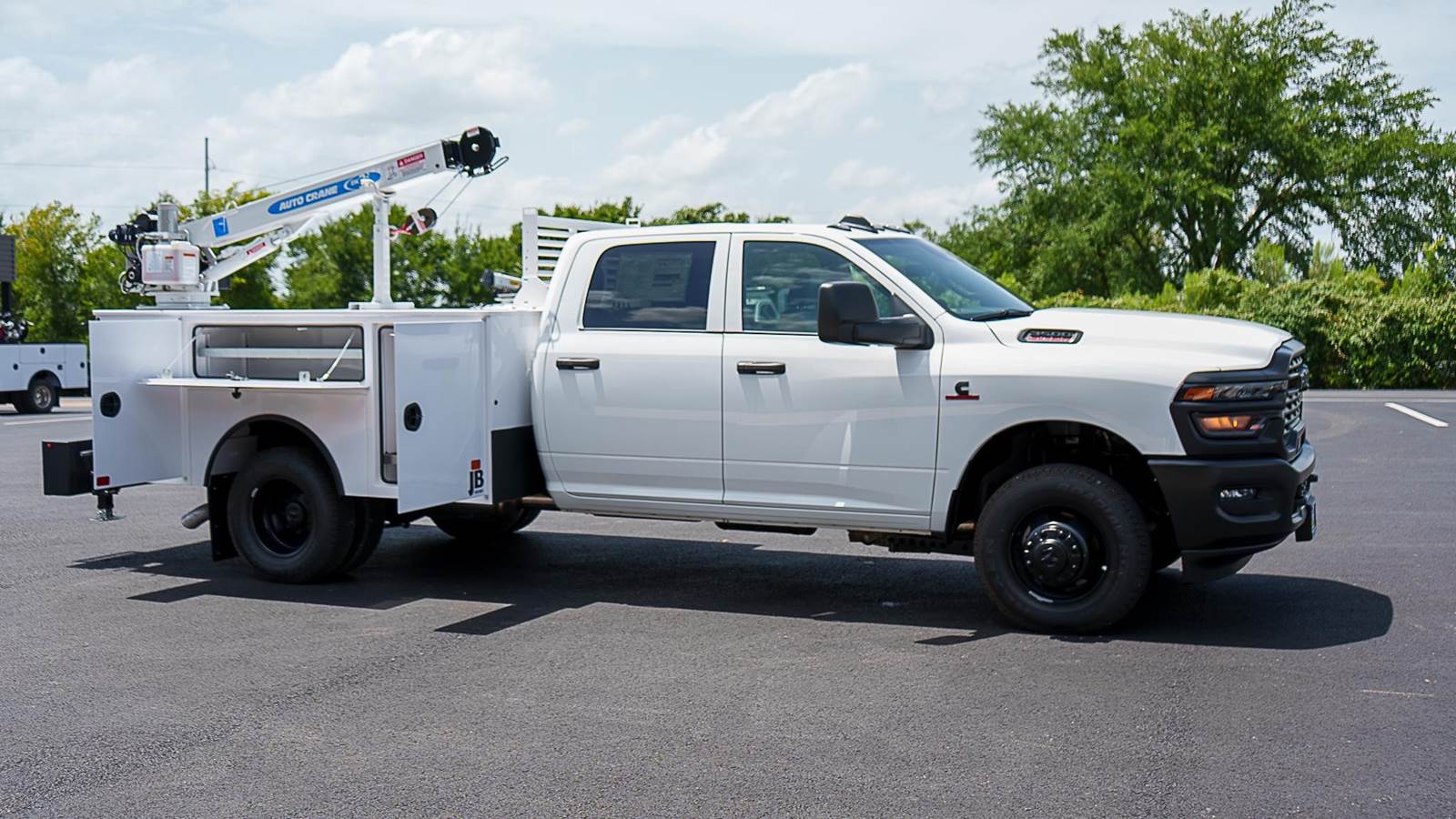

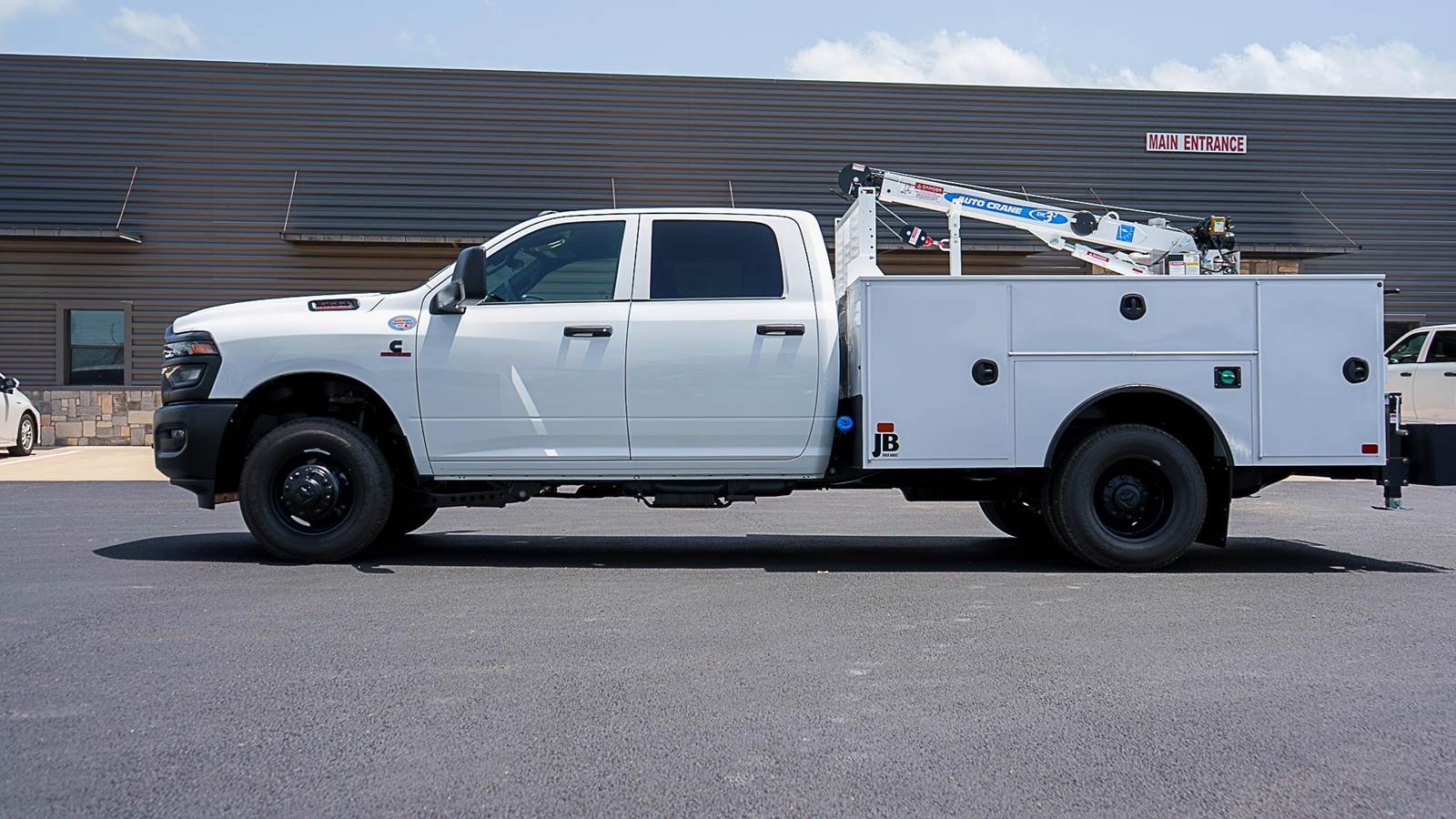

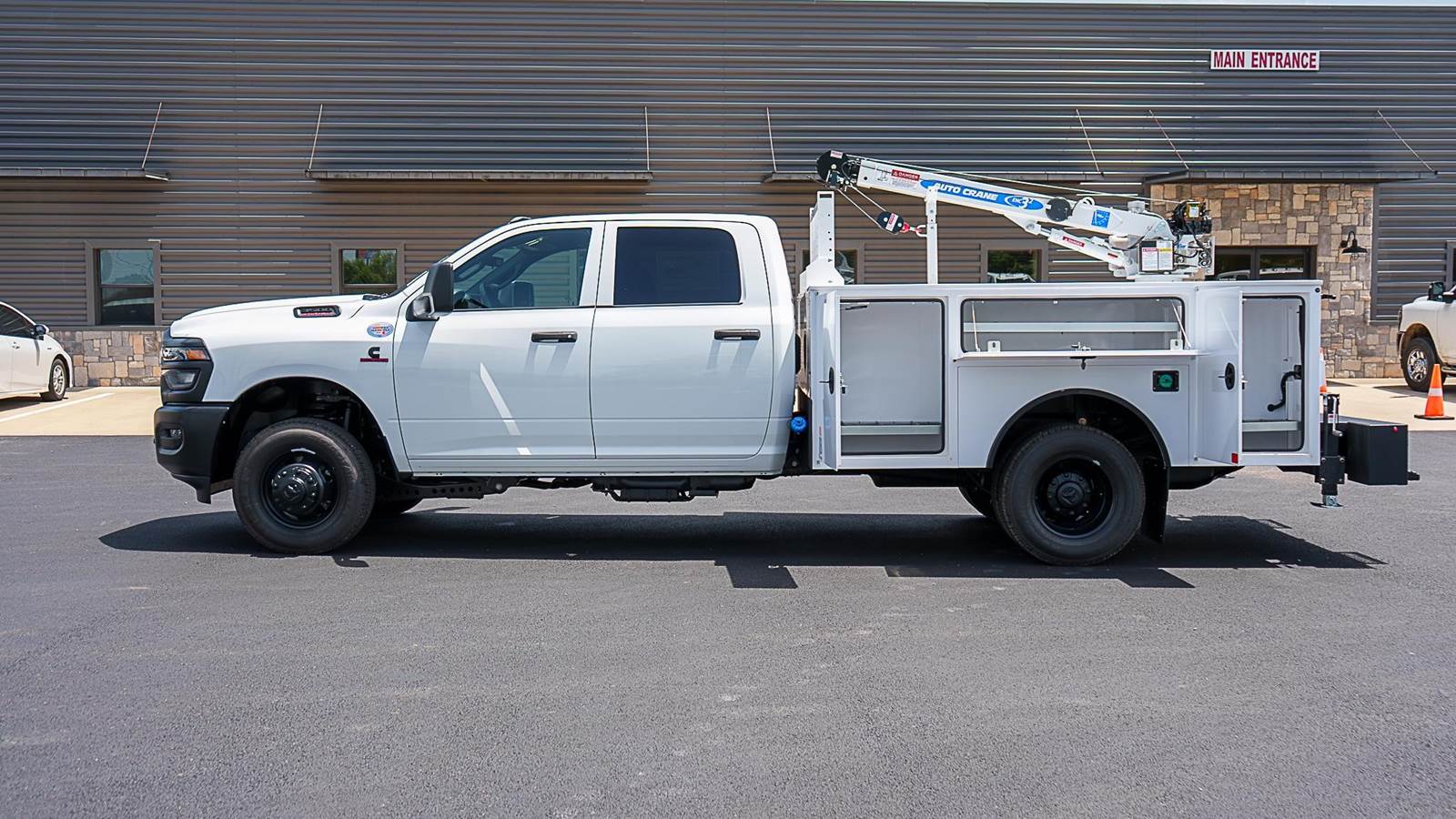

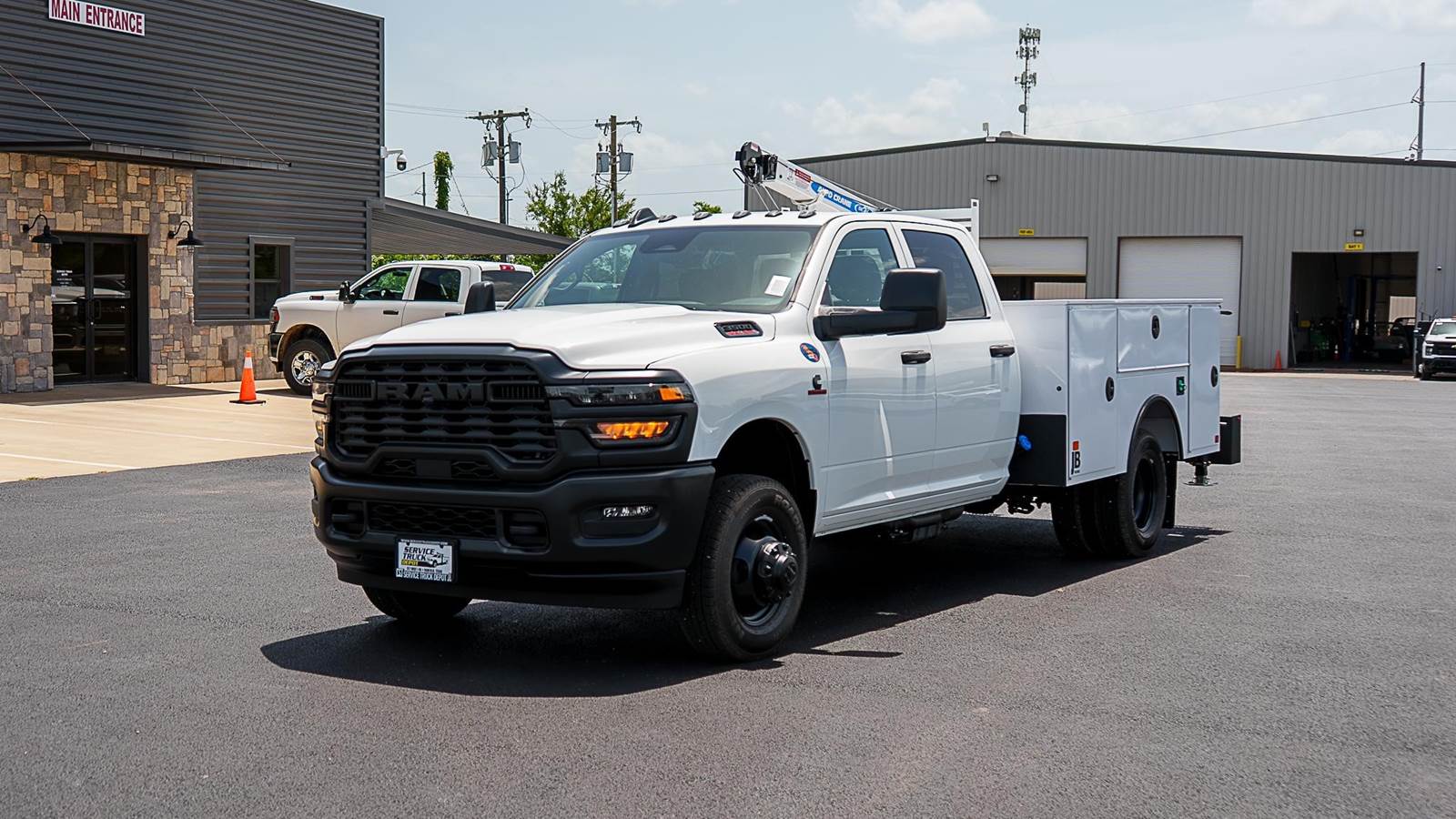

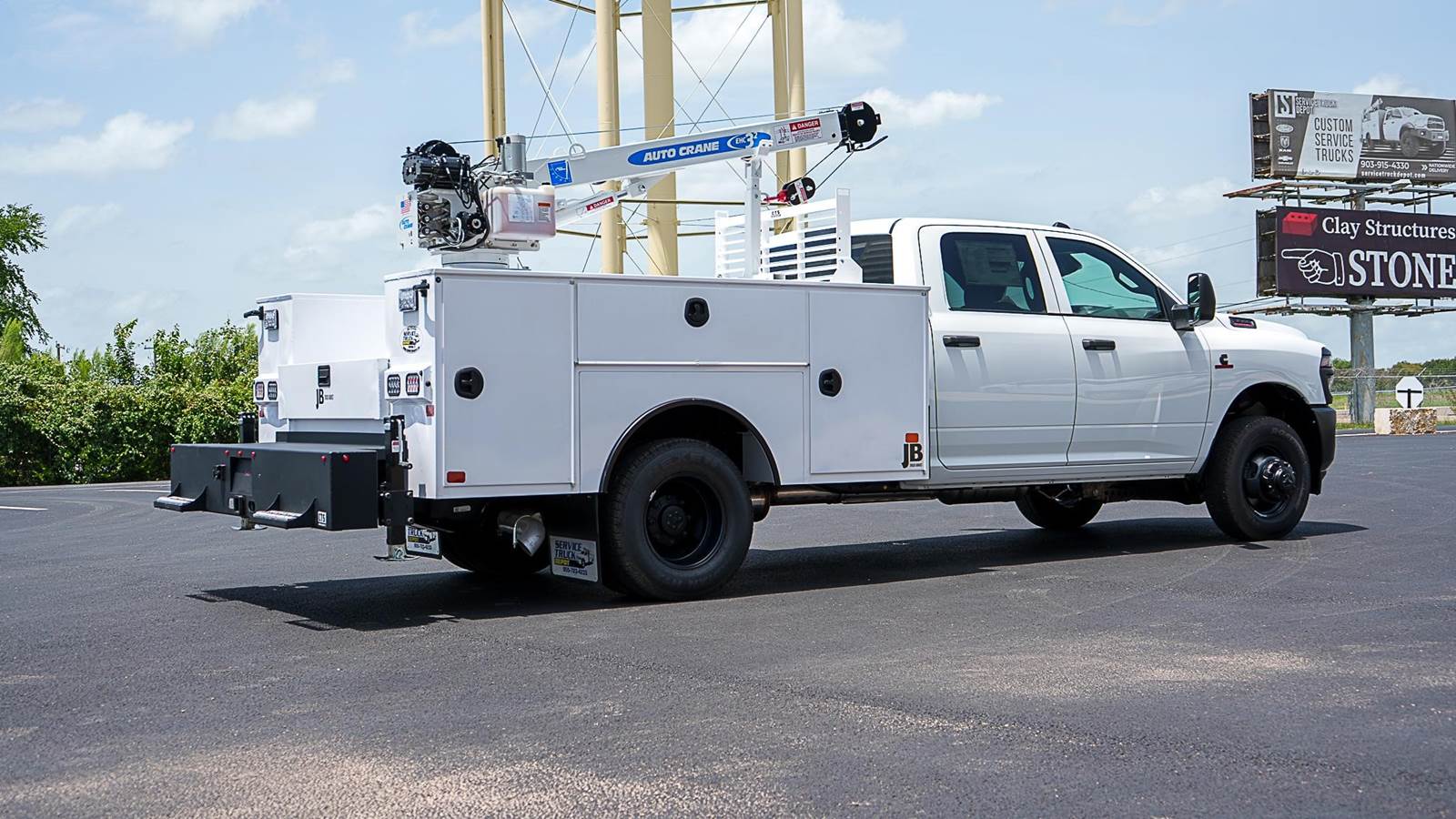

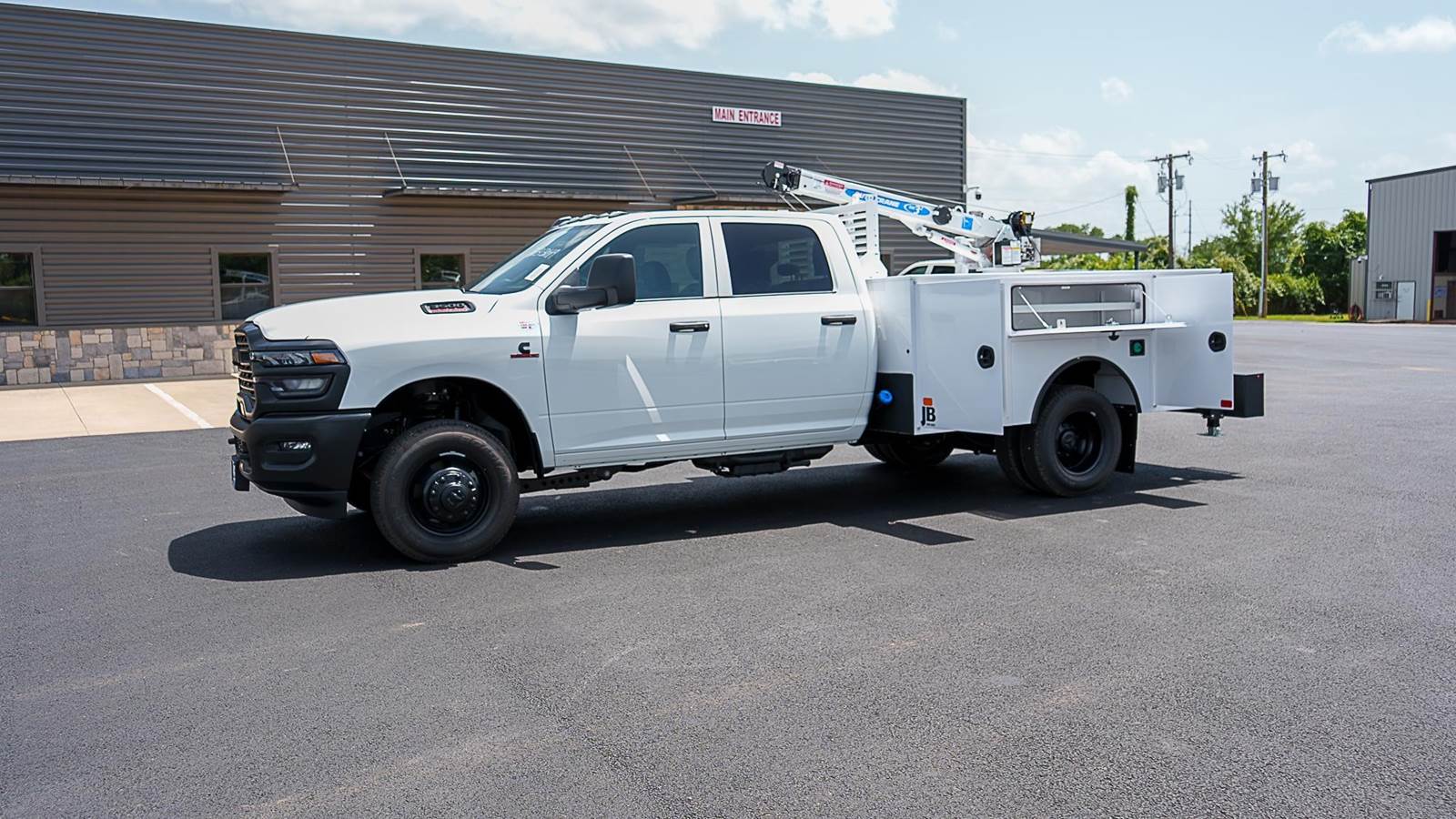

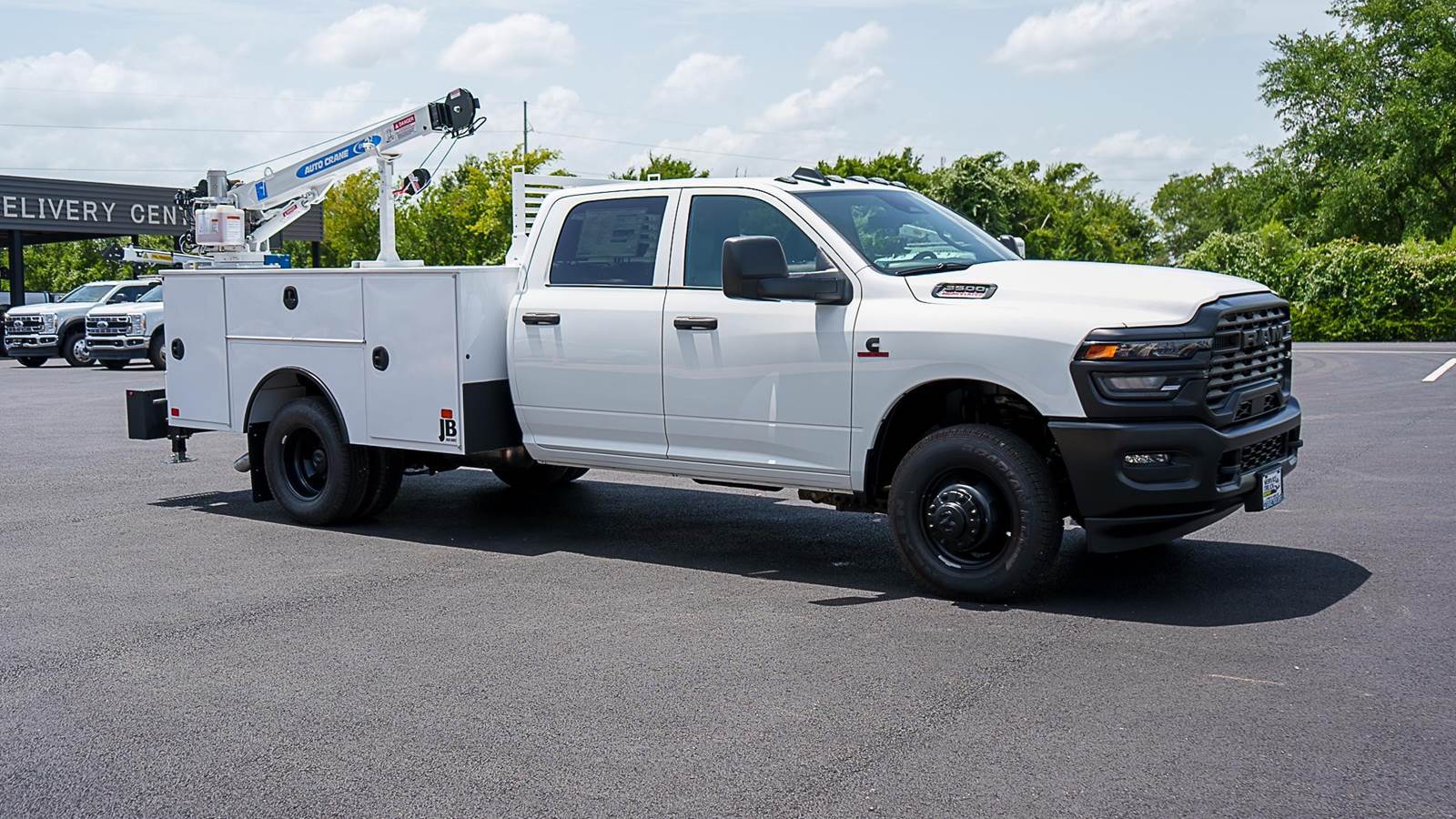

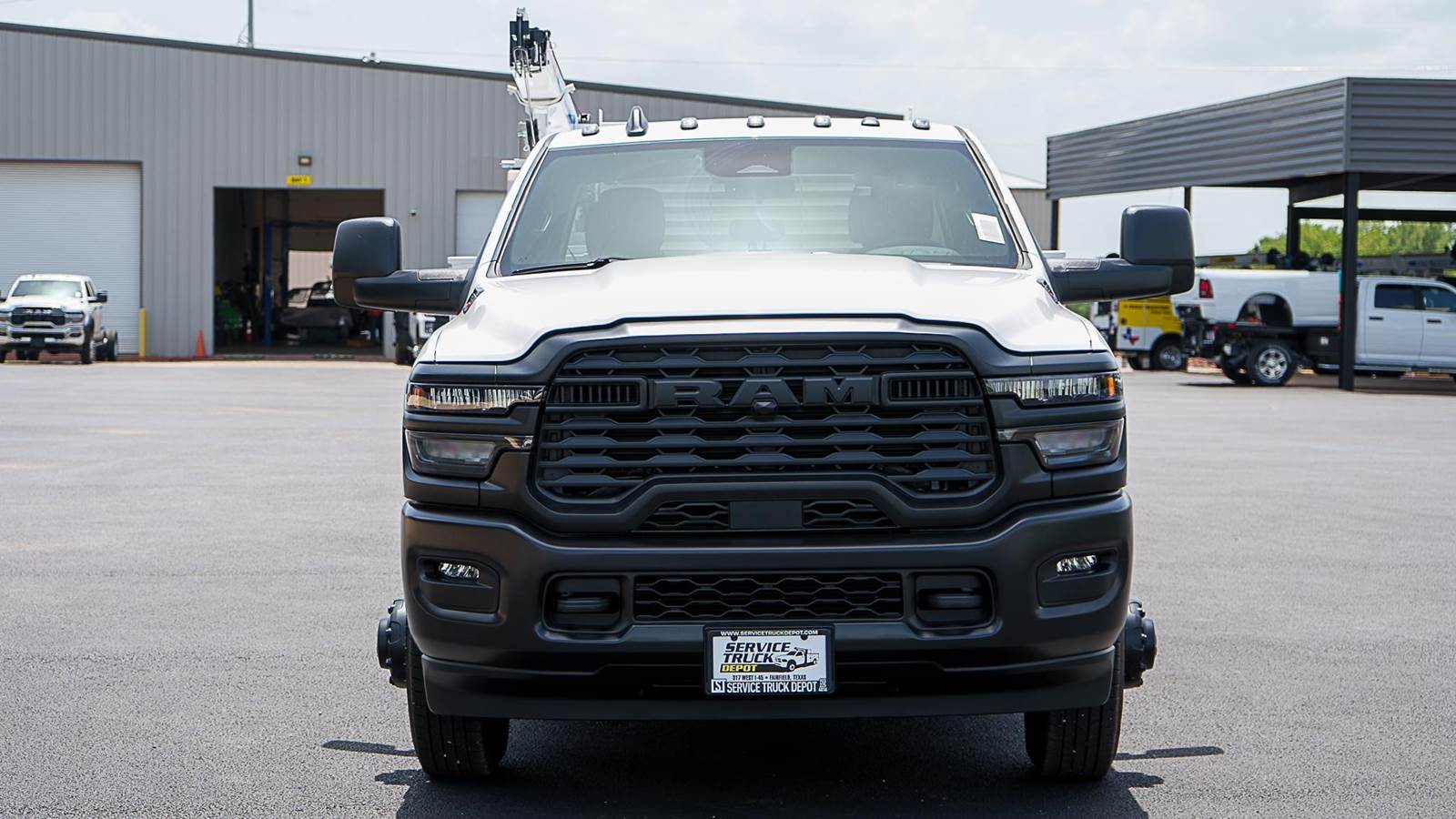

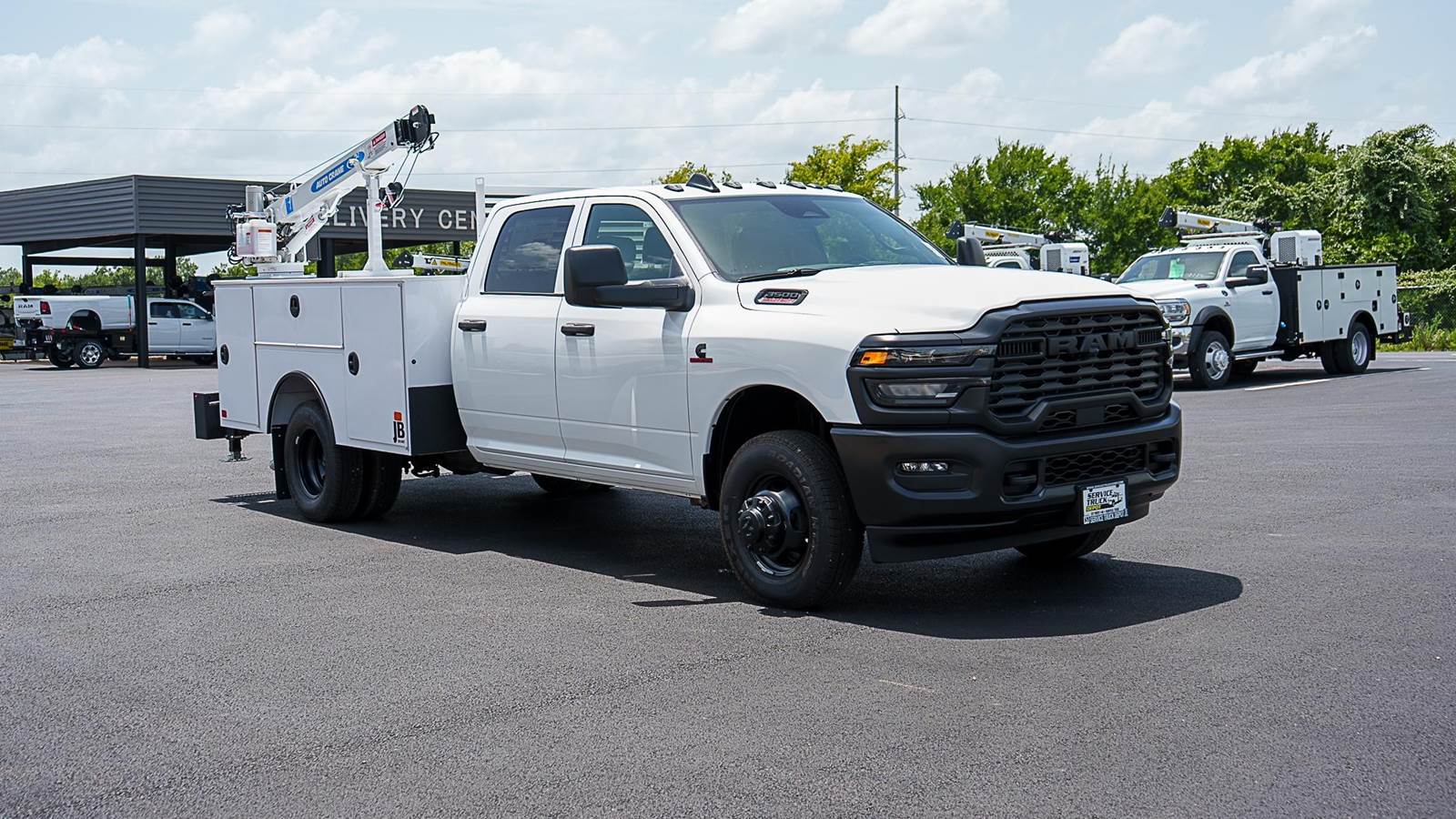

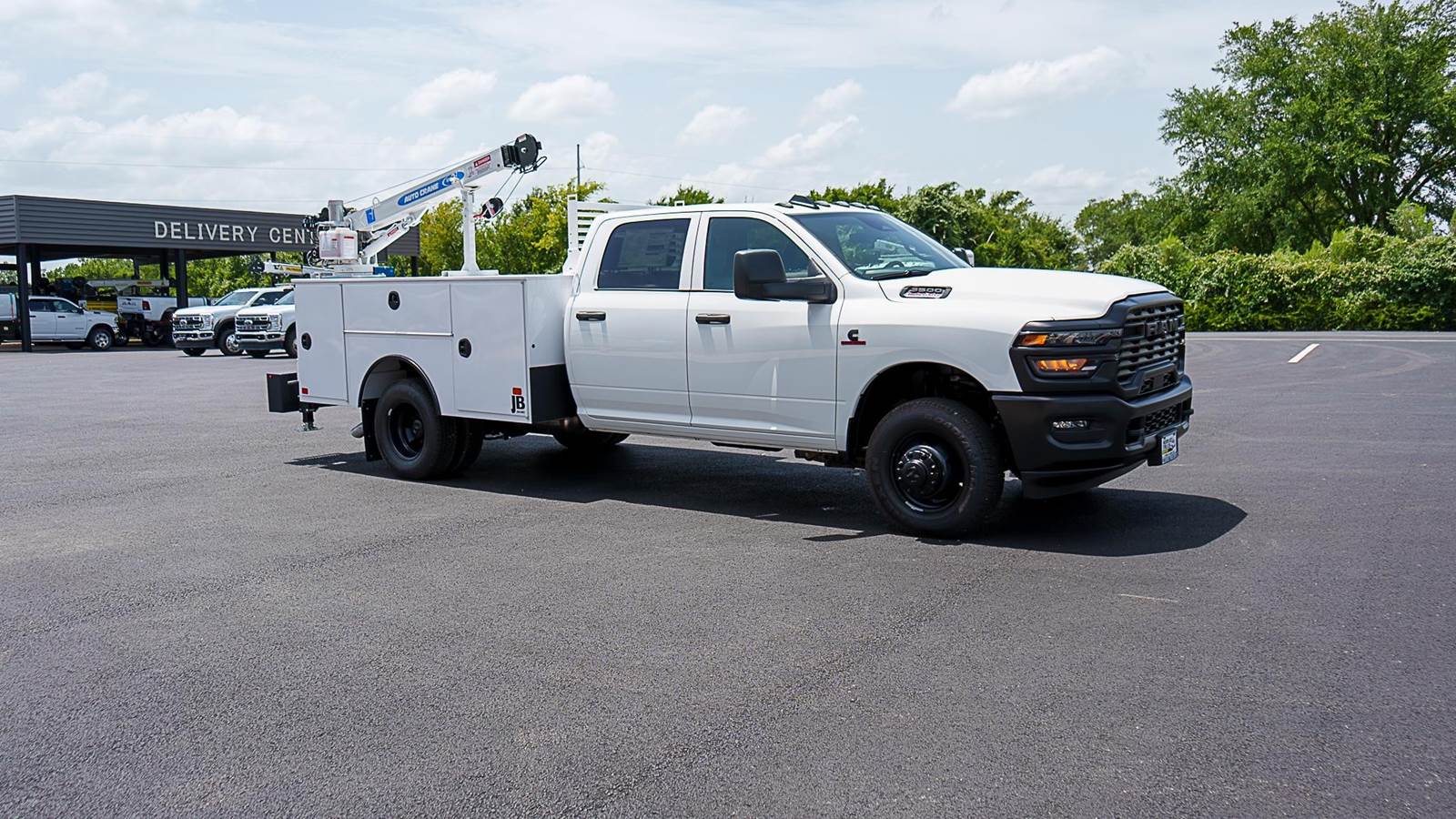

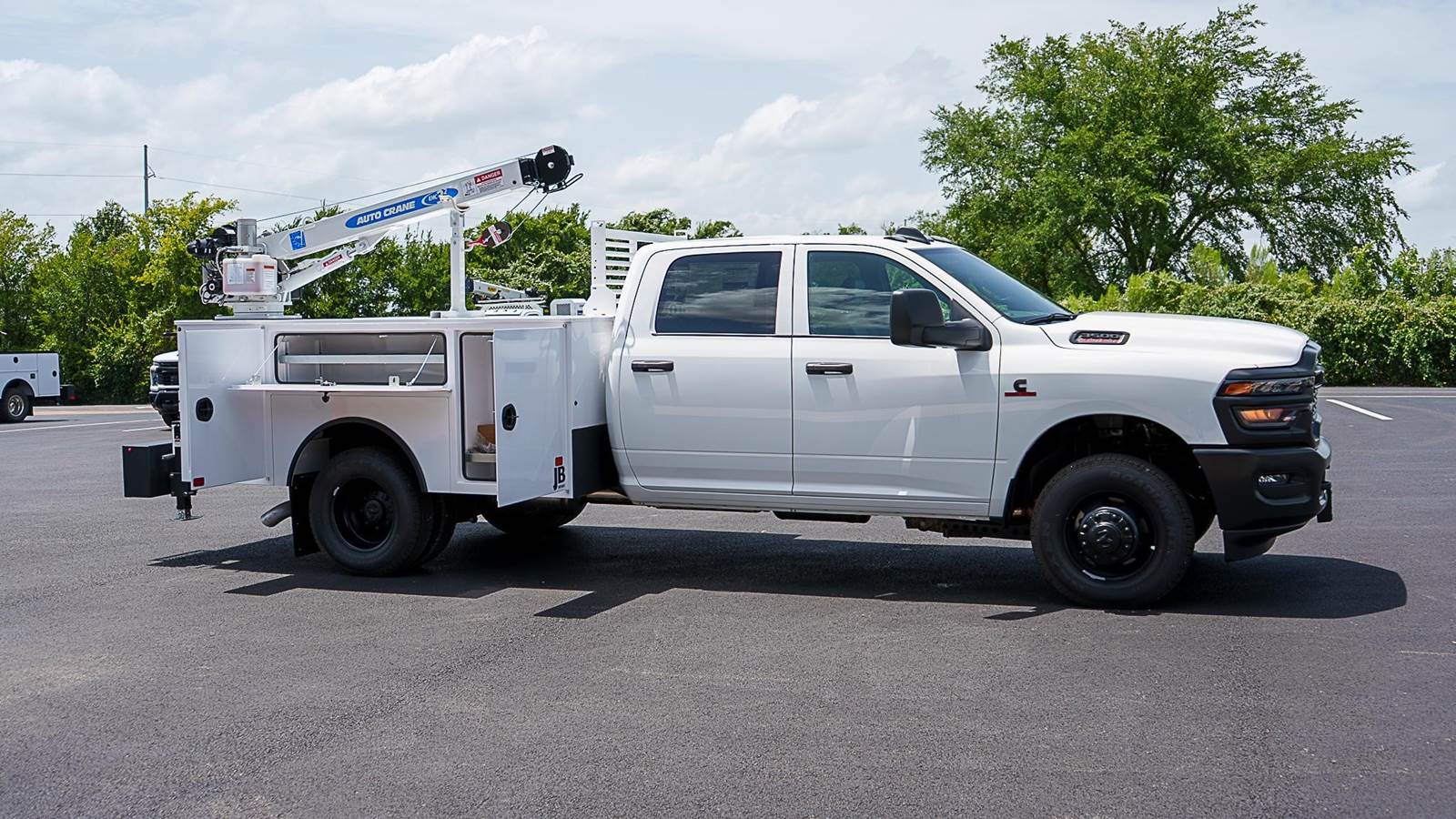

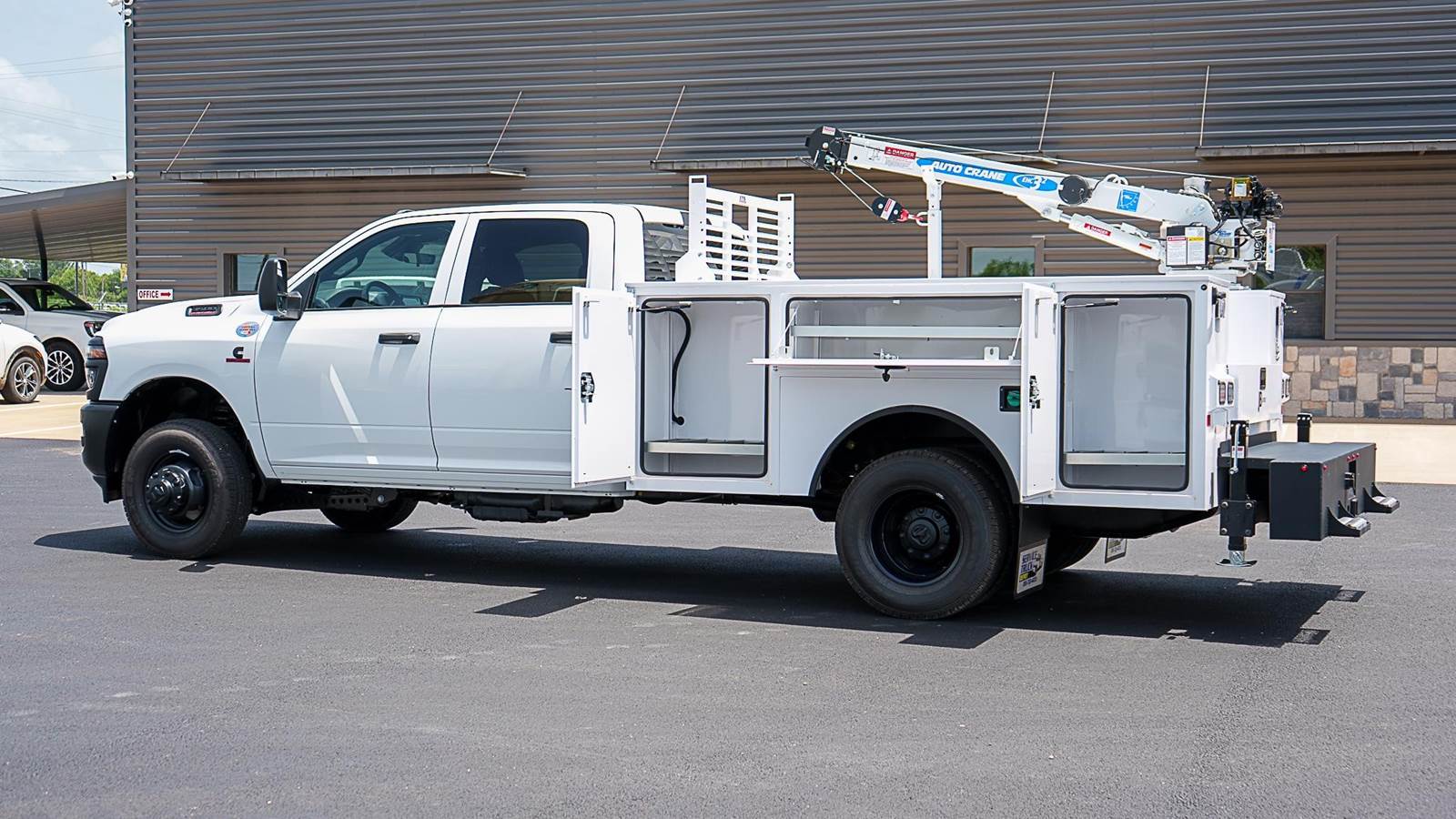

2026 RAM 3500 Mechanic / Service Truck

NEW 2026 RAM 3500 HD TG313669

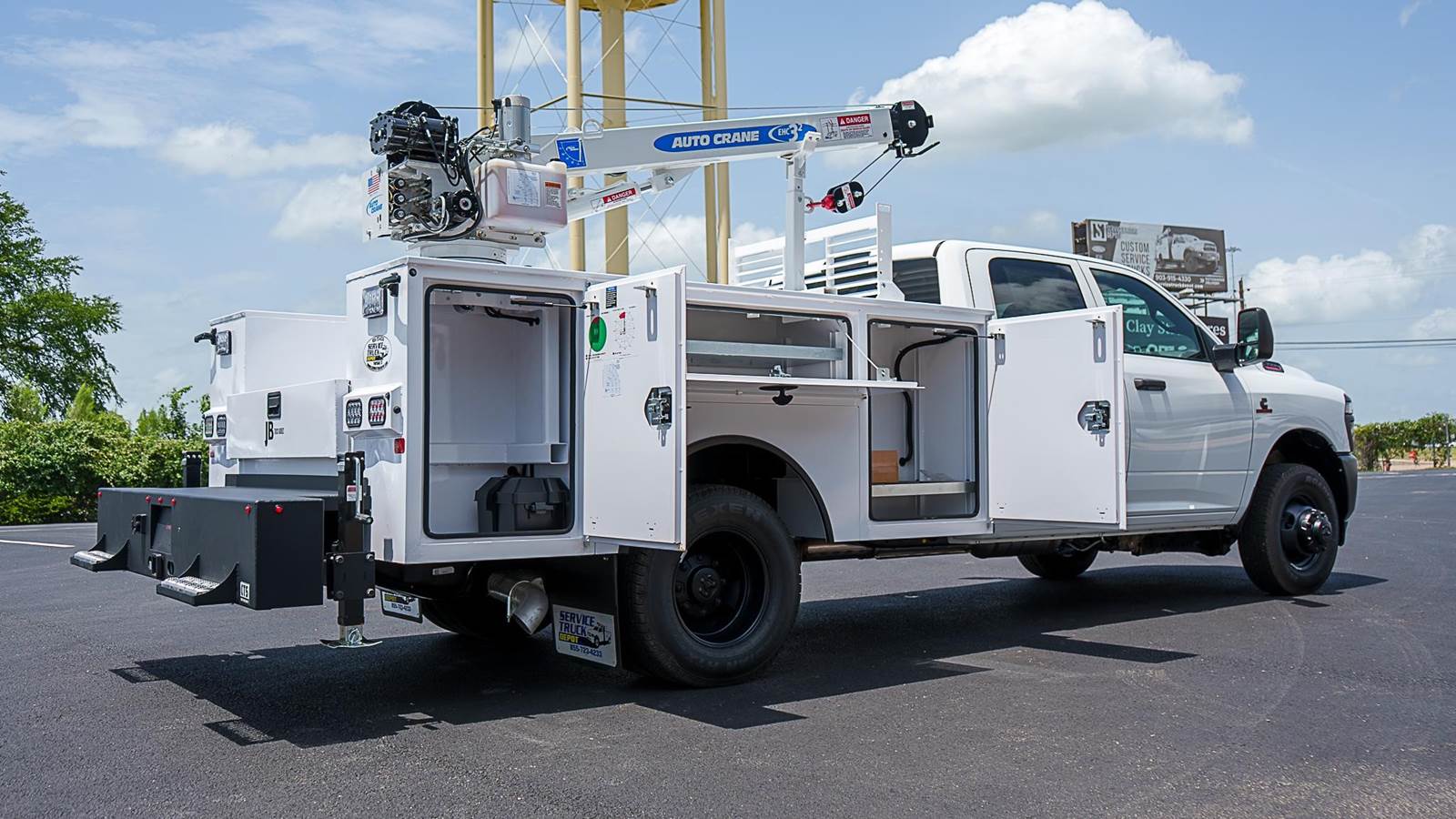

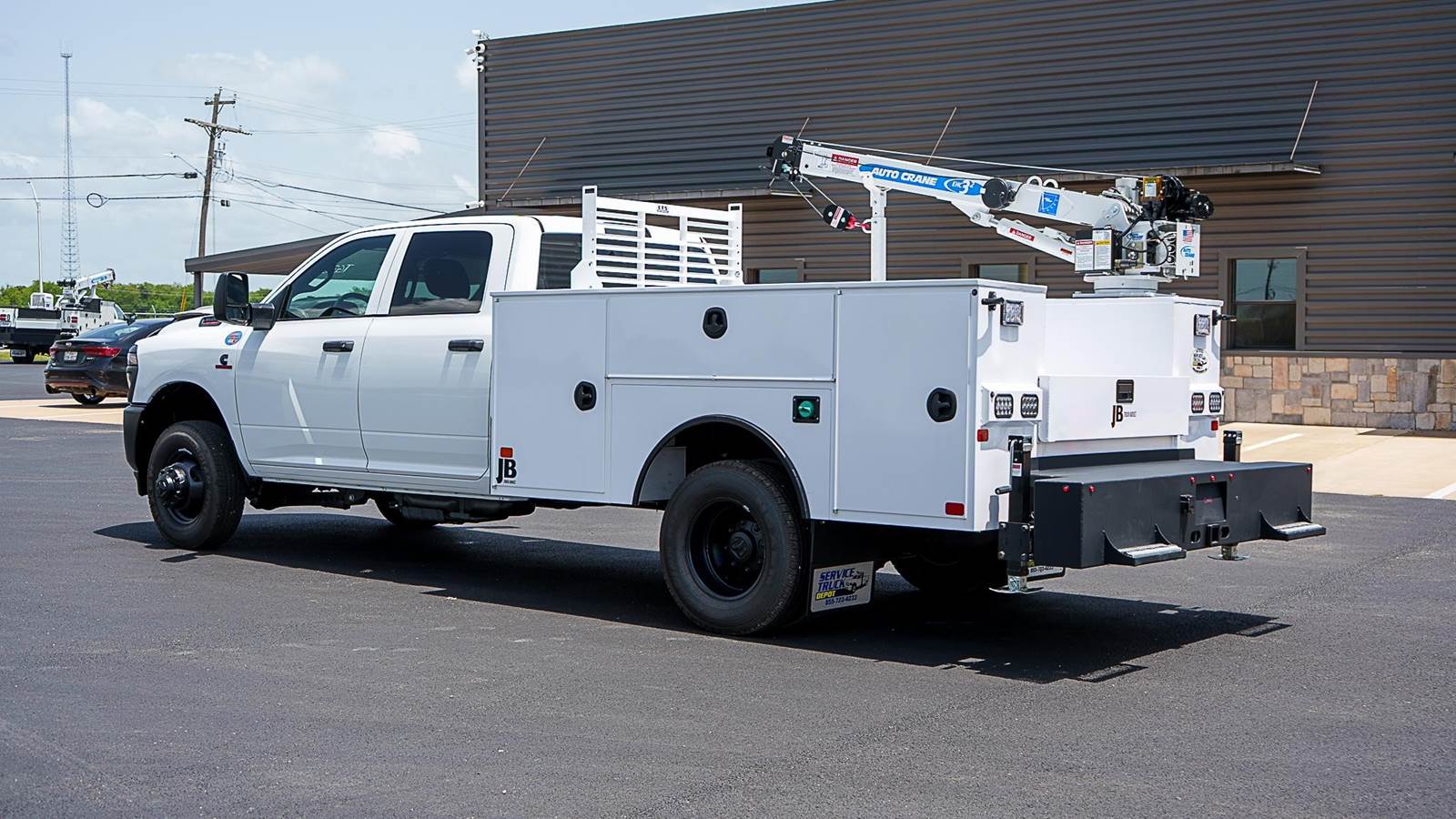

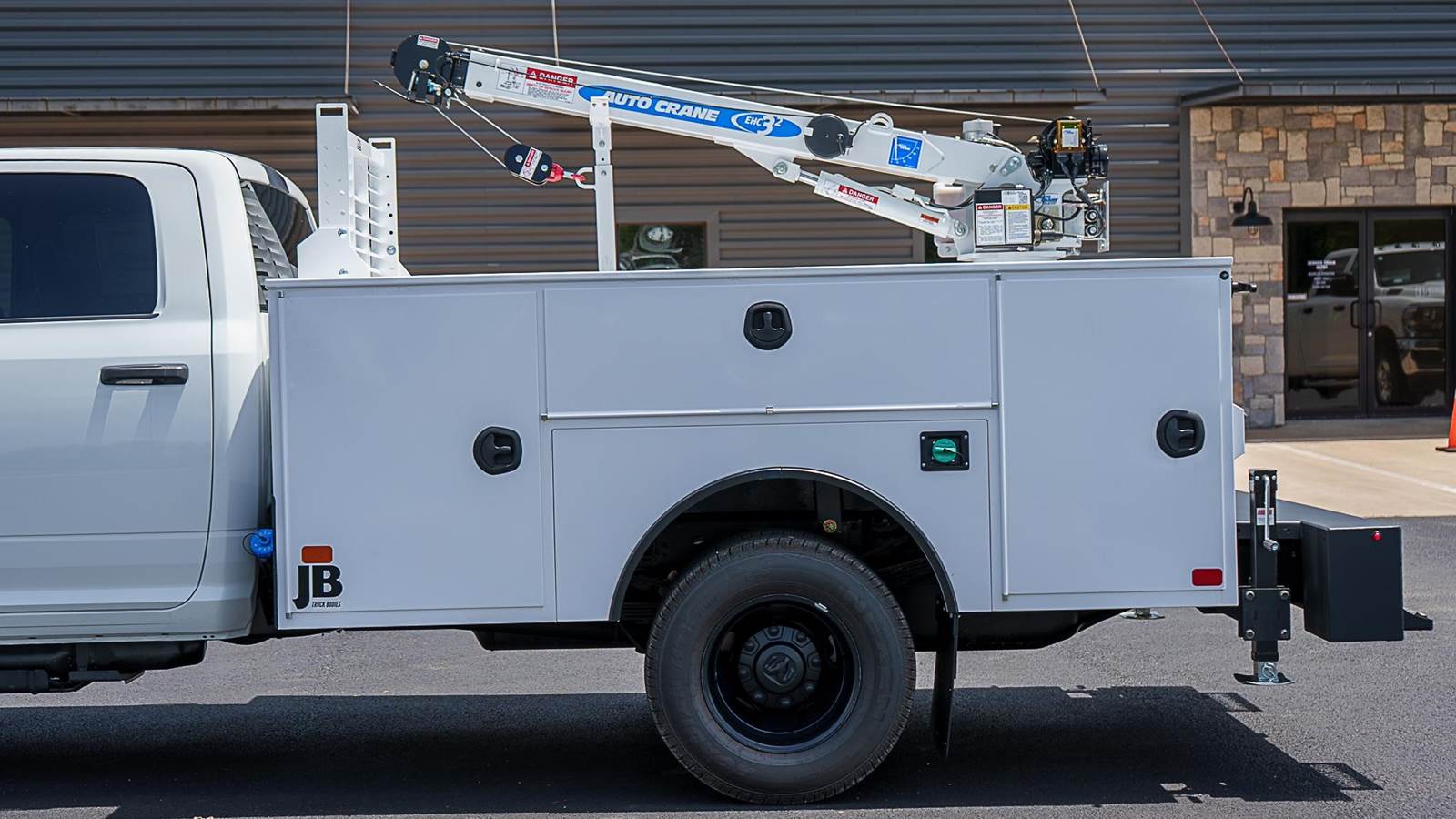

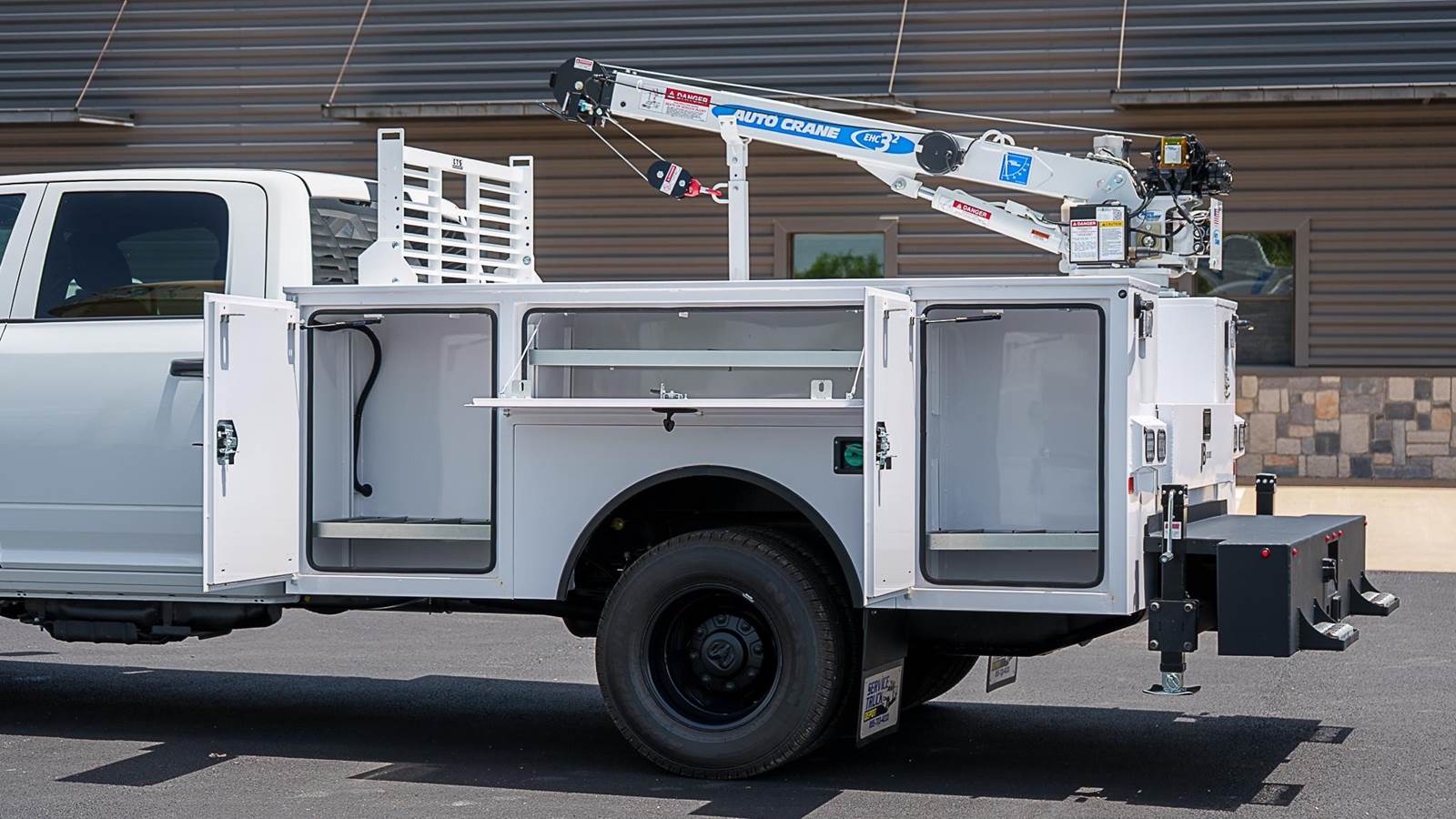

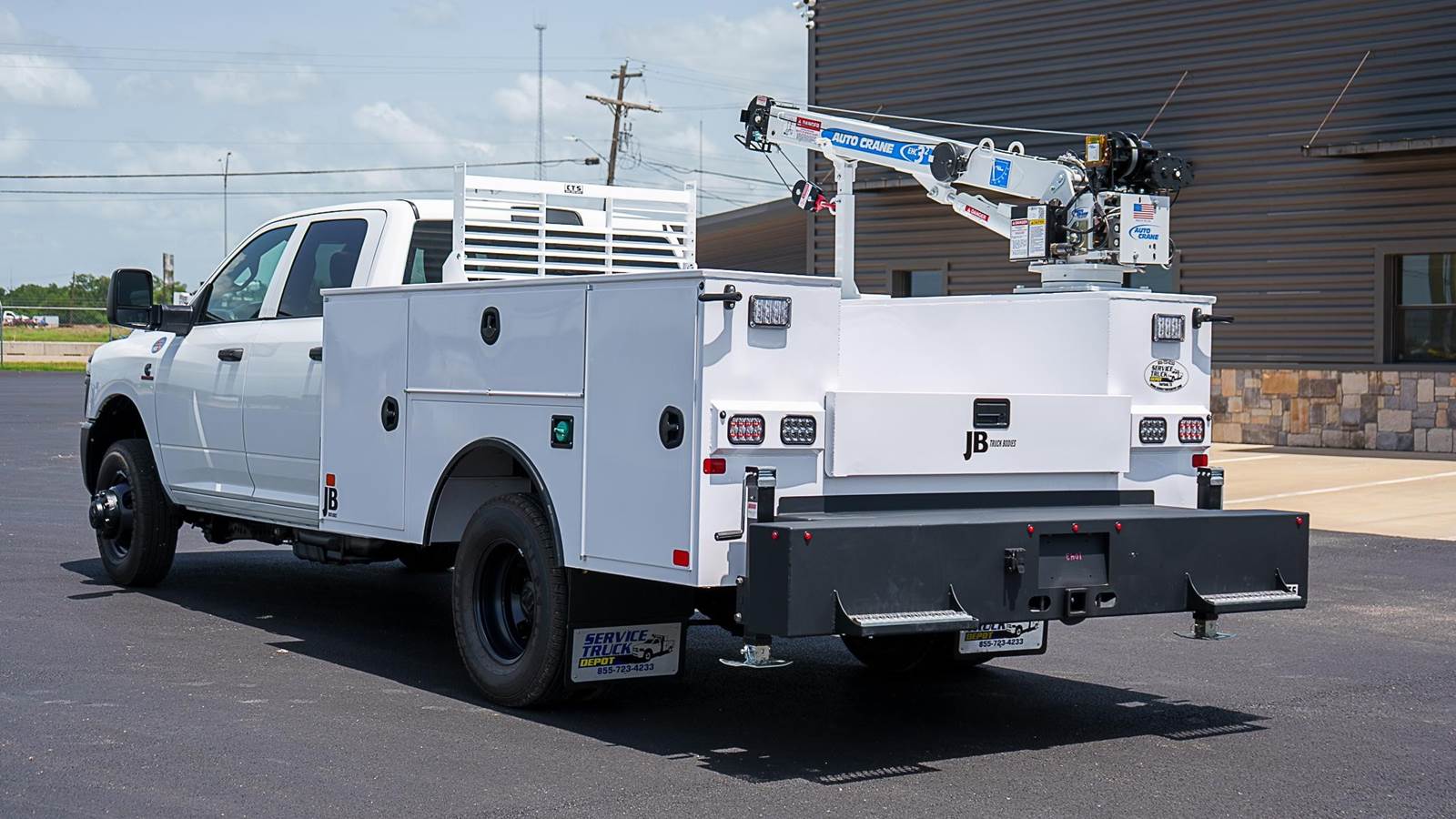

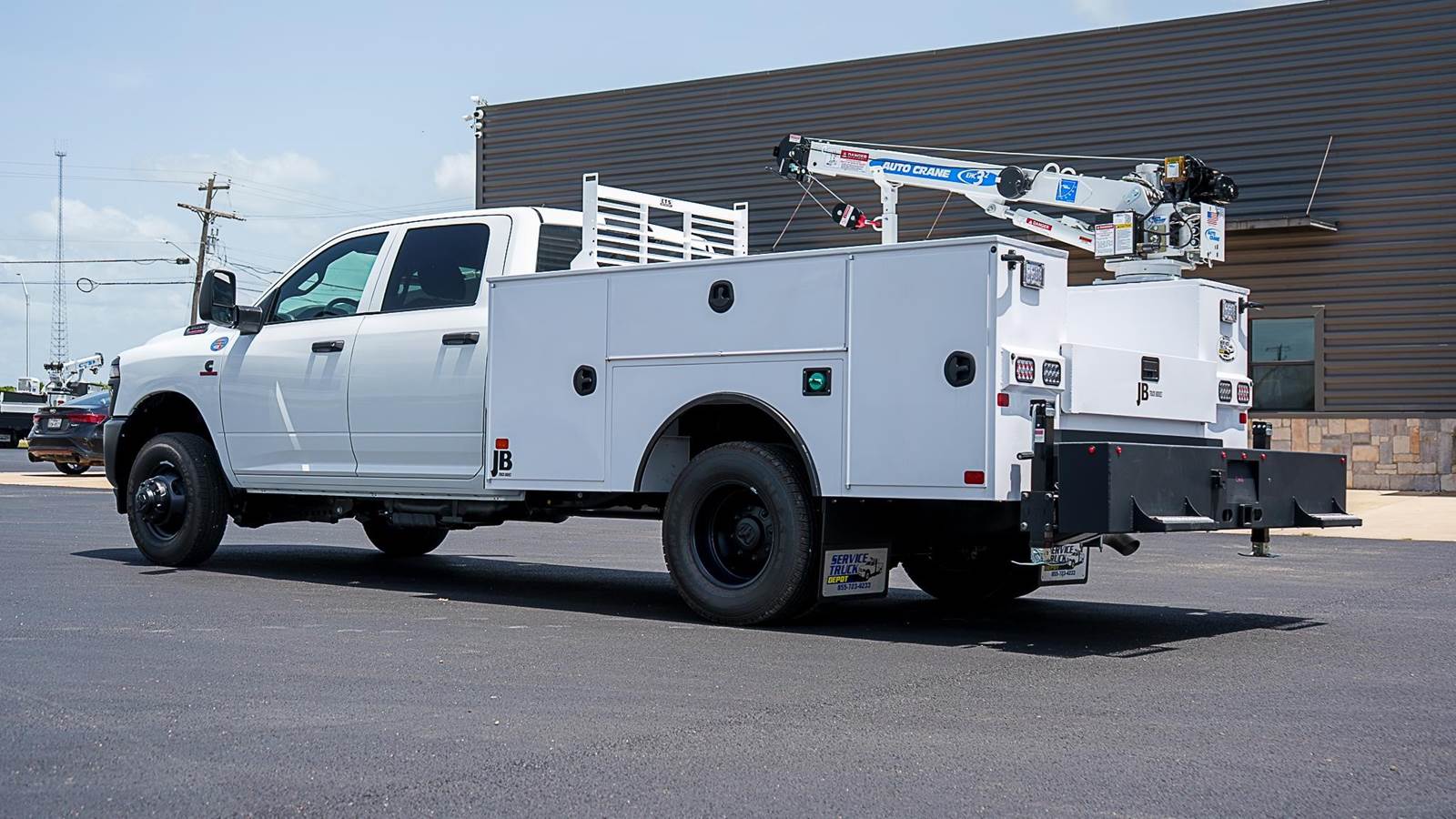

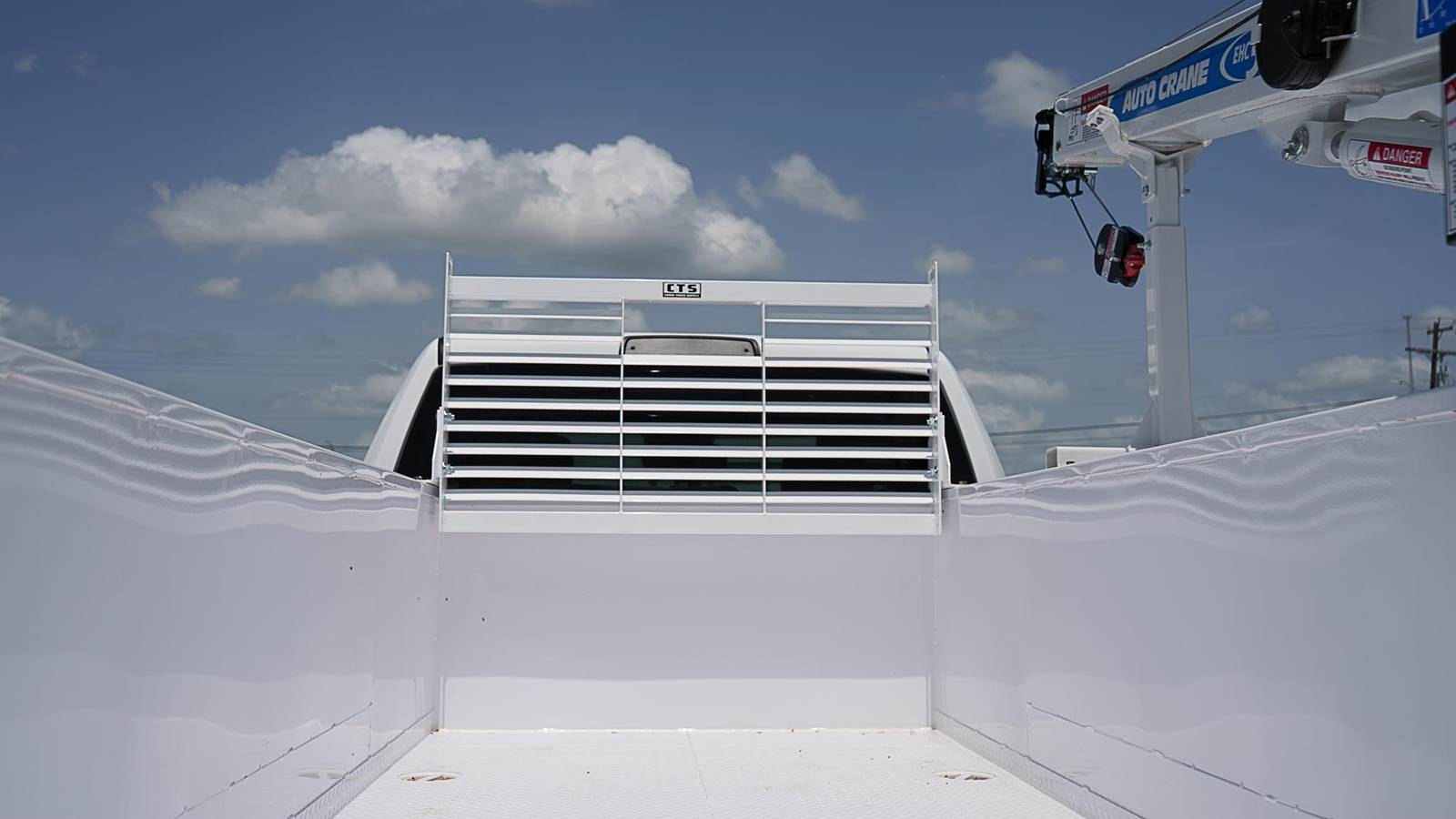

94" JB Crane Service Body


Key Features:

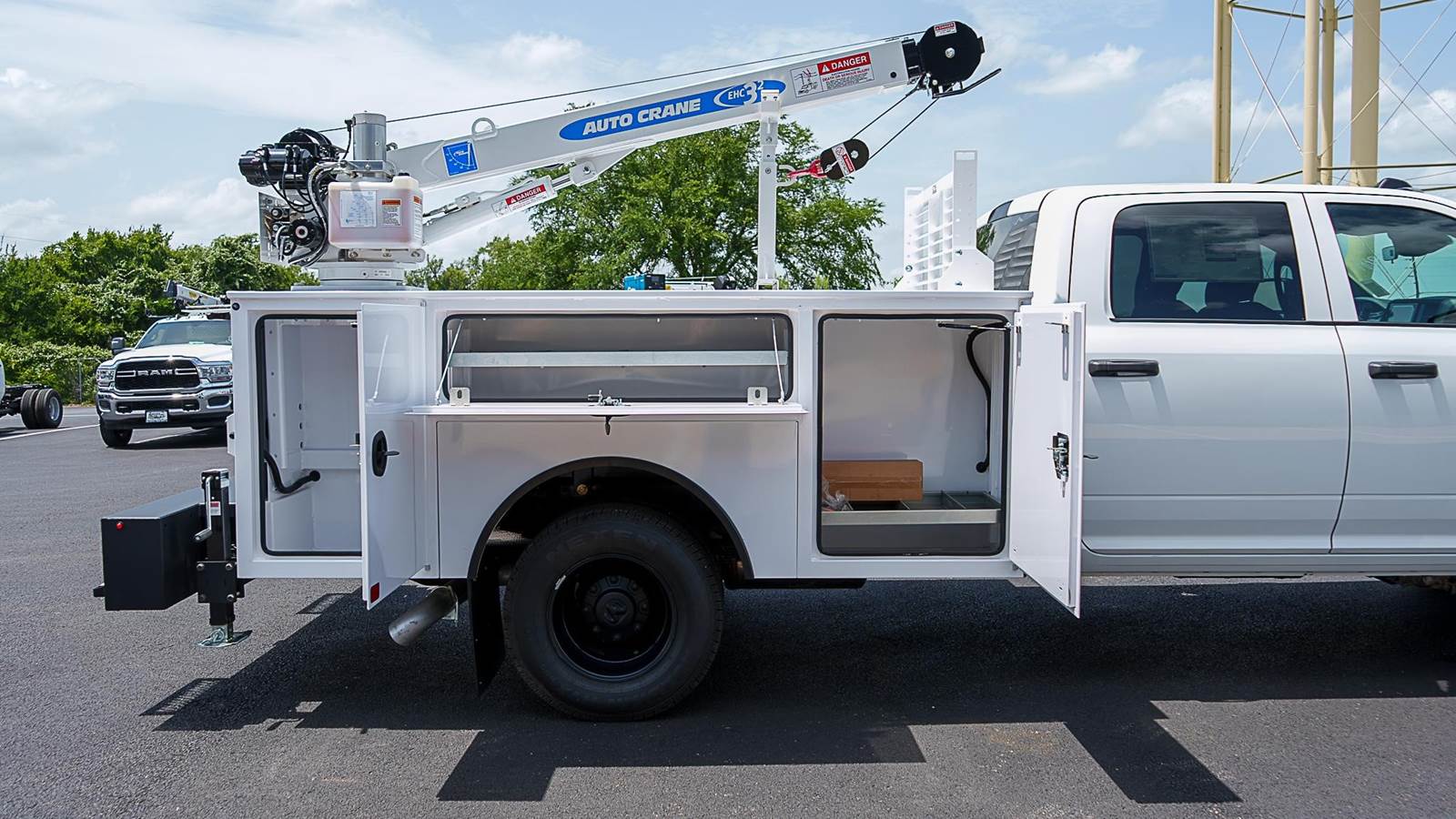

JB Crane Service Body Includes:

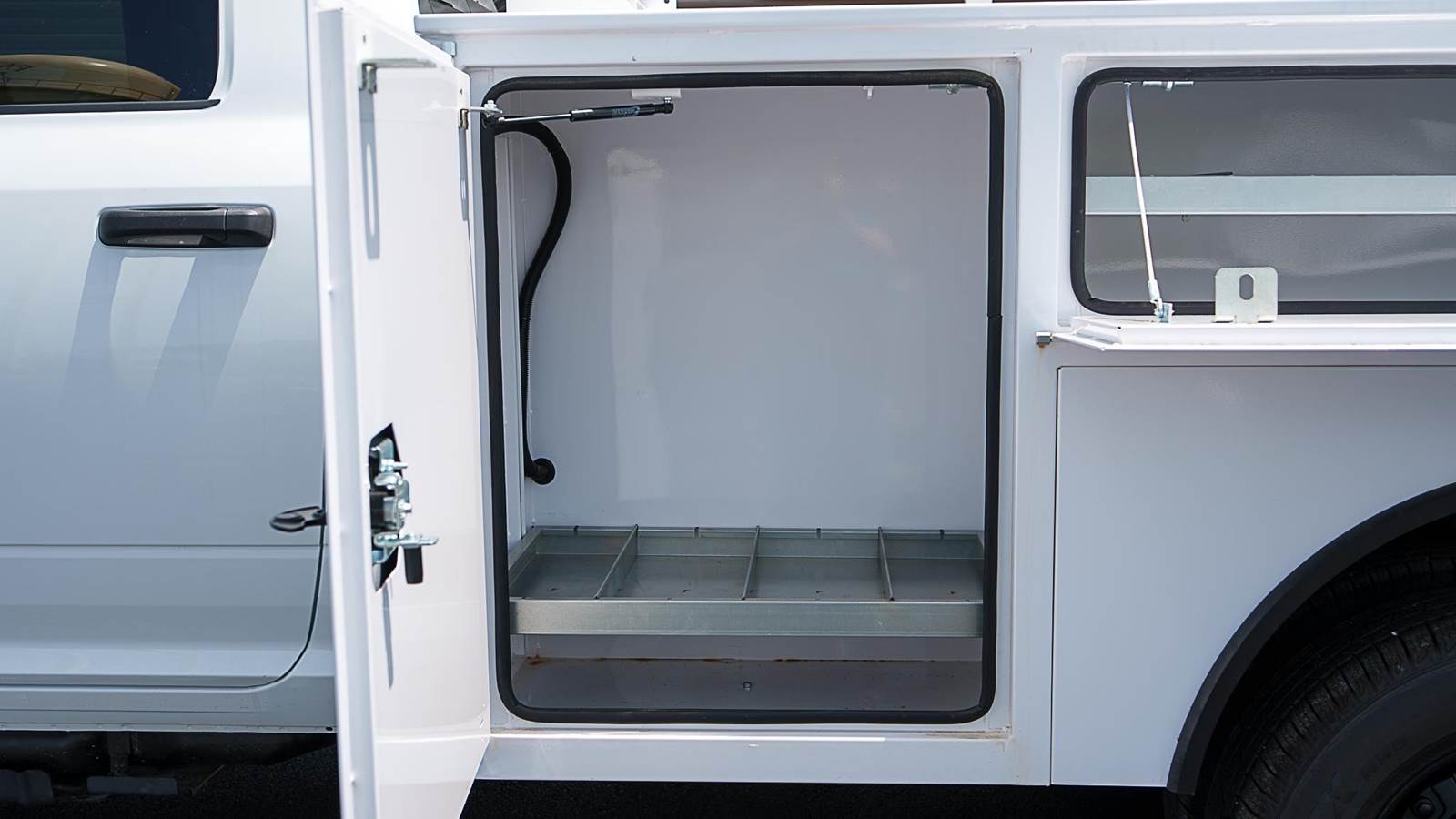

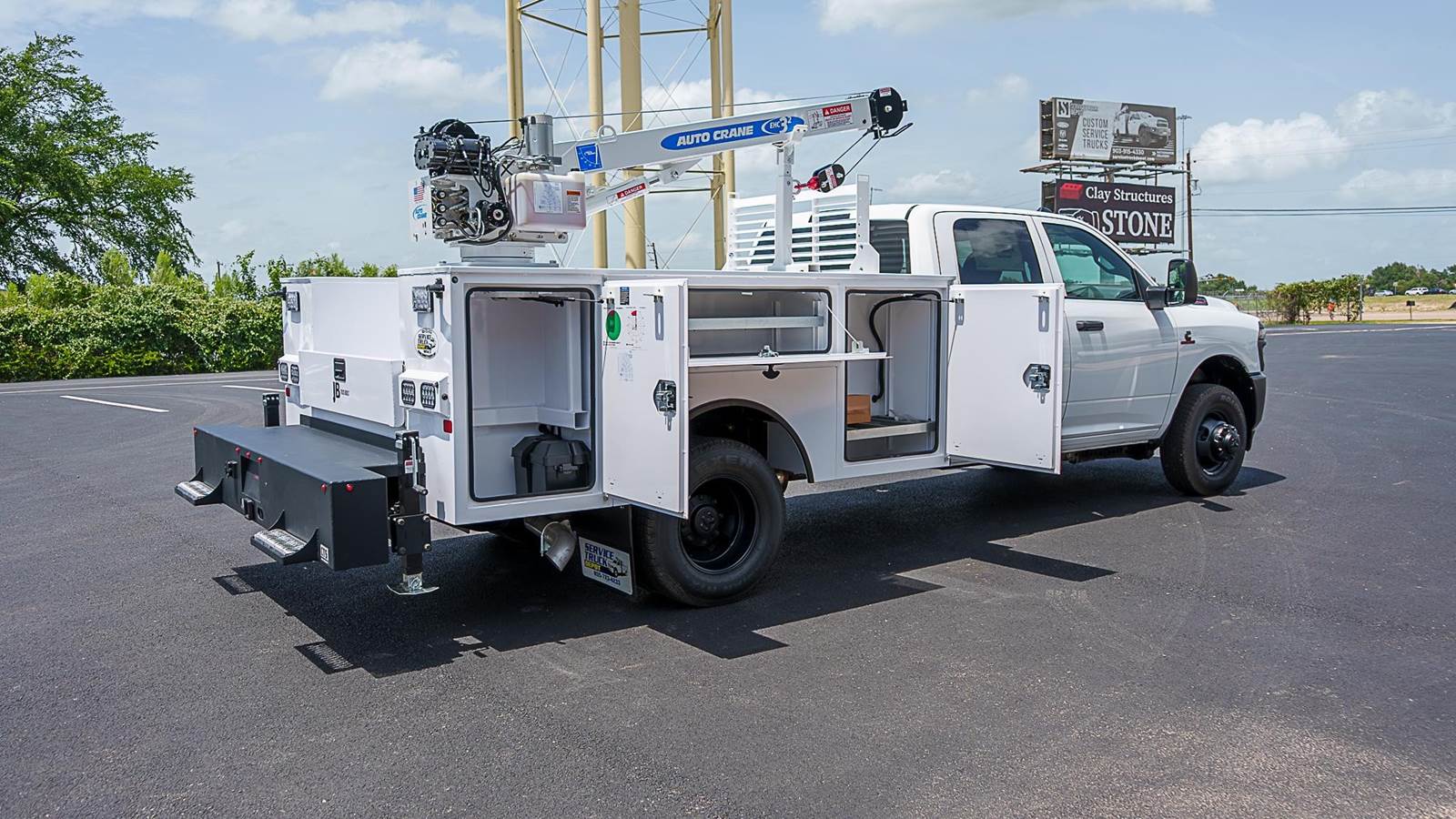

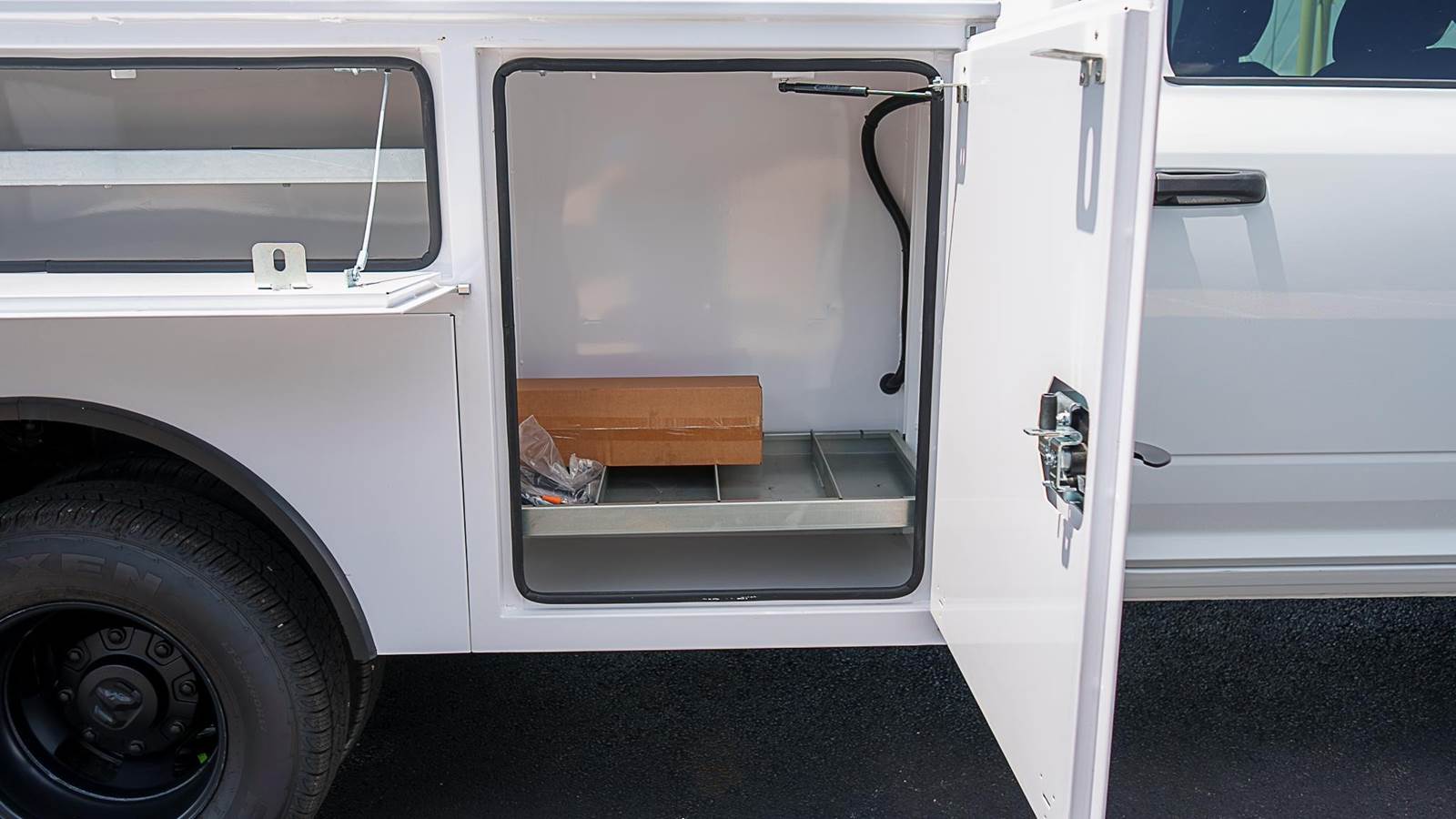

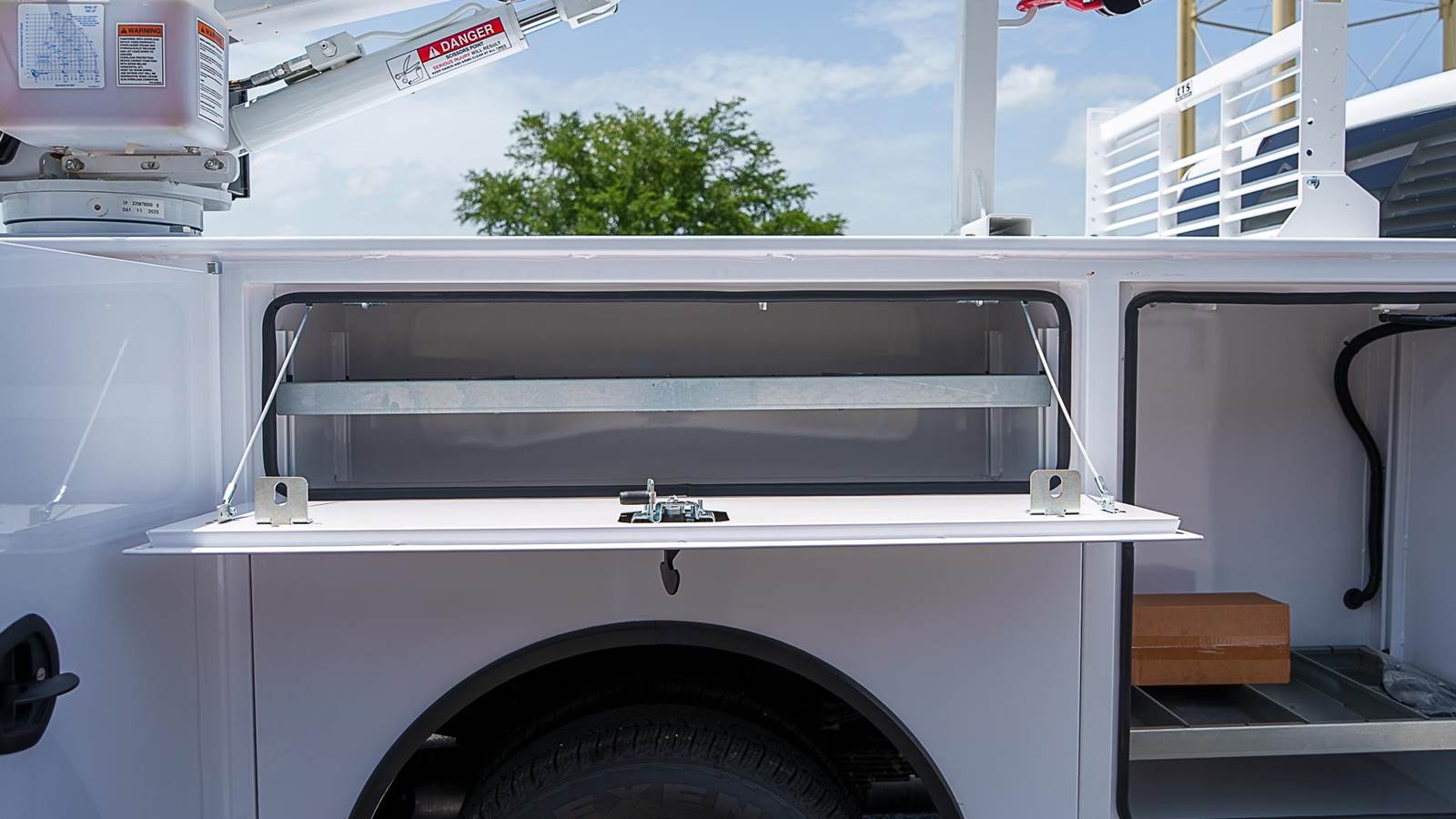

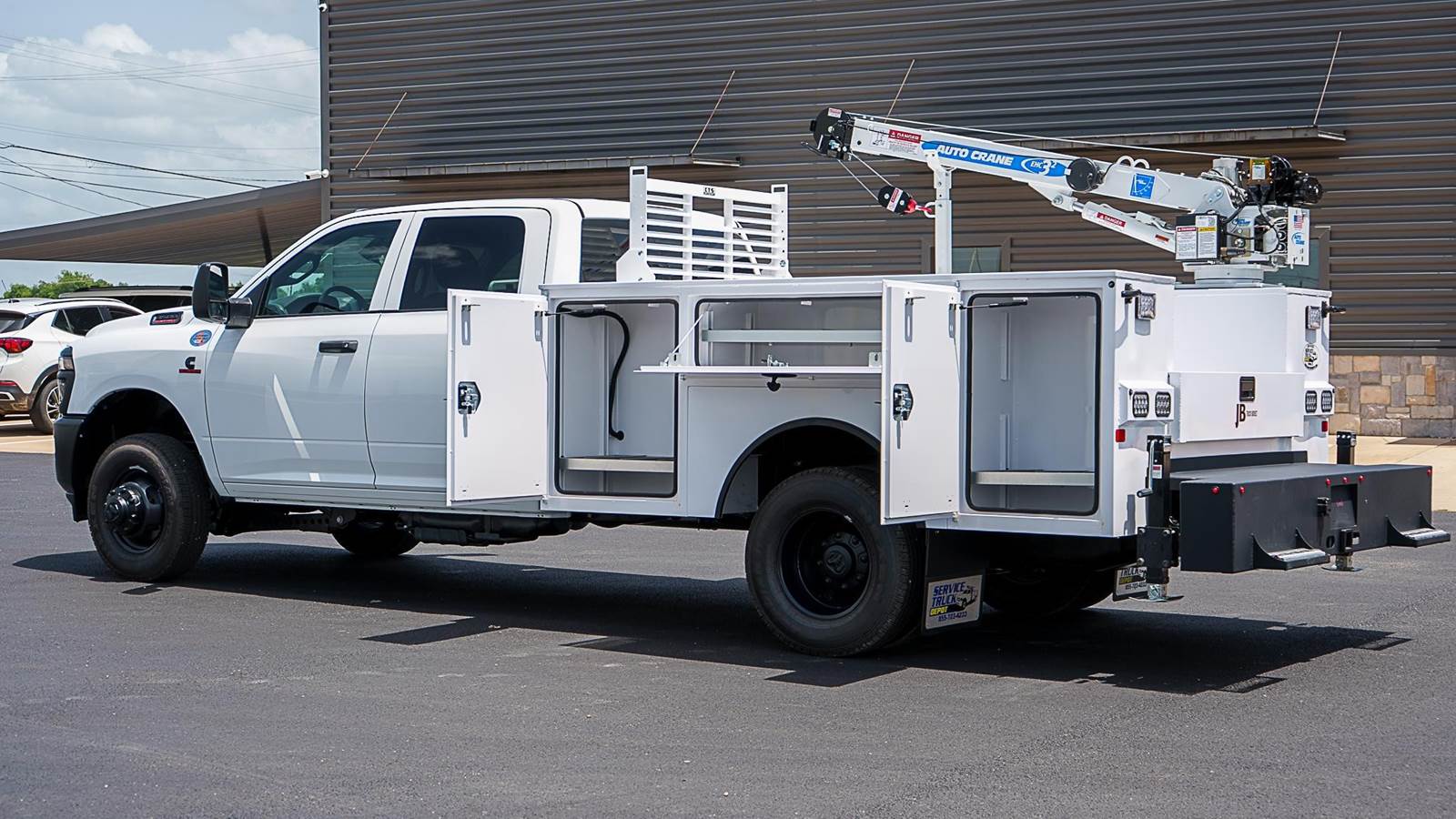

•   Compartment 1st Vertical: One adjustable shelf with two adjustable dividers per shelf.

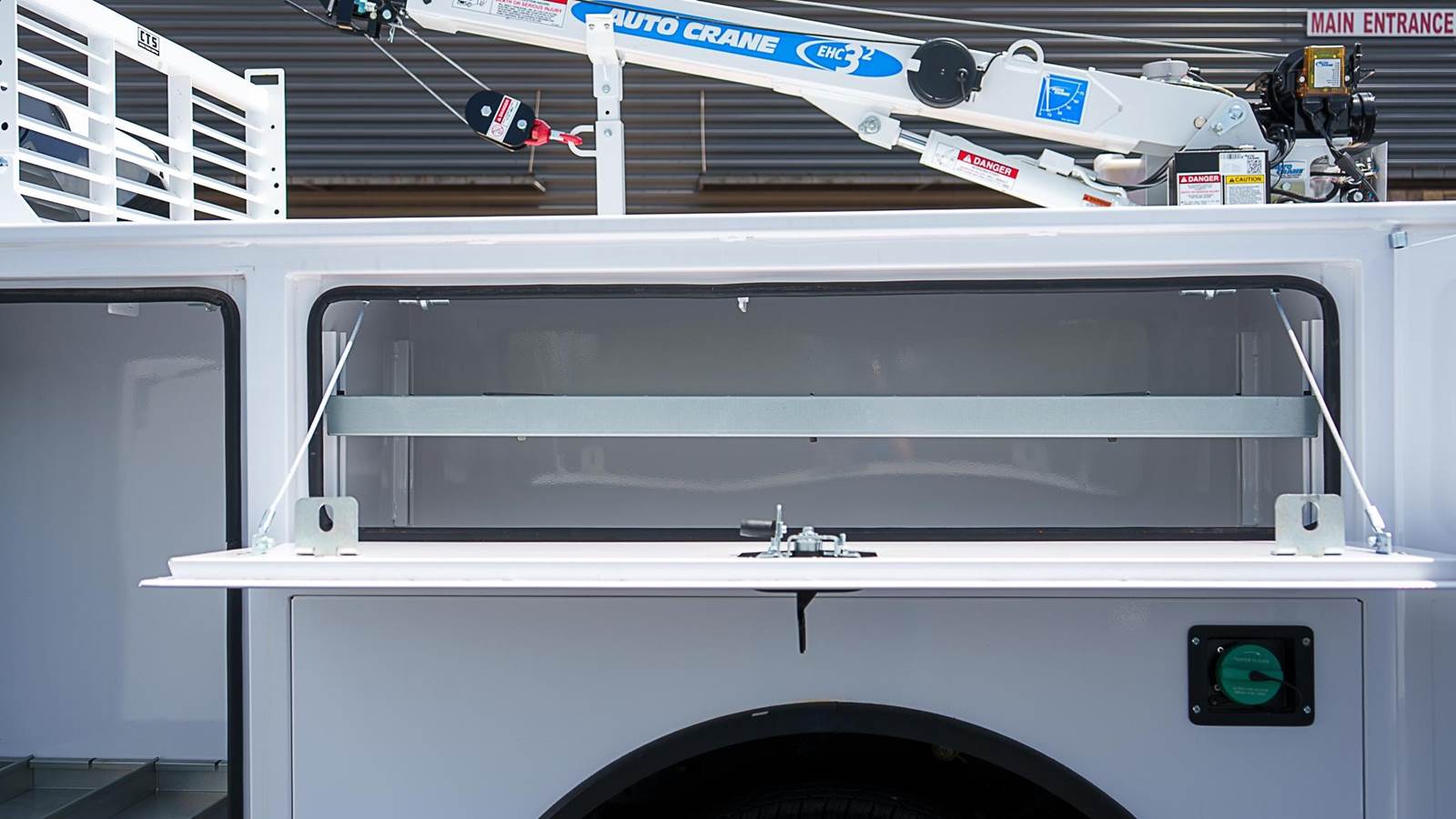

•   Compartment 2nd Horizontal: One adjustable shelf with two adjustable dividers.

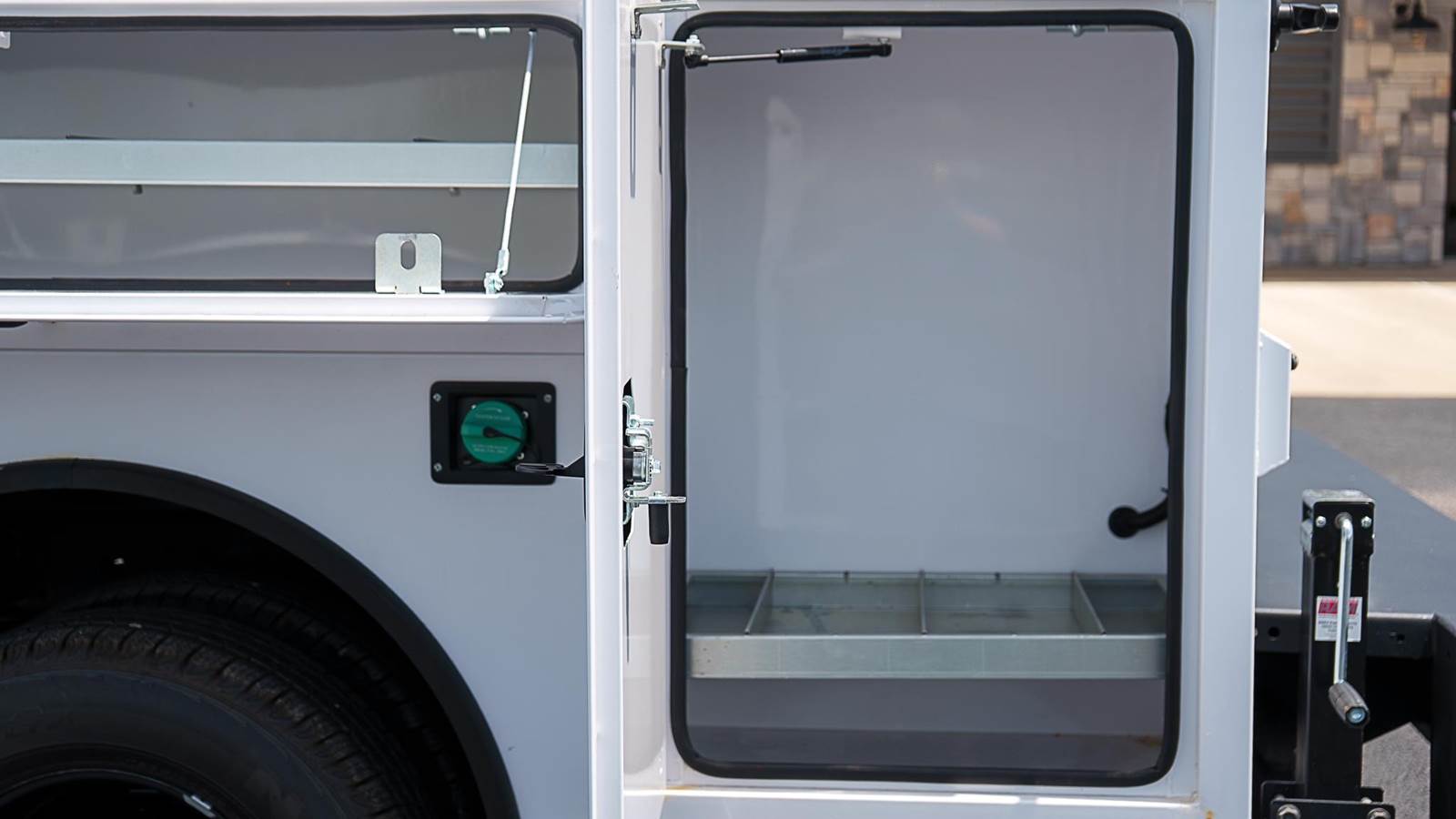

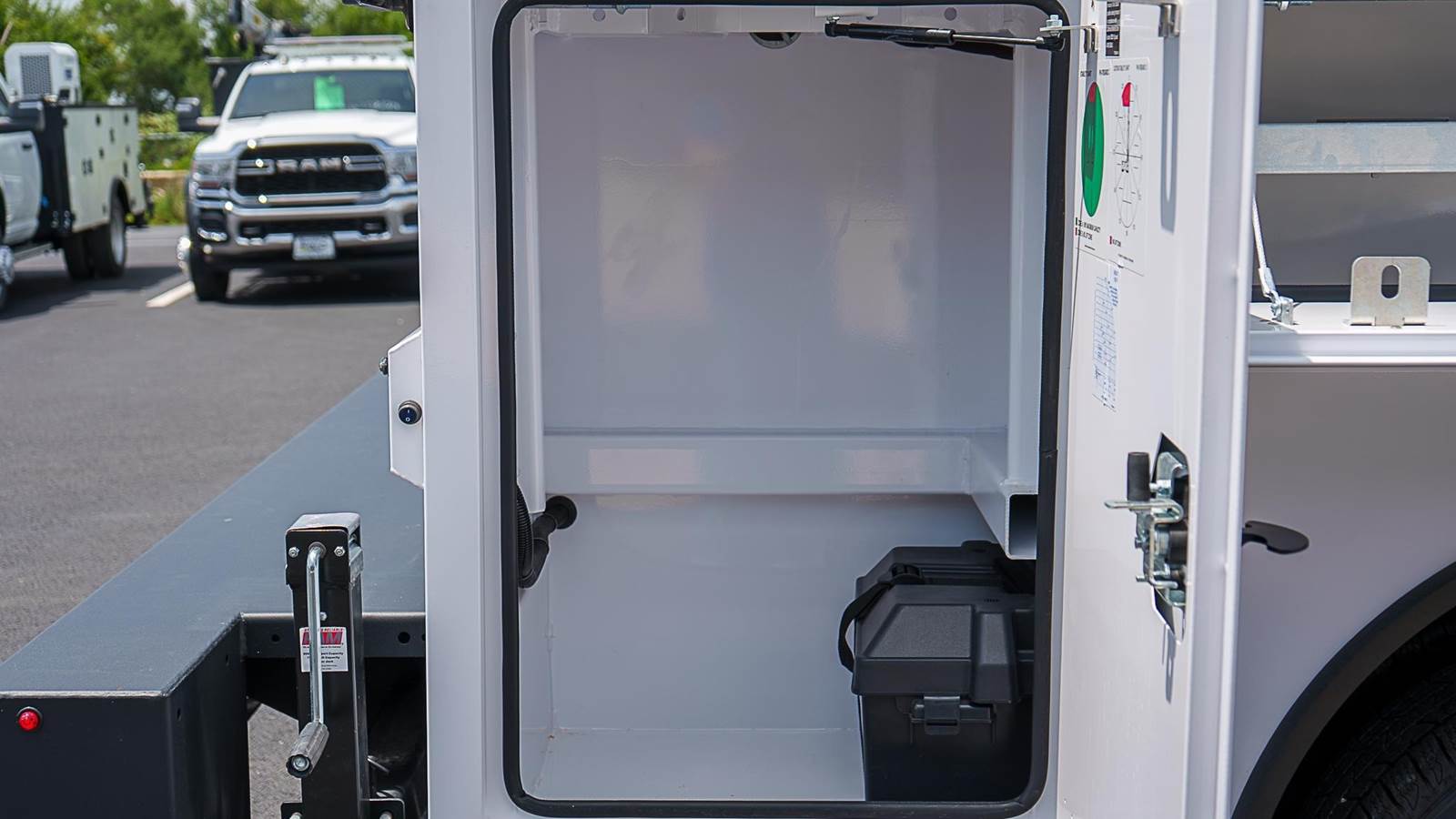

•   Compartment Rear Vertical: One adjustable shelf with two adjustable dividers. (DS)

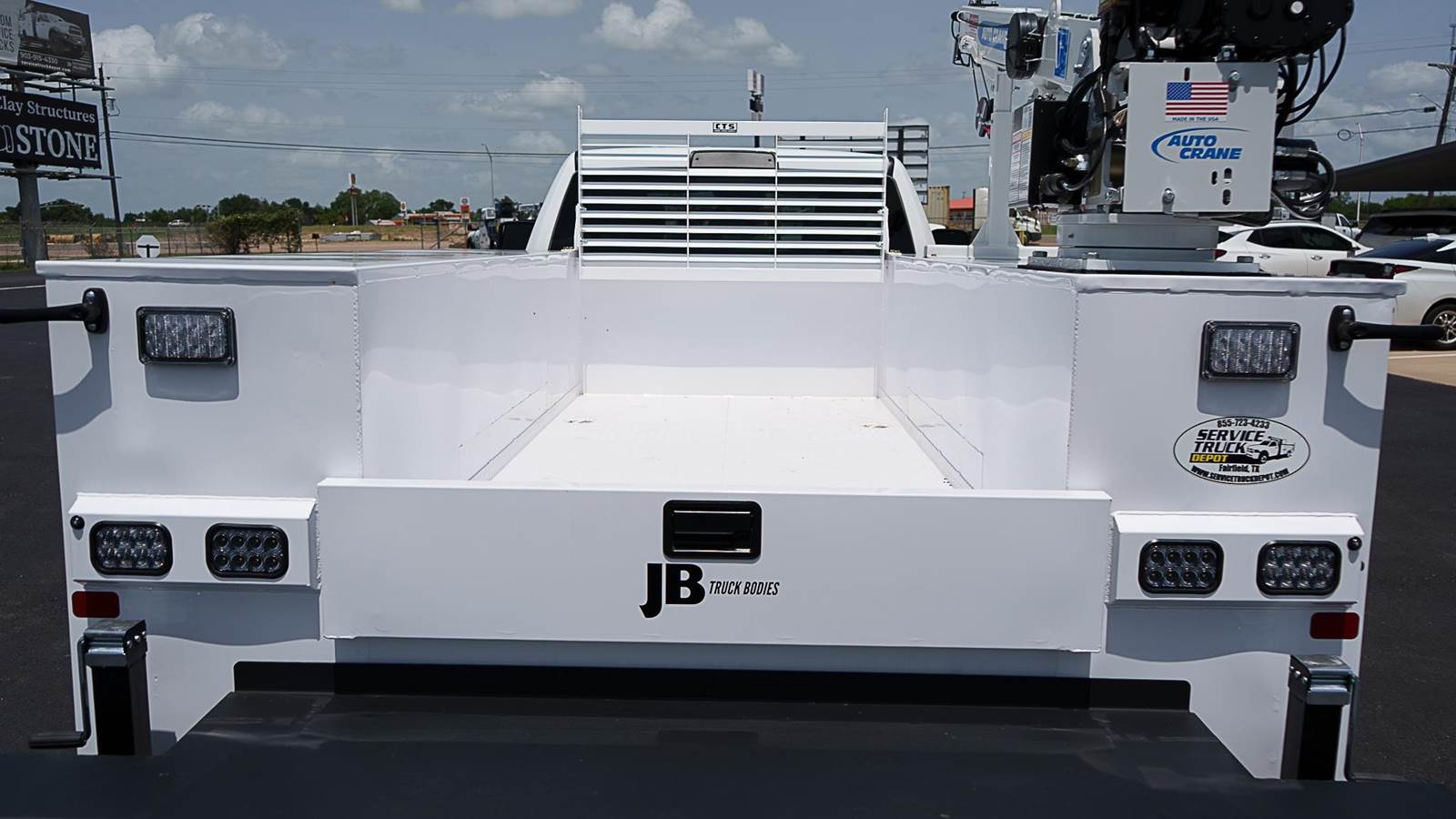

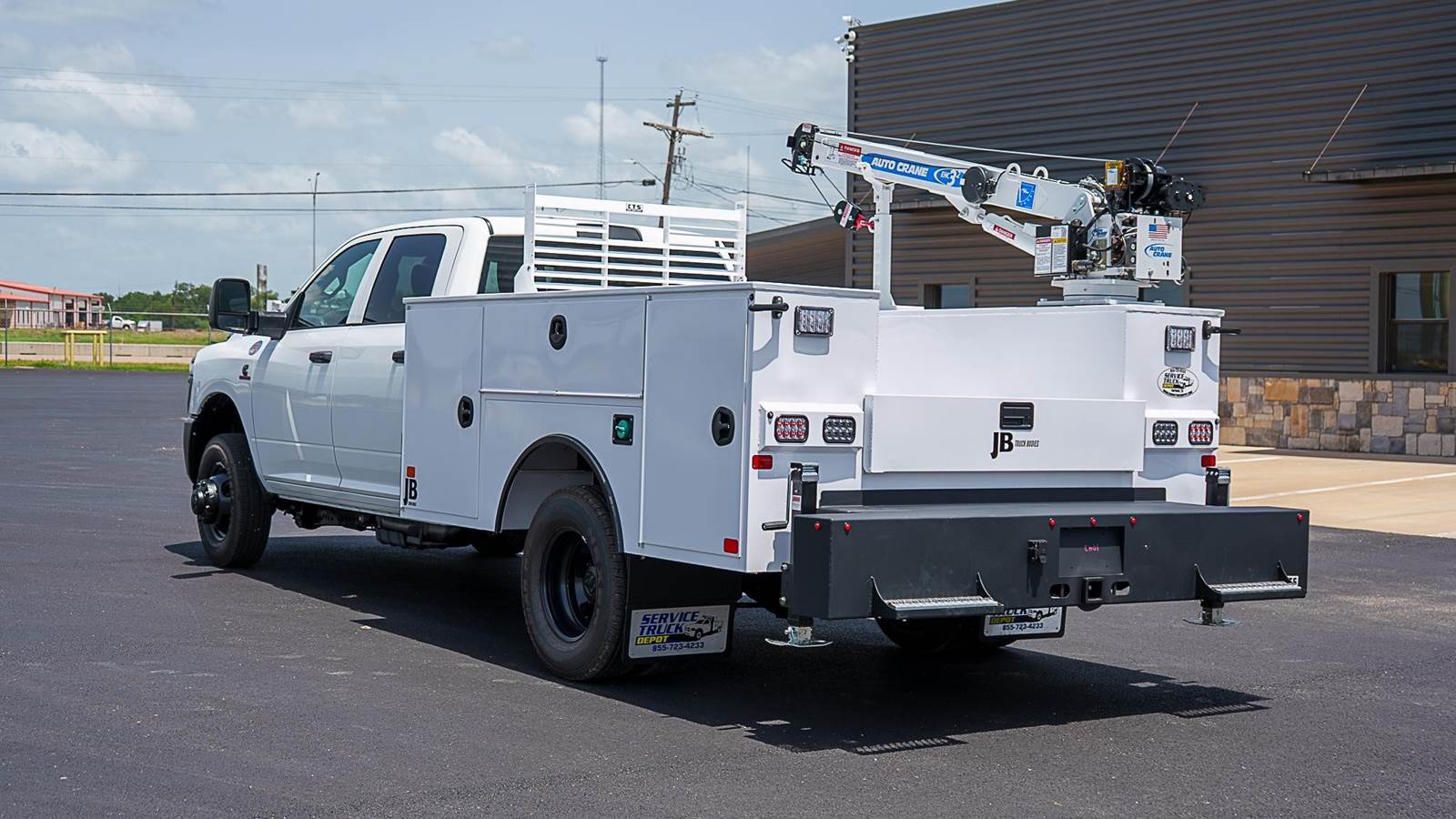

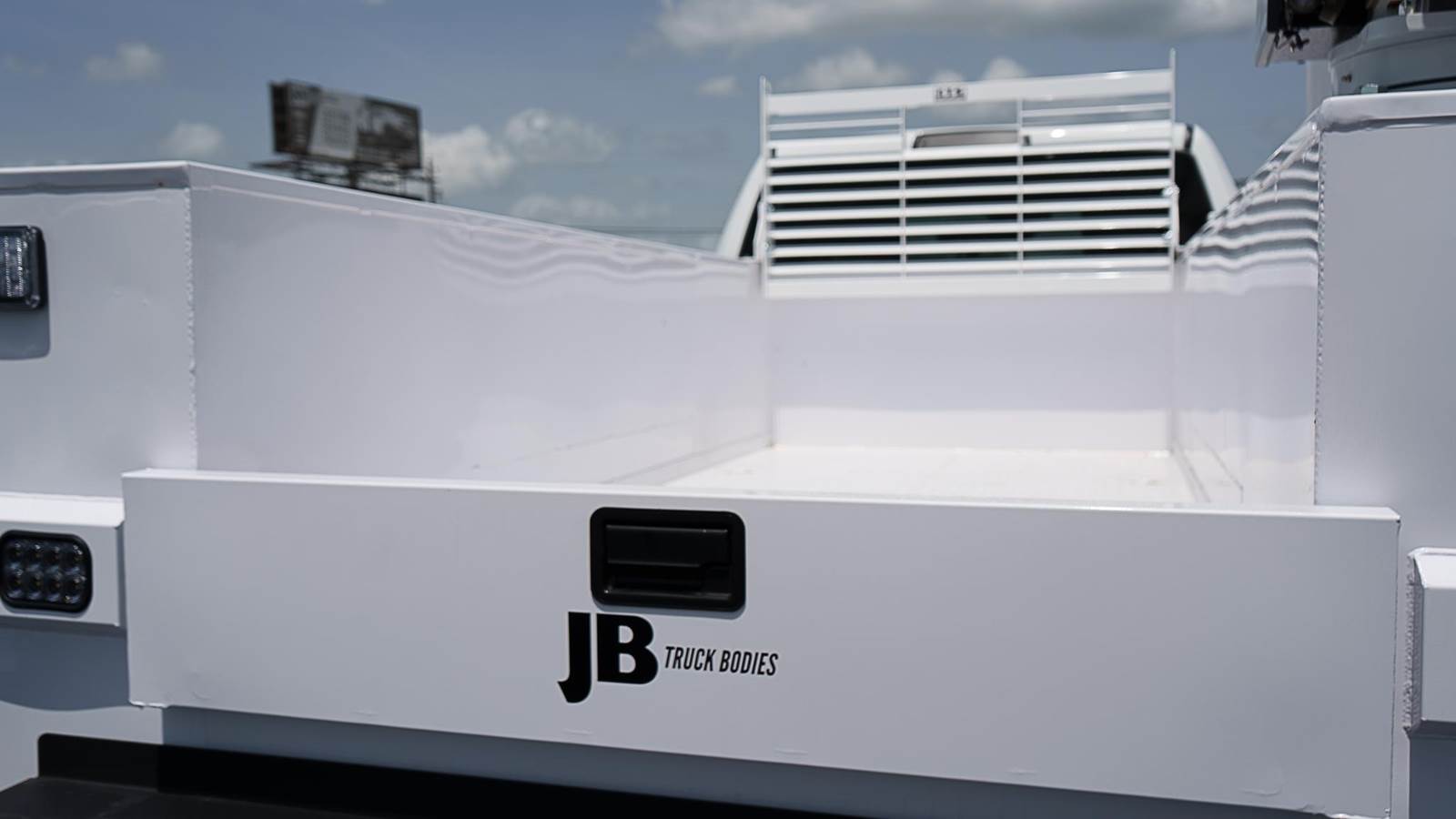

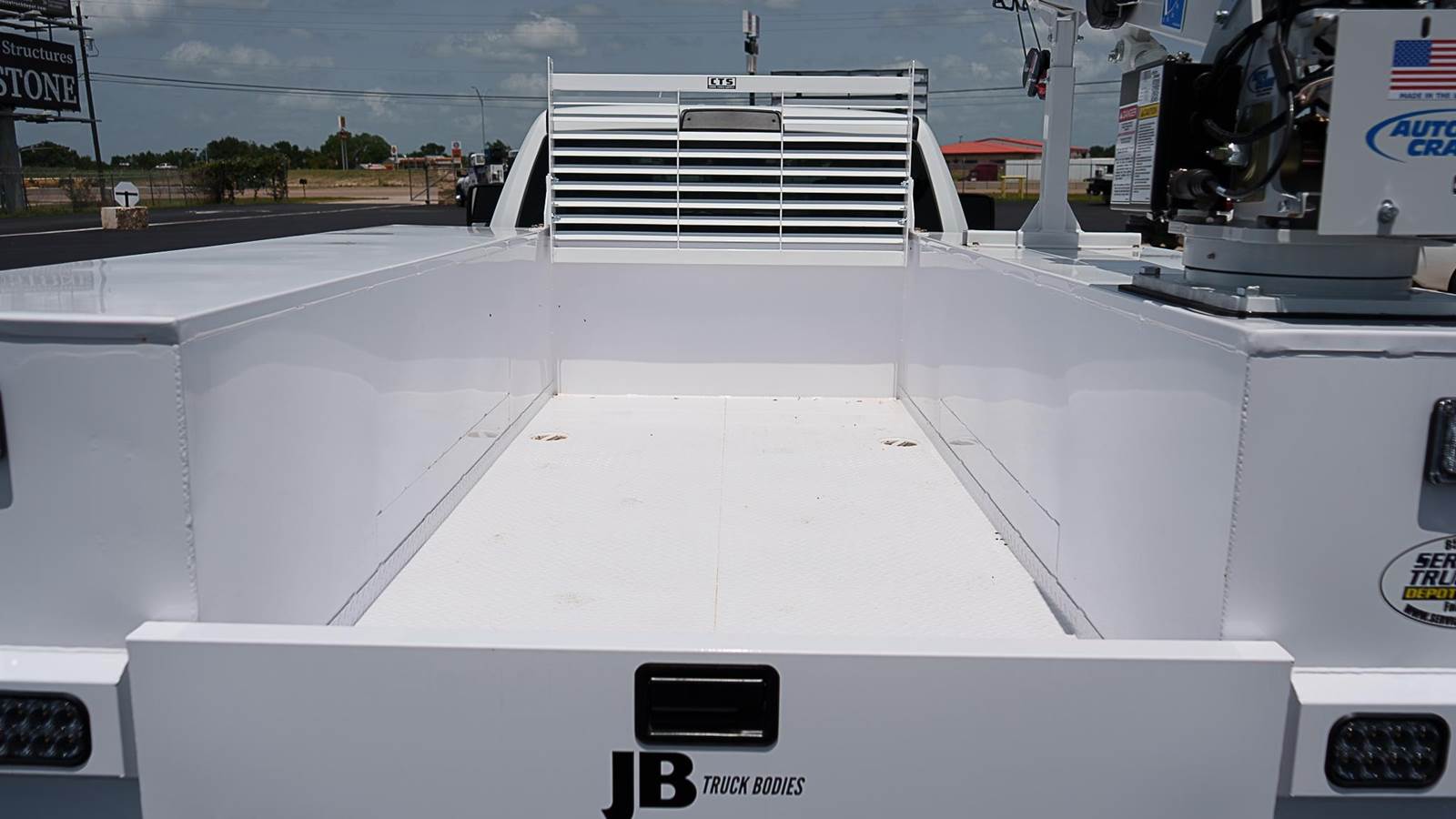

•   Tailgate -14 GA. steel with 10 GA. reinforced side brackets 3/16” reinforced slam latch bracket
•   Shelving - adjustable aluminum shelving with dividers built on 14 GA. strut channel for easy repositioning
•   Fender Panels - 14 GA. removable fender panels reinforced with 3/16” fender support

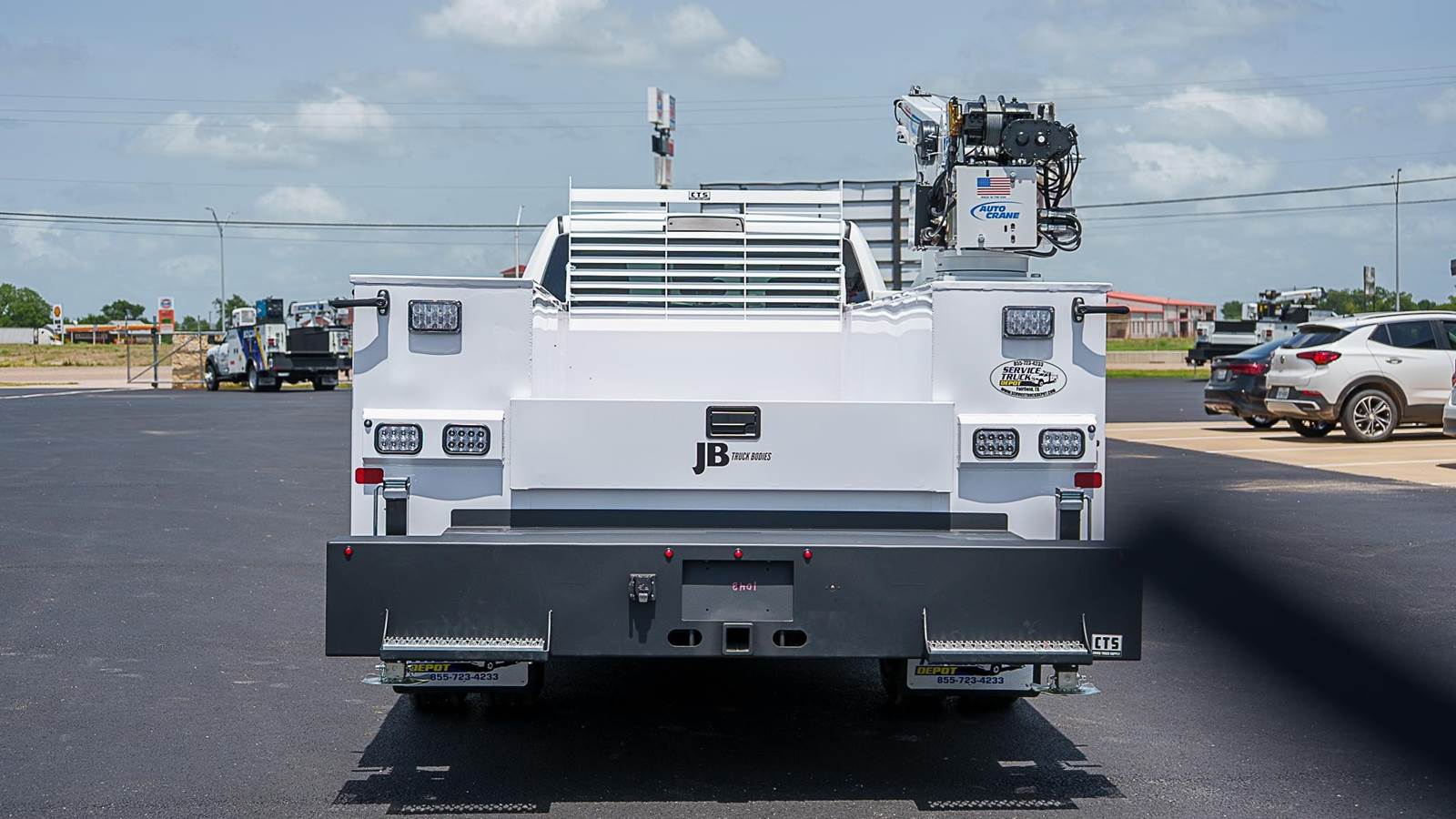

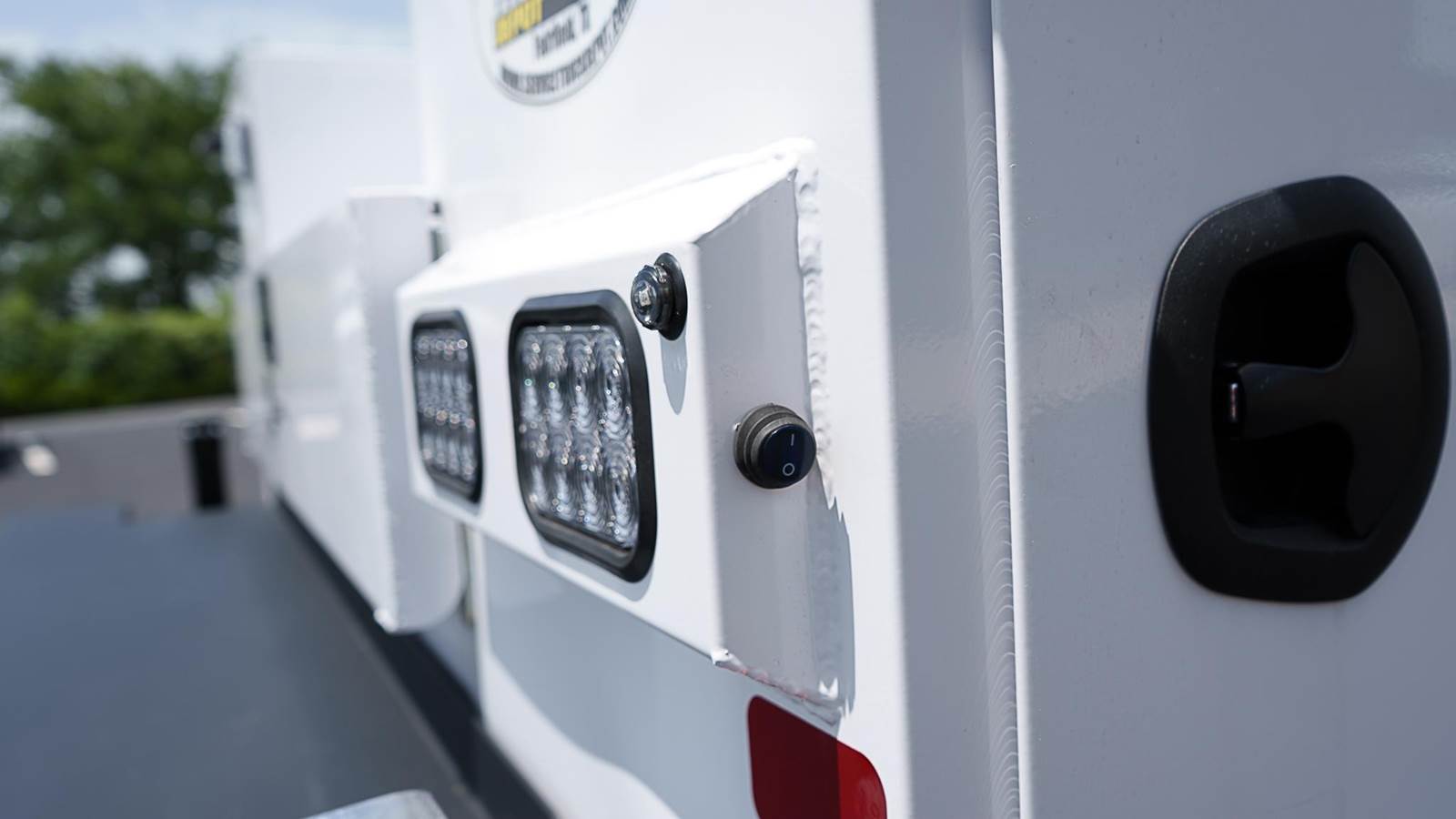

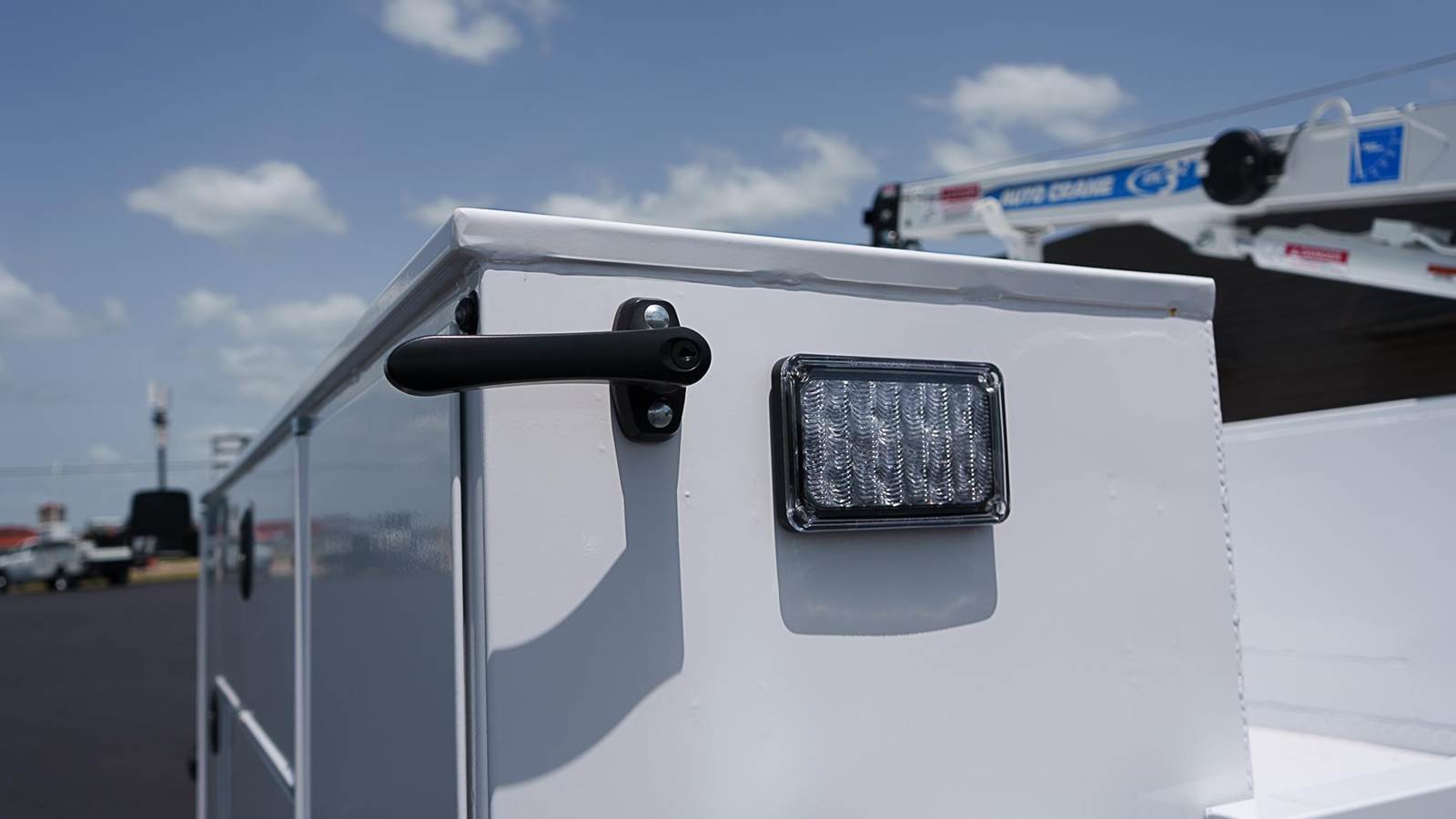

•   Lighting - raised light housing with LED brake & reverse lights Techniq K60 high-output flush mounted work lights
•   D-Rings - (4) flush-mounted weld-in d-rings
•   Crane Reinforcement - curbside crane reinforcement rated for 4,000 lb. or 20,000 ft./lb.

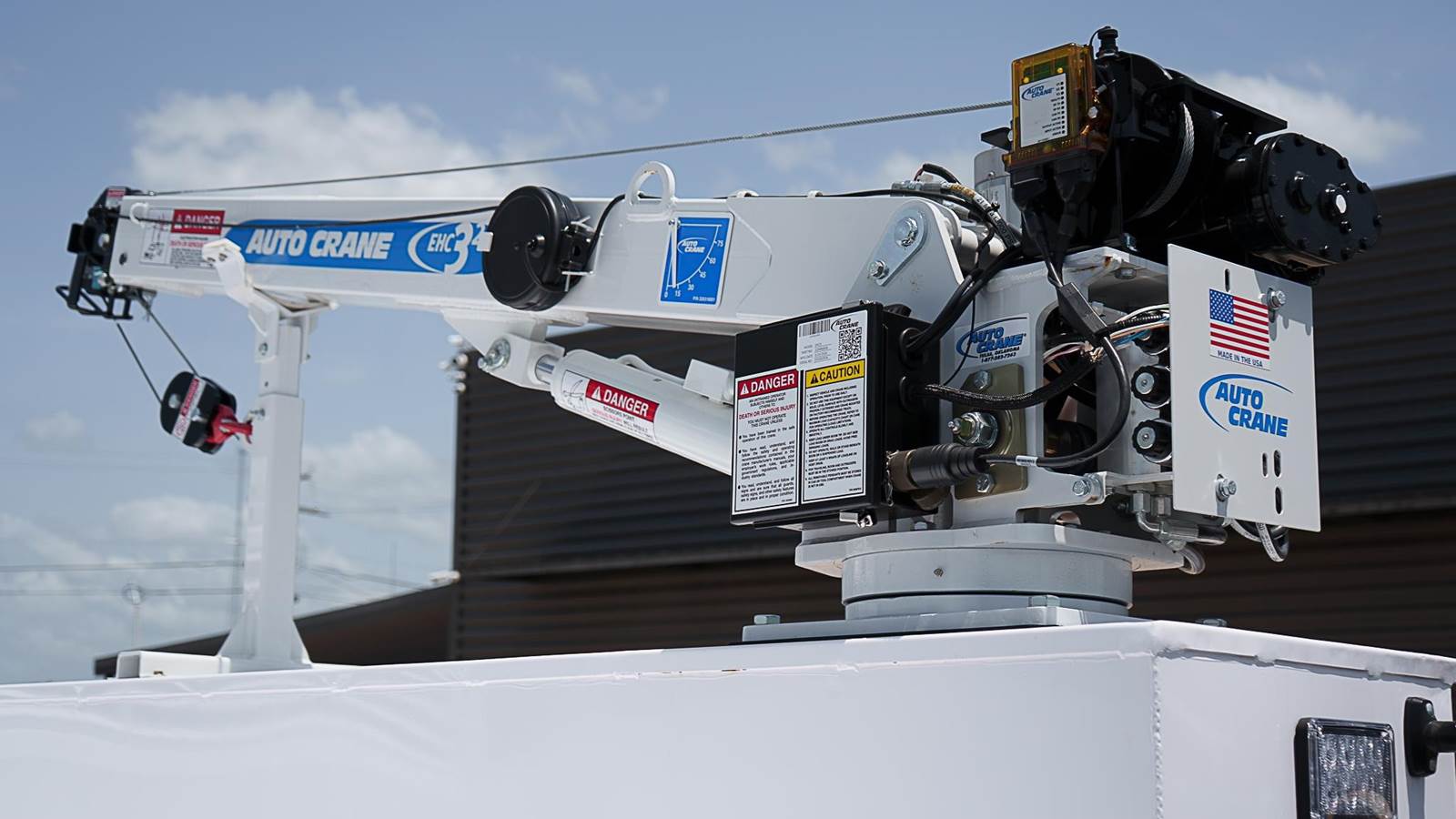

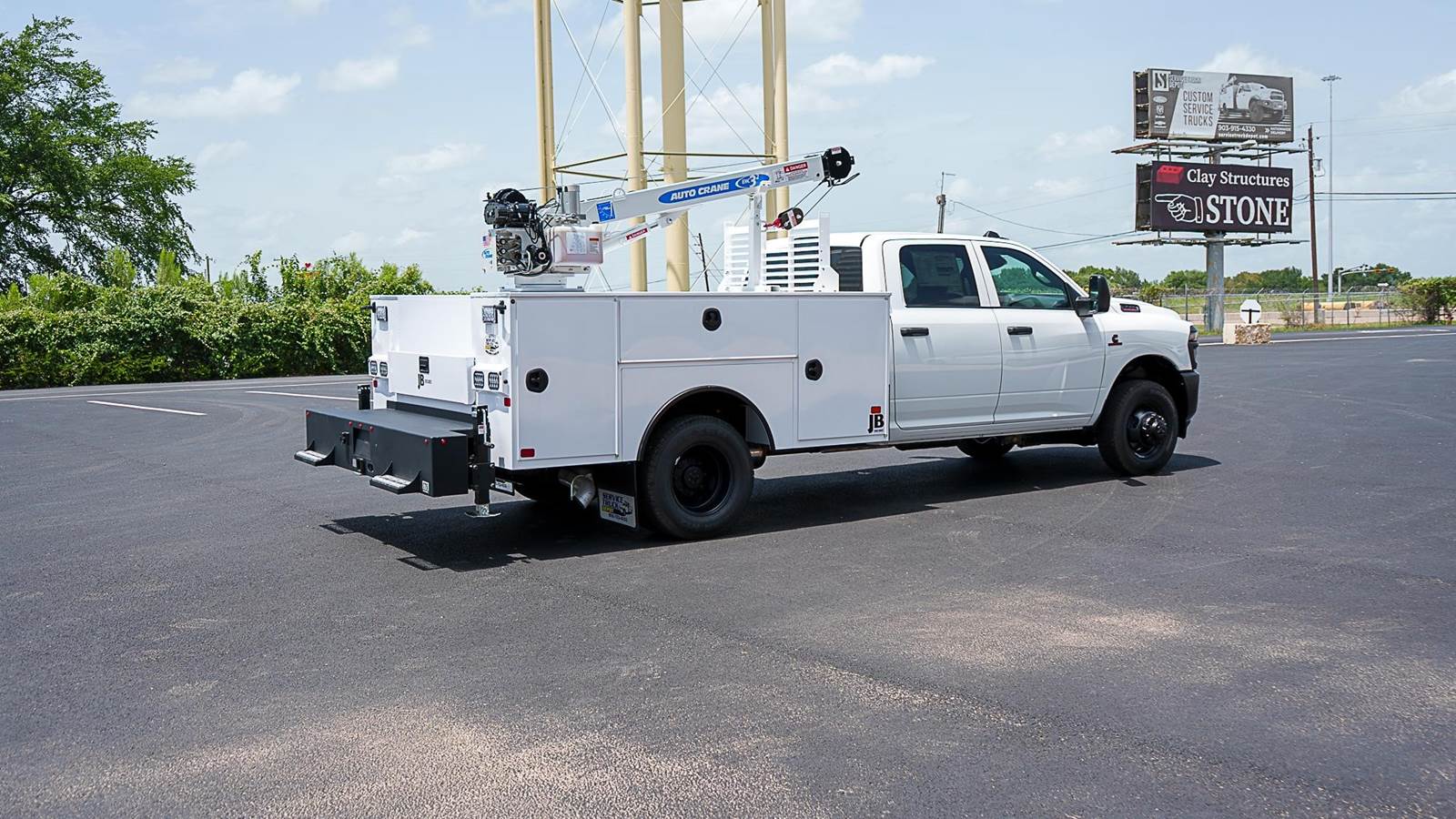

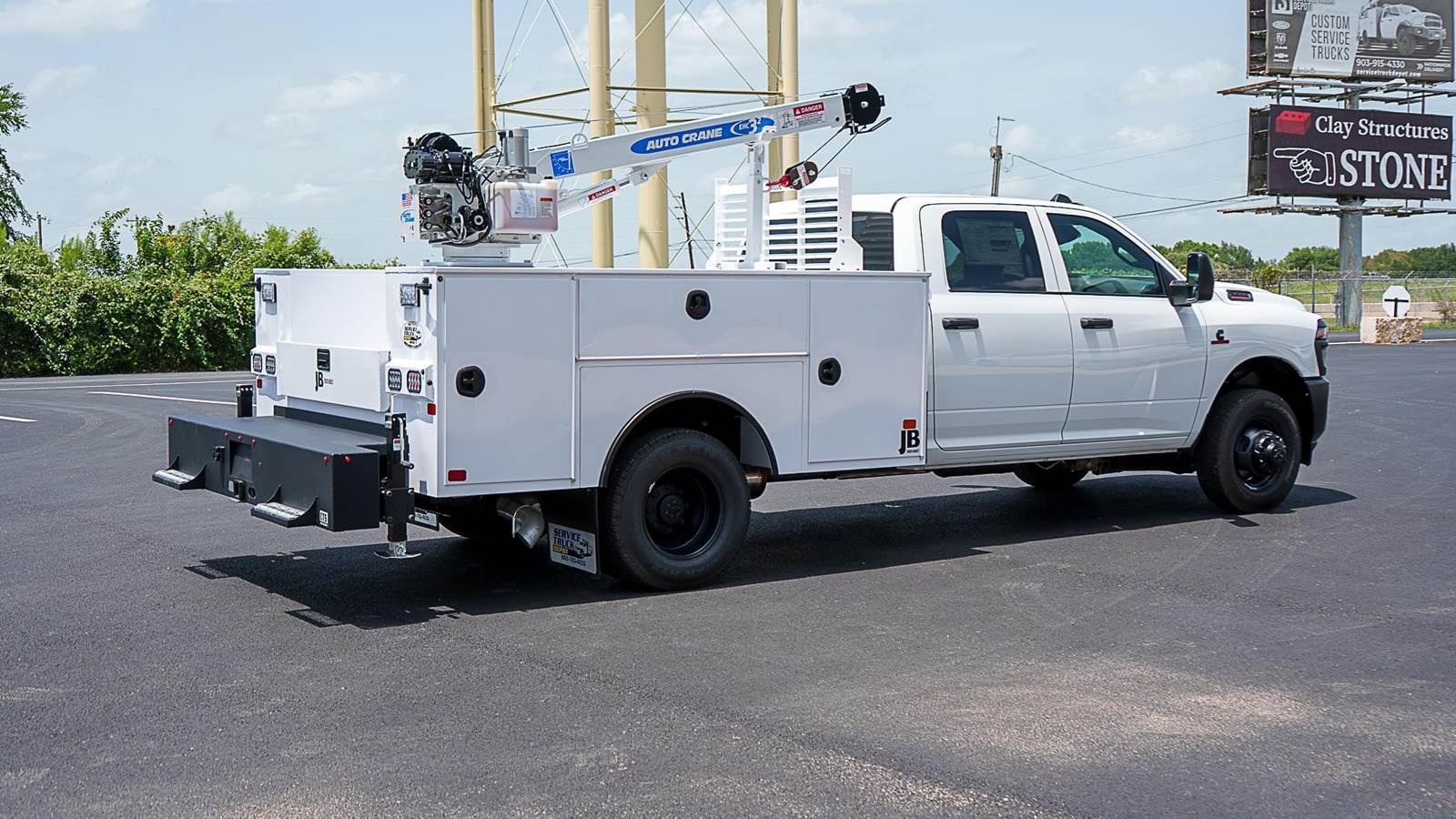

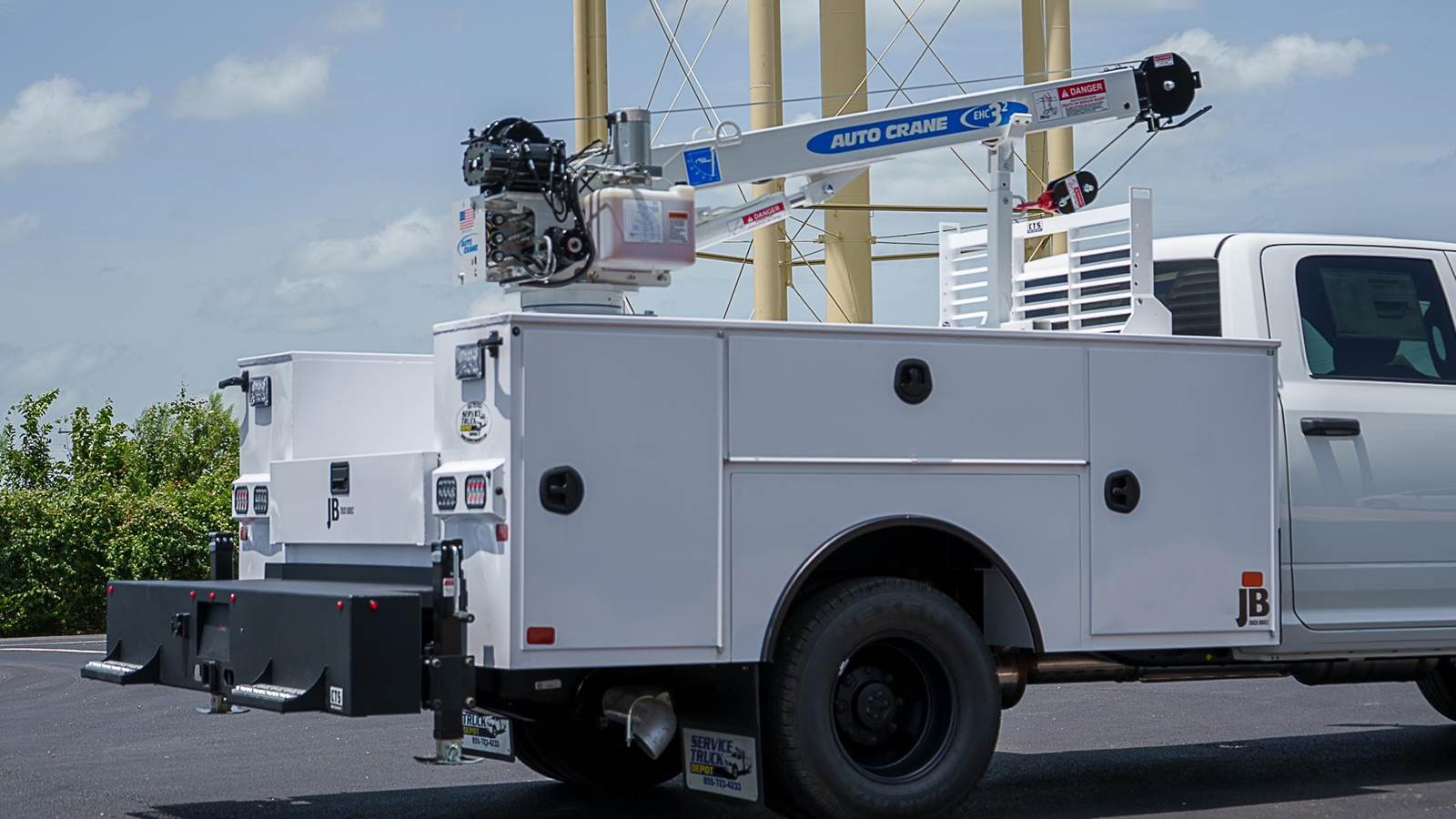

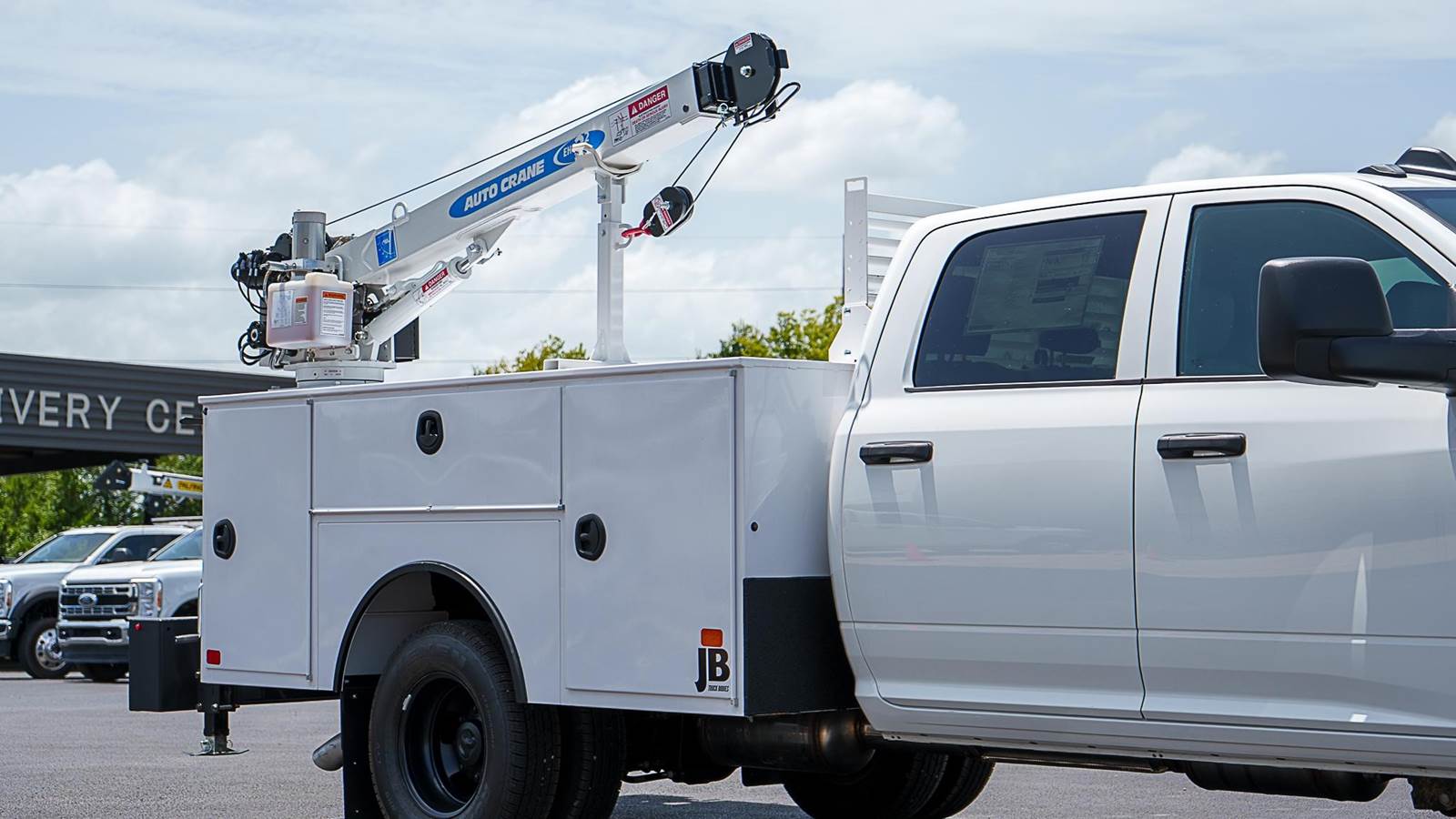

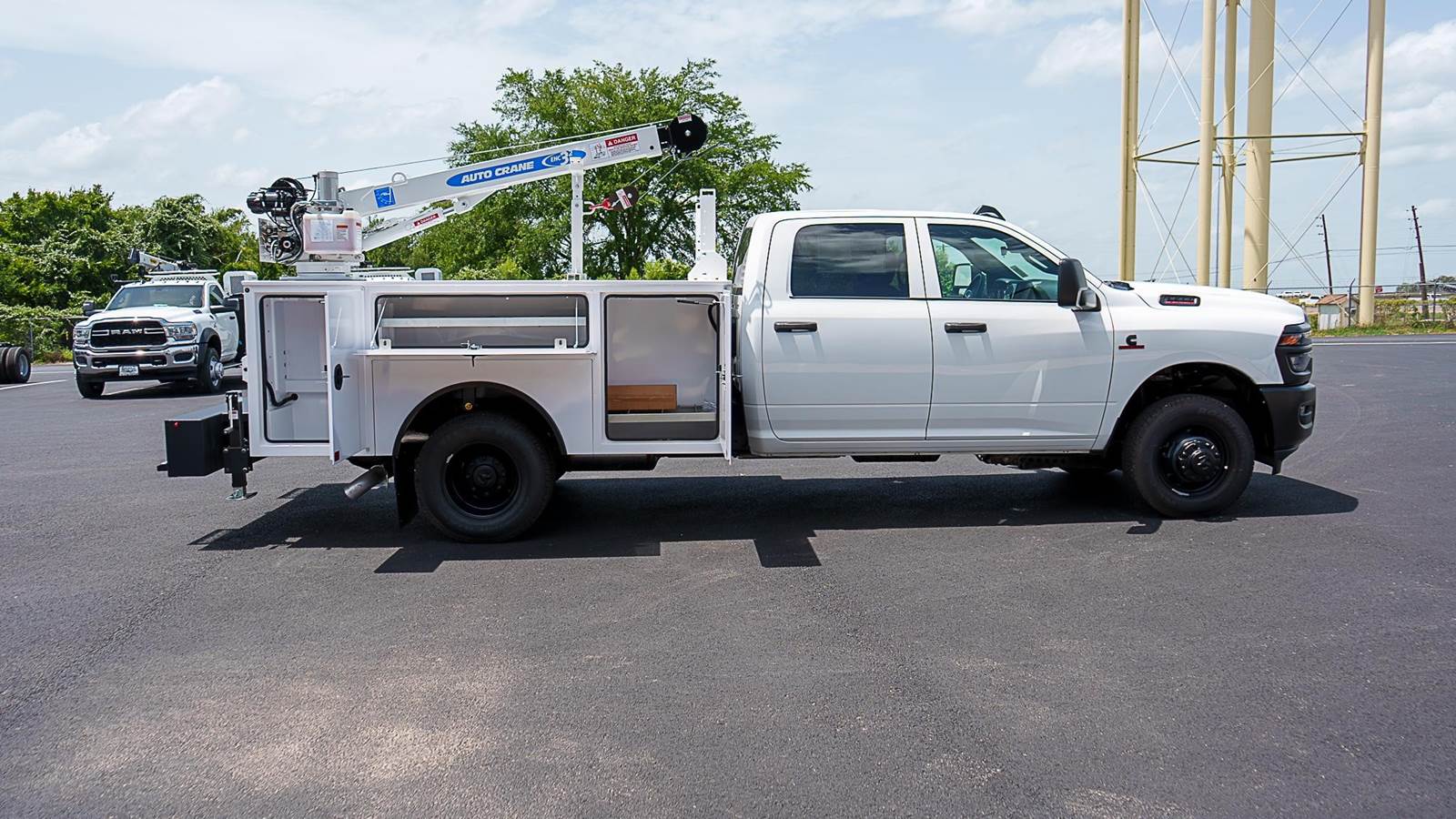

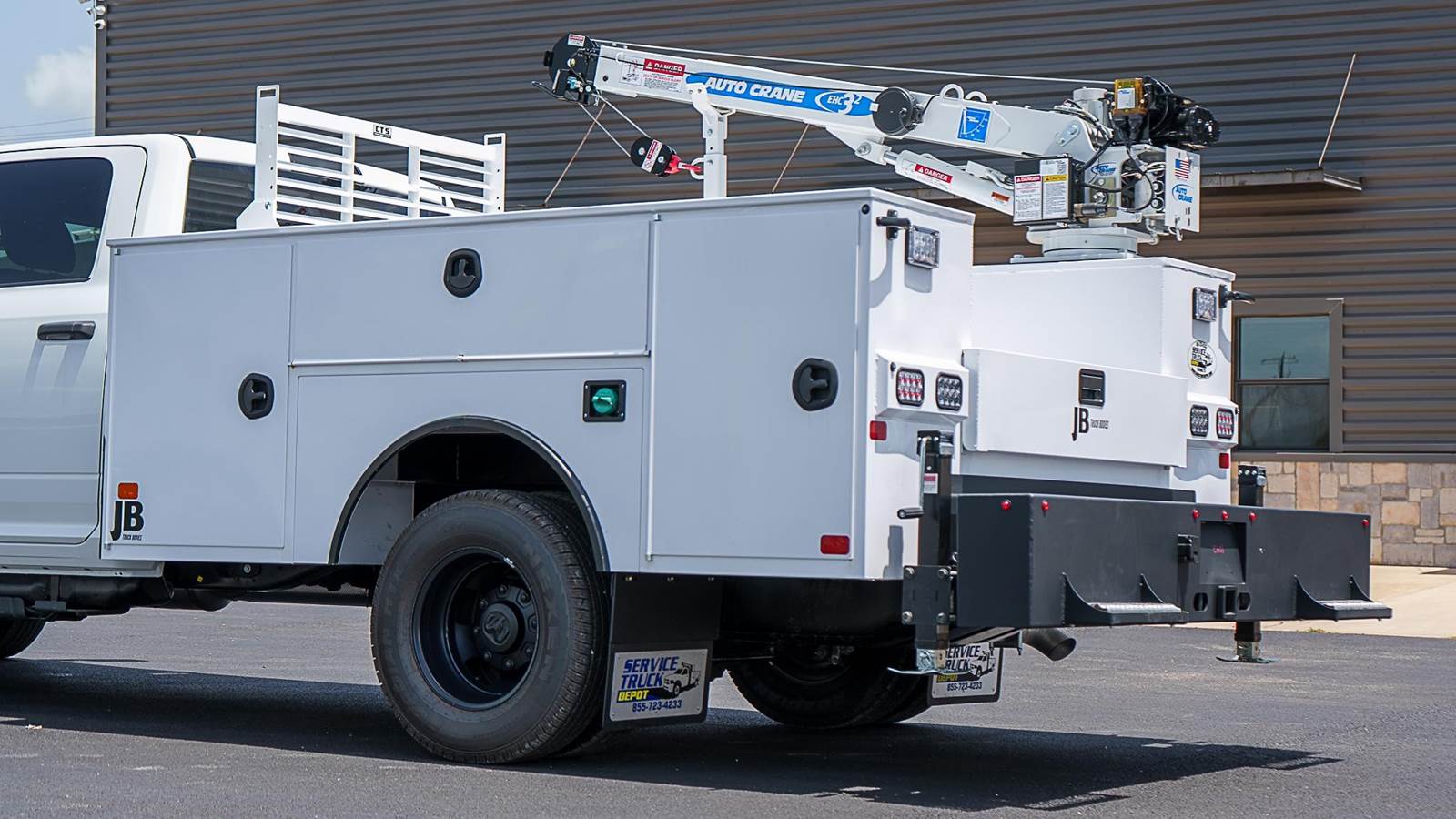

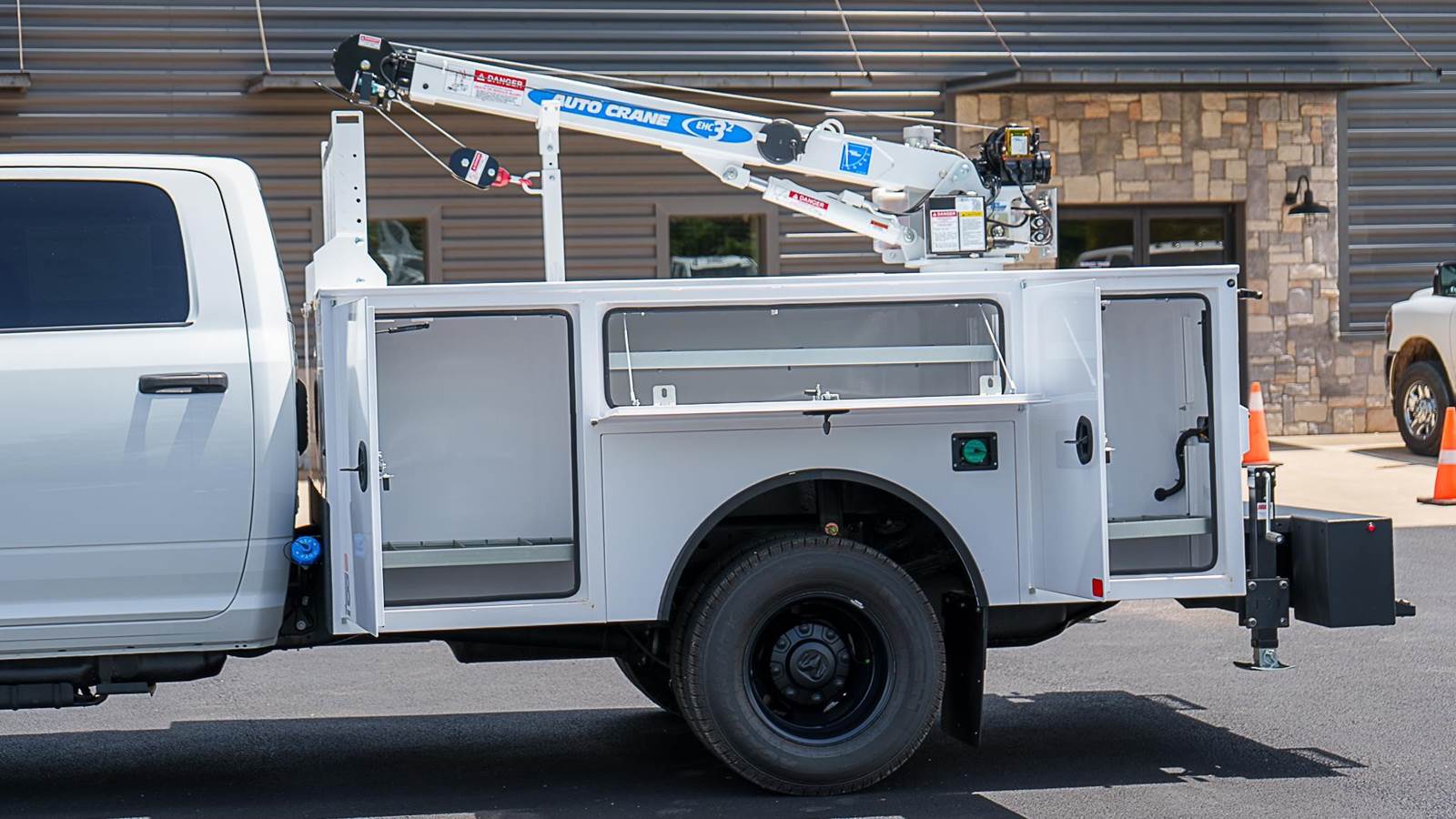

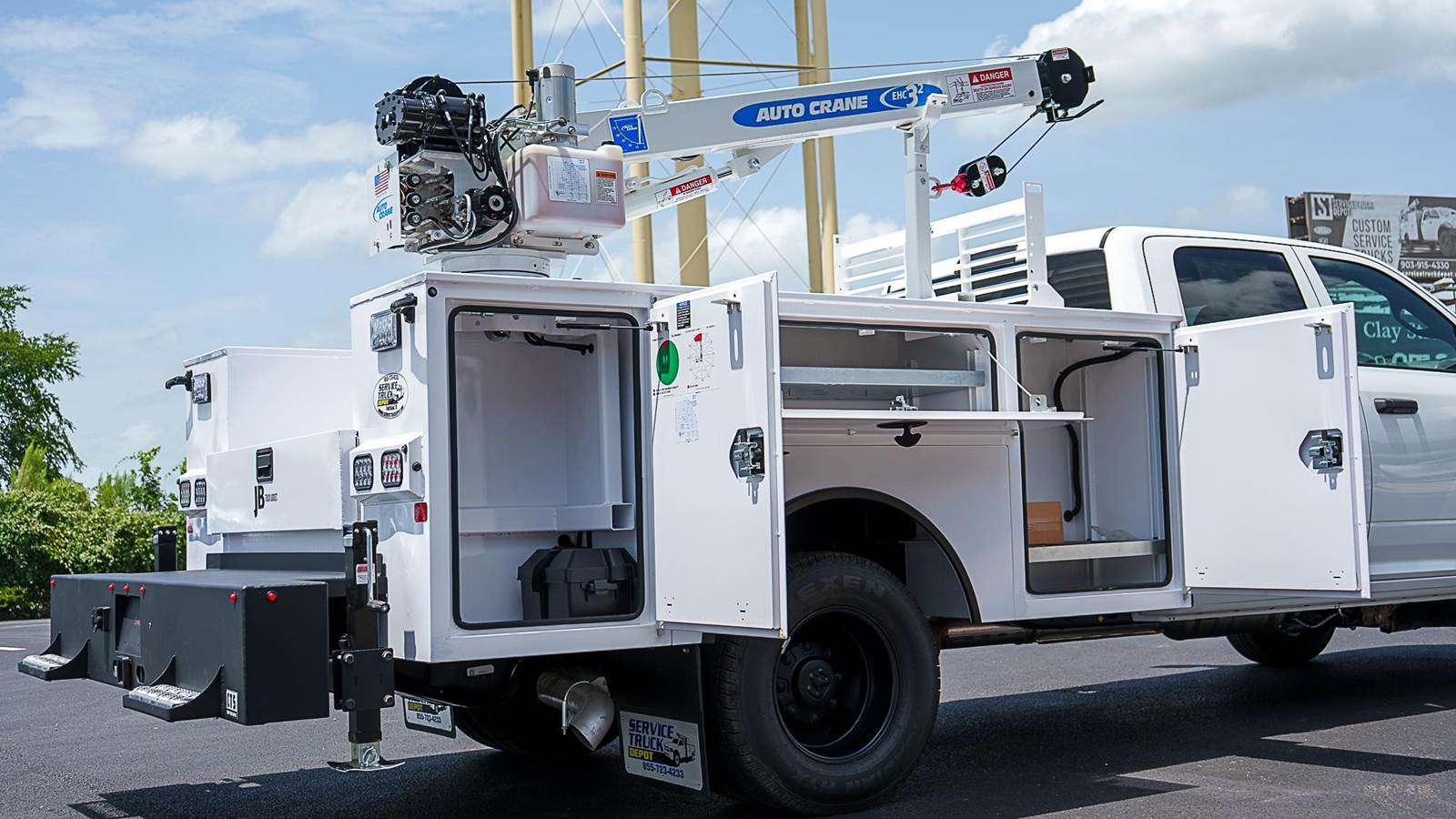

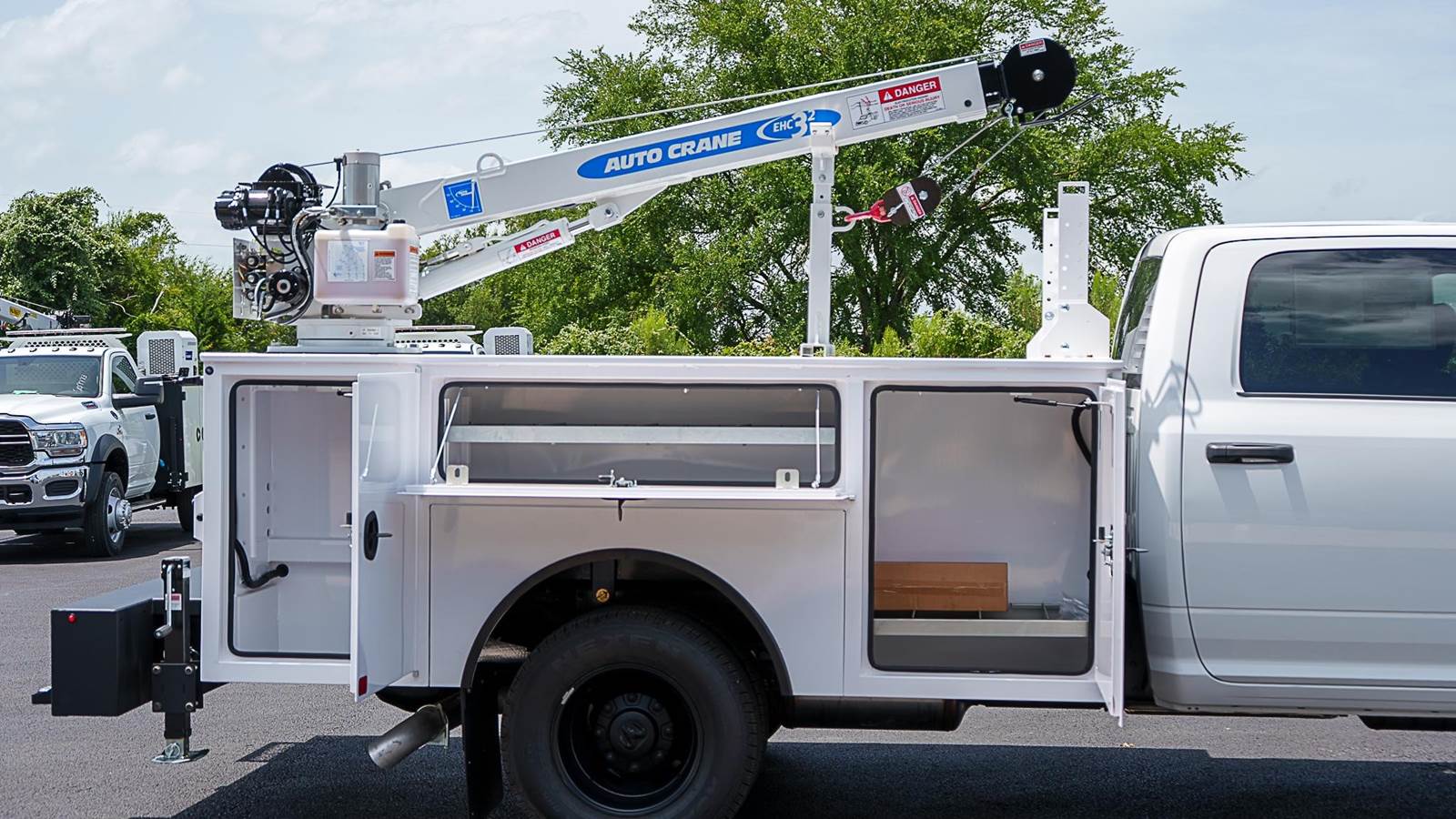

Auto Crane HC3.2 NEXSTAR 3.2K lb Crane

Features and Benefits of NexStar™ Models
•   Proportional control of multiple functions simultaneously and independently
•   Adjust any function anytime to a different speed, for total control over the load
•   Level sensors monitor the angle of the truck and crane with the NexStar FM remote system on a Titan® crane body
•   Prevents operation in unsafe, unlevel conditions
•   Automatic stop at 100% load capacity
•   Keeps people, equipment, and loads safer
•   Adjustable speed settings; from 25% to 100%
•   Enables fine tuning of speeds for total control over the load
•   The NexStar FM remote system receiver displays load-monitoring and diagnostic readouts in plain English
•   No codes to look-up or memorize; operator views precise percentage load capacity

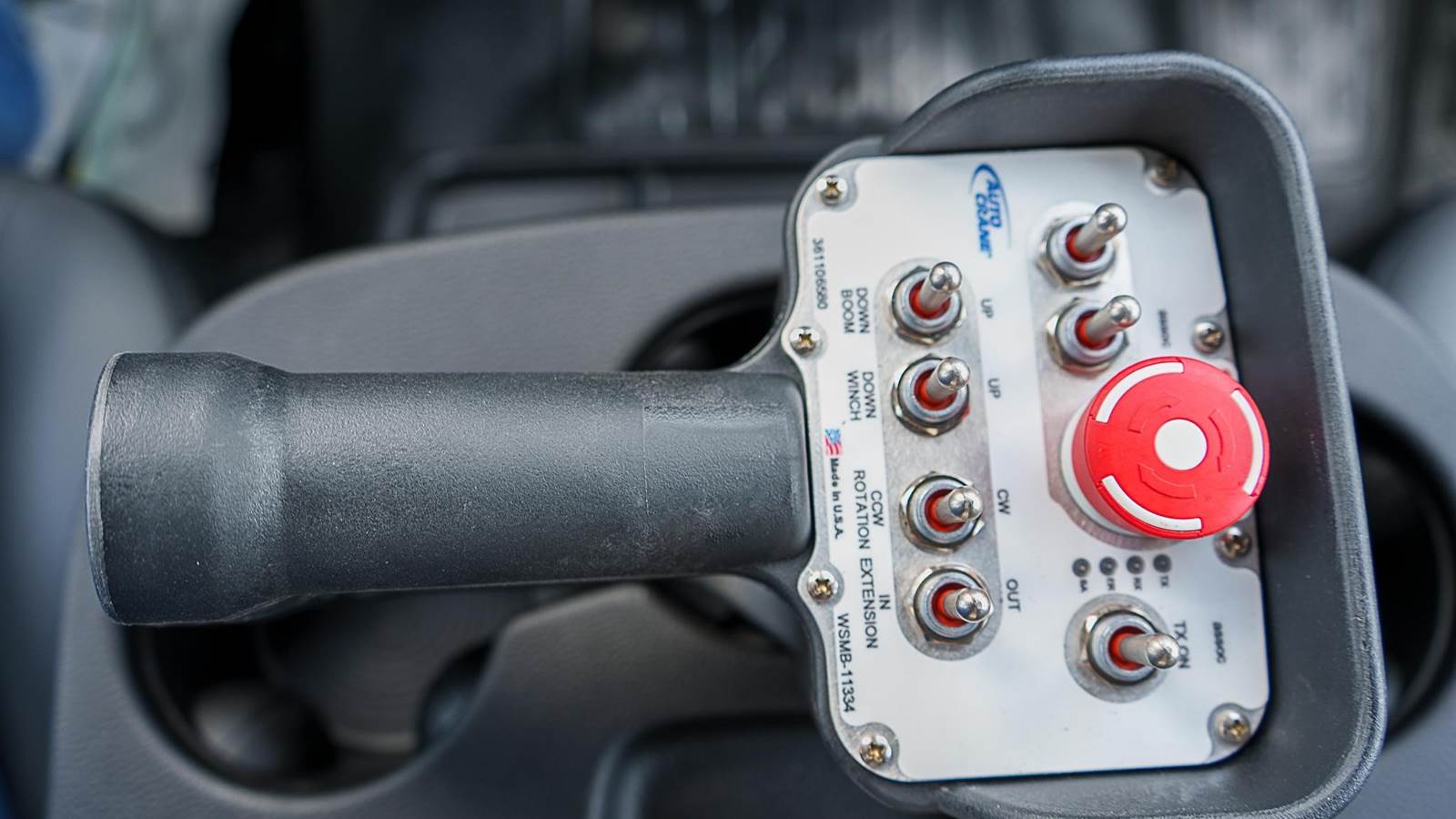

•   NexStar available with either tethered or fully-featured wireless remote options
•   NexStar™ with Wireless
•   Transmitter is IP66 rated and CE certified
•   Sealed and water protected for maximum durability
•   2 year Auto Crane factory warranty

Rating
• Crane Capacity: 3,200 lb Double Line: 3,200 lb maximum Single Line: 1,600 lbs maximum
• 10,000 ft-lb (1.38 ton-m)
• Ft-lb = horizontal distance from center line of rotation to free hanging weight (feet) x amount of weight (pounds).

Reach
• Second boom reach: 7 ft. 4 in. to 11 ft. 4 in.
• Third boom reach: 11 ft. 4 in. to 15 ft. 4 in. Cable
• 62 ft. (18.9 m) of 7/32” in. (5.5 mm) diameter aircraft quality cable. This cable has a single line breaking strength of 5,600 lb (2,540 kg). Line Speed
• 20 ft. per minute (single line, no load)

Rotation • 370º range

Requirements

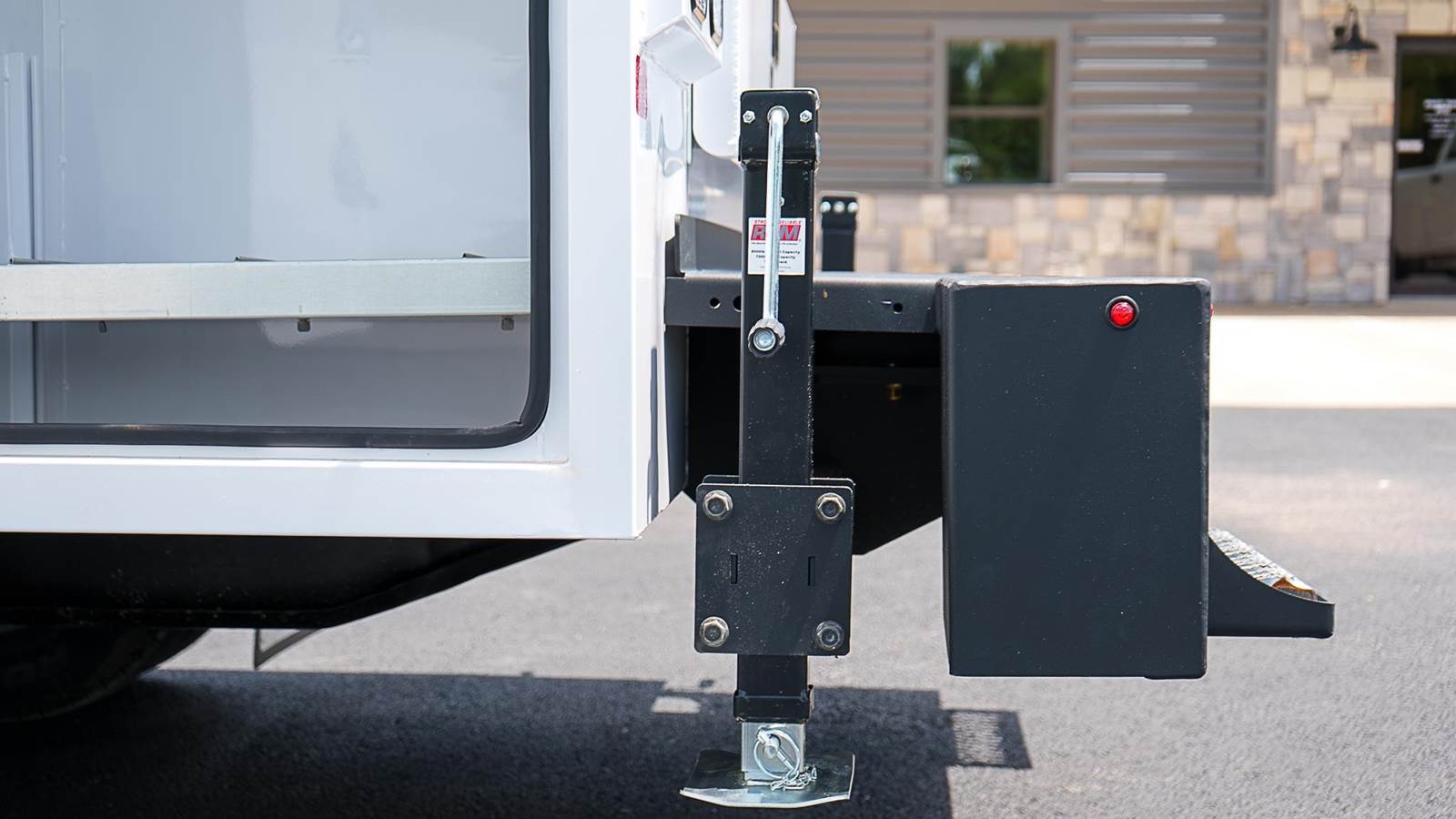

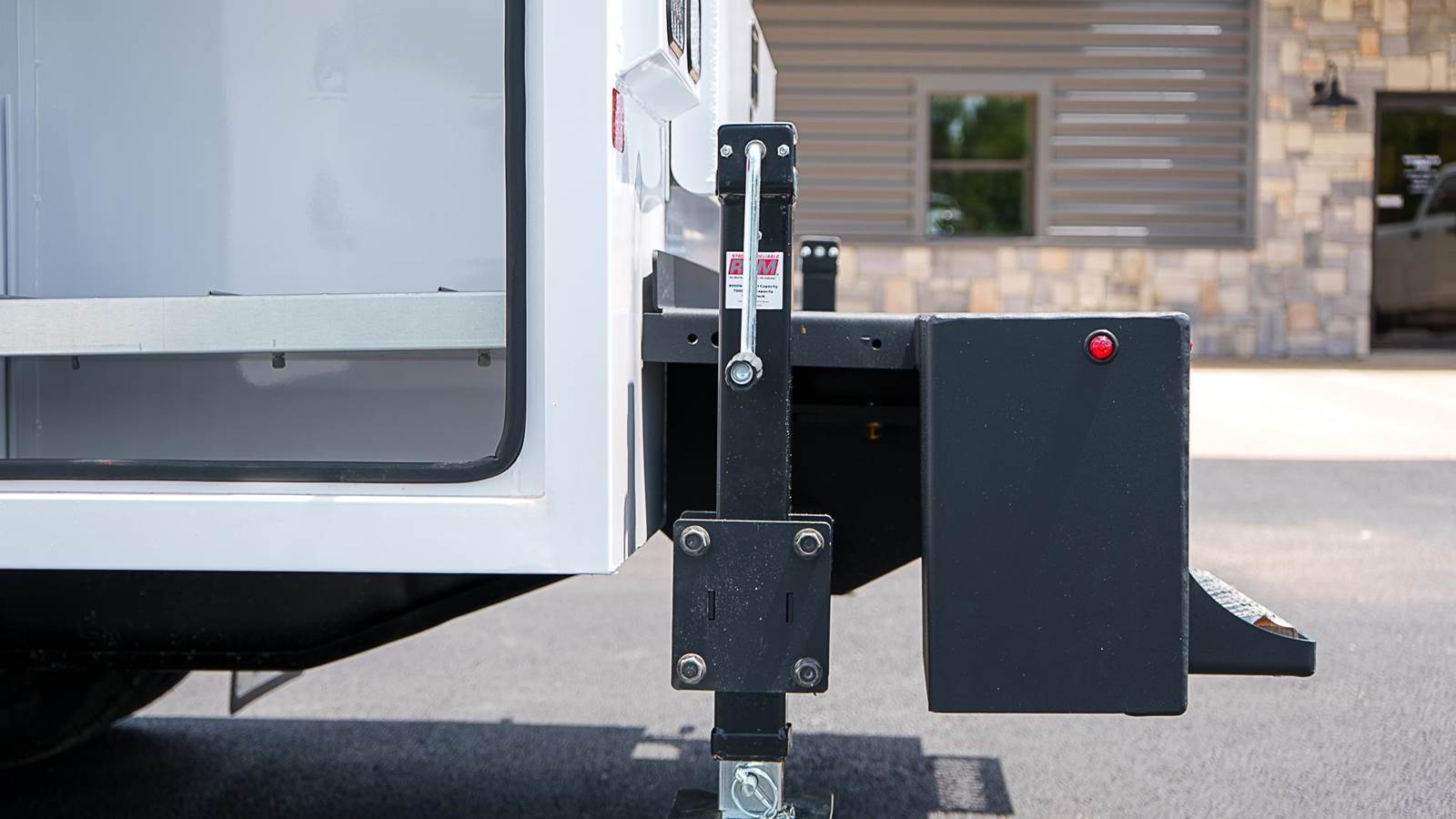

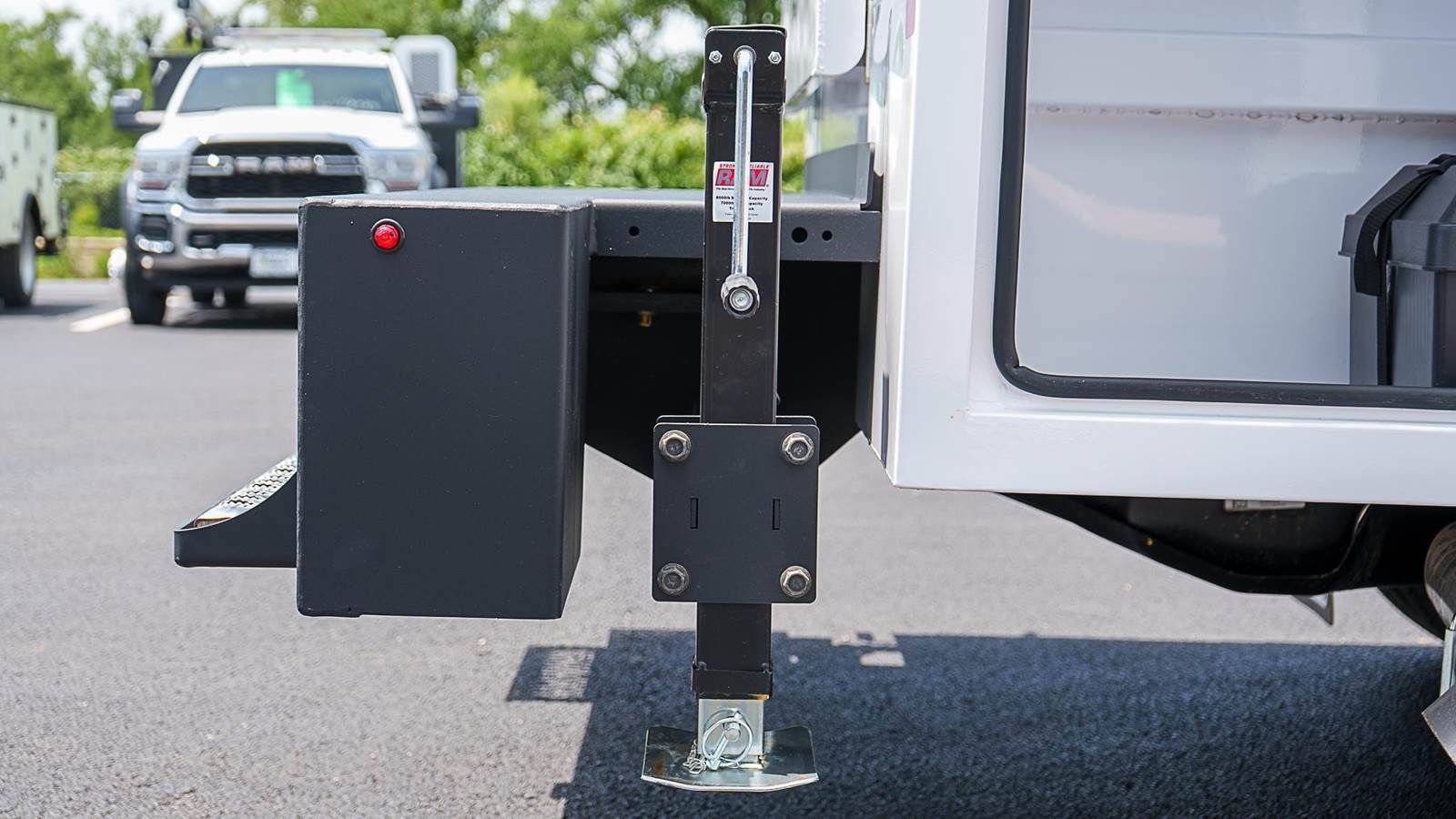

•   Truck must be equipped with jackleg extending minimum 3′ 9″ (1.14 m) from centerline of truck
•   8,800 GVWR minimum chassis requirement. (Does not include bodies and accessories)

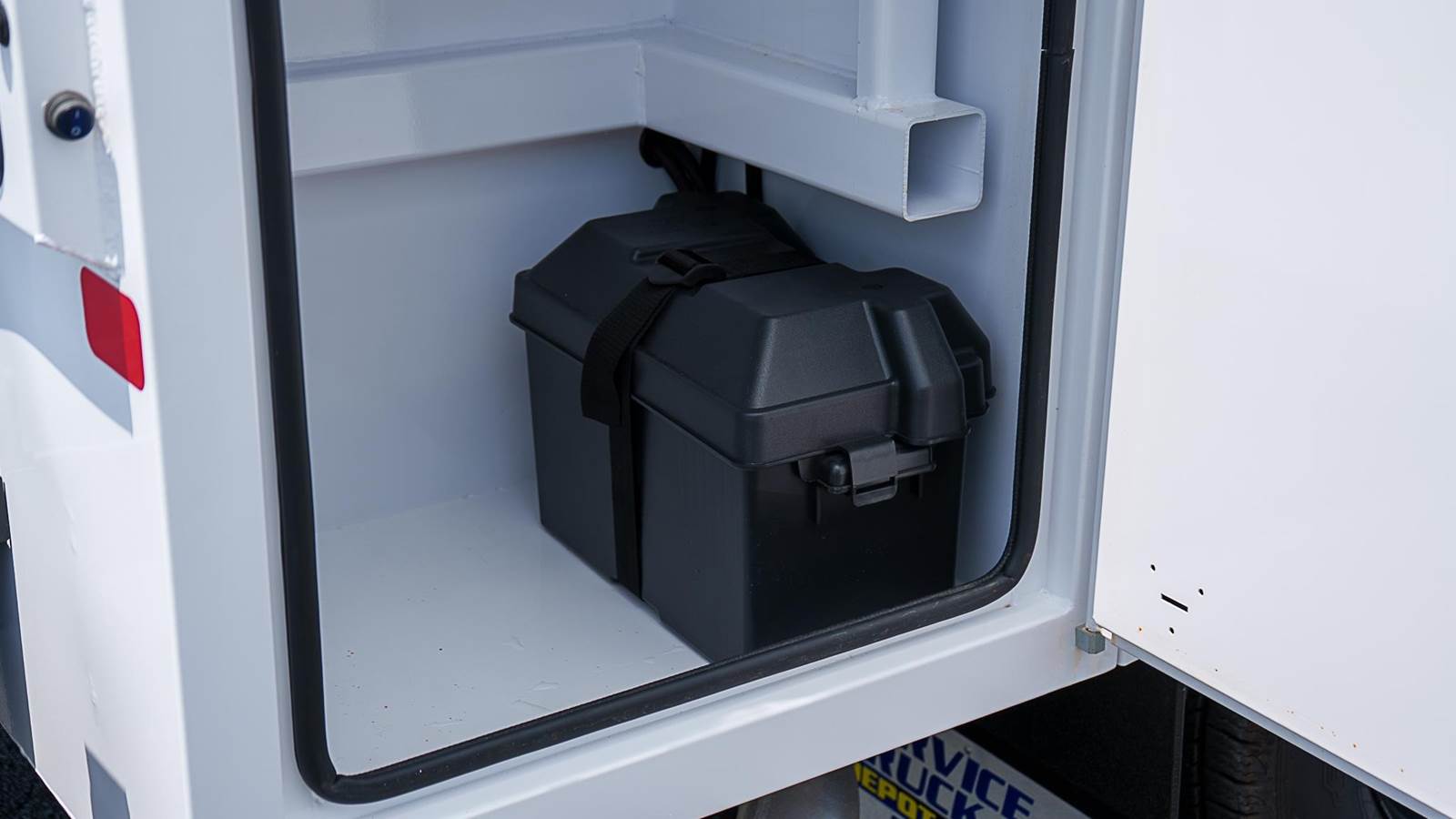

•   Battery Information: 575 amp cold cranking rating, 130 minute reserve capacity, maintenance type battery required for 12 volt DC operation. 70 amp minimum truck alternator required
