Product Description

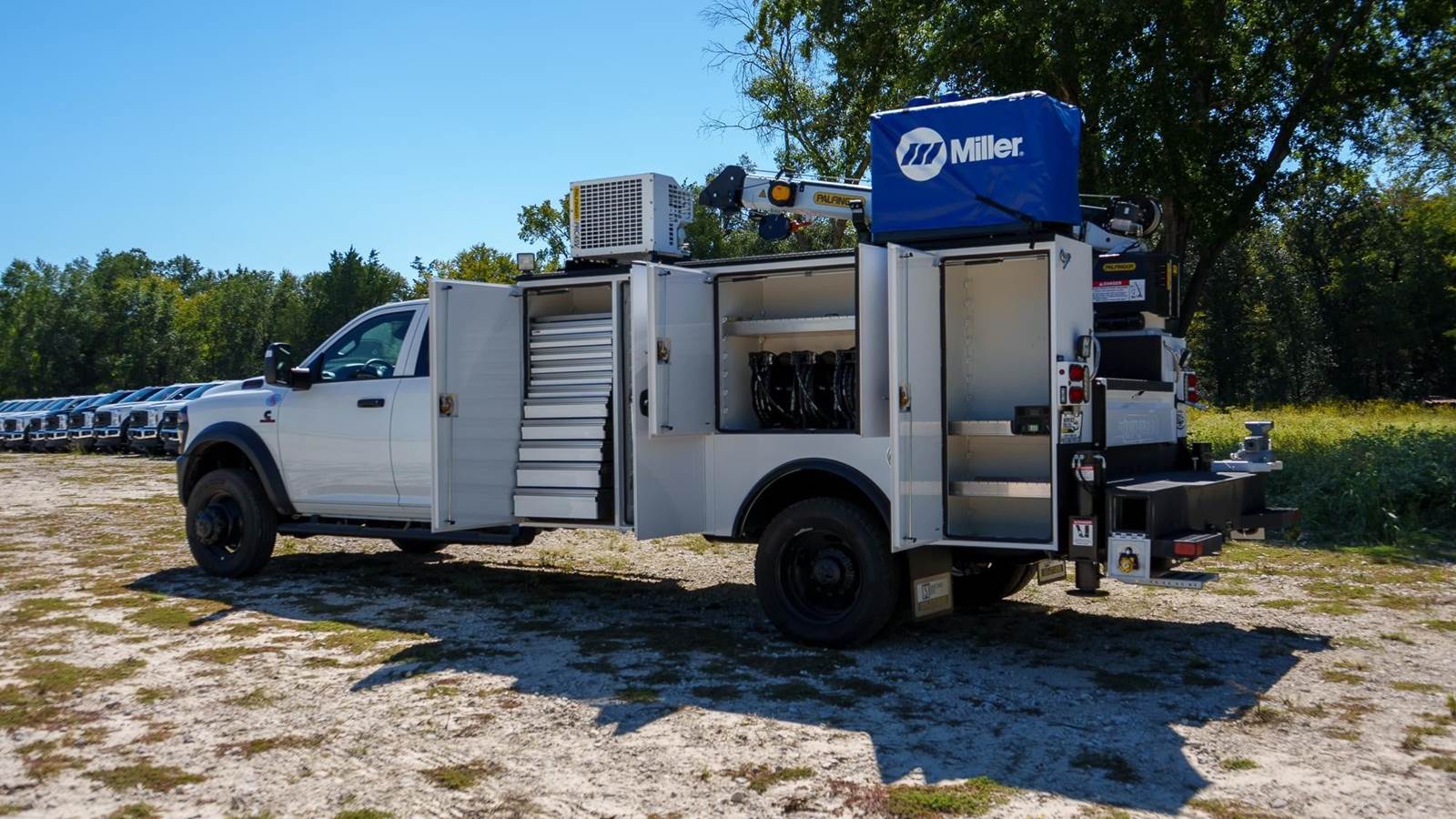

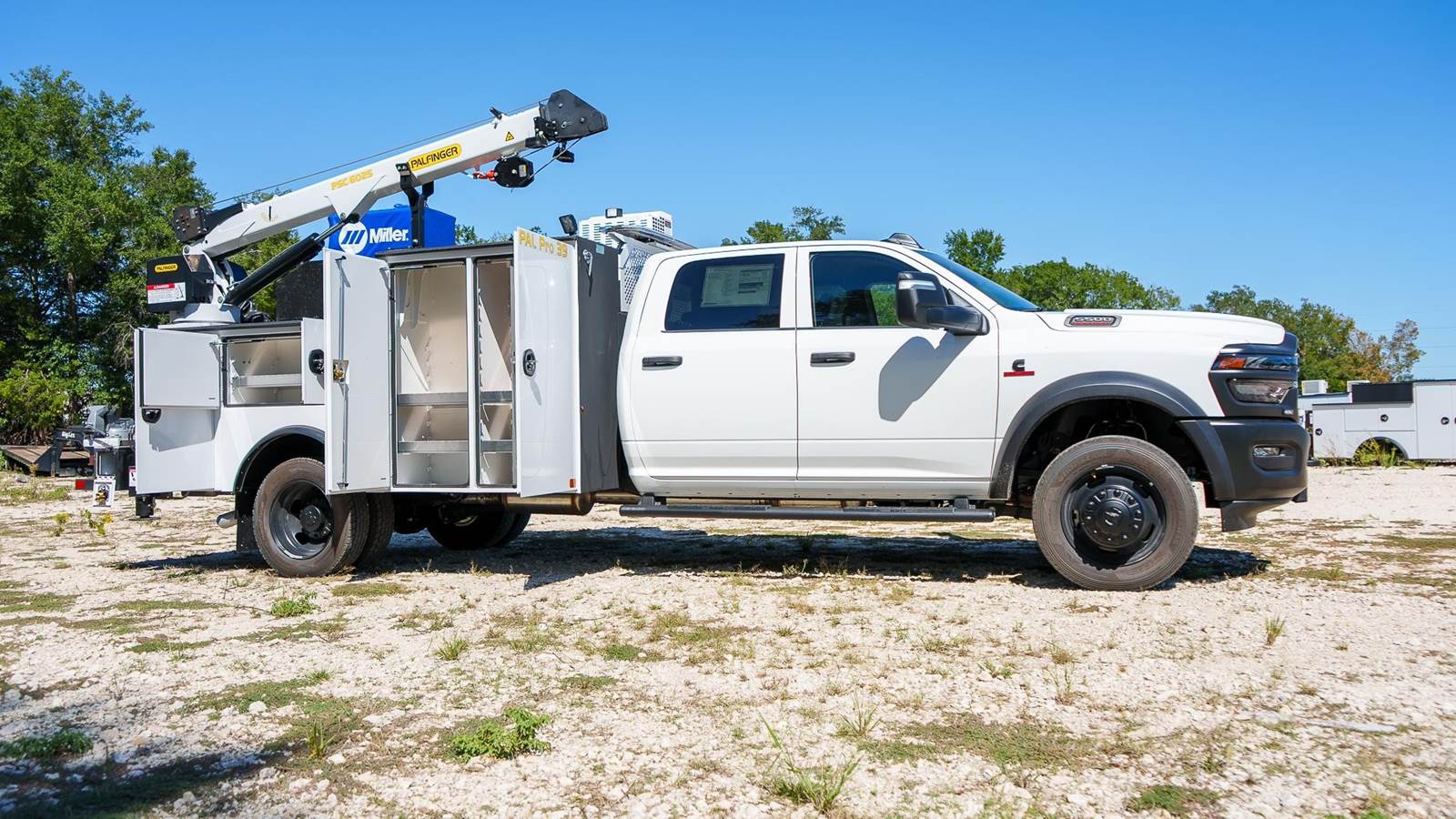

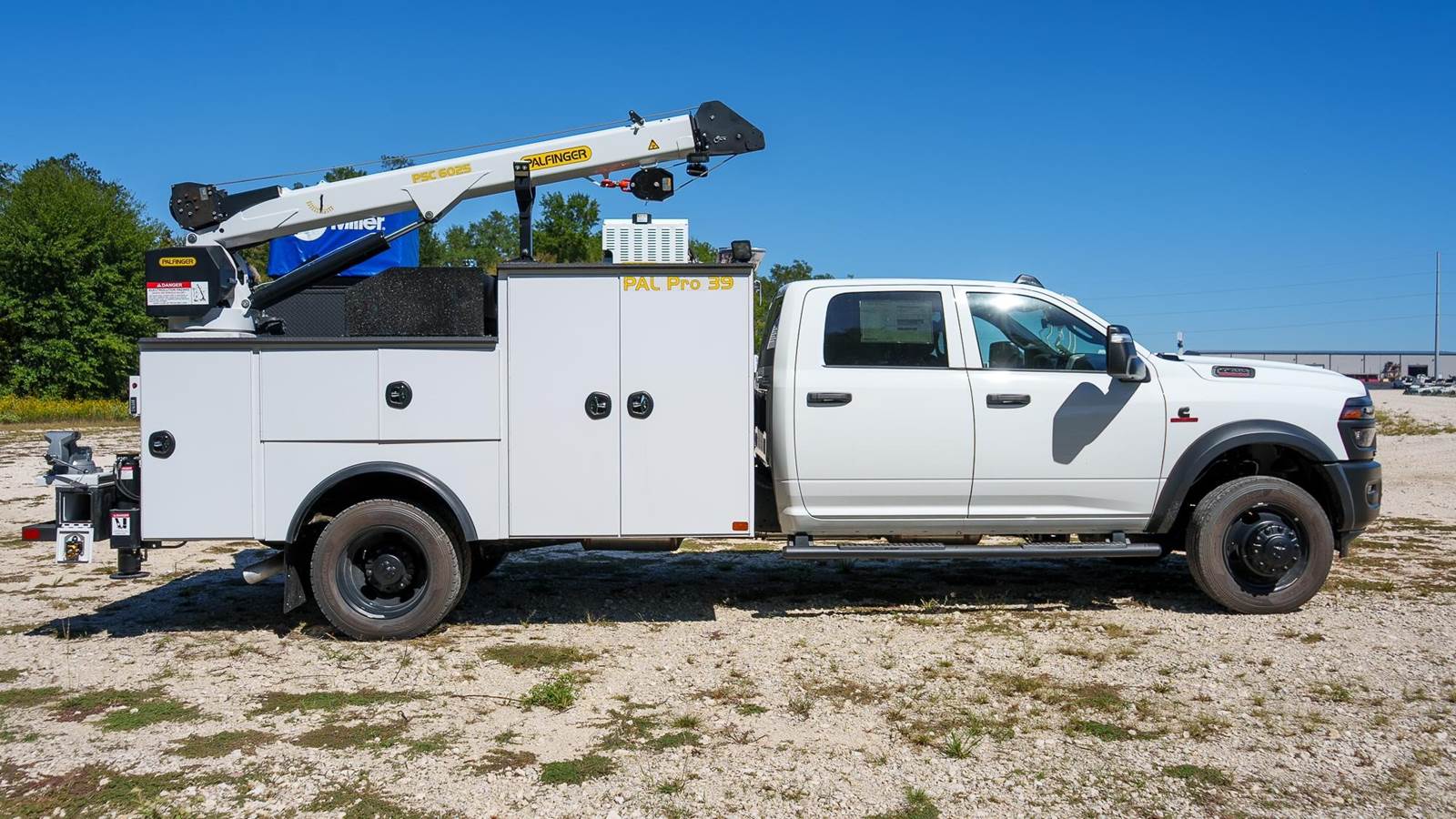

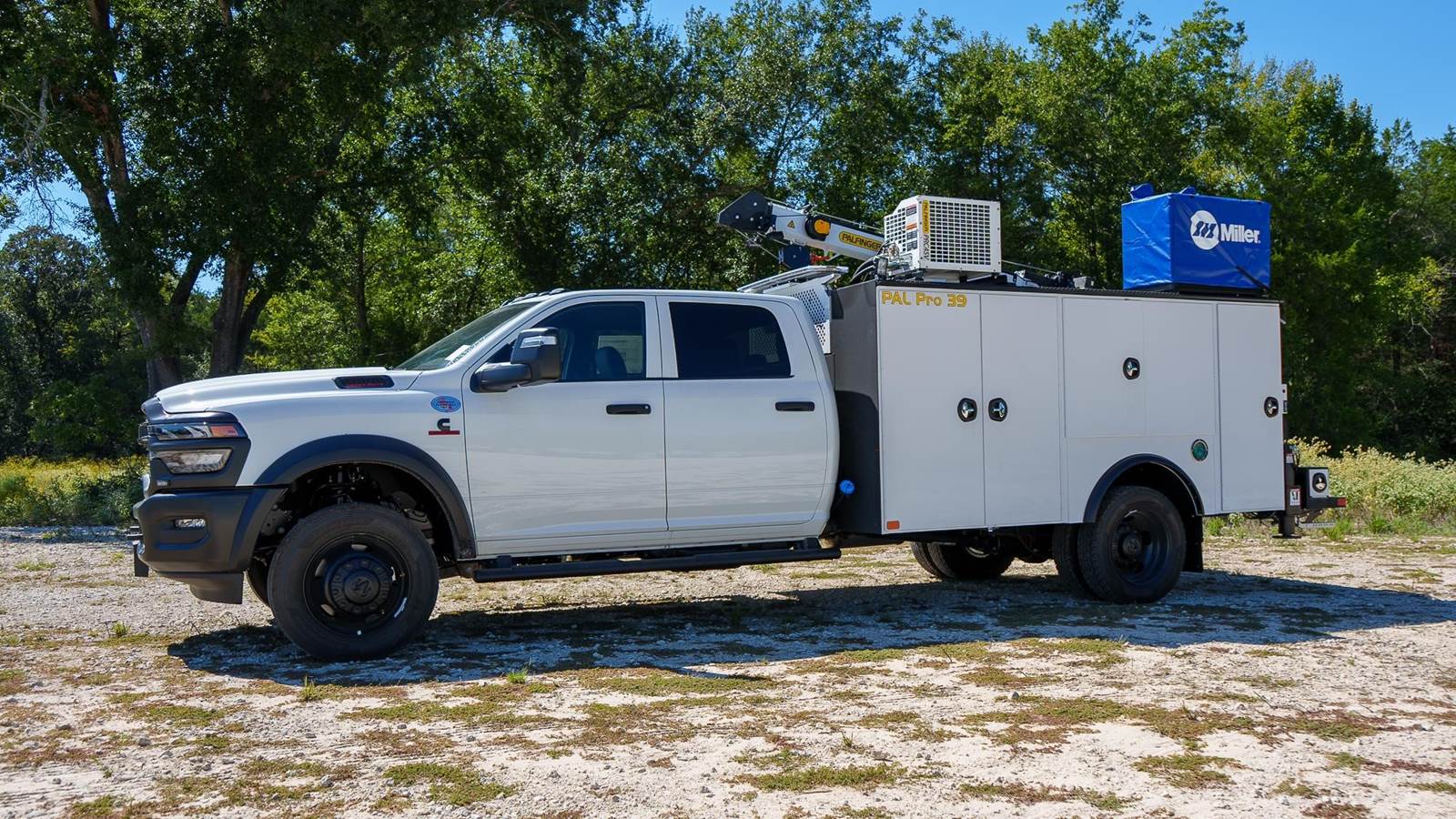

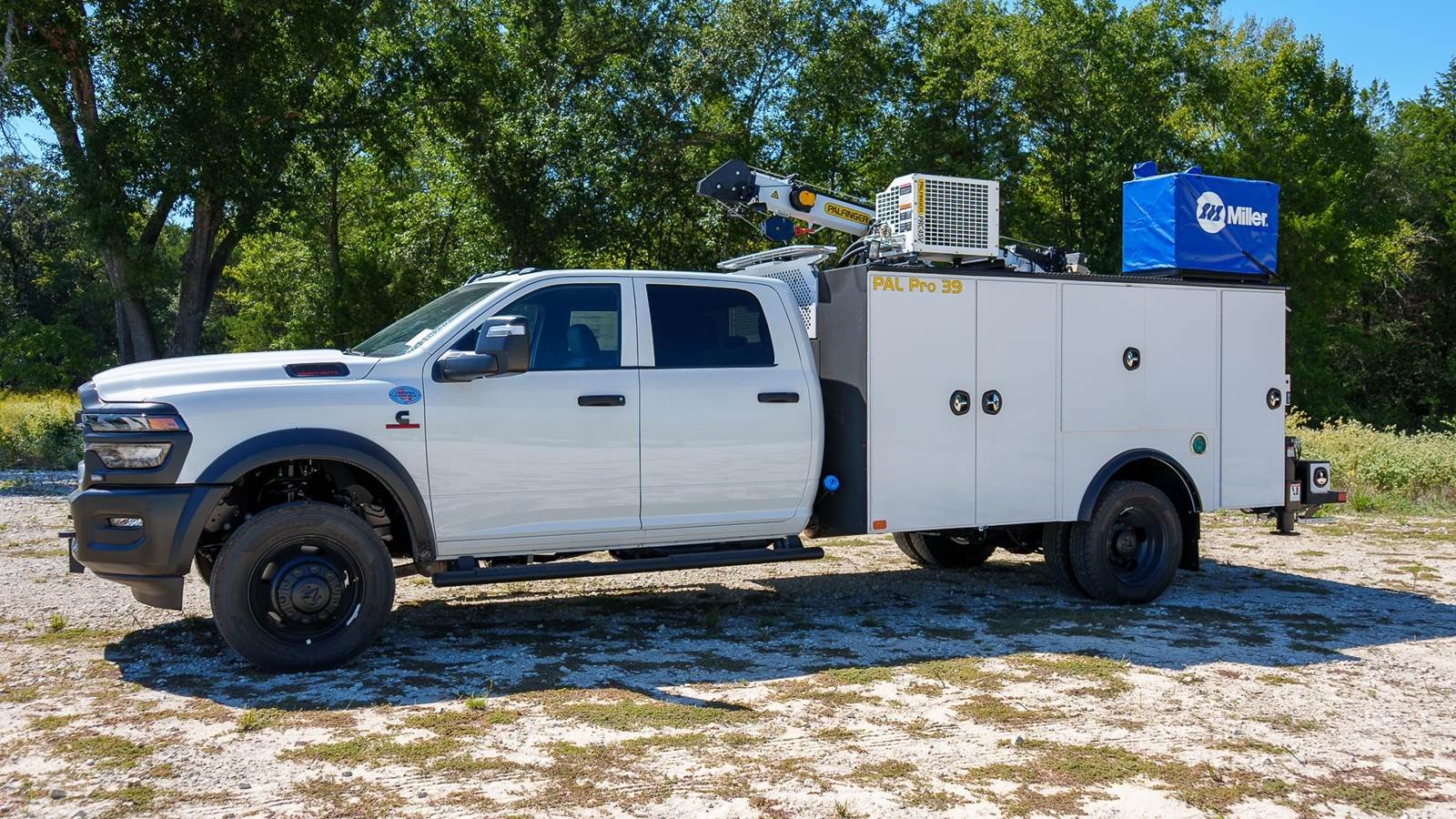

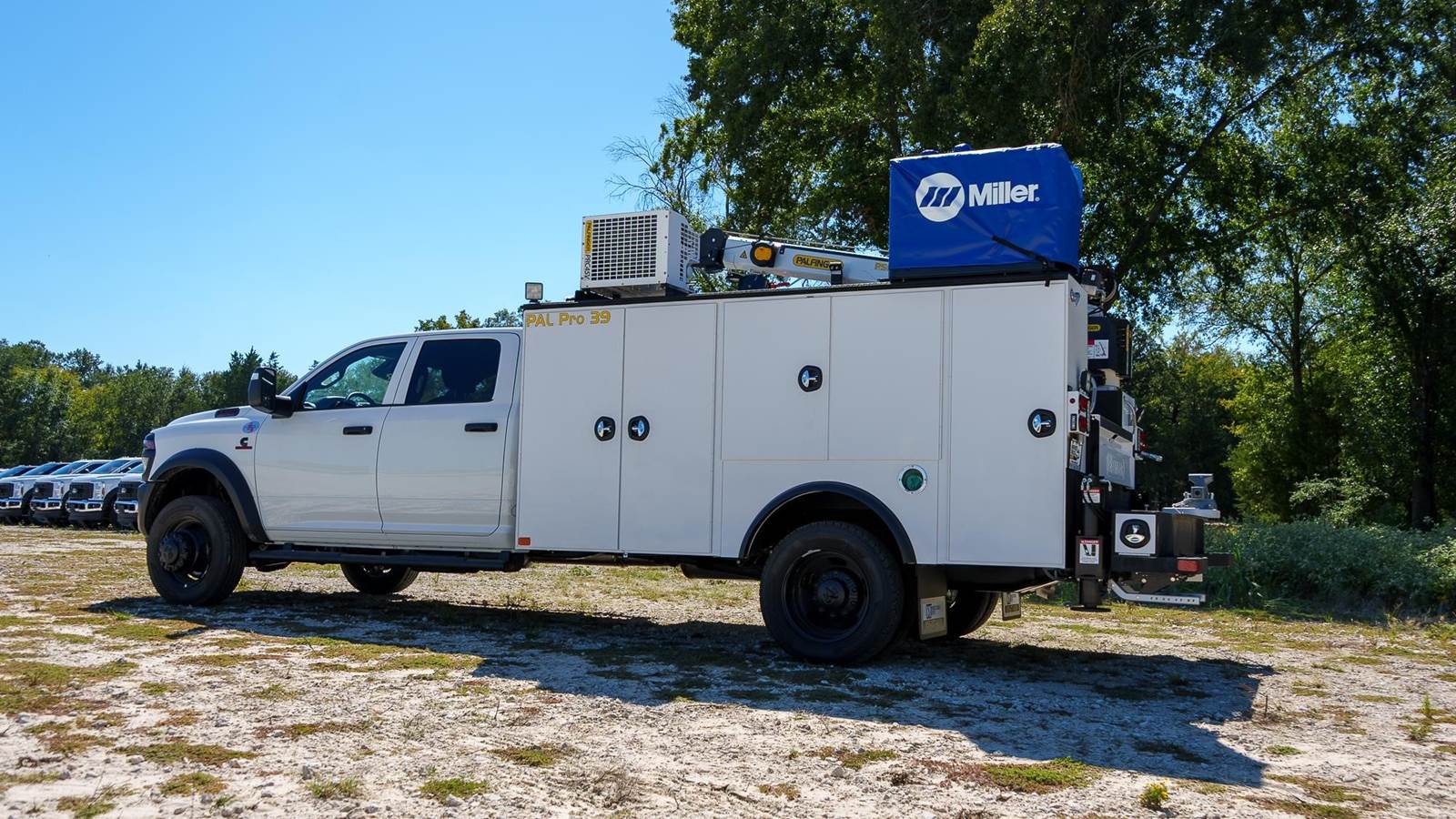

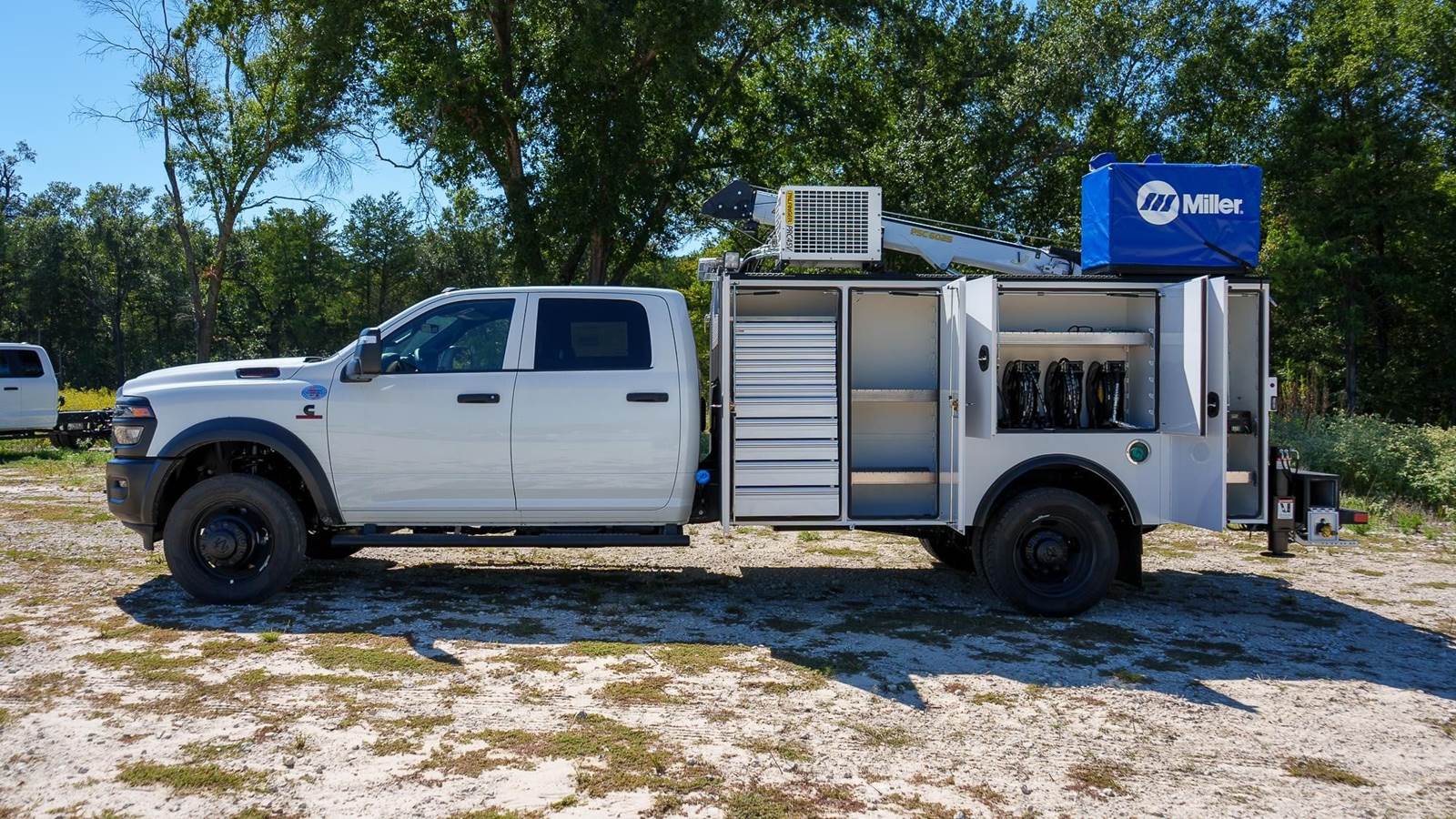

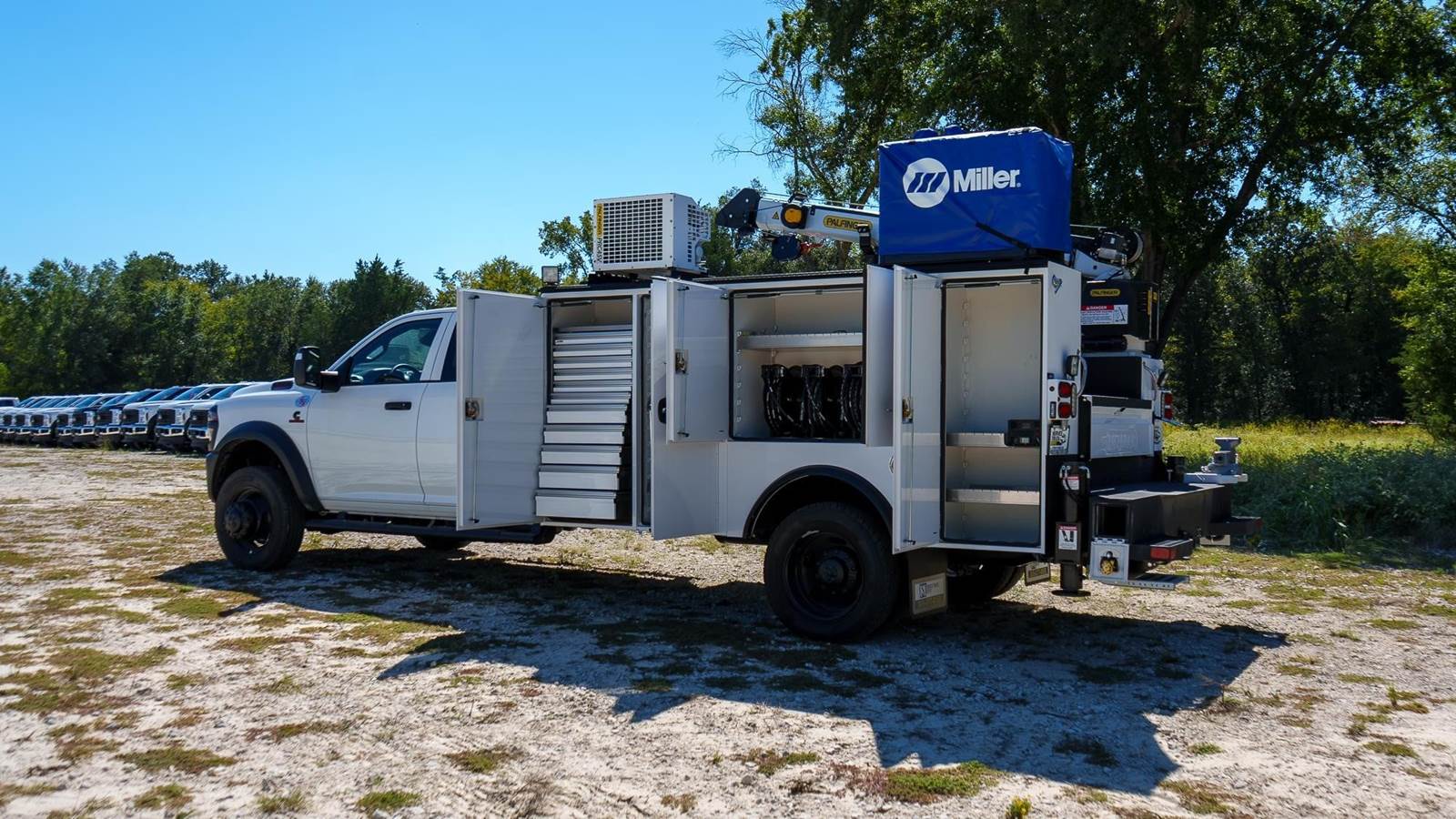

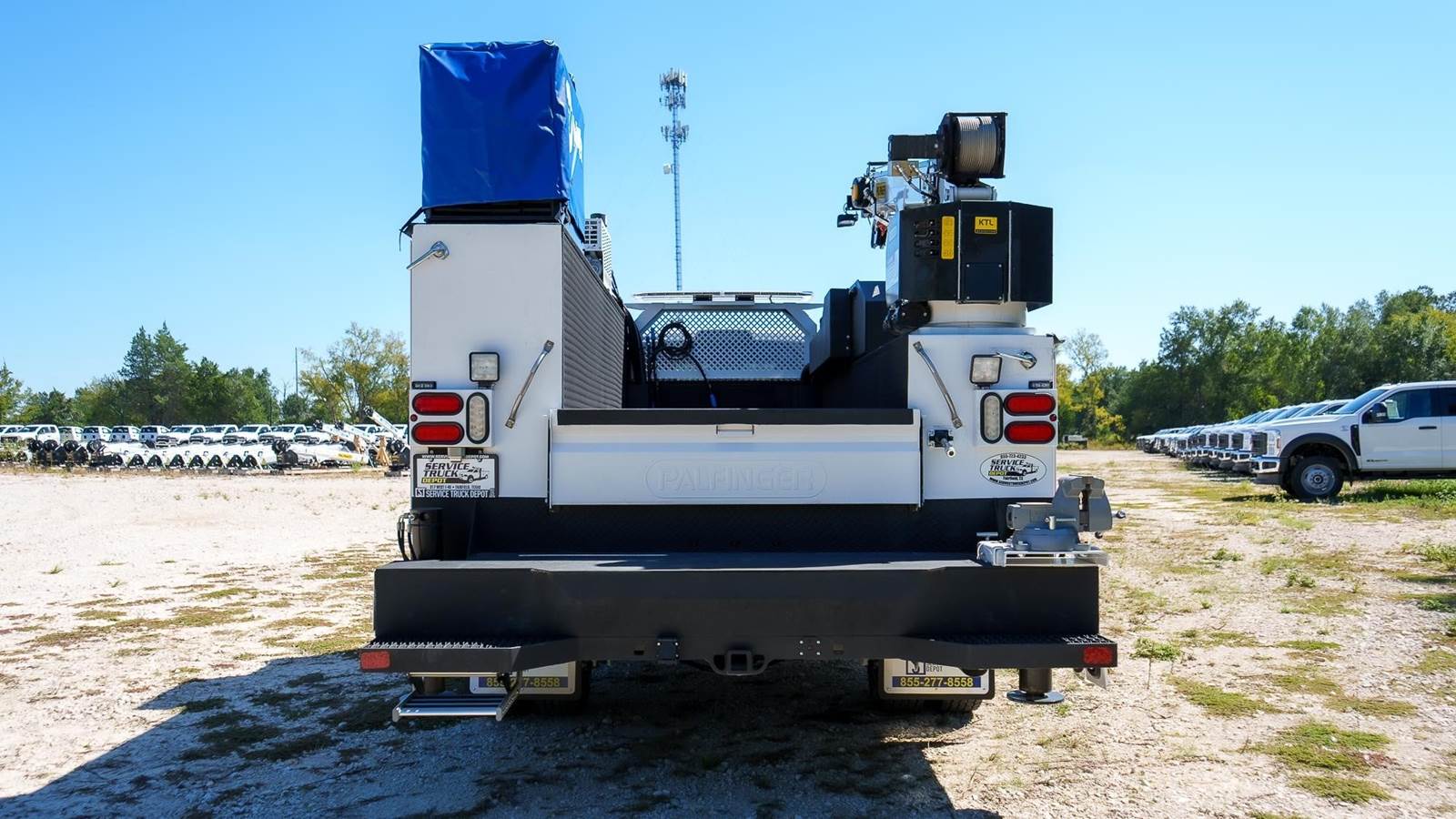

2026 RAM 5500 HD 338757
Engine: CUMMINS
Transmission: Automatic
Horsepower: 360.0

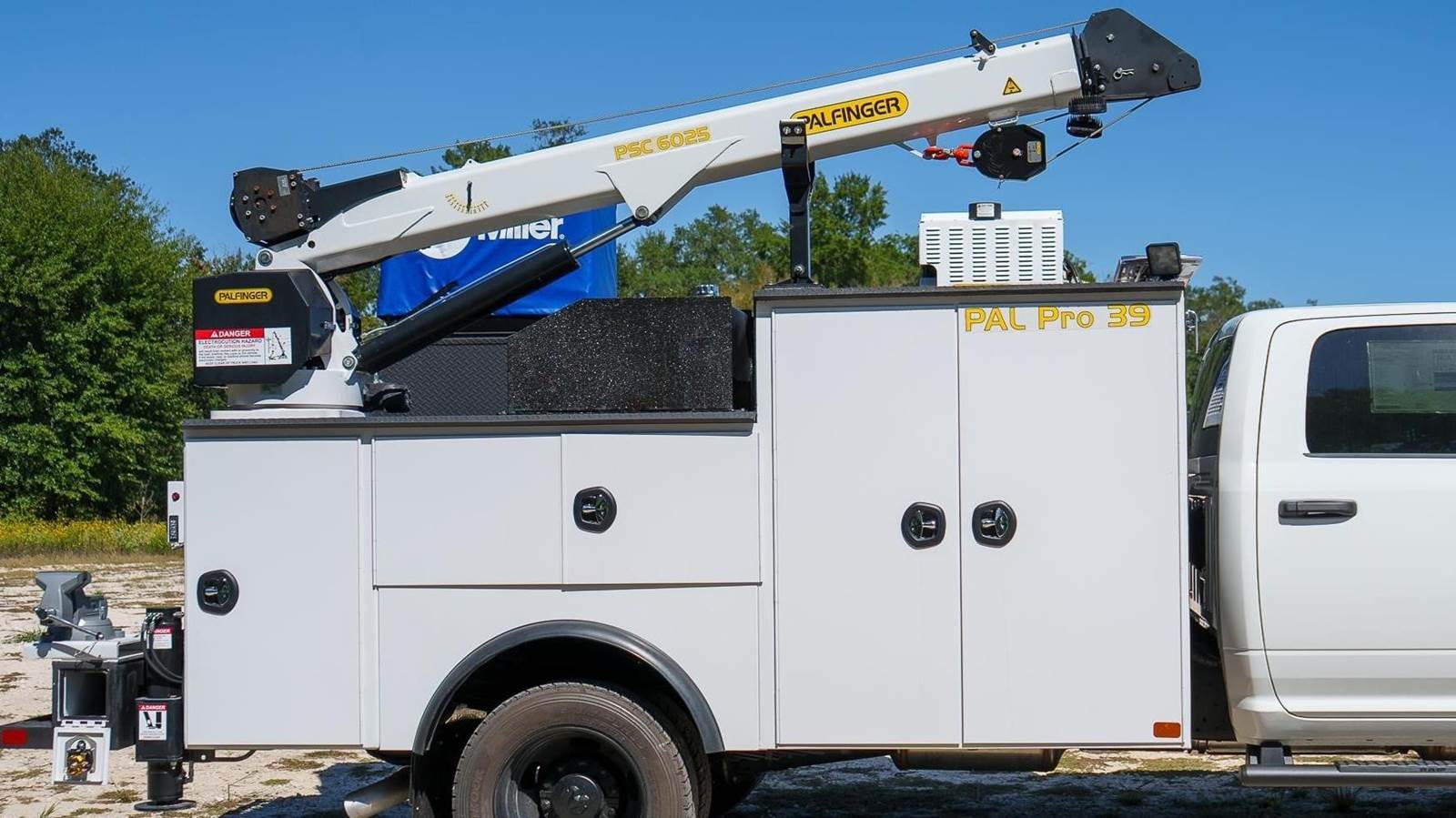

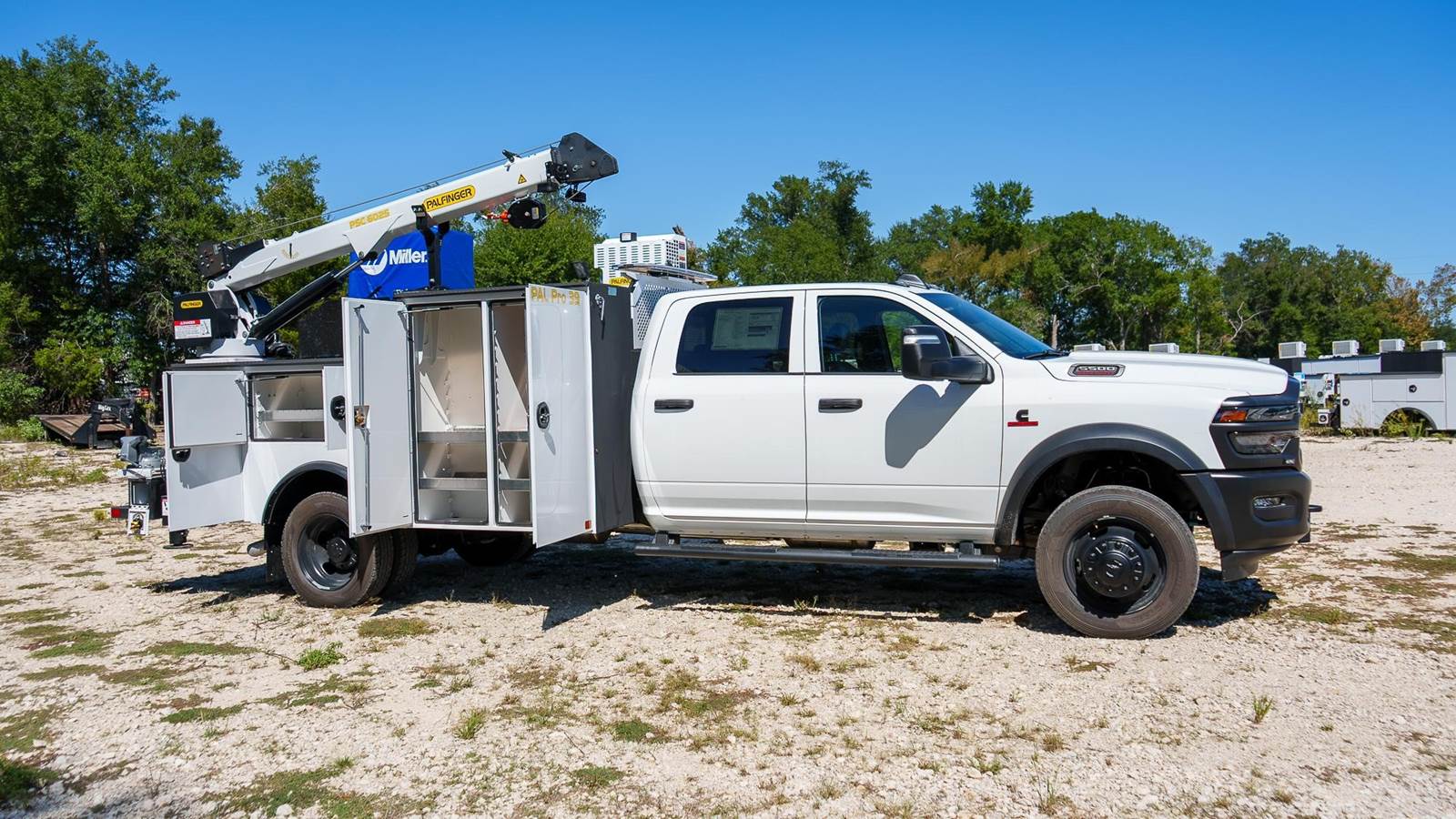

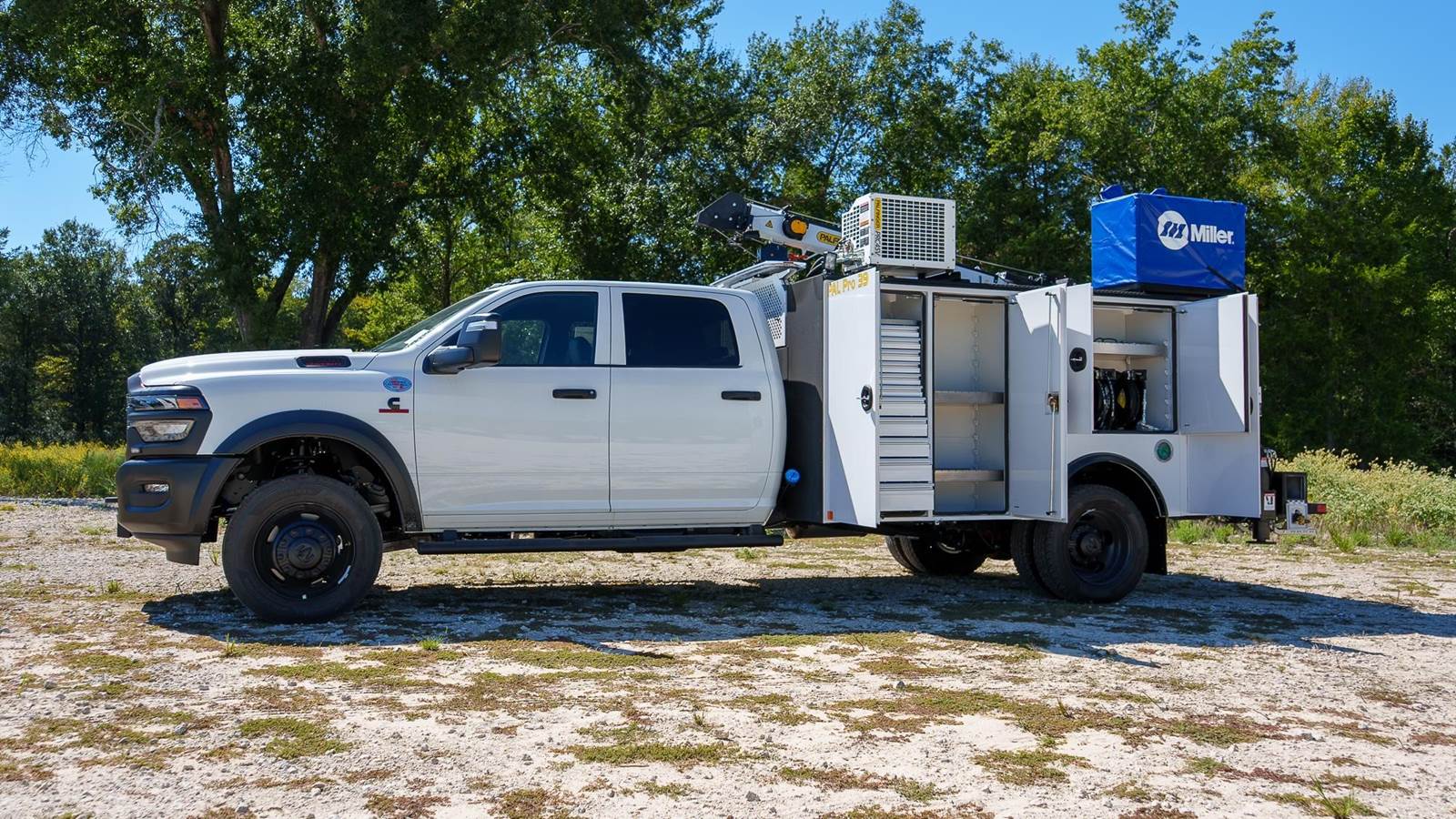

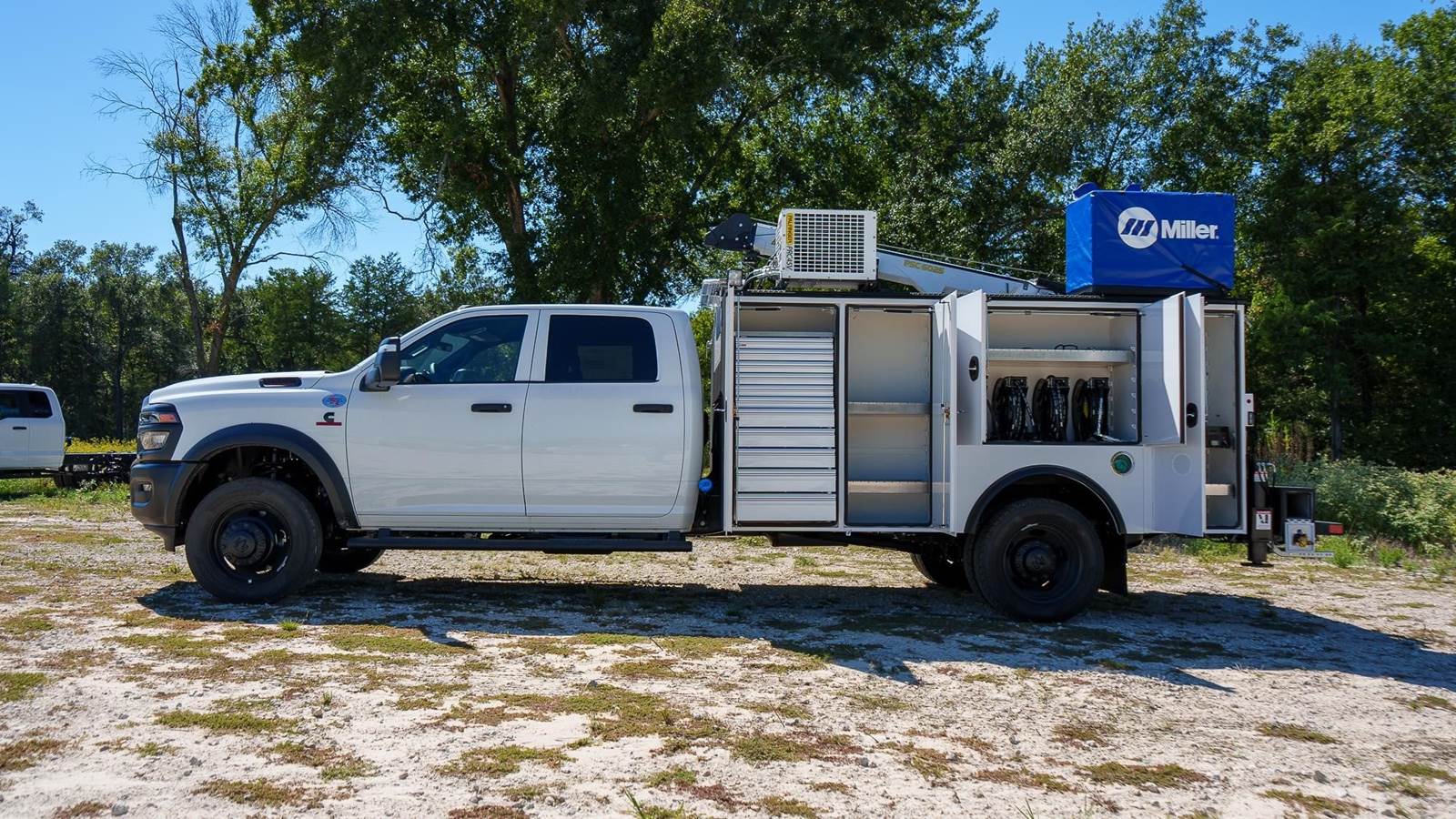

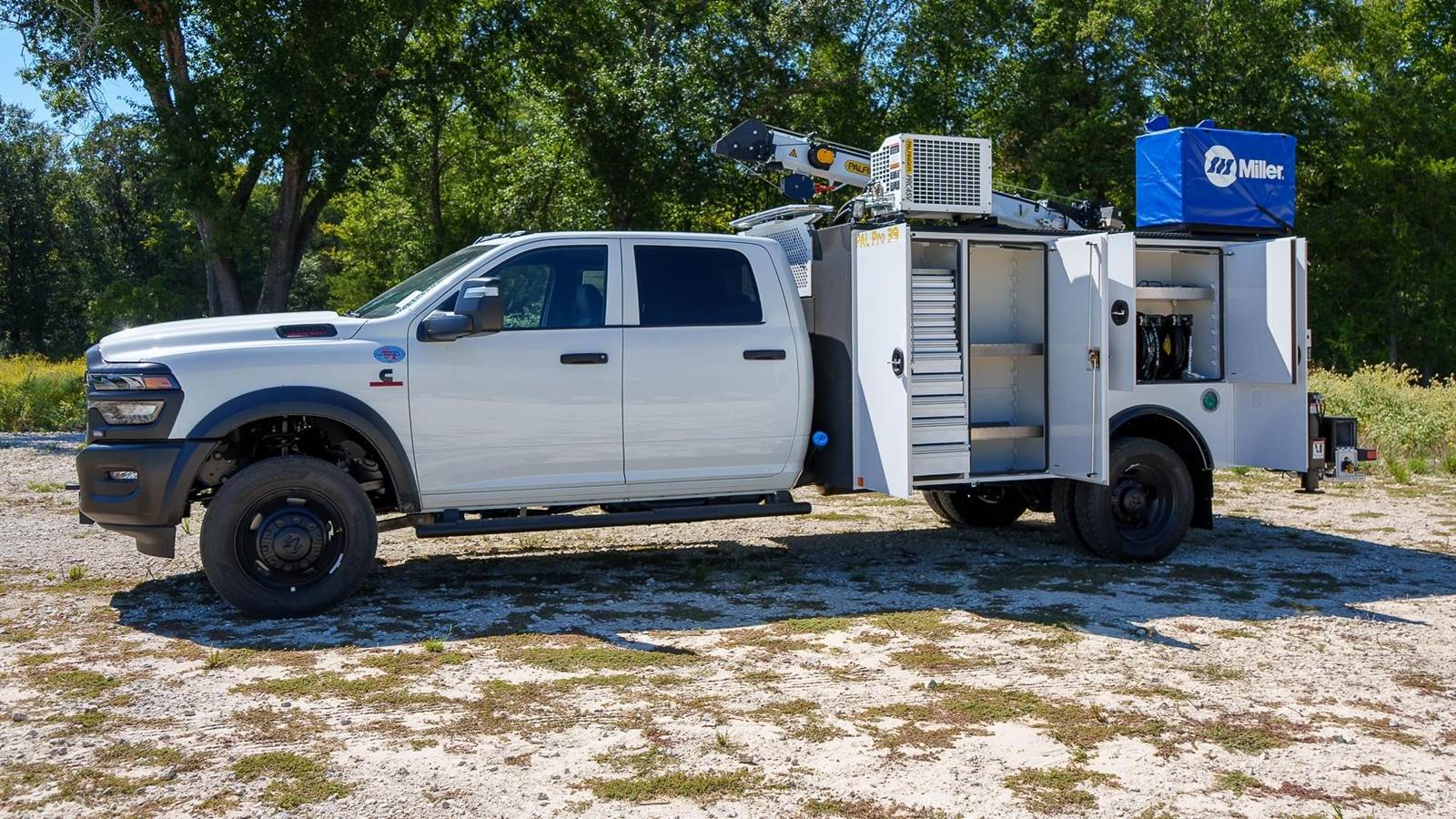

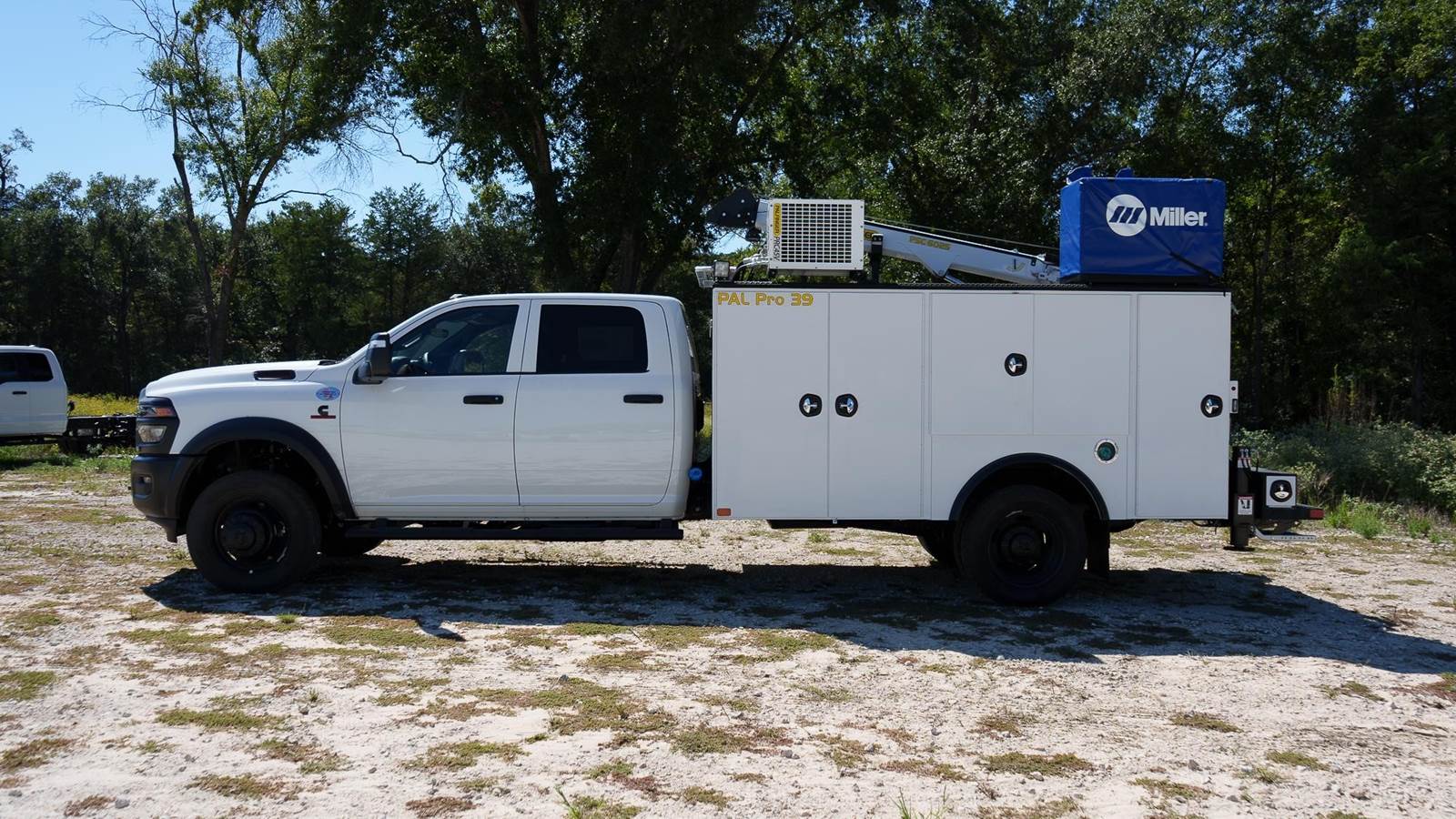

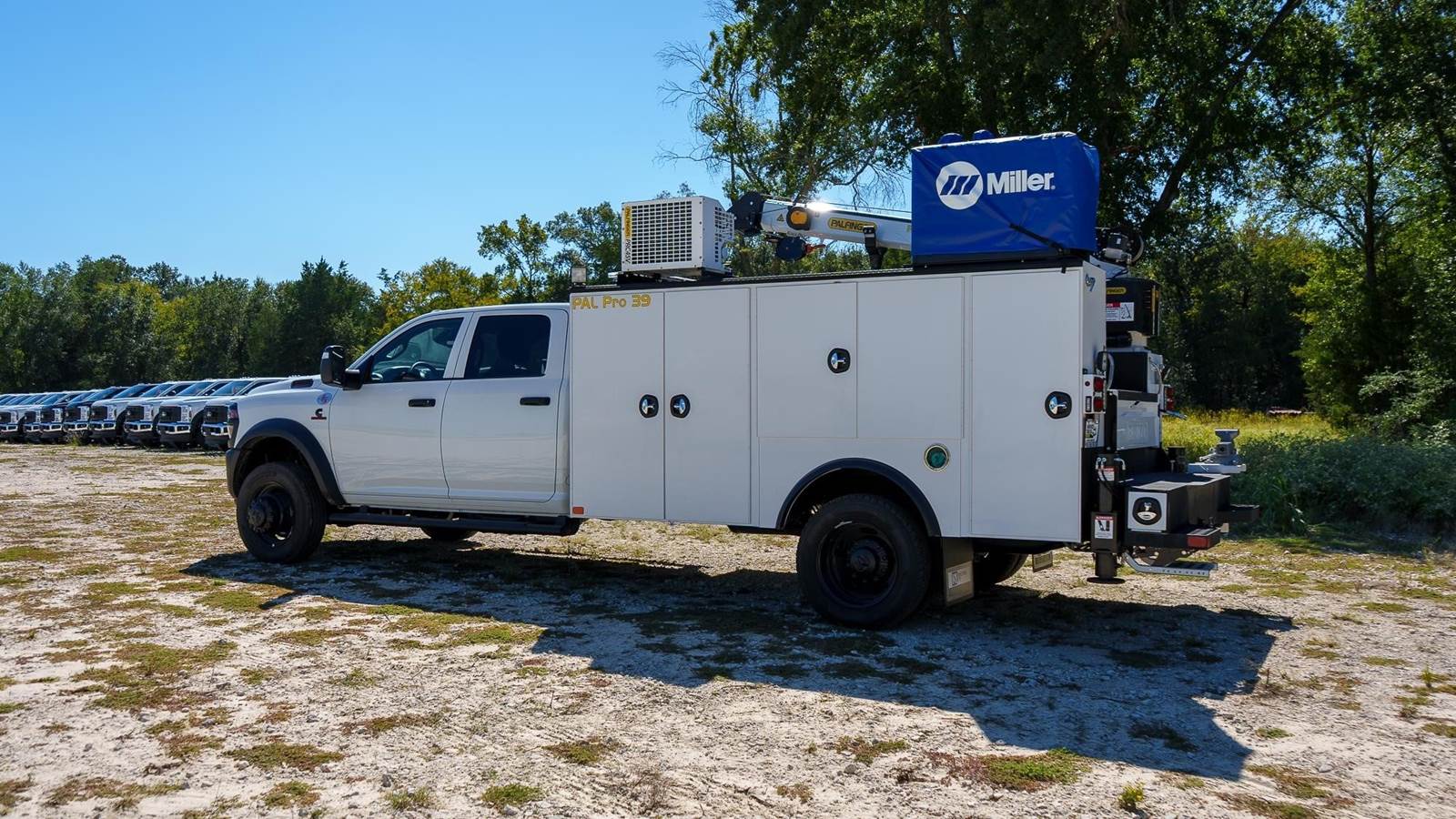

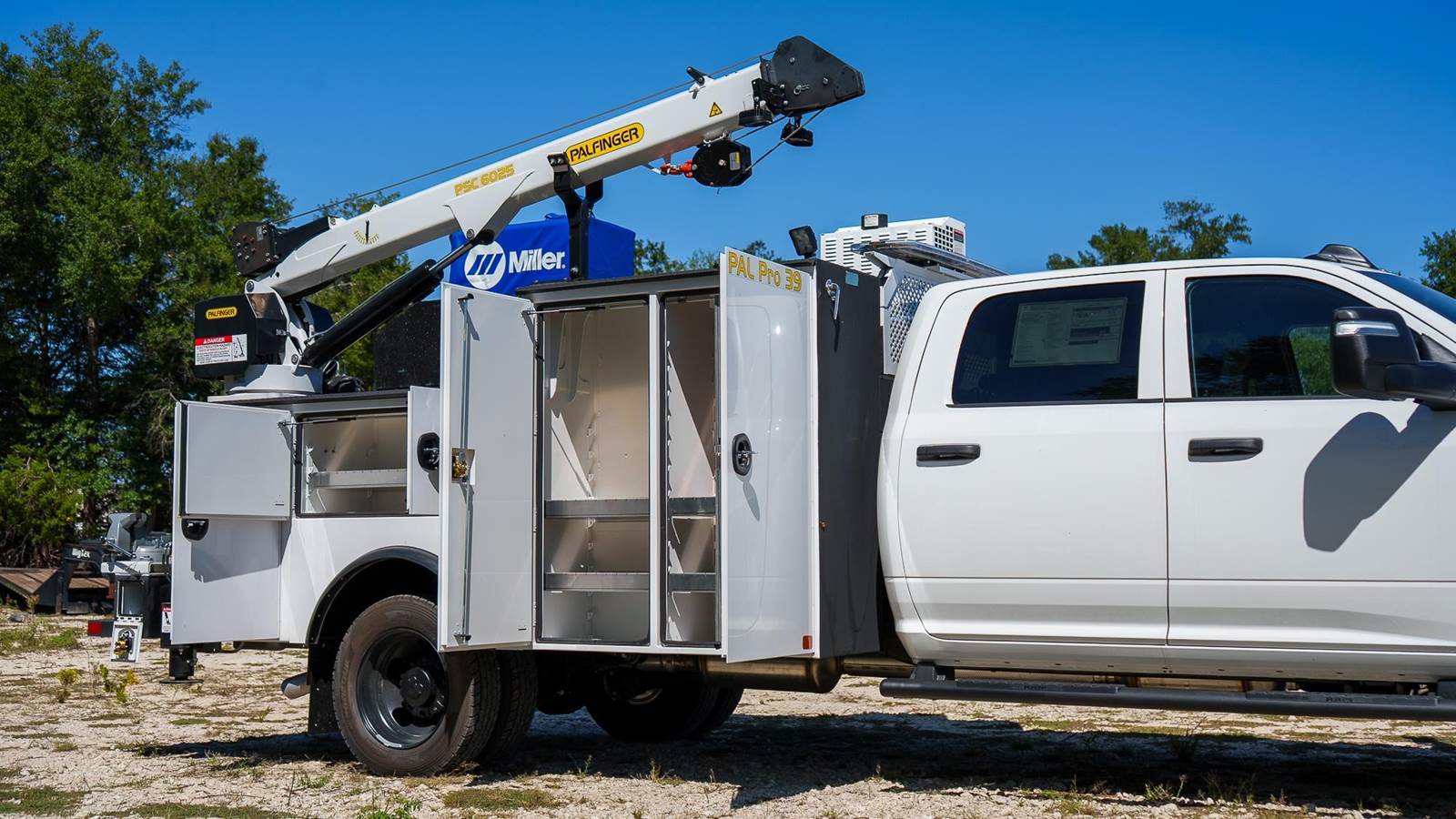

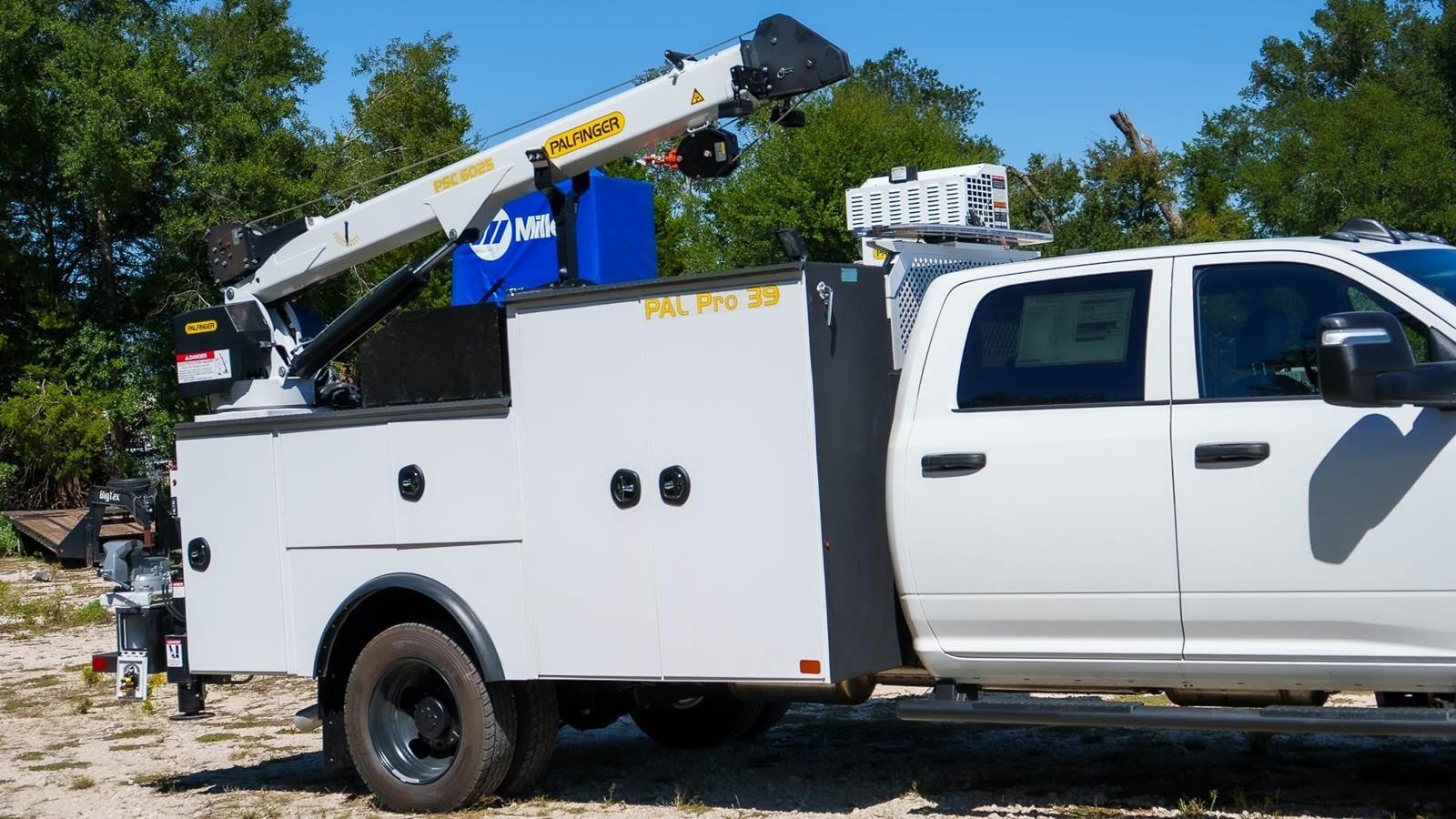

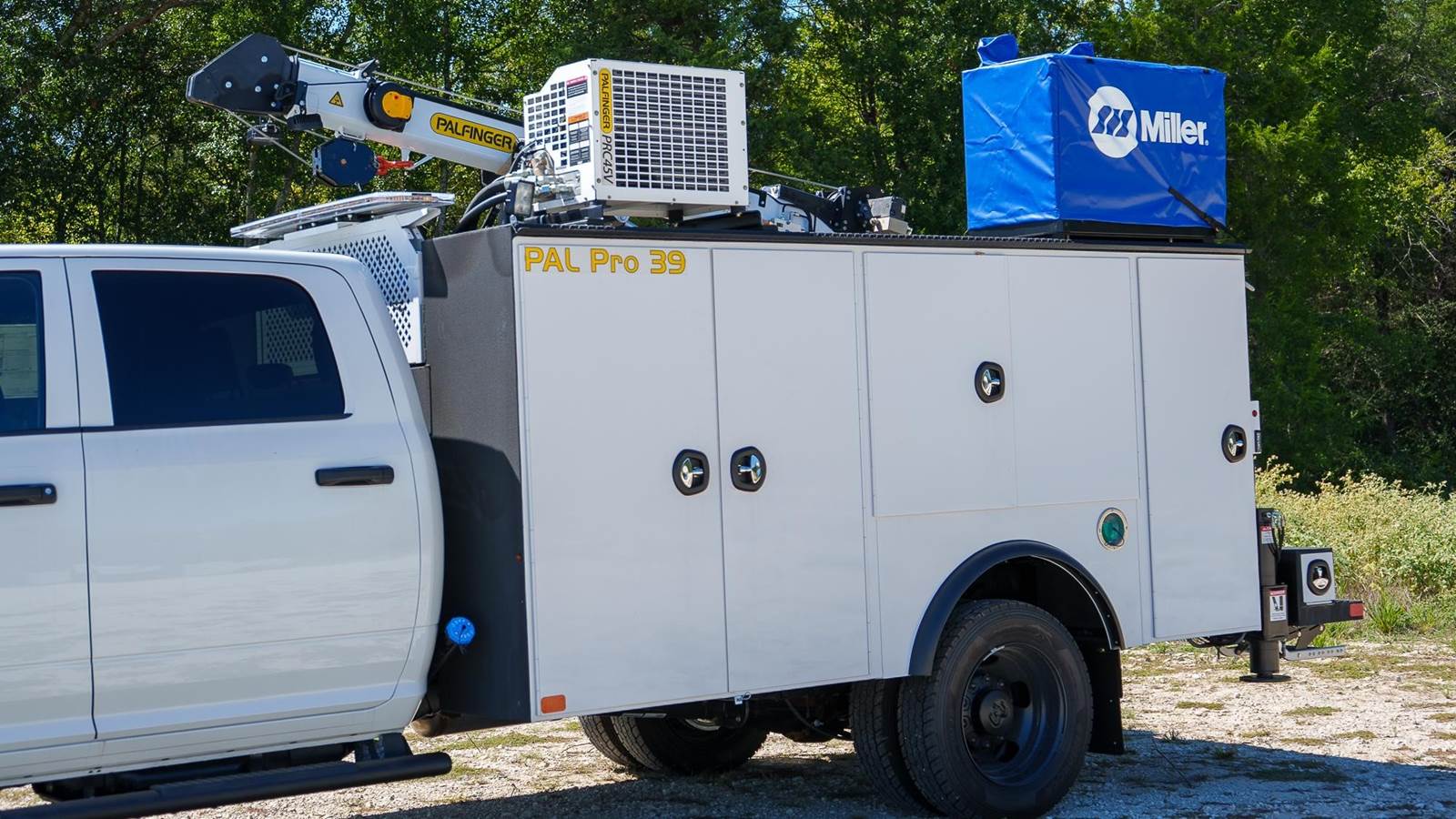

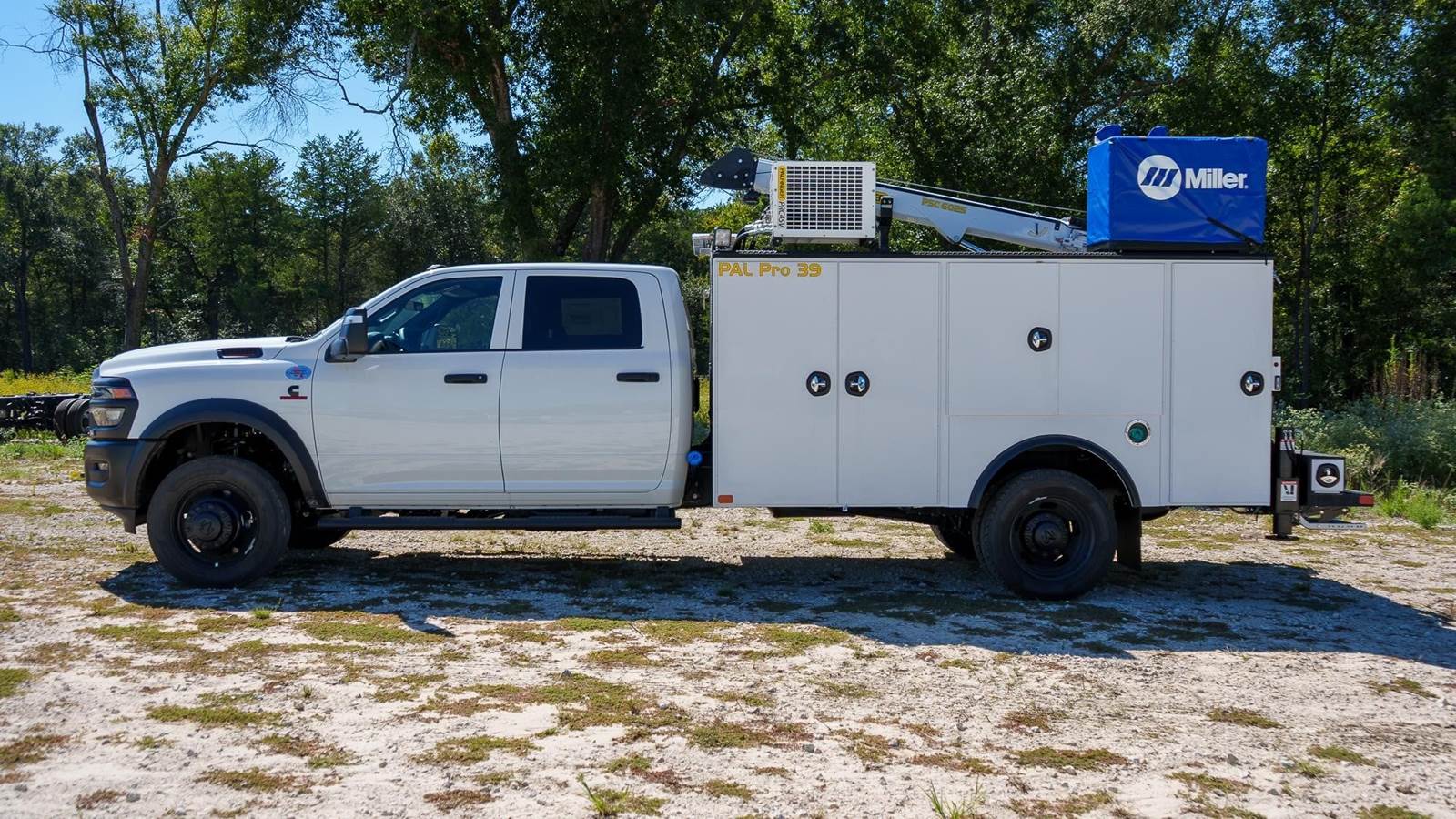

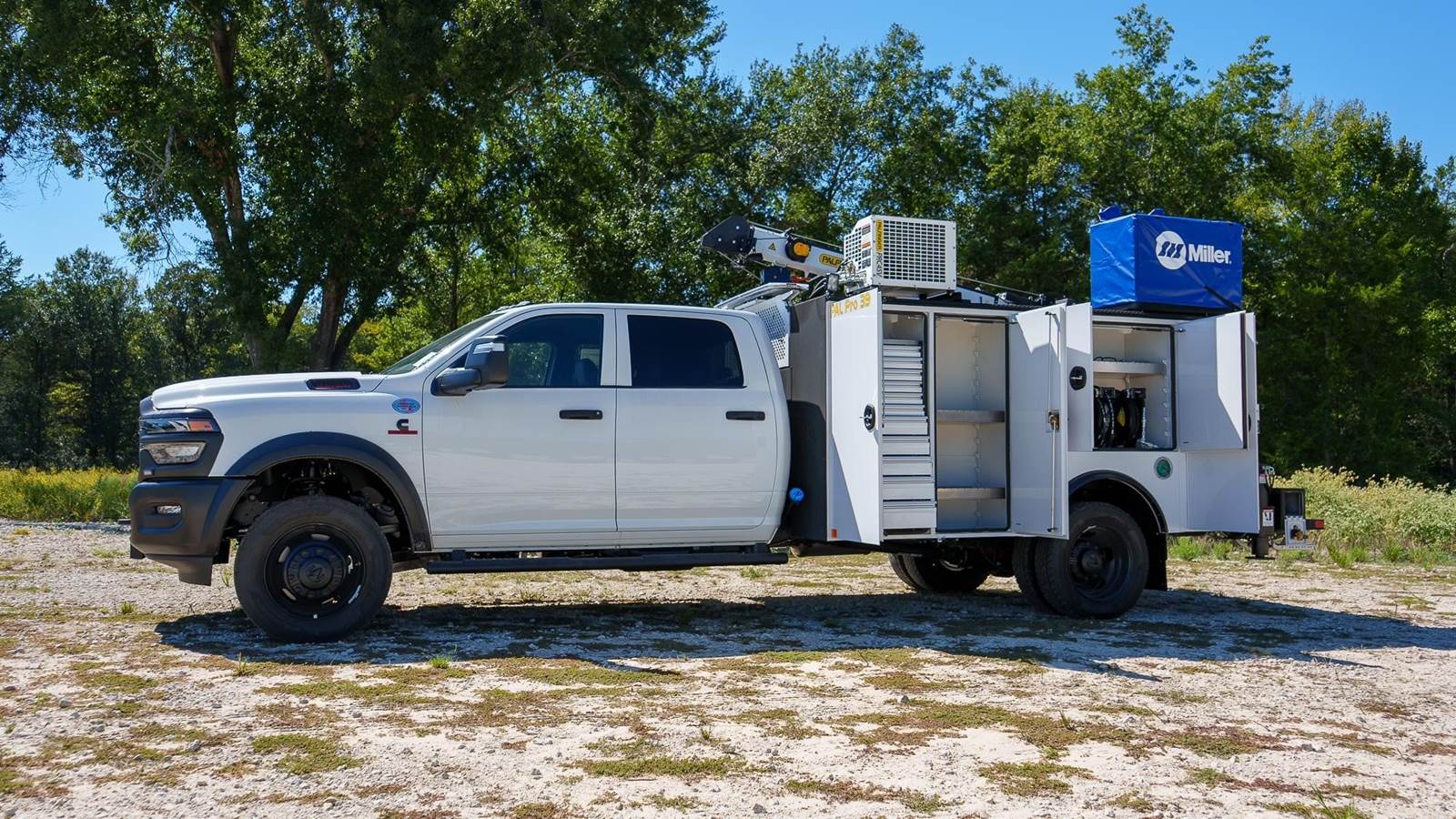

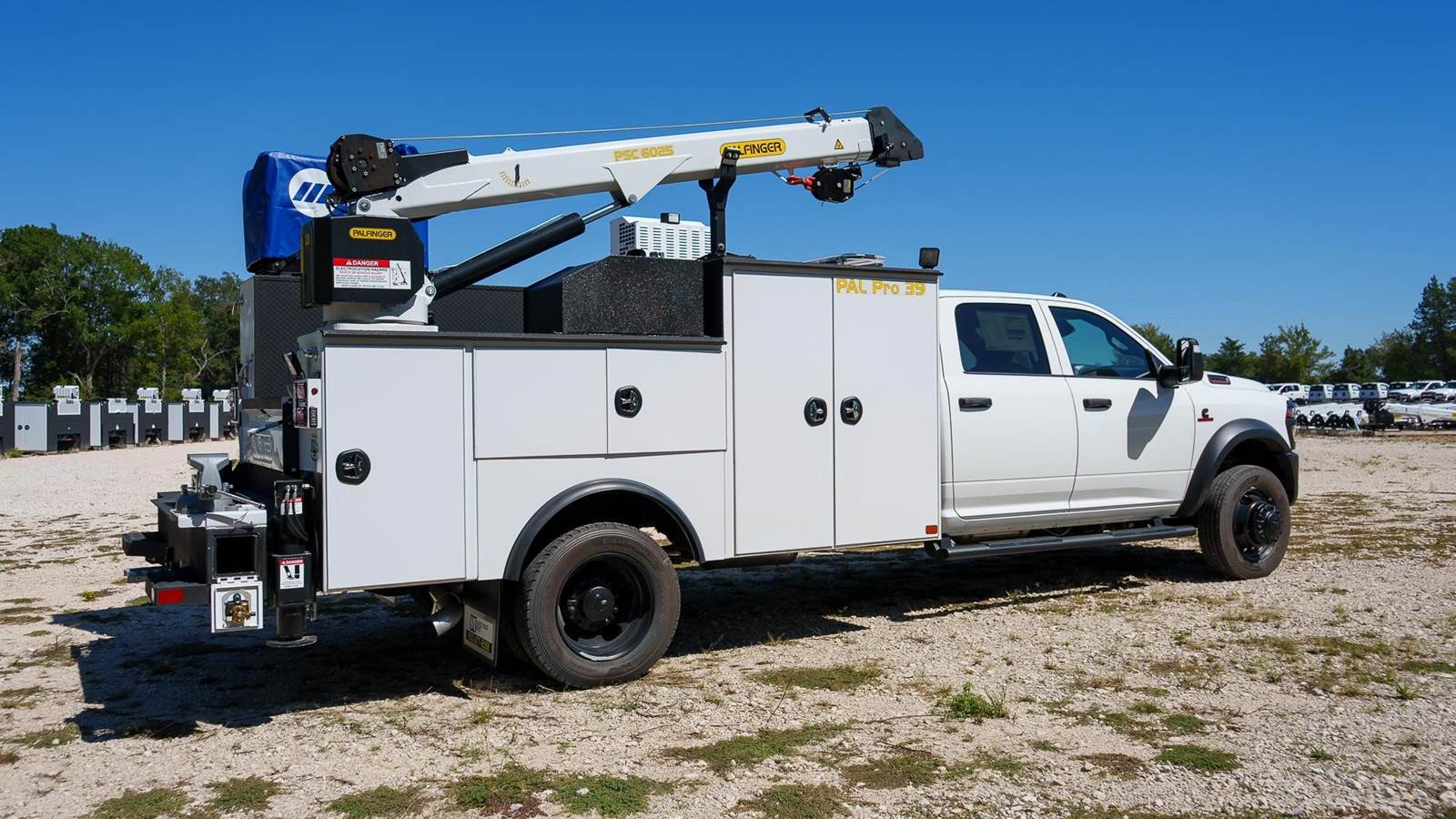

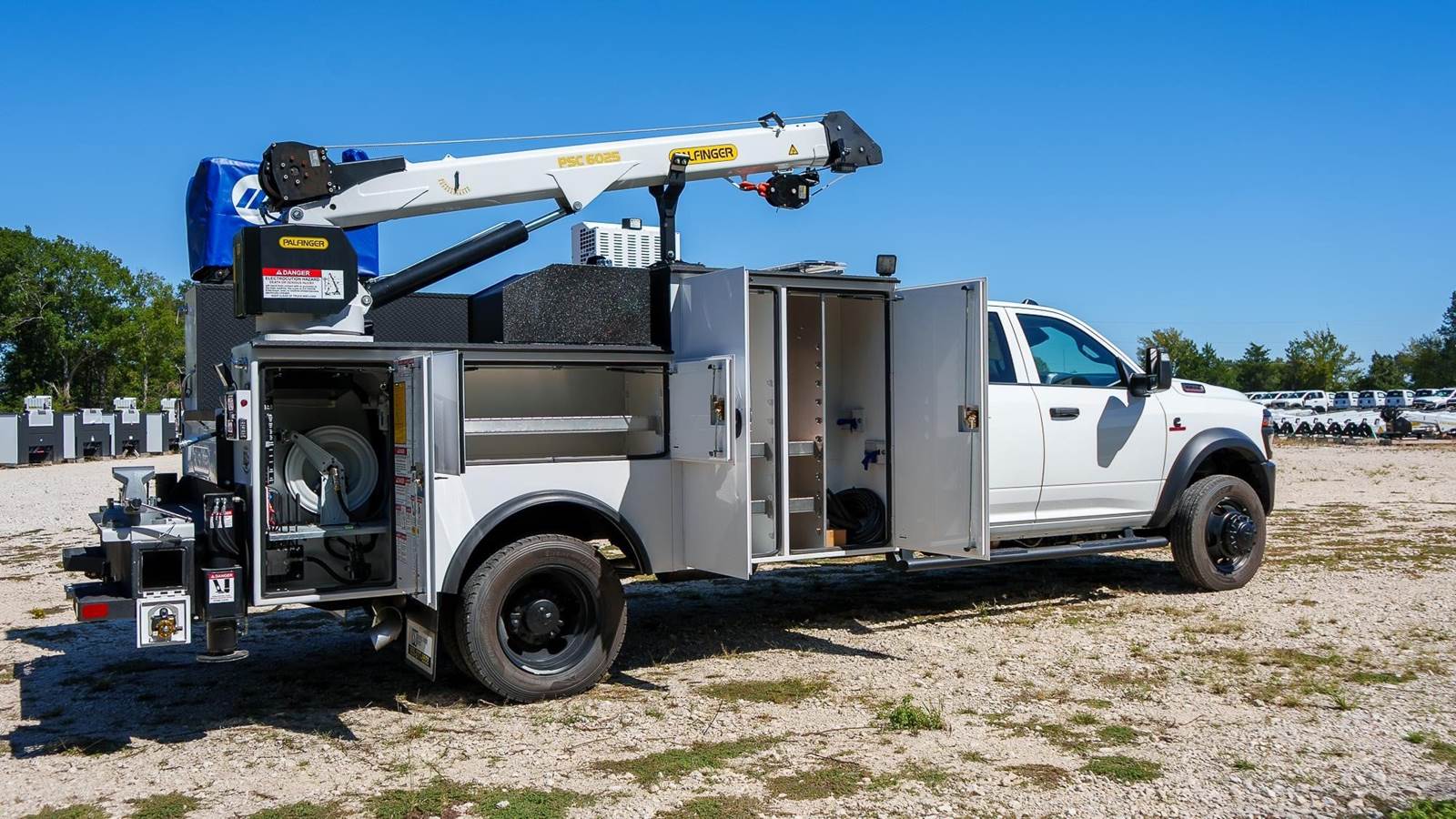

This unit features a Palfinger PALPro 39-11 SS60CS High Side
Key Features:
-Body Details:
- Manufacturer: Palfinger
- Body Type: Mechanics Body
- Body Line PAL Pro 39-11 SS60CS High Side

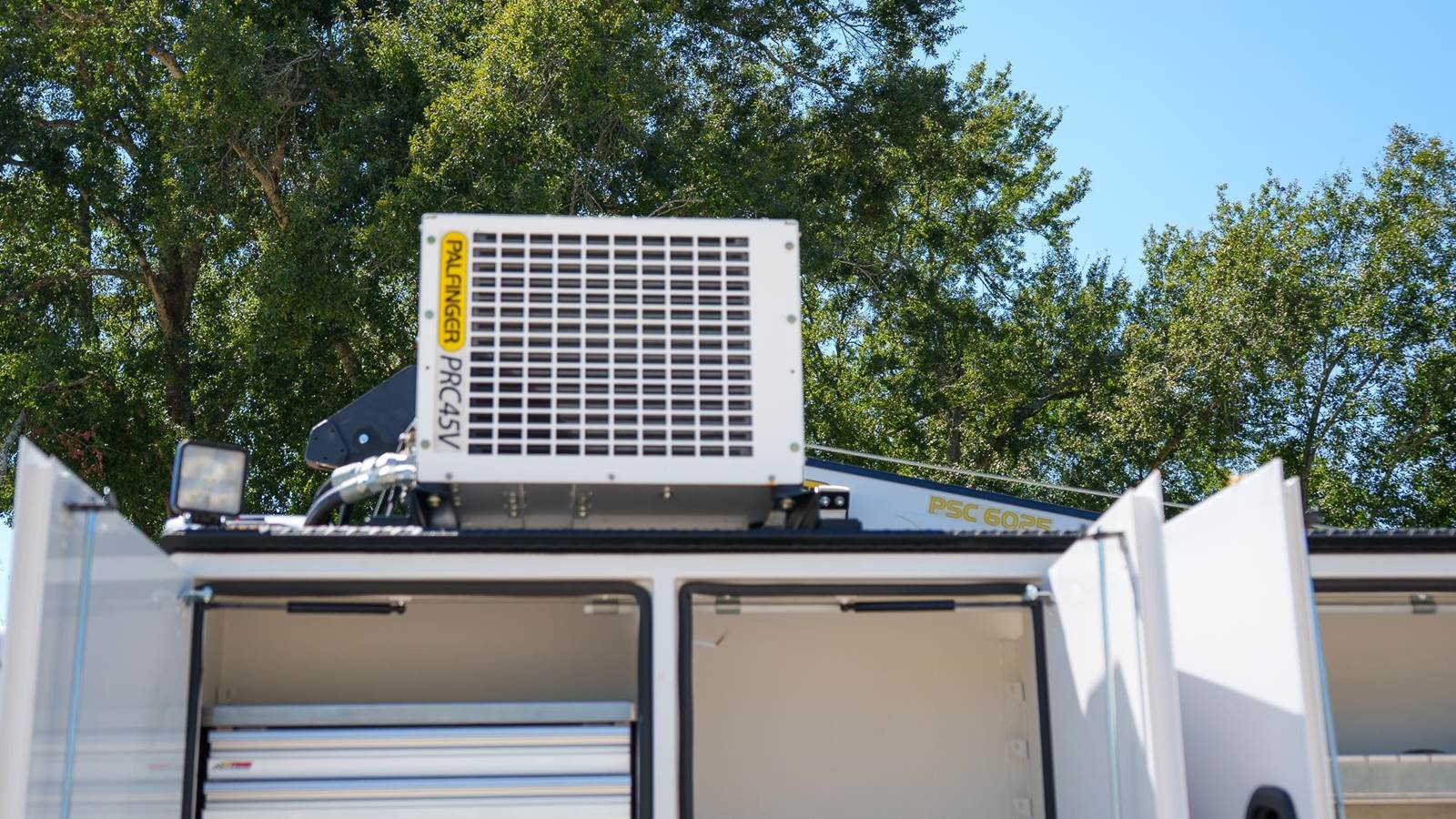

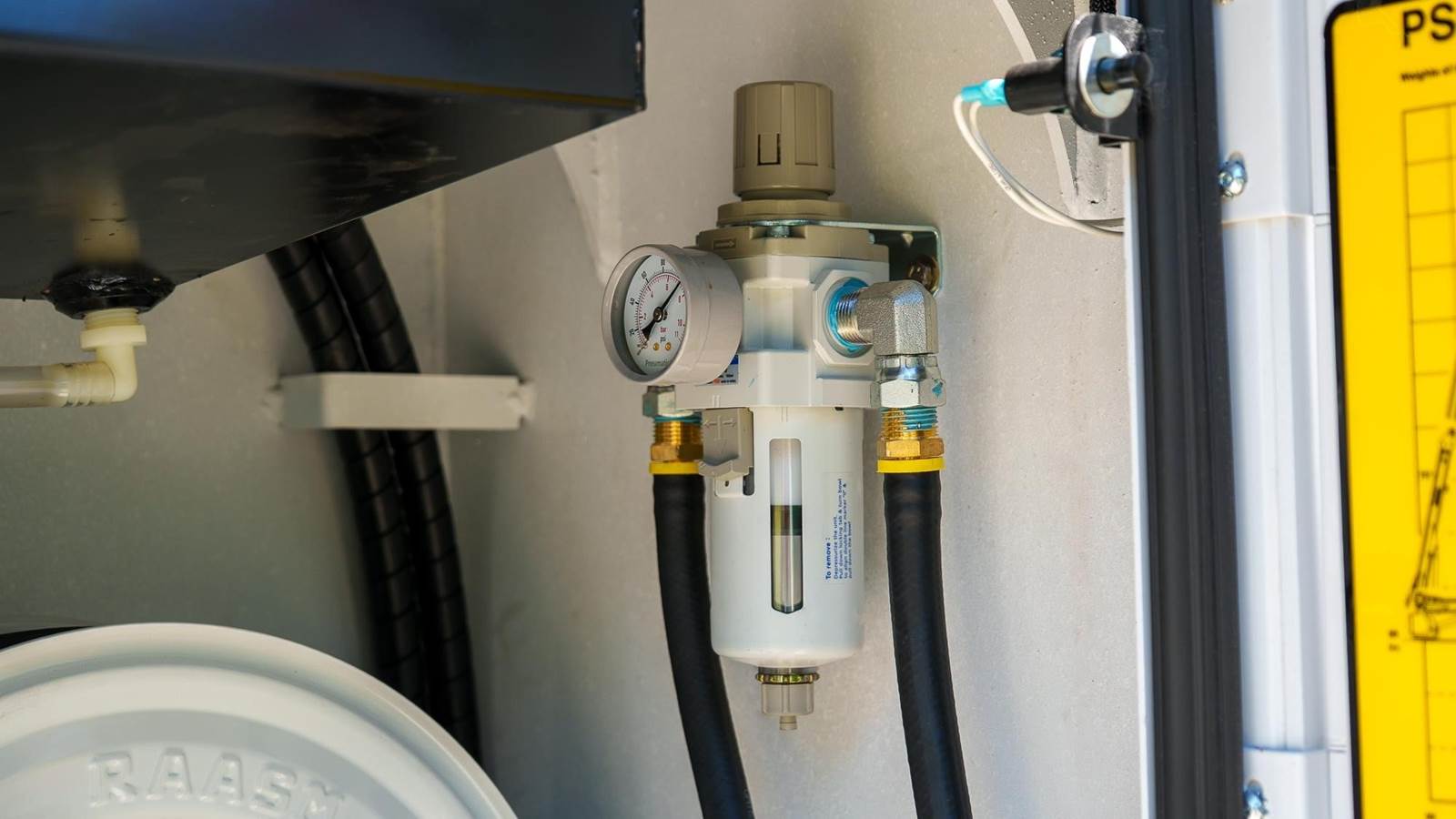

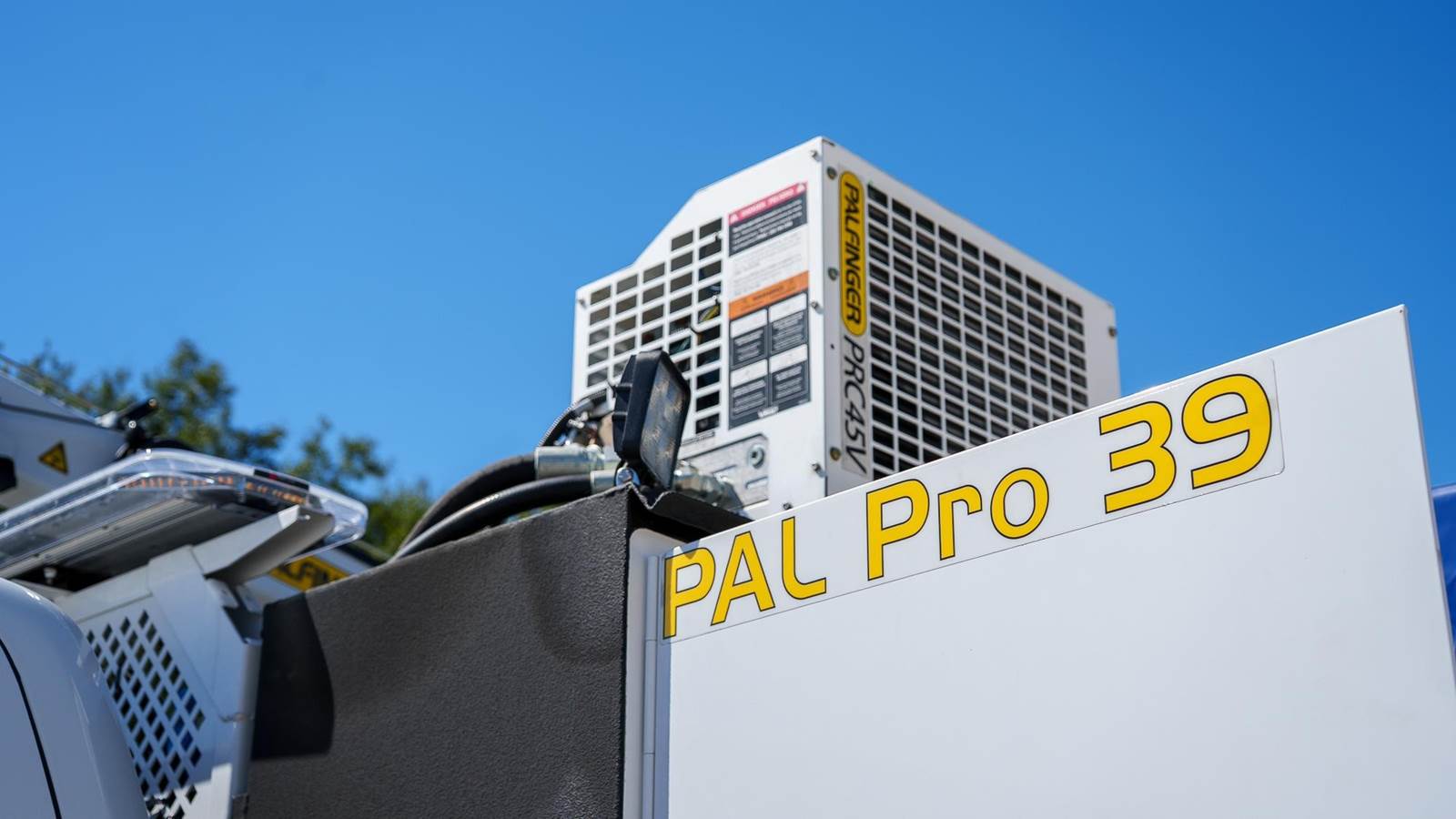

• Has Air Compressor Yes, Palfinger PRC45

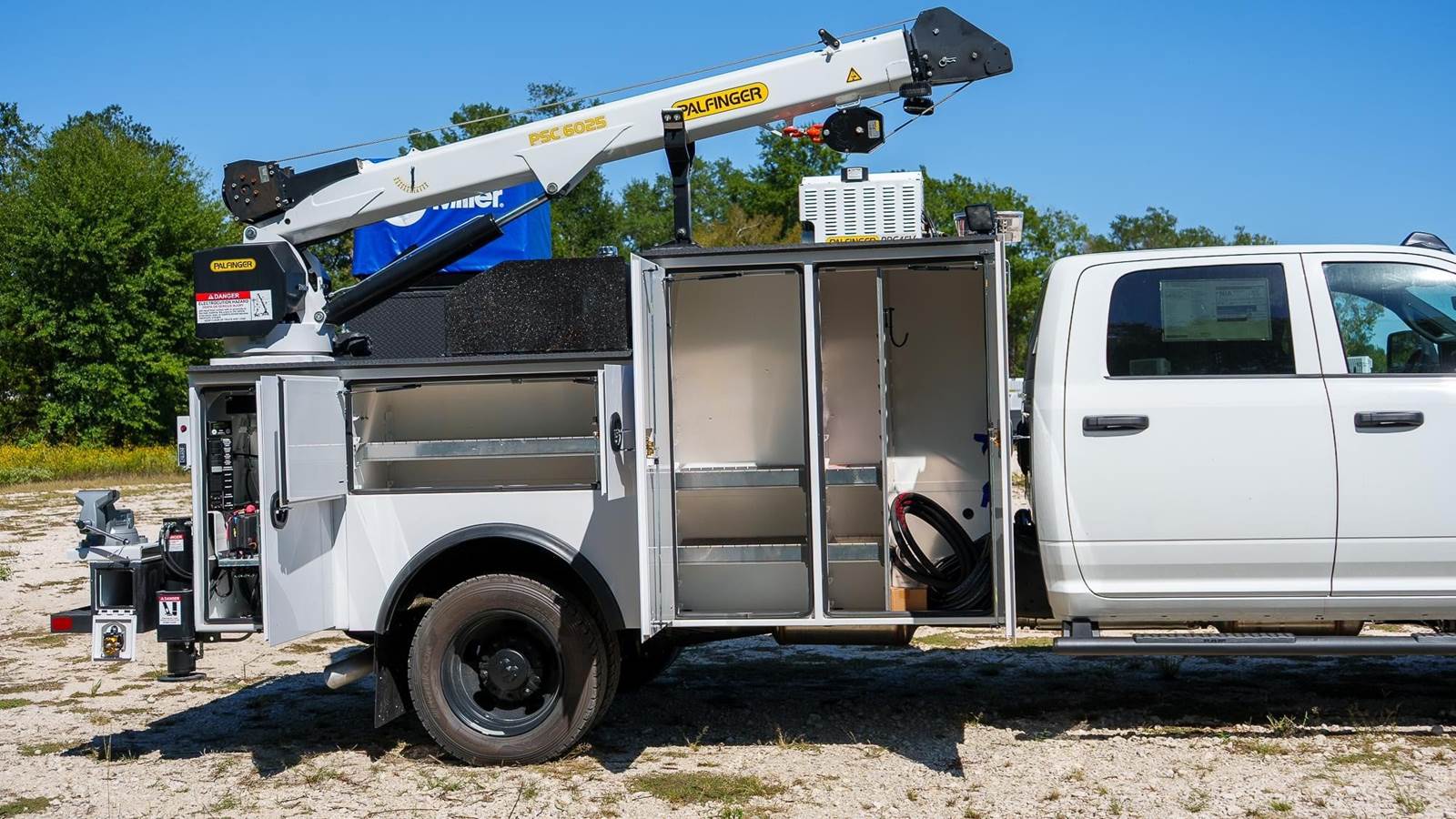

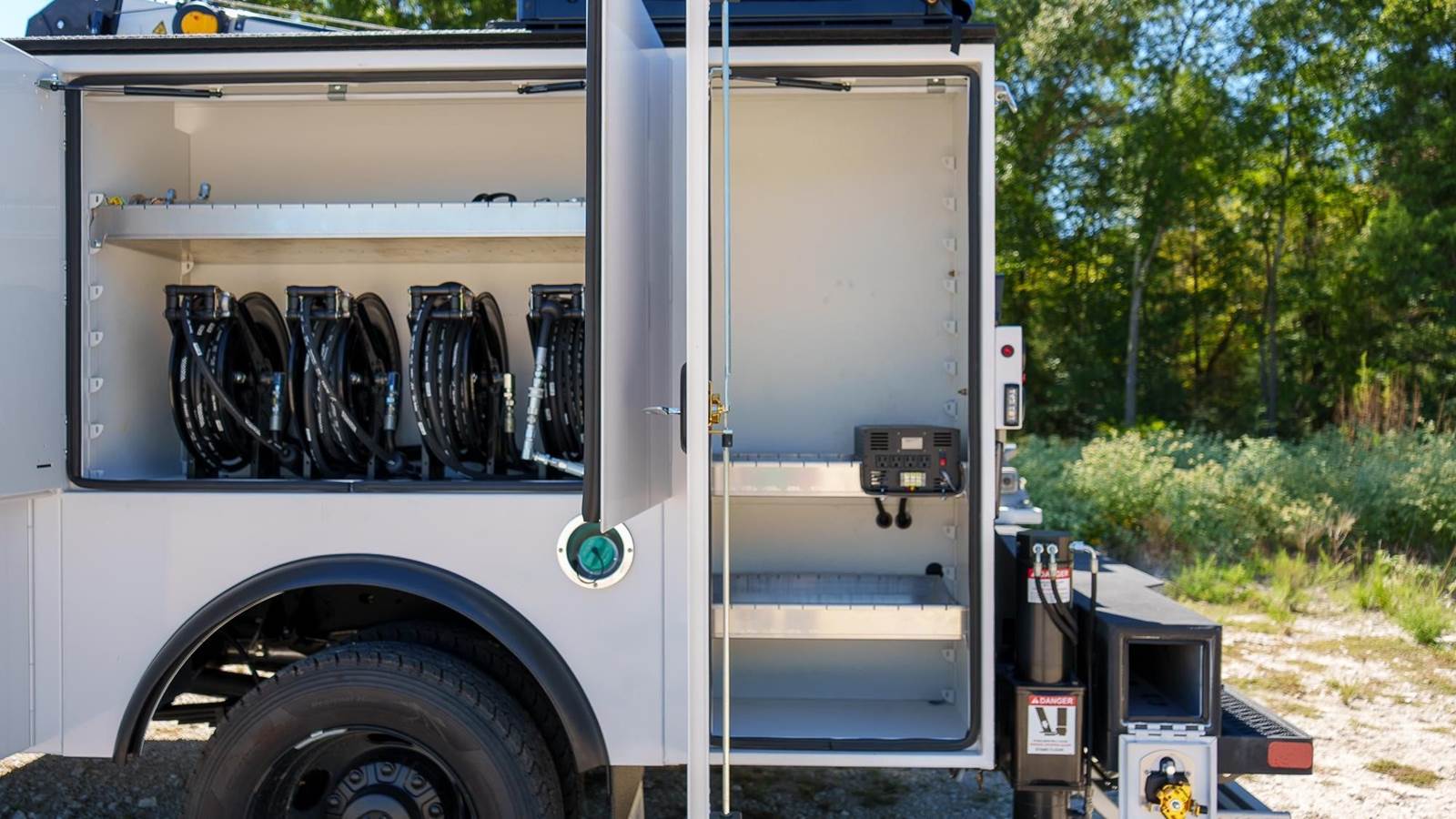

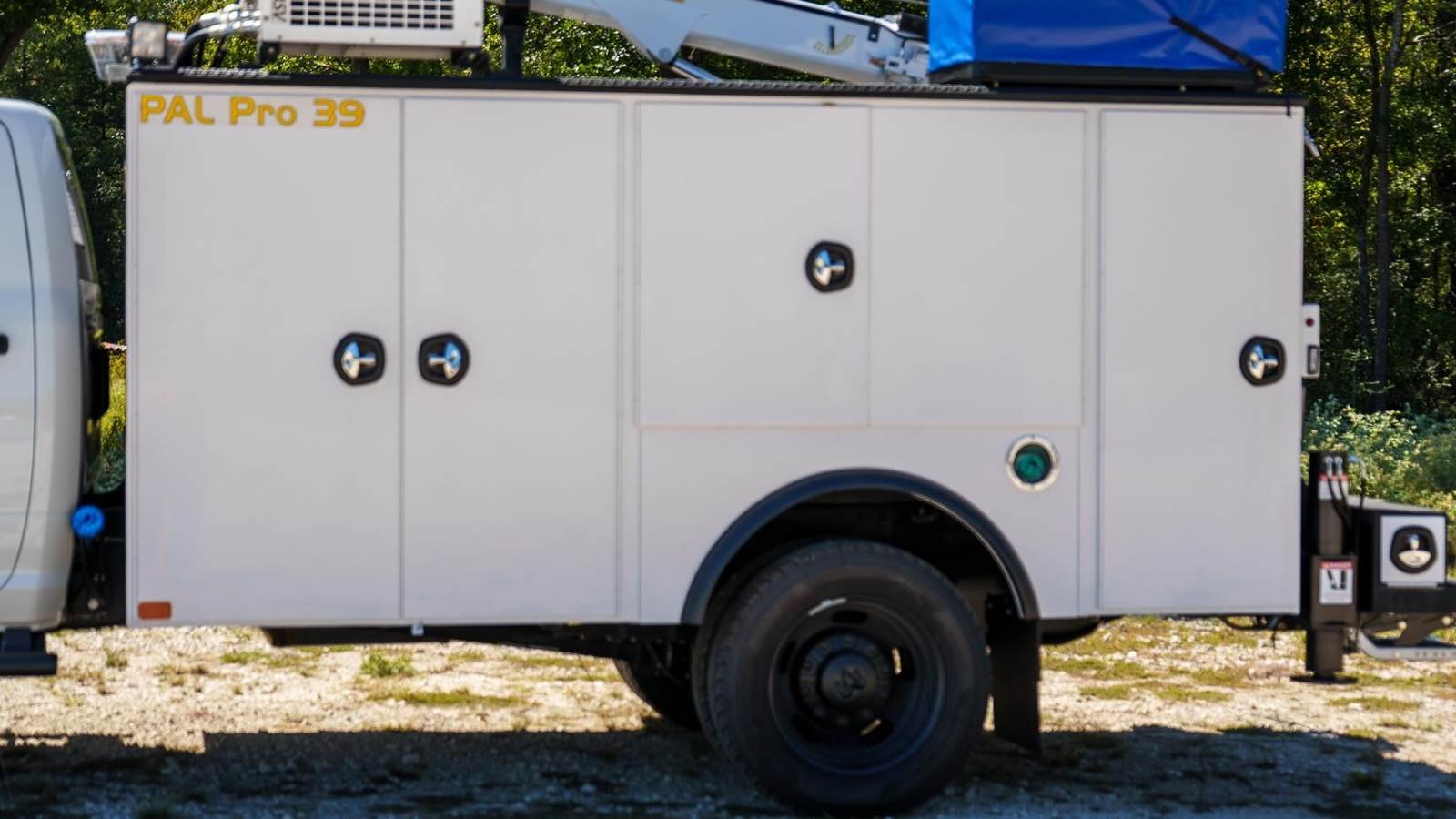

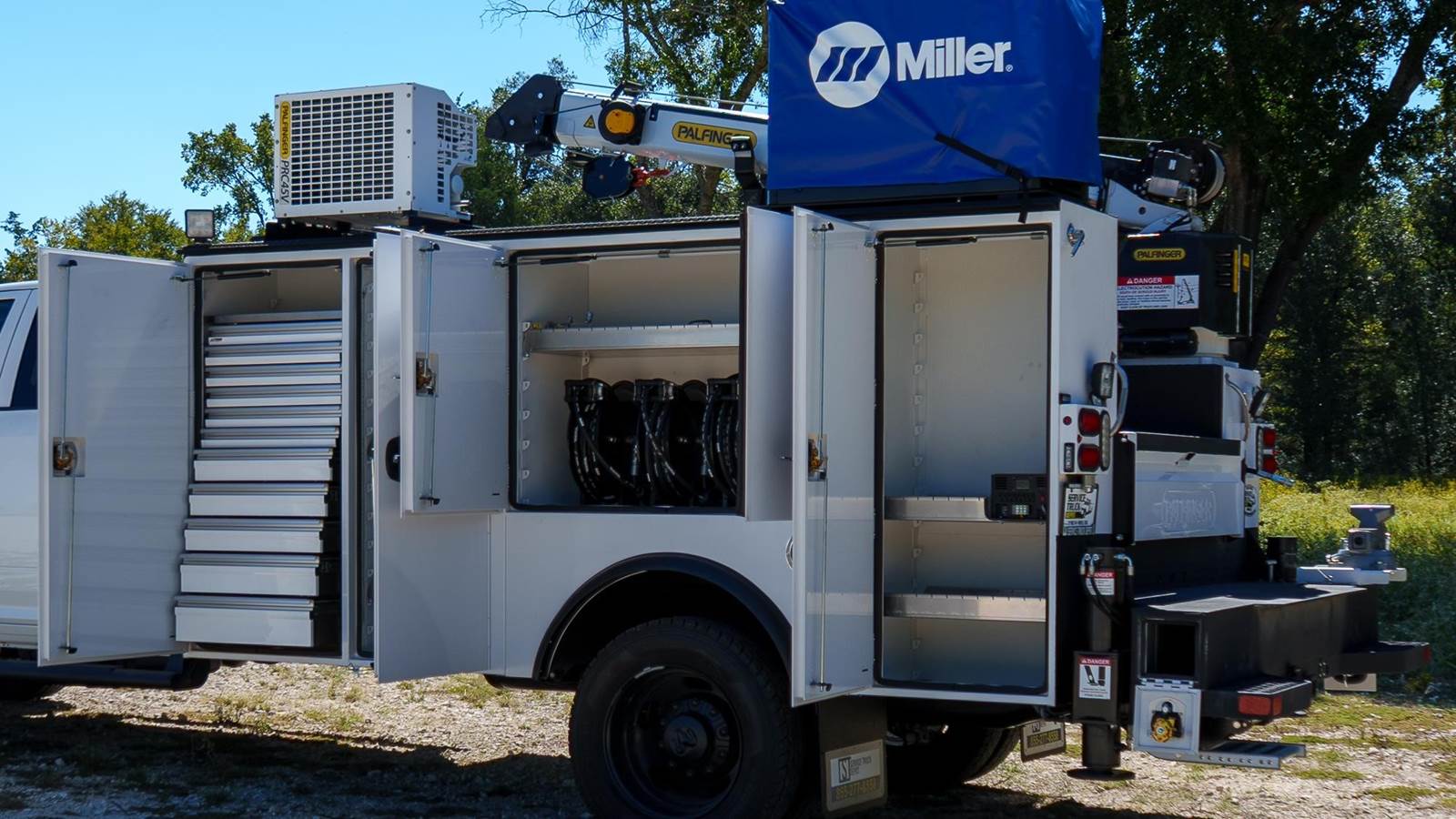

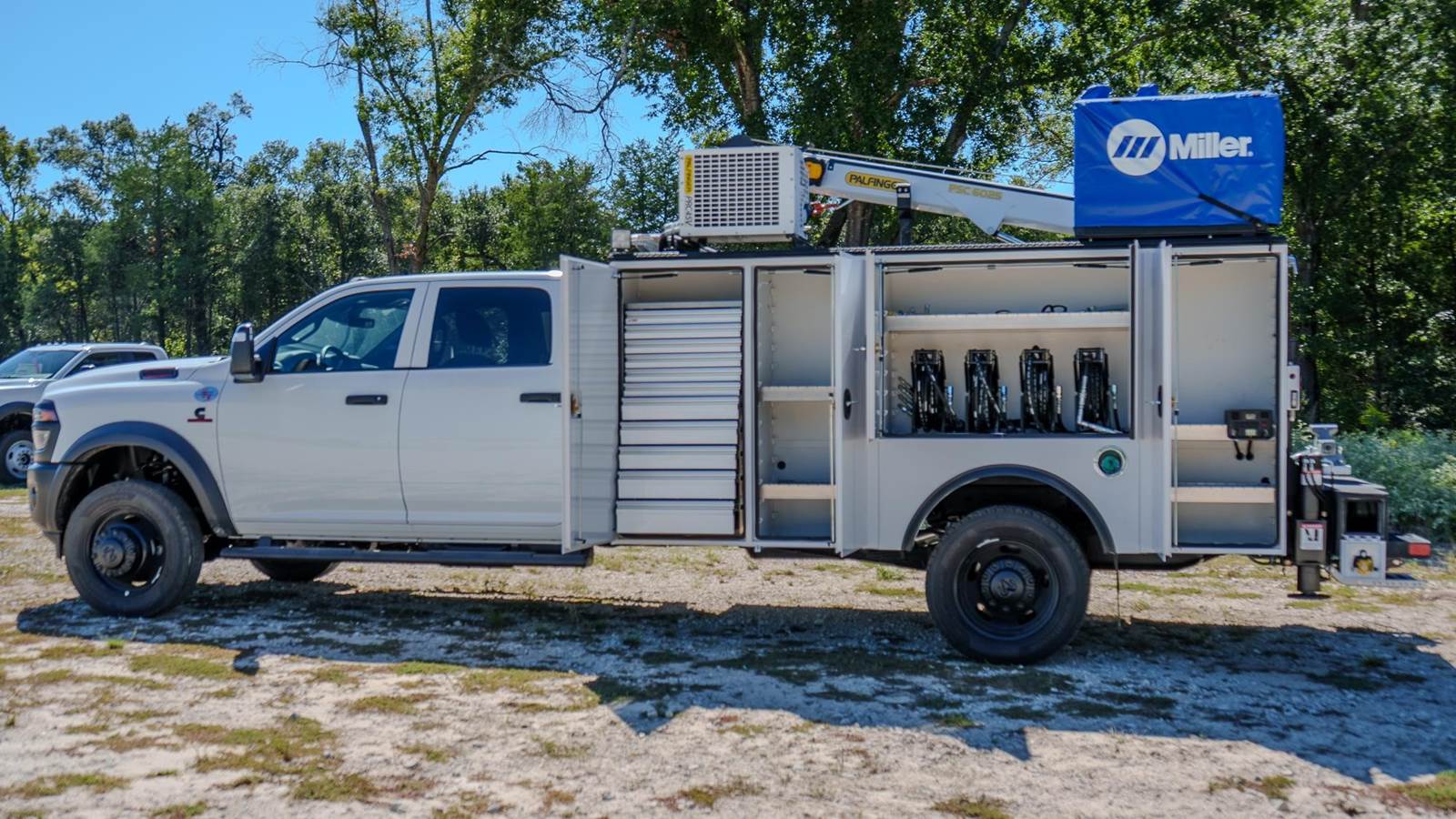

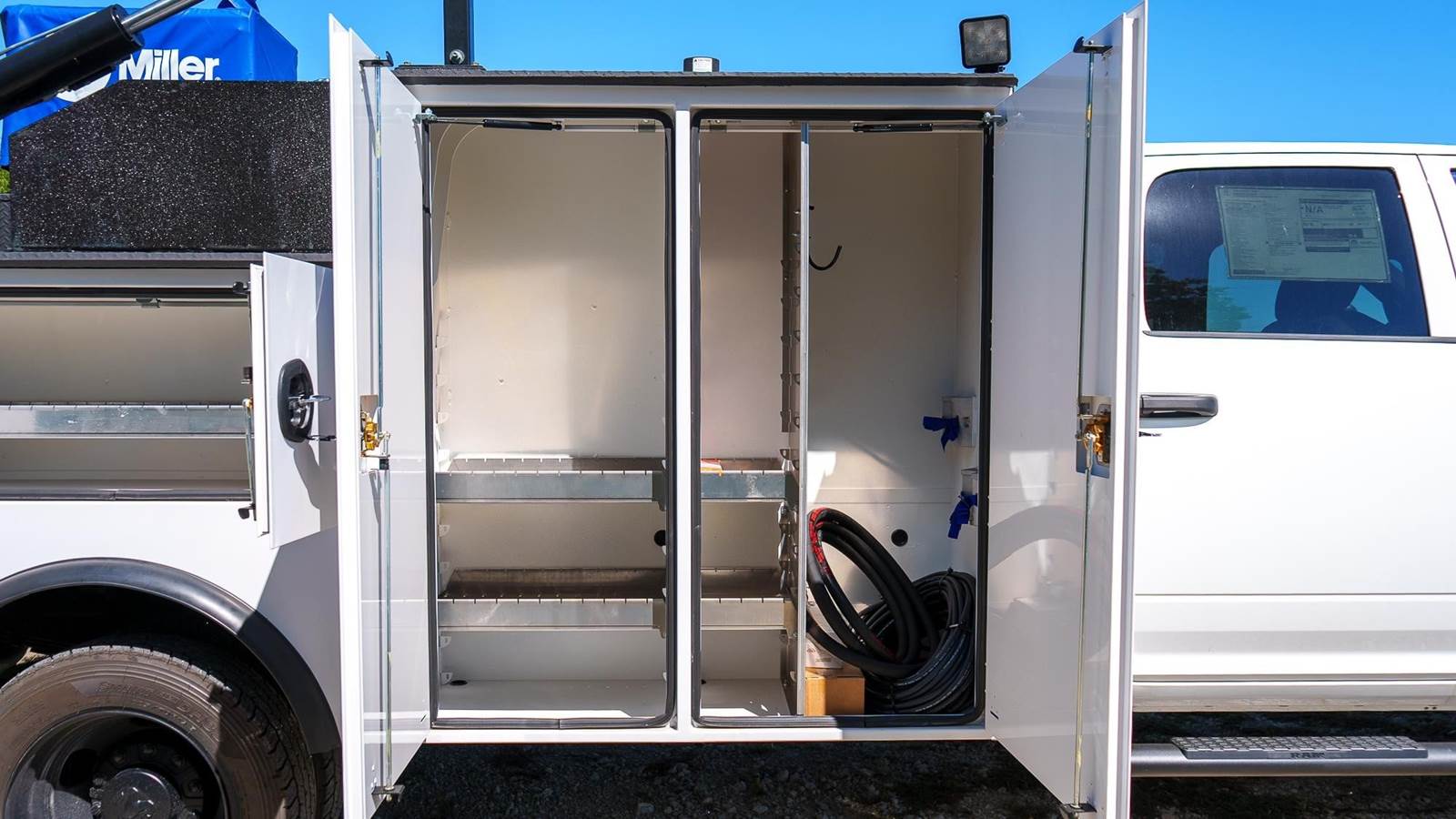

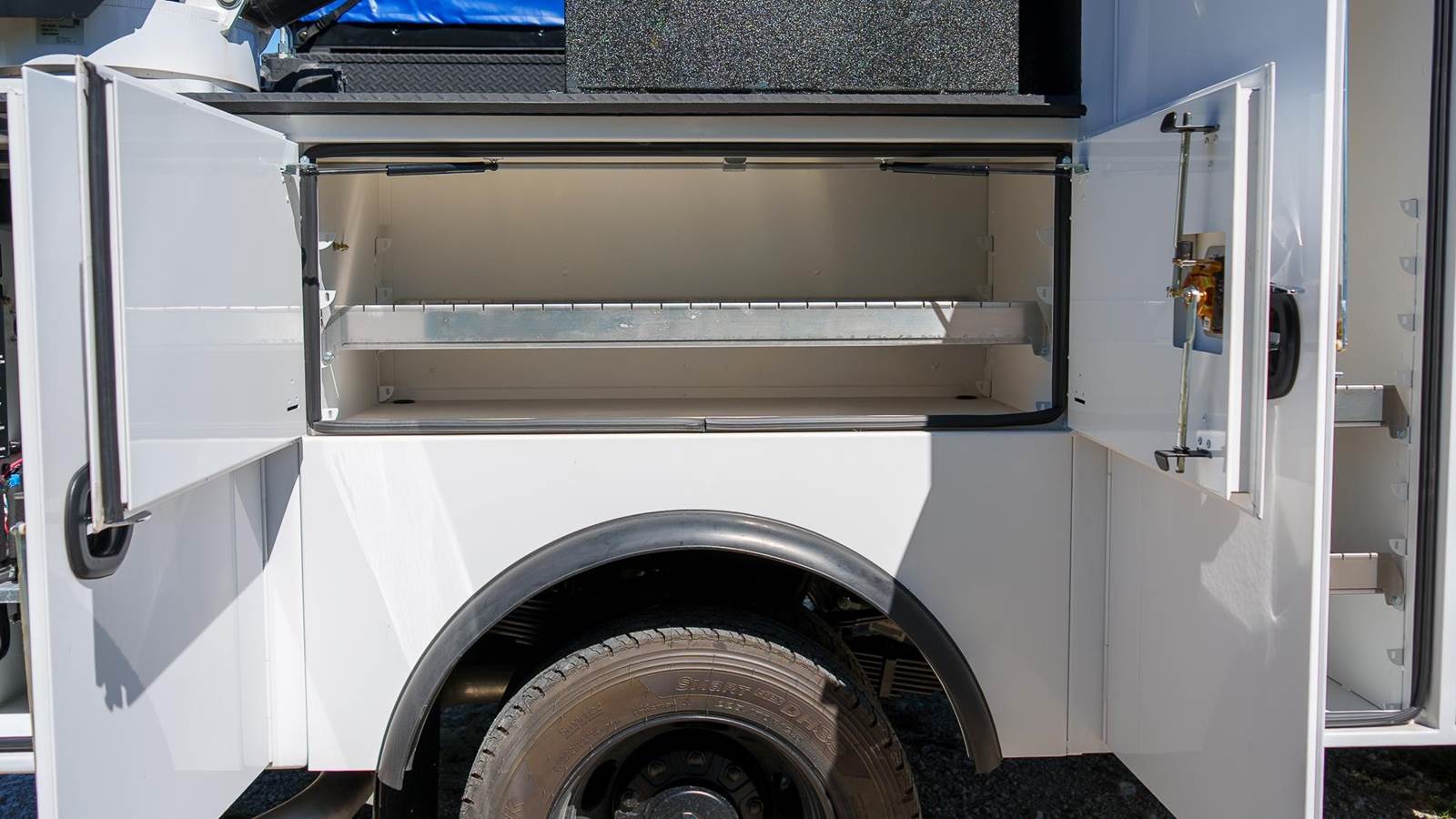

• 60" Streetside Compartments, 44/60" Curbside Compartments
• 11' Standard Configurations

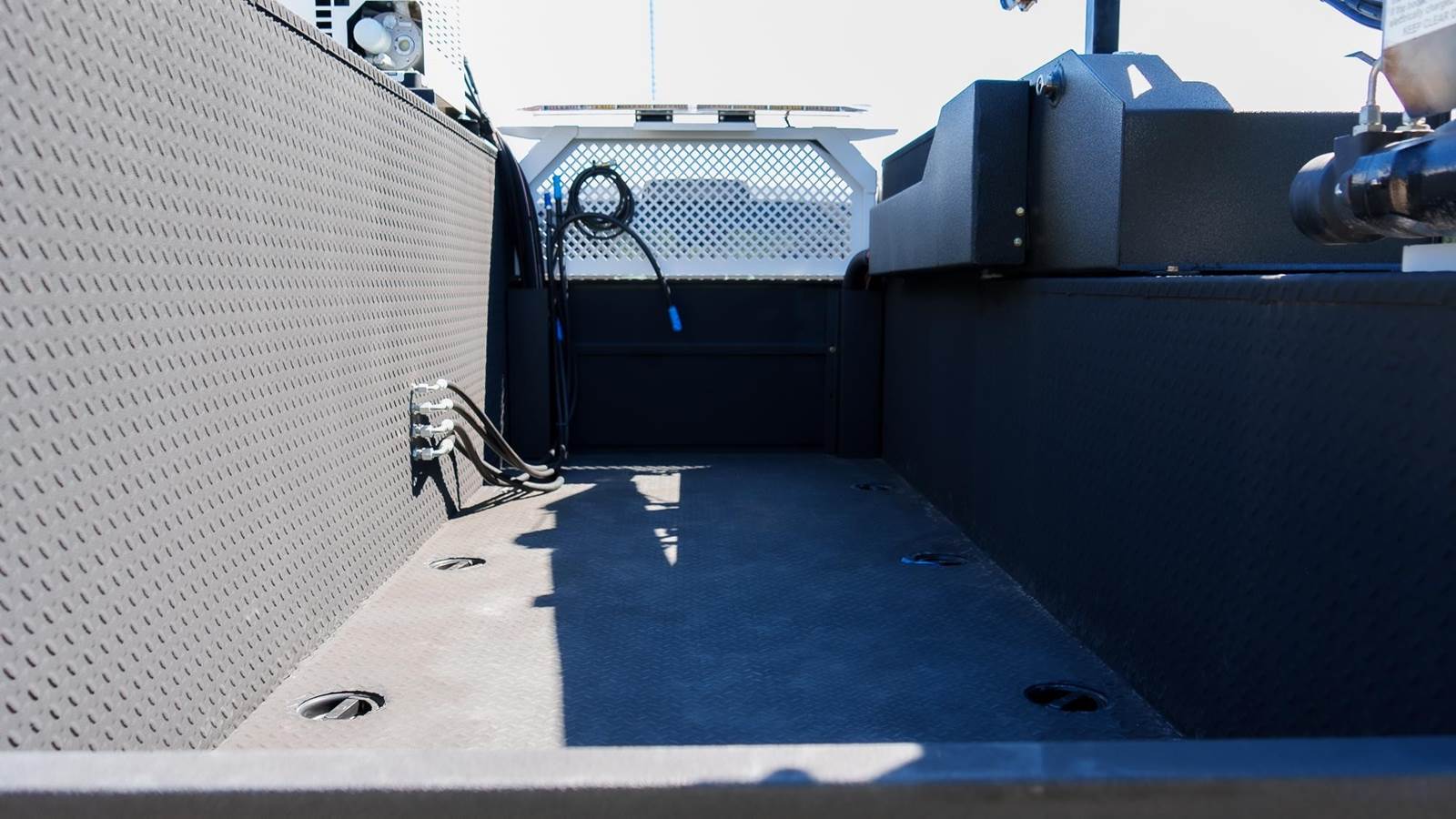

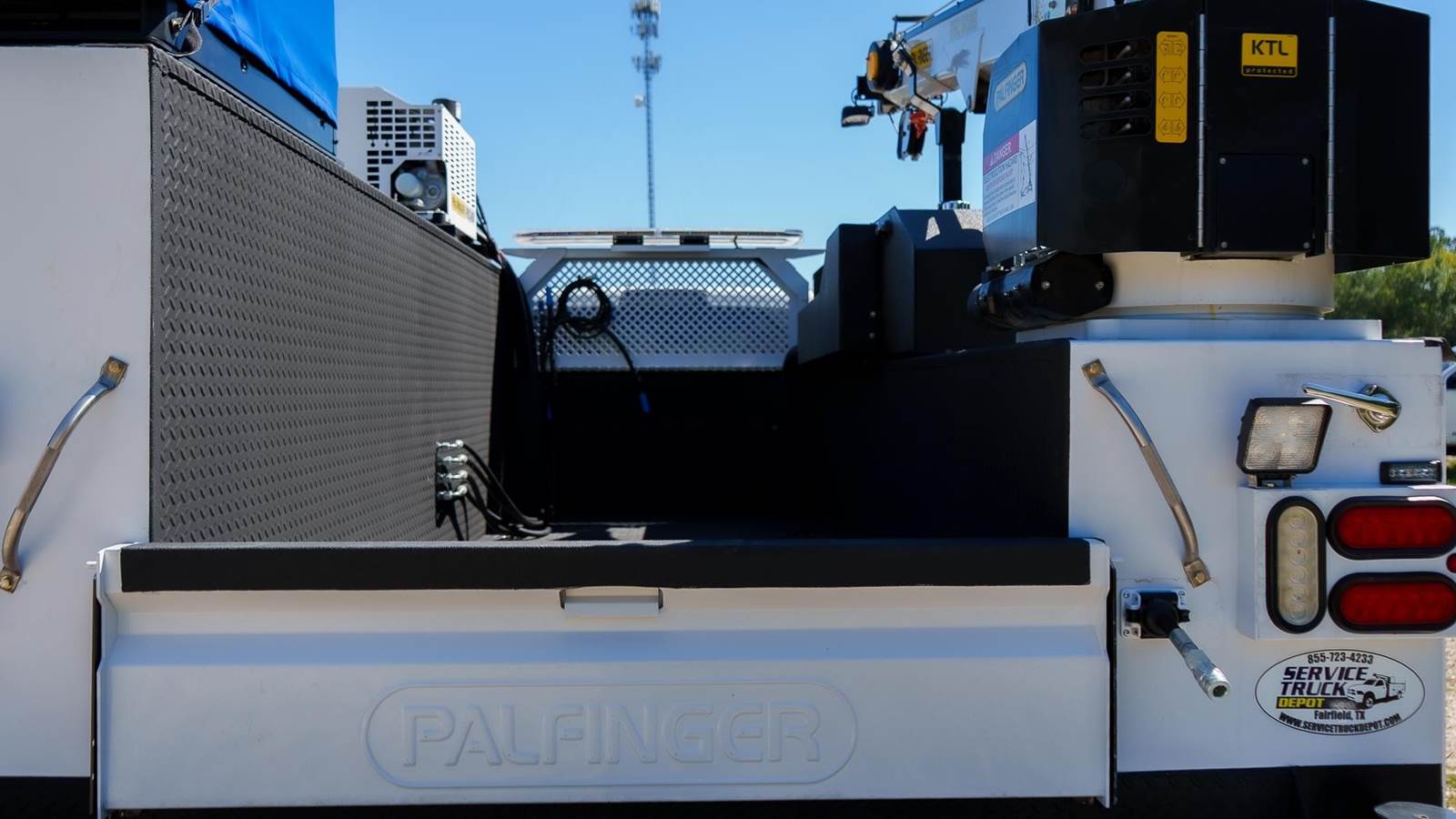

• Treadplate Cargo Floor, Load Space Walls and Compartment Tops
• Hybrid Torsion Box and Ladder Frame
• Palfinger Engineered Internal Gussets Prevents Body Cracking
• Full Length Channel Drip Rails
• Double Panel Doors with Internal C-channel Stiffeners, Adhered with Structural Adhesive

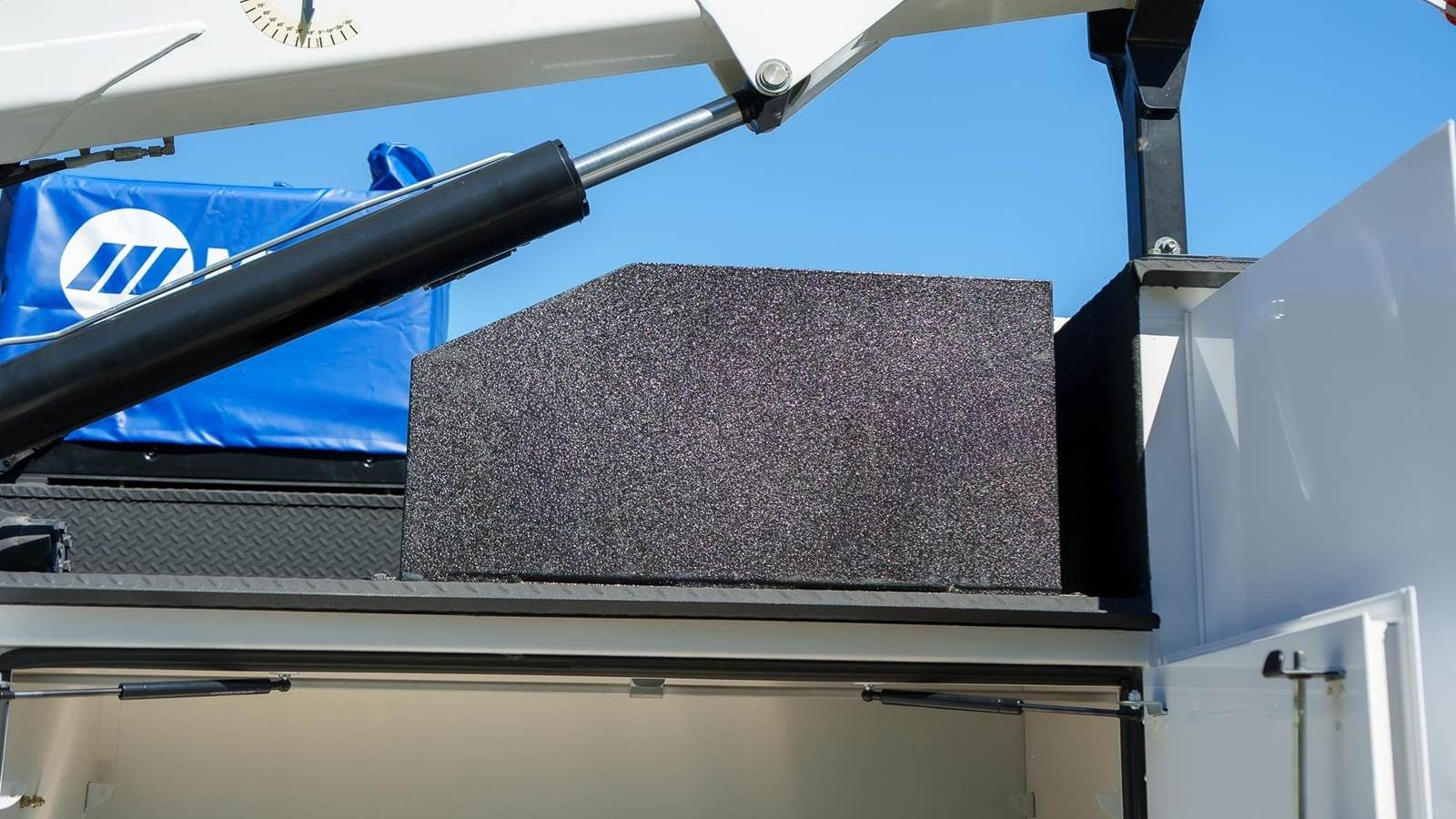

• Non-marring Boom Rest

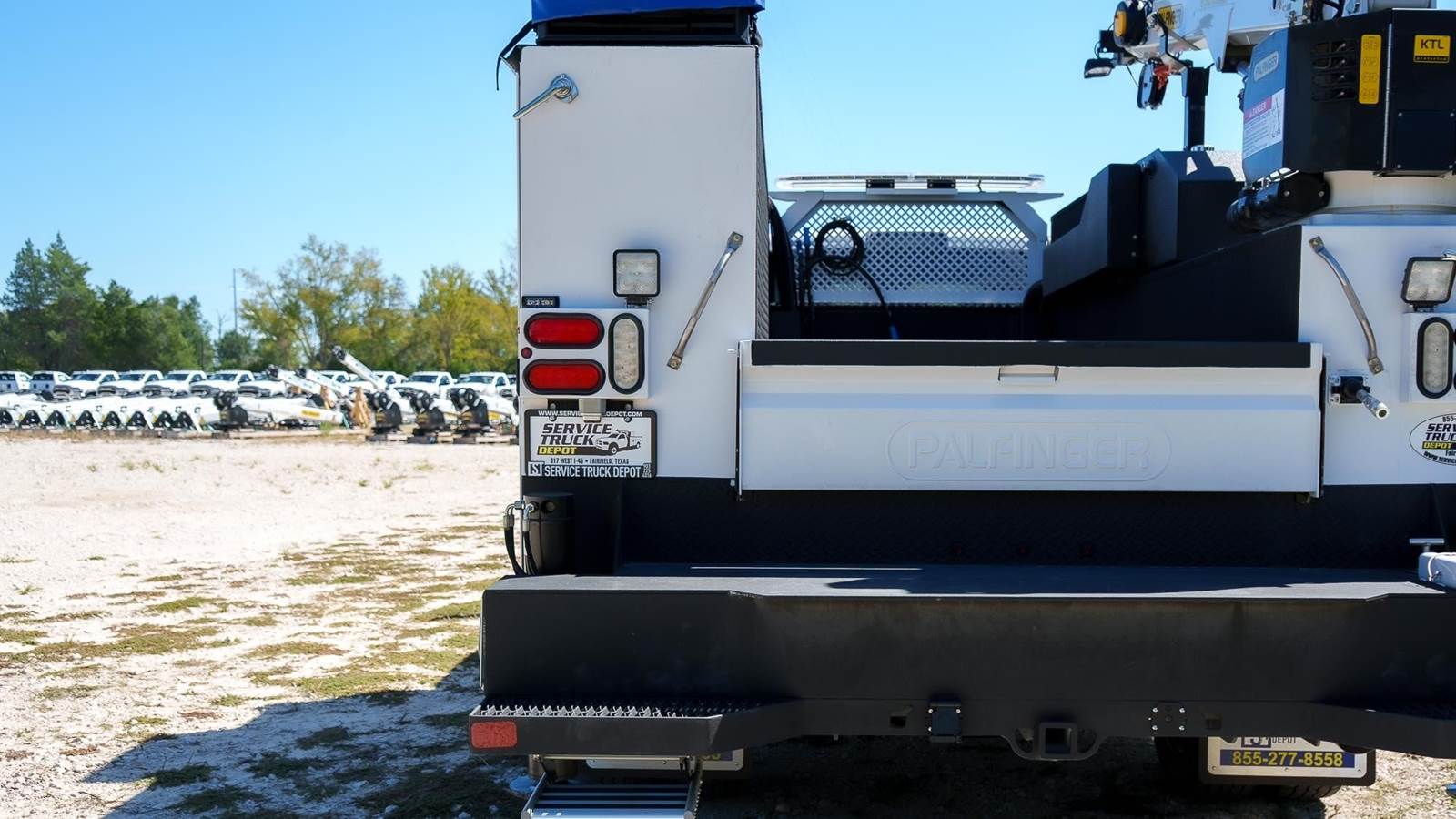

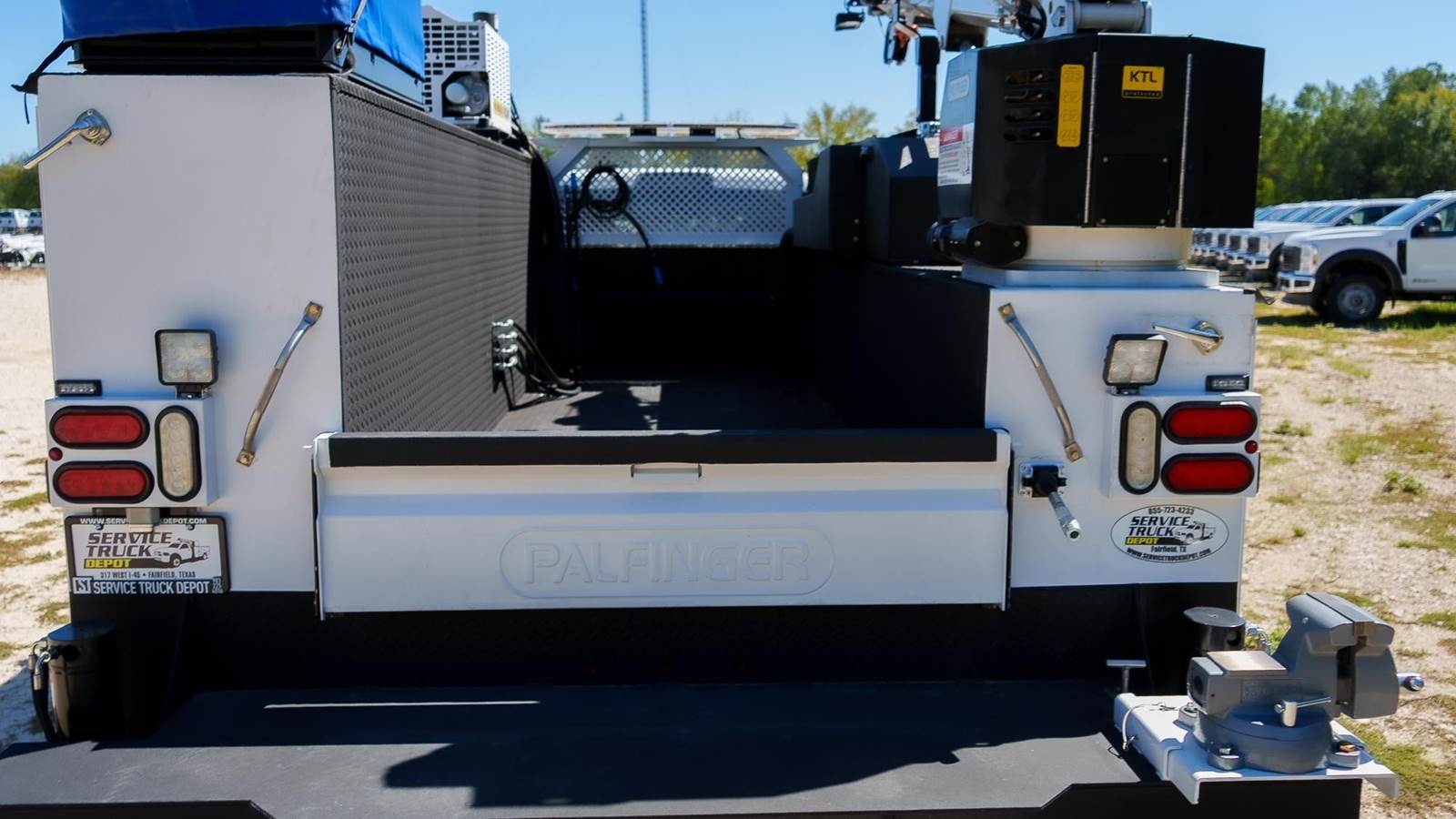

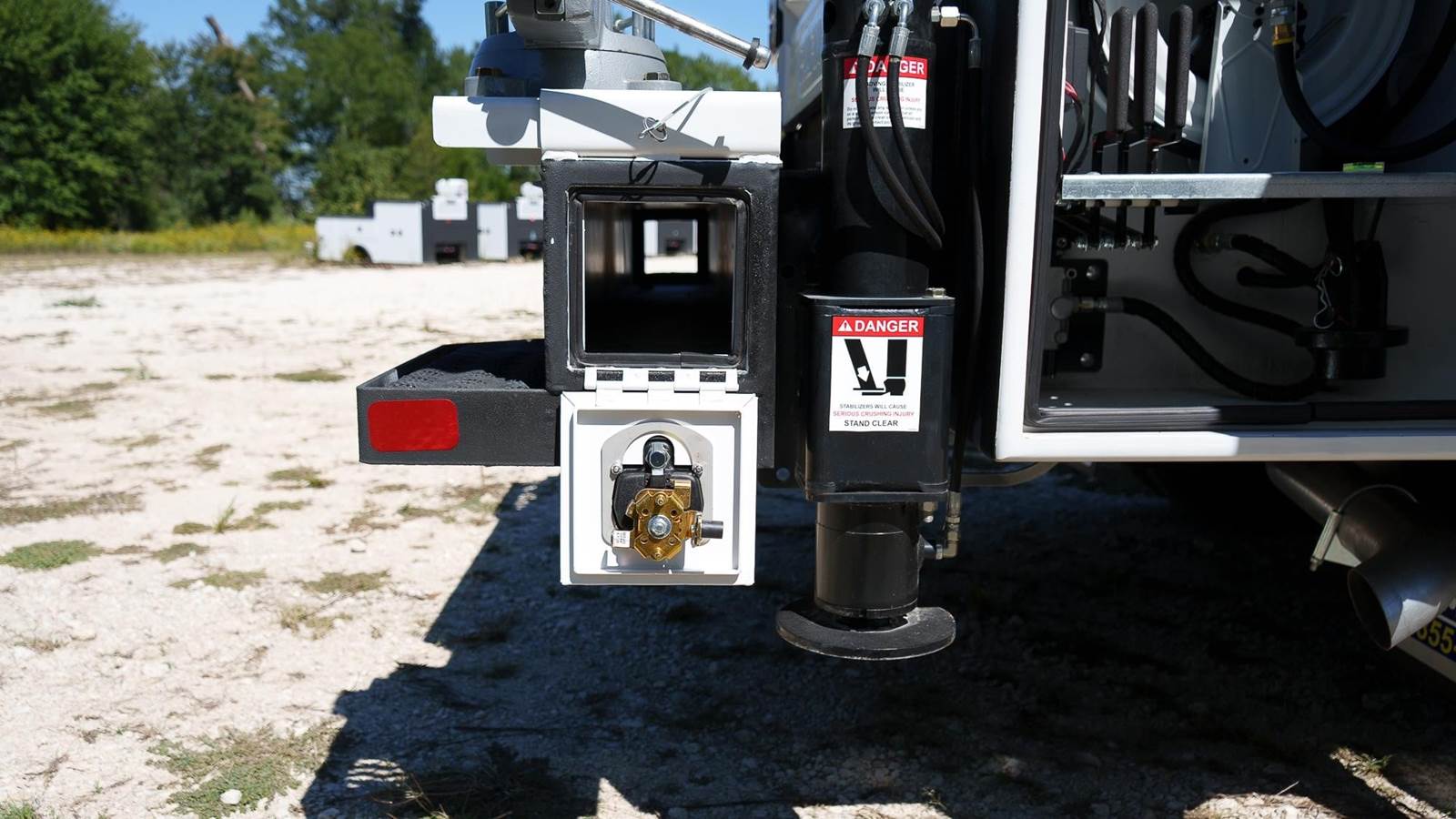

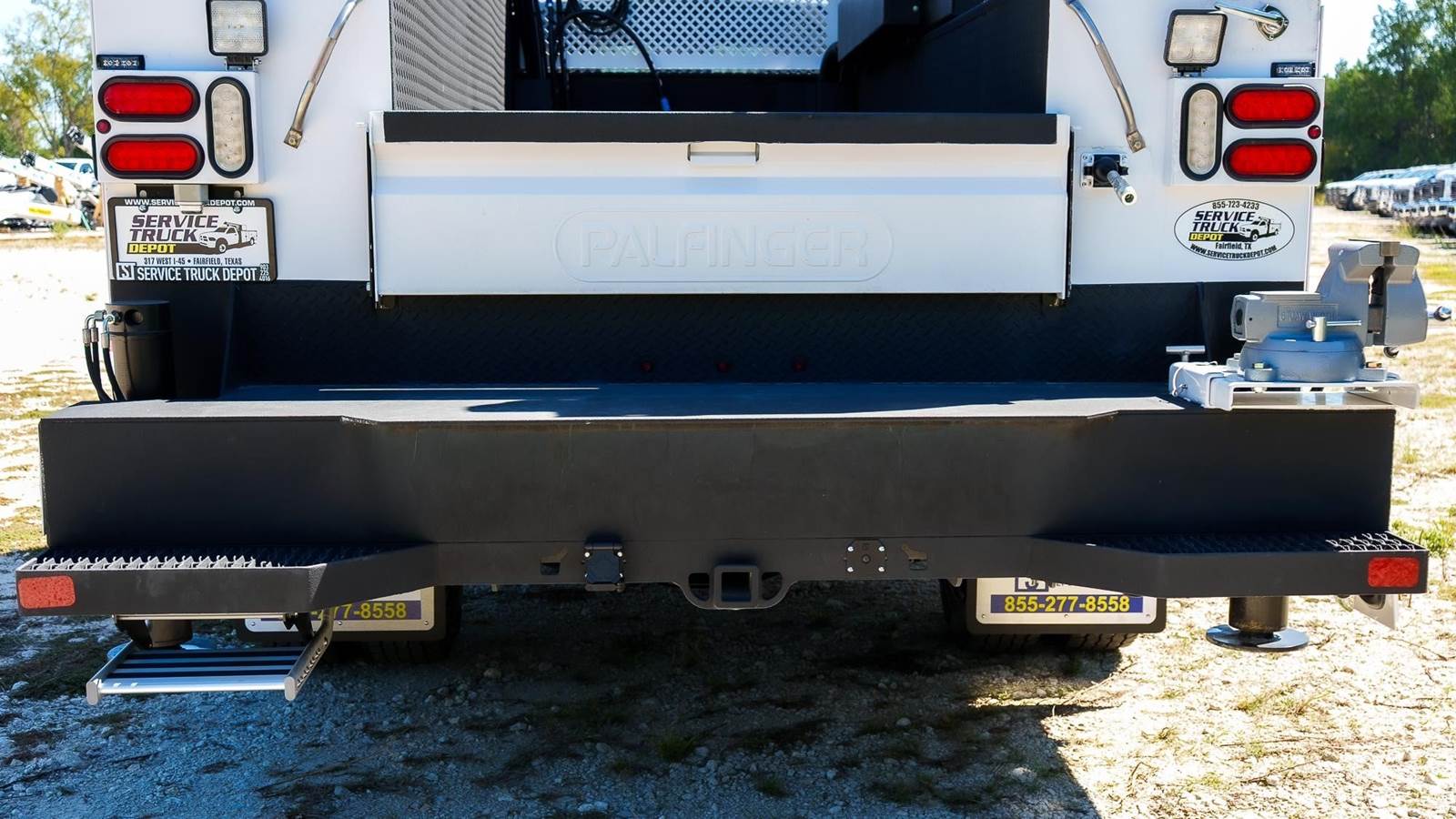

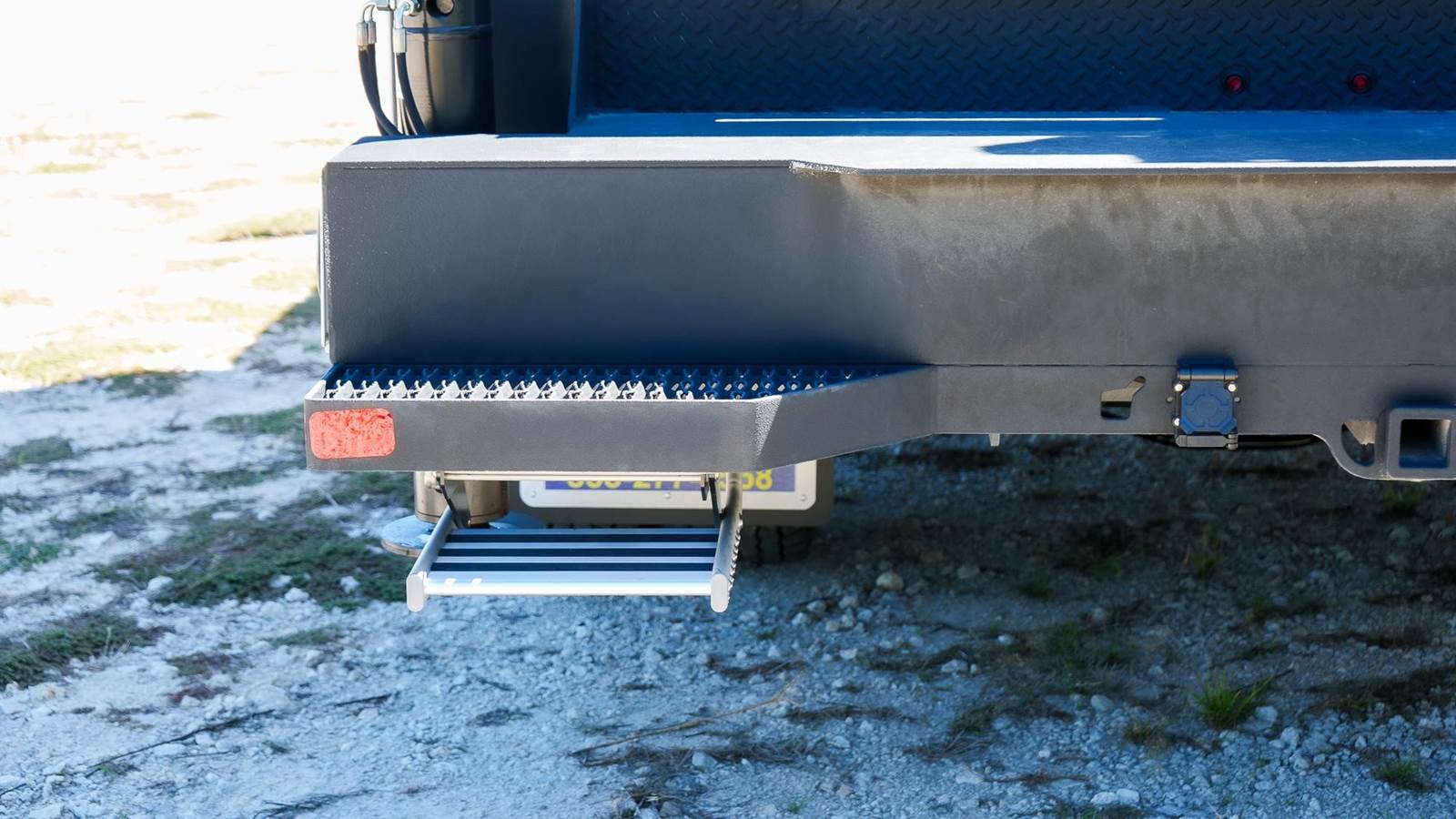

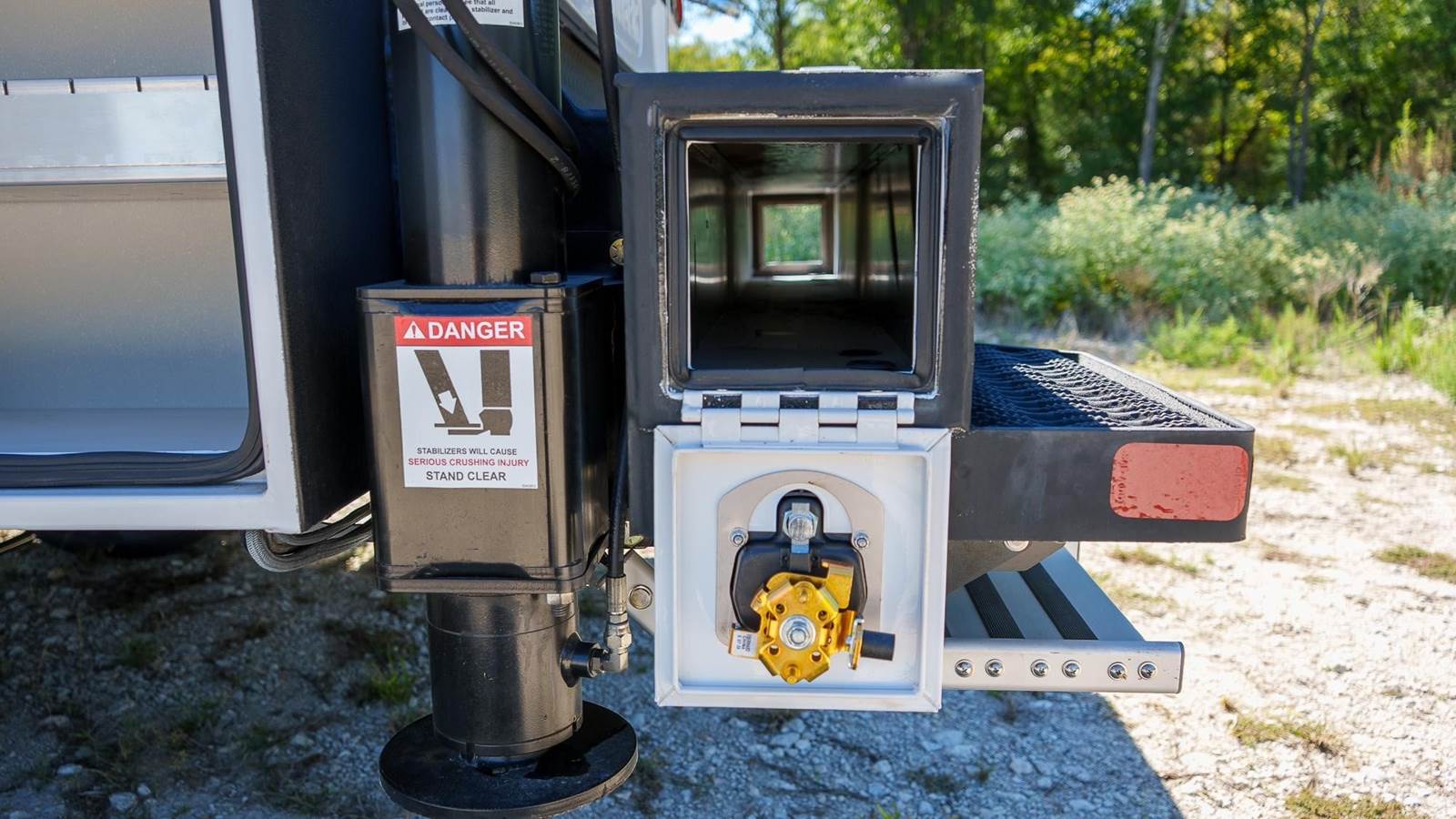

• Workbench Featuring 12" or 21" Bumper, Receiver Hitch, 1/4" Steel Top Plate and Thru Compartment
• Linear Adjustable Front Mounts
• Aluminum Doors and Hinges

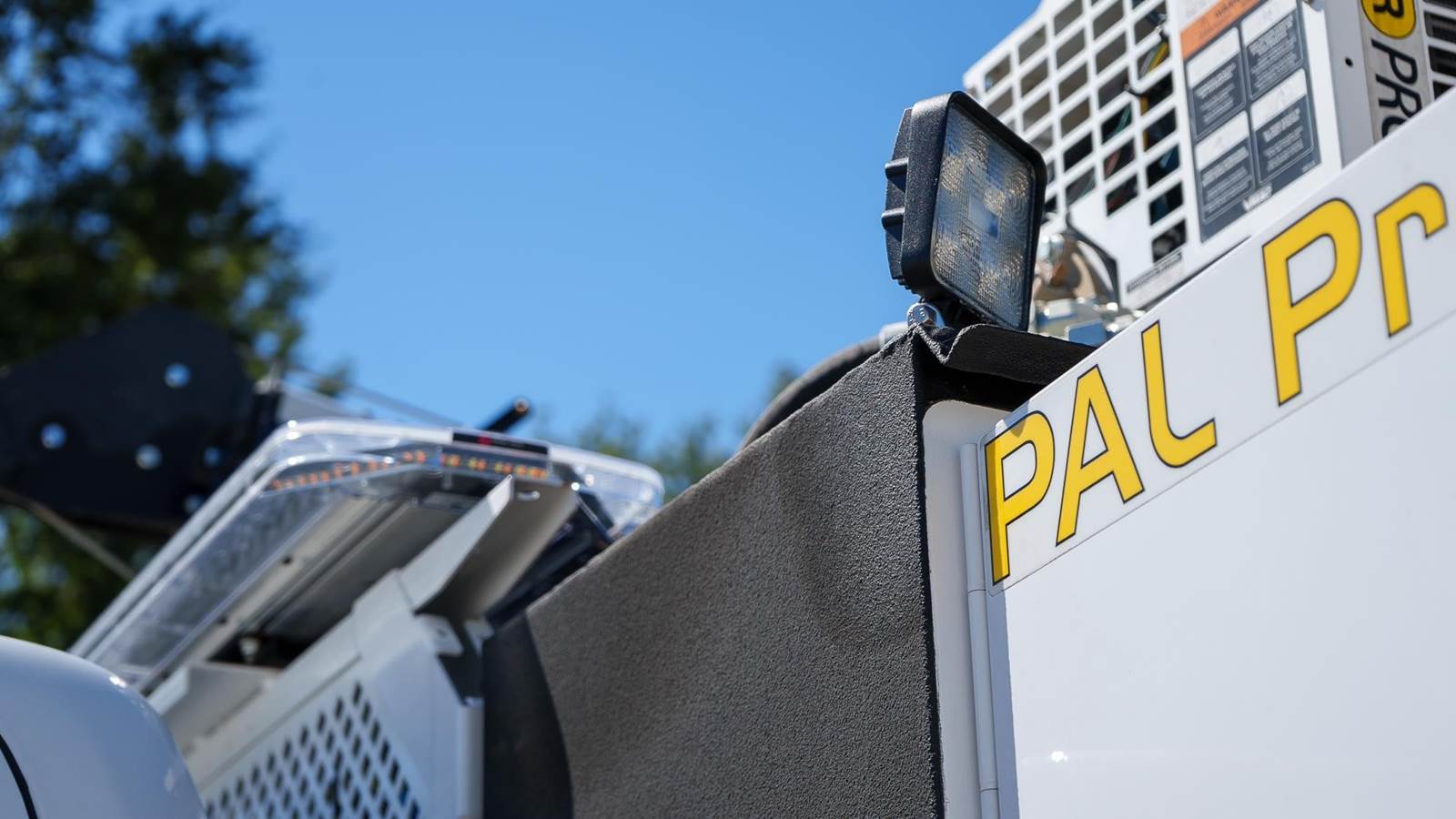

• Rubber Mounted LED Lights
• E-coat Primer

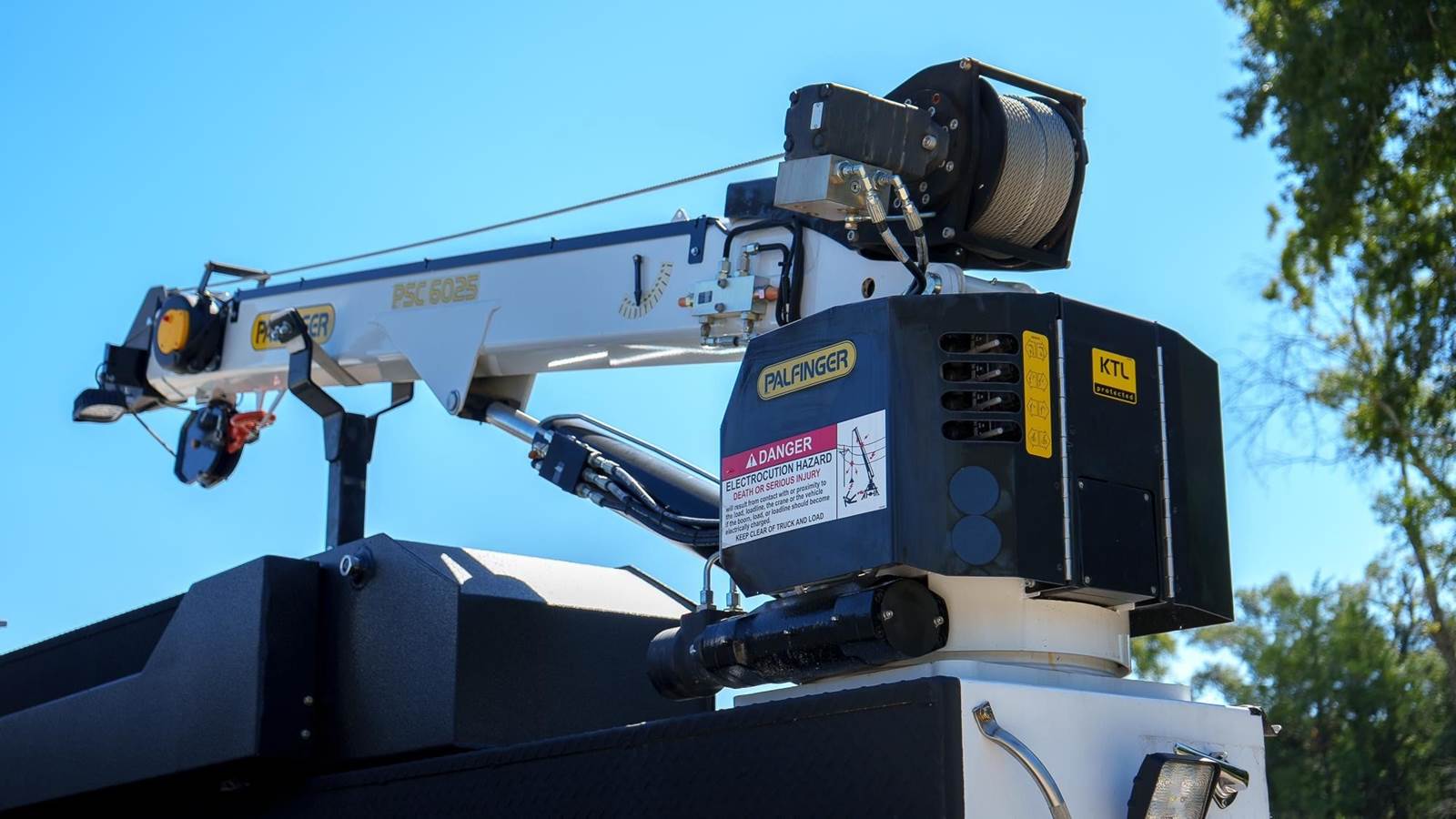

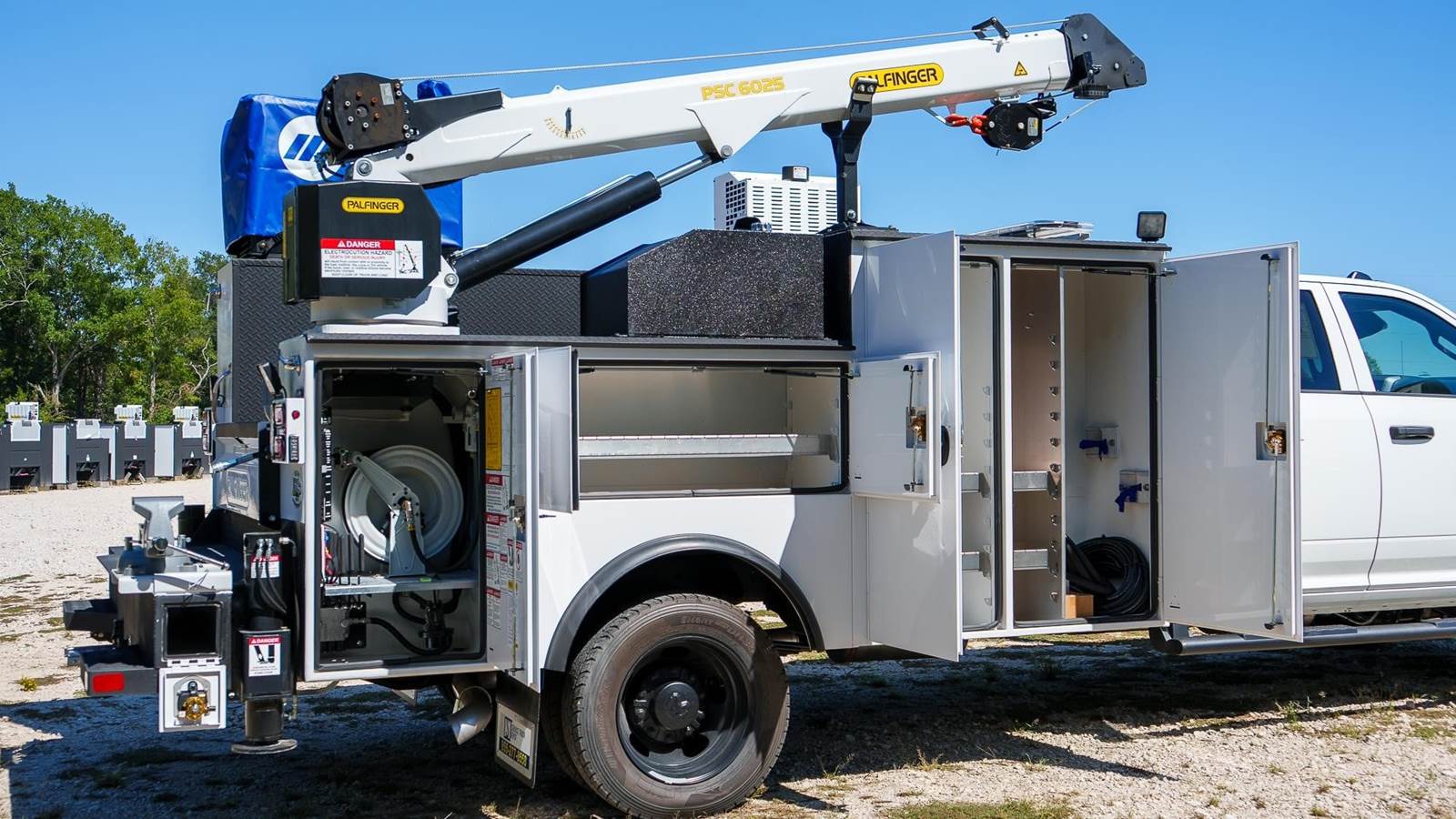

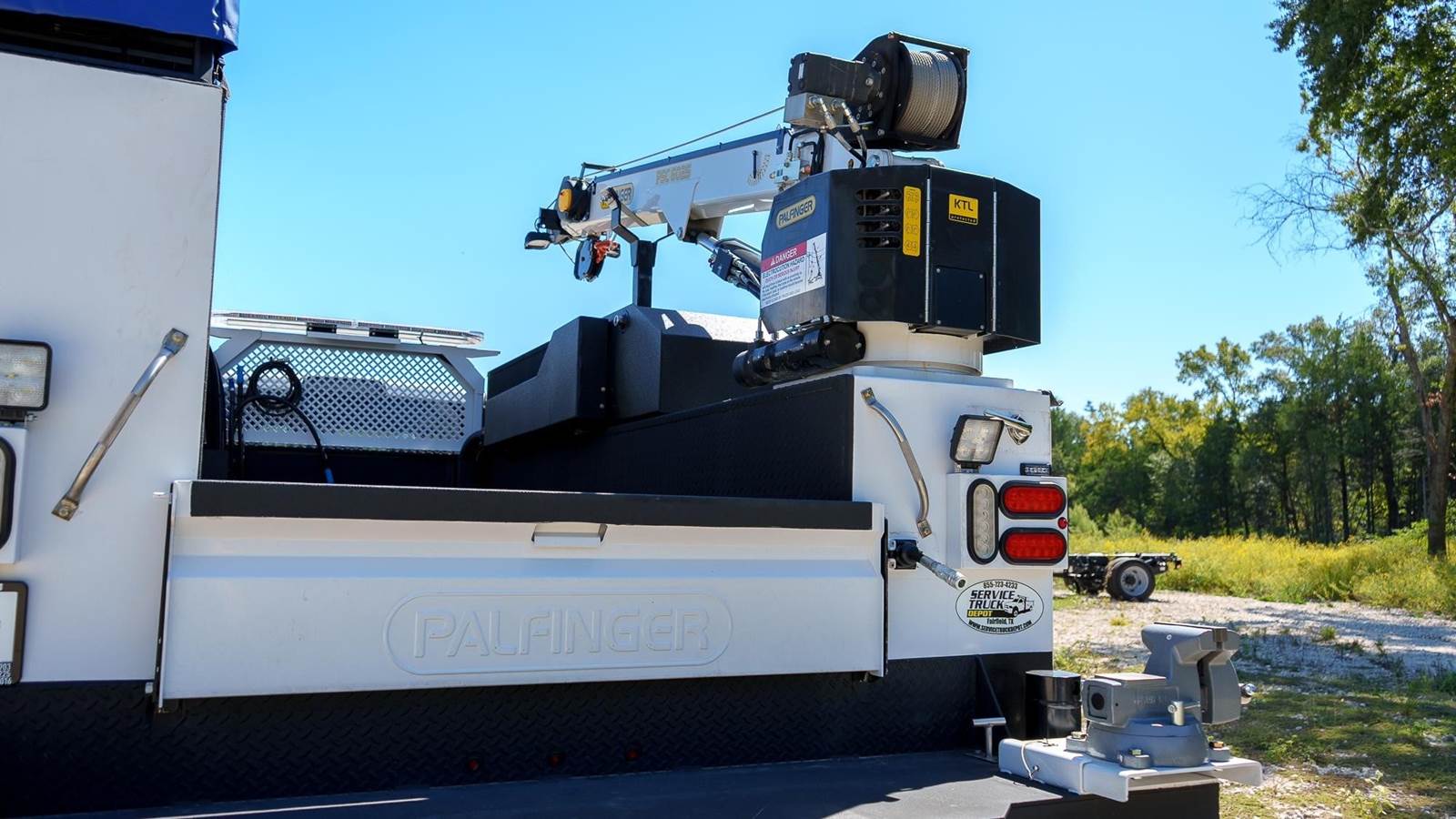

Palfinger PSC6025 Features

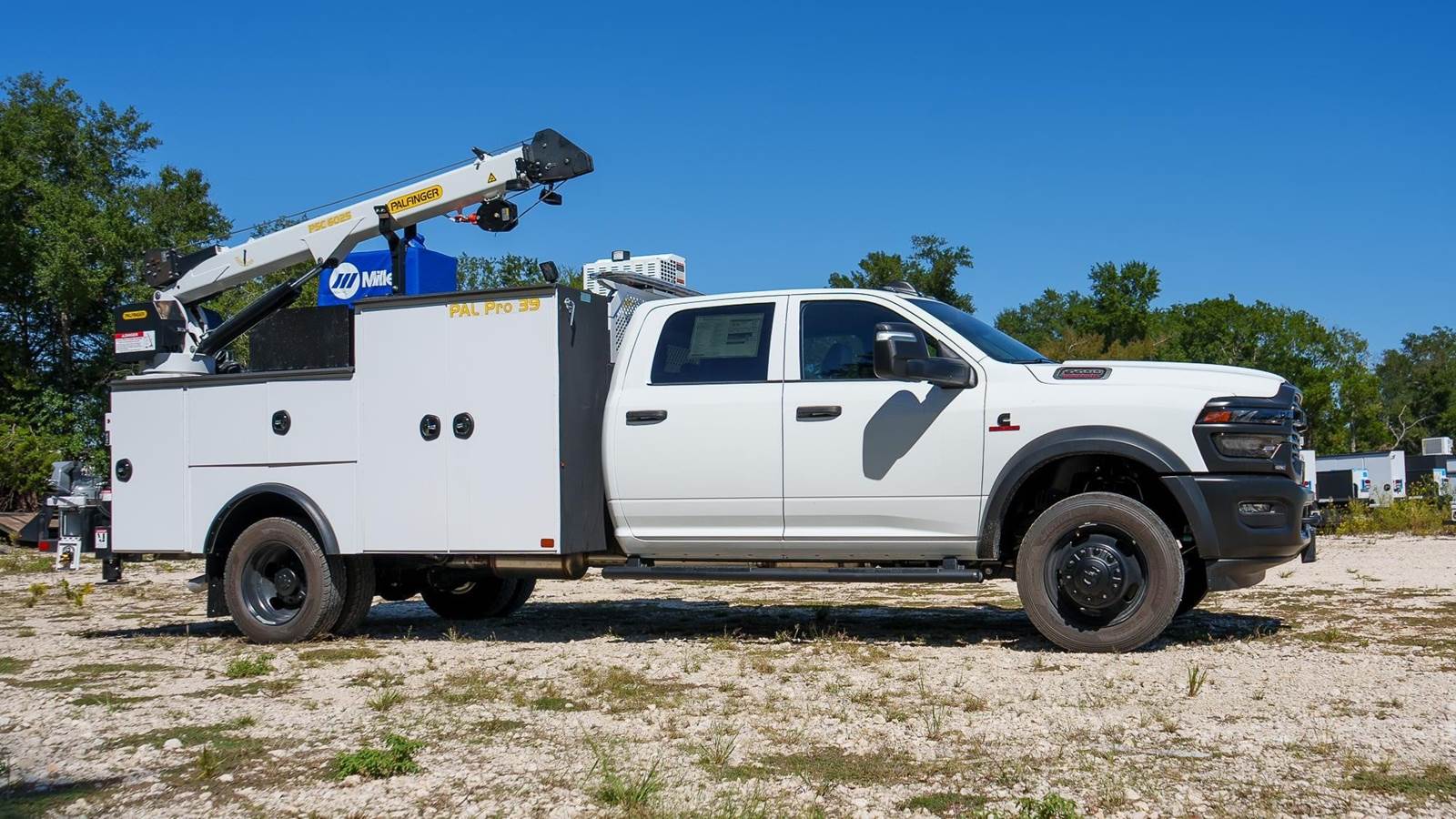

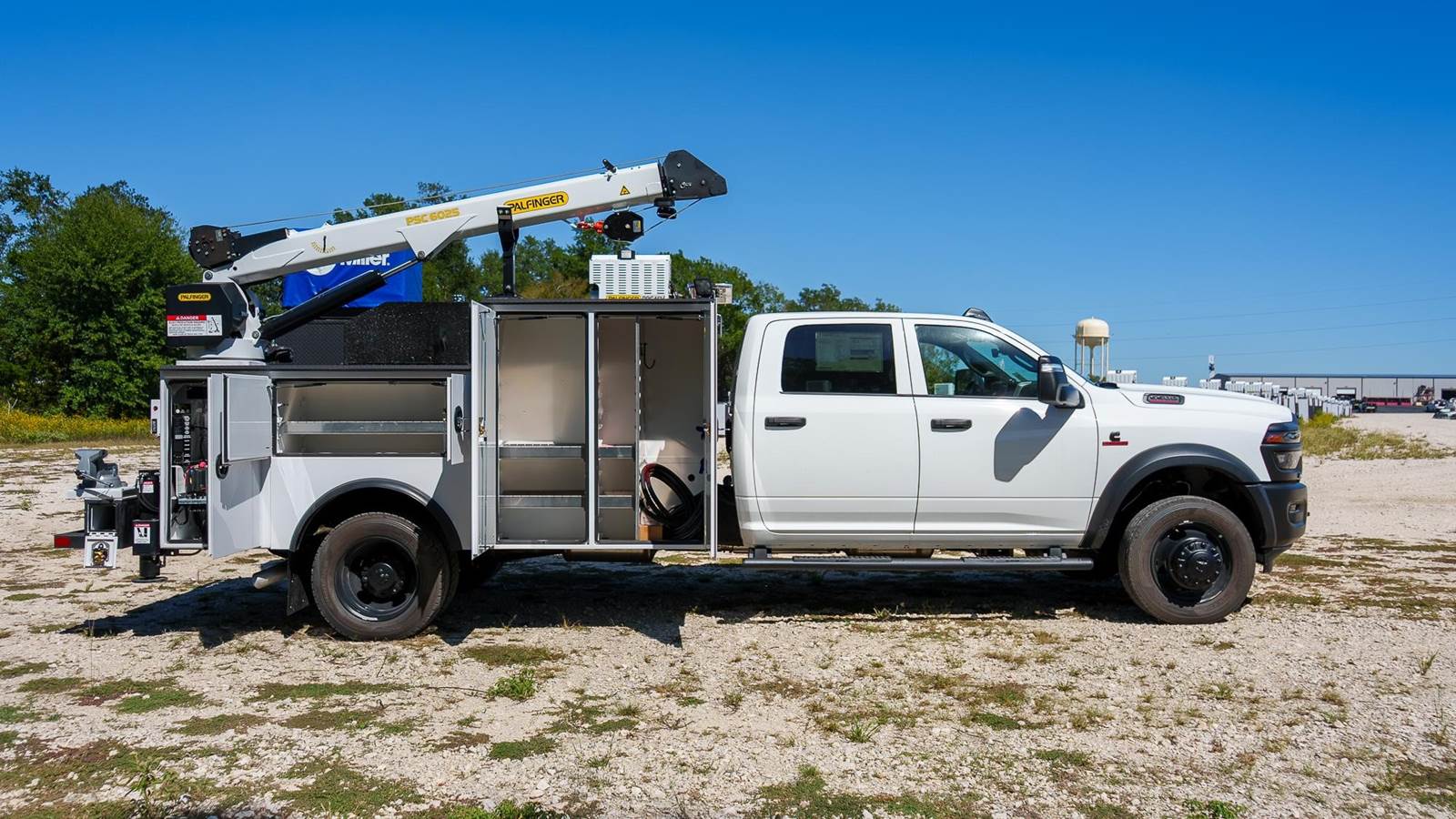

• Palfinger model PSC 6025 telescopic service crane; 38,500 ft. lbs., 25' reach capability, two hydraulic powered extensions, 6,000 Lb. vertical lift capacity, - 25 to +75 degree boom elevation, double acting cylinders with load holding valves on all cylinders, overload shutdown system, wireless radio remote controller pistol grip and toggle controller with 36' pendant, decals, crane hook, load line block, Ecoat prime, finish paint white topcoat paint and crane mounting bolt kit.
• Available for use on vehicles above 14,001 GVW. Consult factory for other applications.
Crane Capacity: 6,000 lbs
Outreach: Up to 25 ft
Crane Weight: 1280 lbs
Best suited for lower duty cycles, all Electric Service Cranes are equipped with standard, single function proportionate control and offer the highest lifting capacity (ft. lbs), the best weight-to-lift ratio and the longest reach in the industry. Optional features including 90% acoustic overload warning, 3rd wrap limiting system and boom tip hooks are available to fit your application and service truck needs.
ADD-ONS:

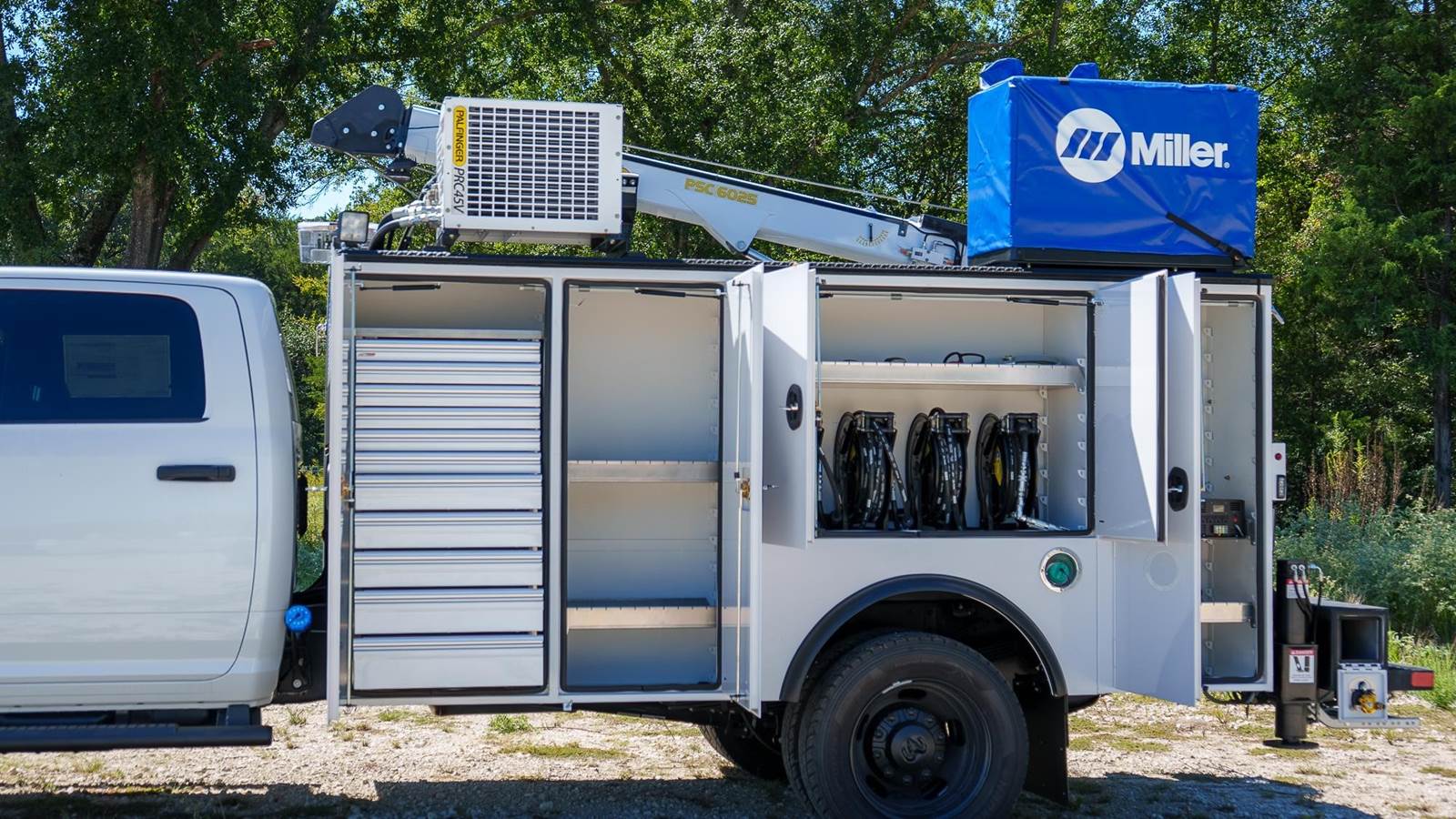

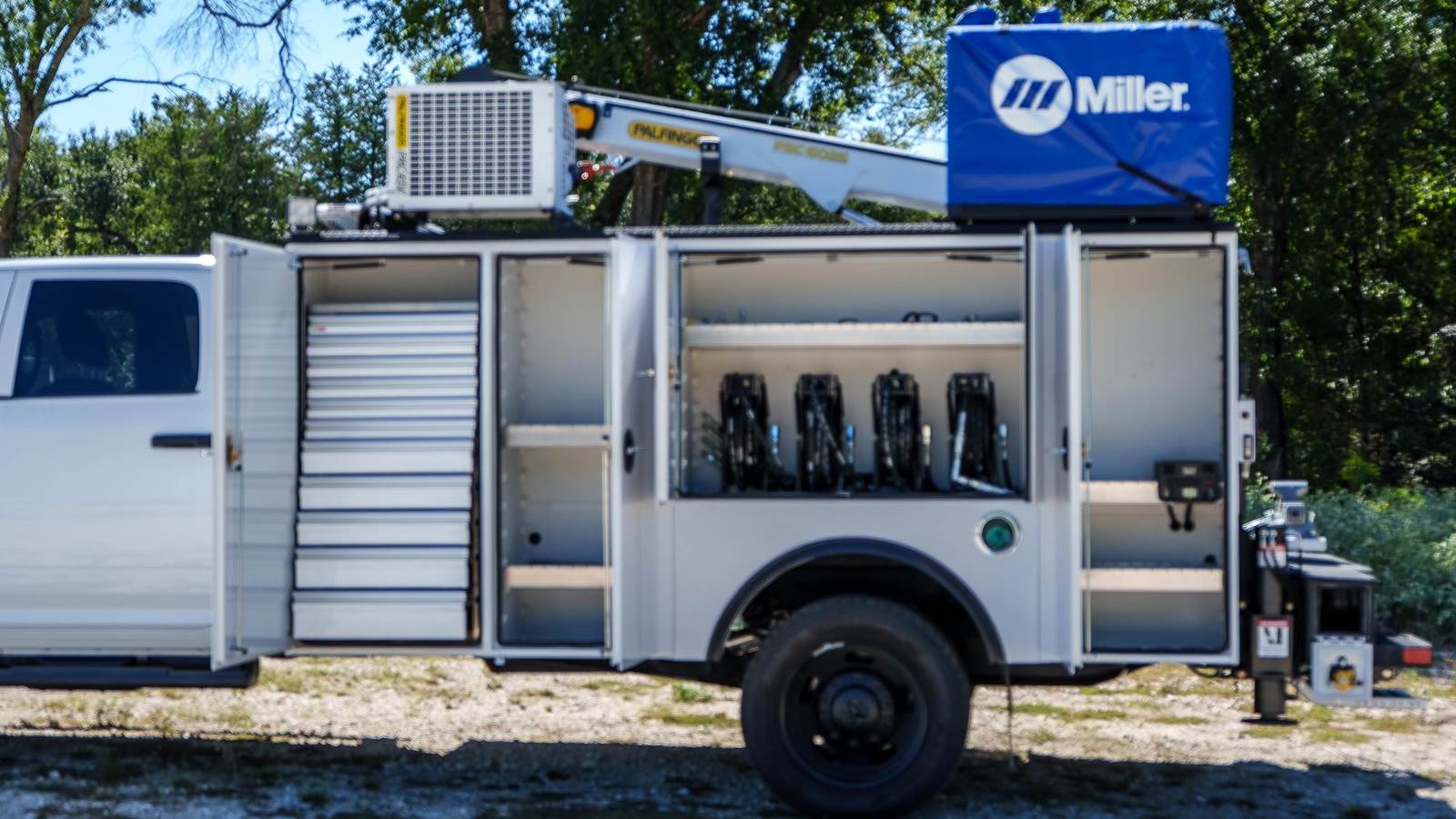

• Miller Bobcat 265G Welder w/150’ Leads & Jumper Cables & Welder Cover

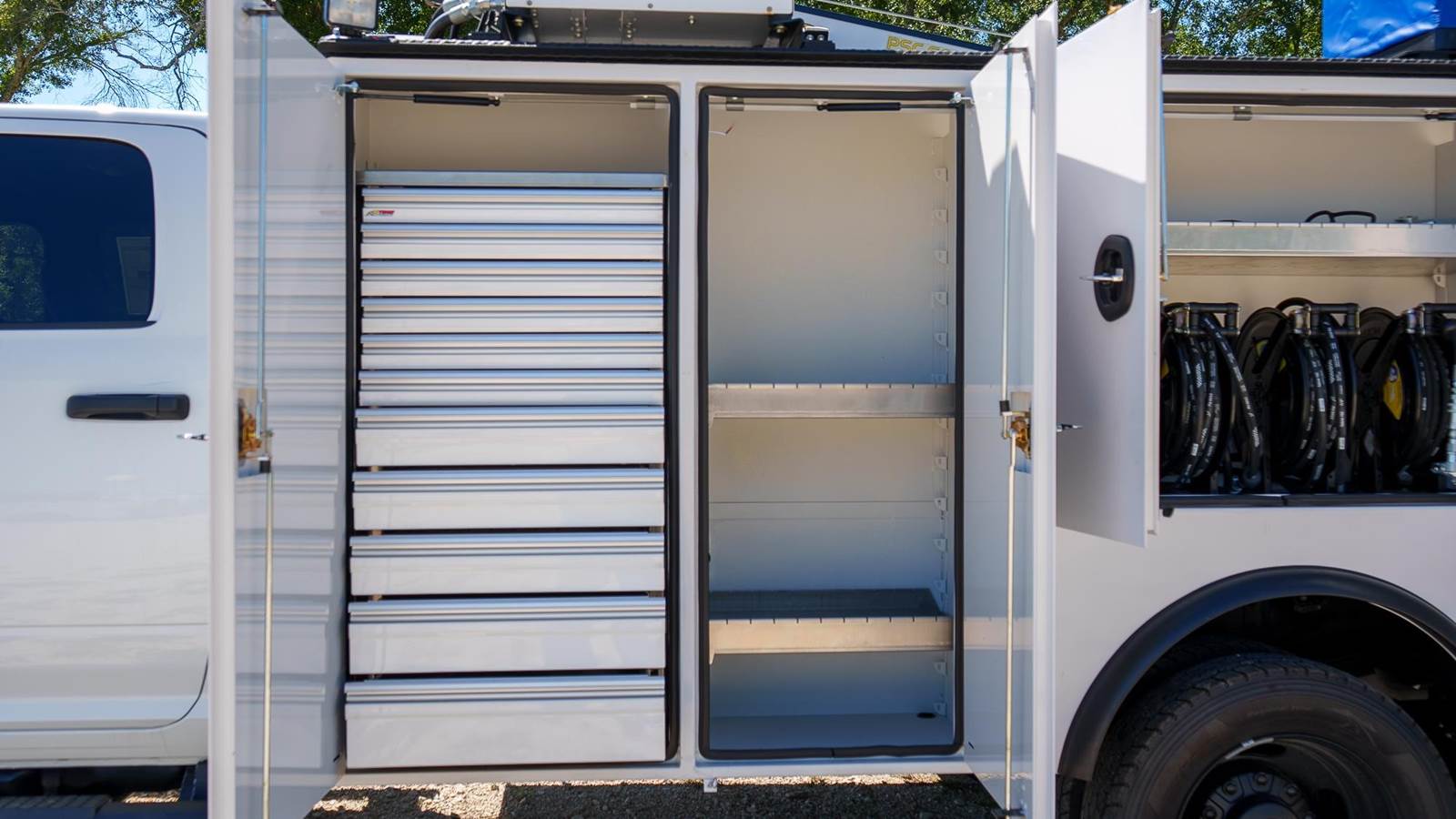

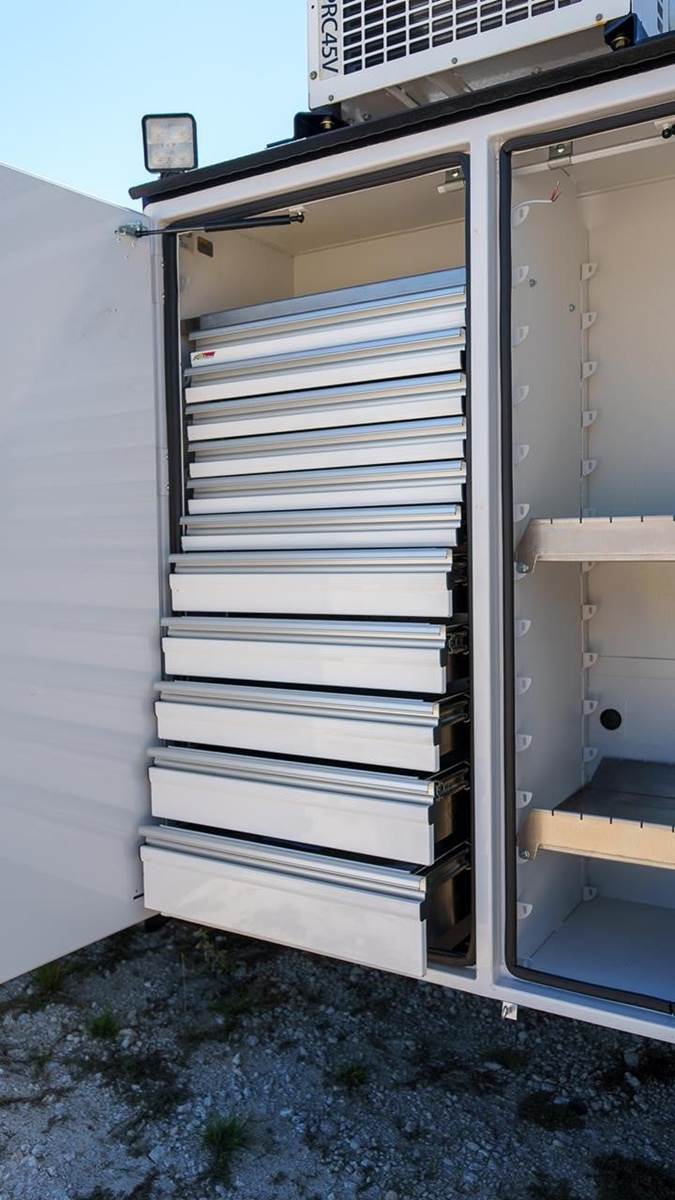

• Tall Drawered Toolbox (Front Cabinet Streetside 1st -High Side Only)
• LED Compartment Lighting
• LED Work Lights (Installed Corner of Rear and Front of ea Side Bed) Set of 4

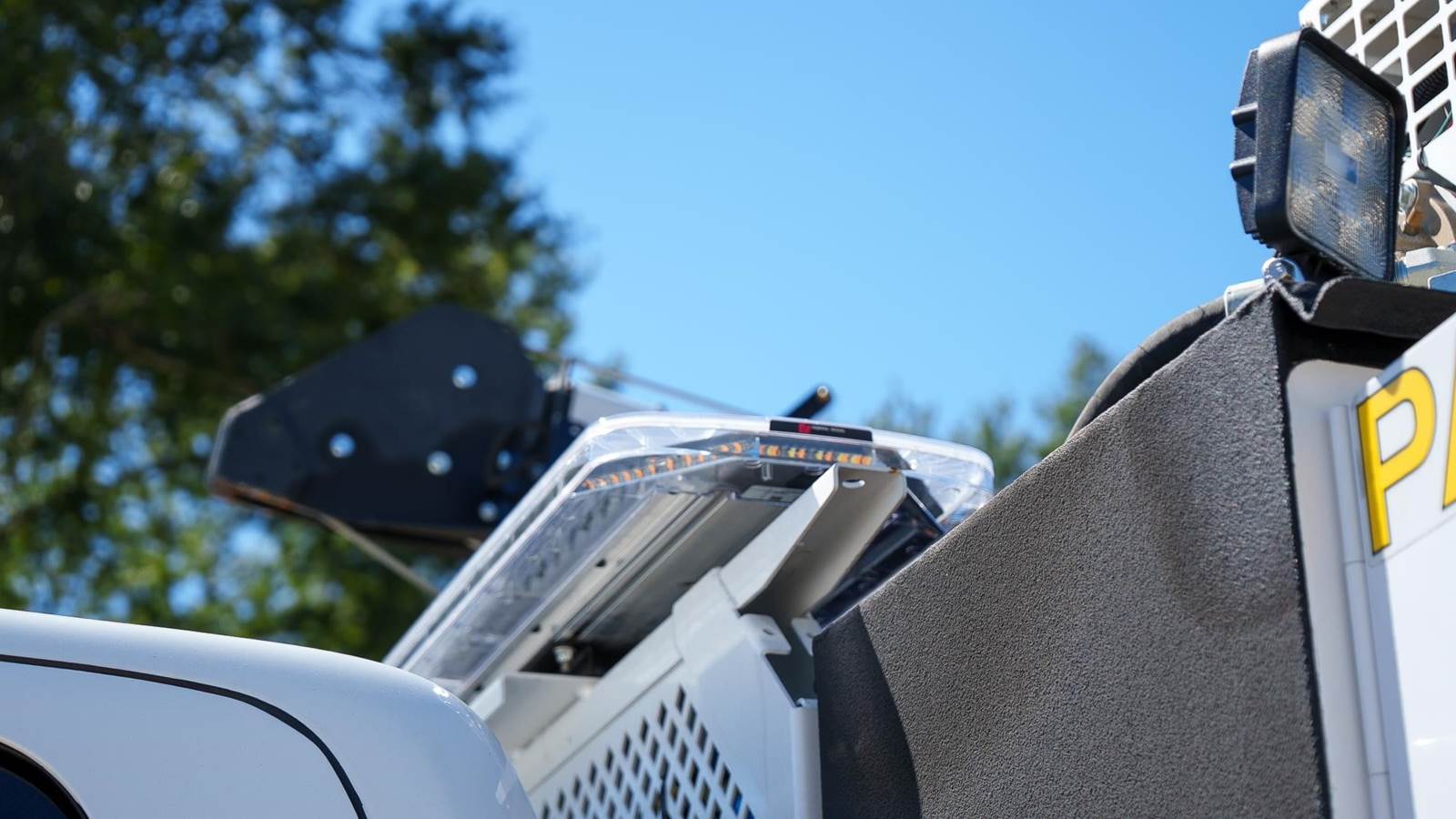

• 48” Emergency Light Bar (Installed on Top of Headache Rack)
• LED Strobe Lights (Installed Front, Rear and Sides)
• Palfinger Boom Tip Light

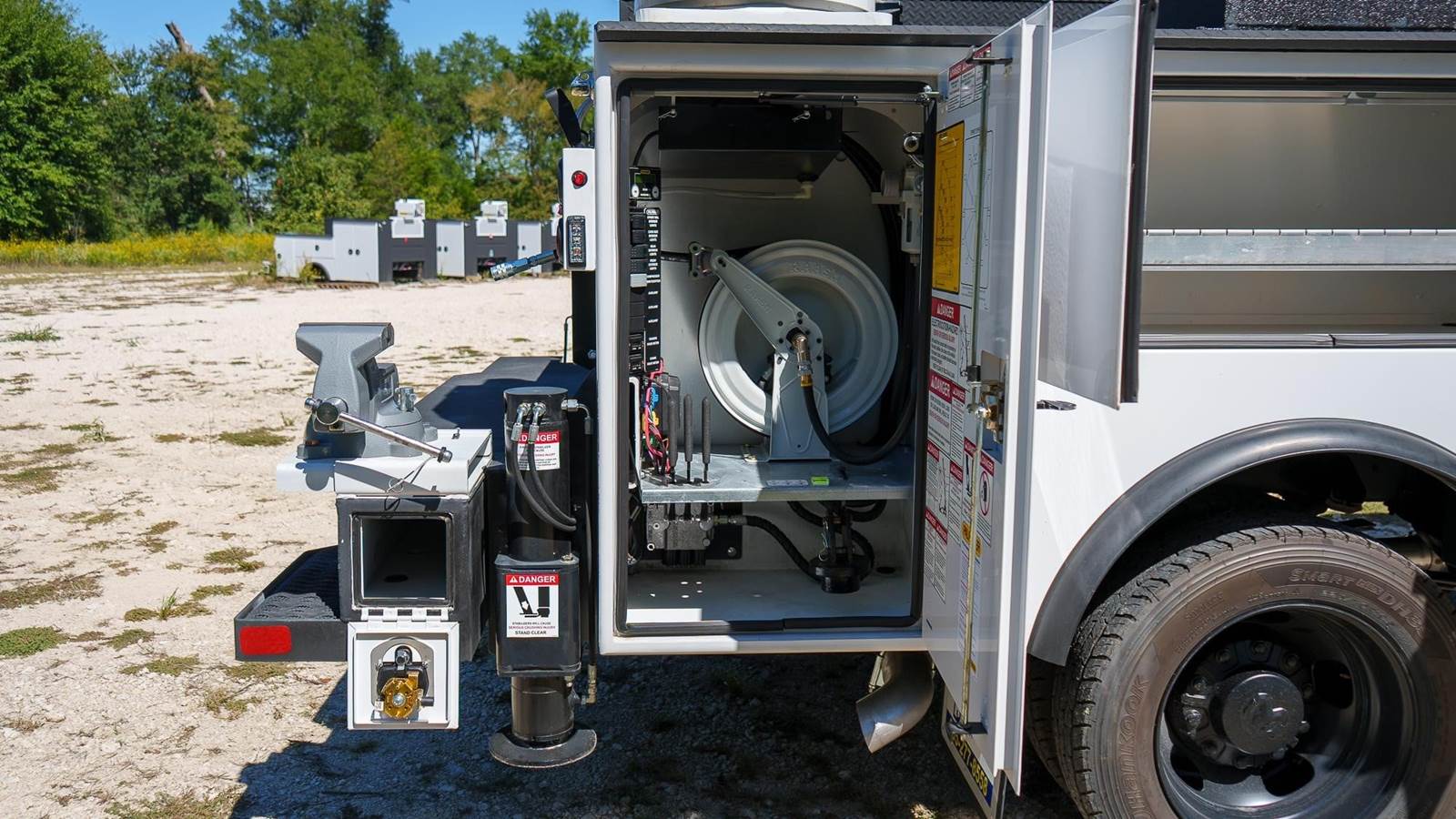

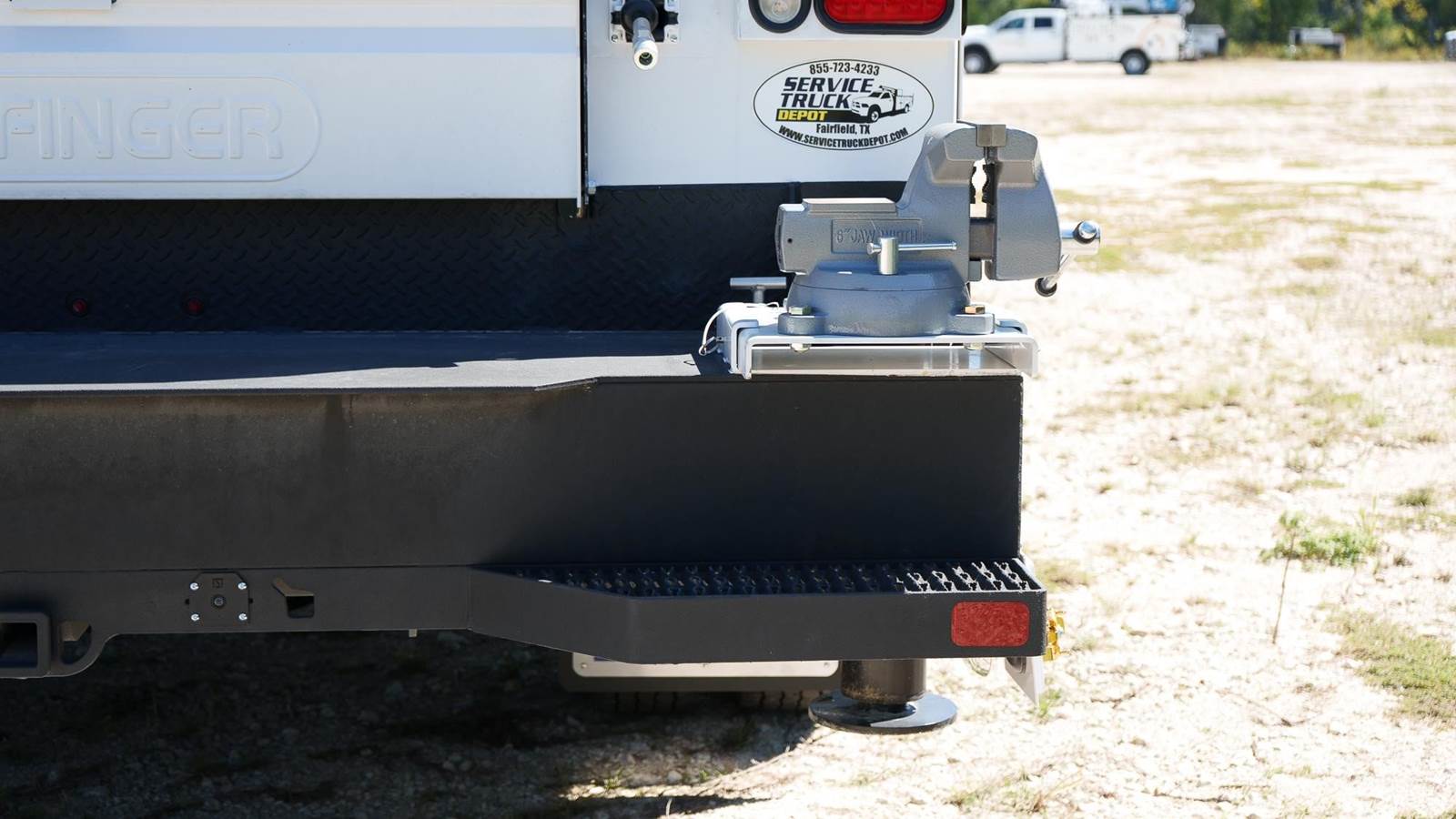

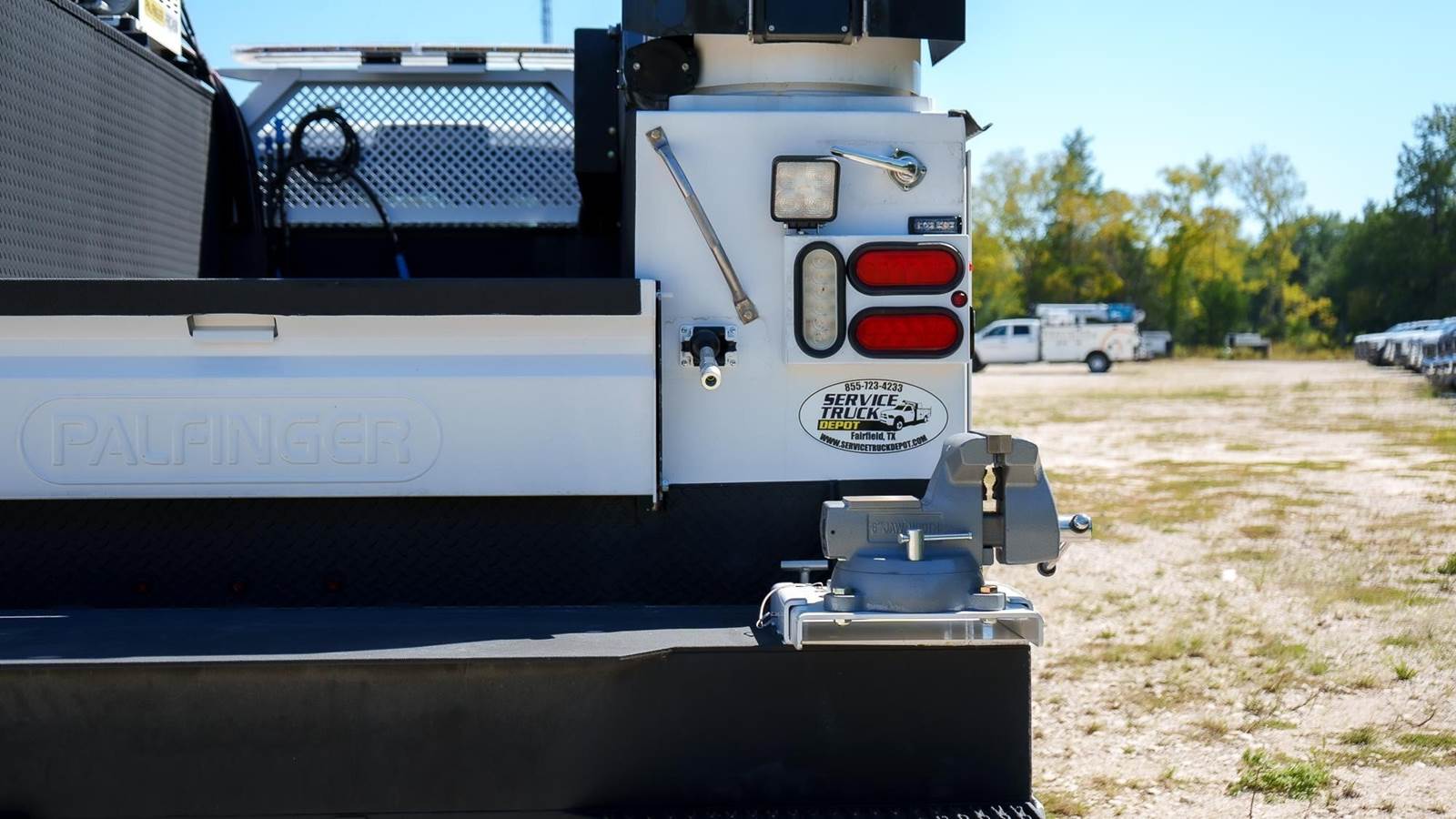

• Wilton 746 Vise
• Wheel Simulators (RAM)

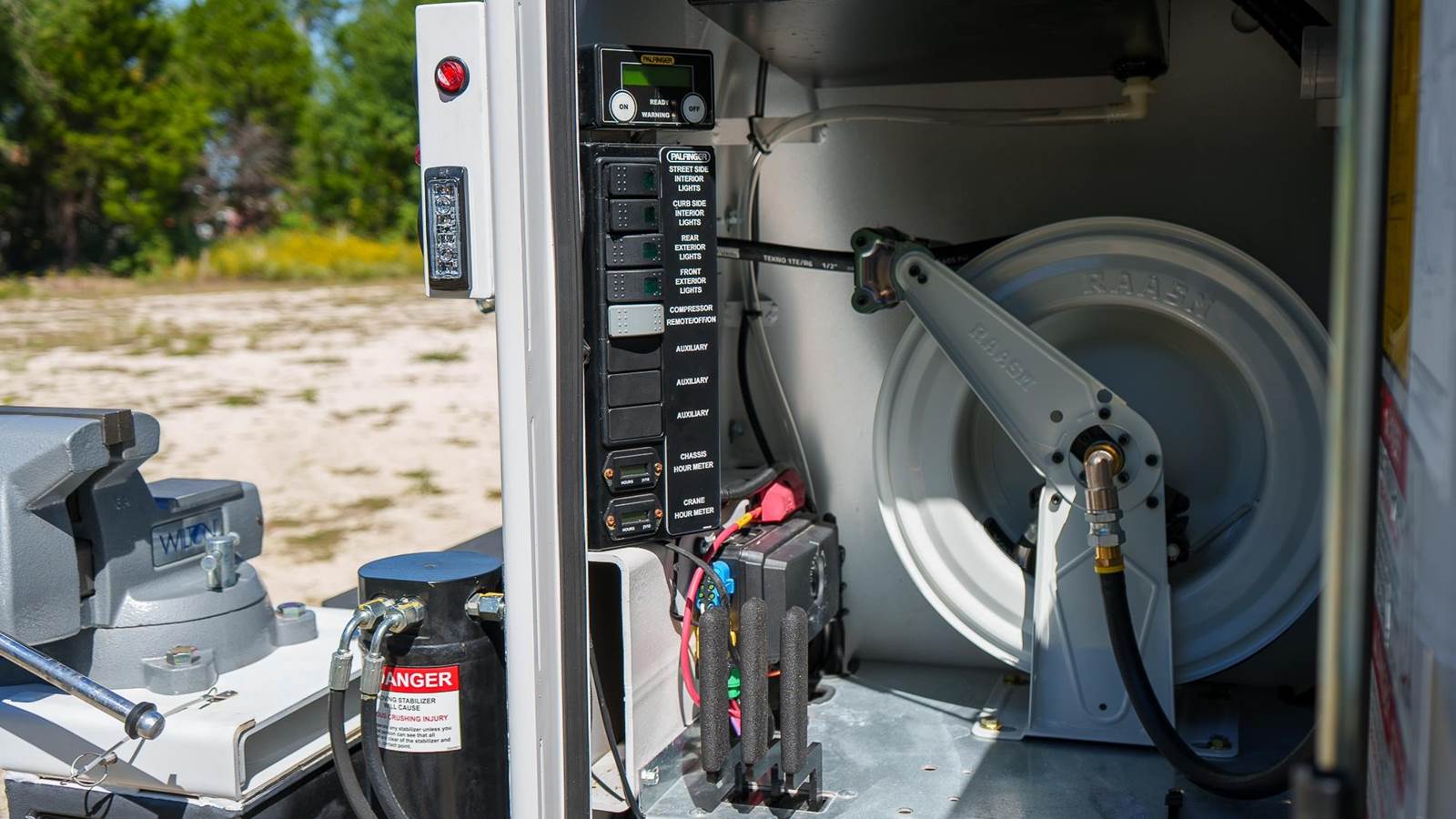

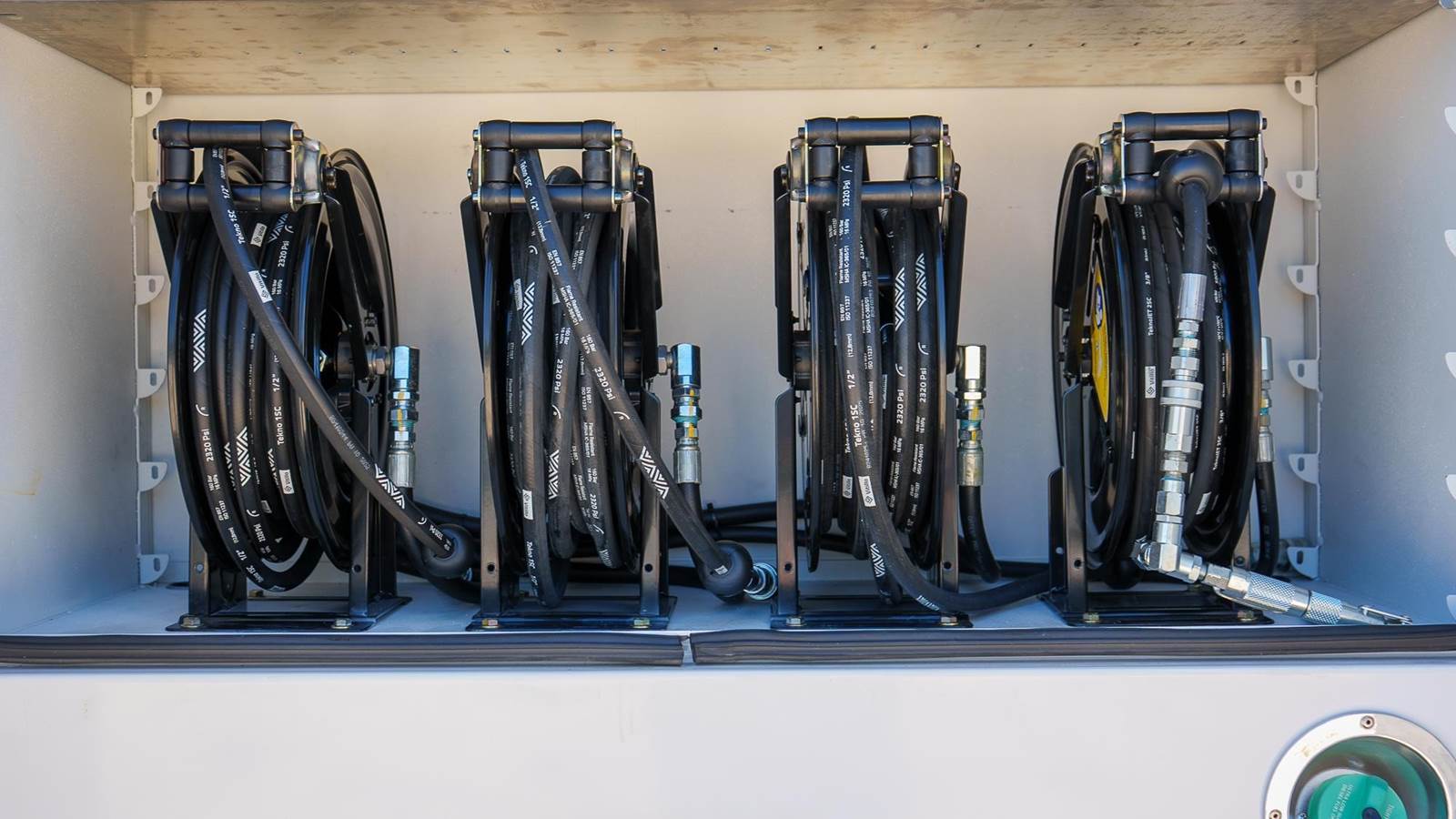

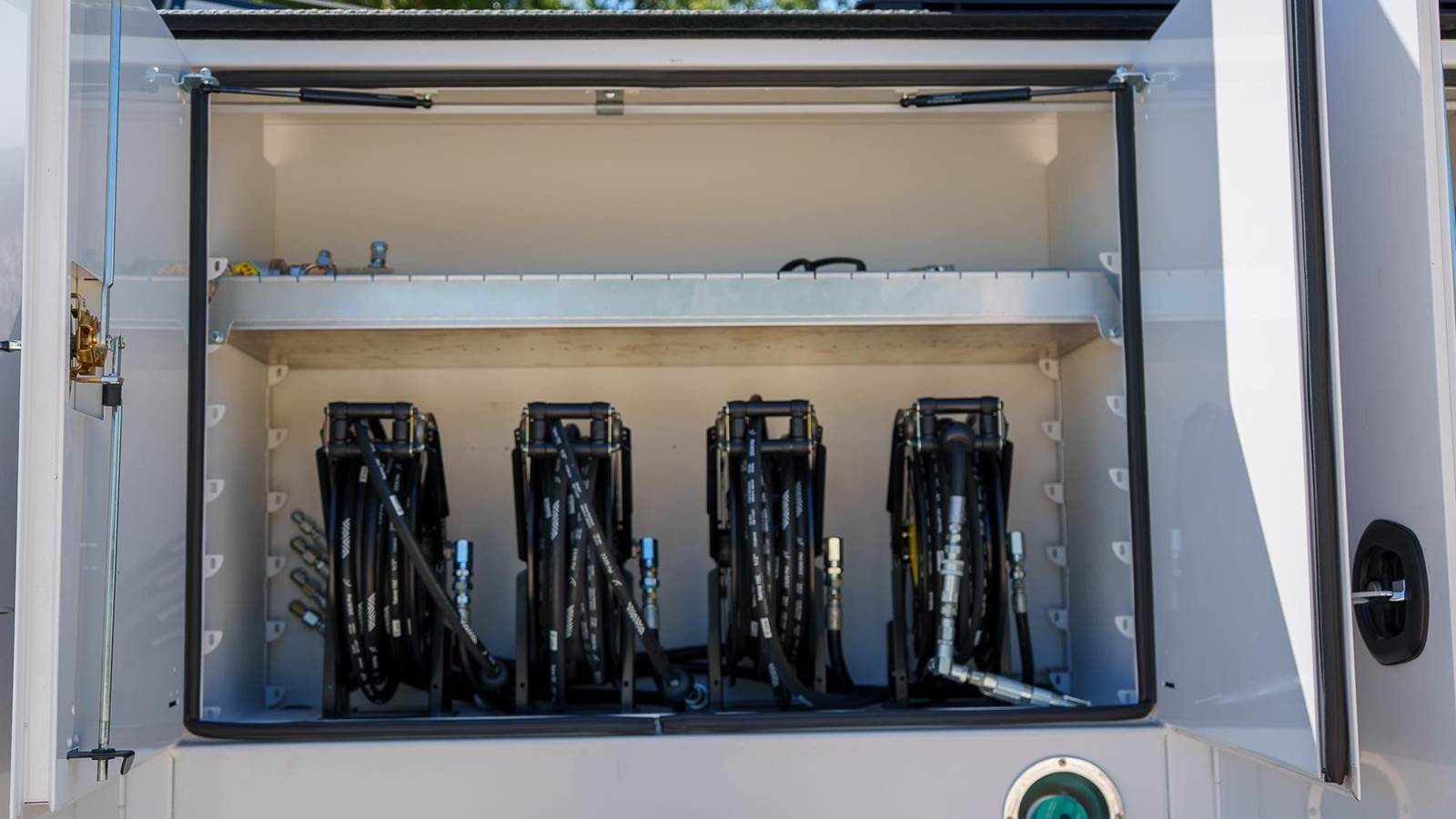

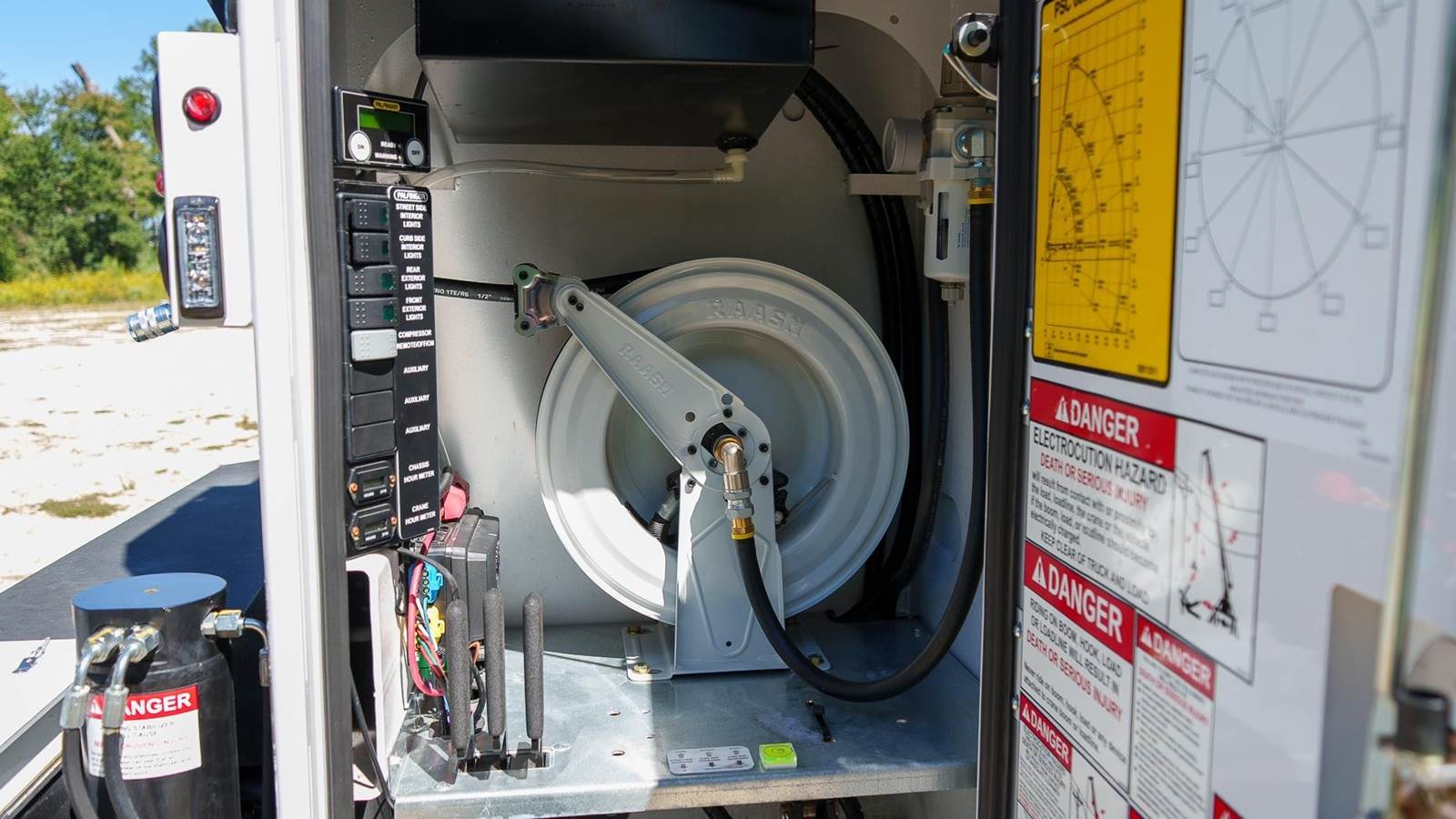

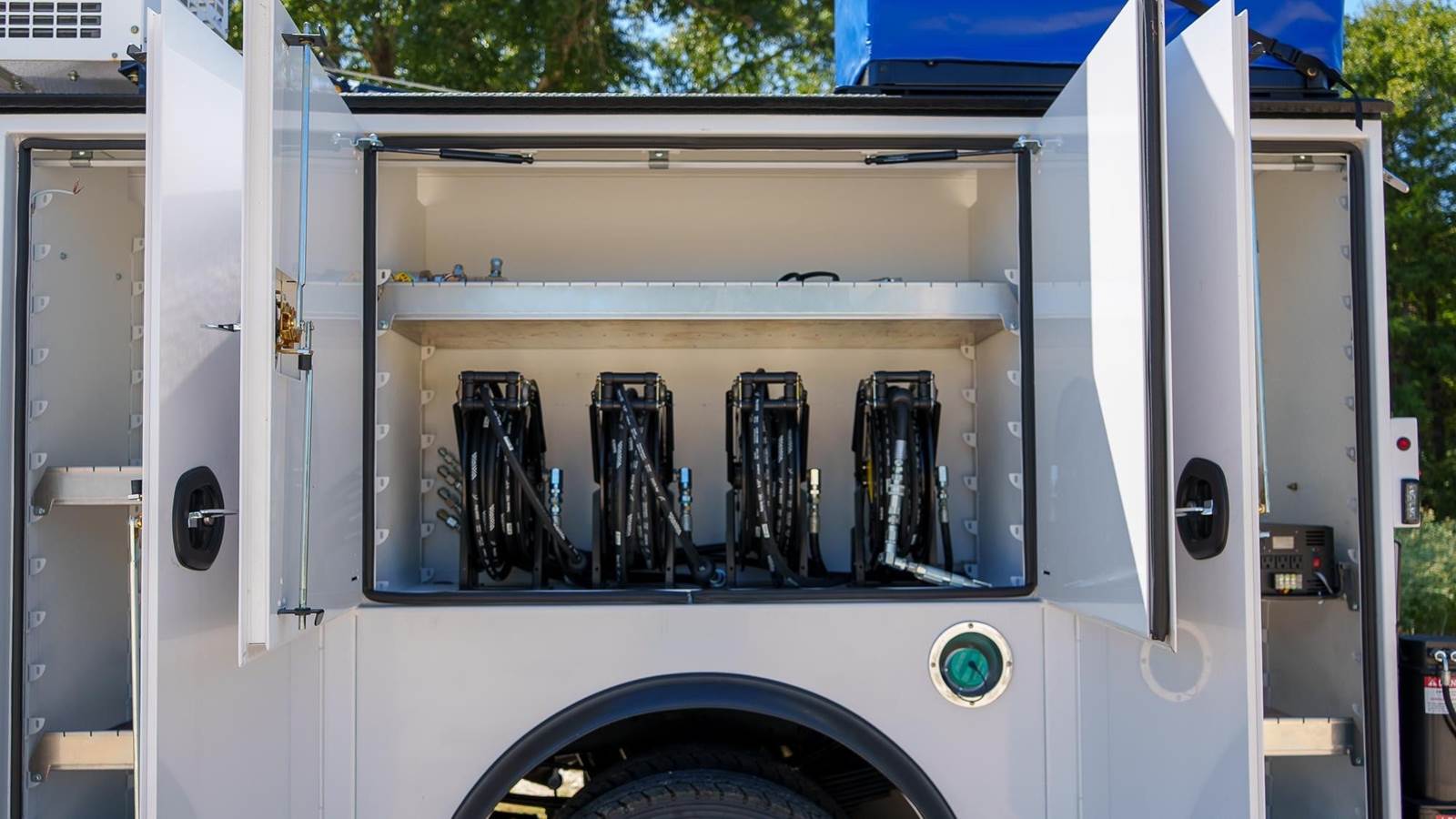

• Upgrade Compressor Hose Reel from 35' to 50' 1/2"

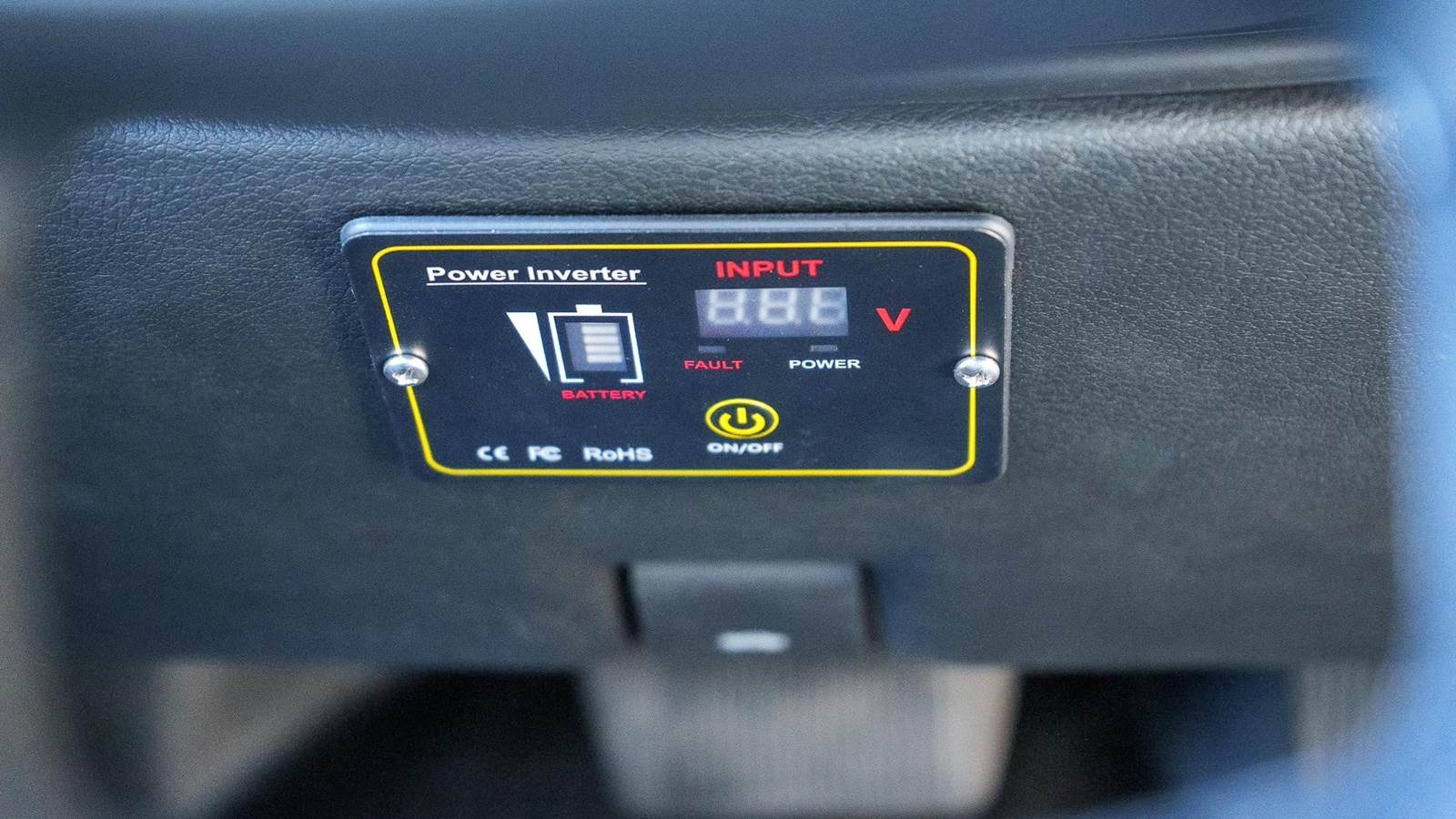

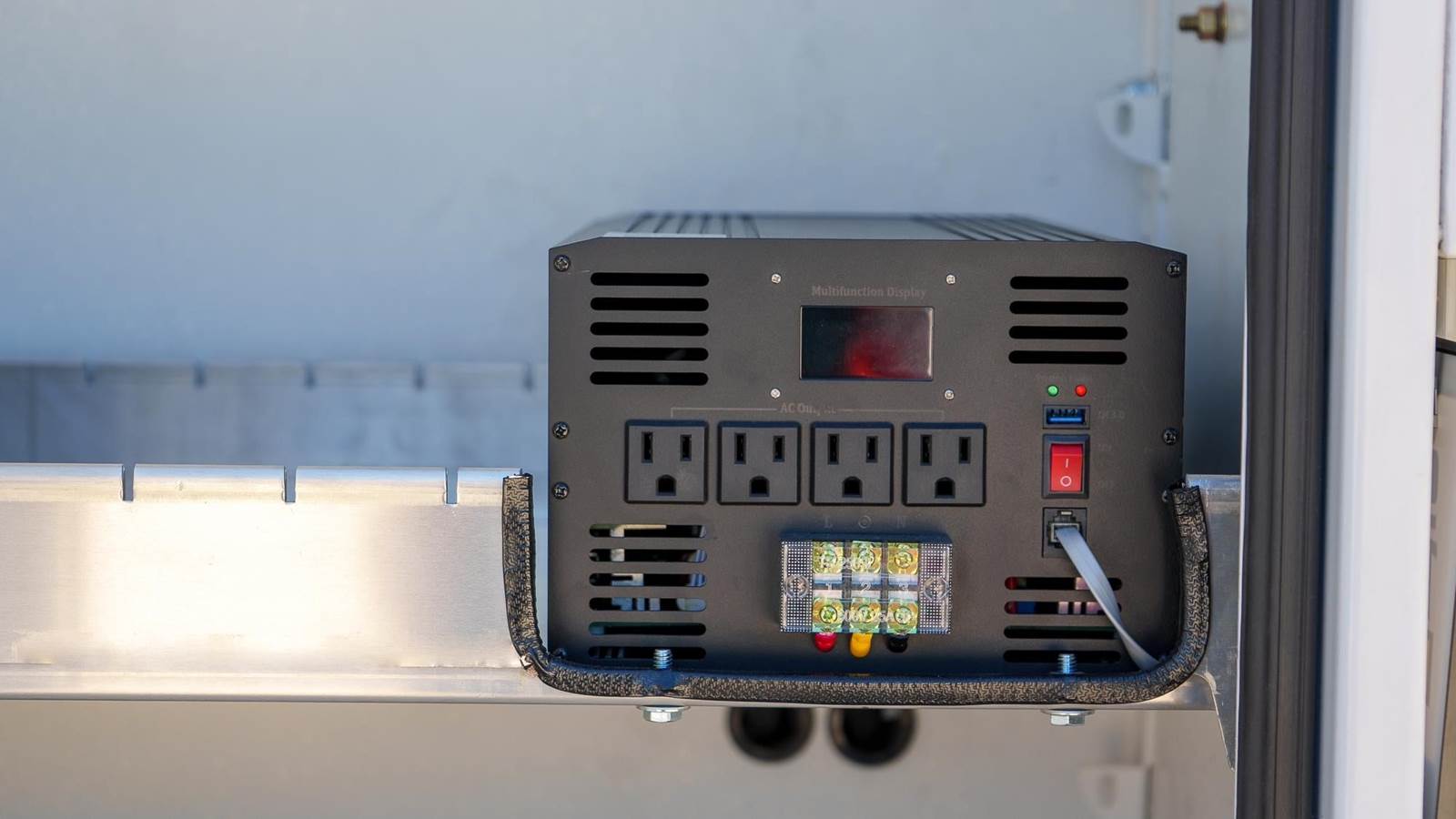

• 3,000-Watt Pure Sine Power Inverter
• 15' Suction Hose for Oil Recovery/Waste Tank w/Fittings
• Fire Extinguisher
• Safety Triangle
•• Call for additional Upfit Options Available
**Photos may include optional equipment – Example Shown is a completed upfit, pricing may differ depending on customer specifications on their build.
• Please see our inventory page for completed upfits in stock.
• Please inquire for additional details or build requests.
