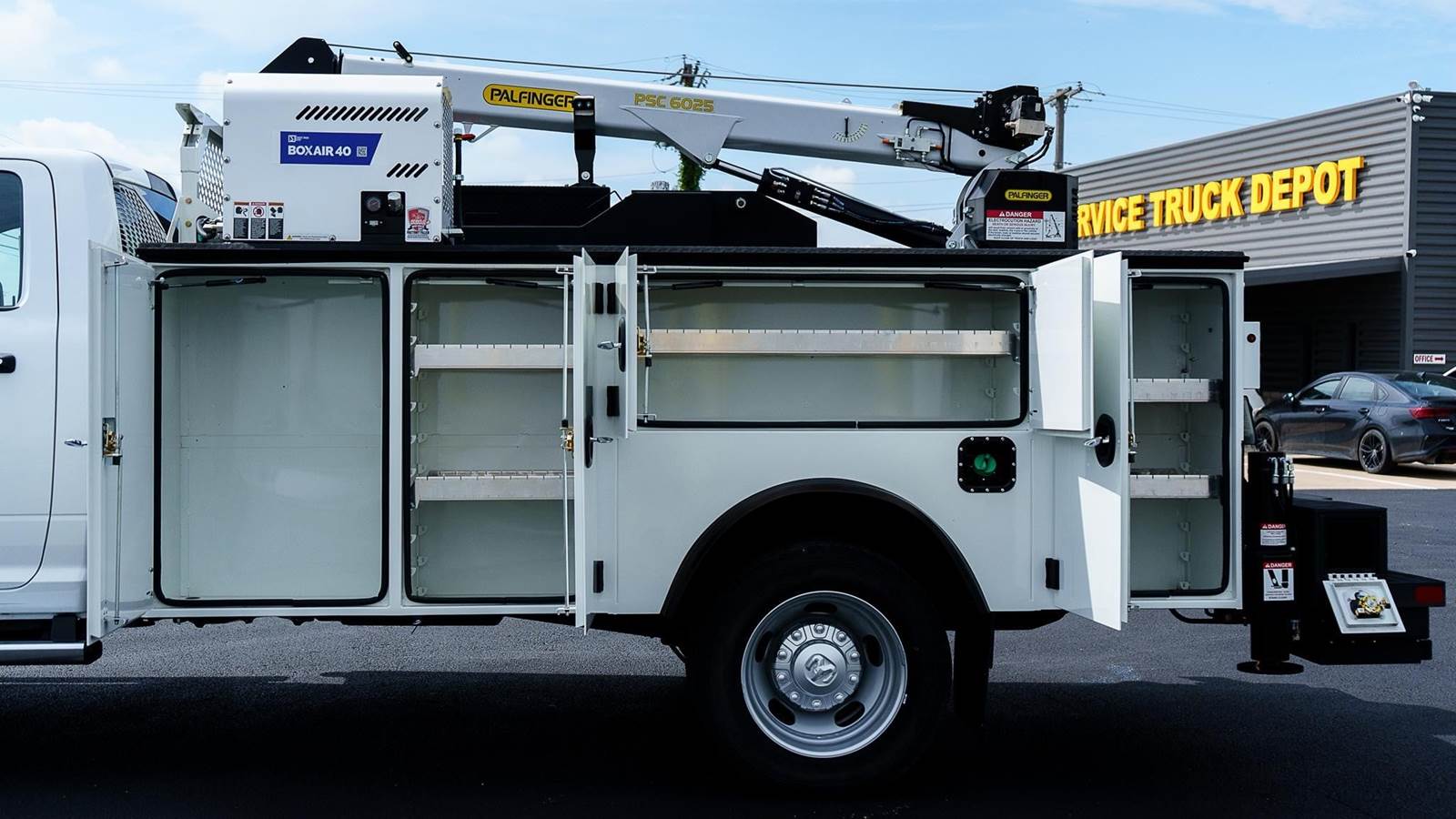

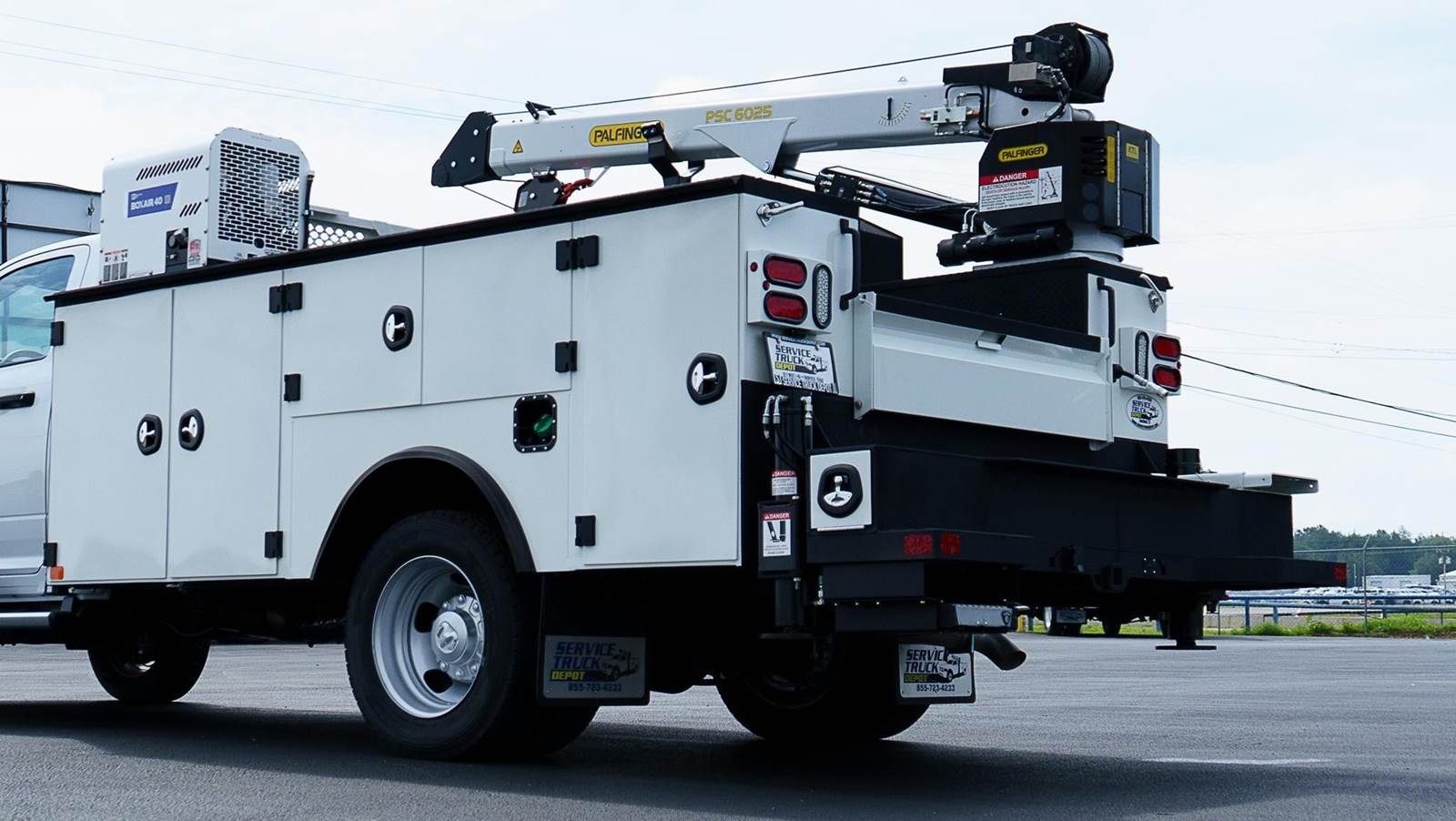

2026 Service Truck Depot BOXCAR 55 Service Truck Body

NEW BOXCAR PRO 55 Work Truck Body
by Service Truck Depot


Key Features:
•   Body: BoxCar Pro 55 by Service Truck Depot
•   Curbside reinforced crane box rated at 55,000 ft/pds will handle the newer 8500# cranes
•   100% baked on powder coated with a zinc rich primer to maximize road protection for all climate types to preserve your asset
•   Durable Bed Liner on all wear surfaces
•   Best in Class Military grade undercoating for additional protection
•   Heavy duty Grab handles

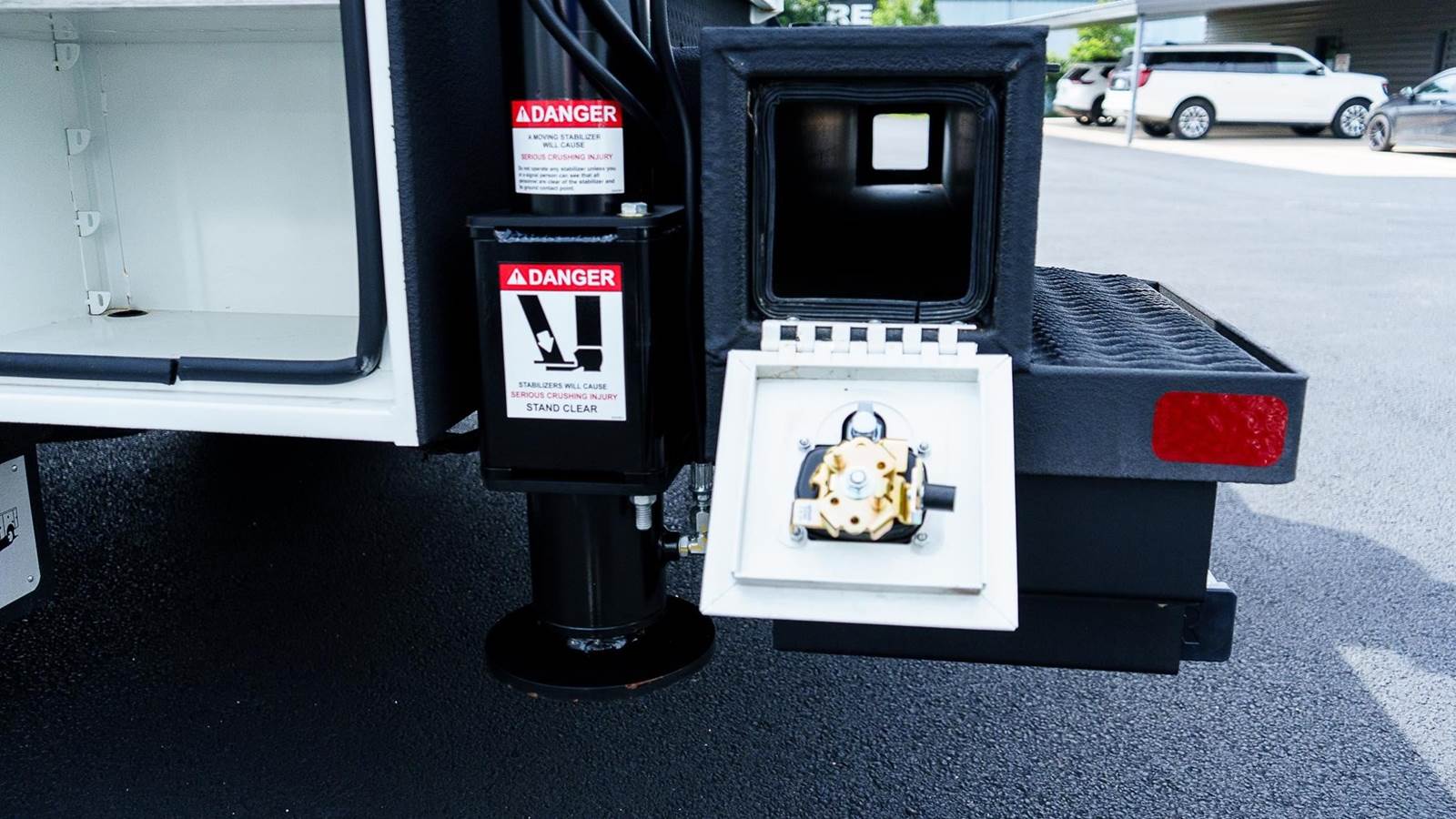

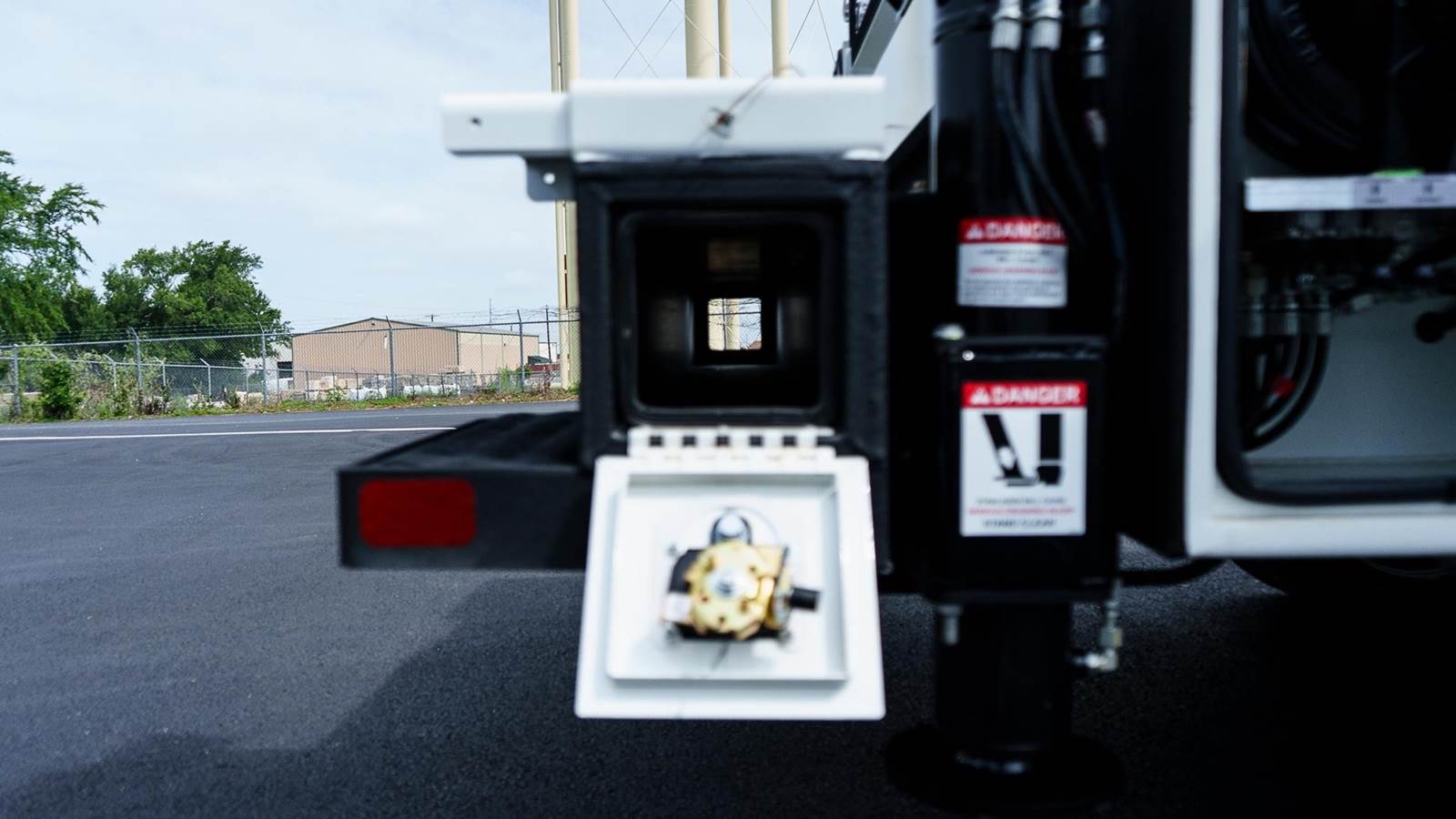

•   Workbench Bumper provides a work surface, a vise plate and two steps
•   Heavy-duty Vise Plate
•   Headache rack
•   Unibody Aluminum Door System with Interchangeable parts
•   Best in Class Adjustable top rail to easily mount accessories and equipment
•   11 Gauge floorplate rigid design for increase strength of the body. (Others Standards are a lighter 12 Gauge)
•   (6) Heavy duty D Ring tie downs in the bed rated for 6000 lbs each
•   Applicable chassis 14,000-22,900 GVWR
•   The Body alone is 3322 and the Bumper is 445 for a total of 3767
•   21 inch heavy duty work bumper
•   New & Improved Safety Equipment Track System

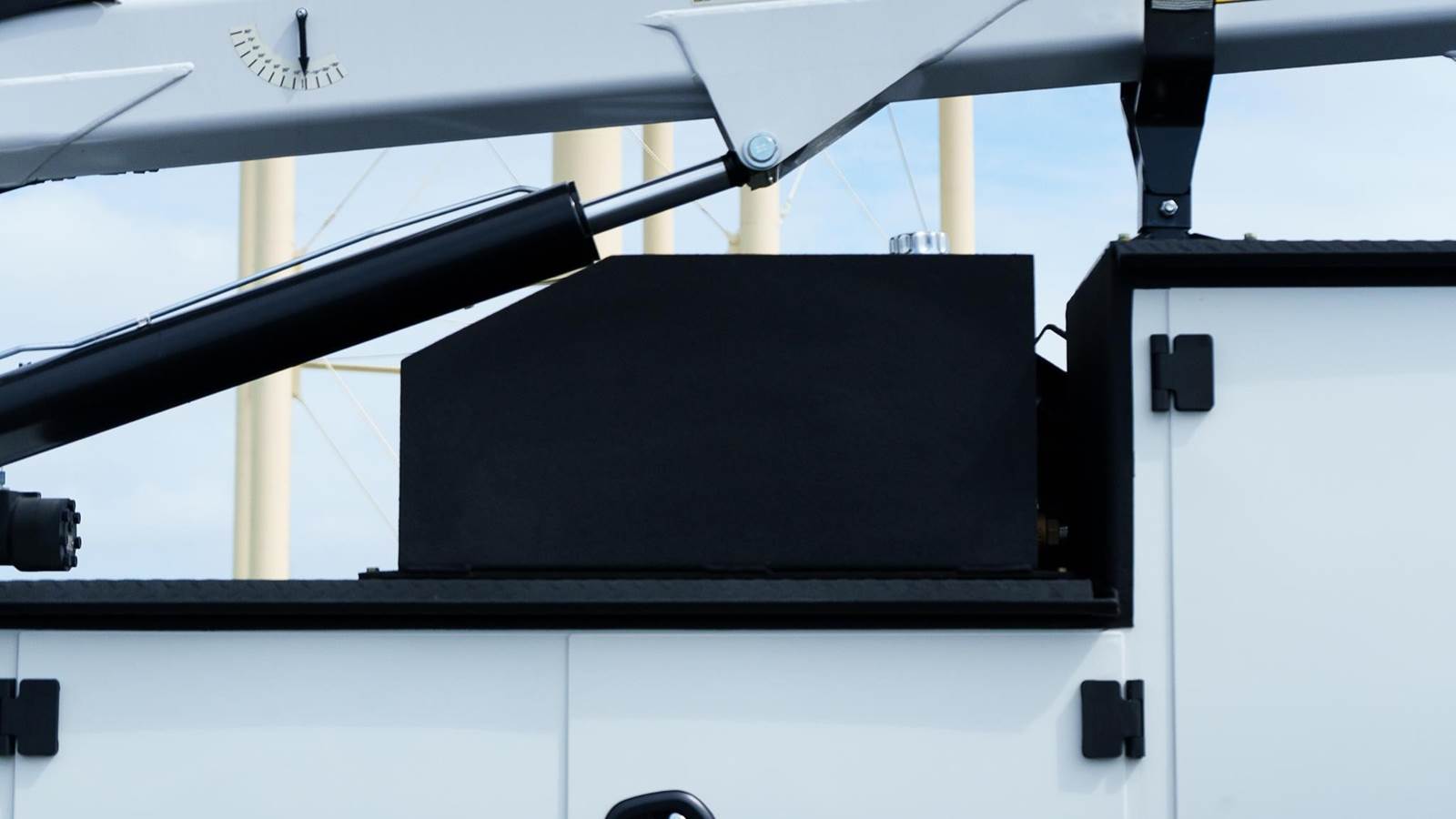

•   Custom Hydraulic Tank

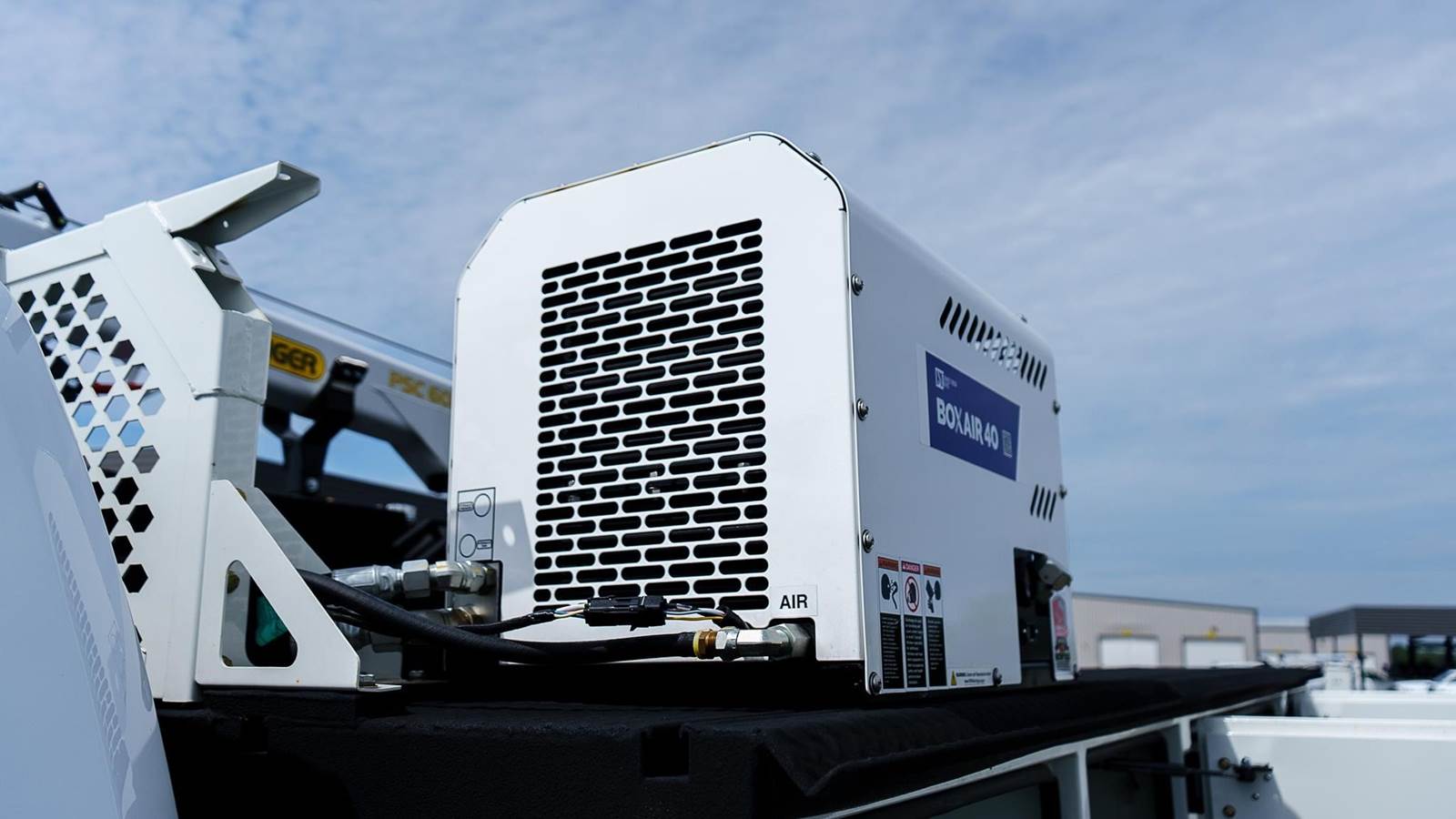

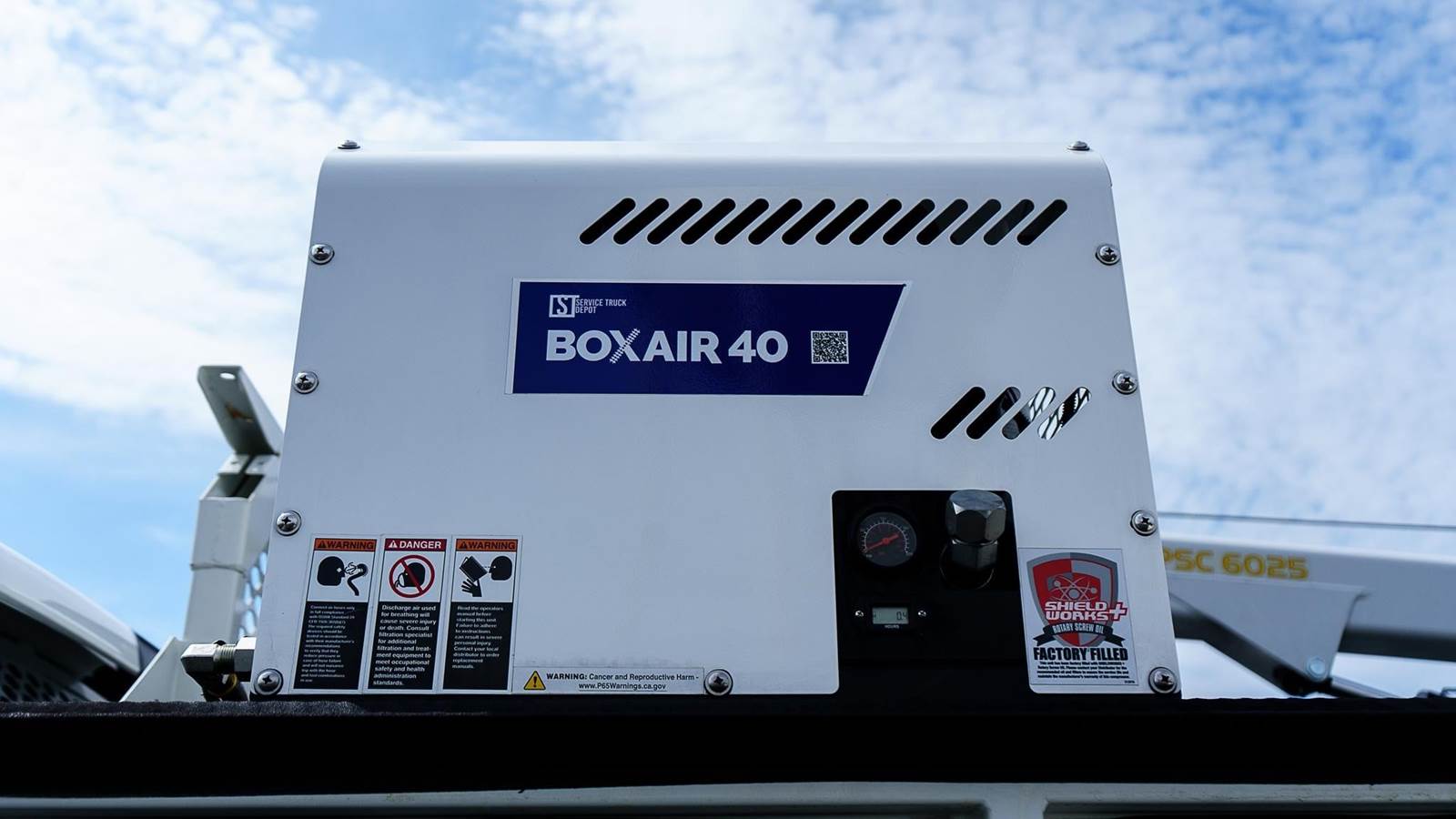

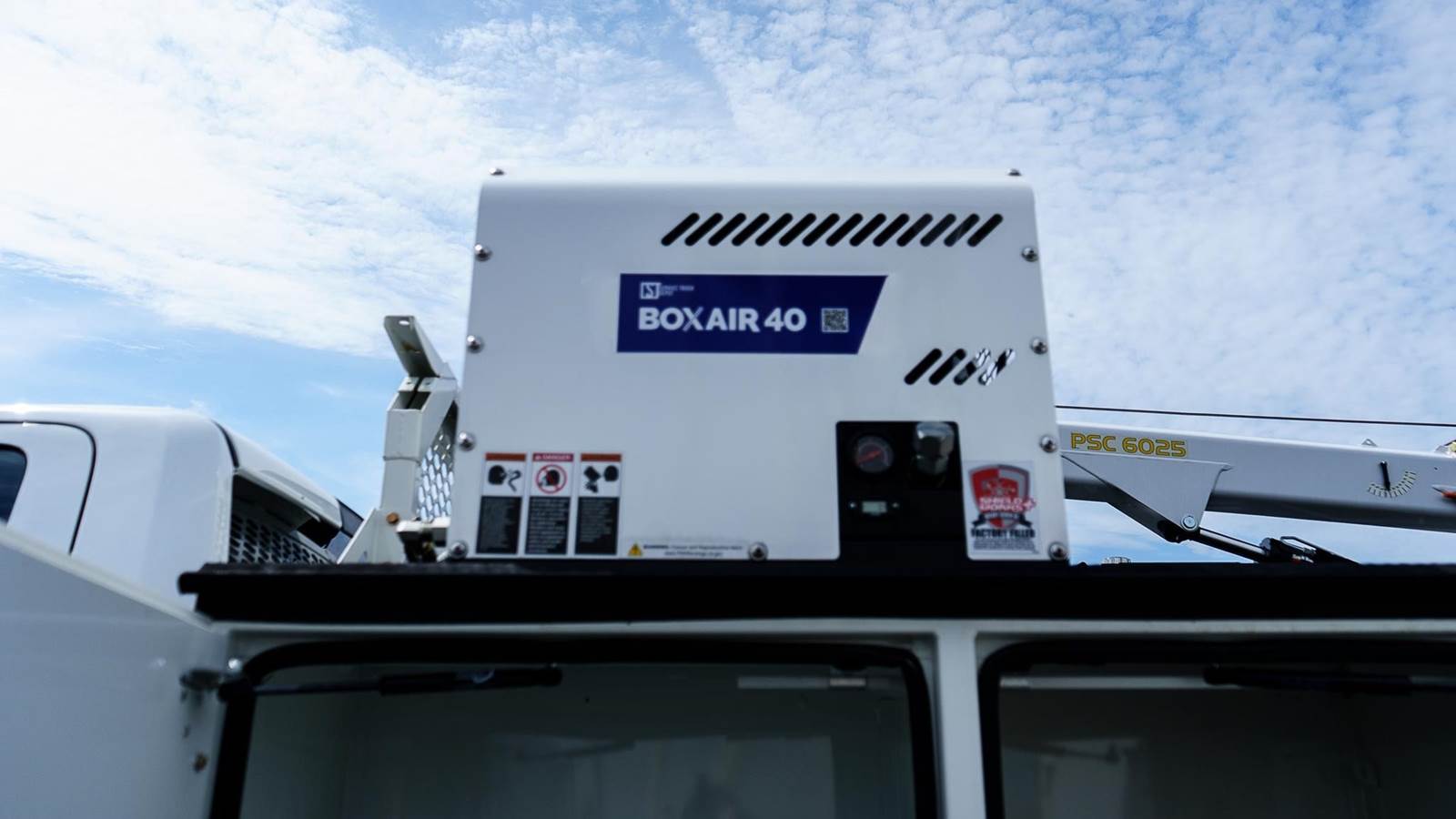

BoxAir RS40 Rotary Screw Air Compressor by Service Truck Depot

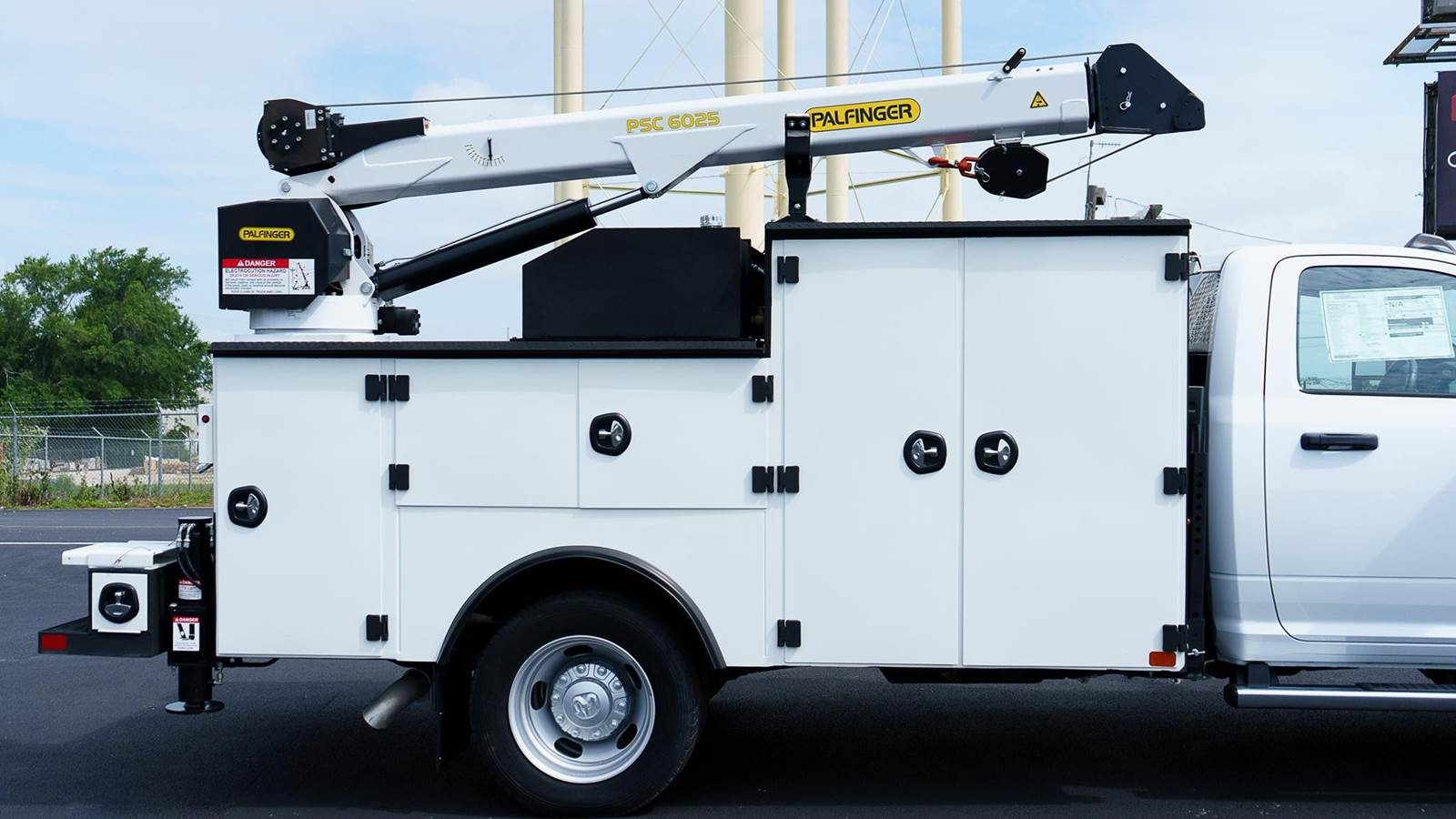

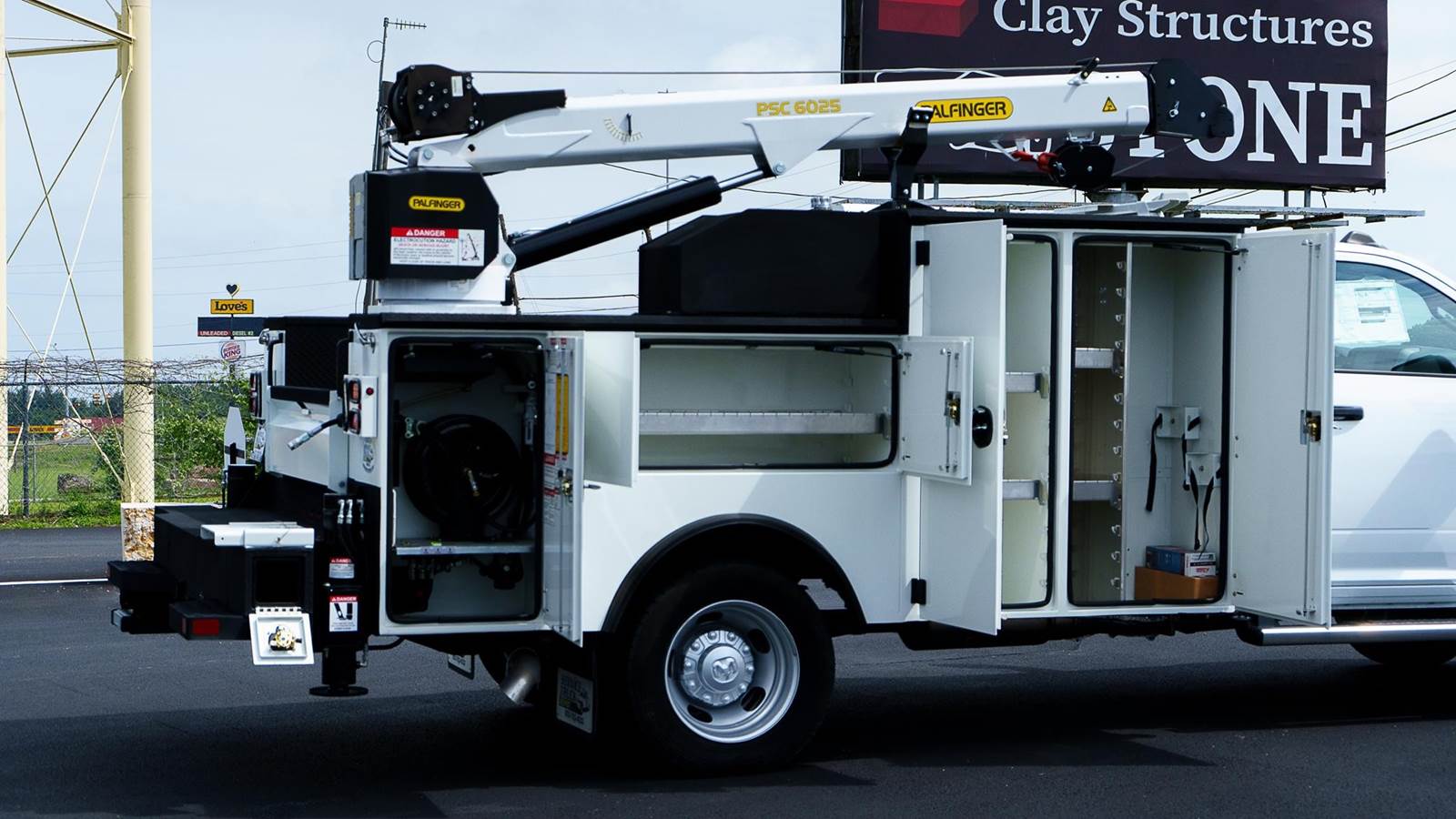

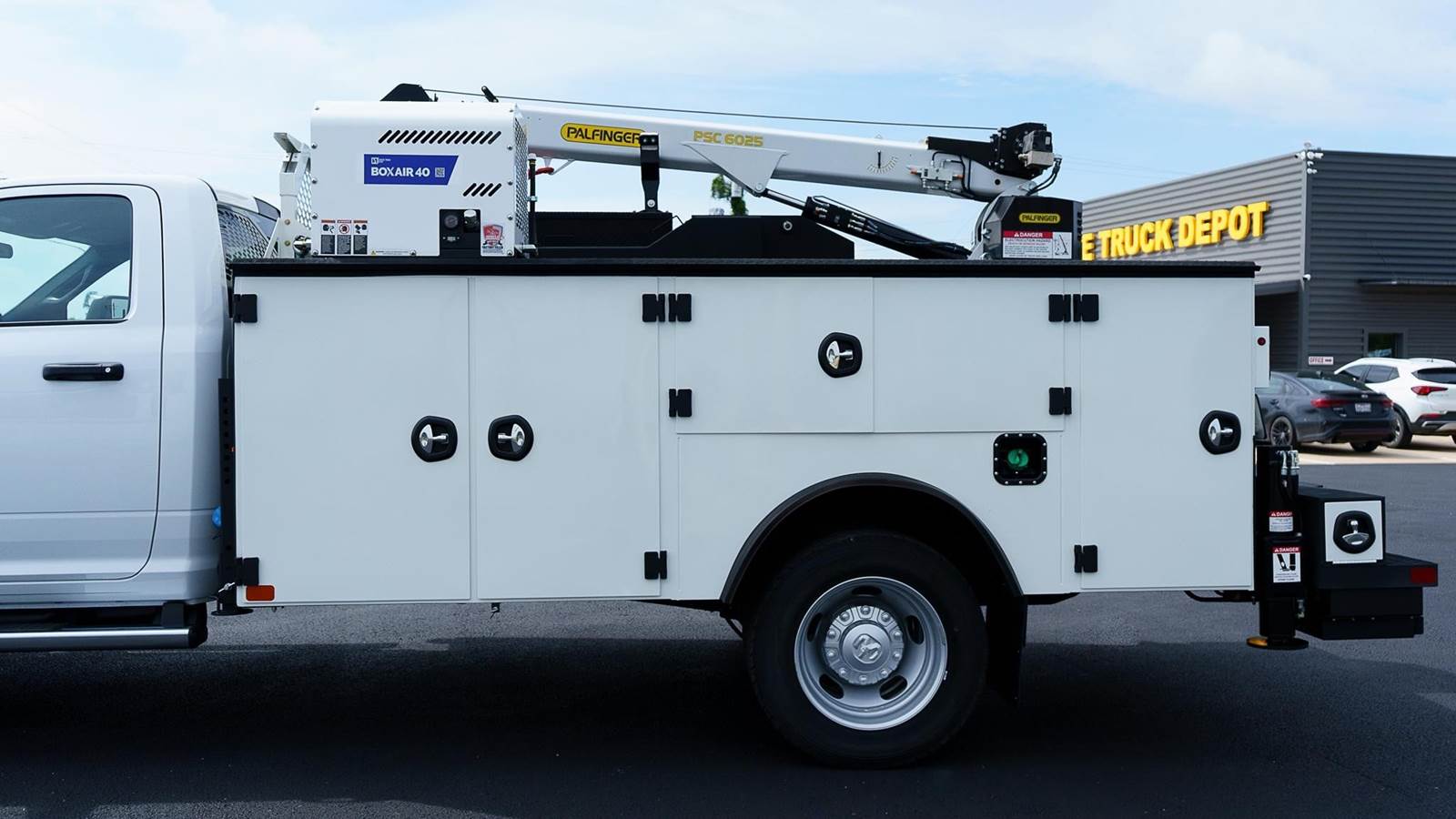

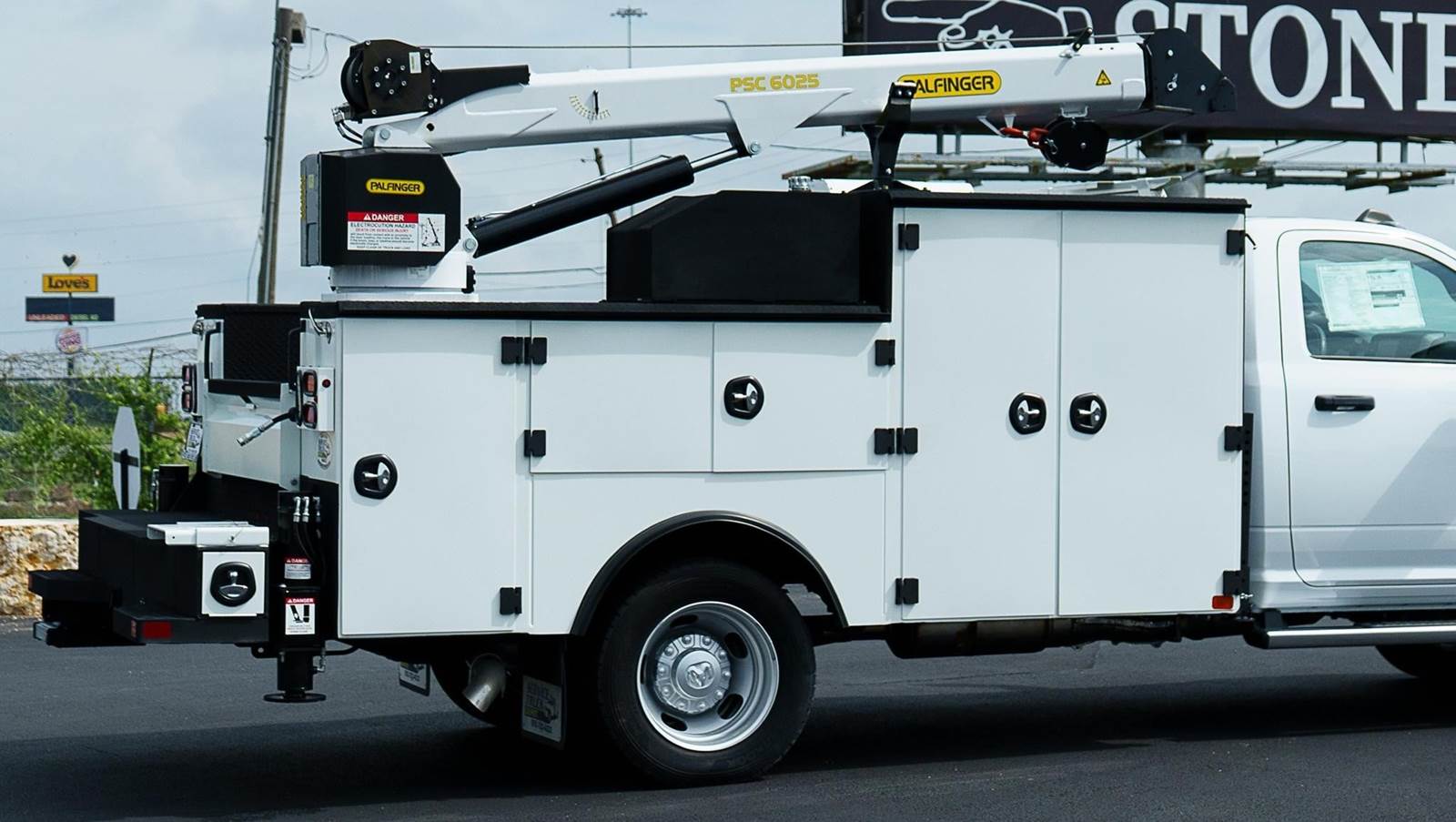

This example is shown with a Palfinger PSC6025 Features
•   Palfinger model PSC 6025 telescopic service crane; 38,500 ft. lbs., 25’ reach capability, two hydraulic powered extensions, 6,000 Lb. vertical lift capacity, - 25 to +75 degree boom elevation, double acting cylinders with load holding valves on all cylinders, overload shutdown system, wireless radio remote controller pistol grip and toggle controller with 36’ pendant, decals, crane hook, load line block, Ecoat prime, finish paint white topcoat paint and crane mounting bolt kit.
•   Available for use on vehicles above 14,001 GVW. Consult factory for other applications.

A FEW EXAMPLE UPFIT OPTIONS:
• BoxAir RS 40 Air Compressor
• Hydraulic tank (in-bed) or Custom Hydraulic tank
• Drawered Toolbox - Streetside 1st Compartment (1)
• Drawered Toolbox - 2nd Compartment (1)
• E-Track System with Divider
• Wilton 746 Vise
• Power Inverter Kit
• Work Lights (4)
• LED Compartment Lighting
• LED Strobe Lights (4)
• Fire Extinguisher
• Safety Triangle

•• Call for additional Crane, Power & Upfit Options Available

**Photos may include optional equipment – Example Shown on a completed upfit, pricing may differ depending on customer specifications on their build.
•   Please see our inventory page for completed upfits in stock.
•   Please inquire for additional details or build requests.
