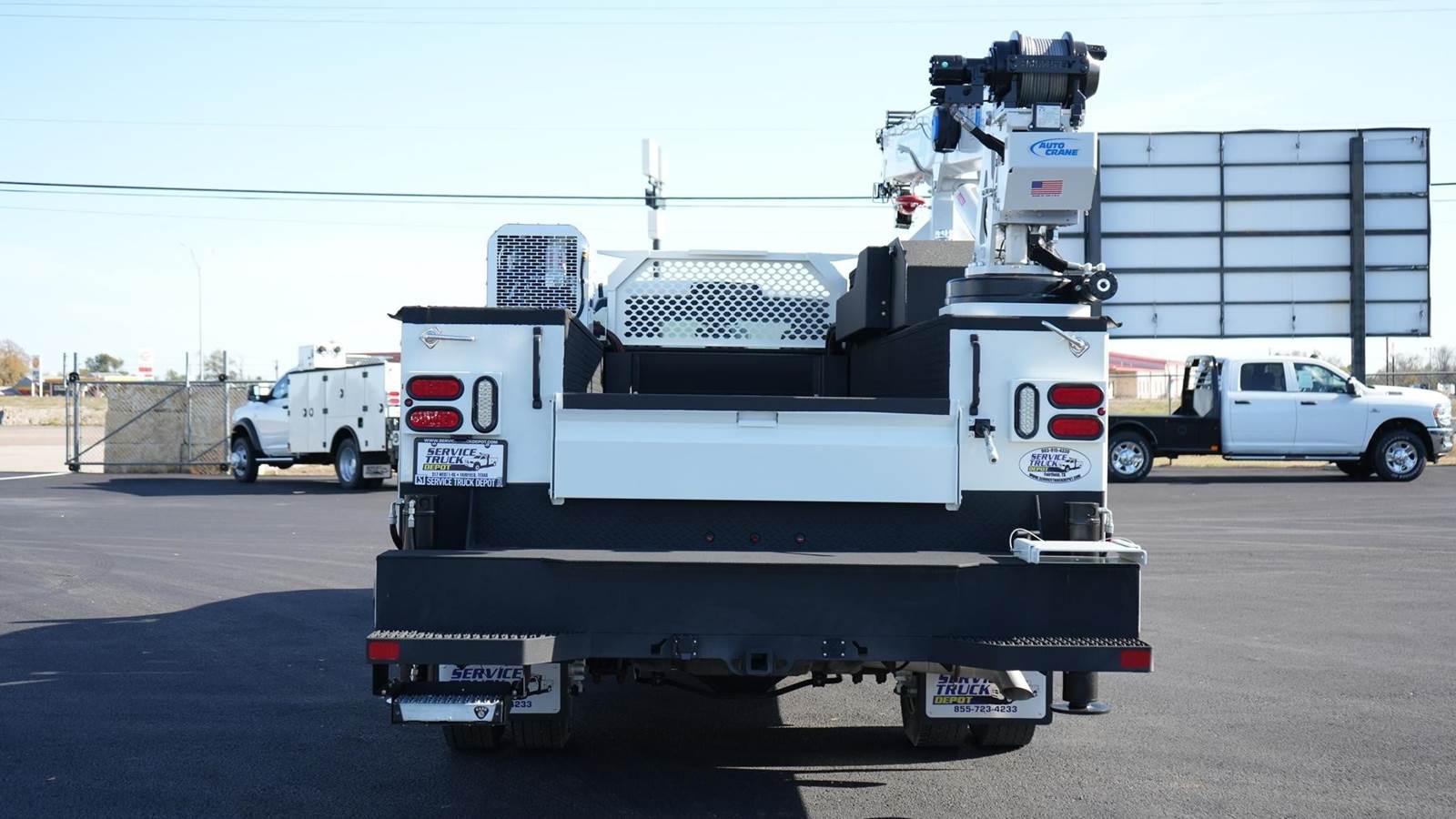

2026 Service Truck Depot BOXCAR PRO 55 Service Truck Body

NEW BOXCAR PRO 55 Work Truck Body
by Service Truck Depot


Key Features:
•   Body: BoxCar Pro 55 by Service Truck Depot

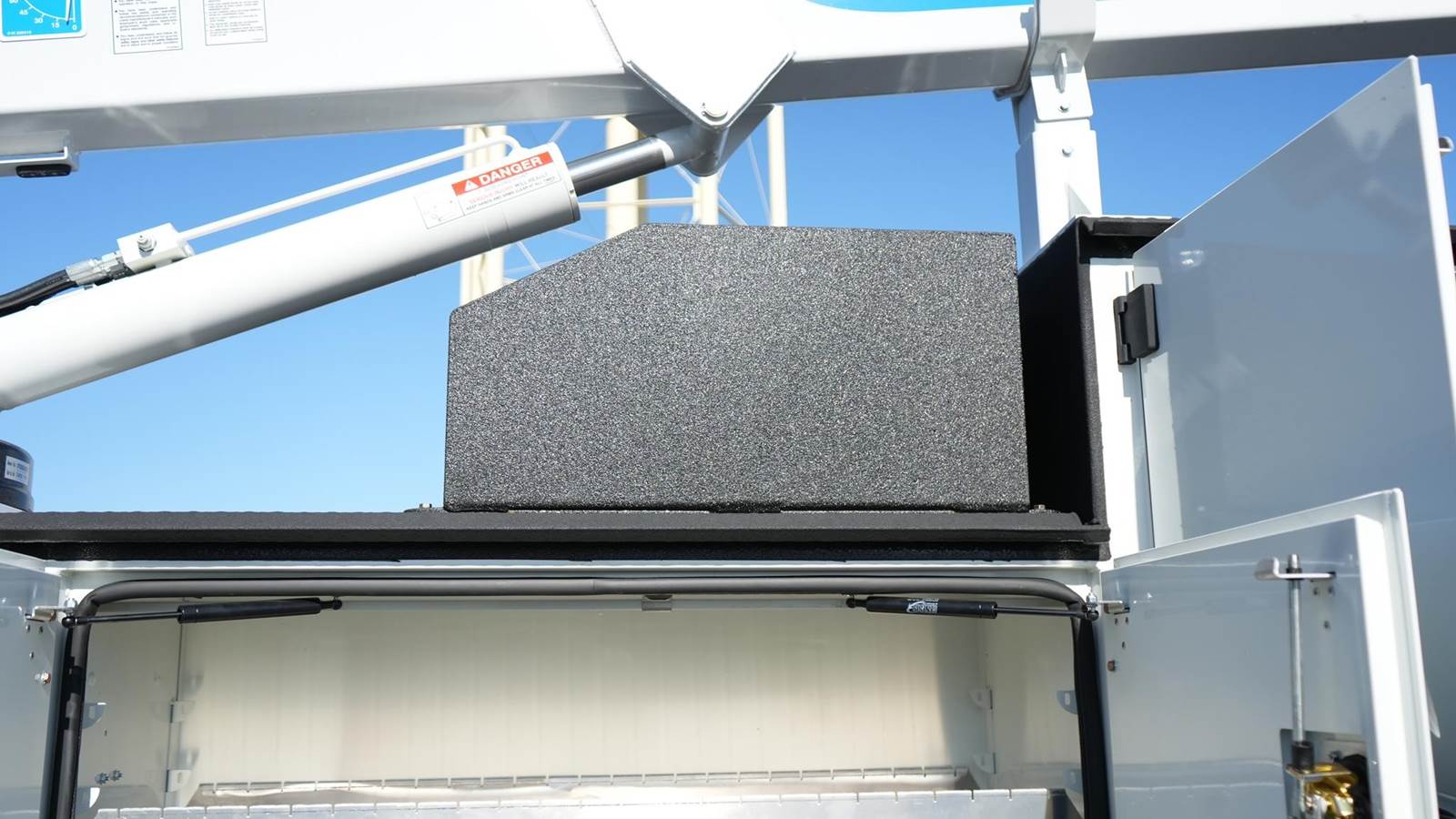

•   Curbside reinforced crane box rated at 55,000 ft/pds will handle the newer 8500# cranes
•   100% baked on powder coated with a zinc rich primer to maximize road protection for all climate types to preserve your asset

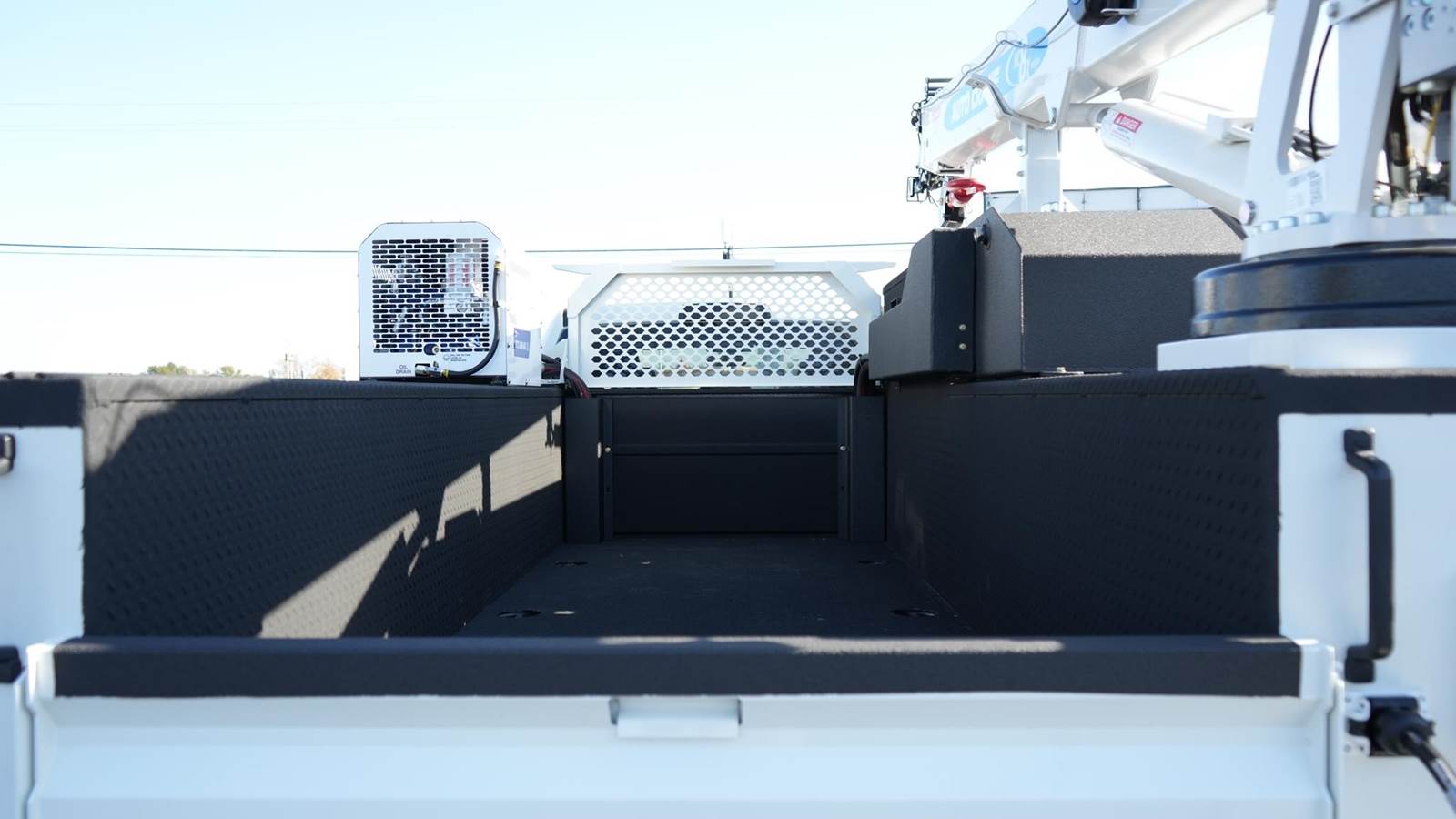

•   Durable Bed Liner on all wear surfaces
•   Best in Class Military grade undercoating for additional protection
•   Heavy duty Grab handles

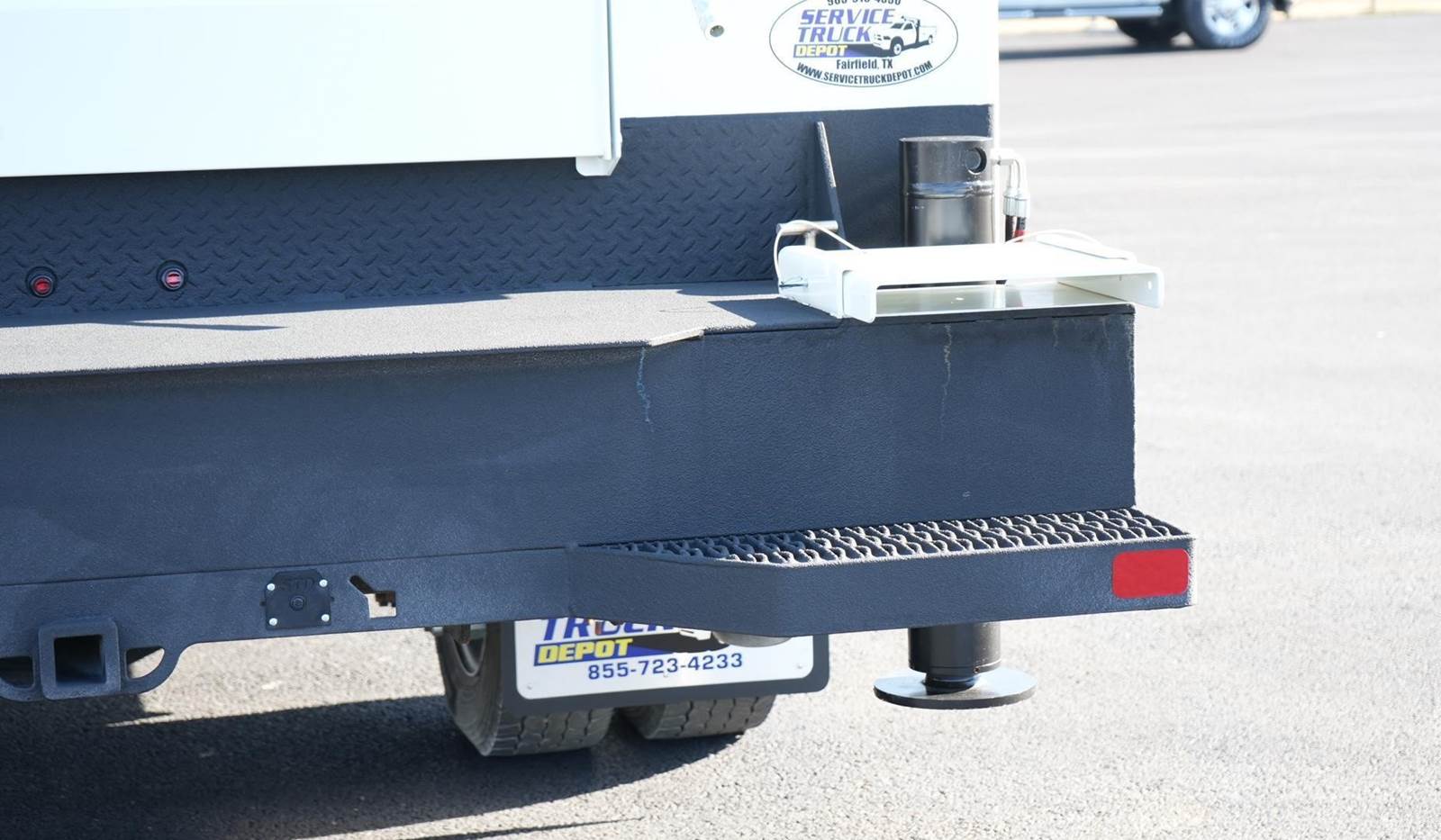

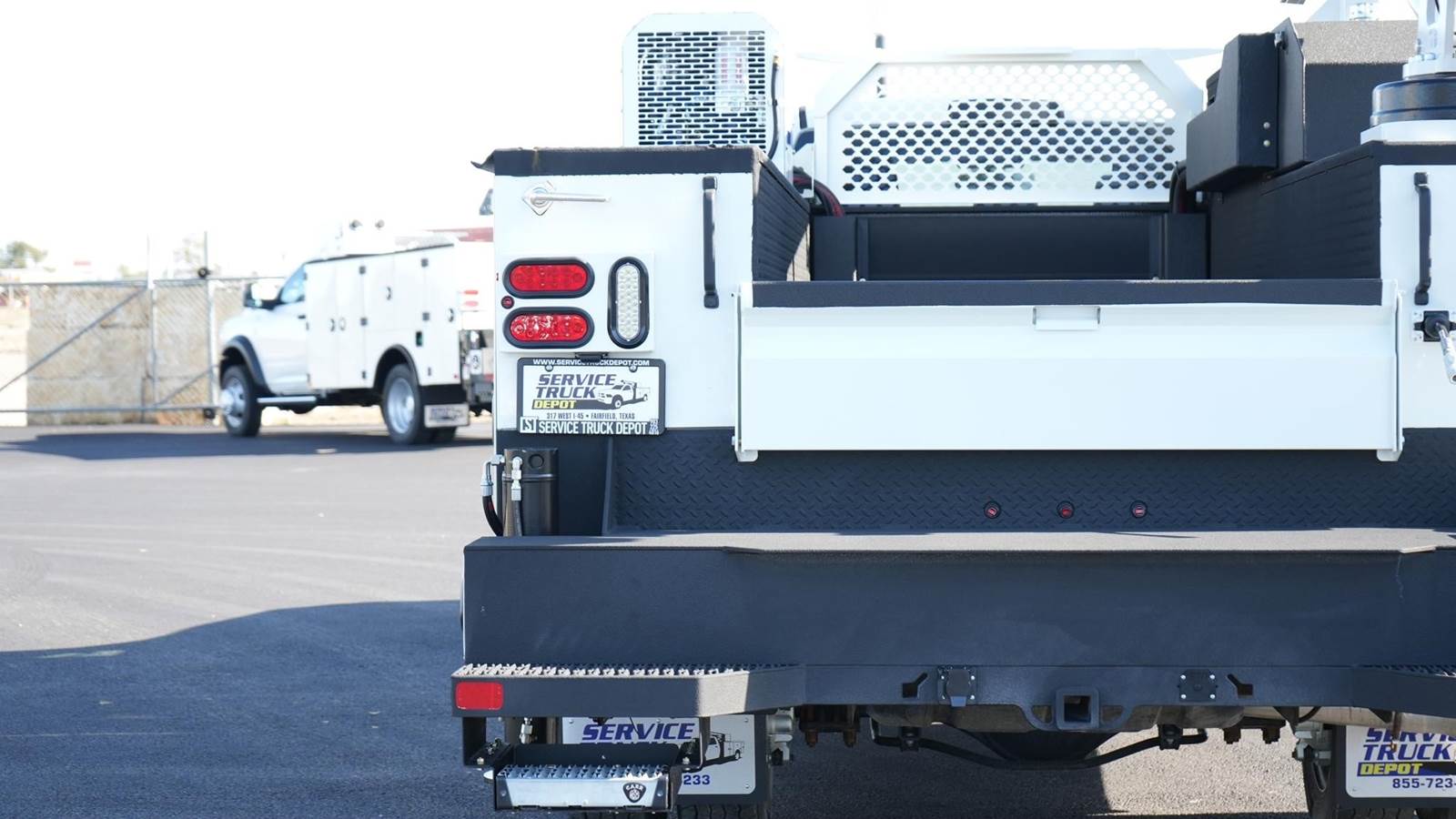

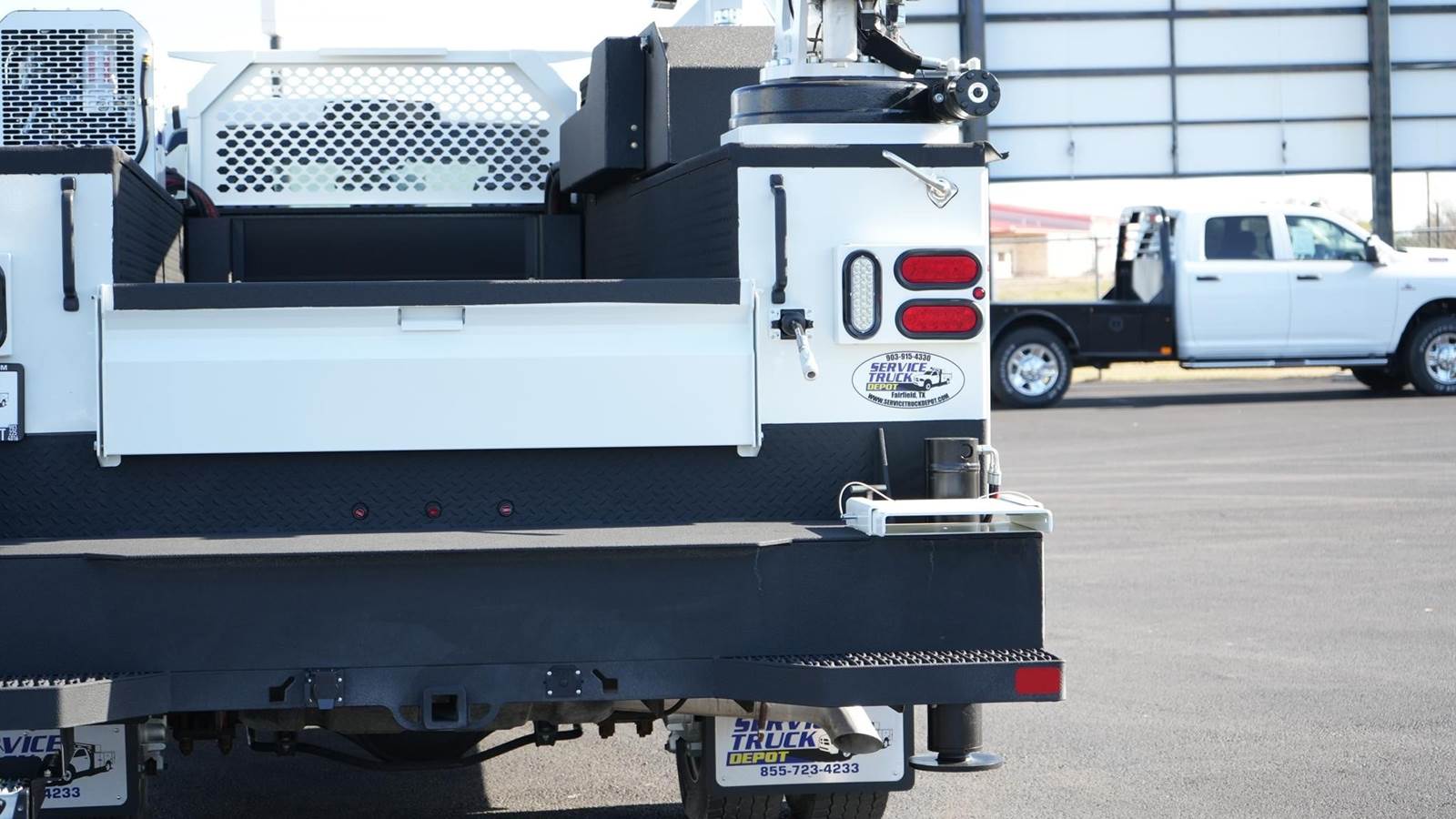

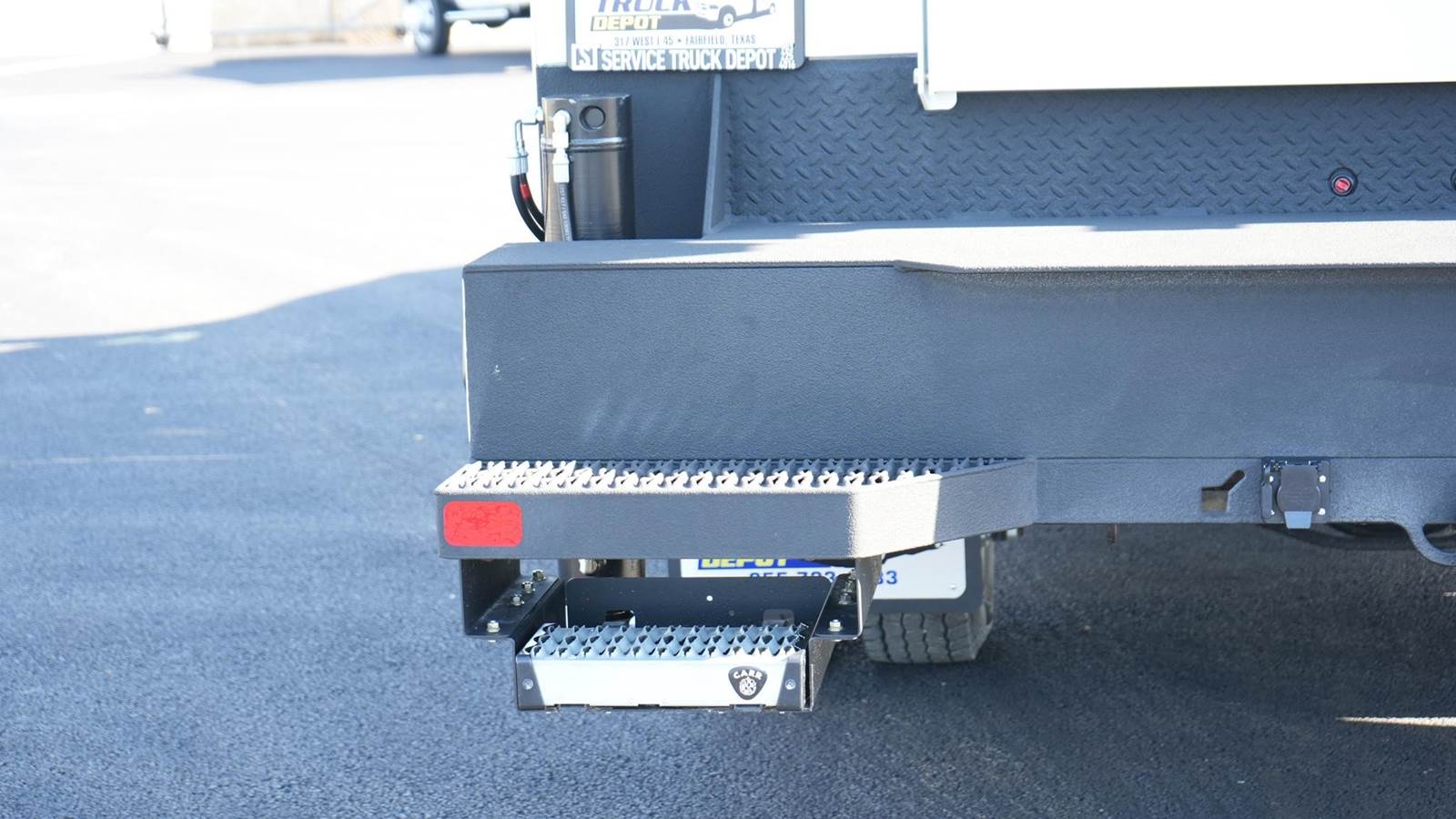

•   Workbench Bumper provides a work surface, a vise plate and two steps
•   Heavy-duty Vise Plate
•   Headache rack

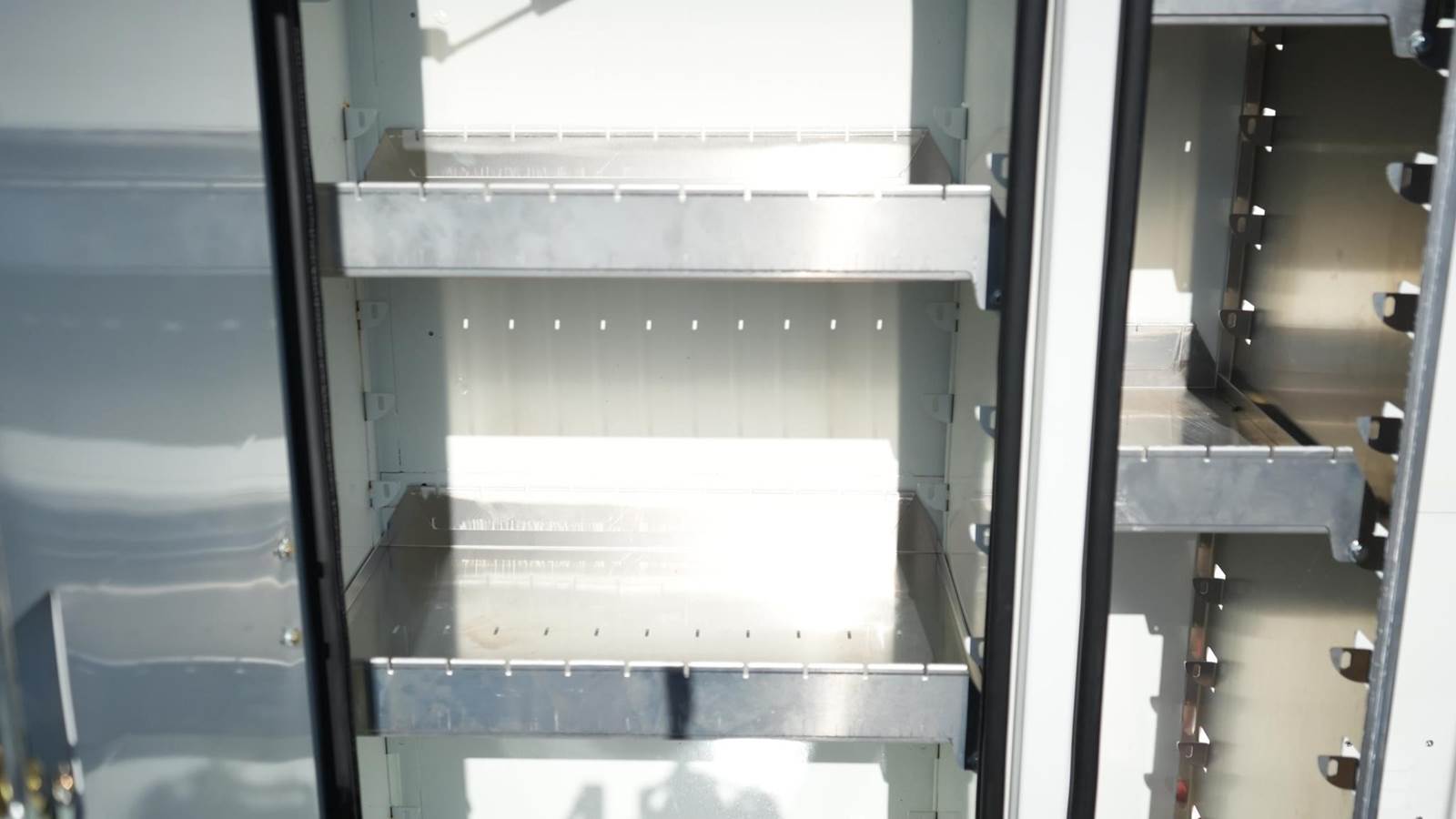

•   Unibody Aluminum Door System with Interchangeable parts
•   Best in Class Adjustable top rail to easily mount accessories and equipment
•   11 Gauge floorplate rigid design for increase strength of the body. (Others Standards are a lighter 12 Gauge)
•   (6) Heavy duty D Ring tie downs in the bed rated for 6000 lbs each
•   Applicable chassis 14,000-22,900 GVWR
•   The Body alone is 3322 and the Bumper is 445 for a total of 3767
•   21 inch heavy duty work bumper
•   New & Improved Safety Equipment Track System

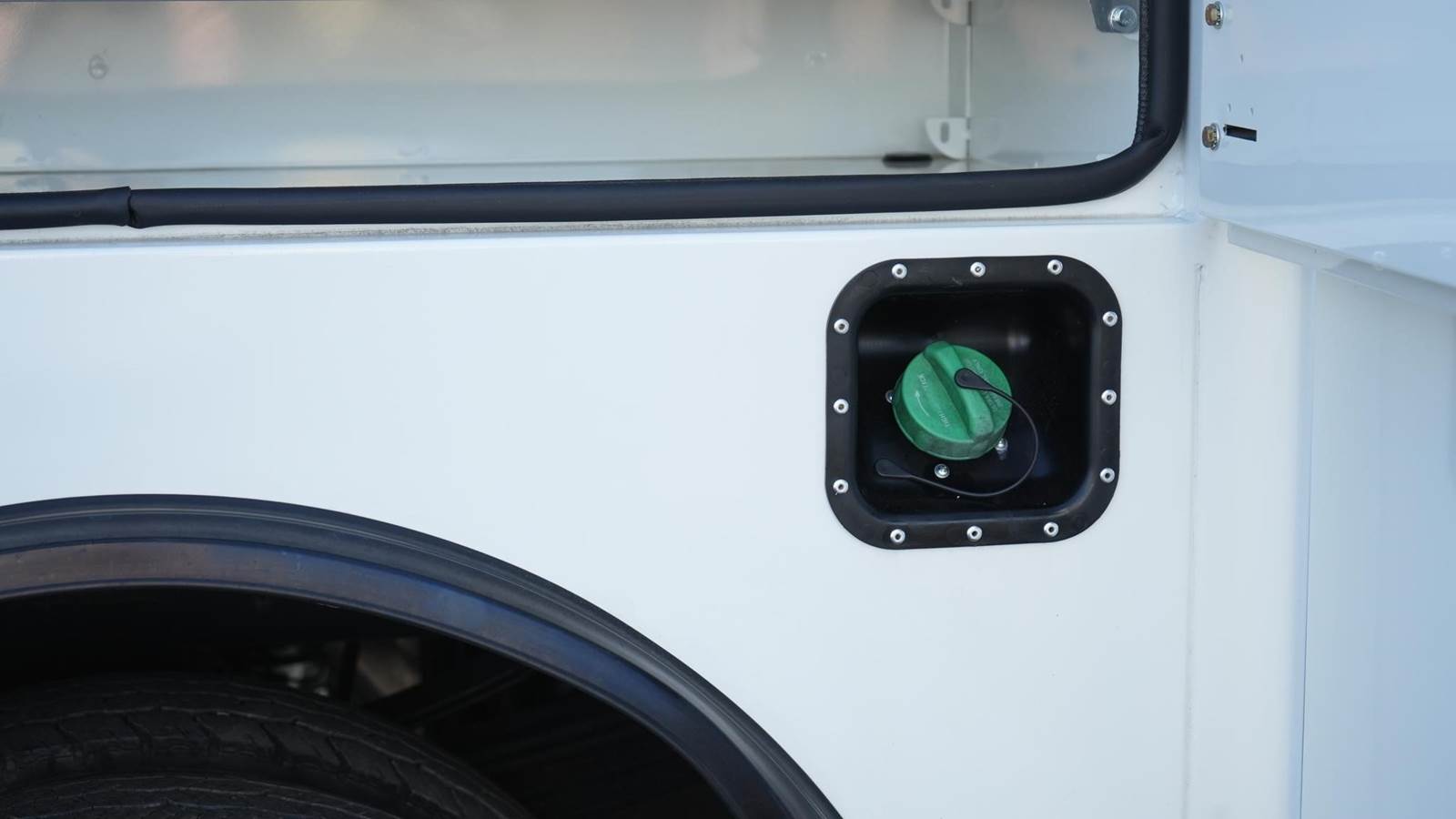

•   Custom Hydraulic Tank

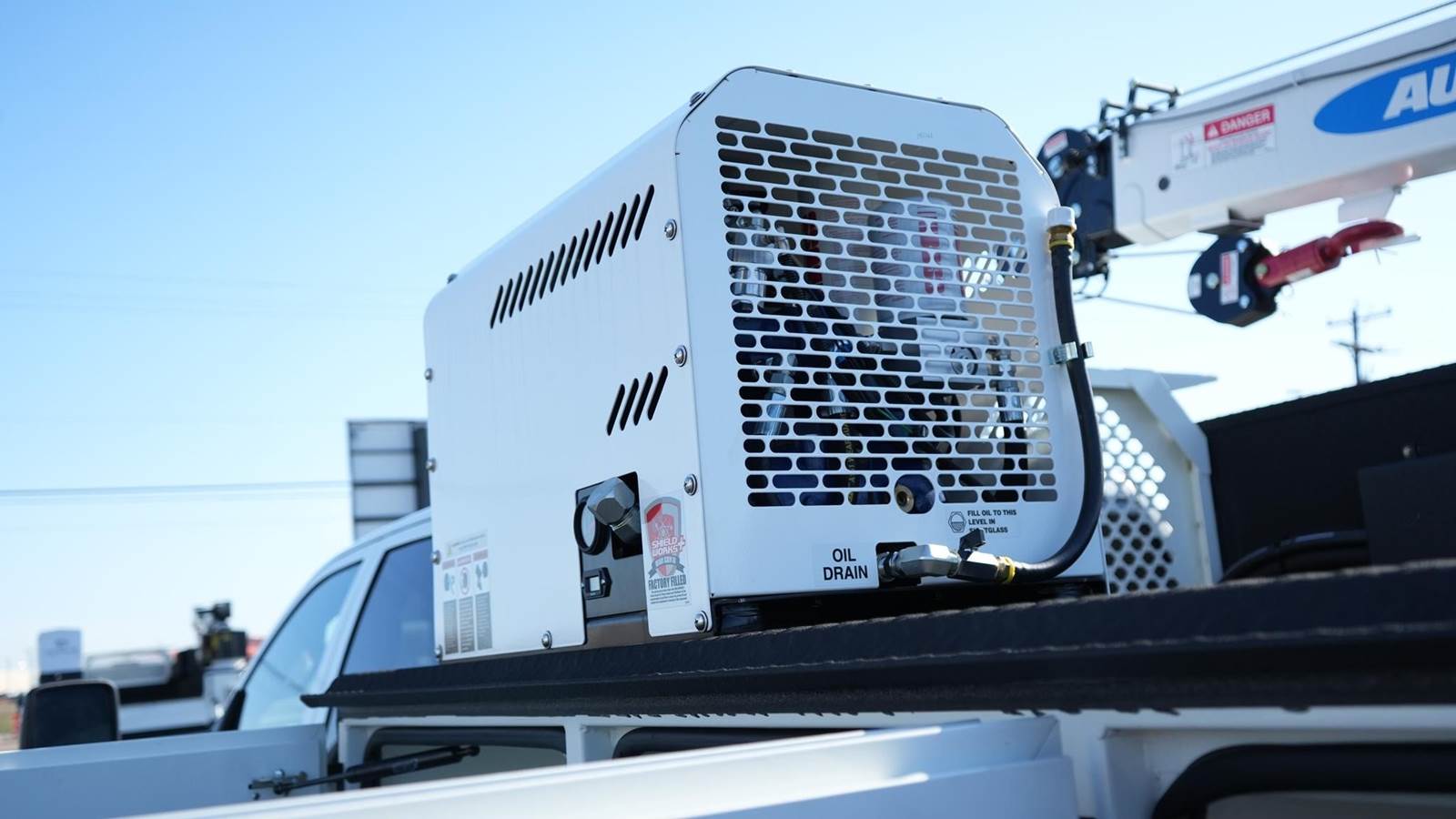

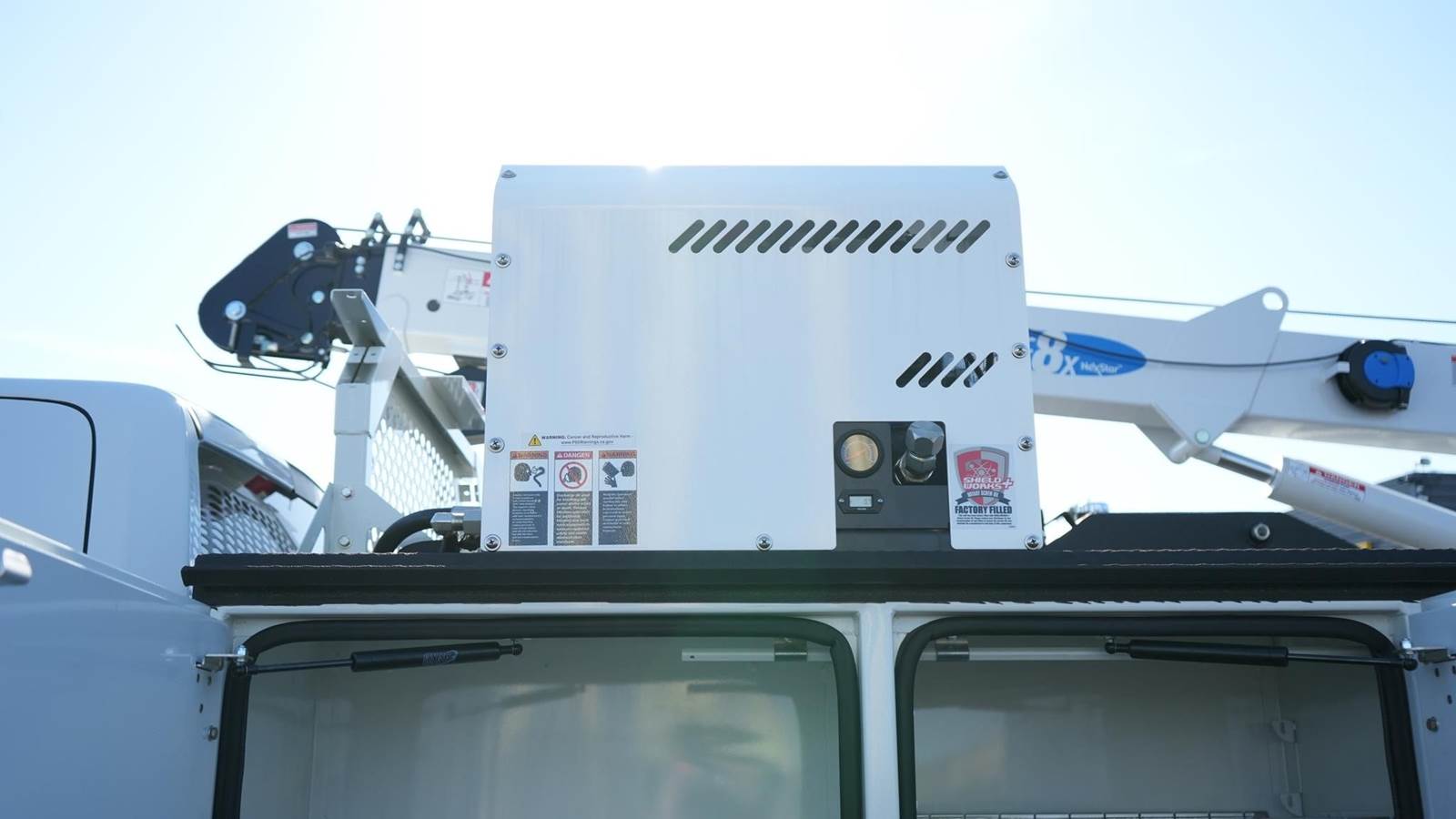

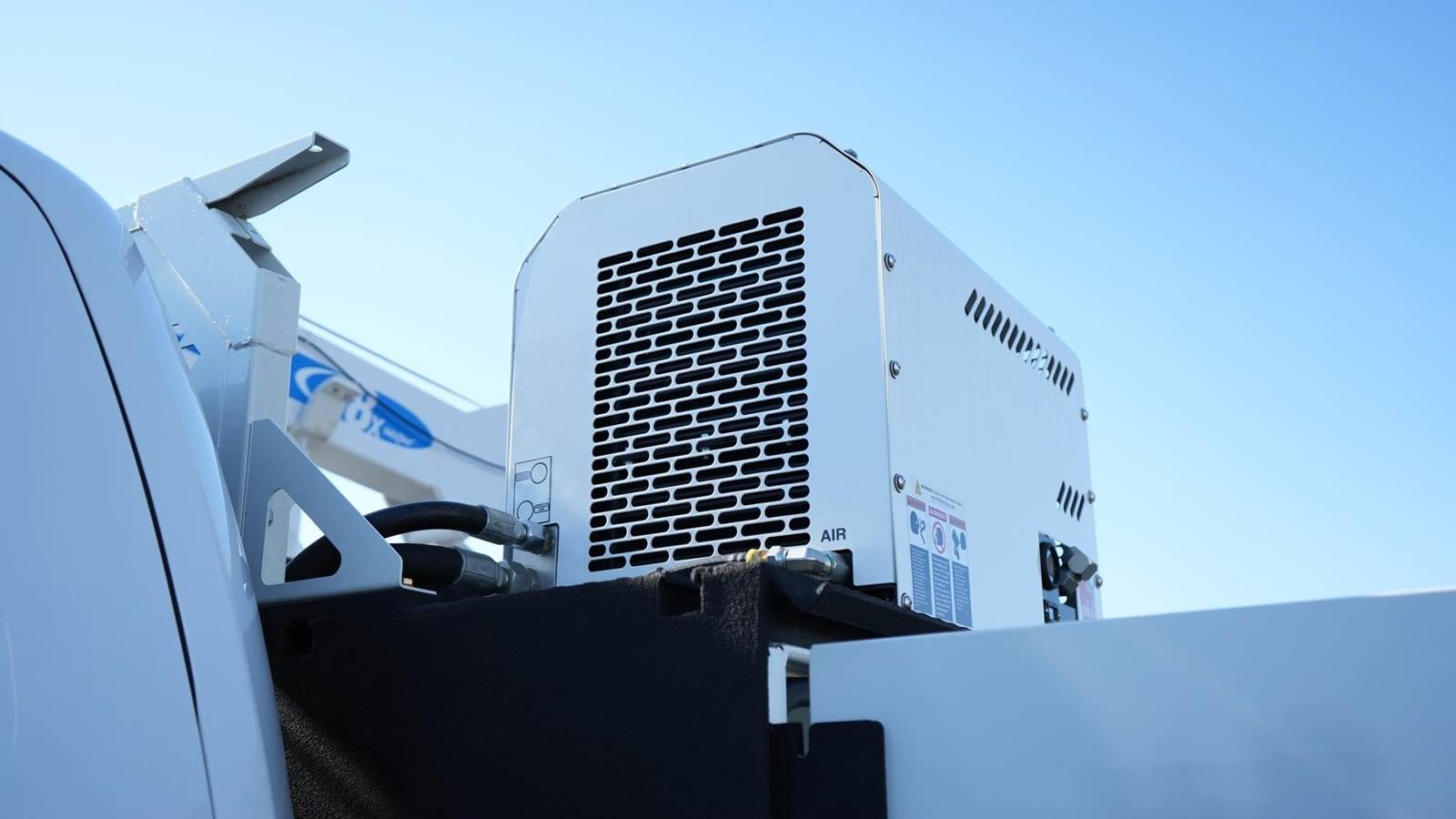

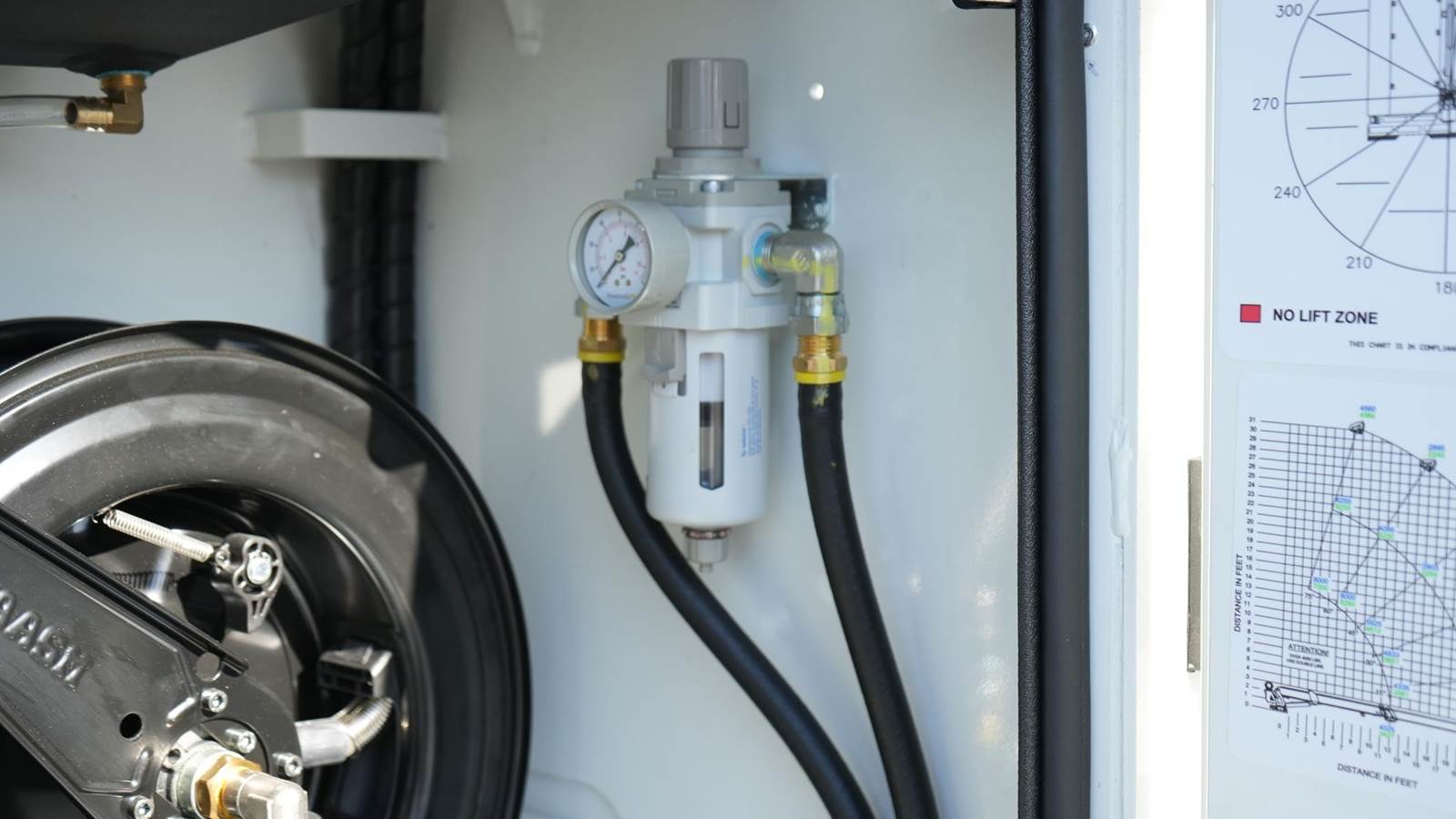

BoxAir RS40 Rotary Screw Air Compressor by Service Truck Depot

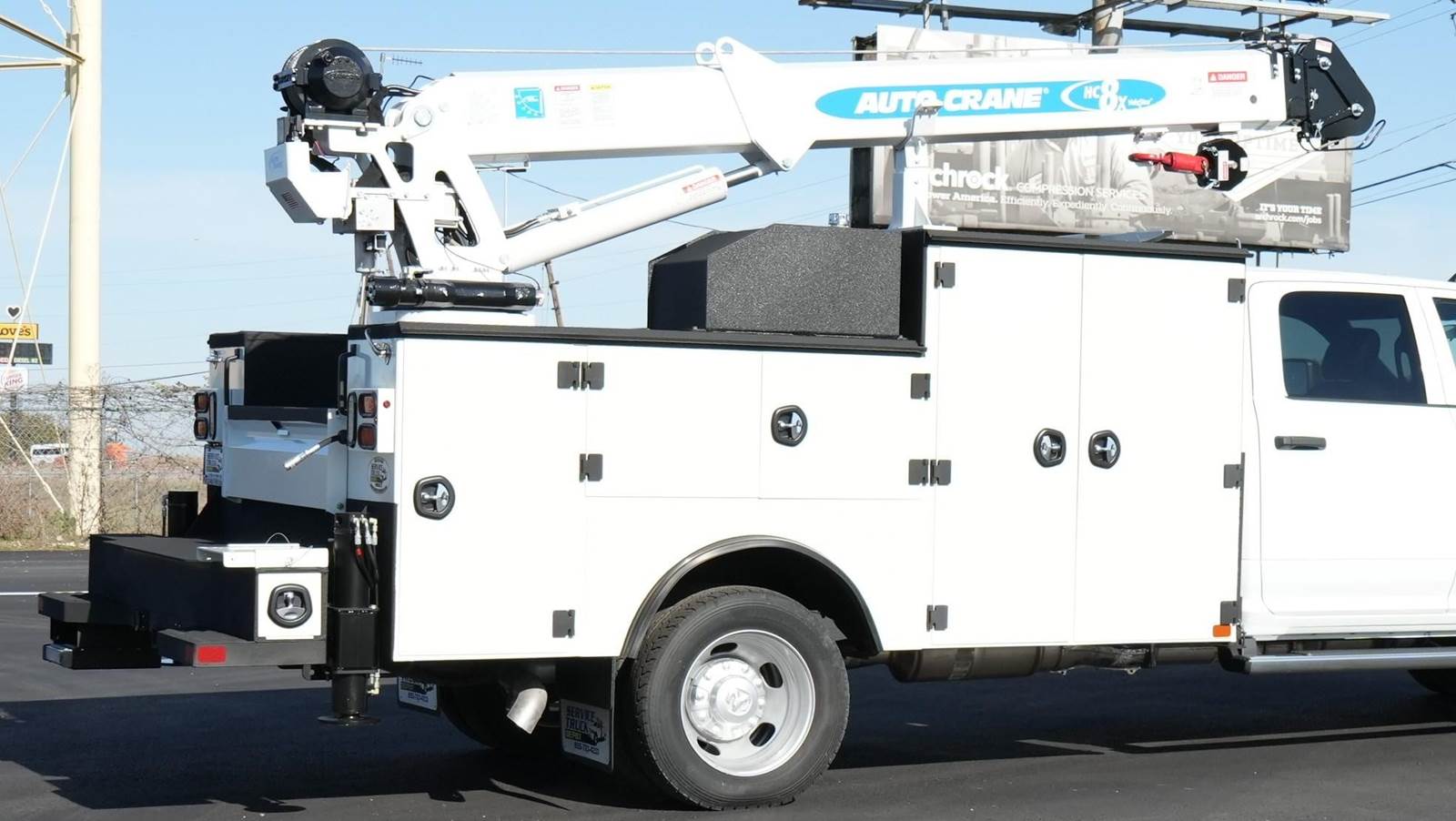

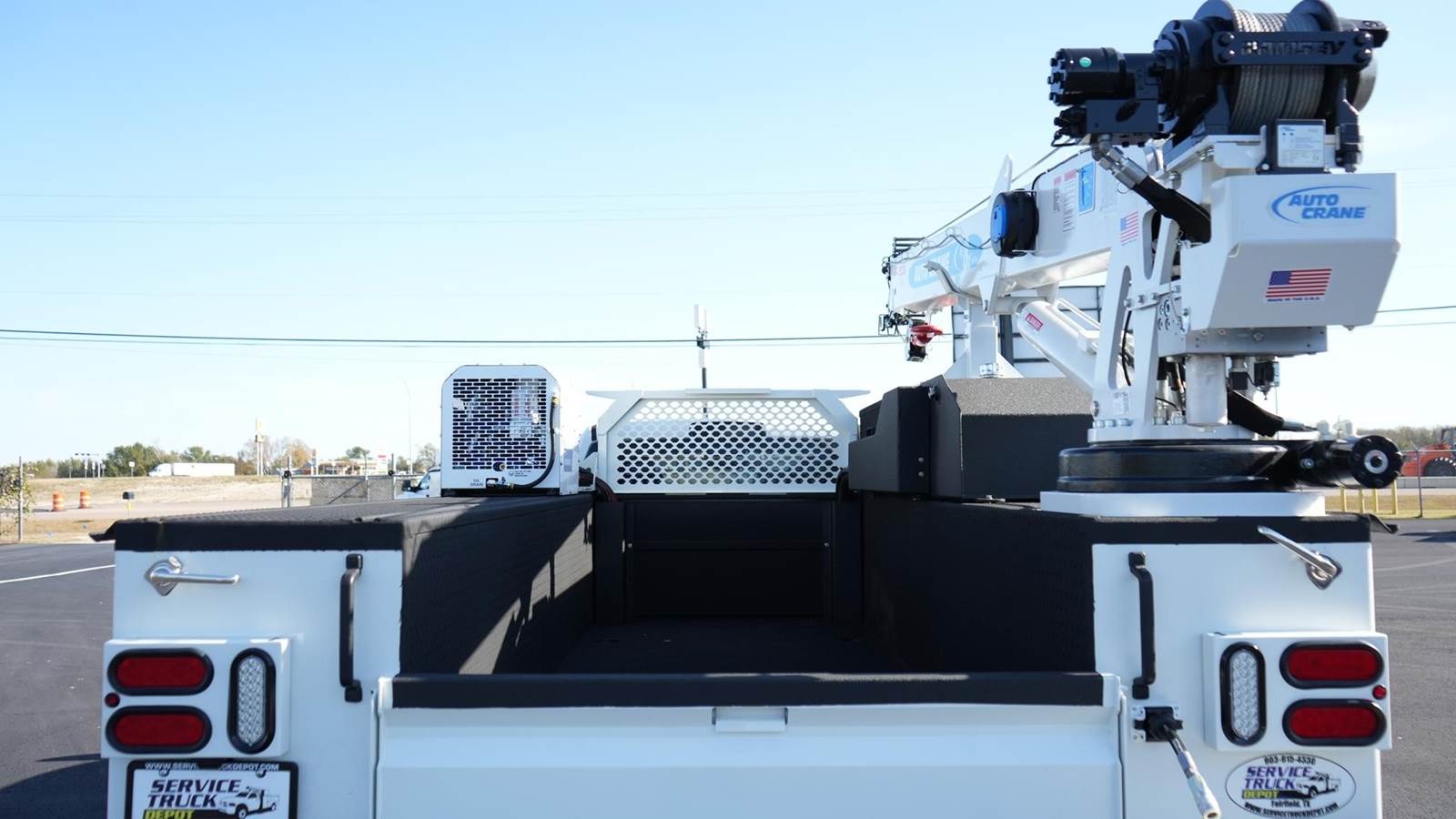

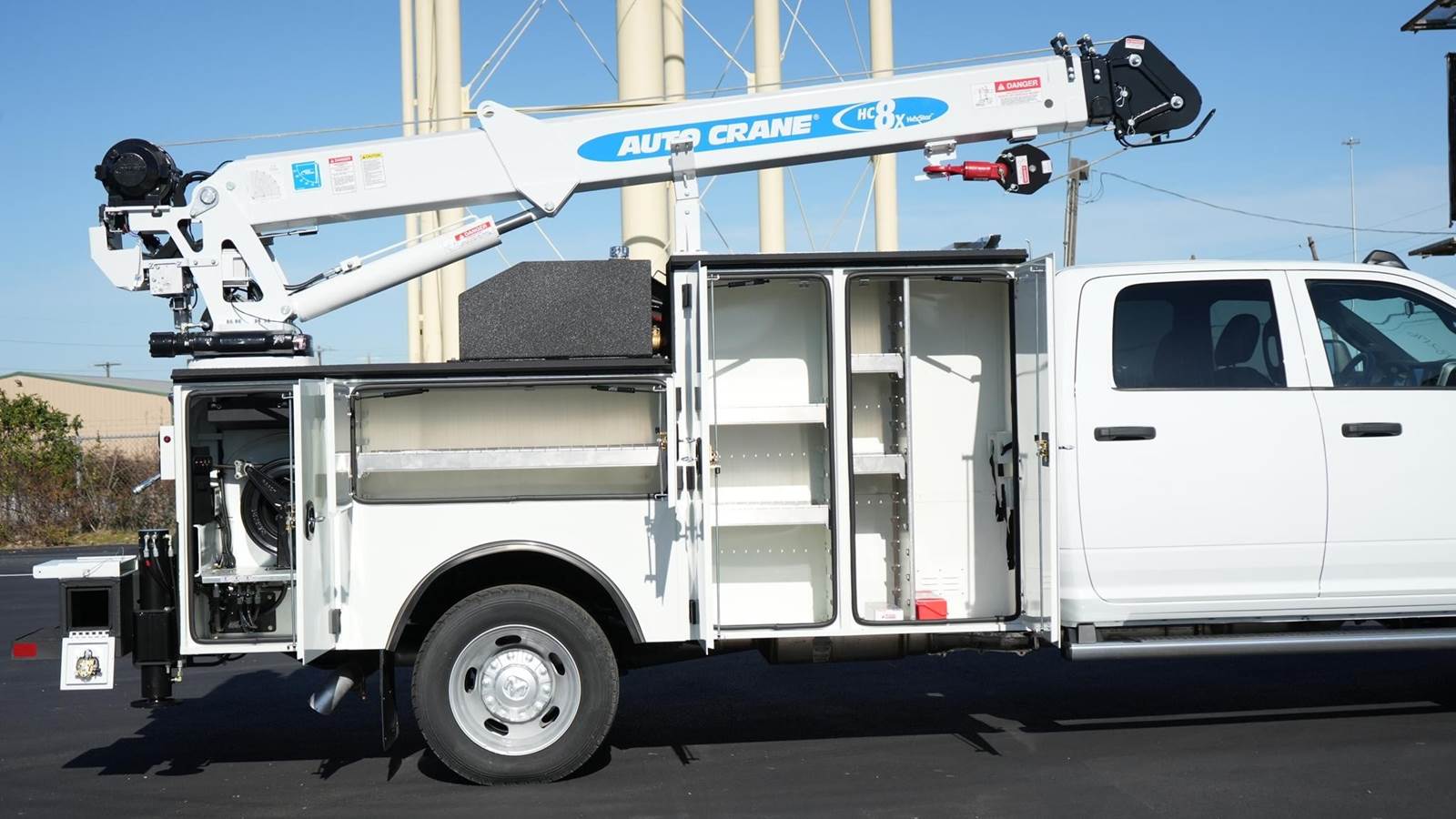

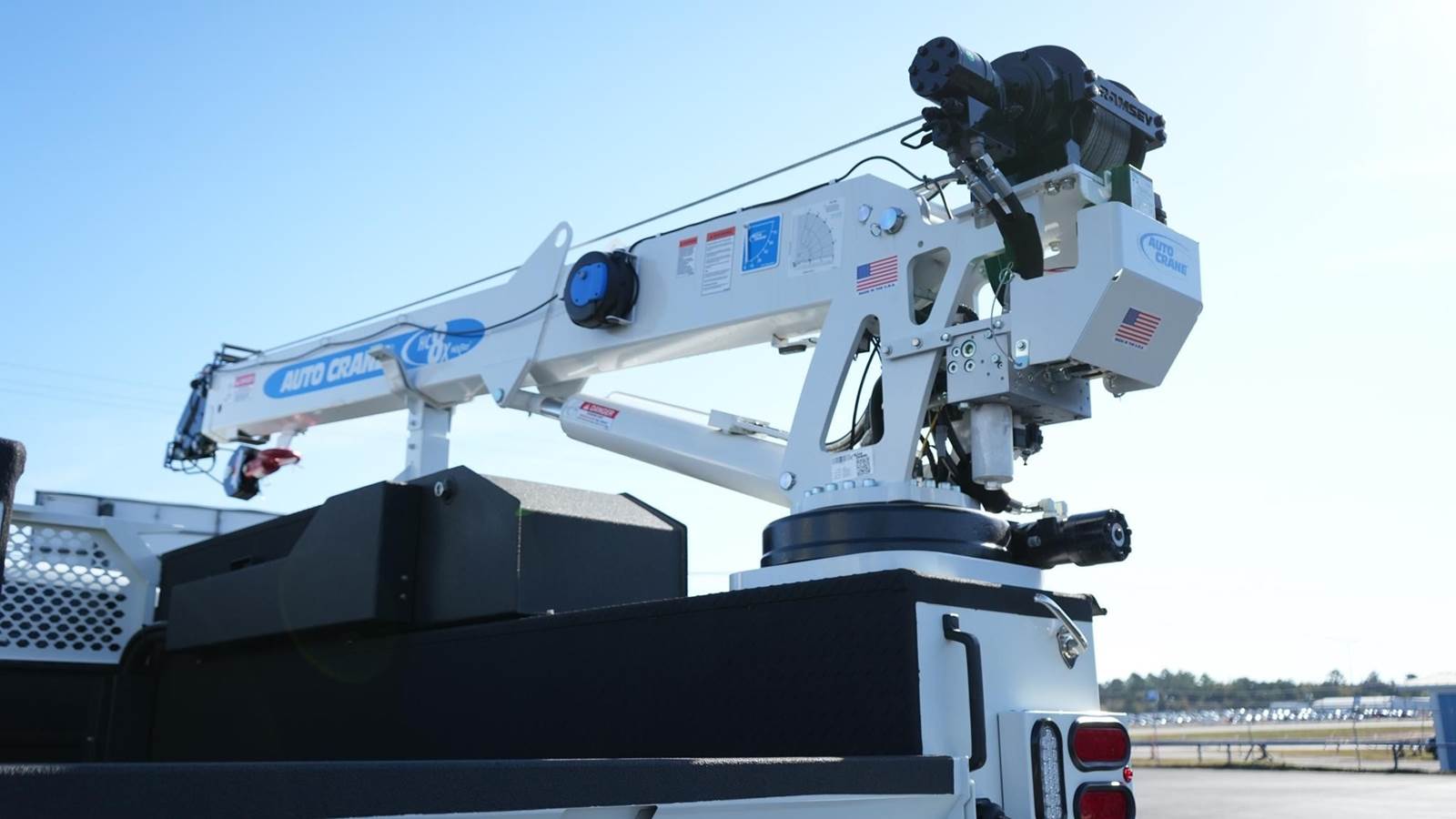

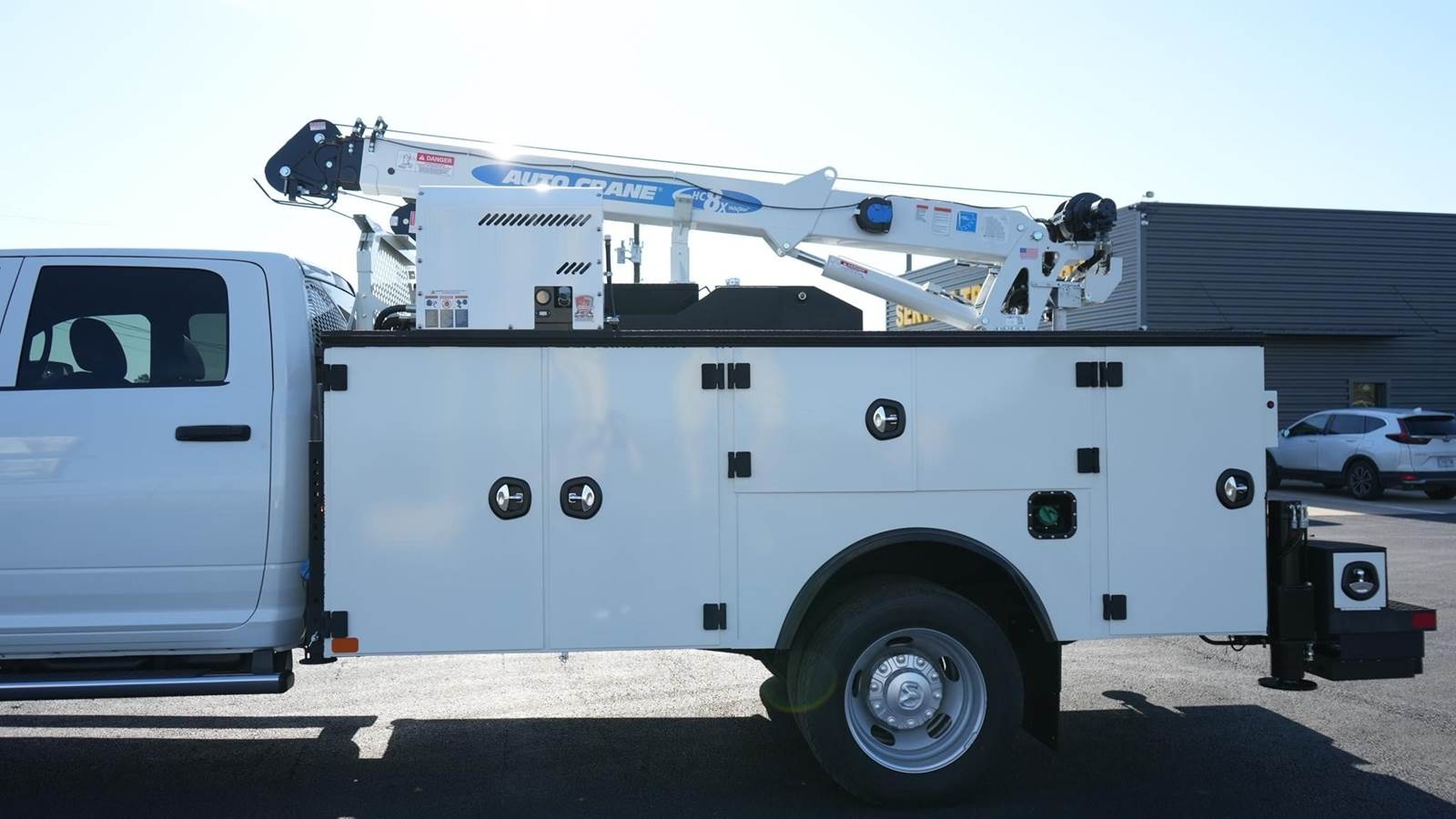

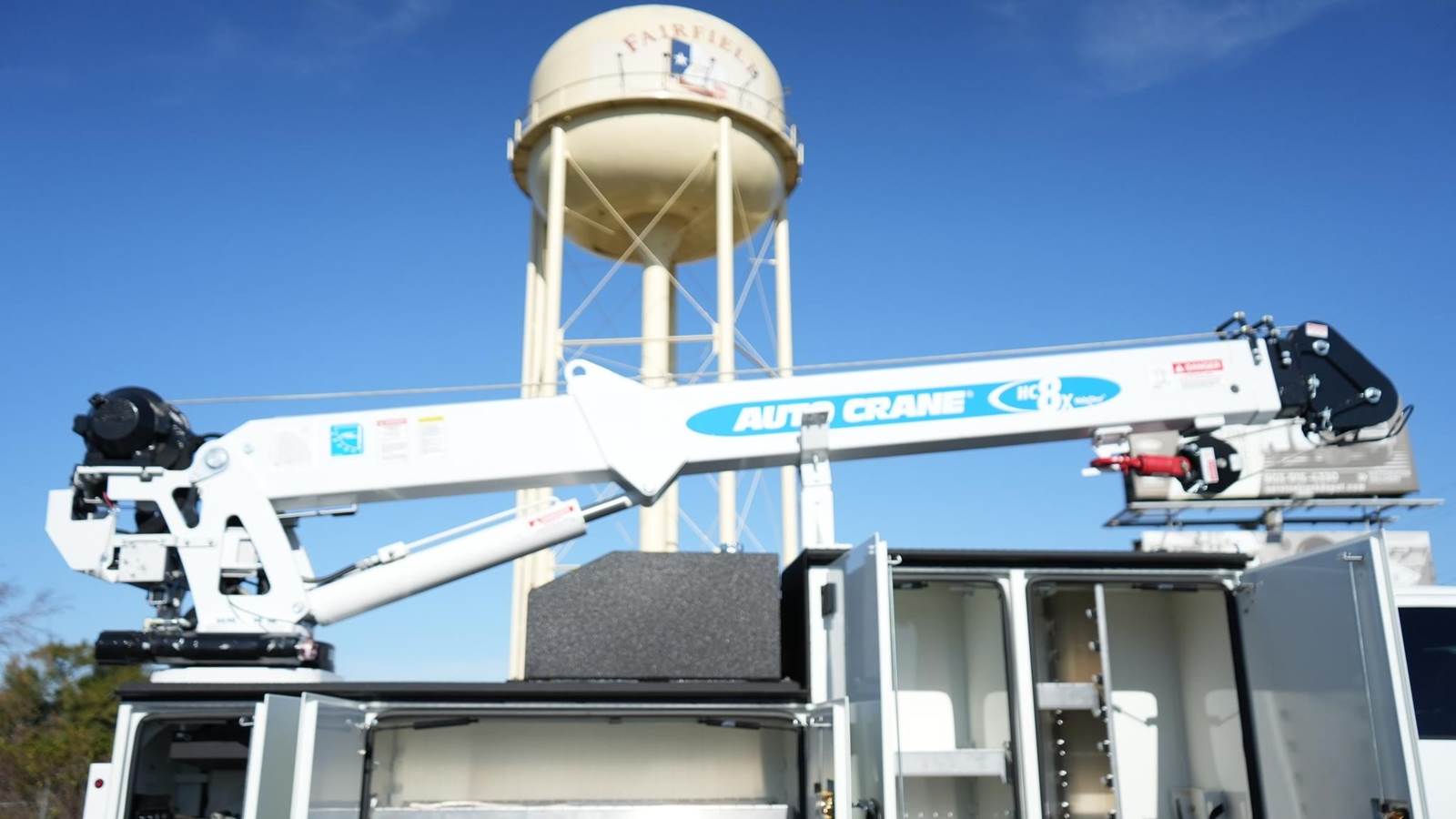

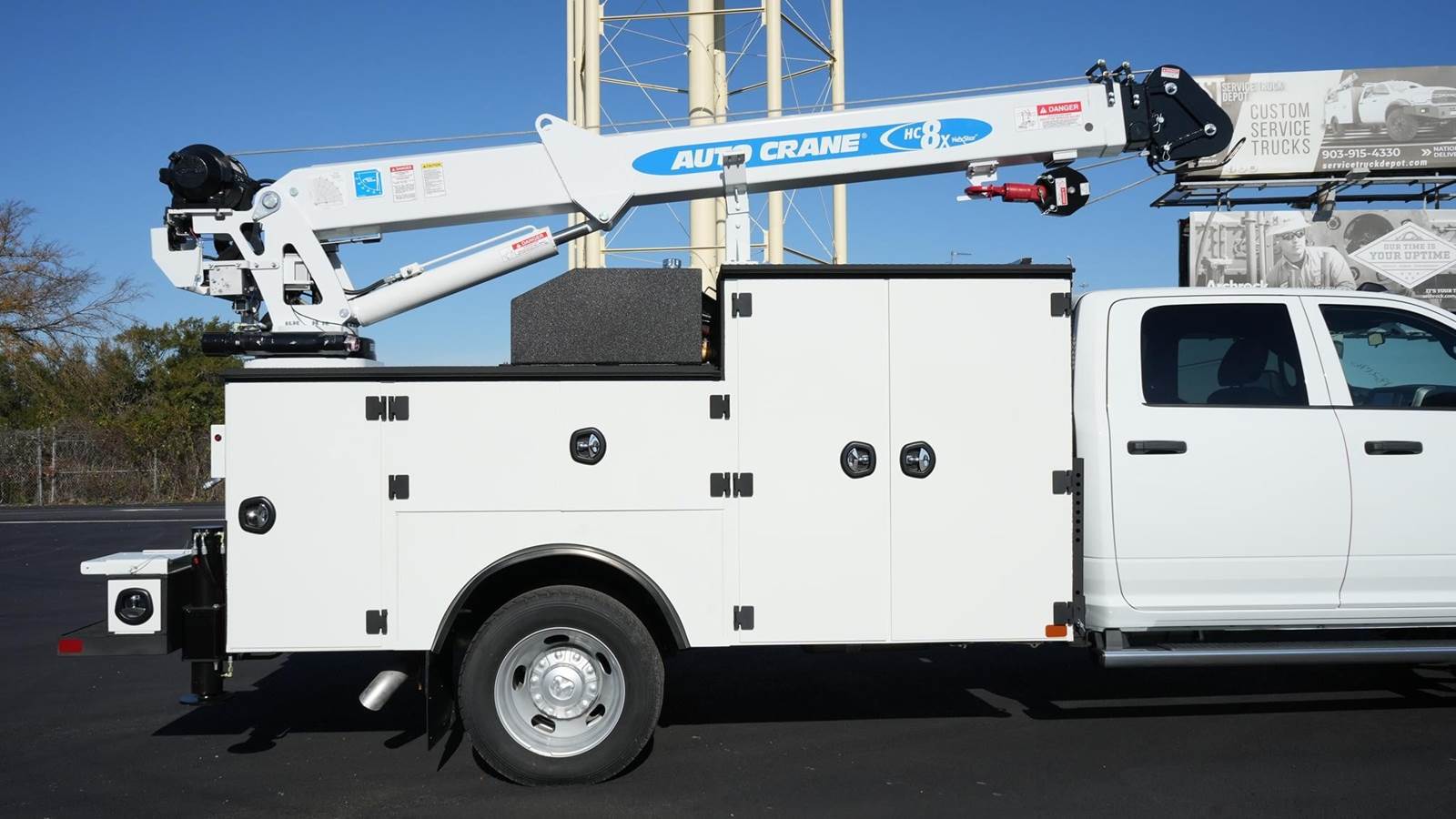

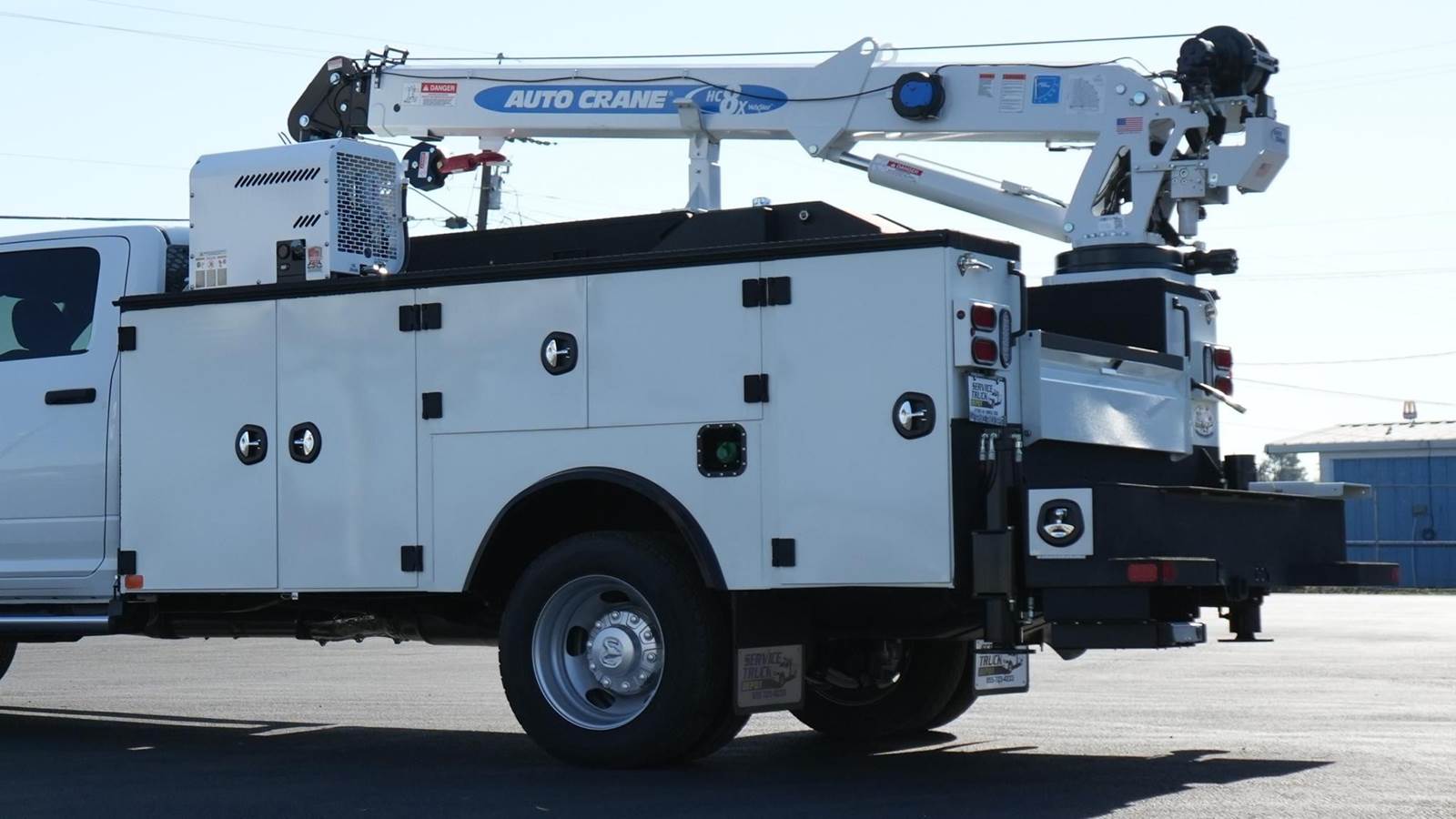

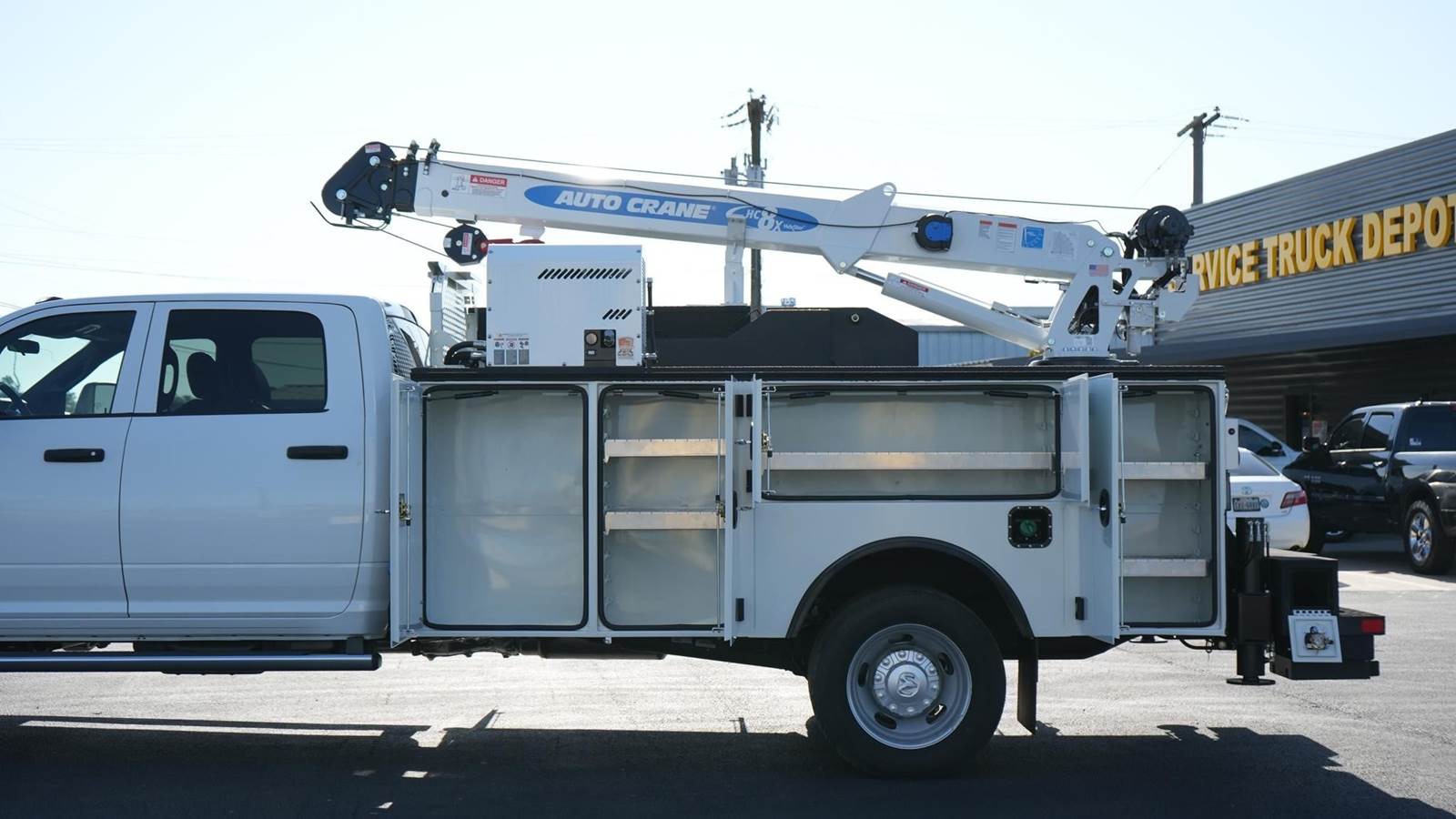

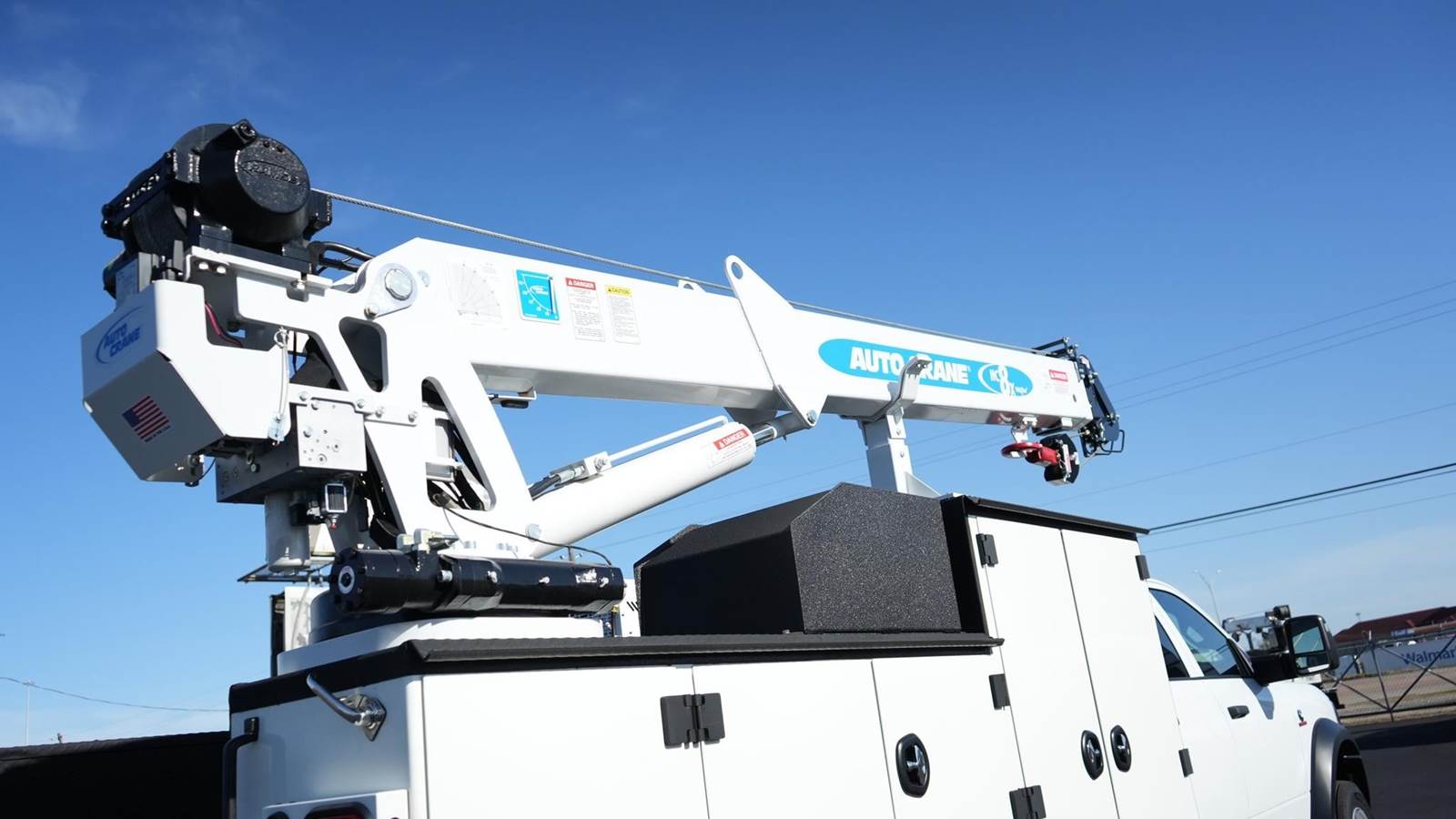

This example is shown with an Auto Crane HC-8X NEXSTAR 8K lb Crane

Features and Benefits of NexStar™ Models
•   Proportional control of multiple functions simultaneously and independently
•   Adjust any function anytime to a different speed, for total control over the load
•   Level sensors monitor the angle of the truck and crane with the NexStar FM remote system on a Titan® crane body
•   Prevents operation in unsafe, unlevel conditions
•   Automatic stop at 100% load capacity
•   Keeps people, equipment, and loads safer
•   Adjustable speed settings; from 25% to 100%
•   Enables fine tuning of speeds for total control over the load
•   The NexStar FM remote system receiver displays load-monitoring and diagnostic readouts in plain English
•   No codes to look-up or memorize; operator views precise percentage load capacity
•   NexStar available with either tethered or fully-featured wireless remote options
•   Your choice for preferred control method
•   Transmitter is IP66 rated and CE certified
•   Sealed and water protected for maximum durability
Requirements

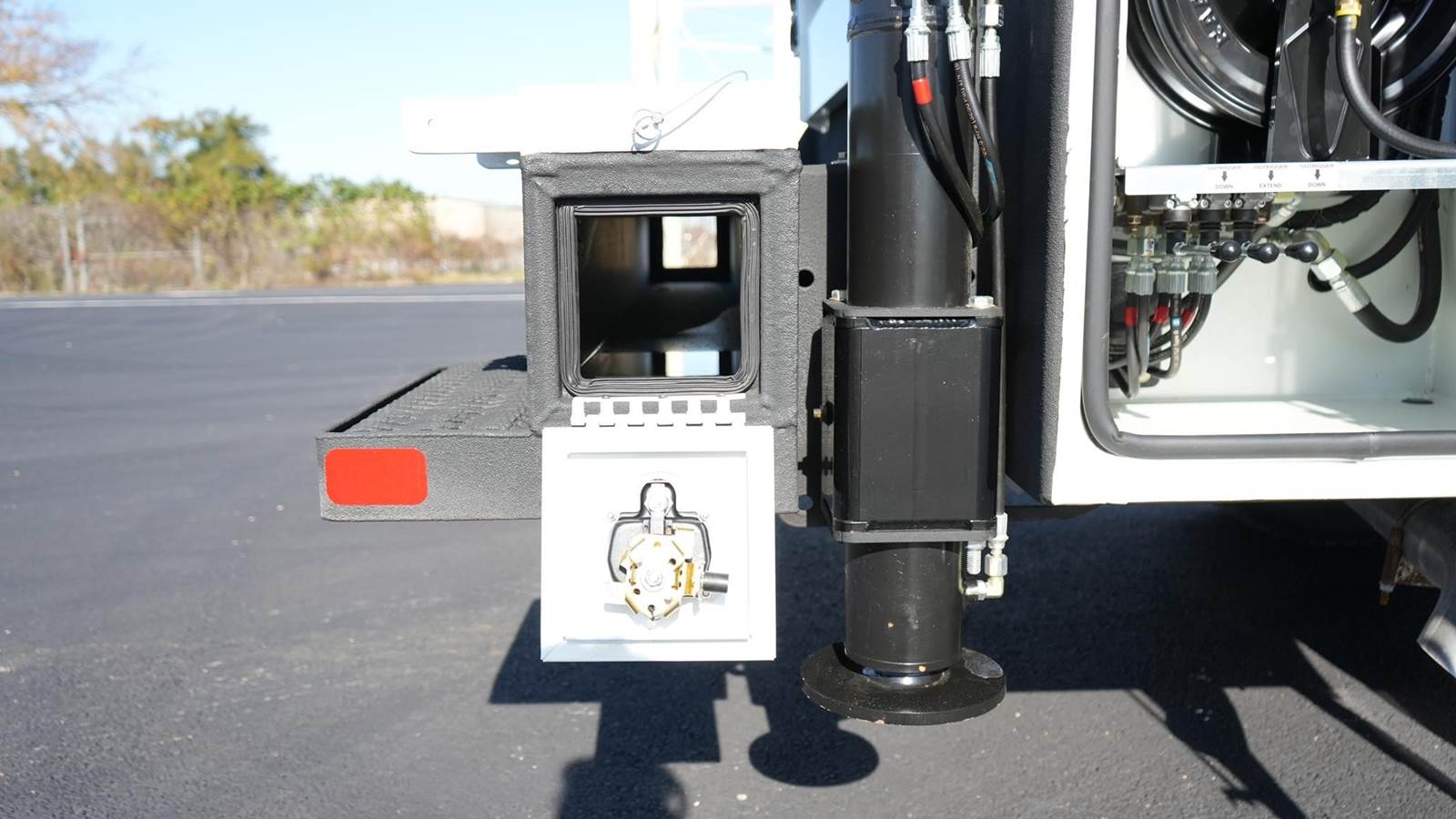

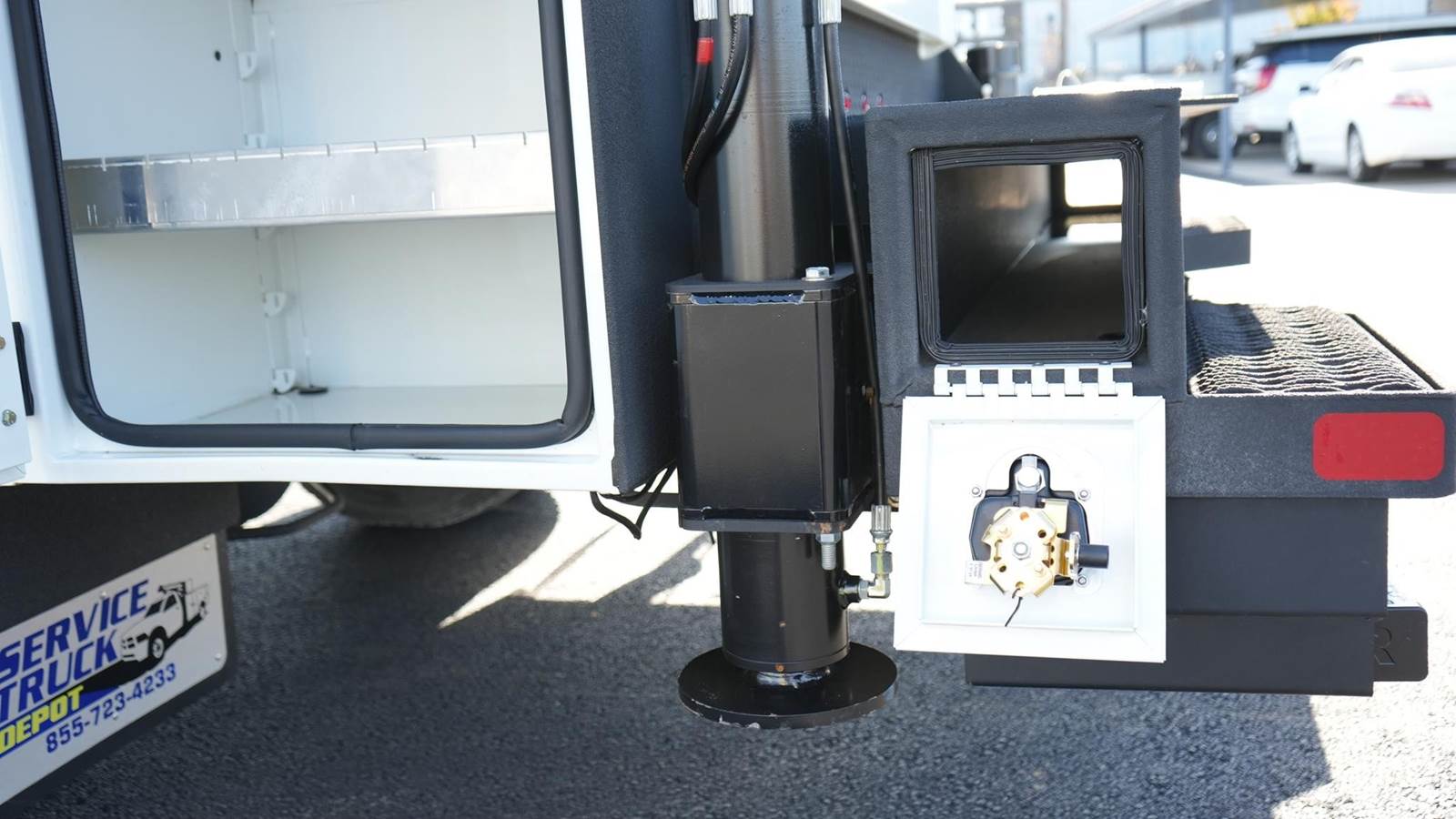

•   Truck must be equipped with 738493-000 outriggers or equal
•   19,500 lbs. GVWR minimum chassis requirement. (Does not include bodies or accessories)
•   Minimum 360,000 in.-lbs. RBM
•   Engine tachometer and throttle control required for proper crane installation
Control Options:
•   NexStar™ 4 wireless (tether option)


A FEW EXAMPLE UPFIT OPTIONS:
• BoxAir RS 40 Air Compressor
• Hydraulic tank (in-bed) or Custom Hydraulic tank

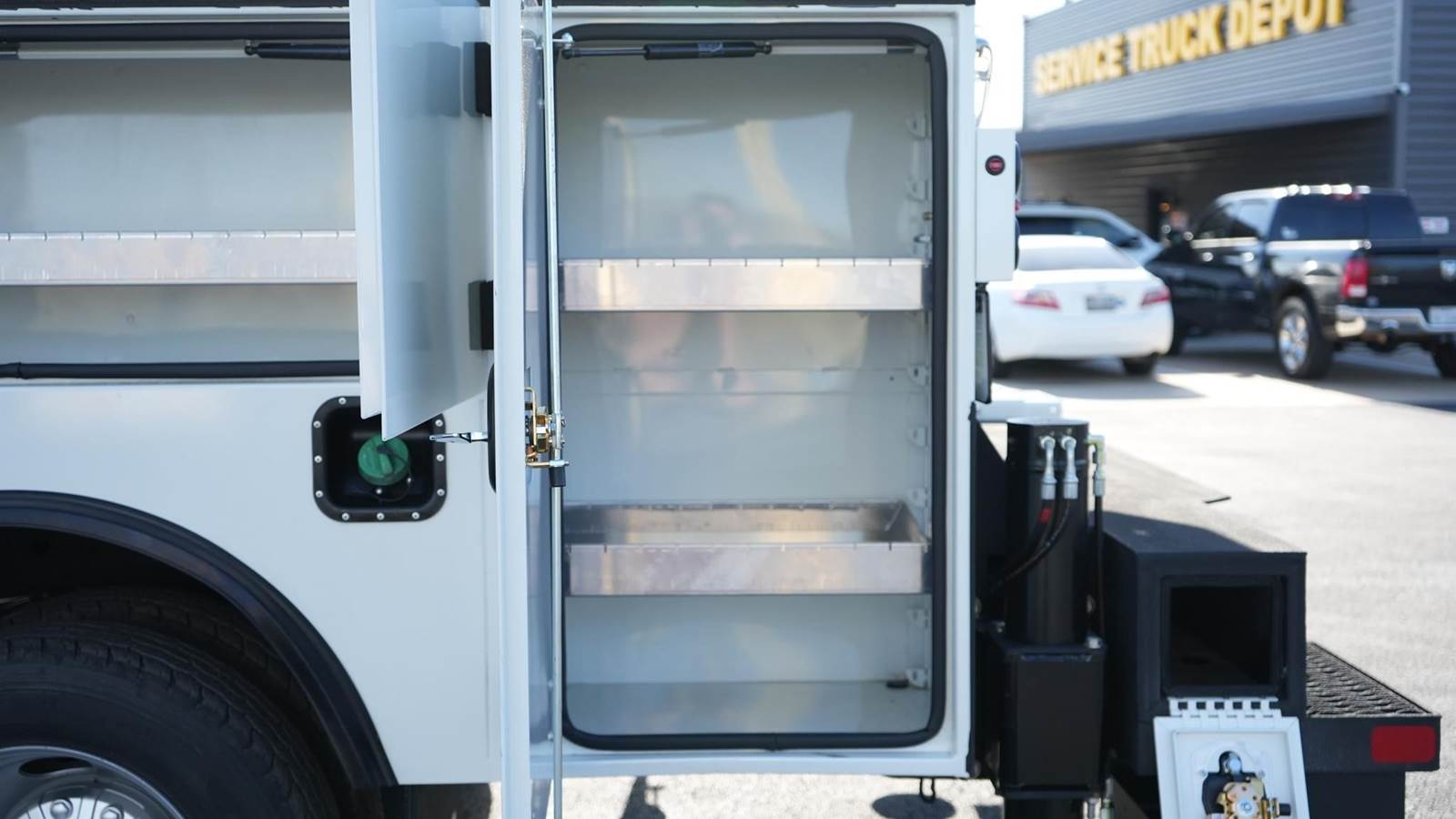

• Drawered Toolbox - Streetside 1st Compartment (1)
• Drawered Toolbox - 2nd Compartment (1)
• E-Track System with Divider
• Wilton 746 Vise
• Power Inverter Kit
• Work Lights (4)
• LED Compartment Lighting
• LED Strobe Lights (4)

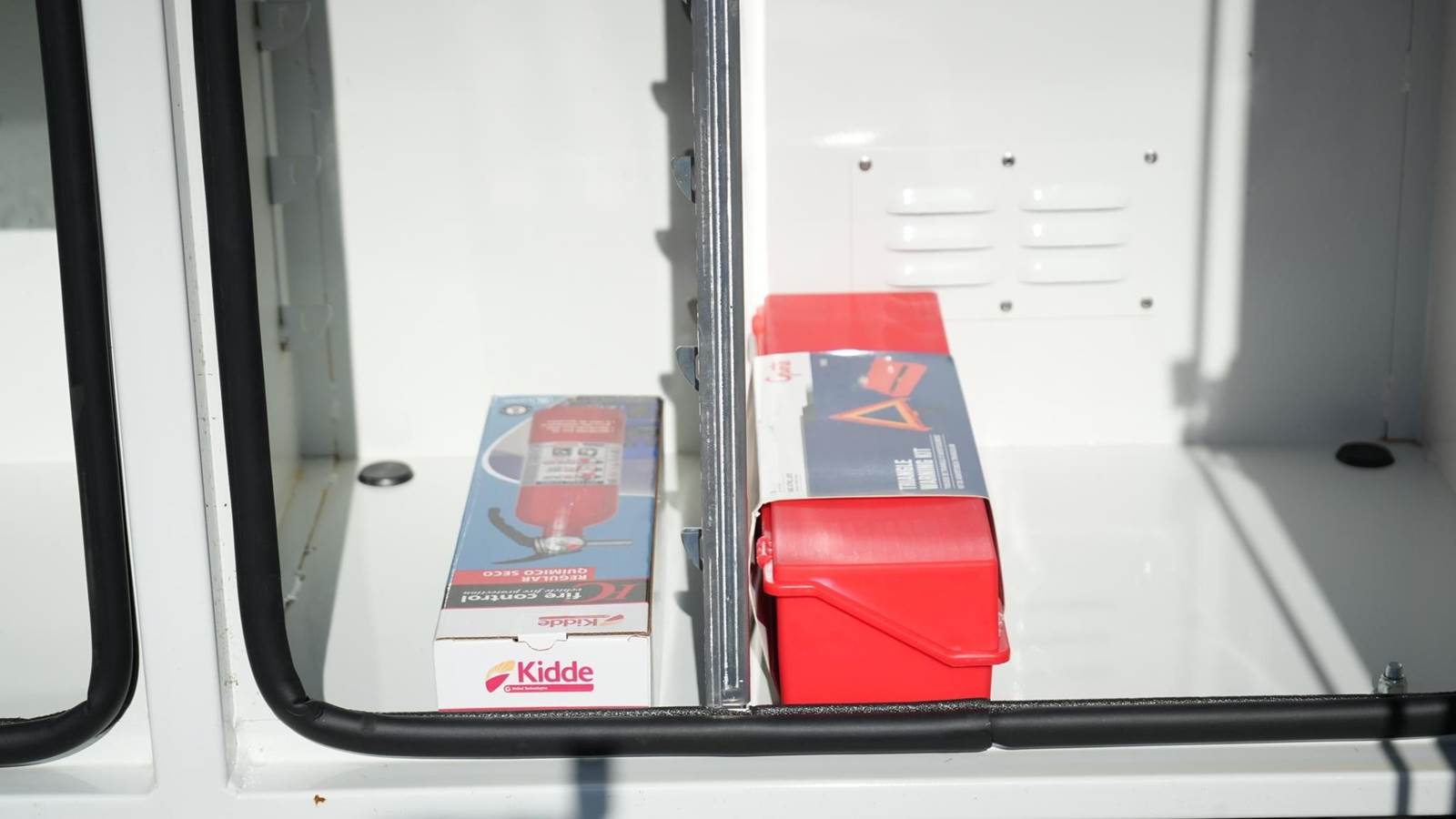

• Fire Extinguisher
• Safety Triangle

•• Call for additional Crane, Power & Upfit Options Available

**Photos may include optional equipment – Example Shown on a completed upfit, pricing may differ depending on customer specifications on their build.
•   Please see our inventory page for completed upfits in stock.
•   Please inquire for additional details or build requests.
