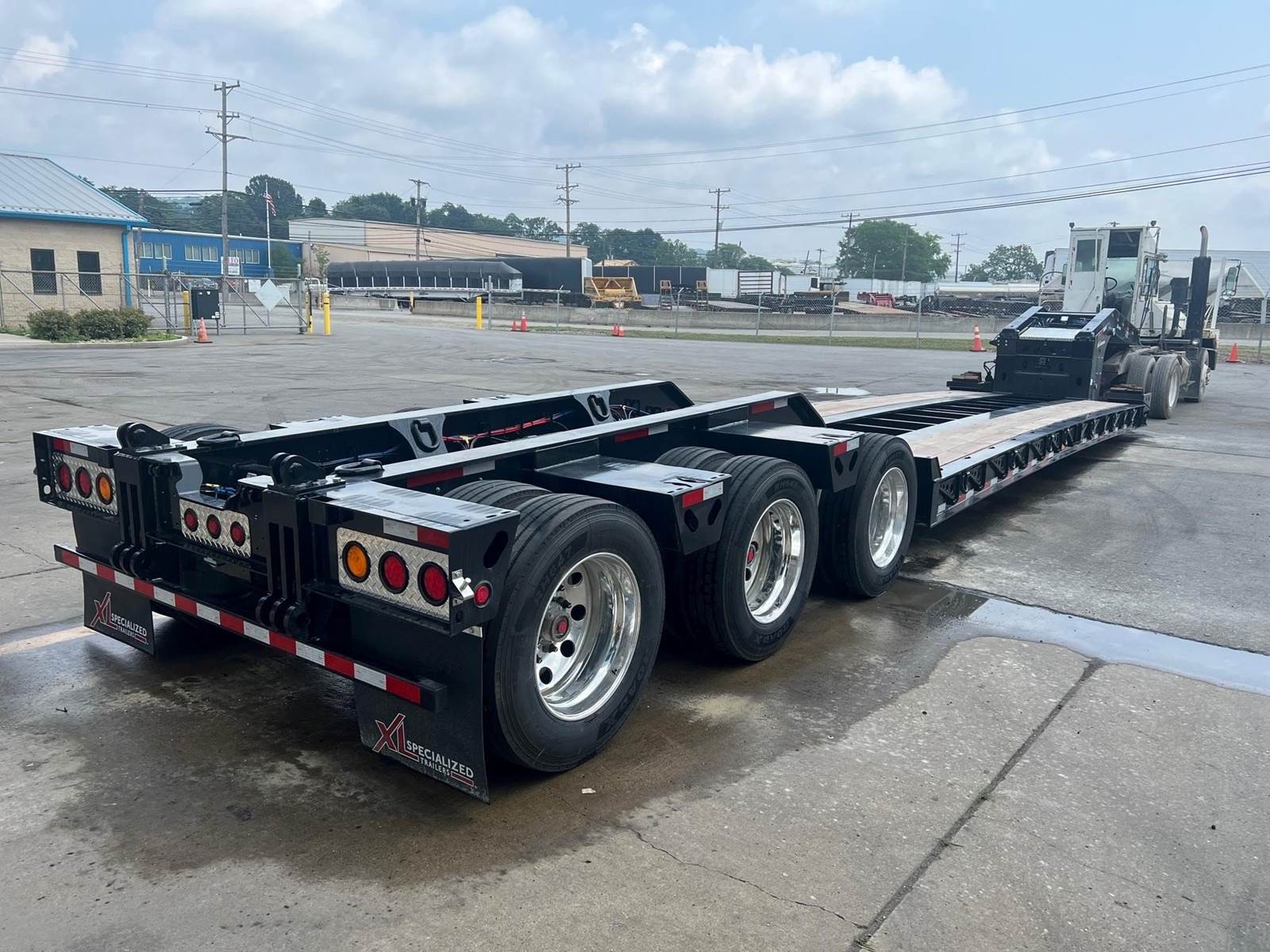

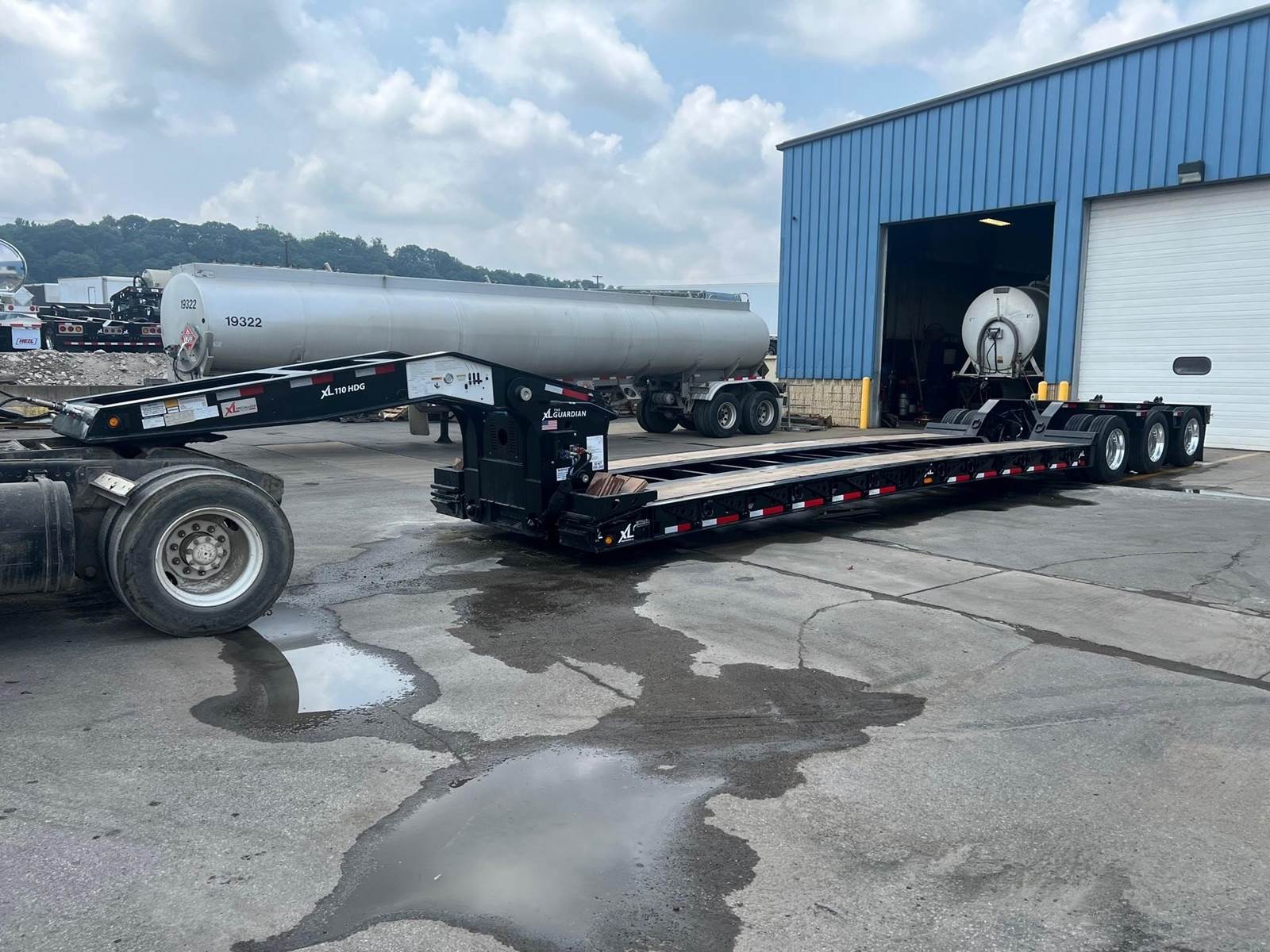

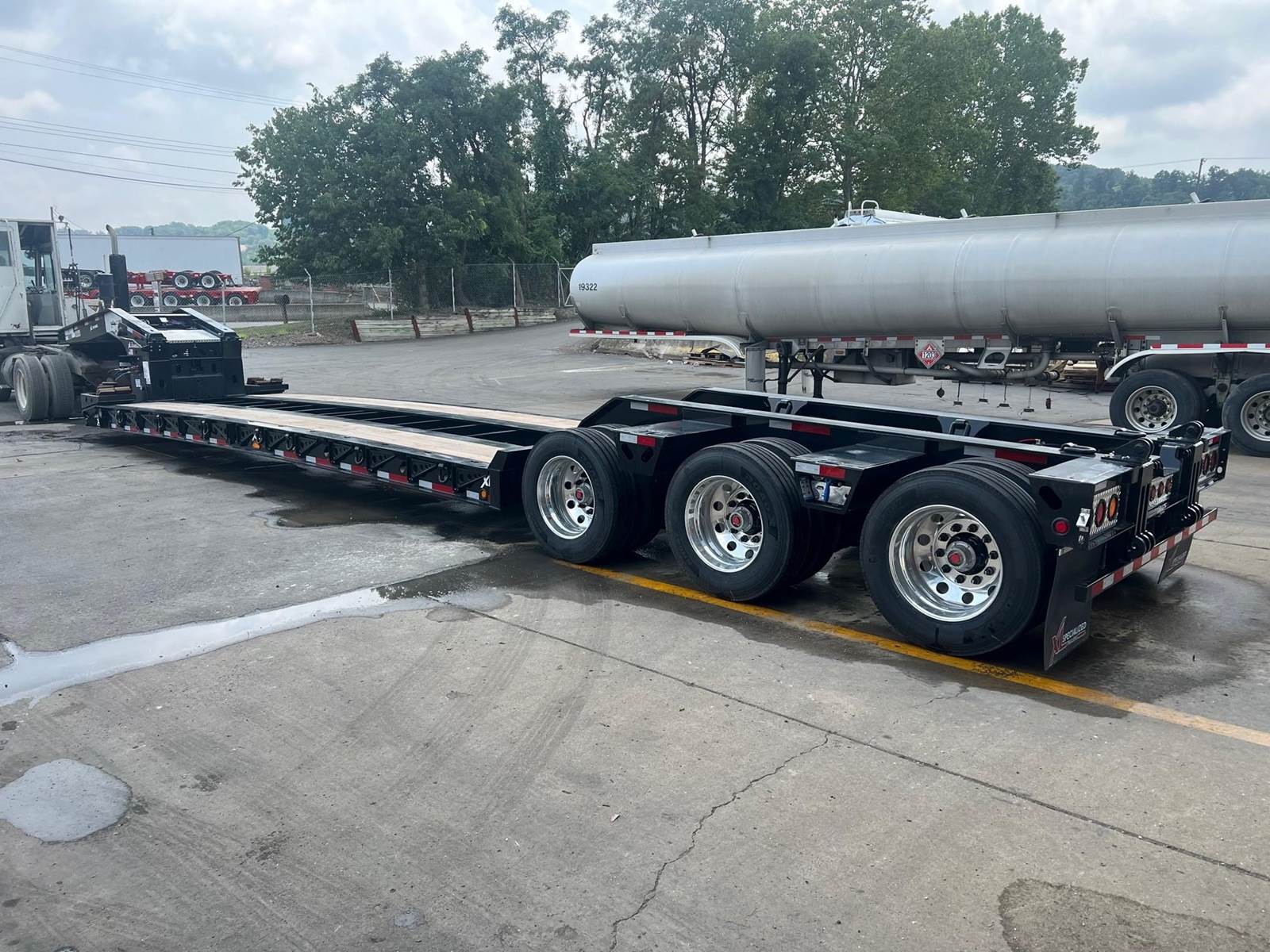

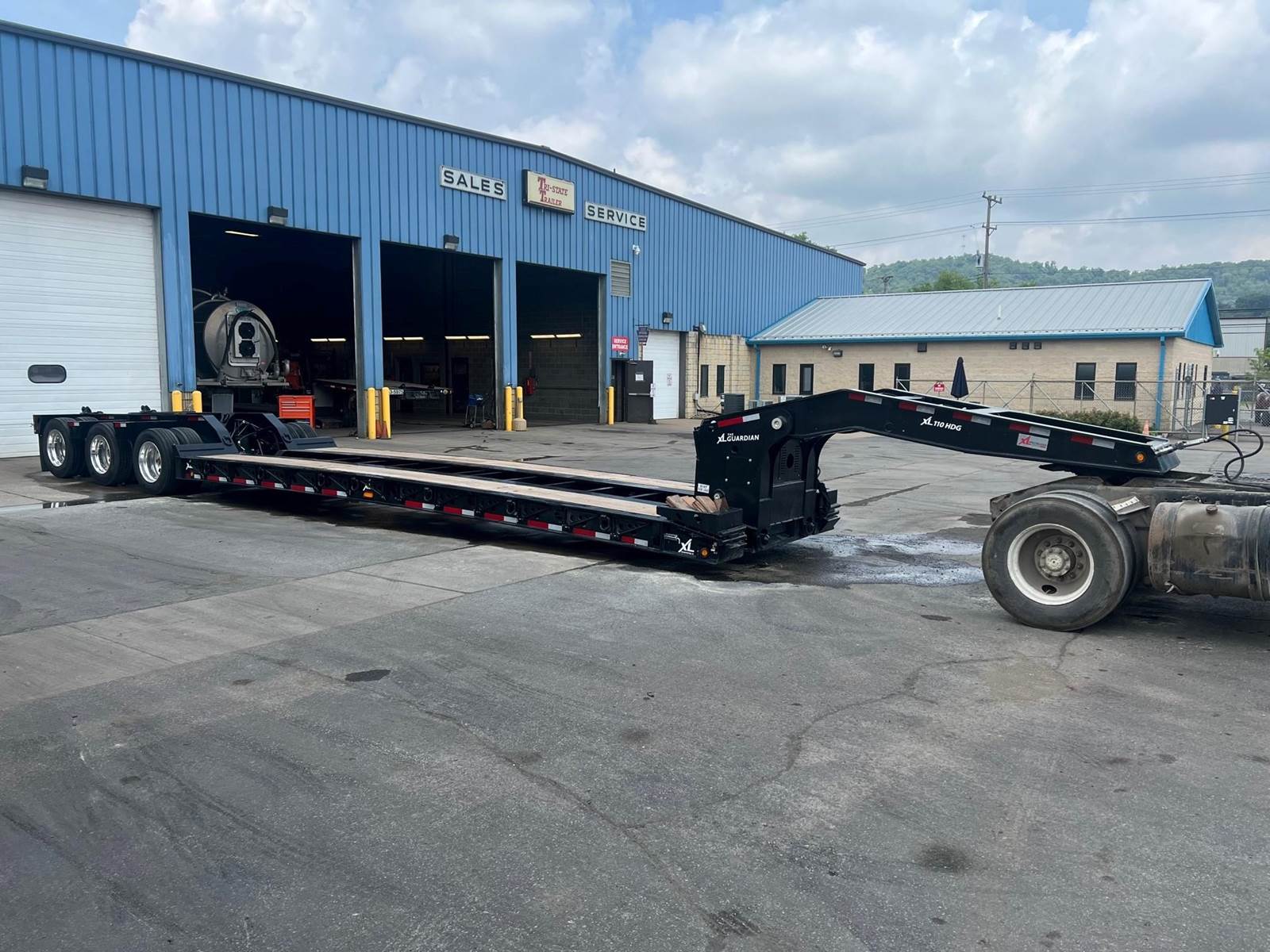

2026 XL Specialized 53x102 Tri Axle Steel Lowboy Trailer - Air Ride, Fixed Axle

*FET Included in Price*
Length 53'
Width 102"
Main Deck Length 26'
Main Deck Height 18"
Rear Deck Length 14'
Weight 22,557 Lbs +/- 3% - GVWR 132,750 Lbs
Flat Body
Compatibility Accepts 4th Axle Flip & Spreader Bar

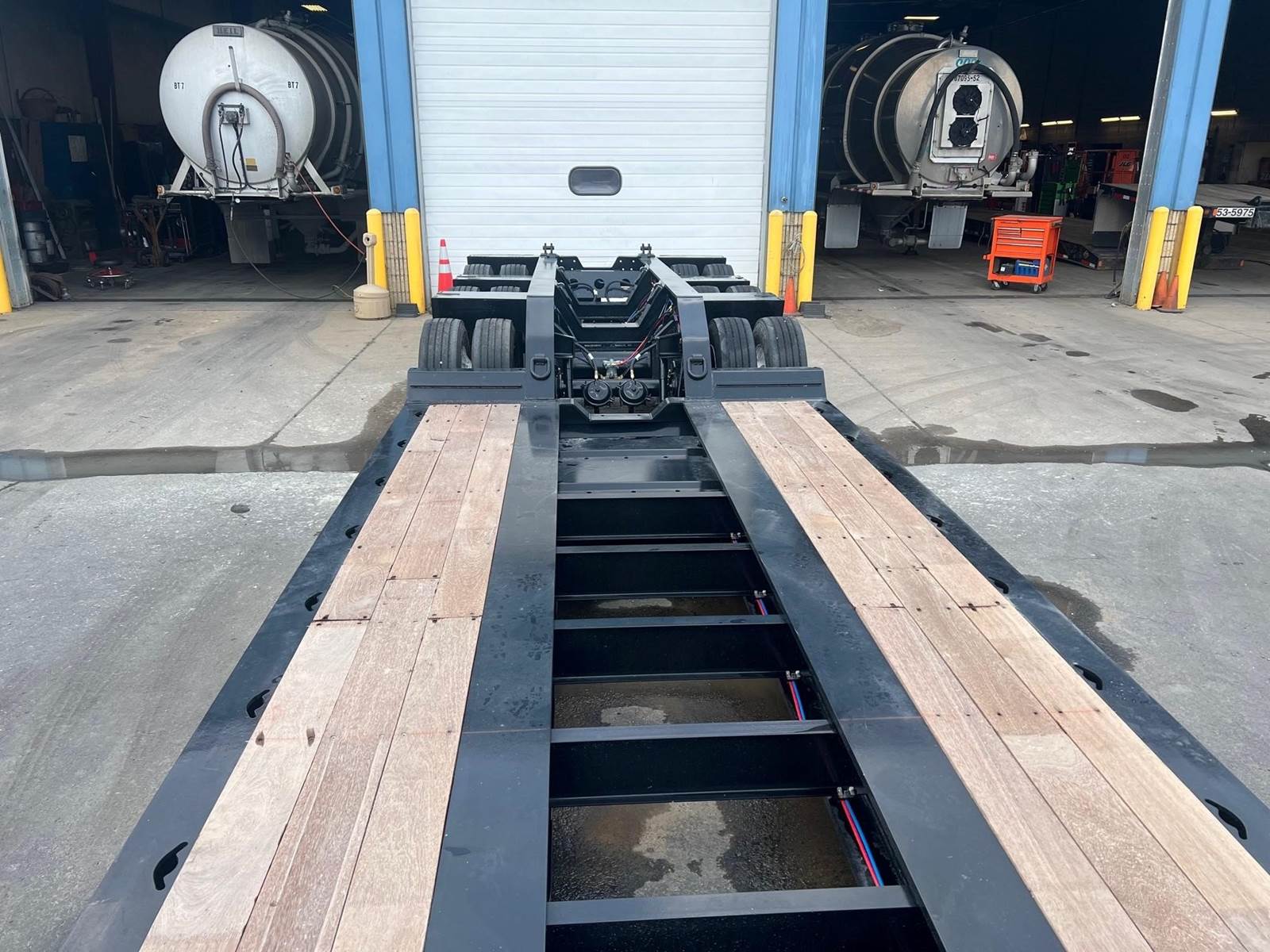

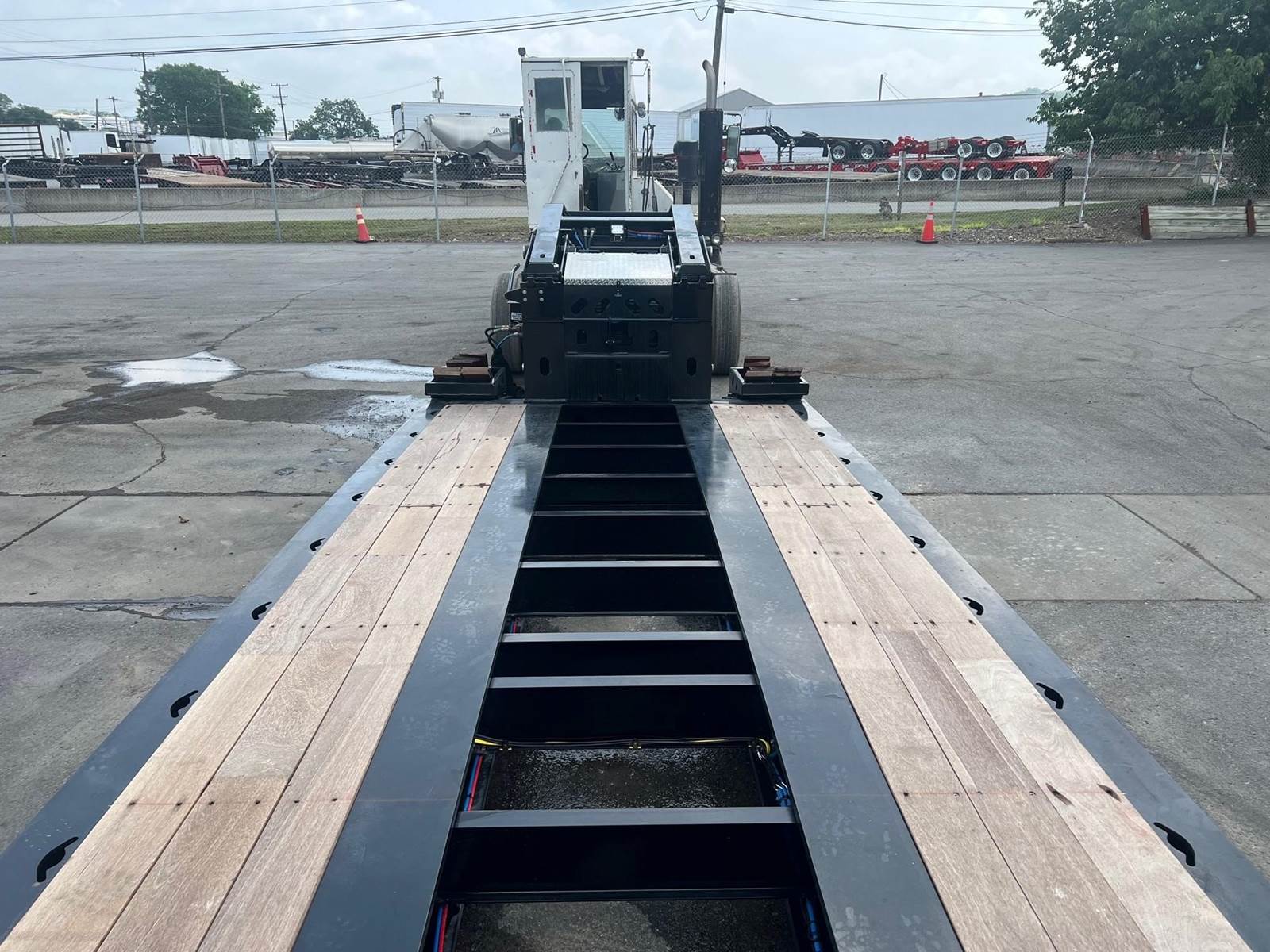

Floor 1 3/8" Apitong, Raised - Center Open
Ramps 31" Front Flip Ramps
Side Rail 12" Fabricated I-Beam
Outriggers Swing Out Outriggers on 24" Centers
D-Rings Seven (7) Bent "D" Rings per Side
Toolbox In Front of Main Deck w 4 Flat D-Rings
Side Rail Lights Five (5) Lights per Side

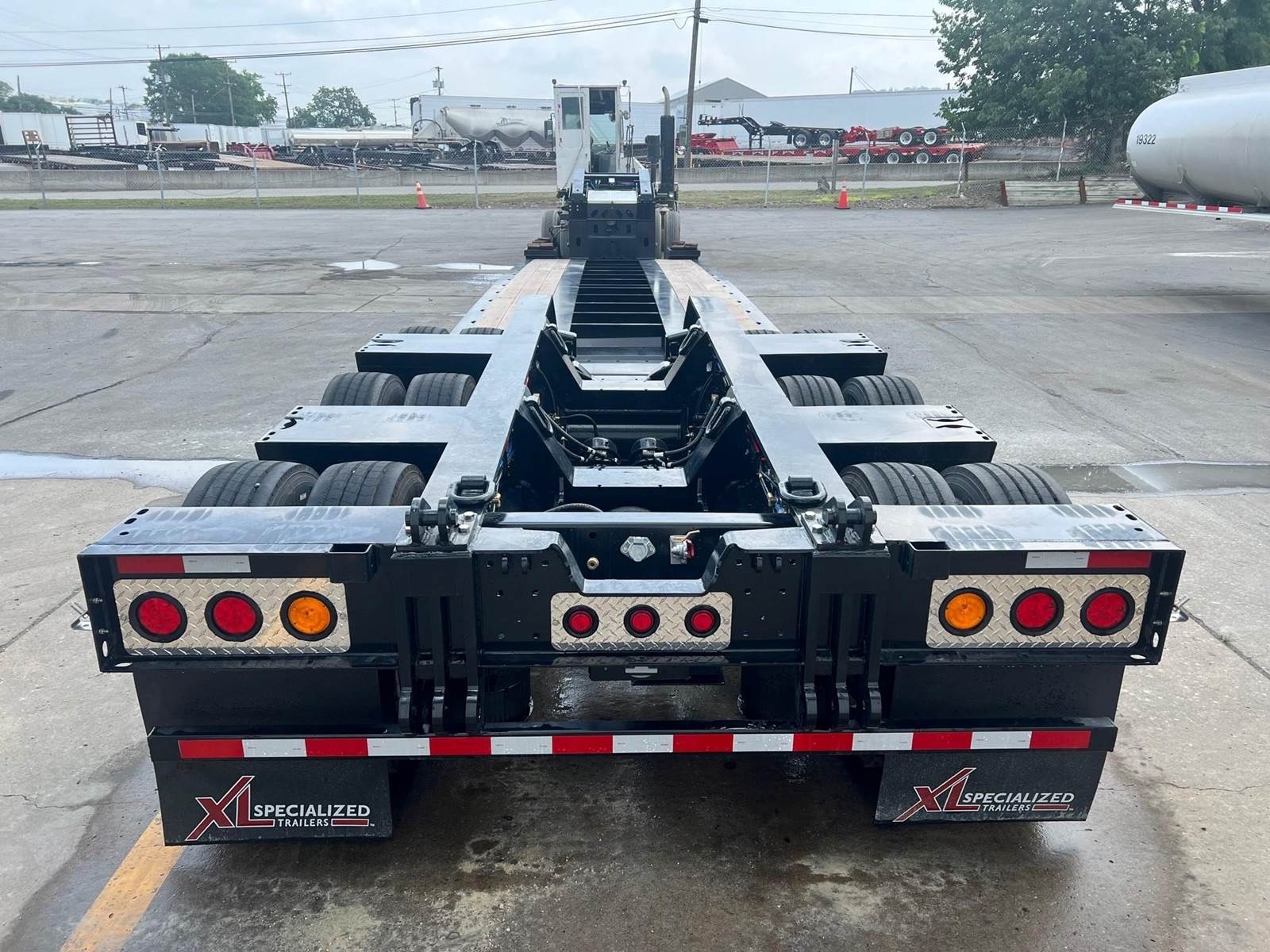

Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Battery Powered Rear Amber Strobes
Flag Holders (1) Pair in Main Deck, (1) Pair at Rear
Modular Connection Fixed
Gooseneck

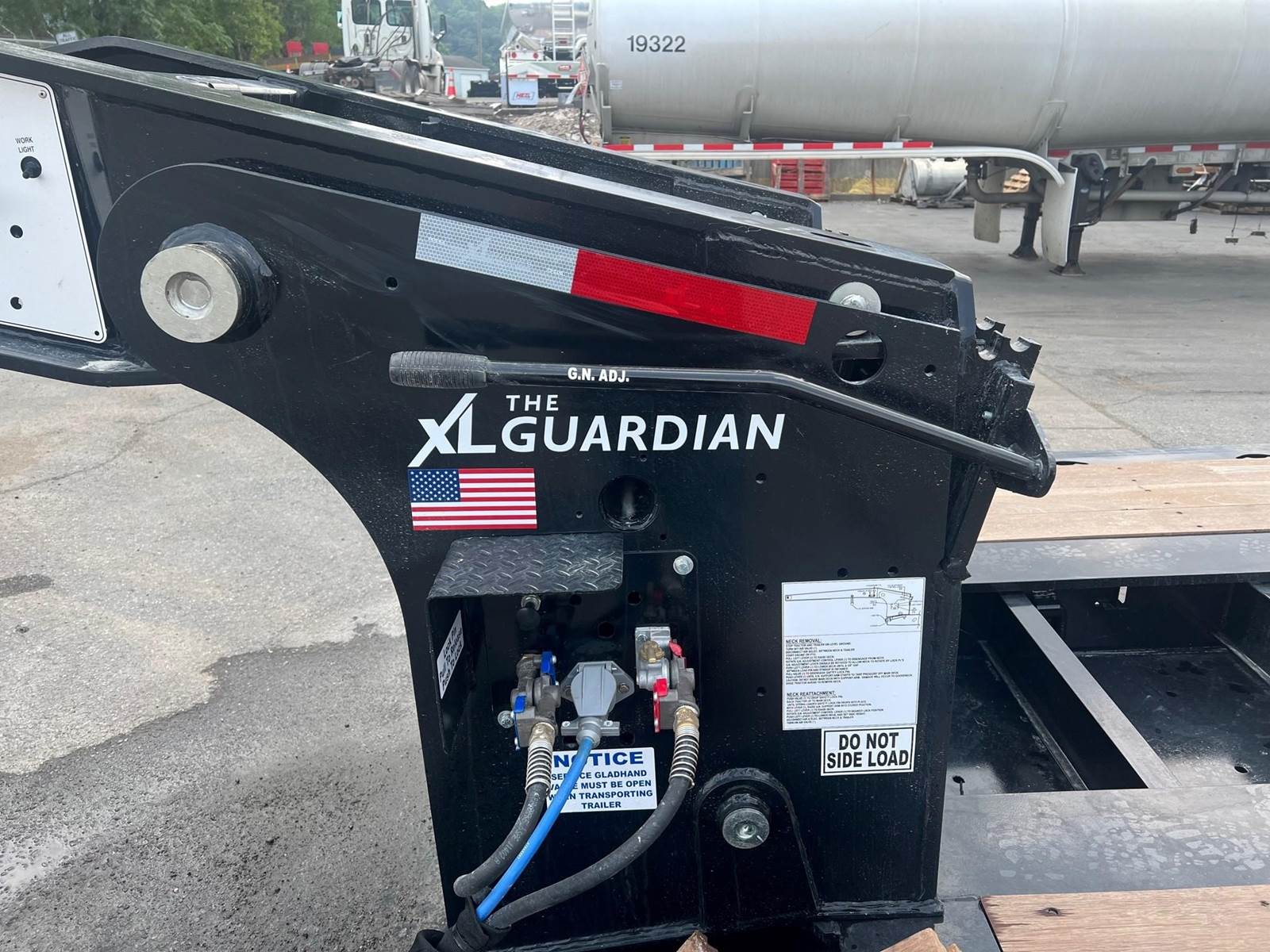

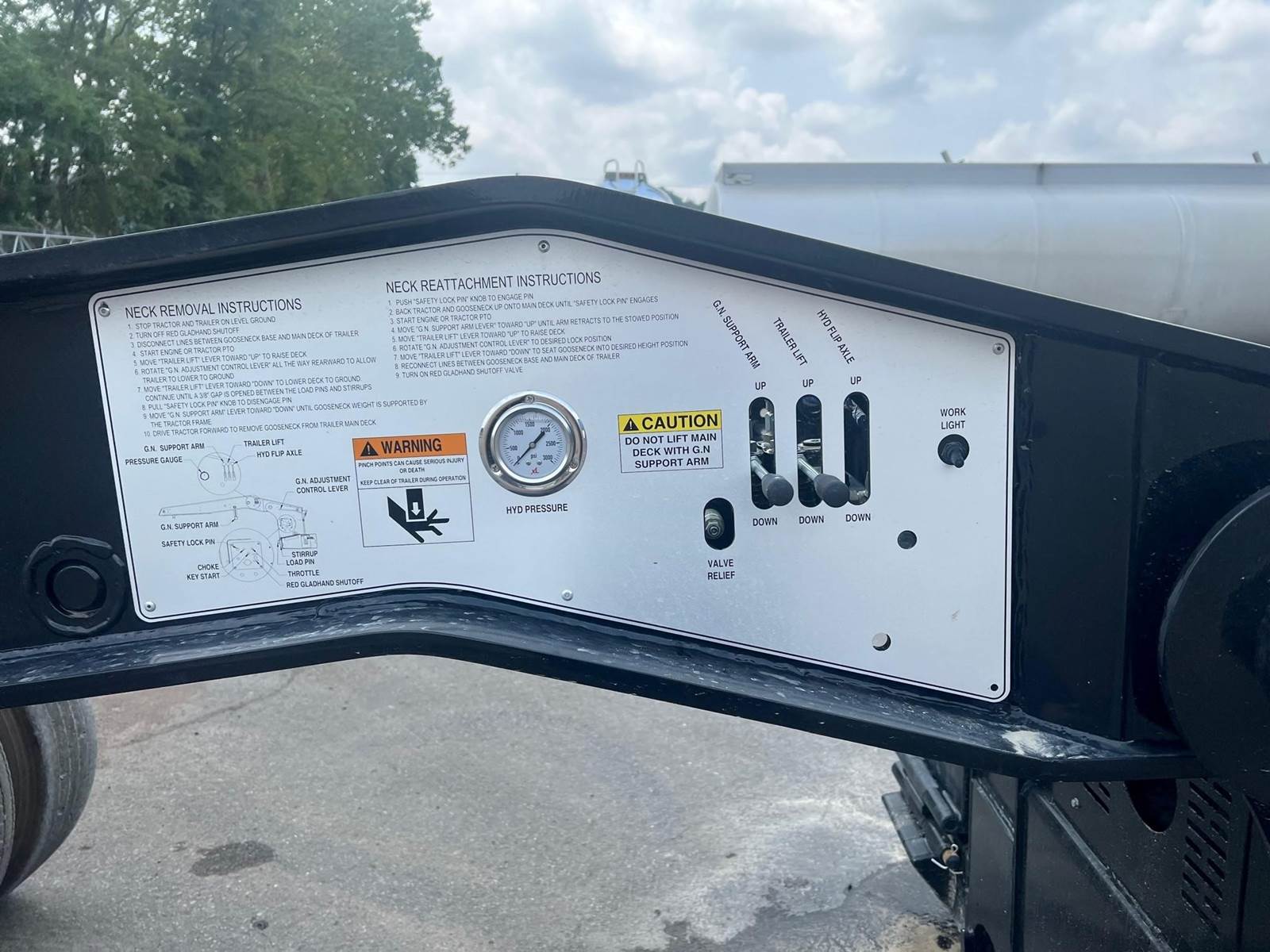

Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel 51" with Five Ride Height Positions
Pony Motors None
Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Brand Hendrickson
Suspension Setting 54.5"

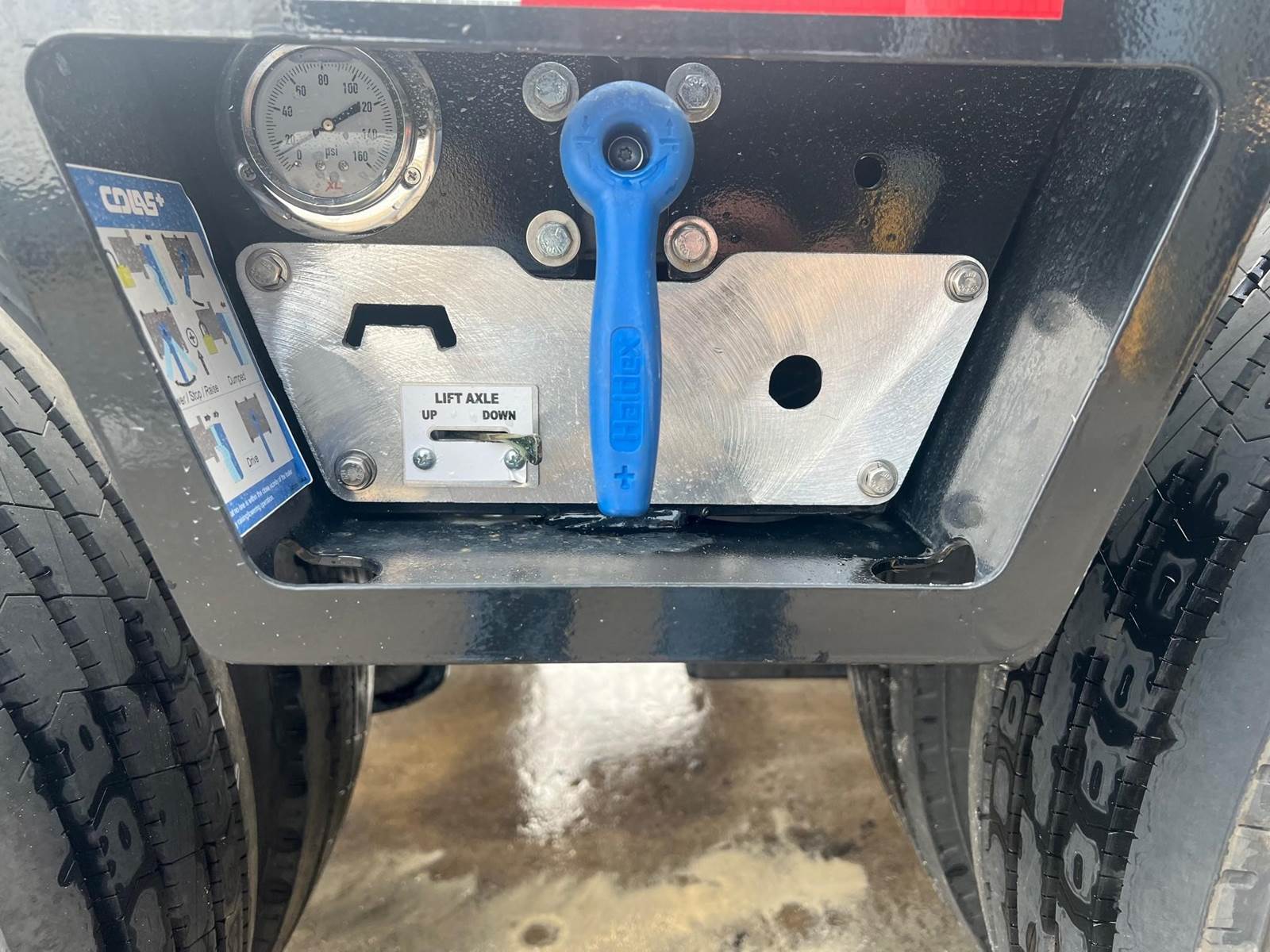

Lift Axle Rear Axle Air Lift
Flip Axle Not Included
Manual Dumpvalve Yes
Raise & Lower Valve Yes
Tire Size 275/70R22.5
Wheels Aluminum Outer / Steel Inner
Liquid Filled Gauge Installed
UnderFrame
King Pin Setting 16" & 42"
Cross Member Center 12" Centers
Paint Black
Weight Ratings 55 Ton in 12' Length
Comments
110" & 84" Swing Clearance
Grote Trilliant Work Light on Gooseneck
4 Flat D-Rings in Bucket Well
Chain Drops on 24" Centers per Side
2 Flat D-Rings on Main Beams at Front
2 Flat D-Rings on Main Beams at Rear
2 Chain Drops on Each Bolster
2 Stake Pockets in Tail Channel for Wide Load Sign
Bucket Well at Rear Deck w/ Plate on Bottom - 4 Flat D-Rings
4-Way Receptacle at Rear
