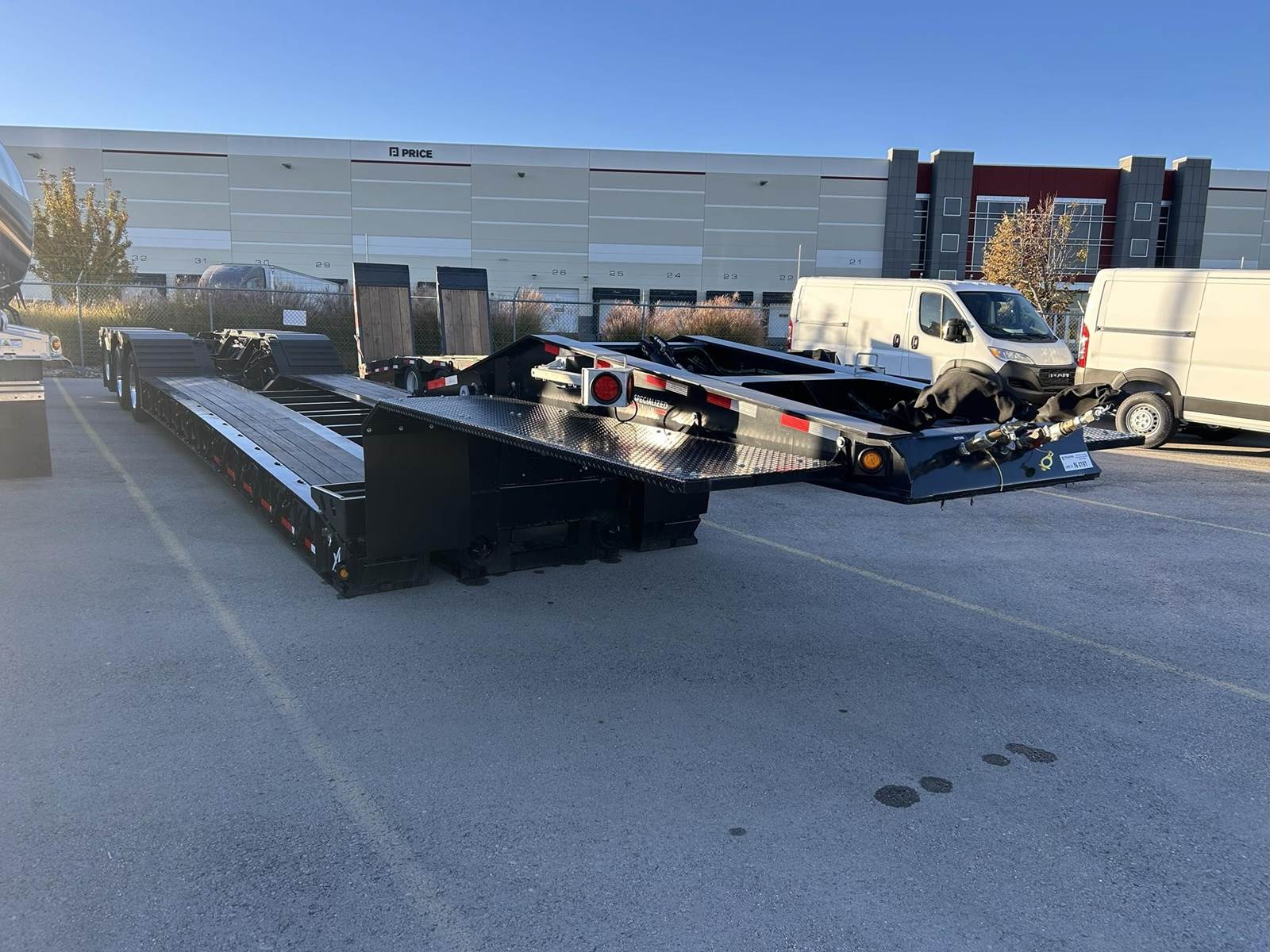

2026 XL Specialized XL110HDGS Lowboy Trailer

NEW 2026 XL SPECIALIZED HDGS110 - LOW PROFILE SCRAPER NECK HYDRAULIC DETATCHABLE GOOSENECK TRAILER
PRICE SHOWN INCLUDES FET AND FRESH ANNUAL DOT INSPECTION + PDI

OVERALL SPECS:
- 53'x102"
- 110,000 lb. capacity distributed/110,000 lb. in 12'
- Painted Black

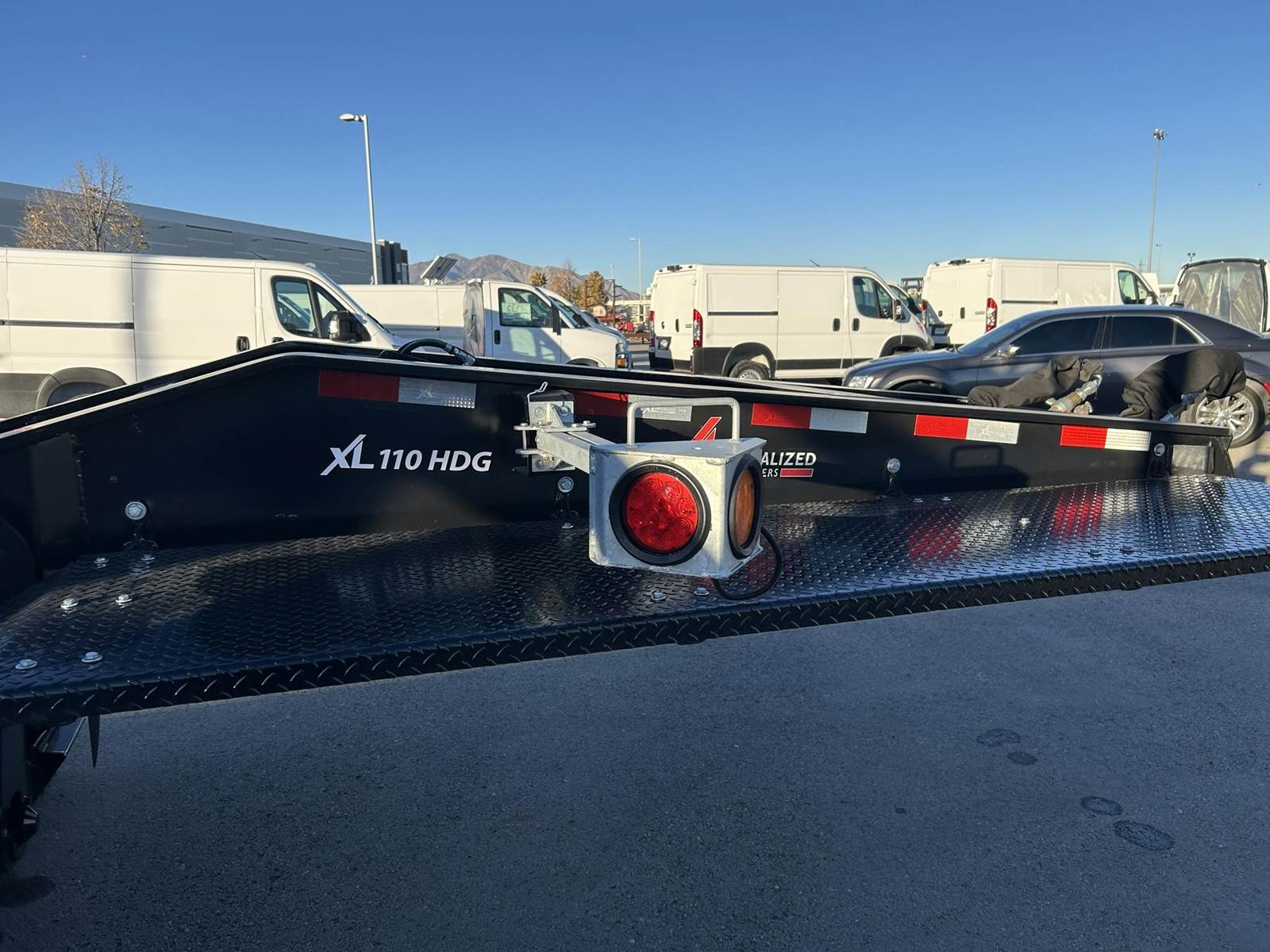

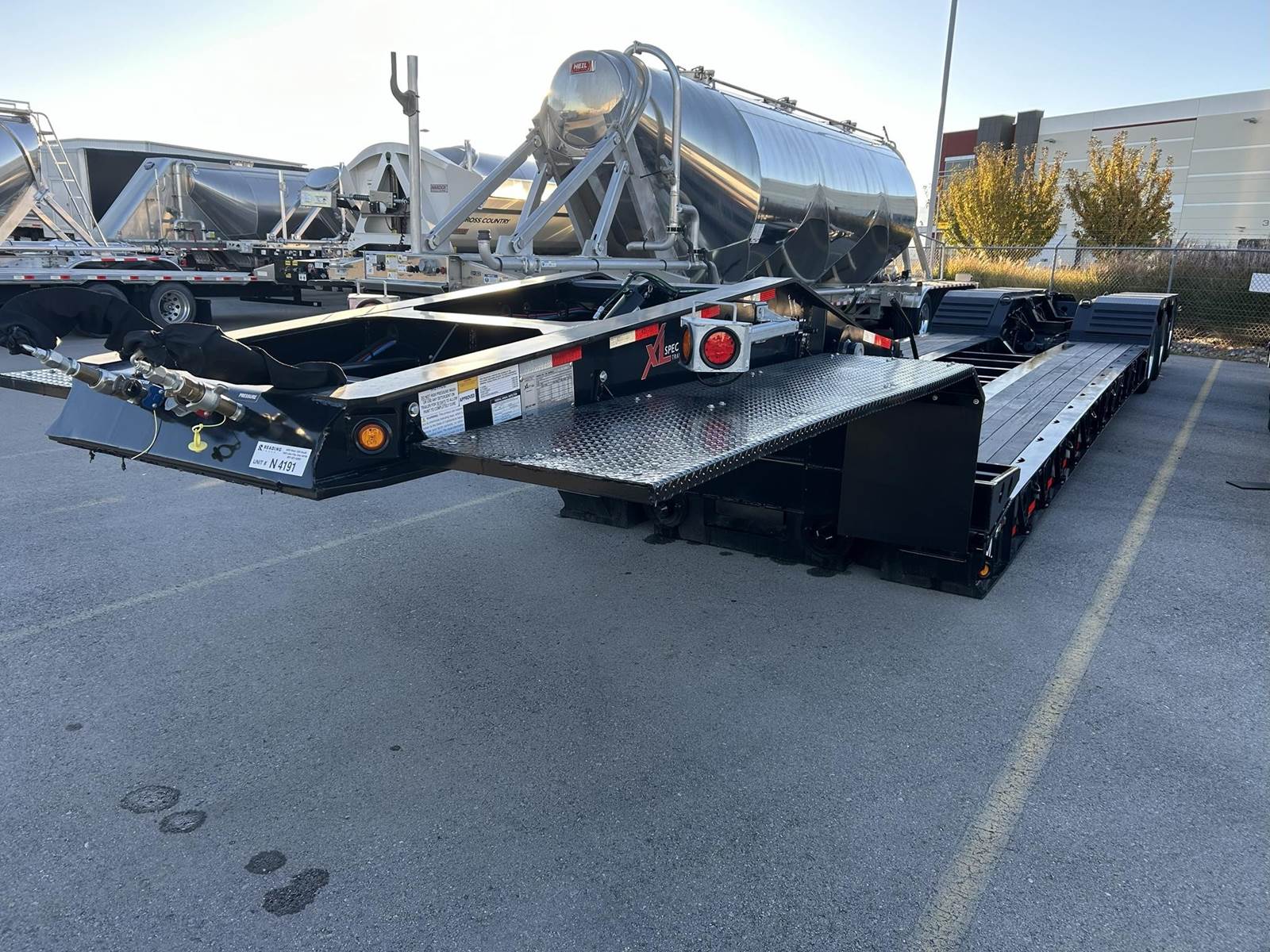

GOOSENECK SPECS:
- 13' Scraper Neck
- Adjustable kingpin settings - 16" and 30"
- Adjustable Swing Clearance - 110" and 96"
- 51" 5th wheel height with 5 variable ride height positions (2 lowered positions on the block)

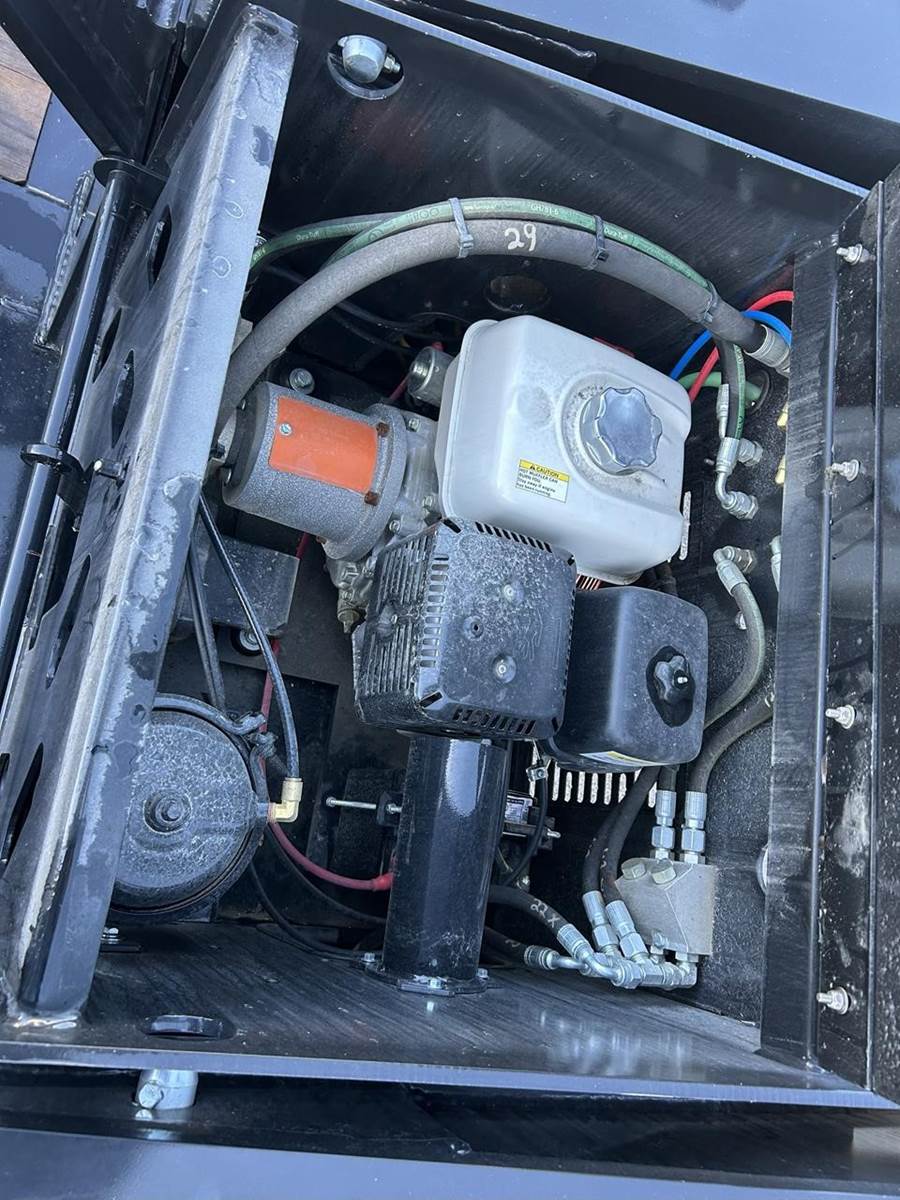

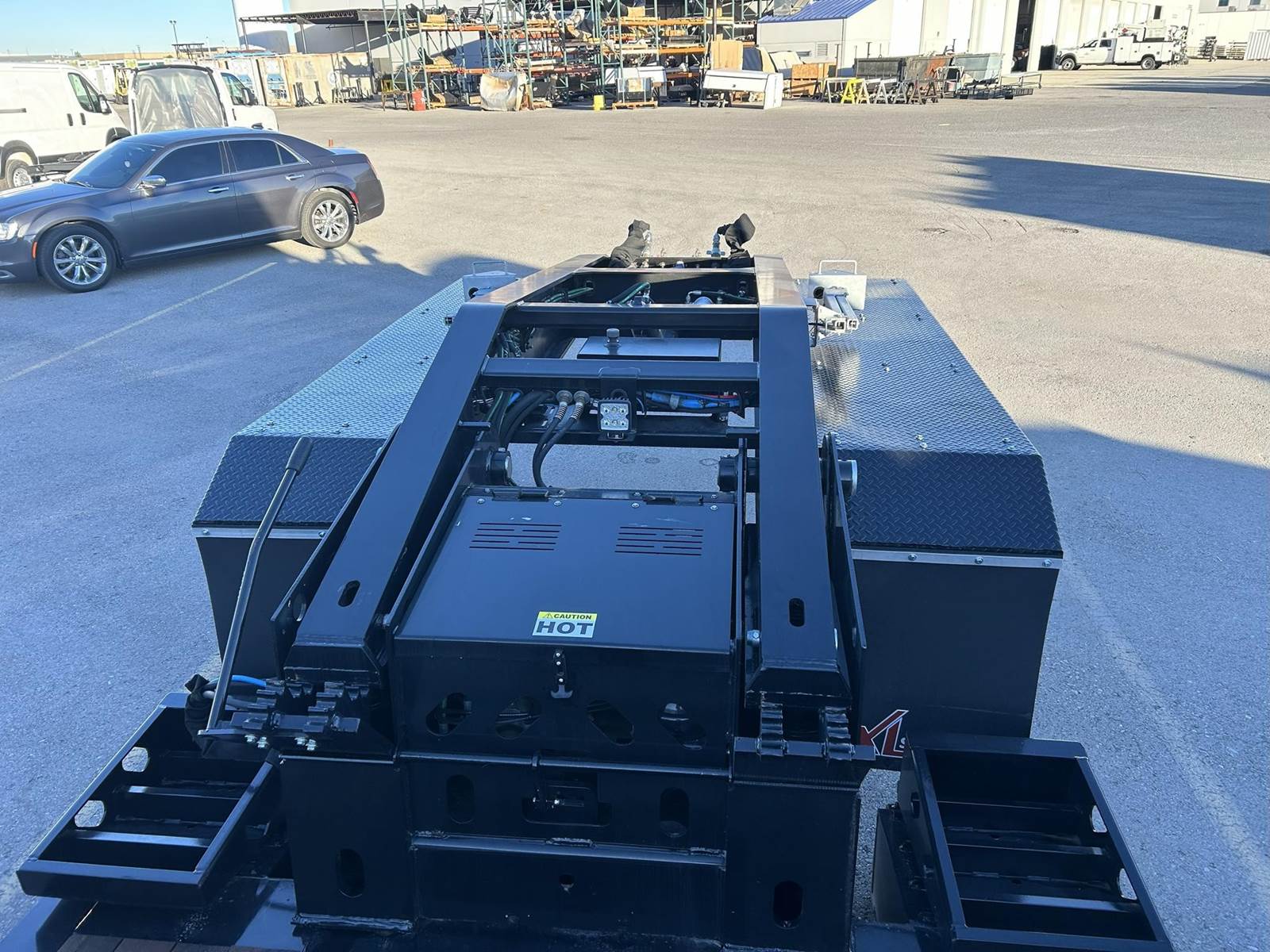

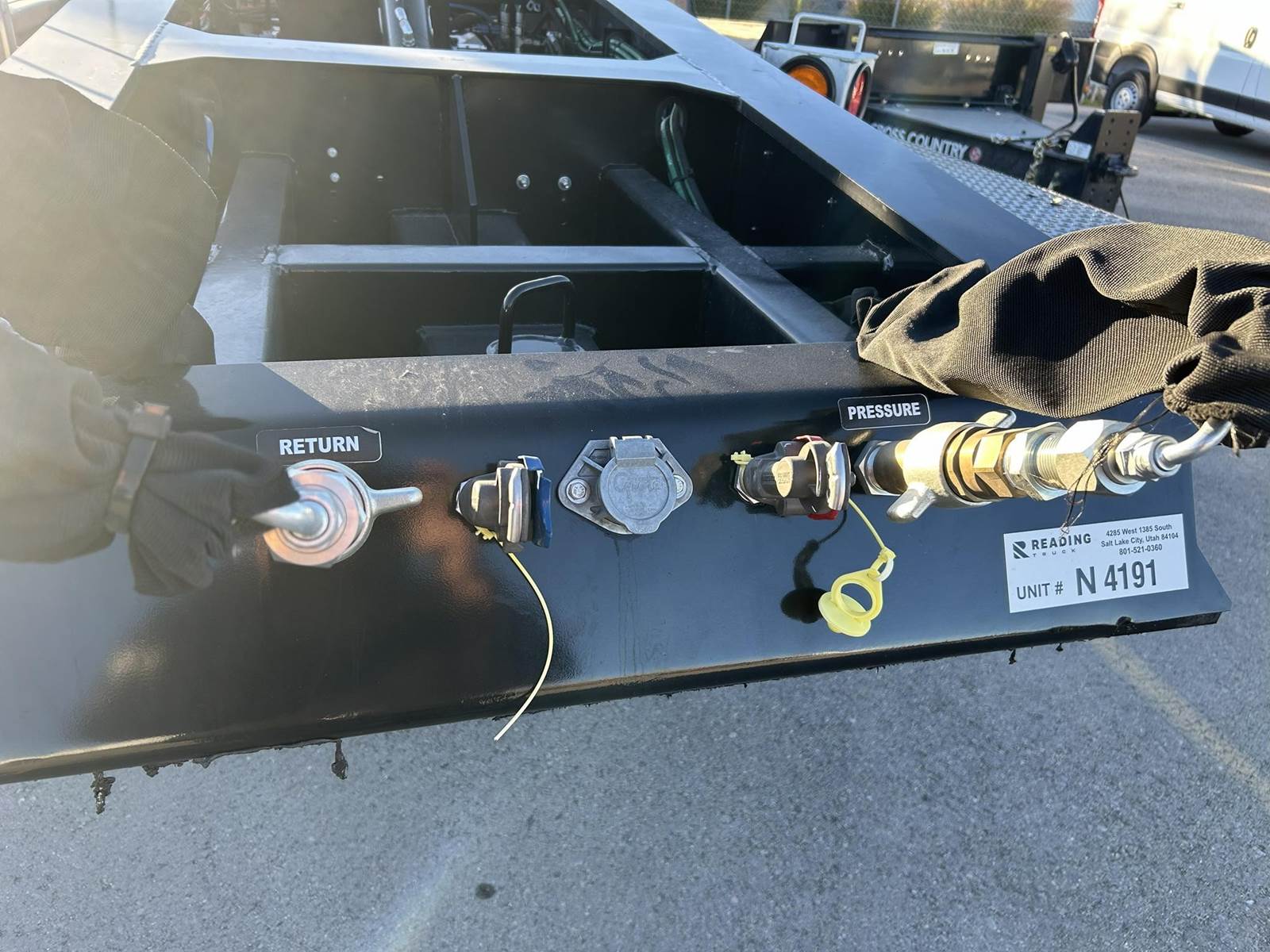

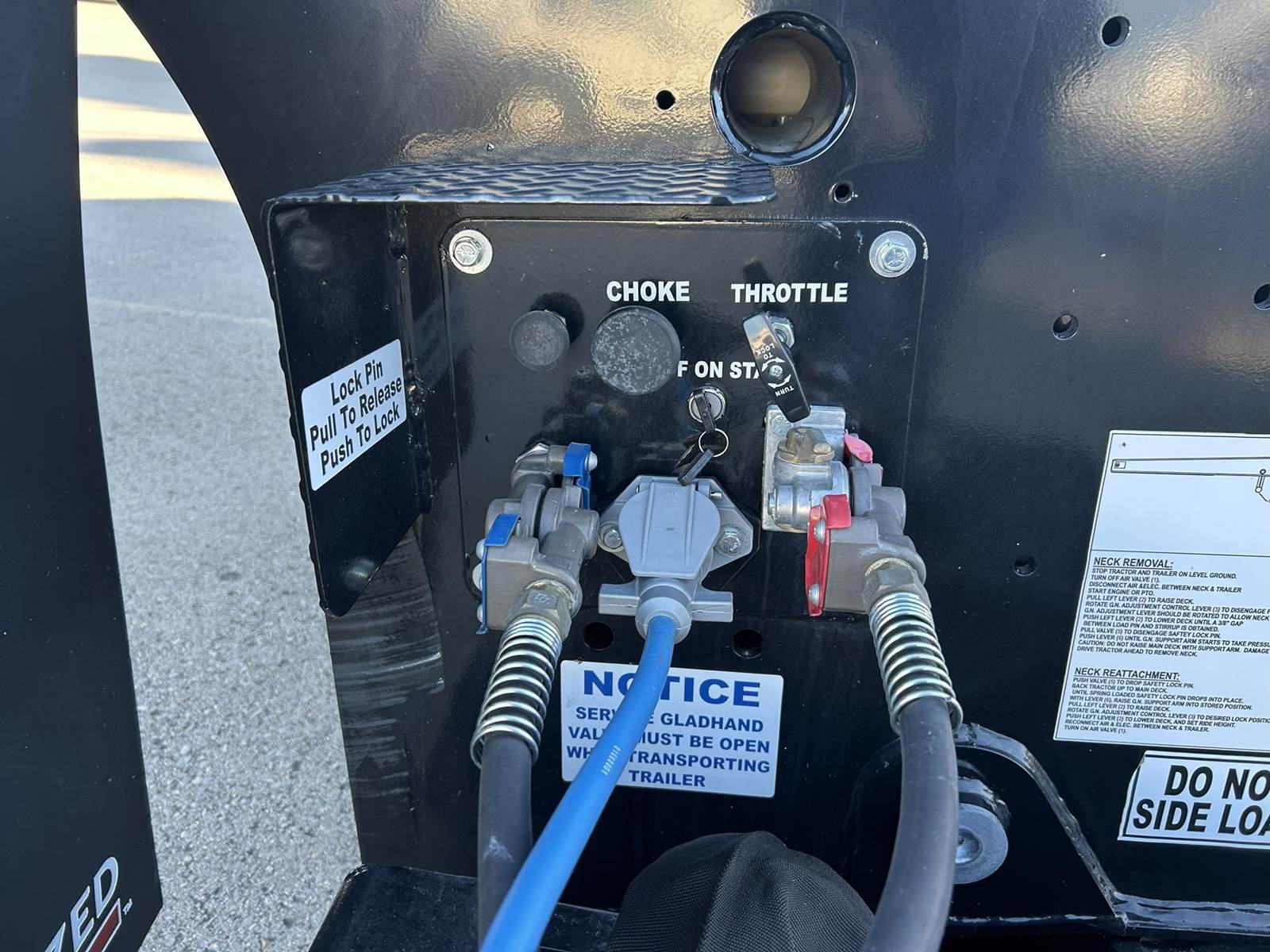

- 13 HP Honda Pony Motor with steel cover at base of gooseneck, Configured for dual hydraulics
- Trilliant Work Light
- Steel Fenders on each side of gooseneck
- Pull out non flashing marker lights (amber front facing/red rear facing
- 1" wing type couplers

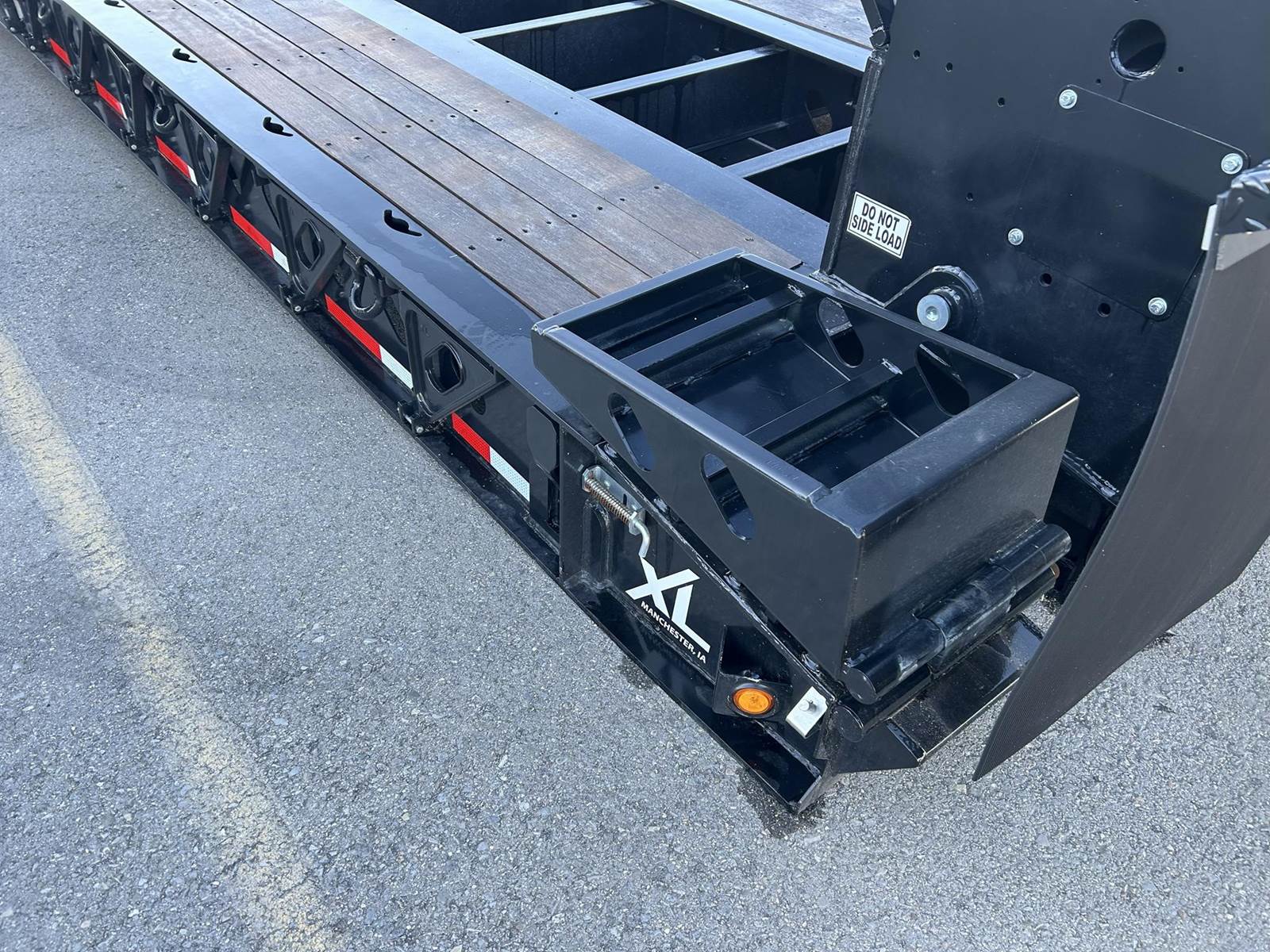

MAIN DECK SPECS:
- 25' Well Length
- 22" Deck Height with 6" ground clearance

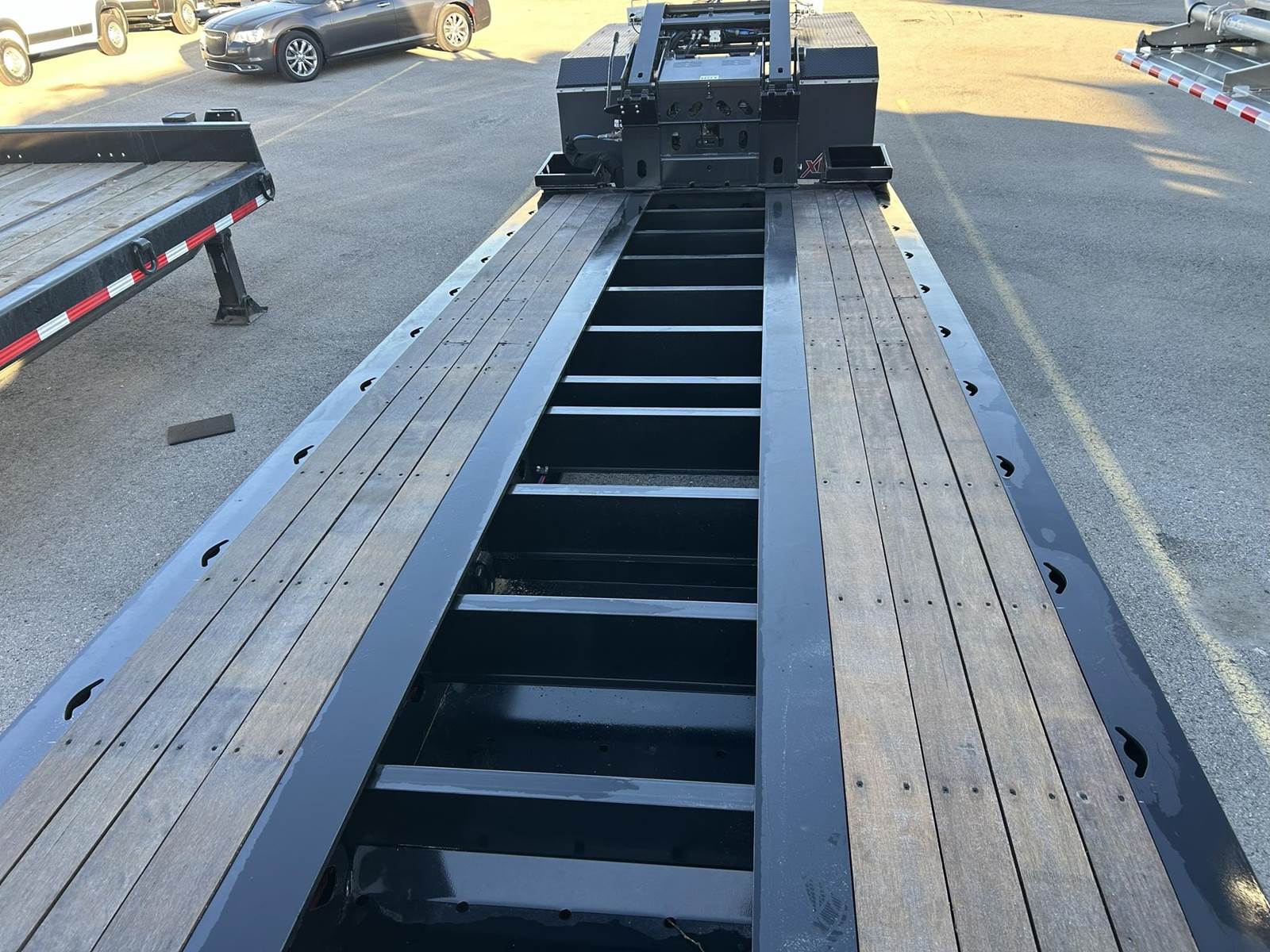

- 1 3/8" Apitong Decking with open center
- 10" and 4" Stubbed JR I-Beam Crossmembers - 12" Alternating Centers
- (4) 16" Fab Main I-Beams w/ top flange reinforcement, front ramp and main deck
- (7) Bent D-Rings per side

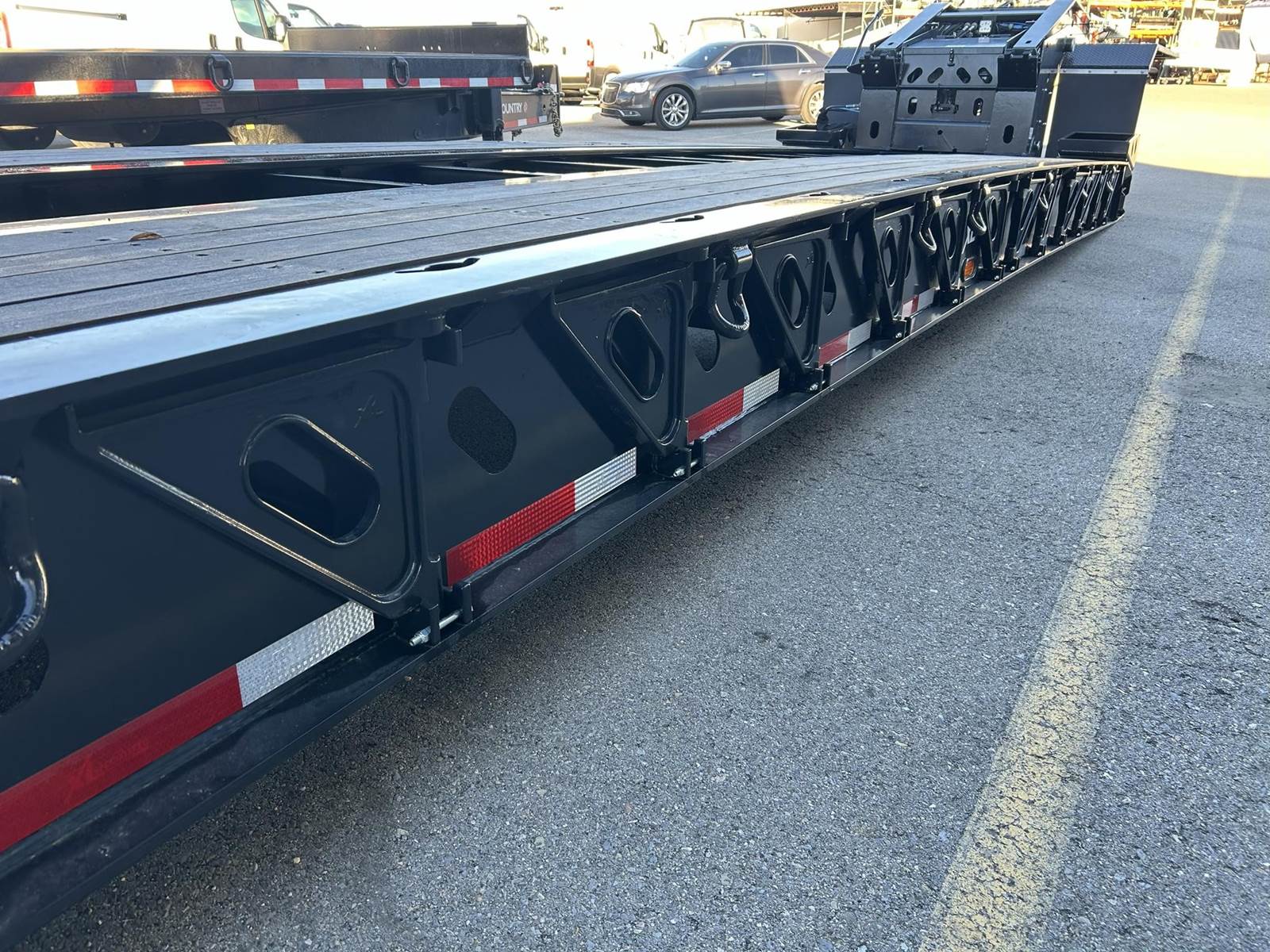

- Removable HD Swing Out Outriggers on 24" Centers and Pullout Front HD Outrigger
- Chain Drops on 24" Centers Outside Beams

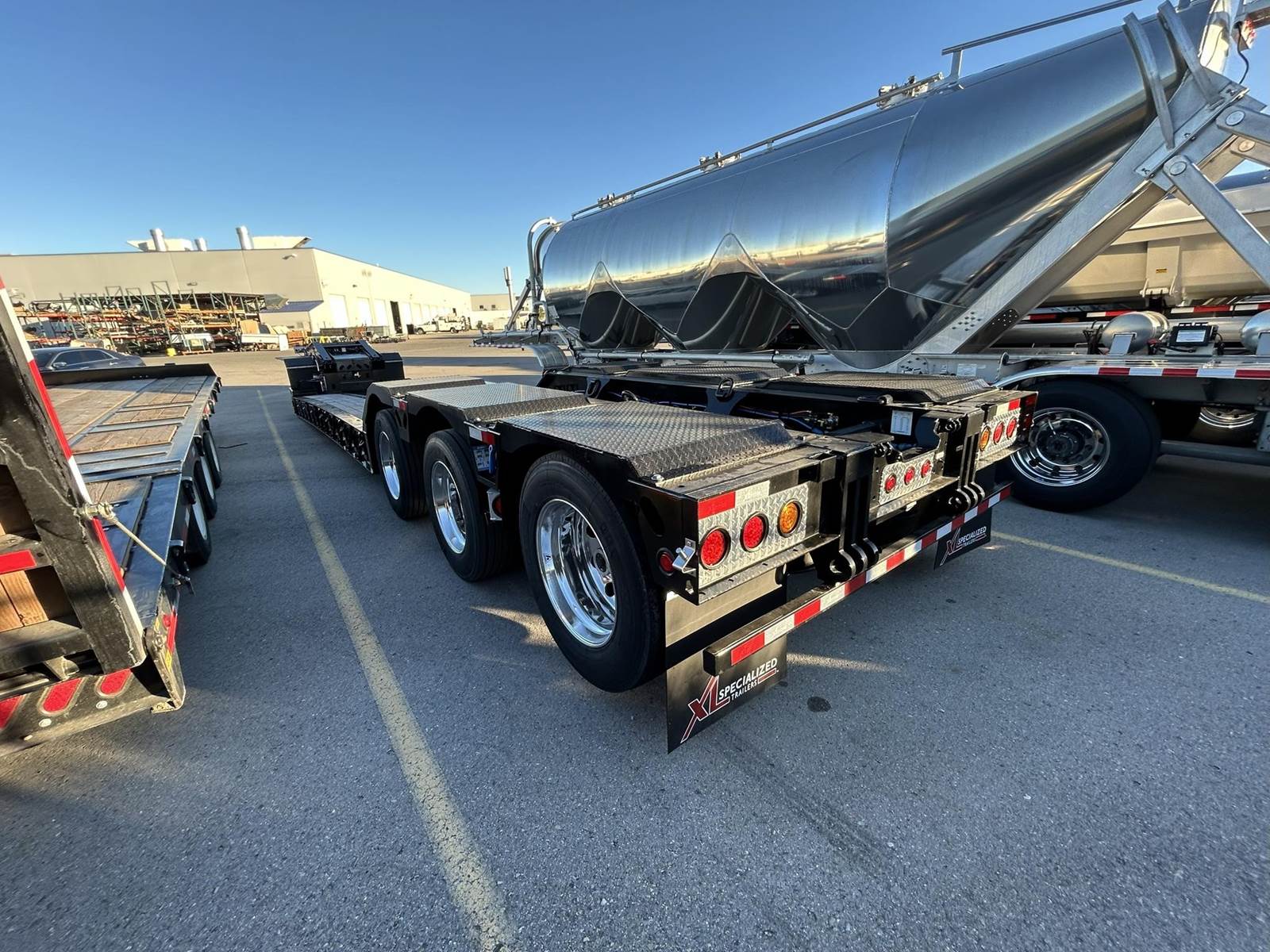

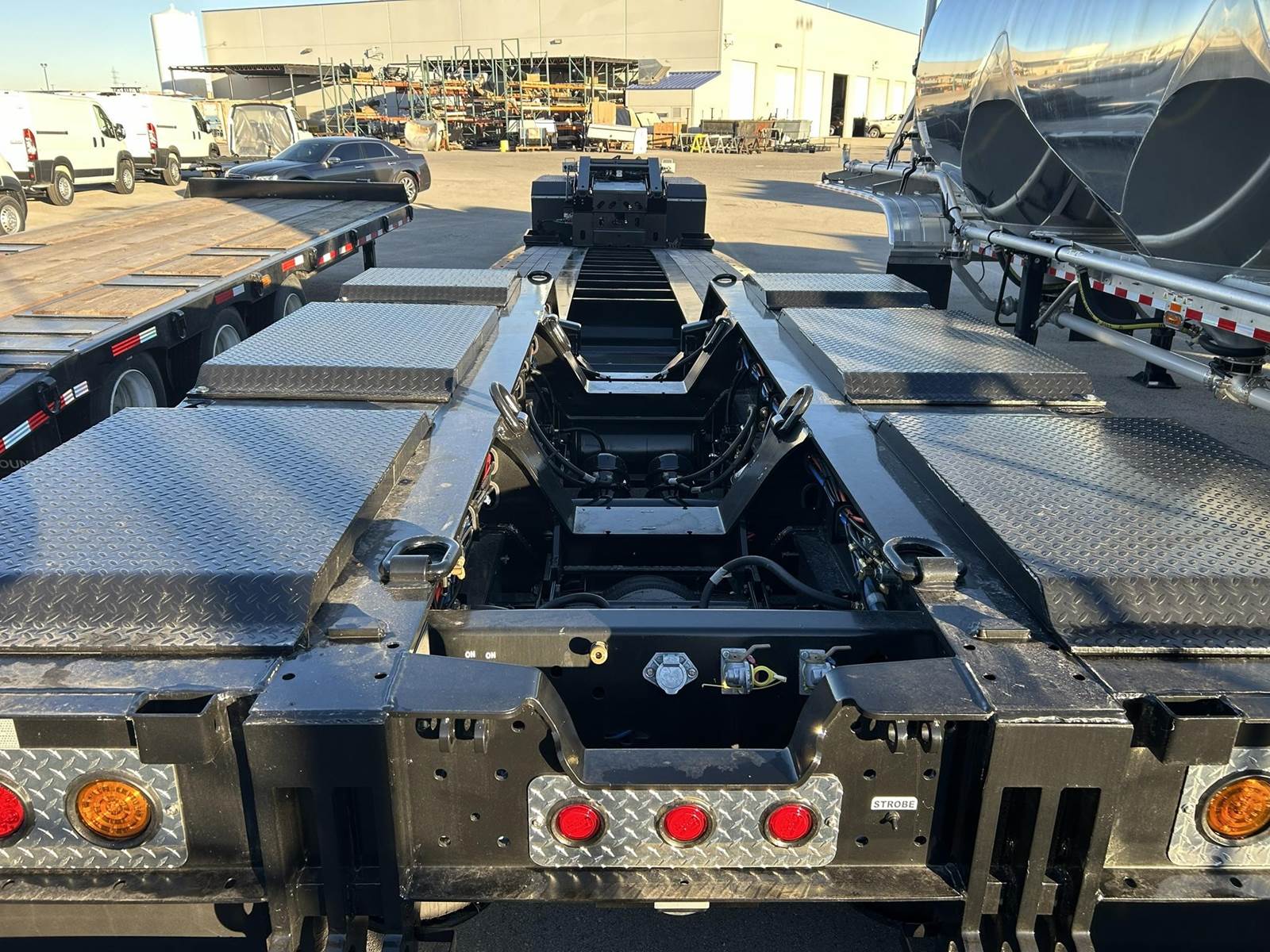

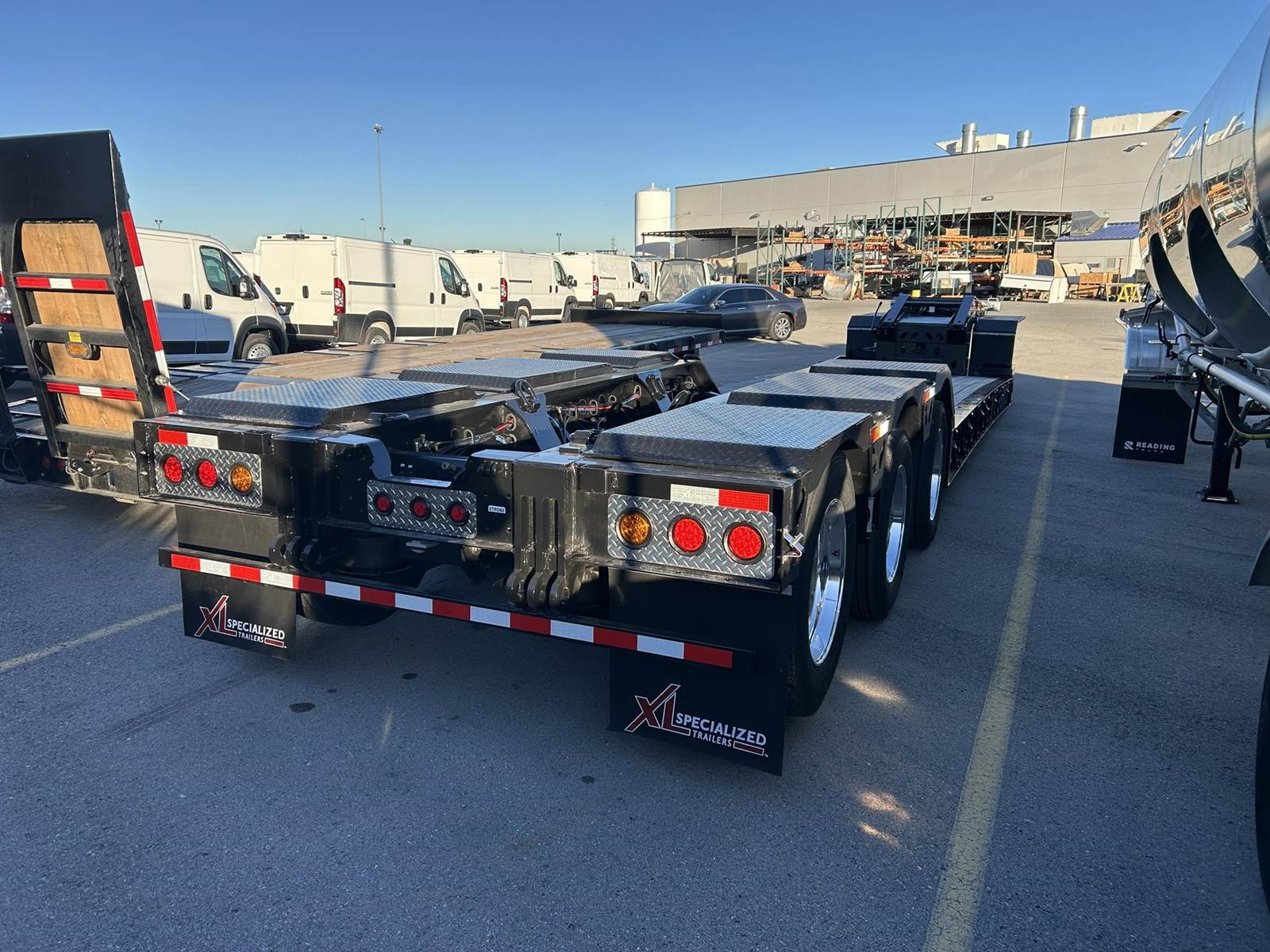

REAR DECK SPECS:
- 15' w/ 32 Degree rear transition
- 41" Loaded Deck Height
- (3) 25,000 lbs. nominal axles (5/8" Wall)
- Hendrickson Air Ride 25k lb. Capacity suspensions
- 60" Axle Spacing

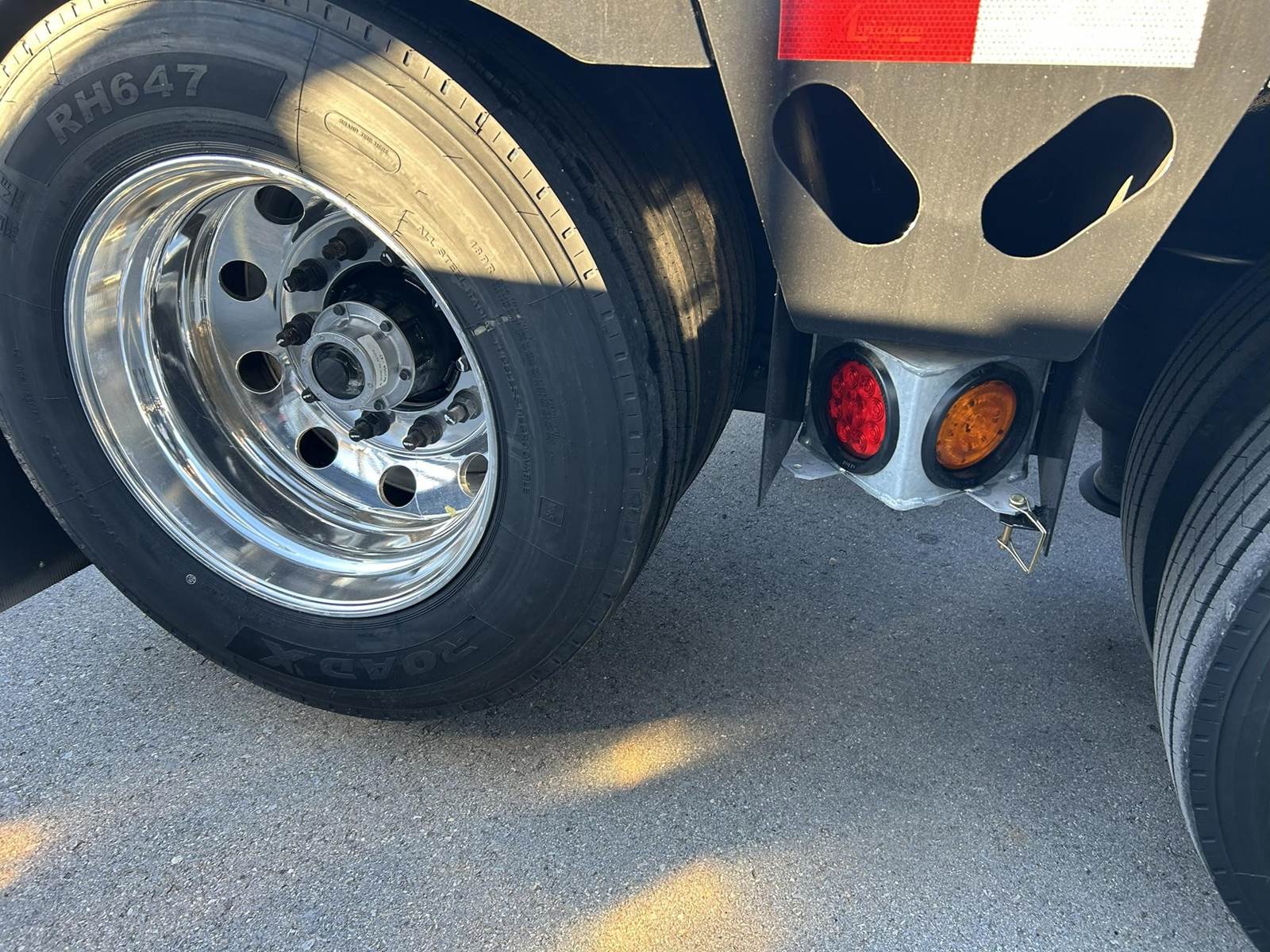

- 12v Sealed Grote System with (3) Tail Light Aluminum Package - 4" Amber Strobe as 3rd Tail Light
- Pull Out Non Flashing Marker Lights (Amber Front facing/Red Rear Facing)
- Battery Back up w/ 4-way Plug

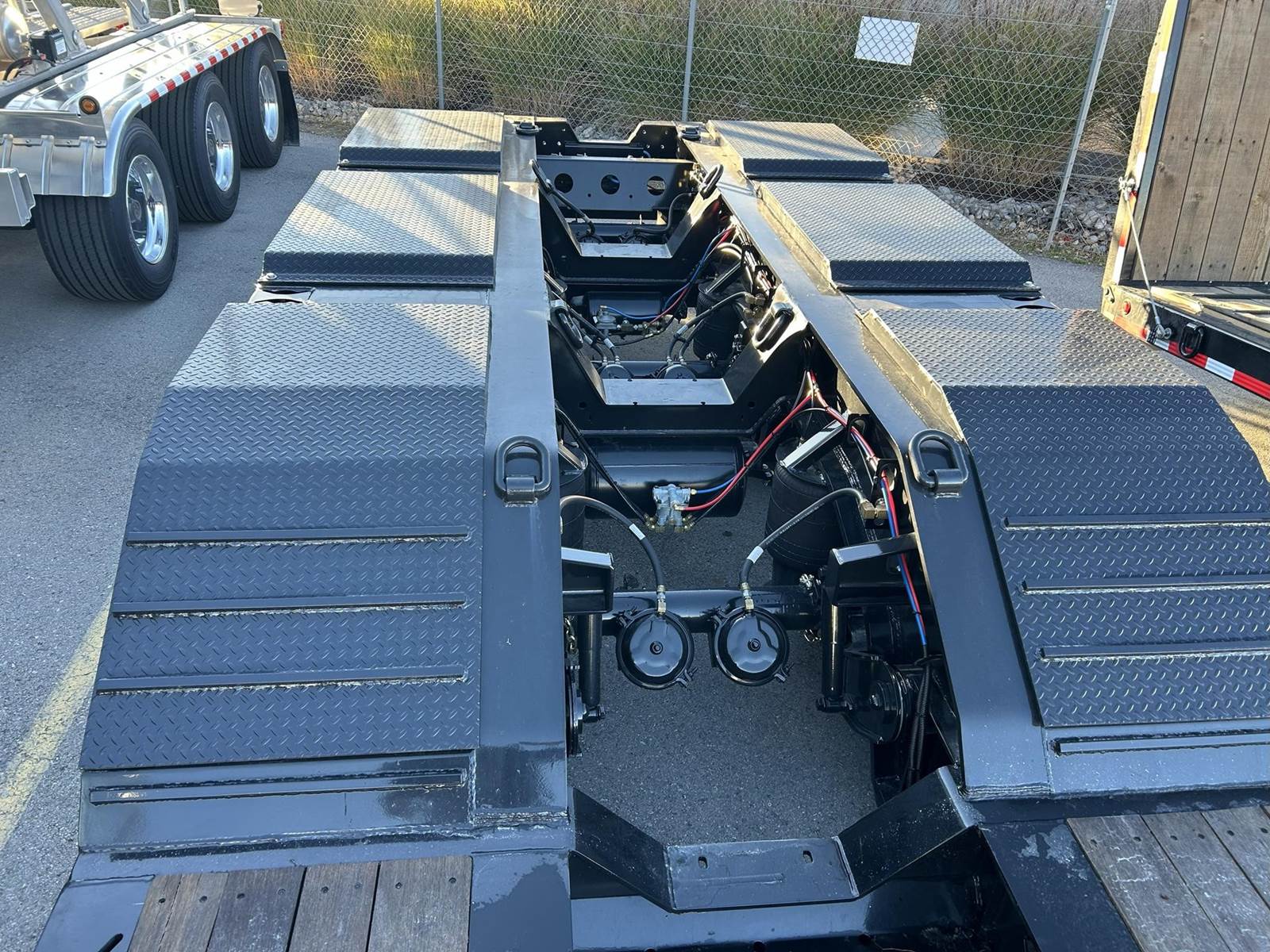

- Heavy Duty Raised Removable Load Bearing Wheel Covers
- Open, Flat-style boom Trough
- (4) Pair Flat D-Rings (1 pair front main beams, 1 pair rear main beams, 2 pair in boom trough)
- (2) Chain Drops per Bolster
- (2) Stake Pockets at rear

ADDITIONAL SPECS:
- Manual Ride Height Control
- Prepped for Single Axle Booster
- Colas+ Raise and Lower Valve
- Bucket Well at Rear of Main Deck with Plate on Bottom and 4 flat D-Rings
- 31" Front Flip Ramps
- Rear Lift Axle

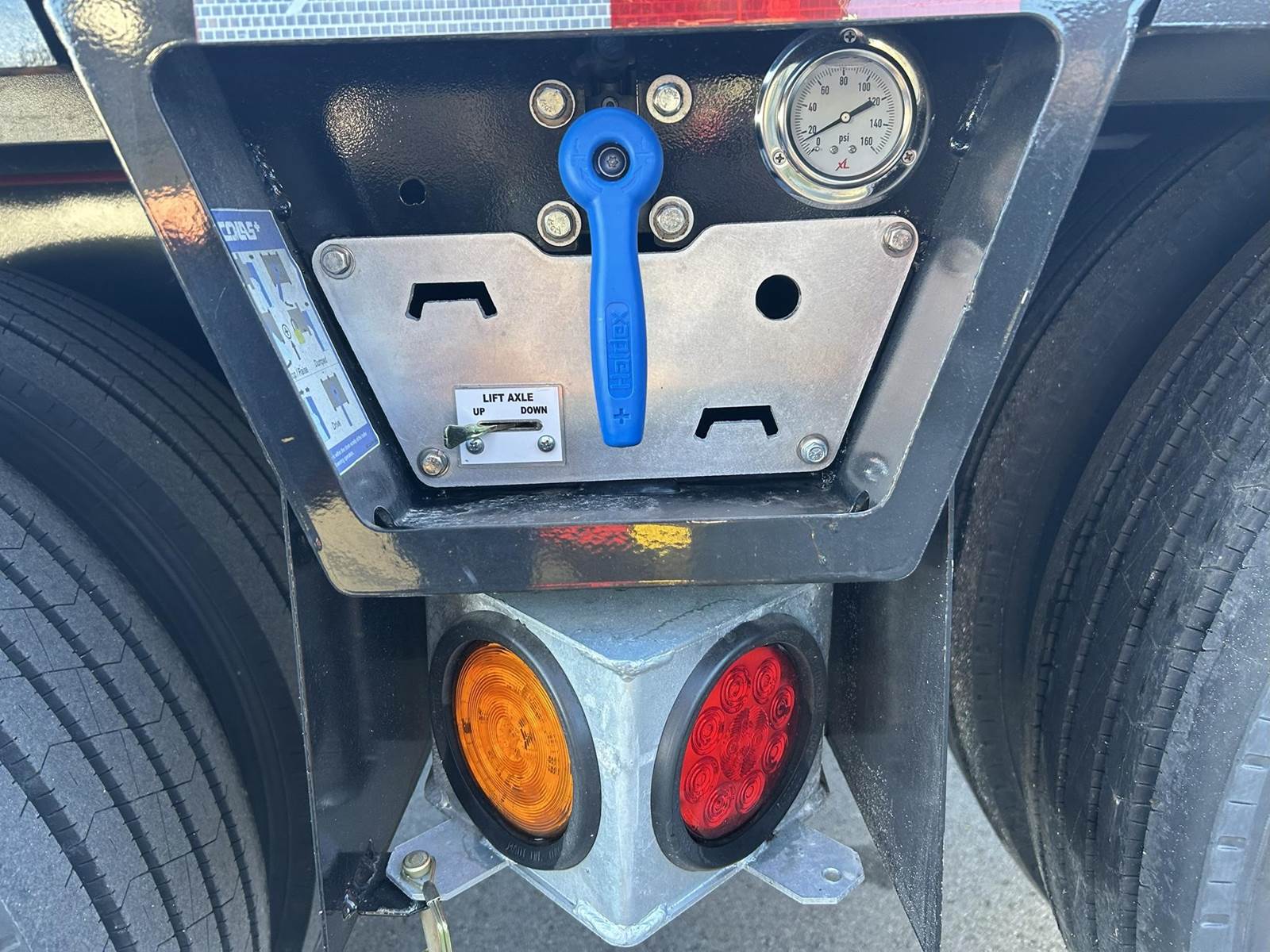

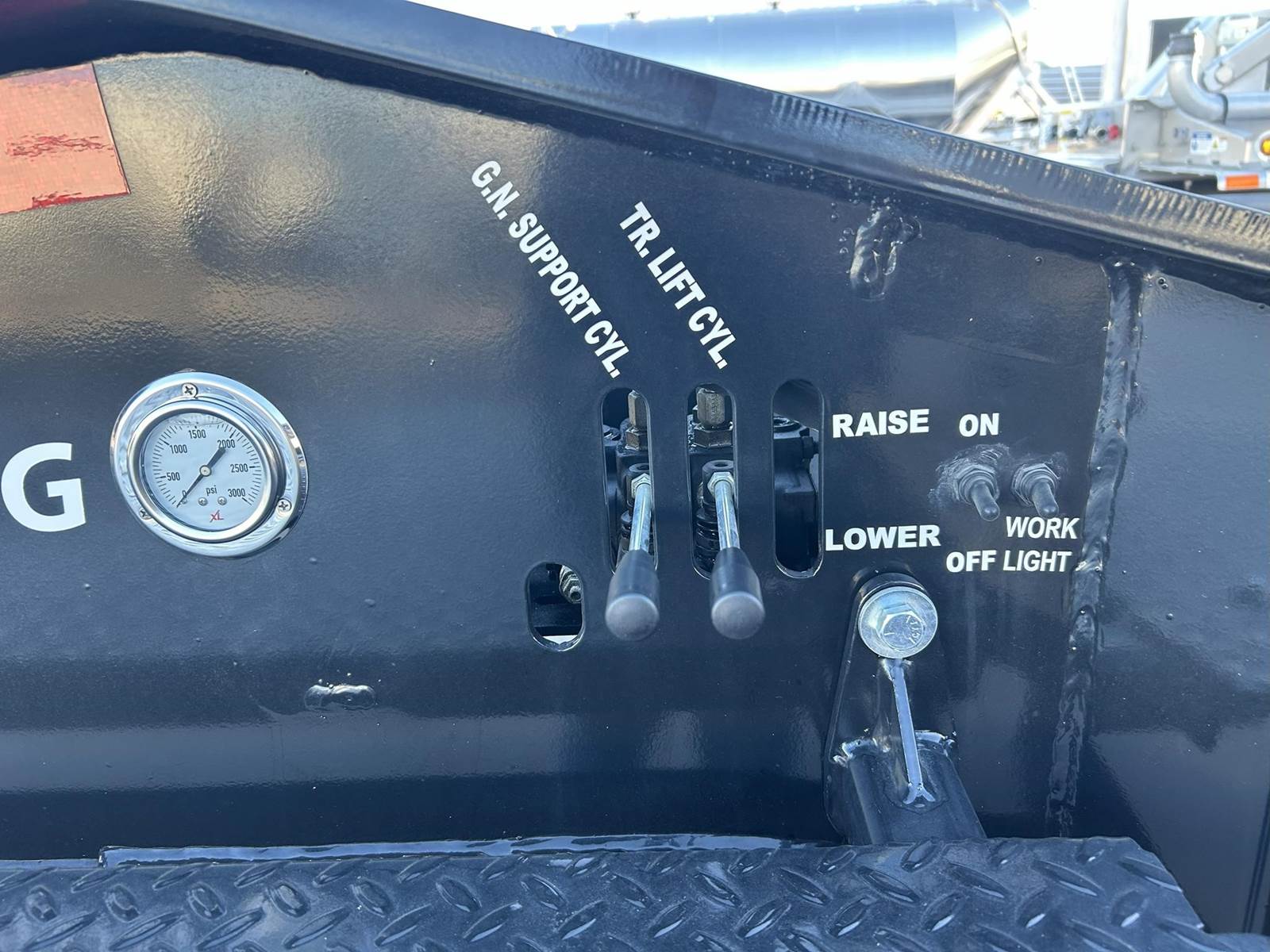

- Liquid Filled Air Gauge
- Toolbox In front of Main Deck with 4 flat D-Rings
- Toolbox in Rear of Main Deck with 4 flat D-Rings (In front of bucket well)
- (2) Pair EZ Mount Flag Holders
- Battery Backup to run all lights on Brown and Black wires, Lights to Flash
- (2) Additional Clearance Lights per side on Main Deck

CALL TODAY FOR MORE INFO!
