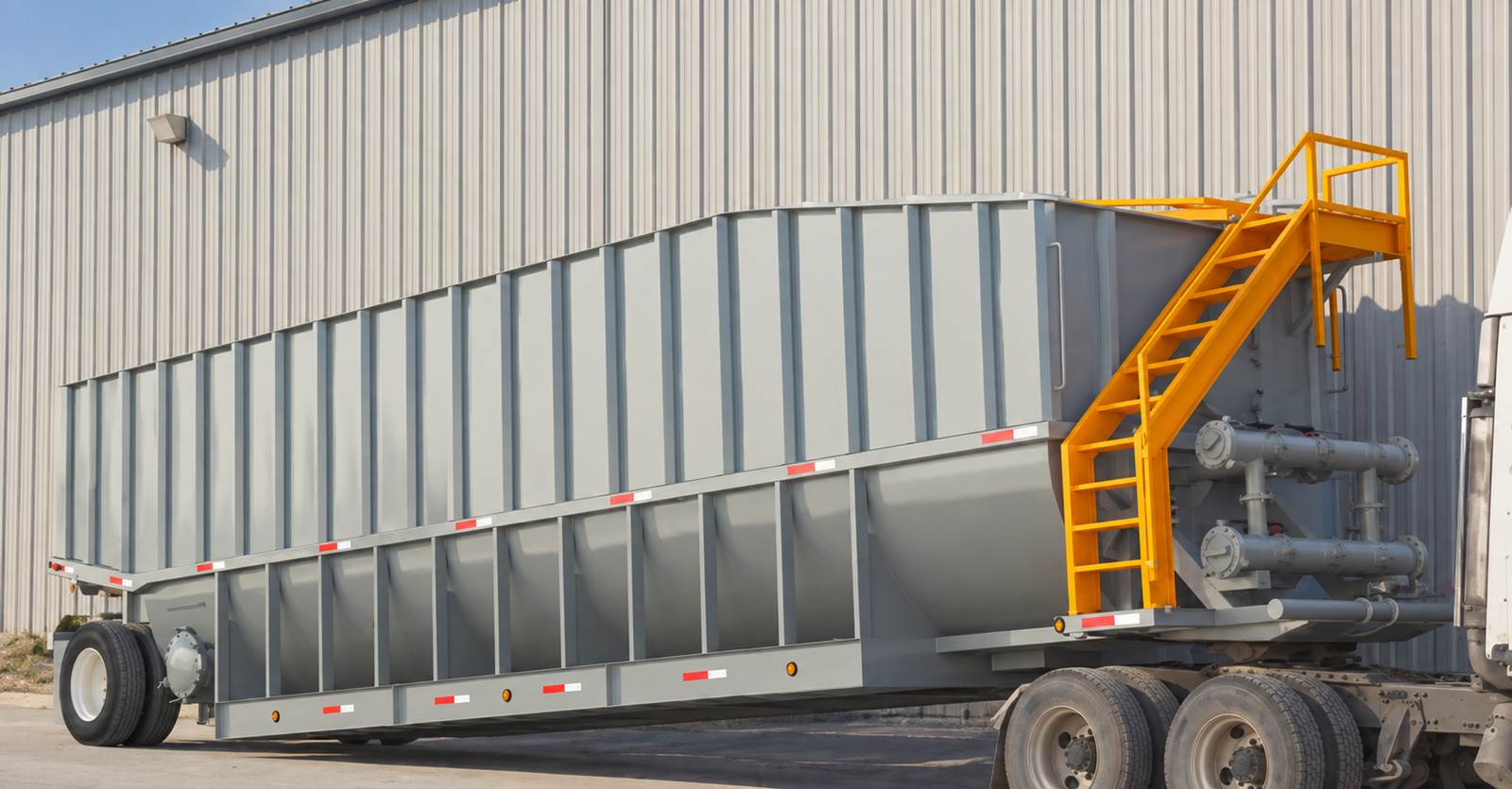

2027 NEW CONQUEST TRAILERS 500BBL ROUND BOTTOM FRAC TANK TRAILER

NEW 2027 500 BBL ROUND BOTTOM FRAC TANKS | CUSTOM BUILT | FINANCING AVAILABLE
FOR DRILLING MUD HANDLING,
BUILT FOR THE OILFIELD. BUILT TO YOUR SPECS.

Introducing the NEW Conquest 500-Barrel Frac Tank  heavy-duty oilfield equipment manufactured for companies who demand quality, durability, and the ability to customize their equipment.

This isn’t just another standard frac tank. Conquest builds to your requirements.

500 BBL Capacity • Single Axle • Brand New • Custom-Built
 Tank made of ¼” thick A-36 steel plate. smooth interior to easy cleaning with reinforcements on the sides
➢ Top frame reinforced based on a 3" wide channel with a 1 1/2" skid
➢ ¼” steel plate tank bottom in shape of half round (ROUND BOTTOM), and reinforcements on the sides, with 3/16” plate
➢ Reinforcements around the perimeter of the tank at the junction between the bottom and the walls with 4" x 4" PTR
➢ Single axle with double track, with springs and pneumatic brakes
➢ 04 11R 24.5 tires,

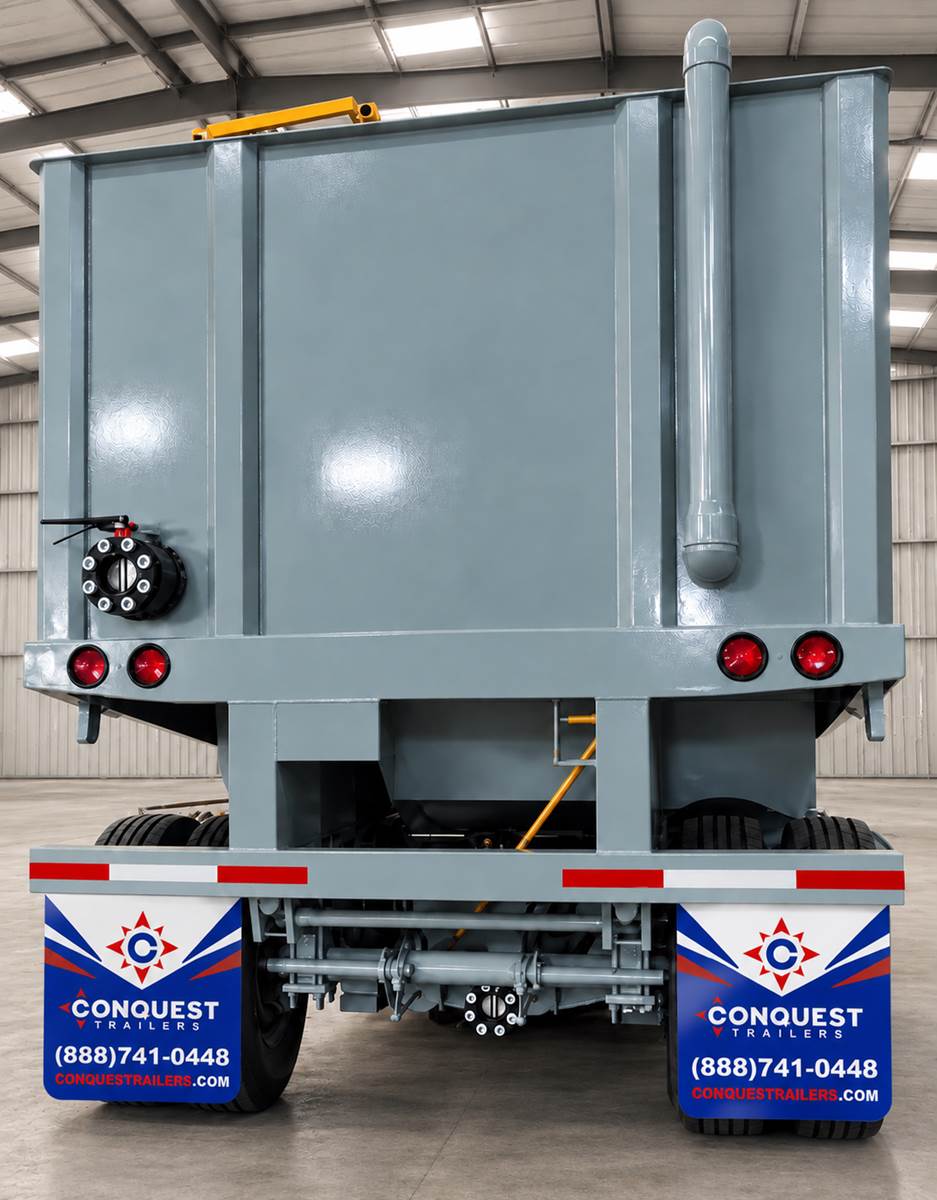

➢ Regulatory traffic lights in the rear and sides
➢ 01 20” manway on the side, with folding rails

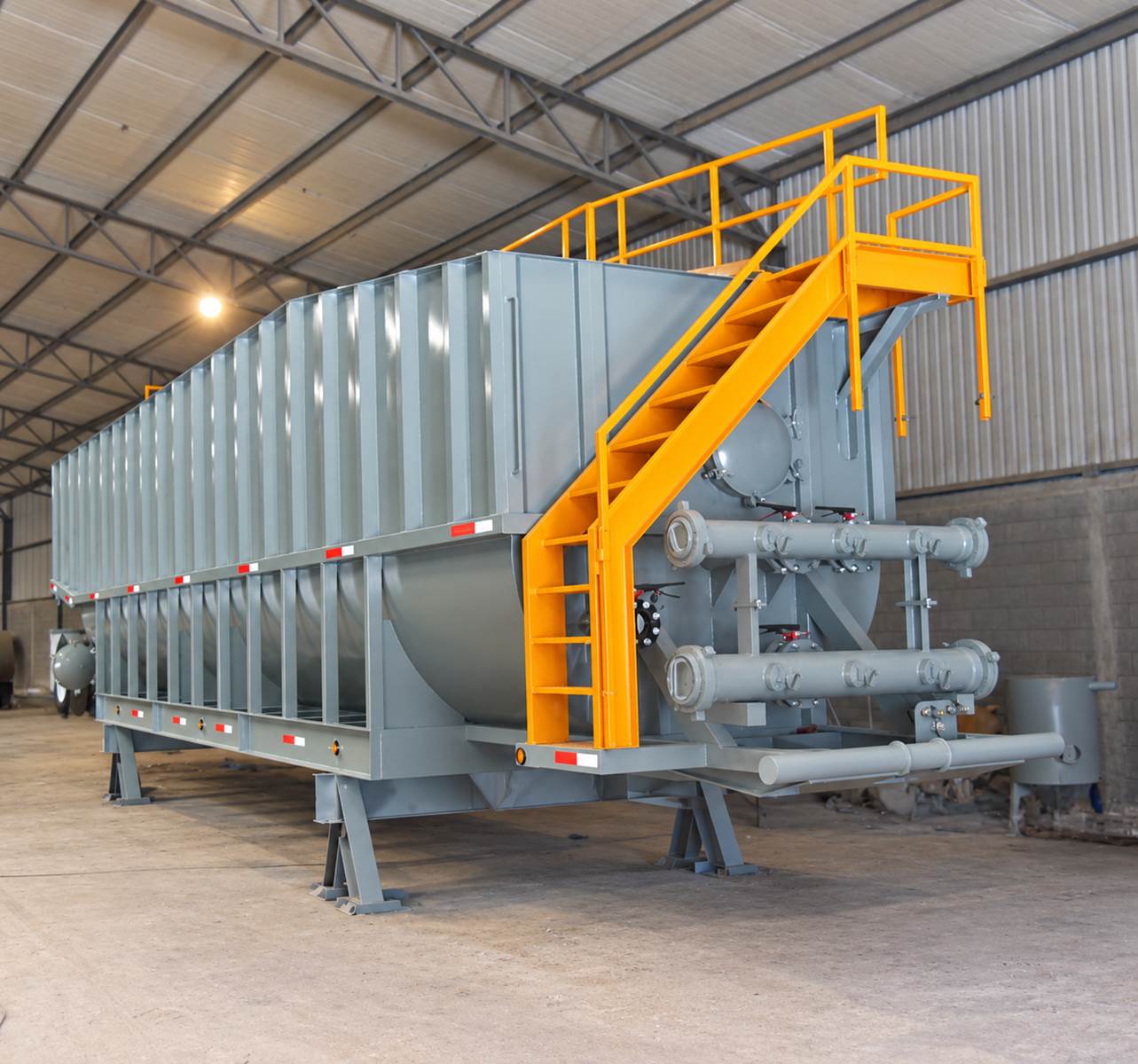

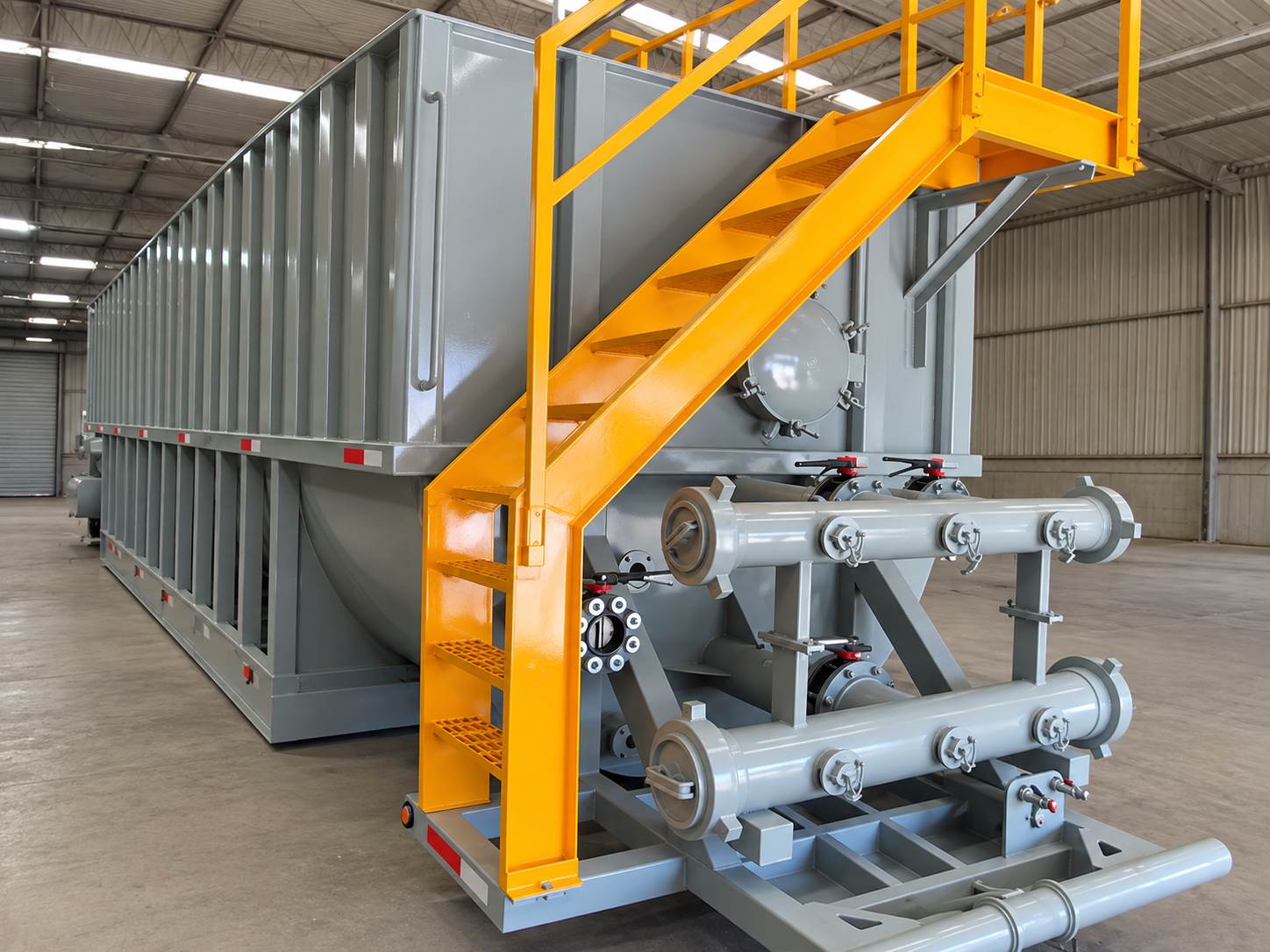

➢ 8” manifold with 8” butterfly valve, Viton gasket and 3 4” intakes on the front.

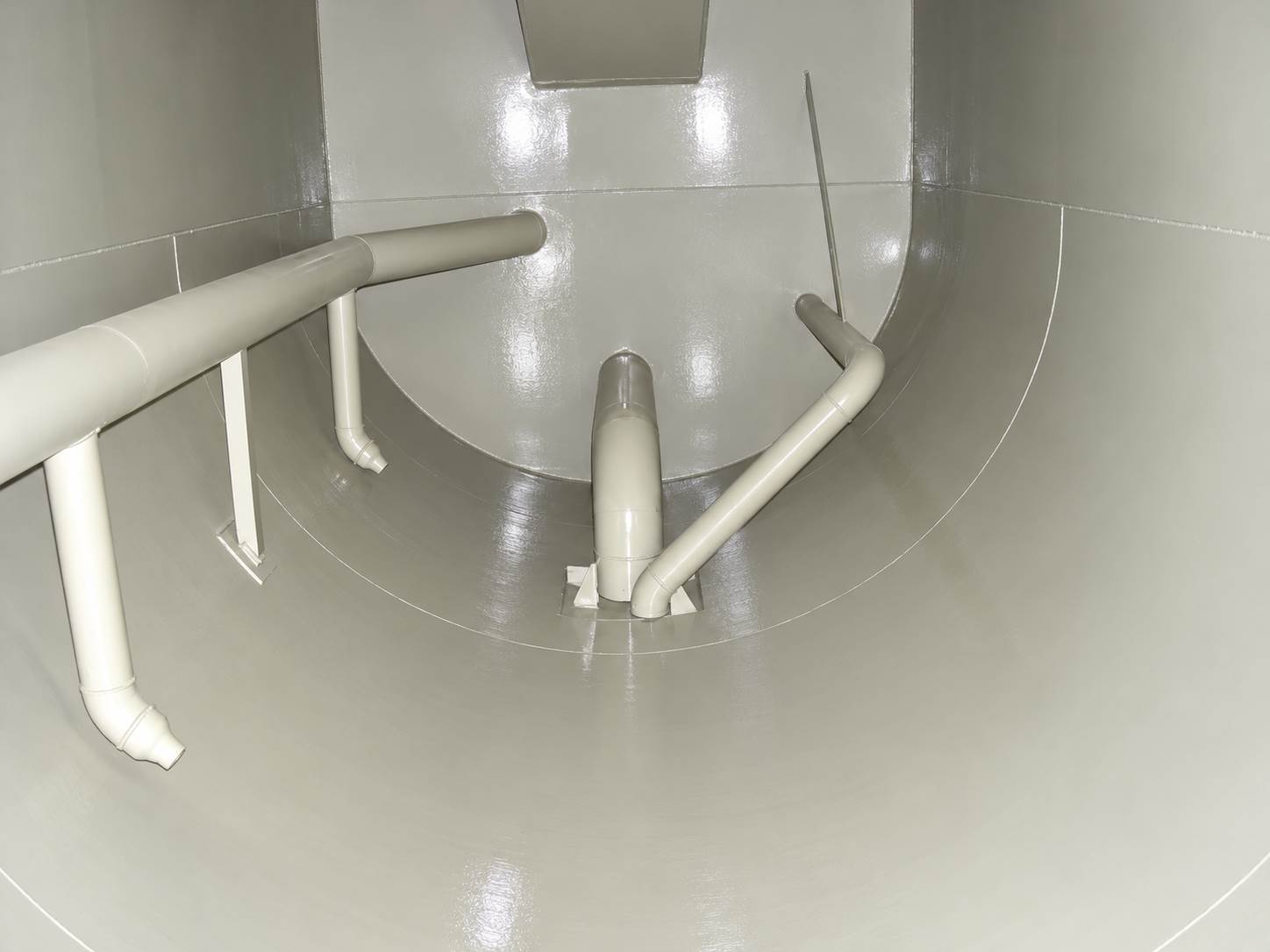

➢ 6” manifold with 6” butterfly valve, Viton gasket and 3 4” intakes on the front, with 01 piping to the interior of the tank with 5
shots of 3” for cleaning
➢ Screw caps on the 8” tube of the manifold
➢ 03 4" mud Viton packing butterfly valves: one at each end of the tank in the lower part, one more in the front shot of the left
side of the tank
➢ Preparation with 6" elbows and flange at the rear on the tank roof for placement of flame arresters
➢ Actuating system for 4” rear valve for remote tank drainage
➢ Tank level indicator through transparent hose with graduation at every 50 barrels
➢ King pin (5th) for movement and/or transfer of the tank welded in ½” plate

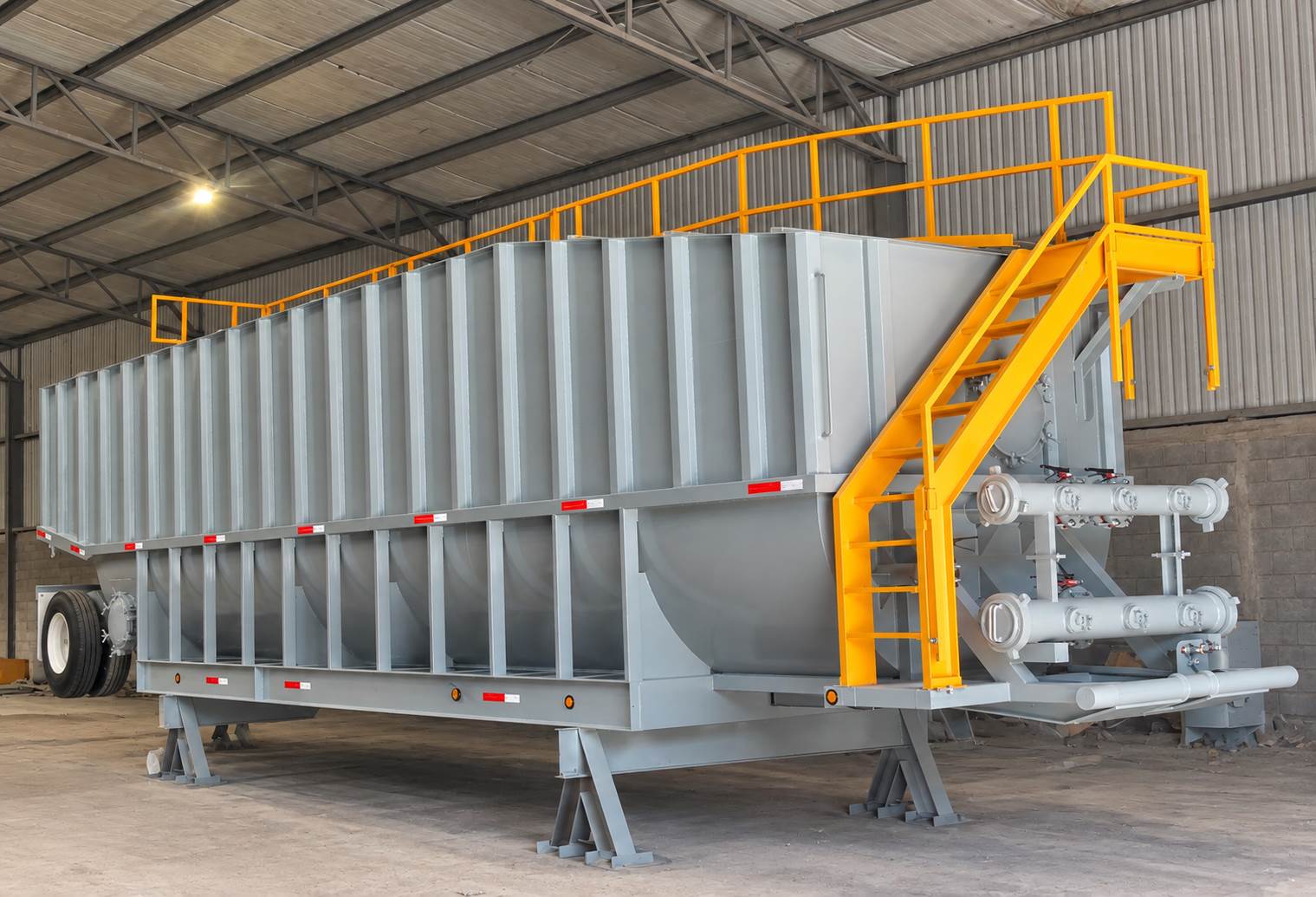

➢ Ladder with handrails at front for access to top of the tank
➢ Walker corridor at the top front of the tank with Ladder
➢ Exterior coating: Sand Blast, epoxy primer and polyurethane finish in a single tone in the color indicated by the client
➢ Interior Finish: Sand Blast and Johns Blair Brand Epoxy (CHEM O GARD) in two coats to 7 mils

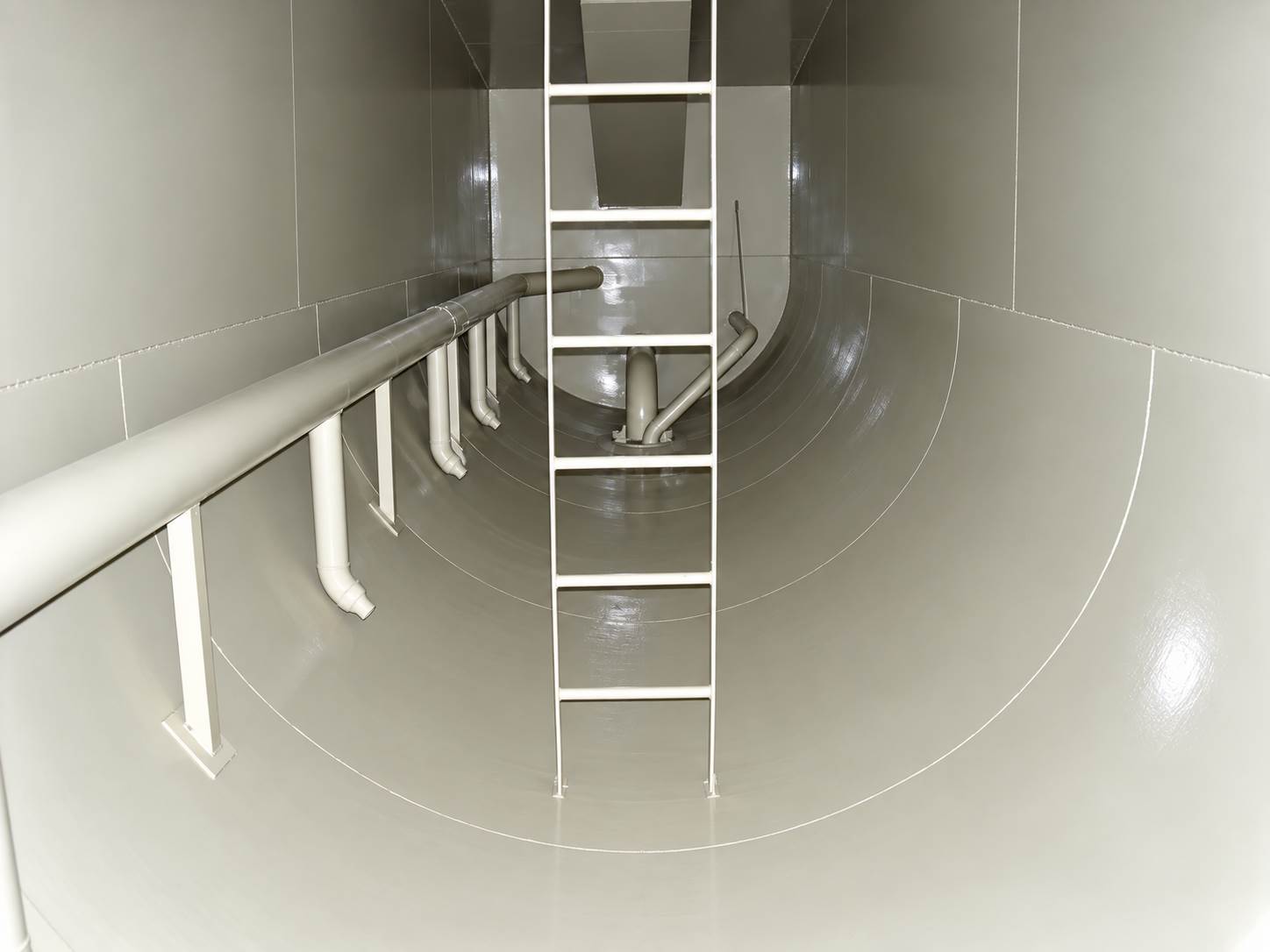

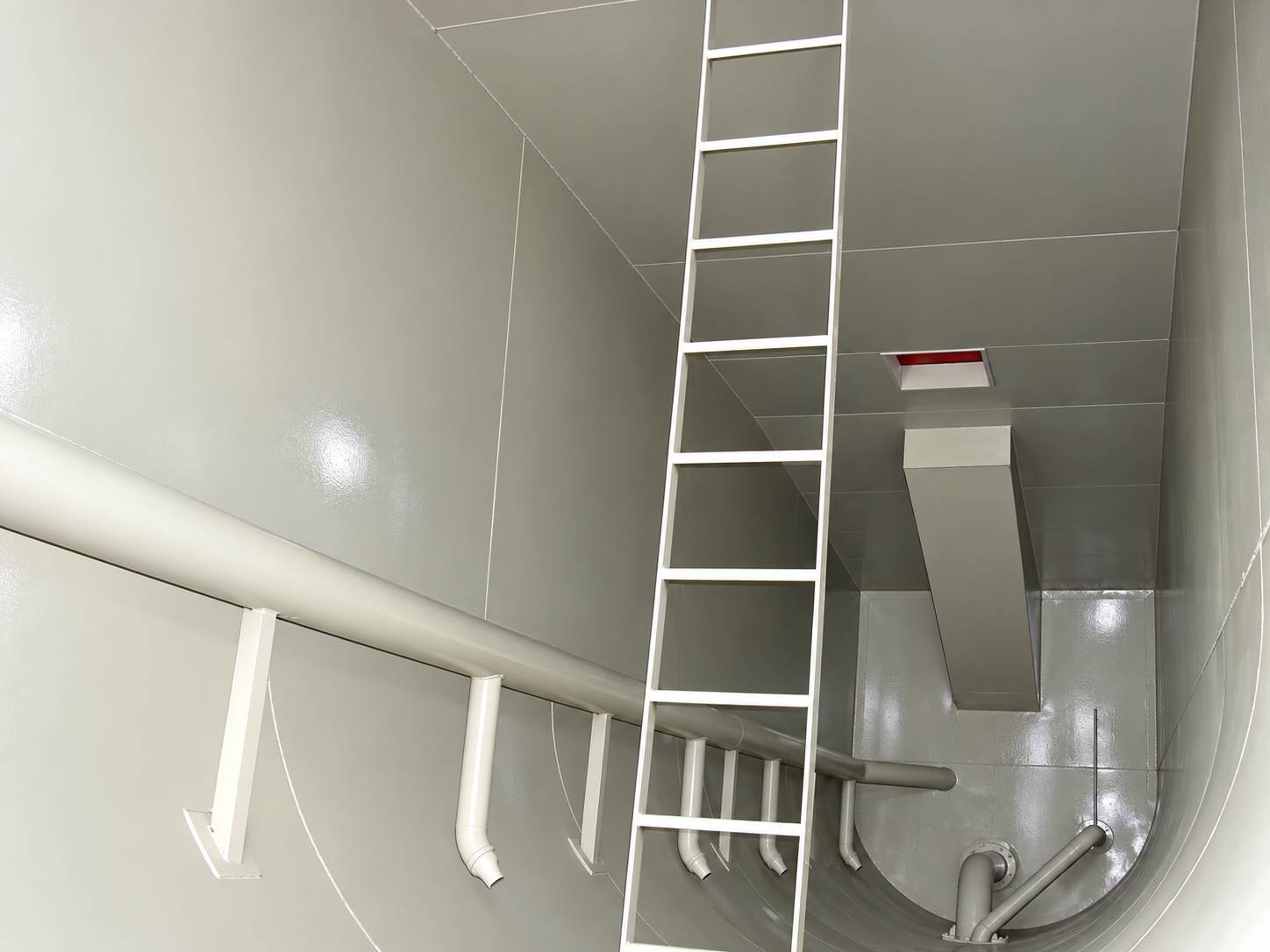

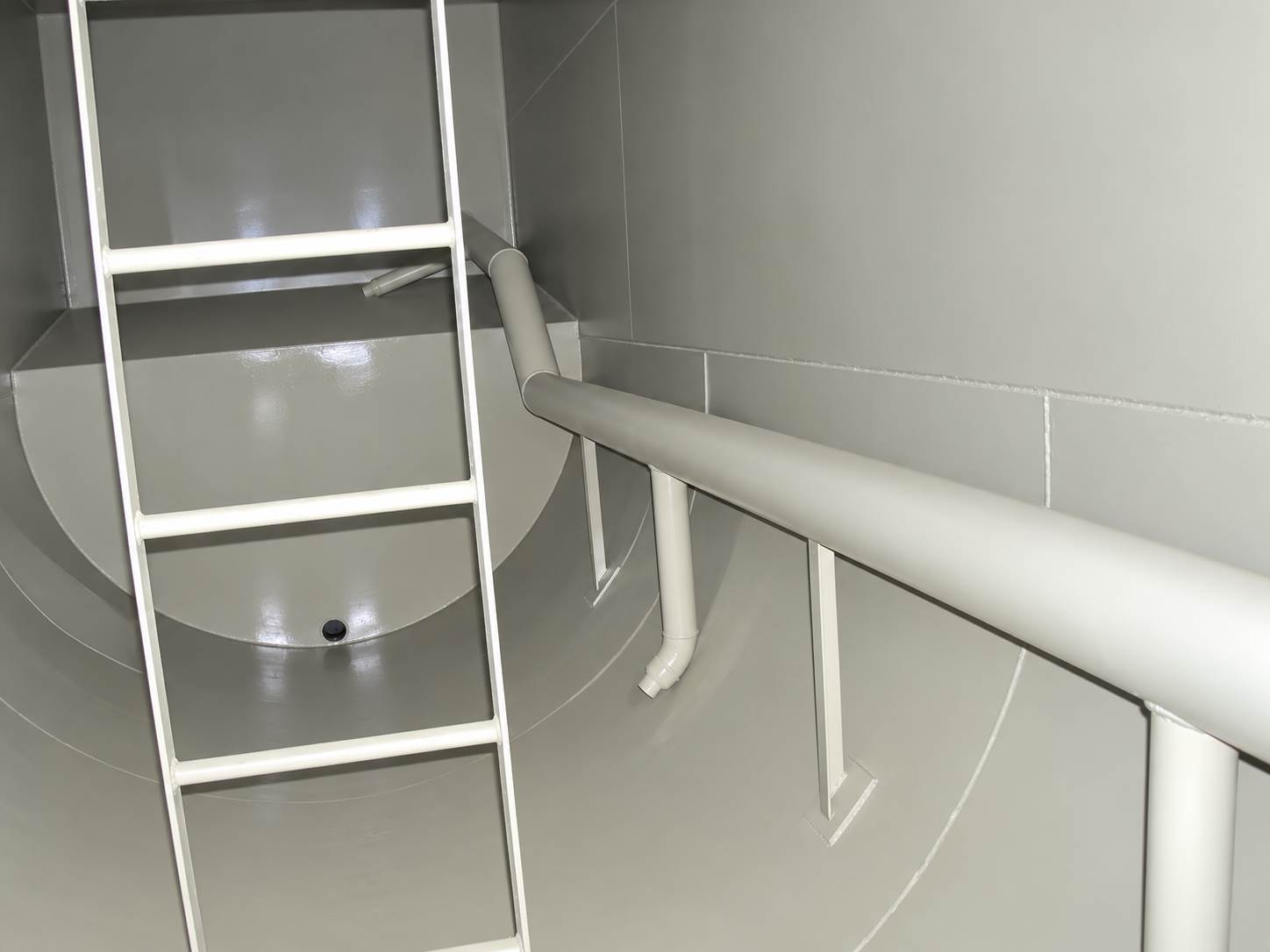

➢ Stairs inside the equipment, with access through the upper hatch of the Tank.


Available with customized configurations, connections, valves, piping, Manifold Assembly, colors, and other options to meet your operation’s requirements.

Built with a focus on heavy-duty construction, quality fabrication, and dependable oilfield service.
Whether you need one frac tank or an entire fleet, talk to Conquest about your next equipment order.
