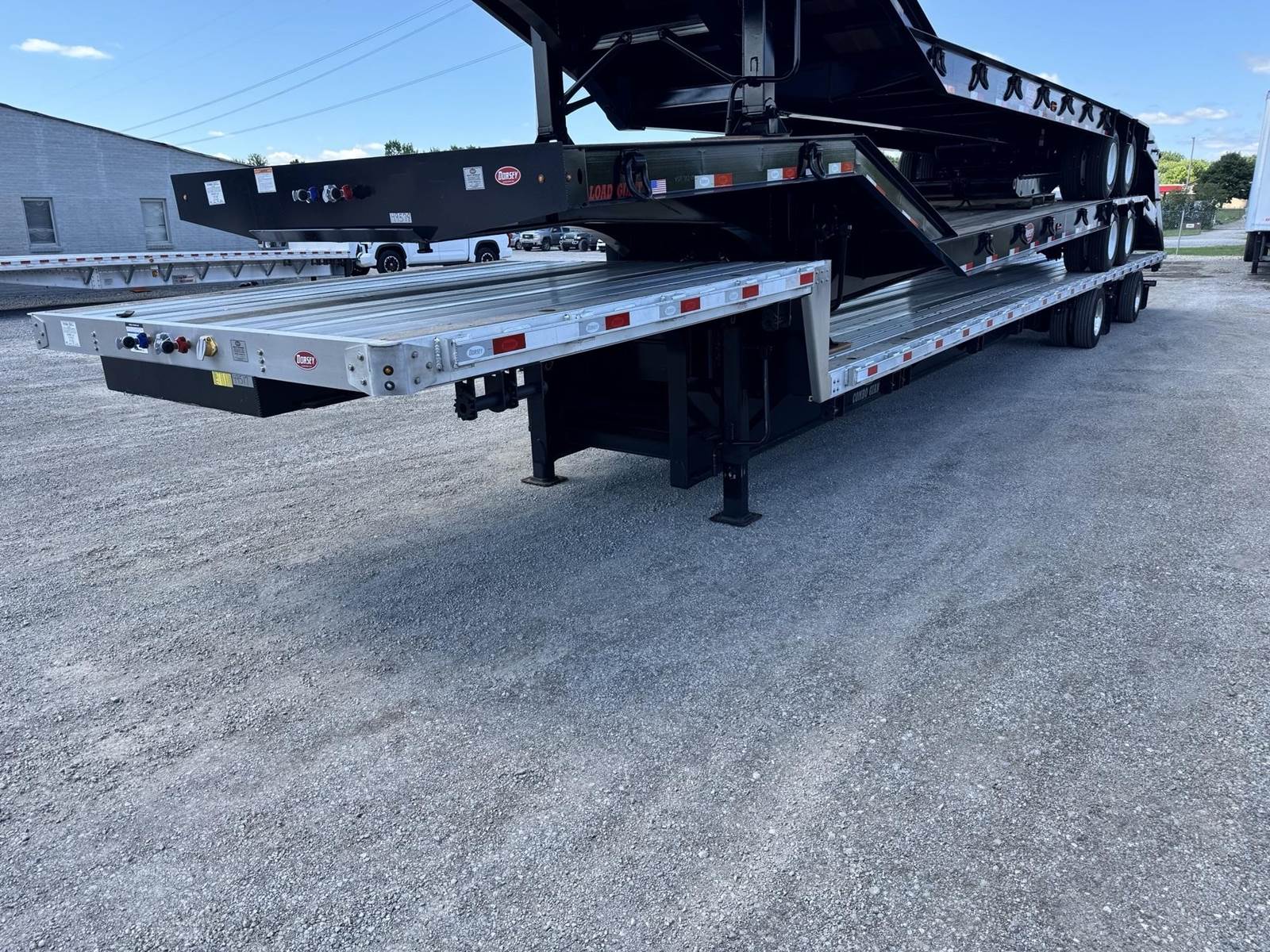

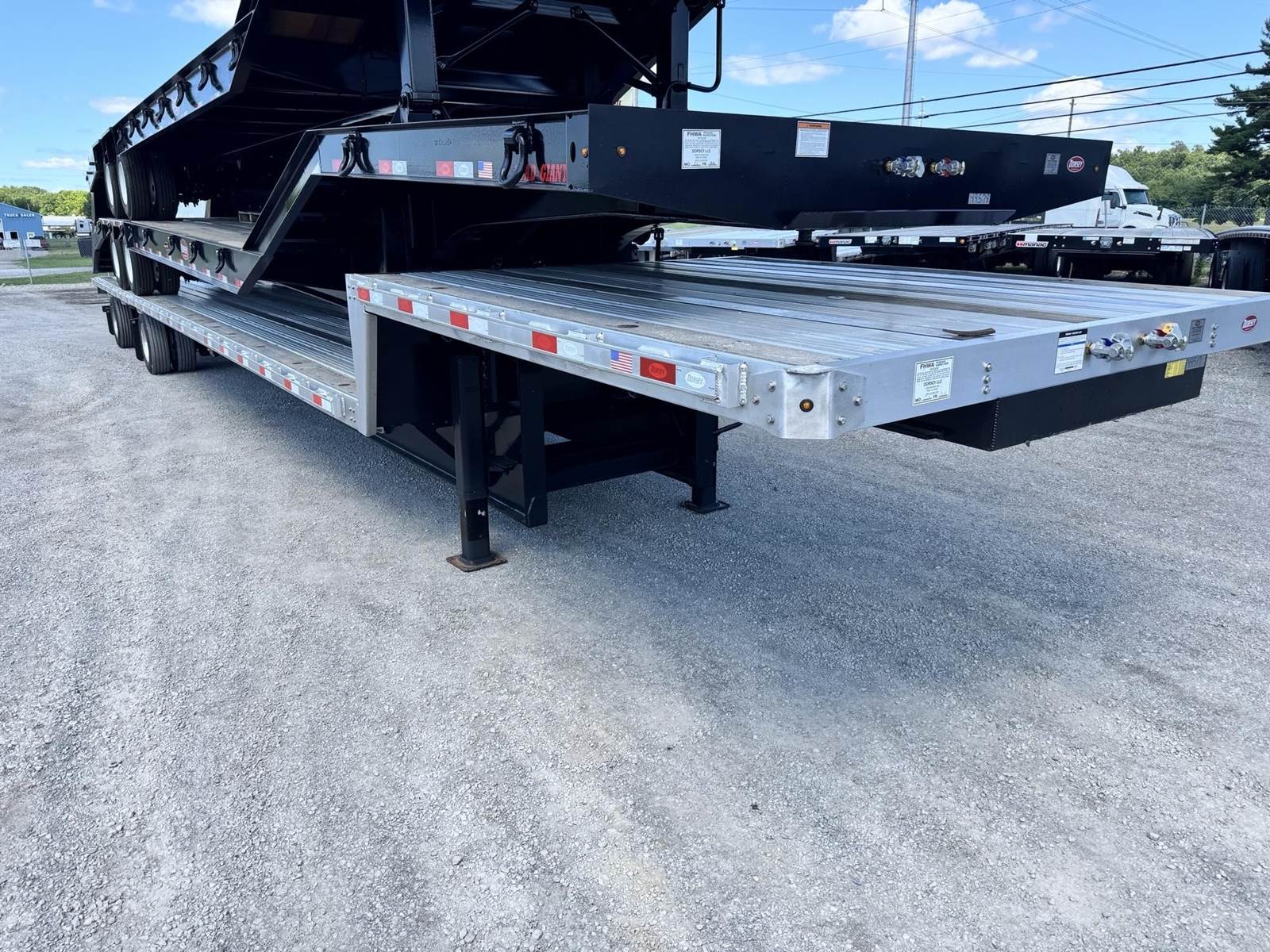

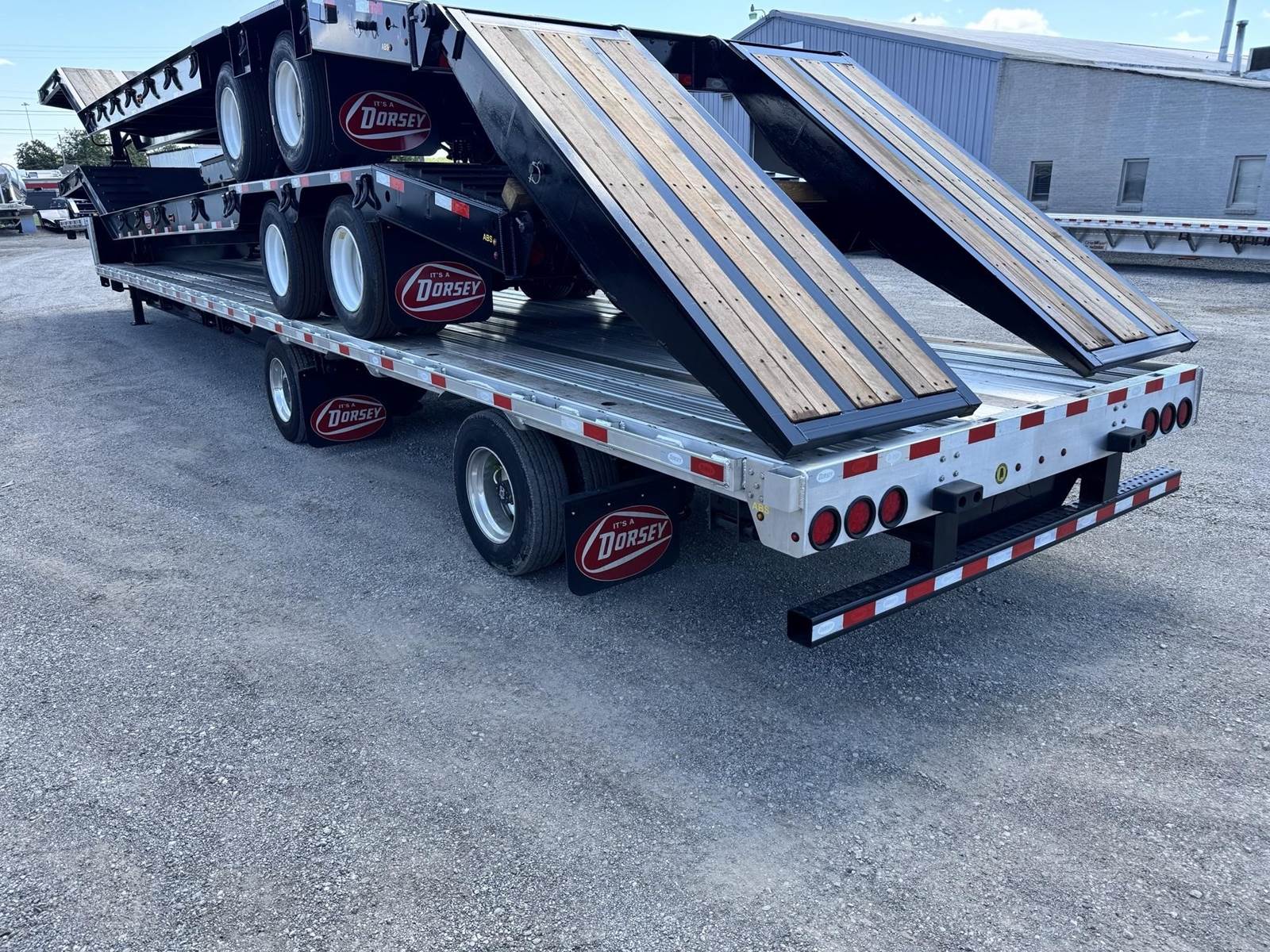

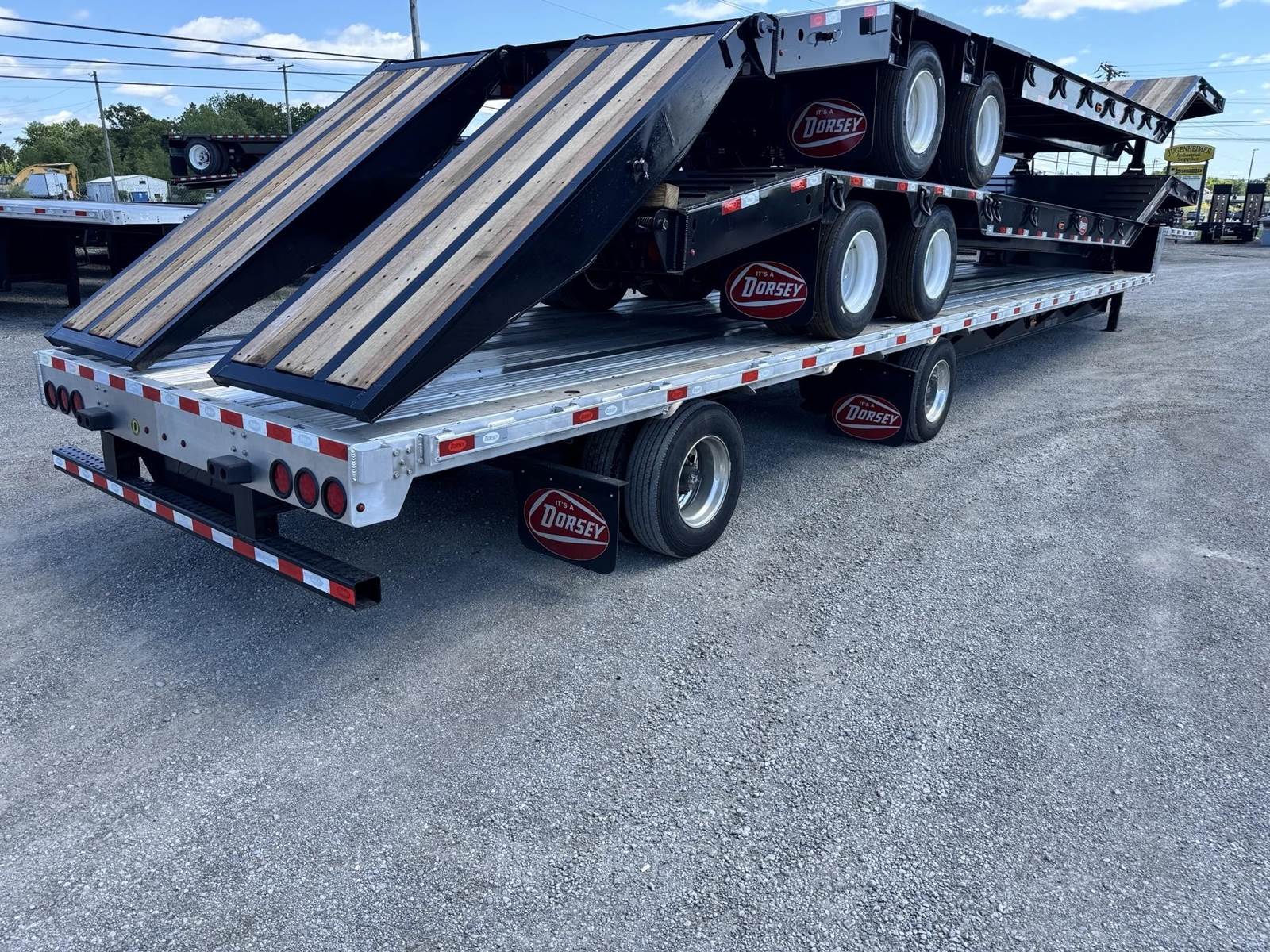

2027 Dorsey COMBO DROP Drop Deck Trailer

FET included in the selling price.

Length 53'
Width 102"
Top Deck Length 10'
Main Deck Length 43'
Main Deck Height 35.5"
Weight 11,680 lbs. +/- 3%
Flat Body
Bulkhead None
Floor Aluminum
Nailing Strips 4
Chain Tiedowns 14 Pair
Front/Rear Member Aluminum
Ramps None
Side Rail Aluminum
Pipe Spools Single
Winch Track Alum Double L on Both Sides, Tie Bar on Both Sides
Sliding Winches 12
Toolbox None
Add. Receptacle ISO 7-Way
Rear Lights (3) Stop/Tail, (3) Clearance
Mud Flap Brackets Behind Front & Rear Axle
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson HT250US
Suspension Setting 10'2" Open, 61" Closed (Cal Legal Closed)
Lift Axle None
Electric Dumpvalve Rear Axle - Wired to Center Pin of Aux 7-Way
Manual Dumpvalve Yes
Tire Brand Double Coin
Tire Size 235/75R17.5
Wheels Polished Aluminum Outside / Steel Inside
UnderFrame
King Pin Setting 18"
Cross Member Center 18" top deck, 12" bottom deck - Steel
Coil Package Coil Pack w/ 4 Stub Crossmembers
Landing Gear Jost, Two-Speed
Tire Carrier Front of Main Beams Between Landing Gear
Paint Black
Weight Ratings 80,000 GVWR - 54,000 in 10'
TireMaax Pro Tire Inflation System
