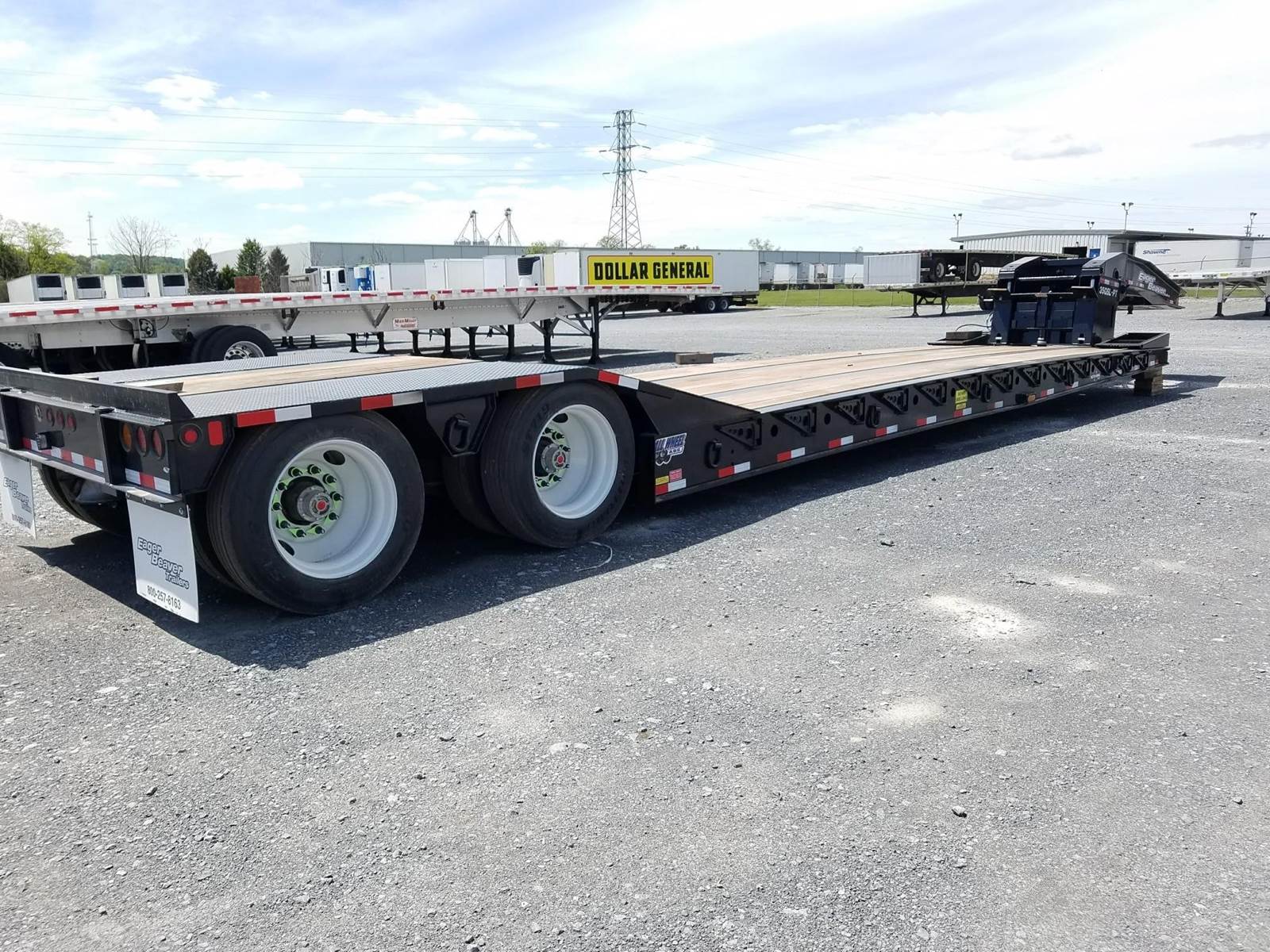

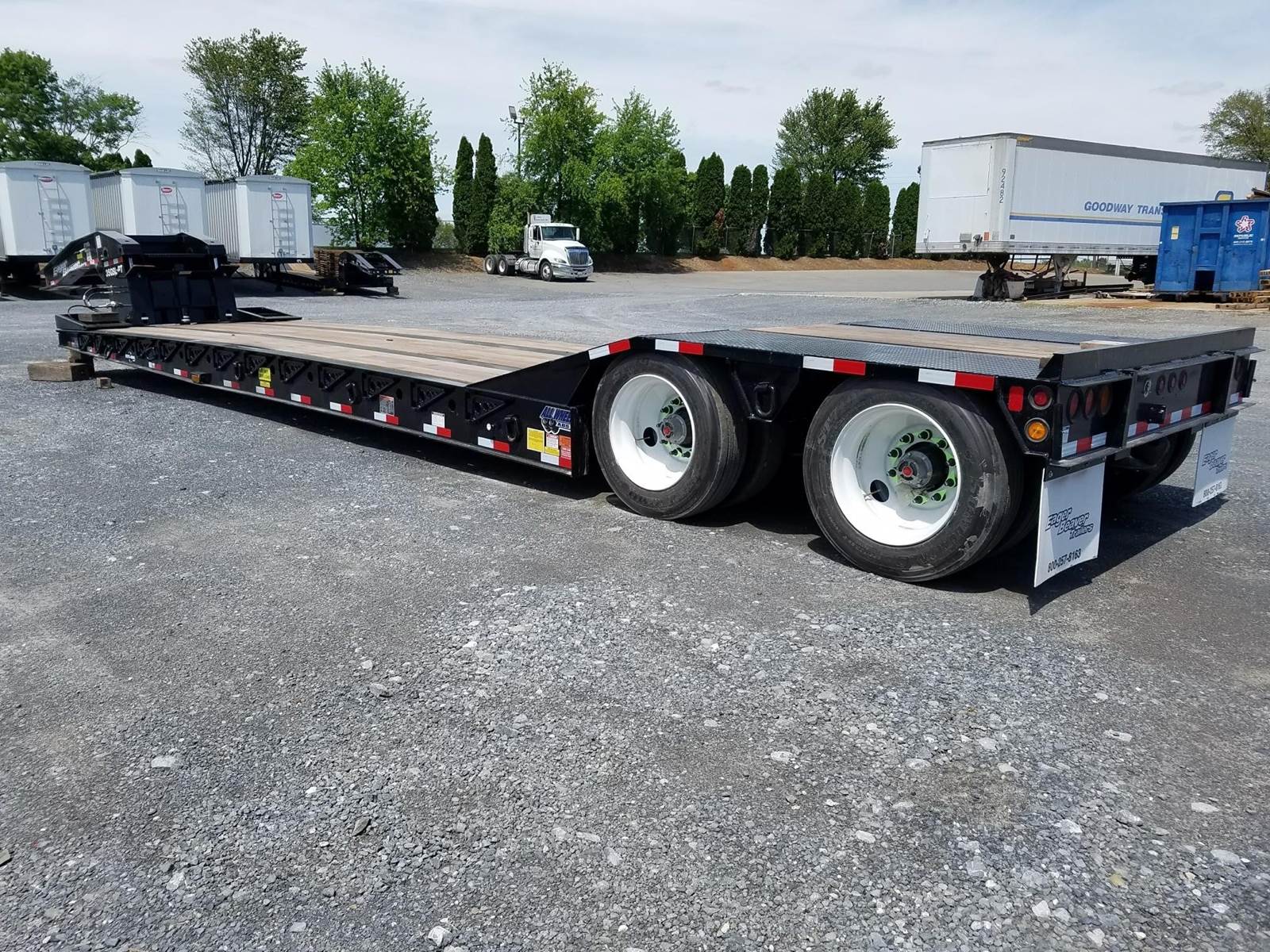

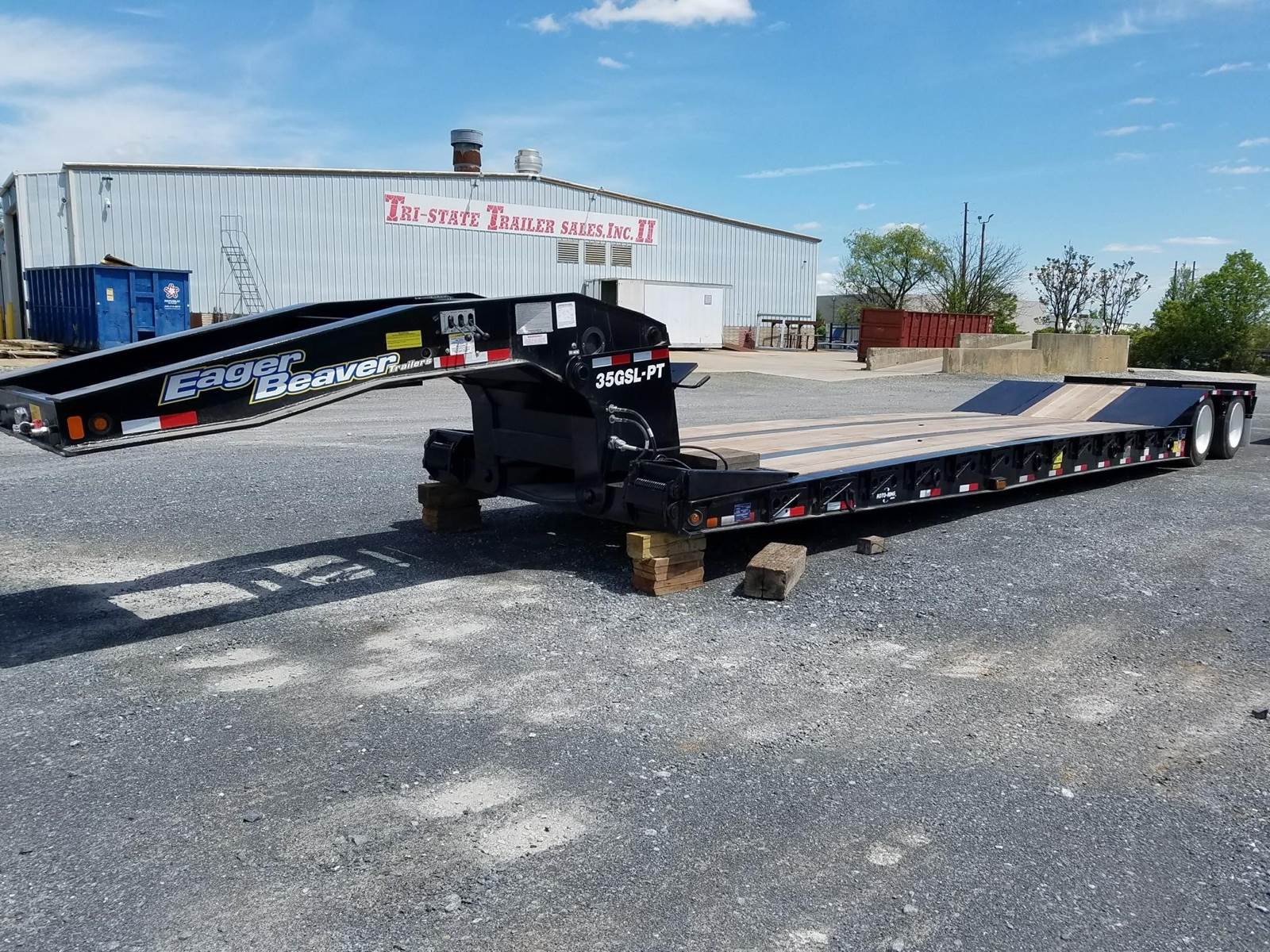

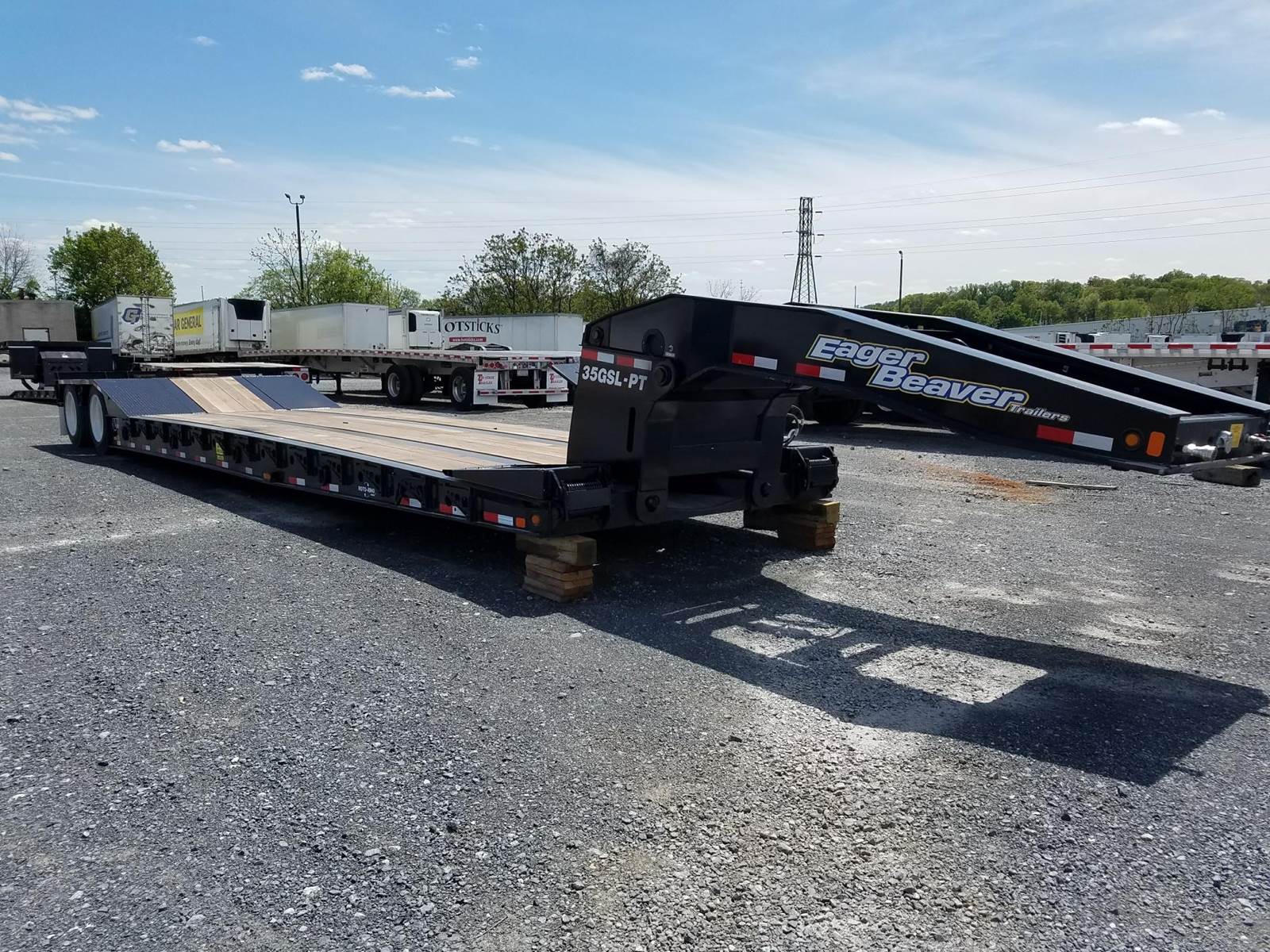

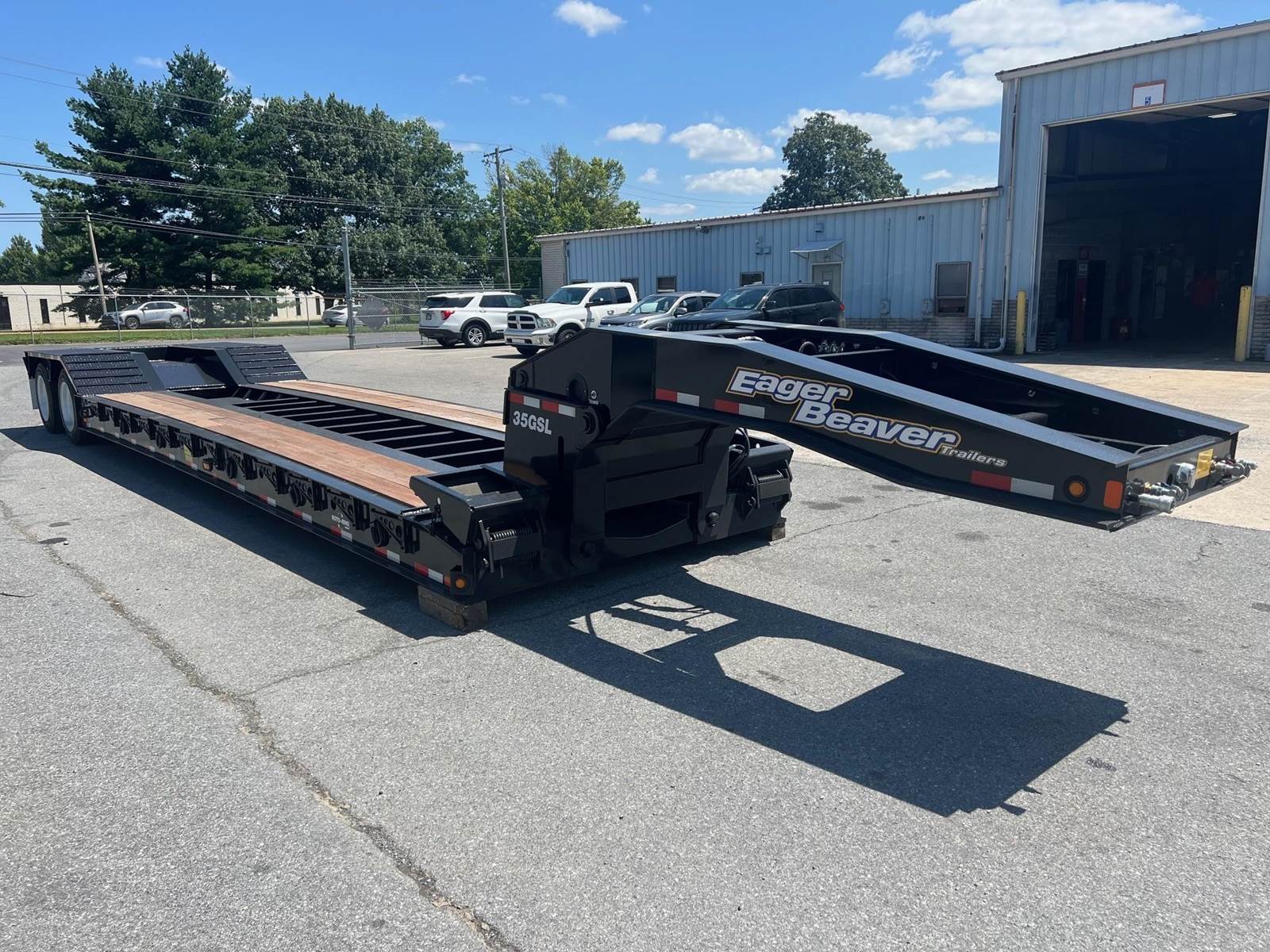

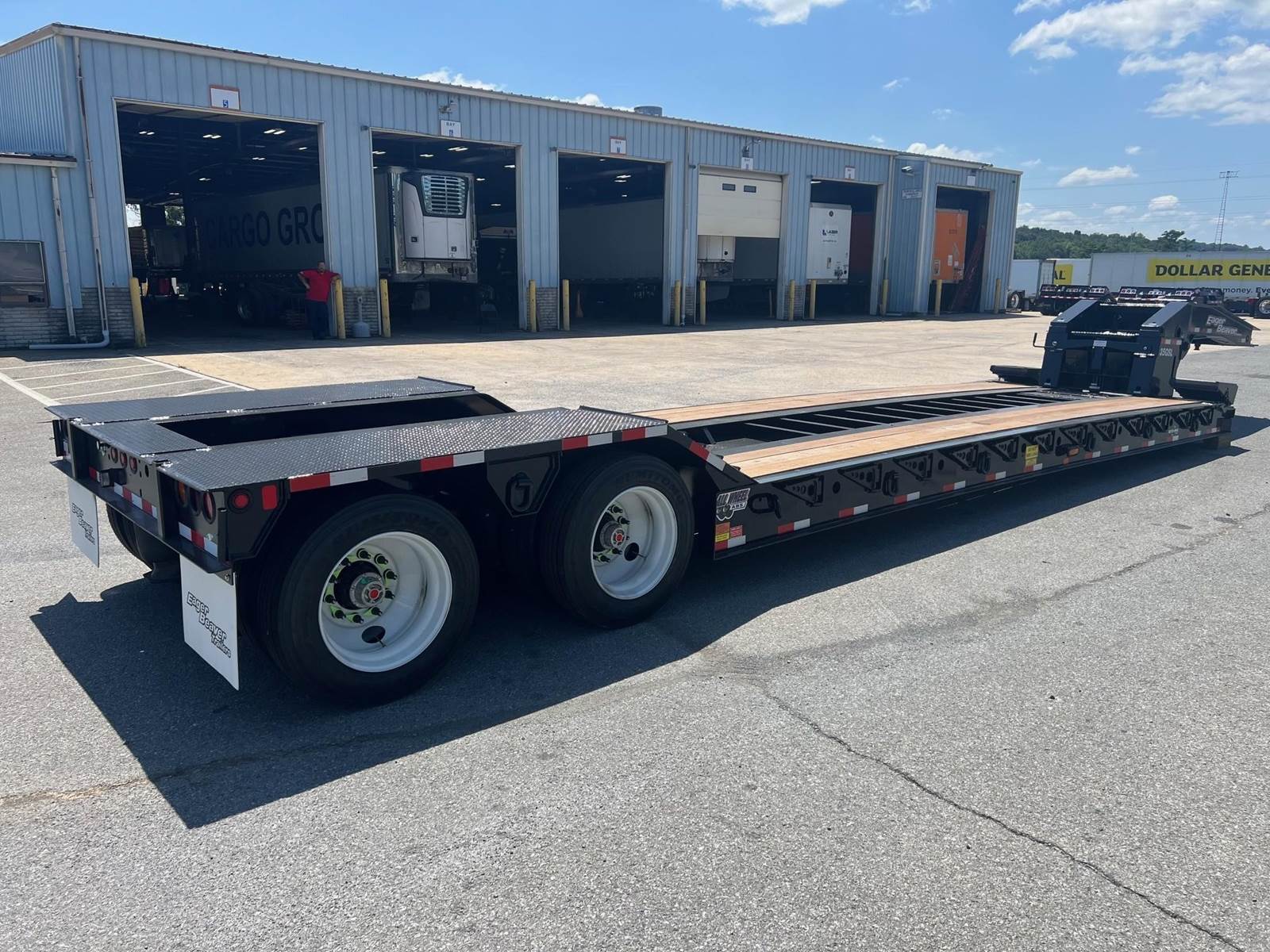

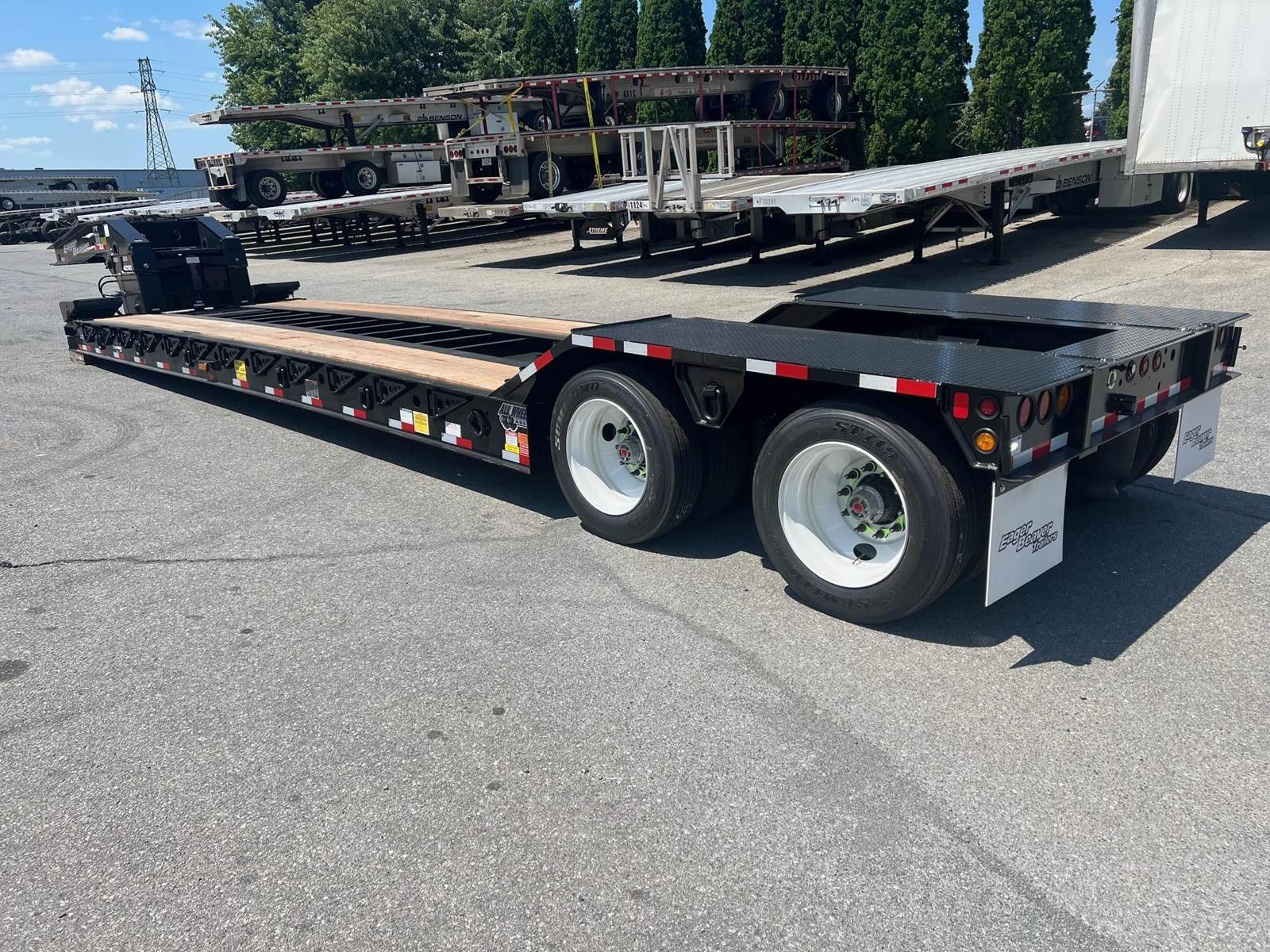

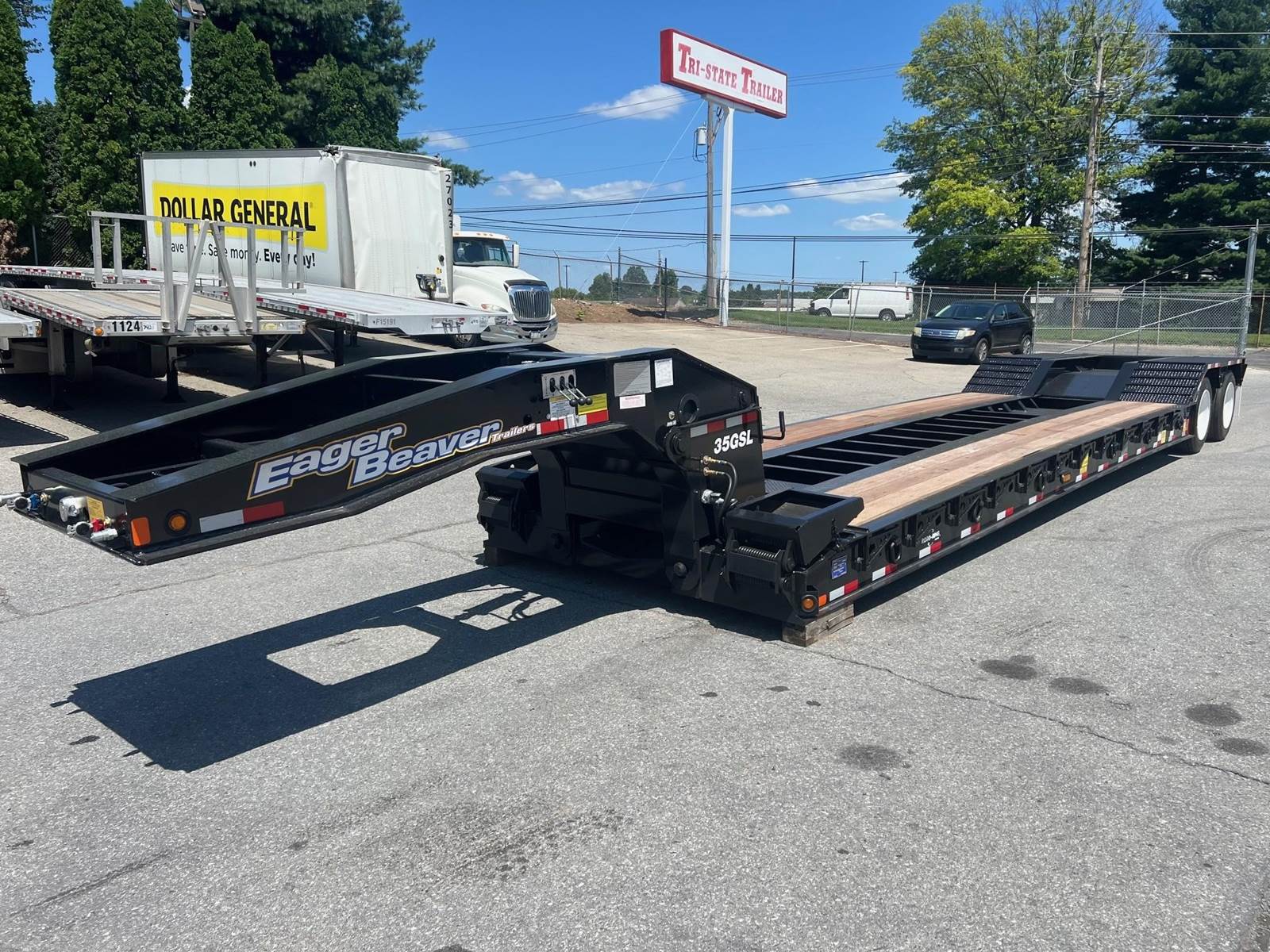

2027 Eager Beaver 35GSL-S Lowboy Trailer

Length 45' 4"
Width 102"
Top Deck Length 11' 6"
Main Deck Length 24'
Main Deck Height 24" Loaded
Rear Deck Length 9'10"
Weight 17,000 Lbs. +/- 3%
Flat Body

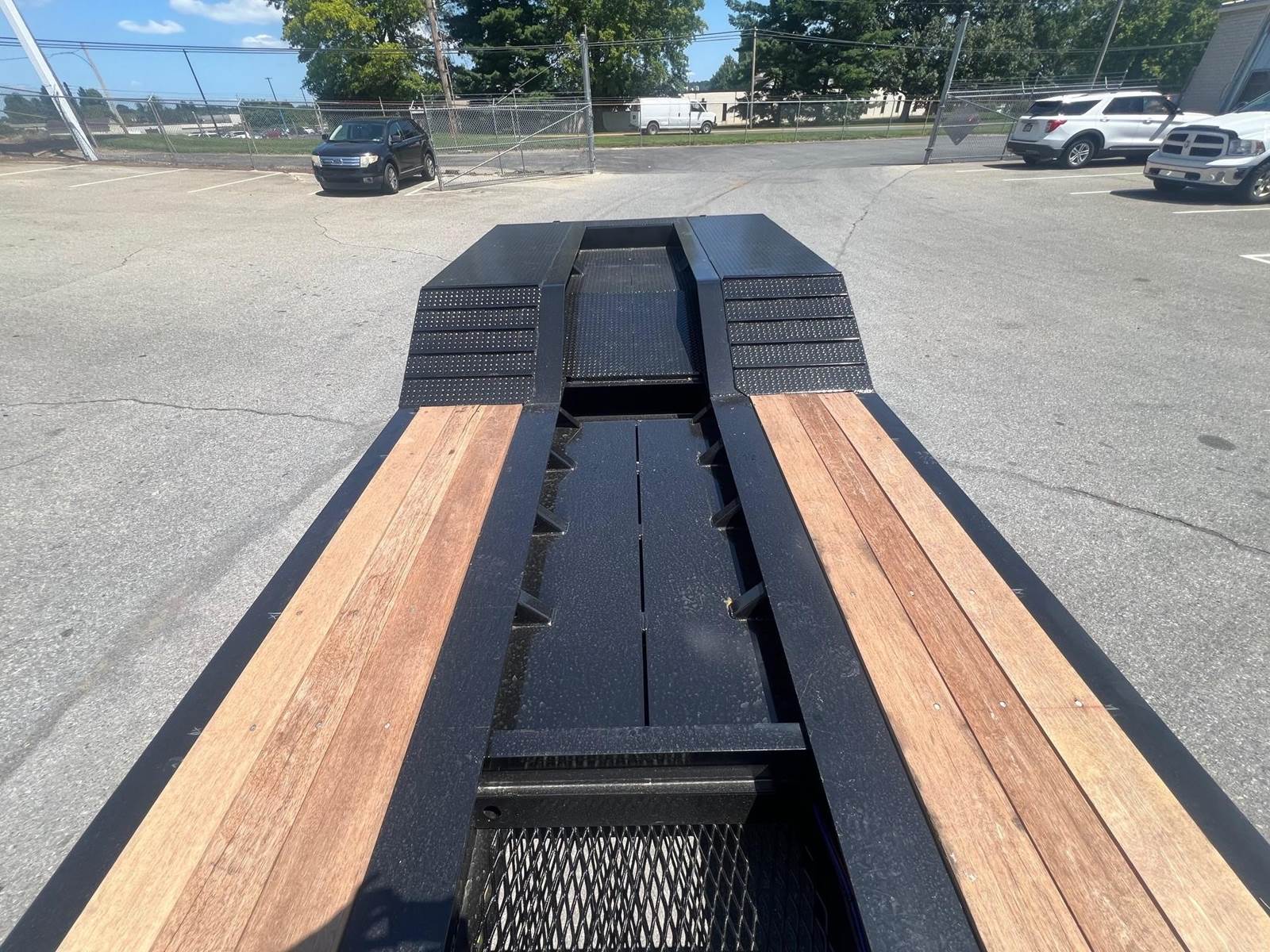

Floor 1 1/2" Apitong (Mesh Center)
Ramps 24" Steel Spring Assist Front Ramps
Side Rail Perimiter Beam - Steel
Outriggers 24" Centers (Locks both in & out position)
D-Rings ROTO style. (6) siderail, (1) Bolster

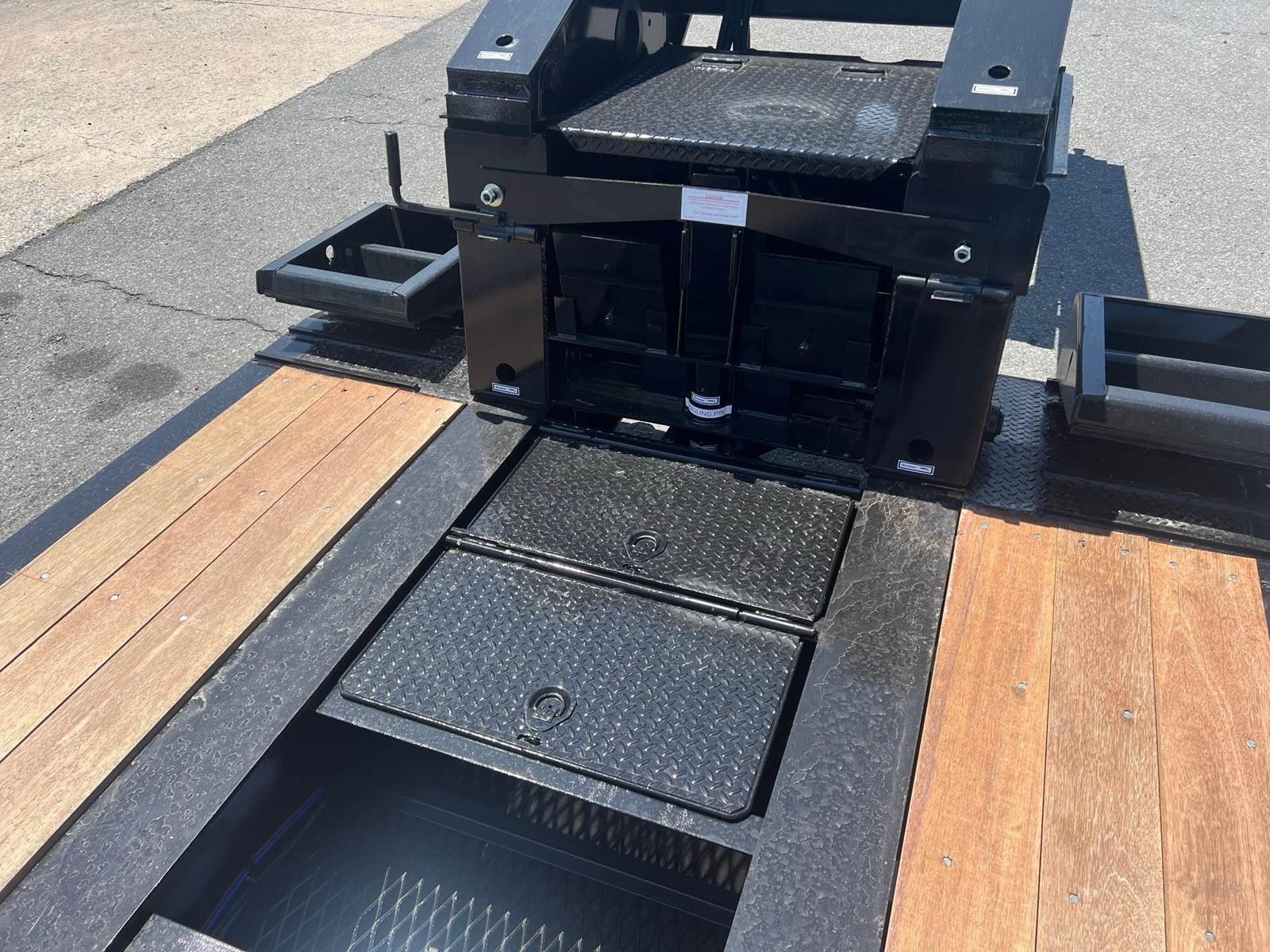

Toolbox 1st & 2nd Section of Deck, Exp. Metal, 2 Doors
Rear Lights (2) Stop/Tail, (3) Clearance
Strobe Lights Amber Strobe with Battery
Flag Holders One Set at Rear
Gooseneck

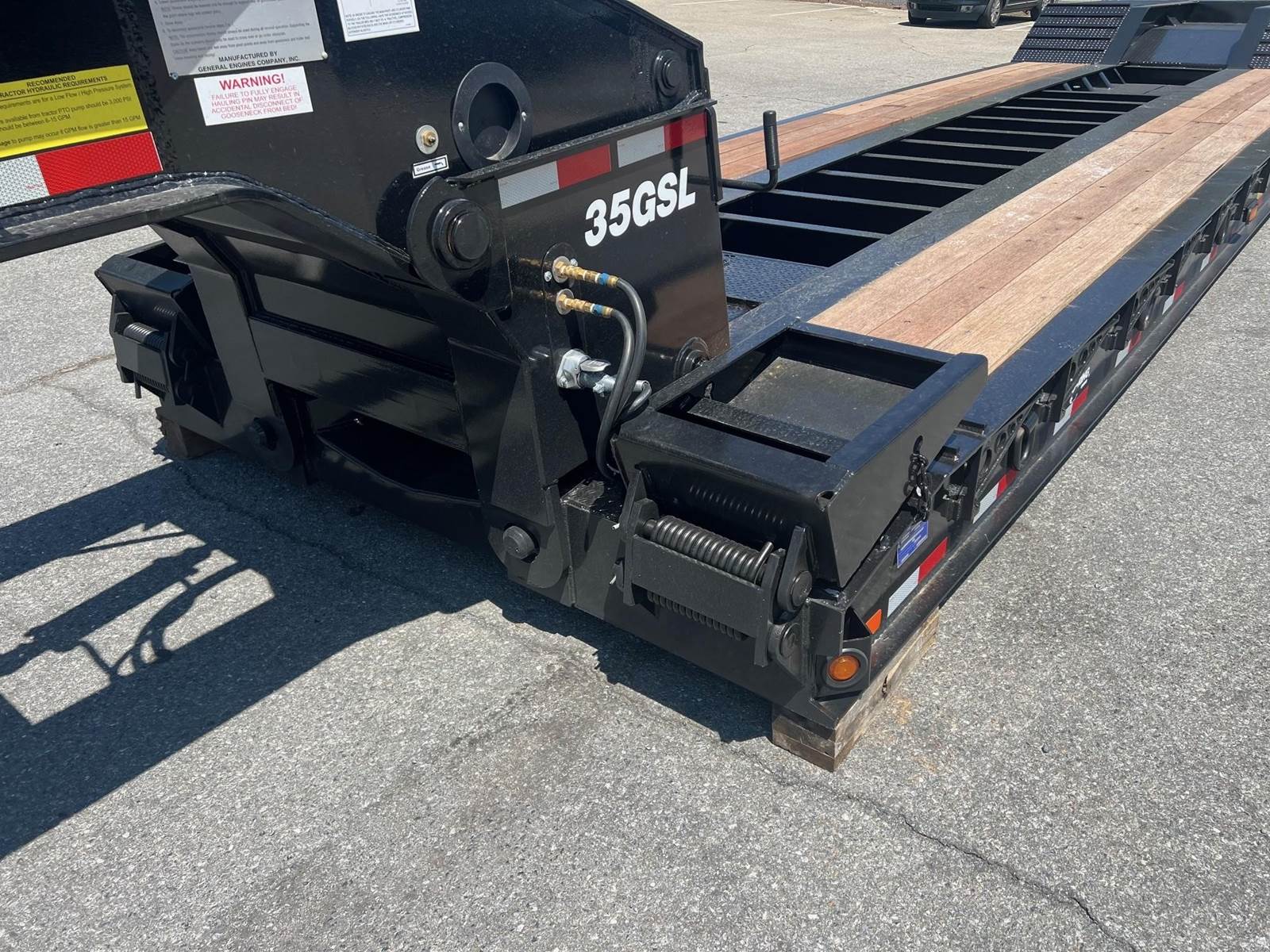

Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel 50"
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Cush
Suspension Setting 54" Axle Spacing
Manual Dumpvalve Yes
Raise & Lower Valve Yes
Tire Size 255/70R22.5
Wheels Steel
UnderFrame
King Pin Setting 15"
Cross Member Center 10" Deep, 18" Centers
Paint Black
Weight Ratings 35 Ton
90" Swing Clearance
Wheel Covers
Four (4) Section Recessed Bucket Plate at Rear
Traction Bars on Front & Rear Slope
Boomwell
4S/2M ABS
Spring Brakes
20,280 GAWR
