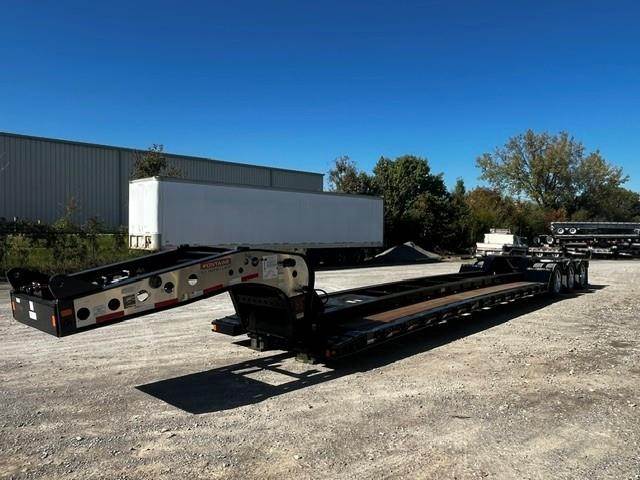

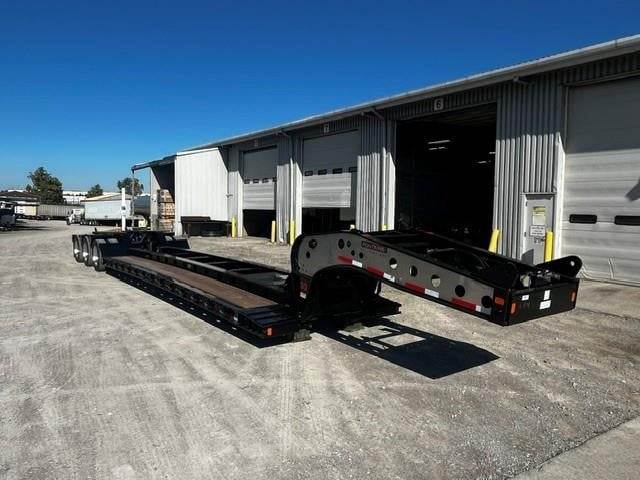

2027 Fontaine MAGNITUDE 55H-DSR Lowboy Trailer

2027 FONTAINE- Magnitude 55-Ton Hyd Drop Side Rail **fet included in price**
Length 53' 0"
Width 102"
Top Deck Length 11' 11" Gooseneck
Main Deck Length 27'
Main Deck Height 14.5" at Side Rails; 22" at Main Beams
Weight 22,925 Lbs. +/-3%

Flat Body
Compatibility Designed to Accept Flip Neck Extension & Flip Axle
Floor 1.5" Nominal Wood - Side Rails Only
Side Rail Drop Side Rail - Steel
Outriggers 13 Pair, Removable Swing Type
D-Rings 14 Pair

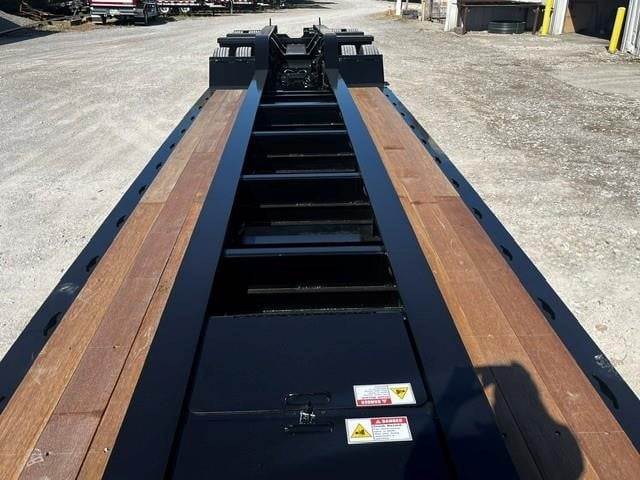

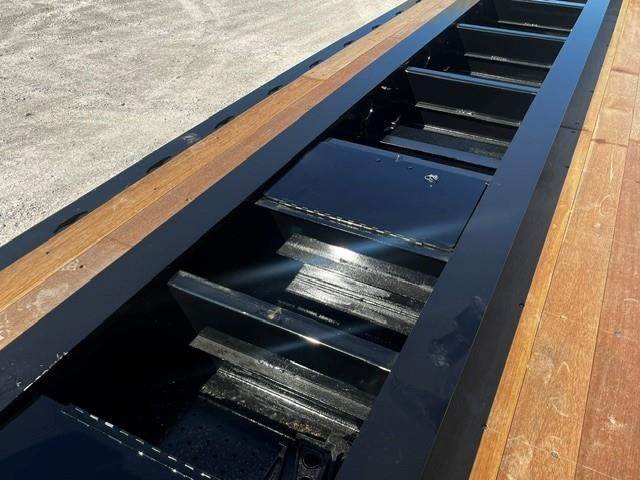

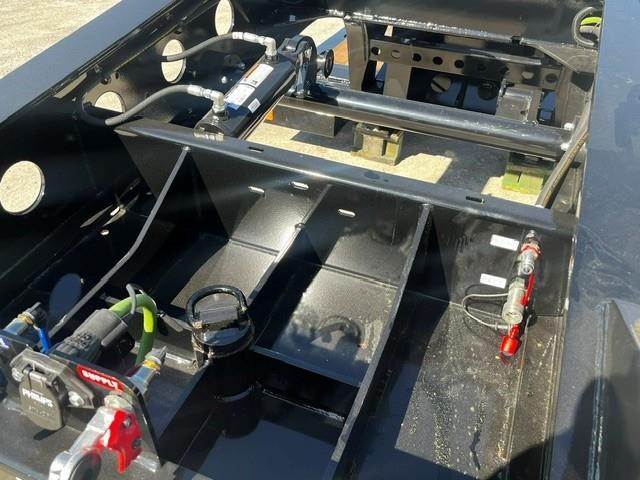

Toolbox Two Covered Trays Between Mainbeams

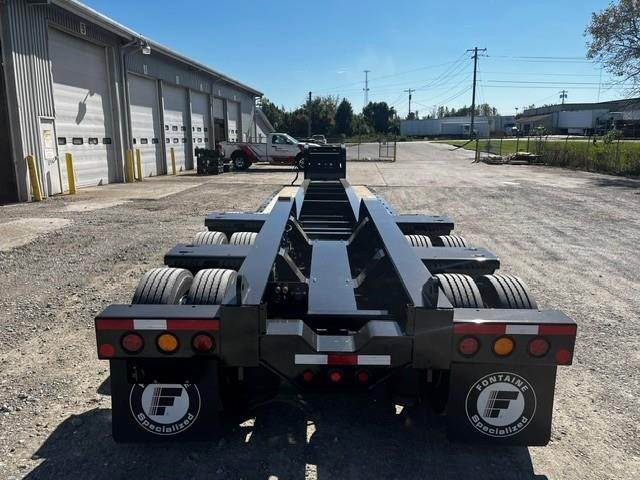

Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Amber Strobes with Battary Power
Flag Holders One Pair at Front of Deck, One Pair on Bumper
Modular Connection Fixed

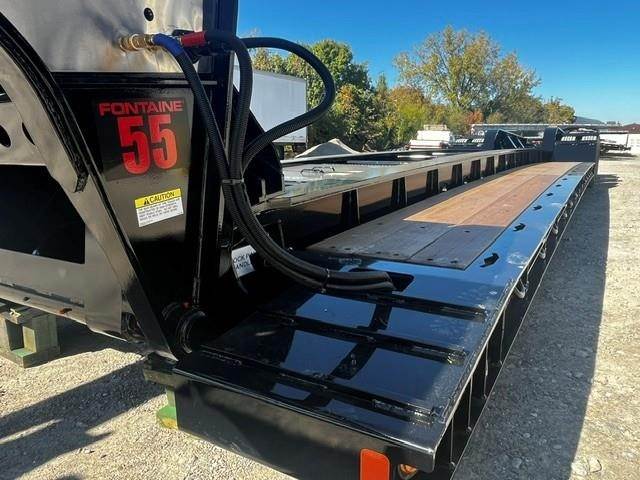

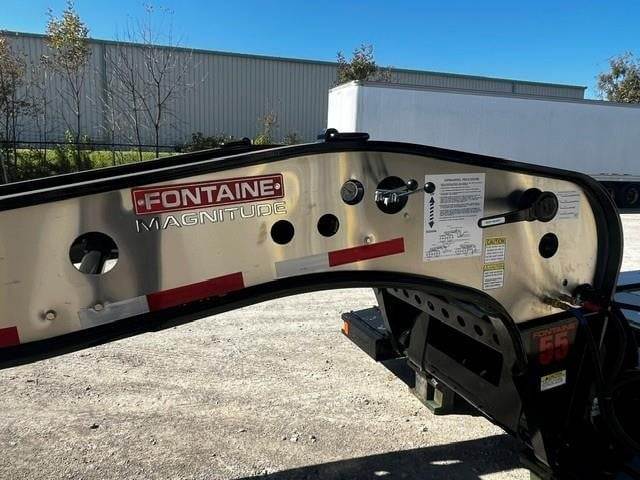

Gooseneck
Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel Dual Cam Pawl Arm w 7 Ride Height Positions, 50"

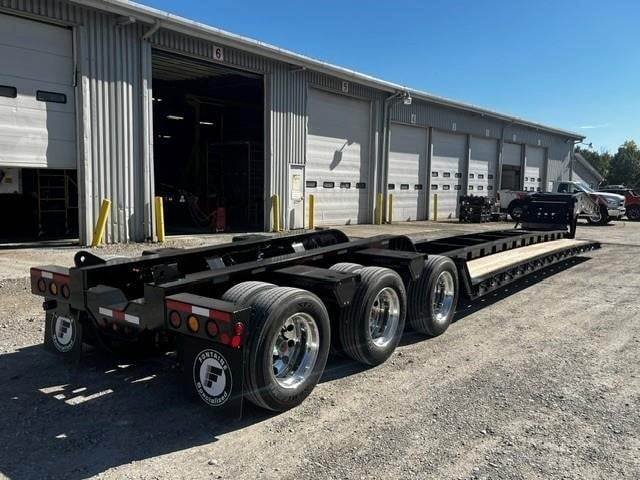

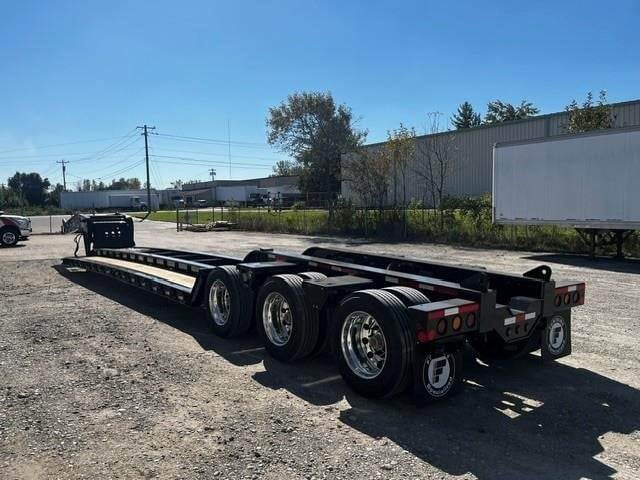

Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Setting 54.5" Axle Spacing
Lift Axle Air Lift Rear

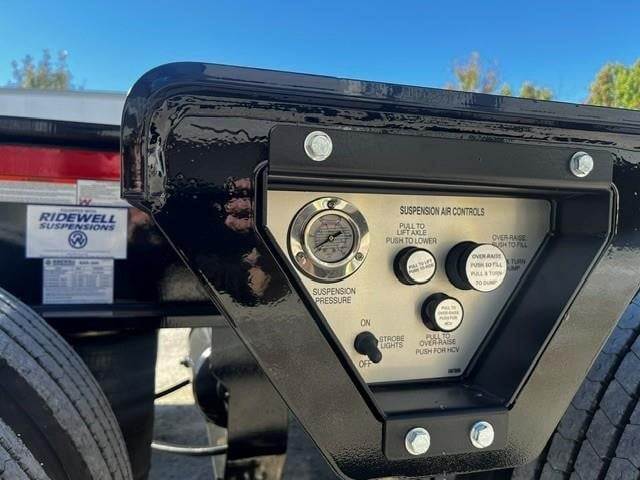

Manual Dumpvalve Yes
Raise & Lower Valve Mechanical Ride Height Control Valve

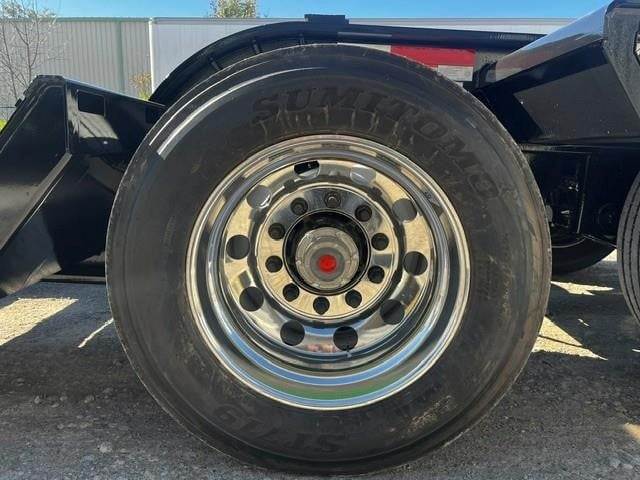

Tire Size 275/70R22.5
Wheels Aluminum/Steel
Liquid Filled Gauge Yes
UnderFrame
Paint Black
Weight Ratings 55 Ton in 12' Length
Comments
Accent Package on Gooseneck
102" Swing Clearance
Low Boom Well
Chain Lift Axle on Front Axle
Override Chains on 2nd & 3rd Axles
