2027 Fontaine RENEGADE N12 Lowboy Trailer

**FET Included in Price**
Length 53'
Width 102"
Top Deck Length 11' 2"
Main Deck Length 32' 11"
Main Deck Height 12" with 4" Ground Clearance Fully Loaded
Rear Deck Length 8' 11"
Weight 20,665 Lbs. +/- 3%
Unit Description 30-Ton Mini-Deck
Flat Body
Compatibility Designed to Accept 3rd Axle Flip
Floor 1 3/8" Apitong
Ramps None - Front Deck Sloped Down w/ Traction Cleats
Side Rail Steel
Outriggers None
D-Rings 12 Pair
Side Rail Lights Six (6) per Side
Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Battery Powered Rear Amber Strobes
Flag Holders Two (2) Pair
Modular Connection Fixed

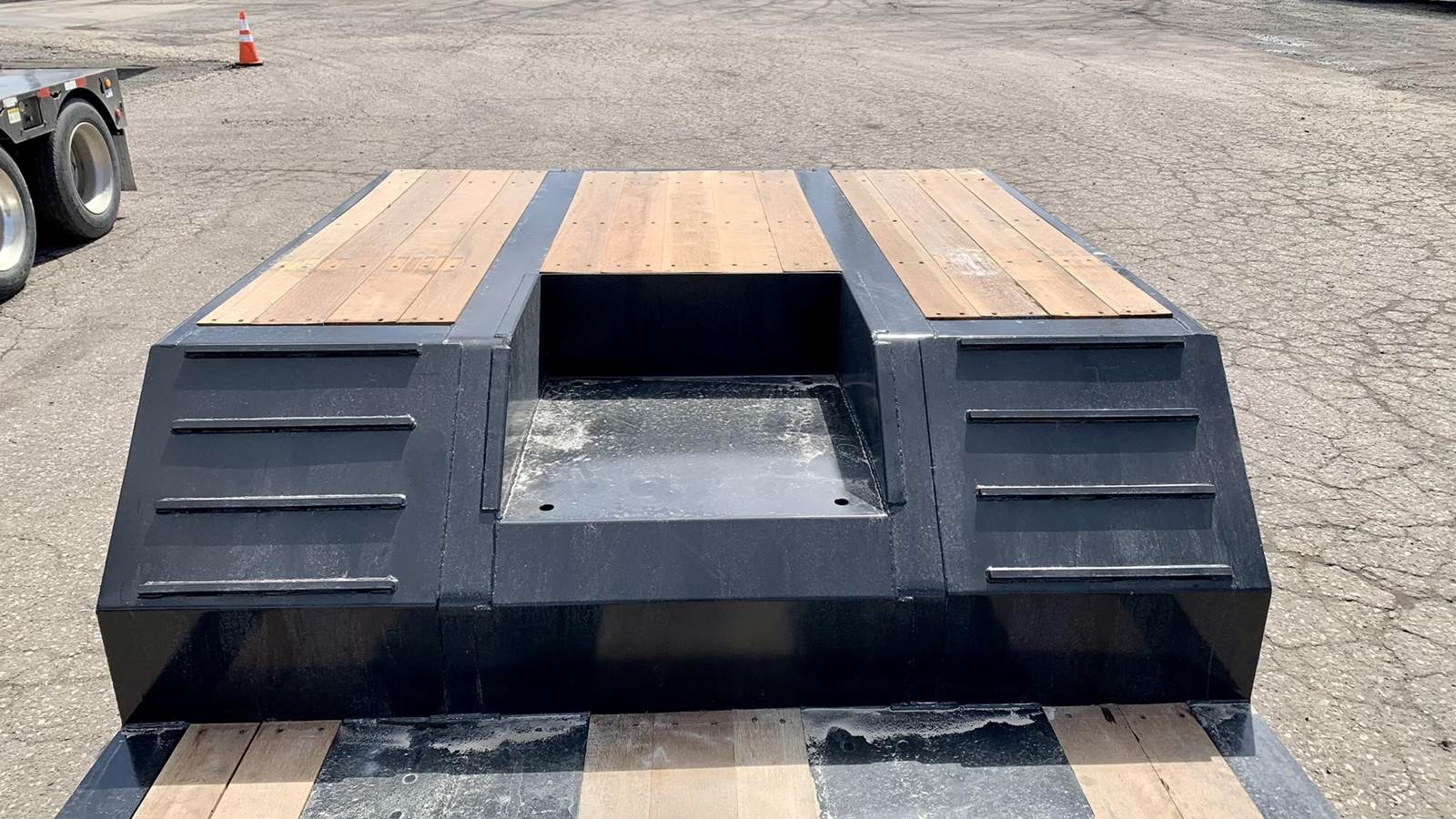

Rear Bogie Rear Bogie Platform w/ 1 1/8" Wood Floor

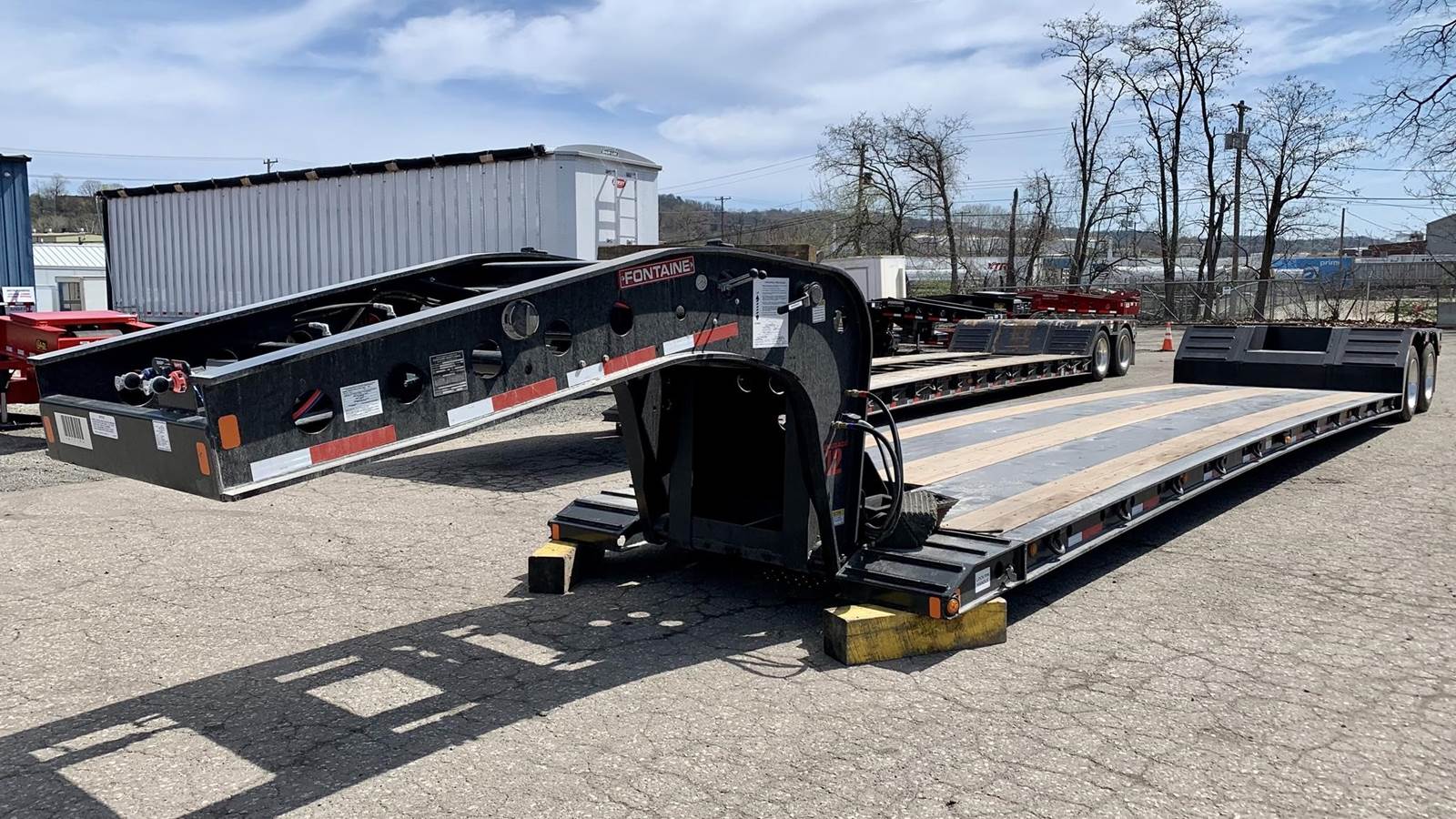

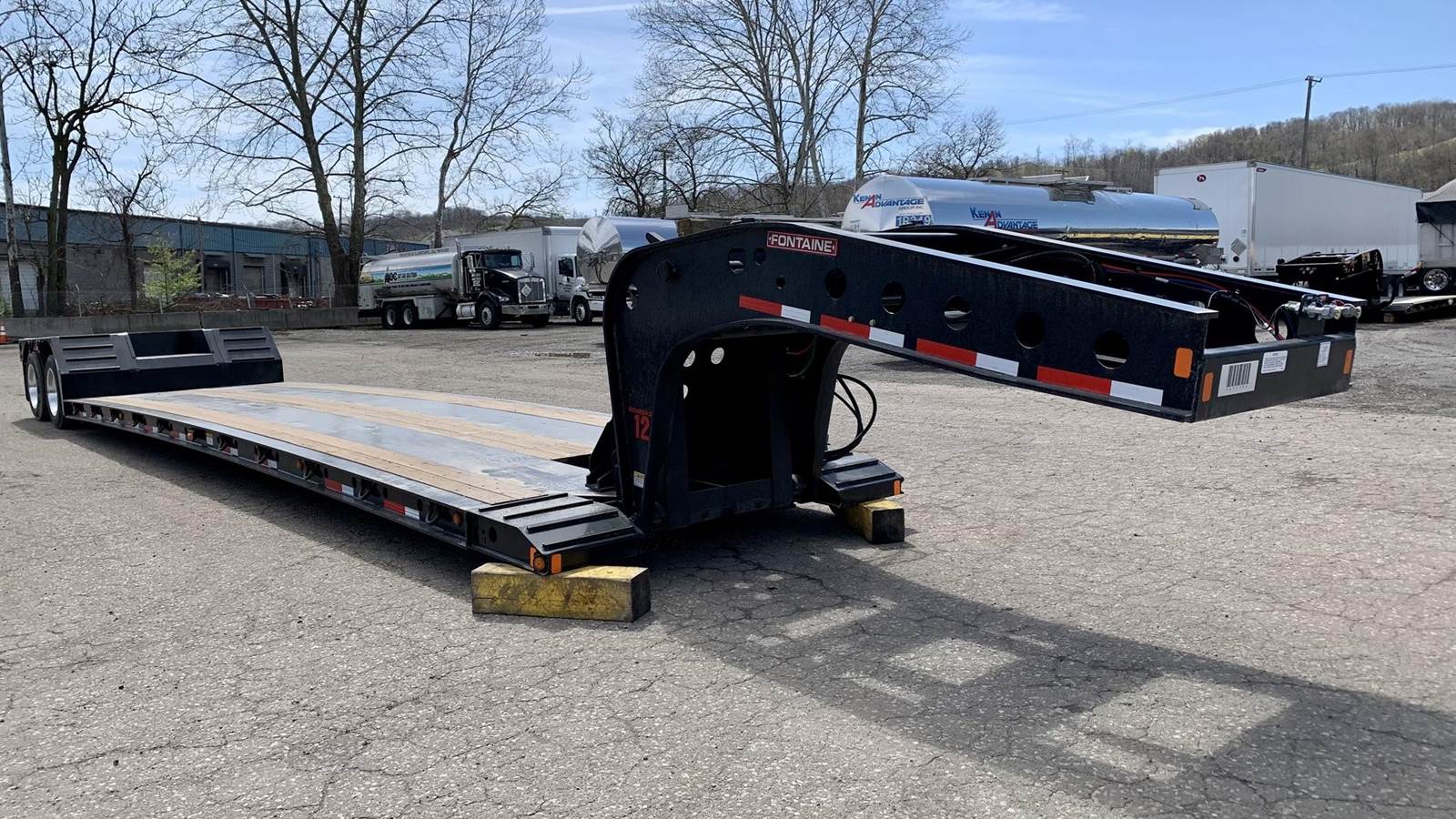

Gooseneck
Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel Dual Cam Pawl Arm w 7 Ride Height Positions, 50"
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Setting 50" Closed Tandem
Raise & Lower Valve Mechanical Ride Height Control Valve
Wheels Polished Aluminum Outside / Steel Inside
Liquid Filled Gauge Yes
UnderFrame
Cross Member Center 18"
Paint Black
Weight Ratings 30 Ton in 16' Length
Comments
Mini Boom Trough & Traction Cleats Installed on Sloped Bogie Ramp
Override Chains on Axles 1 & 2
Stainless Steel Bumper Insert
7 Variable Ride Heights
