2027 Fontaine WORKHORSE 55 PVR PRO Lowboy Trailer

Length 53'
Width 102"
Top Deck Length 12' 2" Gooseneck
Main Deck Length 24' Clear Deck Length
Main Deck Height 22"
Weight 23,591 lbs.
Unit Description Workhorse 55PVR PRO
Flat Body
Compatibility Flip Axle Connections at Rear
Floor 1.5" Nominal Apitong Wood - Full Width
Ramps Apitong Wood Filled Double Hinged, 9 Degree Angle
Outriggers 12 pair - Removable Swing Type / 2 pair removable
D-Rings 17 pair
Toolbox One Fully Covered Toolbox with Lockable Lid
Side Rail Lights (3) Marker Lights per side incl. Mid-Turn

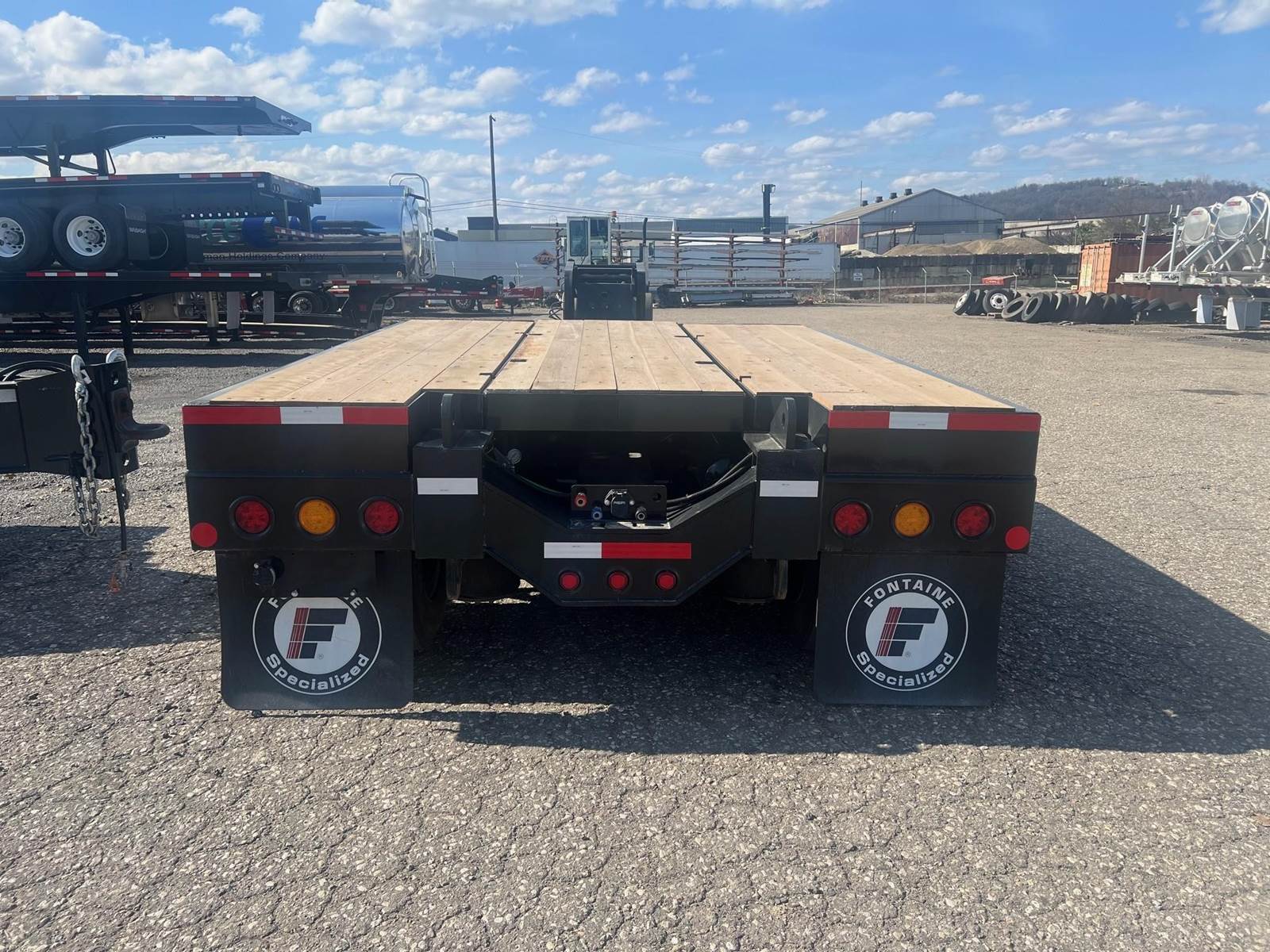

Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Battery Powered Rear Amber Strobes
Flag Holders Two (2) Pair
Modular Connection Fixed
Gooseneck
Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel 52" with Seven Ride Height Positions
Pony Motors None
Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Brand Hendrickson
Suspension Setting 50"
Lift Axle Rear Axle Air Lift
Flip Axle Not Included
Manual Dumpvalve Yes
Raise & Lower Valve Mechanical Ride Height Control Valve
Tire Size 275/70R22.5
Wheels Polished Aluminum Outside / Steel Inside
Liquid Filled Gauge Yes
UnderFrame
Cross Member Center 22" Centers
Paint Black
Weight Ratings 55 Ton in 16' Length
Comments
Swing Clearance 108"

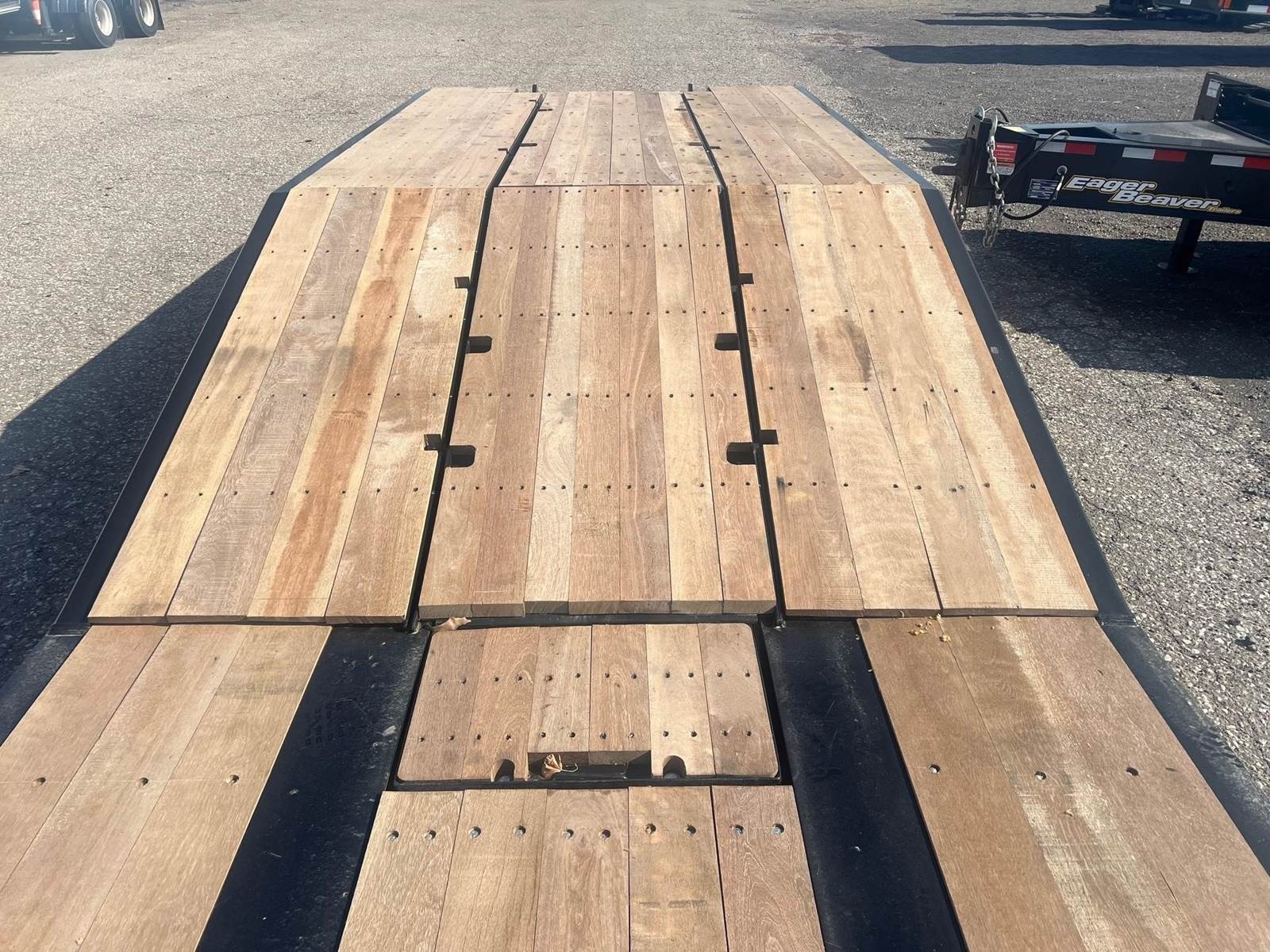

Load Bearing Wheel Covers - Apitong wood filled with two piece center insert for full width loading.
Boom Trough - Low Boom Well
Chain Lift Front Axle

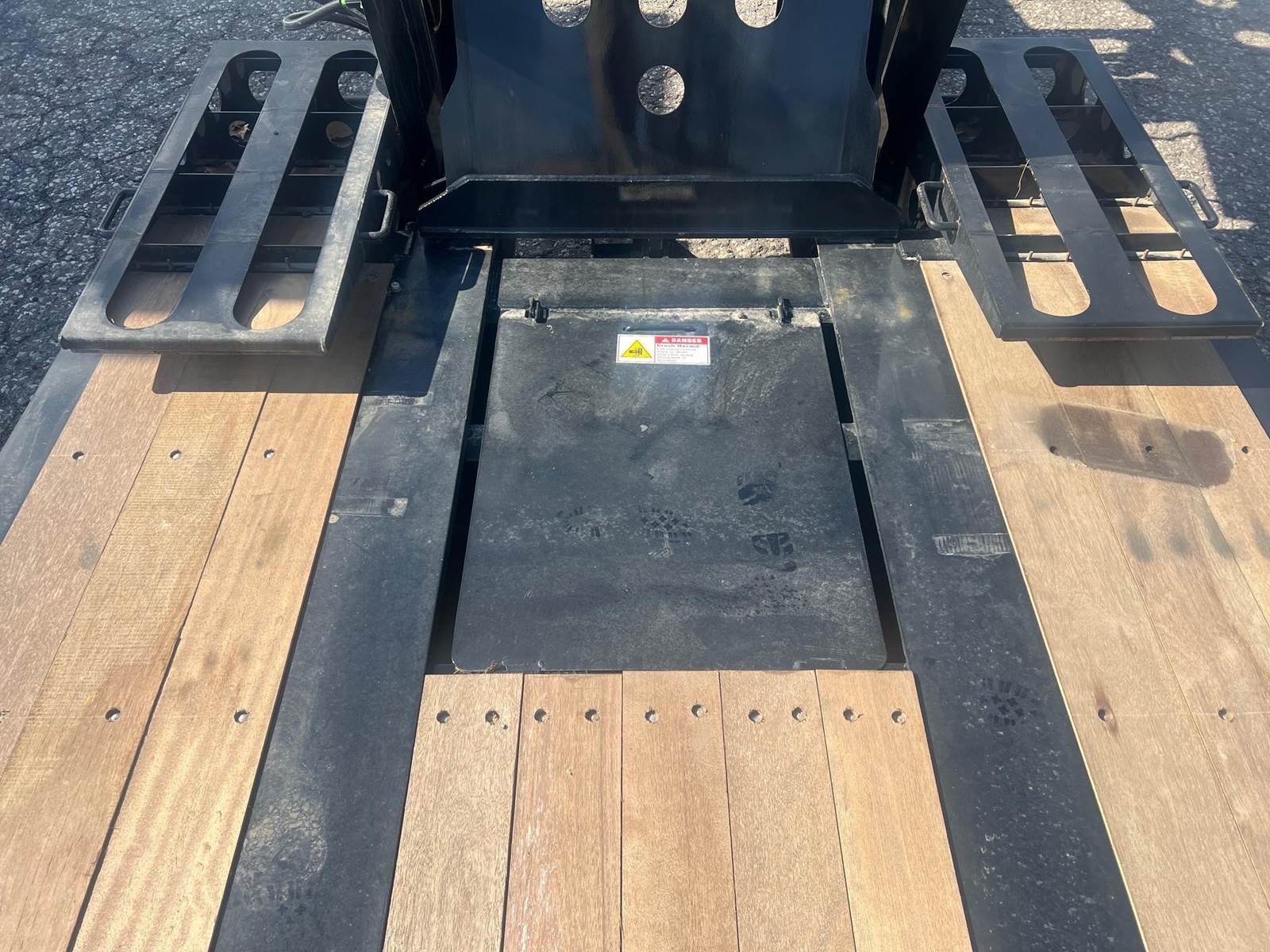

Hammer Plate (16"x60"x1/2") installed over recessed crossmembers. Perforated plate under hammer plate forming one storage
area; includes one pair of D-Rings. (Hammer Plate will not be accessible when standard covered rear bogie is in place)
SALE PRICE INCLUDES FET
