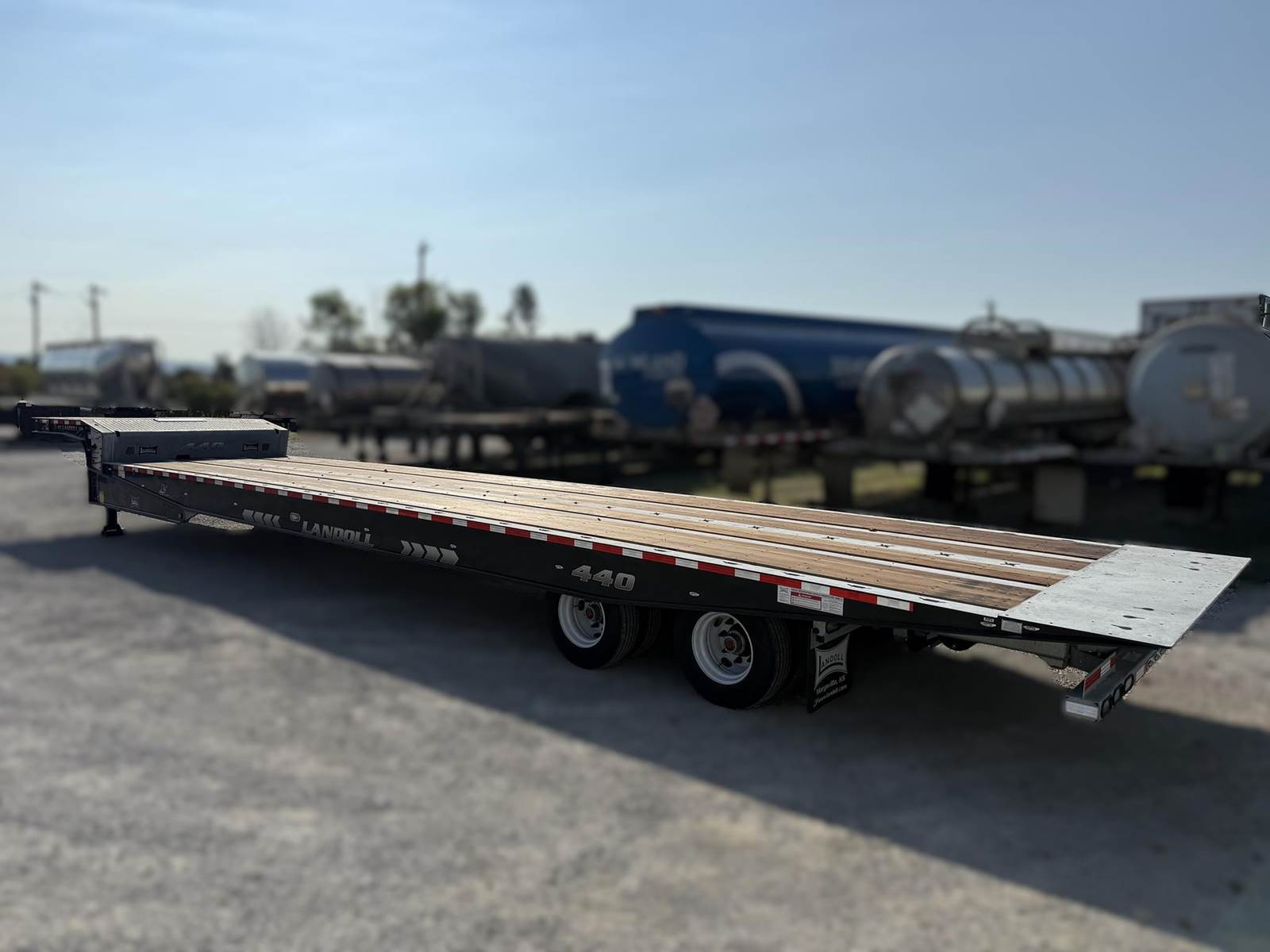

2027 Landoll 440 Traveling Axle Trailer

Trailer is being displayed at the Cincinnati Tow Show. Trailer will not be available until 9/28/26.

Length 50'
Width 102"
Top Deck Length 10'
Main Deck Length 40'
Main Deck Height 37" Loaded
Flat Body

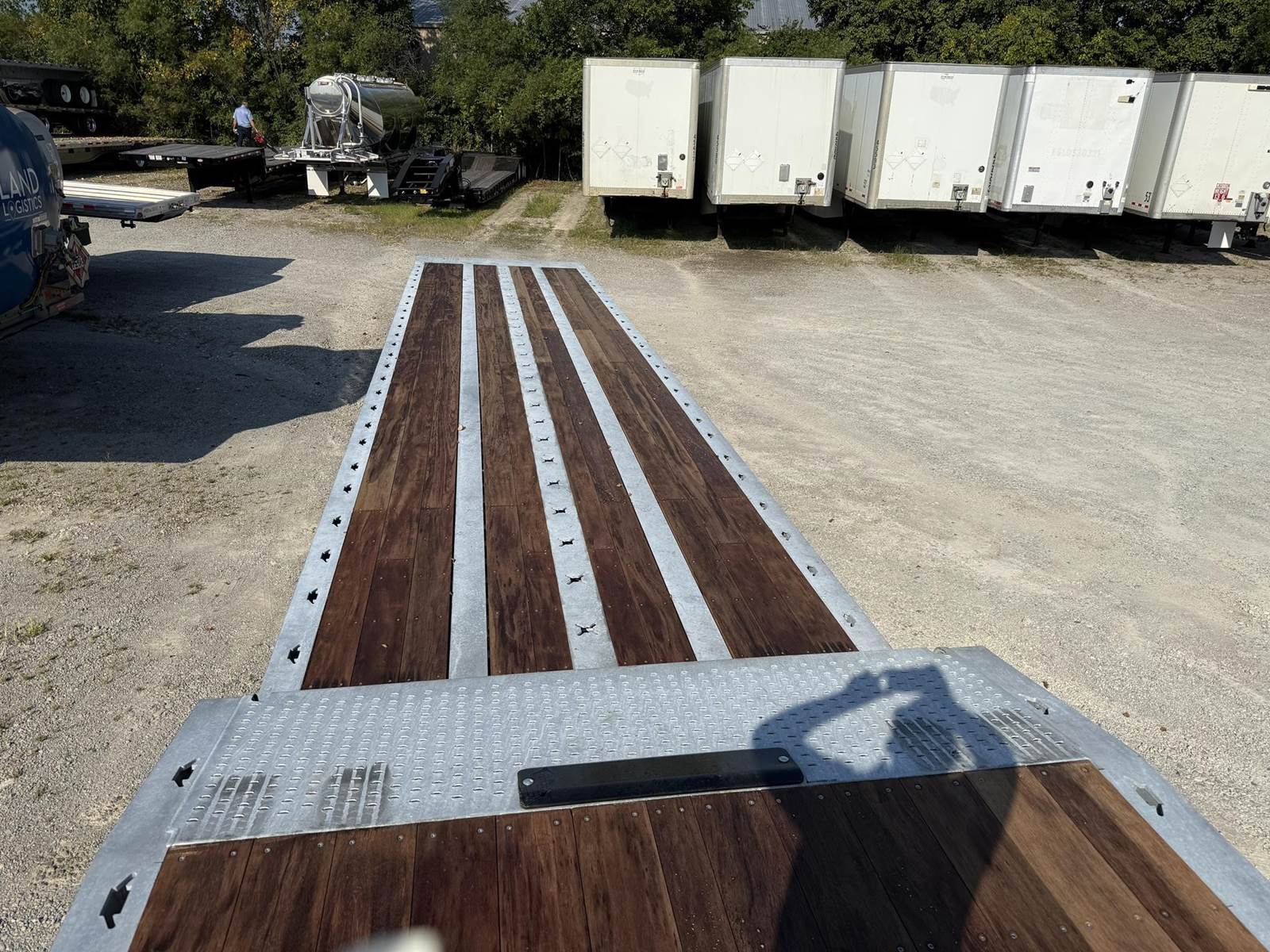

Floor 1 3/8" Apitong
Chain Slots Double Keyhole Chain Slots on 16" Centers

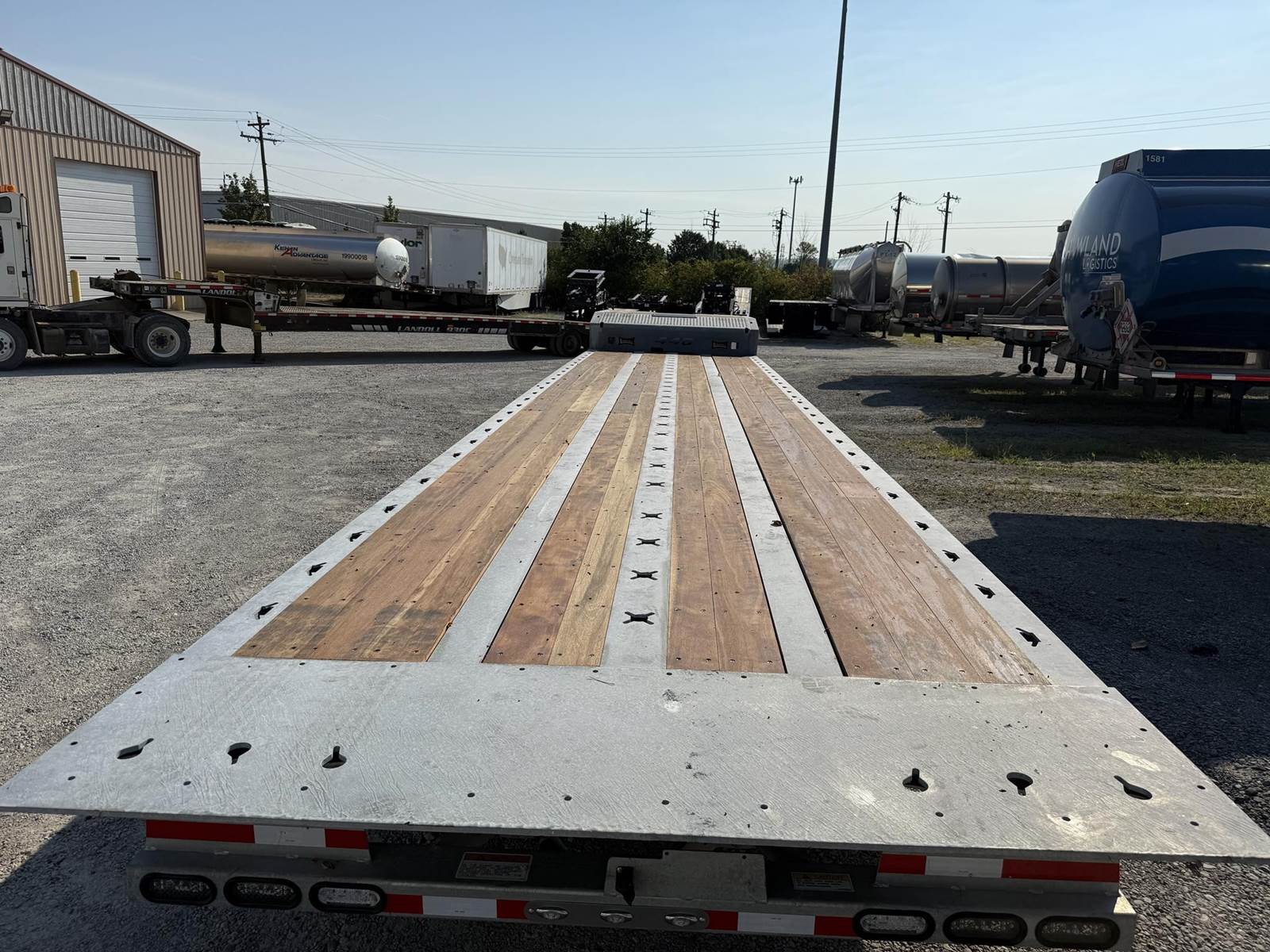

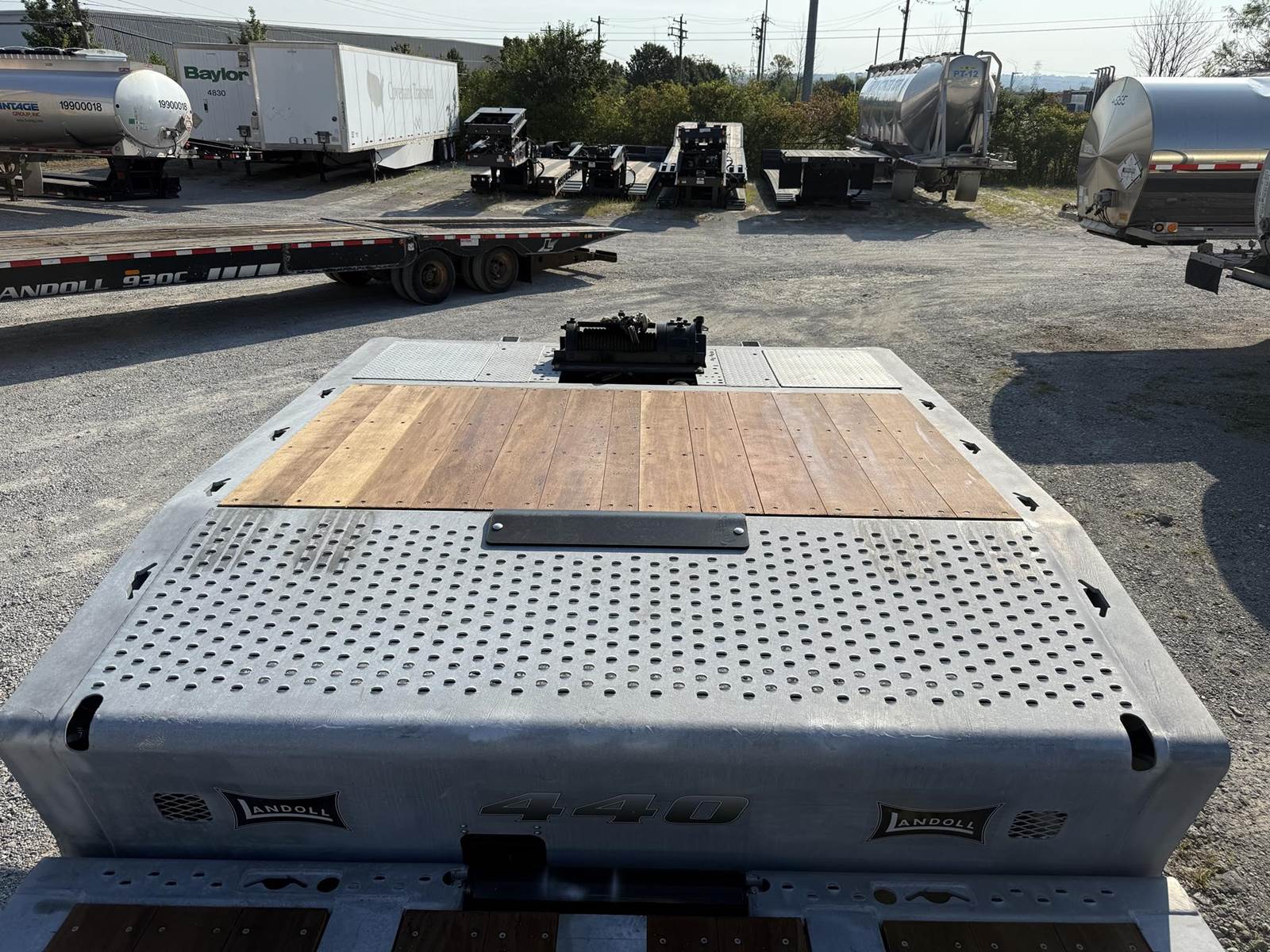

Approach Plate Flat with Six (6) Key Hole Tie Downs
Load Angle 6.5 Degree
Side Rail Steel
Toolbox Side Opening in Gooseneck
Side Rail Lights Grote MicroNova LED Clear Lens
Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Yes
Hydraulics
Hydraulic Hook Up Quick Couplers
Tilt Cylinders Two - 6"x30"

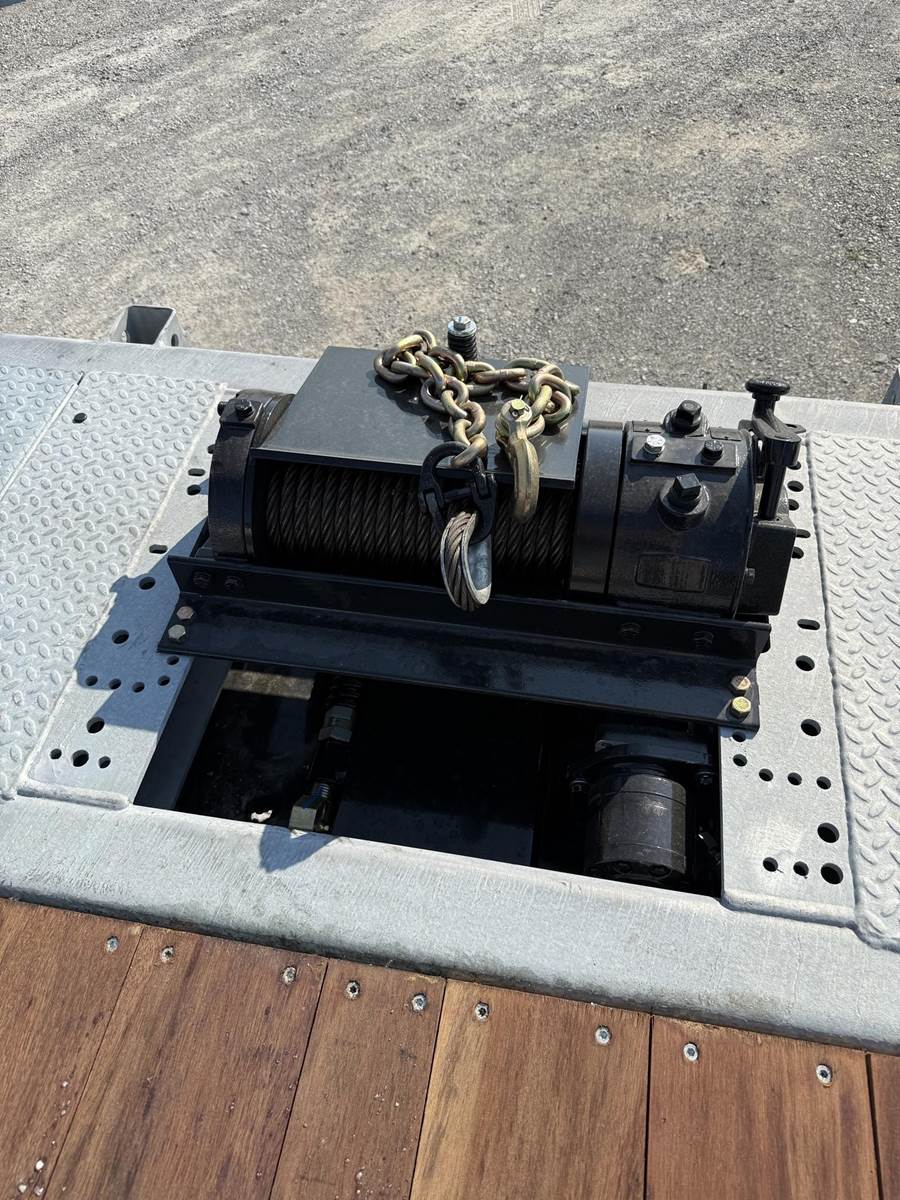

Hydraulic Winch Braden Winch, 20,000 lbs.
Cable 85' of 1/2" Cable

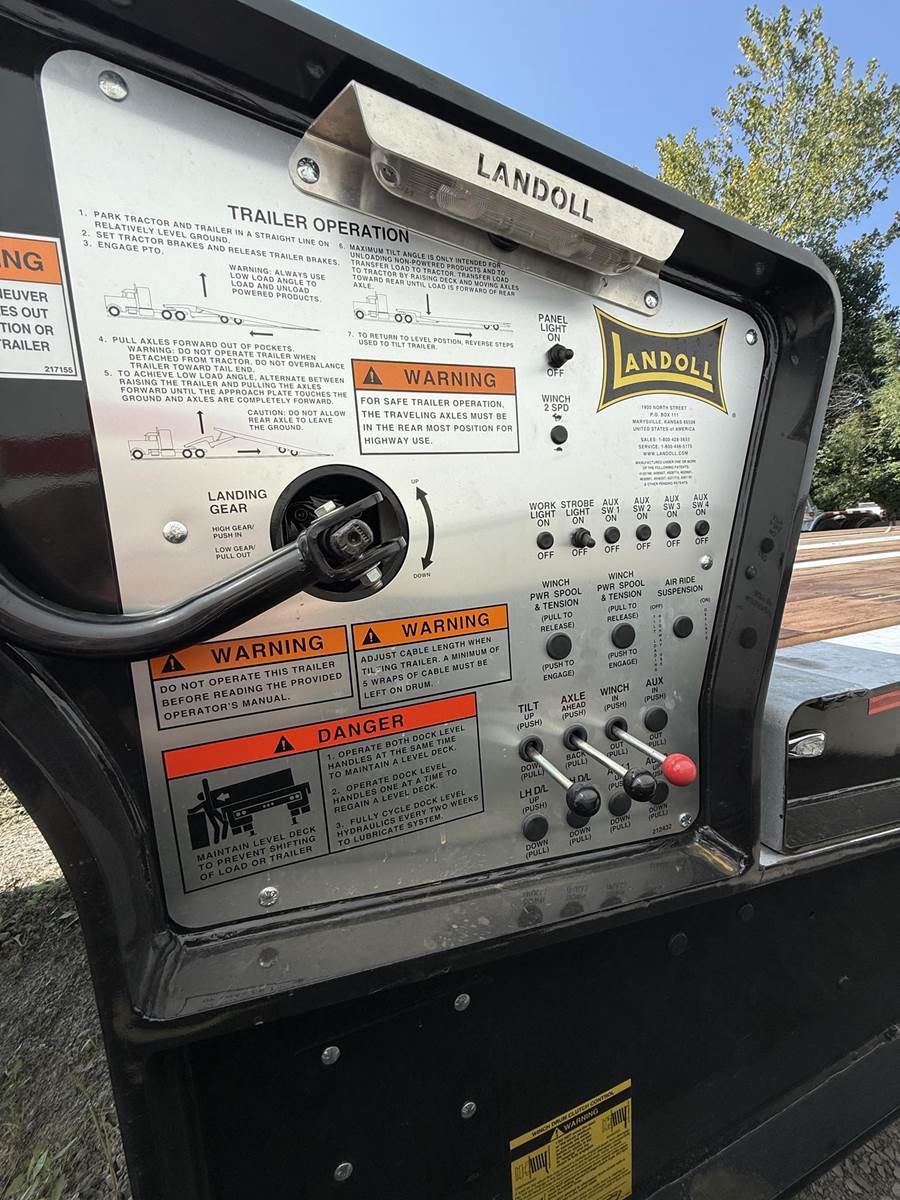

Wireless Remote Six Function
Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Neway RLU228, 22,500 lb. Capacity
Suspension Setting 49"
Tire Brand Double Coin
Tire Size 235/75R17.5
Wheels Steel - Hub Pilot
Centralized Grease Yes

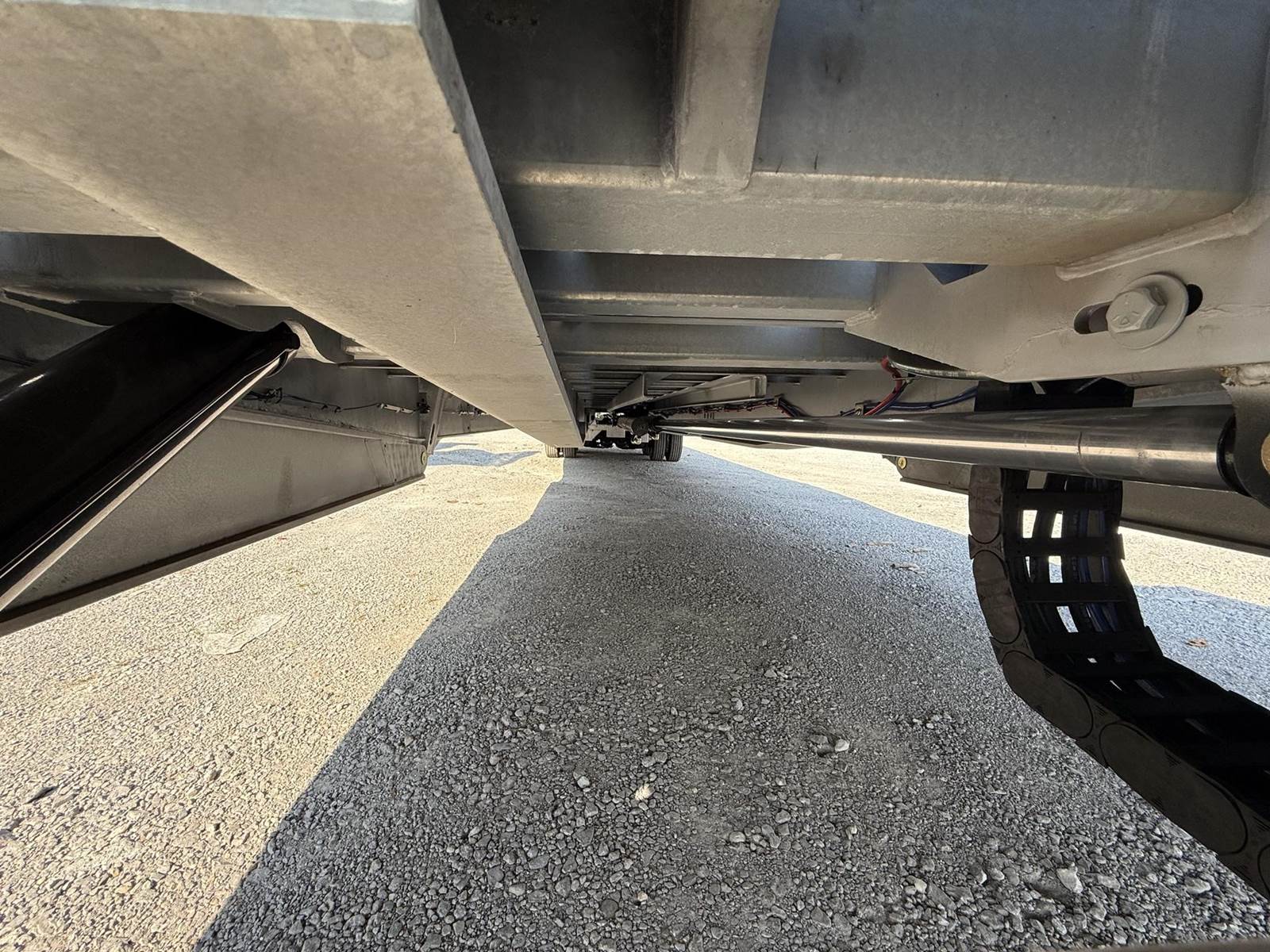

UnderFrame
King Pin Setting 21.25"
Cross Member Center 8"

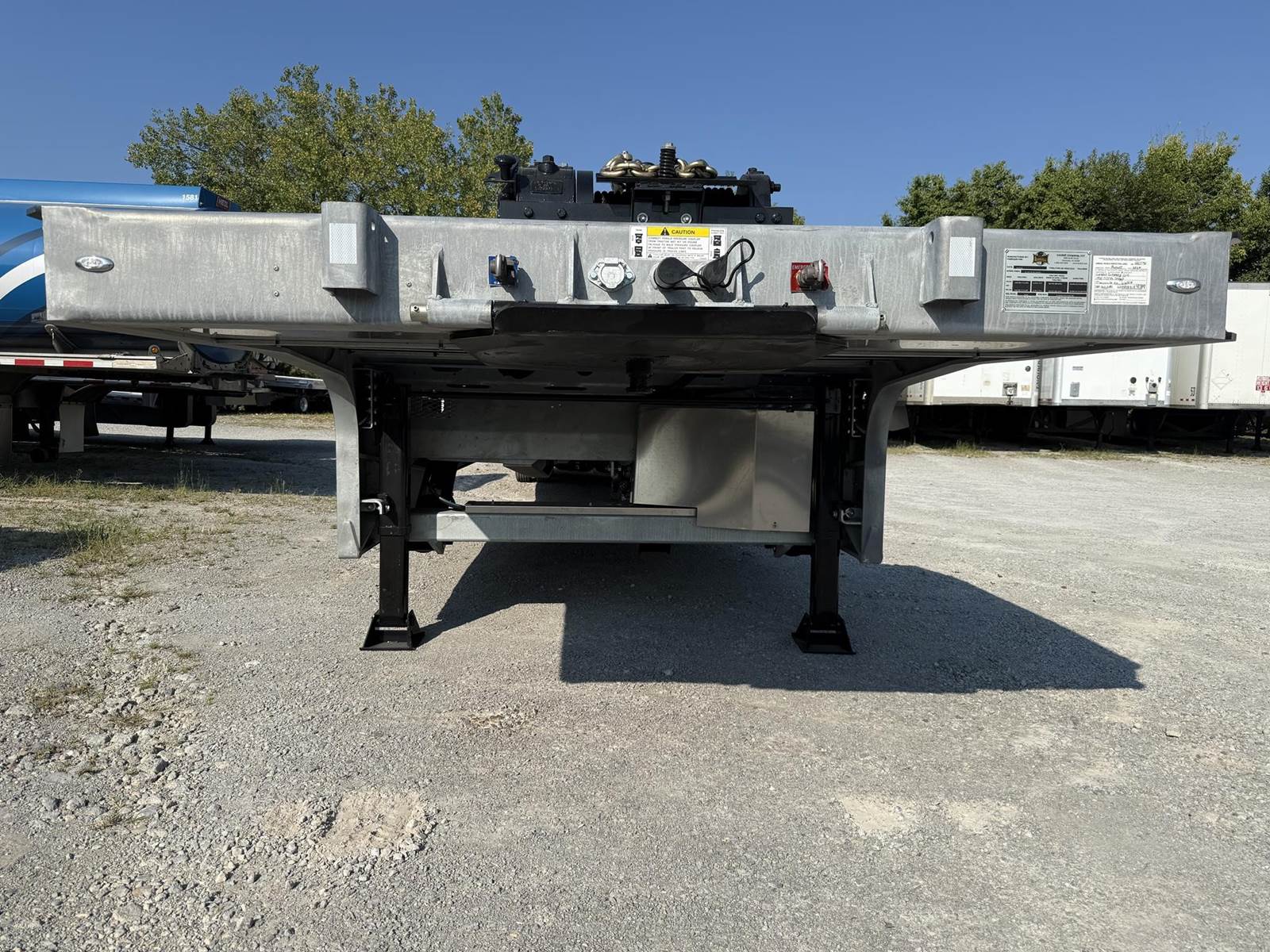

Landing Gear Two Speed
Paint Entire Trailer Galvanized, Sides Painted Black
Weight Ratings 40 Ton
Comments
-Lower Deck Center Key Hole Tie Downs Flush with Wood
-Galvanized Sub Frame (Includes Bumper)
-Strobe Lights in Bumper
