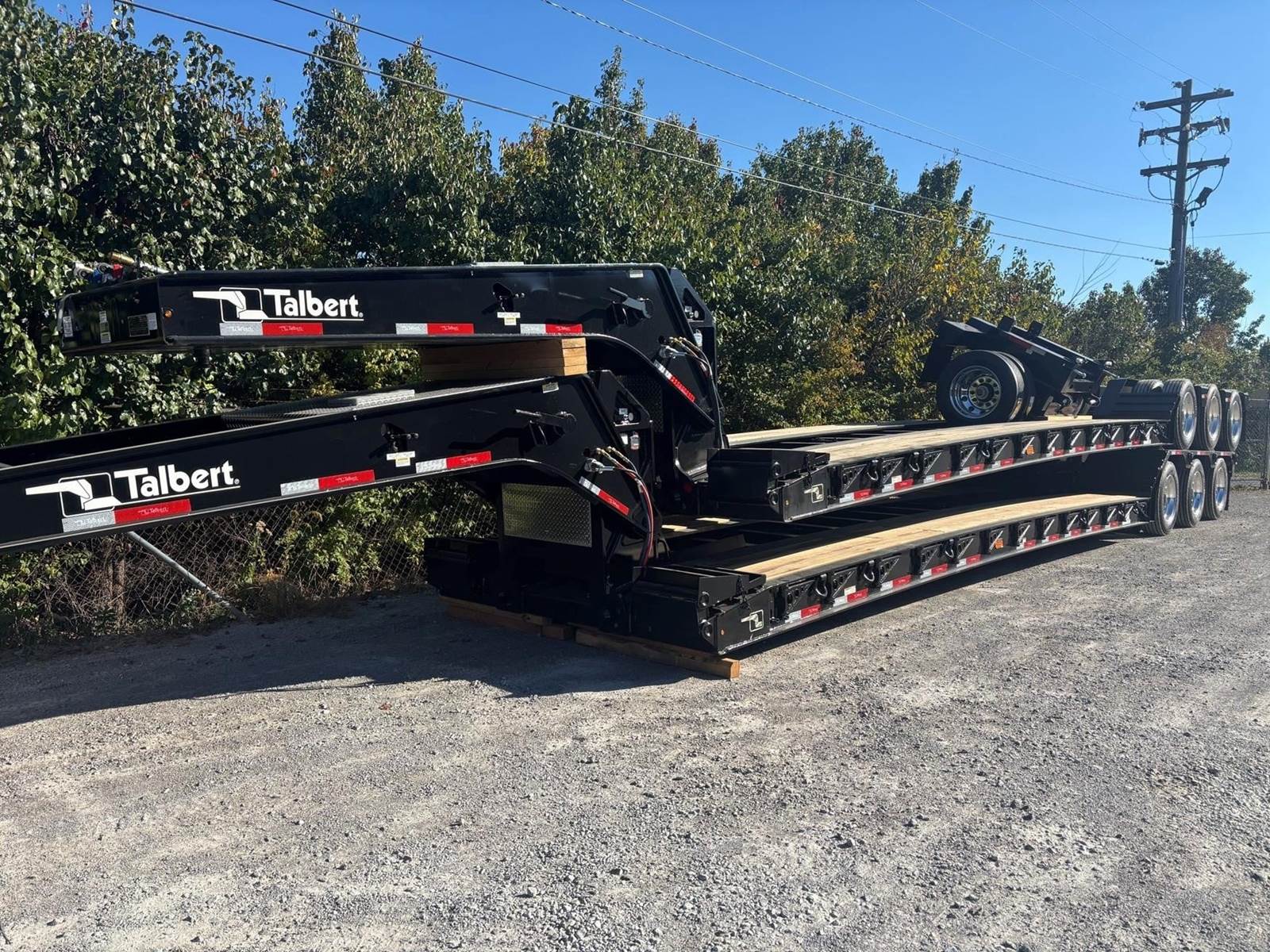

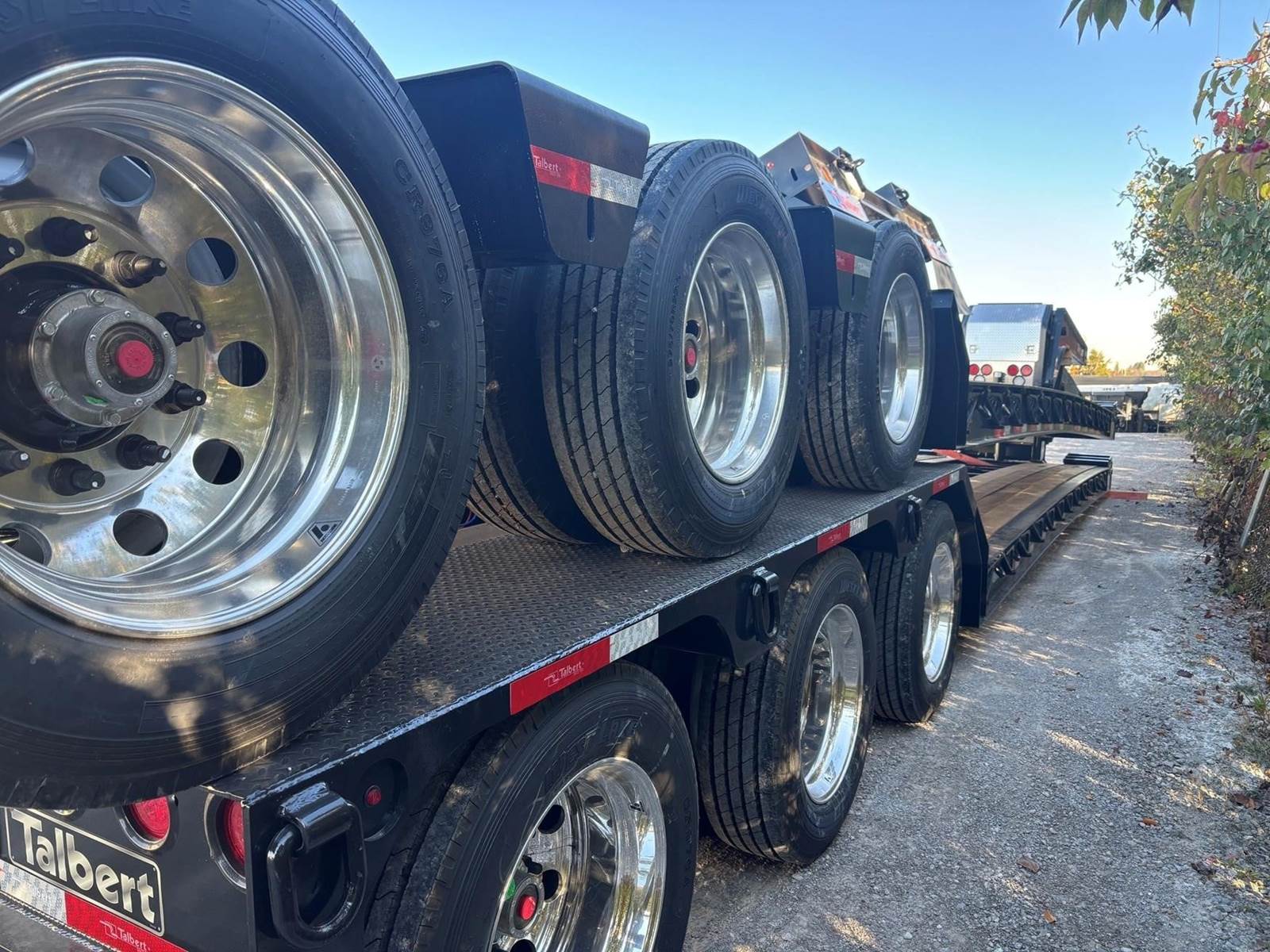

2027 Talbert 55CC 53x102 Tri Axle Steel Lowboy Trailer - Air Ride, Fixed Axle

Length 52'6"
Width 102"
Top Deck Length 12'0"
Main Deck Length 26'0" (25'6" Free & Clear)
Main Deck Height 18"
Rear Deck Length 14'6"
Weight 22,450 Lbs. +/- 5%
Flat Body
Compatibility Flip Axle Connections at Rear
Floor 2" Apitong
Ramps 32" with smooth plate and traction bars
Side Rail Steel
Outriggers 13 Pair - Swingout Style
D-Rings 10 Pair

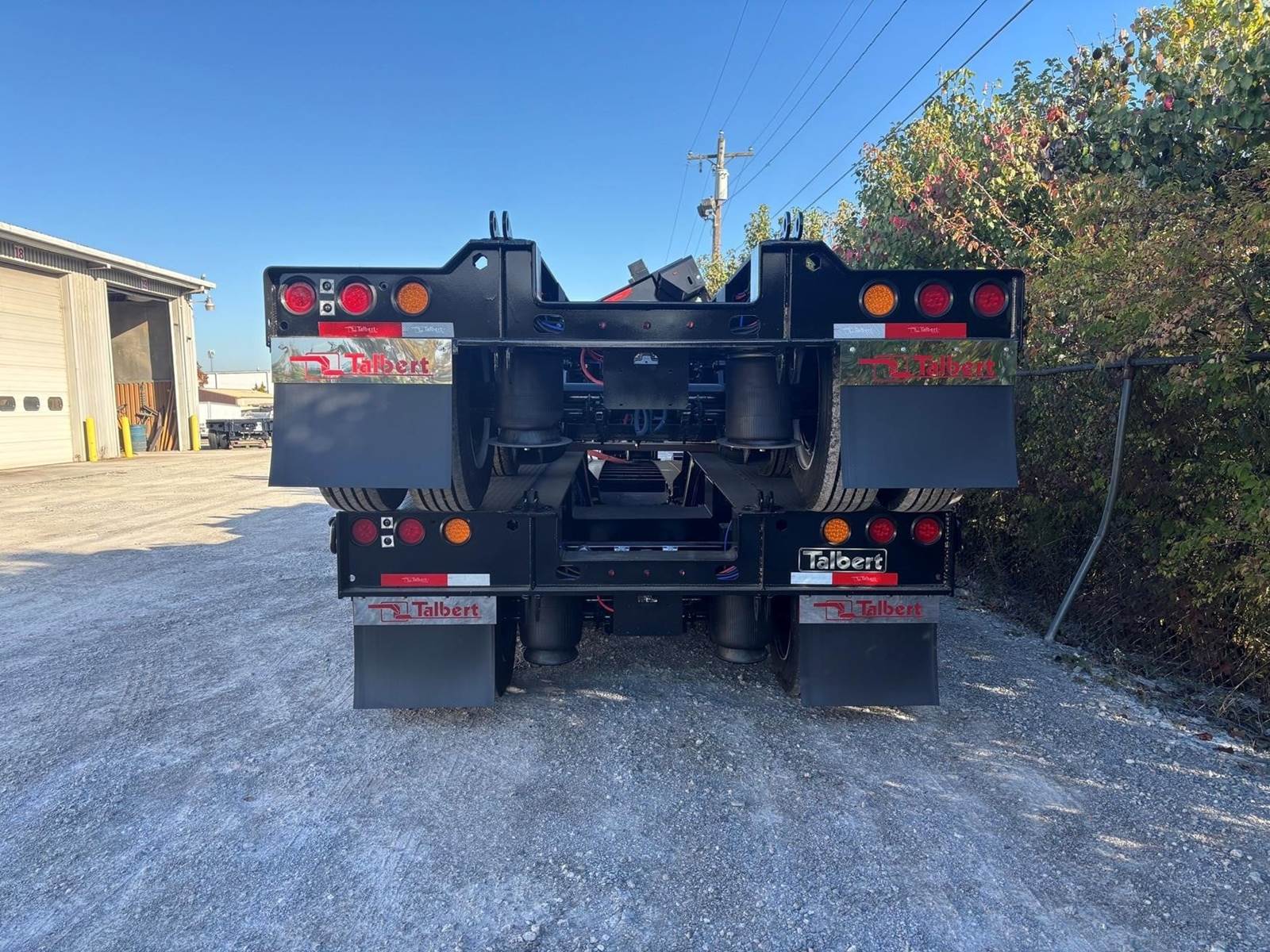

Rear Lights (3) Stop/Tail, (3) Clearance
Strobe Lights Yes - with Battery Back Up
Flag Holders Yes
Wheel Covers Weld On Flush Mount Steel Wheel Covers

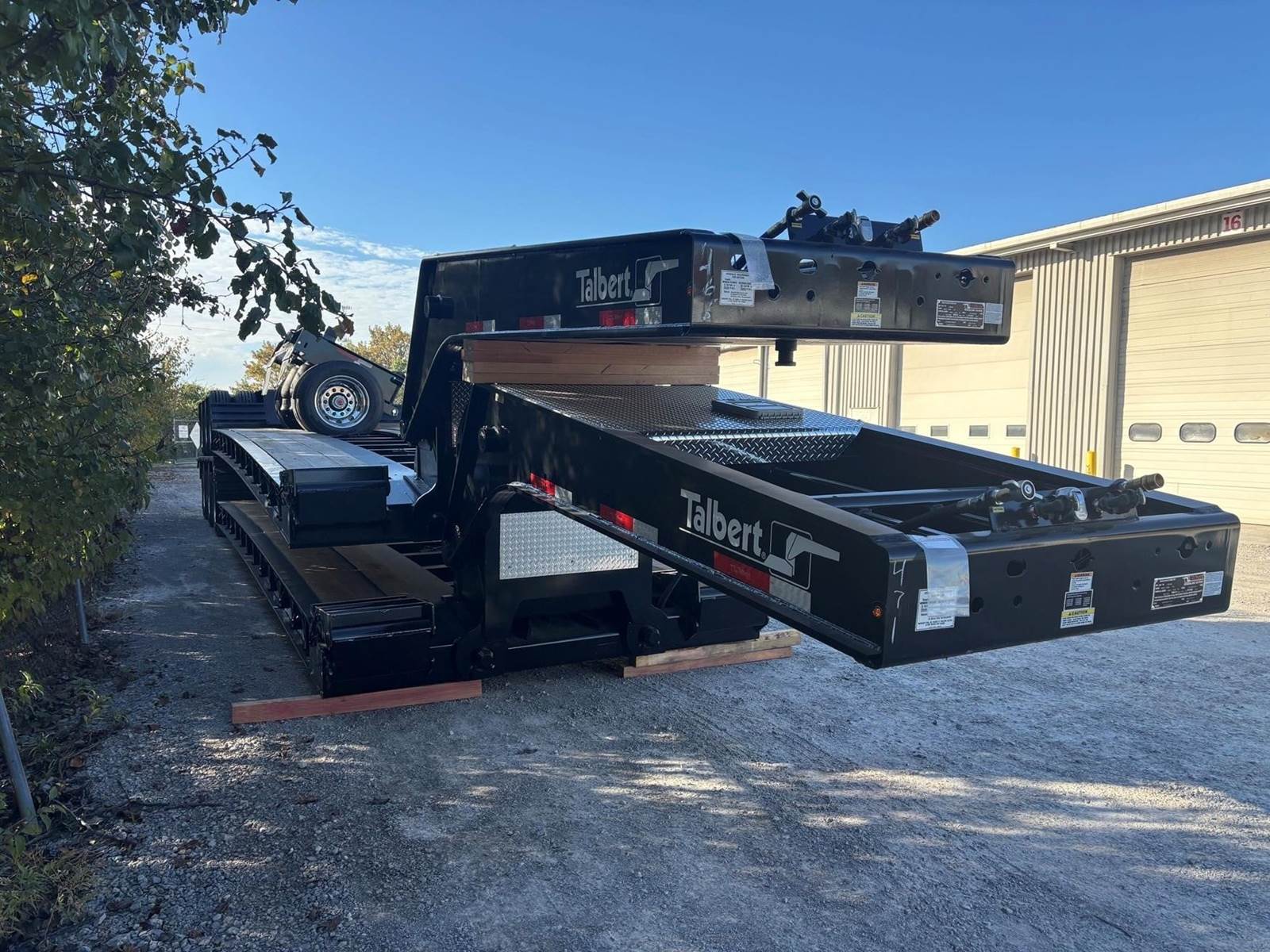

Gooseneck
Gooseneck Hydraulic Detachable, Non-Ground Bearing
Loaded 5th Wheel 52"

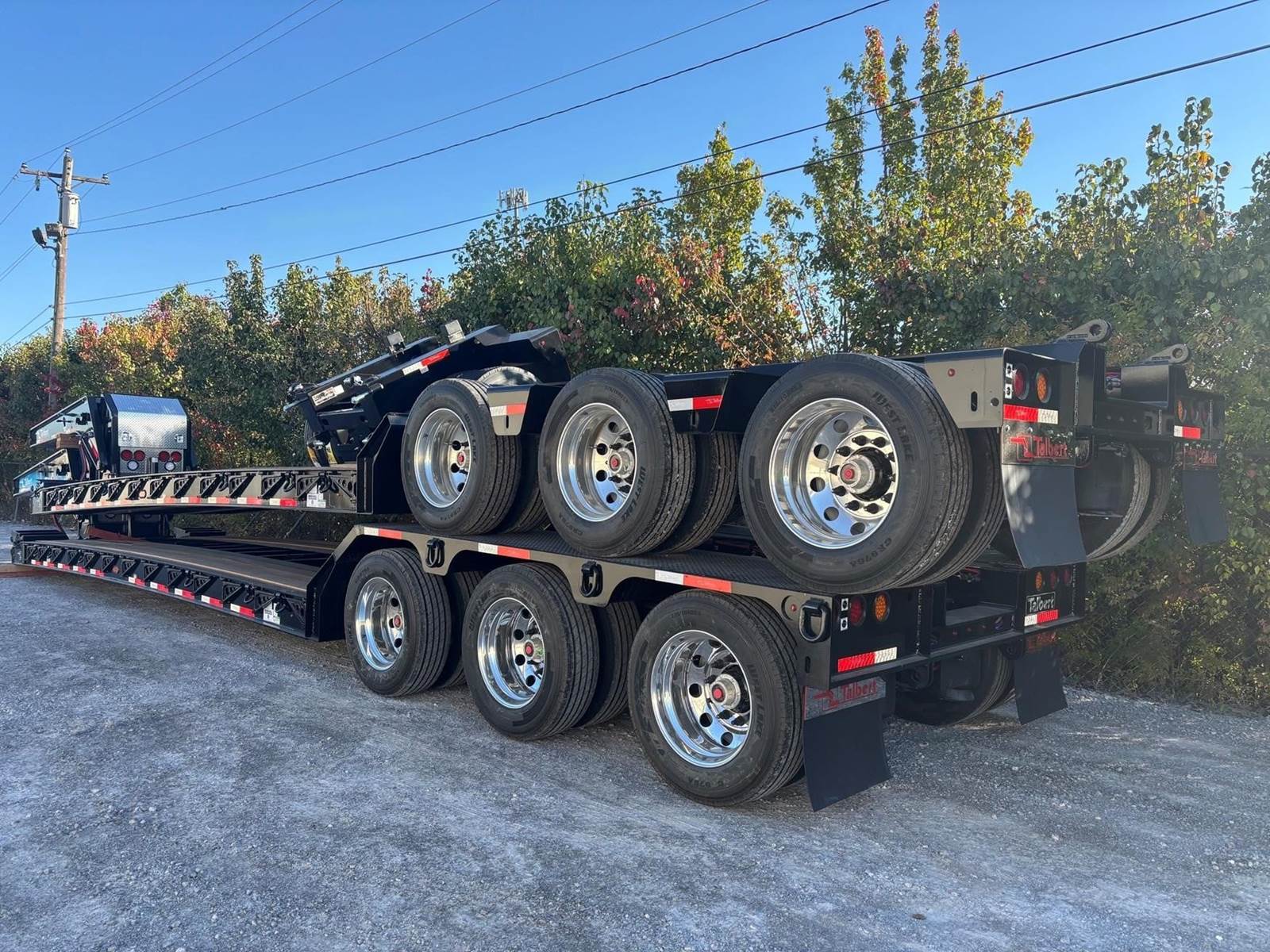

Suspension
# of Axles 3
Suspension Type Air Ride
Suspension Brand Ridewell
Suspension Setting 54"
Lift Axle Air Lift 3rd Axle
Manual Dumpvalve Yes
Raise & Lower Valve Talbert manual raising and lowering (+3". -3")
Tire Size 275/70R22.5
Wheels Aluminum/Steel - Hub Pilot
Liquid Filled Gauge Yes
UnderFrame
Cross Member Center 24"
Paint Black R Cure 800 Series Paint w/ Zinc Rich Primer
Weight Ratings 55 Ton in 13' Length

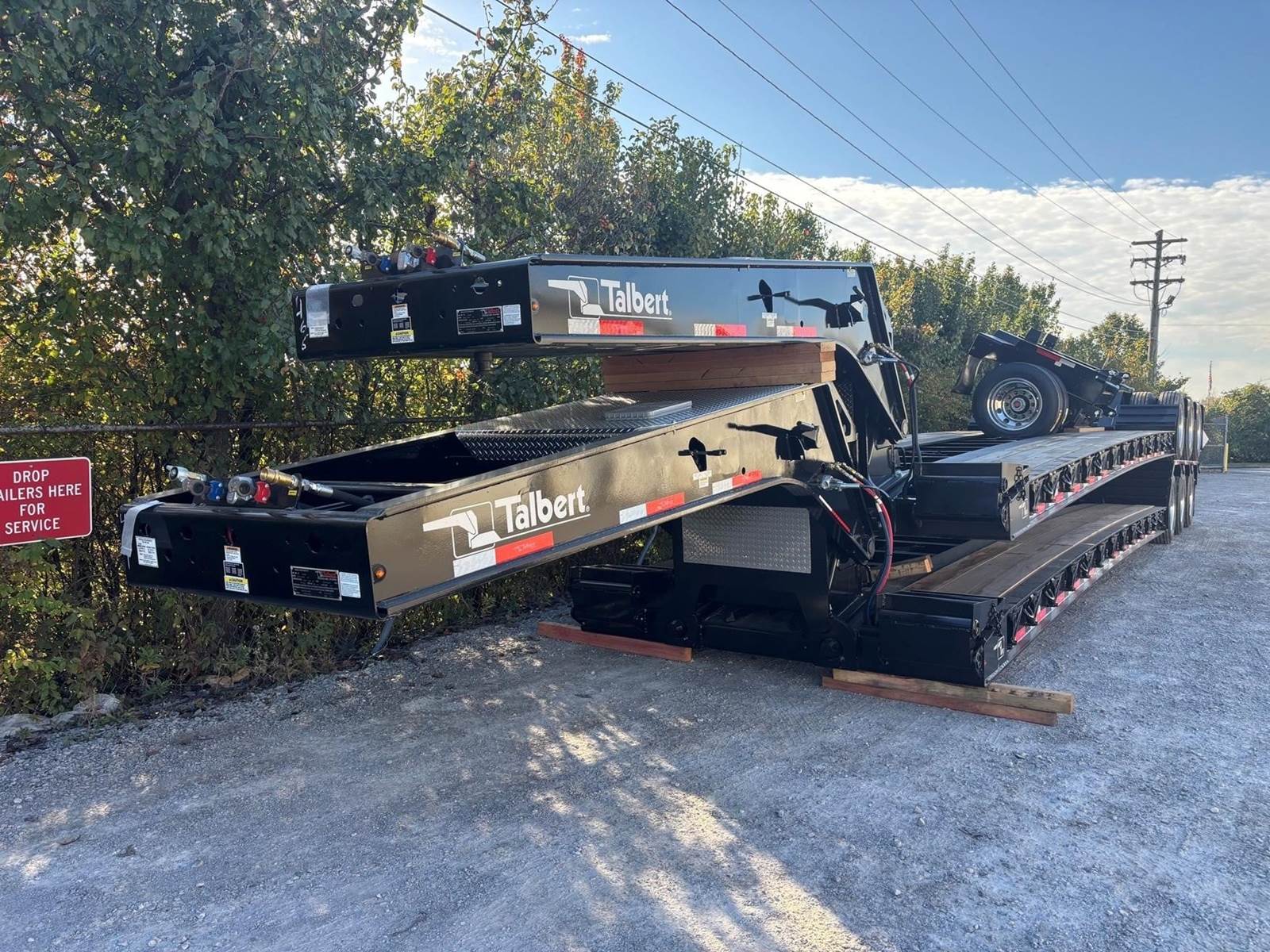

Gooseneck:
-Swing clearance 90" and 108".
-Formed aluminum diamond plate light bar mounted in gooseneck base with 4 LED combination stop/tail/turn/back-up lights
(back-up lights wired to switch) and 2 clear LED work lights wired to market light circuit with on/ off switch.
-Full Enclosed chain bar with aluminum diamond plate and lockable hinged lid (paddle latches)
-Full Penatration weld on gooseneck gusset
-Base Pivot tube reinforcement

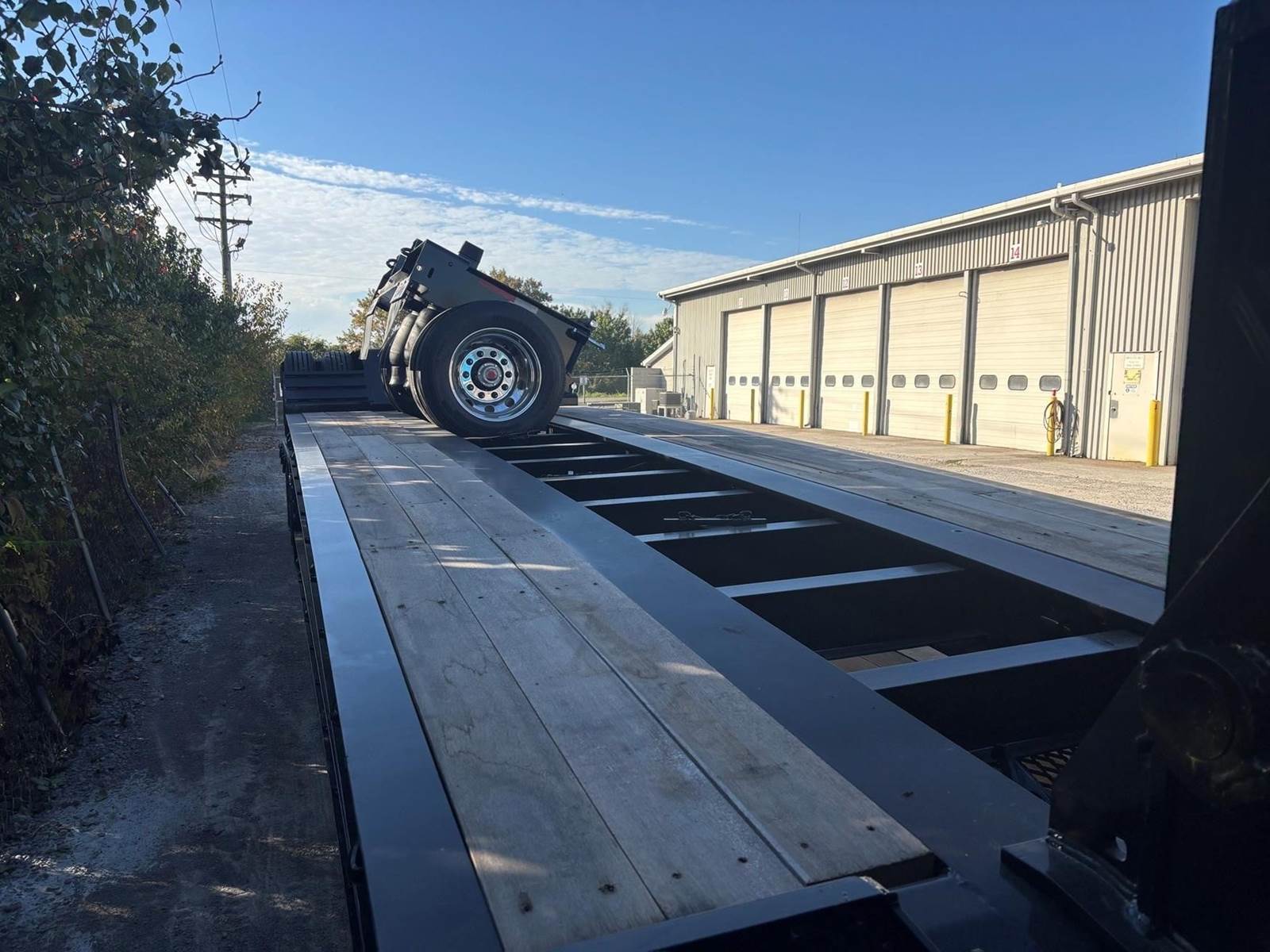

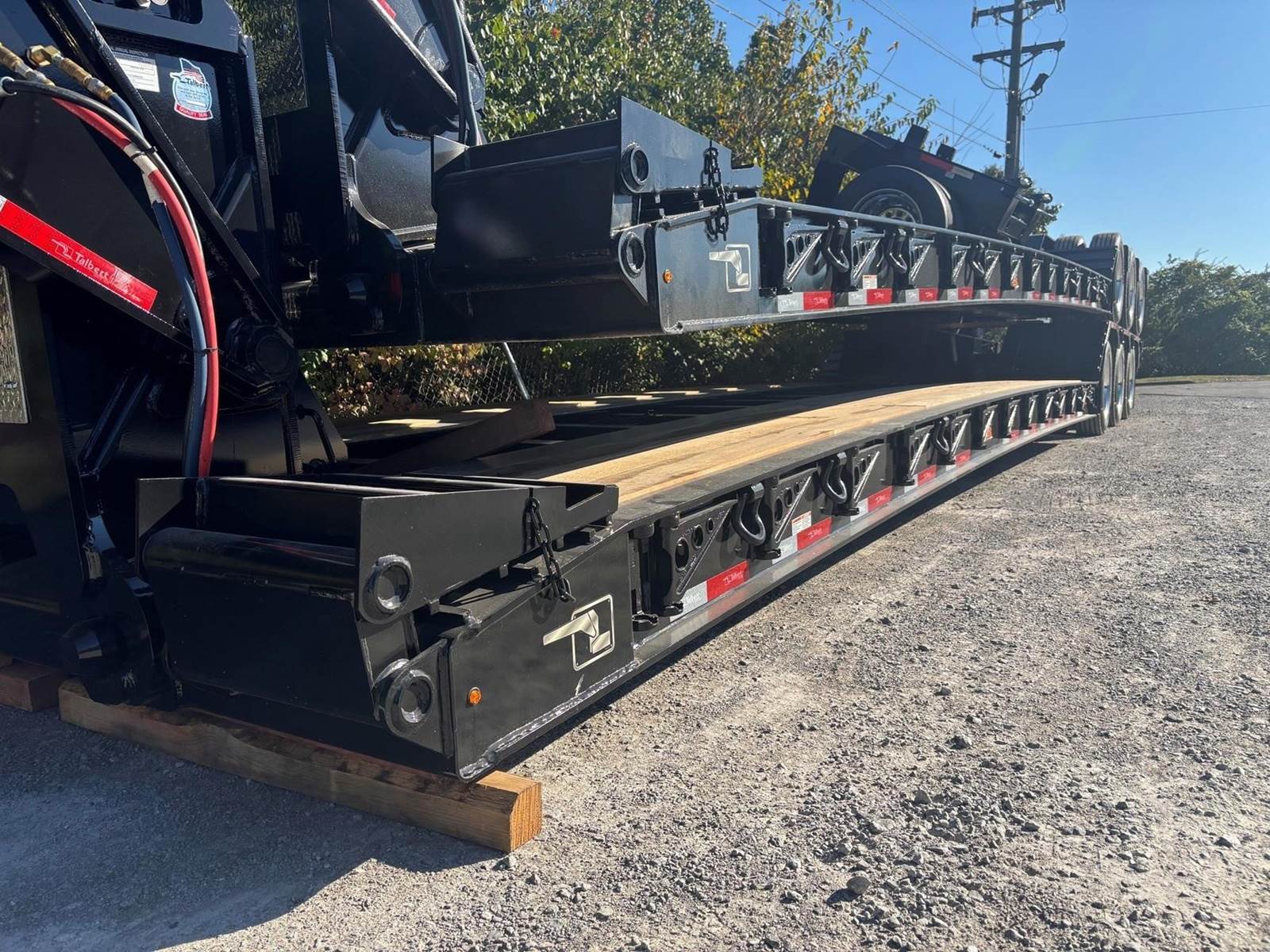

Deck:
-Flooring secured with deck screws.
-Bucket well, recess last 4 deck crossmembers in deck between main beams and cover with 1/4" plate.
-Expanded metal between main beams 1st deck section at front and last deck section at rear, in front of bucket well.
Rear Bridge:
-1/4" Steel Load Bearing Weld On Wheel Covers over tires. Lash rings on the ends of each bolster (6 total)
-41" Frame height. 37" Bolster Height.
-GAWR 24,700 Lbs.
-Spring Brakes on one axle
-Boom well, cross members recessed - recess 1st member additionally
-Front bridge ramp sloped to deck outside of main beams with plate and traction bars.
-Omit 1st cross member in rear bridge section (shock mount cross member)
SMU20420
