Product Description

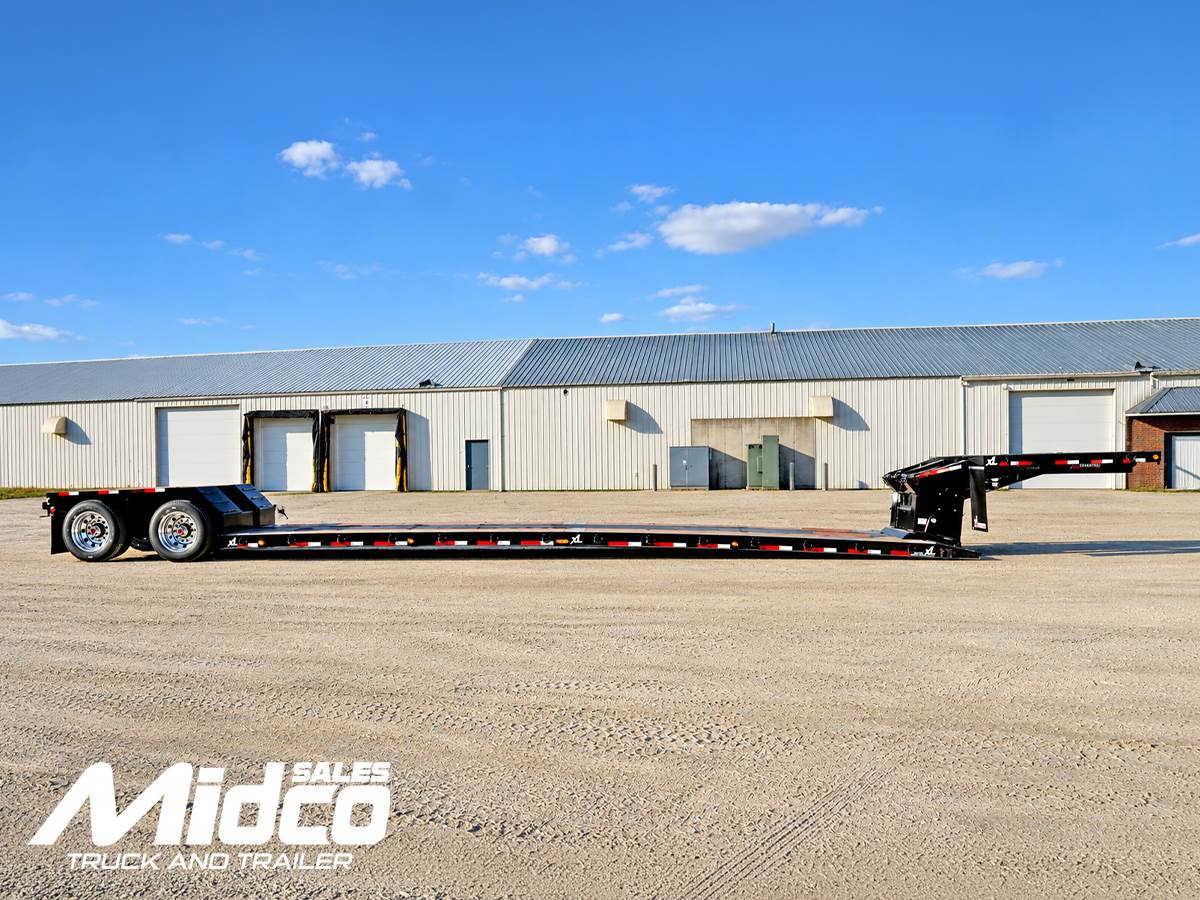

2027 XL Specialized XL70 HDGSM 35-Ton Hydraulic Detachable Gooseneck Mini Deck Lowboy Trailer For Sale at Midco Sales
The XL Specialized XL70 HDGSM Hydraulic Detachable Gooseneck Mini Deck Lowboy Trailer is engineered for demanding heavy-haul applications, delivering a 35-ton capacity, an exceptionally low 12-inch loaded deck height, and the versatility needed to transport heavy construction equipment, machinery, and oversized loads.
The mini deck design features an ultra-low main deck that rides closer to the ground than a conventional lowboy or double drop trailer. With a loaded deck height of just 12 inches and 4 inches of ground clearance, this configuration maximizes available vertical clearance when transporting tall equipment, helping operators accommodate taller loads while managing overall transport height.
Measuring 53 feet long and 102 inches wide, the XL70 HDGSM features a 33-foot main deck with 32 feet, 6 inches of clear deck space. Its 35-ton capacity is rated for both distributed loads and 70,000 lbs. concentrated within 16 feet.
The 11-foot full-width hydraulic detachable gooseneck features Apitong decking, providing additional usable deck space and securement options. A self-contained 13 HP pony motor powers the dual hydraulic system, allowing the gooseneck to be detached and reattached without relying on the tractor's hydraulic system. Five variable ride-height positions provide additional flexibility for loading, clearance, and operating conditions.
The trailer rides on Hendrickson air ride suspension with tandem 25,000 lb. axles spaced 54 inches apart. This suspension helps deliver a smoother ride and improved load stability when transporting valuable heavy equipment. Additional features include an Air Weigh onboard scale system, polished aluminum outer wheels, 14 bent D-rings per side on the main deck, manual rear ride-height control, and a 9-foot rear deck prepped for a future flip-axle installation.
Built for professional heavy-haul operators, the 2027 XL Specialized XL70 HDGSM 35-Ton Mini Deck Lowboy combines exceptional low-deck clearance, hydraulic detachable convenience, and heavy-duty construction in a versatile equipment transport trailer.
TRAILER MODEL
XL Specialized XL70 HDGSM (hydraulic detachable gooseneck mini deck)
DIMENSIONS
Length: 53'
Width: 102"
Capacity: 70,000 lbs (35 tons) distributed; 70,000 lbs in 16'

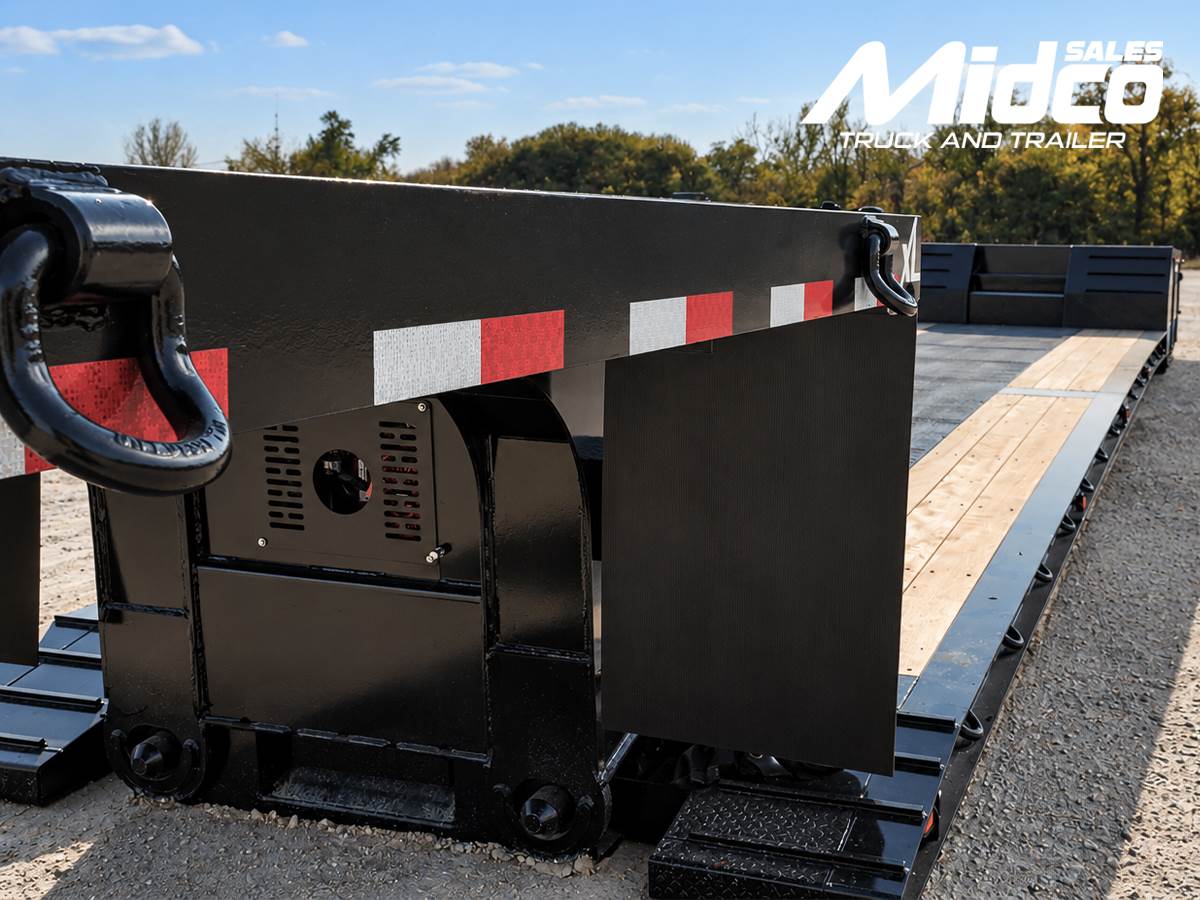

GOOSENECK
Length: 11' full-width neck w/ apitong decking
2 D-rings per side
Kingpin setting: 16"
Swing clearance: 86"
5th wheel height: 49" w/ 5 variable ride height positions

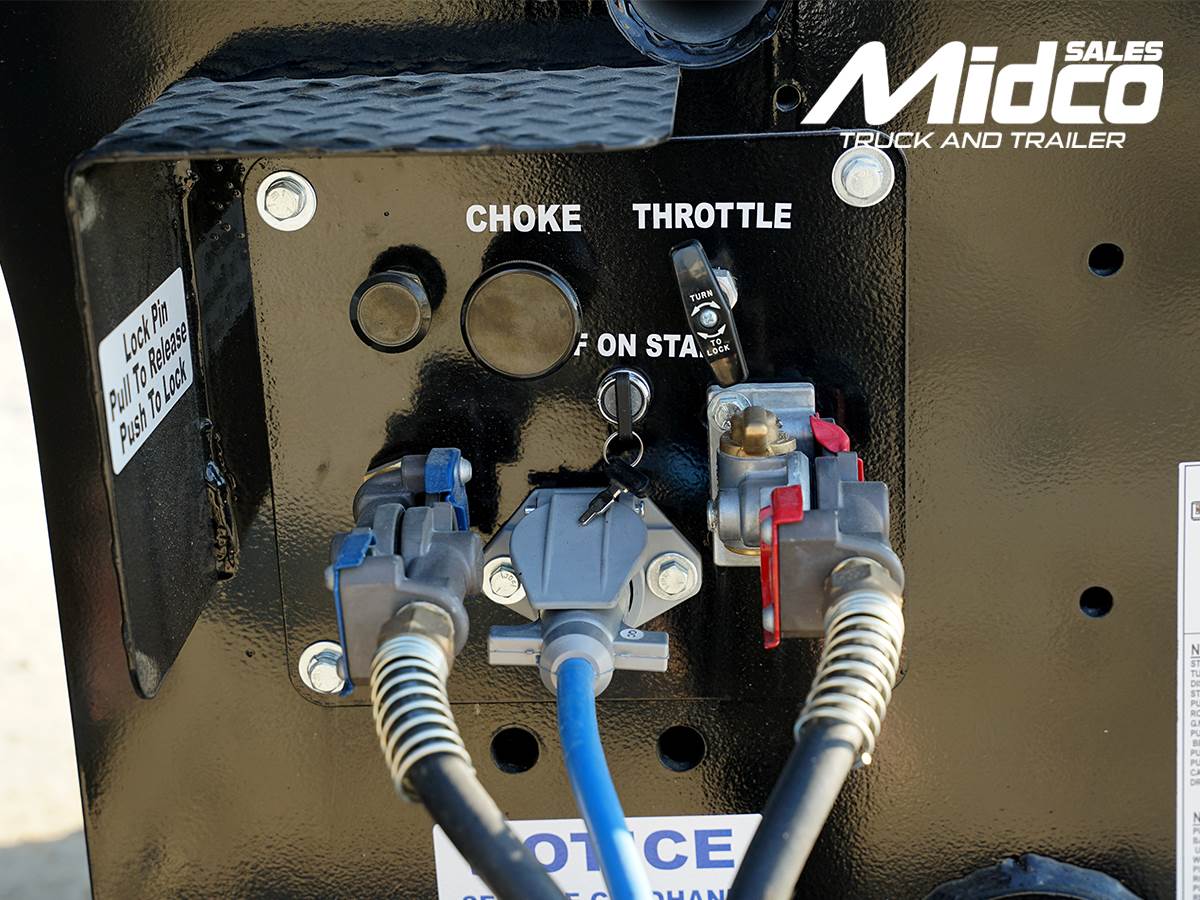

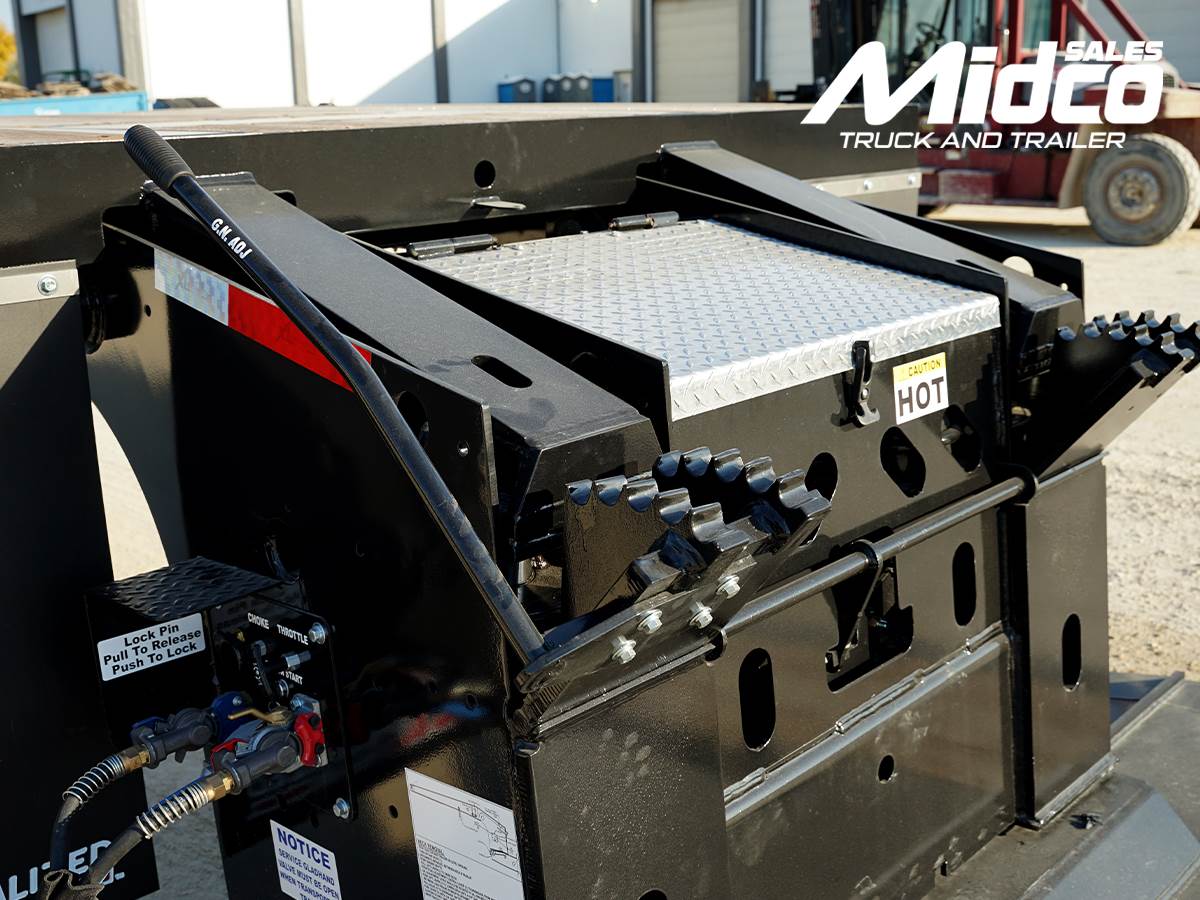

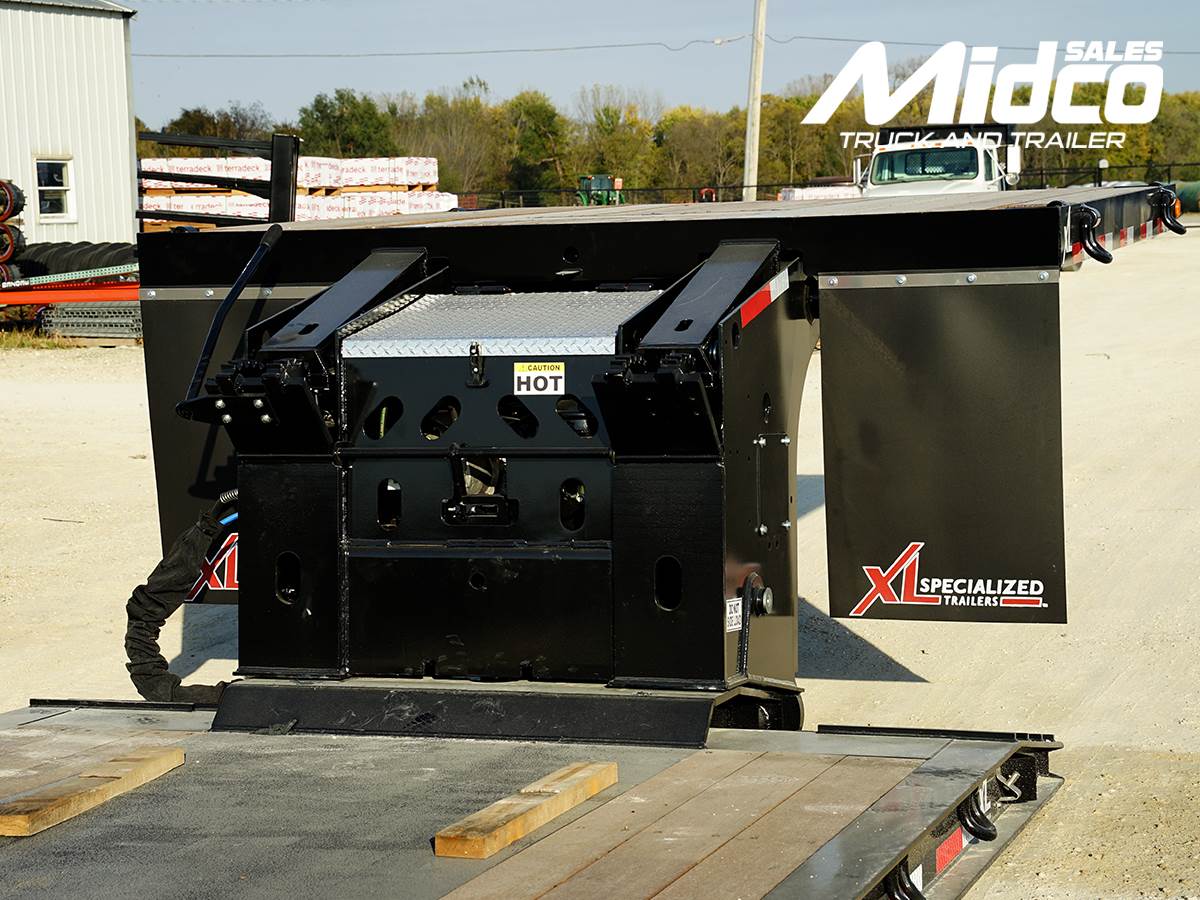

Hydraulics: 13HP pony motor, dual hydraulics w/ aluminum covers

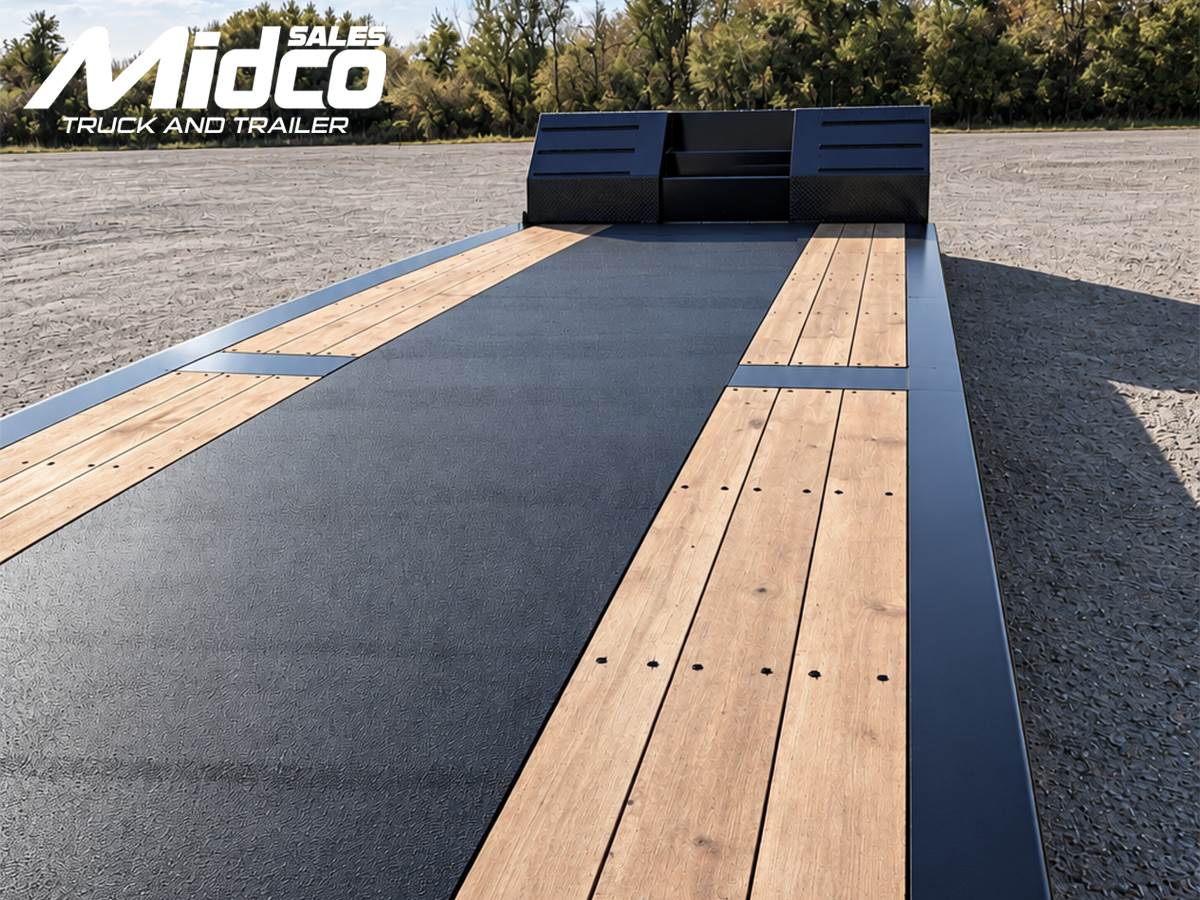

MAIN DECK
Length: 33' w/ 32'6" of clear deck
Loaded deck height: 12"
Ground clearance: 4"
Decking: Steel decking between main beams w/ apitong decking flush between main beams and outer beams
Crossmembers: 4" Jr I-Beam on 18" centers
D-rings: 14 bent D-rings per side
Ramps: tapers to 4"
4 additional clearance lights per side
REAR DECK
Length: 9'
Loaded deck height: 40"
Decking: Full-width style w/ Apitong decking flush
Manual ride height control
Prepped for flip-axle
EZ Mount flag holders
2' x 2' cut-out in rear transition
D-rings: 1 pan style D-rings in each corner, 2 bent D-rings in tail channel
Electrical/lights: 12V sealed Grote system with 4 tail light aluminum page, 4" amber strobe light used as 4th tail light

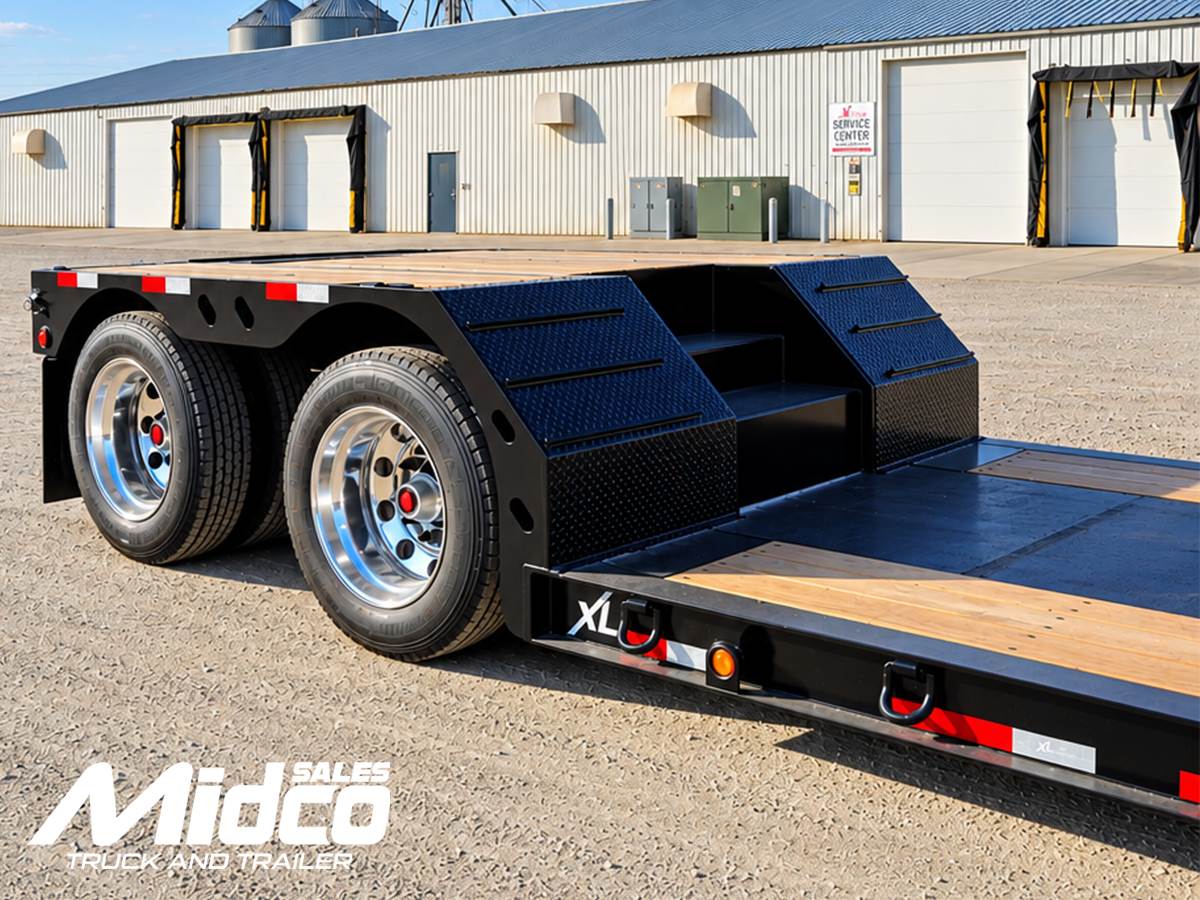

AXLES & SUSPENSION
Suspension: Hendrickson air ride
Axles: tandem axle, 25k, 54" spacing
ABS:S 5S2M w/ spring brakes on 2 axles
Brakes: 16 1/2" x 7"
Drums: Outboard
Air Weigh Scale
WHEELS & TIRES
Wheels: 8.25 x 22.5 polished aluminum outers, steel inners
Tires: 25570R22.5
