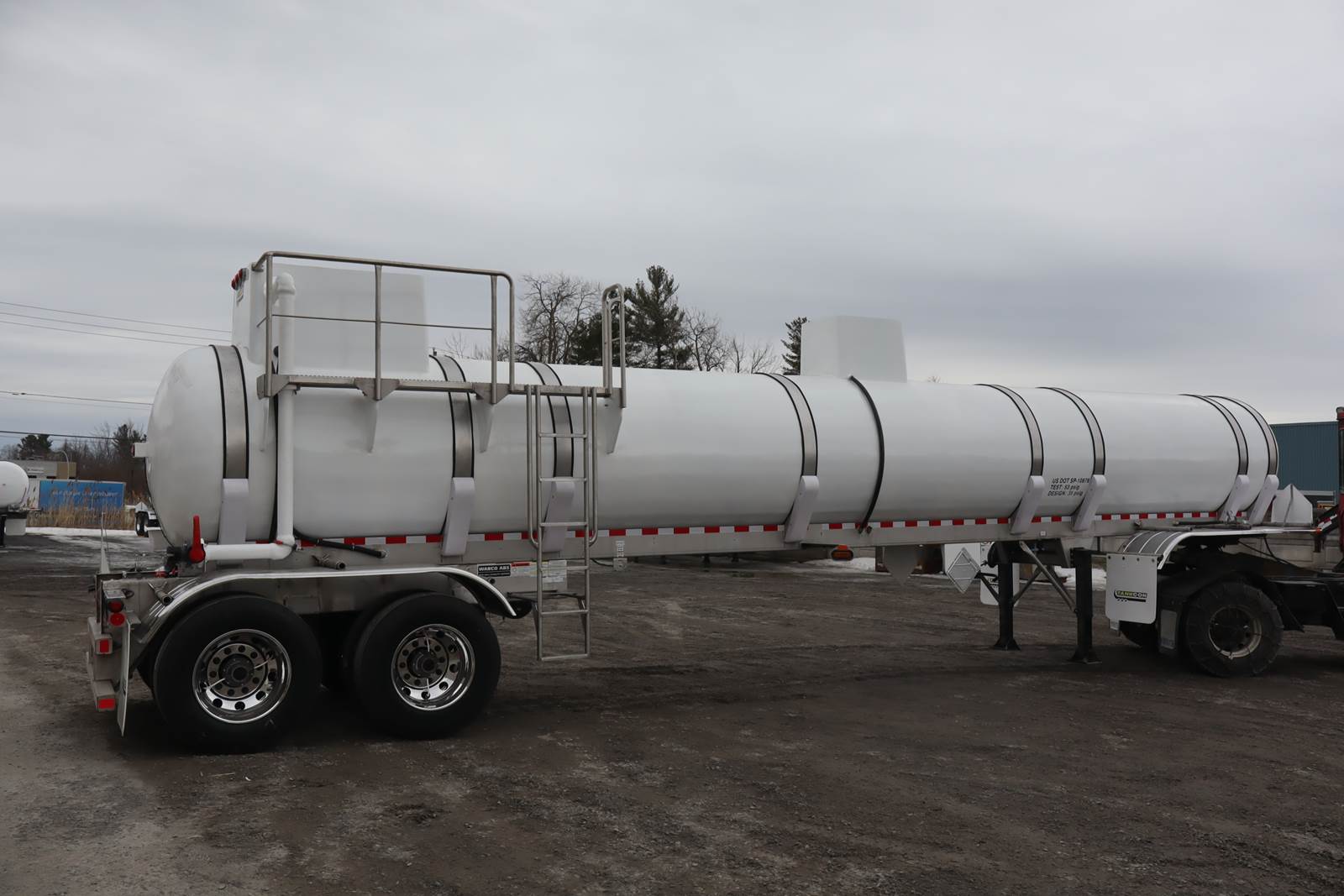

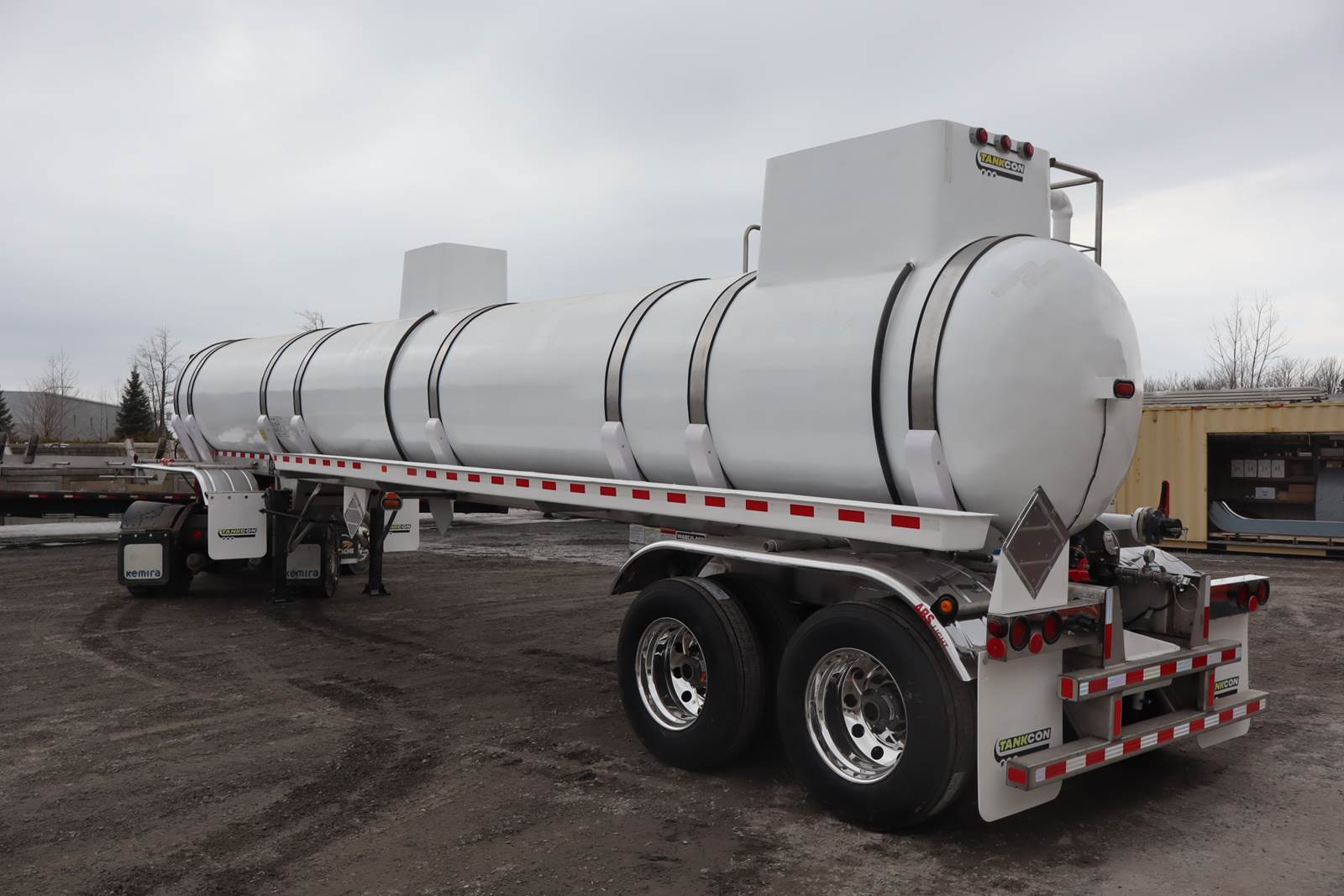

2027 Tankcon 5,400 Gallon FRP HCL Tank Trailer
New FRP tank trailer built for HCL service with a 5,400 U.S. gallon capacity and single-compartment design. This unit is constructed with an FRP/ALSA/FRP cylinder, FRP ends, and Derakane D510A-40 BPO/DMA product-approved liner/post-cure system. Designed as a U.S. DOT-412 tank trailer, exempted under SP-1078, with a 35 PSIG design pressure and 53 PSIG test pressure.
Main specs include an 18" dome manhole with 10" stainless steel load hatch, 3" DOT407 TTFE-lined Girard vent, rear 4" bottom unload, and an added top unload system. The top unload includes a 3" FRP down pipe, 4" PVC/PVC/EPDM butterfly valve with air/spring actuator, 3" PVC/FRP rigid pipe, 1" blowdown, additional 3" PVC/PVC/EPDM butterfly valve, and 2" PP male coupler with cap.
Trailer is equipped with a stainless steel subframe and suspension frame, two Hendrickson axles, Intraax suspension, HXS 16.5" x 7" brakes, Meritor ABS, 30/30 brake chambers, 10-stud hub-piloted hubs, cast steel drums, steel wheels, Yokohama 11R22.5 tires, Jost 2-speed landing gear, stainless steel ladder with secondary handrail, stainless steel grip-strut walkway, stainless fenders, Truck-Lite LED lighting, and four aluminum placard holders.
Key Specs:
- Capacity: 5,400 U.S. gallons
- Diameter: 58"
- Compartments: One
- Product: HCL / approved products in Derakane D510A-40 liner system
- Code: U.S. DOT-412, exempted SP-1078
- Design Pressure: 35 PSIG
- Test Pressure: 53 PSIG
- Construction: FRP/ALSA/FRP cylinder with FRP ends
- Manhole: 18" dome with 10" stainless steel load hatch
- Vent: 3" DOT407 TTFE-lined Girard vent
- Unload: Rear 4" bottom unload
- Top Unload: 3" FRP top unload system with air/spring actuated valve package
- Spill Boxes: Two FRP spill boxes located at manhole and vent
- Frame: Stainless steel subframe and suspension frame
- Suspension: Intraax AAT23K
- Axles: Two Hendrickson HN-type axles
- Brakes: HXS 16.5" x 7", Meritor ABS
- Wheels/Tires: 8.25" x 22.5" steel wheels with Yokohama 11R22.5 tires
- Landing Gear: Jost 2-speed with sand shoes
- Paint: White polyurethane FRP barrel, natural finish stainless frame/fenders
- Location: FOB Champlain, NY
This FRP HCL trailer is a strong fit for customers needing a dedicated corrosive-service DOT-412 tank trailer with FRP construction, stainless running gear components, rear bottom unload, and an additional top unload system for HCL service.
