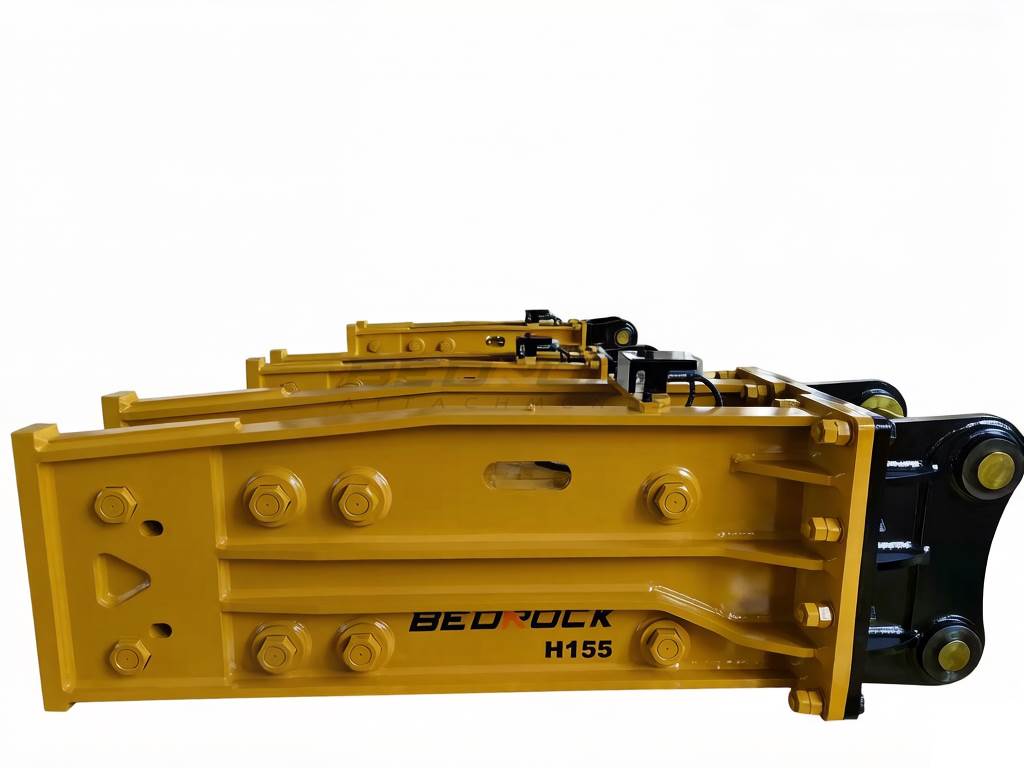

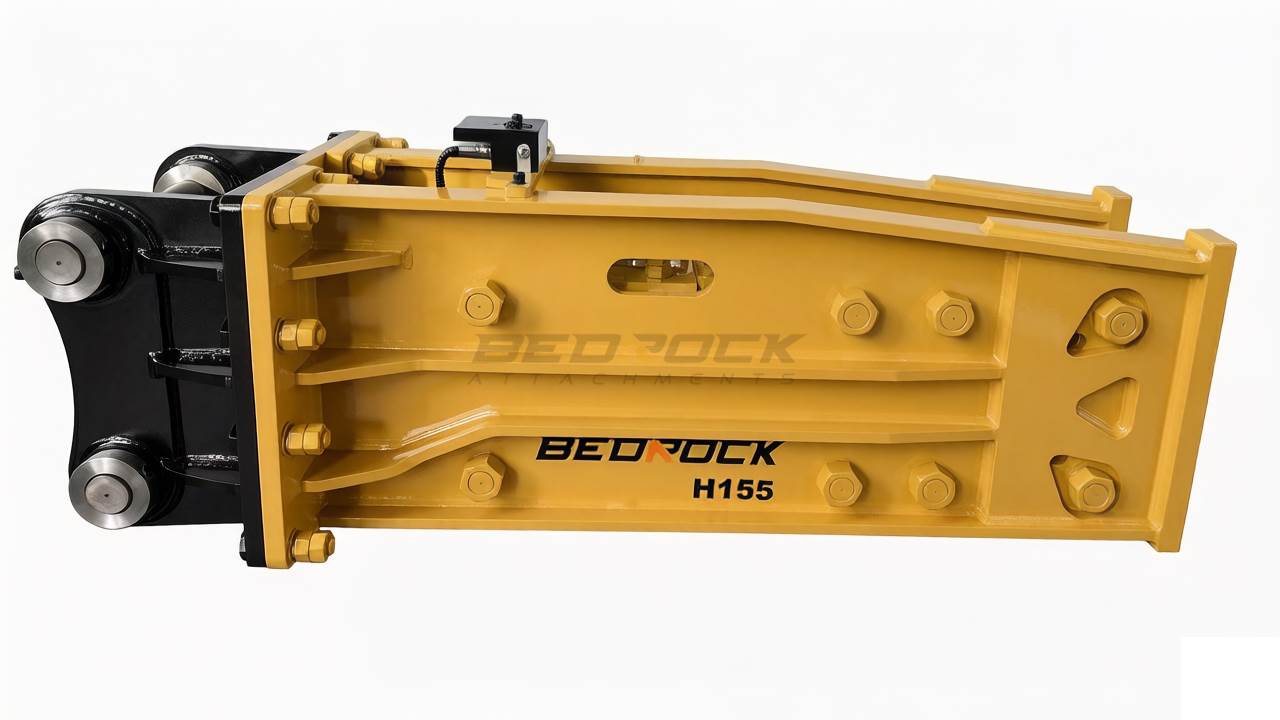

Bedrock Hydraulic Hammer for 28 - 35 ton Machinery, 90mm & 80mm, D Linkage

Hydraulic Hammer for 28 - 35 ton Machinery, 90mm & 80mm, D Linkage

SKU: EH155D
Operating pressure: 160-180kg/cm² (2272-2556 psi / 157-177 bar)
Hydraulic flow range: 180-240l/min (47.6-63.36gal/min)
Impact frequency    300-450bpm
Impact Energy 6300-6500J
Diameter of hose: 31.75mm
Diameter of Tool 155mm/6.1inch
Weight of Tool 190kg
Suitable Carrier: 1.1-1.4m³
Suitable Carrier: 28-35ton
Valve Type: Inward
Accumulator exists: Yes
Body Weight: 1313 kg
Total weight: 3410 kg
Length: 100.4 in
Width: 34.3 in
Height: 45.3 in
