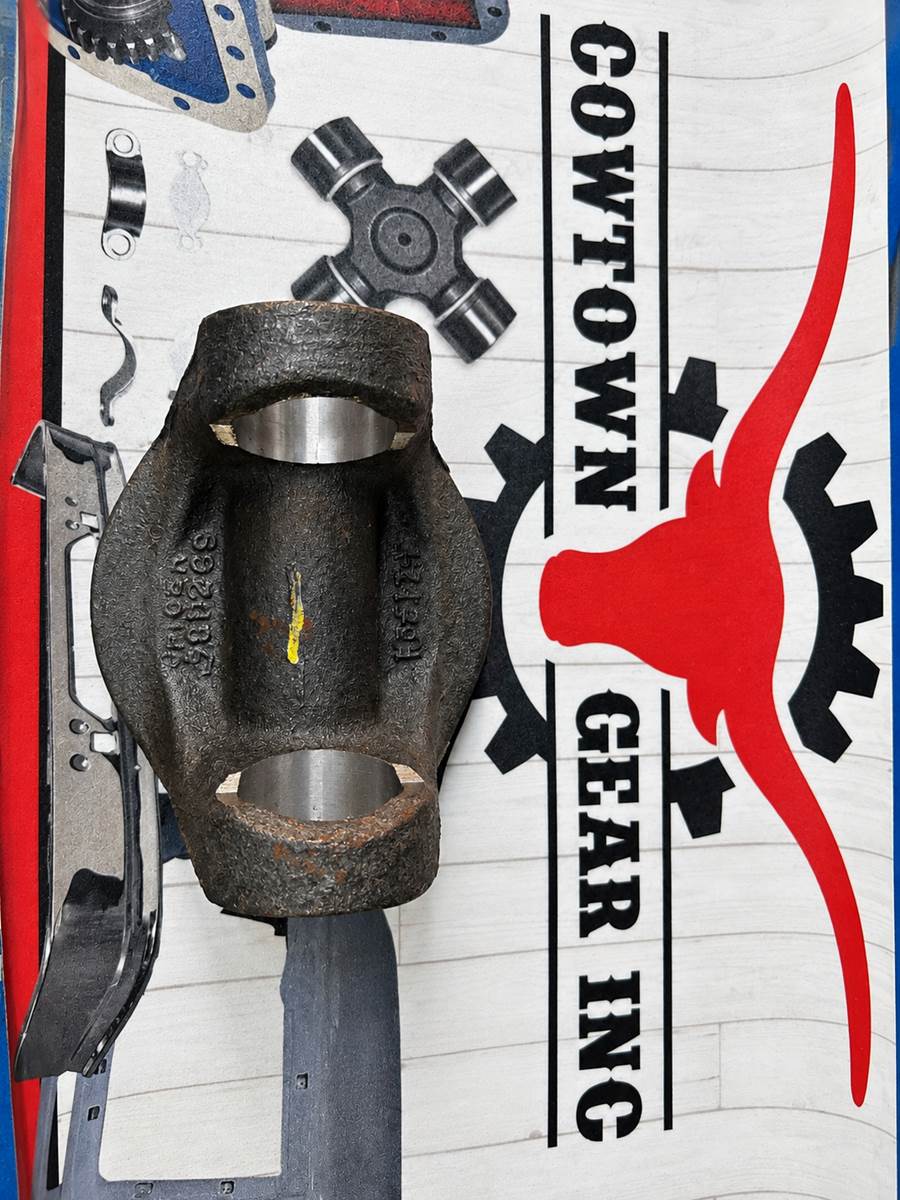

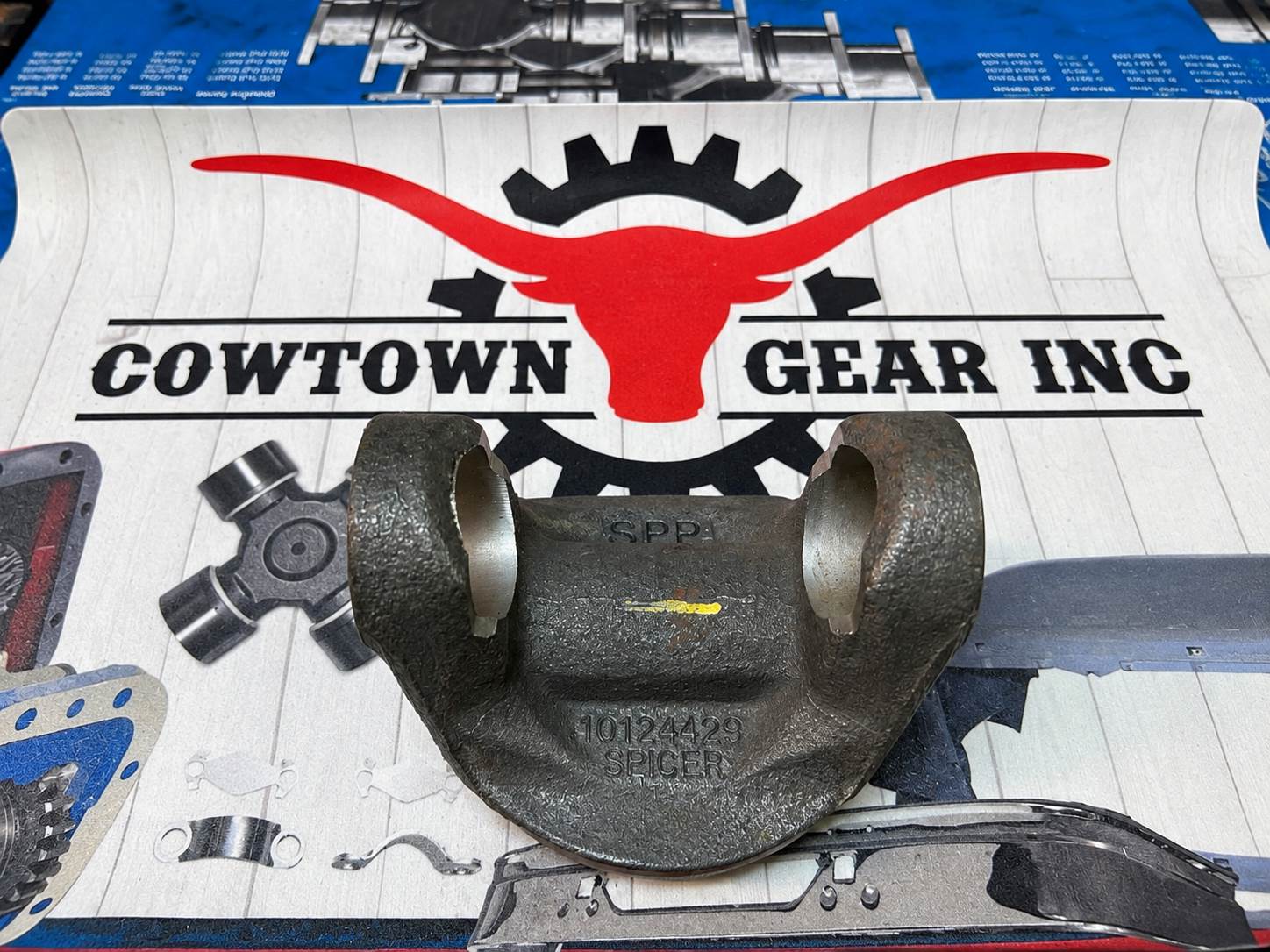

The Dana Spicer 3-28-627 is a 1480 series steel drive shaft tube weld-on yoke. Key Specifications Brand / Manufacturer: Dana Spicer Part Number: 3-28-627 (Cross-reference: 328627, SP 3 28 627HP, D328627, E328627) U-Joint Series: 1480 (Outside snap ring style) Fits Tube Size: 4.00-inch outside diameter (OD) with a 0.095-inch welded wall thickness Bearing Cap Diameter (D): 1.375 in Outside Yoke Dimension (E): 4.438 in Centerline to Point of Weld (H): 2.031 in Butt Diameter (F): 3.821 in Material: Steel Compatible U-Joint Kits: Spicer 5-188X, SPL55X, or SPL55-1X
