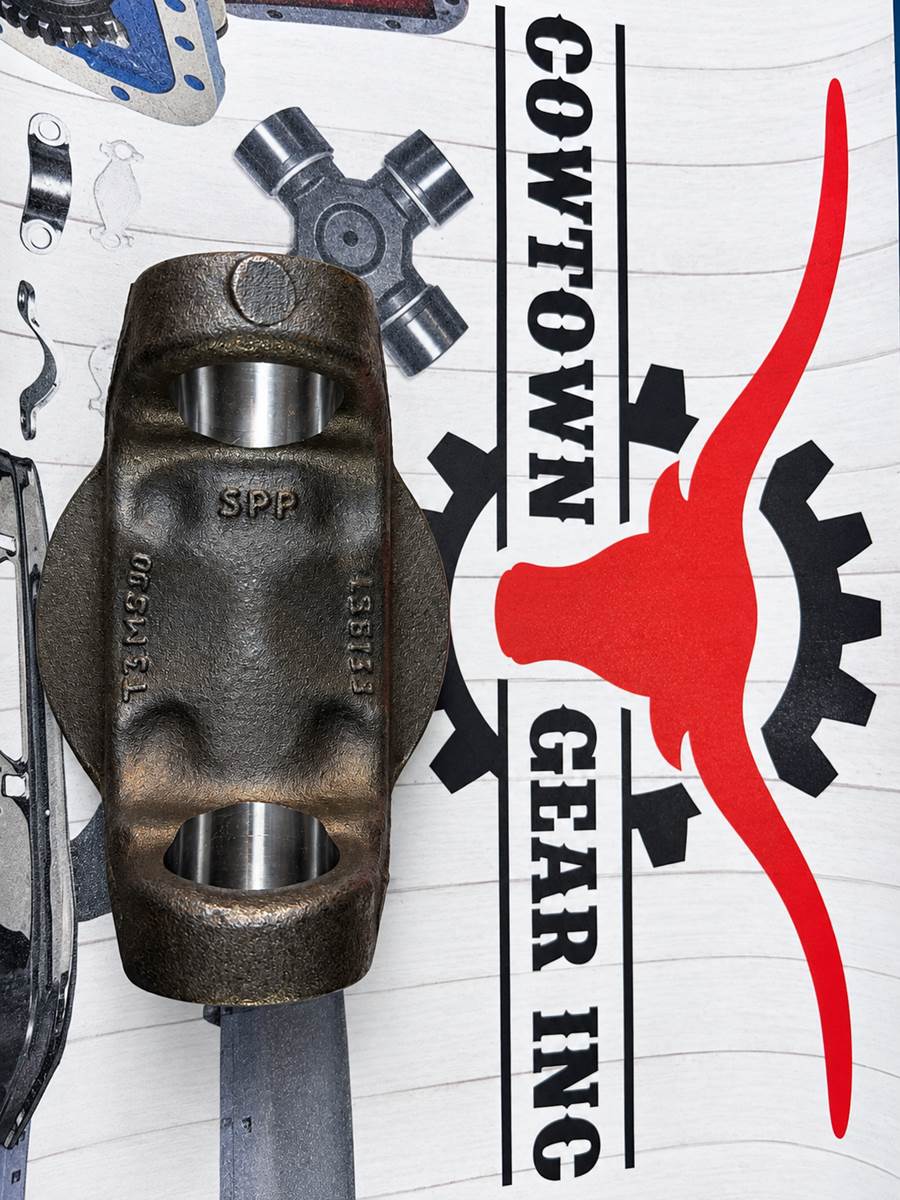

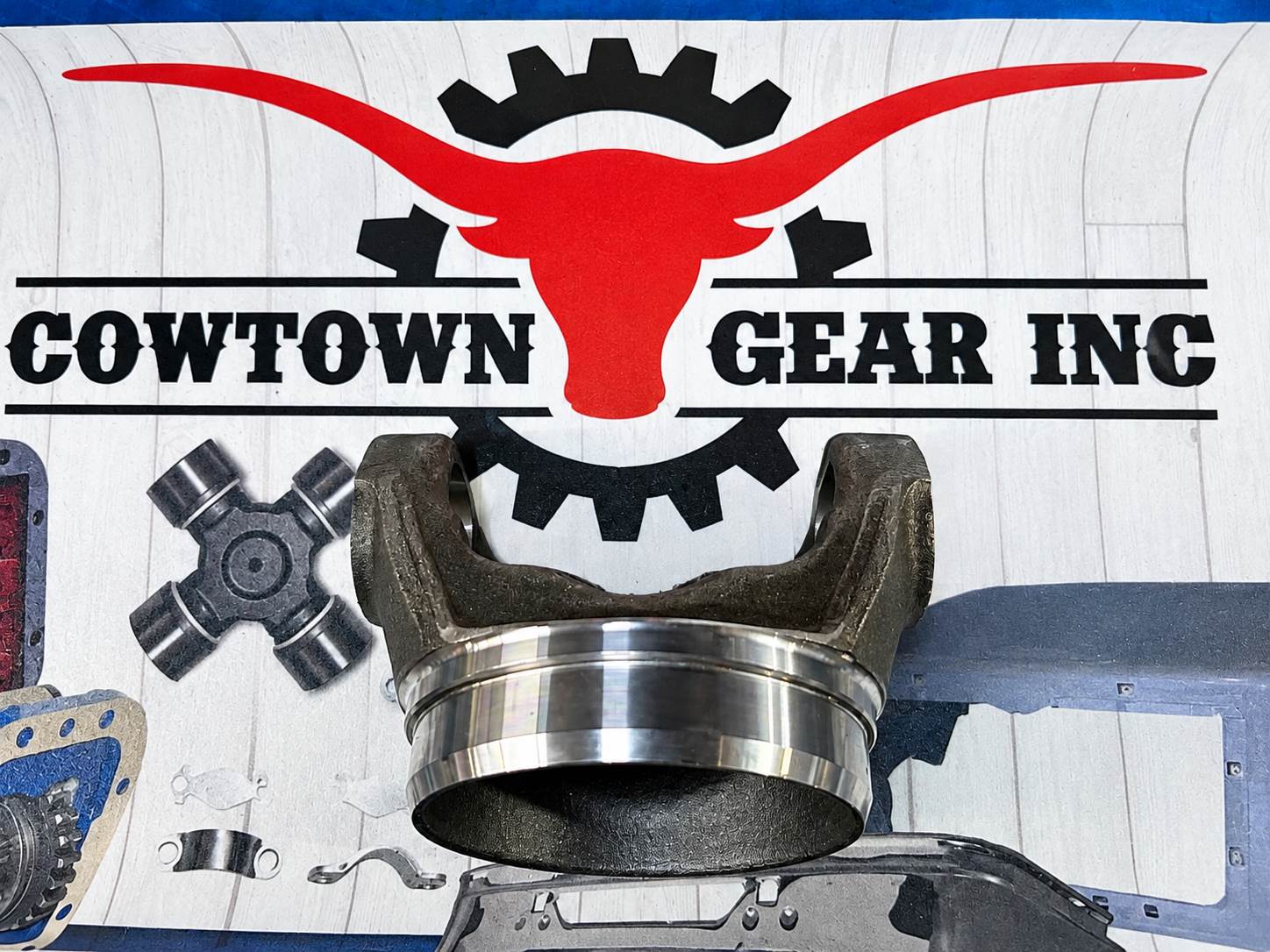

Part Overview Part Number: Spicer 4-28-277 (also referenced as 428277, SP 4 28 277) Type: Drive shaft tube weld yoke Series: 1550 / SPL70 Material: Steel [1, 2, 3, 4] Specifications Tube Outside Diameter (OD): 4.000 inches Tube Wall Thickness: 0.083 inches (welded) Butt Diameter (F): 3.844–3.845 inches Centerline to Point of Weld (H): 2.188 inches Bearing Cap Diameter (D): 1.375 inches Outside Yoke Dimension (E): 5.250 inches Compatible U-Joints: Spicer 5-155X or SPI-SPL70X
