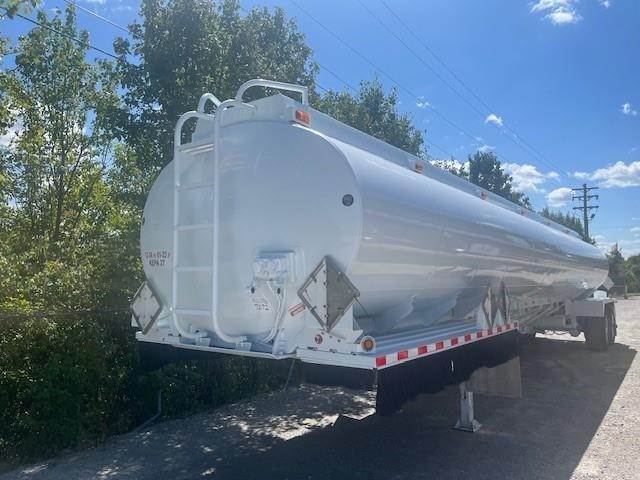

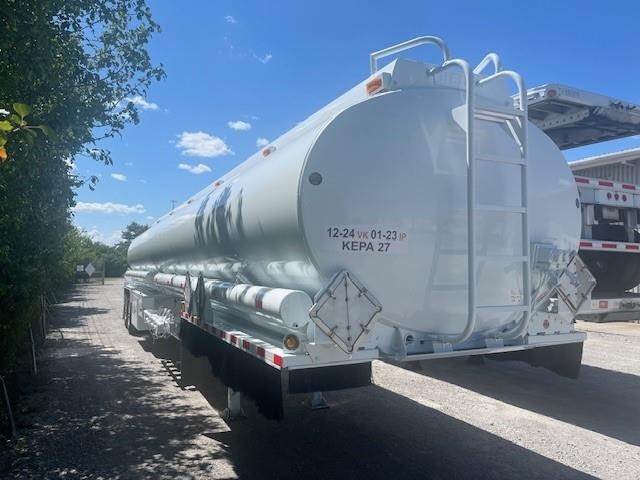

2013 Heil 406 AL Fuel Trailer

V&K Tests 12/24
I&P Tests 1/23
Body Tank
Total Capacity 9200 Gallon
Compartment Sizes 3200/2300/1100//2600
Shape/Style Elliptical

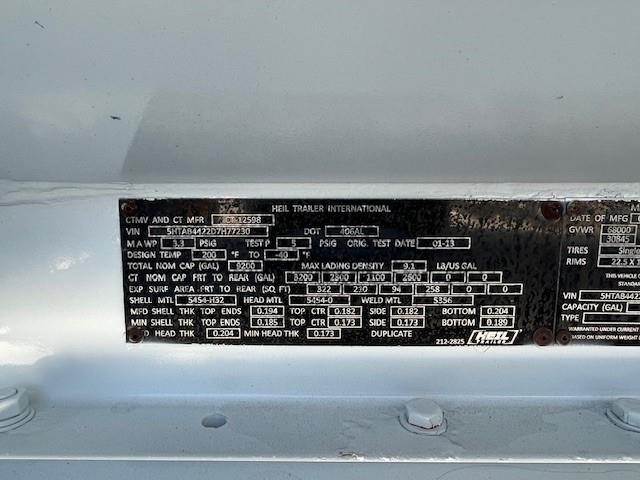

MC Code MC-406
Bulkheads Single with Double between 3&4
Drain Troughs Under Compts. 1-3, Double Sump under 4
Barrel Condition Good
Product Hauled Gasoline
Body Pipe
Piping Aluminum

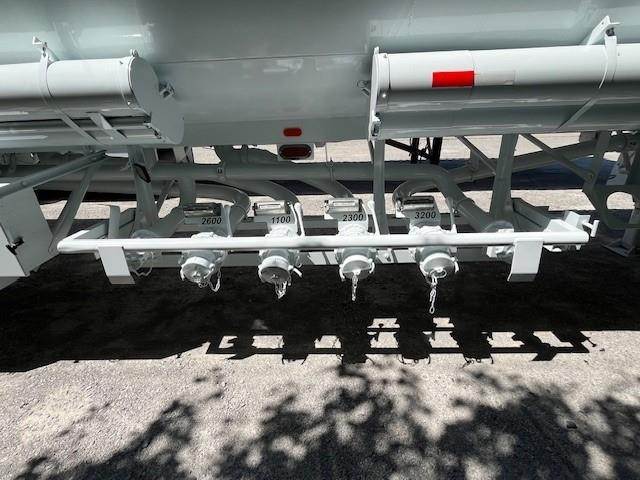

Discharge Valves Openable Adaptors
Sight Glass Bubble Sight Glass
Commodity Indicators Yes, 8-Sided

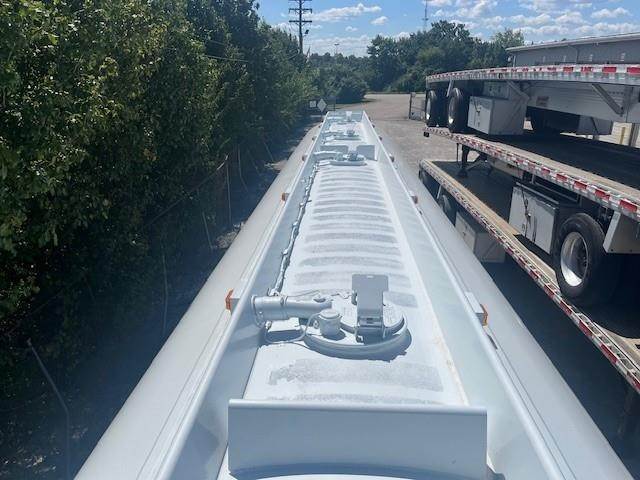

Vapor Recovery Three Outlets

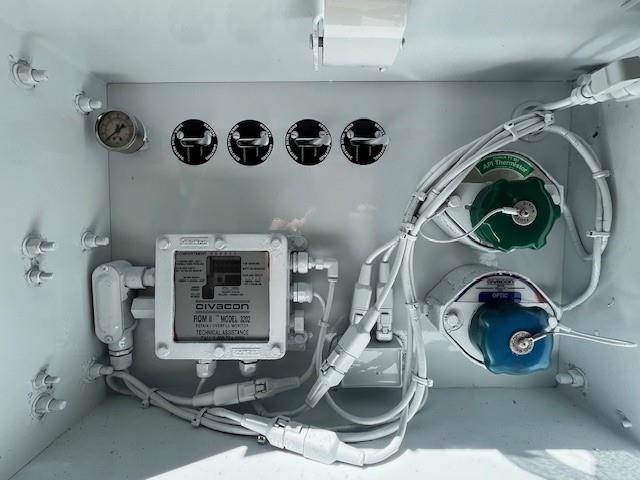

Overfill Protection Civacon ROM II, Top & Bottom Probes
Emergency Valves Air
EV Operators Inside EVO Cabinet
Body-Accs.
Ladder Front

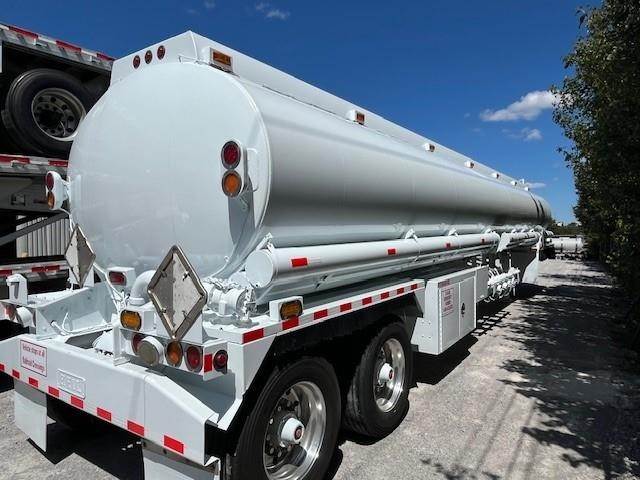

Hose Tubes Four: Two C/S Front, Two C/S Rear
Stick Tube One

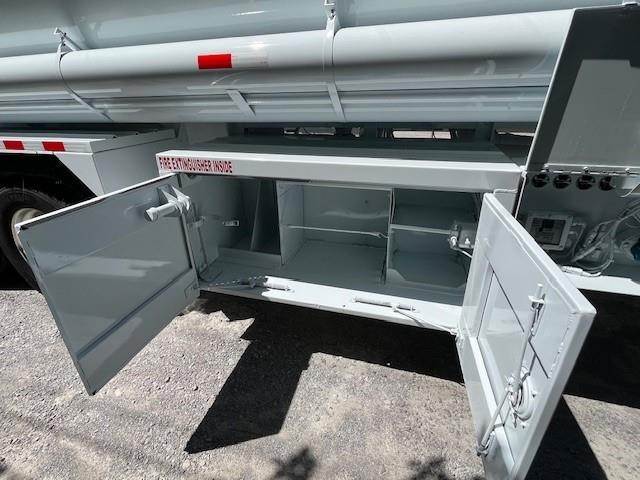

Fittings Cabinet 60" Double Door with Shelves
EVO Cabinet 25"Wx17"Hx9"D
Fenders Flat Aluminum, Front & Rear
Cone Holder Yes
Placards Placard Holders
Side Lights Seven (7) per Side on Flashing Rail

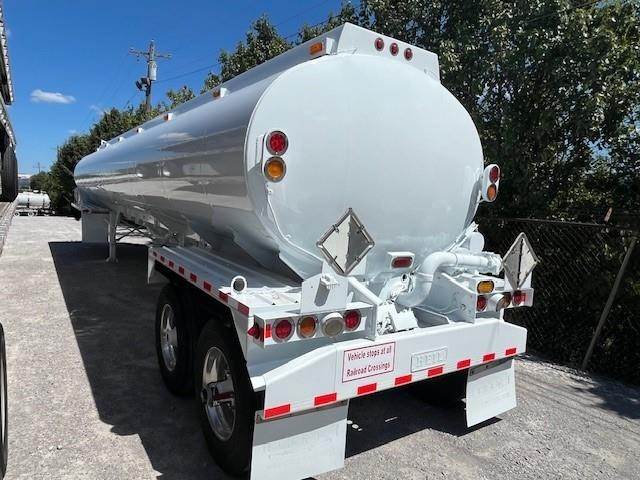

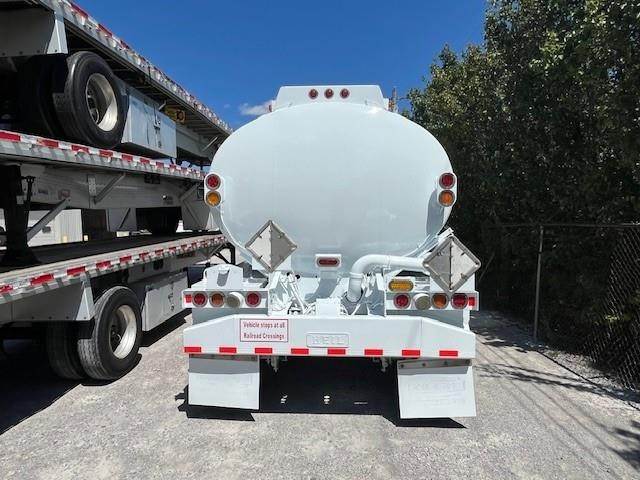

Rear Light Pkg (4) Stop/Tail, (3) Clearance w/ S/T at 3:00 & 9:00
Backup Lights Yes
Spot Lights Two at Discharge Area
Strobe Light Three Total - Two on C/S, One at Rear

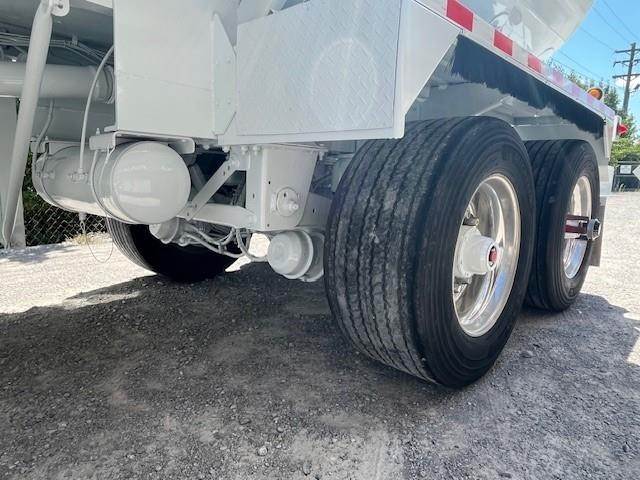

Suspension
# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson Intraax AANT-23K
Tire Size 445/50R22.5
Tire % 60
Wheels Aluminum
Brake % 80
UnderFrame
5th Wheel Condition Good
Landing Gear Two Speed
Suspension Frame Aluminum
Paint Entire Trailer Painted White
Paint Condition New
