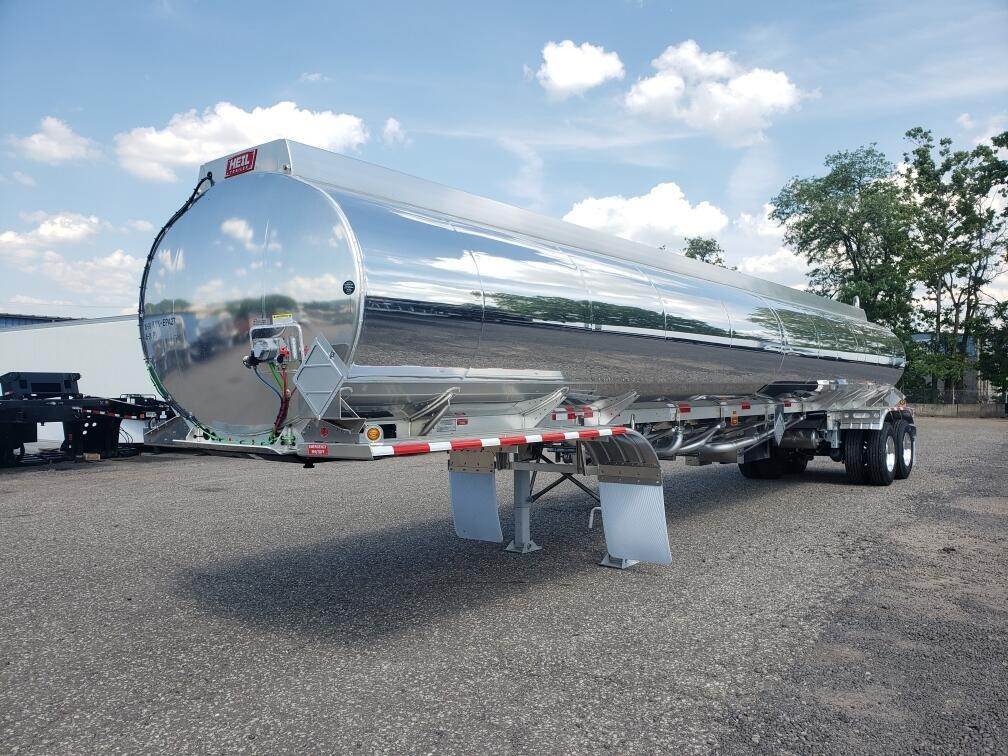

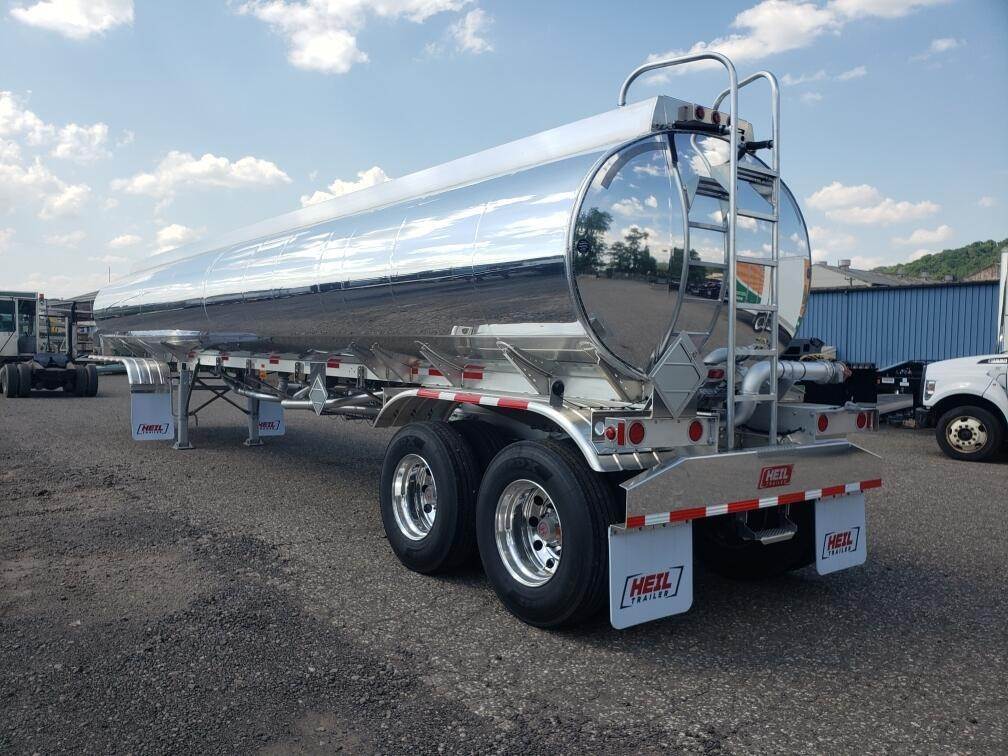

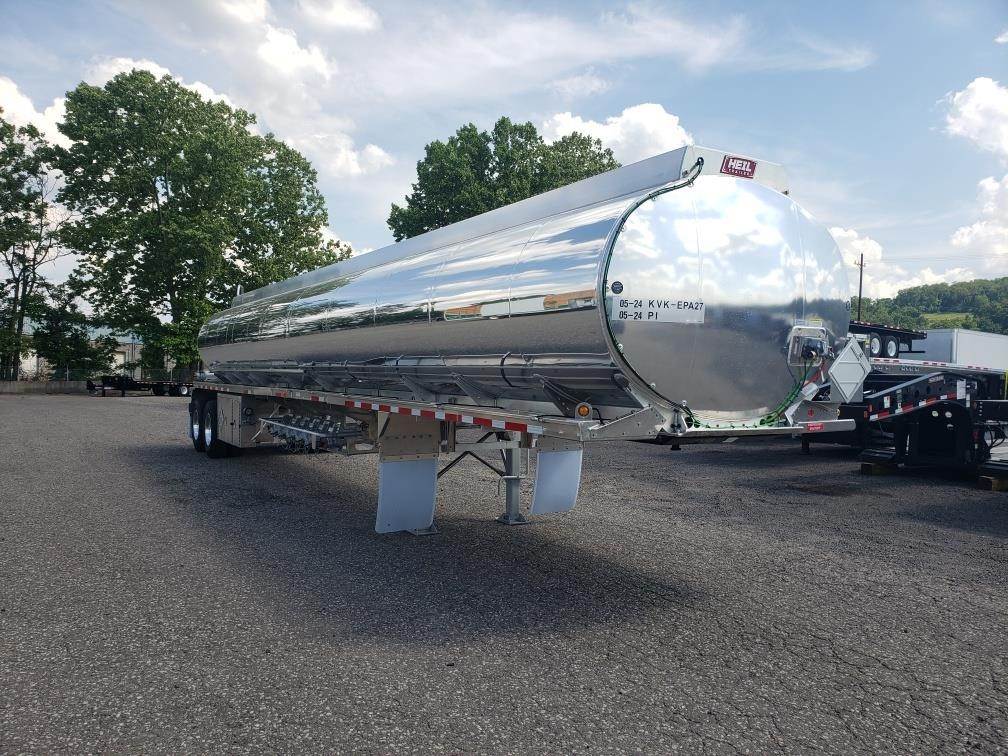

2027 Heil 406A PETRO -5C/9200 GAL Fuel Tanker Trailer

Total Capacity 9200 Gallons
Compartment Sizes 2500/2100/1000/1500//2100
Shape/Style Elliptical
MC Code 406
Bulkheads Single with Double between 4&5
Drain Troughs Drain Trough in Each Compartment

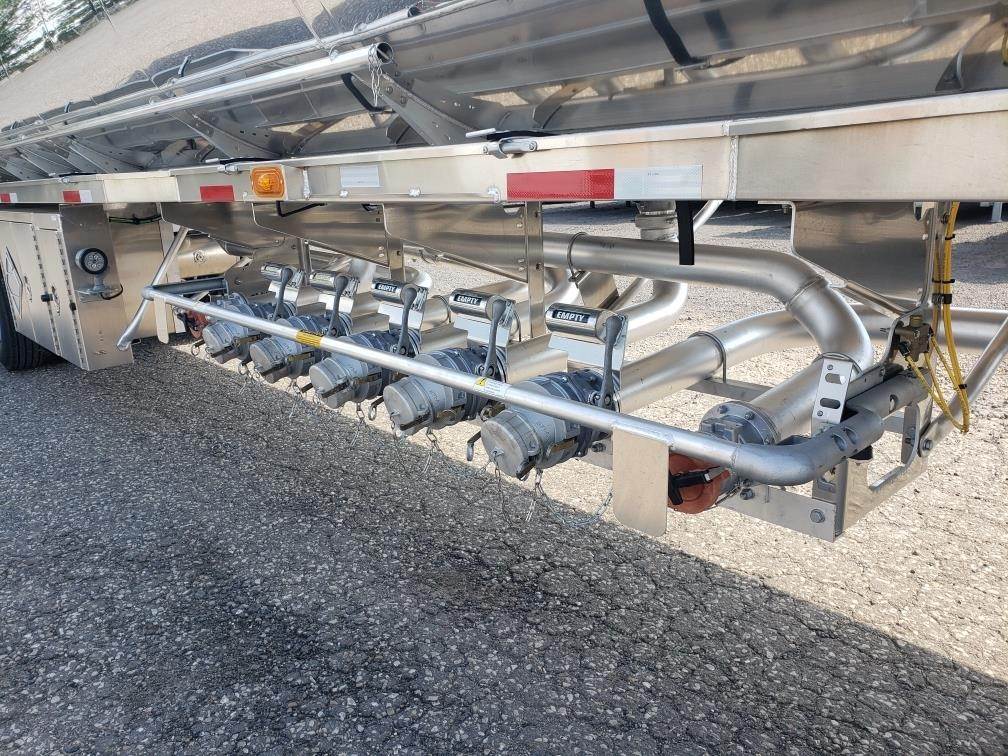

Piping Aluminum
Discharge Valves 4" Civacon 891BA Opendable Adapter
Sight Glass Bubble Style
Commodity Indicators Trucknology 8 Sided Product Indicator
Vapor Recovery Internal - 3 outlets
Overfill Protection Civacon ROM III
Groundhog 1 Pair
Emergency Valves Air
EV Operators In EVO Cabinet

Ladder Rear Mounted
Hose Tray Full Length with Reduced Center Section
Stick Tube Mounted Curbside Rear Above Trough
Fittings Cabinet 30"x48"x28" Double Door Curbside Ahead of Tandem

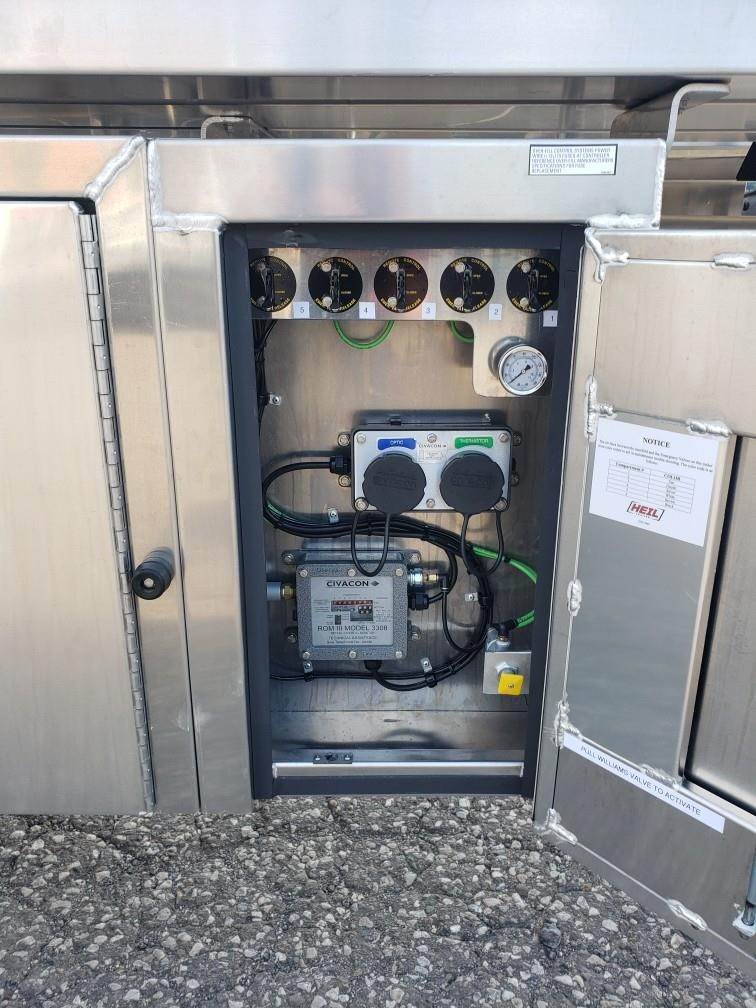

EVO Cabinet 30"x20"x9" - Mounted Flush with Fittings Cabinet
Fenders Contoured
Placards Four Slide In Style - 1 each corner of trailer
Rear Light Pkg (2) Stop/Tail, (3) Clearance
Spot Lights Swivel Style - Mounted on EVO Cabinet

# of Axles 2

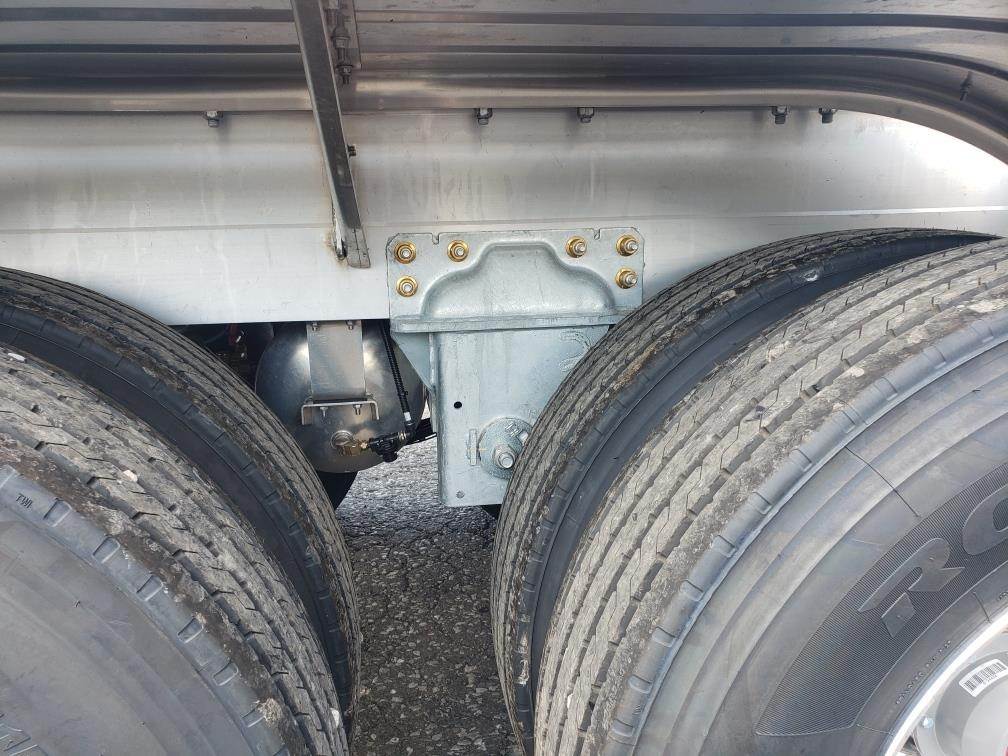

Suspension Type Air Ride
Suspension Brand Hendrickson Intraax AANT-23K
Suspension Setting 49" Fixed Tandem
Tire Brand Cooper RM872
Tire Size 11R22.5
Wheels Aluminum - Outside Polished

King Pin Setting 20.75"
Landing Gear Two Speed
Suspension Frame Aluminum

-Hendrickson Disc Brakes with Outboard Mounted Rotors
-WABCO 4S/2M with RSS-Plus Roll Stability
-Galvanized Suspension Hangers
-Bolt on Bumper Wings
Weight: 9,780 Lbs +/- 3% - GVWR 68,000 Lbs
SALE PRICE INCLUDES FET
