2016 Heil PETRO TANK Fuel Tanker Trailer

V&K Tests 8/25
I&P Tests 8/25

Total Capacity 9200 Gallon
Compartment Sizes 3200/2300/1100//2600
Shape/Style Elliptical
MC Code MC-406
Bulkheads Double between 1&2 and 3&4, Single between 2&3
Drain Troughs Under Compts. 1-3, Double Sump under 4
Barrel Condition Good
Product Hauled Gasoline

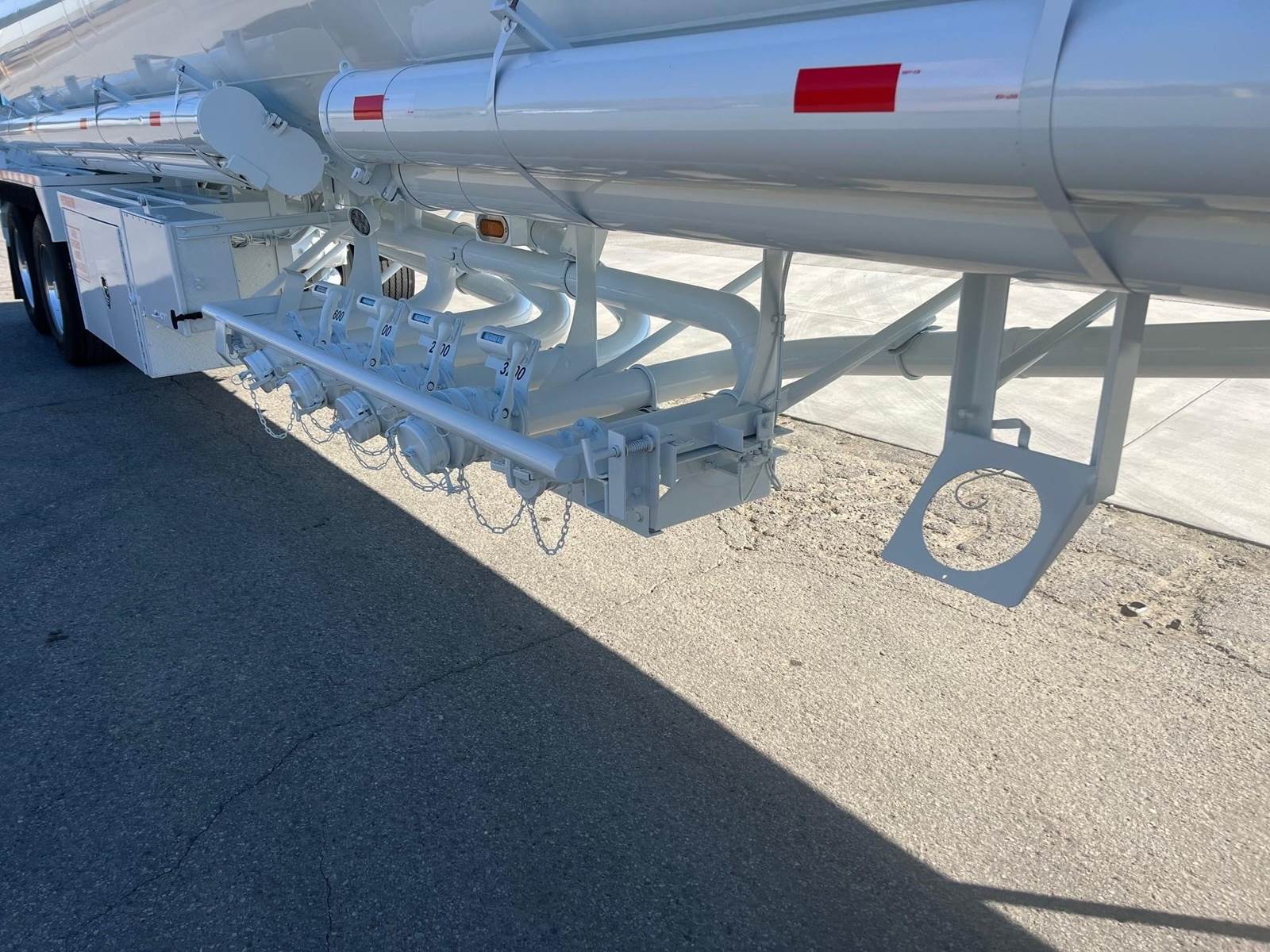

Piping Aluminum
Discharge Valves Openable Adaptors
Sight Glass Bubble Sight Glass
Commodity Indicators Yes, 8-Sided
Vapor Recovery Three Outlets
Overfill Protection Civacon ROM II, Top & Bottom Probes
Emergency Valves Air
EV Operators Inside EVO Cabinet

Ladder Front
Hose Tubes Four: Two C/S Front, Two C/S Rear
Stick Tube One

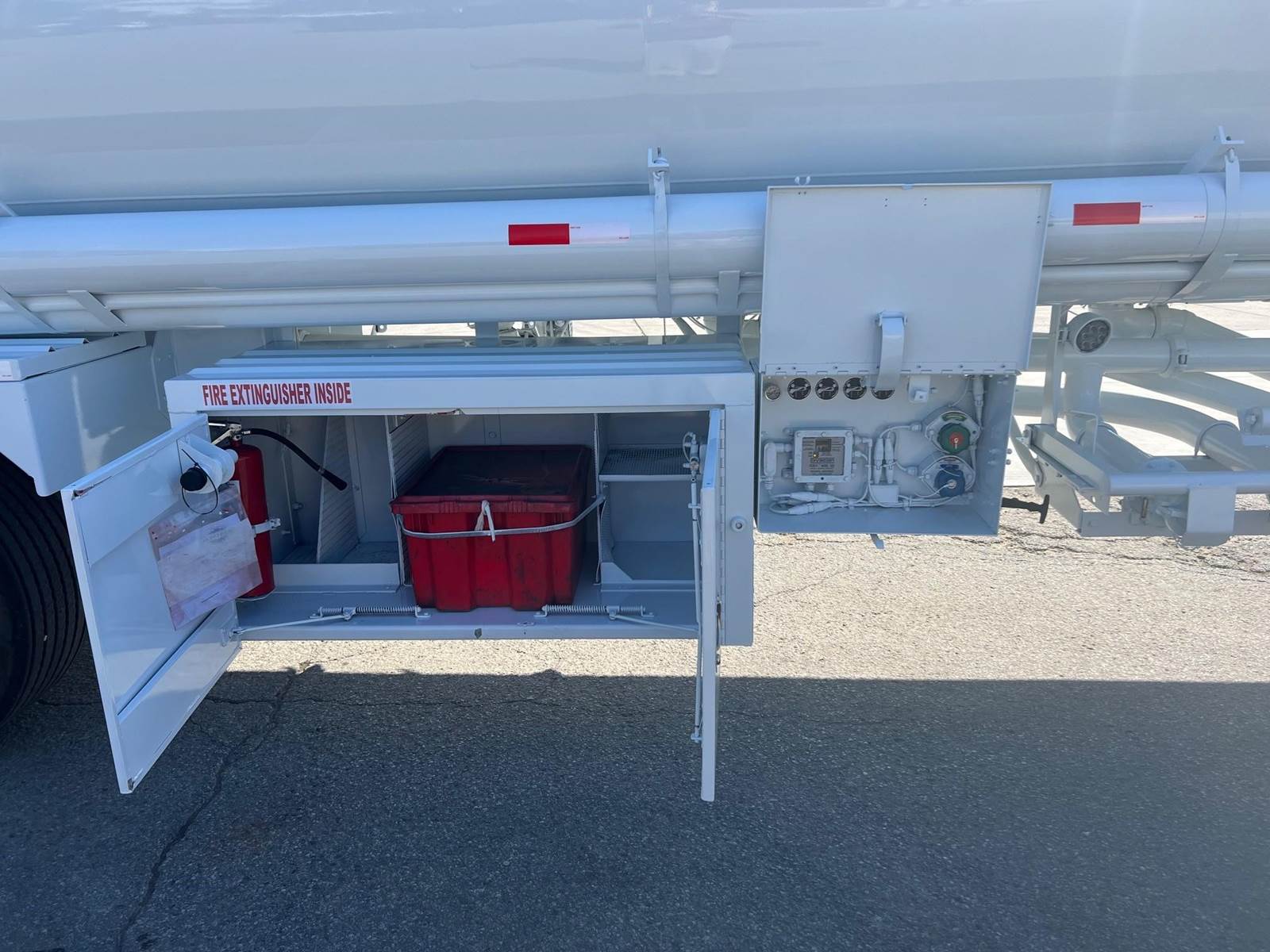

Fittings Cabinet 60" Double Door with Shelves
EVO Cabinet 25"Wx17"Hx9"D
Fenders Flat Aluminum, Front & Rear
Cone Holder Yes
Placards Placard Holders
Side Lights Seven (7) per Side on Flashing Rail
Rear Light Pkg (4) Stop/Tail, (3) Clearance w/ S/T at 3:00 & 9:00
Backup Lights Yes
Spot Lights Two at Discharge Area
Strobe Light Three Total - Two on C/S, One at Rear

# of Axles 2
Suspension Type Air Ride
Suspension Brand Hendrickson Intraax AANT-23K
Tire Size 445/50R22.5
Tire % 1-80%, 3-50%
Wheels Aluminum
Brake % Front-80%, Rear-50%

5th Wheel Condition Good
Landing Gear Two Speed
Suspension Frame Aluminum
Paint Entire Trailer Painted White
Paint Condition New
